Grid Monitoring at CERN with Elastic

In this talk Pablo Saiz presents the five different use cases where Elastic is used for WLCG monitoring at CERN:
- Messaging
- Job Monitoring
- Data Monitoring
- Infrastructure Monitoring
- Cloud Benchmarking
Pablo will also highlight the future goals with Elastic and their plan to expand their Elastic useage at CERN.

Pablo Saiz | Elastic{ON}Tour Munich | November 10, 2015

Transcript

1. Pablo Saiz 6-November-2015
   1
   Grid Monitoring at CERN with Elastic


   View Slide

2. IT-SDC
   IT-SDC Elastic{ON}Tour in Munich, Pablo Saiz, CERN
   Table of contents
   ▪ CERN
   ▪ Worldwide LHC Computing GRID (WLCG)
   ▪ Elastic for WLCG Monitoring
   ▪ Messaging
   ▪ Job Monitoring
   ▪ Data Monitoring
   ▪ Infrastructure monitoring
   ▪ Cloud benchmarking
   05/11/15 2


   View Slide

3. IT-SDC 3
   CERN was founded 1954: 12 European States
   “Science for Peace”
   Today: 21 Member States
   Member States: Austria, Belgium, Bulgaria, the Czech Republic, Denmark, Finland, France, Germany, Greece,
   Hungary, Israel, Italy, the Netherlands, Norway, Poland, Portugal, Slovakia, Spain, Sweden, Switzerland and the
   United Kingdom
   Candidate for Accession: Romania
   Associate Member in Pre-Stage to Membership: Serbia
   Applicant States for Membership or Associate Membership:

   Brazil, Cyprus, Pakistan, Russia, Slovenia, Turkey, Ukraine
   Observers to Council: India, Japan, Russia, Turkey, United States of America; European Commission and
   UNESCO
   ~ 2300 staff
   ~ 1600 other paid personnel
   ~ 10500 users
   Budget (2014) ~1000 MCHF
   Well known for:
   • Physics
   • WWW
   • Media: Angels & Demons,
   Flashforward, Daily show


   View Slide

4. IT-SDC
   IT-SDC Elastic{ON}Tour in Munich, Pablo Saiz, CERN
   CERN’s Accelerator Complex
   05/11/15 4
   http://cernland.net


   View Slide

5. IT-SDC
   IT-SDC Elastic{ON}Tour in Munich, Pablo Saiz, CERN
   Colliding particles (event)
   05/11/15 5
   Black Hole
   Higgs


   View Slide

6. IT-SDC
   IT-SDC Elastic{ON}Tour in Munich, Pablo Saiz, CERN
   WLCG
   ▪ Biggest scientific Grid project in the world
   ▪ ~170 computer centers (site)
   ▪ 1 Tier 0 (distributed in two locations)
   ▪ 12 bigger centers (Tier 1)
   ▪ ~160 Tier 2
   ▪ 42 countries
   ▪ 10,000 users
   ▪ Running since Oct 2008
   ▪ 2 million jobs per day
   ▪ ~600.000 cores
   ▪ 300 PB data
   05/11/15 6
   http://cern.ch/wlcg


   View Slide

7. IT-SDC
   IT-SDC Elastic{ON}Tour in Munich, Pablo Saiz, CERN
   WLCG
   05/11/15 7
   Including Max-Planck-
   Institut für Physik ,
   Munich


   View Slide

8. IT-SDC
   IT-SDC Elastic{ON}Tour in Munich, Pablo Saiz, CERN
   WLCG Monitoring
   ▪ Many different tools:
   ▪ Job, data transfers, services
   ▪ Usual Architecture:
   ▪ Python, RDBMS, apache, javascript
   ▪ Running since 2007
   ▪ Team of ~10 people
   ▪ Different audience:
   ▪ Site/service/experiment managers,
   end users, general public
   09/11/15 8
   http://dashboard.cern.ch


   View Slide

9. IT-SDC Elastic{ON} Tour in Munich, Pablo Saiz, CERN
   ElasticSearch configuration
   ▪ 2 clusters
   ▪ Production: 8 data, 2 search, 3 master
   ▪ Development: 2 data, 1 search, 1 master
   ▪ Data nodes: physical, 32GB, 32 core
   ▪ Search, master: virtual 8GB
   ▪ ~10 different use cases


   View Slide

10. IT-SDC
    IT-SDC Elastic{ON}Tour in Munich, Pablo Saiz, CERN

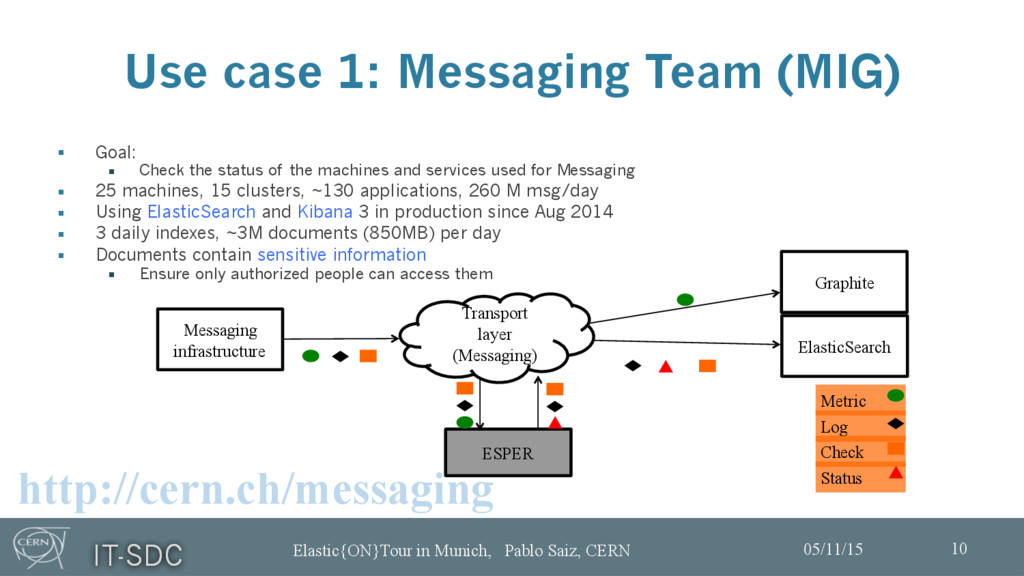

    Use case 1: Messaging Team (MIG)
    ▪ Goal:
    ▪ Check the status of the machines and services used for Messaging
    ▪ 25 machines, 15 clusters, ~130 applications, 260 M msg/day
    ▪ Using ElasticSearch and Kibana 3 in production since Aug 2014
    ▪ 3 daily indexes, ~3M documents (850MB) per day
    ▪ Documents contain sensitive information
    ▪ Ensure only authorized people can access them
    05/11/15 10
    Messaging
    infrastructure ElasticSearch
    ESPER
    Transport

    layer
    (Messaging)
    Log
    Check
    Metric
    Status
    Graphite
    http://cern.ch/messaging


    View Slide

11. IT-SDC
    IT-SDC Elastic{ON}Tour in Munich, Pablo Saiz, CERN
    MIG Dashboard
    05/11/15 11


    View Slide

12. IT-SDC
    IT-SDC Elastic{ON}Tour in Munich, Pablo Saiz, CERN
    Use case 2: Job Monitoring
    ▪ Goal: follow up the status of job processing
    ▪ ~2M daily jobs (170M updates) over ~170 sites
    ▪ Multiple applications: interactive view, summaries,
    accounting…
    ▪ Landing page query with 2 million records aggregation
    ▪ Aggregation 60M entries (100GB)
    ▪ In production (with RDBMS) since 2008
    ▪ Elasticsearch alternative in place
    ▪ Currently checking data consistency
    05/11/15 12


    View Slide

13. IT-SDC
    IT-SDC Elastic{ON}Tour in Munich, Pablo Saiz, CERN

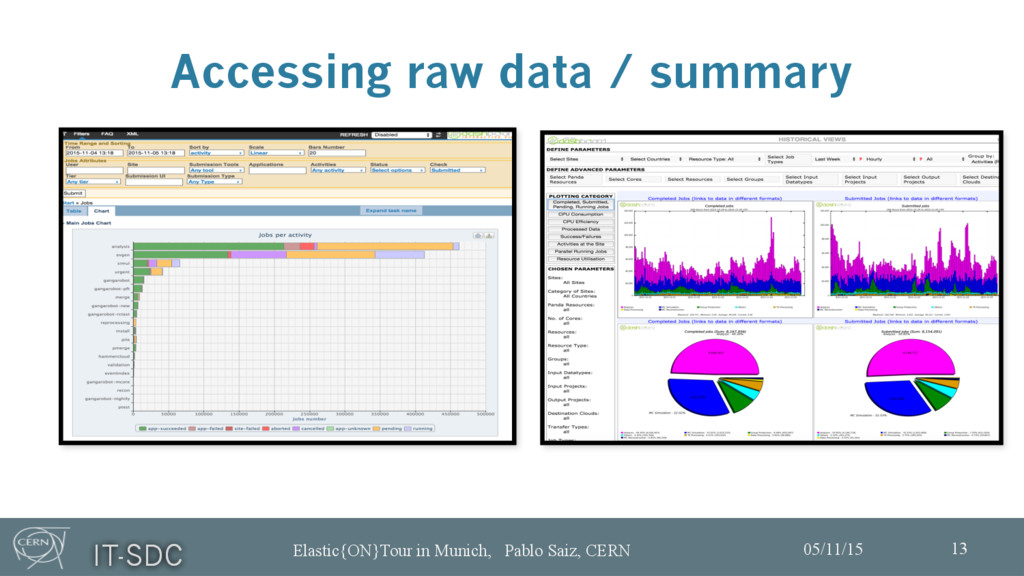

    Accessing raw data / summary
    05/11/15 13


    View Slide

14. IT-SDC
    IT-SDC Elastic{ON}Tour in Munich, Pablo Saiz, CERN

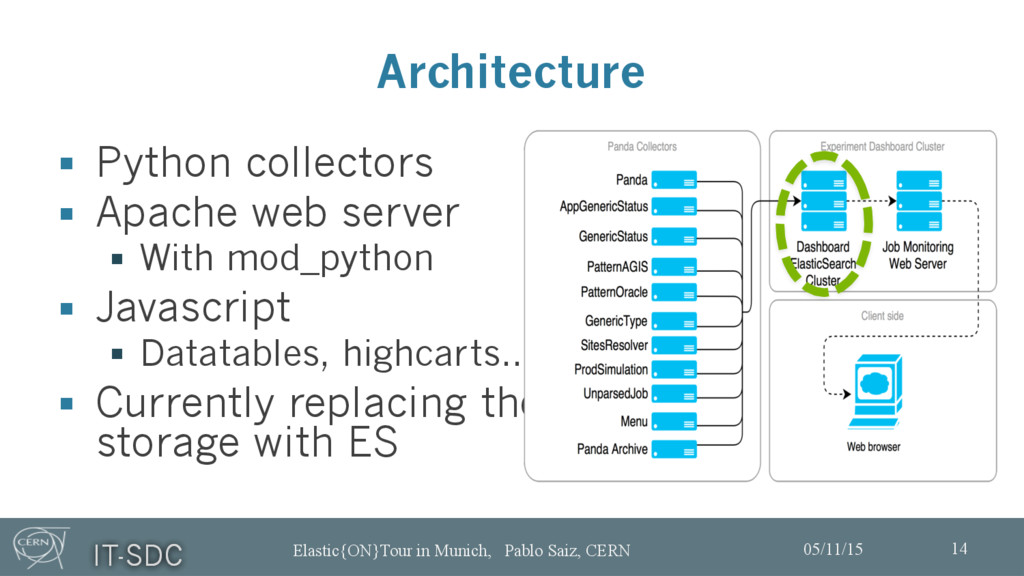

    Architecture
    ▪ Python collectors
    ▪ Apache web server
    ▪ With mod_python
    ▪ Javascript
    ▪ Datatables, highcarts…
    ▪ Currently replacing the
    storage with ES
    05/11/15 14


    View Slide

15. IT-SDC
    IT-SDC Elastic{ON}Tour in Munich, Pablo Saiz, CERN

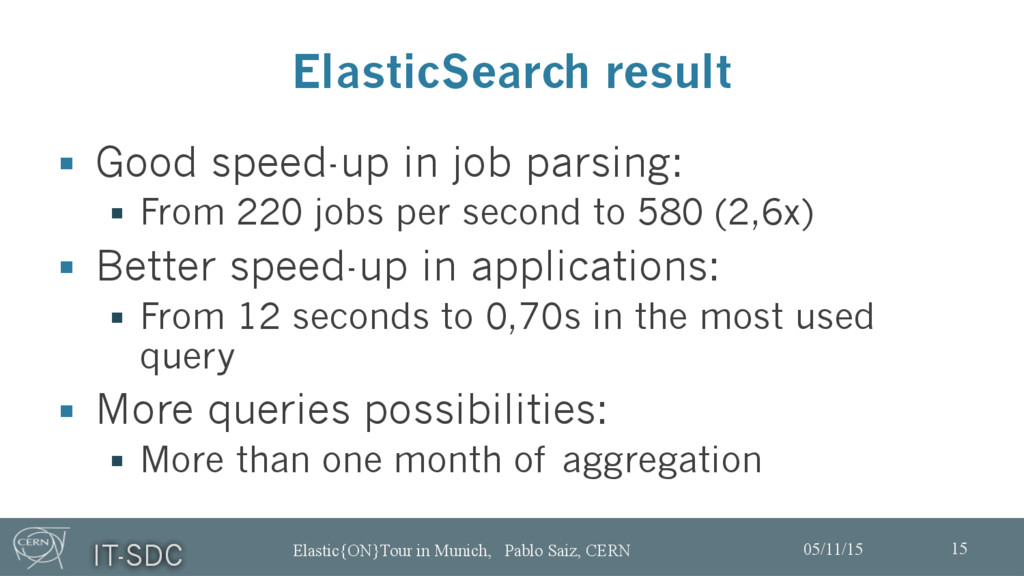

    ElasticSearch result
    ▪ Good speed-up in job parsing:
    ▪ From 220 jobs per second to 580 (2,6x)
    ▪ Better speed-up in applications:
    ▪ From 12 seconds to 0,70s in the most used
    query
    ▪ More queries possibilities:
    ▪ More than one month of aggregation
    05/11/15 15


    View Slide

16. IT-SDC
    IT-SDC Elastic{ON}Tour in Munich, Pablo Saiz, CERN
    Performance
    05/11/15 16
    Opening the landing page
    lasticSearch
    S (no cache)
    0 3 6 9 12
    11.8
    0.6
    Maximum updates per second
    Python +ElasticSearch
    Python +RDBMS
    0 150 300 450 600
    223
    584
    One Month Query
    lasticSearch
    S (no cache)
    0 300 600 900 1200
    1084.3
    14.1


    View Slide

17. IT-SDC
    IT-SDC Elastic{ON}Tour in Munich, Pablo Saiz, CERN

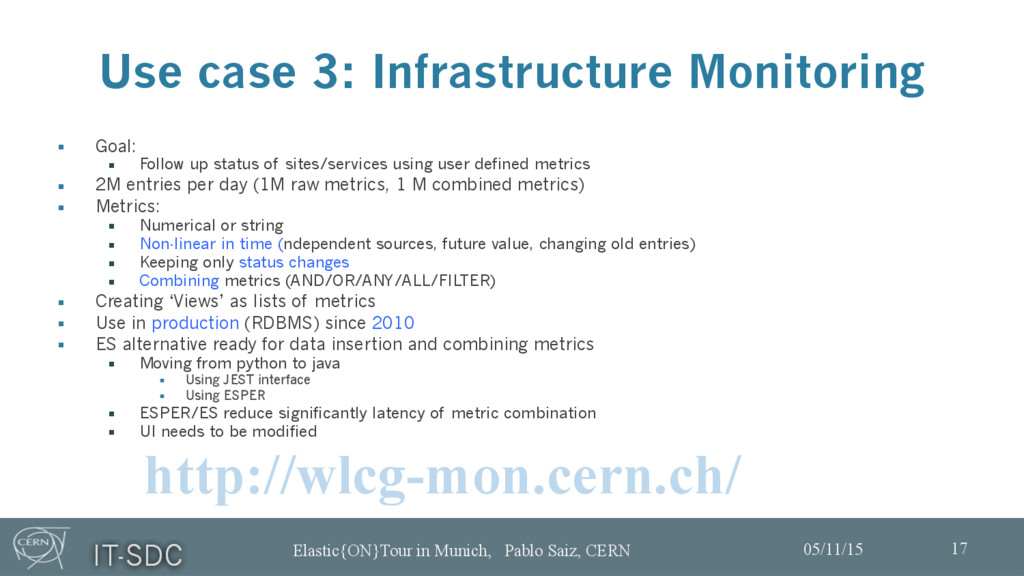

    Use case 3: Infrastructure Monitoring
    ▪ Goal:
    ▪ Follow up status of sites/services using user defined metrics
    ▪ 2M entries per day (1M raw metrics, 1 M combined metrics)
    ▪ Metrics:
    ▪ Numerical or string
    ▪ Non-linear in time (ndependent sources, future value, changing old entries)
    ▪ Keeping only status changes
    ▪ Combining metrics (AND/OR/ANY/ALL/FILTER)
    ▪ Creating ‘Views’ as lists of metrics
    ▪ Use in production (RDBMS) since 2010
    ▪ ES alternative ready for data insertion and combining metrics
    ▪ Moving from python to java
    ▪ Using JEST interface
    ▪ Using ESPER
    ▪ ESPER/ES reduce significantly latency of metric combination
    ▪ UI needs to be modified
    05/11/15 17
    http://wlcg-mon.cern.ch/


    View Slide

18. IT-SDC
    IT-SDC WLCG Monitoring Consolidation, Pablo Saiz, CERN
    Site Status Board
    05/11/15 18


    View Slide

19. IT-SDC
    IT-SDC Elastic{ON}Tour in Munich, Pablo Saiz, CERN
    How to combine metrics
    09/11/15 19
    Submit:
    ce1, ce2 OK
    ce3: FAIL
    Topo:
    Site1: ce1, ce2, St1, Tr1
    Sote2: ce3, St2
    Downtime
    ce3: maint
    CE
    ce1: OK
    ce2, ce3:FAIL
    Storage
    St1: OK
    St2: FAIL
    Transfer
    Tr1:OK
    CE
    Site1: Ok
    Site2: MAINT
    Storage
    Site1: OK
    Site2: FAIL
    Transfer
    Site1: OK
    Storage+ Transfer
    Site1:OK
    Site2: FAIL
    Status
    Site1: OK
    Site2: FAIL
    HOST SITE
    Example: Any CE AND ( Storage OR Transfer)
    Where
    CE=Submit AND Efficiency>80;
    Storage=Read AND Write; Transfer=CanTransfer
    Downtimes; Topology
    Efficiency:
    ce1:85 ce2:60
    ce3:90
    Read:
    St1: Ok
    St2: OK
    Write:
    St1 OK
    St2: FAIL
    Transfer:
    Tr1 OK
    CE
    ce1: OK
    Ce2: FAIL
    Ce3:MAINT
    Storage
    St1: OK
    St2: FAIL
    Transfer
    Tr1:OK


    View Slide

20. IT-SDC
    IT-SDC Elastic{ON}Tour in Munich, Pablo Saiz, CERN
    Use case 4: Data Monitoring
    ▪ Goal:
    ▪ Provide speed, success rate, volume of data
    movements
    ▪ 25M daily transfers, avg speed 10 GB/s
    ▪ RDBMS version in production since 2010
    ▪ Elastic alternative
    ▪ 1 index: 160M documents, 80 GB
    ▪ Current status: ES index created, and being
    populated. Still to work on UI
    05/11/15 20


    View Slide

21. IT-SDC
    IT-SDC Elastic{ON}Tour in Munich, Pablo Saiz, CERN

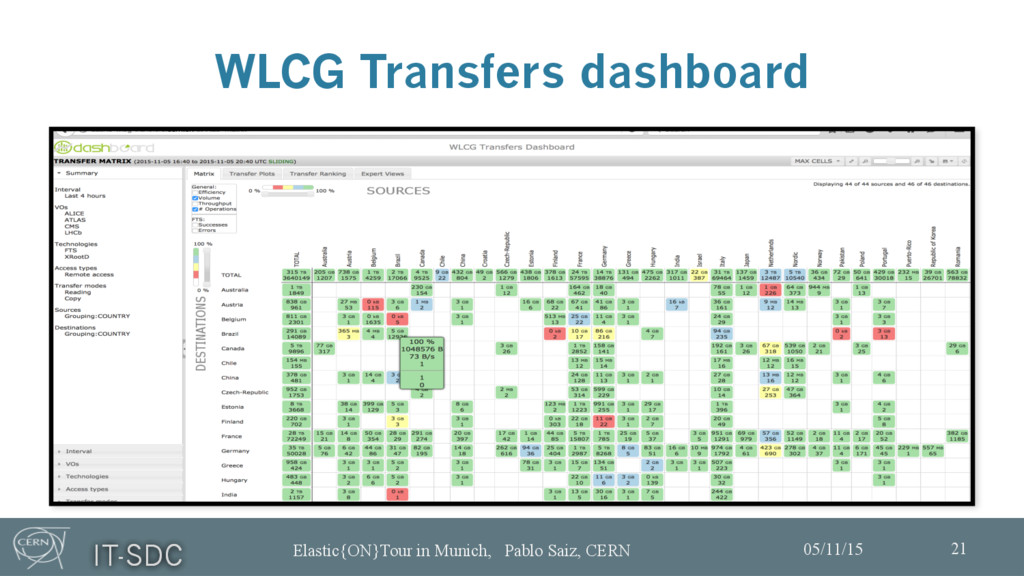

    WLCG Transfers dashboard
    05/11/15 21


    View Slide

22. IT-SDC
    IT-SDC Elastic{ON}Tour in Munich, Pablo Saiz, CERN
    Use case 5: Benchmarking Commercial Cloud
    Resources
    ▪ Goal: Compare different benchmark tools on different cloud providers
    ▪ Use 6 different benchmark tools and X cloud providers
    ▪ 1 index: 270K documents (~250 MB)
    ▪ Detailed analysis performed with Ipython analytics
    http://indico.cern.ch/event/384358/session/12/contribution/25
    05/11/15 22


    View Slide

23. IT-SDC
    IT-SDC Elastic{ON}Tour in Munich, Pablo Saiz, CERN
    Benchmark results at a glance
    ▪ Metric ~ [s]; each point ⬄10 min average; Colour ⬄ Cloud
    05/11/15 23


    View Slide

24. IT-SDC
    IT-SDC Elastic{ON}Tour in Munich, Pablo Saiz, CERN
    Qualitative look at data
    05/11/15 24
    1 VM 16 VMs 30 VMs 16 VMs
    25 VMs
    20 VMs
    ▪ Identifiable transition of CPU performance when load changes
    ▪ Seen in all benchmark measurements. Performance recovers scaling down


    View Slide

25. IT-SDC
    IT-SDC Elastic{ON}Tour in Munich, Pablo Saiz, CERN
    Qualitative look at data
    ▪ Larger dispersion in KV and FastBmk values in the highest-
    load region
    05/11/15 25
    1 VM 16 VMs 30 VMs 16 VMs
    25 VMs
    20 VMs


    View Slide

26. IT-SDC
    IT-SDC

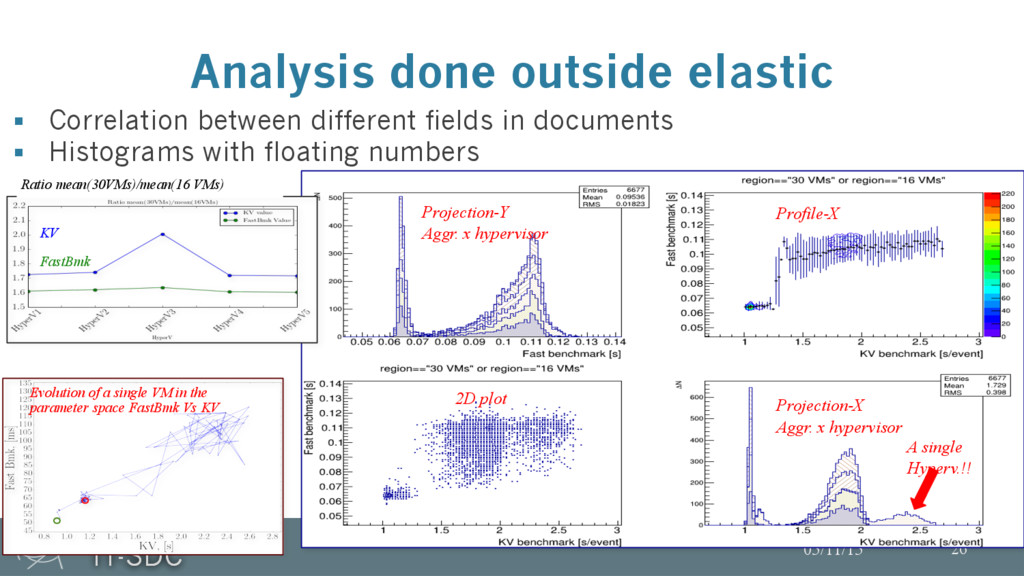

    Analysis done outside elastic
    ▪ Correlation between different fields in documents
    ▪ Histograms with floating numbers
    05/11/15 26
    Evolution of a single VM in the
    parameter space FastBmk Vs KV
    Ratio mean(30VMs)/mean(16 VMs)
    Projection-X
    Aggr. x hypervisor
    Projection-Y
    Aggr. x hypervisor
    Profile-X
    2D plot
    KV
    FastBmk
    A single

    Hyperv.!!


    View Slide

27. IT-SDC
    IT-SDC Elastic{ON}Tour in Munich, Pablo Saiz, CERN
    Next goals
    ▪ Use ES for Job Monitoring in production
    ▪ Migrate to ES 2
    ▪ Check indexes/shards
    ▪ Ensure fine-grained security
    ▪ Currently, based on apache configuration (allow
    only REST interface!)
    ▪ Need to move to another alternative
    ▪ Move to Kibana 4 (once security in place)
    05/11/15 27


    View Slide

28. IT-SDC
    IT-SDC Elastic{ON}Tour in Munich, Pablo Saiz, CERN
    Summary
    ▪ WLCG Grid Monitoring at CERN has been
    using Elastic in production for over year
    ▪ Currently, evaluating ElasticSearch for more
    use cases
    ▪ Very promising results so far!
    ▪ Looking forwards to expanding our Elastic
    usage!
    05/11/15 28


    View Slide
