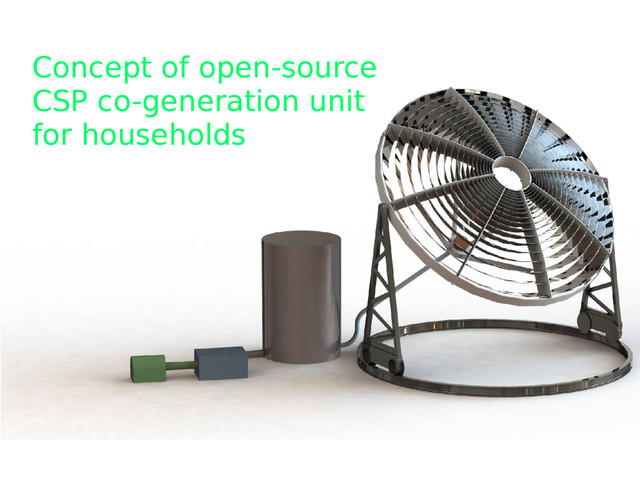

  1. Concept of open-source
    CSP co-generation unit
    for households

    View Slide

  2. challenge

    Renewable energy is at the core of
    sustainable development

    Not everyone can use renewables due to
    tecnological, financial and regulatory
    barriers

    Electricity grids are often restrictive

    Existing renewable energy soultions are
    often too expensive

    View Slide

  3. our solution

    Open-source co-generation
    Open-source co-generation solar powerplant
    artist rendering, based on concept drawings

    View Slide

  4. core components

    View Slide

  5. how it works
    1) Fresnel lens concnetrator focuses solar rays onto the heat receiver.
    Temperatures at the focal area may exceed 800° C. Solar tracker governs a system
    of stepper motors which position concentrator precisely to get maximum amount of
    solar rays
    2) Heat reciever transfers heat to salt solution which circulates to the high-
    temperature storage. At this stage salt solution is used, as it can store more
    thermal energy at higher temperature than water.
    3) High-temperature heat storage is an extremely well insulated tank which
    purpose it to store extremely hot salt solution with minimal heat loss. Such storage
    provides opportunity to generate electricity and heat whenever user needs it,
    independent of the rapidly changing. Industrial variants of heat storage can store
    heat at around 800° C up to 5 months. In our case, we plan to be able to store that
    temperature for 10 days.
    4) Through a system of heat exchangers the thermal energy from salt solution in heat
    storage is used for turning water into pressurized vapor which moves steam
    turbine. We plan to re-use automotive steam turbines, commonly found in many
    vehicles with internal combustion engines. Heat recuperation system condenses
    the used steam back into the water
    5) Steam turbine is connected to AC generator which produces electricity for the
    users

    View Slide

  6. advantages
    The powerplant we are designing will have a series of
    advantages:
    – Completely open-source. Available for commercial or non-
    commercial usage.
    – Electic power output — 3-10 kW (depending on number of
    turbines/generator used)
    – Easy-to-replace mirror segments
    – Can be built and assembled in non-industrial settings
    – Modular design
    – Delivers power when needed independent of weather
    – Does not require grid
    – Scalable
    – Allows for maximum usage of local materials

    View Slide

  7. we started from this
    More details can be found here: https://goo.gl/Yr56ll

    View Slide

  8. where are we now?

    Busy designing and testing new solar concentrators

    Experimenting with steam turbines

    View Slide

  9. where are we now?

    Busy designing and and testing new solar concentrators

    Experimenting with steam turbines

    View Slide

  10. our next steps
    1) Finishing the design and mechanics of the solar concentrator
    2) Designing the heat exchanger part of the concentrator
    3) Assembling solar concentrator and testing it
    4) Researching the usage of turbines for power generation
    5) Designing and assembling solar tracker for concentrator
    6) Experimenting with automotive turbines and finding cheap solution
    for pressurized steam utilization
    7) Designing heat storage
    8) Assembling heat storage
    9) Integrating heat exchanger of the concentrator with heat storage
    10) Integrating heat storage with turbines/generator units
    11) Evaluating the performance of the heat storage
    12) Adding security controls
    13) Finalizing integration of the system
    14) Testing and optimizations

    View Slide

  11. join us, support us!
    We are Design-It-Together project, so we are more than happy to
    invite new project participants, supporters, sponsors.
    Zinchenko Andrij
    +380677441580
    [email protected]
    Orlov Oleksandr
    +380969562641
    [email protected]
