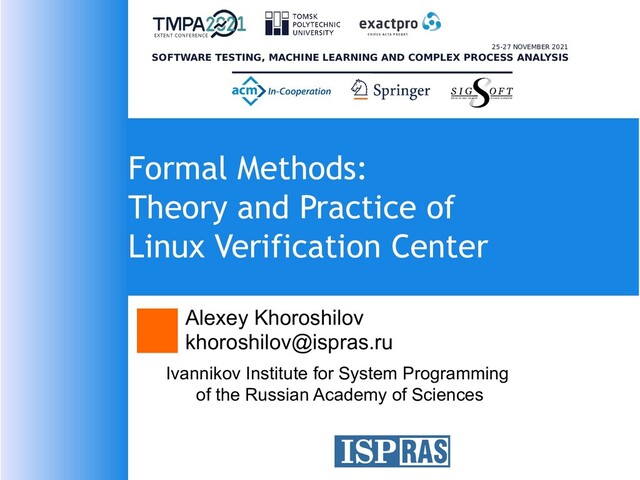

1. Formal Methods:
   Theory and Practice of
   Linux Verification Center
   Alexey Khoroshilov
   khoroshilov@ispras.ru
   Ivannikov Institute for System Programming
   of the Russian Academy of Sciences
   SOFTWARE TESTING, MACHINE LEARNING AND COMPLEX PROCESS ANALYSIS
   25-27 NOVEMBER 2021


   View Slide

2. Bug-free software


   View Slide

3. Bug-free software


   View Slide

4. ● In all possible configurations
   on all possible input data
   with all possible interactions with environments
   with all possible timings/preemptions/...
   ● software behaves correctly
   Formal Methods: A mathematical magic tool


   View Slide

5. Formal Methods: How it works
   Software
   Software
   Model
   Mathematical world
   Real world


   View Slide

6. Formal Methods: How it works
   Software Requirements
   Software
   Model
   Requirements
   Model
   Mathematical world
   Real world


   View Slide

7. Formal Methods: How it works
   Software Requirements
   Software
   Model
   Requirements
   Model
   Mathematical world
   satisfies to
   Real world


   View Slide

8. Formal Methods: How it works
   Software Requirements
   Software
   Model
   Requirements
   Model
   Mathematical world
   Proof
   satisfies to
   Real world


   View Slide

9. Formal Methods: Problem 1
   Software
   Software
   Model
   Mathematical world
   Real world


   View Slide

10. Formal Methods: Problem 2
    Software Requirements
    Software
    Model
    Requirements
    Model
    Mathematical world
    Real world


    View Slide

11. Formal Methods: Problem 3
    Software Requirements
    Software
    Model
    Requirements
    Model
    Mathematical world
    satisfies to
    Real world


    View Slide

12. Formal Methods: Problem 4
    Software Requirements
    Software
    Model
    Requirements
    Model
    Mathematical world
    Proof
    satisfies to
    Real world


    View Slide

13. Formal Methods: Challenges
    Software Requirements
    Software
    Model
    Requirements
    Model
    Mathematical world
    Proof
    satisfies to
    Real world
    1. Transition
    2. Complexity


    View Slide

14. Challenge 1 - Transition
    ● Transition from the informal to the formal is
    essentially informal
    M.R. Shura Bura


    View Slide

15. Challenge 1 - Transition
    ● Transition from the informal to the formal is
    essentially informal
    M.R. Shura Bura
    Requirements
    Requirements
    Model
    ● Software behaves correctly
    ● Requirements for real software
    are complex
    JetOS (DO-178C Avionics RTOS) developed by ISPRAS
    HLR (~80%) LLR (~50%)
    Pages (A4) 1048 2620
    Elements 3041 7753
    Requirements 1359 2408
    Definitions 894 1960
    Notes 785 2383
    Sections 471 1620


    View Slide

16. Challenge 1 - Transition
    JetOS (DO-178C Avionics RTOS) developed by ISPRAS
    HLR (~80%) LLR (~50%)
    Pages (A4) 1048 2620
    Elements 3041 7753
    Requirements 1359 2408
    Definitions 894 1960
    Notes 785 2383
    Sections 471 1620
    Source Code Statistics
    Components 57
    Functions 892
    Lines 23 KLoC
    Linux Kernel 21 640 KLoC
    OpenJDK 11 641 KLoC
    PostgreSQL 1 123 KLoC
    Statistics by
    https://www.openhub.net
    accessed 24 Nov 2021
    1 HLR per 17 LoC


    View Slide

17. Challenge 1 - Transition
    ● Any precise enough (formal) requirements are
    complex and definitely contains bugs
    ● Mitigations:
    ● Formalize only simple properties
    ● Easily audited by experts (or even stakeholders)
    ● Avoid requirements at all, check for absent of
    typical bugs or assert in the code
    ● e.g. safety properties: buffer overrun, NULL pointer
    dereference, double free, etc.
    ● Complete specifications
    ● Checked against implementations
    ● Checked for self-consistency by tools
    ● Reviewed by experts


    View Slide

18. Challenge 1 - Transition
    ● Any precise enough (formal) requirements are complex
    and definitely contains bugs
    ● Mitigations:
    ● Formalize only simple properties
    ● Easily audited by experts (or even stakeholders)
    ● good confidence, limited scope
    ● Avoid requirements at all, check for absent of typical bugs
    or assert in the code
    ● e.g. safety properties: buffer overrun, NULL pointer
    dereference, double free, etc.
    ● good confidence, very limited scope
    ● Complete specifications
    ● Checked against implementations
    ● Checked for self-consistency by tools
    ● Reviewed by experts
    ● questionable confidence, large scope


    View Slide

19. Challenge 2 - Complexity


    View Slide

20. Challenge 2 - Complexity
    Linux kernel/_do_syscall_accept call graph


    View Slide

21. Challenge 2 - Complexity


    View Slide

22. Challenge 2 - Complexity


    View Slide

23. Challenge 2 - Complexity
    ● The main mitigation is abstraction
    ● Simplify and ignore irrelevant details
    ● Focus on and generalize important central
    properties and characteristics
    ● Avoid premature design and implementation
    choices


    View Slide

24. Complexity Challenge – Pattern 1
    Software Requirements
    Software
    Model
    Requirements
    Model
    Mathematical world
    Proof
    satisfies to
    Real world
    - Translation
    - Abstraction
    - Abstraction
    - Deductive Verification
    - Model Checking


    View Slide

25. Software model built by expert
    ● Model checking
    ● fully automated proof
    ● any incremental change in SW or Reqs can step
    over limits of the tool capacities
    ● with no good fall back
    ● Deductive verification
    ● manual decomposition
    ● automated discharge of generated verification
    conditions
    ● fall back to interactive theorem proving if VC is too
    complex
    Complexity Challenge – Pattern 1


    View Slide

26. Software model built by expert
    ● Model checking
    ● fully automated proof
    ● any incremental change in SW or Reqs can step over limits
    of the tool capacities
    ● with no good fall back
    ● good confidence, moderate efforts, limited size
    ● Deductive verification
    ● manual decomposition
    ● automated discharge of generated verification conditions
    ● fall back to interactive theorem proving if VC is too complex
    ● good confidence, big efforts, big scope (limited by cost)
    Complexity Challenge – Pattern 1


    View Slide

27. Complexity Challenge – Pattern 2
    Software Requirements
    Software
    Model
    Requirements
    Model
    Mathematical world
    Proof
    satisfies to
    Real world
    - Translation - Abstraction
    - Software Deductive Verification
    - abstraction at decomposition level


    View Slide

28. Software model built by tools (white box),
    abstraction done by expert at decomposition
    level
    ● Software deductive verification
    ● manual abstraction at decomposition level
    ● e.g. pre/post conditions, loop invariants, ...
    ● automated discharge of generated verification
    conditions
    ● fall back to interactive theorem proving if VC is
    too complex
    Complexity Challenge – Pattern 2


    View Slide

29. Software model built by tools (white box),
    abstraction done by expert at decomposition level
    ● Software deductive verification
    ● manual abstraction at decomposition level
    ● e.g. pre/post conditions, loop invariants, ...
    ● automated discharge of generated verification
    conditions
    ● fall back to interactive theorem proving if VC is too
    complex
    ● good confidence, big efforts, big scope (limited by
    cost)
    Complexity Challenge – Pattern 2


    View Slide

30. Complexity Challenge – Pattern 3
    Software Requirements
    Software
    Model
    Requirements
    Model
    Mathematical world
    Proof
    satisfies to
    Real world
    - Translation - Abstraction
    - Software Model Checking
    - abstraction during building proof


    View Slide

31. Software model built by tools (black box),
    abstraction done by the tools during building
    the proof
    ● Software model checking
    ● fully automated proof
    ● any incremental change in SW or Reqs can step
    over limits of the tool capacities
    ● with no good fall back
    Complexity Challenge – Pattern 3


    View Slide

32. Software model built by tools (black box),
    abstraction done by the tools during building
    the proof
    ● Software model checking
    ● fully automated proof
    ● any incremental change in SW or Reqs can step
    over limits of the tool capacities
    ● with no good fall back
    ● good confidence, moderate efforts, limited
    complexity of code and requirements
    ● less confidence, better scope
    Complexity Challenge – Pattern 3


    View Slide

33. Complexity Challenge – Pattern 4
    Software Requirements
    Execution
    Trace
    Model
    Requirements
    Model
    Mathematical world
    Proof
    satisfies to
    Real world
    - Translation - Abstraction
    - Trace Checkers
    Execution
    Trace


    View Slide

34. ● Software model is not built at all,
    test execution with collection of events and
    checking them against requirements model
    ● Run Time Verification
    ● traces are checked against model automatically
    ● much easier
    ● tests prepared manually or generated from the
    requirements model
    Complexity Challenge – Pattern 4


    View Slide

35. ● Software model is not built at all,
    test execution with collection of events and
    checking them against requirements model
    ● Run Time Verification
    ● traces are checked against model automatically
    ● much easier
    ● tests prepared manually or generated from the
    requirements model
    ● sacrificed confidence, moderate efforts,
    almost unlimited complexity
    Complexity Challenge – Pattern 4


    View Slide

36. Challenge 2 - Complexity
    ● Deductive Verification
    ● Models Deductive Verification
    ● Software Deductive Verification
    ● good confidence, big efforts, big scope
    (limited by cost)
    ● Model Checking
    ● Traditional Model Checking
    ● Software Model Checking
    ● good confidence, moderate efforts, limited
    complexity of code and requirements
    ● Run Time Verification
    ● sacrificed confidence, moderate efforts,
    almost unlimited complexity


    View Slide

37. founded in 2005
    ● User Space Model Based Testing
    ● Application Binary/Program Interface Stability
    ● Linux Driver Verification Program
    ● Linux File System Verification
    ● Deductive Verification of Operating Systems
    ● Model Based Access Control Testing
    Linux Verification Center


    View Slide

38. founded in 2005
    ● User Space Model Based Testing – Pattern 4
    ● Application Binary/Program Interface Stability
    ● Linux Driver Verification Program
    ● Linux File System Verification
    ● Deductive Verification of Operating Systems
    ● Model Based Access Control Testing
    Linux Verification Center


    View Slide

39. Open Linux VERification
    Linux Standard Base 3.1
    LSB Core ABI
    GLIBC
    libc libcrypt libdl
    libpam libz libncurses
    libm libpthread librt libutil
    LSB Core 3.1 / ISO 23360
    ABI Utilities ELF, RPM, …
    LSB C++ LSB Desktop


    View Slide

40. ● Requirements catalogue built for LSB and POSIX
    ● 1532 interfaces
    ● 22663 elementary requirements
    ● 97 deficiencies in specification reported
    ● Formal specifications and tests developed for
    ● 1270 interface (good quality)
    ● + 260 interfaces (basic quality)
    ● 80+ bugs reported in modern distributions
    ● OLVER is a part of the official LSB Certification test suite
    http://ispras.linuxfoundation.org
    OLVER Results


    View Slide

41. Test Suite Architecture
    Legend:
    Automatic derivation
    Pre-built
    Manual Generated
    Specification Test coverage tracker
    Test
    oracle
    Data
    model
    Mediator Mediator
    Test scenario Scenario driver Test engine
    System
    Under
    Test


    View Slide

42. ● model based testing allows to achieve better quality
    using less resources
    ● maintenance of MBT is cheaper
    OLVER Conclusions


    View Slide

43. ● model based testing allows to achieve better quality
    using less resources
    if you have smart test engineers
    ● maintenance of MBT is cheaper
    if you have smart test engineers
    OLVER Conclusions


    View Slide

44. founded in 2005
    ● User Space Model Based Testing
    ● Application Binary/Program Interface Stability
    ● Linux Driver Verification Program – Pattern 3
    ● Linux File System Verification
    ● Deductive Verification of Operating Systems
    ● Model Based Access Control Testing
    Linux Verification Center


    View Slide

45. Commit Analysis(*)
    ● All patches in stable trees (2.6.35 – 3.0) for 1
    year:
    ● 26 Oct 2010 – 26 Oct 2011
    ● 3101 patches overall
    (*) Khoroshilov A.V., Mutilin V.S., Novikov E.M. Analysis of typical faults in Linux operating system drivers.
    Proceedings of the Institute for System Programming of RAS, volume 22,
    2012, pp. 349-374. (In Russian)
    http://ispras.ru/ru/proceedings/docs/2012/22/isp_22_2012_349.pdf
    Raw data: http://linuxtesting.org/downloads/ldv-commits-analysis-2012.zip


    View Slide

46. Taxonomy of Typical Bugs
    Rule classes Types
    Number of
    bug fixes
    Percents
    Cumulative
    total
    percents
    Correct usage of the
    Linux kernel API
    (176 ~ 50%)
    Alloc/free resources 32 ~18% ~18%
    Check parameters 25 ~14% ~32%
    Work in atomic context 19 ~11% ~43%
    Uninitialized resources 17 ~10% ~53%
    Synchronization primitives
    in one thread
    12 ~7% ~60%
    Style 10 ~6% ~65%
    Network subsystem 10 ~6% ~71%
    USB subsystem 9 ~5% ~76%
    Check return values 7 ~4% ~80%
    DMA subsystem 4 ~2% ~82%
    Core driver model 4 ~2% ~85%
    Miscellaneous 27 ~15% 100%
    Generic
    (102 ~ 30%)
    NULL pointer dereferences 31 ~30% ~30%
    Alloc/free memory 24 ~24% ~54%
    Syntax 14 ~14% ~68%
    Integer overflows 8 ~8% ~76%
    Buffer overflows 8 ~8% ~83%
    Uninitialized memory 6 ~6% ~89%
    Miscellaneous 11 ~11% 100%
    Synchronization
    (71 ~ 20%)
    Races 60 ~85% ~85%
    Deadlocks 11 ~15% 100%
    Reacha
    bility
    CPALockator
    SMG


    View Slide

47. ● Modular framework for software verification
    ● Written in Java
    ● Open source: Apache 2.0 License
    ● Over 40 contributors so far
    from ~8 universities/institutions
    ● ~300 000 lines of code
    (170 000 without blanks and comments)
    ● Started 2007
    http://cpachecker.sosy-lab.org


    View Slide

48. Linux Driver Verification
    http://linuxtesting.org/ldv


    View Slide

49. ● The main strategy
    ● by natural border of loadable kernel modules
    Partitioning


    View Slide

50. int main(int argc,char* argv[])
    {
    ...
    other_func(var);
    ...
    }
    void other_func(int v)
    {
    ...
    assert( x != NULL);
    }
    Verification Tools World


    View Slide

51. Device Driver World
    int usbpn_open(struct net_device *dev) { ... };
    int usbpn_close(struct net_device *dev) { ... };
    struct net_device_ops usbpn_ops = {
    .ndo_open = usbpn_open, .ndo_stop = usbpn_close
    };
    int usbpn_probe(struct usb_interface *intf, const struct usb_device_id *id){
    dev->netdev_ops = &usbpn_ops;
    err = register_netdev(dev);
    }
    void usbpn_disconnect(struct usb_interface *intf){...}
    struct usb_driver usbpn_struct = {
    .probe = usbpn_probe, .disconnect = usbpn_disconnect,
    };
    int __init usbpn_init(void){ return usb_register(&usbpn_struct);}
    void __exit usbpn_exit(void){usb_deregister(&usbpn_struct );}
    module_init(usbpn_init);
    module_exit(usbpn_exit); No explicit calls to
    init/exit procedures


    View Slide

52. Device Driver World
    int usbpn_open(struct net_device *dev) { ... };
    int usbpn_close(struct net_device *dev) { ... };
    struct net_device_ops usbpn_ops = {
    .ndo_open = usbpn_open, .ndo_stop = usbpn_close
    };
    int usbpn_probe(struct usb_interface *intf, const struct usb_device_id *id){
    dev->netdev_ops = &usbpn_ops;
    err = register_netdev(dev);
    }
    void usbpn_disconnect(struct usb_interface *intf){...}
    struct usb_driver usbpn_struct = {
    .probe = usbpn_probe, .disconnect = usbpn_disconnect,
    };
    int __init usbpn_init(void){ return usb_register(&usbpn_struct);}
    void __exit usbpn_exit(void){usb_deregister(&usbpn_struct );}
    module_init(usbpn_init);
    module_exit(usbpn_exit);
    Callback interface
    procedures registration
    No explicit calls to
    init/exit procedures


    View Slide

53. Device Driver World
    int usbpn_open(struct net_device *dev) { ... };
    int usbpn_close(struct net_device *dev) { ... };
    struct net_device_ops usbpn_ops = {
    .ndo_open = usbpn_open, .ndo_stop = usbpn_close
    };
    int usbpn_probe(struct usb_interface *intf, const struct usb_device_id *id){
    dev->netdev_ops = &usbpn_ops;
    err = register_netdev(dev);
    }
    void usbpn_disconnect(struct usb_interface *intf){...}
    struct usb_driver usbpn_struct = {
    .probe = usbpn_probe, .disconnect = usbpn_disconnect,
    };
    int __init usbpn_init(void){ return usb_register(&usbpn_struct);}
    void __exit usbpn_exit(void){usb_deregister(&usbpn_struct );}
    module_init(usbpn_init);
    module_exit(usbpn_exit);
    Callback interface
    procedures registration
    No explicit calls to
    init/exit procedures


    View Slide

54. Active Driver Environment Model (1)
    int main(int argc,char* argv[])
    {
    usbpn_init()
    for(;;) {
    switch(*) {
    case 0: usbpn_probe(*,*,*);break;
    case 1: usbpn_open(*,*);break;
    ...
    }
    }
    usbpn_exit();
    }


    View Slide

55. ● Order limitation
    ● open() after probe(), but before remove()
    ● Implicit limitations
    ● read() only if open() succeed
    ● and it is specific for each class of drivers
    Active Driver Environment Model (2)


    View Slide

56. ● Precise
    ● Complete - to avoid missing bugs
    ● Correct - to avoid false alarms
    Active Driver Environment Model (3)


    View Slide

57. Active Driver Environment Model (3)
    ● Precise
    ● Complete - to avoid missing bugs
    ● Correct - to avoid false alarms
    ● Simple enough


    View Slide

58. Bugs Found http://linuxtesting.org/results/ldv
    >420 patches already applied


    View Slide

59. founded in 2005
    ● User Space Model Based Testing
    ● Application Binary/Program Interface Stability
    ● Linux Driver Verification Program
    ● Linux File System Verification
    ● Deductive Verification of Operating Systems
    ● Model Based Access Control Testing
    Linux Verification Center
    – Patterns 1 & 2


    View Slide

60. • MLS+MIC+RBAC Access control model
    (proprietary LSM, AstraLinux)
    – 4500 LoC
    – 60 Vars, 75 Events, 248 Invariants
    – 2962 Proof Obligations
    • MLS+MIC Access control model
    (SELinux-based LSM, BaseAlt Linux)
    ● 1500 LoC
    ● 25 Vars, 35 Events, 56 Invariants
    ● 791 Proof Obligations
    Deductive Verification of Models – Pattern 1


    View Slide

61. • Proprietary LSM (AstraLinux)
    – 10 KLoC
    – sequential properties
    – assumption of correctness of library functions
    • Collaboration with developers
    – Special tools to merge specification into code
    – Specifications are in source code repository now
    – Continuous Verification
    ● GitLab CI tasks to reverify each commit
    ● VerKer - Linux unmodified kernel library functions (25)
    https://forge.ispras.ru/projects/verker - open source
    Deductive Verification of Code – Pattern 2


    View Slide

62. Linux Kernel Specifics
    ● Low level memory operations
    ● Arithmetics with pointers to fields of structures
    (container_of)
    ● Prefix structure casts
    ● Reinterpret casts
    ● Integer overflows
    ● Concurrency
    ● Other
    ● Functional pointers
    ● String literals


    View Slide

63. View Slide

64. Several 3rd Party Industrial Applications


    View Slide

65. Industry Applications
    ● UK Air Traffic Management System
    ● 250 KLOC of logical lines of code (in Ada)
    ● proof type safety, few functional correctness code
    ● 153K VCs, of which 98.76% are proven
    automatically
    (*) Angela Wallenburg “Safe and Secure Programming Using Spark”
    – Pattern 2


    View Slide

66. Years Tools Target code Scope Size
    Verisoft 2004-2008 Isabelle
    designed for
    verification
    hw/kernel/
    compiler/
    libraries/apps
    10 kLOC
    (kernel)
    L4.verified
    seL4 2004-2009 Isabelle
    designed for
    verification,
    performance
    oriented
    microkernel
    security model
    (no MMU)
    7.5 kLOC
    (without asm
    and boot)
    Verisoft-XT
    small-hv
    2007-2013 VCC
    designed for
    verification
    separation
    property only
    2.5 kLOC
    Verisoft-XT
    Hyper-V 2007-2013 VCC industrial
    separation
    property only
    100 kLOC
    Verisoft-XT
    PikeOS 2007-2013 VCC
    industrial,
    simplicity for
    performance
    some system
    calls
    10 KLOC
    OS Deductive Verification – Pattern 2


    View Slide

67. Years Tools Target code Scope Size
    Verisoft 2004-2008 Isabelle
    designed for
    verification
    hw/kernel/
    compiler/
    libraries/apps
    10 kLOC
    (kernel)
    L4.verified
    seL4 2004-2009 Isabelle
    designed for
    verification,
    performance
    oriented
    microkernel
    security model
    (no MMU)
    7.5 kLOC
    (without asm
    and boot)
    Verisoft-XT
    small-hv
    2007-2013 VCC
    designed for
    verification
    separation
    property only
    2.5 kLOC
    Verisoft-XT
    Hyper-V 2007-2013 VCC industrial
    separation
    property only
    100 kLOC
    Verisoft-XT
    PikeOS 2007-2013 VCC
    industrial,
    simplicity for
    performance
    some system
    calls
    10 KLOC
    OS Deductive Verification
    2:1 overhead for specifications and 10:1 overhead for the proofs
    – Pattern 2


    View Slide

68. Industry Applications – Software Model Checking
    – Pattern 3


    View Slide

69. Formal Methods: Conclusions


    View Slide

70. ● A mathematical magic tool proving that
    in all possible configurations
    on all possible input data
    with all possible interactions with environments
    with all possible timings/preemptions/...
    ● software behaves correctly
    ● Trade off between
    ● confidence
    ● feasibility
    ● cost
    Formal Methods: Conclusions


    View Slide

71. Formal methods
    ● can be applied with various levels of resource
    investment/confidence ratio
    ● can guarantee the absence of certain defects
    under certain assumptions
    ● provides a valuable method to increase
    confidence in system reliability
    Conclusions (1)


    View Slide

72. ● Proving absence of typical bugs/safety properties
    ● limited efforts, variable confidence, limited size of code
    ● Full-fledged formal specifications of requirements
    ● encourages an abstract view of the system
    ● often more valuable than verification itself
    ● deductive verification
    ● expensive, good confidence, limited scope
    ● run time verification
    ● moderate cost, limited confidence, unlimited size of code
    Conclusions (2)


    View Slide

73. ● Combination of techniques, move forward each other
    ● Deductive verification
    ● Software model checking
    ● Run time verification
    ● Aspect-based requirements models
    ● Abstraction hints for tools
    ● Better automation and human-machine interface
    Future Directions


    View Slide

74. Ivannikov Institute for System Programming of the Russian Academy of Sciences
    Thank you!
    http://linuxtesting.org
    http://ispras.ru


    View Slide

75. Ivannikov Institute for System Programming of the Russian Academy of Sciences
    Thank you!
    Alexey Khoroshilov
    khoroshilov@ispras.ru
    http://linuxtesting.org/
    Morris Kline. “Mathematics: The Loss of Certainty” Oxford Press, 1980


    View Slide
