Container Network Interface: Network plugins for Kubernetes and beyond

The talk from KubeCon 2015

Transcript

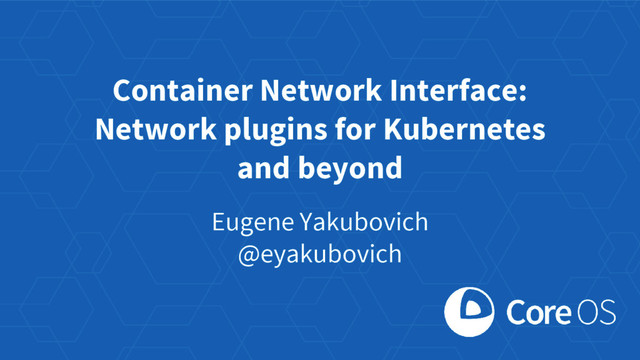

1. Container Network Interface: Network plugins for Kubernetes and beyond Eugene Yakubovich @eyakubovich
2. Kubernetes networking model - IP per pod - Pods in the cluster can be addressed by their IP
3. How to network containers together? - Cloud provider integration - AWS - GCE
4. How to network containers together? linux-bridge macvlan ipvlan Open vSwitch Weave Project Calico flannel
5. How to allocate IP addresses? - From a fixed block on a host - DHCP - IPAM system backed by SQL database - SDN assigned: e.g. Weave
6. How do you mix and match? (macvlan | ipvlan) + (DHCP | host-local)
7. Order matters! - macvlan + DHCP ◦ Create macvlan device ◦ Use the device to DHCP ◦ Configure device with allocated IP - Routed + IPAM ◦ Ask IPAM for an IP ◦ Create veth and routes on host and/or fabric ◦ Configure device with allocated IP
8. Container Runtime (e.g. k8s) veth macvlan ipvlan OVS Container Networking Interface (CNI)
9. CNI - Container can join multiple networks - Network described by JSON config - Plugin supports two commands - Add container to the network - Remove container from the network
10. User configures a network $ cat /etc/cni/net.d/10-mynet.conf { "name": "mynet", "type": "bridge", "ipam": { "type": "host-local", "subnet": "10.10.0.0/16" } }
11. CNI: Step 1 Container runtime creates network namespace and gives it a named handle $ cd /var/lib/cni $ touch myns $ unshare -n mount --bind /proc/self/ns/net myns
12. CNI: Step 2 Container runtime invokes the CNI plugin $ export CNI_COMMAND=ADD $ export CNI_NETNS=/var/lib/cni/myns $ export CNI_CONTAINERID=5248e9f8-3c91-11e5-... $ export CNI_IFNAME=eth0 $ $CNI_PATH/bridge </etc/cni/net.d/10-mynet.conf
13. CNI: Step 3 Inside the bridge plugin (1): $ brctl addbr mynet $ ip link add veth123 type veth peer name $CNI_IFNAME $ brctl addif mynet veth123 $ ip link set $CNI_IFNAME netns $CNI_IFNAME $ ip link set veth123 up
14. CNI: Step 3 Inside the bridge plugin (2): $ IPAM_PLUGIN=host-local # from network conf $ echo $IPAM_PLUGIN { "ip4": { "ip": "10.10.5.9/16", "gateway": "10.10.0.1" } }
15. CNI: Step 3 Inside the bridge plugin (3): # switch to container namespace $ ip addr add 10.0.5.9/16 dev $CNI_IFNAME # Finally, print IPAM result JSON to stdout
16. Kubernetes + CNI + Docker - Kubernetes has its own network plugins - CNI "driver" is a k8s network plugin - Future: make CNI native plugin system
17. Kubernetes + CNI + Docker - k8s starts "pause" container to create netns - k8s invokes its plugin (CNI driver) - k8s CNI driver executes a CNI plugin - CNI plugin joins "pause" container to network - Pod containers use "pause" container netns
18. Kubernetes + rkt - rkt natively supports CNI - Kubernetes delegates to rkt to invoke CNI plugins
