Functional Reactive Programming - RxSwift

Understand the basics: what reactive programming is, how it works why you should use it. Check how RXSwift library achieves FRP and a declarative way programming!

Transcript

1. Functional Reactive Programming
2. About Rodrigo Freitas co-founder at Kobe rodrigo.freitas@kobe.io
3. Focus on mobile development Outsourcing Product Development
5. Functional & Reactive

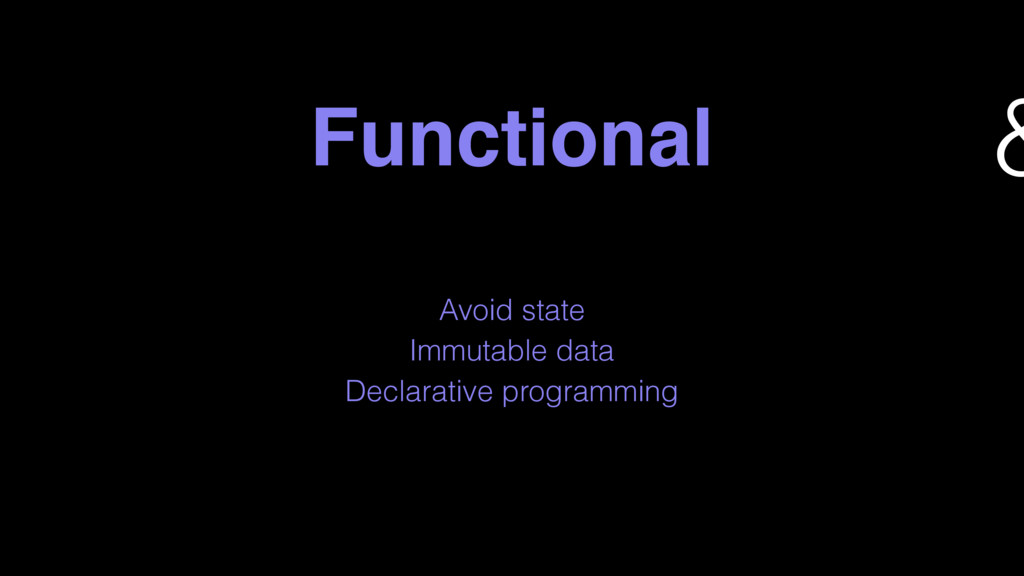

6. Functional & Avoid state Immutable data Declarative programming

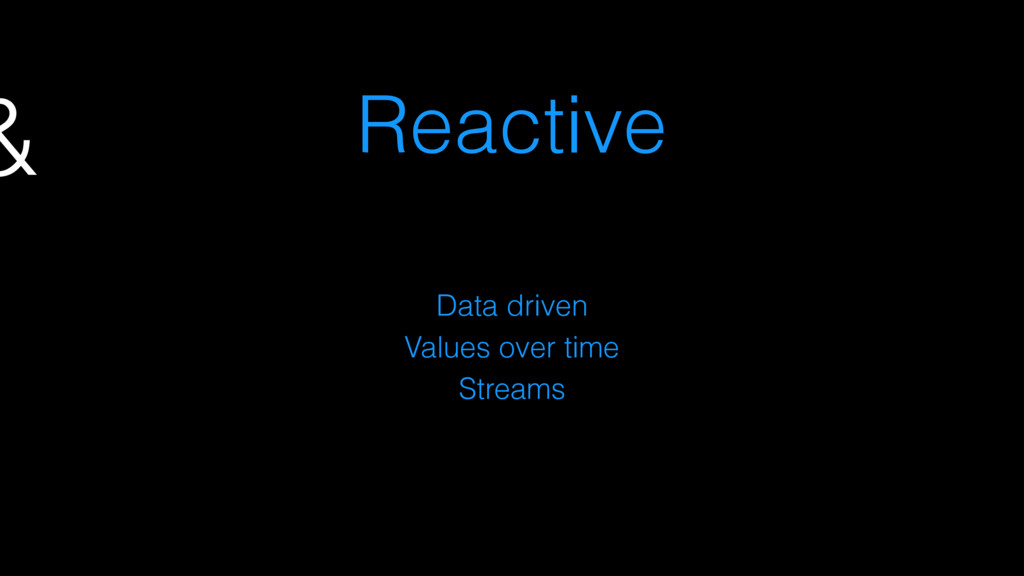

7. & Reactive Data driven Values over time Streams
8. Reactive Cocoa RxSwift
9. RxSwift Based on ReactiveX

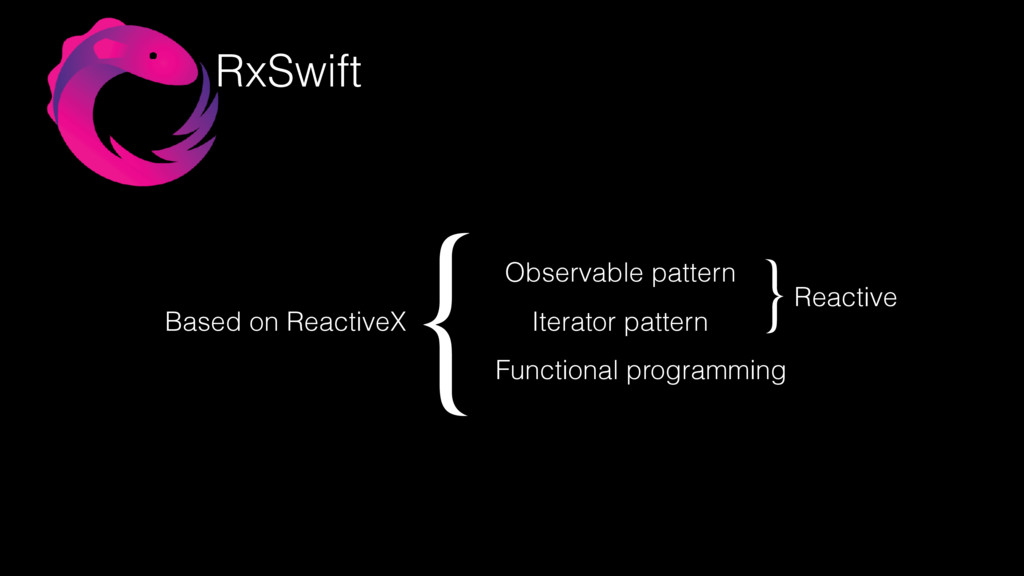

10. RxSwift Based on ReactiveX Observable pattern Iterator pattern } Functional programming }Reactive

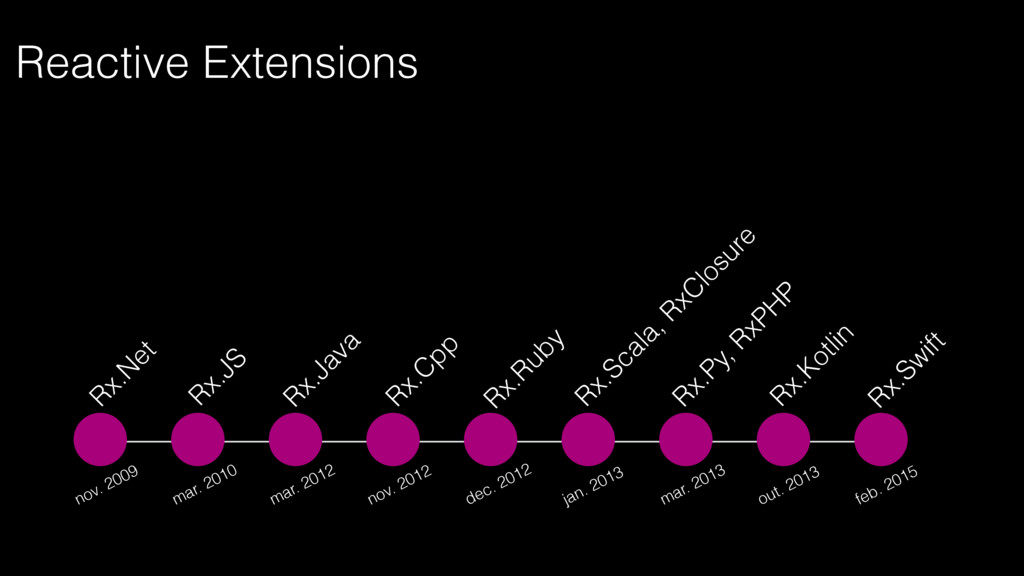

11. Rx.N et Rx.JS Rx.Java Rx.C pp Rx.Ruby Rx.Scala, RxC losure Rx.Py, RxPH P Rx.Kotlin Rx.Sw ift Reactive Extensions nov. 2009 mar. 2010 mar. 2012 nov. 2012 dec. 2012 jan. 2013 mar. 2013 out. 2013 feb. 2015

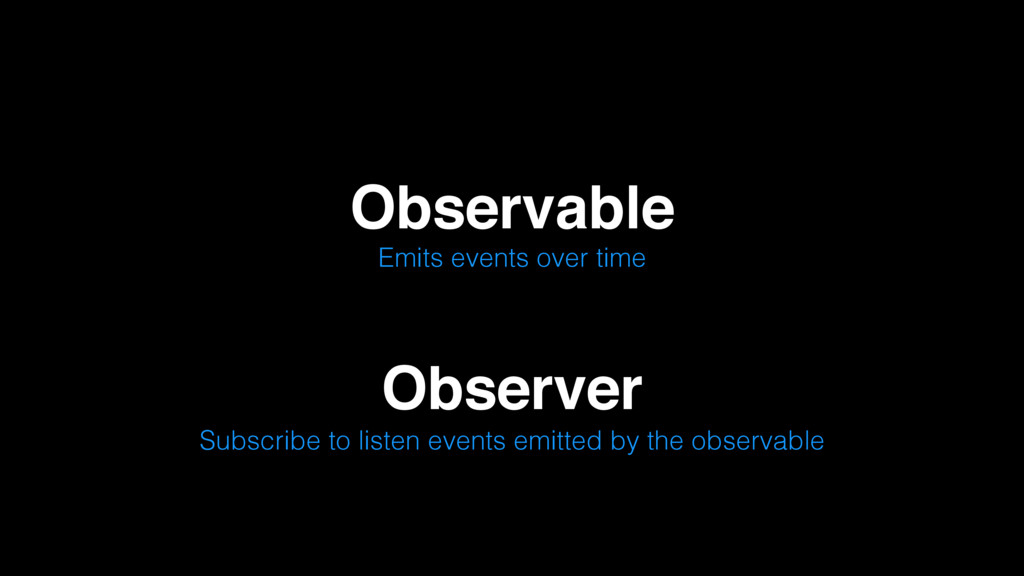

12. Observable Emits events over time Observer Subscribe to listen events emitted by the observable

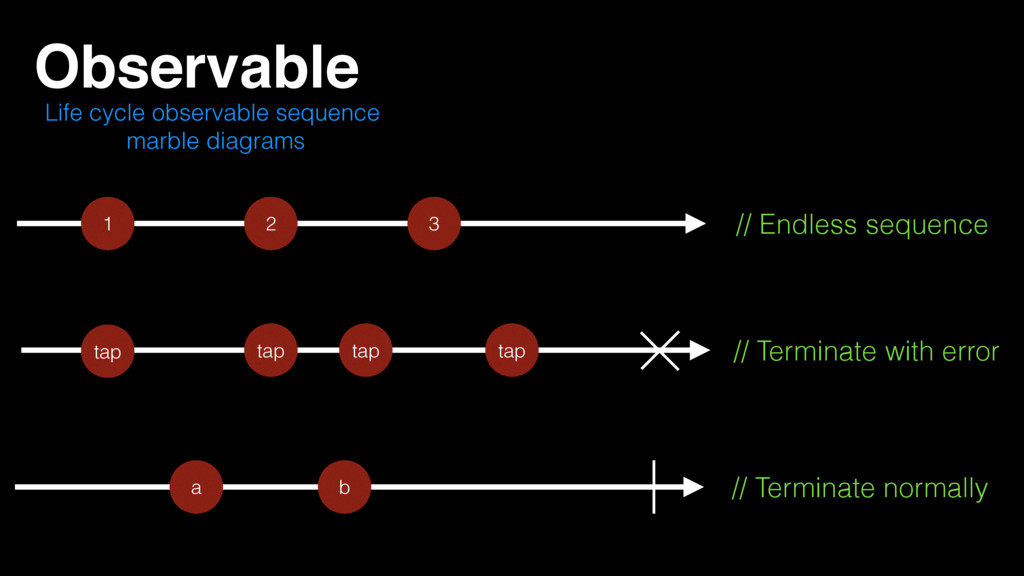

13. Observable Life cycle observable sequence marble diagrams // Terminate normally // Terminate with error // Endless sequence 1 2 3 tap tap tap tap a b

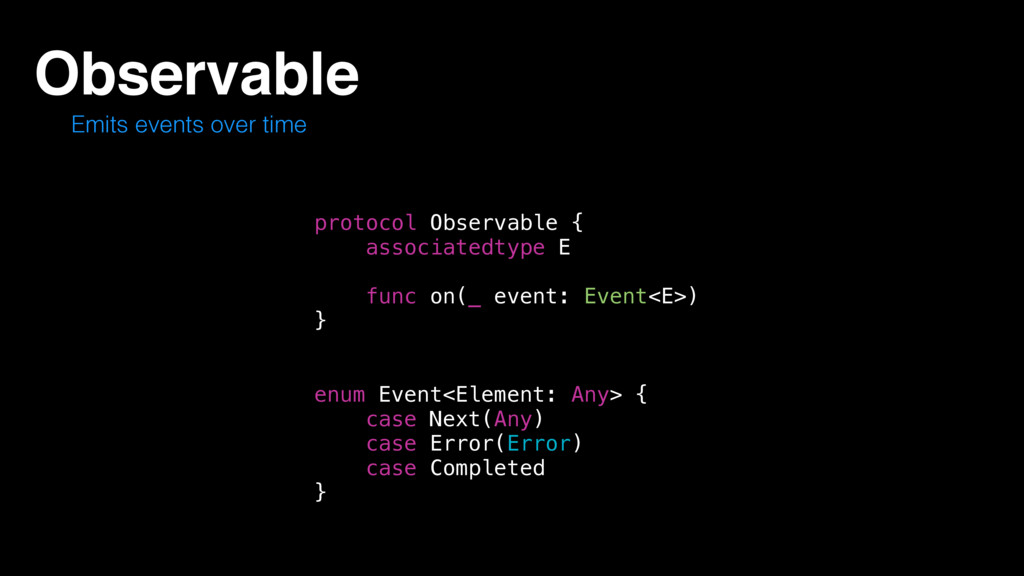

14. Observable Emits events over time protocol Observable { associatedtype E func on(_ event: Event<E>) } enum Event<Element: Any> { case Next(Any) case Error(Error) case Completed }

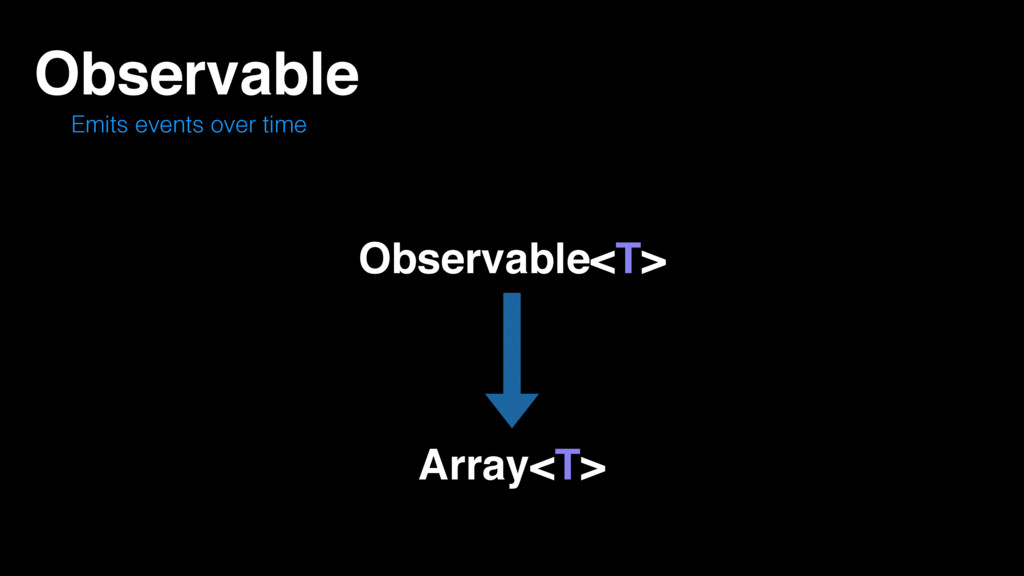

15. Observable Emits events over time Array<T> Observable<T>

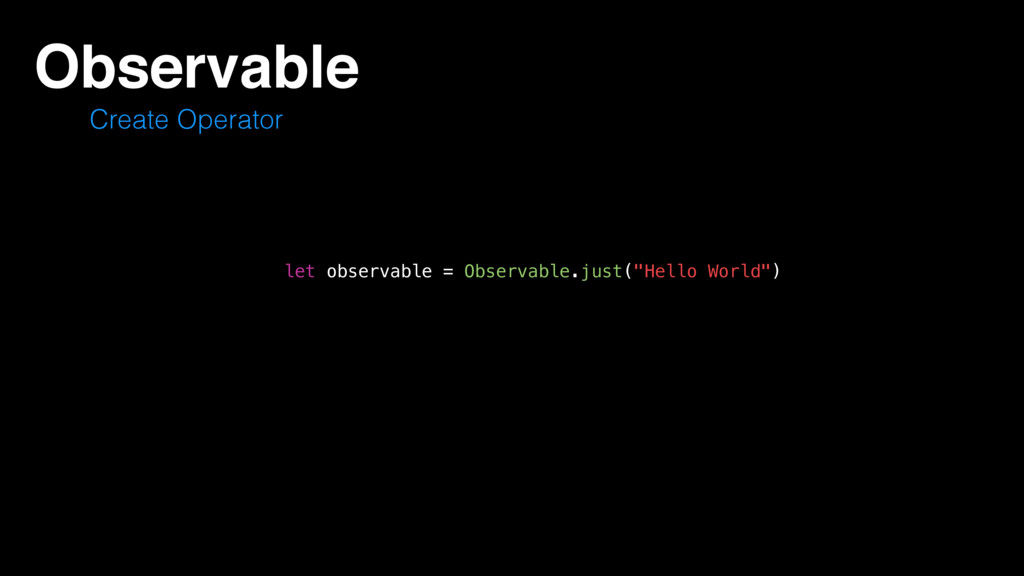

16. Observable Create Operator let observable = Observable.just("Hello World")

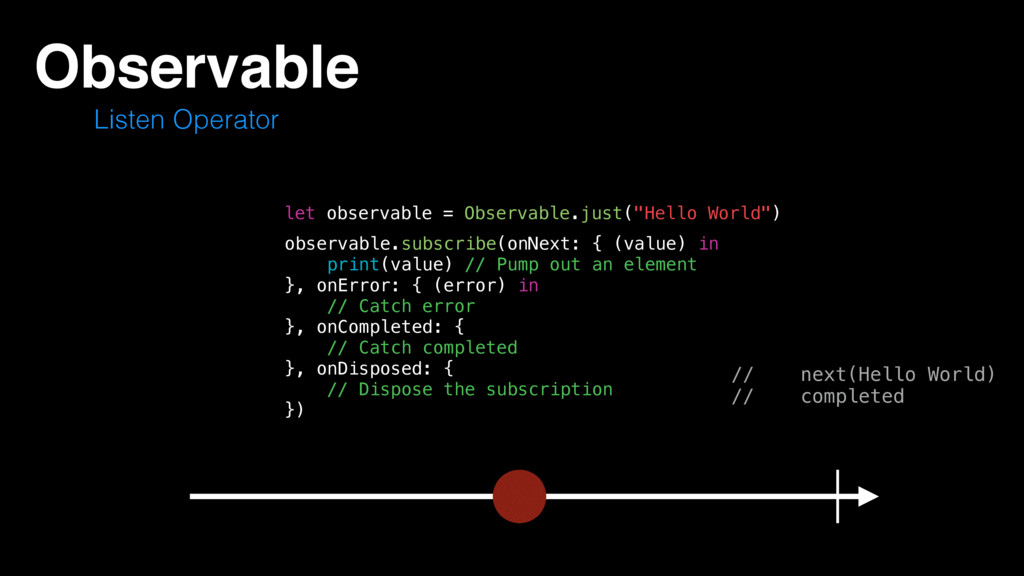

17. Observable Listen Operator let observable = Observable.just("Hello World") // next(Hello World) // completed observable.subscribe(onNext: { (value) in print(value) // Pump out an element }, onError: { (error) in // Catch error }, onCompleted: { // Catch completed }, onDisposed: { // Dispose the subscription })

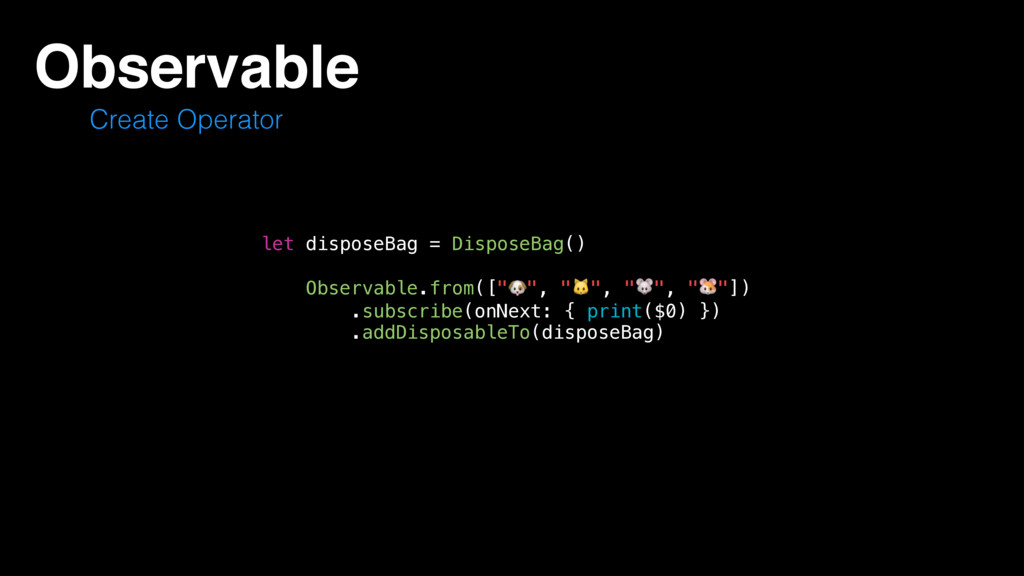

18. Observable Create Operator let disposeBag = DisposeBag() Observable.from(["", "", "", ""]) .subscribe(onNext: { print($0) }) .addDisposableTo(disposeBag)

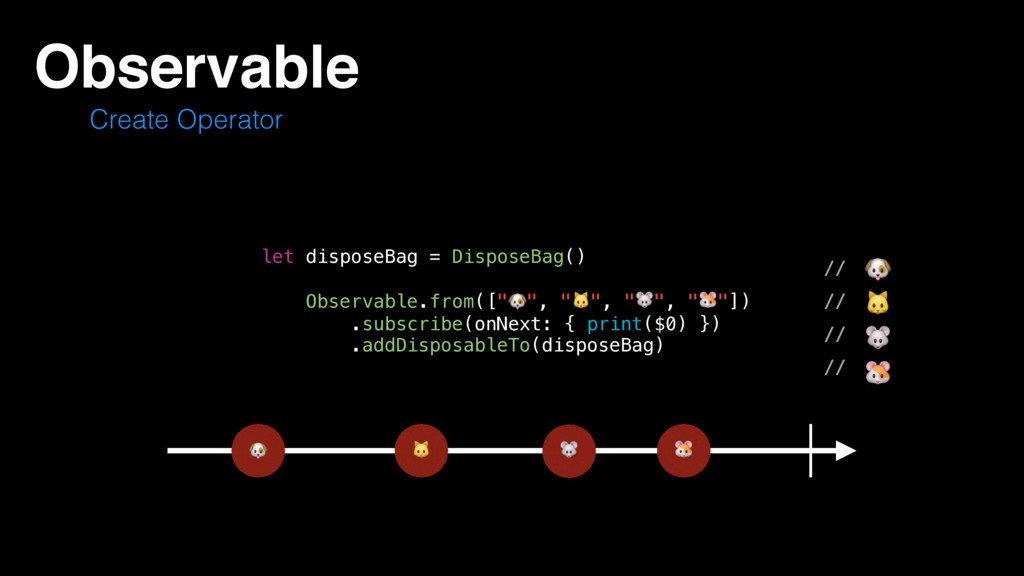

19. Observable Create Operator let disposeBag = DisposeBag() Observable.from(["", "", "", ""]) .subscribe(onNext: { print($0) }) .addDisposableTo(disposeBag) // // // //

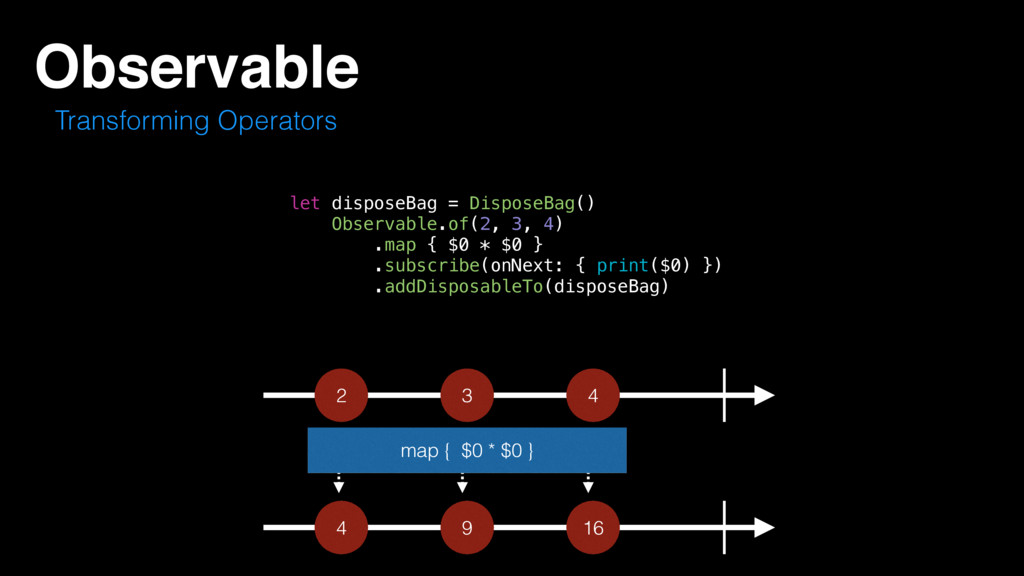

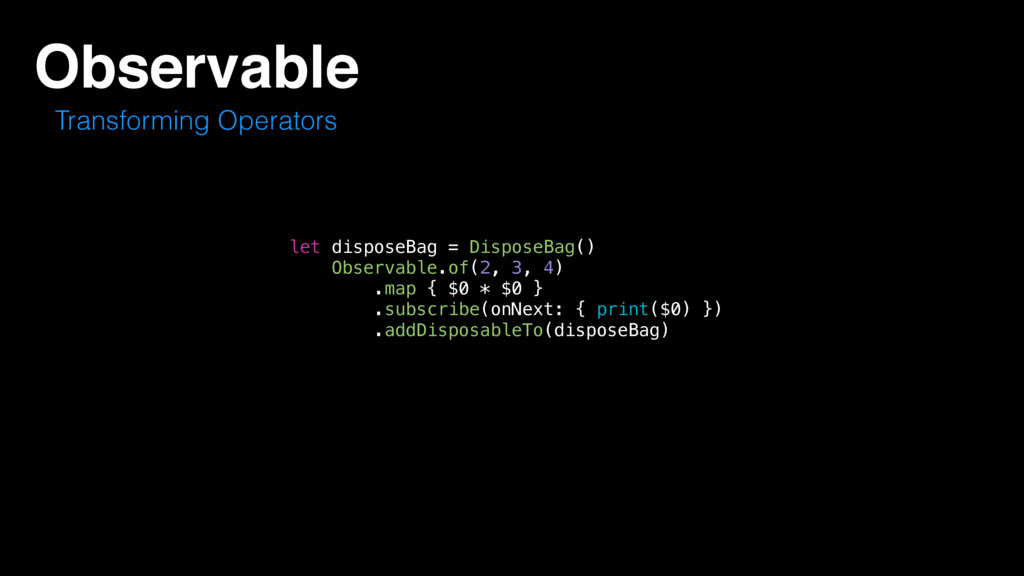

20. Observable Transforming Operators let disposeBag = DisposeBag() Observable.of(2, 3, 4) .map { $0 * $0 } .subscribe(onNext: { print($0) }) .addDisposableTo(disposeBag)
21. Observable let disposeBag = DisposeBag() Observable.of(2, 3, 4) .map { $0 * $0 } .subscribe(onNext: { print($0) }) .addDisposableTo(disposeBag) 4 16 2 4 3 9 map { $0 * $0 } Transforming Operators

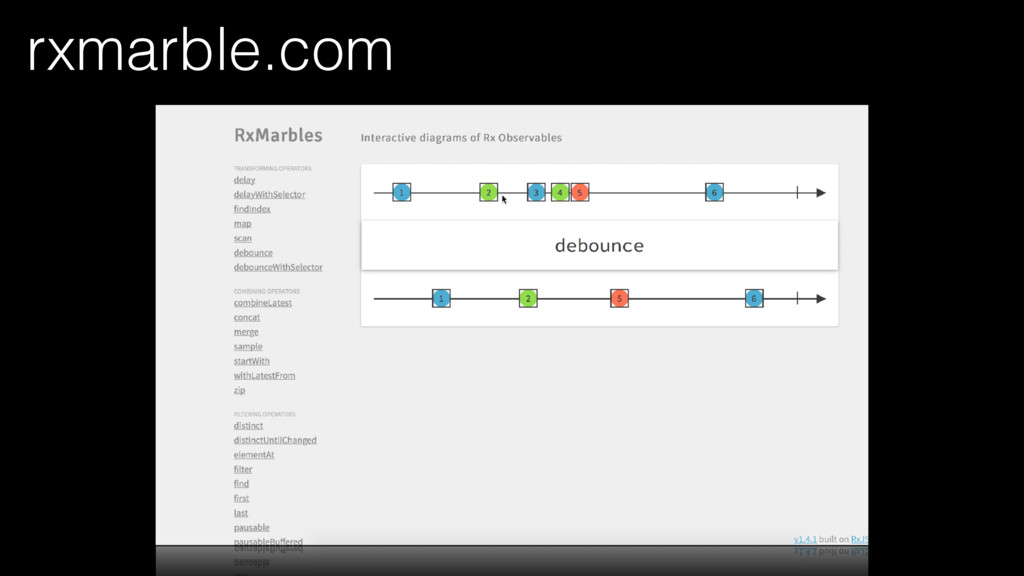

23. rxmarble.com
24. Traditional X Reactive

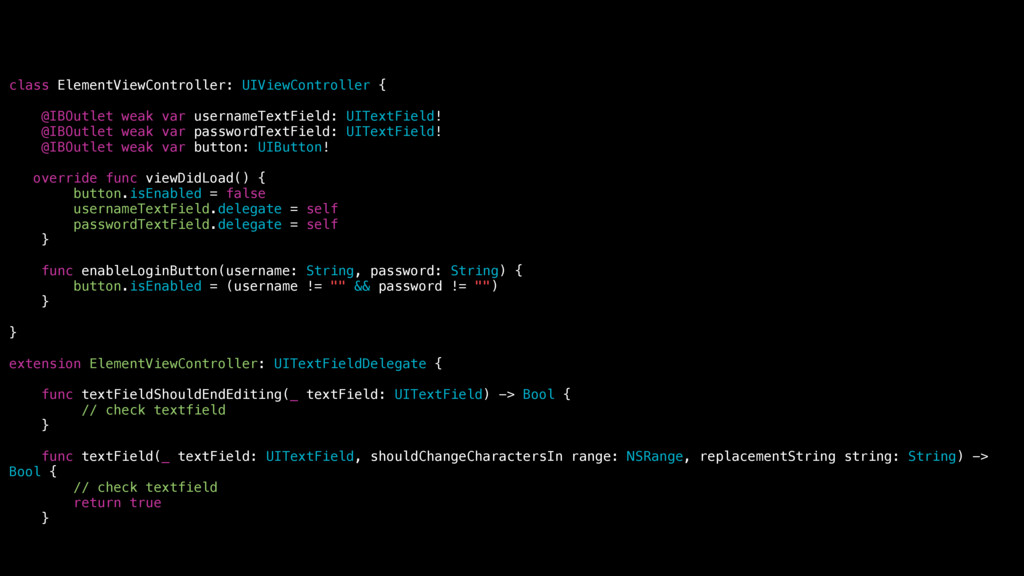

25. class ElementViewController: UIViewController { @IBOutlet weak var usernameTextField: UITextField! @IBOutlet weak var passwordTextField: UITextField! @IBOutlet weak var button: UIButton! override func viewDidLoad() { button.isEnabled = false usernameTextField.delegate = self passwordTextField.delegate = self } func enableLoginButton(username: String, password: String) { button.isEnabled = (username != "" && password != "") } } extension ElementViewController: UITextFieldDelegate { func textFieldShouldEndEditing(_ textField: UITextField) -> Bool { // check textfield } func textField(_ textField: UITextField, shouldChangeCharactersIn range: NSRange, replacementString string: String) -> Bool { // check textfield return true }

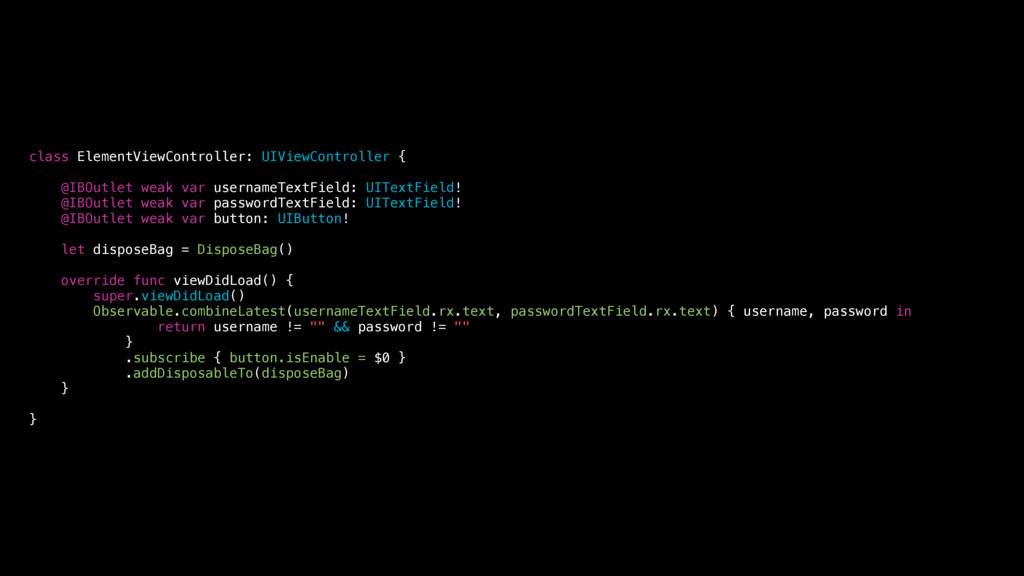

26. class ElementViewController: UIViewController { @IBOutlet weak var usernameTextField: UITextField! @IBOutlet weak var passwordTextField: UITextField! @IBOutlet weak var button: UIButton! let disposeBag = DisposeBag() override func viewDidLoad() { super.viewDidLoad() Observable.combineLatest(usernameTextField.rx.text, passwordTextField.rx.text) { username, password in return username != "" && password != "" } .subscribe { button.isEnable = $0 } .addDisposableTo(disposeBag) } }

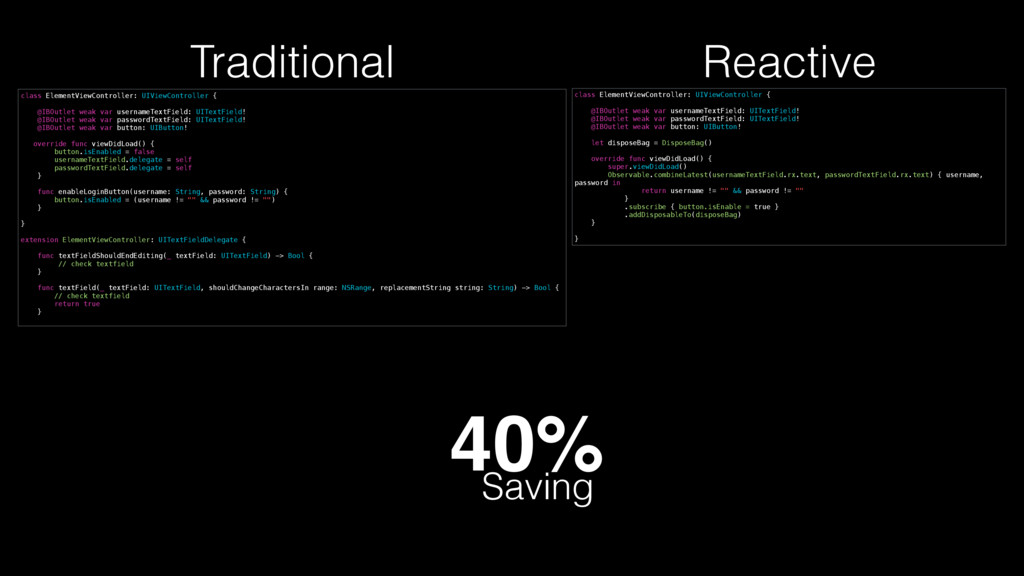

27. class ElementViewController: UIViewController { @IBOutlet weak var usernameTextField: UITextField! @IBOutlet weak var passwordTextField: UITextField! @IBOutlet weak var button: UIButton! let disposeBag = DisposeBag() override func viewDidLoad() { super.viewDidLoad() Observable.combineLatest(usernameTextField.rx.text, passwordTextField.rx.text) { username, password in return username != "" && password != "" } .subscribe { button.isEnable = true } .addDisposableTo(disposeBag) } } class ElementViewController: UIViewController { @IBOutlet weak var usernameTextField: UITextField! @IBOutlet weak var passwordTextField: UITextField! @IBOutlet weak var button: UIButton! override func viewDidLoad() { button.isEnabled = false usernameTextField.delegate = self passwordTextField.delegate = self } func enableLoginButton(username: String, password: String) { button.isEnabled = (username != "" && password != "") } } extension ElementViewController: UITextFieldDelegate { func textFieldShouldEndEditing(_ textField: UITextField) -> Bool { // check textfield } func textField(_ textField: UITextField, shouldChangeCharactersIn range: NSRange, replacementString string: String) -> Bool { // check textfield return true } 40% Saving Traditional Reactive

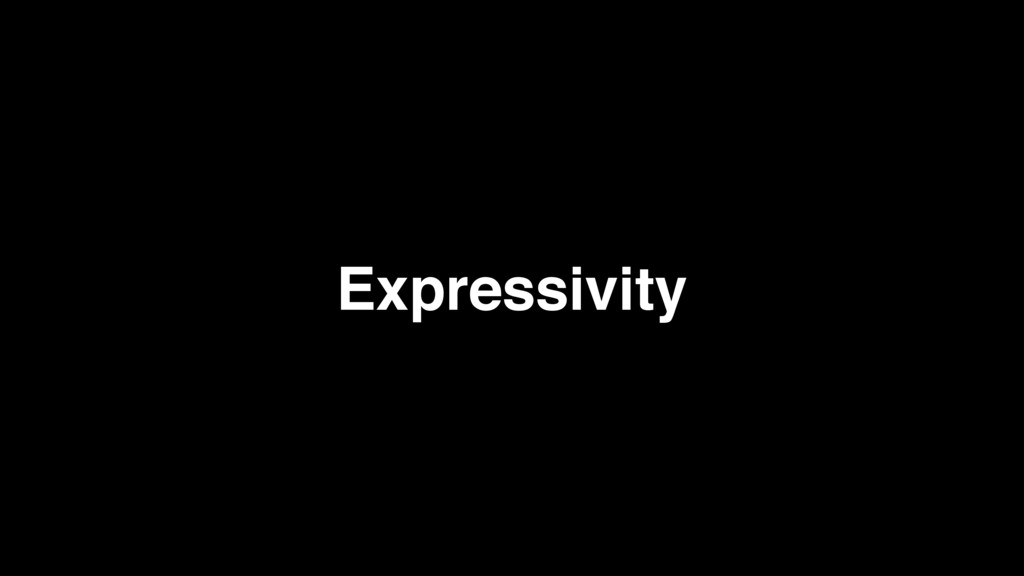

28. Expressivity

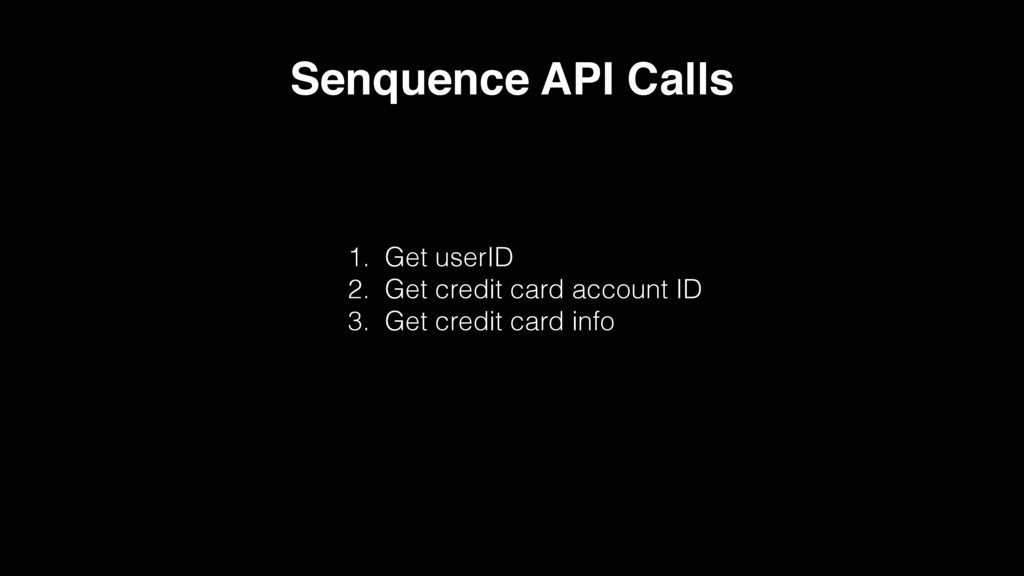

29. Senquence API Calls 1. Get userID 2. Get credit card account ID 3. Get credit card info
30. Alamofire.request("https://fake/login", method: .post) .responseJSON { (response) in Alamofire.request("https://fake/creaditToken", method: .post, parameters: ["creditToken": response.id]) .responseJSON { (response) in Alamofire.request("https//fake/creaditCard", method: .post, parameters: ["creditCard": response.token]) .responseJSON { // get credit card info } } }

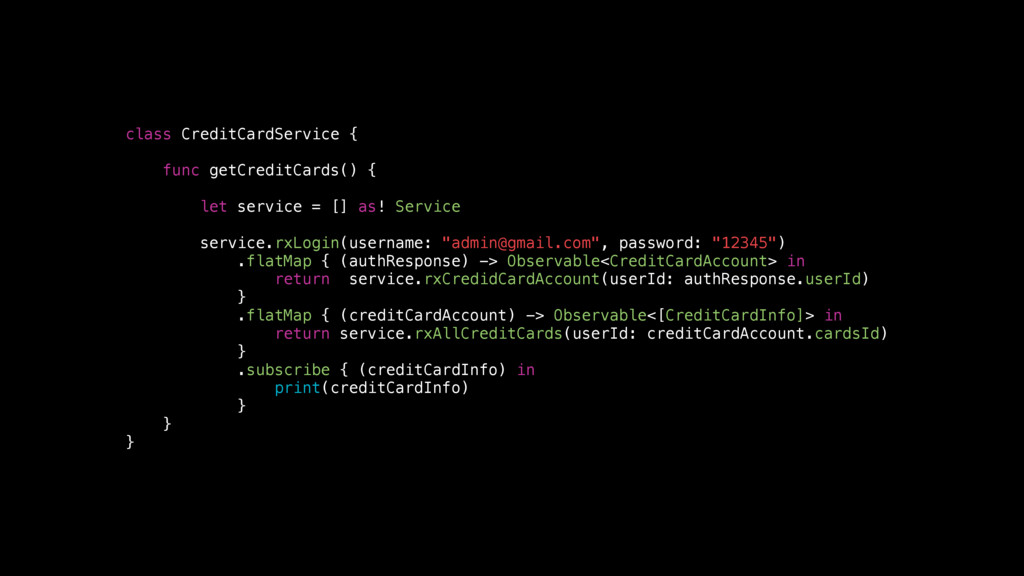

31. class CreditCardService { func getCreditCards() { let service = [] as! Service service.rxLogin(username: "admin@gmail.com", password: "12345") .flatMap { (authResponse) -> Observable<CreditCardAccount> in return service.rxCredidCardAccount(userId: authResponse.userId) } .flatMap { (creditCardAccount) -> Observable<[CreditCardInfo]> in return service.rxAllCreditCards(userId: creditCardAccount.cardsId) } .subscribe { (creditCardInfo) in print(creditCardInfo) } } }
32. Marvelous
33. static func request(endpoint: Resource) -> Observable<[String:AnyObject]> { return Observable.create { observer in } return Disposables.create { request.cancel() } } } Request Observable

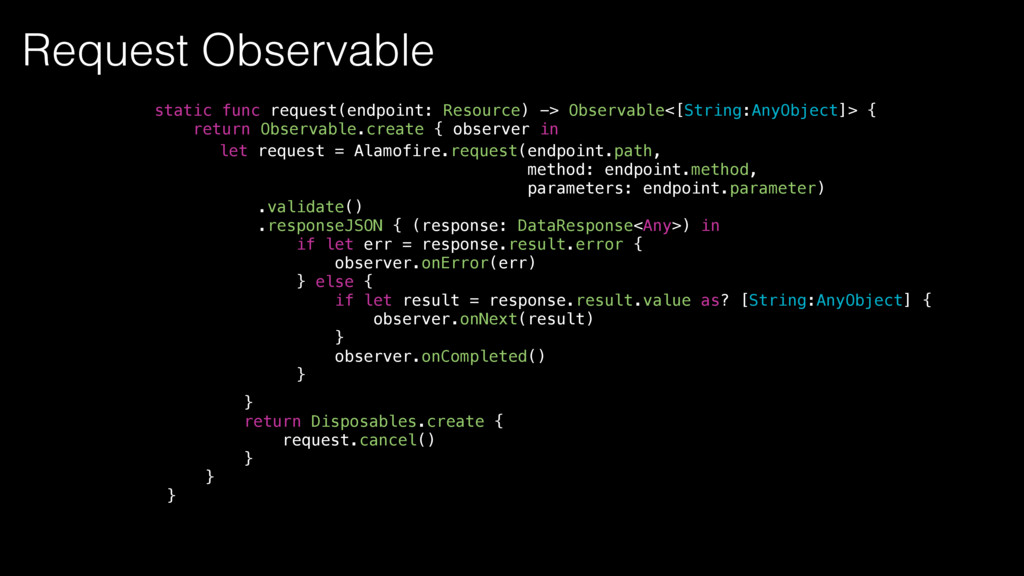

34. let request = Alamofire.request(endpoint.path, method: endpoint.method, parameters: endpoint.parameter) .validate() .responseJSON { (response: DataResponse<Any>) in if let err = response.result.error { observer.onError(err) } else { if let result = response.result.value as? [String:AnyObject] { observer.onNext(result) } observer.onCompleted() } static func request(endpoint: Resource) -> Observable<[String:AnyObject]> { return Observable.create { observer in } return Disposables.create { request.cancel() } } } Request Observable

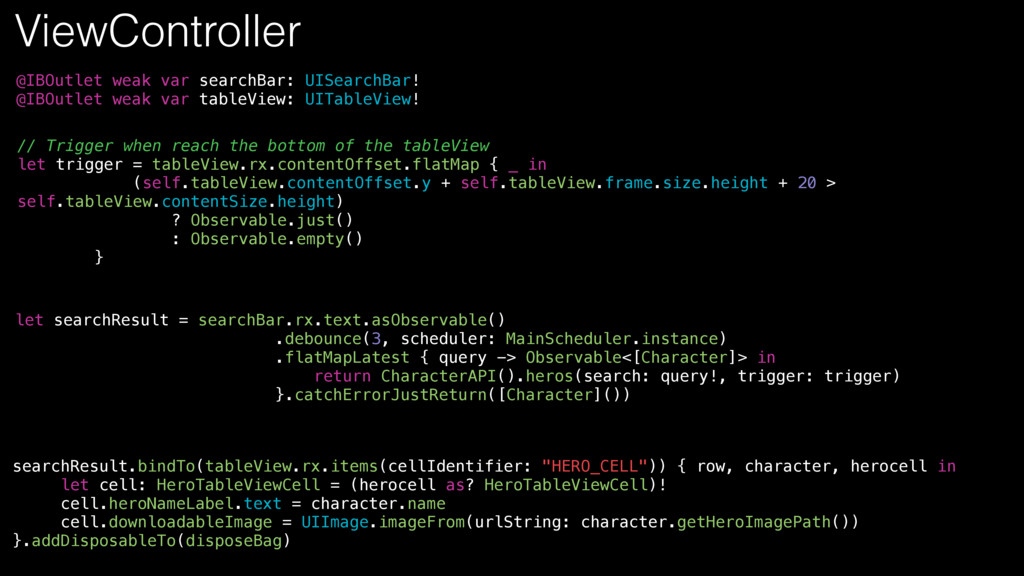

35. @IBOutlet weak var searchBar: UISearchBar! @IBOutlet weak var tableView: UITableView! // Trigger when reach the bottom of the tableView let trigger = tableView.rx.contentOffset.flatMap { _ in (self.tableView.contentOffset.y + self.tableView.frame.size.height + 20 > self.tableView.contentSize.height) ? Observable.just() : Observable.empty() } let searchResult = searchBar.rx.text.asObservable() .debounce(3, scheduler: MainScheduler.instance) .flatMapLatest { query -> Observable<[Character]> in return CharacterAPI().heros(search: query!, trigger: trigger) }.catchErrorJustReturn([Character]()) searchResult.bindTo(tableView.rx.items(cellIdentifier: "HERO_CELL")) { row, character, herocell in let cell: HeroTableViewCell = (herocell as? HeroTableViewCell)! cell.heroNameLabel.text = character.name cell.downloadableImage = UIImage.imageFrom(urlString: character.getHeroImagePath()) }.addDisposableTo(disposeBag) ViewController
36. Thanks • reactive.io • github.com/frelei/marvelous • gitHub.com/ReactiveX/RxSwift rodrigo.freitas@kobe.io • rxmarbles.com • slack.rxswift.org
