CHCVerif: A Portfolio-Based Solver for Constrained Horn Clauses

Constrained Horn Clauses (CHCs) are widely adopted as intermediate representations for a variety of verification tasks, including safety checking, invariant synthesis, and interprocedural analysis. This paper introduces CHCVerif, a portfolio-based CHC solver that adopts a software verification approach for solving CHCs. This approach enables us to reuse mature software verification tools to tackle CHC benchmarks, particularly those involving bitvectors and low-level semantics. Our evaluation shows that while the method enjoys only moderate success with linear integer arithmetic, it achieves modest success on bitvector benchmarks. Moreover, our results demonstrate the viability and potential of using software verification tools as backends for CHC solving, particularly when supported by a carefully constructed portfolio.

Transcript

1. CHCVERIF: A PORTFOLIO-BASED SOLVER FOR CONSTRAINED HORN CLAUSES Mihály Dobos-Kovács, Levente Bajczi, András Vörös BME-MIT, Budapest HCVS'25
2. HCVS'25 Background & theory Goals & contributions Experiment design & results Significance & summary Agenda
3. Background & Theory What are CHCs? How to transform them to C? HCVS'25

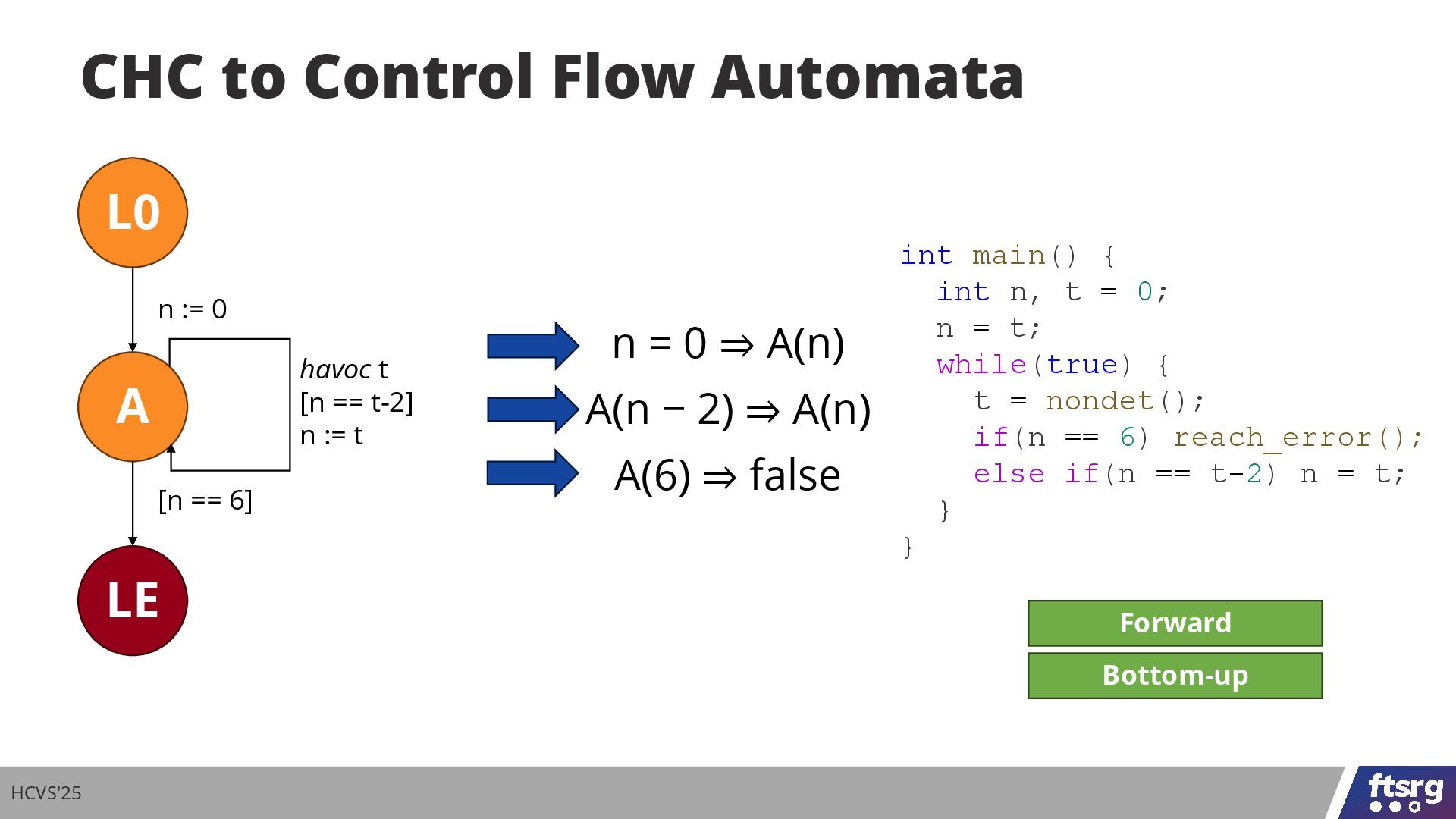

4. HCVS'25 CHC to Control Flow Automata n = 0 ⇒ A(n) A(n − 2) ⇒ A(n) A(6) ⇒ false L0 A LE n := 0 [n == 6] havoc t [n == t-2] n := t Forward int main() { int n, t = 0; n = t; while(true) { t = nondet(); if(n == 6) reach_error(); else if(n == t-2) n = t; } } Bottom-up

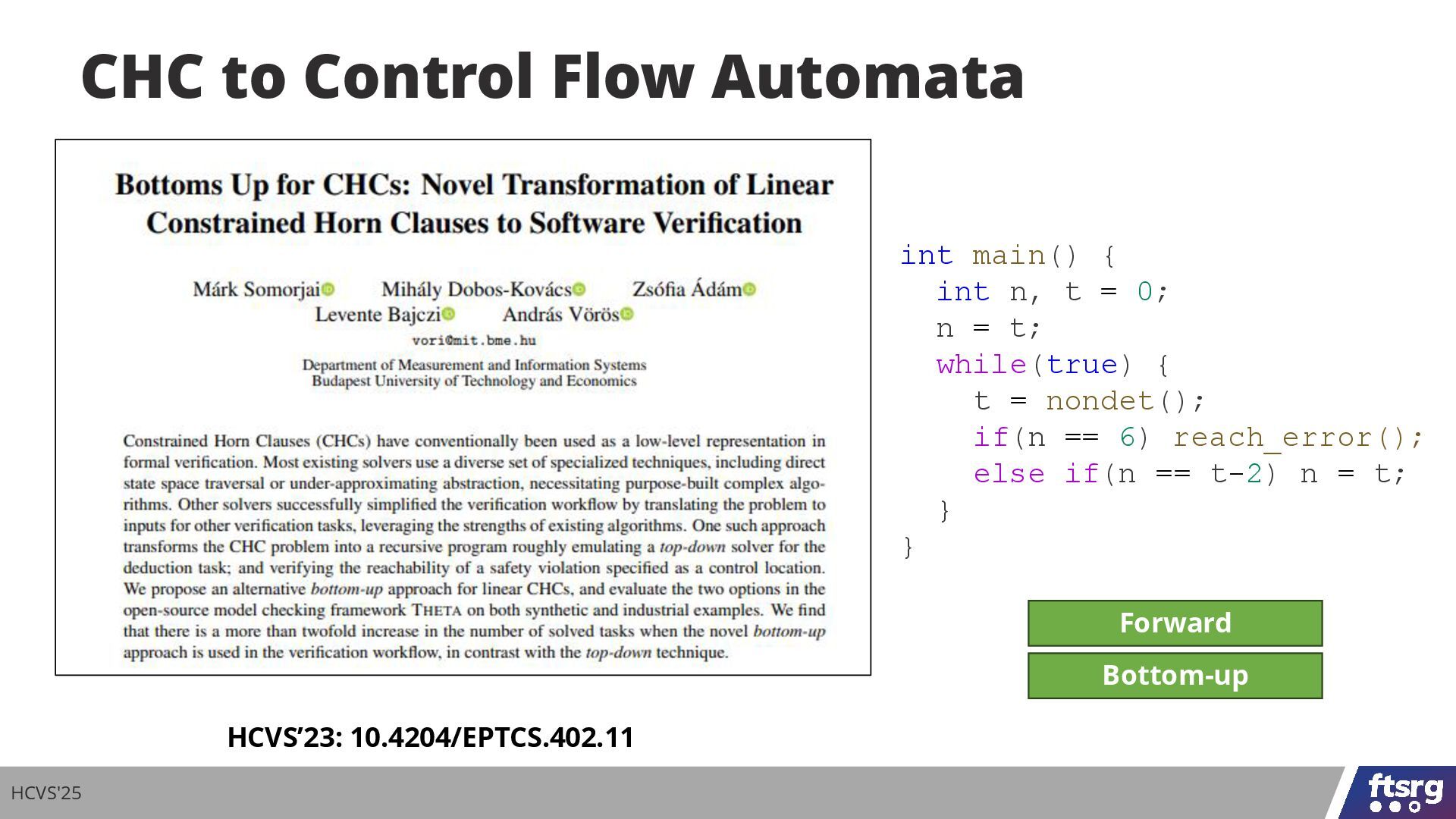

5. HCVS'25 CHC to Control Flow Automata n = 0 ⇒ A(n) A(n − 2) ⇒ A(n) A(6) ⇒ false L0 A LE n := 0 [n == 6] havoc t [n == t-2] n := t Forward int main() { int n, t = 0; n = t; while(true) { t = nondet(); if(n == 6) reach_error(); else if(n == t-2) n = t; } } HCVS’23: 10.4204/EPTCS.402.11 Bottom-up

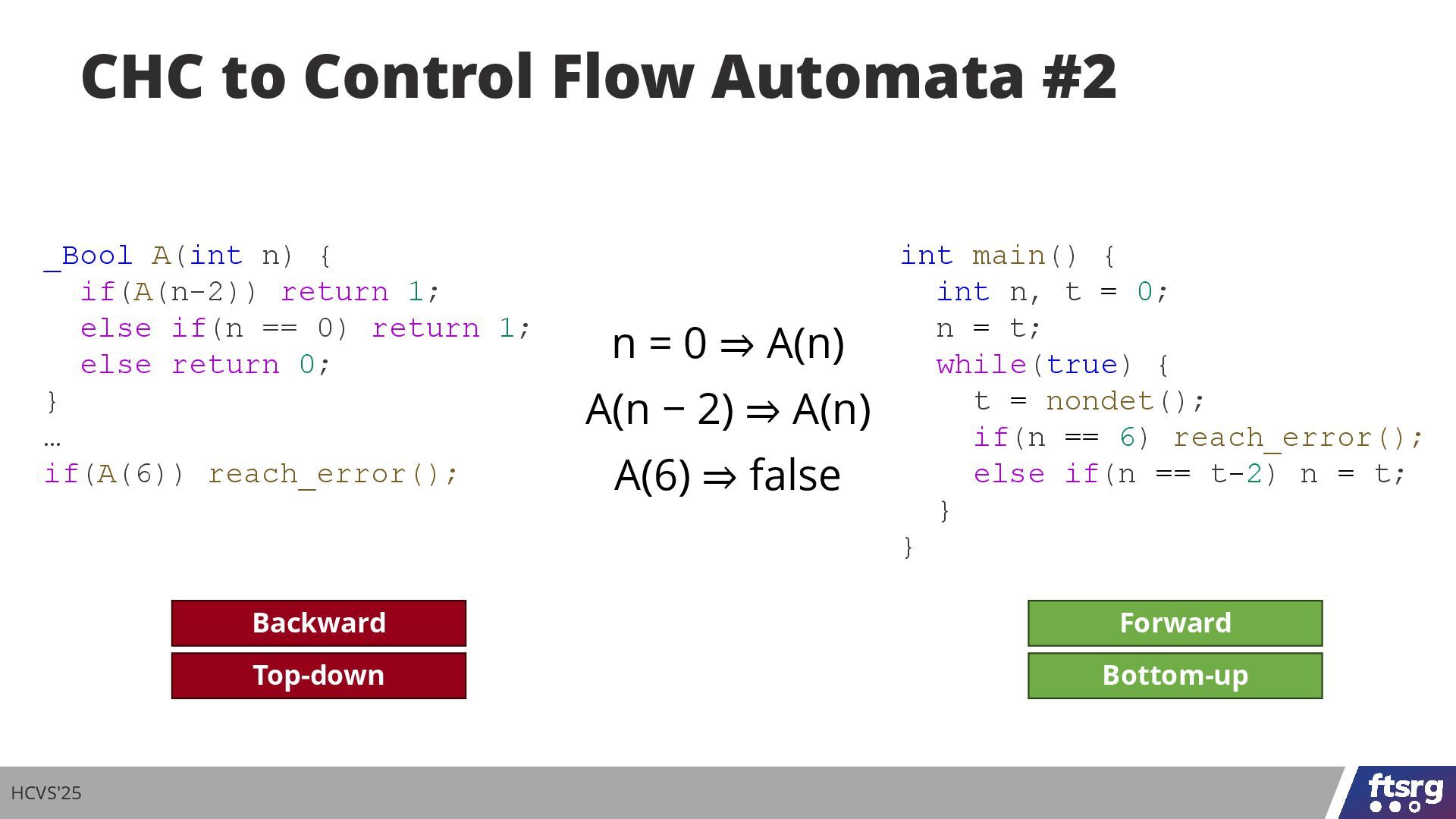

6. HCVS'25 CHC to Control Flow Automata #2 n = 0 ⇒ A(n) A(n − 2) ⇒ A(n) A(6) ⇒ false Forward int main() { int n, t = 0; n = t; while(true) { t = nondet(); if(n == 6) reach_error(); else if(n == t-2) n = t; } } Bottom-up Backward _Bool A(int n) { if(A(n-2)) return 1; else if(n == 0) return 1; else return 0; } … if(A(6)) reach_error(); Top-down

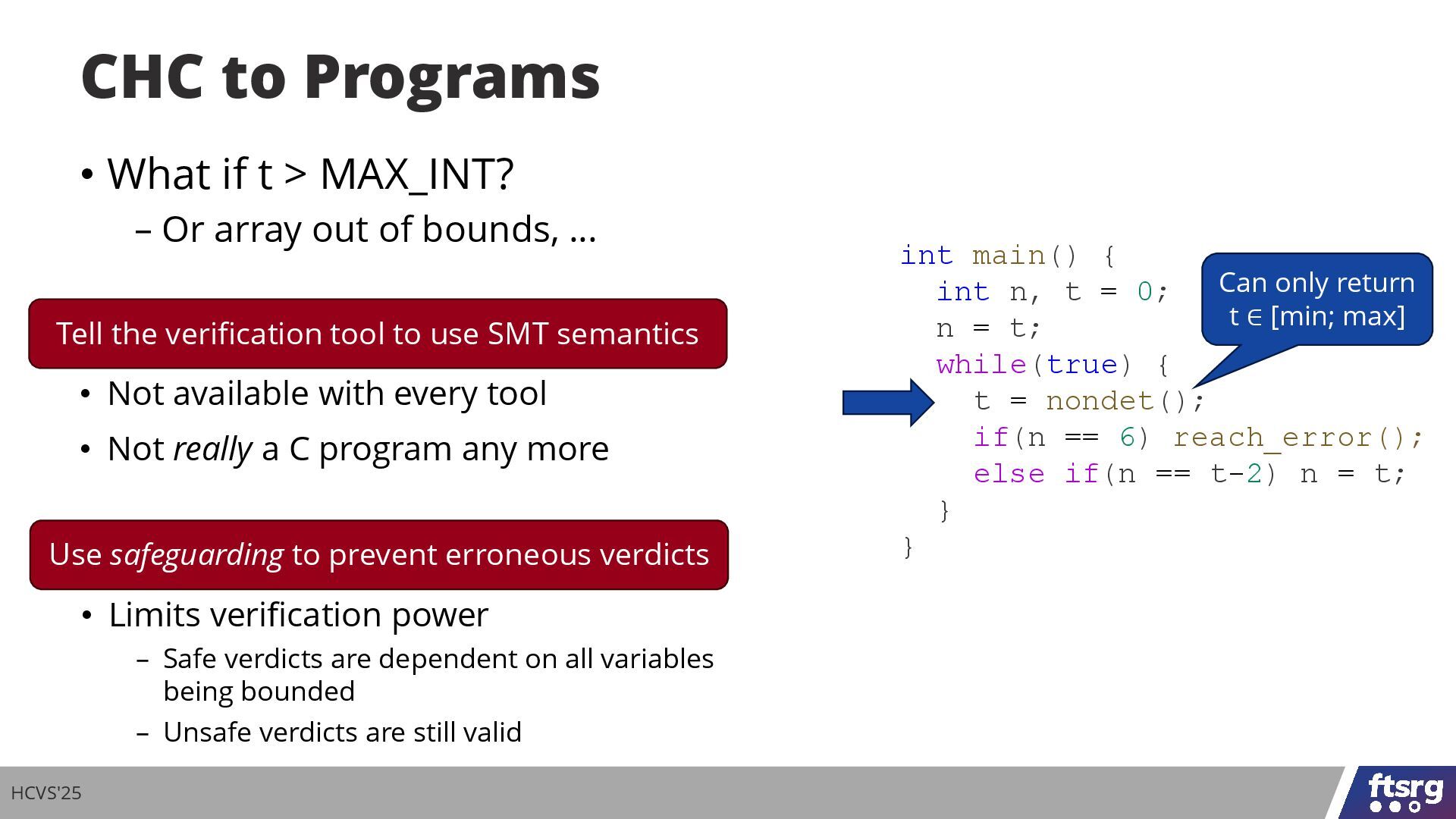

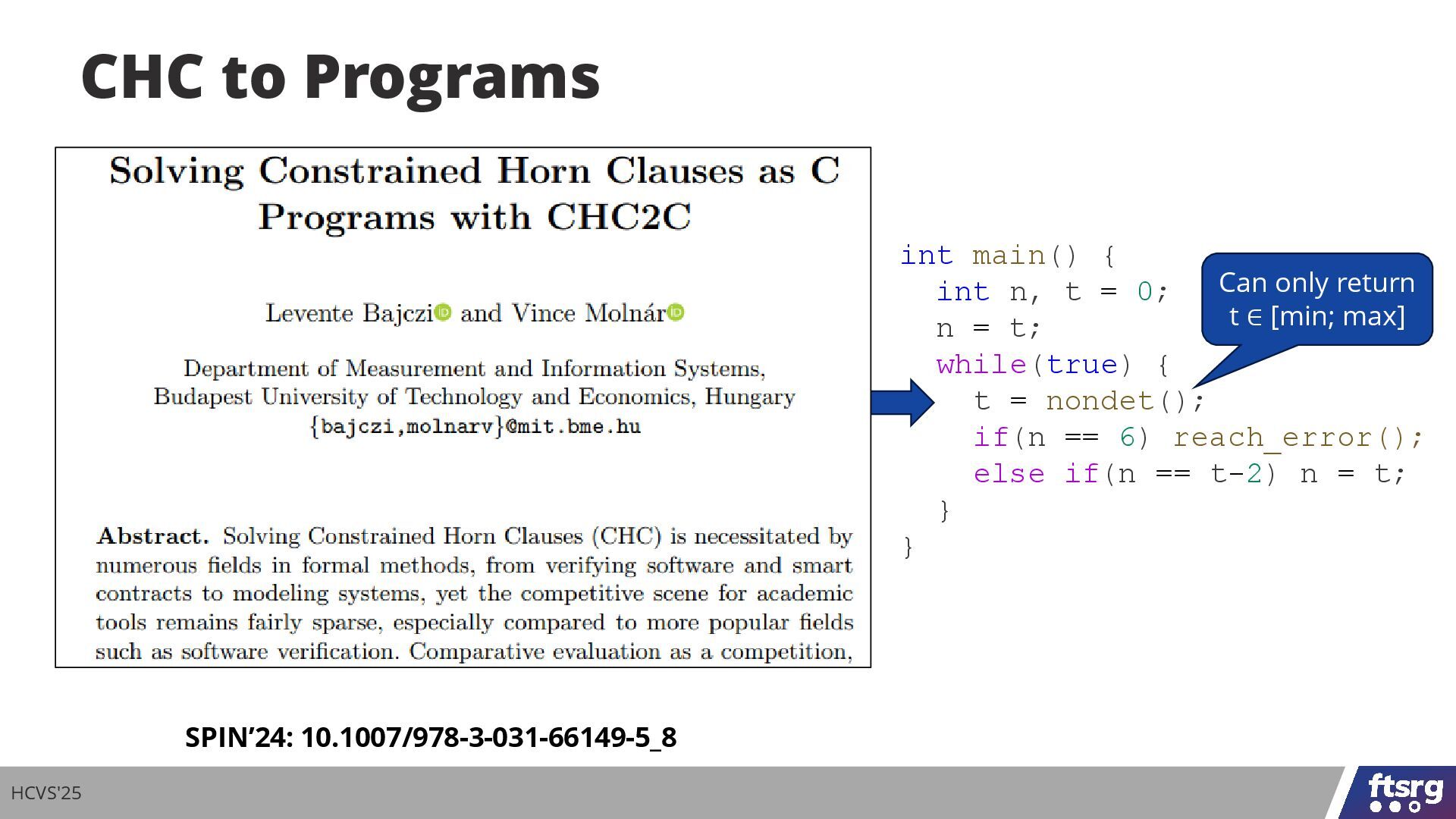

7. HCVS'25 • What if t > MAX_INT? – Or array out of bounds, … CHC to Programs int main() { int n, t = 0; n = t; while(true) { t = nondet(); if(n == 6) reach_error(); else if(n == t-2) n = t; } } Tell the verification tool to use SMT semantics • Not available with every tool • Not really a C program any more Use safeguarding to prevent erroneous verdicts • Limits verification power – Safe verdicts are dependent on all variables being bounded – Unsafe verdicts are still valid Can only return t ∈ [min; max]
8. HCVS'25 CHC to Programs int main() { int n, t = 0; n = t; while(true) { t = nondet(); if(n == 6) reach_error(); else if(n == t-2) n = t; } } Can only return t ∈ [min; max] SPIN’24: 10.1007/978-3-031-66149-5_8
9. Goals & Contributions What did we want to achieve? HCVS'25
10. HCVS'25 Goals of this Work Broaden the field of CHC solvers with SW verification tools Provide SW verification tools with valuable benchmarks to test and debug
11. Experiment design & results What did we do? How did the tools do? HCVS'25

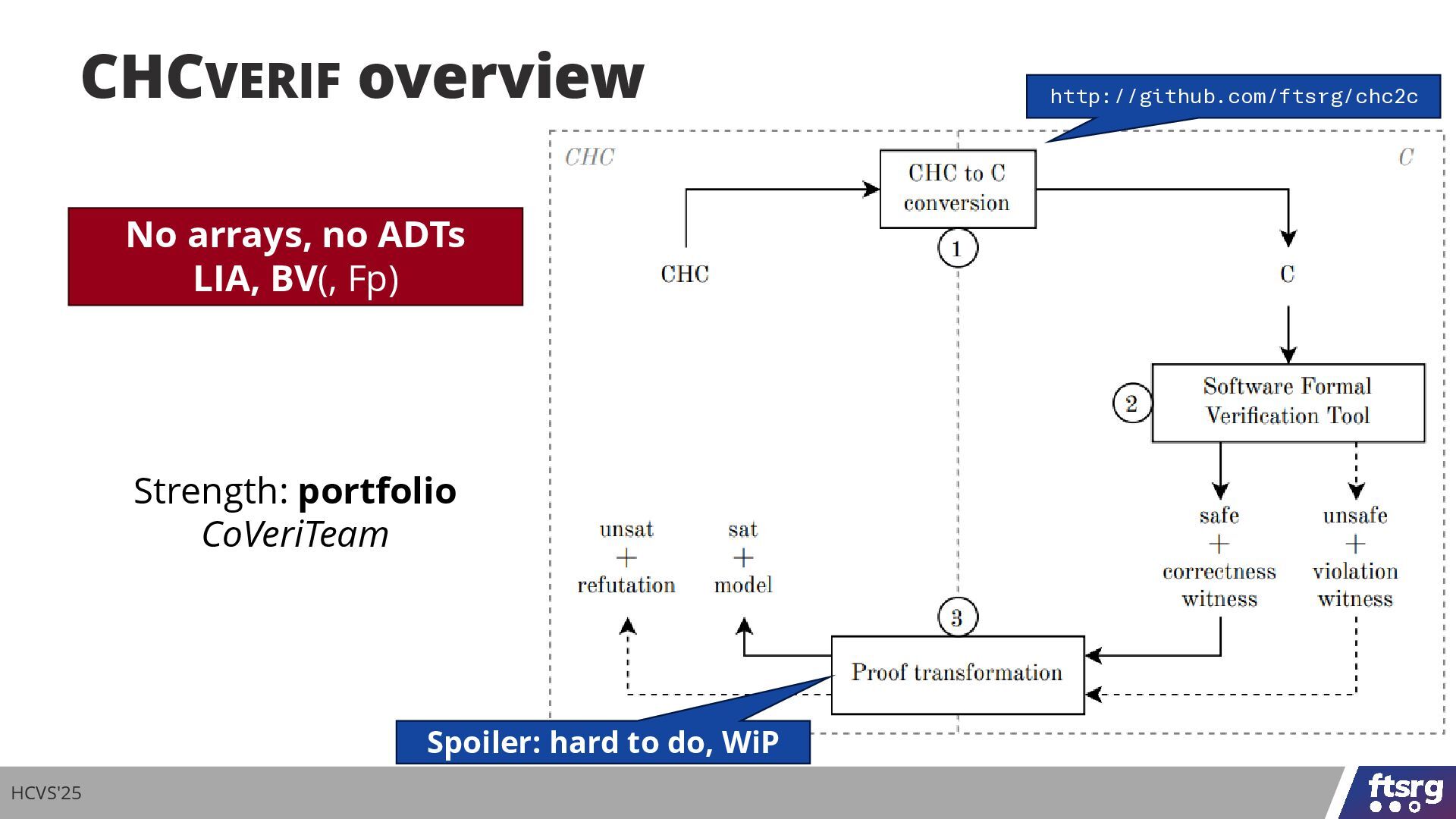

12. HCVS'25 CHCVERIF overview No arrays, no ADTs LIA, BV(, Fp) http://github.com/ftsrg/chc2c Spoiler: hard to do, WiP Strength: portfolio CoVeriTeam

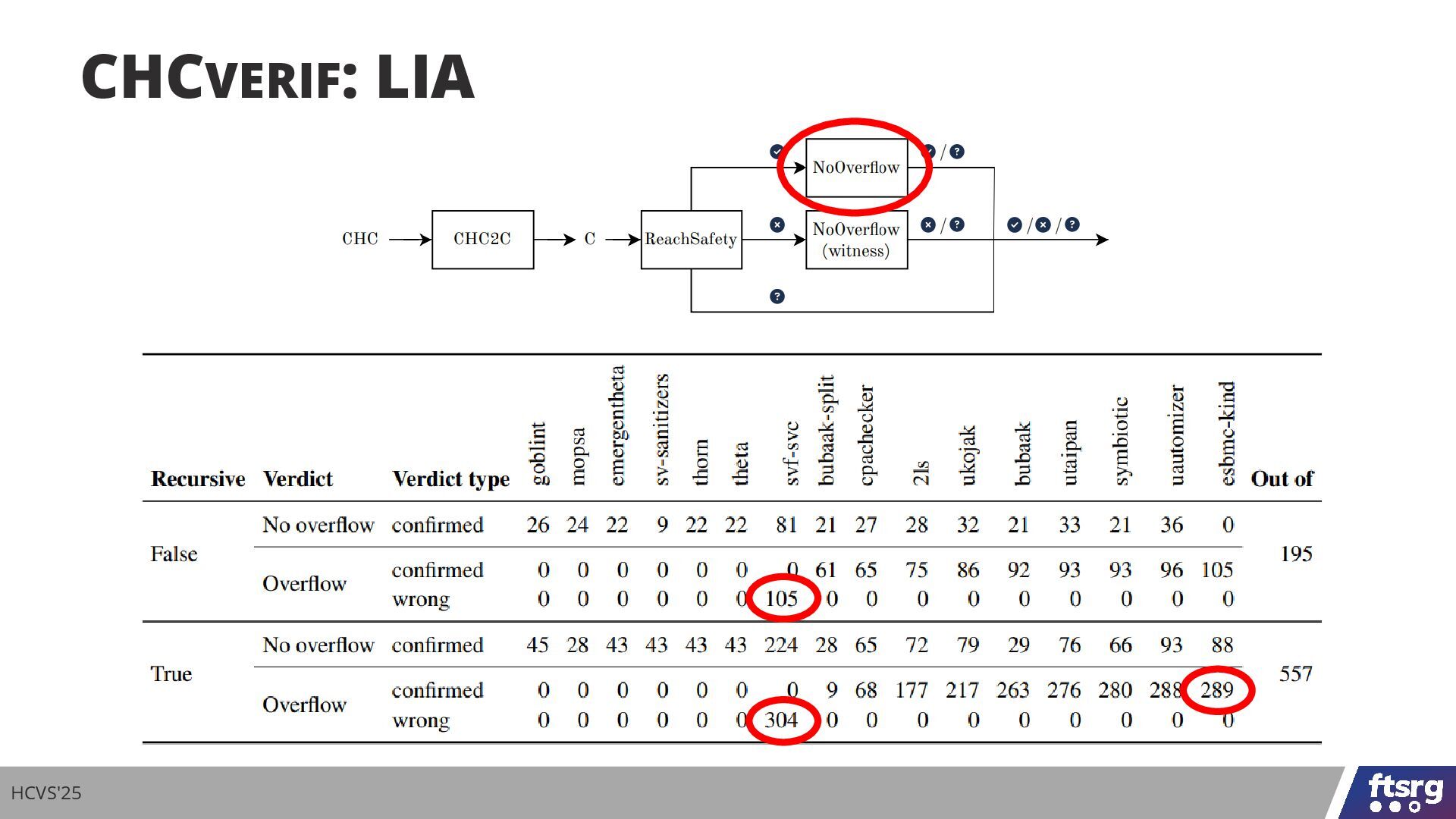

13. HCVS'25 CHCVERIF: LIA

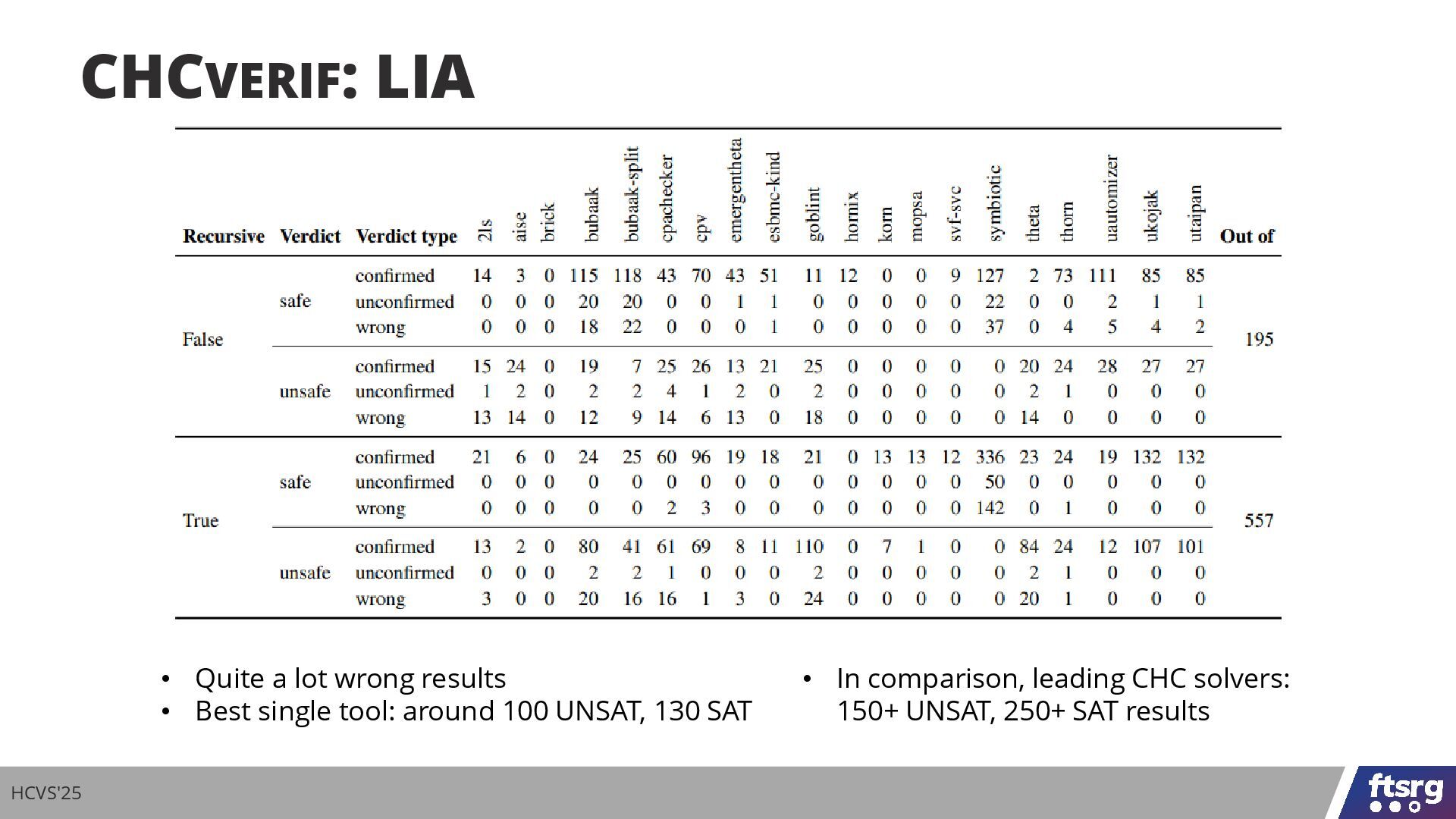

14. HCVS'25 CHCVERIF: LIA • Quite a lot wrong results • Best single tool: around 100 UNSAT, 130 SAT • In comparison, leading CHC solvers: 150+ UNSAT, 250+ SAT results

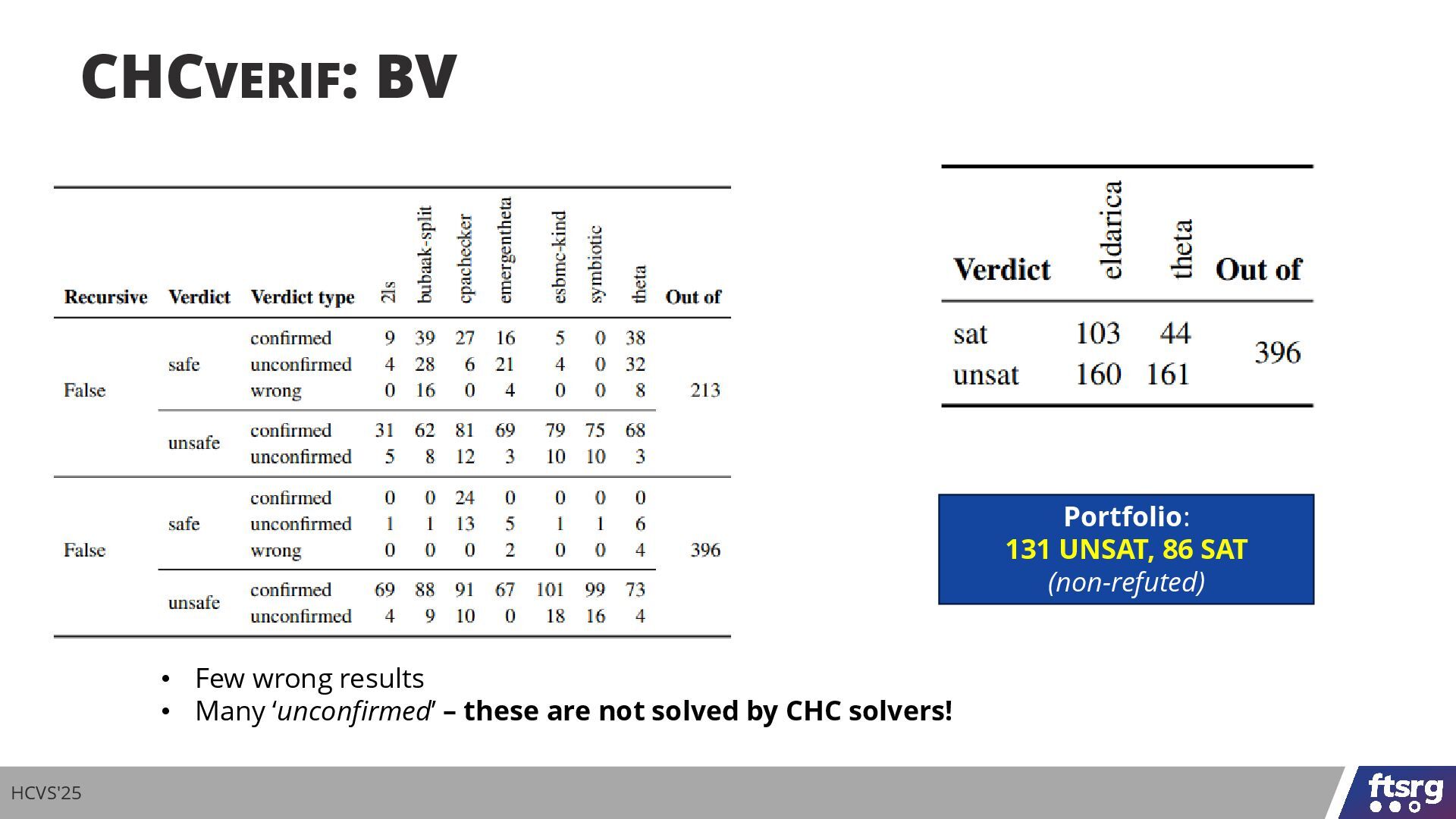

15. HCVS'25 CHCVERIF: BV • Few wrong results • Many ‘unconfirmed’ – these are not solved by CHC solvers! Portfolio: 131 UNSAT, 86 SAT (non-refuted)
16. Significance & Summary Why should you care? HCVS'25
17. HCVS'25 • We believe so… Has this benefitted CHC solving? New solvers (for BV out-of-the-box) Previously unsolved tasks More competition, more visibility
18. HCVS'25 • We are sure! And software verification? ISO/IEC 9899:202x extern _Bool __VERIFIER_nondet_Bool(); extern void reach_error(); int main(){ _Bool b = __VERIFIER_nondet_Bool(); switch(b) { case 0: return 0; case 1: return 0; } reach_error(); // never called? } CPAchecker: already fixed!

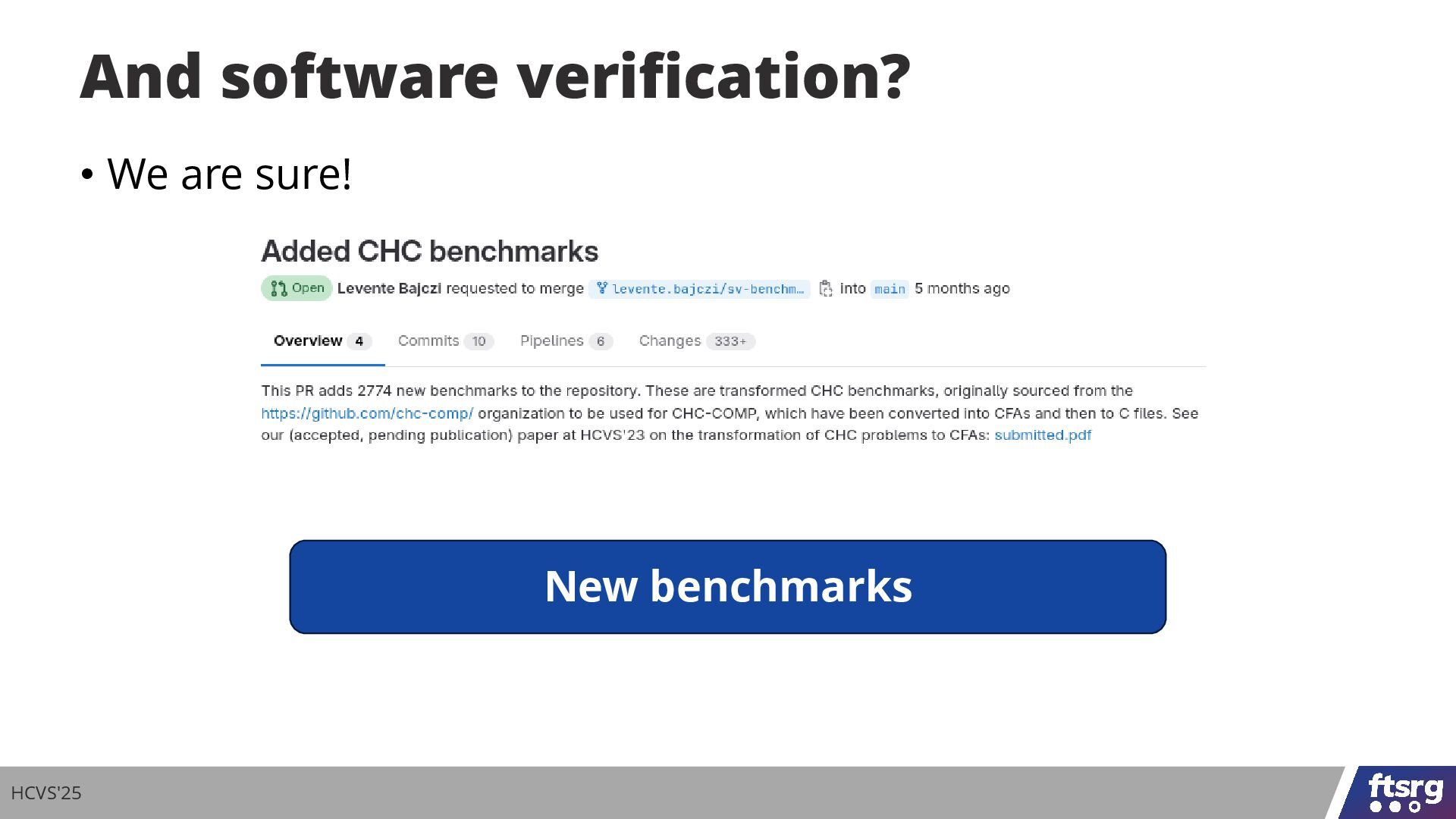

19. HCVS'25 • We are sure! And software verification? New benchmarks
20. HCVS'25 Summary Try CHC2C: github.com/ftsrg/chc2c See CHC-to-CFA paper: 10.4204/EPTCS.402.11 See CHC-to-C paper: 10.1007/978-3-031-66149-5_8 Zenodo tool archive: 10.5281/zenodo.15283157
