Compilers and ML - intro

My first presentation around compilers and how their construction relates to ML.

Transcript

1. Compilers and ML
   What’s their connection?
   Ioannis Petrousov
   18.01.2023


   View Slide

2. $ whoami
   Ioannis Petrousov
   ● 2017: Graduated from UOWM while working FT.
   ● Moved to the Netherlands.
   ● .
   ● . (several adventures later)
   ● .
   ● 2022: Started working as a freelancer


   View Slide

3. - Notes from the book: A Practical Approach to Compiler Construction - Des Watson
   - This presentation is for me to more-or-less verify what I’ve learned.
   - Expects some interaction!
   Disclaimer


   View Slide

4. TOC
   1. What is a compiler?
   2. Compiler building blocks.
   3. How compilers are made.


   View Slide

5. How I got into compilers
   - I felt like a fool when trying to understand
   George Hotz’s streams.
   - What’s tinycore?
   - How do you compile something to run on
   M1 neural engine?
   - How do you compile something on Google
   Coral Edge TPU?
   - What is the LLVM backend and how can you
   use it?


   View Slide

6. How I got into compilers
   - I felt like a fool when trying to understand
   George Hotz’s streams.
   - What’s tinycore?
   - How do you compile something to run on
   M1 neural engine?
   - How do you compile something on Google
   Coral Edge TPU?
   - What is the LLVM backend and how can you
   use it?


   View Slide

7. Which compilers do you know?


   View Slide

8. What is a compiler?
   Compiler
   The secret lies within the compiler.


   View Slide

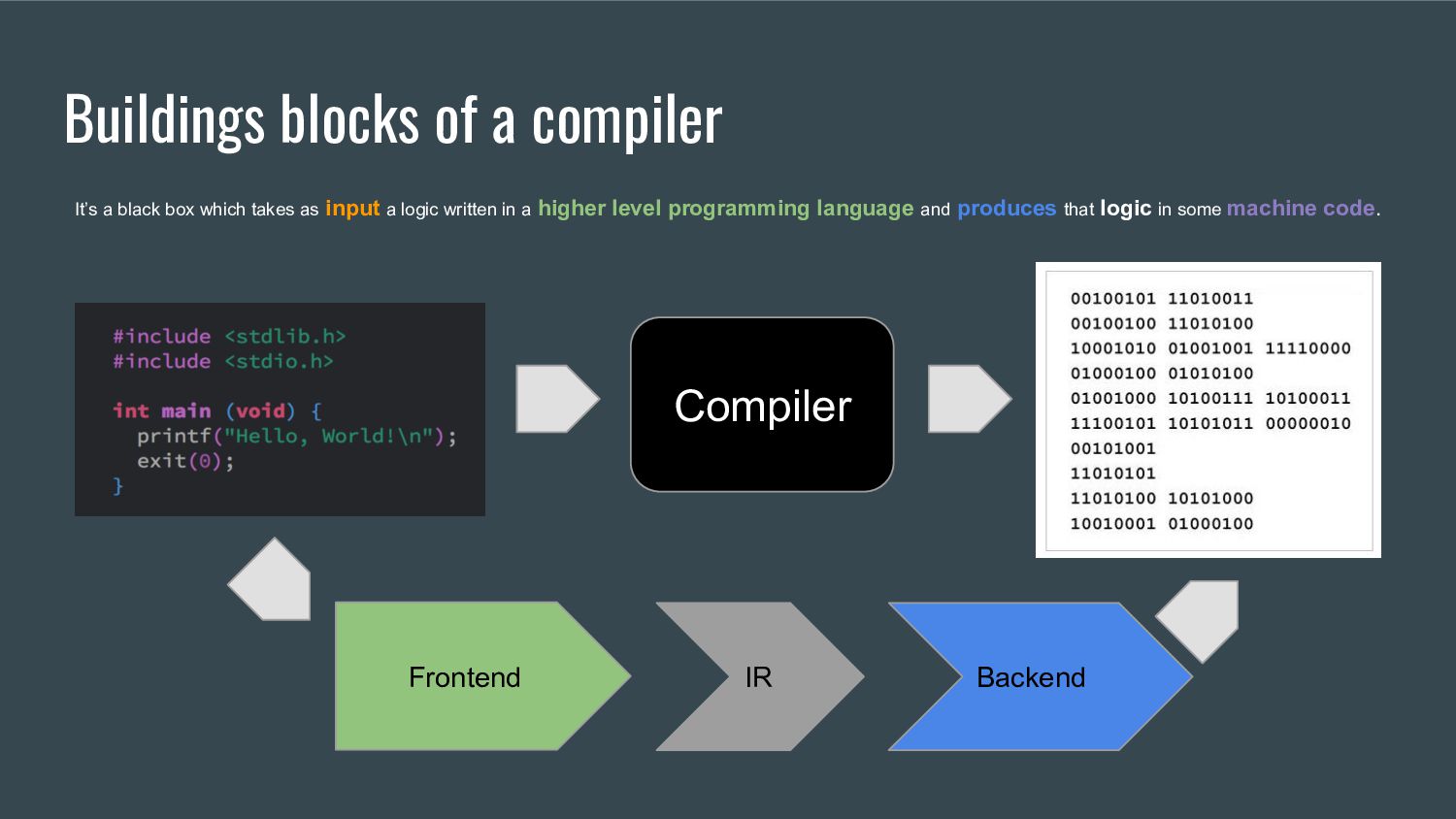

9. Buildings blocks of a compiler
   It’s a black box which takes as input a logic written in a higher level programming language and produces that logic in some machine code.
   Frontend
   Compiler
   IR Backend


   View Slide

10. Compiler frontend
    Frontend
    1. Lexical analysis
    - Group lexical tokens
    - OUTPUT: group of lexical tokens
    2. Syntax analysis
    - INPUT: groups of lexical tokens
    - Perform reduction on the lexical token group and reduce them
    into BNF statements
    - OUTPUT: Construct the program's syntax tree
    3. Semantic analysis
    - INPUT: Abstract Syntax Tree
    - Traverses the tree and inserts the following:
    - types, operator overload, scopes, etc.
    - OUTPUT: Intermediate Representation IR
    read
    process
    write


    View Slide

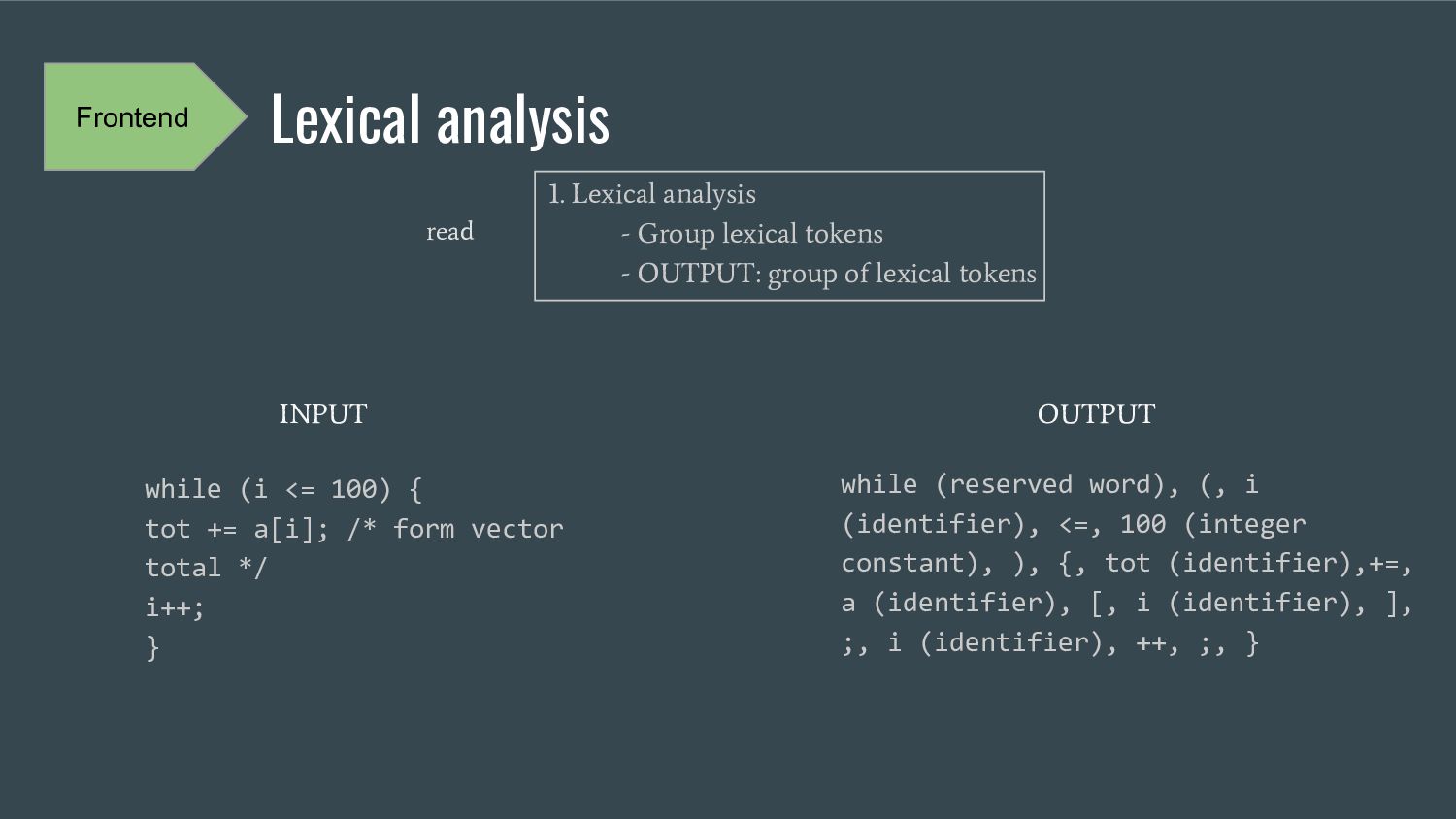

11. Lexical analysis
    Frontend
    1. Lexical analysis
    - Group lexical tokens
    - OUTPUT: group of lexical tokens
    read
    while (i <= 100) {
    tot += a[i]; /* form vector
    total */
    i++;
    }
    while (reserved word), (, i
    (identifier), <=, 100 (integer
    constant), ), {, tot (identifier),+=,
    a (identifier), [, i (identifier), ],
    ;, i (identifier), ++, ;, }
    INPUT OUTPUT


    View Slide

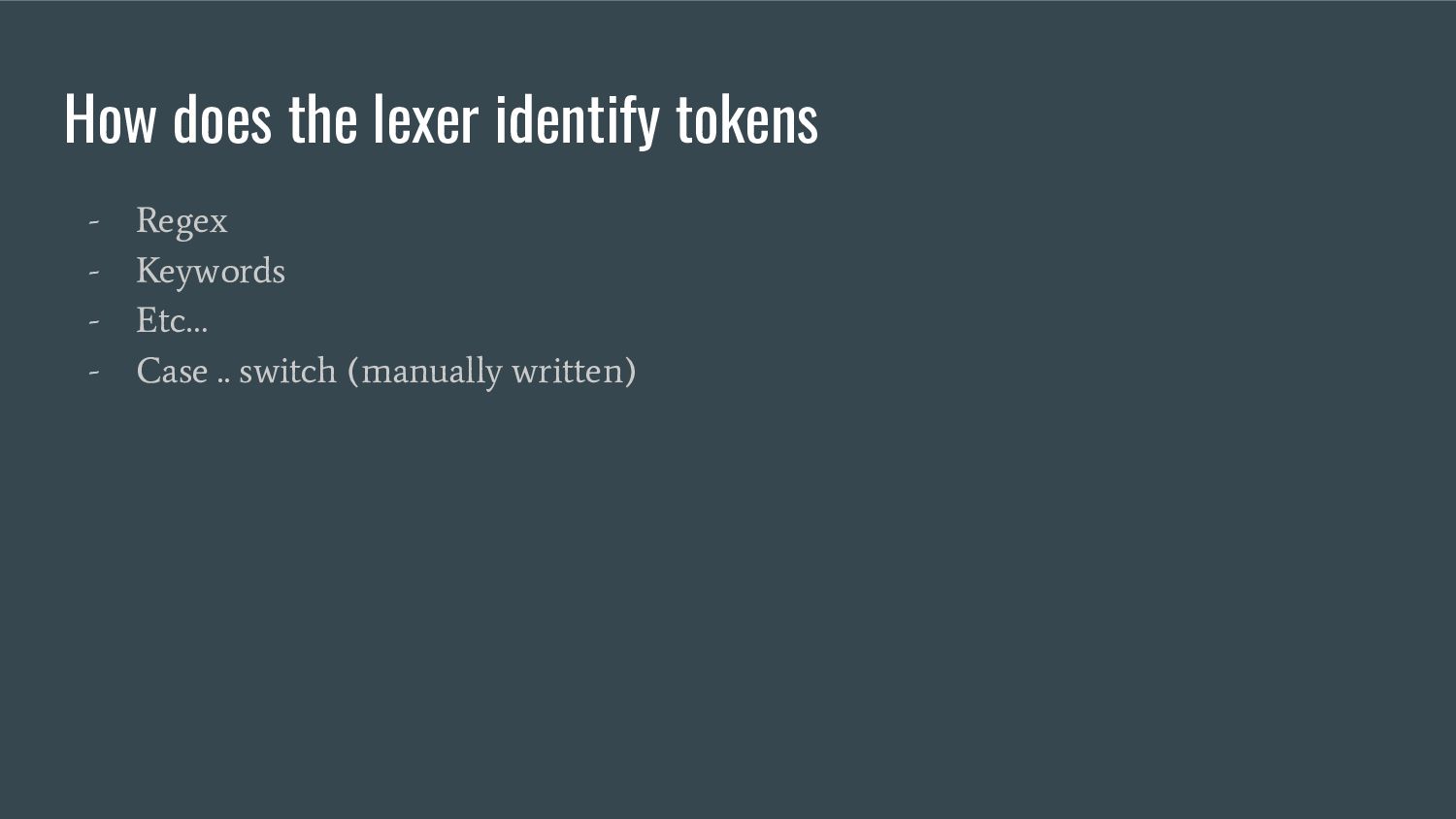

12. How does the lexer identify tokens
    - Regex
    - Keywords
    - Etc…
    - Case .. switch (manually written)


    View Slide

13. Syntax analysis
    Frontend
    2. Syntax analysis
    - INPUT: groups of lexical tokens
    - Perform reduction on the lexical token group and reduce them into BNF statements
    - OUTPUT: Construct the program's syntax tree
    process
    while (reserved word), (, i
    (identifier), <=, 100 (integer
    constant), ), {, tot (identifier),+=,
    a (identifier), [, i (identifier), ],
    ;, i (identifier), ++, ;, }
    INPUT PROCESS
    In simpler words, it performs a syntax check to see if the
    symbols adhere to the programming language’s syntax rules.


    View Slide

14. How does the syntax analyser know the syntax of a language?
    In other words, how is a programming language defined?


    View Slide

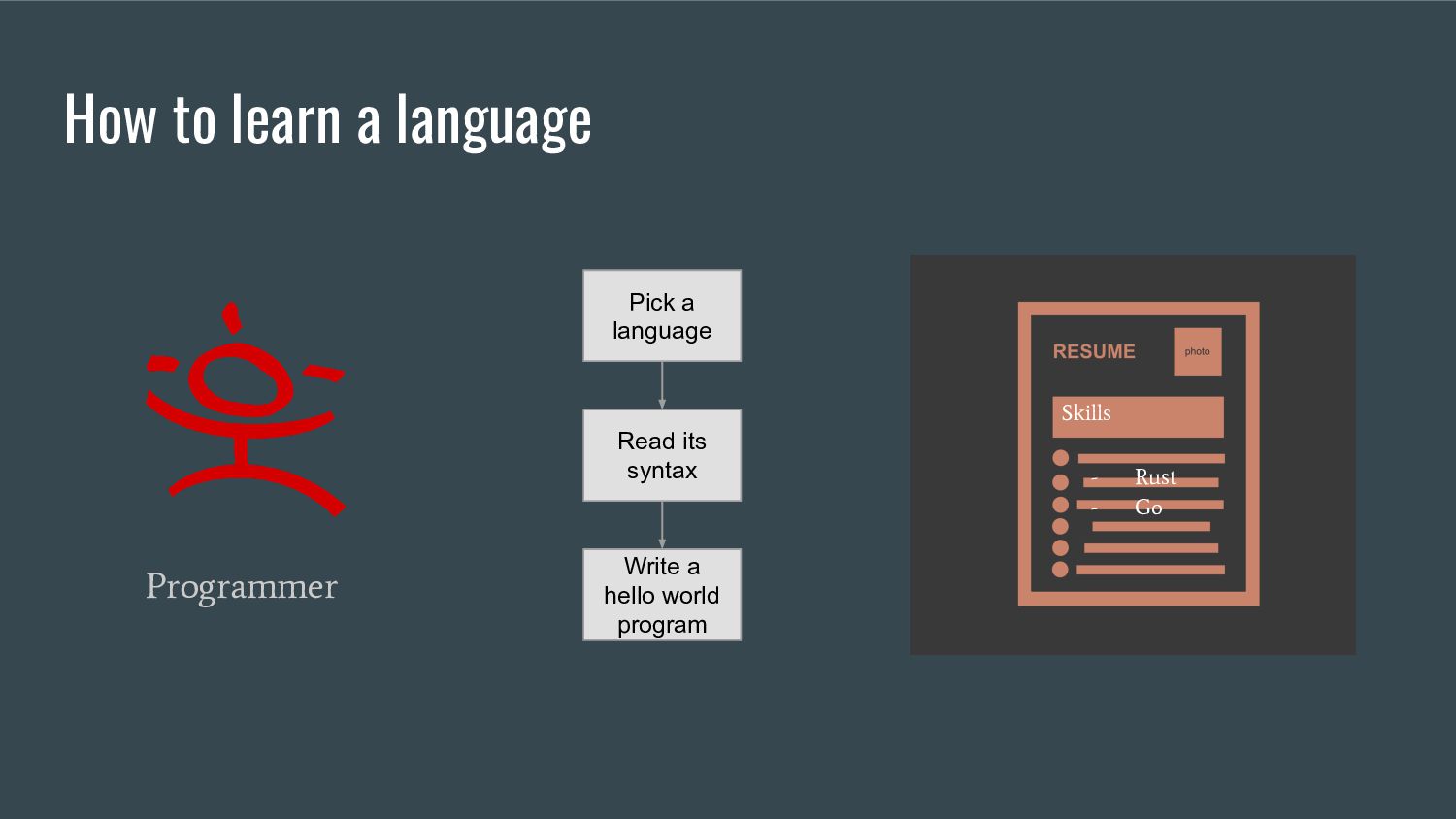

15. How to learn a language
    Programmer
    Pick a
    language
    Read its
    syntax
    Write a
    hello world
    program
    Skills
    - Rust
    - C
    - Go
    Skills
    - Rust
    - Go


    View Slide

16. EBNF
    - Similarly, a syntax analyser knows the syntax of a language through a “document”.
    - The “document” is written in a meta-language called EBNF.
    - EBNF defines the syntax of a programming language.
    EBNF example
    ::=
    ::= |
    ::= "." |
    ::=
    ::= ","
    ::= "Sr." | "Jr." | | ""
    ::= | ""
    https://en.wikipedia.org/wiki/Backus%E2%80%93Naur_form


    View Slide

17. Syntax analysis (AST)
    Frontend
    2. Syntax analysis
    - INPUT: groups of lexical tokens
    - Perform reduction on the lexical token group and reduce them into BNF statements
    - OUTPUT: Construct the program's syntax tree
    process
    int(reserved word),i
    (identifier,=,5 (constant),;
    INPUT REDUCTION
    ::= = ;
    ::= int | float
    ::= 0 | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9
    statement
    =
    i 5


    View Slide

18. Semantic analysis
    3. Semantic analysis
    - INPUT: Abstract Syntax Tree
    - Traverses the tree and inserts the following:
    - types, operator overload, scopes, etc.
    - OUTPUT: Intermediate Representation
    write
    INPUT
    https://cs.lmu.edu/~ray/notes/ir/
    Frontend
    IR
    OUTPUT
    i var value=100
    C const value=6
    name string value=qwerty


    View Slide

19. Intermediate Representation (IR)
    - A combination of the Syntax Tree + Symbol table.
    - No standard way of constructing one.
    - Dependent on the Frontend and Backend blocks.
    - There are multiple IRs out there.
    IR


    View Slide

20. Modular blocks
    - Compiler blocks are
    interchangeable.
    - A frontend must know
    how to write an IR.
    - A backend must know
    how to interpret an IR
    into machine code.
    Frontend IR Backend
    Frontend-1
    Frontend-2
    Frontend-3
    IR-1 Backend-1
    Backend-2
    IR-2


    View Slide

21. Practically
    https://gcc.gnu.org/frontends.html
    https://llvm.org/


    View Slide

22. Compiler Backend
    - Is concerned with
    - Optimization
    - Code generation
    - Optimization:
    - Memory
    - Power
    - Speed
    - Generates machine code for the
    specific machine processor.
    Backend
    RISC CISC
    VM
    https://cs.stanford.edu/people/eroberts/courses/soco/projects/risc/risccisc/


    View Slide

23. Approaches towards code generation
    - One-off custom generator which does
    pattern matching against the IR and
    data structures.
    - Using the peephole optimization on
    the IR instruction.
    - Use regex on the IR and replace it
    with machine code.
    - Replace matching text with machine
    code. Backend


    View Slide

24. Approaches towards compiler construction


    View Slide

25. Elementary language
    EBNF definition of an elementary language.
    S → Az|z
    A → x A|B
    B → y
    Usage examples
    xyz
    xxxxyz
    xxxxz
    z


    View Slide

26. Handwritten syntax analyser
    int ch;
    void error(char *msg) {
    printf("Error - found character %c - %s\n",ch,msg);
    exit(1);
    void s() {
    if (ch == ’z’) ch = getchar();
    else {
    a();
    if (ch != ’z’) error("z expected");
    else ch = getchar();
    }
    printf("Success!\n");
    }
    int main(int argc, char *argv[]) {
    ch = getchar();
    s();
    return 0;
    }
    }
    void b() {
    if (ch == ’y’) ch = getchar();
    else error("y expected");
    }
    void a() {
    if (ch == ’x’) {
    ch = getchar();
    a();
    }
    else b();
    }
    xyz
    Success!
    $ ./simpletopdown
    xxxxyz
    Success!
    $ ./simpletopdown
    xxxxz
    Error - found character z - y expected
    $ ./simpletopdown
    z
    Success!
    A Practical Approach to Compiler Construction (Undergraduate Topics in Computer Science)


    View Slide

27. Compiler construction tools
    - yacc
    - flex
    - bison
    Calculator example on terminal


    View Slide

28. What you should be able to answer
    - What is a compiler?
    - Compiler building blocks.
    - How is Java different than C.
    - How to navigate compiler pages: llvm.org || gcc.gnu.org
    - How to make your own compilers (more or less).


    View Slide

29. ML and Compilers
    ML accelerator hardware
    - GPUs
    - Google Coral Edge TPU.
    - Apple Neural Engine.
    - Custom made FPGA accelerators.
    - …
    The field is open for disruption.
    - Custom accelerator architectures require
    custom compilers.
    - Compilers must be able to optimize ML
    code.


    View Slide

30. Find my notes on compilers on github
    https://github.com/gpetrousov/compilers
