Multi-Container Applications Spanning Docker, Mesos and OpenStack

Lightning Talk given at DockerCon Europe in Barcelona, November 2015

Transcript

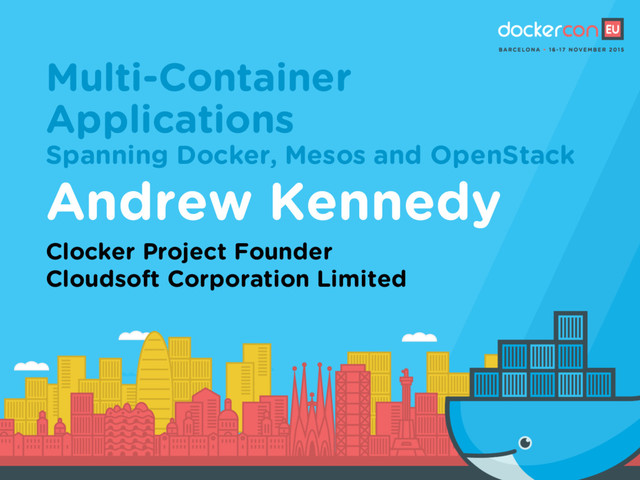

1. Multi-Container
   Applications
   Spanning Docker, Mesos and OpenStack
   Andrew Kennedy
   Clocker Project Founder
   Cloudsoft Corporation Limited


   View Slide

2. Agenda
   Features
   Adding extra capabilities
   to applications using
   Clocker
   Demonstration
   Live application
   deployment across
   Docker, Mesos and
   OpenStack
   Introduction
   What is Clocker?
   Blueprints
   Defining multi-container
   applications across
   multiple target
   destinations


   View Slide

3. “Containers, not
   Virtual Machines,
   are the Future
   Cloud.”


   View Slide

4. Introduction
   What is Clocker?


   View Slide

5. @grkvlt


   View Slide

6. @grkvlt
   Clocker Statistics
   About the Clocker Project
   Open Source
   1+ Years Old
   822 Commits
   193 Pull Requests
   14 Contributors
   2 External
   19 KLOC
   31 Releases
   Version 1.1.0 available now
   http://www.redotheweb.com/CodeFlower/


   View Slide

7. @grkvlt
   Application Management Platform
   Define Application using Blueprints
   OASIS CAMP and TOSCA Standards
   Deploy, Manage and Monitor Applications
   Provisioning, Installation and Customization
   Runtime Management and Monitoring
   Policies
   AutoScaling, Resilience, Performance, Security
   Apache Brooklyn


   View Slide

8. @grkvlt
   Apache jclouds
   Java Cloud Library
   API Agnostic
   OpenStack, SoftLayer, Azure, GCE , AWS EC2, …
   Create Virtual Machines
   Return SSH Endpoint
   Create Containers
   Docker Provider
   Uses REST API
   Configuration
   Execute Commands


   View Slide

9. @grkvlt
   Docker Engine
   Isolation
   Environment
   Performance
   Resource Allocation
   Composable
   Huge Ecosystem
   Internal and External
   Compute Abstraction
   Process Wrapper
   Microservices
   Container Management


   View Slide

10. @grkvlt
    Docker Extras
    Integrating More Features and Capabilities into Docker
    Software-Defined Networking
    Project Calico
    Weave
    Storage and Volume Management
    Flocker
    More Being Developed…
    Native Plugins
    Docker Tools
    Swarm
    Compose


    View Slide

11. @grkvlt
    Apache Mesos
    Distributed Systems Kernel
    Cluster Management
    Resource Sharing and Placement
    Calico SDN Support
    Frameworks
    Aurora, Chronos
    Marathon
    Riak, Spark, Storm
    Hadoop
    Tasks
    Marathon for Docker


    View Slide

12. @grkvlt
    Docker Cloud Properties
    1. On-demand
    2. Multi-Tenant
    3. Hardware Independent
    4. Application Level


    View Slide

13. @grkvlt
    Platform
    Specific
    Platform
    Agnostic
    Application
    Centric
    Infrastructure
    Centric
    Clocker Positioning


    View Slide

14. Features
    Adding extra capabilities to applications
    using Clocker


    View Slide

15. @grkvlt
    Clocker Features
    1. Spins up and Manages Docker
    Clusters in the Cloud
    2. Deploys Containers and
    Networks on Demand
    3. Manages Multi-Container
    Composite Applications


    View Slide

16. @grkvlt
    Apache Mesos Integration
    Marathon Framework
    Connect to Existing Mesos Cluster
    Scan for Frameworks
    Marathon Location for Deployment
    Docker Container Entites
    Become Marathon Tasks
    Arbitrary Entities
    Start Marathon Task with Ubuntu Image
    Networking
    Project Calico Network Module Integration


    View Slide

17. @grkvlt
    Networking Capabilities
    Software-Defined Networking
    Security Policy for Network Traffic
    Inter-Container and External Firewalling
    Wide Area and Multi Region SDN
    VPN or IPIP and NAT Configuration
    Name Resolution and Service Discovery
    Traditional BIND DNS Server via a Brooklyn Entity
    Brooklyn Injects IP Addresses and Port Numbers
    Metaswitch Project Calico
    Layer 3 Internet Protocol Traffic
    Spans VMs, Mesos and Containers
    Internet Scale using BGP


    View Slide

18. @grkvlt
    Application Orchestration
    Docker
    Engine
    Virtual
    Machine
    Container
    Clocker
    Network
    Segment
    SDN
    Provider
    Cloud
    Provider
    Brooklyn
    Mesos
    Cluster
    Marathon
    Task


    View Slide

19. Blueprints
    Defining multi-container applications across
    multiple target destinations


    View Slide

20. @grkvlt
    id: my-application
    location: my-docker-cloud
    services:
    - type: docker:redis:3
    id: redis
    openPorts: 6379
    - type: docker:clockercentral/dnmonster:1.0
    id: dnmonster
    openPorts: 8080
    - type: docker:clockercentral/identidock:1.3
    id: identidock
    portBindings:
    80: 9090
    links:
    - $brooklyn:component("redis")
    - $brooklyn:component("dnmonster")
    Application Blueprint


    View Slide

21. @grkvlt
    id: my-application
    location: my-docker-cloud
    services:
    - type: docker:redis:3
    id: redis
    openPorts: 6379
    - type: docker:clockercentral/dnmonster:1.0
    id: dnmonster
    openPorts: 8080
    - type: docker:clockercentral/identidock:1.3
    id: identidock
    portBindings:
    80: 9090
    links:
    - $brooklyn:component("redis")
    - $brooklyn:component("dnmonster")
    Application Blueprint


    View Slide

22. @grkvlt
    id: my-application
    location: my-docker-cloud
    services:
    - type: org.apache.brooklyn.entity.nosql.redis.RedisStore
    id: redis
    install.version: 3.0.0
    - type: docker:clockercentral/dnmonster:1.0
    id: dnmonster
    openPorts: 8080
    - type: docker:clockercentral/identidock:1.3
    id: identidock
    portBindings:
    80: 9090
    links:
    - $brooklyn:component("redis")
    - $brooklyn:component("dnmonster")
    Application Blueprint


    View Slide

23. @grkvlt
    id: my-application
    services:
    - type: org.apache.brooklyn.entity.nosql.redis.RedisStore
    location: my-openstack-cloud
    id: redis
    install.version: 3.0.0
    - type: docker:clockercentral/dnmonster:1.0
    location: my-docker-cloud
    id: dnmonster
    openPorts: 8080
    - type: docker:clockercentral/identidock:1.3
    location: my-docker-cloud
    id: identidock
    portBindings:
    80: 9090
    links:
    - $brooklyn:component("redis")
    - $brooklyn:component("dnmonster")
    Application Blueprint


    View Slide

24. @grkvlt
    id: my-application
    services:
    - type: org.apache.brooklyn.entity.nosql.redis.RedisStore
    location: my-openstack-cloud
    id: redis
    install.version: 3.0.0
    - type: docker:clockercentral/dnmonster:1.0
    location: my-mesos-cluster
    id: dnmonster
    openPorts: 8080
    - type: docker:clockercentral/identidock:1.3
    location: my-docker-cloud
    id: identidock
    portBindings:
    80: 9090
    links:
    - $brooklyn:component("redis")
    - $brooklyn:component("dnmonster")
    Application Blueprint


    View Slide

25. @grkvlt
    id: my-application
    services:
    - type: org.apache.brooklyn.entity.nosql.redis.RedisStore
    location: my-openstack-cloud
    id: redis
    install.version: 3.0.0
    - type: docker:clockercentral/dnmonster:1.0
    location: my-mesos-cluster
    id: dnmonster
    openPorts: 8080
    - type: docker:clockercentral/identidock:1.3
    location: my-docker-cloud
    id: identidock
    portBindings:
    80: 9090
    links:
    - $brooklyn:component("redis")
    - $brooklyn:component("dnmonster")
    Application Blueprint


    View Slide

26. Demonstration
    Live application deployment across Docker,
    Mesos and OpenStack


    View Slide

27. View Slide

28. “Clocker solves: Docker
    Cloud Networking,
    Container Placement and
    Provisioning, and
    Composite Application
    Management.”


    View Slide

29. Thank you!
    Andrew Kennedy
    @grkvlt
    andrew@cloudsoft.io
    http://clocker.io/


    View Slide

30. @grkvlt
    clocker.io
    brooklyn.io
    github.com/brooklyncentral/clocker/
    projectcalico.com
    mesos.apache.org
    blog.abstractvisitorpattern.co.uk
