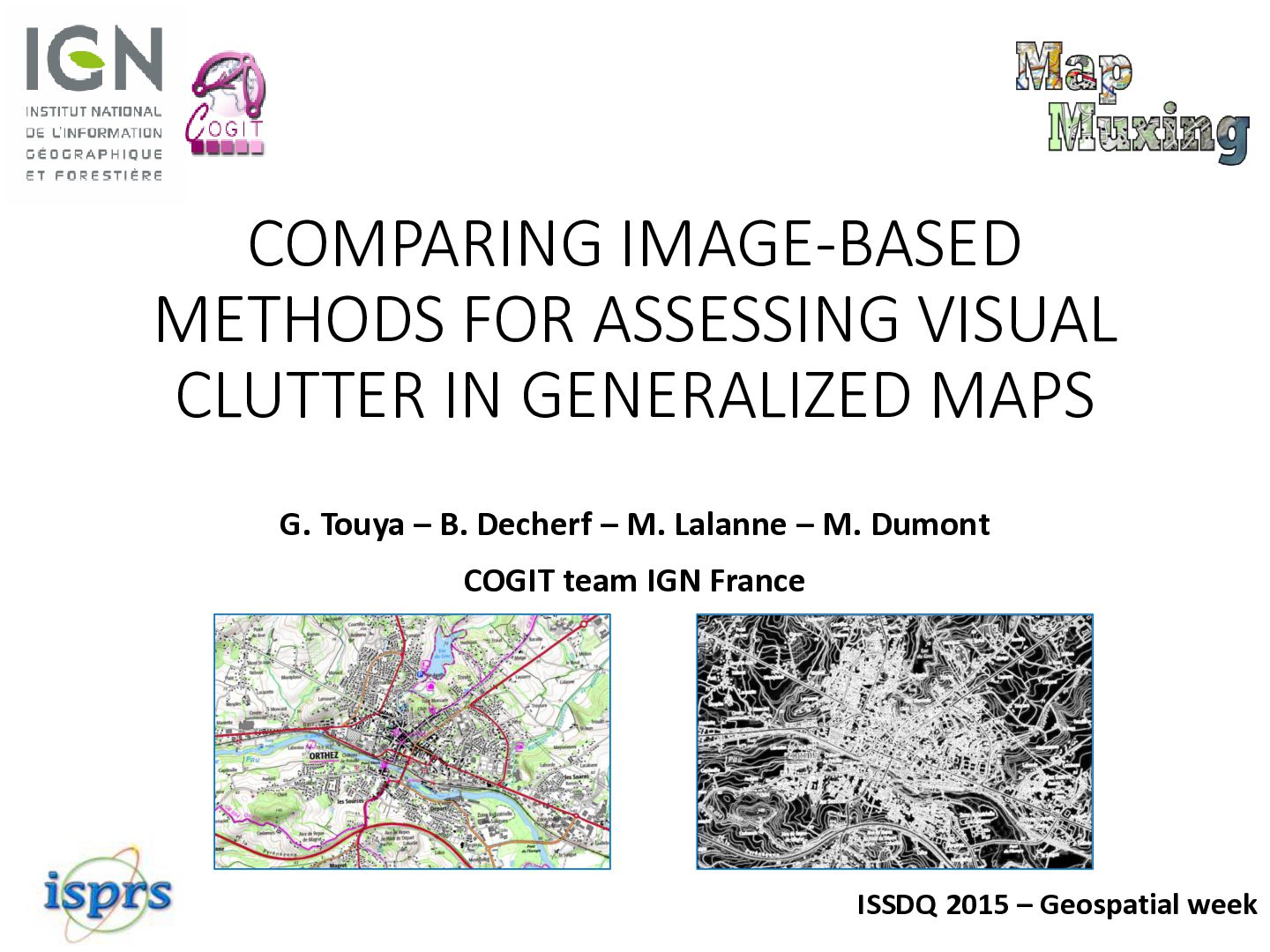

COMPARING IMAGE-BASED METHODS FOR ASSESSING VISUAL CLUTTER IN GENERALIZED MAPS
G. Touya – B. Decherf – M. Lalanne – M. Dumont COGIT team IGN France ISSDQ 2015 – Geospatial week

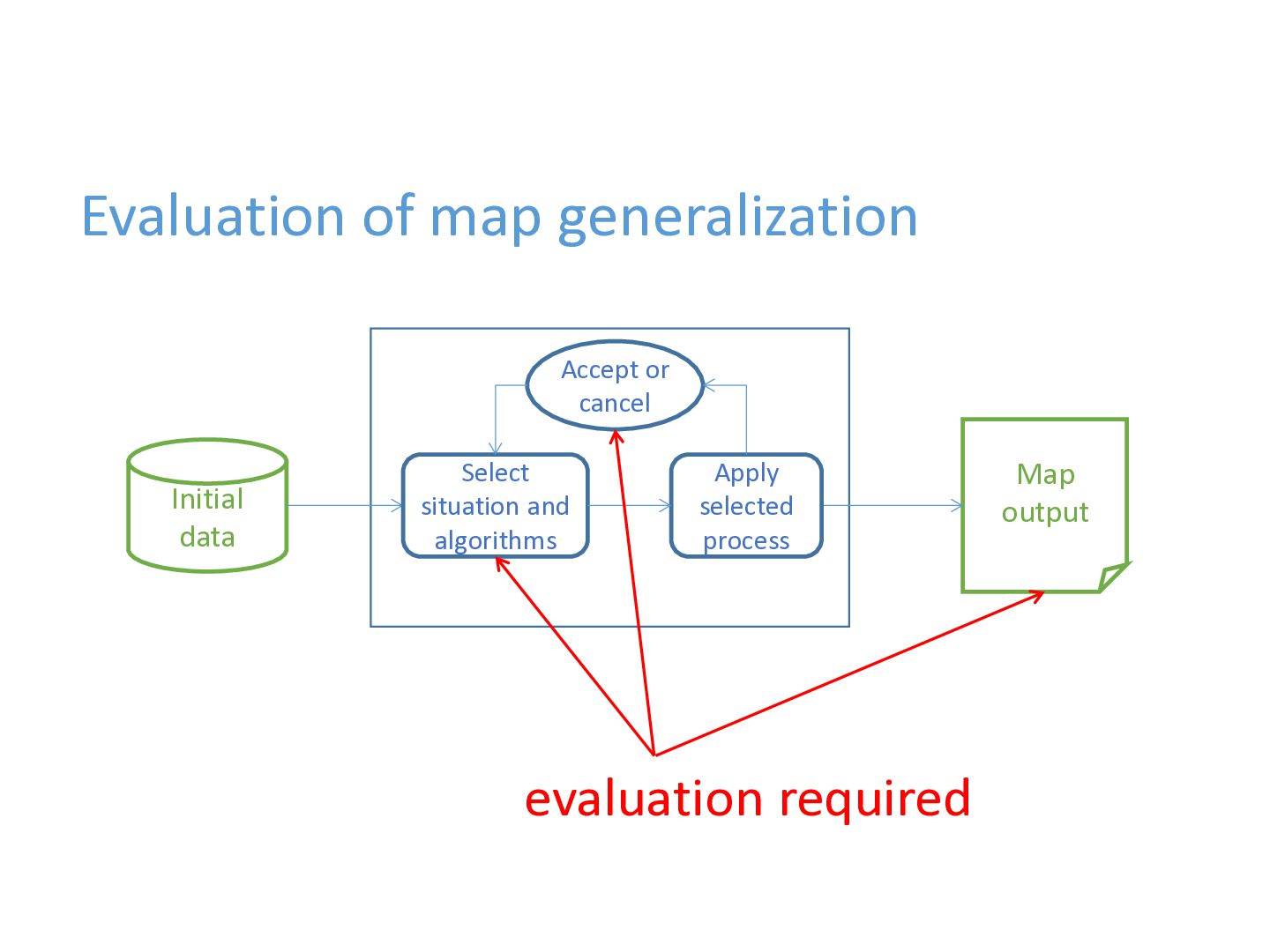

Evaluation of map generalization Accept or cancel Initial data Select
situation and algorithms Apply selected process evaluation required Map output

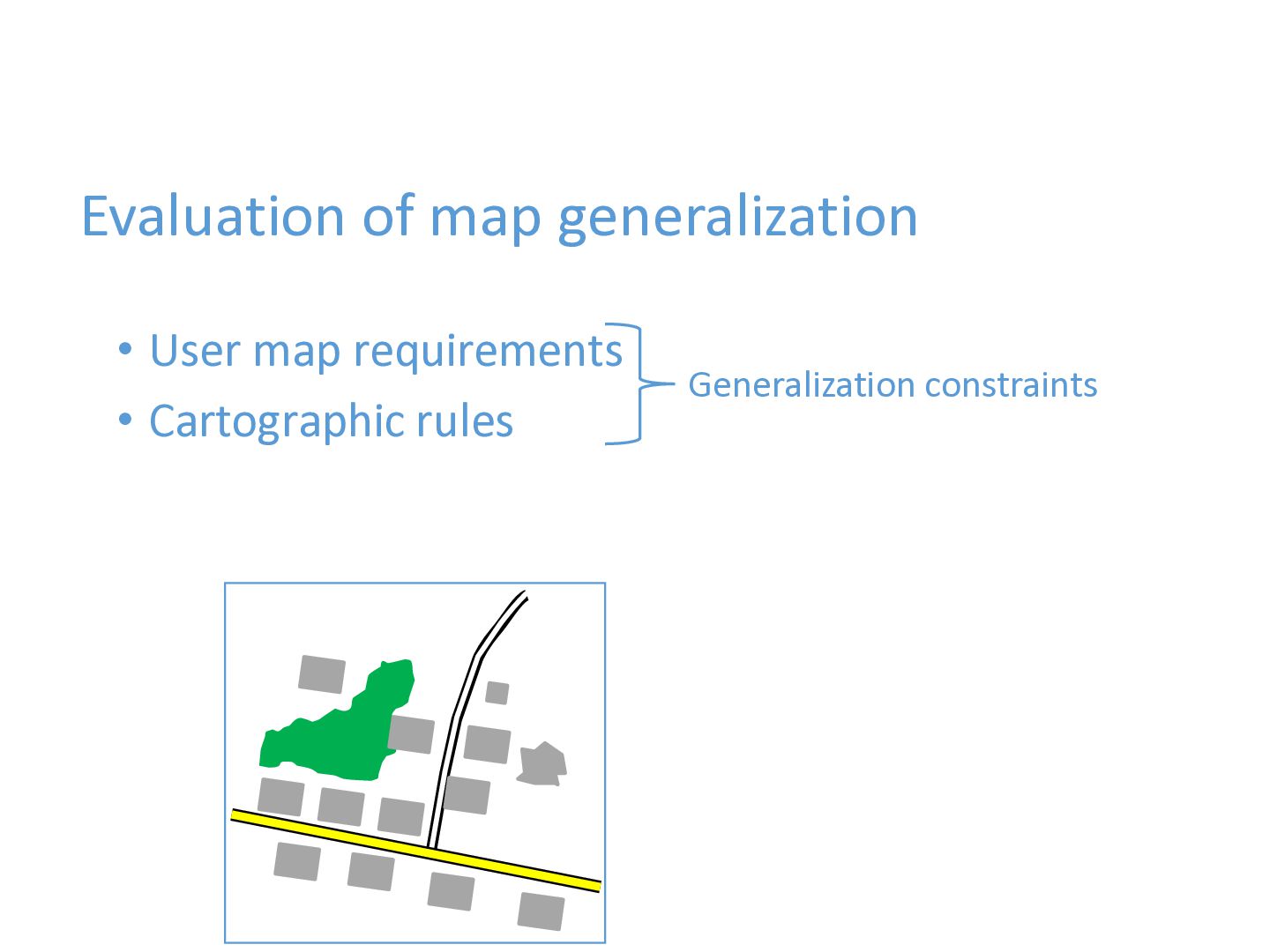

Evaluation of map generalization • User map requirements • Cartographic
rules Generalization constraints

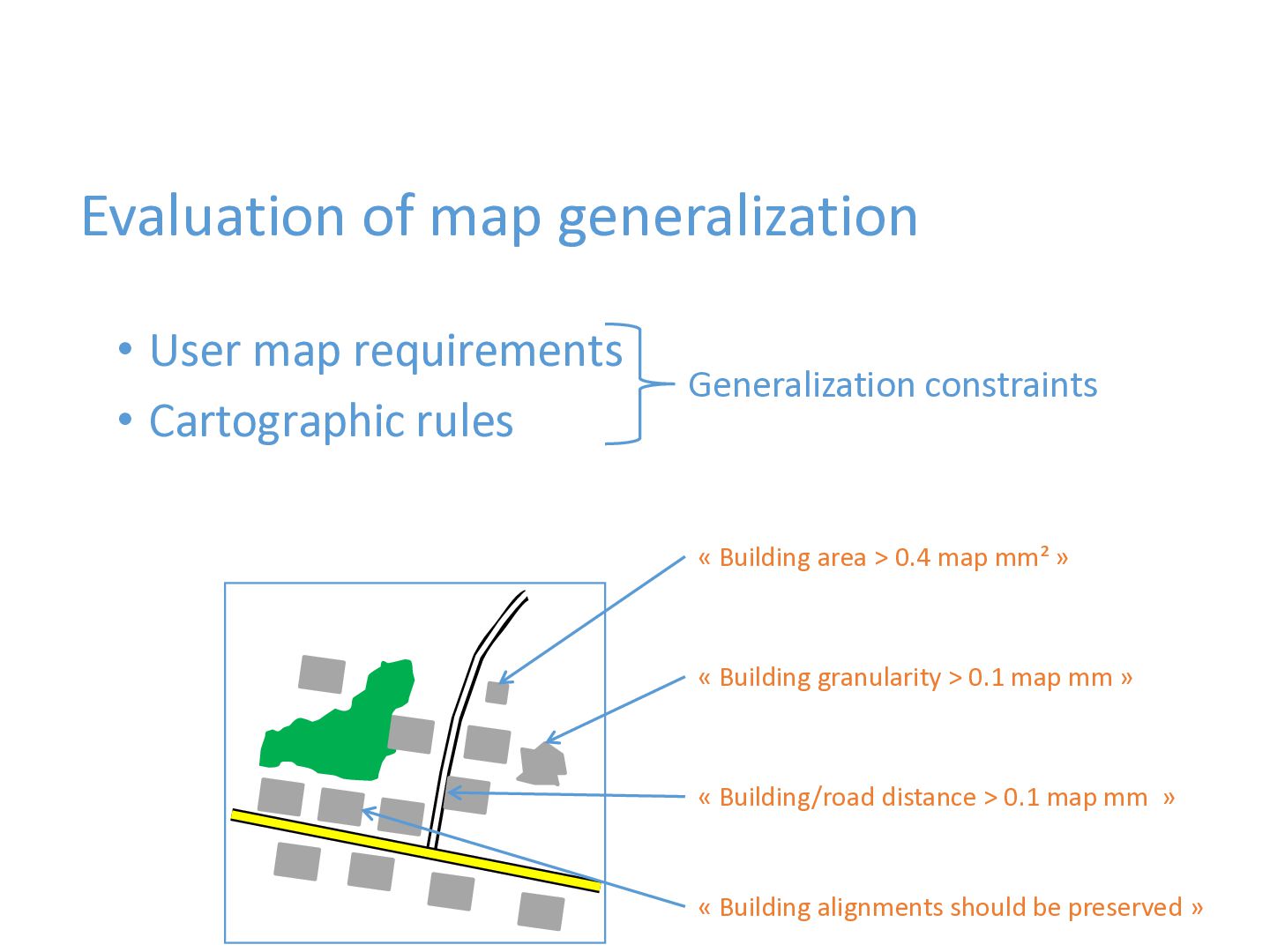

Evaluation of map generalization • User map requirements • Cartographic
rules Generalization constraints « Building area > 0.4 map mm² » « Building granularity > 0.1 map mm » « Building/road distance > 0.1 map mm » « Building alignments should be preserved »
Evaluation of map generalization Constraints number 80 60 40 20
0 1 2 3 4 5 6 7 8 satisfaction scale

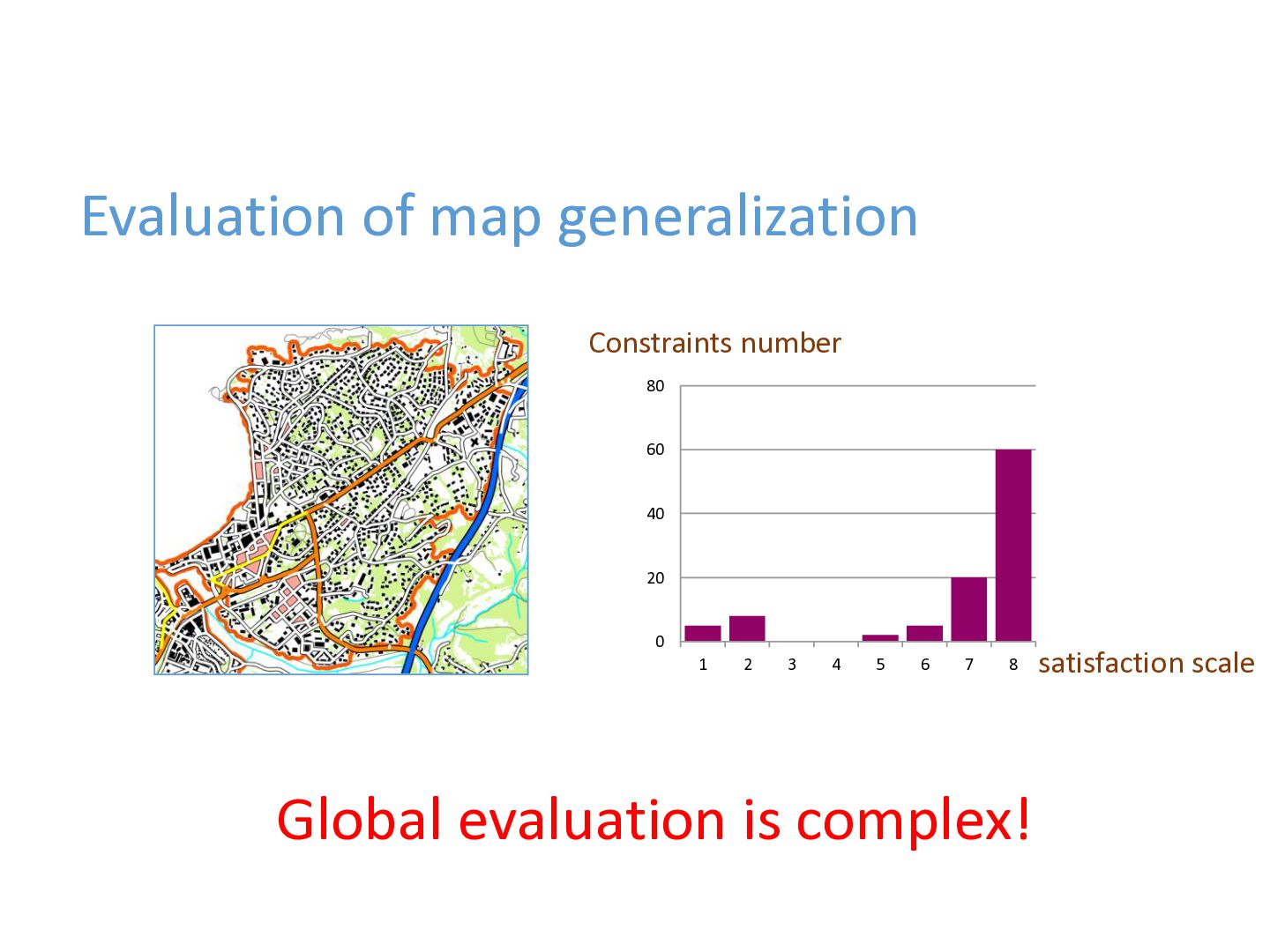

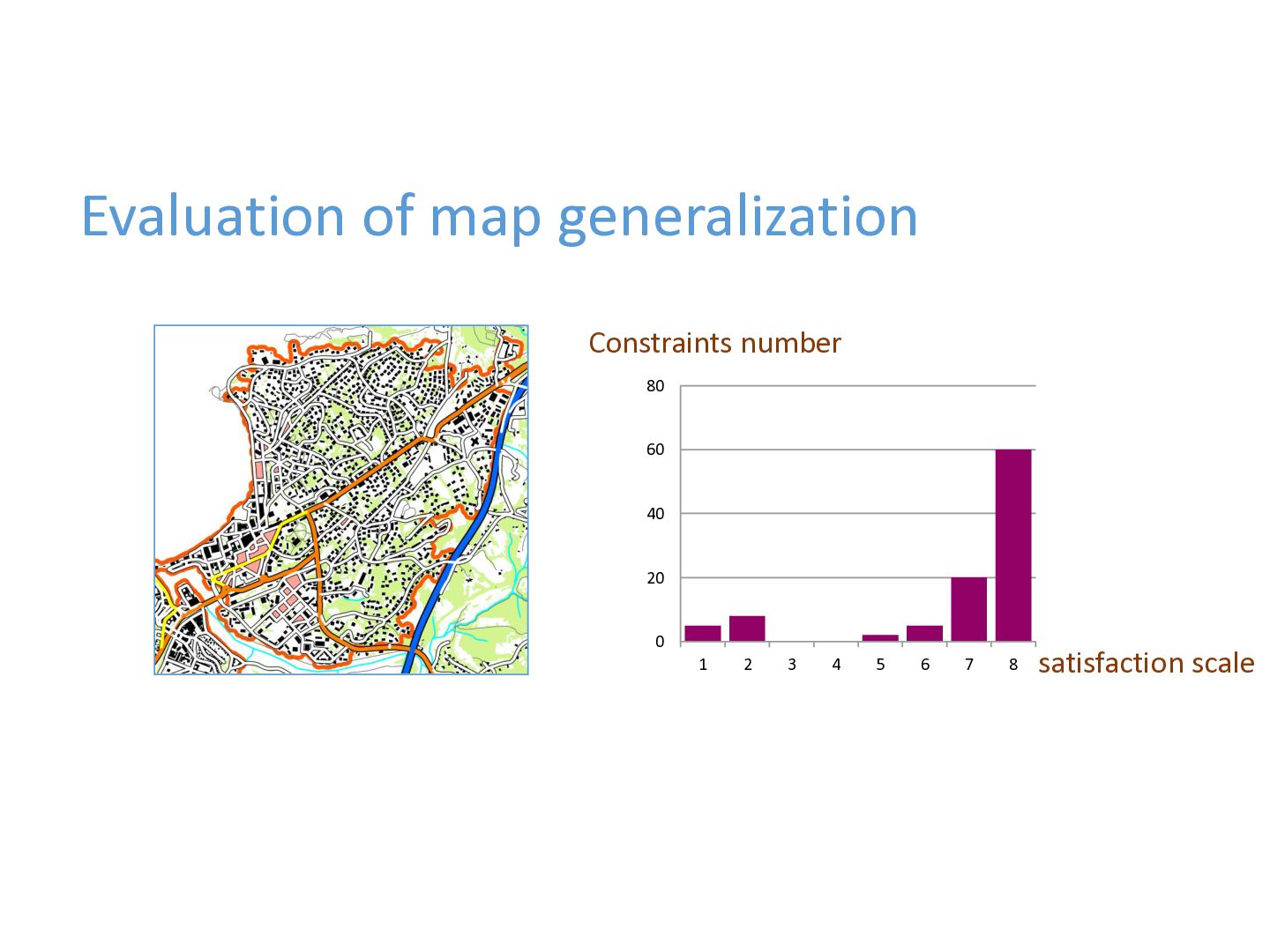

Evaluation of map generalization Constraints number 80 60 40 20
0 1 2 3 4 5 6 7 8 Global evaluation is complex! satisfaction scale

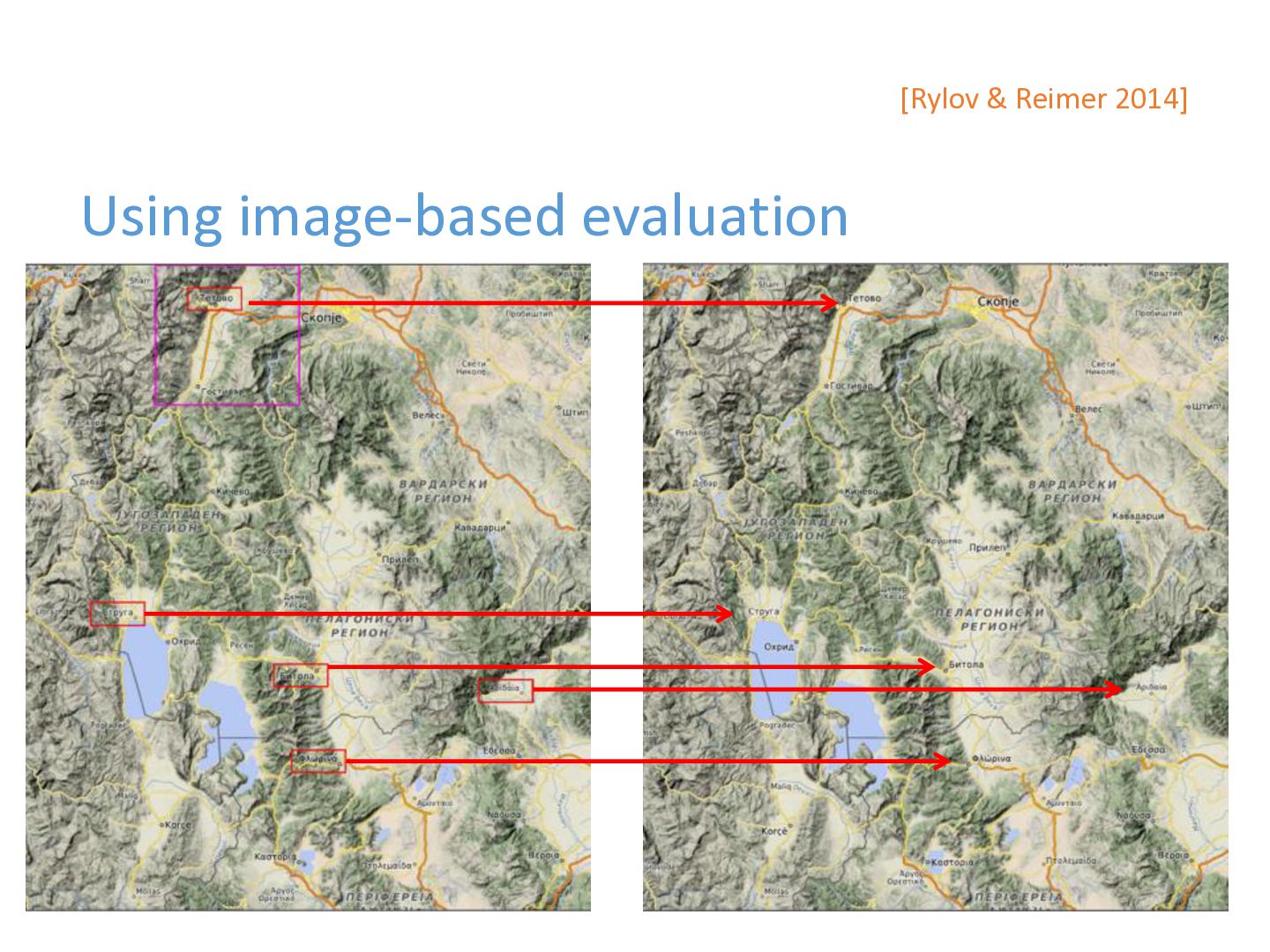

[Rylov & Reimer 2014] Using image-based evaluation
Clutter in computer vision Excessive and/or disorganized information

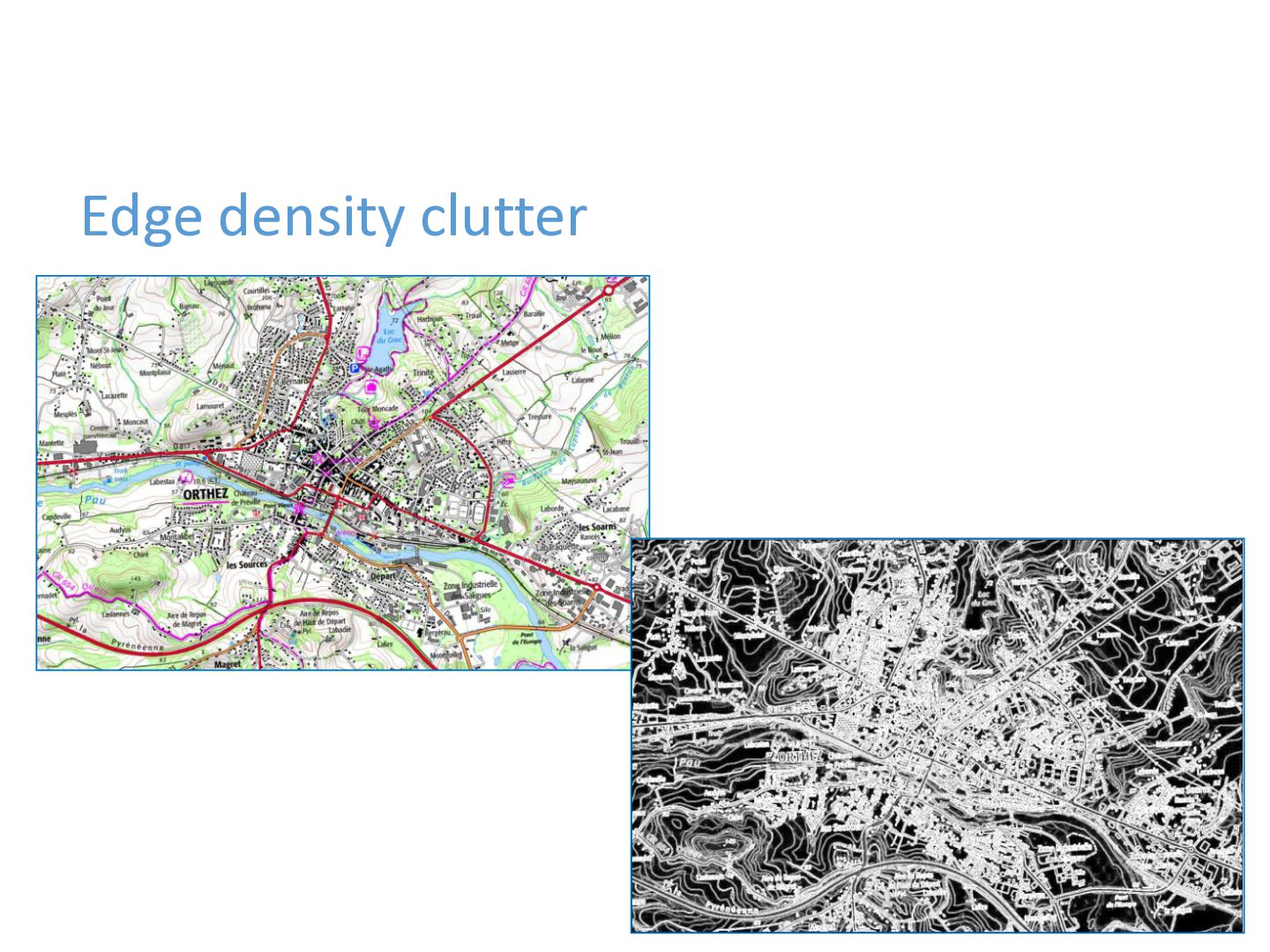

Edge density clutter

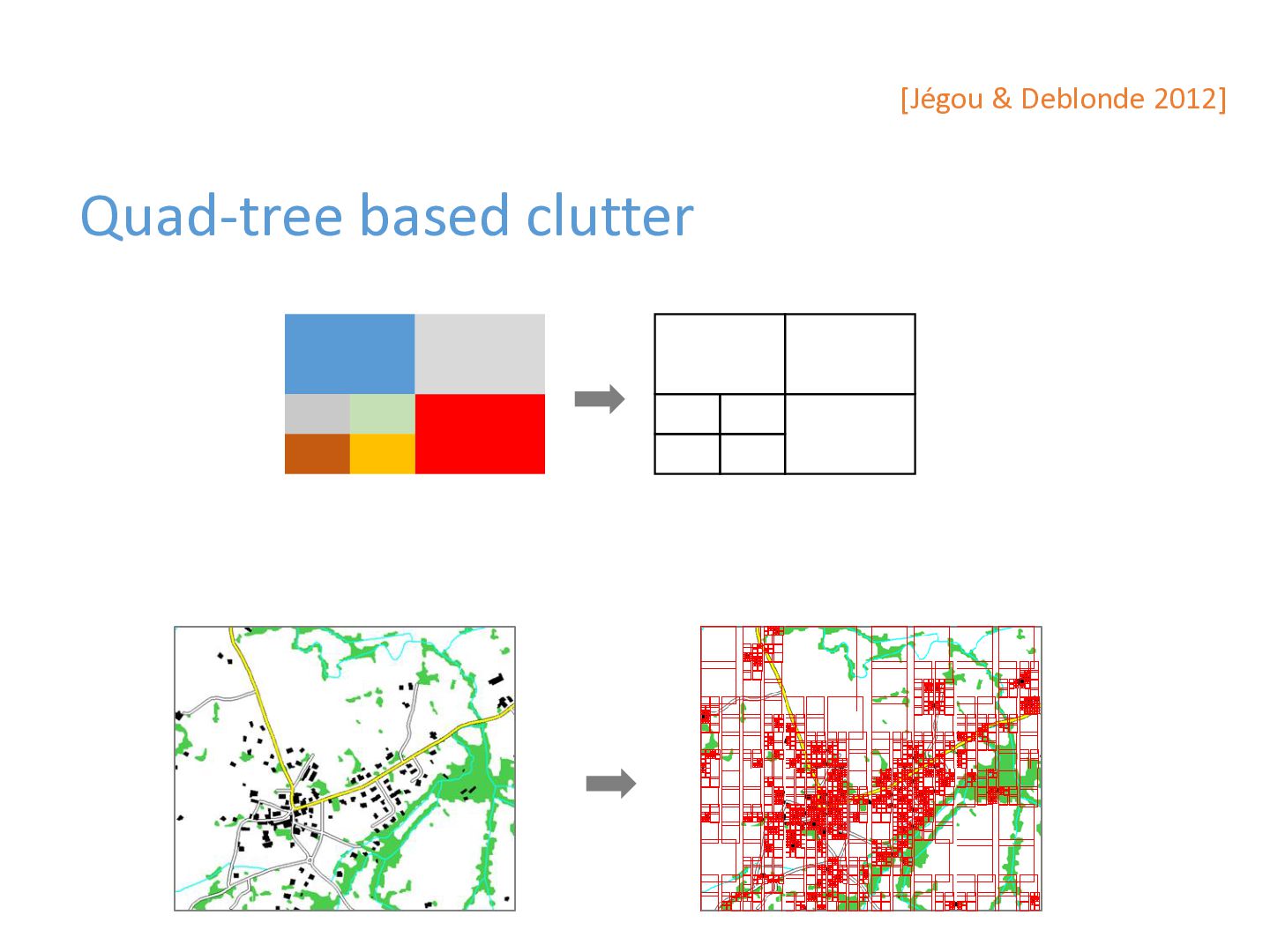

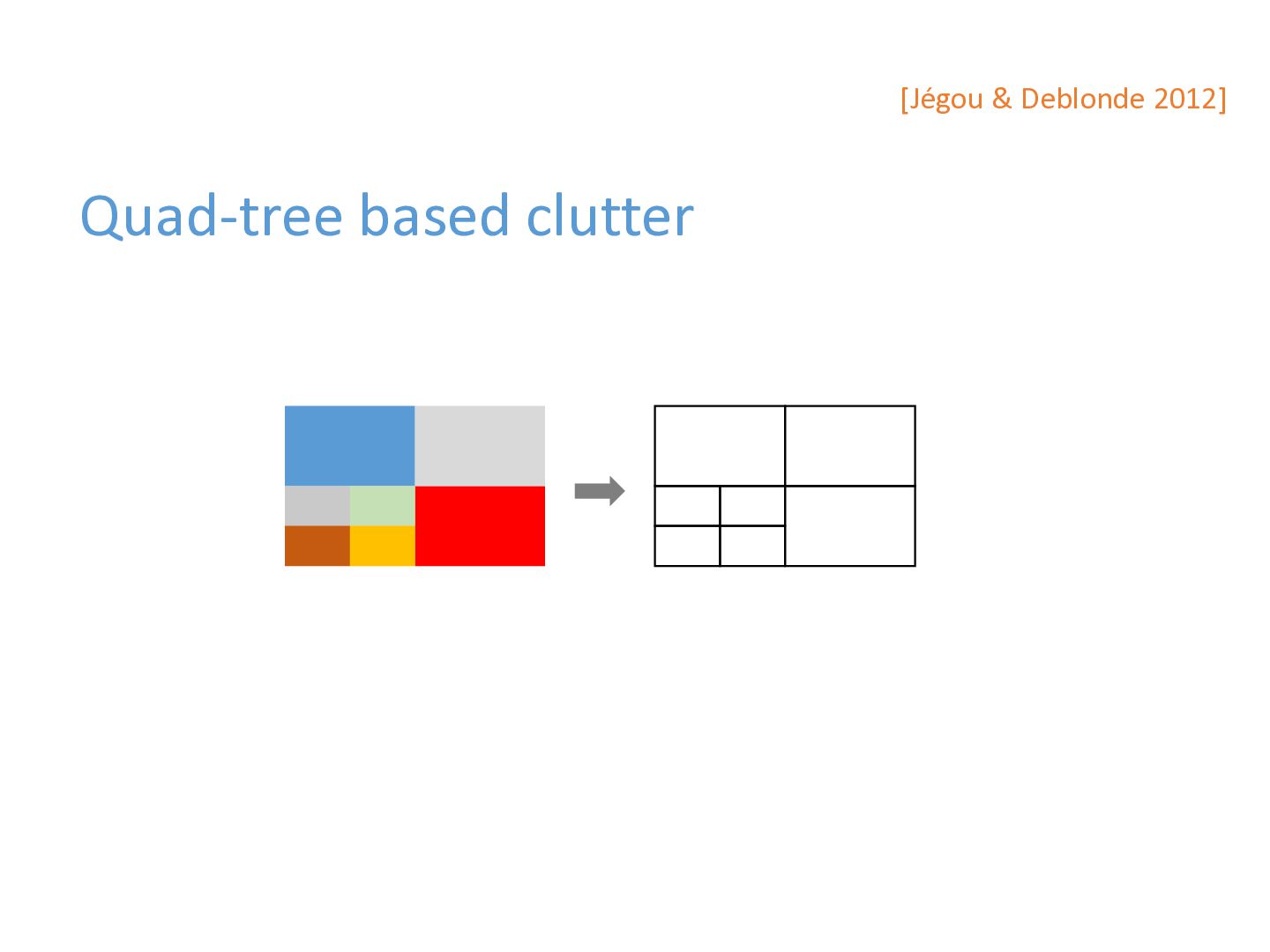

[Jégou & Deblonde 2012] Quad-tree based clutter
[Jégou & Deblonde 2012] Quad-tree based clutter

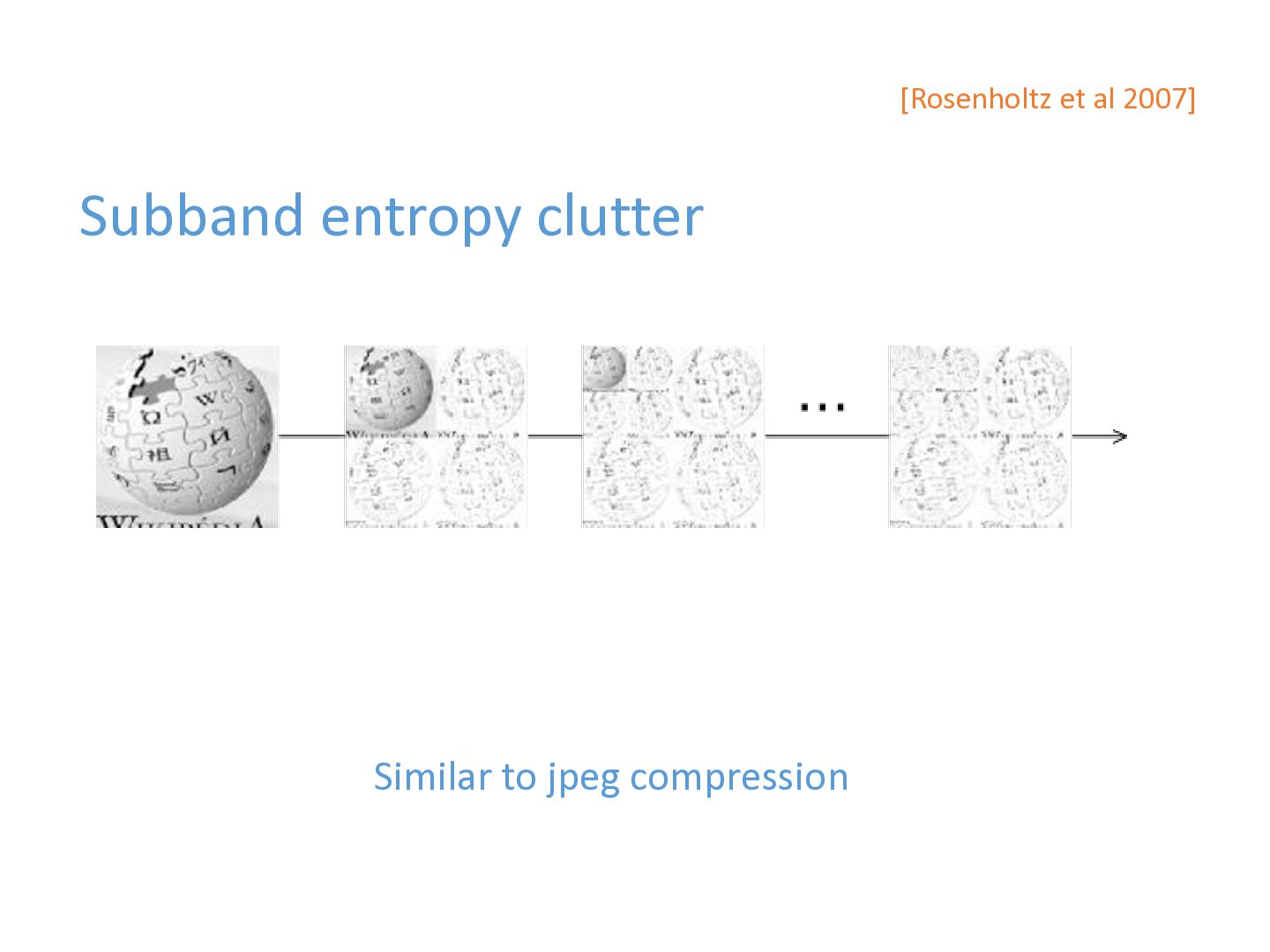

[Rosenholtz et al 2007] Subband entropy clutter Similar to jpeg
compression

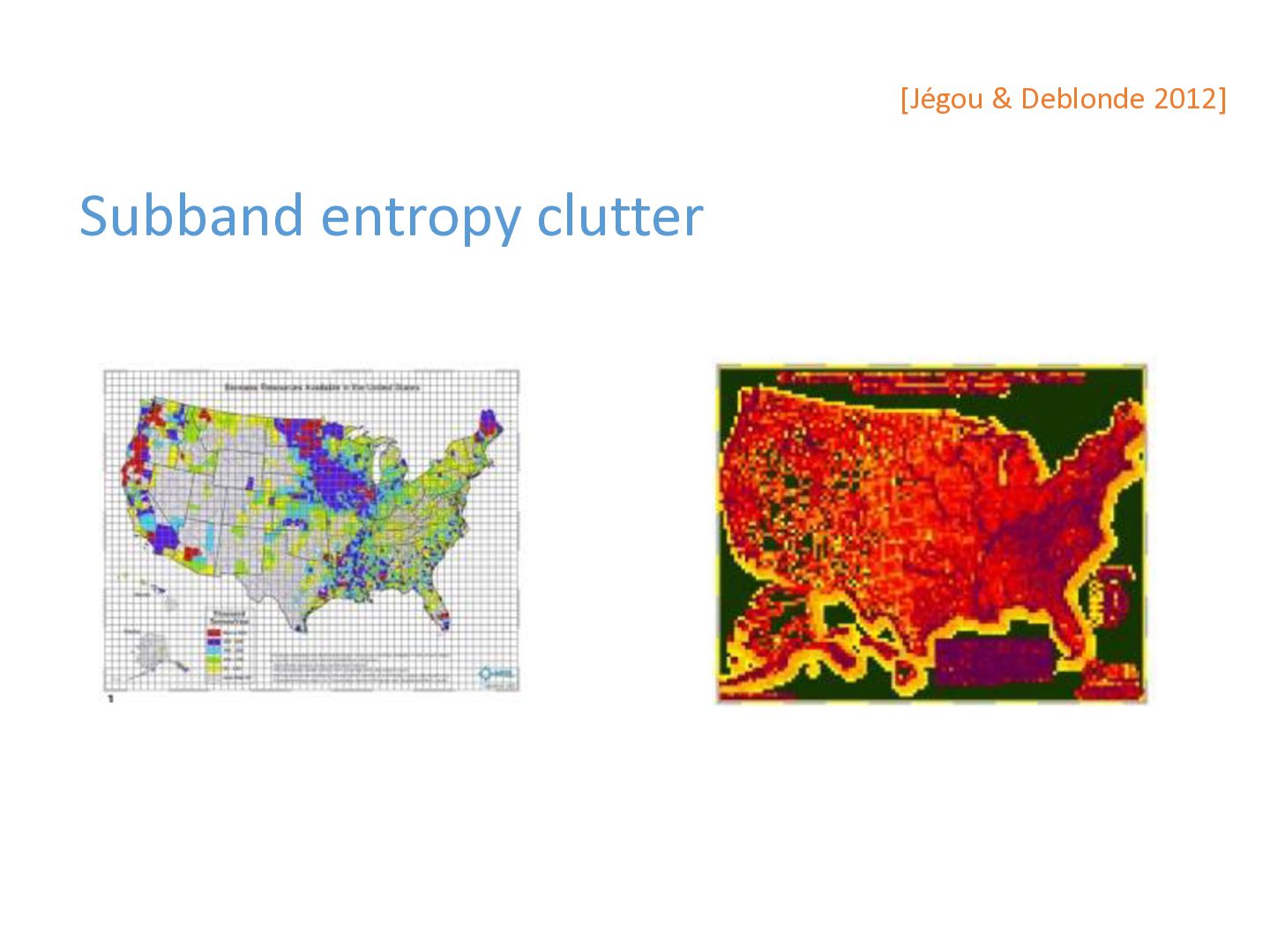

[Jégou & Deblonde 2012] Subband entropy clutter

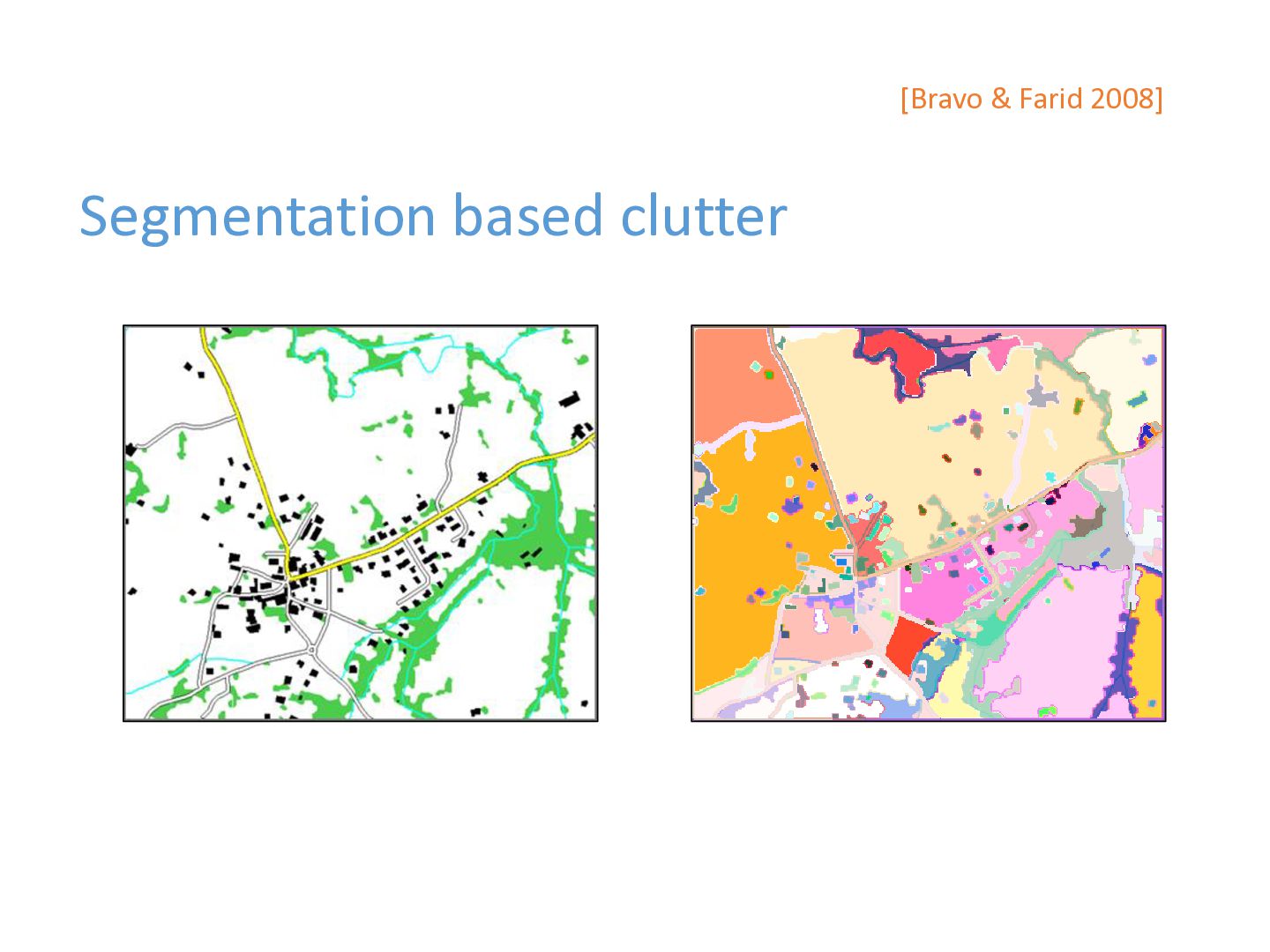

[Bravo & Farid 2008] Segmentation based clutter

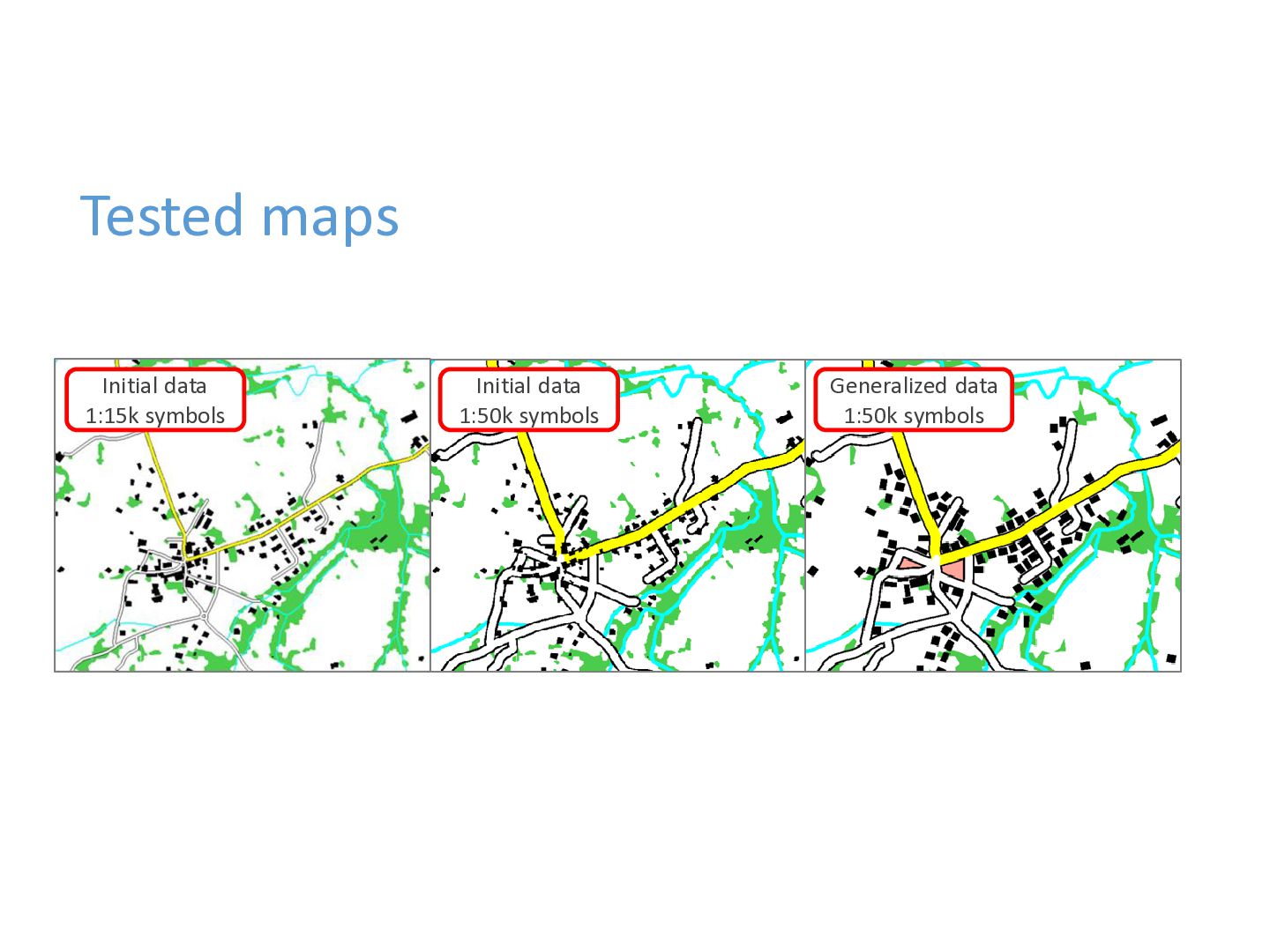

Tested maps Initial data 1:15k symbols Initial data 1:50k symbols
Generalized data 1:50k symbols

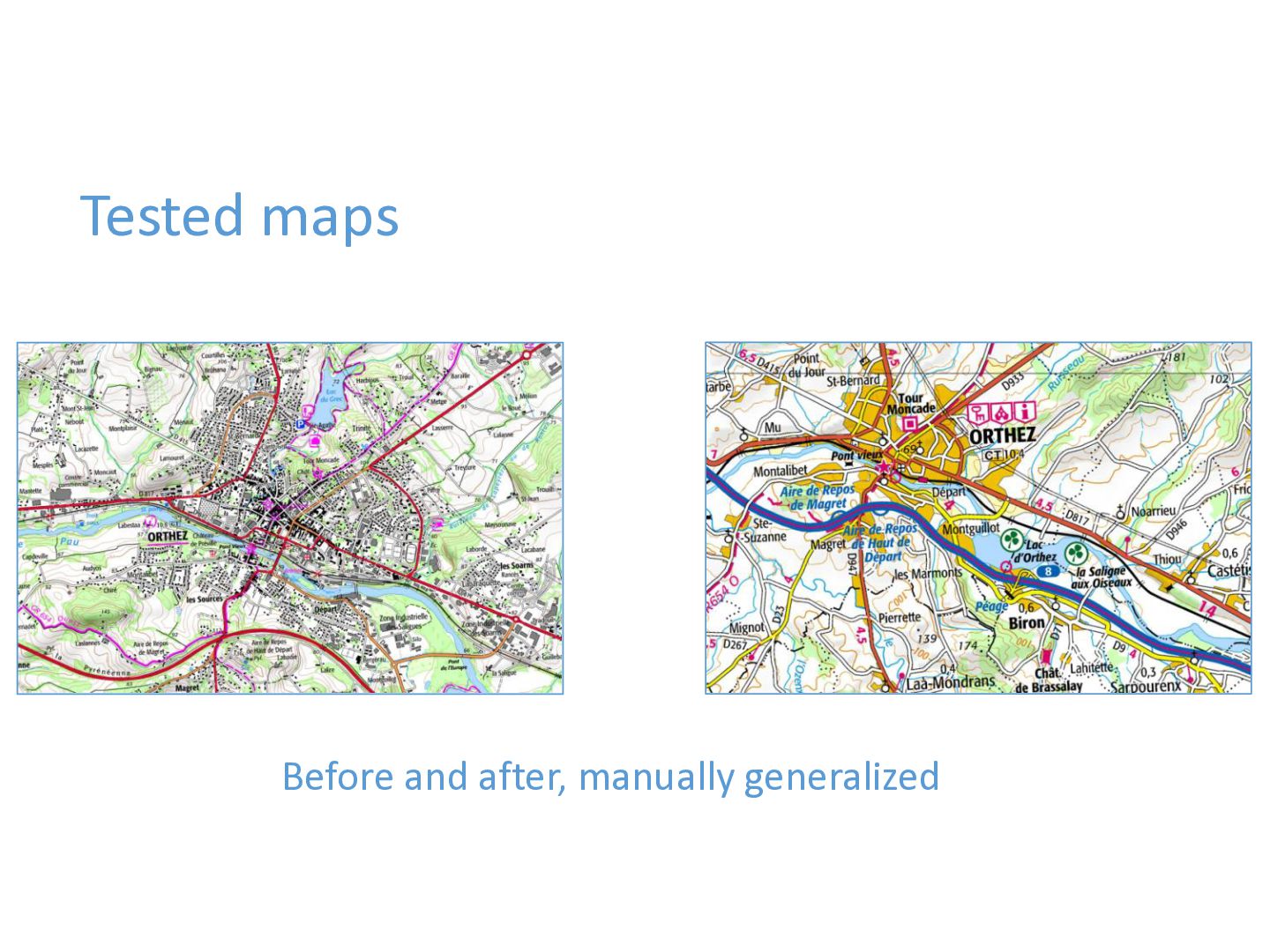

Tested maps Before and after, manually generalized

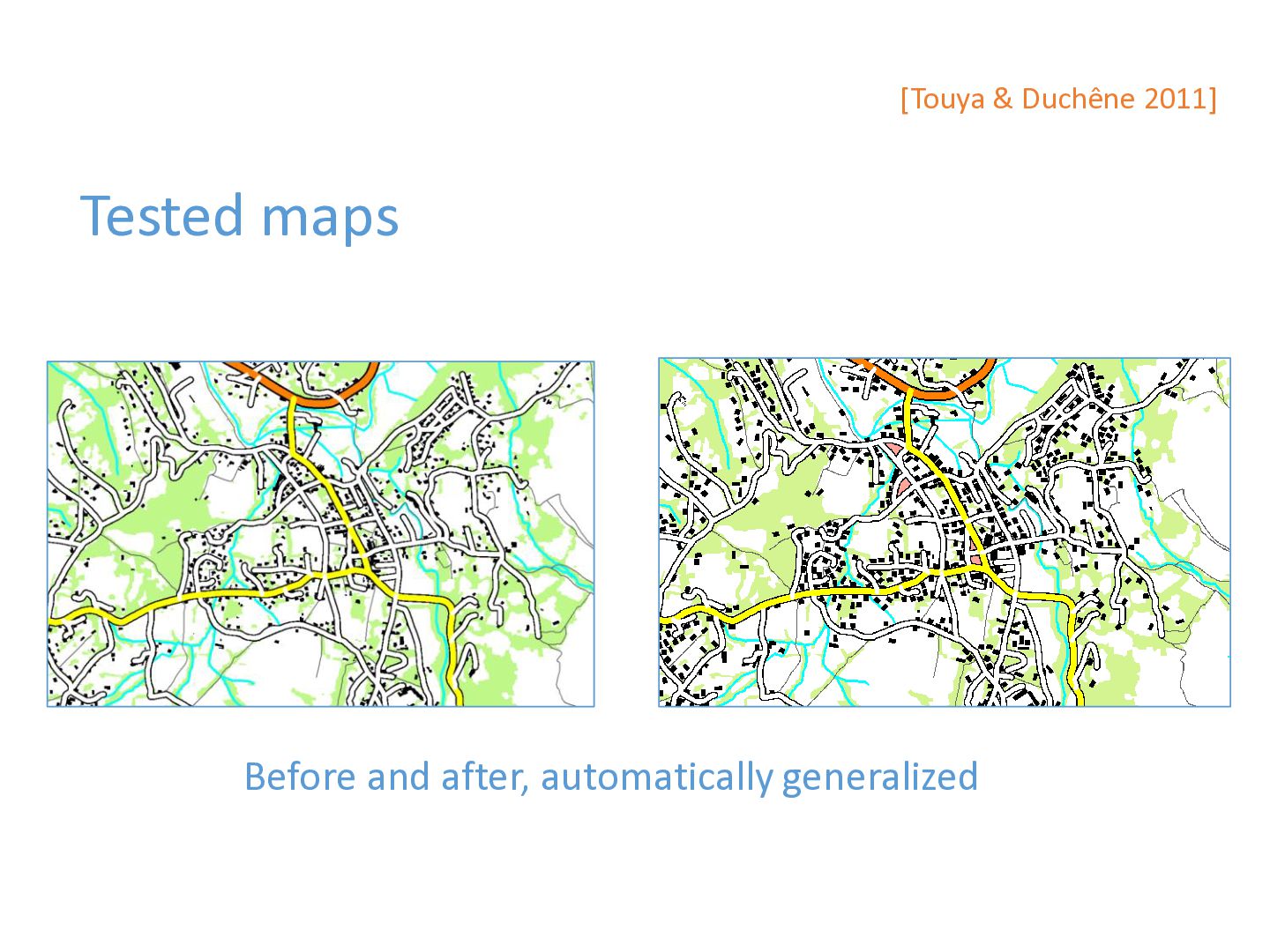

[Touya & Duchêne 2011] Tested maps Before and after, automatically
generalized

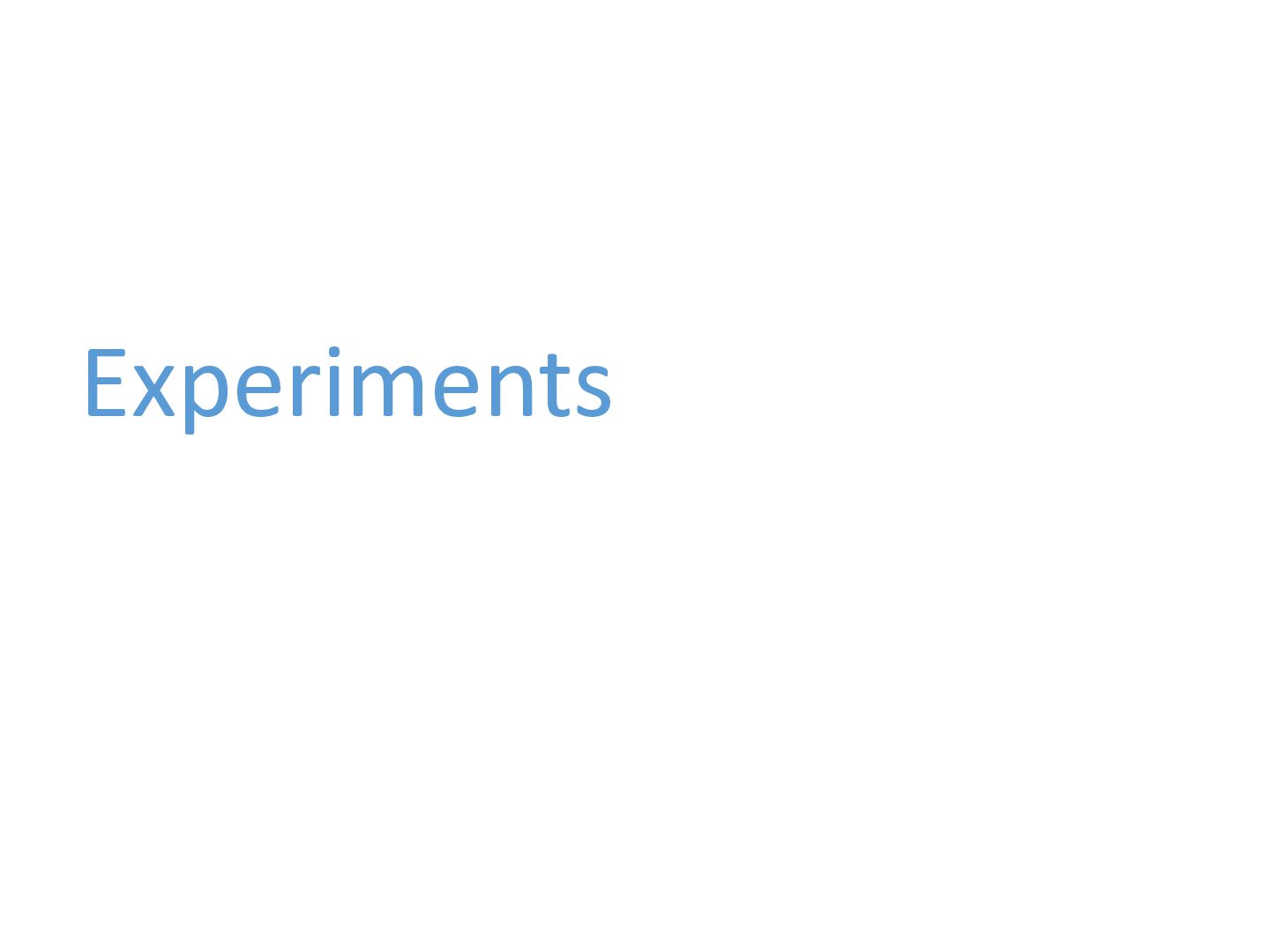

Experiments

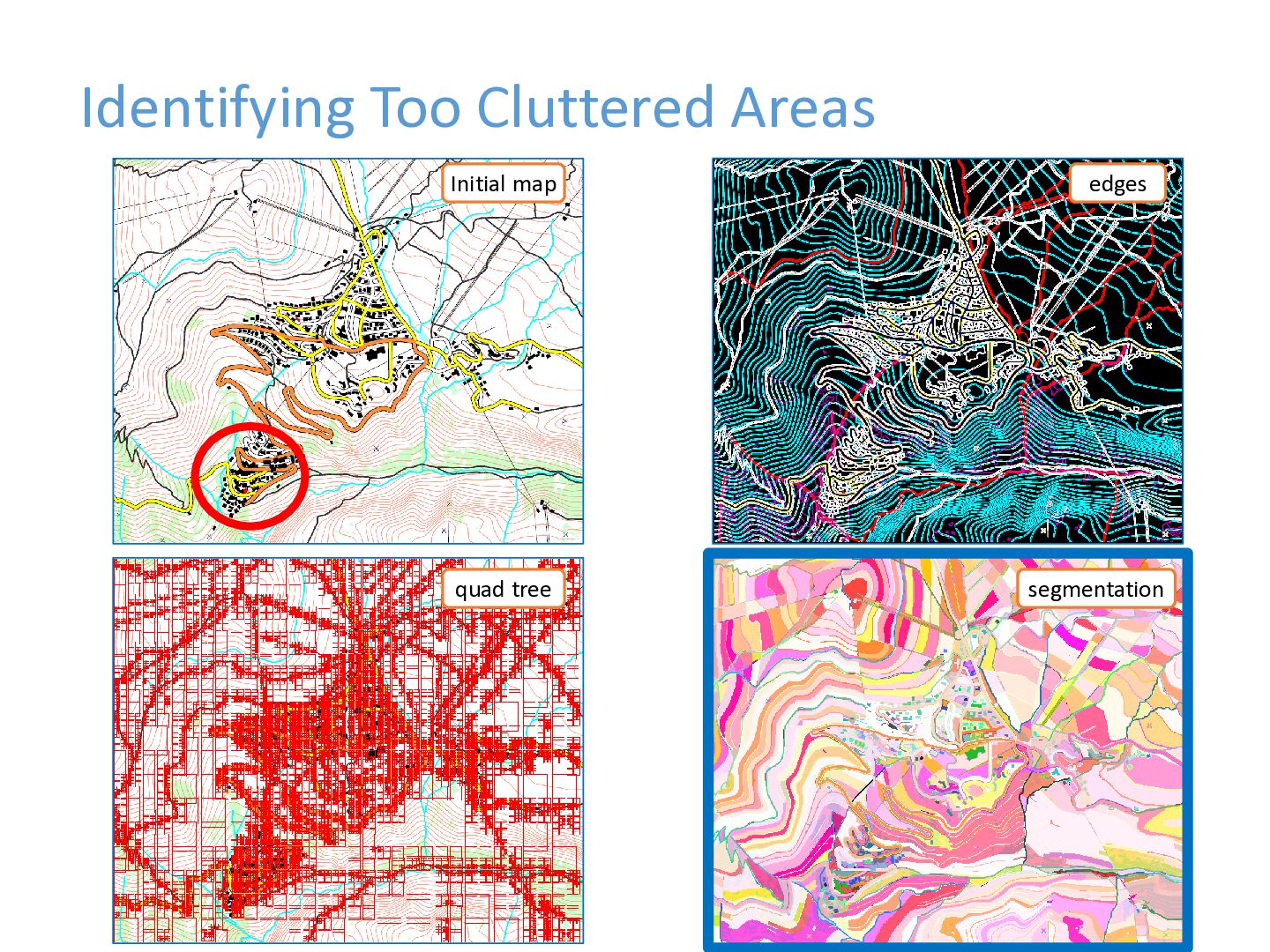

Identifying Too Cluttered Areas Initial map quad tree edges segmentation

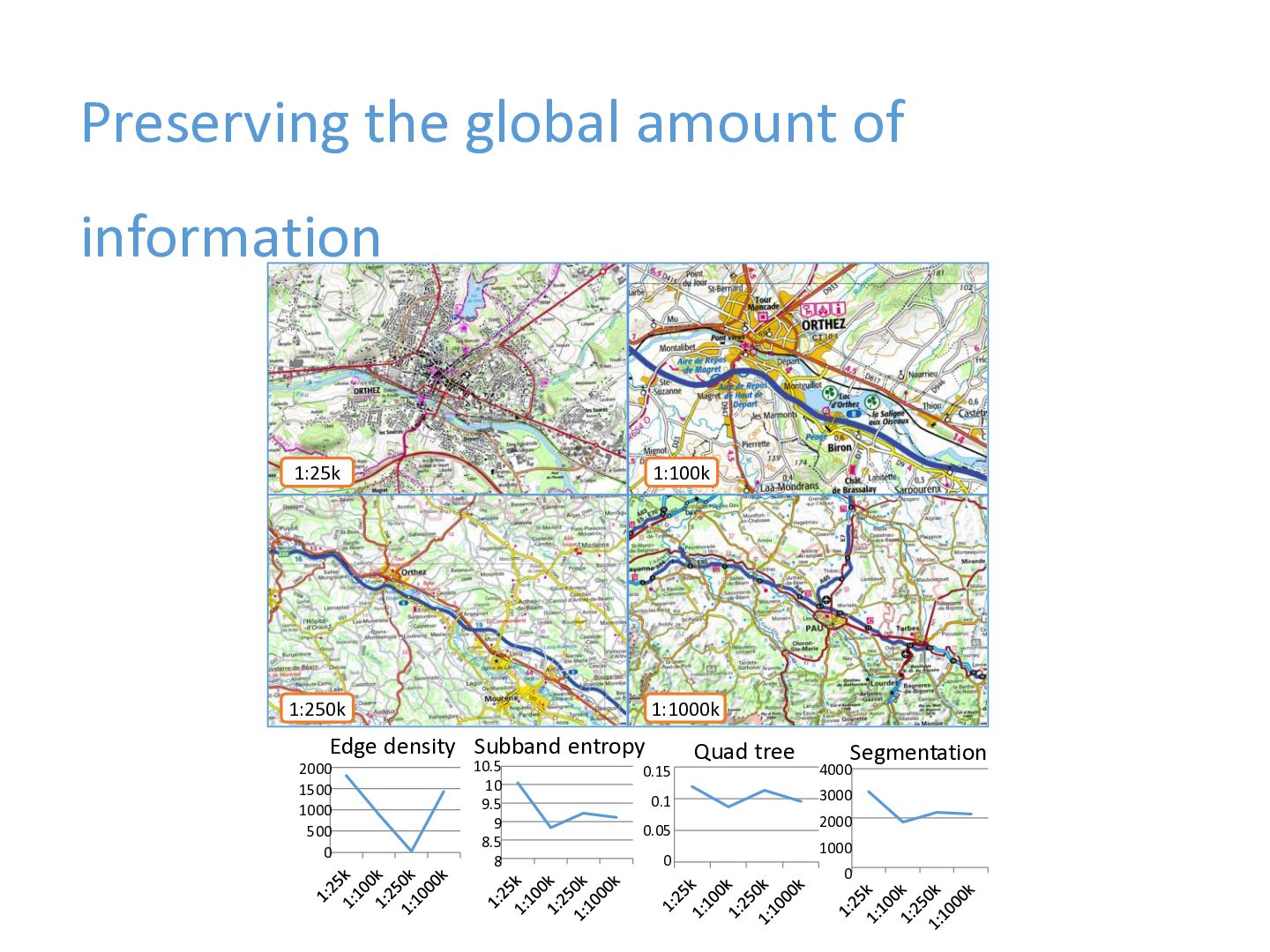

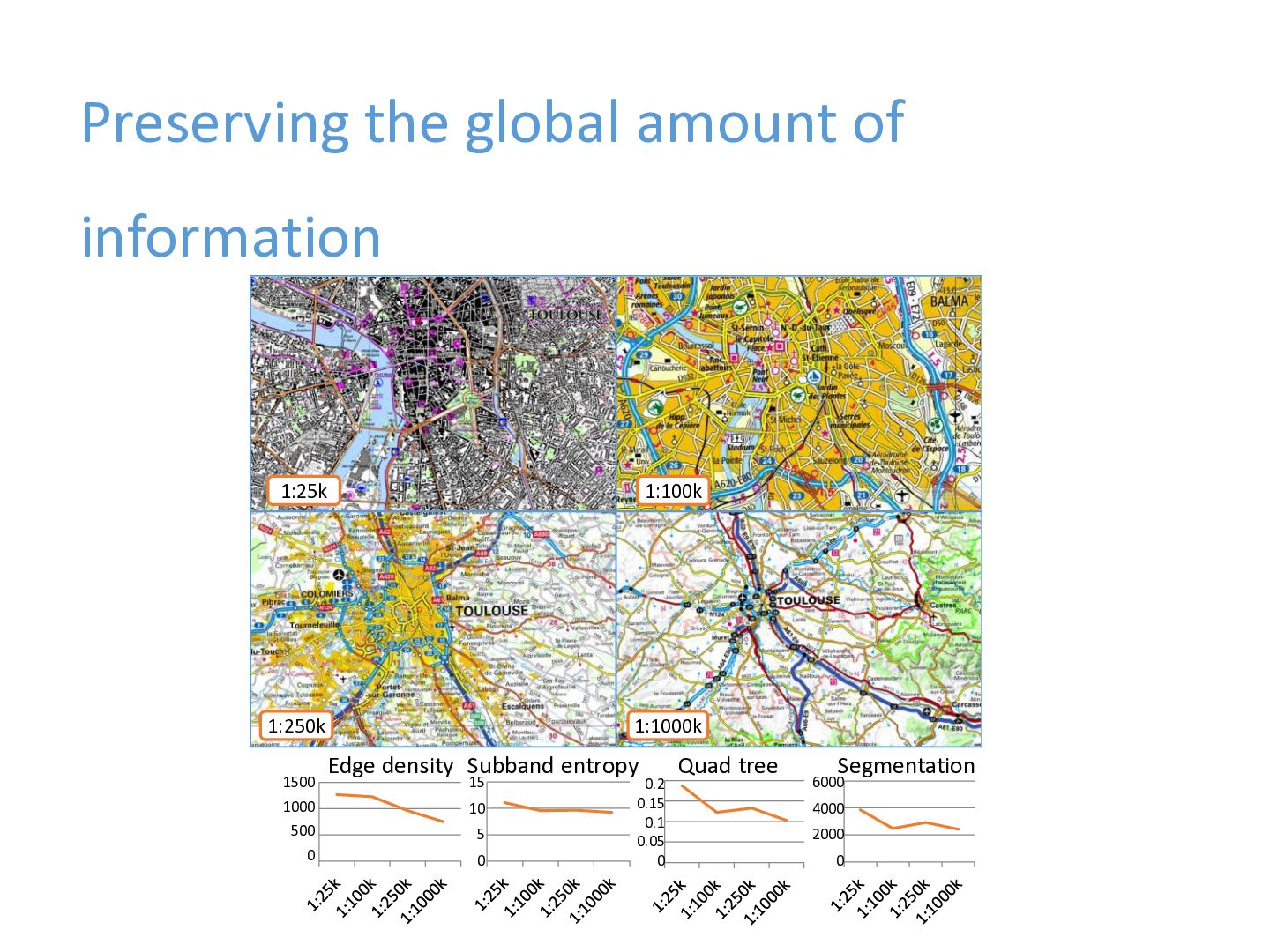

Preserving the global amount of information 1:25k 1:100k 1:250k 1:1000k
Edge density Subband entropy 2000 1500 1000 500 0 10.5 10 9.5 9 8.5 8 0.15 0.1 0.05 0 Quad tree Segmentation 4000 3000 2000 1000 0
Preserving the global amount of information 1:25k 1:100k 1:250k 1:1000k
1500 Edge density Subband entropy 15 1000 10 500 5 0 0 0.2 0.15 0.1 0.05 0 Quad tree Segmentation 6000 4000 2000 0

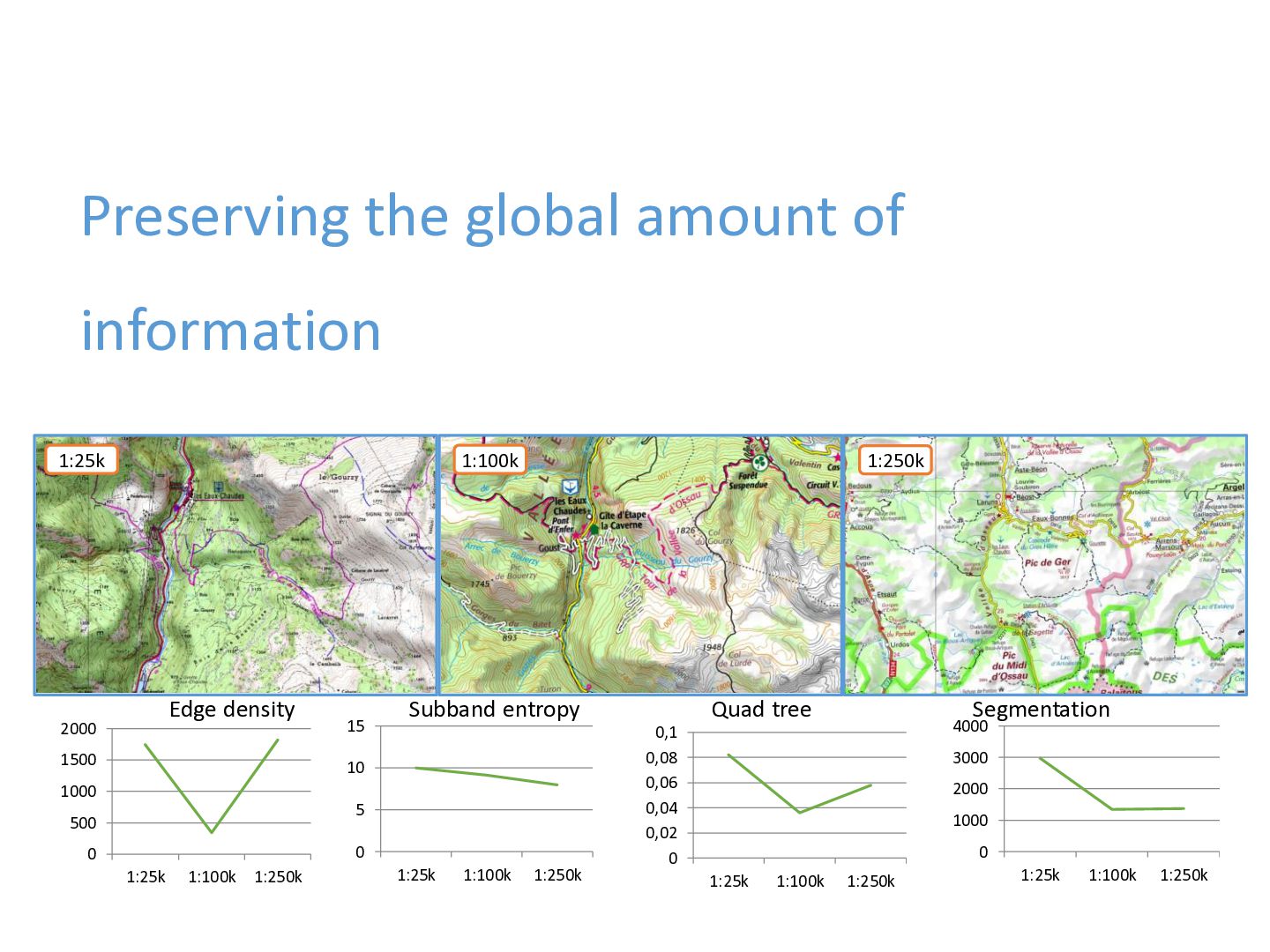

Preserving the global amount of information 1:25k 1:100k Edge density
2000 1500 15 1:250k Subband entropy 10 1000 5 500 0 0 1:25k 1:100k 1:250k 1:25k 1:100k 1:250k Quad tree Segmentation 4000 0,1 0,08 0,06 0,04 0,02 0 3000 2000 1000 0 1:25k 1:100k 1:250k 1:25k 1:100k 1:250k

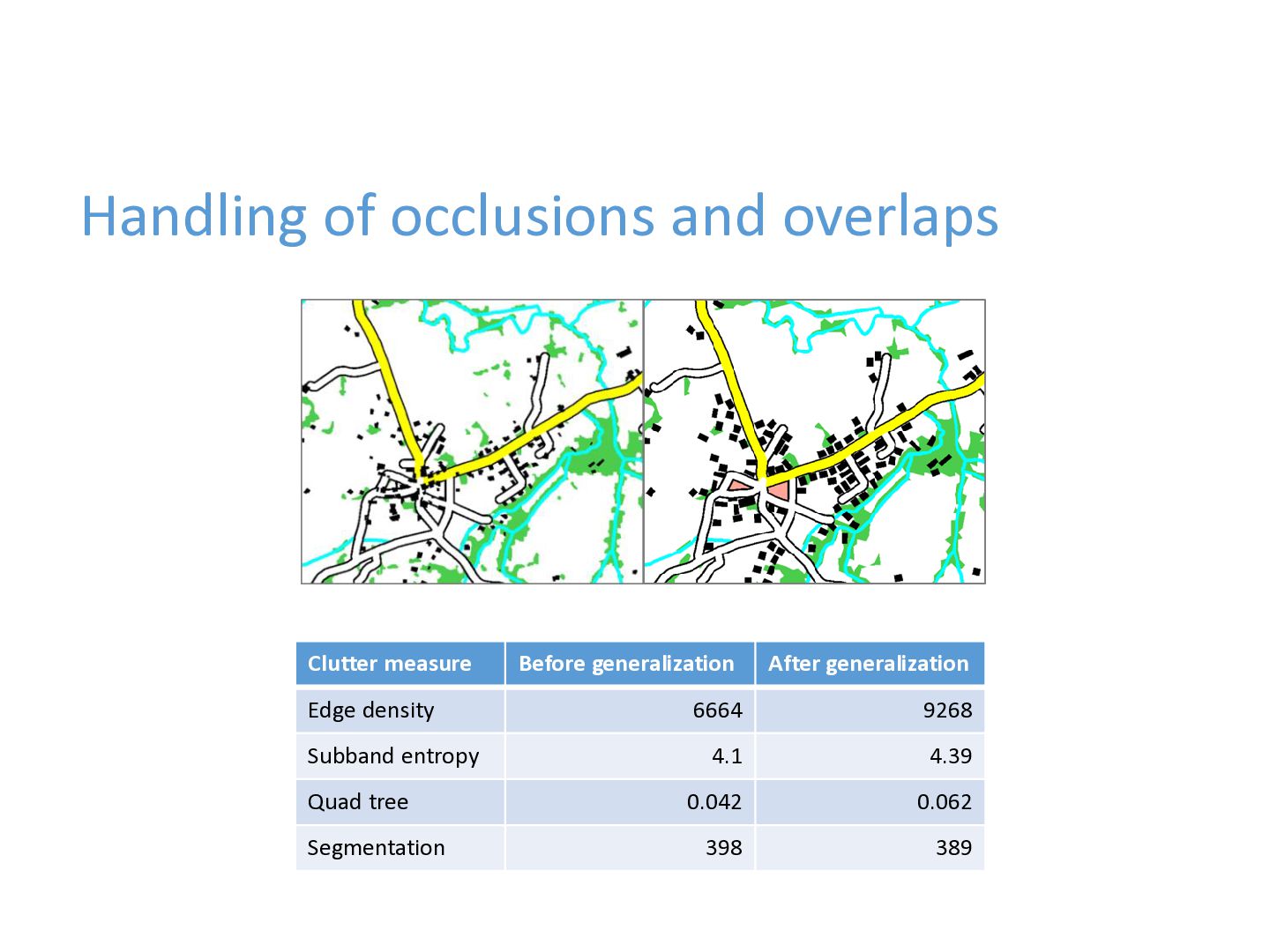

Handling of occlusions and overlaps Clutter measure Edge density Subband
entropy Quad tree Segmentation Before generalization After generalization 6664 9268 4.1 4.39 0.042 0.062 398 389

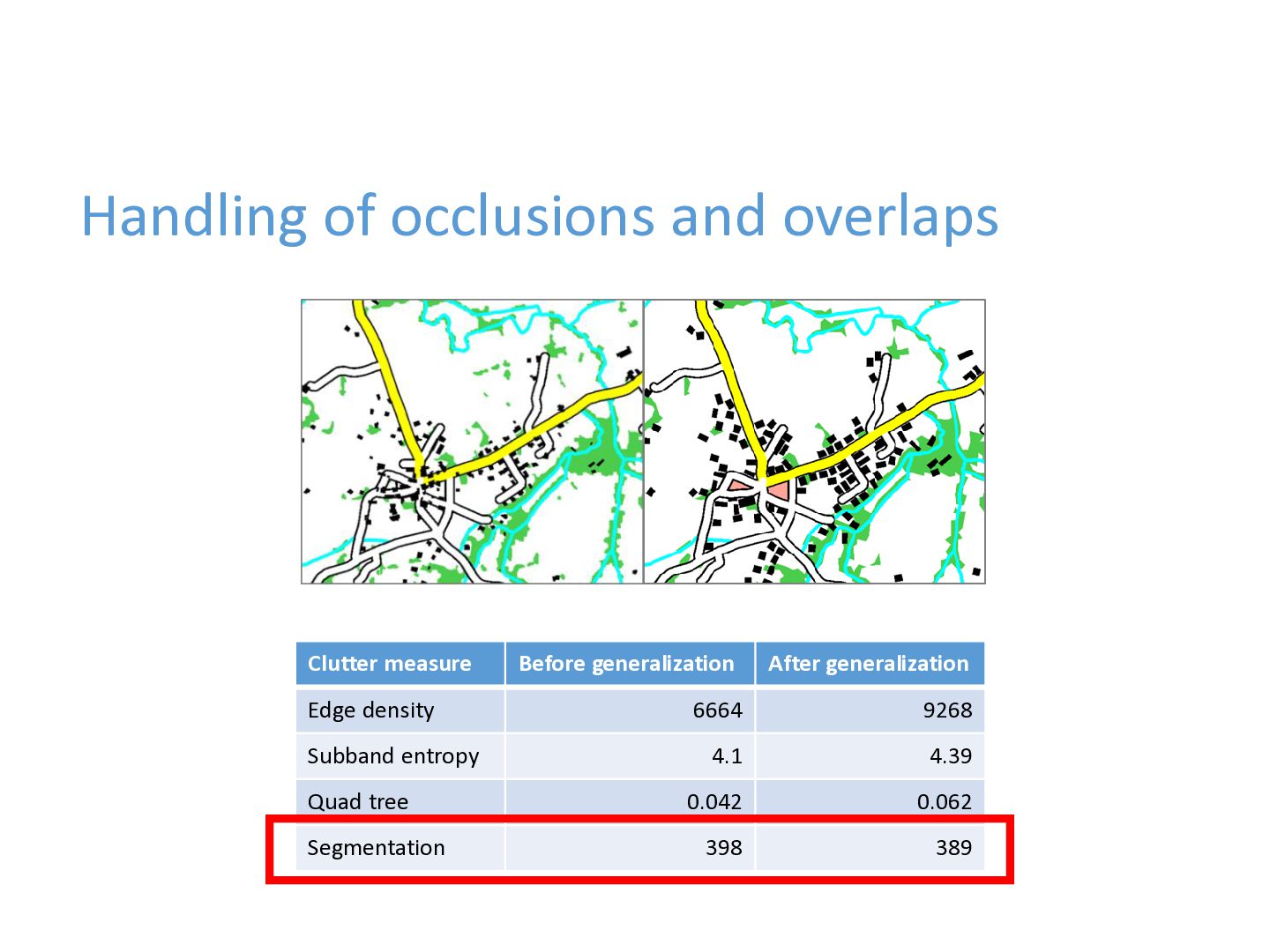

Handling of occlusions and overlaps Clutter measure Edge density Subband
entropy Quad tree Segmentation Before generalization After generalization 6664 9268 4.1 4.39 0.042 0.062 398 389

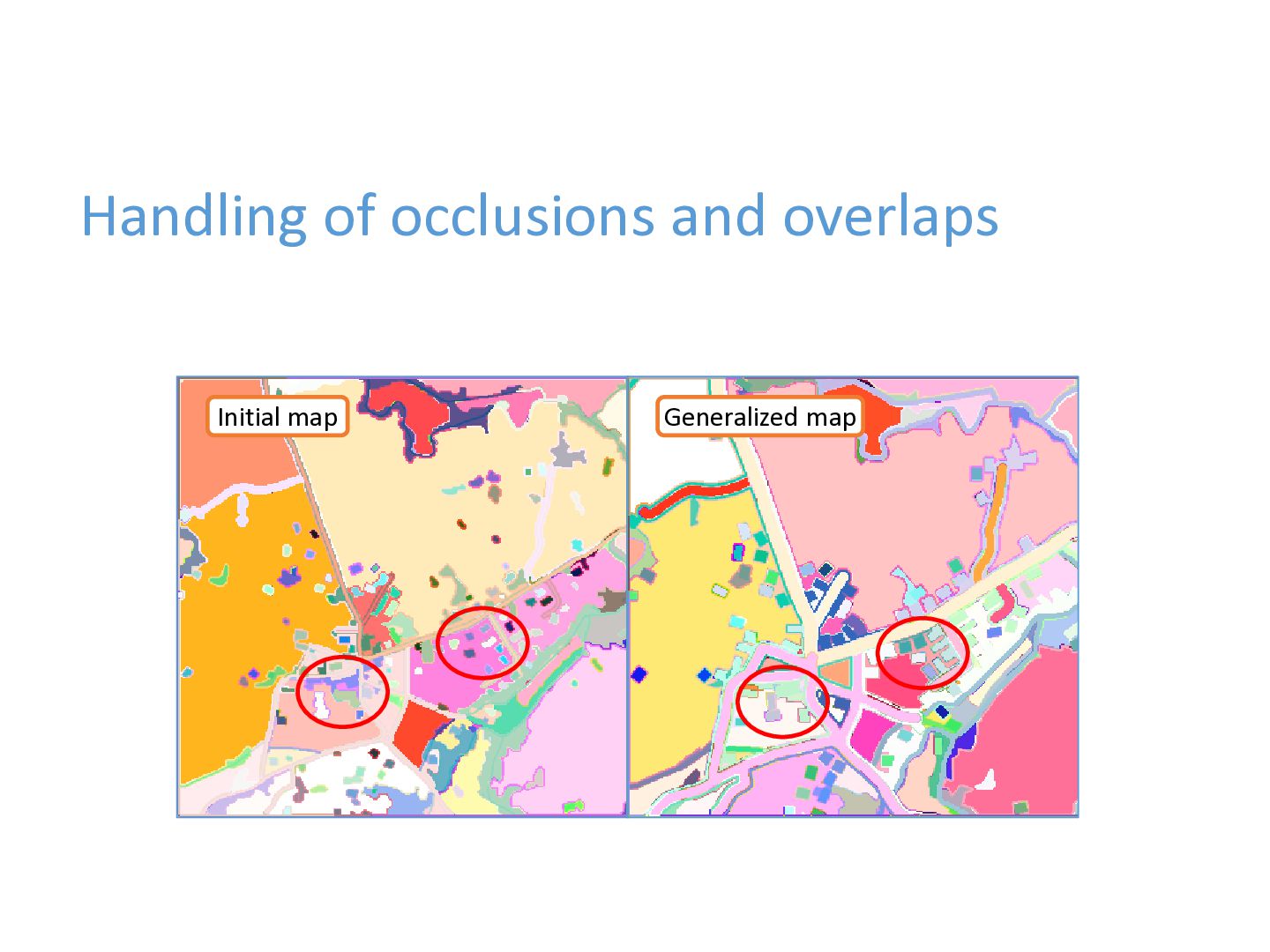

Handling of occlusions and overlaps Initial map Generalized map

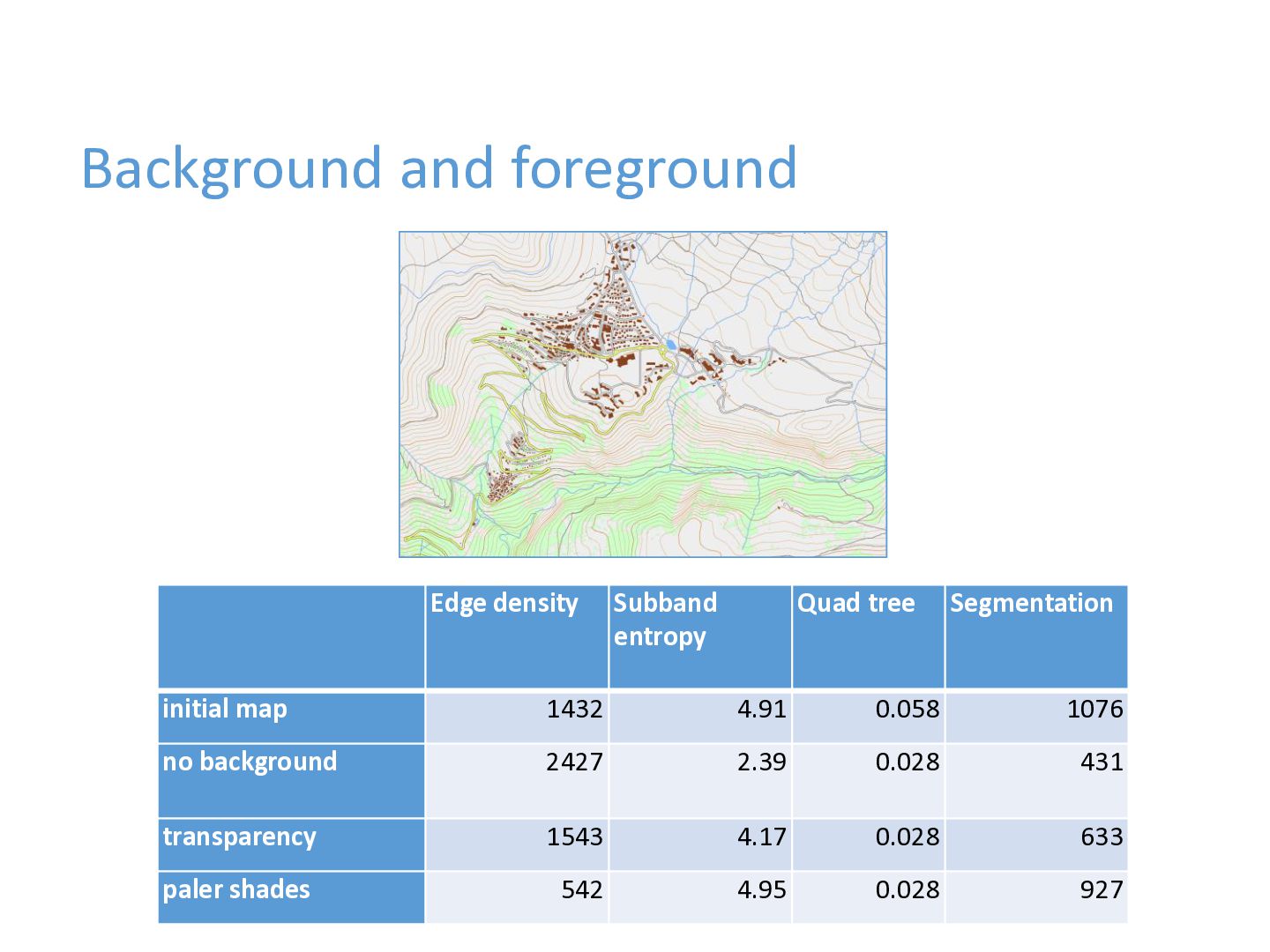

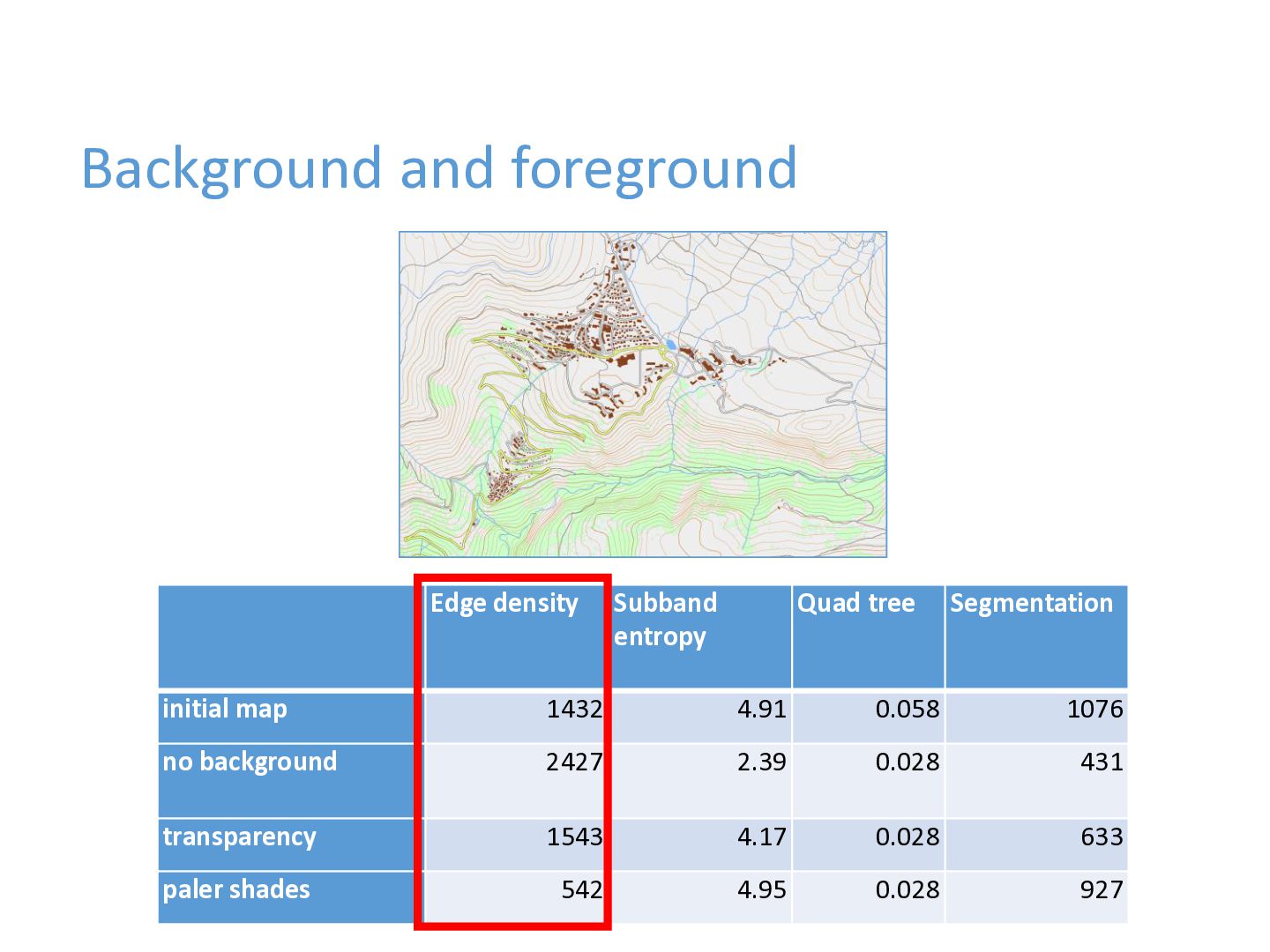

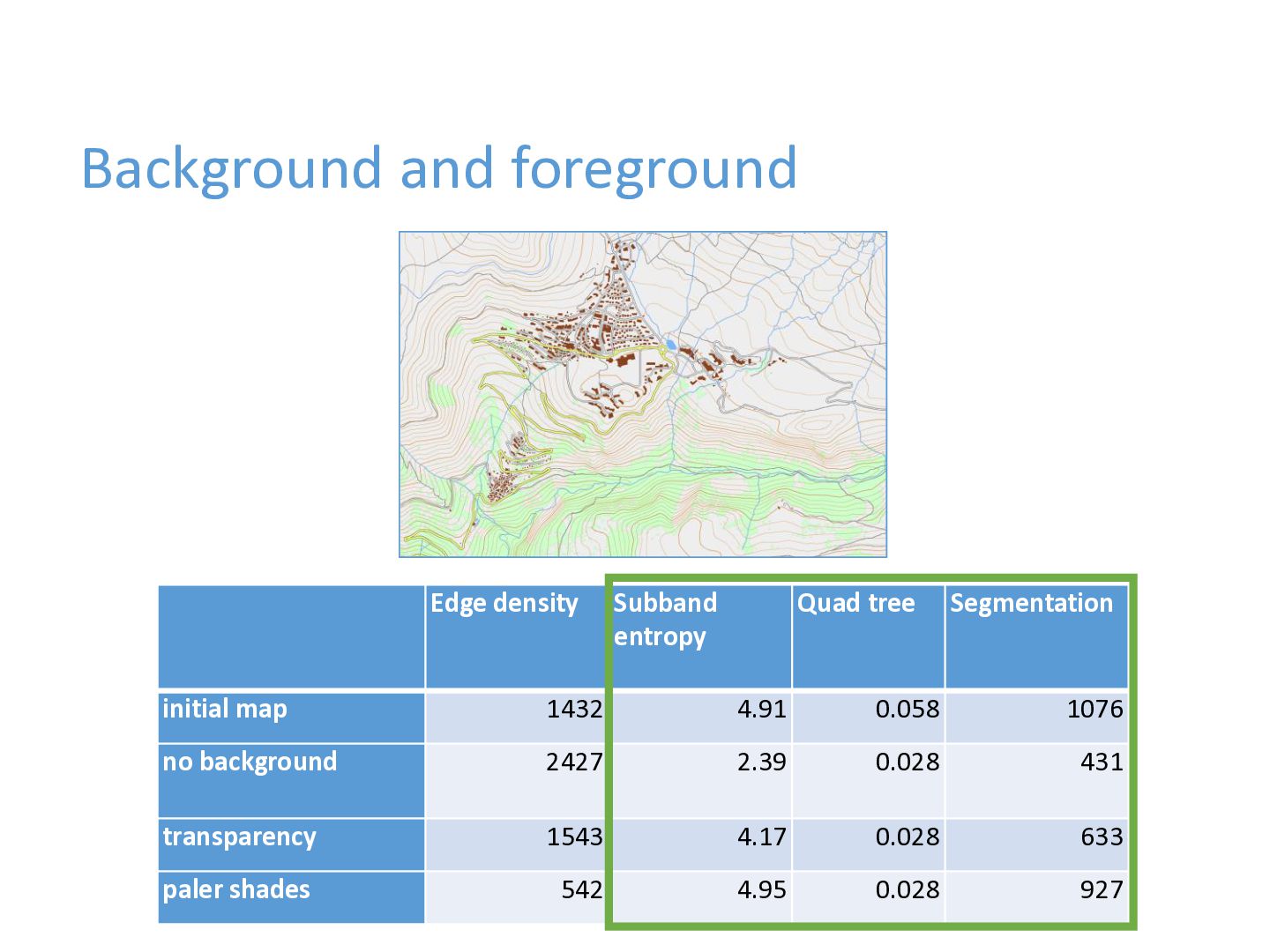

Background and foreground Edge density Subband entropy Quad tree Segmentation
initial map 1432 4.91 0.058 1076 no background 2427 2.39 0.028 431 transparency 1543 4.17 0.028 633 paler shades 542 4.95 0.028 927
Background and foreground Edge density Subband entropy Quad tree Segmentation
initial map 1432 4.91 0.058 1076 no background 2427 2.39 0.028 431 transparency 1543 4.17 0.028 633 paler shades 542 4.95 0.028 927
Background and foreground Edge density Subband entropy Quad tree Segmentation
initial map 1432 4.91 0.058 1076 no background 2427 2.39 0.028 431 transparency 1543 4.17 0.028 633 paler shades 542 4.95 0.028 927

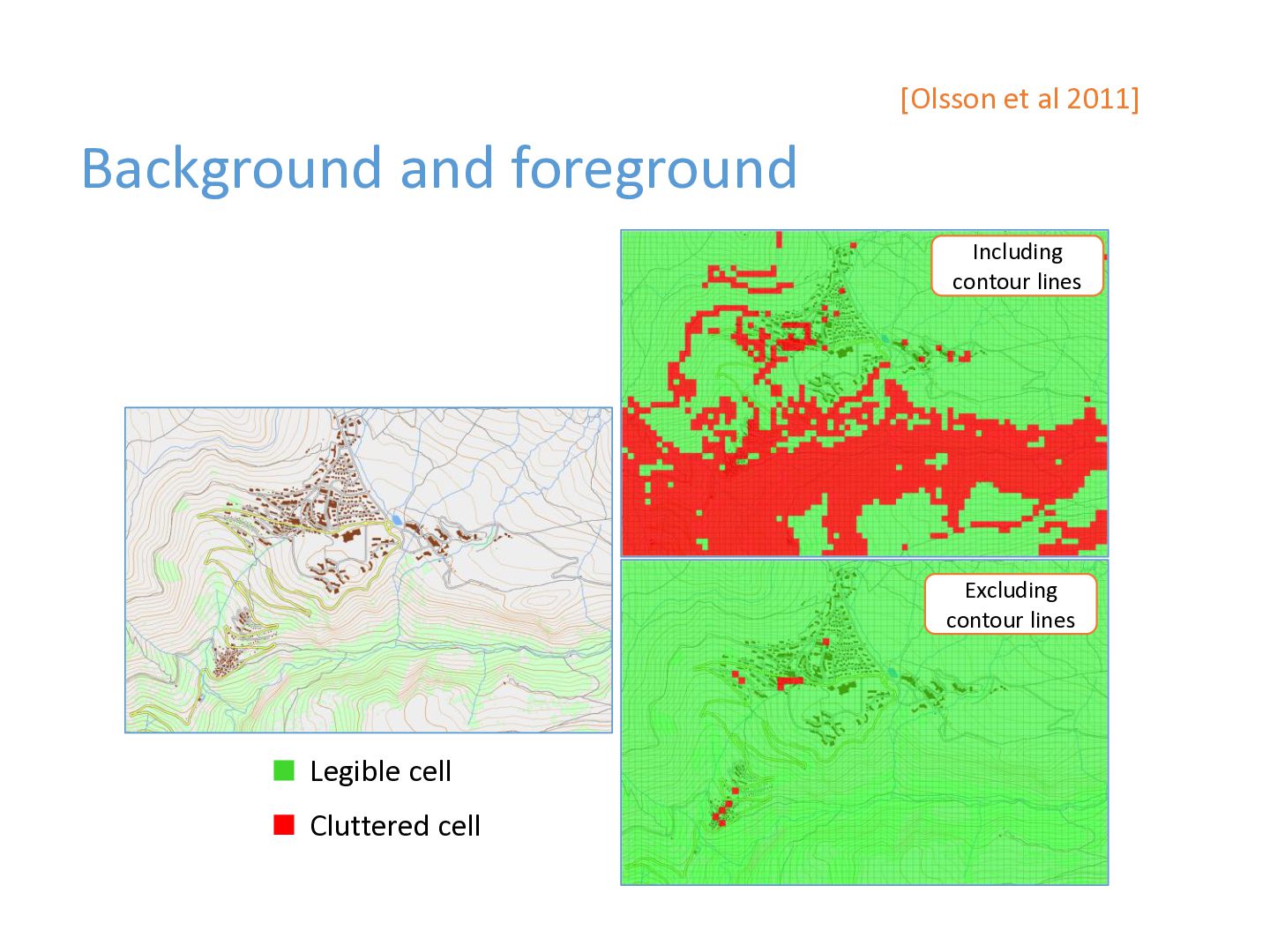

[Olsson et al 2011] Background and foreground Including contour lines
Excluding contour lines Legible cell Cluttered cell

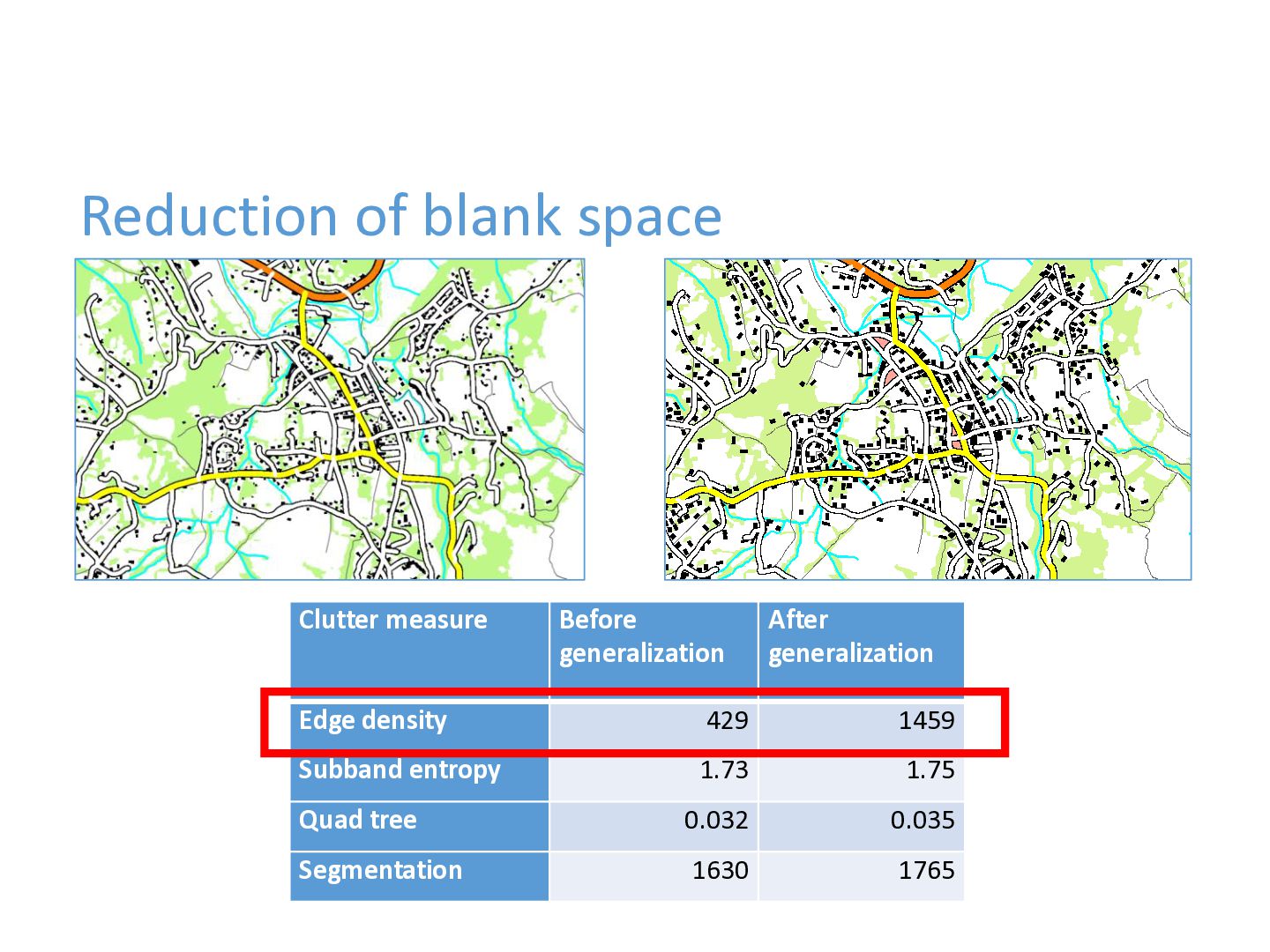

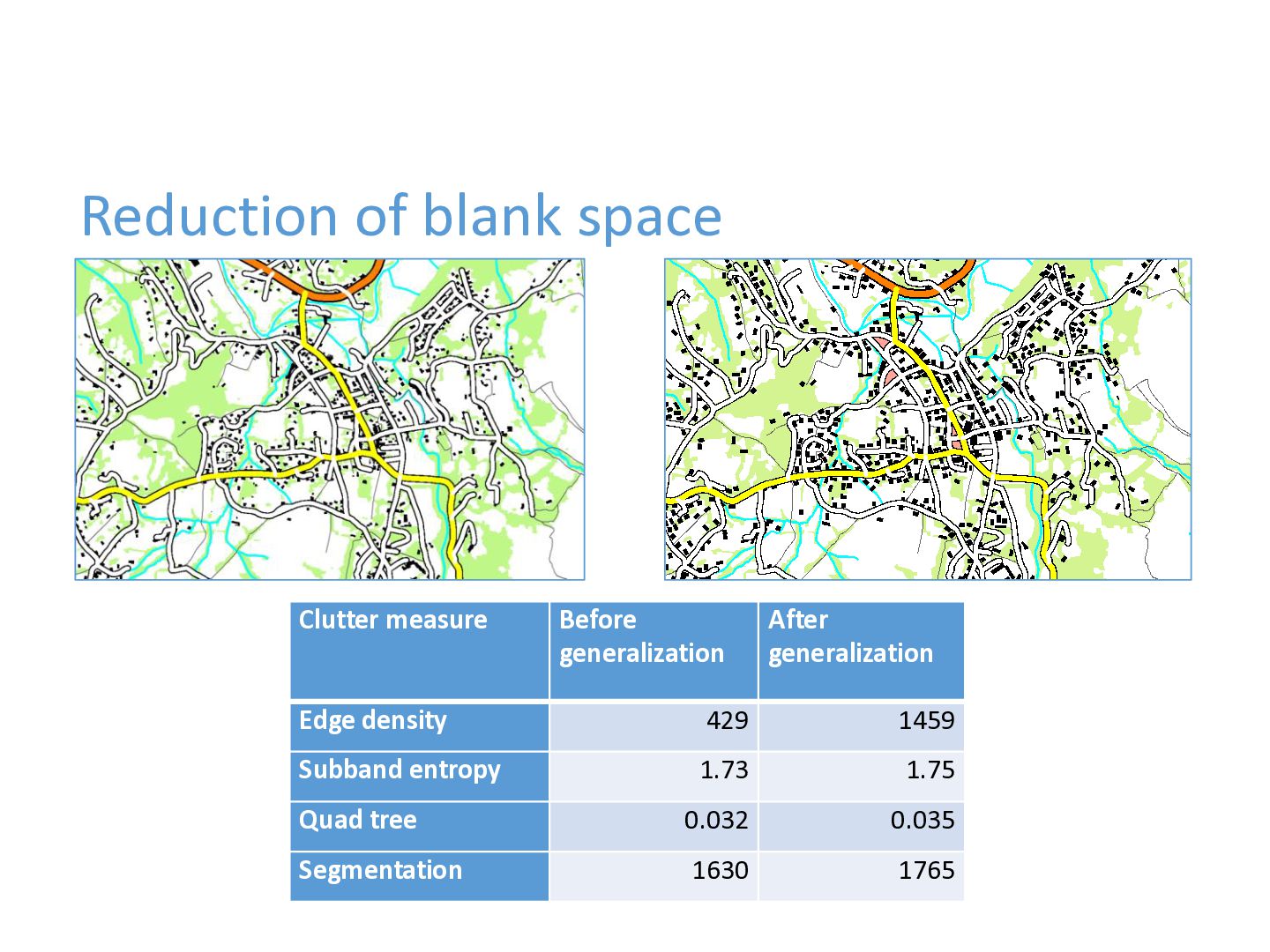

Reduction of blank space Clutter measure Before generalization After generalization
Edge density 429 1459 Subband entropy 1.73 1.75 Quad tree 0.032 0.035 Segmentation 1630 1765
Reduction of blank space Clutter measure Before generalization After generalization
Edge density 429 1459 Subband entropy 1.73 1.75 Quad tree 0.032 0.035 Segmentation 1630 1765

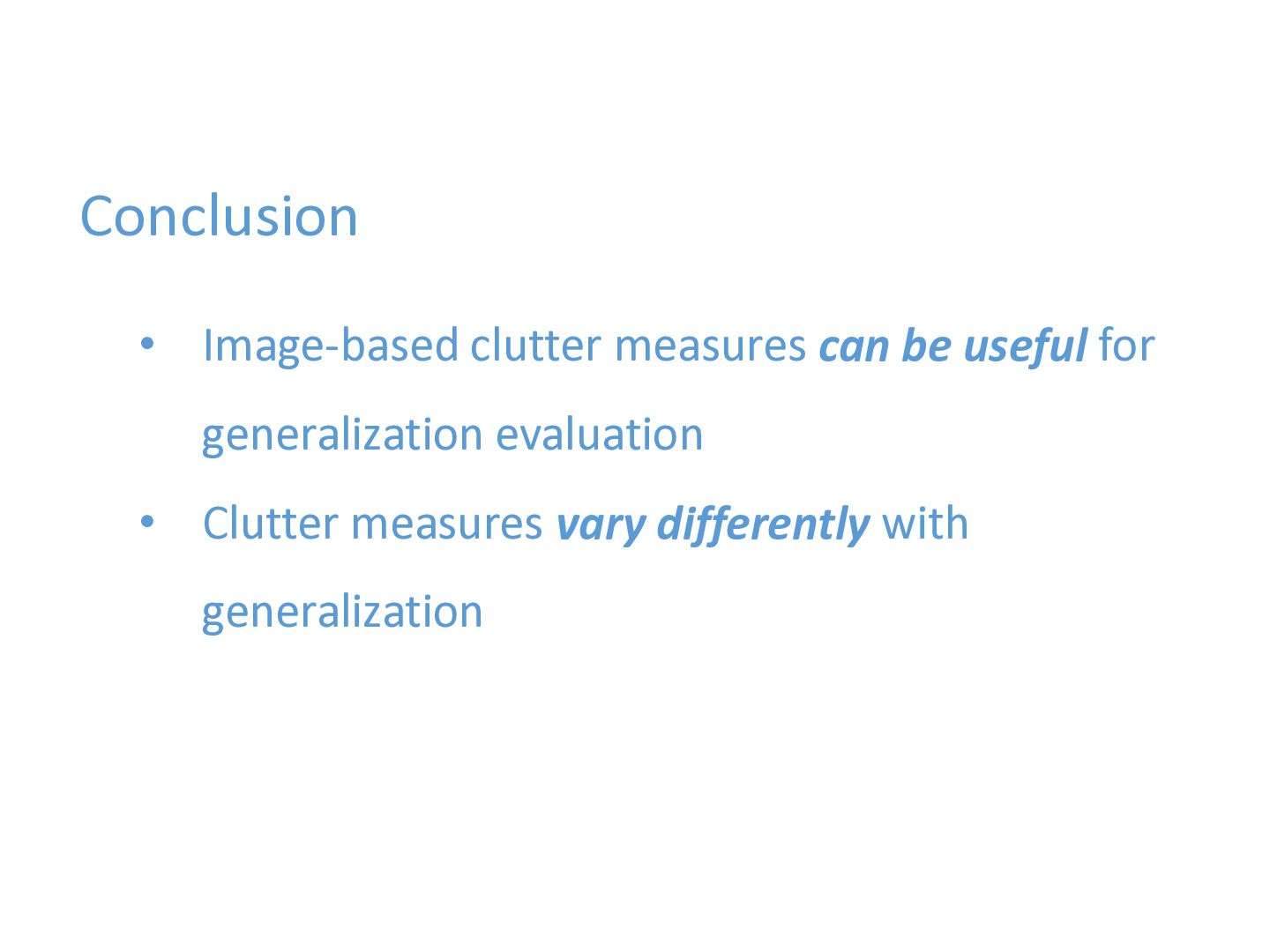

Conclusion • Image-based clutter measures can be useful for generalization
evaluation • Clutter measures vary differently with generalization
What’s next? • Test other methods (feature congestion, color clustering,
crowding model…) • Compare with vector-based methods • Combine several complementary methods • Compare to generalization evaluation methods
Any Question? G. Touya – B. Decherf – M. Lalanne
– M. Dumont COGIT team IGN France ISSDQ 2015 – Geospatial week

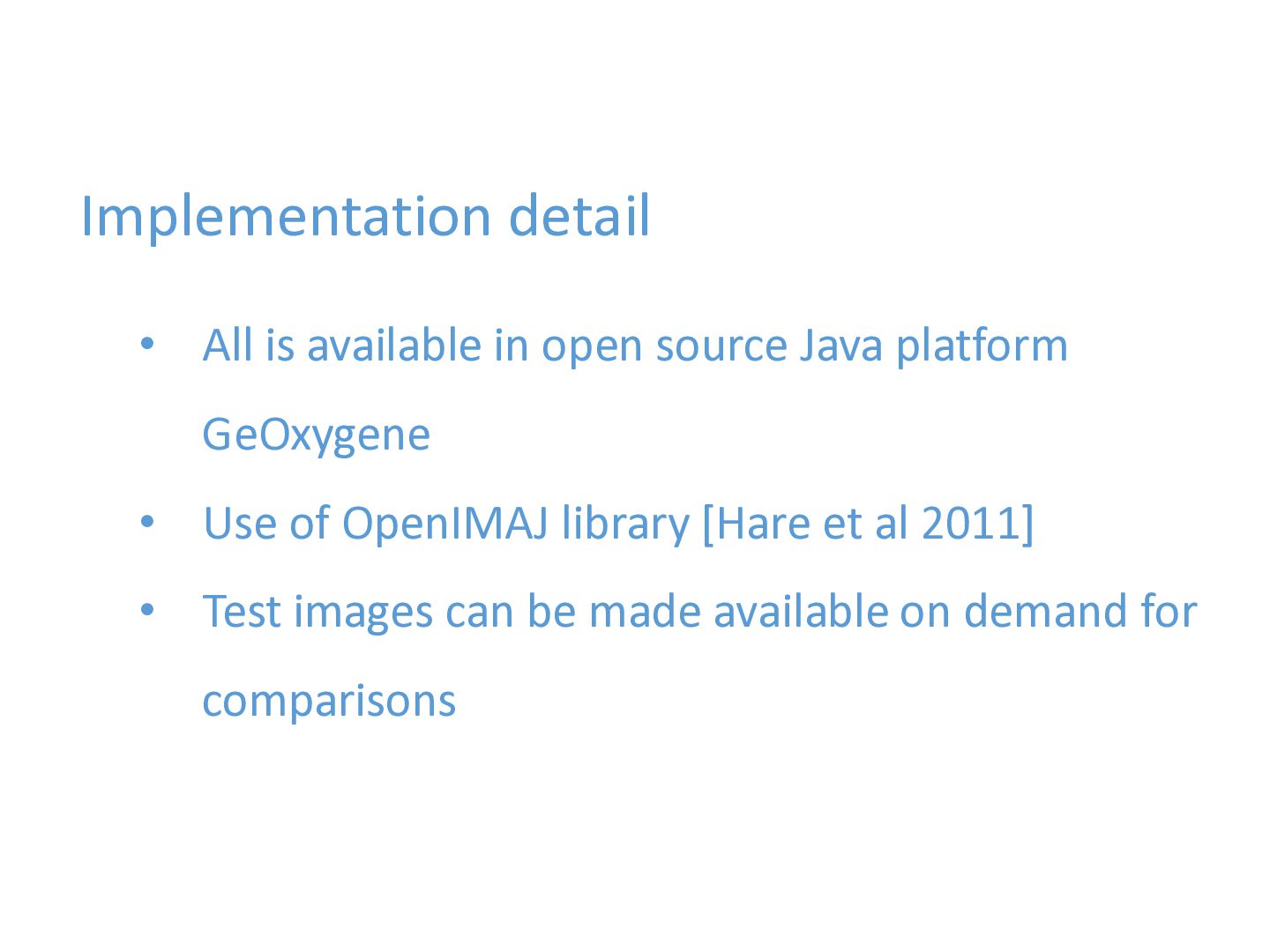

Implementation detail • All is available in open source Java
platform GeOxygene • Use of OpenIMAJ library [Hare et al 2011] • Test images can be made available on demand for comparisons
