Who supervises supervisors?

Introduction to using systemd with Erlang

Transcript

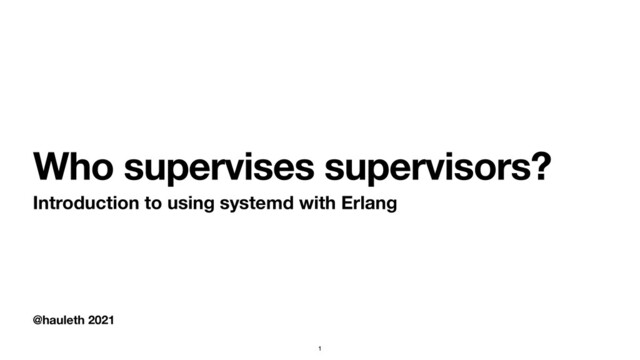

1. @hauleth 2021
   Who supervises supervisors?
   Introduction to using systemd with Erlang
   1


   View Slide

2. • Hauleth - https://hauleth.dev

   • EEF Observability WG Member

   • OpenTelemetry Erlang Maintainer

   • Author of systemd Erlang library
   (and few other libraries)
   Who am I?
   2


   View Slide

3. Some knowledge
   needed
   I will not explain everything, there is no time for that
   3


   View Slide

4. systemd is ok
   but it has
   fl
   aws
   4


   View Slide

5. • What is init system

   • How it works on the high level

   • What systemd features are interesting for us

   • How we can use these features
   5


   View Slide

6. Erlang init
   App2
   App1 App3
   ?
   6


   View Slide

7. *nix init system
   How your system starts
   • First process ran by your OS

   • Run with PID 1

   • When it exits, everything goes down, either by shutdown or errors out

   • Responsible for starting everything else

   • Responsible for reaping zombies (in most cases)

   • In systemd it is the system supervisor (not all inits does that)
   7


   View Slide

8. Similarities between system init and Erlang init
   • When it dies, (virtual) machine dies

   • It is responsible for starting everything else

   • It reads job con
   fi
   guration and then starts required jobs

   • Listen on messages when to stop the (virtual) machine
   8


   View Slide

9. Why bother?
   9


   View Slide

10. "Top-level" process management
    • Ordering process startup

    • Restarting process when it died

    • Startup and shutdown hooks

    • Process isolation and hardening

    • Resource limits

    • System state monitoring
    10


    View Slide

11. Notifications and watchdog
    • Informing administrator about state of the process

    • Health checks whether the system is still alive

    • Triggering restarts from within the application

    • Storing opened
    fi
    le descriptors (like sockets) between application starts
    11


    View Slide

12. How to use it?
    12
    defmodule MyApp.Application do


    use Application


    def start(_, _) do


    children = [


    # …


    :systemd.ready()


    ]


    # …


    Supervisor.start_link(


    children,


    opts


    )


    end


    end
    [Service]


    # …


    Type=notify


    ExecStart=/path/to/rel/bin start


    View Slide

13. Centralised log management
    journald
    • All systems send logs to single place

    • No need for manual management of log rotation

    • Keeping metadata together with logs

    • Built-in log dispatching tooling

    • Supports both stdout and direct logging via socket

    • Logs stored in binary format
    13


    View Slide

14. How to use it?
    Version simple (well, in Erlang)
    14
    {deps, [systemd]}.


    View Slide

15. How to use it?
    Version hard
    15
    defp deps do


    [{:systemd, "~> 0.0"}]


    end
    defmodule MyApp.Application do


    use Application


    def start(_, _) do


    :logger.add_handlers(:systemd)


    end


    end


    View Slide

16. Lazy startup
    socket activation
    • Start application just when the request arrives

    • Keep sockets open as soon as system starts

    • Keep sockets open between application restarts

    • Use sockets from the privileged scope without superuser
    16


    View Slide

17. How to use it?
    17
    fds = :systemd.listen_fds()


    option =


    case fds do


    [{fd, _} | _] -> {:fd, fd}


    [fd | _] -> {:fd, fd}


    _ -> {:port, default_port}


    end


    {:ok, socket} = :gen_tcp.listen(0, [option, :inet6])


    View Slide

18. Demo time
    18


    View Slide

19. Questions?
    19


    View Slide
