Tweaking Ruby GC parameters for fun, speed, and profit

Whether you are building a Robot, controlling a Radar, or creating a Web App, the Ruby Garbage Collector (GC) can help you. The stats exposed by the Garbage Collector since Ruby v2.1 caught my attention and pushed me to dig deeper. Both Ruby 2.1 and 2.2 brought great performance improvements. From a practical point of view, we will discuss how to use the GC to enhance the performance of your software, from configuration parameters to different approaches on how you can change them yourself.

Transcript

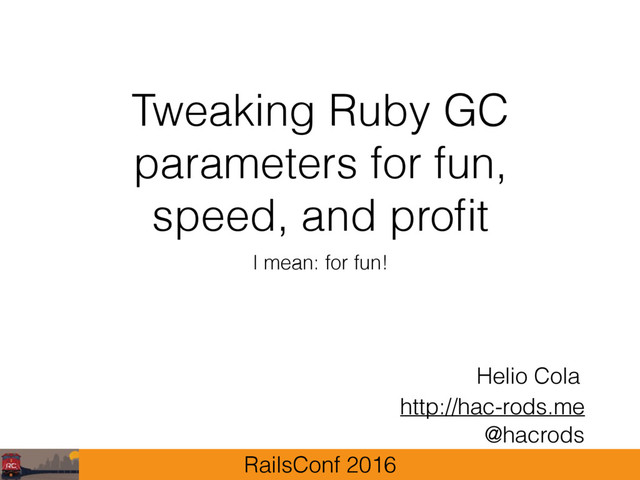

1. RailsConf 2016
   Tweaking Ruby GC
   parameters for fun,
   speed, and profit
   I mean: for fun!
   Helio Cola
   http://hac-rods.me
   @hacrods


   View Slide

2. RailsConf 2016
   So, why I am here talking about GC?


   View Slide

3. RailsConf 2016
   hac-rods.me
   Hi, I am Helio Cola!
   • ~15 years developing SW
   • ~10 years doing C/C++ on Solaris
   • 5/6 years since I found happiness
   • ~4 years full time happiness
   • I go by @hacrods on the internet…


   View Slide

4. RailsConf 2016
   So, let’s get it started and talk about
   Ruby Garbage Collector


   View Slide

5. RailsConf 2016
   Terms
   • GC: Garbage Collector
   • RGenGC: Restricted Generational GC
   • RIncGC: Restricted Incremental GC
   • CoW: Copy-on-write technique
   • ab: Apache Benchmark Tool


   View Slide

6. RailsConf 2016
   Agenda
   • Why I am here talking about Ruby GC
   • A couple bits about its history
   • Configuration parameters
   • My approach to measure & tuning
   • Some of my findings
   • QA


   View Slide

7. RailsConf 2016
   Why I am here… Ruby Garbage Collector


   View Slide

8. RailsConf 2016
   Why I am here… GC
   • Once upon a time there was a Rails App
   • Why? How? How can I?


   View Slide

9. RailsConf 2016
   Why I am here… GC
   • I did do a lot research on it…
   • I had a really great time learning & doing all this
   • I wanted to share it
   • And my talk got accepted!!!! :-)


   View Slide

10. RailsConf 2016
    A bit about the history of Ruby GC


    View Slide

11. RailsConf 2016
    A brief history about Ruby GC
    • Ruby 1.8: Simple Mark & Sweep
    • Ruby 1.9.3: Lazy Sweep
    • Ruby 2.0: Bitmap Masking (CoW friendly)
    • Ruby 2.1: RGenGC
    • Ruby 2.2: RIncGC and Symbol GC
    Reference: http://tmm1.net/ruby21-rgengc/


    View Slide

12. RailsConf 2016
    A brief history about Ruby GC
    by
    Aman Gupta
    Reference: http://tmm1.net/ruby21-rgengc/


    View Slide

13. RailsConf 2016
    Ruby 1.8: Simple Mark & Sweep
    Reference: http://tmm1.net/ruby21-rgengc/


    View Slide

14. RailsConf 2016
    Ruby 1.9.3: Lazy Sweep
    Reference: http://tmm1.net/ruby21-rgengc/


    View Slide

15. RailsConf 2016
    Ruby 2.0: Bitmap Masking (CoW)
    Reference: http://tmm1.net/ruby21-rgengc/


    View Slide

16. RailsConf 2016
    Ruby 2.0.x: 2.0.0-p647


    View Slide

17. RailsConf 2016
    Ruby 2.1: RGenGC
    Reference: http://tmm1.net/ruby21-rgengc/


    View Slide

18. RailsConf 2016
    Ruby 2.2: RIncGC / Symbol GC
    • Symbols now gets collected by GC!
    • RIncGC
    https://engineering.heroku.com/blogs/2015-02-04-incremental-gc/


    View Slide

19. RailsConf 2016
    Ruby 2.2: RIncGC / Symbol GC
    • RIncGC
    • Not a silver bullet
    • Don’t affect throughput or response time
    Reference: https://engineering.heroku.com/blogs/2015-02-04-incremental-gc/


    View Slide

20. RailsConf 2016
    Ruby 2.1.x & 2.2.x


    View Slide

21. RailsConf 2016
    Configuration parameters


    View Slide

22. RailsConf 2016
    GC Parameters: ruby 2.0.x
    • RUBY_GC_MALLOC_LIMIT
    • RUBY_HEAP_MIN_SLOTS
    • RUBY_FREE_MIN
    https://github.com/ruby/ruby/blob/v2_0_0_647/gc.c#L3296


    View Slide

23. RailsConf 2016
    GC Parameters: Ruby >= 2.1.x
    • RUBY_GC_HEAP_INIT_SLOTS
    • RUBY_GC_HEAP_FREE_SLOTS
    • RUBY_GC_HEAP_GROWTH_FACTOR
    • RUBY_GC_HEAP_GROWTH_MAX_SLOTS
    • RUBY_GC_HEAP_OLDOBJECT_LIMIT_FACTOR
    Reference: https://github.com/ruby/ruby/blob/v2_1_7/gc.c#L5705


    View Slide

24. RailsConf 2016
    GC Parameters: Ruby >= 2.1.x
    • RUBY_GC_MALLOC_LIMIT
    • RUBY_GC_MALLOC_LIMIT_MAX
    • RUBY_GC_MALLOC_LIMIT_GROWTH_FACTOR
    Reference: https://github.com/ruby/ruby/blob/v2_1_7/gc.c#L5705


    View Slide

25. RailsConf 2016
    GC Parameters: Ruby >= 2.1.x
    • RUBY_GC_OLDMALLOC_LIMIT
    • RUBY_GC_OLDMALLOC_LIMIT_MAX
    • RUBY_GC_OLDMALLOC_LIMIT_GROWTH_FACTOR
    Reference: https://github.com/ruby/ruby/blob/v2_1_7/gc.c#L5705


    View Slide

26. RailsConf 2016
    Reference: https://github.com/ruby/ruby/blob/v2_1_7/gc.c#L5705 / https://github.com/ruby/ruby/blob/v2_2_3/gc.c#L6972
    https://github.com/ruby/ruby/blob/v2_3_0/gc.c#L7256
    Ruby v2.1.7
    And also:
    v2.2.x & v2.3.x


    View Slide

27. RailsConf 2016
    Running it
    $ export RUBY_GC_HEAP_INIT_SLOTS=800000
    $ export RUBY_GC_HEAP_FREE_SLOTS=32768
    $ export RUBY_GC_MALLOC_LIMIT=33554432
    $ export RUBY_GC_MALLOC_LIMIT_MAX=50331648
    $ rails s


    View Slide

28. RailsConf 2016
    My approach to measure & tuning


    View Slide

29. RailsConf 2016
    Me: measuring & tuning
    • Find out if your current/default experience is good,
    normal, bad, or really bad.


    View Slide

30. RailsConf 2016
    Me: measuring & tuning
    • Research mode, reading mode, studying mode,
    read ruby source code, compile it…
    ✴ I have to upgrade the one with 2.0.x
    ✴ I don’t know yet if my app with 2.1.x is in good or bad shape
    • And after a lot of research…


    View Slide

31. RailsConf 2016
    So, what now?!
    • Let me start by running it all on my laptop
    … and ab it!
    … and… still doesn’t look like my production app!


    View Slide

32. RailsConf 2016
    So, and now what?!
    • A couple of days go by…
    … testing, measuring, analyzing data, thinking about what I am seeing…
    • Some well known reasons:
    • My laptop isn’t like my AWS servers
    • I don’t have the same amount of data
    • My ab calls aren’t reflecting very well the traffic from my real users
    … so… the app on my laptop won’t be like it is in prod servers!


    View Slide

33. RailsConf 2016
    So…
    • Sleep on it
    • Go spend a day doing something else
    • Grab a teammate and talk to him
    • Explain what you are doing to someone else
    (or at least try to explain! :-)
    • Plan your next steps


    View Slide

34. RailsConf 2016
    And: either this or that
    • You may open your eyes to something else
    • Or you establish a laptop baseline
    DEV
    PROD


    View Slide

35. RailsConf 2016
    Finally: I got this


    View Slide

36. RailsConf 2016
    Change, Measure & Analyze
    • Do that over & over & over again…
    • Analyze your data, document your numbers in a
    piece of paper or notepad
    • Make one single change (at a time) and re-run your
    tests


    View Slide

37. RailsConf 2016
    Again: either this or that
    • If you will find something that improves your app
    ̣ Document it nicely and share with your team
    ̣ Make a small talk out of it
    ̣ And you won’t sweat to make it into the
    Production environment!
    • Or that will happen…


    View Slide

38. RailsConf 2016
    Some of my findings


    View Slide

39. RailsConf 2016
    Some of my findings
    Parameters I changed:
    • RUBY_GC_HEAP_INIT_SLOTS
    • RUBY_GC_HEAP_FREE_SLOTS
    • RUBY_GC_MALLOC_LIMIT
    • RUBY_GC_MALLOC_LIMIT_MAX


    View Slide

40. RailsConf 2016
    Some of my findings
    A few comparisons:
    • Ruby 2.0.0 vs Ruby 2.1.7 (before)
    • Ruby 2.1.7: before and after
    • Ruby 2.2.3: before and after
    • Ruby 2.1.7 vs Ruby 2.2.3 (after)


    View Slide

41. RailsConf 2016
    Ruby 2.0.0 vs Ruby 2.1.7


    View Slide

42. RailsConf 2016
    v2.0.0
    v2.1.7


    View Slide

43. RailsConf 2016
    v2.0.0
    v2.1.7


    View Slide

44. RailsConf 2016
    Ruby 2.1.7 before vs after


    View Slide

45. RailsConf 2016
    v2.1.7
    before
    v2.1.7
    after


    View Slide

46. RailsConf 2016
    v2.1.7
    before
    v2.1.7
    after


    View Slide

47. RailsConf 2016
    Ruby 2.2.3 before vs after


    View Slide

48. RailsConf 2016
    v2.2.3
    before
    v2.2.3
    after


    View Slide

49. RailsConf 2016
    v2.2.3
    before
    v2.2.3
    after


    View Slide

50. RailsConf 2016
    Ruby 2.1.7 vs 2.2.3 (after)


    View Slide

51. RailsConf 2016
    v2.1.7
    after
    v2.2.3
    after


    View Slide

52. RailsConf 2016
    v2.1.7
    after
    v2.2.3
    after


    View Slide

53. RailsConf 2016
    Thank you!
    Q&A?!
    Helio Cola
    http://hac-rods.me
    @hacrods


    View Slide

54. RailsConf 2016
    Thanks
    Thanks to these folks that helped me along the way
    NoTwitterErik
    costasd@something.gr


    View Slide
