Testing Web Applications with Geb

Talk given at CodeMash 2013 covering the Geb web browser automation and testing framework.

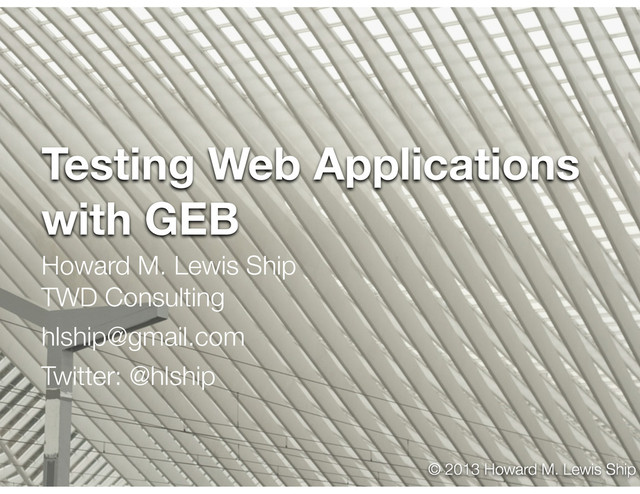

1. Testing Web Applications with GEB Howard M. Lewis Ship TWD Consulting hlship@gmail.com Twitter: @hlship © 2013 Howard M. Lewis Ship
2. Testing Web Applications
3. How tough is it? Request Handler Response <html> <head> … <body> … </body> </html>
4. Grab It, Compare It, Done! … Right?
5. HTML Markup JavaScript Ajax HTTP Request Dispatch Templates Database Synchronization User Interaction Controllers Session State
6. Browser ➠ Integrated View
7. Page Navigation
8. DOM Traversal
9. User Interaction
10. My Path 1990's Wrote own test framework – in PL/1 – 5000 - 7000 tests 2001 First JUnit tests (Tapestry template parser) 2003-ish Started using TestNG 2004-ish Started using EasyMock 2005-ish Started using Selenium 1 2006-ish Dabbled in Groovy 2010 Spock! ~ 0.4 2011 Geb 0.5.0
11. Spoiled by jQuery $(".order-summary .subtotal").text() == "107.95" <div class="order-summary"> … <div class="subtotal">107.95</div> http://jquery.com/
12. ✦Drives: ✦or limited HtmlUnit (browserless) Selenium WebDriver http://seleniumhq.org/
13. WebDriver driver = new FirefoxDriver(); driver.get("http://localhost:8080/order-summary/12345"); WebElement subtotal = driver.findElement( By.cssSelector(".order-summary .subtotal"); assertEquals(subtotal.getText(), "107.95"); WebElement submit = driver.findElement( By.cssSelector(".order-form input[type=submit]")); submit.click() Navigation
14. WebDriver driver = new FirefoxDriver(); driver.get("http://localhost:8080/order-summary/12345"); WebElement subtotal = driver.findElement( By.cssSelector(".order-summary .subtotal"); assertEquals(subtotal.getText(), "107.95"); WebElement submit = driver.findElement( By.cssSelector(".order-form input[type=submit]")); submit.click() Traversal
15. WebDriver driver = new FirefoxDriver(); driver.get("http://localhost:8080/order-summary/12345"); WebElement subtotal = driver.findElement( By.cssSelector(".order-summary .subtotal"); assertEquals(subtotal.getText(), "107.95"); WebElement submit = driver.findElement( By.cssSelector(".order-form input[type=submit]")); submit.click() Interaction
16. driver.get("http://www.google.com"); WebElement element = driver.findElement(By.name("q")); element.sendKeys("Cheese!"); element.submit(); new WebDriverWait(driver, 10)).until(new ExpectedCondition<Boolean>() { public Boolean apply(WebDriver d) { return d.getTitle().toLowerCase().startsWith("cheese!"); } }; Triggers Ajax Update Triggers Ajax Update
17. Java ➠ High Ceremony
18. Groovy ➠ Low Ceremony + Dynamic
19. ✦Power of Selenium WebDriver 2 ✦Elegance of jQuery content selection ✦Robustness of Page Object modelling ✦Expressiveness of Groovy ✦First Class Documentation
20. Running GEB Interactively import groovy.grape.Grape Grape.grab([group:'org.codehaus.geb', module:'geb-core', version:'0.7.2']) Grape.grab([group:'org.seleniumhq.selenium', module:'selenium-firefox-driver', version:'2.27.0']) Grape.grab([group:'org.seleniumhq.selenium', module:'selenium-support', ⏎ version:'2.27.0']) import geb.* import java.util.logging.* new File("geb-logging.properties").withInputStream { ⏎ LogManager.logManager.readConfiguration it } geb.groovy handlers=java.util.logging.ConsoleHandler java.util.logging.ConsoleHandler.level=WARNING java.util.logging.ConsoleHandler.formatter=java.util.logging.SimpleFormatter geb-logging.properties
21. GEB Interactive $ groovysh Groovy Shell (1.8.6, JVM: 1.6.0_29) Type 'help' or '\h' for help. ------------------------------------------------- groovy:000> . geb.groovy ===> [import groovy.grape.Grape] ===> null ===> null ===> null ===> [import groovy.grape.Grape, import geb.*] ===> [import groovy.grape.Grape, import geb.*, import ⏎ java.util.logging.*] ===> null groovy:000> b = new Browser(baseUrl: "http://google.com/") ===> geb.Browser@190a0d51 groovy:000> b.go() ===> null groovy:000>
22. Google Demo
24. IMDB Demo
26. Browser go() : void quit() : void page : Page Page pageUrl : String title : String $(…) : Navigator waitFor(…) : Object startsWith(…) : TextMatcher contains(…) : TextMatcher endsWith(…) : TextMatcher Navigator x : int y : int width : int height : int disabled : boolean empty : boolean displayed : boolean add(String) : Navigator click() : void filter(...) : Navigator find(…) : Navigator not(String) : Navigator first() : Navigator last() : Navigator getAt(…) : Navigator getAttribute(String) : String has(String) : Navigator parents(String) : Navigator parentsUntil(String): Navigator size() : int text() : String value() : Object Delegation GebSpec Delegation
27. ✦$("p") ➠ all <p> ✦$("p", 3) ➠ 4th <p> ✦$("p")[3] ➠ 4th <p> ✦$("p")[0..2] ➠ 1st through 3rd <p> $(css selector, index, attribute / text matchers) CSS3
28. Attribute Matchers ✦$("a", text:"Blade Runner") ➠ All <a> tags whose text is "Blade Runner" ✦$("a", href: contains("/name/") ➠ All <a> tags whose href attribute contains "/name/" ✦$("a", href: ~/nm[0-9]+/) ➠ All <a> tags whose href attribute matches the pattern
29. Attribute Predicates Case Sensitive Case Insensitive Description startsWith iStartsWith start with value contains iContains contains the value anywhere endsWith iEndsWith end with value constainsWord iContainsWord contains value surrounded by whitespace (or at begin or end) notStartsWith iNotStartsWith DOES NOT start with value notContains iNotContains DOES NOT contain value anywhere notEndsWith iNotEndsWith DOES NOT end with value notContainsWord iNotContainsWord DOES NOT contain value (surrounded by whitespace, or at begin or end)
30. Relative Traversal <div class="a"> <div class="b"> <p class="c"></p> <p class="d"></p> <p class="e"></p> </div> <div class="f"></div> </div> $("p.d").previous() p.c $("p.e").prevAll() p.c p.d $("p.d").next() p.e $("p.c").nextAll() p.d p.e $("p.d").parent() div.b $("p.c").siblings() p.d p.e $("div.a").children() div.b div.f $("p.d").closest(".a") div.a
31. Navigators are Groovy Collections groovy:000> castList = [:] ===> {} groovy:000> b.$("table.cast_list tr").tail().each { castList[it.find("td.name").text()] = it.find("td.character").text() } ===> […] groovy:000> castList ===> {Harrison Ford=Rick Deckard, Rutger Hauer=Roy Batty, Sean Young=Rachael, Edward James Olmos=Gaff, M. Emmet Walsh=Bryant, Daryl Hannah=Pris, William Sanderson=J.F. Sebastian, Brion James=Leon Kowalski, Joe Turkel=Dr. Eldon Tyrell, Joanna Cassidy=Zhora, James Hong=Hannibal Chew, Morgan Paull=Holden, Kevin Thompson=Bear, John Edward Allen=Kaiser, Hy Pyke=Taffey Lewis} http://groovy.codehaus.org/groovy-jdk/java/util/Collection.html each() is a Groovy Collection method
32. Forms <form id="navbar-form" … <input type="text" name="q" … groovy:000> b.q = "Galaxy Quest" ===> Galaxy Quest groovy:000> b.$("#navbar-form").q ===> Galaxy Quest
33. Pages and Modules
34. Problem: Repetition $("a", text:"Contact Us").click() waitFor { b.title == "Contact Us" } $(".alert .btn-primary").click() waitFor { b.title == "Contact Us" } ($(".search-form input[name='query']") << "search term").submit()
35. Solution: Model Pages not just DOM Browser go() : void quit() : void page : Page at(…) : boolean Page pageUrl : String title : String $(…) : Navigator waitFor(…) : Object verifyAt() : boolean browser: Browser Delegation class Home extends Page { static url = "" static at = { title == "IMDb - Movies, TV and Celebrities" } } groovy:000> b.$(".home").click(Home) ===> null groovy:000> b.verifyAt() ===> true groovy:000> b.at Home ===> true groovy:000> b.page ===> Home groovy:000> b.to Home ===> null
36. Pages Demo
38. Page Content Demo
40. Page Content class Search extends Page { static at = { title == "IMDb Search" } static content = { mainTable { $("#main table") } matchingTitles { mainTable[2] } matchingTitlesLinks { matchingTitles.find("a", href: contains("/title/tt")) } } } class Home extends Page { static at = { title == "IMDb - Movies, TV and Celebrities" } static url = "" static content = { boxOffice { $("h3", text:"Box Office").parent() } firstBoxOffice { boxOffice.find("a").first() } searchField { $("#navbar-query") } searchButton(to: Search) { $("#navbar-submit-button") } } }
41. to / do / at groovy:000> b.to Home ===> null groovy:000> b.searchField << "Forbidden Planet" ===> [[[[[FirefoxDriver: firefox on MAC …]] groovy:000> b.searchButton.click() ===> [[[[[FirefoxDriver: firefox on MAC …]] groovy:000> b.page ===> Search
42. Content Options static content = { boxOffice { $("h3", text:"Box Office").parent() } firstBoxOffice { boxOffice.find("a").first() } movieShowtimes(required:false) { $("h3", text:"Movie Showtimes").parent() } movieShowtimesGo(required:false) { movieShowtimes.find("input", value:"Go") } searchField { $("#navbar-query") } searchButton(to: Search) { $("#navbar-submit-button") } }
43. Content Options Option Type Default Description cache boolean false Evaluate content once, or on each access required boolean true Error on page load if content does not exist (use false for optional or Ajax-loaded) to Page or Class, list of Page or Class null On a link, identify the page the link submits to wait varies null Wait for content to become available (via Ajax/ DHTML)
44. Page Methods class Home extends Page { static at = { title == "The Internet Movie Database (IMDb)" } static url = "" static content = { boxOffice { $("h3", text:"Box Office").parent() } boxOfficeLinks { boxOffice.find("a", text: iNotStartsWith("see more")) } } def clickBoxOffice(index) { def link = boxOfficeLinks[index] def label = link.text() link.click() waitFor { title.startsWith(label) } } } groovy:000> b.to Home ===> null groovy:000> b.clickBoxOffice 0 ===> true groovy:000> Delegation to page
45. Page Methods Demo
47. Problem: Re-used web pages class Movie extends Page { static at = { title.startsWith("Blade Runner") } static content = { rating { $(".star-box-gig-start").text() } castList { $("table.cast_list tr").tail() } } } groovy:000> b.$("#main table.findList").find("a", 2).click(Movie) ===> null groovy:000> b.page ===> Movie groovy:000> b.at Movie ERROR org.codehaus.groovy.runtime.powerassert.PowerAssertionError: title.startsWith("Blade Runner") | | | false Dangerous Days: Making Blade Runner (Video 2007) - IMDb
48. Solution: Configured Page Instances class Movie extends Page { String expectedTitle static at = { title.startsWith expectedTitle } static content = { rating { $(".star-box-gig-start").text() } castList { $("table.cast_list tr").tail() } } } new Movie(expectedTitle: "… movie title …")
49. class Search extends Page { static at = { title == "Find - IMDb" } static content = { matchingTitleLinks { $("table.findList td.result_text > a", href: contains("/title/tt")) } } def clickMatchingTitle(int index) { def link = matchingTitleLinks[index] def label = link.text() link.click() browser.at new Movie(expectedTitle: label) } } Configured page instance, instead of page class
50. groovy:000> b.searchField << "Blade Runner" ===> null groovy:000> b.searchButton.click() ===> null groovy:000> b.clickMatchingTitle 3 ===> true def clickMatchingTitle(int index) { def link = matchingTitlesLinks[index] def label = link.text() link.click() browser.at new Movie(expectedTitle: label) } click()
51. Configured Page Demo
53. Problem: Duplication on Pages b.$("#navbar-query") << "Bladerunner" b.$("#navbar-submit-button").click() ✦Login / Logout / Register ✦"Contact Us" & other boilerplate ✦"Mark Favorite" ✦View Product Details ✦Bid / Buy
54. Solution: Modules class SearchForm extends Module { static content = { field { $("#navbar-query") } go(to: Search) { $("#navbar-submit-button") } } } class Home extends Page { static at = { title == "The Internet Movie Database (IMDb)" } static url = "" static content = { searchForm { module SearchForm } } } groovy:000> b.to Home ===> null groovy:000> b.searchForm.field << "Serenity" ===> [org.openqa.selenium.firefox.FirefoxWebElement@1ef44b1f] groovy:000> b.searchForm.go.click() ===> null groovy:000> b.page ===> Search
55. Problem: Repeating Elements <table class="cast_list"> <tr> <td class="primary_photo"> … <td class="name"> … <td class="ellipsis"> … <td class="character"> …
56. Solution: Module Lists class CastRow extends Module { static content = { actorName { $("td.name").text() } characterName { $("td.character").text() } } } class Movie extends Page { String expectedTitle static at = { title.startsWith expectedTitle } static content = { rating { $(".star-box-gig-start").text() } castList { moduleList CastRow, $("table.cast_list tr").tail() } } } Scope limited to each <tr>
57. groovy:000> b.at new Movie(expectedTitle: "Blade Runner") ===> true groovy:000> b.castList[0].actorName ===> Harrison Ford groovy:000> b.castList[0].characterName ===> Rick Deckard groovy:000> b.castList*.actorName ===> [Harrison Ford, Rutger Hauer, Sean Young, Edward James Olmos, ⏎ M. Emmet Walsh, Daryl Hannah, William Sanderson, Brion James, Joe Turkel, ⏎ Joanna Cassidy, James Hong, Morgan Paull, Kevin Thompson, John Edward Allen, ⏎ Hy Pyke]
58. Client-Side JavaScript
59. js object groovy:000> b = new Browser(baseUrl: "http://jquery.org") ===> geb.Browser@5ec22978 groovy:000> b.go() ===> null groovy:000> b.js."document.title" ===> jQuery Project Access simple page properties
60. Client JavaScript Demo
62. Executing JavaScript groovy:000> b.js.exec ''' groovy:001> $("img").css("background-color", "red").fadeOut() groovy:002> ''' ===> null groovy:000> b.js.exec 1, 2, "return arguments[0] + arguments[1];" ===> 3 Text evaluated in-browser
63. jQuery Hook groovy:000> b.$("img").jquery.fadeIn() ===> [org.openqa.selenium.firefox.FirefoxWebElement@de86fd70, org.openqa.selenium.firefox.FirefoxWebElement@615e6612, org.openqa.selenium.firefox.FirefoxWebElement@52c13174, org.openqa.selenium.firefox.FirefoxWebElement@69e1ba19, org.openqa.selenium.firefox.FirefoxWebElement@2797f147, org.openqa.selenium.firefox.FirefoxWebElement@69cfbbda, org.openqa.selenium.firefox.FirefoxWebElement@27d5741a, org.openqa.selenium.firefox.FirefoxWebElement@10b36232, org.openqa.selenium.firefox.FirefoxWebElement@ec3e243f] Silently fails unless jQuery on page More methodMissing() magic!
64. Testing Framework Integration
65. Reporting package myapp.tests import geb.spock.* class Login extends GebReportingSpec { def "successful login"() { when: go "login" username = "user1" report "login screen" login().click() then: title == "Welcome, User1" } } Capture HTML and screenshot Base class that reports at end of each test ✦ reports/myapp/tests/Login/1-1-login-login screen.html ✦ reports/myapp/tests/Login/1-1-login-login screen.png ✦ reports/myapp/tests/Login/1-2-login-end.html ✦ reports/myapp/tests/Login/1-2-login-end.png
66. Base Classes Framework Artifact Base Class Reporting Base Class Spock geb-spock geb.spock.GebSpec geb.spock.GebReportingSpec Junit 4 geb-juni4 geb.junit4.GebTest geb.junit4.GebReportingTest Junit 3 geb-junit3 geb.junit3.GebTest geb.junit3.GebReportingTest TestNG geb-testng geb.testng.GebTest geb.testng.GebReportingTest Report end of each test Report failures only
67. Delegation package myapp.tests import geb.spock.* class Login extends GebReportingSpec { def "successful login"() { when: go "login" username = "user1" report "login screen" login().click() then: title == "Welcome, User1" } } Browser Page Geb[Reporting]Spec Delegation Delegation
68. Configuration
69. src/test/resources/GebConfig.groovy GebConfig.groovy import org.openqa.selenium.firefox.FirefoxDriver import org.openqa.selenium.chrome.ChromeDriver driver = { new FirefoxDriver() } // use firefox by default waiting { timeout = 2 // default wait is two seconds } environments { chrome { driver = { new ChromeDriver() } } } http://groovy.codehaus.org/gapi/groovy/util/ConfigSlurper.html
70. Environment $ gradle test -Dgeb.env=chrome src/test/resources/GebConfig.groovy import org.openqa.selenium.firefox.FirefoxDriver import org.openqa.selenium.chrome.ChromeDriver driver = { new FirefoxDriver() } // use firefox by default waiting { timeout = 2 // default wait is two seconds } environments { chrome { driver = { new ChromeDriver() } } }
71. Waiting Configuration GebConfig.groovy waiting { timeout = 10 retryInterval = 0.5 presets { slow { timeout = 20, retryInterval = 1 } quick { timeout = 1 } } }
72. More Info
73. http://www.gebish.org
74. https://github.com/geb/geb
75. http://howardlewisship.com
76. Q & A
77. http://www.flickr.com/photos/hlship/4328262153/ http://www.flickr.com/photos/charlestilford/189670488/ http://www.flickr.com/photos/druclimb/370334116/ http://www.flickr.com/photos/shivenis/3708942151/ creative commons
