Change Data Streaming Patterns in Distributed Systems @ Flink Forward 2021

Abstract:
Microservices are one of the big trends in software engineering of the last few years; organising business functionality in several self-contained, loosely coupled services helps teams to work efficiently, make the most suitable technical decisions, and react quickly to new business requirements.

In this session we'll discuss and showcase how open-source change data capture (CDC) with Debezium can help developers with typical challenges they often face when working on microservices. Come and join us to learn how to:

* Employ the outbox pattern for reliable, eventually consistent data exchange between microservices, without incurring unsafe dual writes or tight coupling
* Gradually extract microservices from existing monolithic applications, using CDC, the strangler fig pattern and Apache Flink
* Coordinate long-running business transactions across multiple services using CDC-based saga orchestration, ensuring such activity gets consistently applied or aborted by all participating services.

Event Page:
https://www.flink-forward.org/global-2021/conference-program#change-data-streaming-patterns-in-distributed-systems

Video Recording:
https://www.youtube.com/watch?v=JsihpvQEv2c

Demo Repository: https://github.com/hpgrahsl/flinkforward21

Transcript

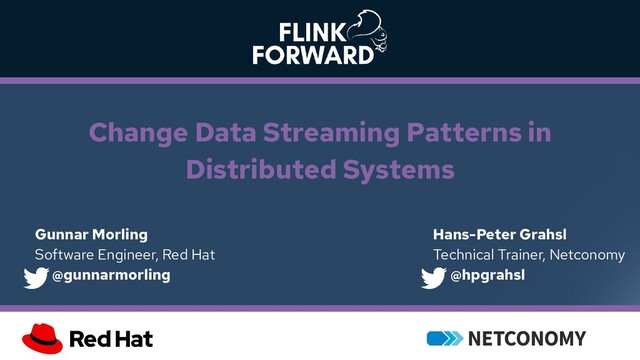

1. Gunnar Morling
   Software Engineer, Red Hat
   @gunnarmorling
   Change Data Streaming Patterns in
   Distributed Systems
   Hans-Peter Grahsl
   Technical Trainer, Netconomy
   @hpgrahsl


   View Slide

2. #CDCPatterns @gunnarmorling @hpgrahsl
   … implemented using Change Data Capture
   Today’s Objectives


   View Slide

3. #CDCPatterns @gunnarmorling @hpgrahsl
   ● Open source software engineer at Red Hat
   ○ Debezium
   ○ Quarkus
   ● Spec Lead for Bean Validation 2.0
   ● Java Champion
   ● @gunnarmorling
   Gunnar Morling


   View Slide

4. #CDCPatterns @gunnarmorling @hpgrahsl
   ● Technical Trainer at NETCONOMY
   ● Independent Engineer & Consultant
   ● Confluent Community Catalyst
   ● MongoDB Champion
   ● @hpgrahsl
   Hans-Peter Grahsl


   View Slide

5. #CDCPatterns @gunnarmorling @hpgrahsl
   ● Taps into TX log to capture INSERT/UPDATE/DELETE events
   ● Propagated to consumers via Apache Kafka and Kafka Connect
   Debezium — Log-based Change Data Capture


   View Slide

6. #CDCPatterns @gunnarmorling @hpgrahsl
   Debezium in a Nutshell
   ● A CDC Platform
   ■ Based on transaction logs
   ■ Snapshotting, filtering, etc.
   ■ Outbox support
   ■ Web-based UI
   ● Fully open-source, very active
   community
   ● Large production deployments


   View Slide

7. #CDCPatterns @gunnarmorling @hpgrahsl
   Debezium: Connectors
   ● Stable
   ■ MySQL
   ■ Postgres
   ■ MongoDB
   ■ SQL Server
   ■ Db2
   ■ Oracle
   ● Incubating
   ■ Vitess
   ■ Cassandra


   View Slide

8. #CDCPatterns @gunnarmorling @hpgrahsl
   Debezium: Deployment Alternatives
   Embedded Engine and Debezium Server


   View Slide

9. #CDCPatterns @gunnarmorling @hpgrahsl
   Data Change Events
   ● Old and new row state
   ● Metadata on table, TX id, etc.
   ● Operation type, timestamp


   View Slide

10. #CDCPatterns @gunnarmorling @hpgrahsl
    ● Old and new row state
    ● Metadata on table, TX id, etc.
    ● Operation type, timestamp
    Data Change Events


    View Slide

11. #CDCPatterns @gunnarmorling @hpgrahsl
    ● Old and new row state
    ● Metadata on table, TX id, etc.
    ● Operation type, timestamp
    Data Change Events


    View Slide

12. Outbox Pattern


    View Slide

13. #CDCPatterns @gunnarmorling @hpgrahsl
    ● Services need to update their database,
    ● send messages to other services,
    ● and that consistently!
    Challenge: Microservices Data Exchange


    View Slide

14. #CDCPatterns @gunnarmorling @hpgrahsl
    “Dual writes” are prone to inconsistencies!
    Outbox Pattern


    View Slide

15. #CDCPatterns @gunnarmorling @hpgrahsl
    Outbox Pattern


    View Slide

16. #CDCPatterns @gunnarmorling @hpgrahsl
    Outbox Pattern


    View Slide

17. #CDCPatterns @gunnarmorling @hpgrahsl
    Outbox Pattern


    View Slide

18. #CDCPatterns @gunnarmorling @hpgrahsl
    Outbox Pattern


    View Slide

19. #CDCPatterns @gunnarmorling @hpgrahsl
    Outbox Pattern
    with enrichment from external system using Flink


    View Slide

20. #CDCPatterns @gunnarmorling @hpgrahsl
    Integrating Debezium With Apache Flink
    Debezium → Kafka Topic → Flink


    View Slide

21. #CDCPatterns @gunnarmorling @hpgrahsl
    Integrating Debezium With Apache Flink
    Flink CDC Connectors (Debezium Embedded Engine) → Flink


    View Slide

22. Strangler Fig Pattern


    View Slide

23. #CDCPatterns @gunnarmorling @hpgrahsl
    ● Gradually evolve from old into new
    ● Support temporary coexistence
    ● Avoid big bang cut-over
    Challenge: Migrating Systems


    View Slide

24. #CDCPatterns @gunnarmorling @hpgrahsl
    CDC-based Strangler Fig Pattern


    View Slide

25. #CDCPatterns @gunnarmorling @hpgrahsl
    CDC-based Strangler Fig Pattern


    View Slide

26. #CDCPatterns @gunnarmorling @hpgrahsl
    CDC-based Strangler Fig Pattern


    View Slide

27. #CDCPatterns @gunnarmorling @hpgrahsl
    CDC-based Strangler Fig Pattern


    View Slide

28. #CDCPatterns @gunnarmorling @hpgrahsl
    CDC-based Strangler Fig Pattern


    View Slide

29. #CDCPatterns @gunnarmorling @hpgrahsl
    CDC-based Strangler Fig Pattern


    View Slide

30. #CDCPatterns @gunnarmorling @hpgrahsl
    CDC-based Strangler Fig Pattern


    View Slide

31. #CDCPatterns @gunnarmorling @hpgrahsl
    CDC-based Strangler Fig Pattern
    Demo Repo: https://bit.ly/ff21-sfp


    View Slide

32. #CDCPatterns @gunnarmorling @hpgrahsl
    ● Incremental migration → “baby steps”
    ● Pause or stop migration
    without losing spent efforts
    ● Migration steps ideally reversible
    Rationale: ⚠ minimize risk ⚠
    Benefits


    View Slide

33. #CDCPatterns @gunnarmorling @hpgrahsl
    CDC Pipeline Considerations
    ● data model leaking from monolith ?
    ● “1:1 replication” → building aggregates ?


    View Slide

34. #CDCPatterns @gunnarmorling @hpgrahsl
    Enhanced CDC Processing
    Single Message Transforms


    View Slide

35. #CDCPatterns @gunnarmorling @hpgrahsl
    Enhanced CDC Processing
    custom stream processing with Flink


    View Slide

36. #CDCPatterns @gunnarmorling @hpgrahsl
    Example: join with custom aggregation


    View Slide

37. #CDCPatterns @gunnarmorling @hpgrahsl
    Example: join with custom aggregation
    Flink Table API


    View Slide

38. #CDCPatterns @gunnarmorling @hpgrahsl
    Example: join with custom aggregation
    Flink SQL


    View Slide

39. Saga Pattern


    View Slide

40. #CDCPatterns @gunnarmorling @hpgrahsl
    ● Multiple services need to act collaboratively
    to achieve a consistent outcome
    ● Without 2-phase commit protocols
    ● Ensure correctness in case of failures
    Challenge: Long-running Business Transactions


    View Slide

41. #CDCPatterns @gunnarmorling @hpgrahsl
    Saga Pattern


    View Slide

42. #CDCPatterns @gunnarmorling @hpgrahsl
    Saga Pattern
    Message Flow


    View Slide

43. #CDCPatterns @gunnarmorling @hpgrahsl
    Saga Pattern
    Compensation


    View Slide

44. #CDCPatterns @gunnarmorling @hpgrahsl
    Saga Pattern
    Configuration


    View Slide

45. #CDCPatterns @gunnarmorling @hpgrahsl
    Saga Pattern
    Execution Flow


    View Slide

46. #CDCPatterns @gunnarmorling @hpgrahsl
    Saga Pattern
    Execution Flow


    View Slide

47. #CDCPatterns @gunnarmorling @hpgrahsl
    Saga Pattern
    Execution Flow


    View Slide

48. #CDCPatterns @gunnarmorling @hpgrahsl
    Saga Pattern
    Expanding Partial Change Events with Flink


    View Slide

49. #CDCPatterns @gunnarmorling @hpgrahsl
    Saga Pattern
    Expanding Partial Change Events with Flink


    View Slide

50. Wrap-Up


    View Slide

51. #CDCPatterns @gunnarmorling @hpgrahsl
    ● CDC: a powerful tool in the box for
    event-driven architectures
    ● Debezium: open-source CDC for
    a variety of databases
    ● Debezium + Apache Flink = ❤
    Takeaways


    View Slide

52. #CDCPatterns @gunnarmorling @hpgrahsl
    ● Outbox implementation
    https://debezium.io/blog/2019/02/19/reliable-microservices-data
    -exchange-with-the-outbox-pattern/
    ● Strangler fig pattern
    https://martinfowler.com/bliki/StranglerFigApplication.html
    ● Saga implementation
    https://www.infoq.com/articles/saga-orchestration-outbox/
    ● Demo repo
    https://github.com/debezium/debezium-examples
    Resources


    View Slide

53. #CDCPatterns @gunnarmorling @hpgrahsl
    Q & A
    gunnar@hibernate.org
    @gunnarmorling
    📧 grahslhp@gmail.com
    @hpgrahsl
    📧
    Thank You!


    View Slide
