Mogilefs, 簡約可靠的儲存方案

TWJUG 2016 十一月份聚會
http://twjug.kktix.cc/events/twjug201611

✨ https://github.com/mogilefs-moji/moji ✨

這次talk想和大家分享mogilefs這套開源分散儲存的一些production經驗～
做為一個senior engineer或architect，在這個過多UGC (user-generated content)、大資料和物聯網的時代，要規劃系統中的儲存架構偶爾不能單純靠掛幾顆硬碟或NAS就可以輕鬆搞定了，有時候我們的stack需要更強大的storage！這時候不提AWS S3實在說不過去，但在許多考量機敏資料、業主需求或是legacy system的情境，簡約的mogilefs或許會是更合適的選擇～這次分享除了mogilefs，會多著墨於moji，讓java user可以自然的存取mogilefs，另外也會講一些可靠度的經驗。如果您對架構設計有興趣或是什麼都要管的full stack engineer歡迎一起來聊聊～

Transcript

1. MogileFS 簡約可靠的儲存方案 TWJUG Meetup Nov. 2016 kaif@kaif (member of mogilefs-moji)
2. Outline • Mogilefs • Moji • State of the art in mogilefs reliability
3. Quick facts “Open source distributed object storage” – a.k.a. cloud storage, soft defined storage… • 高可用、水平擴展 • 檔案多副本儲存、修復 • 簡單的架構、容易使用 • 眾多應用實績
4. Brad Fitzpatrick • Golang • OpenID • LiveJournal – Memcached – MogileFS – …

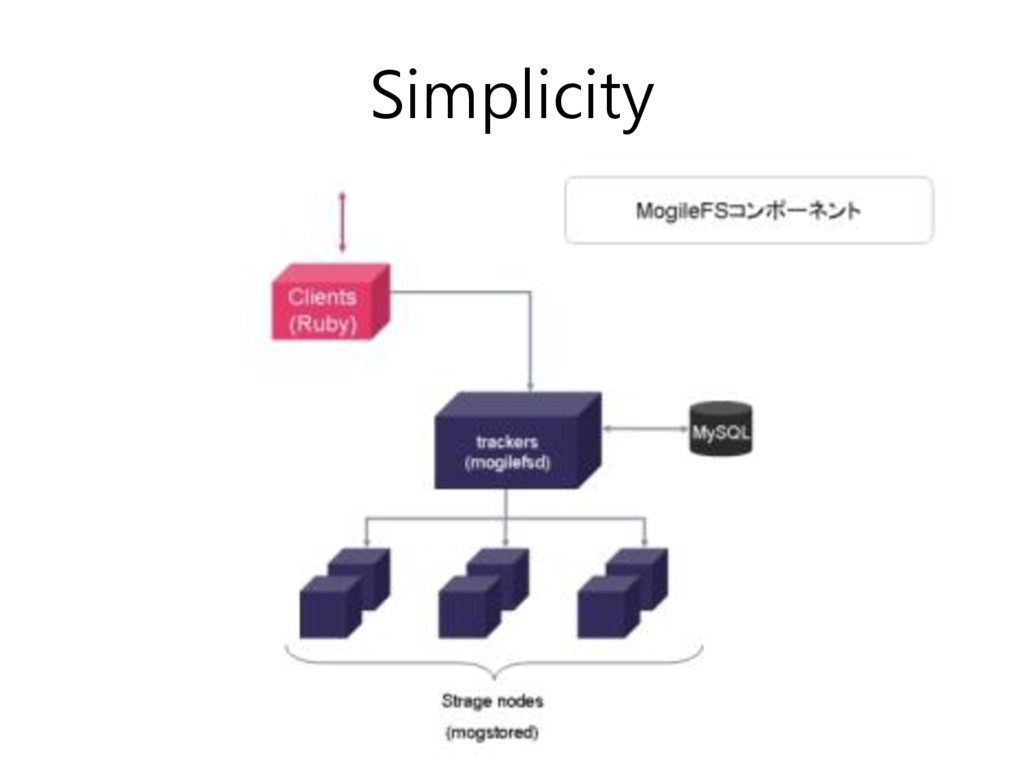

5. Simplicity
6. Easy-to-use • Command line tool • Config file
7. Easy-to-use • Admin tool

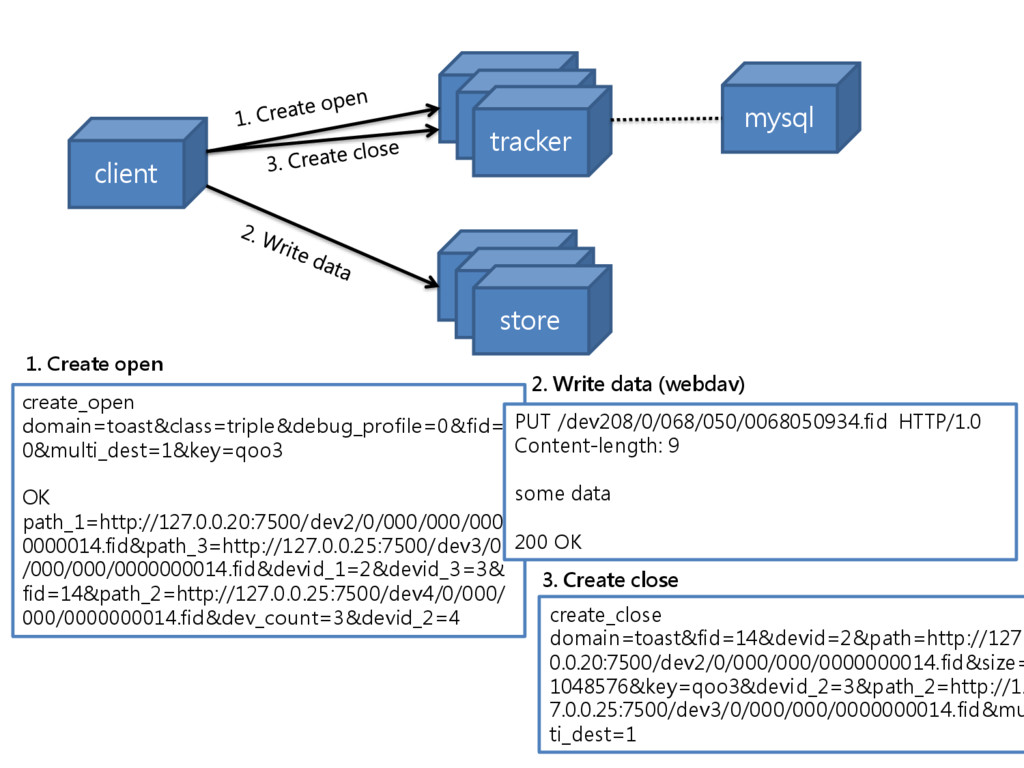

8. client tracker store mysql create_open domain=toast&class=triple&debug_profile=0&fid= 0&multi_dest=1&key=qoo3 OK path_1=http://127.0.0.20:7500/dev2/0/000/000/000 0000014.fid&path_3=http://127.0.0.25:7500/dev3/0 /000/000/0000000014.fid&devid_1=2&devid_3=3& fid=14&path_2=http://127.0.0.25:7500/dev4/0/000/ 000/0000000014.fid&dev_count=3&devid_2=4 store store tracker tracker PUT /dev208/0/068/050/0068050934.fid HTTP/1.0 Content-length: 9 some data 200 OK 1. Create open 3. Create close 2. Write data (webdav) create_close domain=toast&fid=14&devid=2&path=http://127. 0.0.20:7500/dev2/0/000/000/0000000014.fid&size= 1048576&key=qoo3&devid_2=3&path_2=http://12 7.0.0.25:7500/dev3/0/000/000/0000000014.fid&mu ti_dest=1

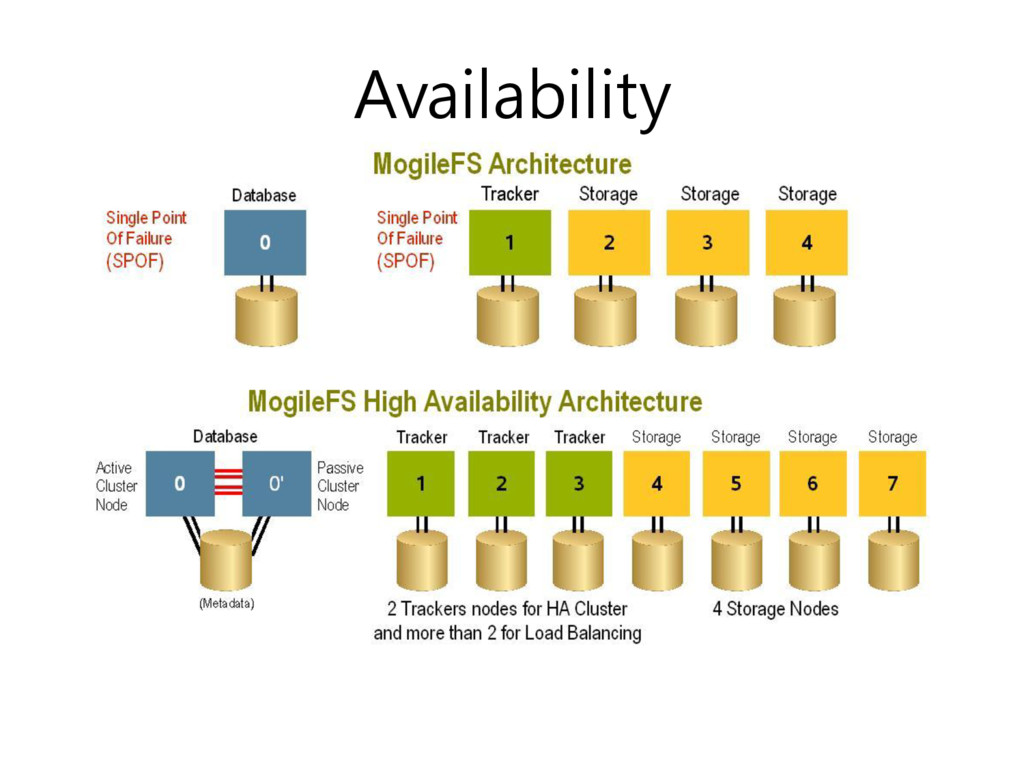

9. Availability
10. 1WNR, memcached… Scalability
11. 使用者見證
12. KKBOX

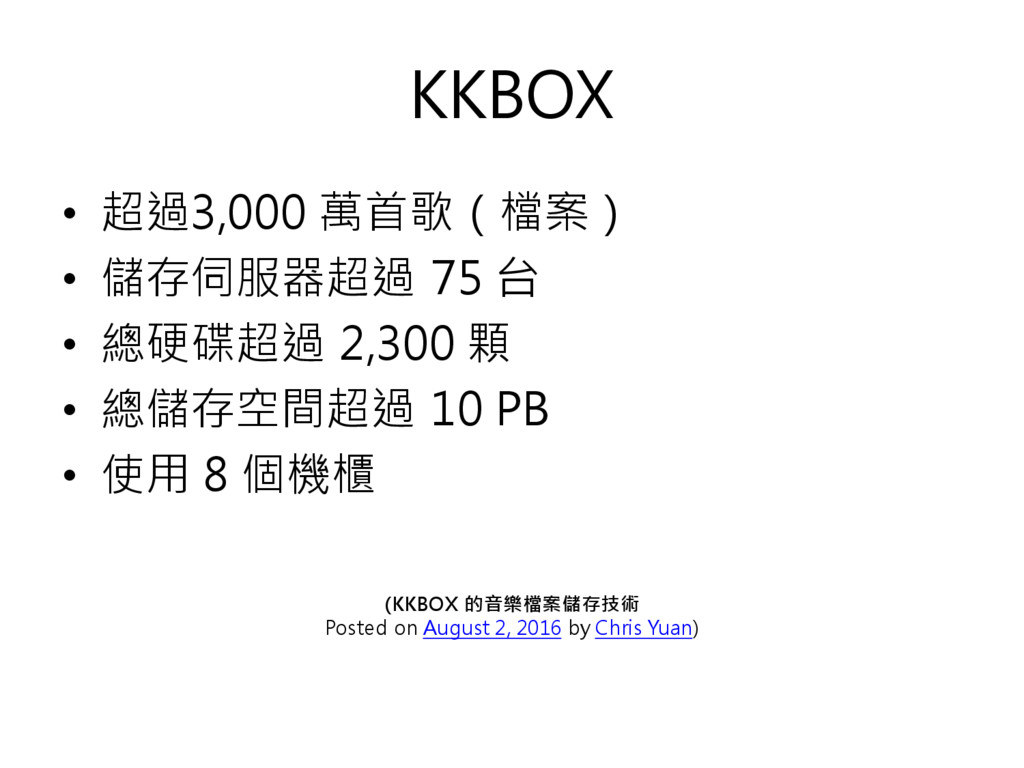

13. KKBOX • 超過3,000 萬首歌（檔案） • 儲存伺服器超過 75 台 • 總硬碟超過 2,300 顆 • 總儲存空間超過 10 PB • 使用 8 個機櫃 (KKBOX 的音樂檔案儲存技術 Posted on August 2, 2016 by Chris Yuan)
14. My production experience • 檔案量：KKBOX*10*N • Node數：10^2*N • 複雜的workload（備份、串流、物聯網、 web、log…orz） • Java ♥
15. Moji • A file-like MogileFS client for Java developers • Production-ready features – Connection pooling, load balancing, fault-tolerant… • Quality – Spring friendly, integration tests, well documented, actively developing… https://github.com/mogilefs-moji/moji

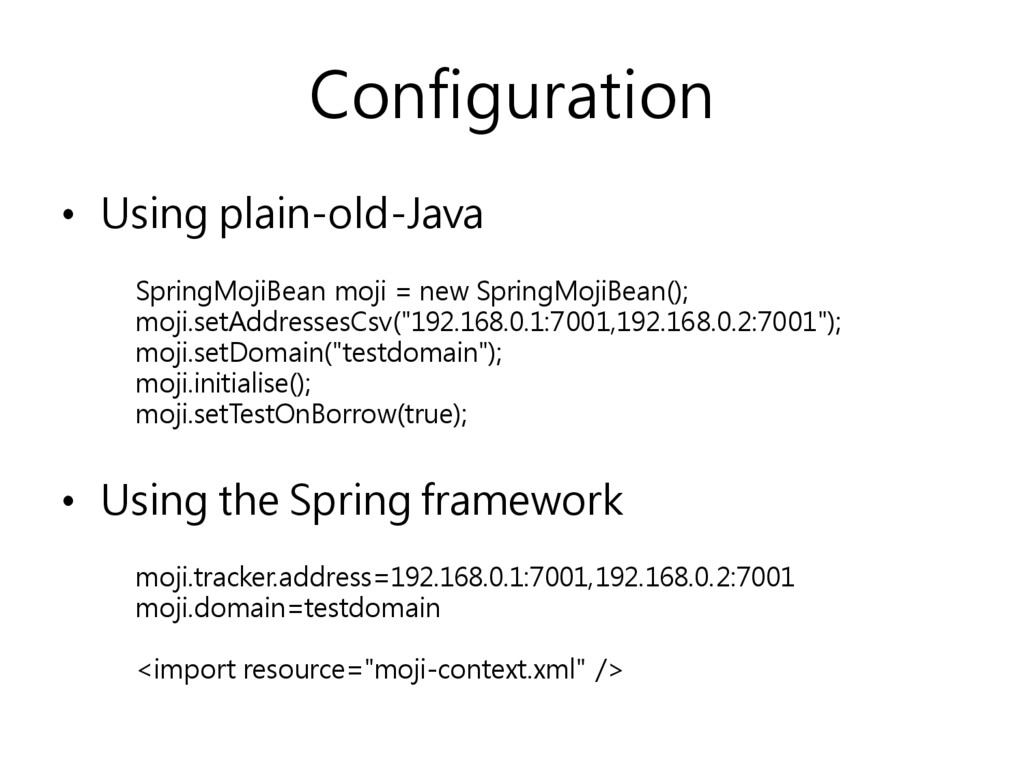

16. Configuration • Using plain-old-Java • Using the Spring framework SpringMojiBean moji = new SpringMojiBean(); moji.setAddressesCsv("192.168.0.1:7001,192.168.0.2:7001"); moji.setDomain("testdomain"); moji.initialise(); moji.setTestOnBorrow(true); moji.tracker.address=192.168.0.1:7001,192.168.0.2:7001 moji.domain=testdomain <import resource="moji-context.xml" />
17. Usage • Create/update a remote file • Download a remote file MojiFile rickRoll = moji.getFile("rick-astley"); moji.copyToMogile(new File("never-gonna-give-you-up.mp3"), rickRoll); rickRoll.copyToFile(new File("foo-fighters.mp3"));
18. Usage • IO stream MojiFile fooFighters = moji.getFile("stacked-actors"); InputStream stream = null; try { stream = fooFighters.getInputStream(); // Do something streamy // stream.read(); } finally { stream.close(); } OutputStream stream = null; try { stream = fooFighters.getOutputStream(); // Do something streamy // stream.write(...); stream.flush(); } finally { stream.close(); }
19. • Setup environment manually – MogileFS – Maven dependency Call to action! • Quickstart feat. docker run -d --name mogile-node jeffutter/mogile-node docker run -it --link mogile-node:mogile-node hrchu/mogile-moji <dependency> <groupId>fm.last</groupId> <artifactId>moji</artifactId> <version>2.0.0</version> </dependency> https://code.google.com/p/mogilefs/wiki/QuickStartGuide

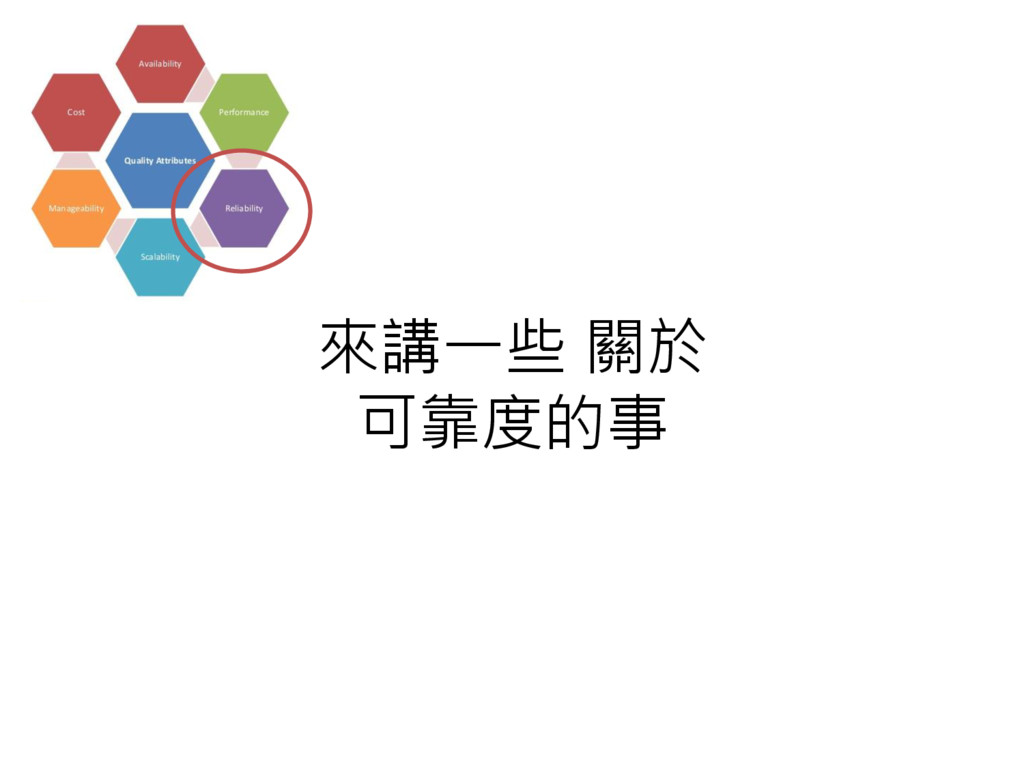

20. 來講一些 關於 可靠度的事

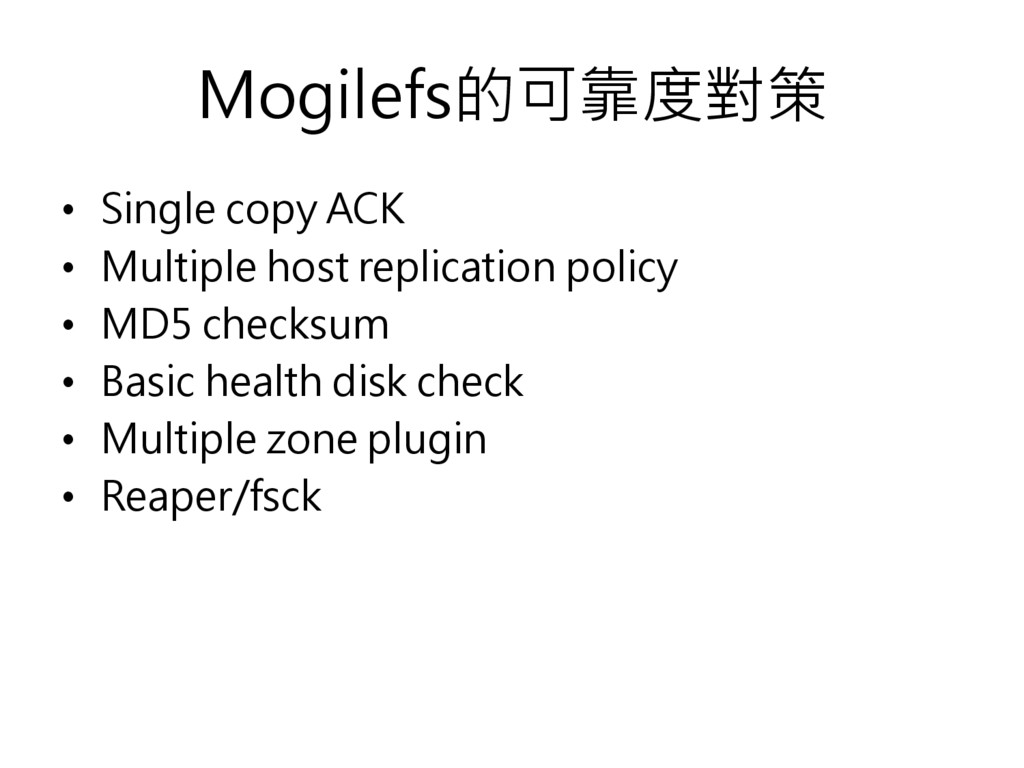

21. Mogilefs的可靠度對策 • Single copy ACK • Multiple host replication policy • MD5 checksum • Basic health disk check • Multiple zone plugin • Reaper/fsck
22. 從此檔案們就過著 幸福快樂的日子~ … ?

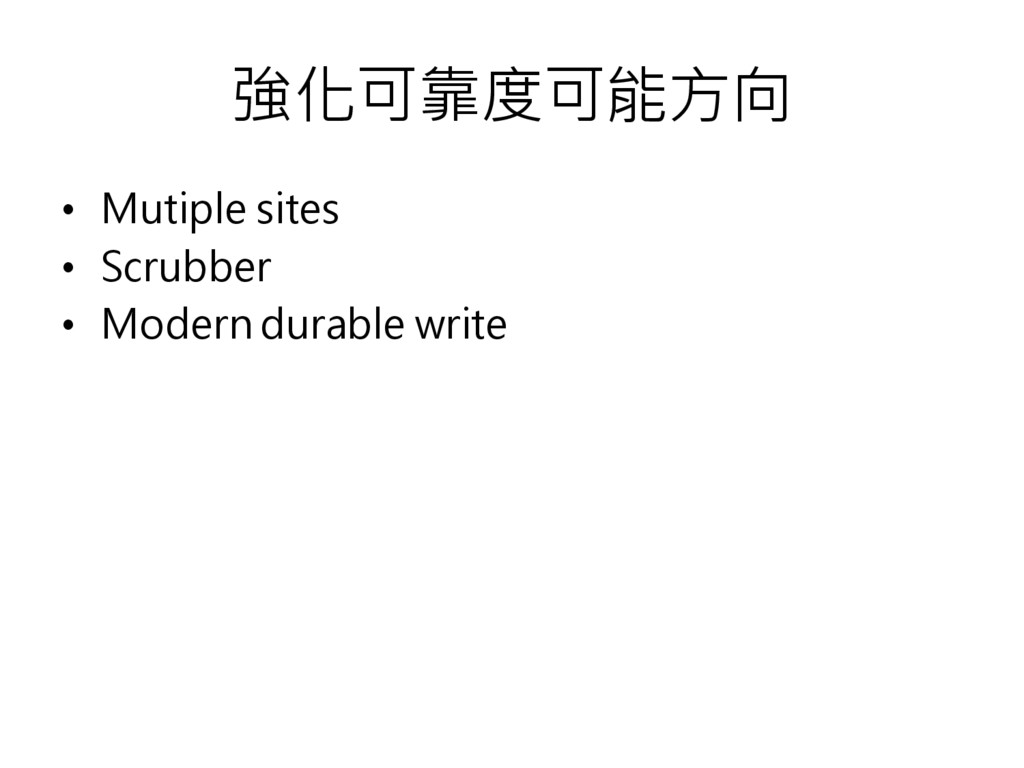

23. 強化可靠度可能方向 • Mutiple sites • Scrubber • Modern durable write

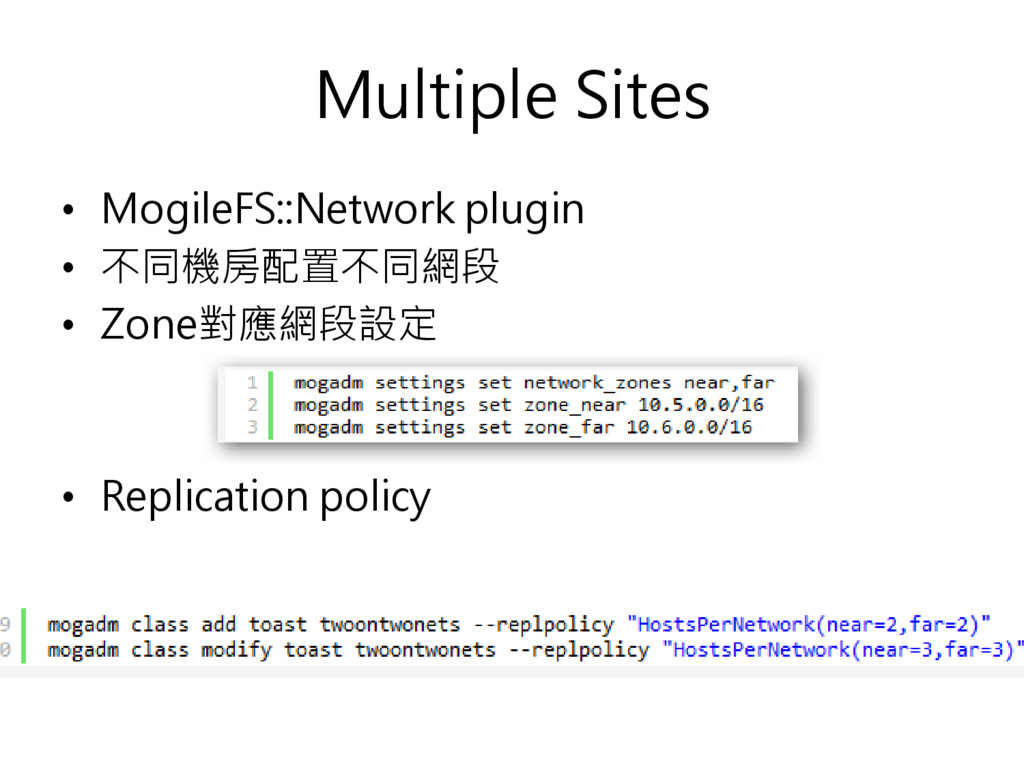

24. Multiple Sites • MogileFS::Network plugin • 不同機房配置不同網段 • Zone對應網段設定 • Replication policy
25. Multiple Sites • Given a network of: 10.10.0.0/16 • All of your machines are configured to have a netmask of 10.10.0.0/16 . When assigning IP addresses to machines, pick them from 10.10.5.0/24 • 設定IP – web1: 10.10.5.1 (netmask 255.255.0.0 or /16) – web2: 10.10.5.2 – tracker1: 10.10.5.3 – tracker2: 10.10.5.4 – storage node 1: 10.10.5.5 – storage node 2: 10.10.5.6 – storage node 3: 10.10.8.1 • MogileFS zones, you configure: – near=10.10.5.0/24 far=10.10.8.0/24 web1 tracker1 node1 node2 near tracker2 node3 far web2
26. Scrubber • Make use of routine FSCK as scrubber • Modified Algorithm – Remove exhaustive search – Improve performance in large scale https://github.com/mogilefs/MogileFS- Network/blob/master/lib/MogileFS/ReplicationPolicy/HostsPerNetwork.pm#L84 mogadm fsck status |grep " Yes " || (mogadm fsck reset; mogadm fsck clearlog; mogadm fsck start) >/var/log/mogadm.fsck 2>&1
27. Modern durable write • AS-IS client tracker store mysql store store tracker tracker 4. Write other copies asynchronously Assume that a file should have at least three replicas in the system to fit the durability requirement

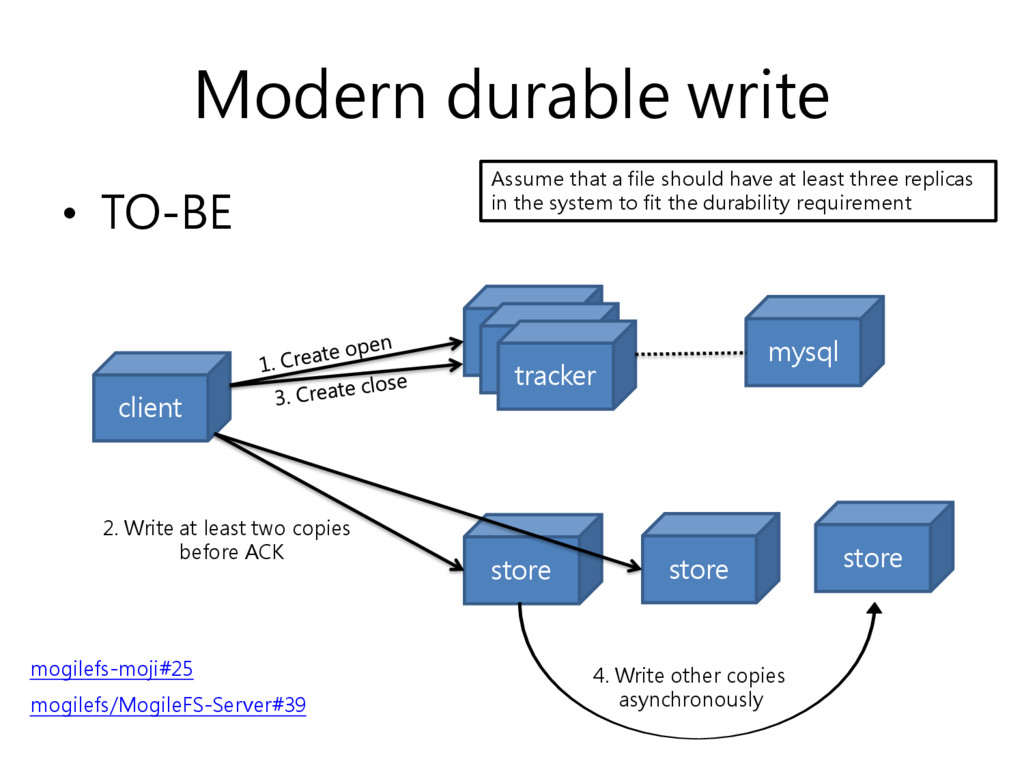

28. Modern durable write client tracker store mysql 2. Write at least two copies before ACK store store tracker tracker 4. Write other copies asynchronously • TO-BE Assume that a file should have at least three replicas in the system to fit the durability requirement mogilefs-moji#25 mogilefs/MogileFS-Server#39
29. Analysis • Disk failure pattern – MTTF? – poisson distribution? • Mark-out: 發現錯誤的空窗期 • Rep latency: 非同步複製的空窗期 • 硬碟大小，檔案大小也會影響計算結果
30. Analysis • Combinatorial analysis model – Assume that each disk fails independently – Assume that after x hours of operation each block has P(x i ) = p – Probability of failure q = 1 - p. – 對replication來說是一個naive的公式：1 – qn
31. Analysis • 若考慮 – Non-Recoverable Errors (NREs) – drive failure events are poisson – site failures (e.g. due to regional disasters) – rep latency, mark-out time – … • Analysis of system durability is commonly done with Markov models

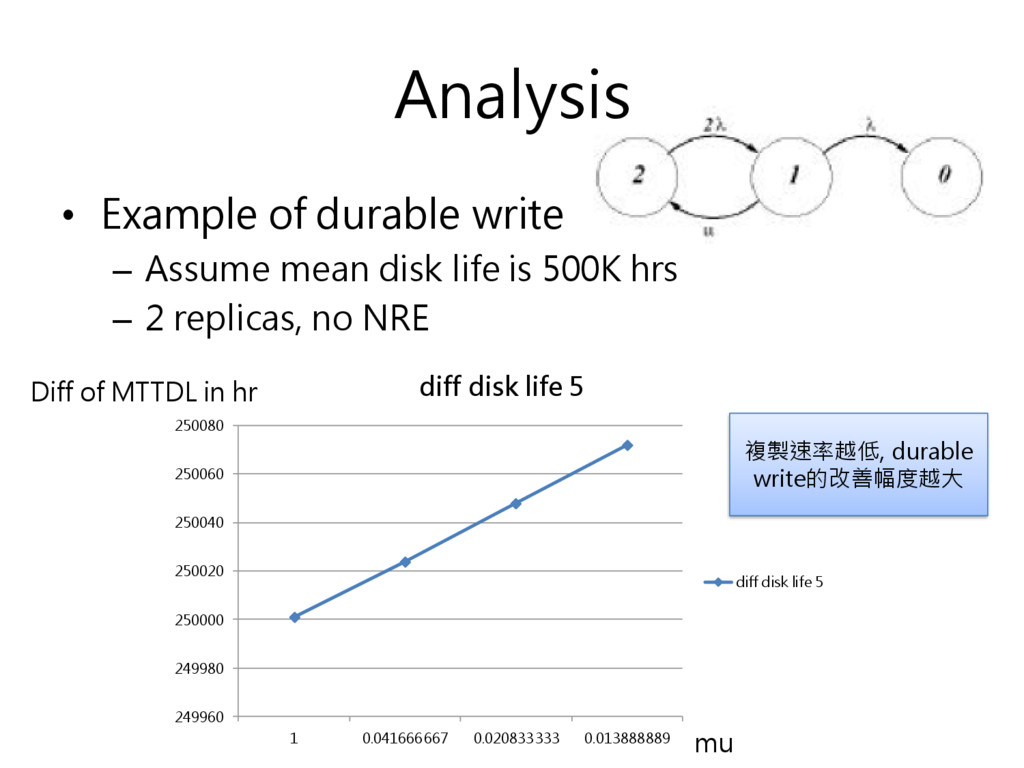

32. Analysis • Example of durable write – Assume mean disk life is 500K hrs – 2 replicas, no NRE 249960 249980 250000 250020 250040 250060 250080 1 0.041666667 0.020833333 0.013888889 diff disk life 5 diff disk life 5 Diff of MTTDL in hr mu 複製速率越低, durable write的改善幅度越大
33. Analysis • Example of probability of data loss 0.000000E+00 1.000000E-05 2.000000E-05 3.000000E-05 4.000000E-05 5.000000E-05 6.000000E-05 7.000000E-05 8.000000E-05 1 2 3 4 5 6 7 8 9 10 11 12 13 14 P of data loss 72 P of data loss 48 P of data loss 24 P of data loss 1
34. Recap 儲存之於架構  案場需求決定儲存架構抉擇  在考量機敏資料、業主需求、成本或是legacy的情境， mogilefs或許會是合適的儲存架構選擇～ 關於Mogilefs，我想說的是…  簡單可擴展的非結構化儲存系統  Java stack建議搭配moji服用  如果事業做很大有富爸爸，能找 specialist/consulting，ceph/swift會是更先進複雜 的選擇！
35. Thank you~ 【關於我】 https://kaif.io/u/kaif https://github.com/hrchu petertc.chu@gmail.com 【關於moji】 https://github.com/mogilefs-moji/moji
