Use ParaView for ISEE NLFFF database (v1.1)

0b2d9a405f07acaf3a2d6428b3a424ff?s=47 hsc_nagoya
December 14, 2021

Use ParaView for ISEE NLFFF database (v1.1)

How to use ParaView to read data files of ISEE NLFFF database (v1.1).
URL: https://hinode.isee.nagoya-u.ac.jp/nlfff_database/
DOI: https://doi.org/10.34515/DATA.HSC-00000

0b2d9a405f07acaf3a2d6428b3a424ff?s=128

hsc_nagoya

December 14, 2021
Tweet

More Decks by hsc_nagoya

Other Decks in Science

Transcript

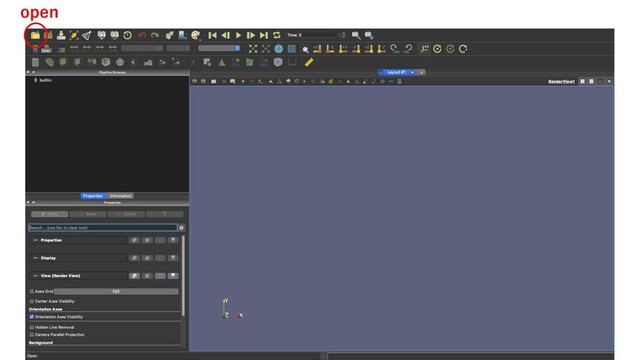

  1. open

  2. Select file

  3. Select “NetCDF Reader”

  4. Push “Apply”

  5. Box appears Loaded Data

  6. Apply “Slice” to Data Filters → Alphabetical → Slice (or

    just push icon in the tab) Normal vector (0,0,1) Plane position
  7. Apply “Slice” to Data Filters → Alphabetical → Slice (or

    just push icon in the tab) Variable
  8. Apply “Calculator” to Data Filters → Alphabetical → Calculator *Apply

    to Data *not to Slice1
  9. setting Calculator Filters → Alphabetical → Calculator Input name as

    you like Input Bx*iHat+By*jHat+Bz*kHat (to define magnetic field vector)
  10. Filters → Alphabetical → Calculator Push “Apply” and wait for

    a moment
  11. Apply “Stream Tracer” to Calculator Filters → Alphabetical → Stream

    Tracer (or just push icon in the tab)
  12. Apply “Tube” to Stream Tracer Filters → Alphabetical → Tube

  13. Apply “Tube” to Stream Tracer Filters → Alphabetical → Tube
