Apache Flink 2.0 Preview

This is a talk in Flink Forward Seattle 2023.

The Apache Flink community has been preparing for the 2.0 version of Flink in the recent couple of months. This is going to be the first major version bump ever since the release of Flink 1.0 in 2016. In this talk, I’ll introduce the important changes planned for the 2.0 release and share the progress on preparing for it. The purpose of this talk is to help users and developers better understand what to expect from the upcoming major release, and to seek inputs and suggestions from the community.

Transcript

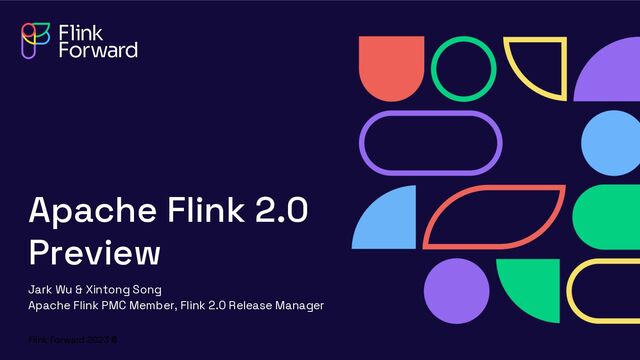

1. Flink Forward 2023 ©
   Apache Flink 2.0
   Preview
   Jark Wu & Xintong Song
   Apache Flink PMC Member, Flink 2.0 Release Manager


   View Slide

2. Flink Forward 2023 ©
   Timeline
   2014.04 – Flink entered
   Apache Incubator
   2014.12 – Flink graduated
   and became an Apache
   TLP
   2014
   Flink 1.0 release
   Formally guarantee API
   backwards compatibility
   2016.03
   Flink 1.18 release
   19 versions, 7.5 years
   ~5 months / version
   2023.10
   Flink 2.0 release
   First major version bump
   in 8.5 years
   2024
   Why Flink 2.0?
   Why it takes so long?


   View Slide

3. Flink Forward 2023 ©
   Terminology
   X . Y . Z release
   X – Major version number
   Y – Minor version number
   Z – Patch version number
   1.18.0 – the 18th minor release in
   major version 1
   1.17.1 – the first patch release for
   minor version 1.17


   View Slide

4. Flink Forward 2023 ©
   Minor Releases Planning
   Time-based releases – features not ready by the freeze date will be postponed
   Short release cycles – 4~5 months
   Predictability
   Quick Delivery &
   Feedback Cycle
   Quality
   Minor releases of the same major version are expected to be backward compatible.


   View Slide

5. Flink Forward 2023 ©
   API Compatibility Guarantees
   Annotation Major release
   (Source / Binary)
   Minor release
   (Source / Binary)
   Patch release
   (Source / Binary)
   @Public x / x ✓ / x ✓ / ✓
   @PublicEvolving x / x x / x ✓ / ✓
   @Experimental x / x x / x x / x


   View Slide

6. Flink Forward 2023 ©
   Why Flink 2.0?
   Long time not having new major releases, we are observing more and more issues.
   - New features and improvements that involve breaking changes are blocked
   - Developers hesitate to mark new APIs as stable (@Public)
   Backwards compatibility is deviating from its original intention.
   Top priority of Flink 2.0 – Completing long-blocked features / improvements / technical debt
   payoffs / bug-fixes that requires breaking changes.


   View Slide

7. Flink Forward 2023 ©
   API Evolving Process
   Scope – Programming API, Configuration, REST API, Metrics
   @Experimental @PublicEvolving @Public
   @Deprecated
   Removal
   2 minor
   releases
   2 minor
   releases
   @Public – 2 minor releases +
   major version bump
   @PublicEvolving – 1 minor
   release + minor version bump


   View Slide

8. Flink Forward 2023 ©
   Time Plan
   2023.10
   No enough time for
   carefully planning the API
   changes.
   Flink 1.18
   2024.2
   All @Public APIs that are
   planned to be broken in
   2.0 need to be
   deprecated.
   Flink 1.19
   2024.6
   All @PublicEvolving APIs
   that are planned to be
   broken in 2.0 need to be
   deprecated.
   Flink 1.20
   2024.10
   Remove deprecated APIs.
   Replacements should
   have been ready.
   Flink 2.0


   View Slide

9. Flink Forward 2023 ©
   On-going Discussions
   LTS Version
   Time-based
   Major Releases


   View Slide

10. Flink Forward 2023 ©
    Flink 2.0 Breaking Changes
    APIs will be removed
    - All Scala APIs
    - DataSet API
    - SinkV1
    - Legacy TableSource / TableSink
    - Legacy SQL function stack
    - Deprecated methods / fields / classes in DataStream
    / Table / REST API
    - Deprecated config options and metrics
    APIs might be removed
    - SourceFunction
    - Queryable State
    DataStream API will not be removed
    We are working on a DataStream API V2 with better
    abstraction and no internal exposes, but will not
    replace the current DataStream API (V1) any time soon


    View Slide

11. Flink Forward 2023 ©
    Flink 2.0 Breaking Changes
    Configuration
    - Unified key-value form
    - Comply with standard YAML format
    - Clear effective scope
    - Revisit all option types and default values
    Various Improvements in Metrics & REST API
    Java Support
    - Support and default Java 17
    - Drop support for Java 8 (and Java 11)
    Serialization
    - Pluggable custom serializers
    - Make Kryo opt-in


    View Slide

12. Flink Forward 2023 ©
    Disaggregated State Management
    - Require less local disk space
    - Faster checkpointing and recovery
    - Faster rescaling
    Task
    Local
    Disk
    Remote
    Storage
    Backup
    Read/Write
    Task
    Local
    Disk
    (Cache)
    Remote
    Storage
    Read/Write
    Get/Put
    “Disaggregated State Management
    in Apache Flink 2.0”
    15:15 at Ecosystem Track
    Yuan Mei
    Learn More:


    View Slide

13. Flink Forward 2023 ©
    Stream-Batch Unification
    - Overall windowing on keyed & non- keyed bounded streams
    - Adaptive query execution that leverages runtime statistics for dynamically deciding
    execution plan
    - JM failover without restarting all tasks
    - Integration of Hybrid Shuffle mode and Apache Celeborn
    Unified API & Engine Batch Execution Improvements


    View Slide

14. Flink Forward 2023 ©
    Stream-Batch Unification
    - Automatically choose execution mode
    according to data freshness
    - Dynamically switching as needed
    - Hide the execution details from users
    Unified Application Stream-Batch Mixed Execution
    Streaming
    Low Latency
    Batch
    High Throughput
    Auto-Switch


    View Slide

15. Flink Forward 2023 ©
    Streaming Lakehouse
    Paimon
    ODS
    Paimon
    DWD
    Paimon
    DWS
    Flink
    Streaming
    & Batch
    Flink
    Streaming
    & Batch
    Flink
    Streaming
    & Batch
    Data Serving
    Systems
    ADS
    Flink
    OLAP
    Queries
    DBMS
    Logs


    View Slide

16. Flink Forward 2023 ©
    Flink as a Unified SQL Platform
    Stream-batch unified
    SQL semantics
    Unified SQL
    Full window functionality
    based on Table-Valued
    Function (TVF)
    Window
    Performance
    improvements for large-
    scale join
    Join
    State compatibility of
    upgrading Flink version
    for SQL jobs
    Upgrade Experience


    View Slide

17. Flink Forward 2023 ©
    Thank you
    Jark Wu
    @jarkwu
