Dask - Out-of-core NumPy/Pandas through Task Scheduling

Talk given at SciPy 2015.
Video: https://youtu.be/1kkFZ4P-XHg

Dask Array implements the NumPy ndarray interface using blocked algorithms, cutting up the large array into many small arrays. This lets us compute on arrays larger than memory using all of our cores. In this talk we describe dask, dask.array, dask.dataframe, as well as task scheduling generally.

Docs: http://dask.pydata.org/en/latest/
Github: https://github.com/ContinuumIO/dask

Transcript

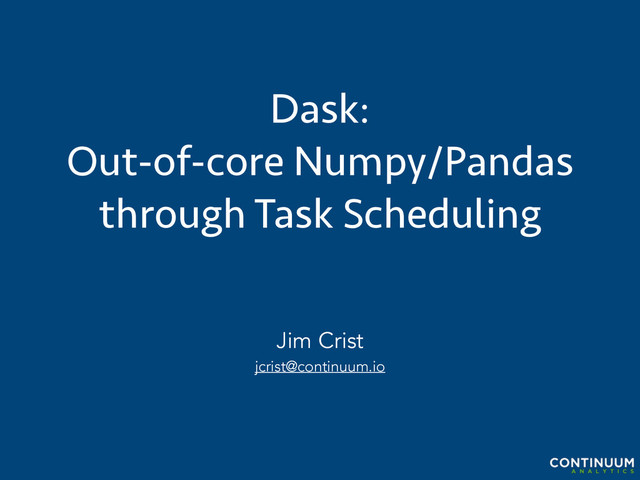

1. Dask:
   Out-of-core Numpy/Pandas
   through Task Scheduling
   Jim Crist
   jcrist@continuum.io


   View Slide

2. A Motivating Example


   View Slide

3. Ocean Temperature Data
   • Daily mean ocean temperature every 1/4 degree
   • 720 x 1440 array every day
   • http://www.esrl.noaa.gov/psd/data/gridded/
   data.noaa.oisst.v2.highres.html


   View Slide

4. One year’s worth
   from netCDF4 import Dataset
   import matplotlib.pyplot as plt
   from numpy import flipud
   data = Dataset("sst.day.mean.2015.v2.nc").variables["sst"]
   year_mean = data[:].mean(axis=0)
   plt.imshow(flipud(year_mean), cmap="RdBu_r")
   plt.title("Average Global Ocean Temperature, 2015")


   View Slide

5. 36 year’s worth
   $ ls
   sst.day.mean.1981.v2.nc sst.day.mean.1993.v2.nc sst.day.mean.2005.v2.nc
   sst.day.mean.1982.v2.nc sst.day.mean.1994.v2.nc sst.day.mean.2006.v2.nc
   sst.day.mean.1983.v2.nc sst.day.mean.1995.v2.nc sst.day.mean.2007.v2.nc
   sst.day.mean.1984.v2.nc sst.day.mean.1996.v2.nc sst.day.mean.2008.v2.nc
   sst.day.mean.1985.v2.nc sst.day.mean.1997.v2.nc sst.day.mean.2009.v2.nc
   ... ... ...
   $ du -h
   15G .


   View Slide

6. 36 year’s worth
   $ ls
   sst.day.mean.1981.v2.nc sst.day.mean.1993.v2.nc sst.day.mean.2005.v2.nc
   sst.day.mean.1982.v2.nc sst.day.mean.1994.v2.nc sst.day.mean.2006.v2.nc
   sst.day.mean.1983.v2.nc sst.day.mean.1995.v2.nc sst.day.mean.2007.v2.nc
   sst.day.mean.1984.v2.nc sst.day.mean.1996.v2.nc sst.day.mean.2008.v2.nc
   sst.day.mean.1985.v2.nc sst.day.mean.1997.v2.nc sst.day.mean.2009.v2.nc
   ... ... ...
   $ du -h
   15G .
   720 x 1440 x 12341 x 4 = 51 GB uncompressed!


   View Slide

7. Can’t just load this all into Numpy… what now?


   View Slide

8. Solution: blocked algorithms!


   View Slide

9. Blocked Algorithms
   Blocked mean
   x = h5py.File('myfile.hdf5')['x'] # Trillion element array on disk
   sums = []
   counts = []
   for i in range(1000000): # One million times
   chunk = x[1000000*i: 1000000*(i+1)] # Pull out chunk
   sums.append(np.sum(chunk)) # Sum chunk
   counts.append(len(chunk)) # Count chunk
   result = sum(sums) / sum(counts) # Aggregate results


   View Slide

10. Blocked Algorithms


    View Slide

11. Blocked algorithms allow for
    • parallelism
    • lower ram usage


    View Slide

12. Blocked algorithms allow for
    • parallelism
    • lower ram usage
    The trick is figuring out how to
    break the computation into blocks.


    View Slide

13. Blocked algorithms allow for
    • parallelism
    • lower ram usage
    The trick is figuring out how to
    break the computation into blocks.
    This is where dask
    comes in.


    View Slide

14. Dask is:


    View Slide

15. Dask is:
    • A parallel computing framework


    View Slide

16. Dask is:
    • A parallel computing framework
    • That leverages the excellent python ecosystem


    View Slide

17. Dask is:
    • A parallel computing framework
    • That leverages the excellent python ecosystem
    • Using blocked algorithms and task scheduling


    View Slide

18. Dask is:
    • A parallel computing framework
    • That leverages the excellent python ecosystem
    • Using blocked algorithms and task scheduling
    • Written in pure python


    View Slide

19. Dask


    View Slide

20. dask.array
    Out-of-core, parallel, n-dimensional array library


    View Slide

21. dask.array
    • Copies the numpy interface
    • Arithmetic: +, *, …
    • Reductions: mean, max, …
    • Slicing: x[10:, 100:50:-2]
    • Fancy indexing: x[:, [3, 1, 2]]
    • Some linear algebra: tensordot, qr,
    svd, …
    Out-of-core, parallel, n-dimensional array library


    View Slide

22. dask.array
    • Copies the numpy interface
    • Arithmetic: +, *, …
    • Reductions: mean, max, …
    • Slicing: x[10:, 100:50:-2]
    • Fancy indexing: x[:, [3, 1, 2]]
    • Some linear algebra: tensordot, qr,
    svd, …
    Out-of-core, parallel, n-dimensional array library
    • New operations
    • Parallel algorithms (approximate
    quantiles, topk, …)
    • Slightly overlapping arrays
    • Integration with HDF5


    View Slide

23. Demo


    View Slide

24. Task Schedulers


    View Slide

25. Task Schedulers


    View Slide

26. Task Schedulers


    View Slide

27. Task Schedulers


    View Slide

28. Out-of-core arrays
    import dask.array as da
    from netCDF4 import Dataset
    from glob import glob
    from numpy import flipud
    import matplotlib.pyplot as plt
    files = sorted(glob('*.nc'))
    data = [Dataset(f).variables['sst'] for f in files]
    arrs = [da.from_array(x, chunks=(24, 360, 360)) for x in data]
    x = da.concatenate(arrs, axis=0)
    full_mean = x.mean(axis=0)
    plt.imshow(np.flipud(full_mean), cmap='RdBu_r')
    plt.title('Average Global Ocean Temperature, 1981-2015')


    View Slide

29. Out-of-core arrays


    View Slide

30. dask.dataframe
    • Out-of-core, blocked parallel DataFrame
    • Mirrors pandas interface
    • Only implements a subset of pandas operations (currently)


    View Slide

31. dask.dataframe
    Efficient operations
    • Elementwise operations: df.x + df.y
    • Row-wise selections: df[df.x > 0]
    • Aggregations: df.x.max()
    • groupby-aggregate: df.groupby(df.x).y.max()
    • Value counts: df.x.value_counts()
    • Drop duplicates: df.x.drop_duplicates()
    • Join on index: dd.merge(df1, df2, left_index=True, right_index=True)


    View Slide

32. dask.dataframe
    Less efficient operations (require shuffle unless on index)
    • Set index: df.set_index(df.x)
    • groupby-apply
    • Join not on the index: pd.merge(df1, df2, on='name')


    View Slide

33. Out-of-core dataframes
    • Yearly csvs of all American flights since 1990
    • Contains information on times, airlines, locations, etc…
    • http://www.transtats.bts.gov/Fields.asp?Table_ID=236


    View Slide

34. Out-of-core dataframes
    >>> import dask.dataframe as dd
    # Create a dataframe from csv files
    >>> df = dd.read_csv('*.csv', usecols=['Origin', 'DepTime', 'CRSDepTime', 'Cancelled'])
    # Get time series of non-cancelled and delayed flights
    >>> not_cancelled = df[df.Cancelled != 1]
    >>> delayed = not_cancelled[not_cancelled.DepTime > not_cancelled.CRSDepTime]
    # Count total and delayed flights per airport
    >>> total_per_airport = not_cancelled.Origin.value_counts()
    >>> delayed_per_airport = delayed.Origin.value_counts()
    # Calculate percent delayed per airport
    >>> percent_delayed = delayed_per_airport/total_per_airport
    # Remove airports that had less than 500 flights a year on average
    >>> out = percent_delayed[total_per_airport > 10000]


    View Slide

35. Out-of-core dataframes
    # Convert to pandas dataframe, sort, and output top 10
    >>> result = out.compute()
    >>> result.sort(ascending=False)
    >>> result.head(10)
    ATL 0.538589
    PIT 0.515708
    ORD 0.513163
    PHL 0.508329
    DFW 0.506470
    CLT 0.501259
    DEN 0.474589
    JFK 0.453212
    SFO 0.452156
    CVG 0.452117
    dtype: float64


    View Slide

36. Out-of-core dataframes
    • 10 GB on disk
    • Need to read ~4 GB
    subset to perform
    computation
    • Max memory during
    computation is only 0.75
    GB


    View Slide

37. • Collections build task graphs
    • Schedulers execute task graphs
    • Graph specification = uniting interface


    View Slide

38. Dask Specification
    • Dictionary of {name: task}
    • Tasks are tuples of (func, args...) (lispy syntax)
    • Args can be names, values, or tasks
    Python Code Dask Graph
    a = 1
    b = 2
    x = inc(a)
    y = inc(b)
    z = mul(x, y)
    dsk = {"a": 1,
    "b": 2,
    "x": (inc, "a"),
    "y": (inc, "b"),
    "z": (mul, "x", "y")}


    View Slide

39. Dask collections fit many problems…
    … but not everything.


    View Slide

40. Can create graphs directly
    def load(filename):
    ...
    def clean(data):
    ...
    def analyze(sequence_of_data):
    ...
    def store(result):
    with open(..., 'w') as f:
    f.write(result)
    dsk = {'load-1': (load, 'myfile.a.data'),
    'load-2': (load, 'myfile.b.data'),
    'load-3': (load, 'myfile.c.data'),
    'clean-1': (clean, 'load-1'),
    'clean-2': (clean, 'load-2'),
    'clean-3': (clean, 'load-3'),
    'analyze': (analyze, ['clean-%d' % i for i in [1, 2, 3]]),
    'store': (store, 'analyze')}


    View Slide

41. Takeaways


    View Slide

42. Takeaways
    • Python can still handle large data using blocked
    algorithms


    View Slide

43. Takeaways
    • Python can still handle large data using blocked
    algorithms
    • Dask collections form task graphs expressing these
    algorithms


    View Slide

44. Takeaways
    • Python can still handle large data using blocked
    algorithms
    • Dask collections form task graphs expressing these
    algorithms
    • Dask schedulers execute these graphs in parallel


    View Slide

45. Takeaways
    • Python can still handle large data using blocked
    algorithms
    • Dask collections form task graphs expressing these
    algorithms
    • Dask schedulers execute these graphs in parallel
    • Dask graphs can be directly created for custom pipelines


    View Slide

46. Questions?
    http://dask.pydata.org
