Introduction to RubyMotion

Tinkerbox Lunch Talk

Transcript

2. (soon)
4. HTML / JS / CSS C# Lisp-like syntax, implemented in Obj-C, fully interoperable

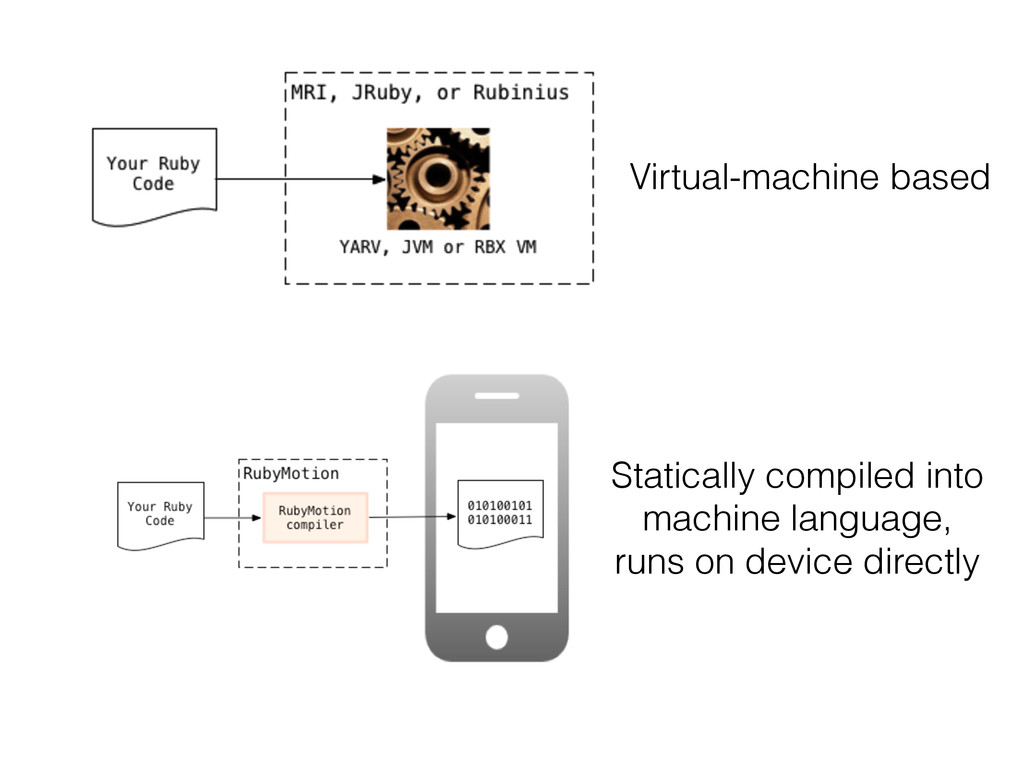

5. Virtual-machine based Statically compiled into machine language, runs on device directly

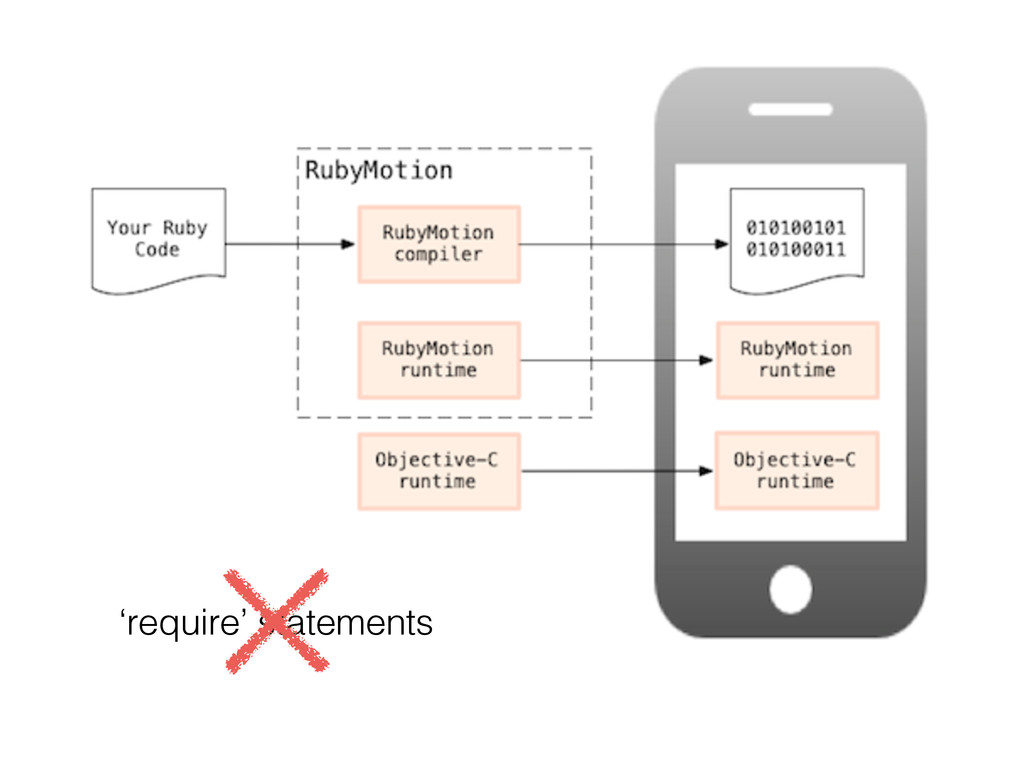

6. ‘require’ statements
7. Laurent Sansonetti (@lrz) 7+ years till 2011

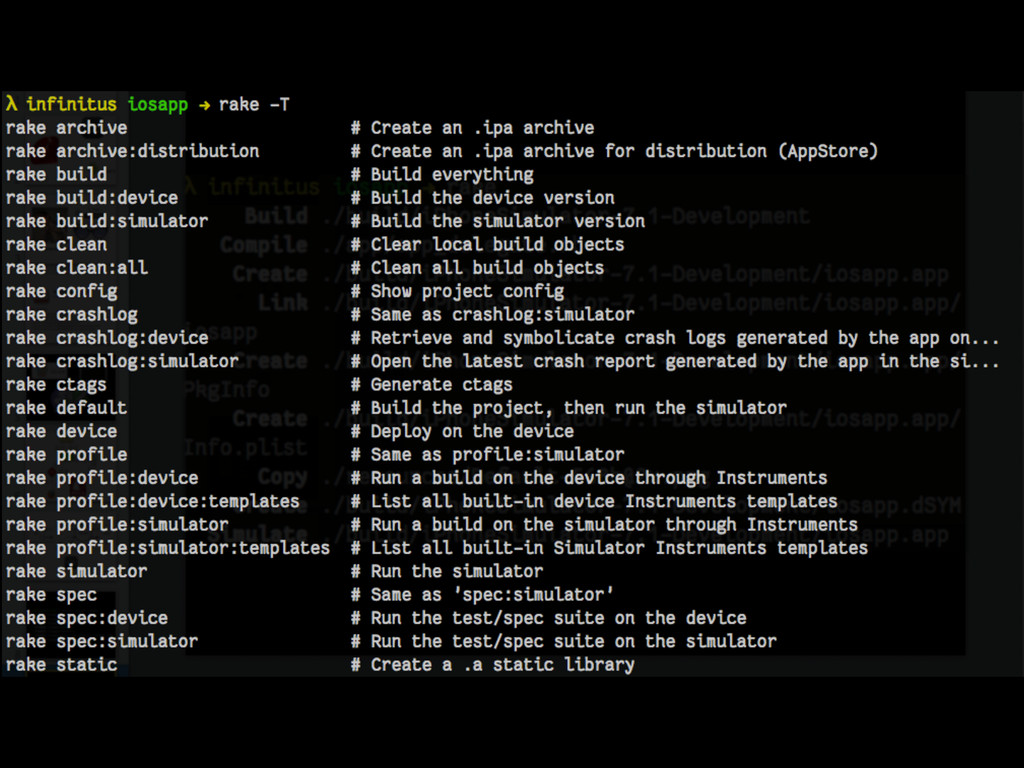

10. Rake RubyGems CocoaPods

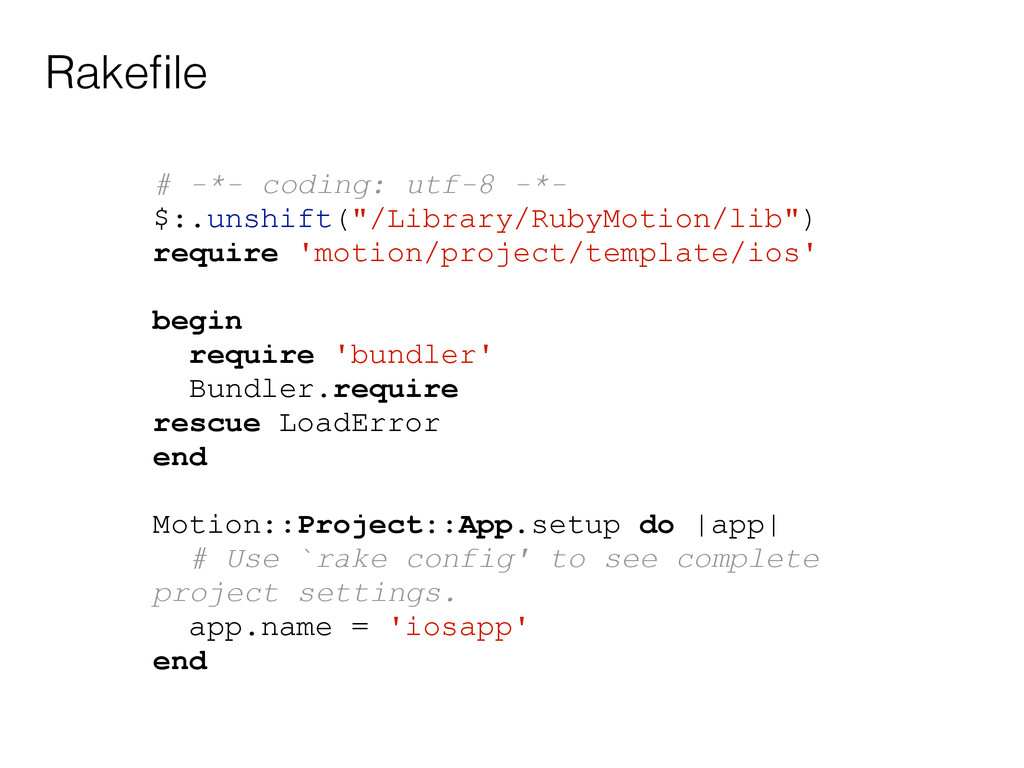

14. Rakefile # -*- coding: utf-8 -*- $:.unshift("/Library/RubyMotion/lib") require 'motion/project/template/ios' ! begin require 'bundler' Bundler.require rescue LoadError end ! Motion::Project::App.setup do |app| # Use `rake config' to see complete project settings. app.name = 'iosapp' end

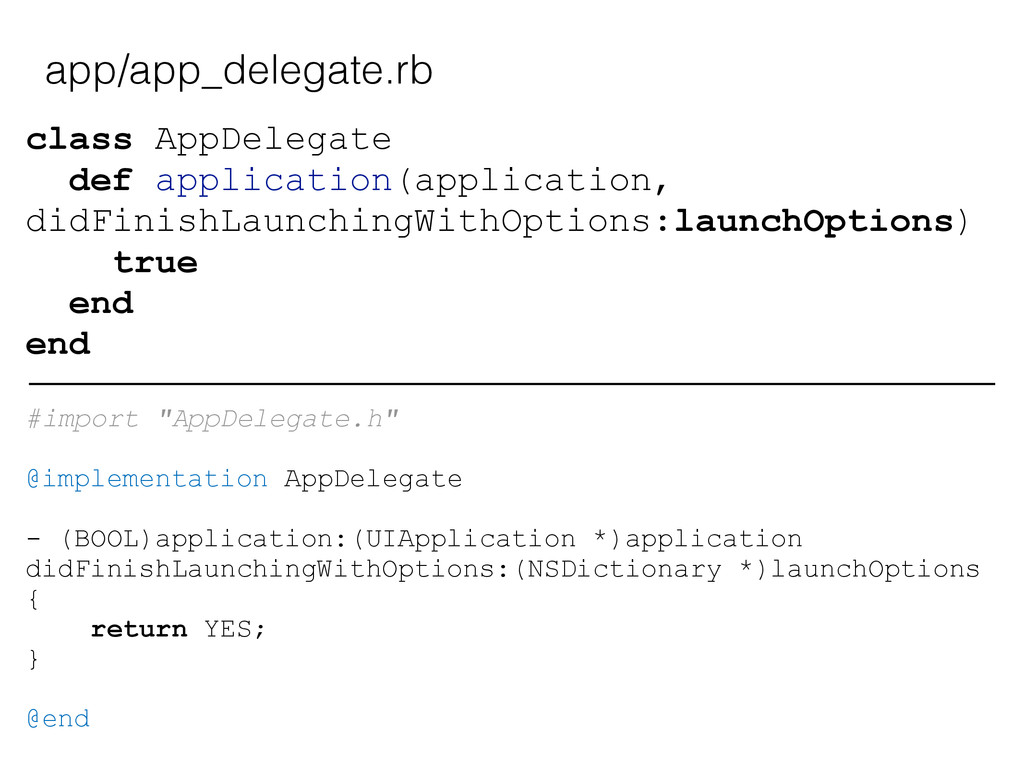

17. class AppDelegate def application(application, didFinishLaunchingWithOptions:launchOptions) true end end app/app_delegate.rb #import "AppDelegate.h" ! @implementation AppDelegate ! - (BOOL)application:(UIApplication *)application didFinishLaunchingWithOptions:(NSDictionary *)launchOptions { return YES; } ! @end

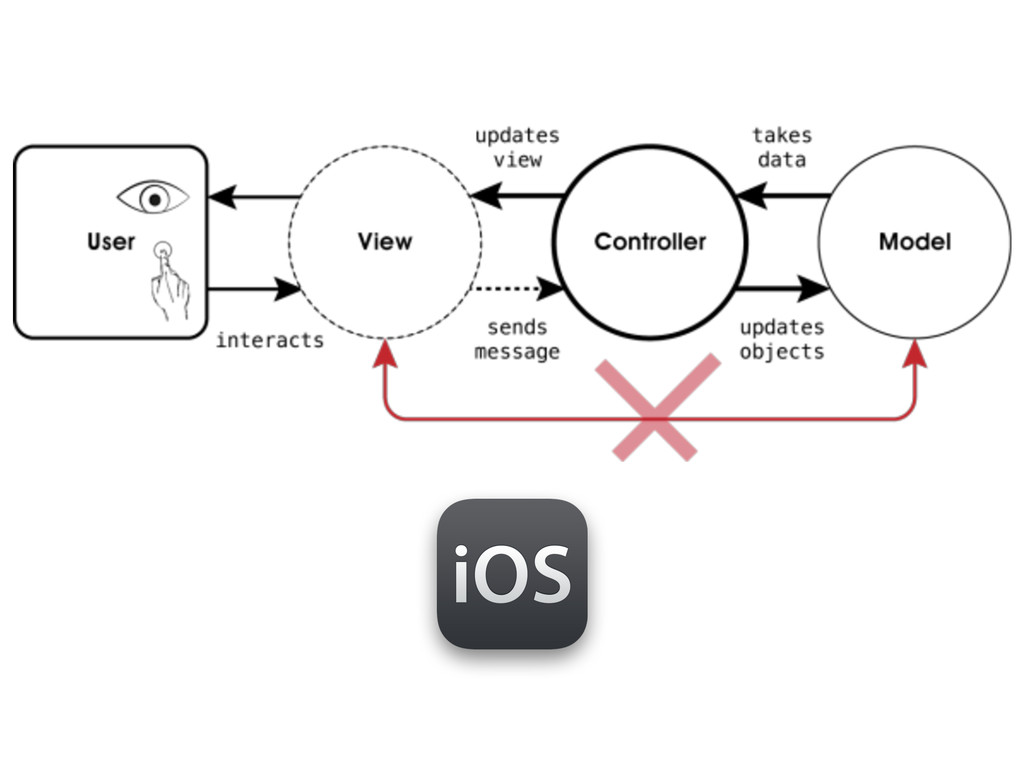

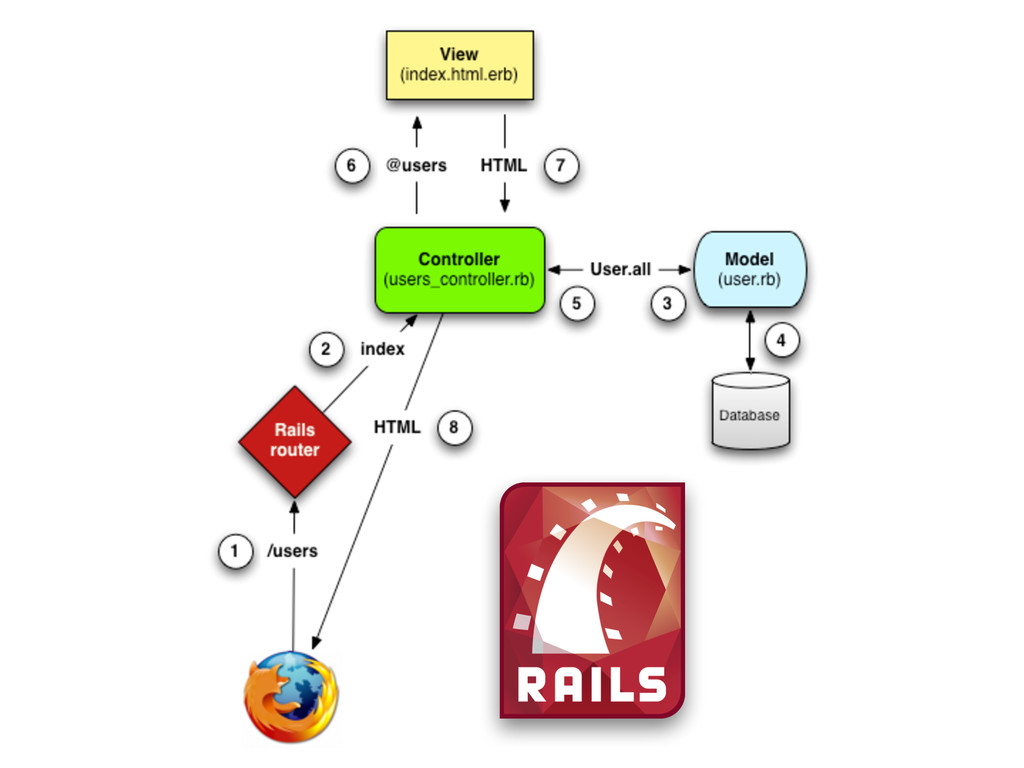

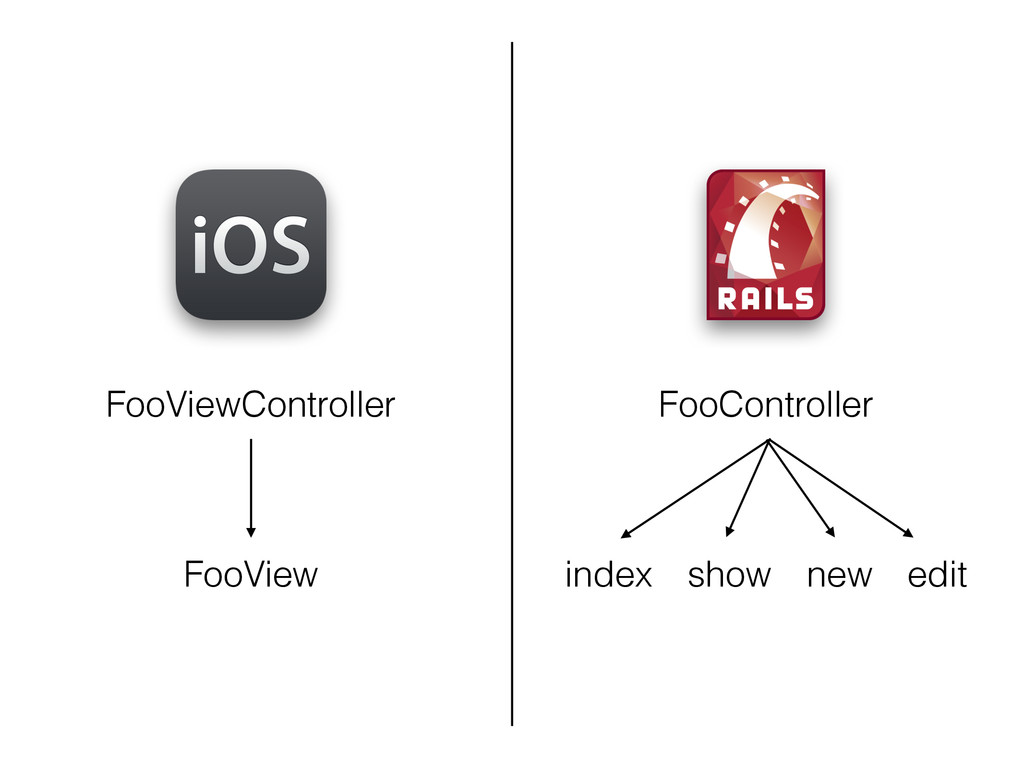

20. FooViewController FooView FooController index show new edit

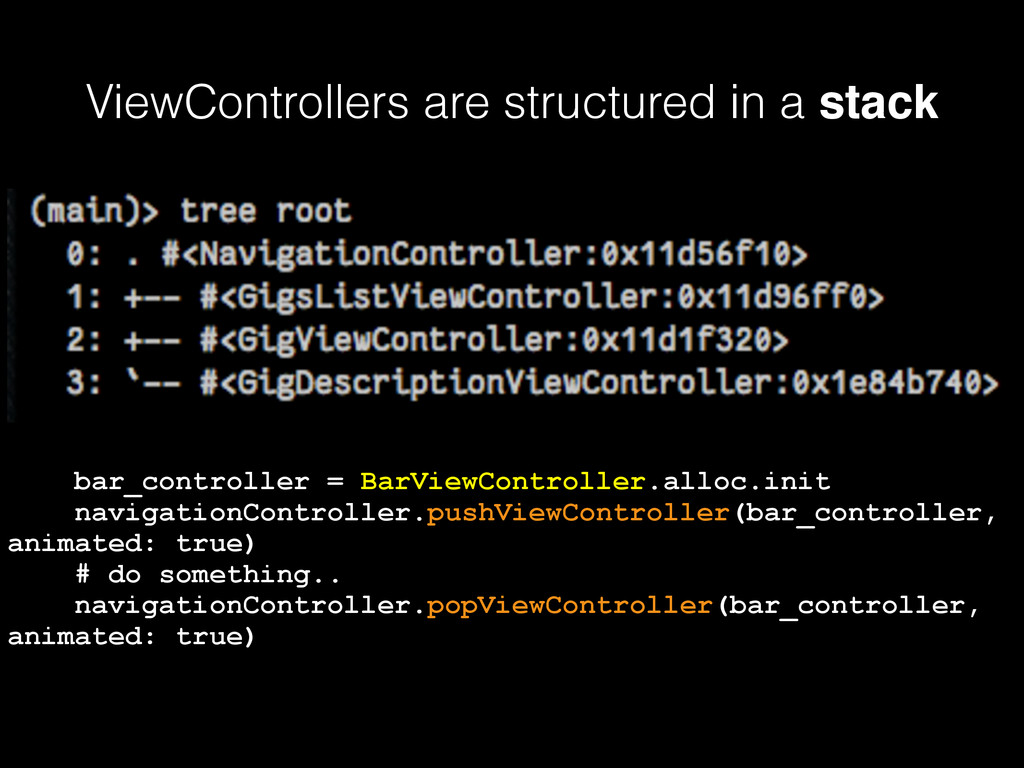

21. ViewControllers are structured in a stack bar_controller = BarViewController.alloc.init navigationController.pushViewController(bar_controller, animated: true) # do something.. navigationController.popViewController(bar_controller, animated: true)

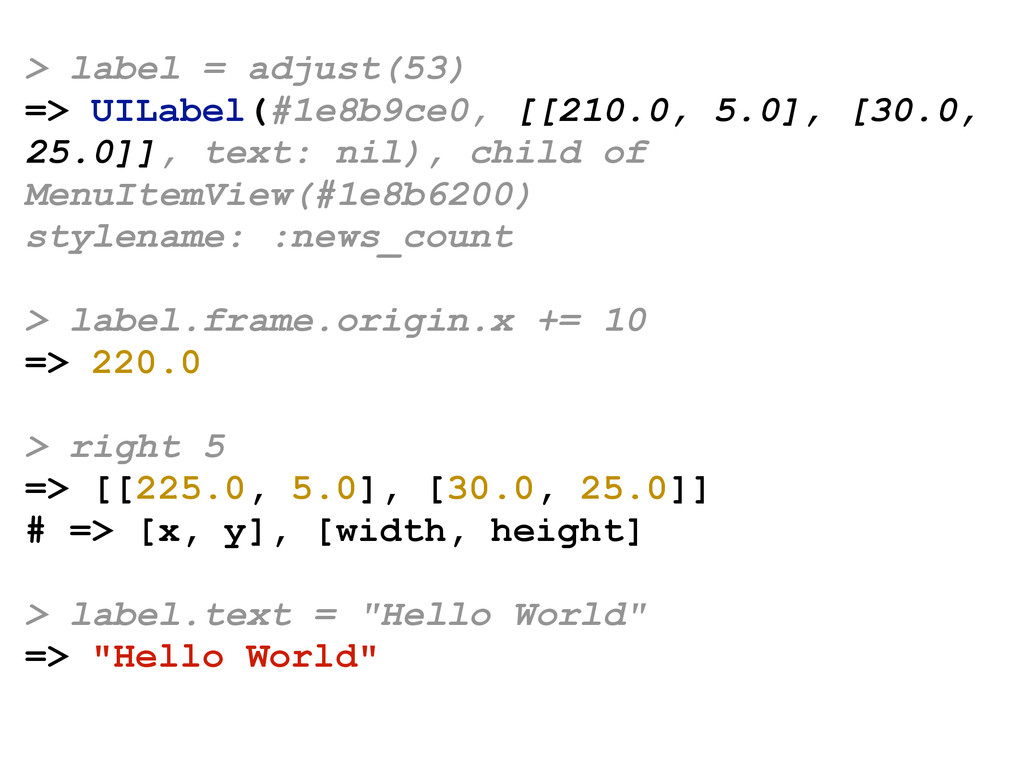

23. > label = adjust(53) => UILabel(#1e8b9ce0, [[210.0, 5.0], [30.0, 25.0]], text: nil), child of MenuItemView(#1e8b6200) stylename: :news_count ! > label.frame.origin.x += 10 => 220.0 ! > right 5 => [[225.0, 5.0], [30.0, 25.0]] # => [x, y], [width, height] ! > label.text = "Hello World" => "Hello World"

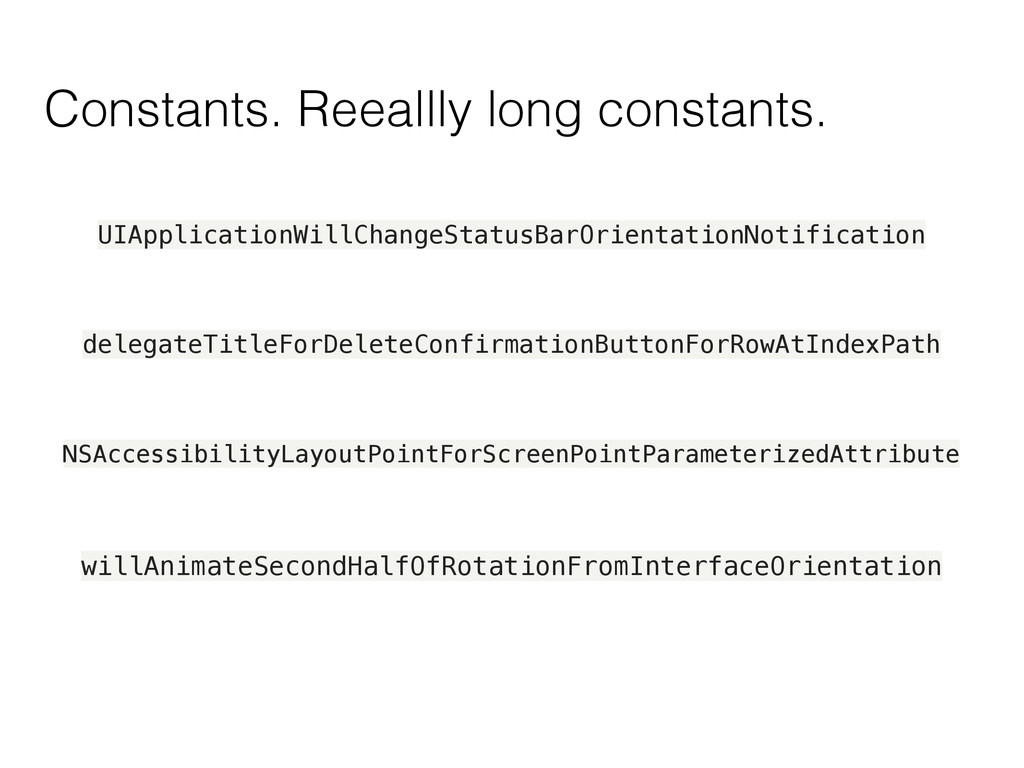

24. Constants. Reeallly long constants. UIApplicationWillChangeStatusBarOrientationNotification delegateTitleForDeleteConfirmationButtonForRowAtIndexPath NSAccessibilityLayoutPointForScreenPointParameterizedAttribute willAnimateSecondHalfOfRotationFromInterfaceOrientation

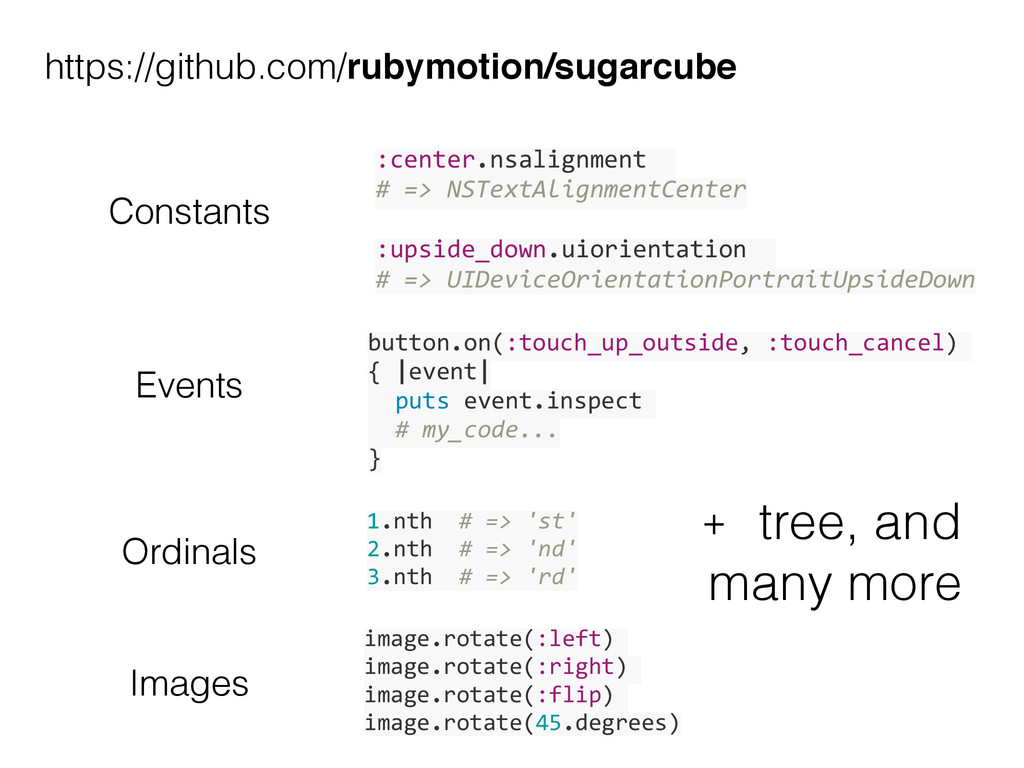

25. https://github.com/rubymotion/sugarcube :center.nsalignment       #  =>  NSTextAlignmentCenter   ! :upside_down.uiorientation       #  =>  UIDeviceOrientationPortraitUpsideDown button.on(:touch_up_outside,  :touch_cancel)   {  |event|      puts  event.inspect      #  my_code...   } Constants Events 1.nth    #  =>  'st'   2.nth    #  =>  'nd'   3.nth    #  =>  'rd' Ordinals image.rotate(:left)   image.rotate(:right)   image.rotate(:flip)   image.rotate(45.degrees) Images + tree, and many more

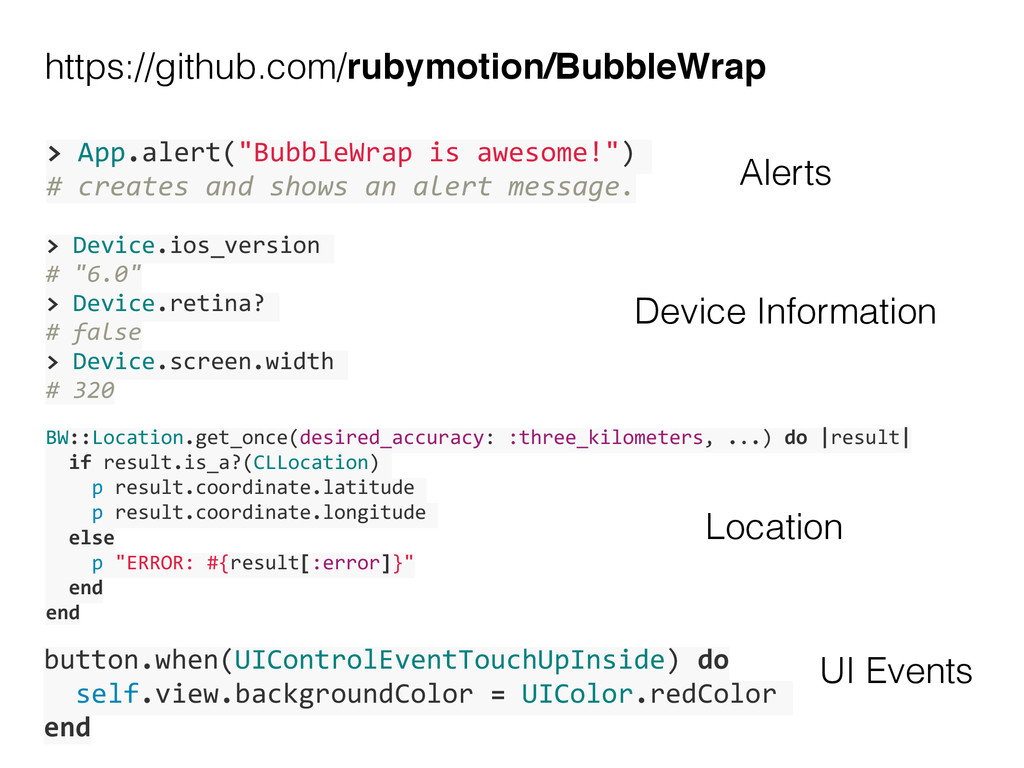

26. https://github.com/rubymotion/BubbleWrap >  App.alert("BubbleWrap  is  awesome!")   #  creates  and  shows  an  alert  message. >  Device.ios_version   #  "6.0"   >  Device.retina?   #  false   >  Device.screen.width   #  320 BW::Location.get_once(desired_accuracy:  :three_kilometers,  ...)  do  |result|      if  result.is_a?(CLLocation)          p  result.coordinate.latitude          p  result.coordinate.longitude      else          p  "ERROR:  #{result[:error]}"      end   end button.when(UIControlEventTouchUpInside)  do      self.view.backgroundColor  =  UIColor.redColor   end Alerts Device Information Location UI Events

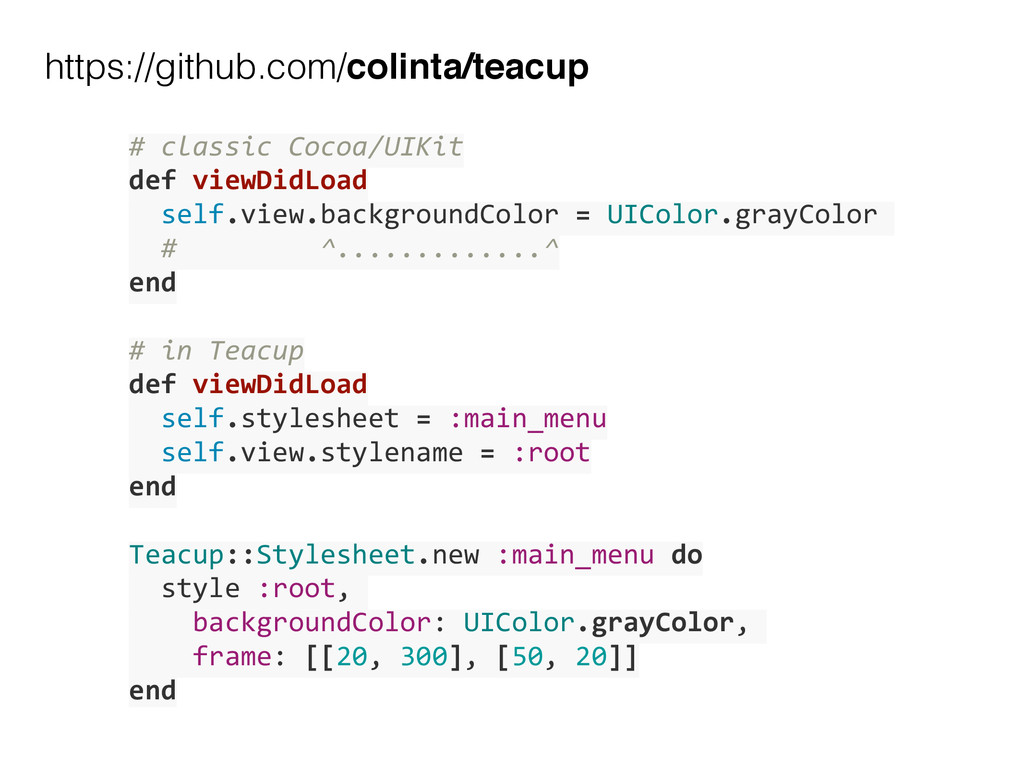

27. https://github.com/colinta/teacup #  classic  Cocoa/UIKit   def  viewDidLoad      self.view.backgroundColor  =  UIColor.grayColor      #                  ^.............^   end   ! #  in  Teacup   def  viewDidLoad      self.stylesheet  =  :main_menu      self.view.stylename  =  :root   end   ! Teacup::Stylesheet.new  :main_menu  do      style  :root,          backgroundColor:  UIColor.grayColor,          frame:  [[20,  300],  [50,  20]]   end

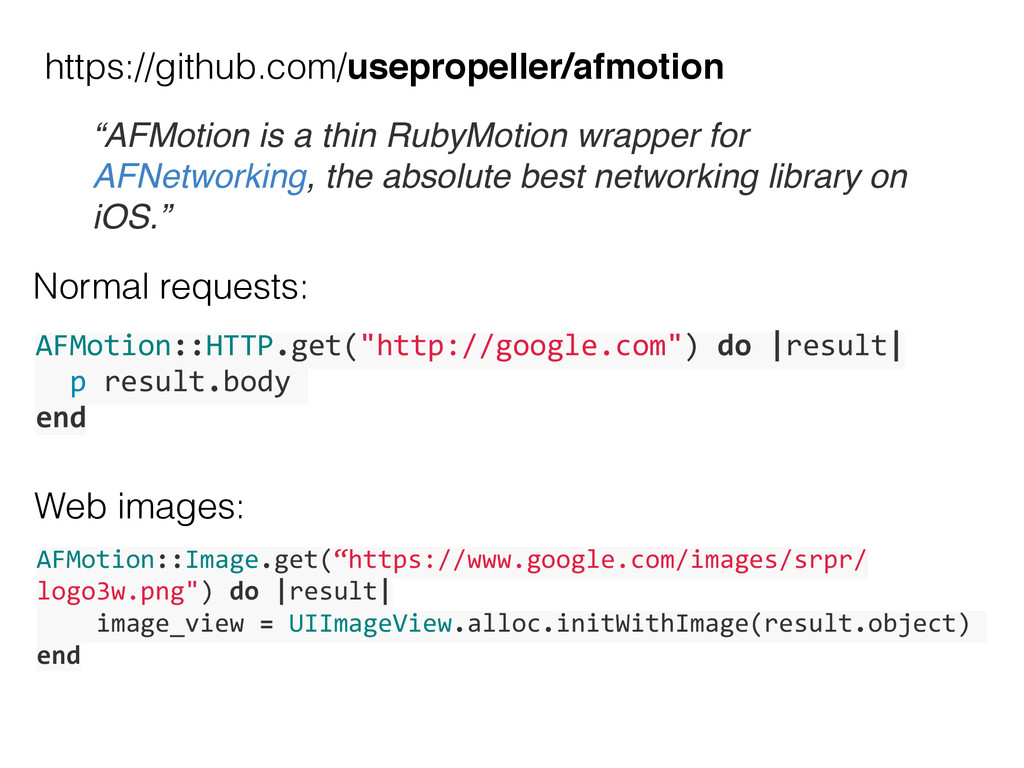

28. https://github.com/usepropeller/afmotion “AFMotion is a thin RubyMotion wrapper for AFNetworking, the absolute best networking library on iOS.” AFMotion::HTTP.get("http://google.com")  do  |result|      p  result.body   end Normal requests: Web images: AFMotion::Image.get(“https://www.google.com/images/srpr/ logo3w.png")  do  |result|          image_view  =  UIImageView.alloc.initWithImage(result.object)   end

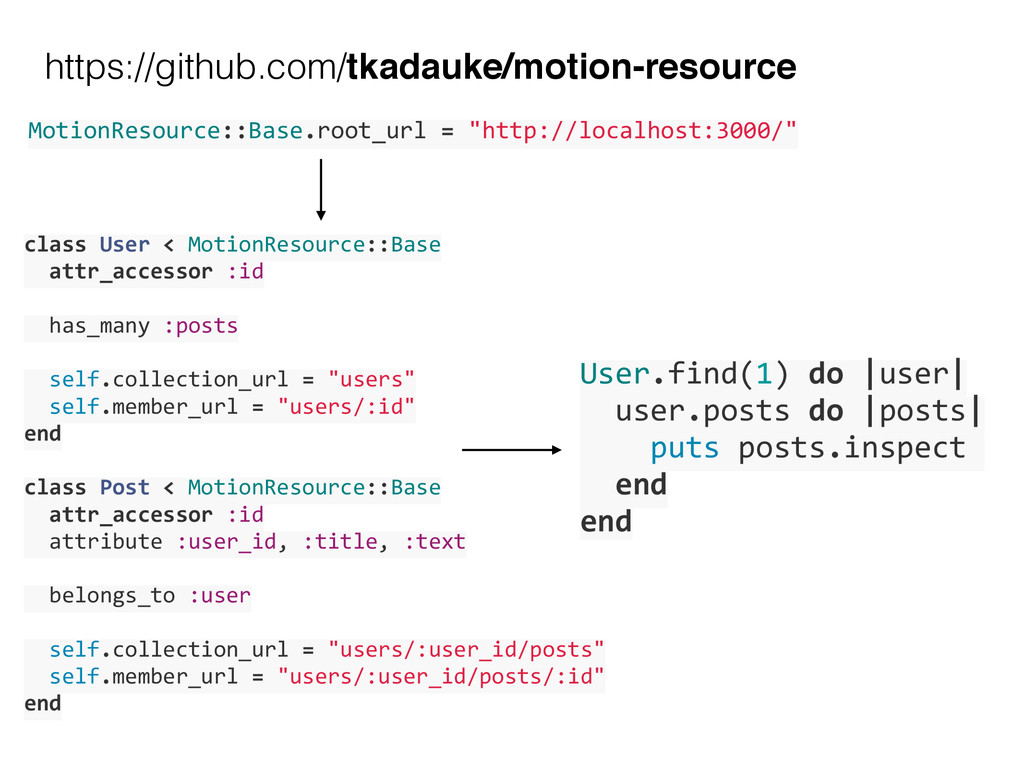

29. https://github.com/tkadauke/motion-resource class  User  <  MotionResource::Base      attr_accessor  :id   !    has_many  :posts   !    self.collection_url  =  "users"      self.member_url  =  "users/:id"   end   ! class  Post  <  MotionResource::Base      attr_accessor  :id      attribute  :user_id,  :title,  :text   !    belongs_to  :user   !    self.collection_url  =  "users/:user_id/posts"      self.member_url  =  "users/:user_id/posts/:id"   end   MotionResource::Base.root_url  =  "http://localhost:3000/"   User.find(1)  do  |user|      user.posts  do  |posts|          puts  posts.inspect      end   end

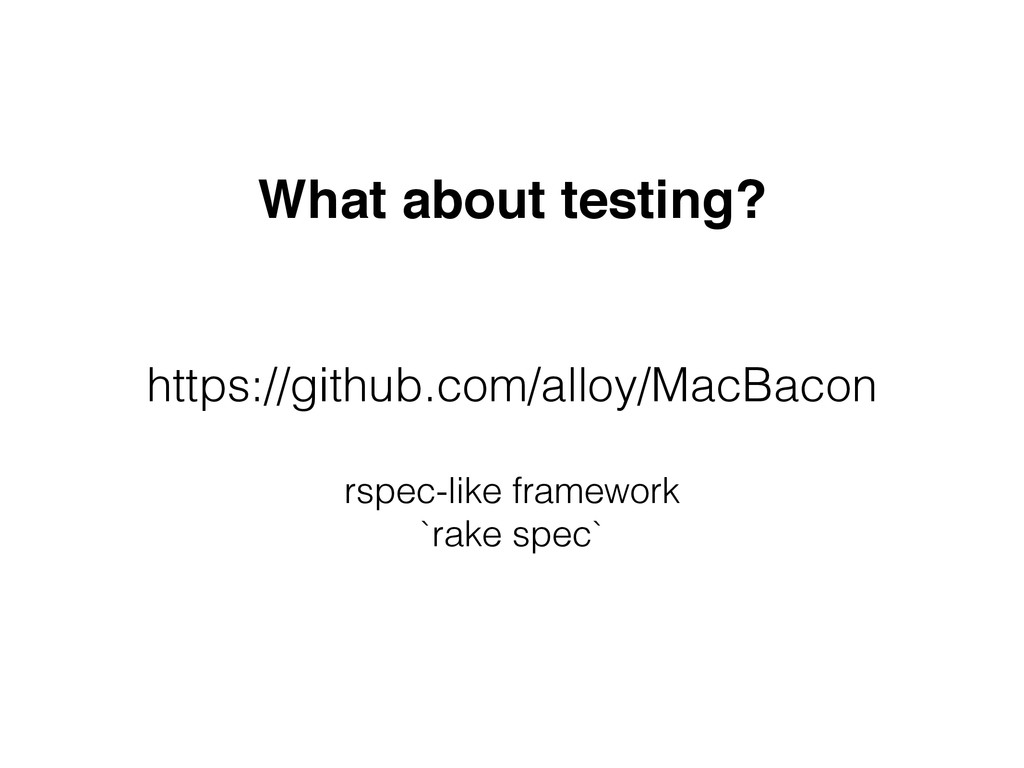

30. https://github.com/alloy/MacBacon What about testing? rspec-like framework `rake spec`
31. Fin.
