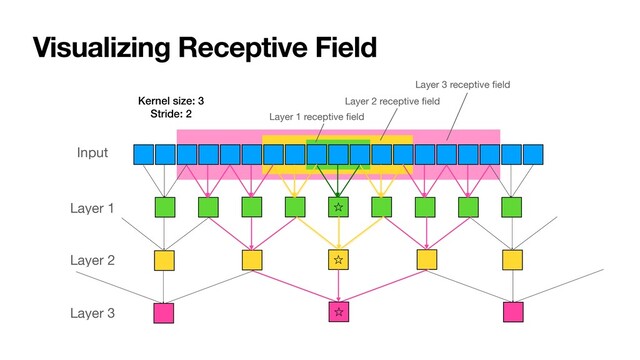

  1. Visualizing Receptive Field ˑ ˑ Input Layer 1 Layer 2

    Layer 3 ˑ Kernel size: 3 Stride: 2 Layer 1 receptive fi eld Layer 2 receptive fi eld Layer 3 receptive fi eld

  2. Visualizing Receptive Field Input Layer 2 Layer 3 Layer 1

    Kernel size: 3 Stride: 2

  3. Visualizing Receptive Field Input Layer 1 Layer 2 Layer 3

    Kernel size: 3 Stride: 2

  4. Visualizing Receptive Field Input Layer 2 Layer 3 Layer 1

    Kernel size: 3 Stride: 2

  5. Visualizing Receptive Field Input Layer 2 Layer 3 Layer 1

    Kernel size: 3 Stride: 2

  6. Visualizing Receptive Field Input Layer 2 Layer 3 Layer 1

    Kernel size: 3 Stride: 2

  7. Visualizing Receptive Field Input Layer 2 Layer 3 Layer 1

    Kernel size: 3 Stride: 2

  8. Visualizing Receptive Field Input Layer 2 Layer 3 Layer 1

    Kernel size: 3 Stride: 2

  9. Visualizing Receptive Field Input Layer 2 Layer 3 Layer 1

    Kernel size: 3 Stride: 2

  10. Visualizing Receptive Field Input Layer 2 Layer 3 Layer 1

    Kernel size: 3 Stride: 2

  11. Visualizing Receptive Field Input Layer 1 Layer 2 Layer 3

    Kernel size: 3 Stride: 2

  12. Visualizing Receptive Field Input Layer 1 Layer 3 Layer 2

    Kernel size: 3 Stride: 2

  13. Visualizing Receptive Field Input Layer 1 Layer 3 Layer 2

    Kernel size: 3 Stride: 2

  14. Visualizing Receptive Field Input Layer 1 Layer 3 Layer 2

    Kernel size: 3 Stride: 2

  15. Visualizing Receptive Field Input Layer 1 Layer 3 Layer 2

    Kernel size: 3 Stride: 2

  16. Visualizing Receptive Field Input Layer 1 Layer 2 Layer 3

    ˑ Kernel size: 3 Stride: 2

  17. Visualizing Receptive Field Input Layer 1 Layer 2 ˑ Layer

    3 Kernel size: 3 Stride: 2

  18. Visualizing Receptive Field Input Layer 1 Layer 2 ˑ Layer

    3 Kernel size: 3 Stride: 2
