Activating Your Site - A look at activity streams

Djangocon US 2014 talk with Ben Fonarov and Farhan Syed

http://lanyrd.com/2014/djangocon-us/sdcytk/
https://www.youtube.com/watch?v=R_tyN8bNe4A

Transcript

1. A Look at Activity Streams Presented by Justin Quick, Ben Fonarov & Farhan Syed Activating Your Site Djangocon US 2014
2. Farhan Syed
 Application Developer
 github.com/nearhan Who We Are Ben Fonarov Full Stack-Tech Lead github.com/chuwiey Justin Quick AppDev Tech Lead Python/Django > 7yrs github.com/justquick github.com/natgeo

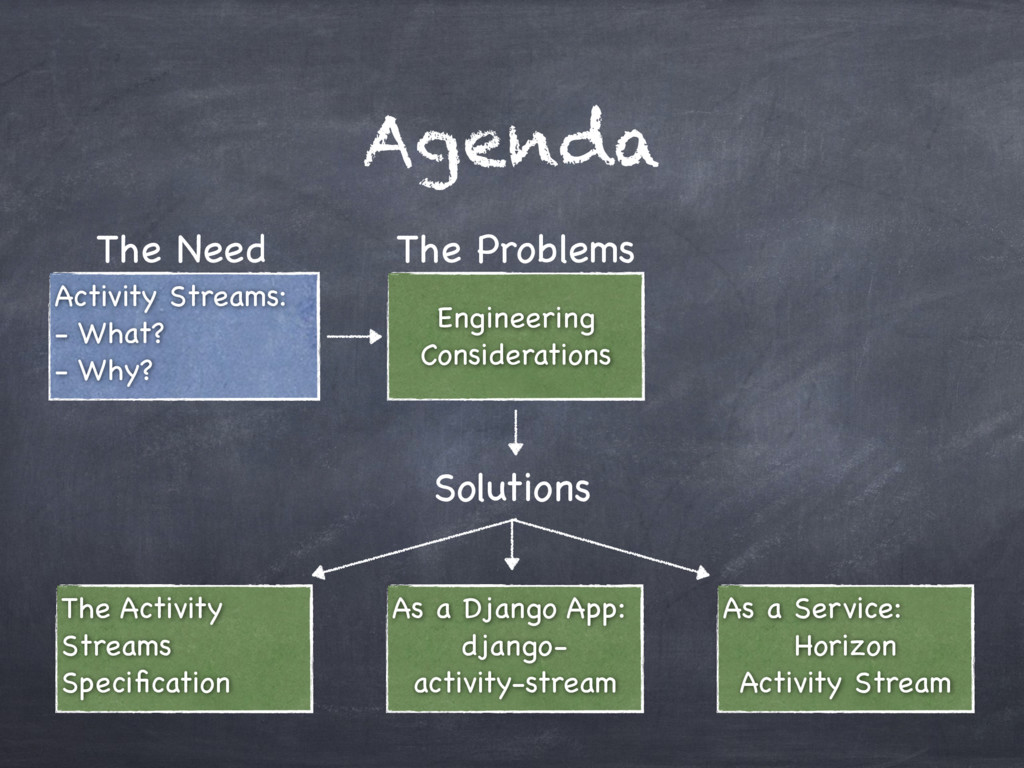

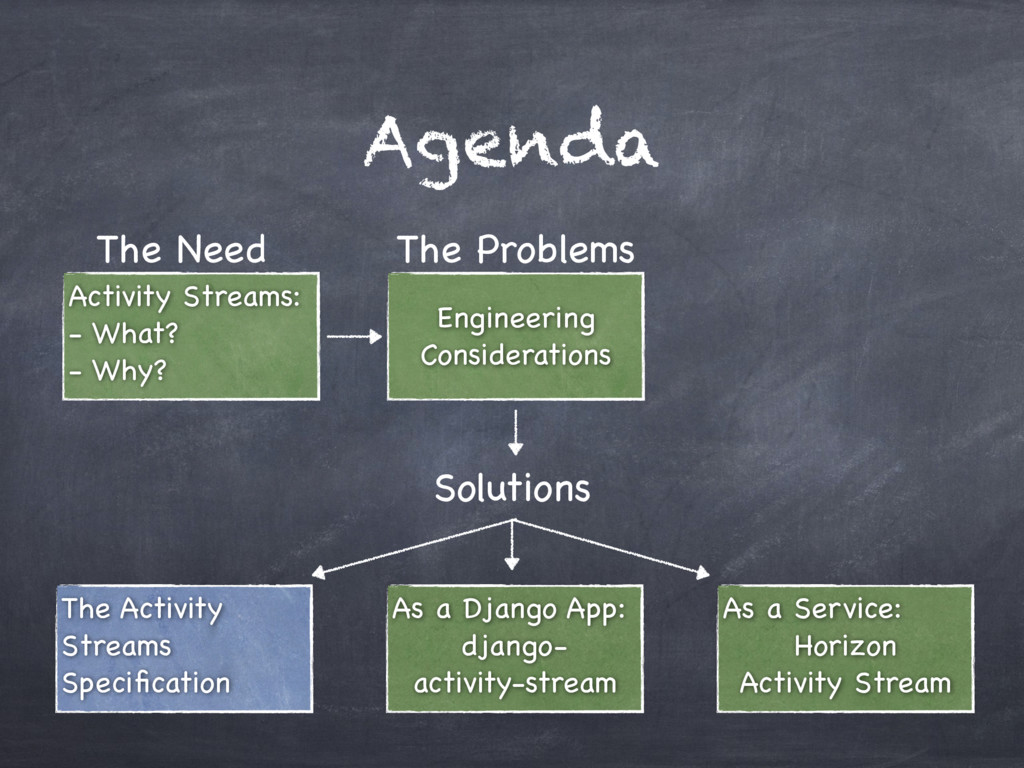

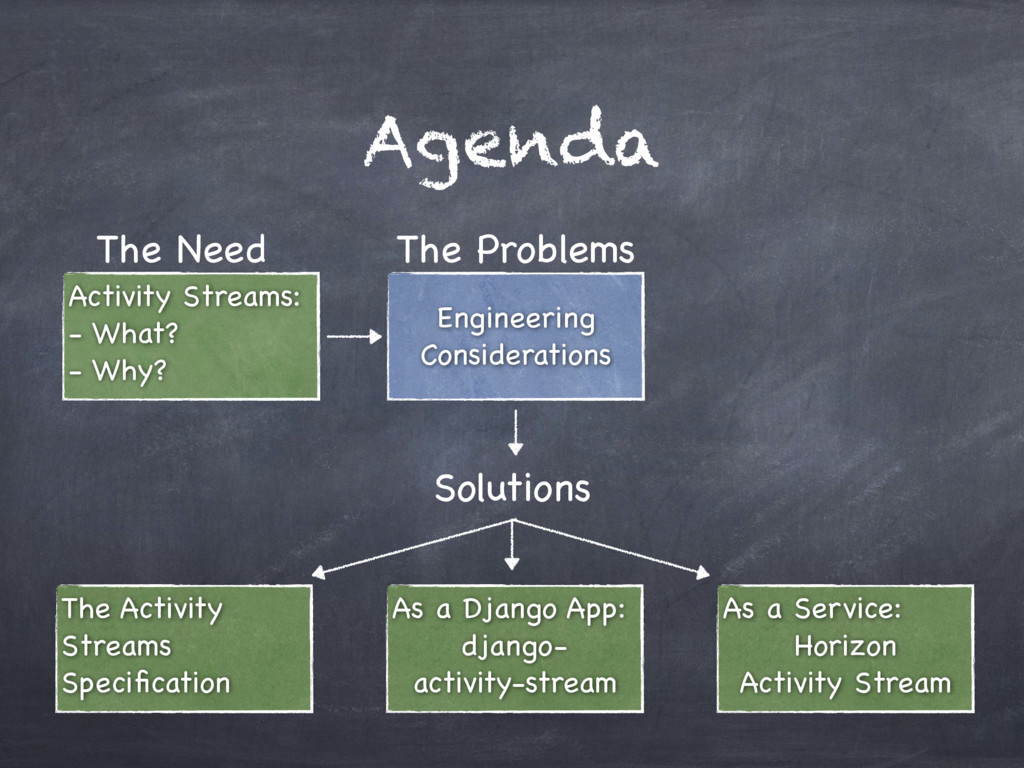

3. Agenda Activity Streams:
 - What? - Why? As a Django App: django-
 activity-stream As a Service: Horizon Activity Stream The Need Solutions Engineering Considerations The Problems The Activity Streams Specification

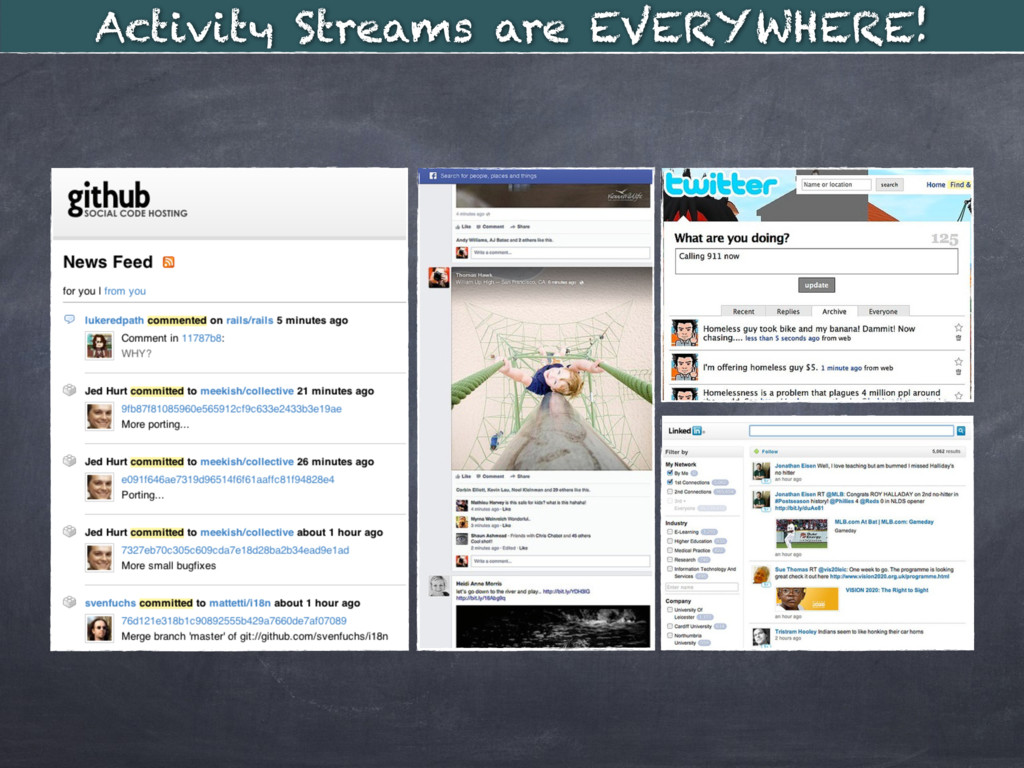

4. Activity Streams are EVERYWHERE!
5. But Why??

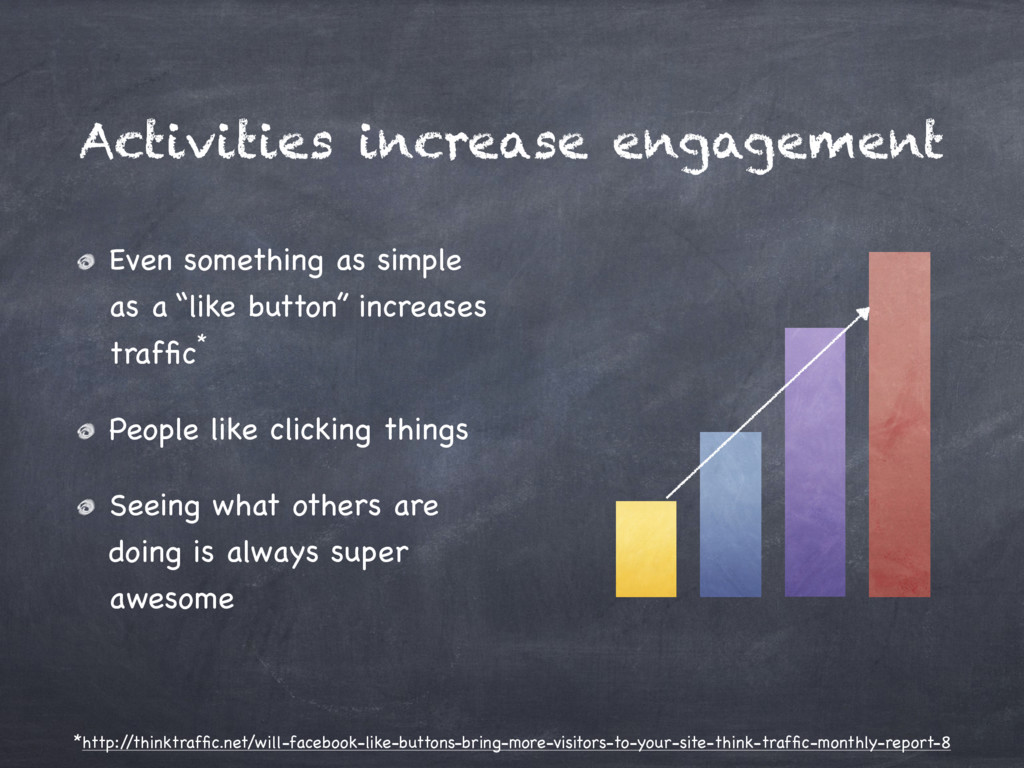

6. Activities increase engagement Even something as simple as a “like button” increases traffic* People like clicking things Seeing what others are doing is always super awesome *http:/ /thinktraffic.net/will-facebook-like-buttons-bring-more-visitors-to-your-site-think-traffic-monthly-report-8
7. But Also… “yay! data!” –Some Data Guy
8. And With That Data… Analytics Recommendations Trending Content A/B Testing Social Graph Related Content Influence
9. Agenda Activity Streams:
 - What? - Why? As a Django App: django-
 activity-stream As a Service: Horizon Activity Stream The Need Solutions Engineering Considerations The Problems The Activity Streams Specification

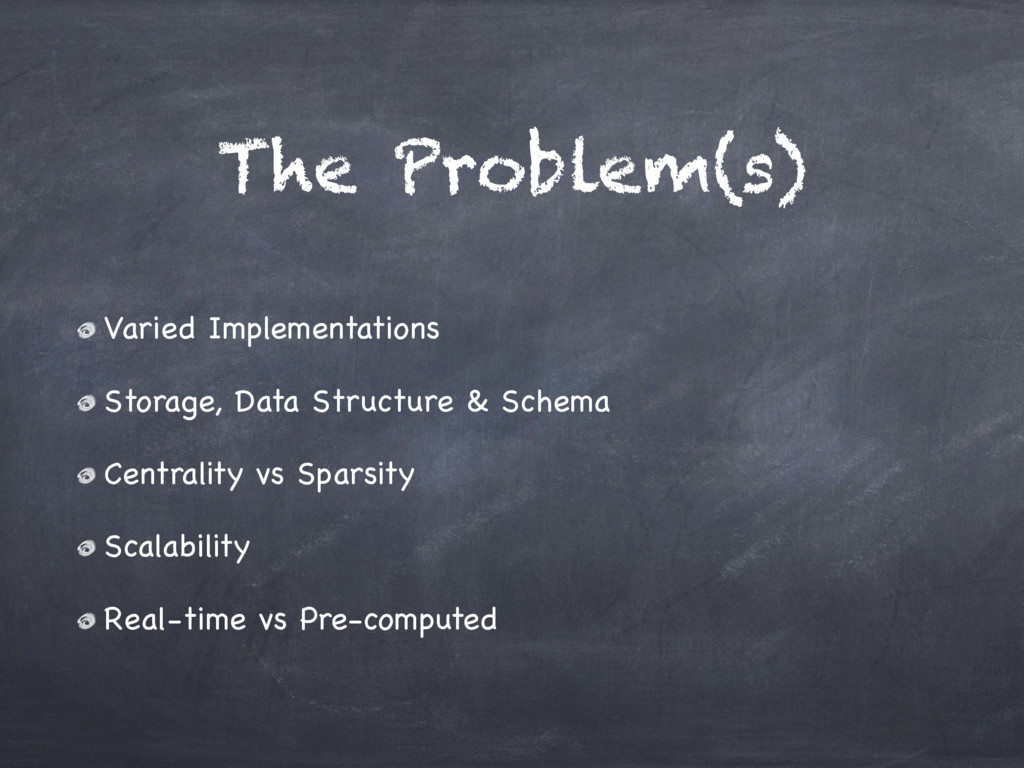

10. The Problem(s) Varied Implementations Storage, Data Structure & Schema Centrality vs Sparsity Scalability Real-time vs Pre-computed
11. No cross site interaction Duplication of work == $$$ No common semantic structuring Varied Implementations Too many peppers == Evil

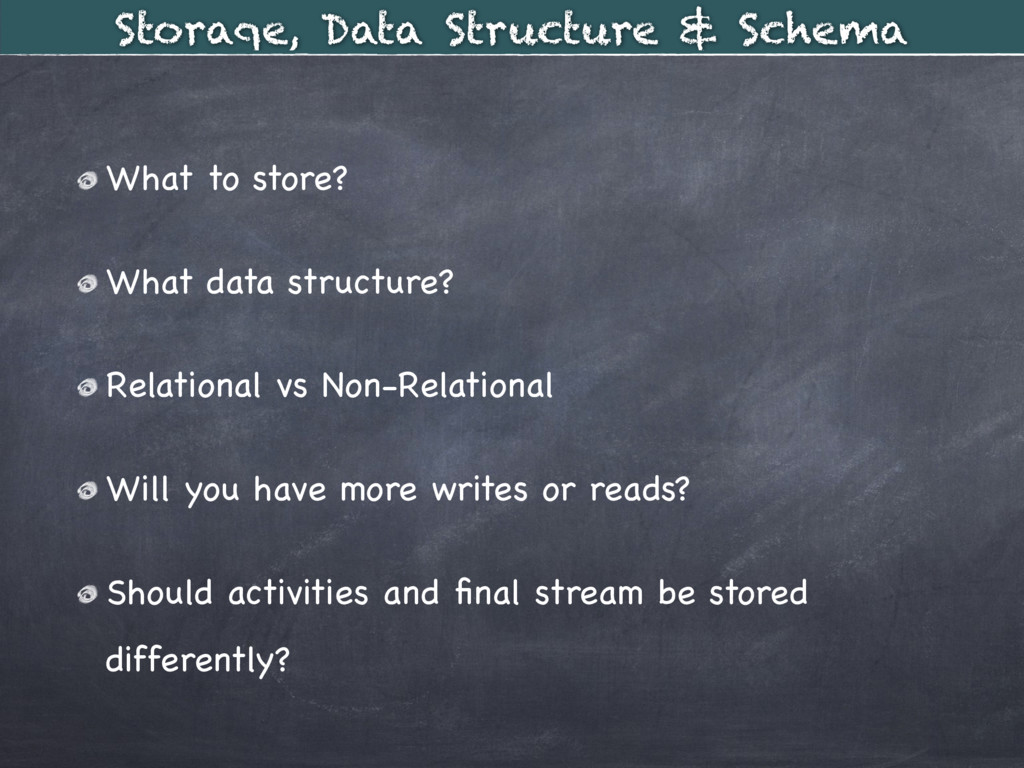

12. What to store? What data structure? Relational vs Non-Relational Will you have more writes or reads? Should activities and final stream be stored differently? Storage, Data Structure & Schema

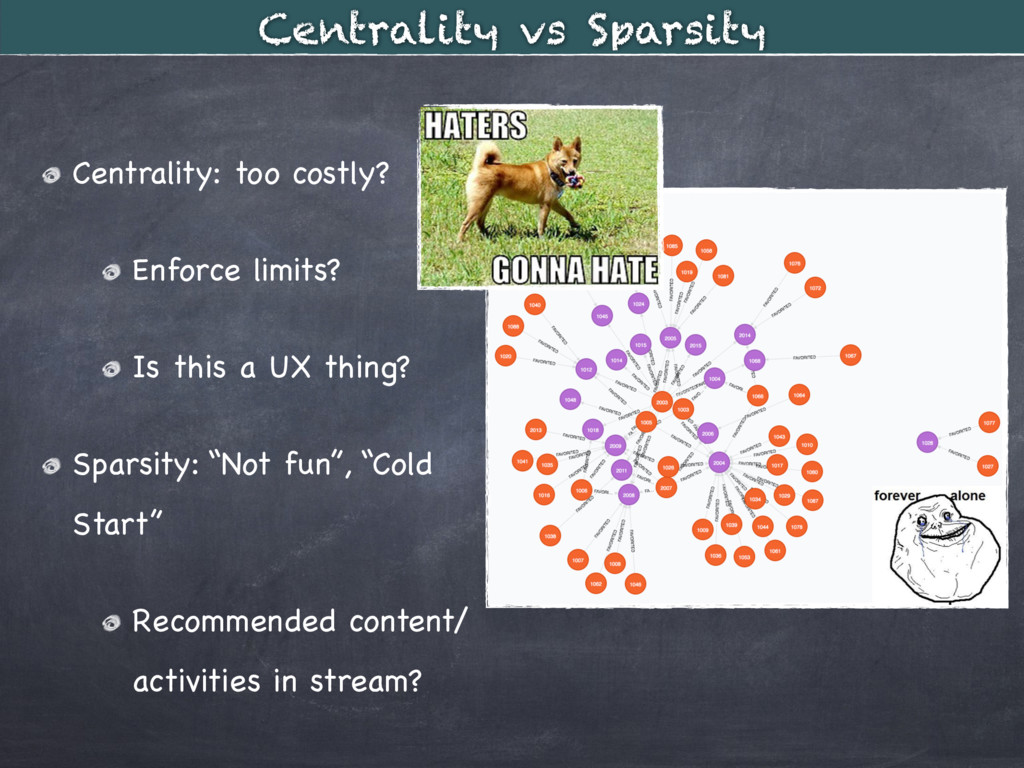

13. Centrality: too costly? Enforce limits? Is this a UX thing? Sparsity: “Not fun”, “Cold Start” Recommended content/ activities in stream? Centrality vs Sparsity

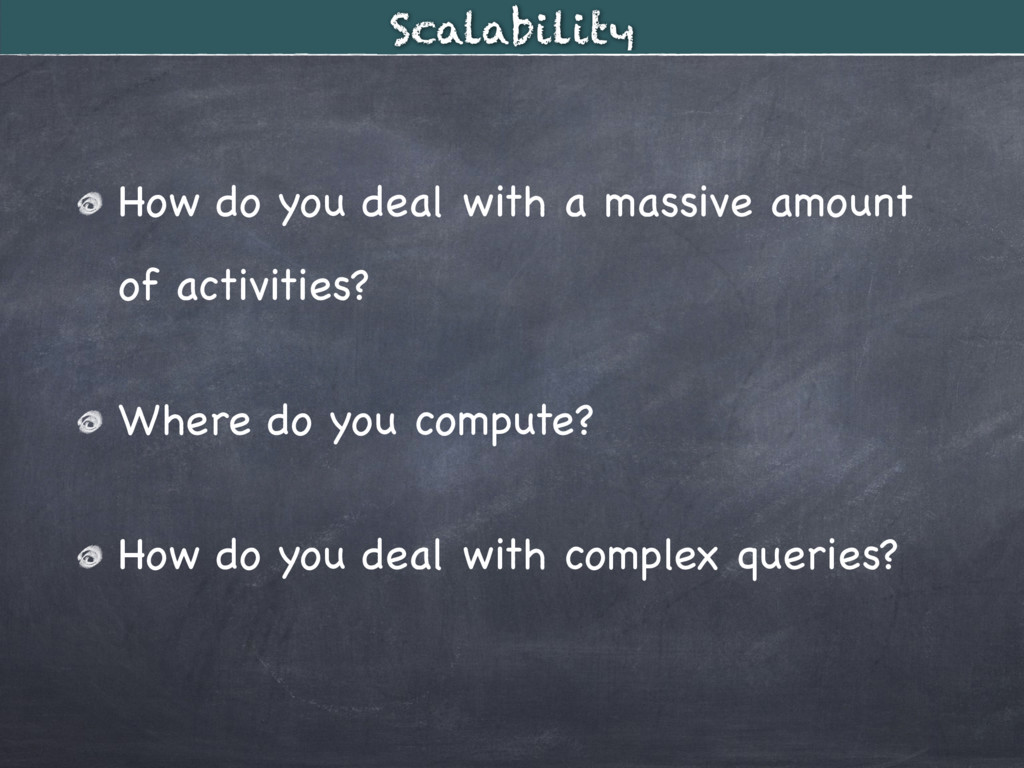

14. How do you deal with a massive amount of activities? Where do you compute? How do you deal with complex queries? Scalability

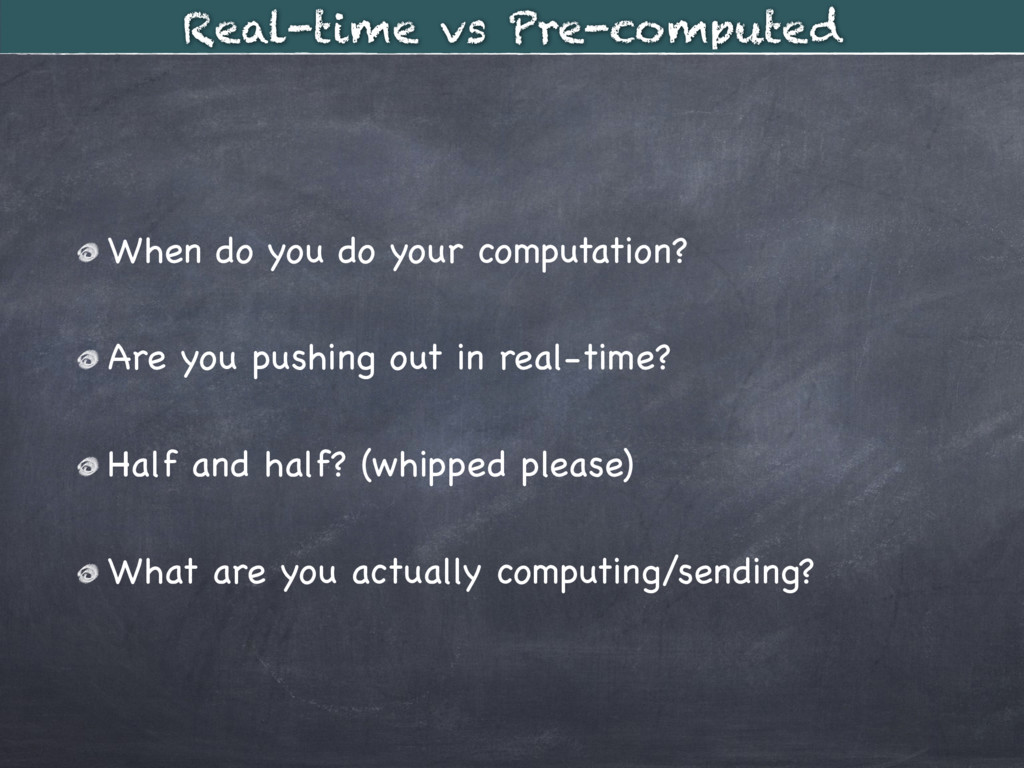

15. When do you do your computation? Are you pushing out in real-time? Half and half? (whipped please) What are you actually computing/sending? Real-time vs Pre-computed
16. Agenda Activity Streams:
 - What? - Why? As a Django App: django-
 activity-stream As a Service: Horizon Activity Stream The Need Solutions Engineering Considerations The Problems The Activity Streams Specification
17. http:/ /activitystrea.ms/
 ATOM/JSON Gnip BBC Google Buzz Gowalla IBM MySpace Opera Socialcast Superfeedr TypePad Windows Live YIID It’s Spec Time!!!

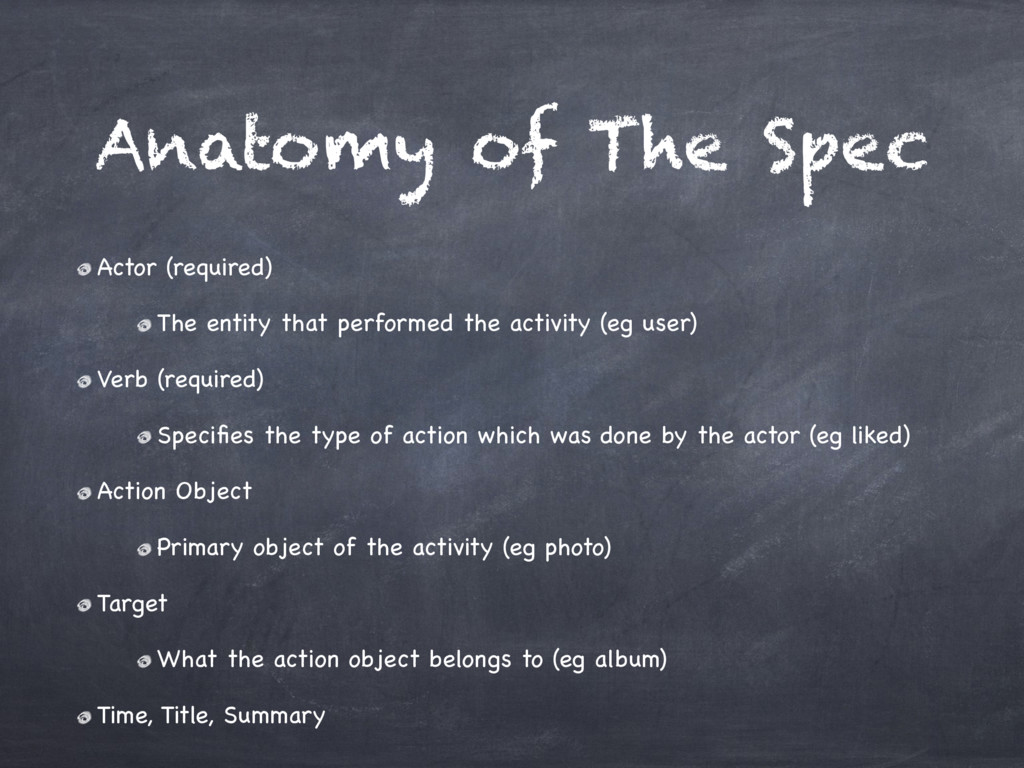

18. Anatomy of The Spec Actor (required) The entity that performed the activity (eg user) Verb (required) Specifies the type of action which was done by the actor (eg liked) Action Object Primary object of the activity (eg photo) Target What the action object belongs to (eg album) Time, Title, Summary

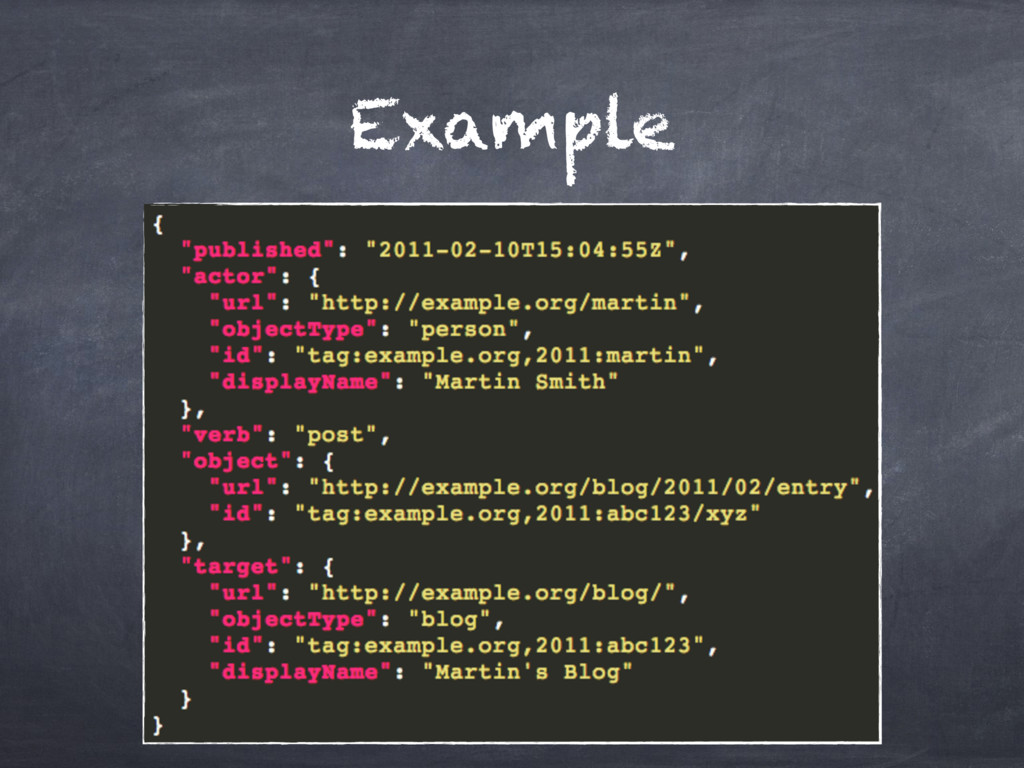

19. Example

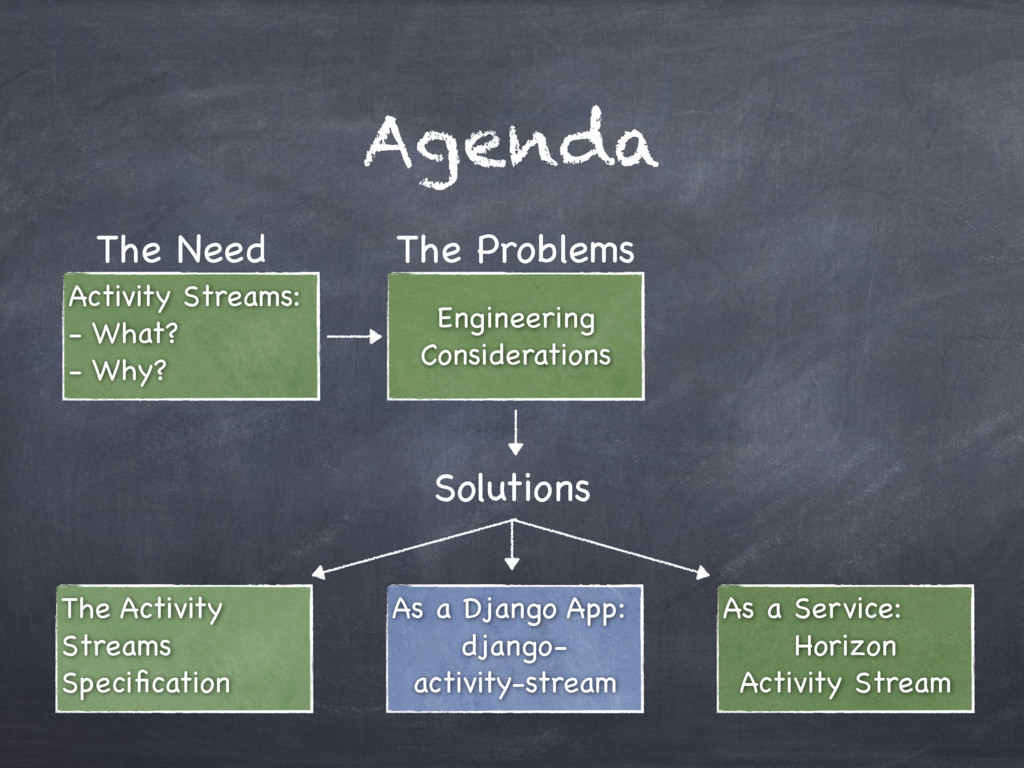

20. Agenda Activity Streams:
 - What? - Why? As a Django App: django-
 activity-stream As a Service: Horizon Activity Stream The Need Solutions Engineering Considerations The Problems The Activity Streams Specification

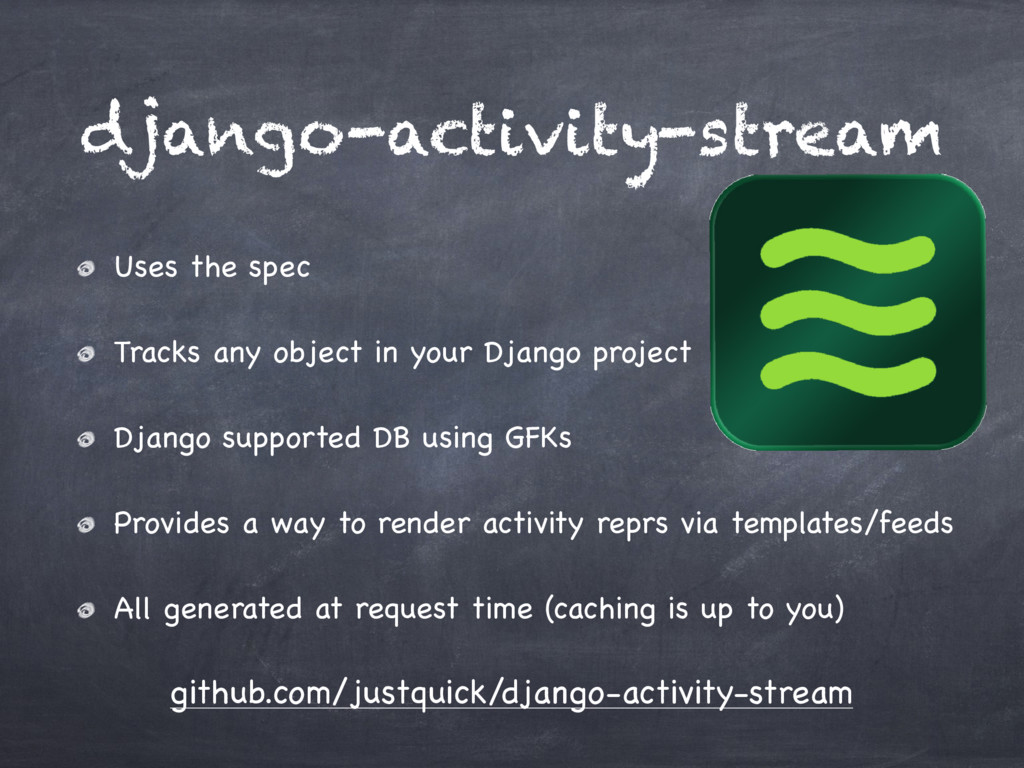

21. django-activity-stream Uses the spec Tracks any object in your Django project Django supported DB using GFKs Provides a way to render activity reprs via templates/feeds All generated at request time (caching is up to you) github.com/justquick/django-activity-stream

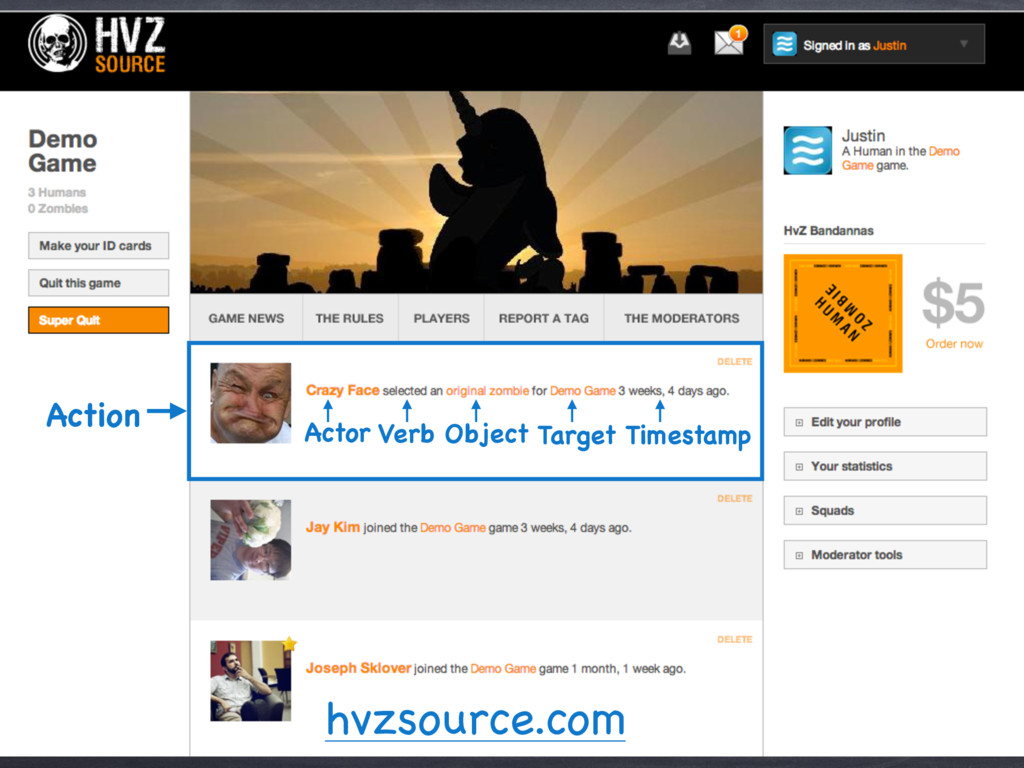

22. django-activitystream Action Actor Object Target Verb Timestamp hvzsource.com

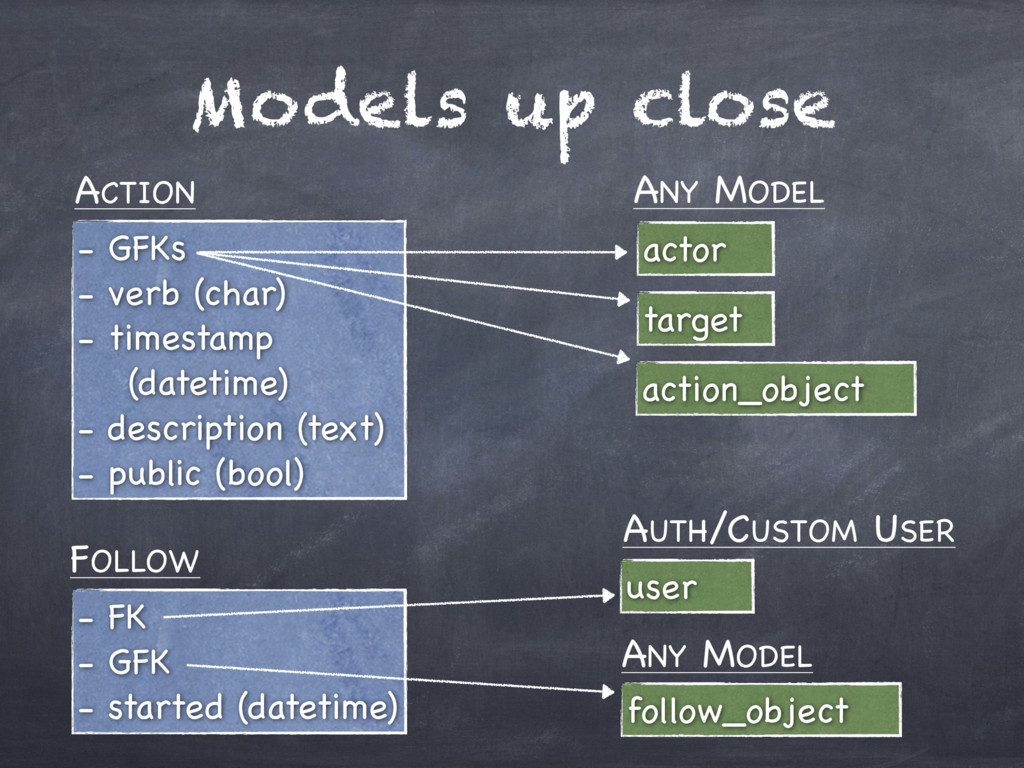

23. Models up close - GFKs
 - verb (char)
 - timestamp (datetime)
 - description (text)
 - public (bool) actor target action_object ACTION ANY MODEL - FK
 - GFK
 - started (datetime)
 FOLLOW follow_object ANY MODEL user AUTH/CUSTOM USER

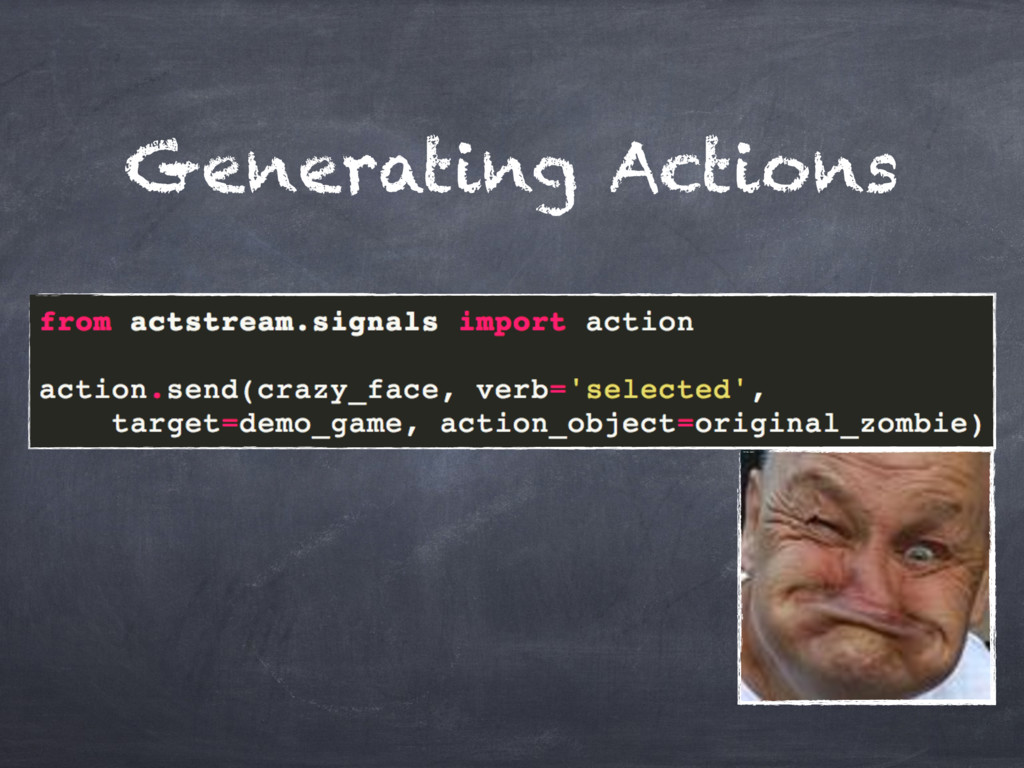

24. Generating Actions
25. Following/Unfollowing

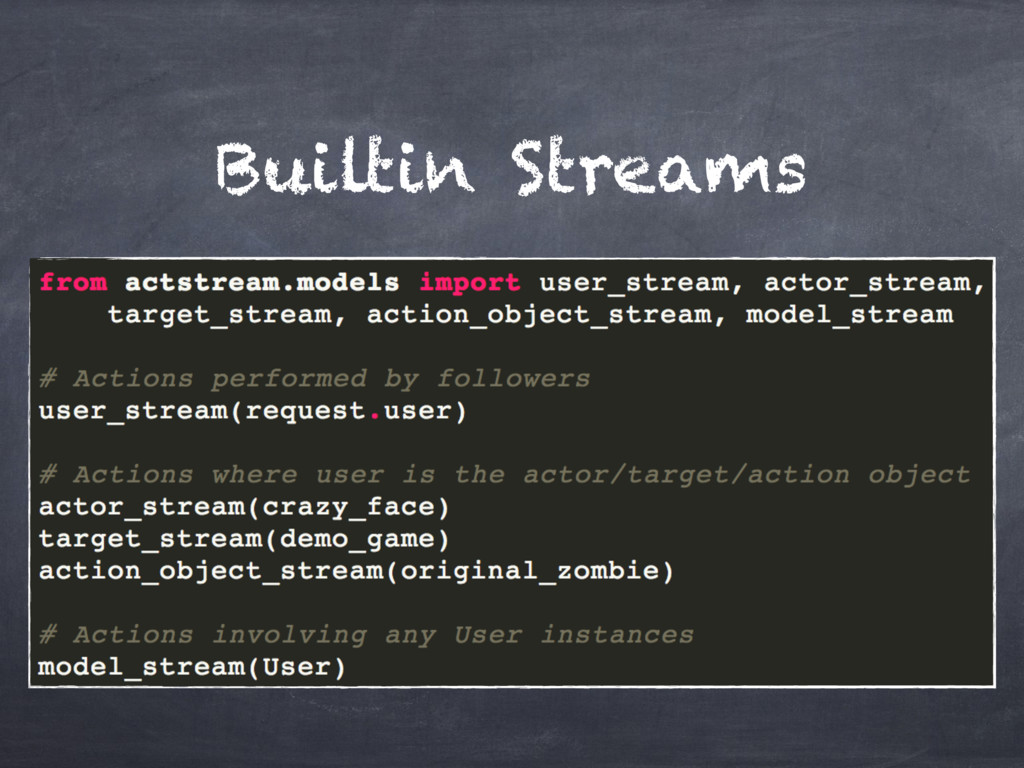

26. Builtin Streams

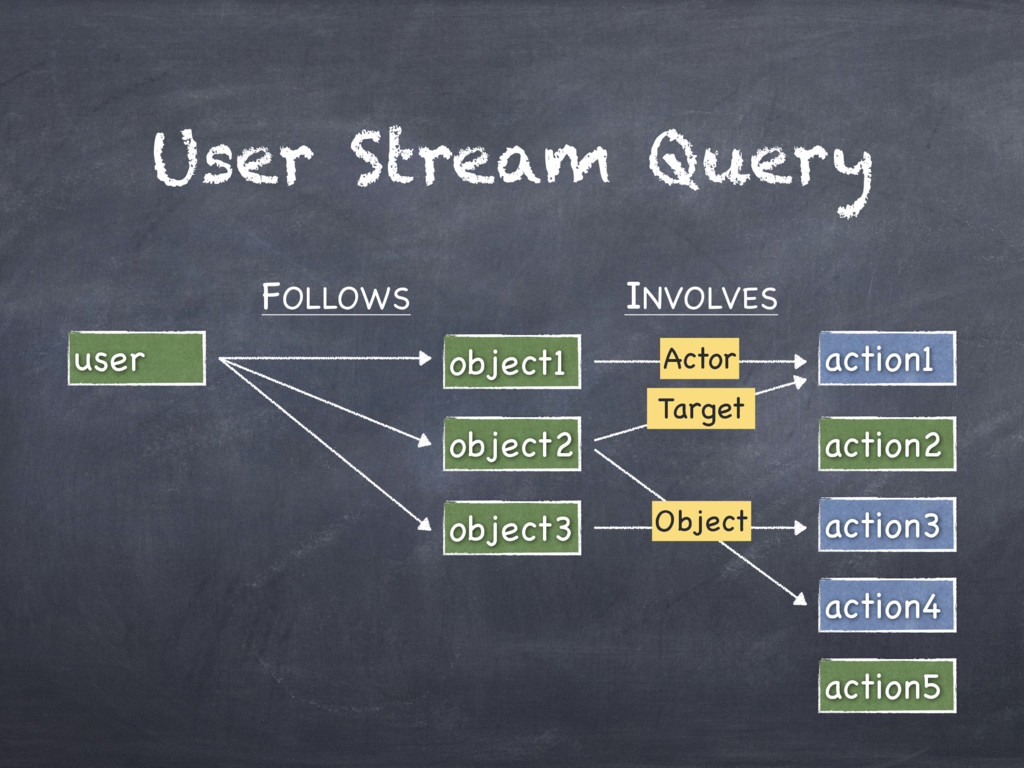

27. User Stream Query user object3 object2 object1 action3 action2 action1 action4 action5 FOLLOWS INVOLVES Actor Target Object

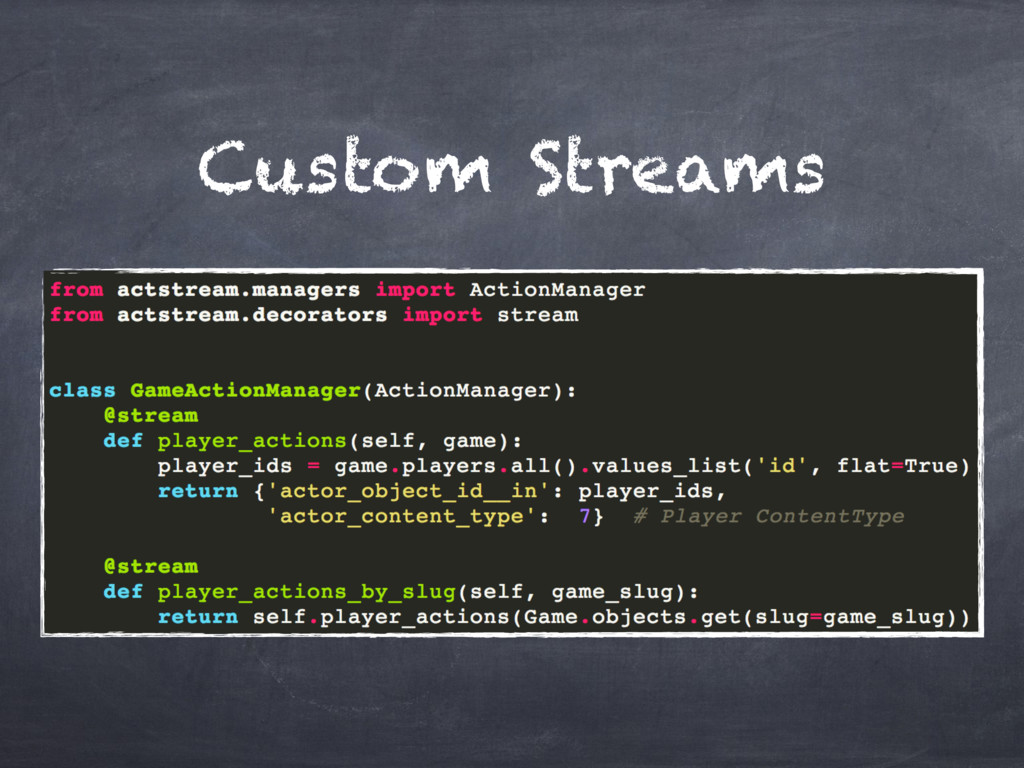

28. Custom Streams

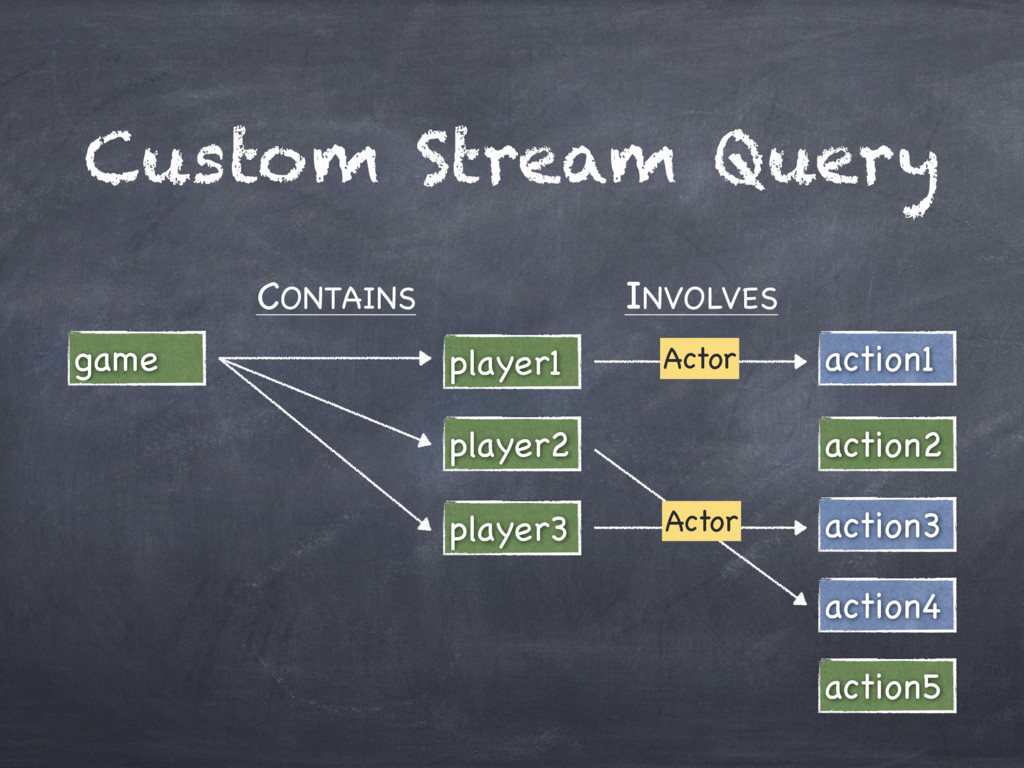

29. Custom Stream Query game player3 player2 player1 action3 action2 action1 action4 action5 CONTAINS INVOLVES Actor Actor

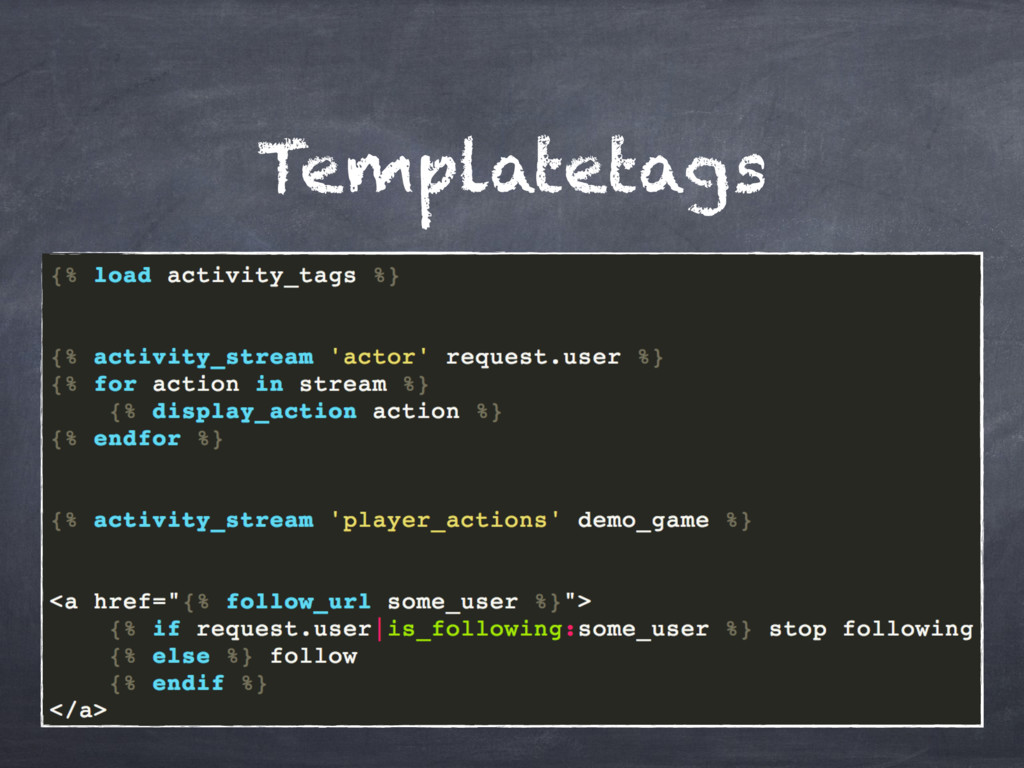

30. Templatetags

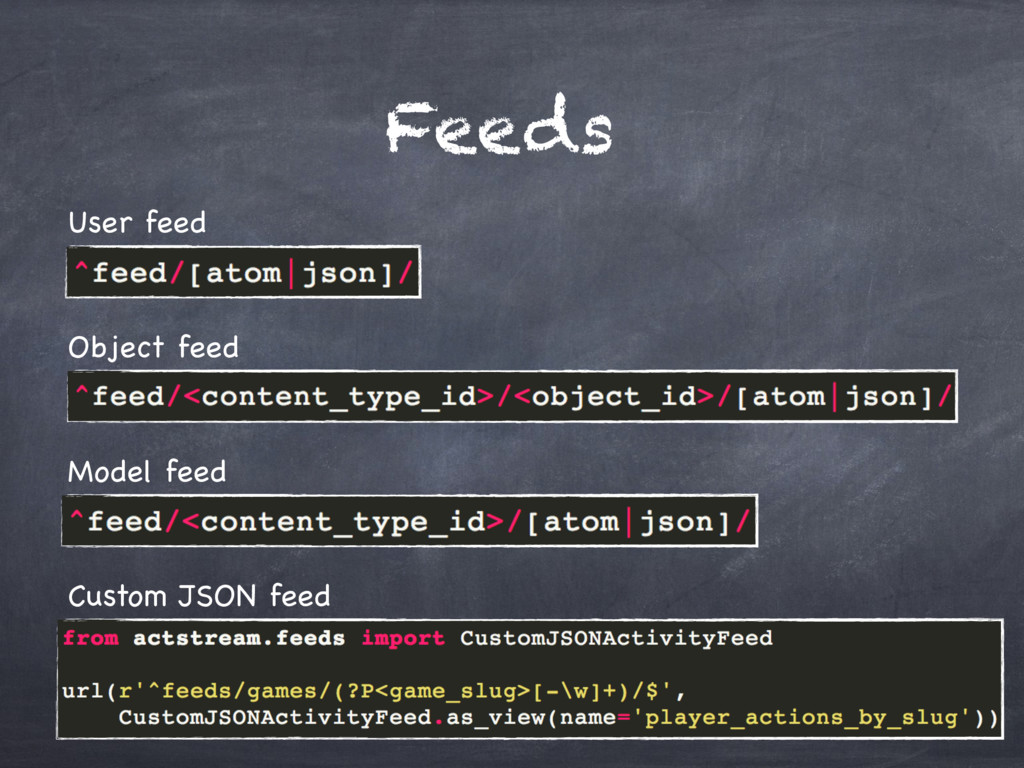

31. Feeds User feed
 Object feed
 Model feed
 Custom JSON feed

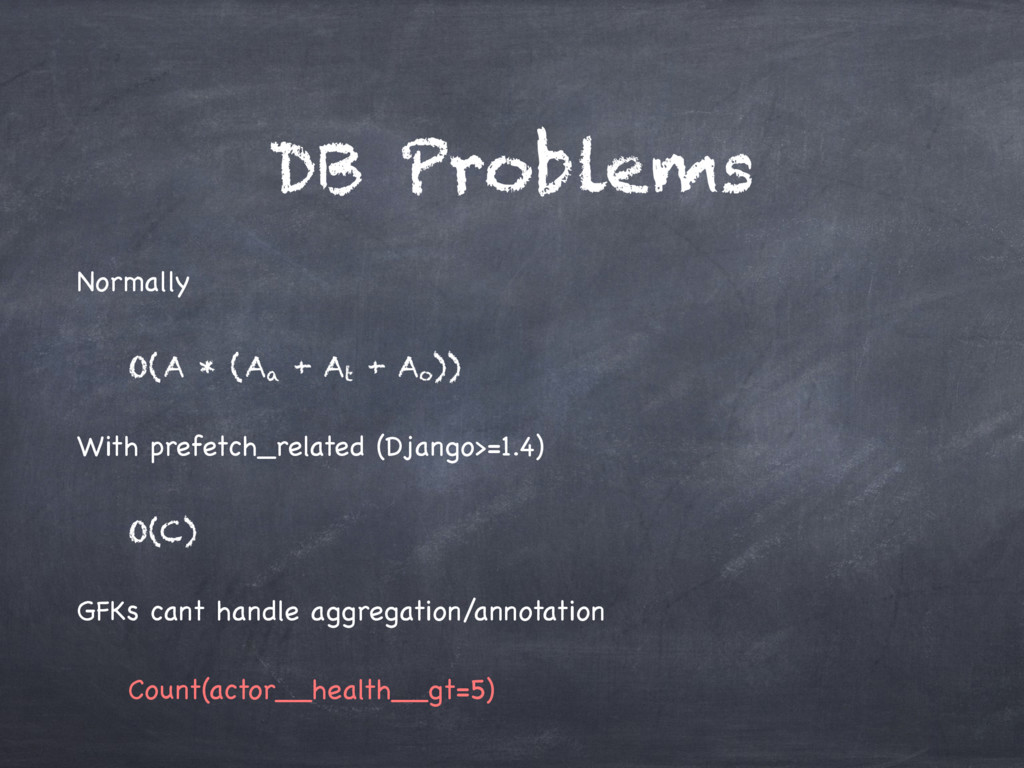

32. DB Problems Normally O(A * (Aa + At + Ao )) With prefetch_related (Django>=1.4) O(C) GFKs cant handle aggregation/annotation Count(actor__health__gt=5)

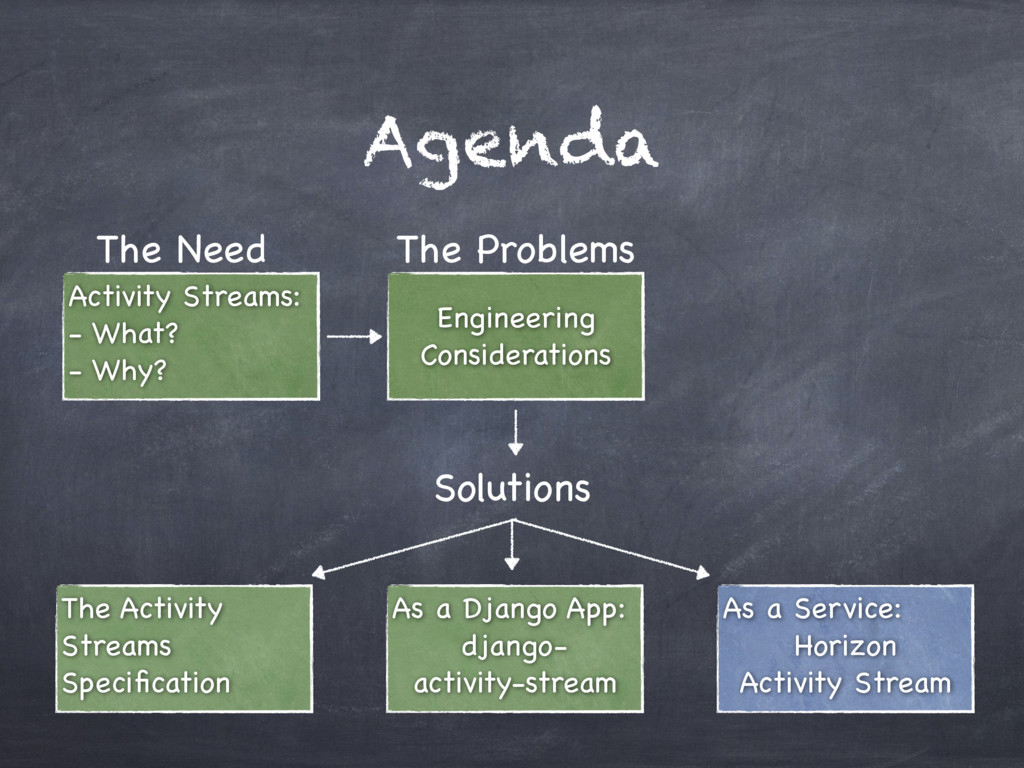

33. Agenda Activity Streams:
 - What? - Why? As a Django App: django-
 activity-stream As a Service: Horizon Activity Stream The Need Solutions Engineering Considerations The Problems The Activity Streams Specification

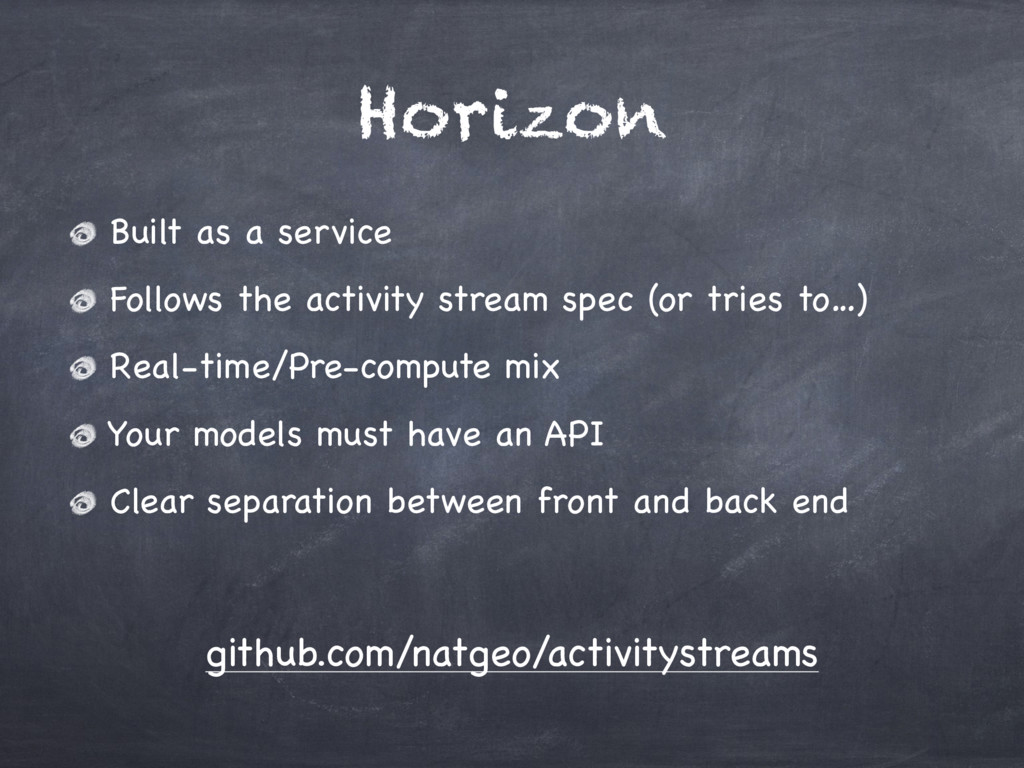

34. Horizon Built as a service Follows the activity stream spec (or tries to…) Real-time/Pre-compute mix Your models must have an API Clear separation between front and back end github.com/natgeo/activitystreams

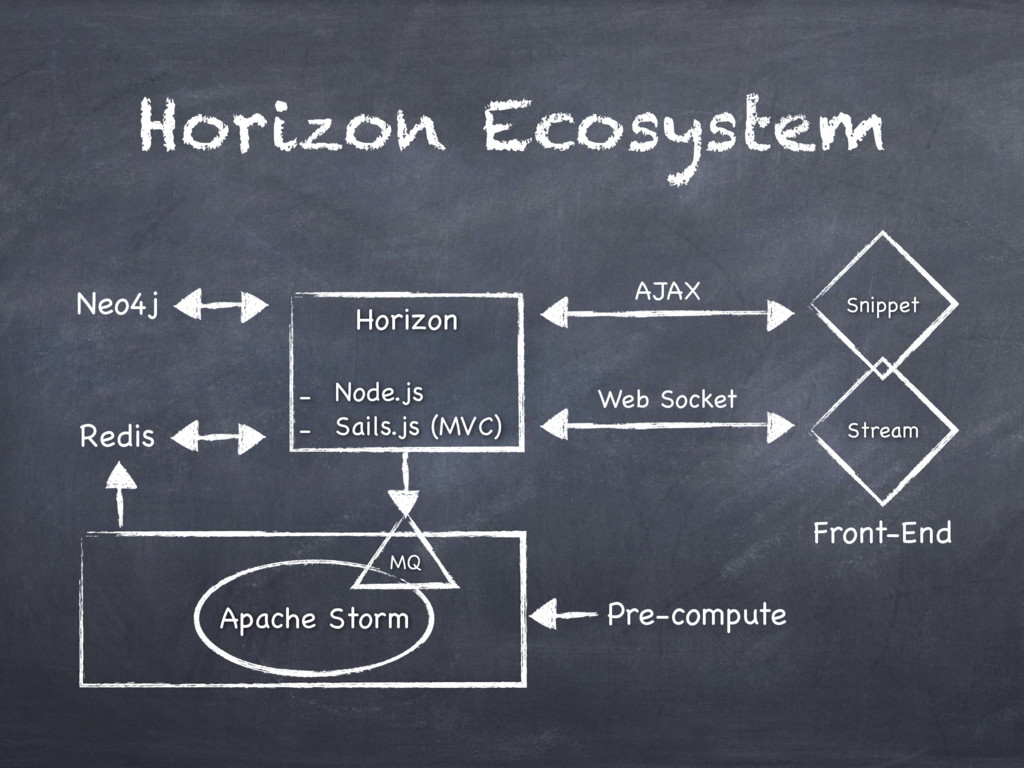

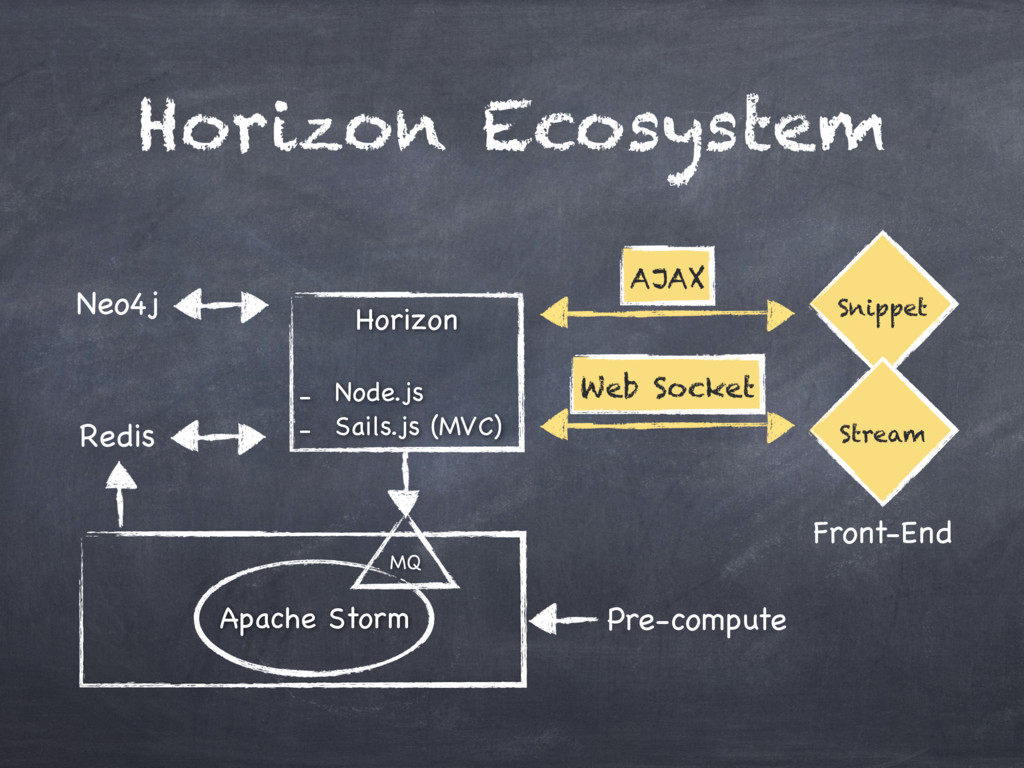

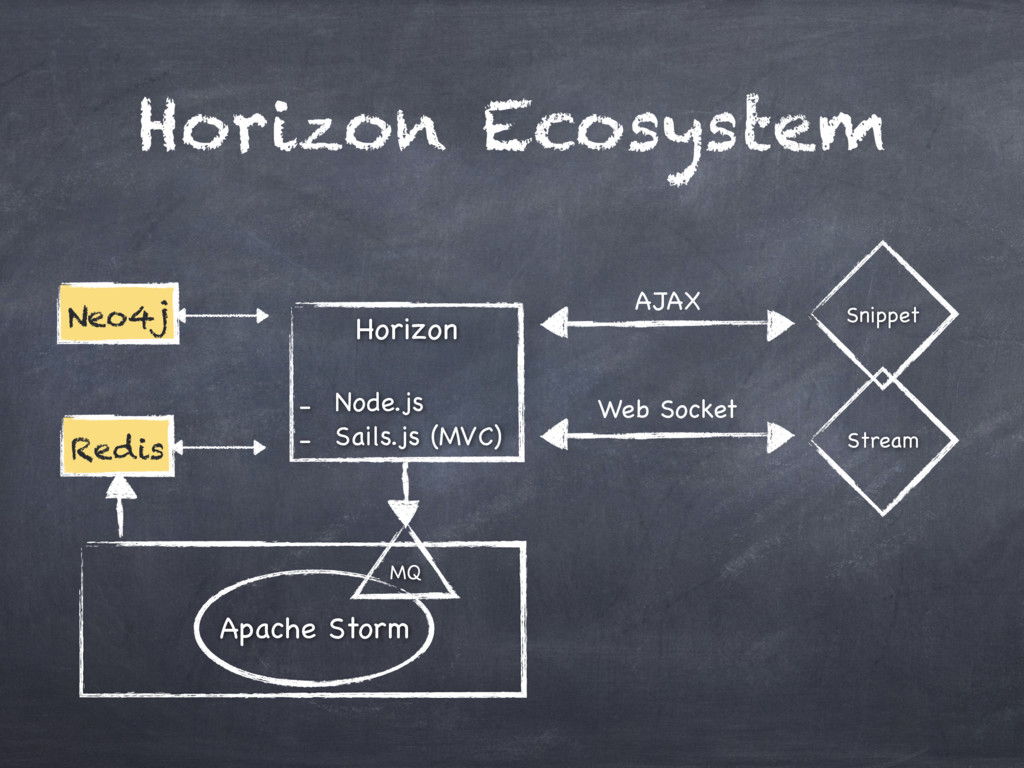

35. Horizon Ecosystem Apache Storm Snippet Stream Web Socket Neo4j Redis Horizon ! - Node.js - Sails.js (MVC) AJAX MQ Pre-compute Front-End

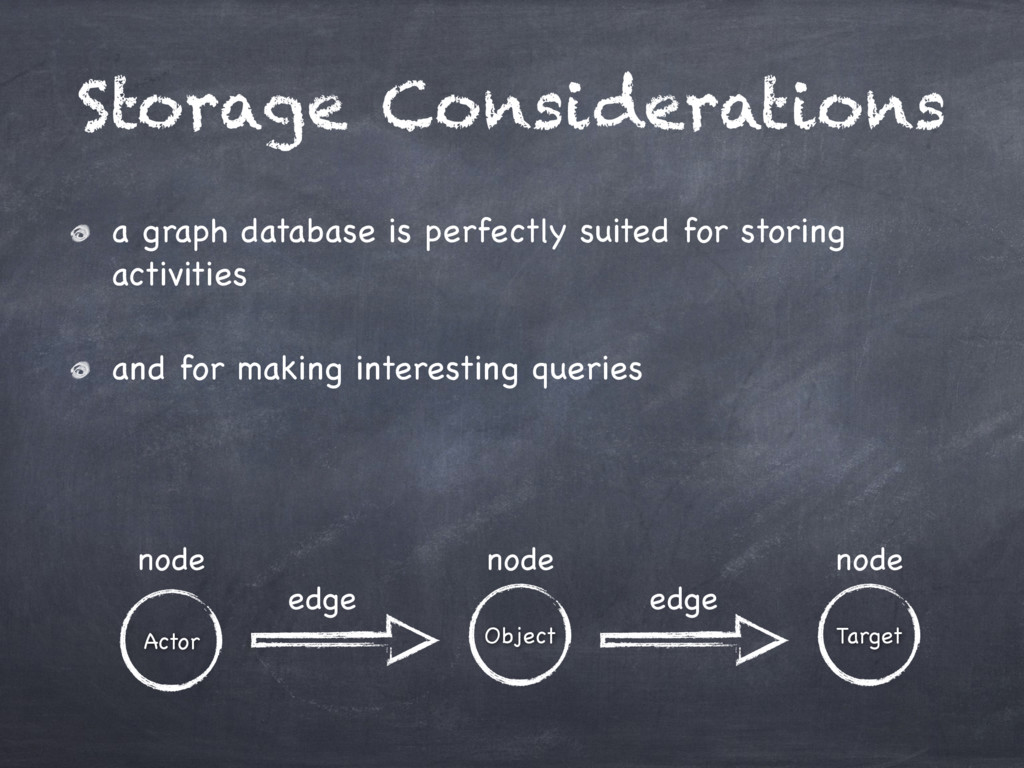

36. Storage Considerations a graph database is perfectly suited for storing activities and for making interesting queries Actor Object edge node edge Target node node
37. Redis Horizon Ecosystem Apache Storm Snippet Stream Web Socket Neo4j Horizon ! - Node.js - Sails.js (MVC) AJAX MQ

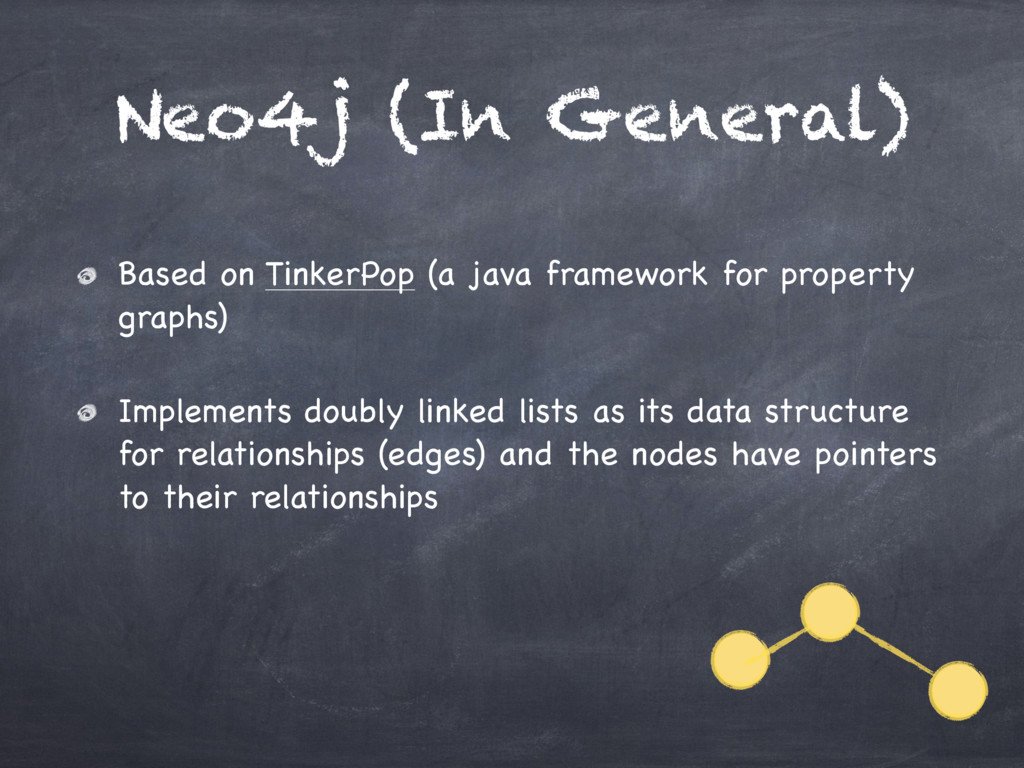

38. Neo4j (In General) Based on TinkerPop (a java framework for property graphs) Implements doubly linked lists as its data structure for relationships (edges) and the nodes have pointers to their relationships
39. Complexity (Neo4j) Doubly Linked Lists Average: Indexing - O(N) Search - O(N) Insert - O(1) Delete - O(1) * N = # of edges ** Neo4j uses Lucene for indexing, so we get much better average-case for indexing and search

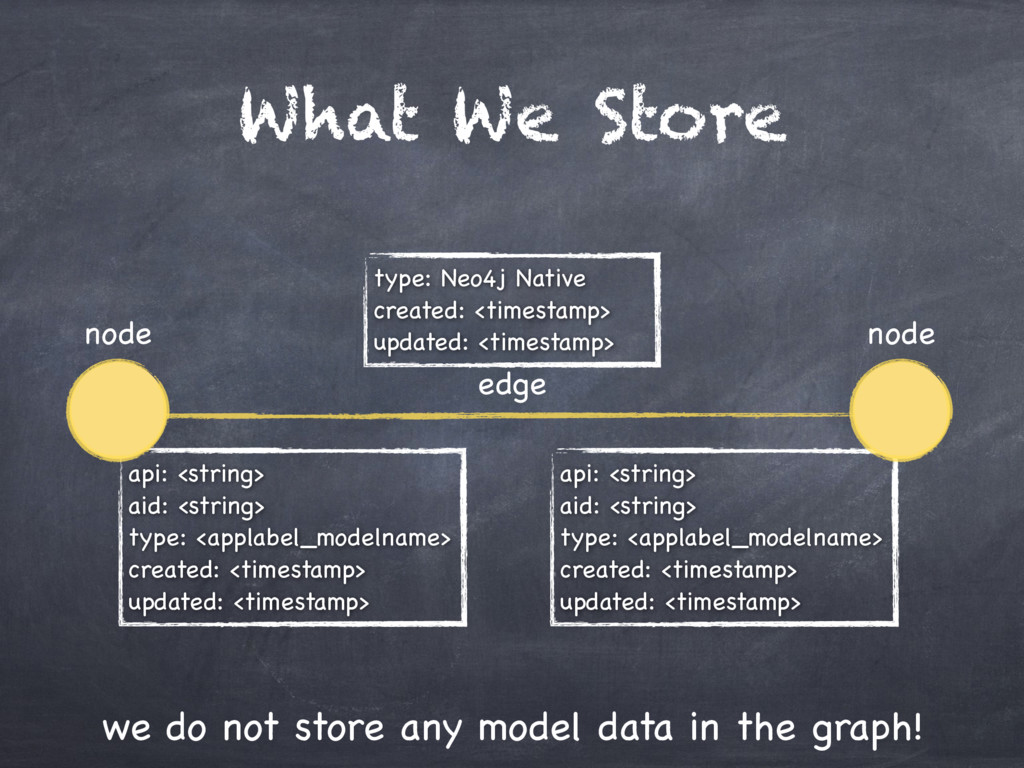

40. What We Store api: <string> aid: <string> type: <applabel_modelname> created: <timestamp> updated: <timestamp> node edge type: Neo4j Native created: <timestamp> updated: <timestamp> api: <string> aid: <string> type: <applabel_modelname> created: <timestamp> updated: <timestamp> node we do not store any model data in the graph!
41. Redis Sockets Sessions Caching Some stream data

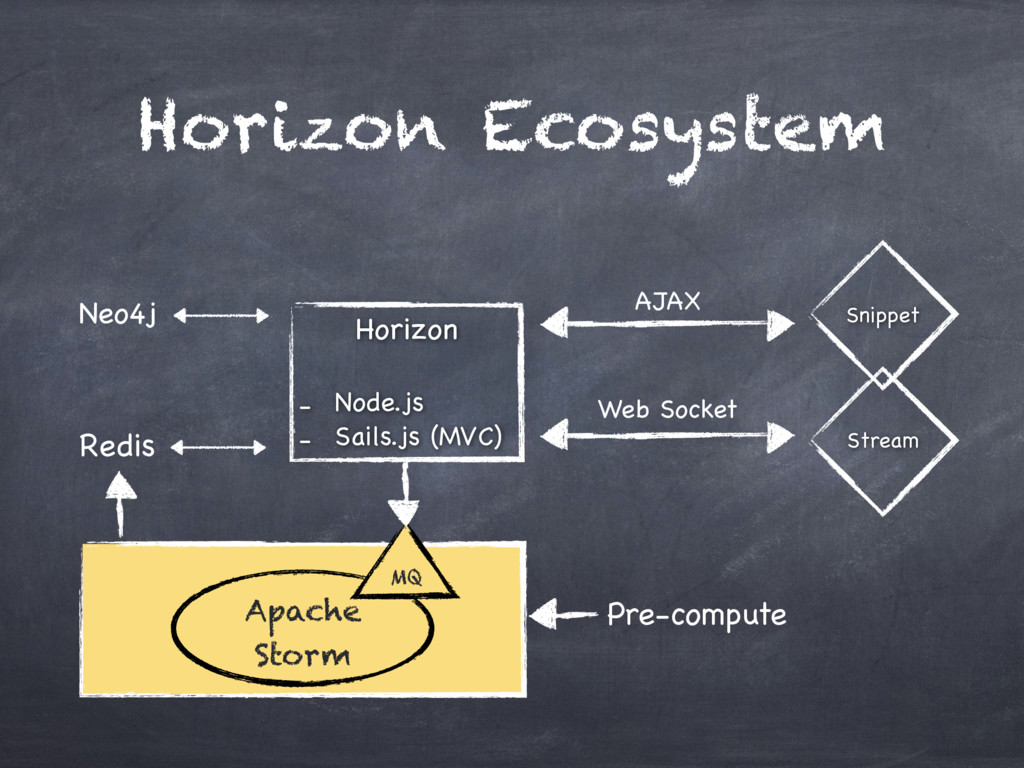

42. Horizon Ecosystem Apache Storm Snippet Stream Web Socket Neo4j Horizon ! - Node.js - Sails.js (MVC) AJAX MQ Pre-compute Redis

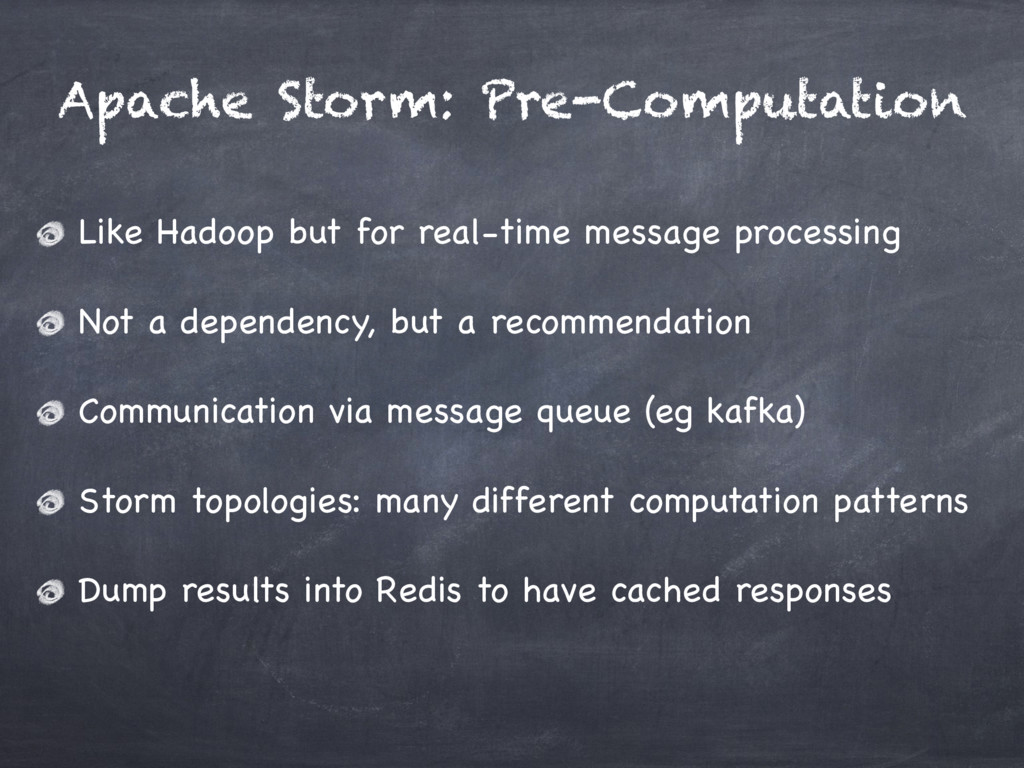

43. Apache Storm: Pre-Computation Like Hadoop but for real-time message processing Not a dependency, but a recommendation Communication via message queue (eg kafka) Storm topologies: many different computation patterns Dump results into Redis to have cached responses

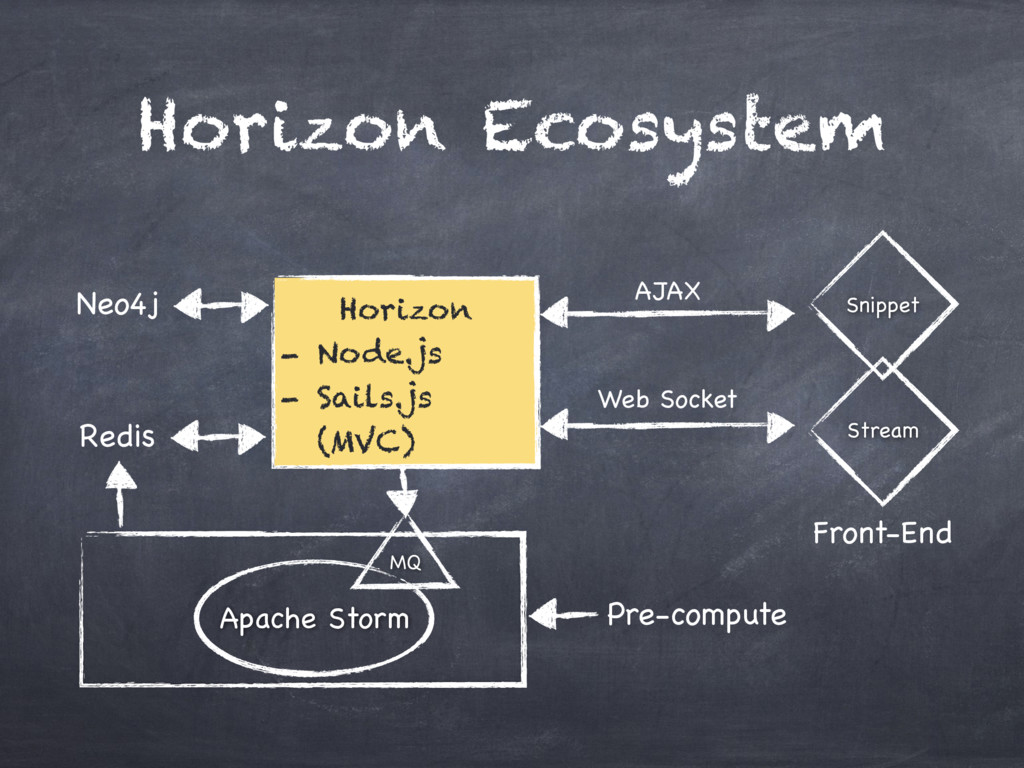

44. Horizon Ecosystem Apache Storm Snippet Stream Web Socket Neo4j Redis Horizon - Node.js - Sails.js (MVC) AJAX MQ Pre-compute Front-End

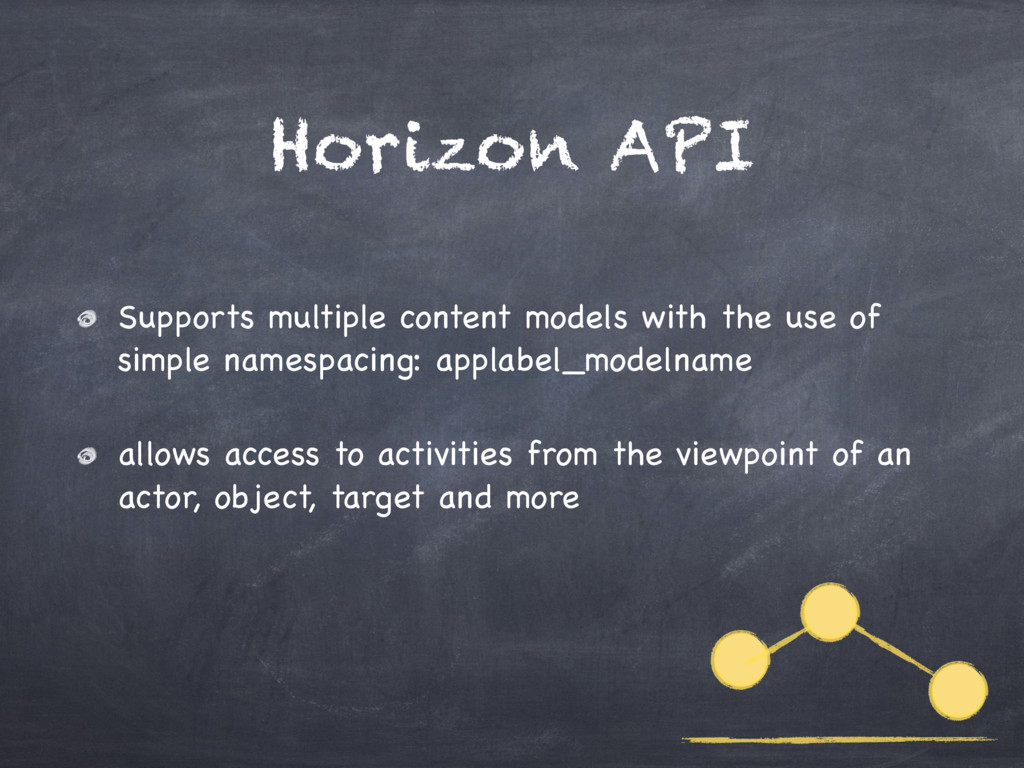

45. Horizon API Supports multiple content models with the use of simple namespacing: applabel_modelname allows access to activities from the viewpoint of an actor, object, target and more

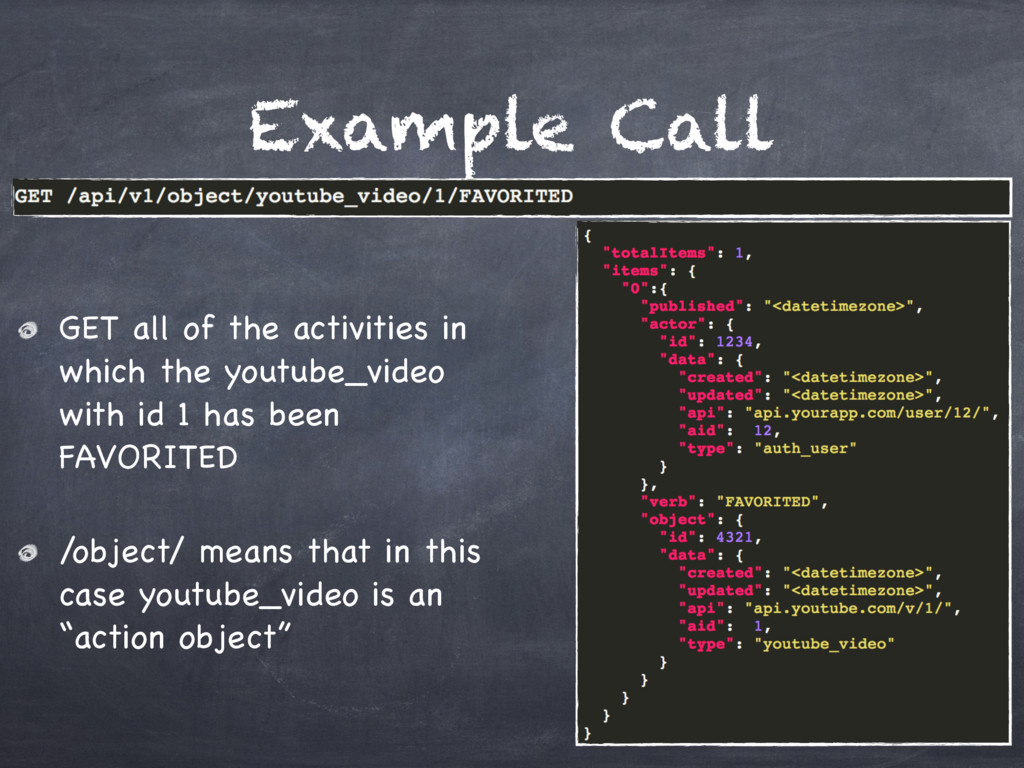

46. Example Call GET all of the activities in which the youtube_video with id 1 has been FAVORITED /object/ means that in this case youtube_video is an “action object”

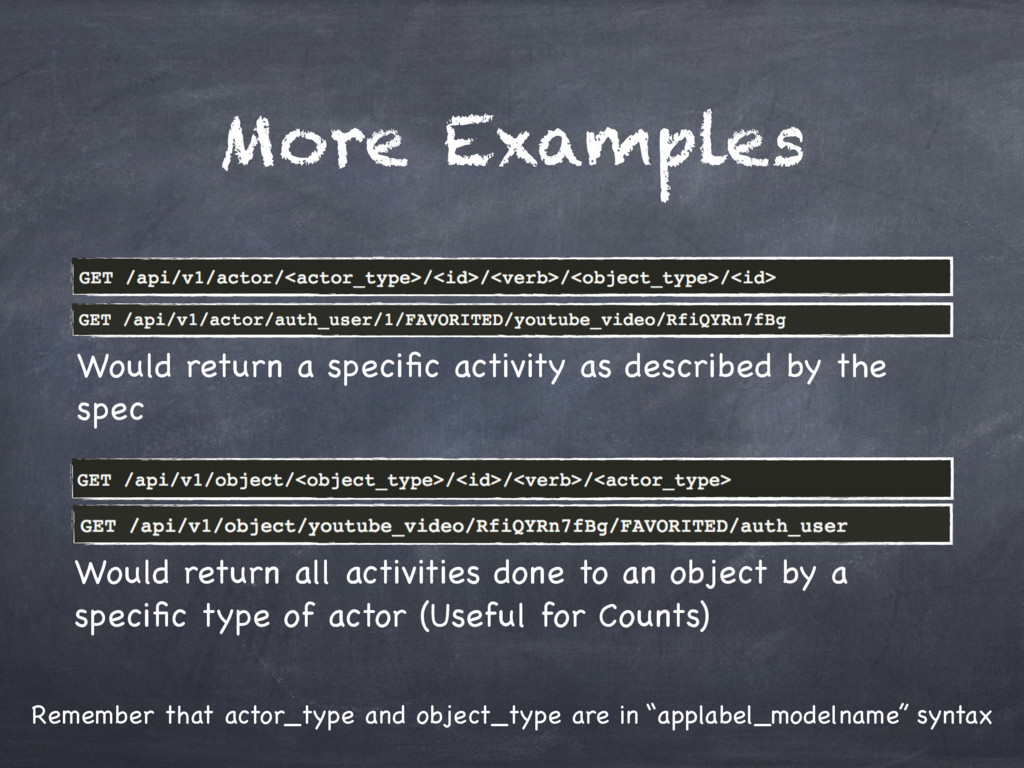

47. More Examples Would return a specific activity as described by the spec Remember that actor_type and object_type are in “applabel_modelname” syntax Would return all activities done to an object by a specific type of actor (Useful for Counts)

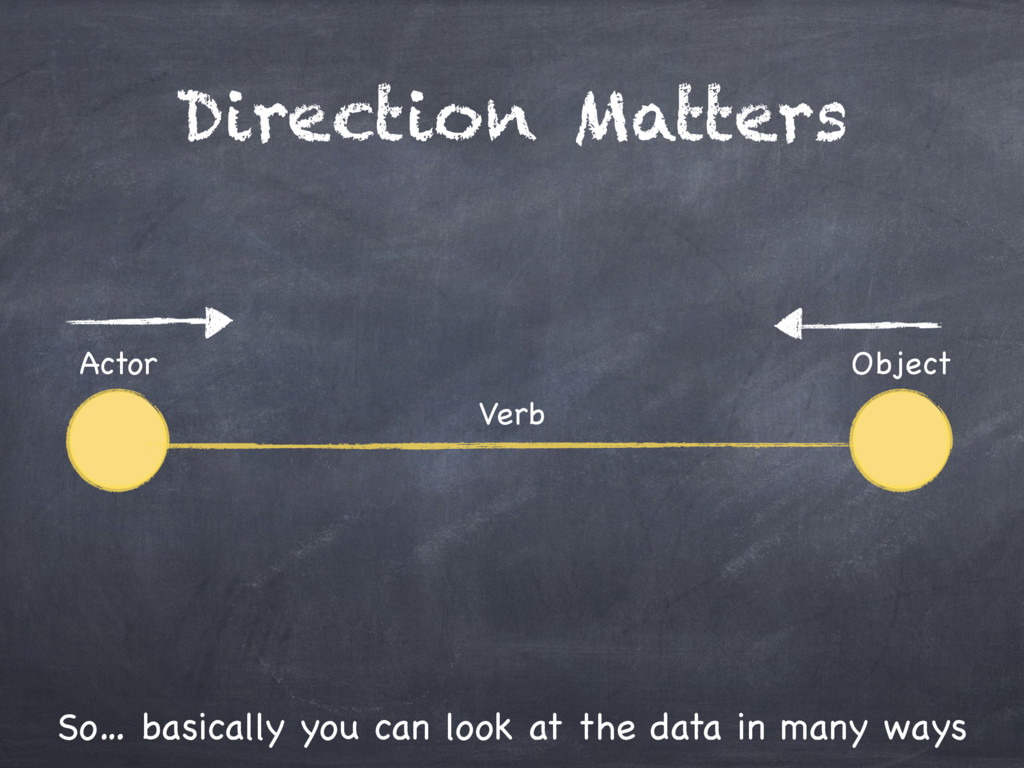

48. Direction Matters Actor Verb Object So… basically you can look at the data in many ways

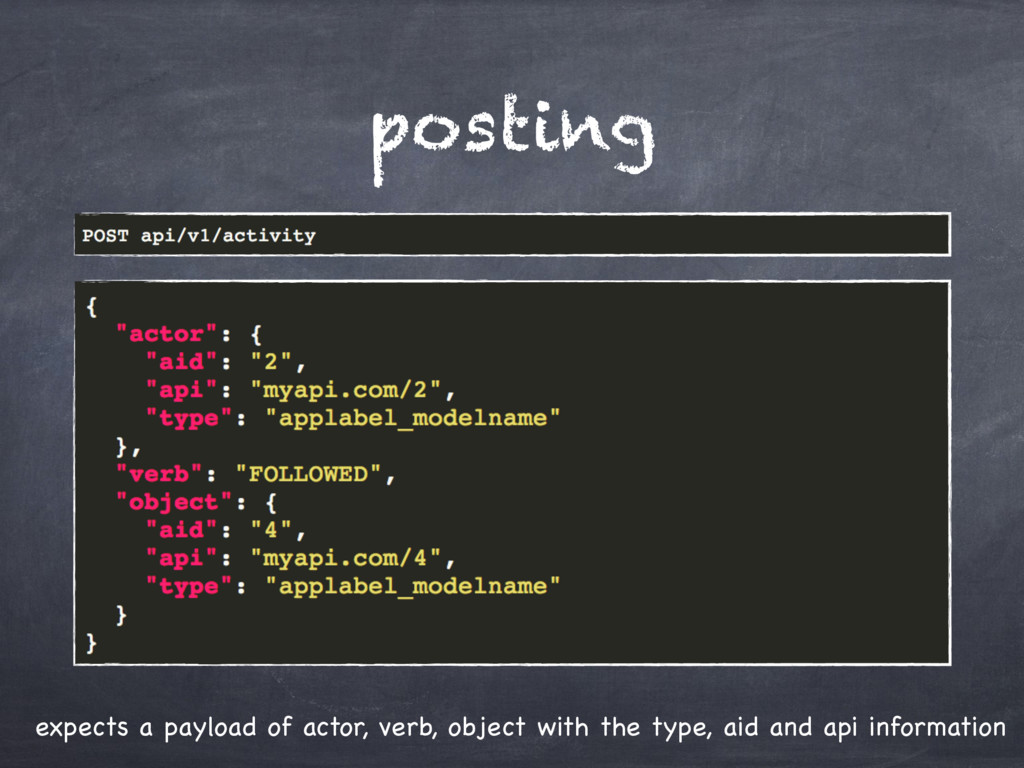

49. posting expects a payload of actor, verb, object with the type, aid and api information

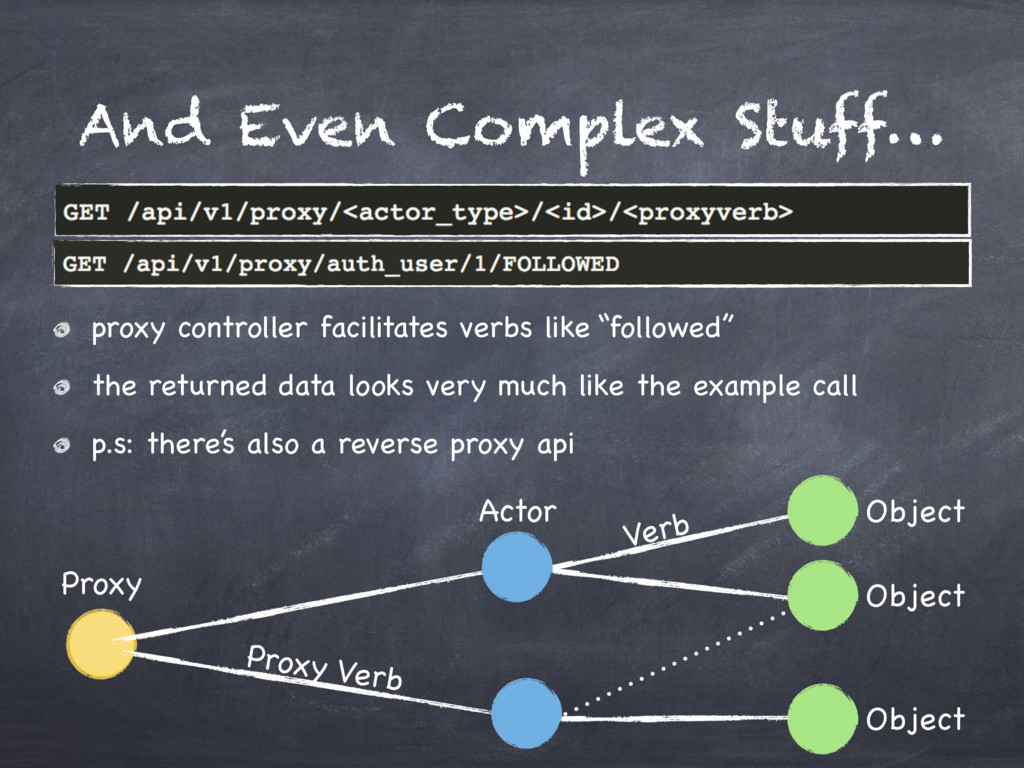

50. And Even Complex Stuff… proxy controller facilitates verbs like “followed” the returned data looks very much like the example call p.s: there’s also a reverse proxy api Proxy Actor Proxy Verb Verb Object Object Object

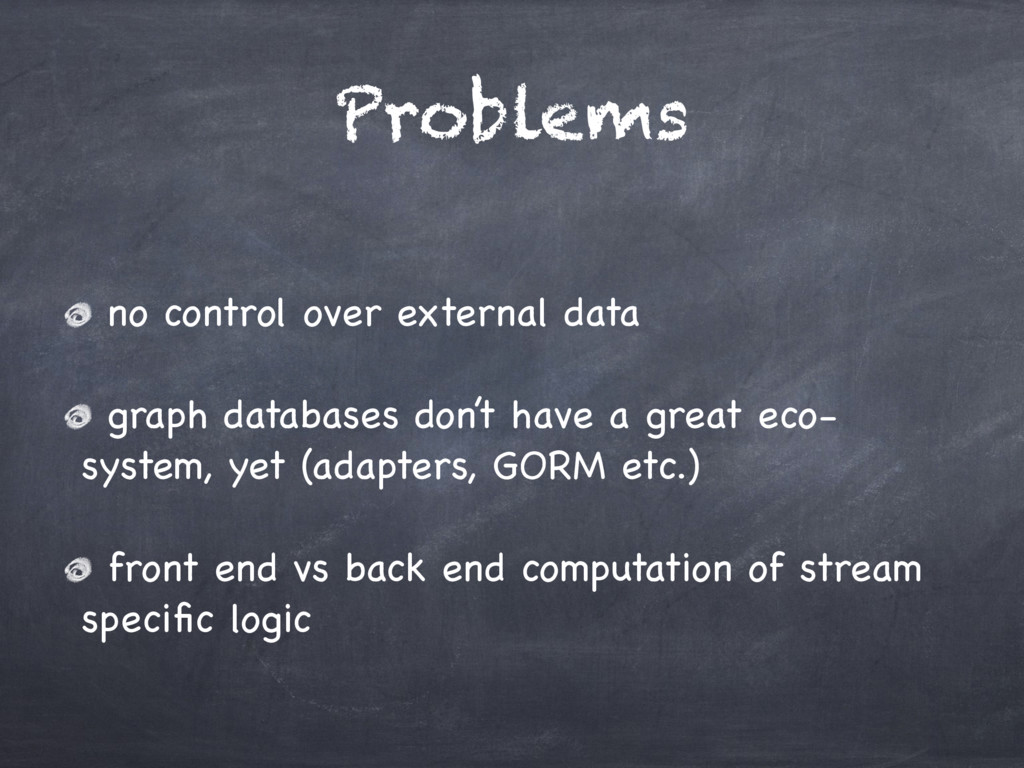

51. Problems no control over external data graph databases don’t have a great eco- system, yet (adapters, GORM etc.) front end vs back end computation of stream specific logic
52. Snippet Stream Horizon Ecosystem Apache Storm Web Socket Neo4j Redis Horizon ! - Node.js - Sails.js (MVC) AJAX MQ Pre-compute Front-End
53. The Snippet 12 45 ! Represents an Activity that an Actor can take on an Object Sends activities over the wire to the Horizon service And displays some information about the state of that activity github.com/natgeo/modules-activitysnippet Snippet “Like Button”

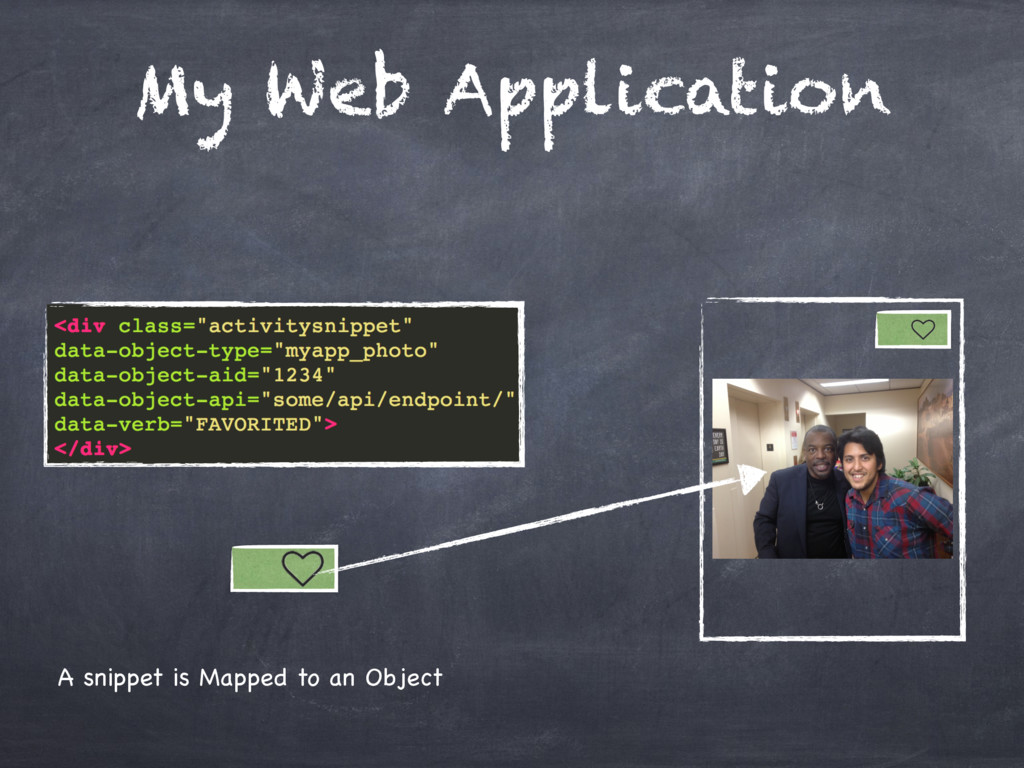

54. My Web Application A snippet is Mapped to an Object

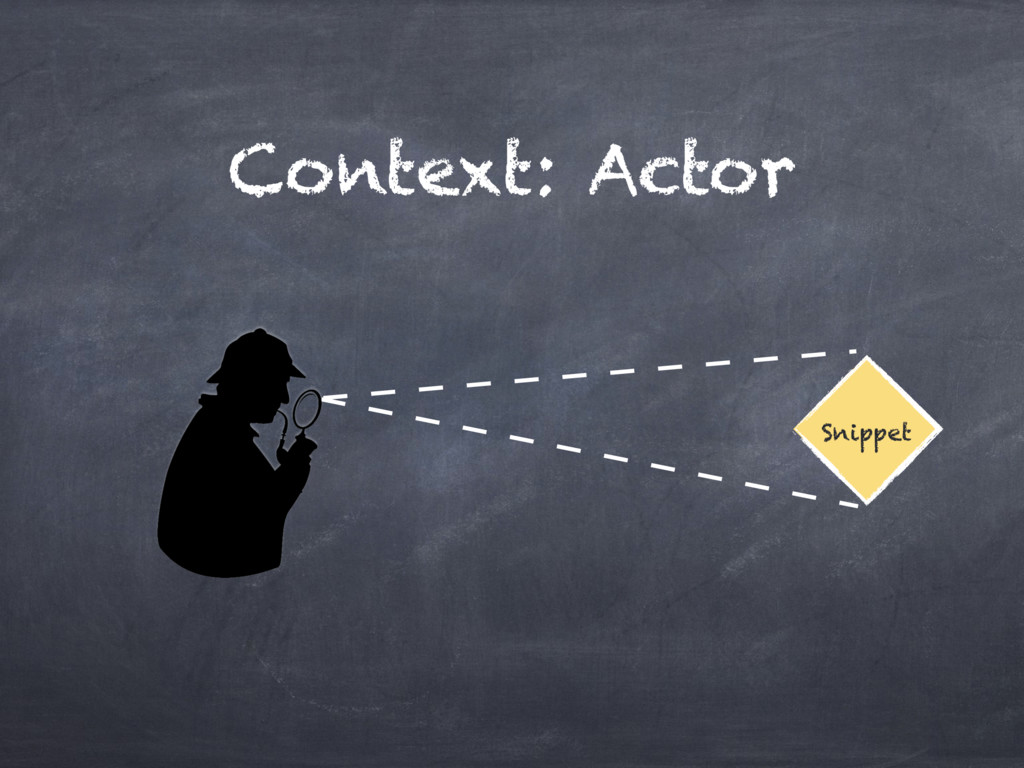

55. Context: Actor Snippet

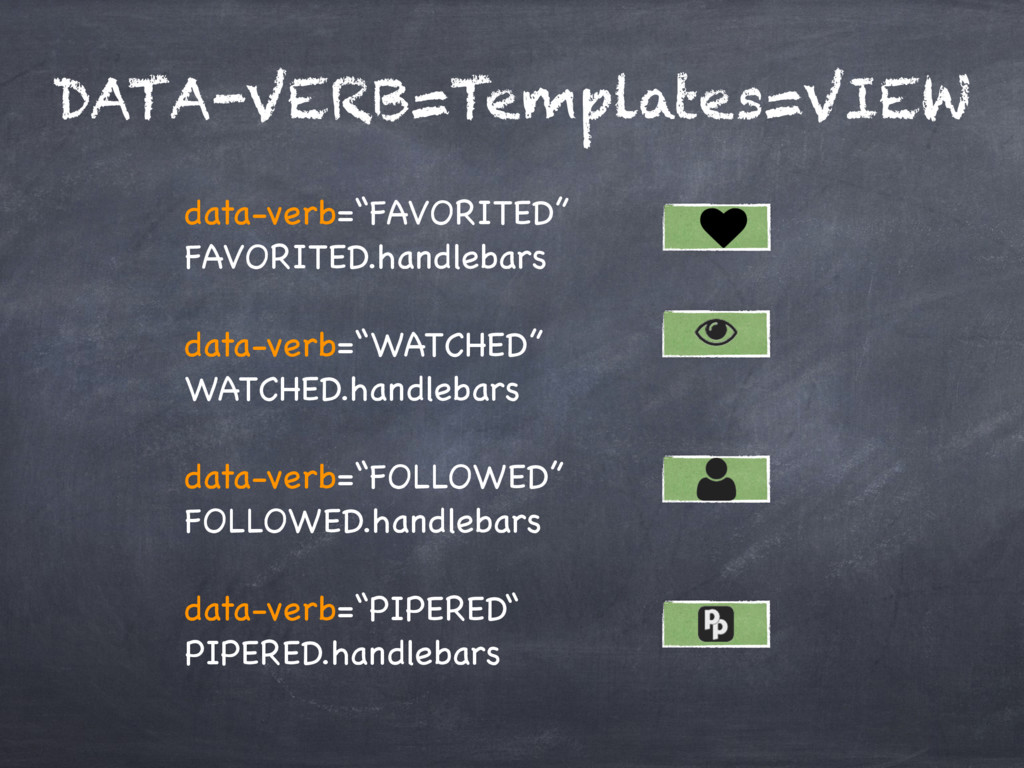

56. DATA-VERB=Templates=VIEW data-verb=“FAVORITED” FAVORITED.handlebars ! data-verb=“WATCHED” WATCHED.handlebars ! data-verb=“FOLLOWED” FOLLOWED.handlebars ! data-verb=“PIPERED“ PIPERED.handlebars

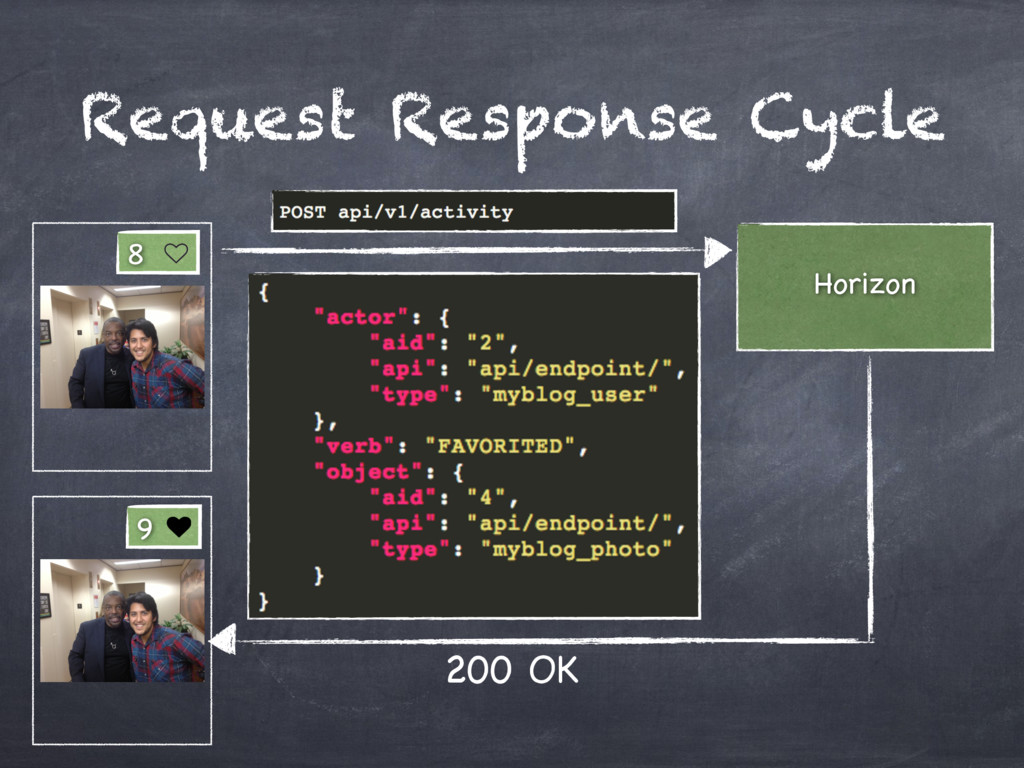

57. 9 8 ! Horizon Request Response Cycle 200 OK

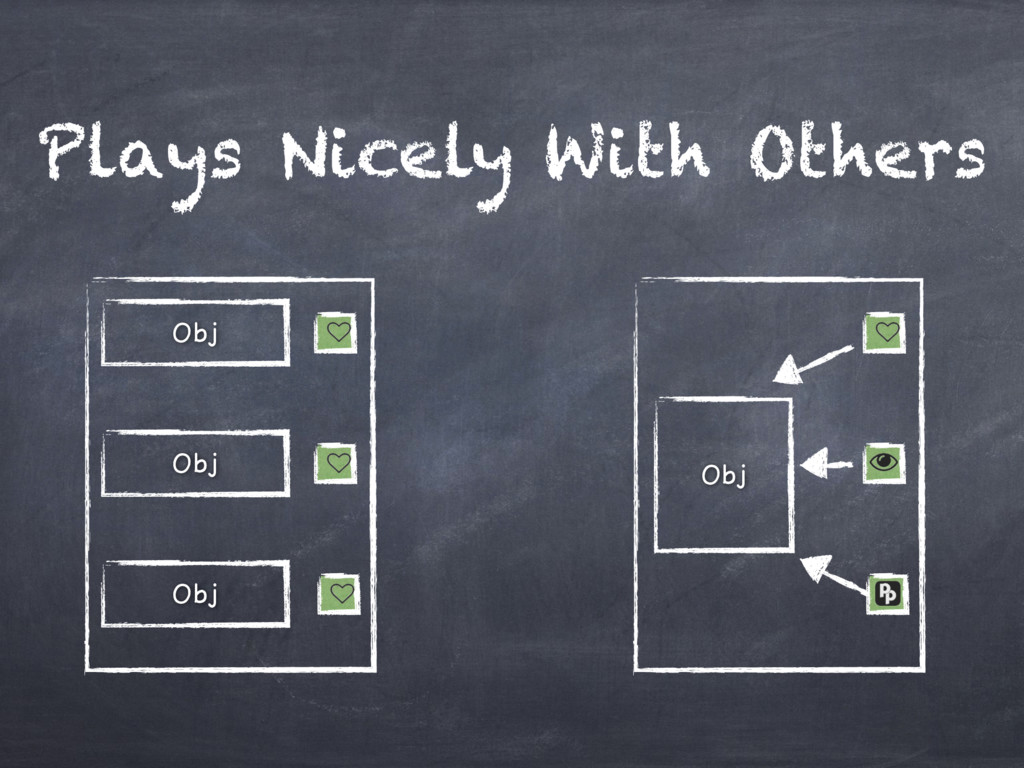

58. Plays Nicely With Others Obj Obj Obj Obj

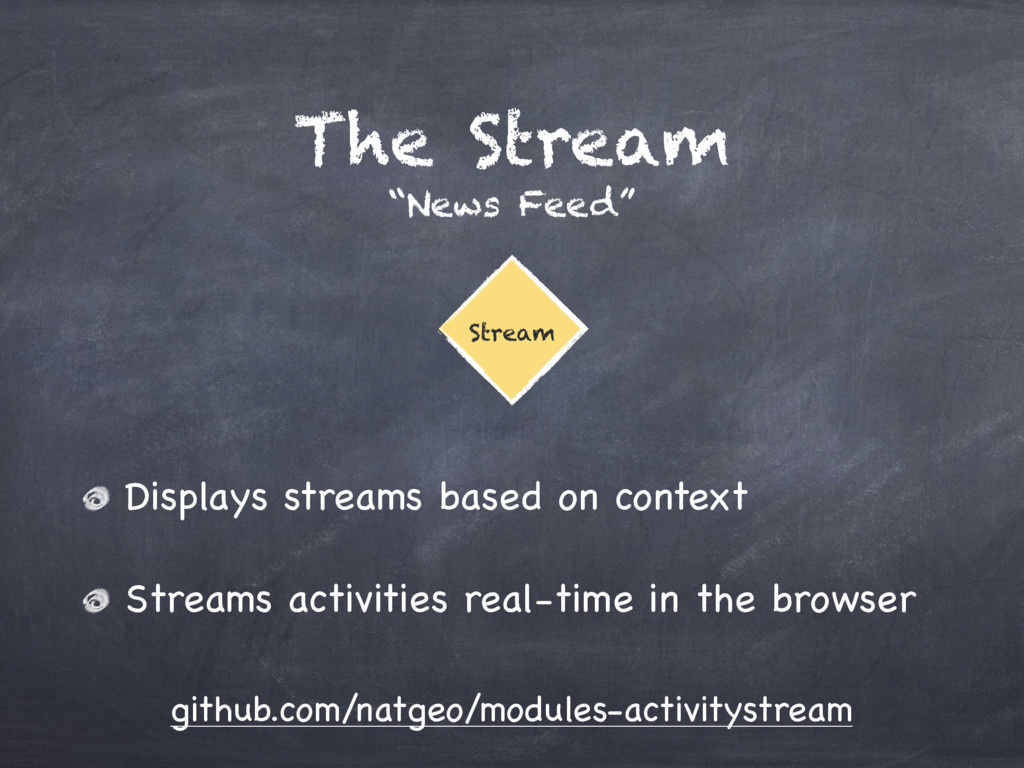

59. The Stream Displays streams based on context Streams activities real-time in the browser github.com/natgeo/modules-activitystream Stream “News Feed”

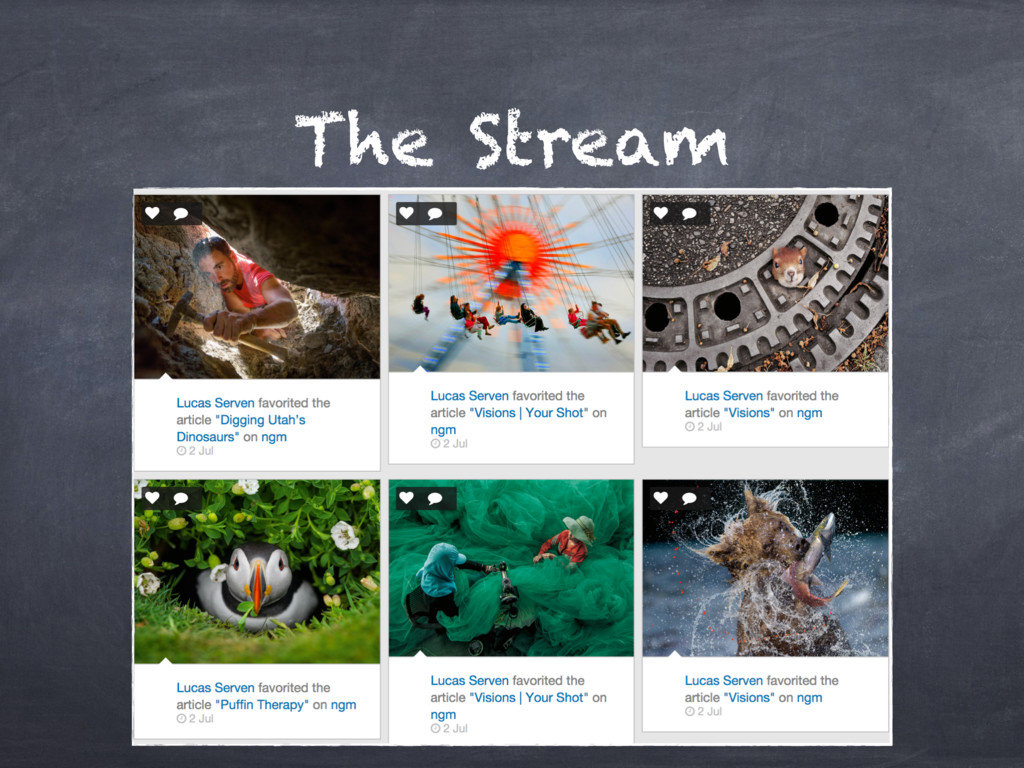

60. The Stream

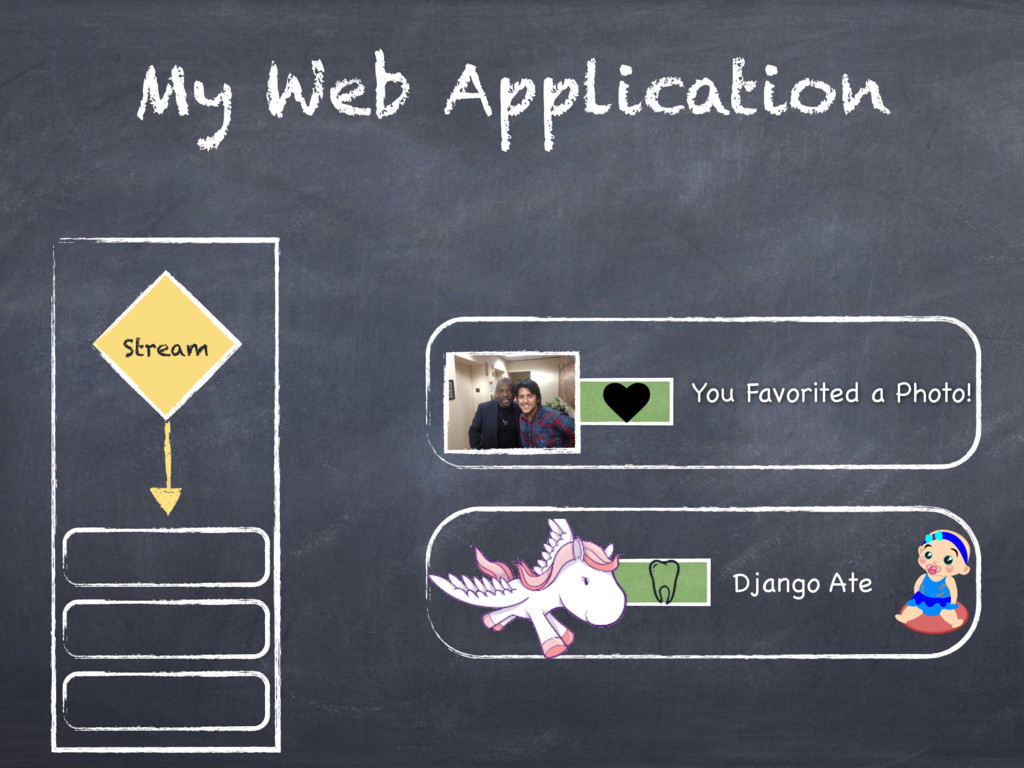

61. You Favorited a Photo! My Web Application Stream Django Ate

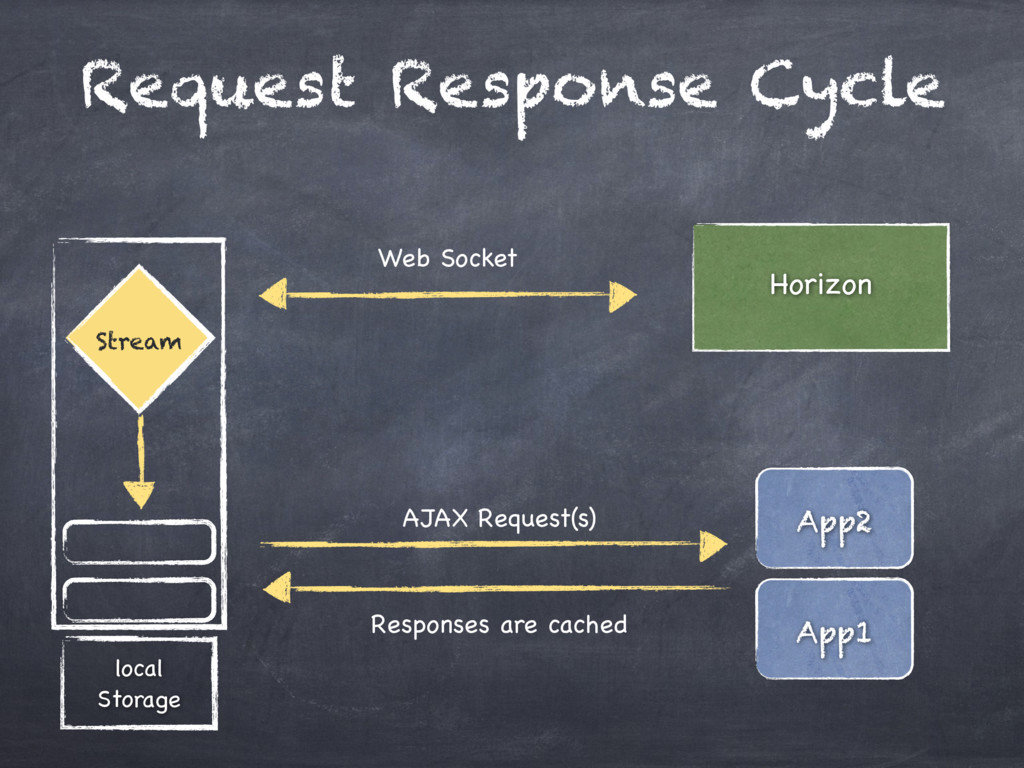

62. Request Response Cycle Web Socket ! Horizon App1 App2 AJAX Request(s) Responses are cached Stream local Storage

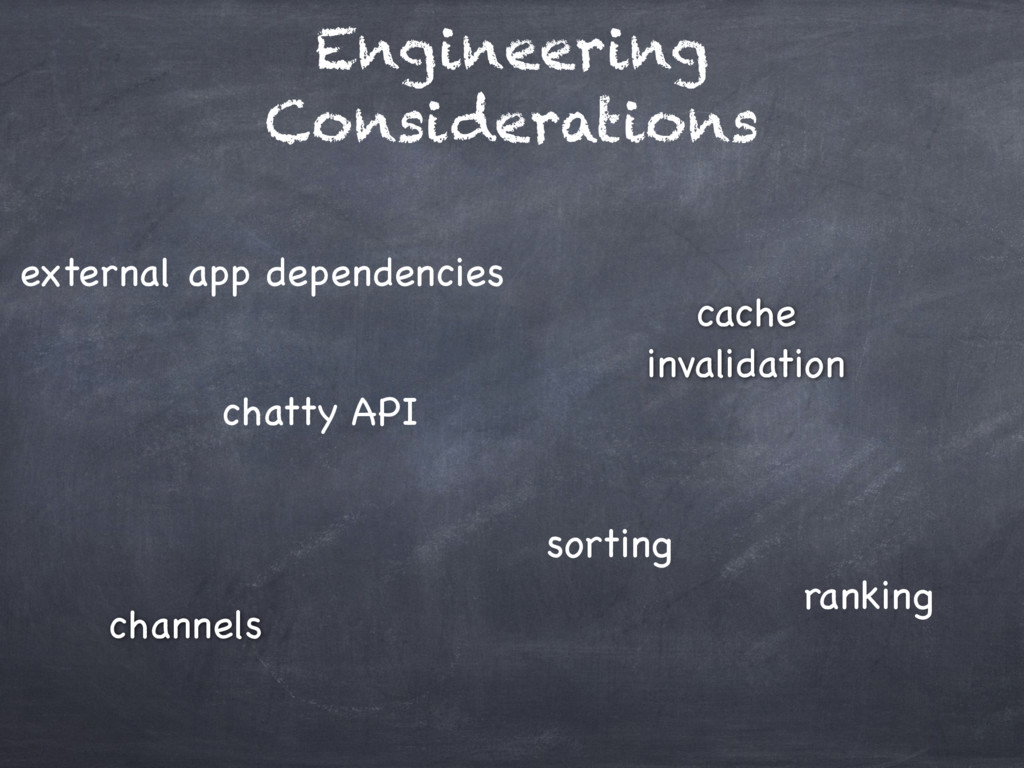

63. Engineering Considerations chatty API external app dependencies sorting ranking cache invalidation channels

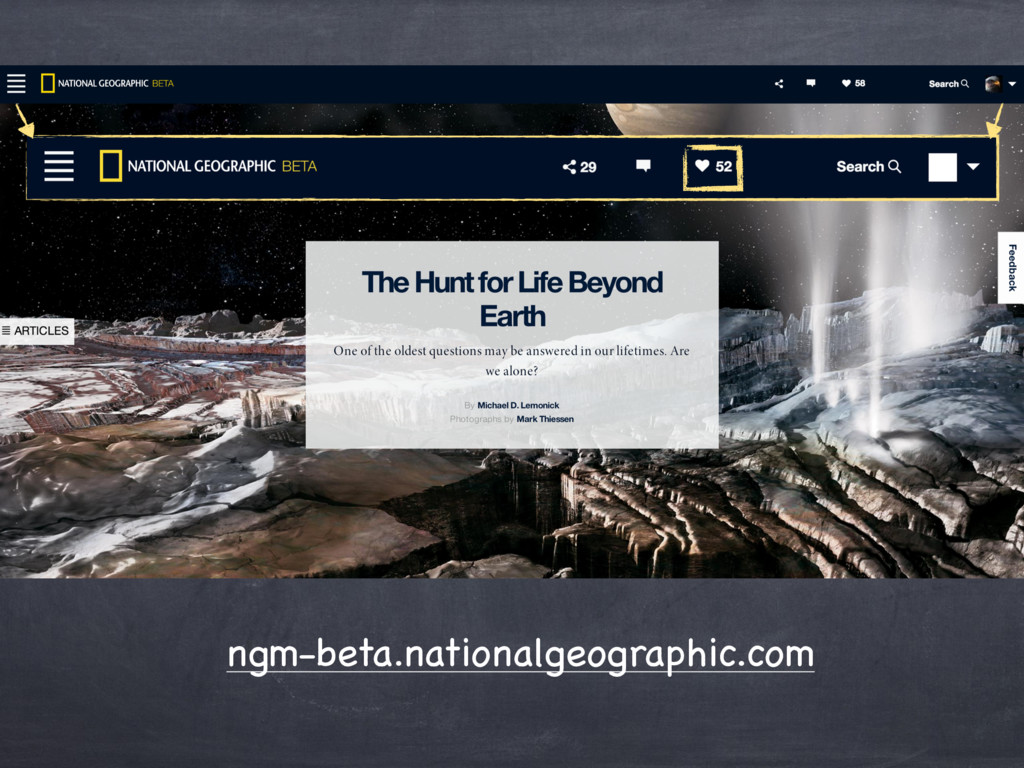

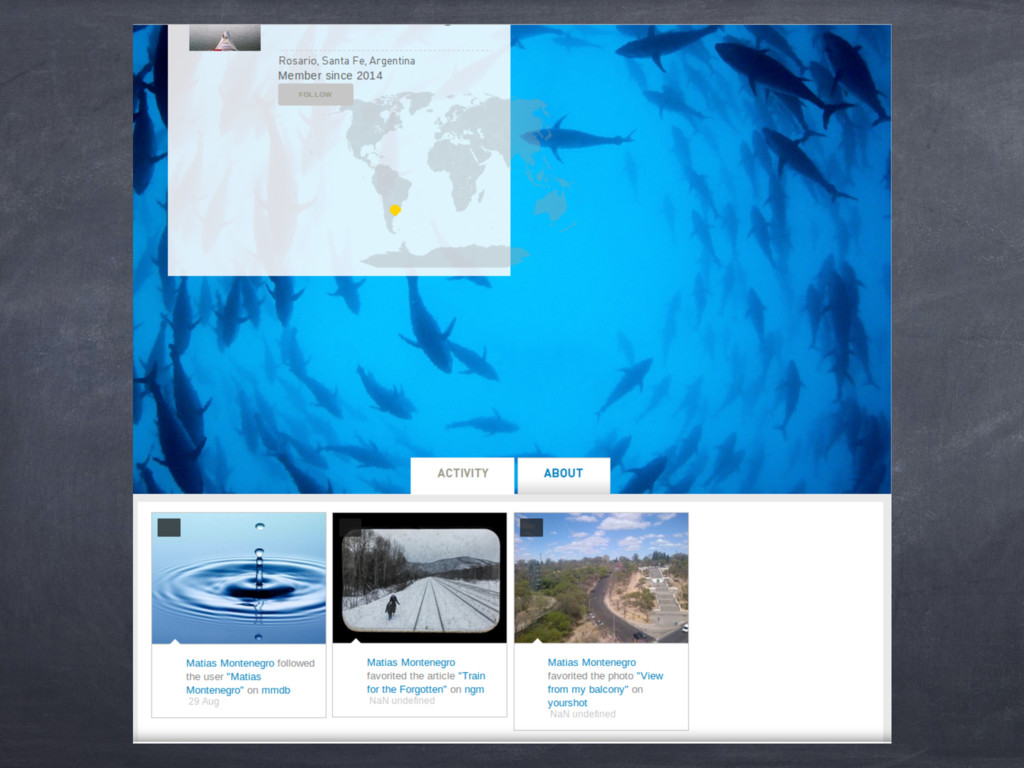

64. ngm-beta.nationalgeographic.com
66. Agenda Activity Streams:
 - What? - Why? As a Django App: django-
 activity-stream As a Service: Horizon Activity Stream The Need Solutions Engineering Considerations the problems The Activity Streams Specification

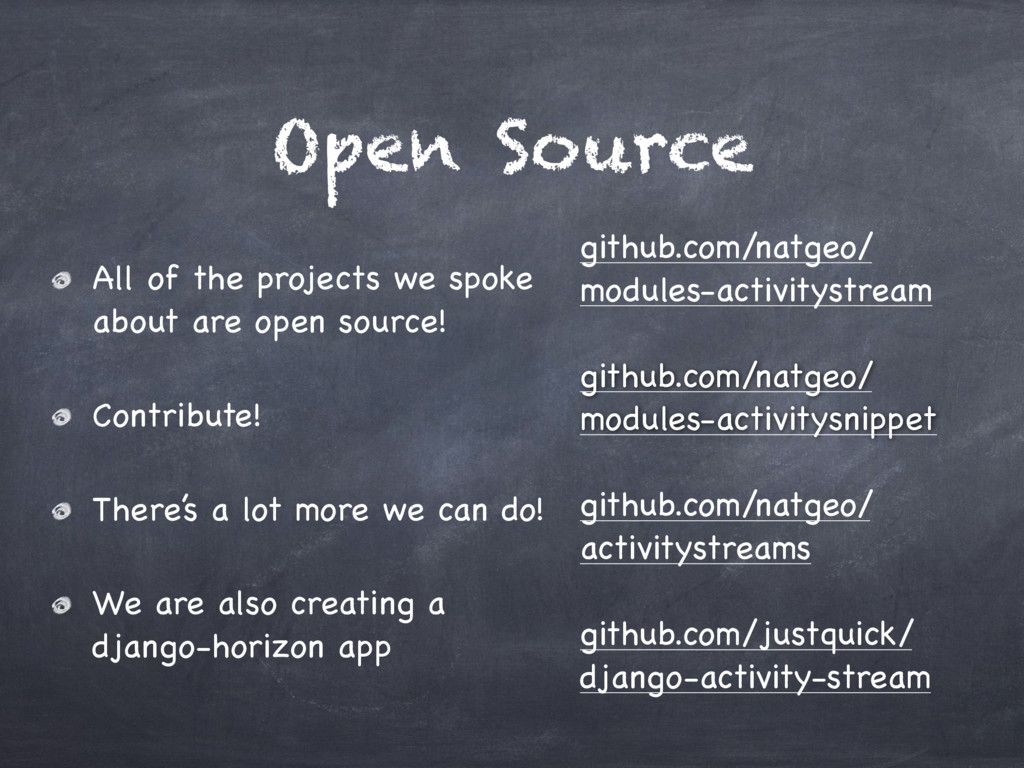

67. Open Source All of the projects we spoke about are open source! Contribute! There’s a lot more we can do! We are also creating a django-horizon app github.com/natgeo/ modules-activitystream
 github.com/natgeo/ modules-activitysnippet
 github.com/natgeo/ activitystreams
 github.com/justquick/ django-activity-stream
68. ATTRIBUTION Activity Streams graphic content released under CC 3.0 by http:/ /activitystrea.ms ! Other images released under various licenses: ! https:/ /www.flickr.com/photos/thomashawk/8562000383 (CC BY-NC 2.0) https:/ /www.flickr.com/photos/rikomatic/2784359847 (CC BY-NC-SA 2.0) https:/ /www.flickr.com/photos/ajc1/5058431577 (CC BY-NC-SA 2.0) https:/ /www.flickr.com/photos/bumi/2803382816 (CC BY-SA 2.0) https:/ /www.flickr.com/photos/_tar0_/5241548889 (CC BY 2.0) https:/ /www.flickr.com/photos/katerha/14310234256 (CC BY 2.0) https:/ /www.flickr.com/photos/quinnanya/8203757695 (CC BY-SA 2.0) http:/ /en.wikipedia.org/wiki/Infinite_monkey_theorem#mediaviewer/File:Monkey-typing.jpg
 (public domain via Wikimedia Commons) ! Cropping and resizing modifications were made to fit the presentation format.
69. Q & A Justin Quick
 justquick@gmail.com Ben Fonarov
 chuwiey@gmail.com Farhan Syed
 nearhan@gmail.com
