PAHFIT HackDay Open-Dev Model

Intro for PAHFIT code development model (11 Jan 2021)

Transcript

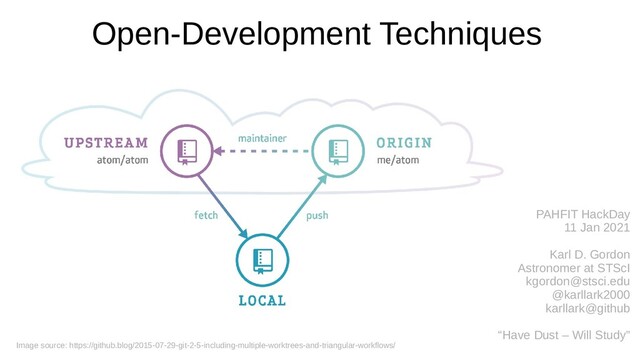

1. Open-Development Techniques
   PAHFIT HackDay
   11 Jan 2021
   Karl D. Gordon
   Astronomer at STScI
   kgordon@stsci.edu
   @karllark2000
   karllark@github
   “Have Dust – Will Study”
   Image source: https://github.blog/2015-07-29-git-2-5-including-multiple-worktrees-and-triangular-workflows/


   View Slide

2. Distributed Coding
   ●
   Geographically, temporally distributed
   ●
   Astropy Affiliated Package
   ●
   Github


   View Slide

3. Astropy Affiliated Package
   ●
   http://docs.astropy.org/en/stable/development/af
   filiated-packages.html
   ●
   Take advantage of the community knowledge of
   how to do distributed/social code development


   View Slide

4. View Slide

5. View Slide

6. Github
   ●
   Social coding
   ●
   Provides an easy to use user interface to git
   – Git = version control for tracking changes
   ●
   Manage development via issues
   ●
   Fork-Clone-Pull model


   View Slide

7. https://github.blog/2015-07-29-git-2-5-including-multiple-worktrees-and-triangular-workflows/


   View Slide

8. https://github.com/sf-wdi-21/notes


   View Slide

9. View Slide

10. View Slide

11. Issues
    ●
    Centralized location for code management
    ●
    Allows for anyone anywhere to keep up-to-date
    ●
    Anyone can raise an issue
    ●
    Anyone can comment on an issue
    ●
    All work should be tracked via an issue
    – Avoids multiple people working on the same thing
    ●
    Issues assigned to specific people
    – Others can contact and coordinate


    View Slide

12. View Slide

13. Fork-Clone-Pull Model
    ●
    Everyone forks the master repository
    ●
    When updated code/docs/etc ready, issue a pull
    request to master repository
    – Identify the issue(s) this pull request addresses
    ●
    Review and discussion of pull request
    ●
    Pull request approved → code merged


    View Slide

14. View Slide

15. Who is contributing?


    View Slide

16. Work needed - Issues
    ●
    All work this week needs an issue
    – Gets us into the habit
    – Central organization
    – Allows remote participation
    – Keeps track of work
    ●
    Major Areas
    – Code, cleanup and enhancements
    – Documentation, more and setup with readthedocs
    – Testing, more and setup with travis
    – Build, setup and test
    – Logo?


    View Slide

17. Github Details


    View Slide

18. How to Fork
    ●
    https://help.github.com/articles/fork-a-repo/
    ●
    On github, got to the master PAHFIT repository
    – Find the fork button
    – Makes a copy of the repository in your github area


    View Slide

19. Clone the fork to your computer
    (& setup sync to master)
    ●
    In your github area, find the code button
    ●
    On command line in the directory you want the copy
    – git clone git@github.com:YOURGITNAME/pahfit.git
    ●
    Configure your clone version to sync with master BEAST version
    – In the github master BEAST respository
    – Find the clone button
    – Goto the directory with your clone version
    – git remote add upstream git@github.com:PAHFIT/pahfit.git


    View Slide

20. Clone the fork to your computer
    (& setup sync to master)
    ●
    In your github area, find the code button
    ●
    On command line in the directory you want the copy
    – git clone git@github.com:YOURGITNAME/pahfit.git
    ●
    Configure your clone version to sync with master PAHFIT version
    – In the github master PAHFIT respository
    – Find the clone button
    – Goto the directory with your clone version
    – git remote add upstream git@github.com:PAHFIT/pahfit.git


    View Slide

21. Syncing your fork
    ●
    https://help.github.com/articles/syncing-a-fork/
    ●
    Get updated files from the pahfit master
    – Do this when when appropriate (e.g., starting new branch)
    ●
    In directory of clone on your computer
    – git fetch upstream
    – git checkout master
    – git merge upstream/master
    ●
    If you only update your master this way, life will be easier


    View Slide

22. Branch your fork
    ●
    https://github.com/Kunena/Kunena-Forum/wiki/Create-a-new-bra
    nch-with-git-and-manage-branches
    ●
    Branches make it easy to manage work
    – Can have multiple branches and switch between them
    – New branch for a new issue
    ●
    In directory of clone on your computer
    – git checkout -b new_branch_name
    – git push origin branch_name → send to github
    – git branch → show branches on computer
    – git checkout branch_name → switch to that branch


    View Slide

23. Work on your branch
    ●
    Make changes, commit, repeat
    ●
    Test!
    – >>> tox -e test
    ●
    Build the docs
    – >>> tox -e build_docs
    ●
    Push to github


    View Slide

24. Generate a Pull Request
    ●
    On github


    View Slide

25. Pull request


    View Slide

26. View Slide

27. View Slide
