JavaLand 2022: Jakarta EE Security - Sailing Safe in Troubled Waters

JavaLand 2022: Jakarta EE Security - Sailing Safe in Troubled Waters

Security in Jakarta EE has long been under-used and under-specified. Existing specifications ranged from overly complex to non-existent. The result: few people used security standards. Java EE 8 changed that with JSR 375. Its evolution Jakarta Security facilitates portable application security integrated with container security. Allowing applications to treat authentication mechanisms like OAuth or OpenID Connect same as built-in container mechanisms like FORM or container-based access to a URL and features like @RolesAllowed and isUserInRole automatically work as expected. It depends on CDI, and lower level SPIs Jakarta Authentication and Jakarta Authorization.
Jakarta Authorization defines an SPI for authorization based security checking if a subject has given permissions and algorithms to transform security constraints for containers including Servlets or Enterprise Beans into them. Jakarta Authentication defines an SPI for authentication that interacts with a container’s environment to obtain the caller’s credentials, validate them and pass an authenticated identity (e.g. name, groups,...) to the container.

This hands-on session is intended to get attendees up to speed with the state of Jakarta Security specs, demonstrate compatible implementations like Soteria, Exousia and others including Eclipse Glassfish or Tomcat. We will ask the audience for their opinion and thoughts what else they would like to see in the Security specs with Jakarta EE 10 and beyond.

Werner Keil

March 16, 2022
Tweet

More Decks by Werner Keil

Other Decks in Programming

Transcript

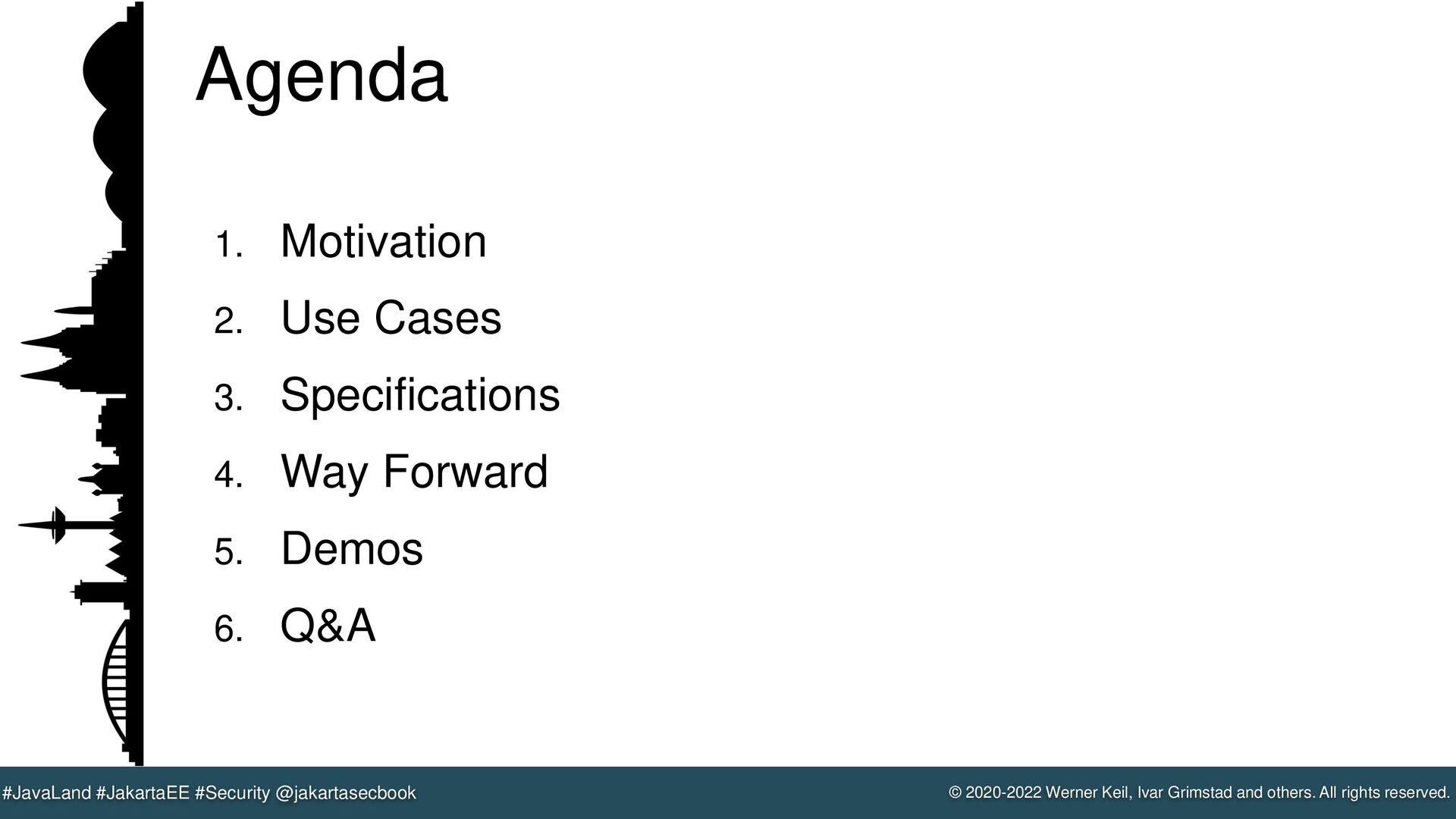

  1. © 2020-2022 Werner Keil, Ivar Grimstad and others. All rights

    reserved. #JavaLand #JakartaEE #Security @jakartasecbook Agenda 1. Motivation 2. Use Cases 3. Specifications 4. Way Forward 5. Demos 6. Q&A
  2. © 2020-2022 Werner Keil, Ivar Grimstad and others. All rights

    reserved. #JavaLand #JakartaEE #Security @jakartasecbook Who are we? Werner Keil • Consultant – Coach • Creative Cosmopolitan • Open Source Evangelist • Software Architect • Author, Speaker • Maintenance Lead – JSR 354, 385 • Jakarta EE Spec Committee Member [www.linkedin.com/in/catmedia]
  3. © 2020-2022 Werner Keil, Ivar Grimstad and others. All rights

    reserved. #JavaLand #JakartaEE #Security @jakartasecbook Ivar Grimstad • Jakarta EE Developer Advocate • Java Champion • JUG Leader • JCP Executive Committee Member
  4. © 2020-2022 Werner Keil, Ivar Grimstad and others. All rights

    reserved. #JavaLand #JakartaEE #Security @jakartasecbook Motivation Images © 1975-2020 Amazon. All Rights Reserved. Troubled Water(s)

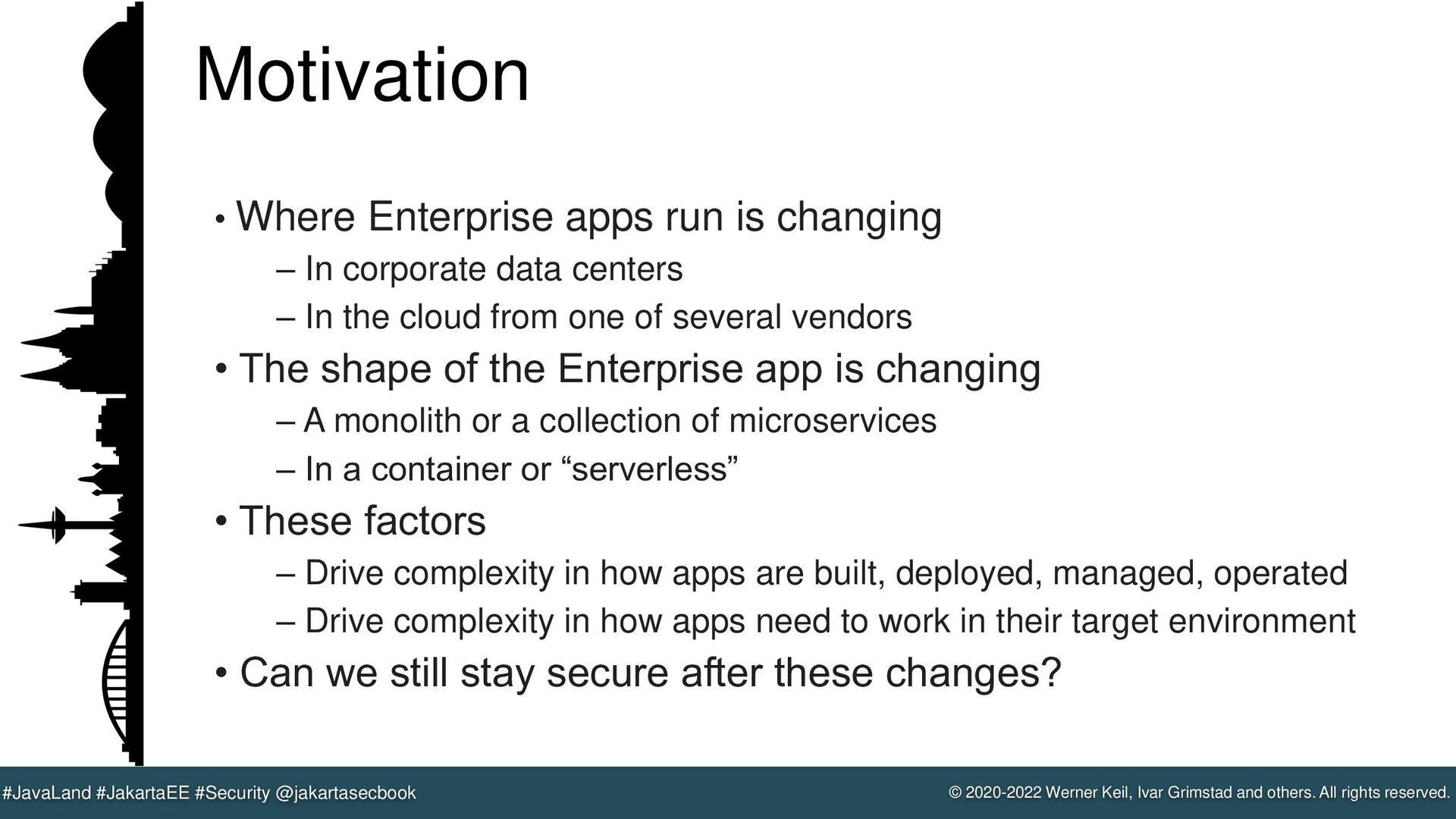

  5. © 2020-2022 Werner Keil, Ivar Grimstad and others. All rights

    reserved. #JavaLand #JakartaEE #Security @jakartasecbook Motivation • Where Enterprise apps run is changing – In corporate data centers – In the cloud from one of several vendors • The shape of the Enterprise app is changing – A monolith or a collection of microservices – In a container or “serverless” • These factors – Drive complexity in how apps are built, deployed, managed, operated – Drive complexity in how apps need to work in their target environment • Can we still stay secure after these changes?

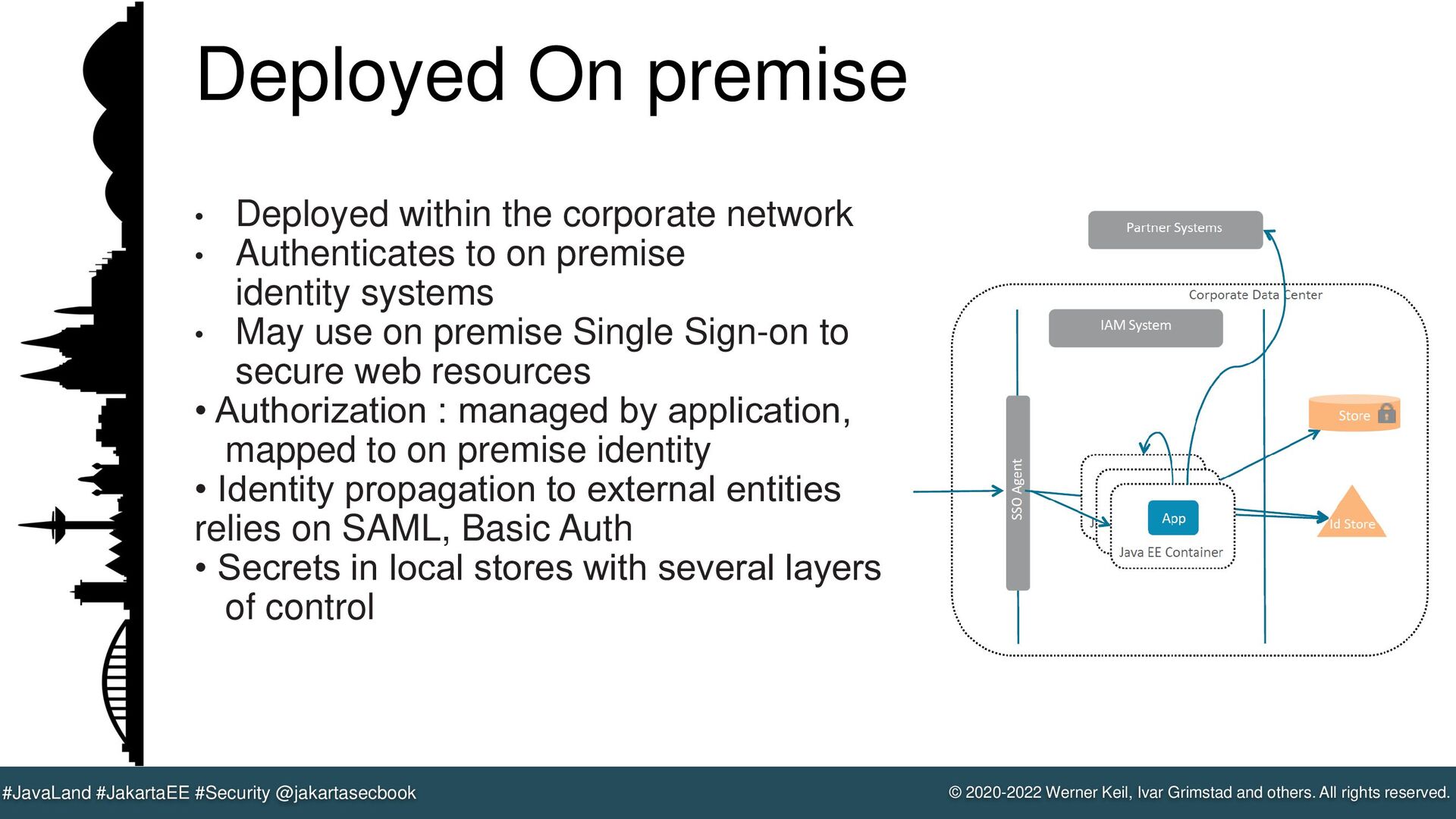

  6. © 2020-2022 Werner Keil, Ivar Grimstad and others. All rights

    reserved. #JavaLand #JakartaEE #Security @jakartasecbook Deployed On premise • Deployed within the corporate network • Authenticates to on premise identity systems • May use on premise Single Sign-on to secure web resources • Authorization : managed by application, mapped to on premise identity • Identity propagation to external entities relies on SAML, Basic Auth • Secrets in local stores with several layers of control

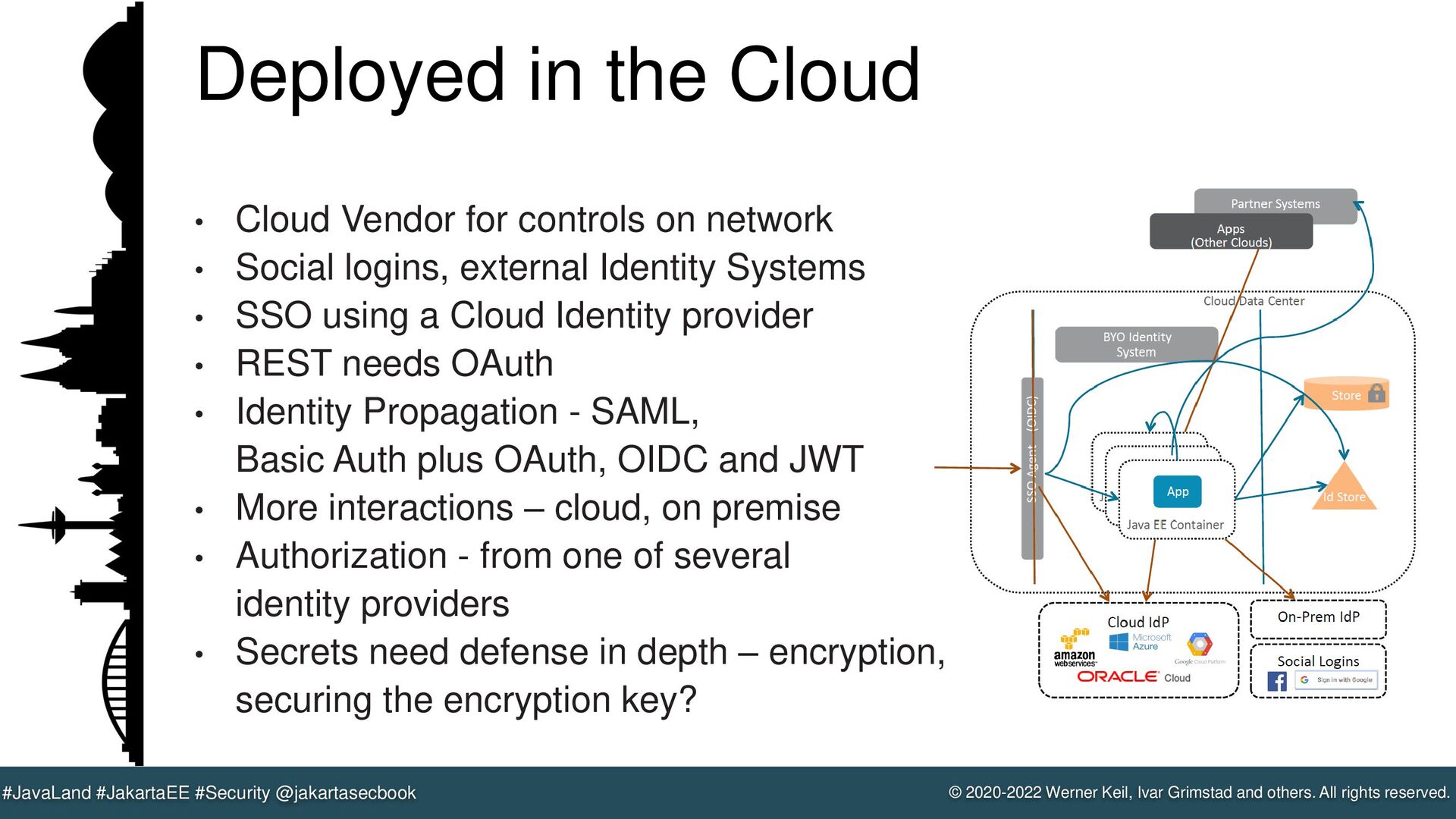

  7. © 2020-2022 Werner Keil, Ivar Grimstad and others. All rights

    reserved. #JavaLand #JakartaEE #Security @jakartasecbook Deployed in the Cloud • Cloud Vendor for controls on network • Social logins, external Identity Systems • SSO using a Cloud Identity provider • REST needs OAuth • Identity Propagation - SAML, Basic Auth plus OAuth, OIDC and JWT • More interactions – cloud, on premise • Authorization - from one of several identity providers • Secrets need defense in depth – encryption, securing the encryption key?

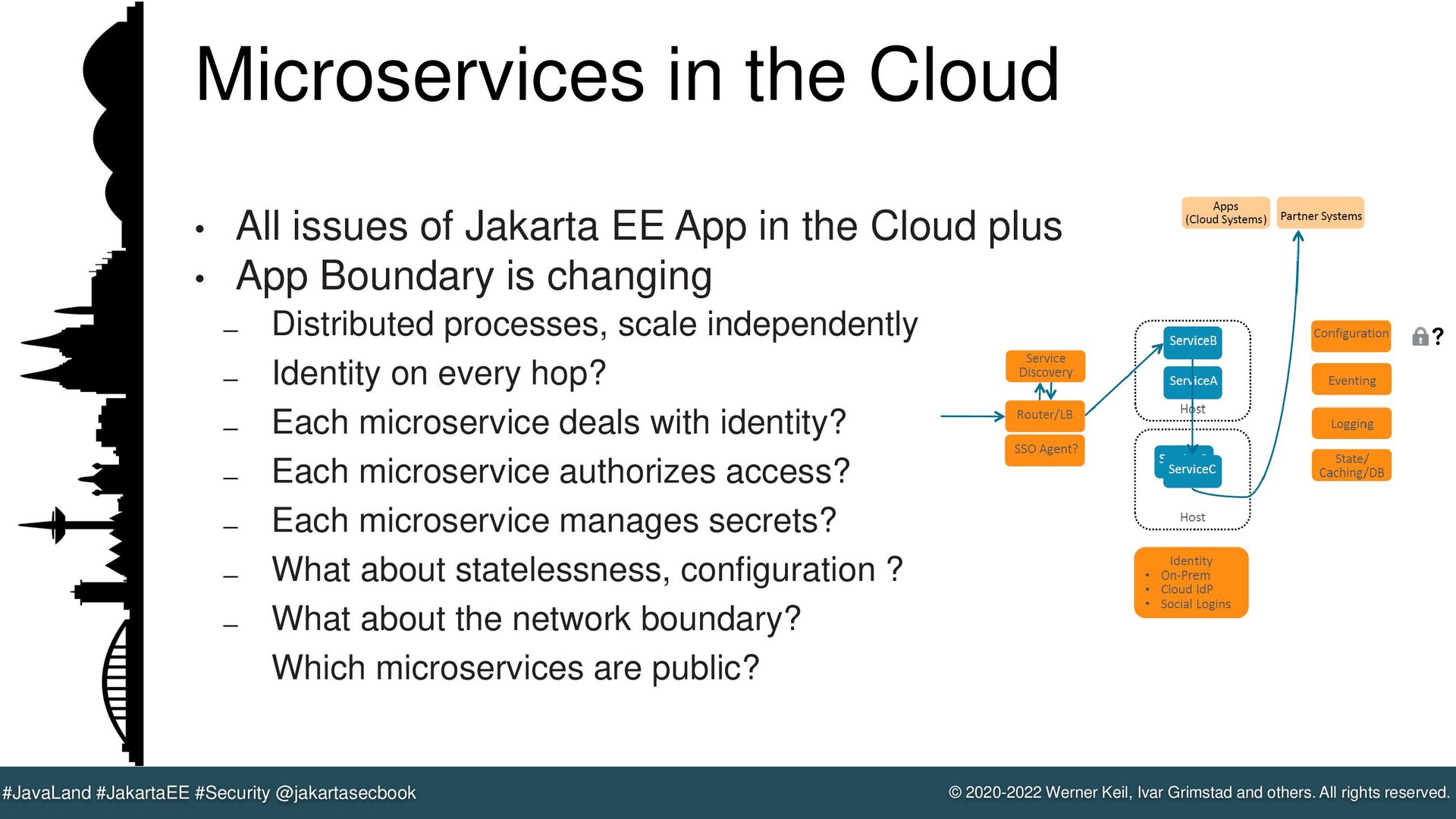

  8. © 2020-2022 Werner Keil, Ivar Grimstad and others. All rights

    reserved. #JavaLand #JakartaEE #Security @jakartasecbook Microservices in the Cloud • All issues of Jakarta EE App in the Cloud plus • App Boundary is changing ̶ Distributed processes, scale independently ̶ Identity on every hop? ̶ Each microservice deals with identity? ̶ Each microservice authorizes access? ̶ Each microservice manages secrets? ̶ What about statelessness, configuration ? ̶ What about the network boundary? Which microservices are public?

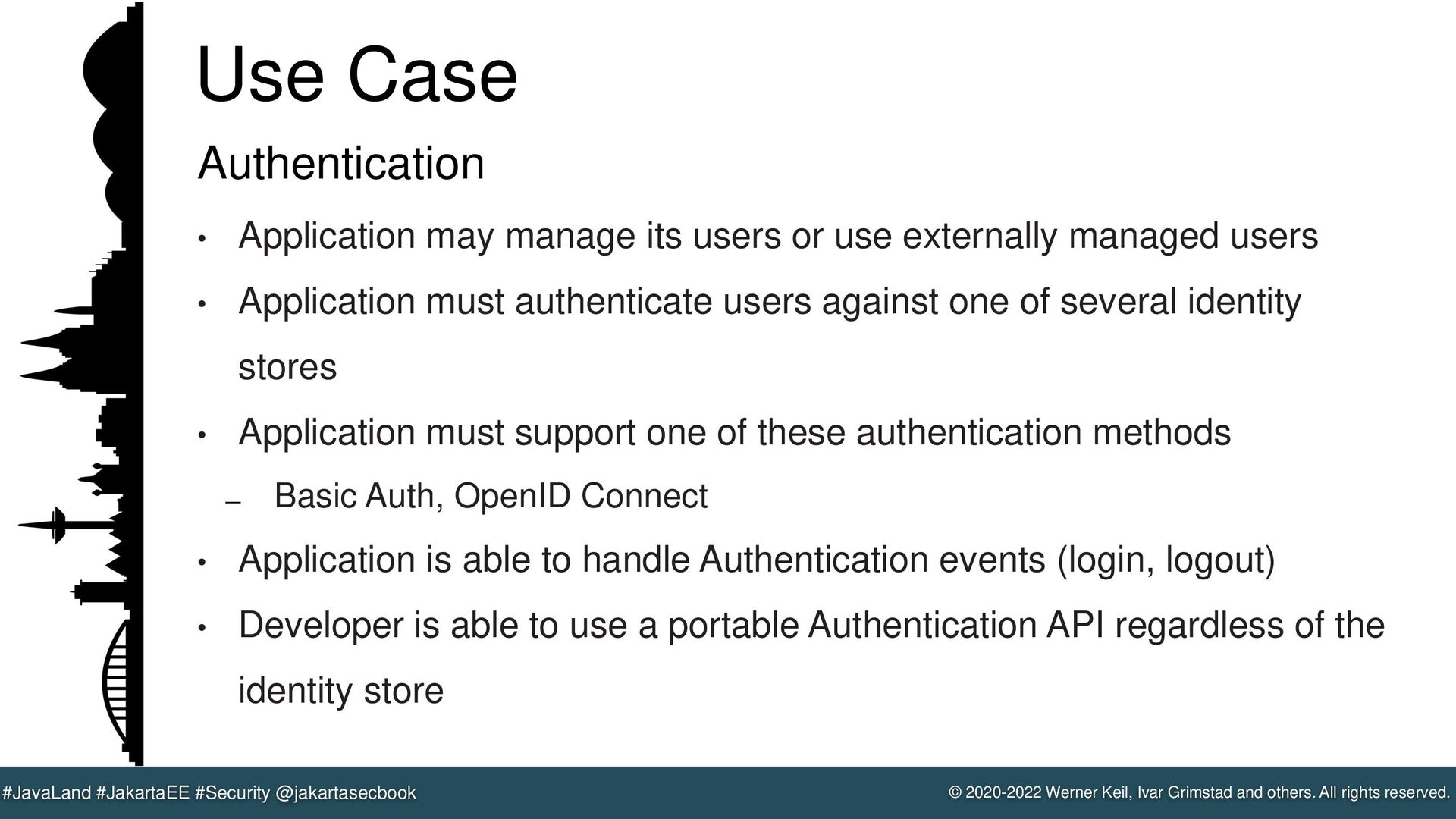

  9. © 2020-2022 Werner Keil, Ivar Grimstad and others. All rights

    reserved. #JavaLand #JakartaEE #Security @jakartasecbook Use Case Authentication • Application may manage its users or use externally managed users • Application must authenticate users against one of several identity stores • Application must support one of these authentication methods ̶ Basic Auth, OpenID Connect • Application is able to handle Authentication events (login, logout) • Developer is able to use a portable Authentication API regardless of the identity store

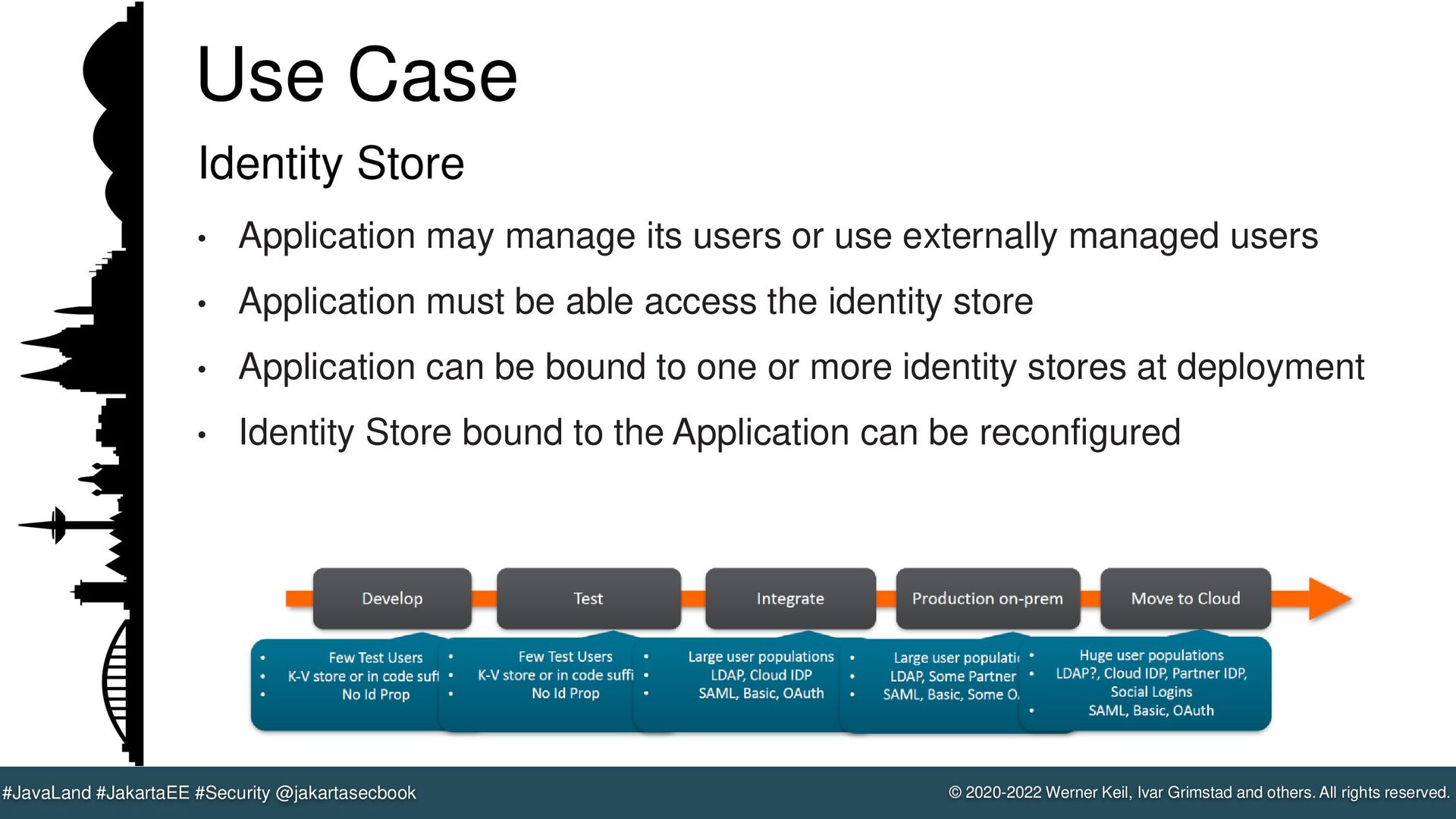

  10. © 2020-2022 Werner Keil, Ivar Grimstad and others. All rights

    reserved. #JavaLand #JakartaEE #Security @jakartasecbook Use Case Identity Store • Application may manage its users or use externally managed users • Application must be able access the identity store • Application can be bound to one or more identity stores at deployment • Identity Store bound to the Application can be reconfigured

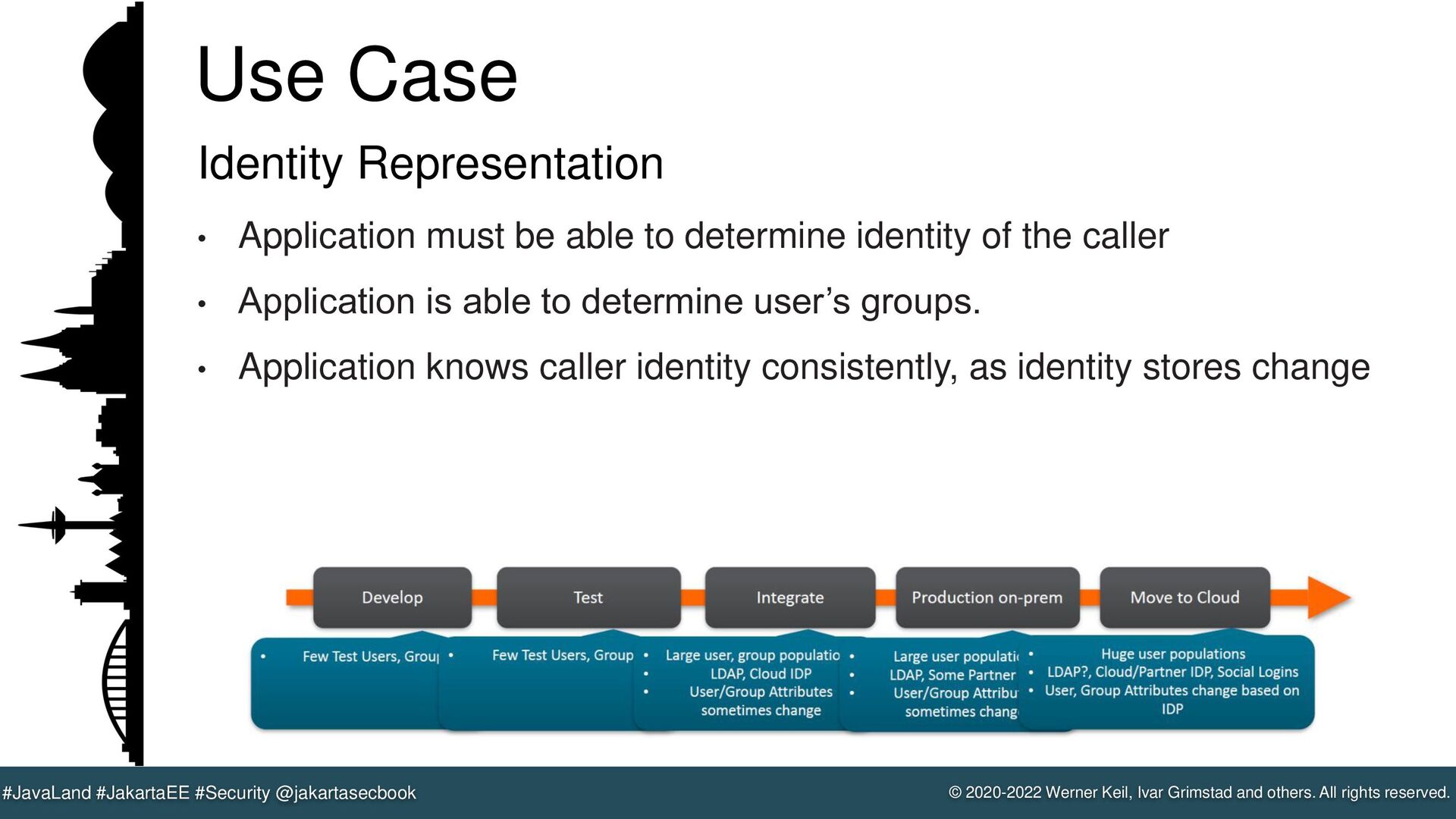

  11. © 2020-2022 Werner Keil, Ivar Grimstad and others. All rights

    reserved. #JavaLand #JakartaEE #Security @jakartasecbook Use Case Identity Representation • Application must be able to determine identity of the caller • Application is able to determine user’s groups. • Application knows caller identity consistently, as identity stores change

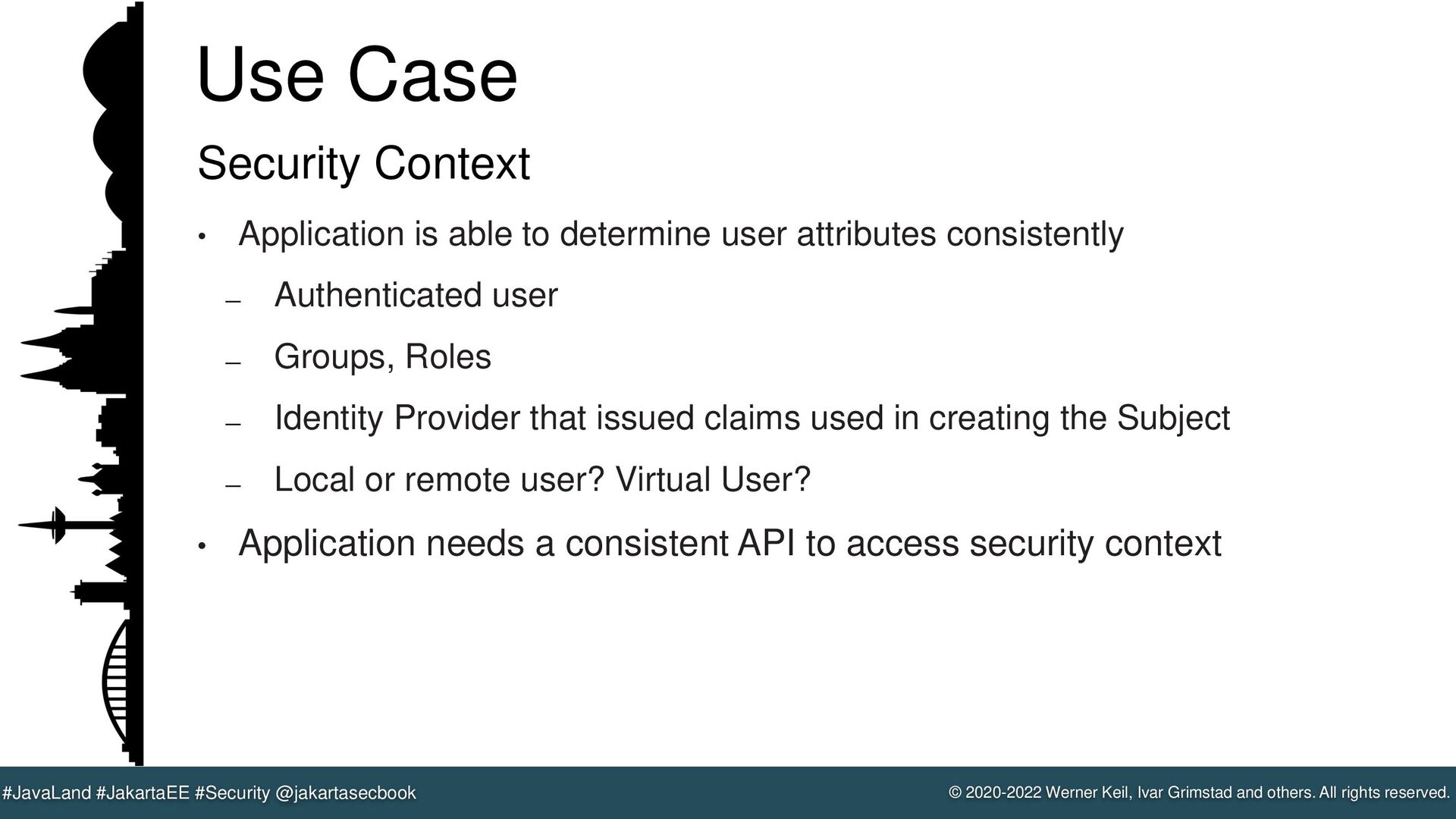

  12. © 2020-2022 Werner Keil, Ivar Grimstad and others. All rights

    reserved. #JavaLand #JakartaEE #Security @jakartasecbook Use Case Security Context • Application is able to determine user attributes consistently ̶ Authenticated user ̶ Groups, Roles ̶ Identity Provider that issued claims used in creating the Subject ̶ Local or remote user? Virtual User? • Application needs a consistent API to access security context
  13. © 2020-2022 Werner Keil, Ivar Grimstad and others. All rights

    reserved. #JavaLand #JakartaEE #Security @jakartasecbook Jakarta EE Security Specs @ivar_grimstad @wernerkeil • Authentication • Authorization • Security

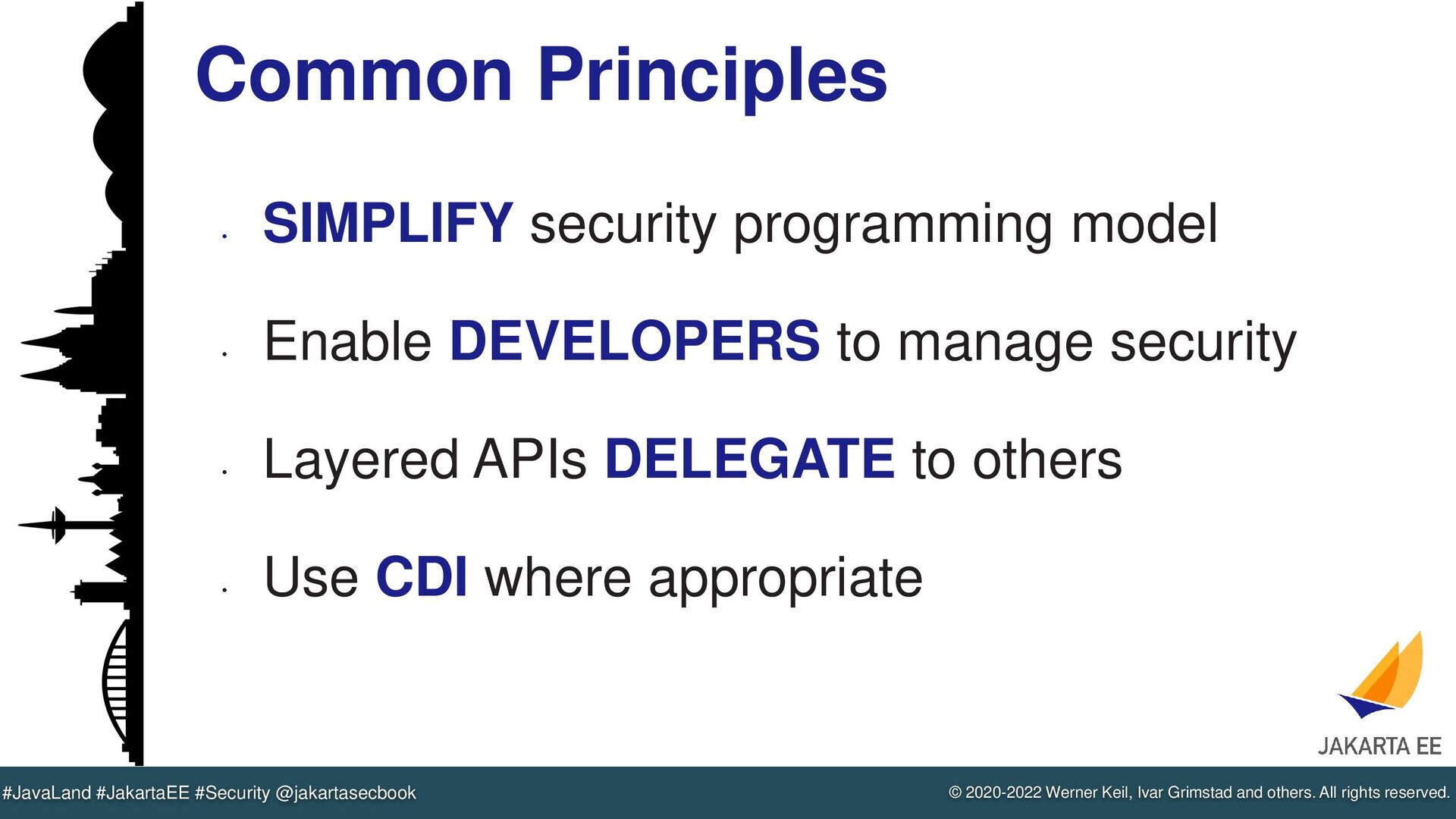

  14. © 2020-2022 Werner Keil, Ivar Grimstad and others. All rights

    reserved. #JavaLand #JakartaEE #Security @jakartasecbook Common Principles • SIMPLIFY security programming model • Enable DEVELOPERS to manage security • Layered APIs DELEGATE to others • Use CDI where appropriate

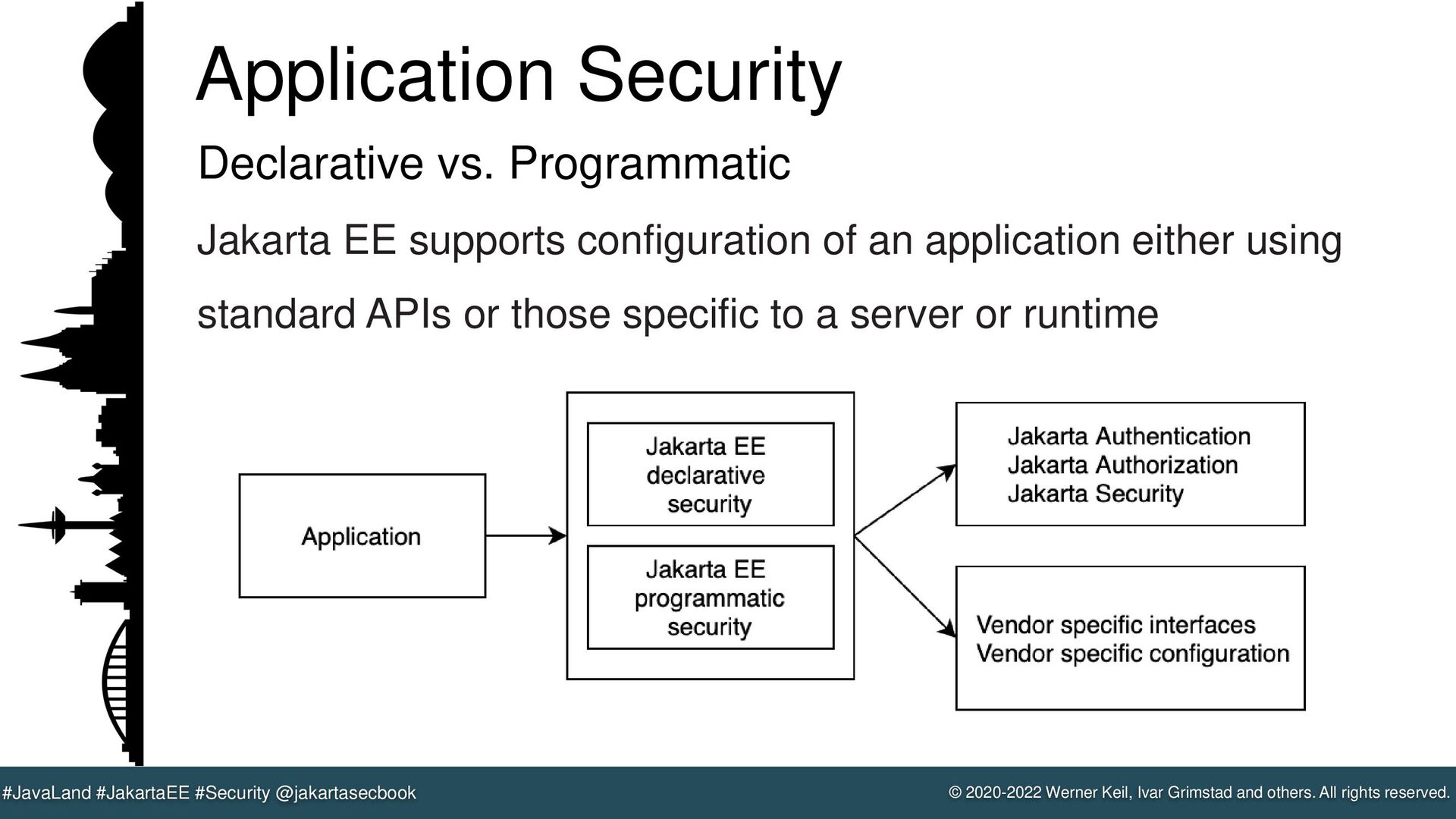

  15. © 2020-2022 Werner Keil, Ivar Grimstad and others. All rights

    reserved. #JavaLand #JakartaEE #Security @jakartasecbook Application Security Declarative vs. Programmatic Jakarta EE supports configuration of an application either using standard APIs or those specific to a server or runtime

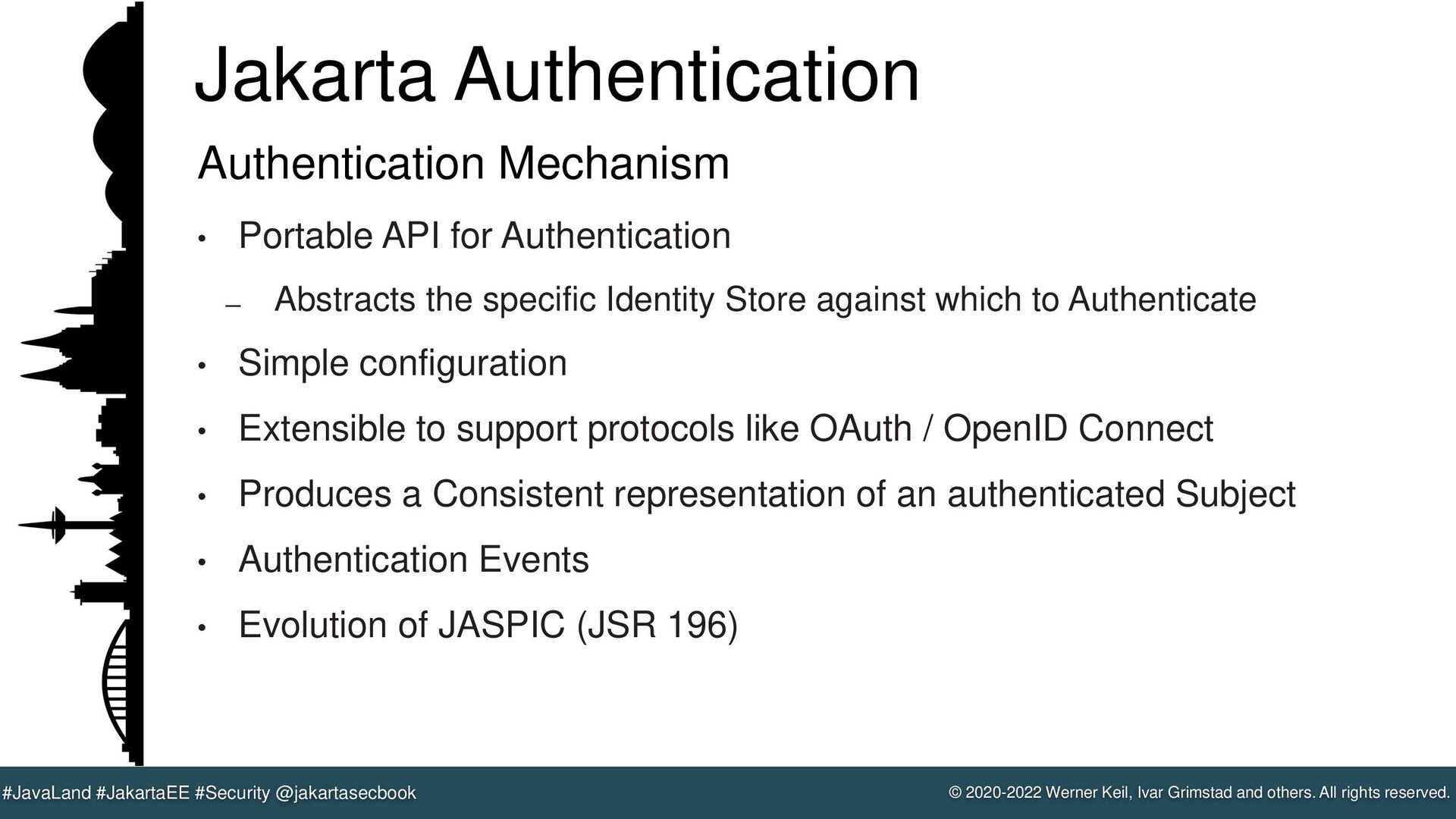

  16. © 2020-2022 Werner Keil, Ivar Grimstad and others. All rights

    reserved. #JavaLand #JakartaEE #Security @jakartasecbook Jakarta Authentication Authentication Mechanism • Portable API for Authentication ̶ Abstracts the specific Identity Store against which to Authenticate • Simple configuration • Extensible to support protocols like OAuth / OpenID Connect • Produces a Consistent representation of an authenticated Subject • Authentication Events • Evolution of JASPIC (JSR 196)

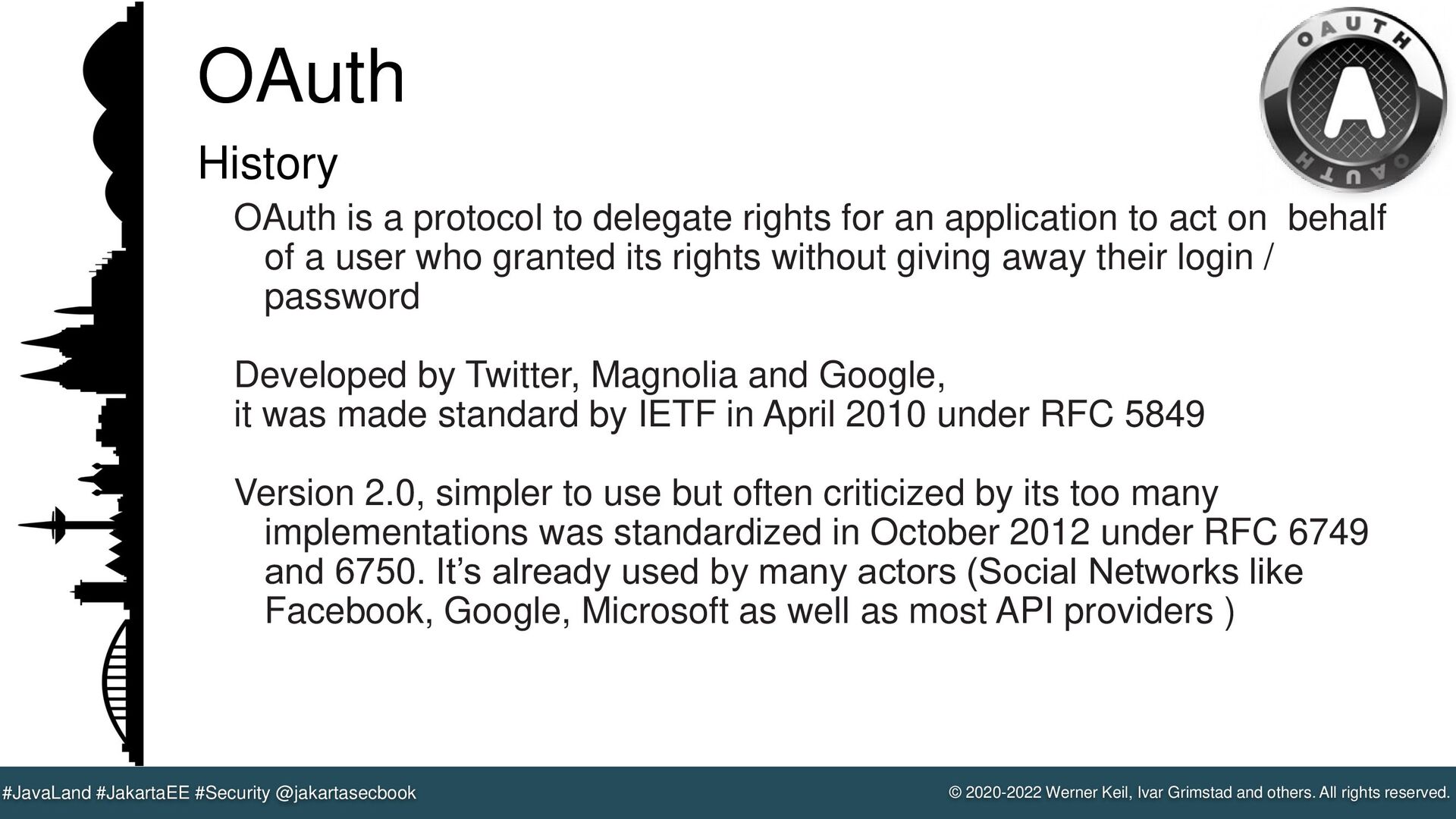

  17. © 2020-2022 Werner Keil, Ivar Grimstad and others. All rights

    reserved. #JavaLand #JakartaEE #Security @jakartasecbook OAuth OAuth is a protocol to delegate rights for an application to act on behalf of a user who granted its rights without giving away their login / password Developed by Twitter, Magnolia and Google, it was made standard by IETF in April 2010 under RFC 5849 Version 2.0, simpler to use but often criticized by its too many implementations was standardized in October 2012 under RFC 6749 and 6750. It’s already used by many actors (Social Networks like Facebook, Google, Microsoft as well as most API providers ) History

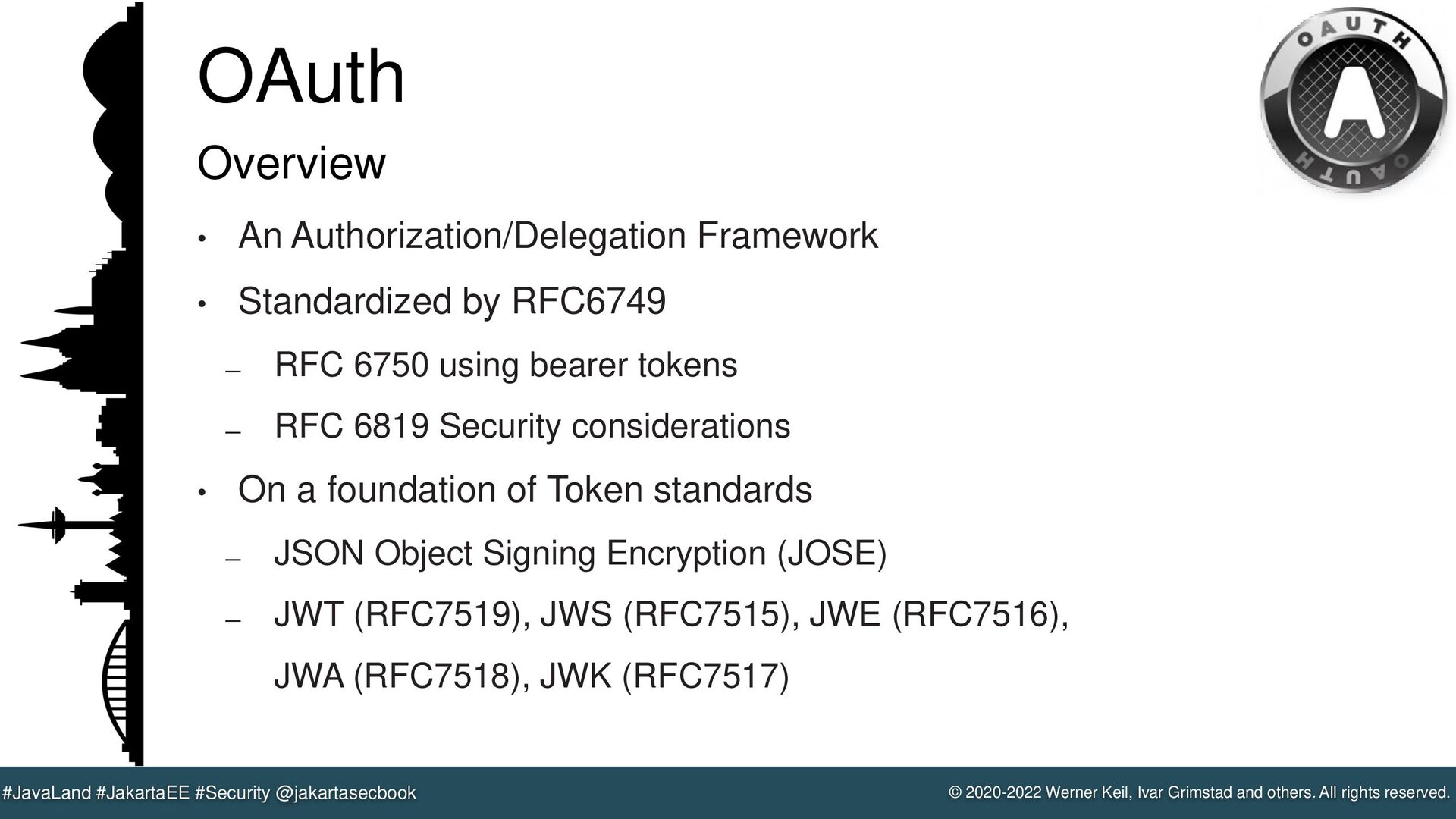

  18. © 2020-2022 Werner Keil, Ivar Grimstad and others. All rights

    reserved. #JavaLand #JakartaEE #Security @jakartasecbook OAuth Overview • An Authorization/Delegation Framework • Standardized by RFC6749 ̶ RFC 6750 using bearer tokens ̶ RFC 6819 Security considerations • On a foundation of Token standards ̶ JSON Object Signing Encryption (JOSE) ̶ JWT (RFC7519), JWS (RFC7515), JWE (RFC7516), JWA (RFC7518), JWK (RFC7517)

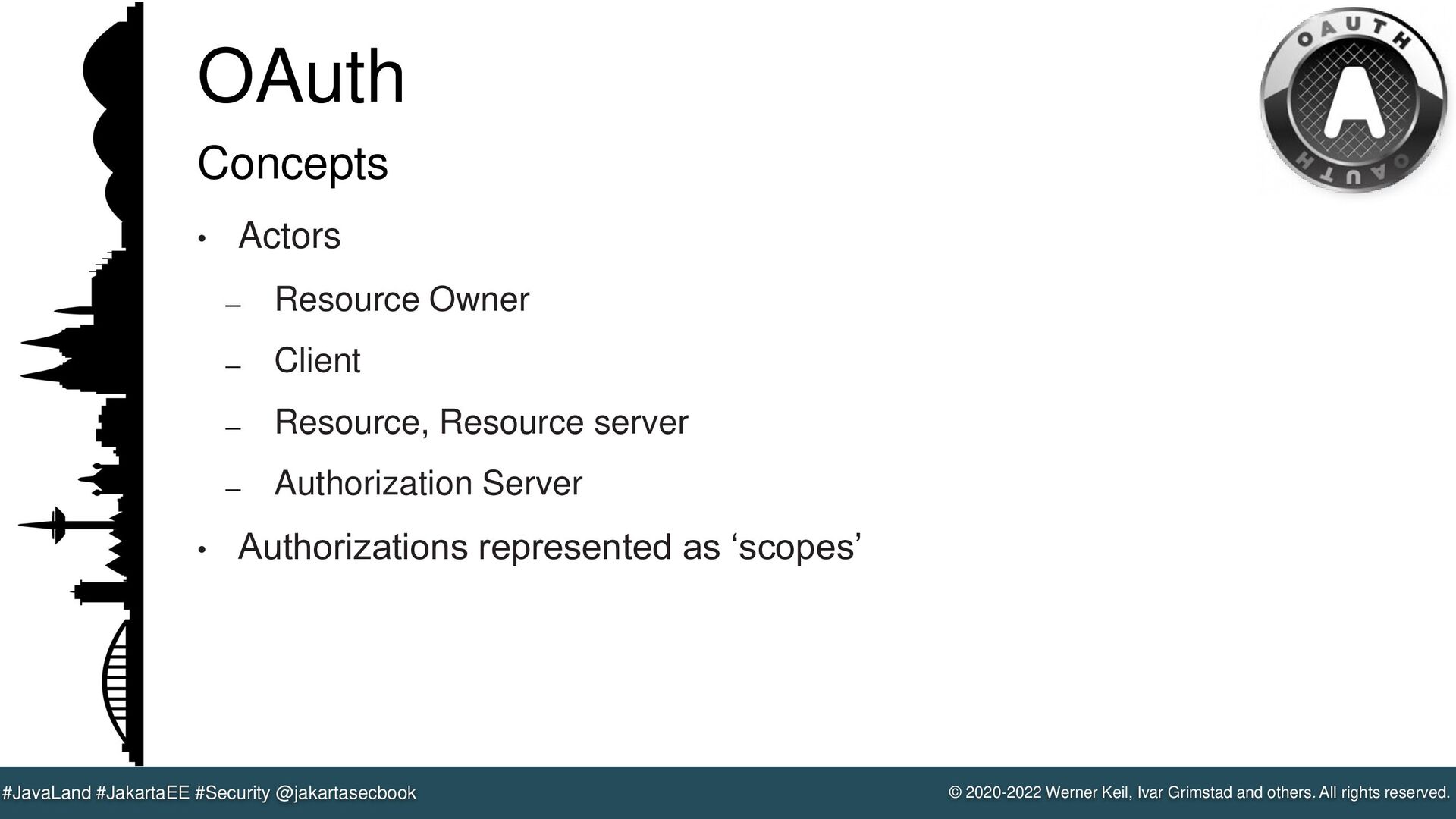

  19. © 2020-2022 Werner Keil, Ivar Grimstad and others. All rights

    reserved. #JavaLand #JakartaEE #Security @jakartasecbook OAuth Concepts • Actors ̶ Resource Owner ̶ Client ̶ Resource, Resource server ̶ Authorization Server • Authorizations represented as ‘scopes’

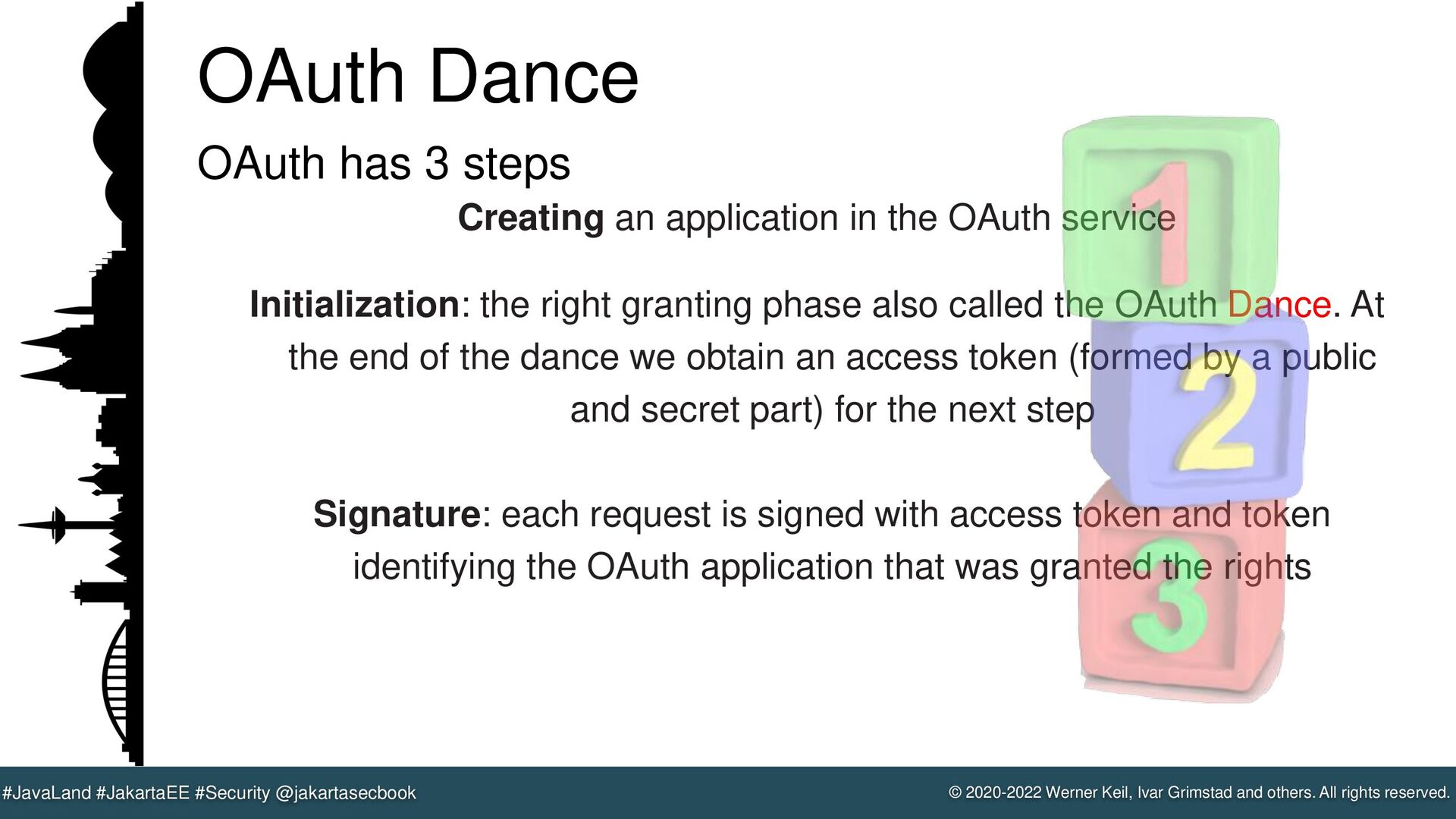

  20. © 2020-2022 Werner Keil, Ivar Grimstad and others. All rights

    reserved. #JavaLand #JakartaEE #Security @jakartasecbook OAuth Dance Creating an application in the OAuth service Initialization: the right granting phase also called the OAuth Dance. At the end of the dance we obtain an access token (formed by a public and secret part) for the next step Signature: each request is signed with access token and token identifying the OAuth application that was granted the rights OAuth has 3 steps

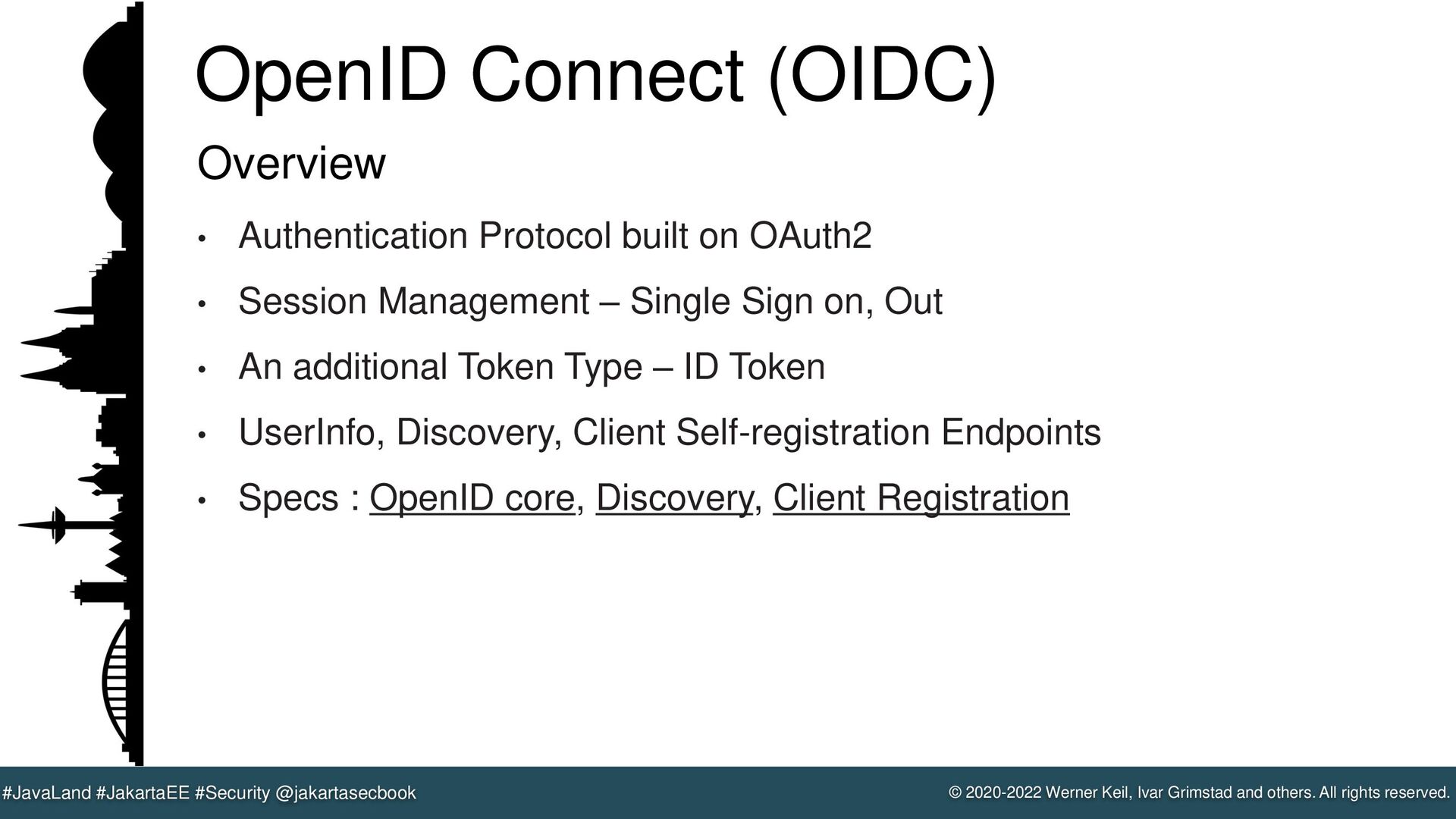

  21. © 2020-2022 Werner Keil, Ivar Grimstad and others. All rights

    reserved. #JavaLand #JakartaEE #Security @jakartasecbook OpenID Connect (OIDC) Overview • Authentication Protocol built on OAuth2 • Session Management – Single Sign on, Out • An additional Token Type – ID Token • UserInfo, Discovery, Client Self-registration Endpoints • Specs : OpenID core, Discovery, Client Registration

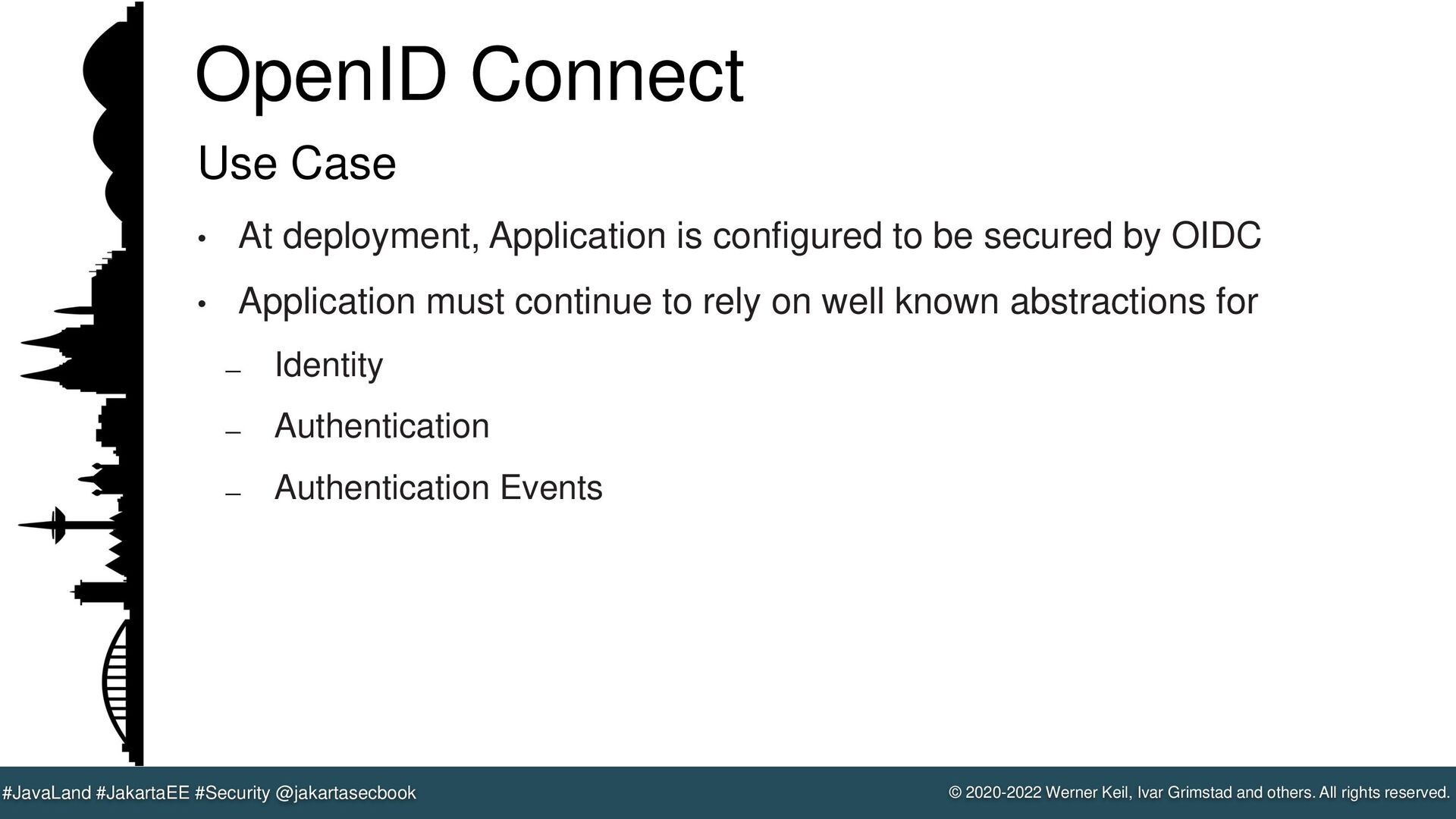

  22. © 2020-2022 Werner Keil, Ivar Grimstad and others. All rights

    reserved. #JavaLand #JakartaEE #Security @jakartasecbook OpenID Connect Use Case • At deployment, Application is configured to be secured by OIDC • Application must continue to rely on well known abstractions for ̶ Identity ̶ Authentication ̶ Authentication Events

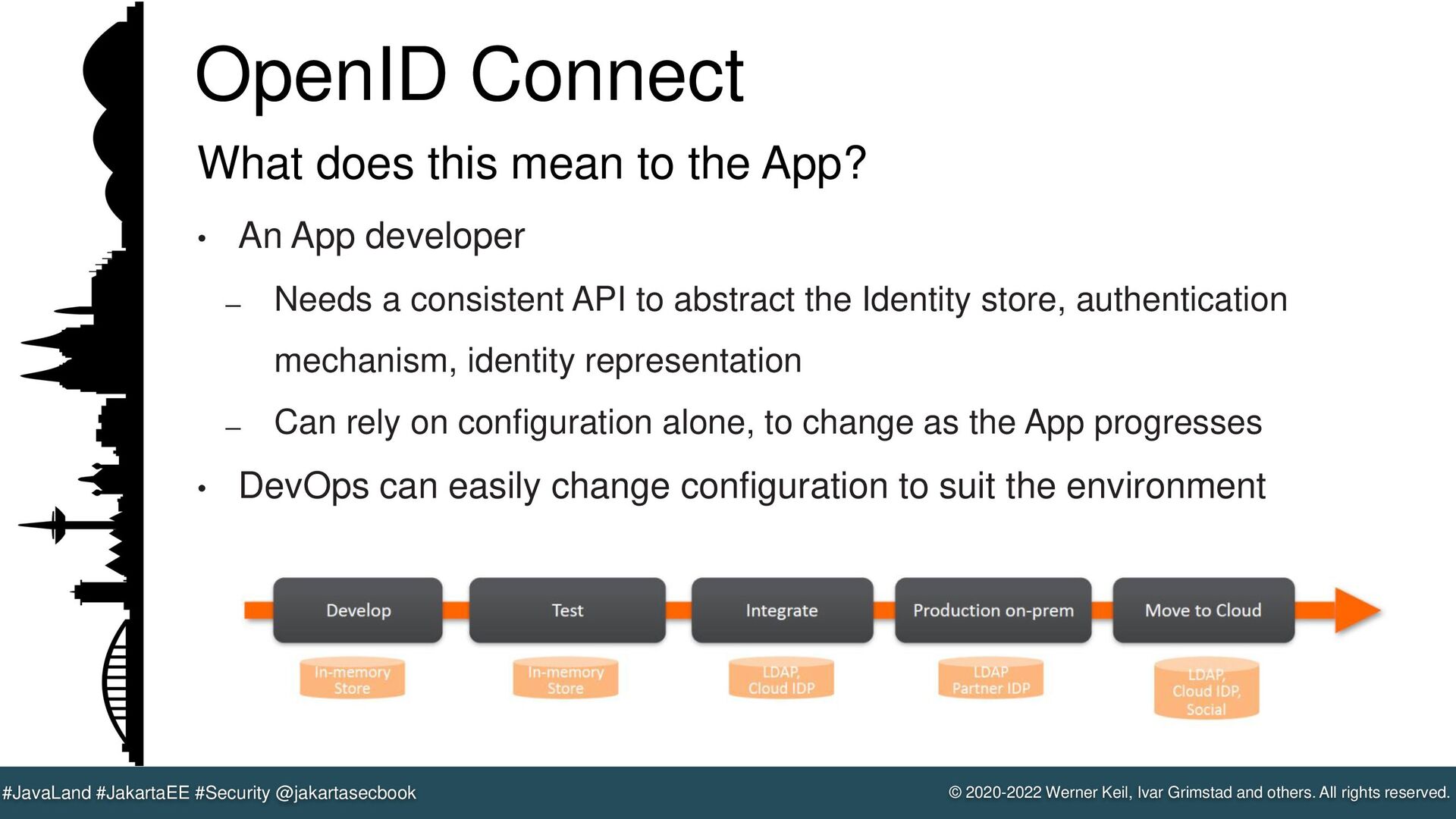

  23. © 2020-2022 Werner Keil, Ivar Grimstad and others. All rights

    reserved. #JavaLand #JakartaEE #Security @jakartasecbook OpenID Connect What does this mean to the App? • An App developer ̶ Needs a consistent API to abstract the Identity store, authentication mechanism, identity representation ̶ Can rely on configuration alone, to change as the App progresses • DevOps can easily change configuration to suit the environment

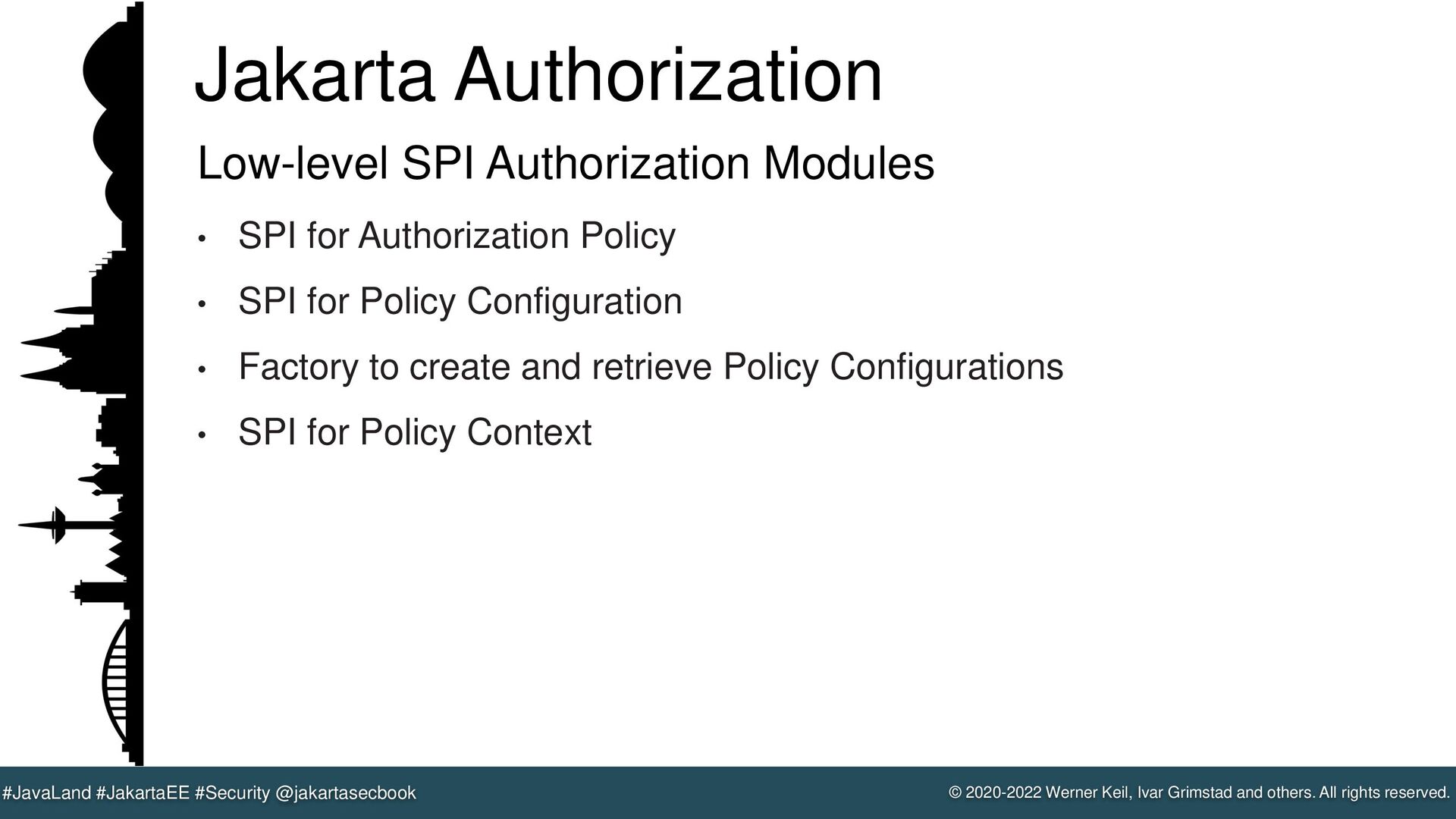

  24. © 2020-2022 Werner Keil, Ivar Grimstad and others. All rights

    reserved. #JavaLand #JakartaEE #Security @jakartasecbook Jakarta Authorization Low-level SPI Authorization Modules • SPI for Authorization Policy • SPI for Policy Configuration • Factory to create and retrieve Policy Configurations • SPI for Policy Context

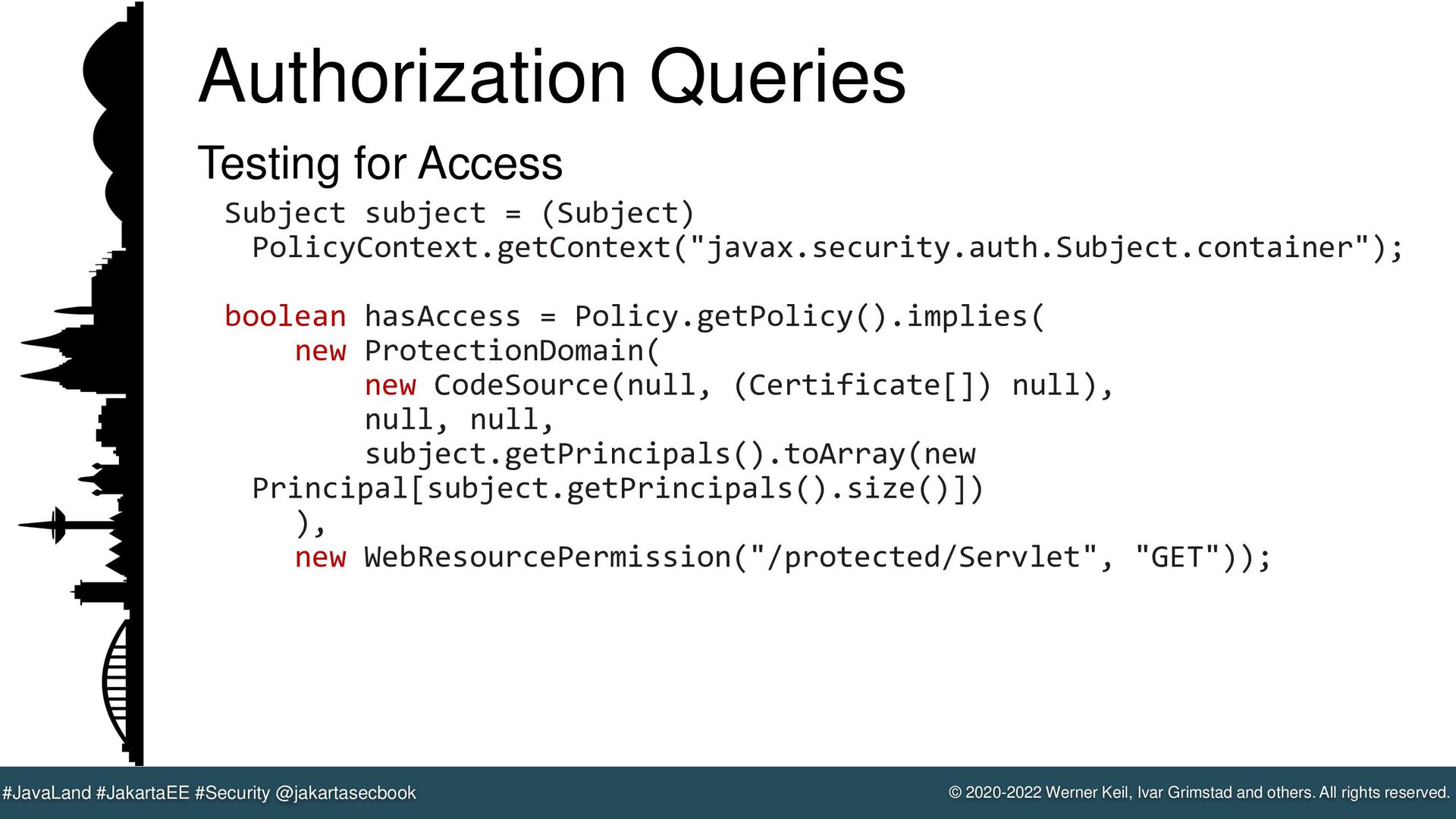

  25. © 2020-2022 Werner Keil, Ivar Grimstad and others. All rights

    reserved. #JavaLand #JakartaEE #Security @jakartasecbook Authorization Queries Testing for Access Subject subject = (Subject) PolicyContext.getContext("javax.security.auth.Subject.container"); boolean hasAccess = Policy.getPolicy().implies( new ProtectionDomain( new CodeSource(null, (Certificate[]) null), null, null, subject.getPrincipals().toArray(new Principal[subject.getPrincipals().size()]) ), new WebResourcePermission("/protected/Servlet", "GET"));

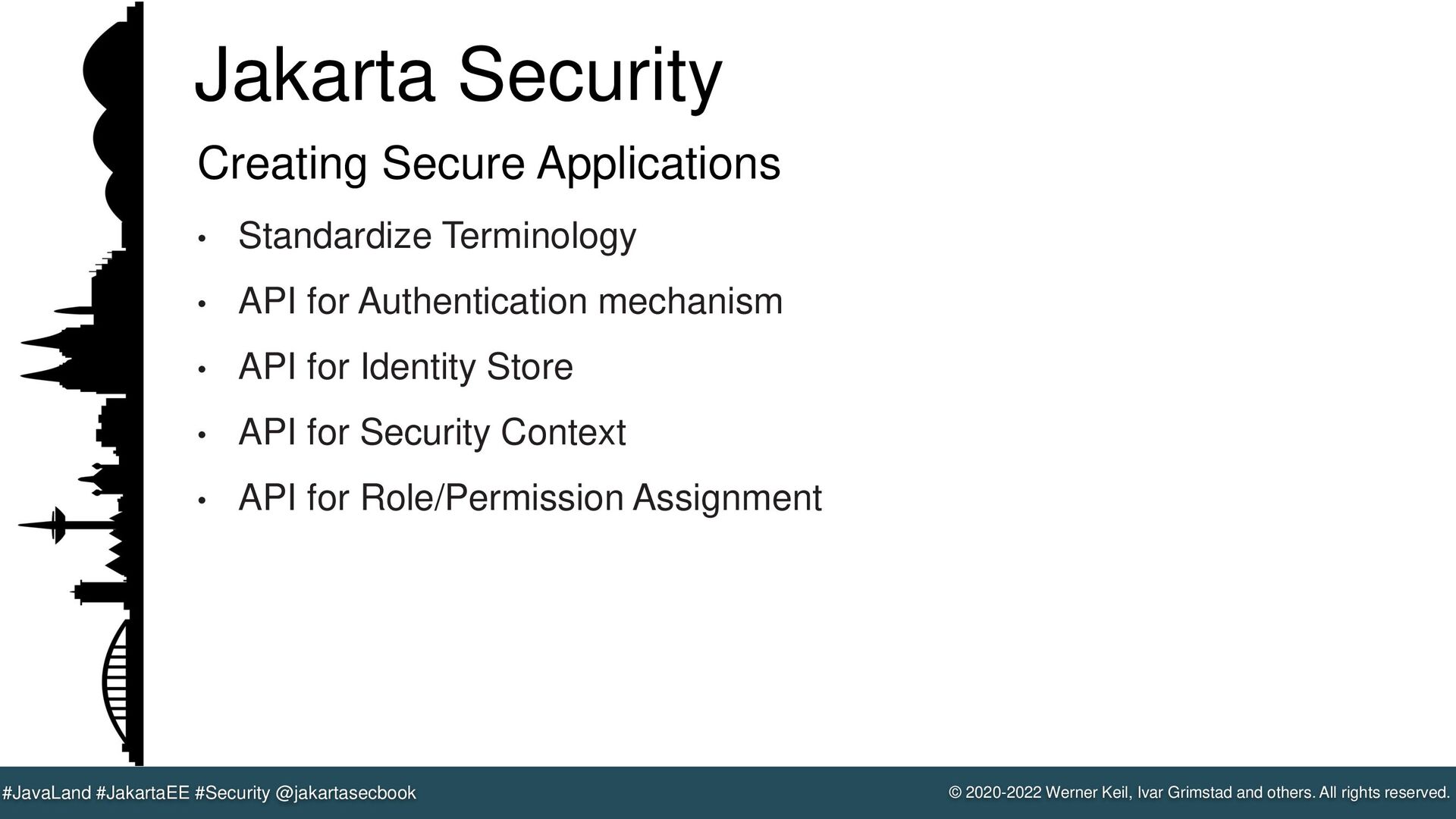

  26. © 2020-2022 Werner Keil, Ivar Grimstad and others. All rights

    reserved. #JavaLand #JakartaEE #Security @jakartasecbook Jakarta Security Creating Secure Applications • Standardize Terminology • API for Authentication mechanism • API for Identity Store • API for Security Context • API for Role/Permission Assignment

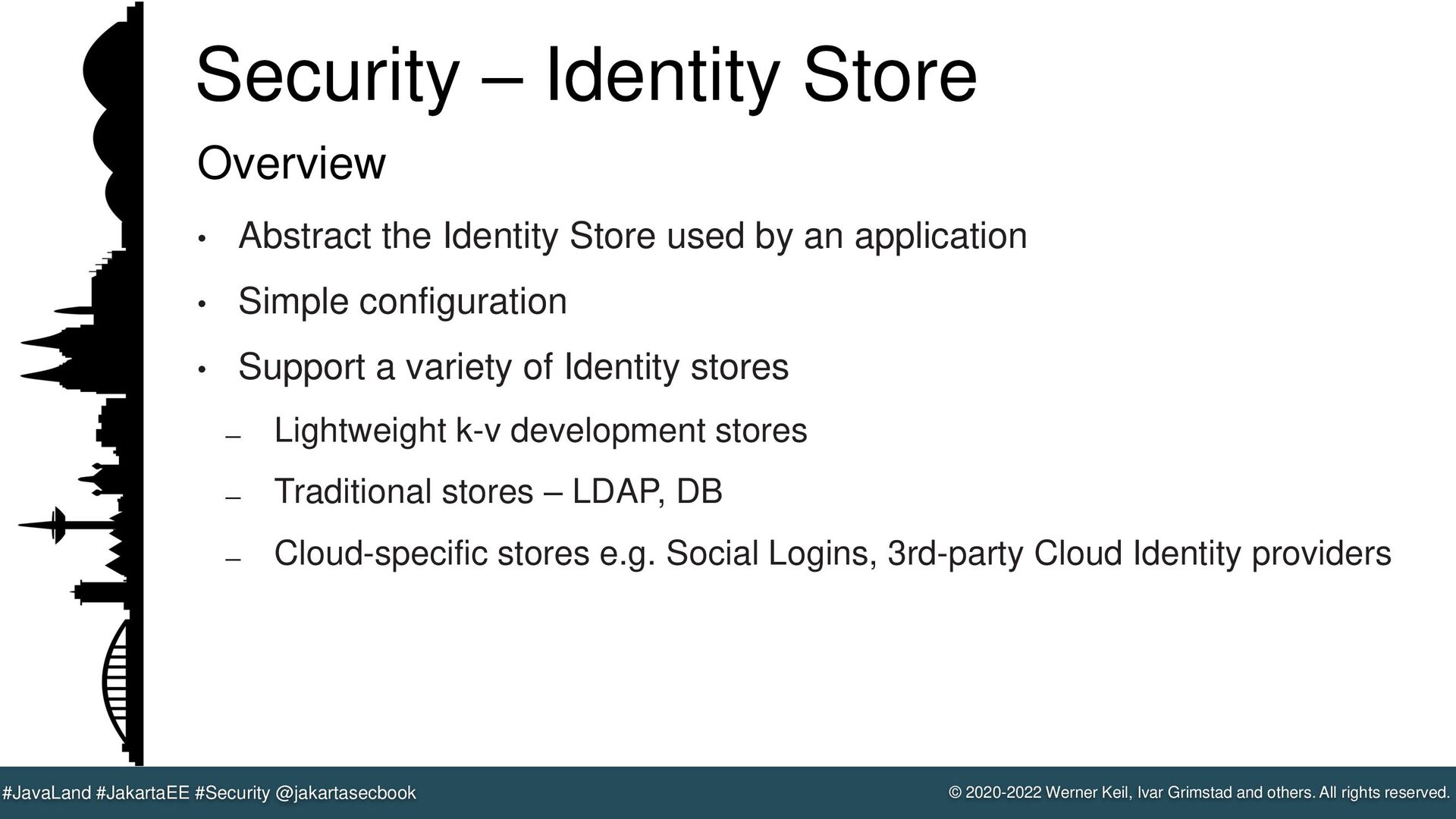

  27. © 2020-2022 Werner Keil, Ivar Grimstad and others. All rights

    reserved. #JavaLand #JakartaEE #Security @jakartasecbook Security – Identity Store Overview • Abstract the Identity Store used by an application • Simple configuration • Support a variety of Identity stores ̶ Lightweight k-v development stores ̶ Traditional stores – LDAP, DB ̶ Cloud-specific stores e.g. Social Logins, 3rd-party Cloud Identity providers

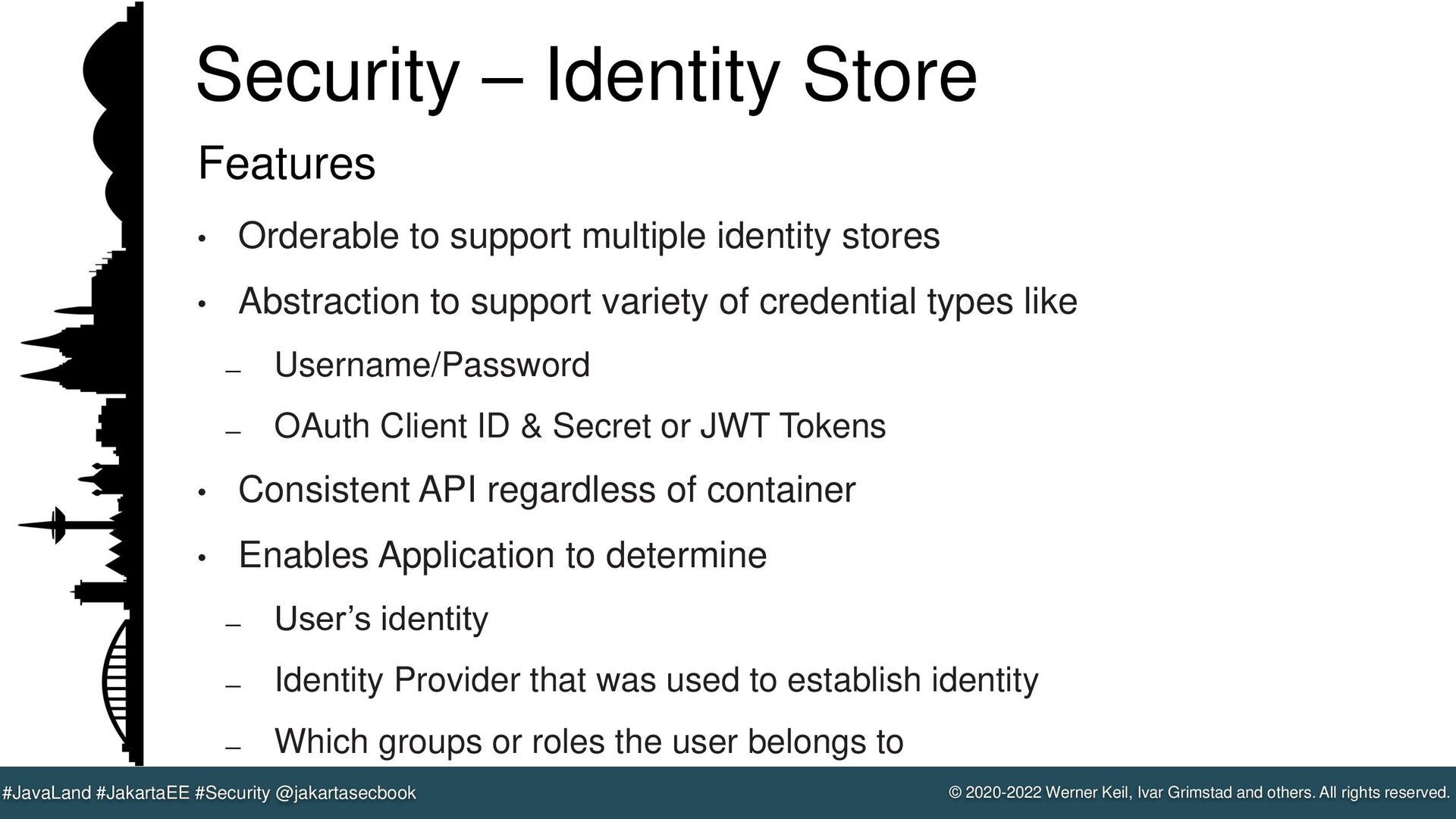

  28. © 2020-2022 Werner Keil, Ivar Grimstad and others. All rights

    reserved. #JavaLand #JakartaEE #Security @jakartasecbook Security – Identity Store Features • Orderable to support multiple identity stores • Abstraction to support variety of credential types like ̶ Username/Password ̶ OAuth Client ID & Secret or JWT Tokens • Consistent API regardless of container • Enables Application to determine ̶ User’s identity ̶ Identity Provider that was used to establish identity ̶ Which groups or roles the user belongs to

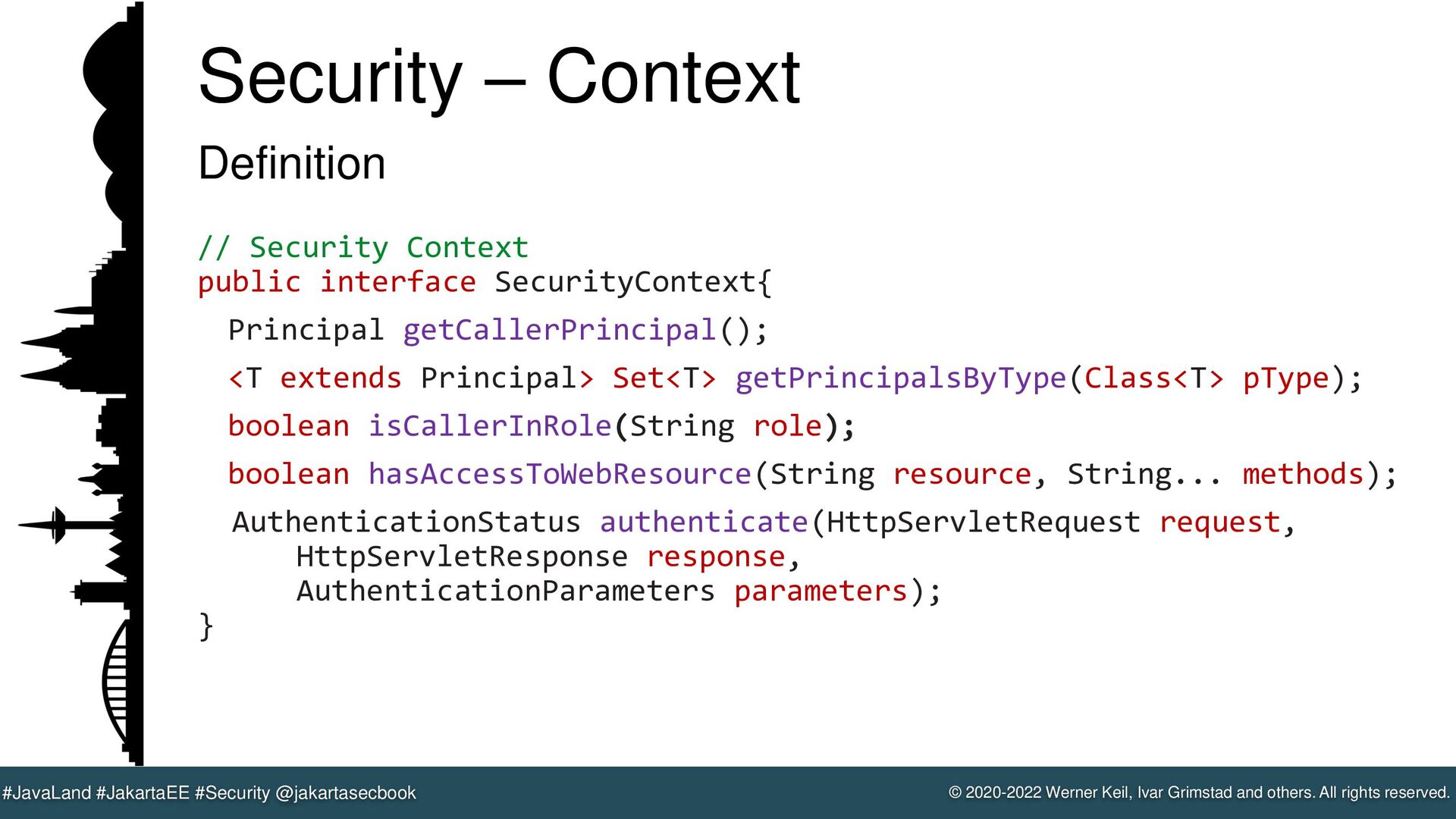

  29. © 2020-2022 Werner Keil, Ivar Grimstad and others. All rights

    reserved. #JavaLand #JakartaEE #Security @jakartasecbook Security – Context Definition // Security Context public interface SecurityContext{ Principal getCallerPrincipal(); <T extends Principal> Set<T> getPrincipalsByType(Class<T> pType); boolean isCallerInRole(String role); boolean hasAccessToWebResource(String resource, String... methods); AuthenticationStatus authenticate(HttpServletRequest request, HttpServletResponse response, AuthenticationParameters parameters); }

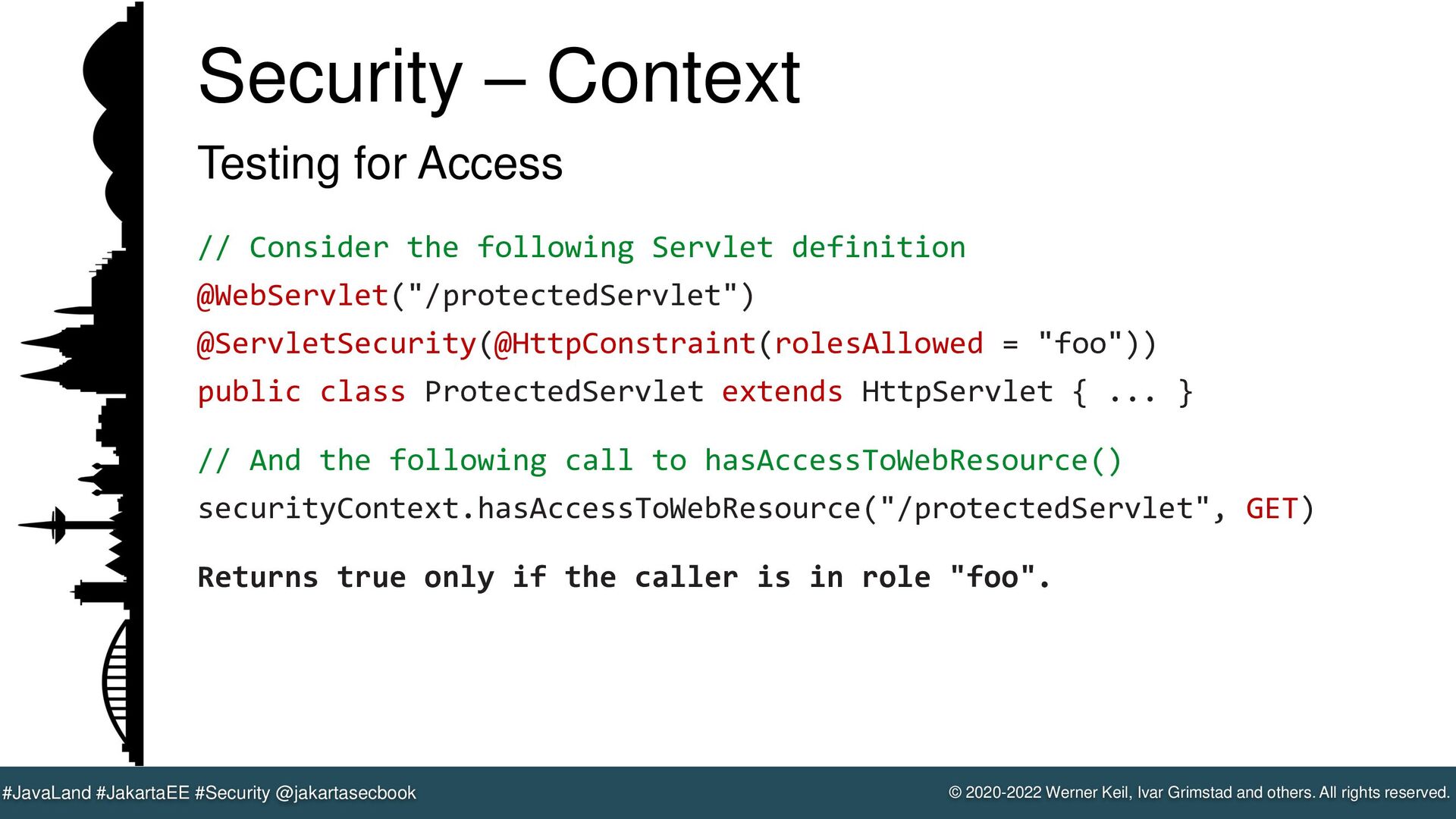

  30. © 2020-2022 Werner Keil, Ivar Grimstad and others. All rights

    reserved. #JavaLand #JakartaEE #Security @jakartasecbook Security – Context Testing for Access // Consider the following Servlet definition @WebServlet("/protectedServlet") @ServletSecurity(@HttpConstraint(rolesAllowed = "foo")) public class ProtectedServlet extends HttpServlet { ... } // And the following call to hasAccessToWebResource() securityContext.hasAccessToWebResource("/protectedServlet", GET) Returns true only if the caller is in role "foo".

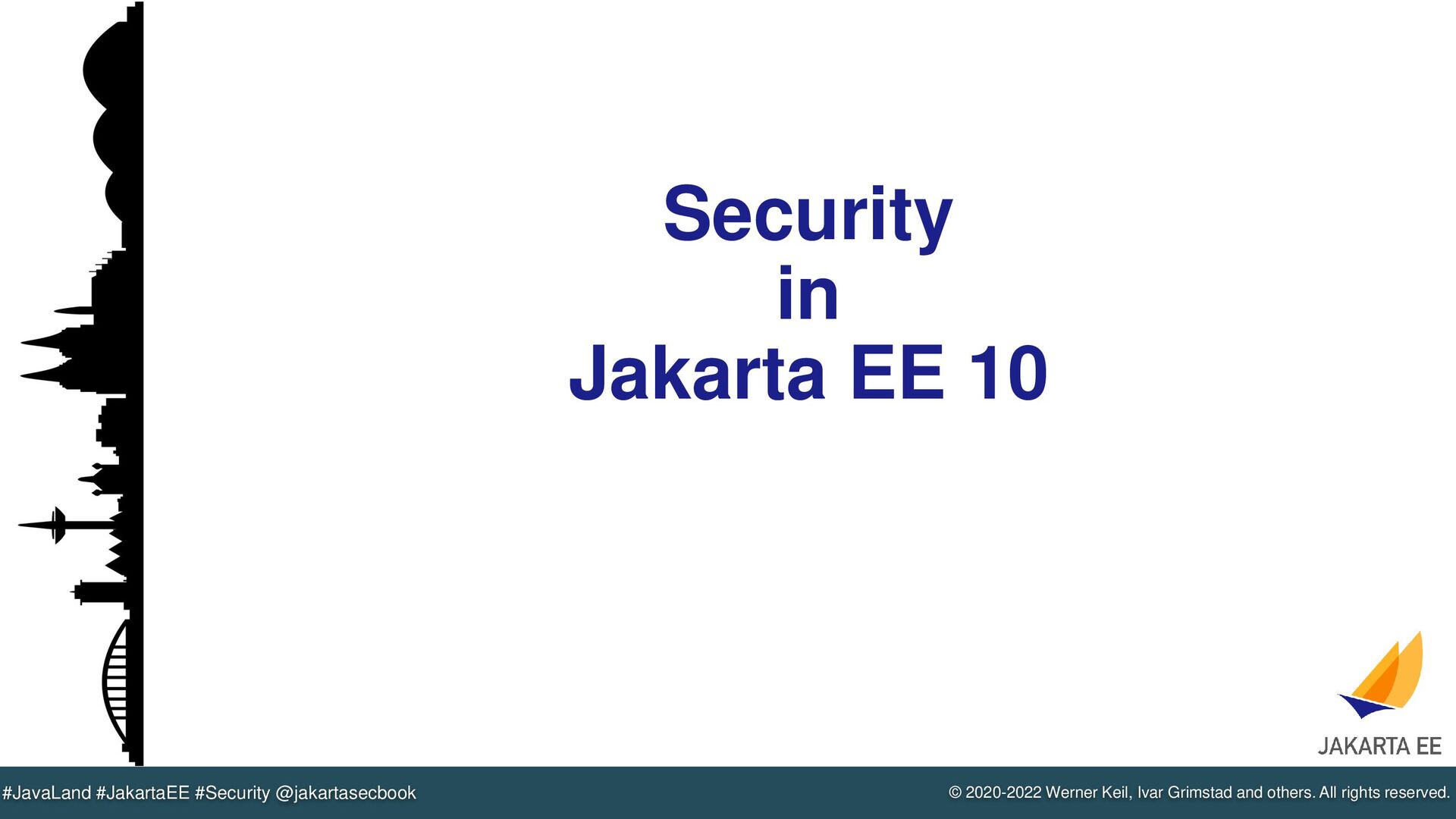

  31. © 2020-2022 Werner Keil, Ivar Grimstad and others. All rights

    reserved. #JavaLand #JakartaEE #Security @jakartasecbook Security in Jakarta EE 10
  32. © 2020-2022 Werner Keil, Ivar Grimstad and others. All rights

    reserved. #JavaLand #JakartaEE #Security @jakartasecbook Jakarta Authorization 2.1

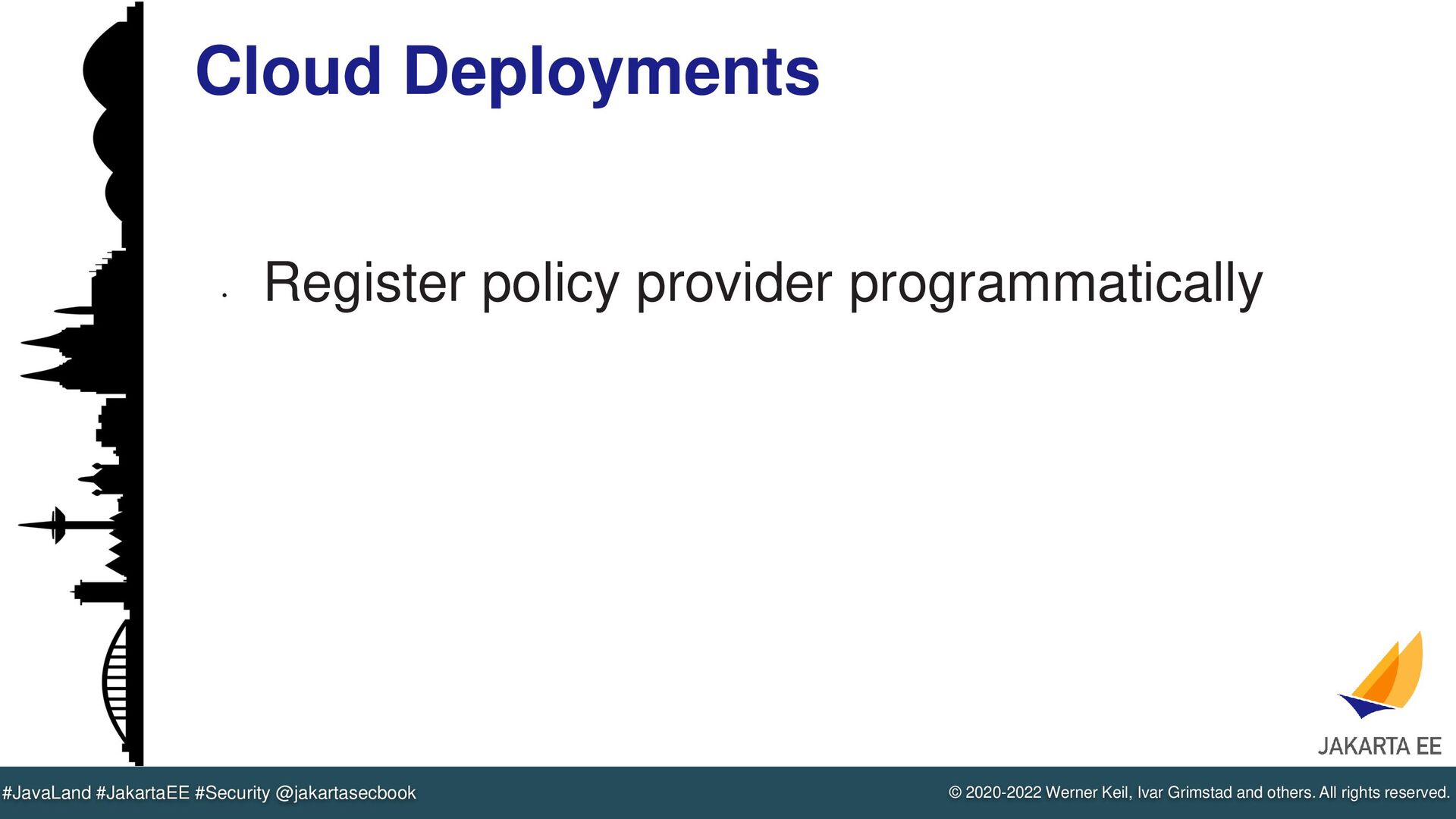

  33. © 2020-2022 Werner Keil, Ivar Grimstad and others. All rights

    reserved. #JavaLand #JakartaEE #Security @jakartasecbook Cloud Deployments • Register policy provider programmatically

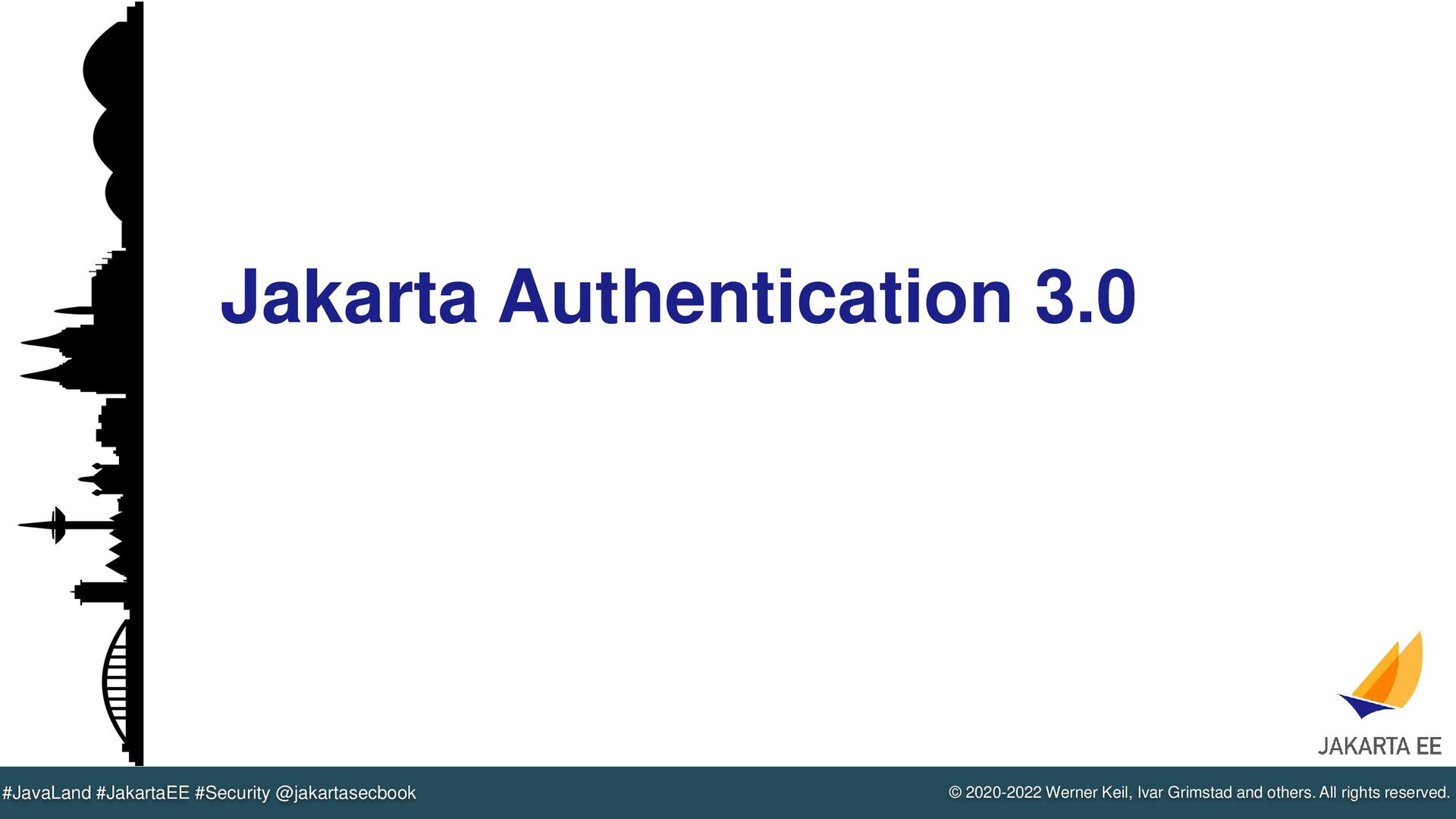

  34. © 2020-2022 Werner Keil, Ivar Grimstad and others. All rights

    reserved. #JavaLand #JakartaEE #Security @jakartasecbook Jakarta Authentication 3.0

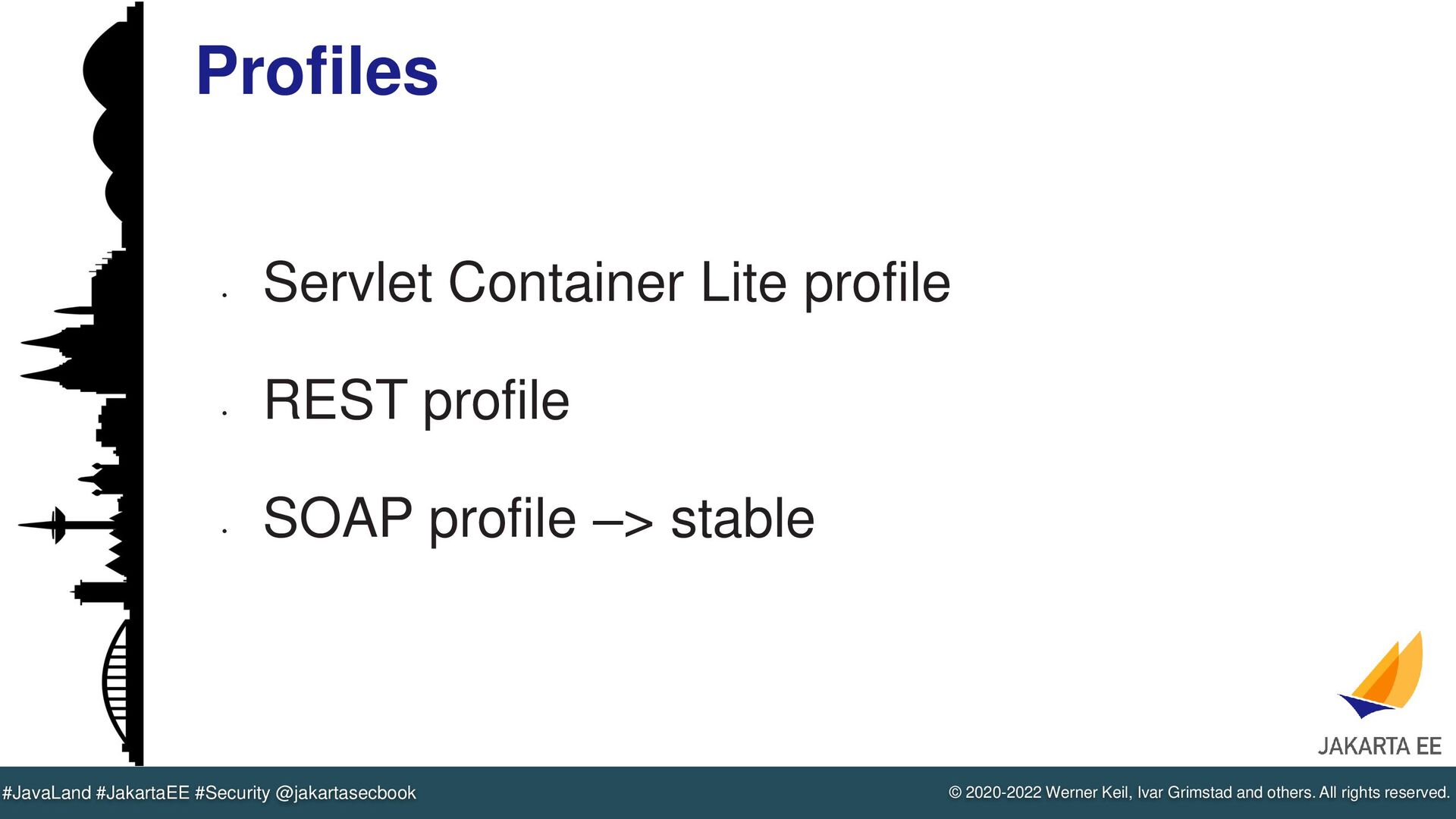

  35. © 2020-2022 Werner Keil, Ivar Grimstad and others. All rights

    reserved. #JavaLand #JakartaEE #Security @jakartasecbook Profiles • Servlet Container Lite profile • REST profile • SOAP profile –> stable

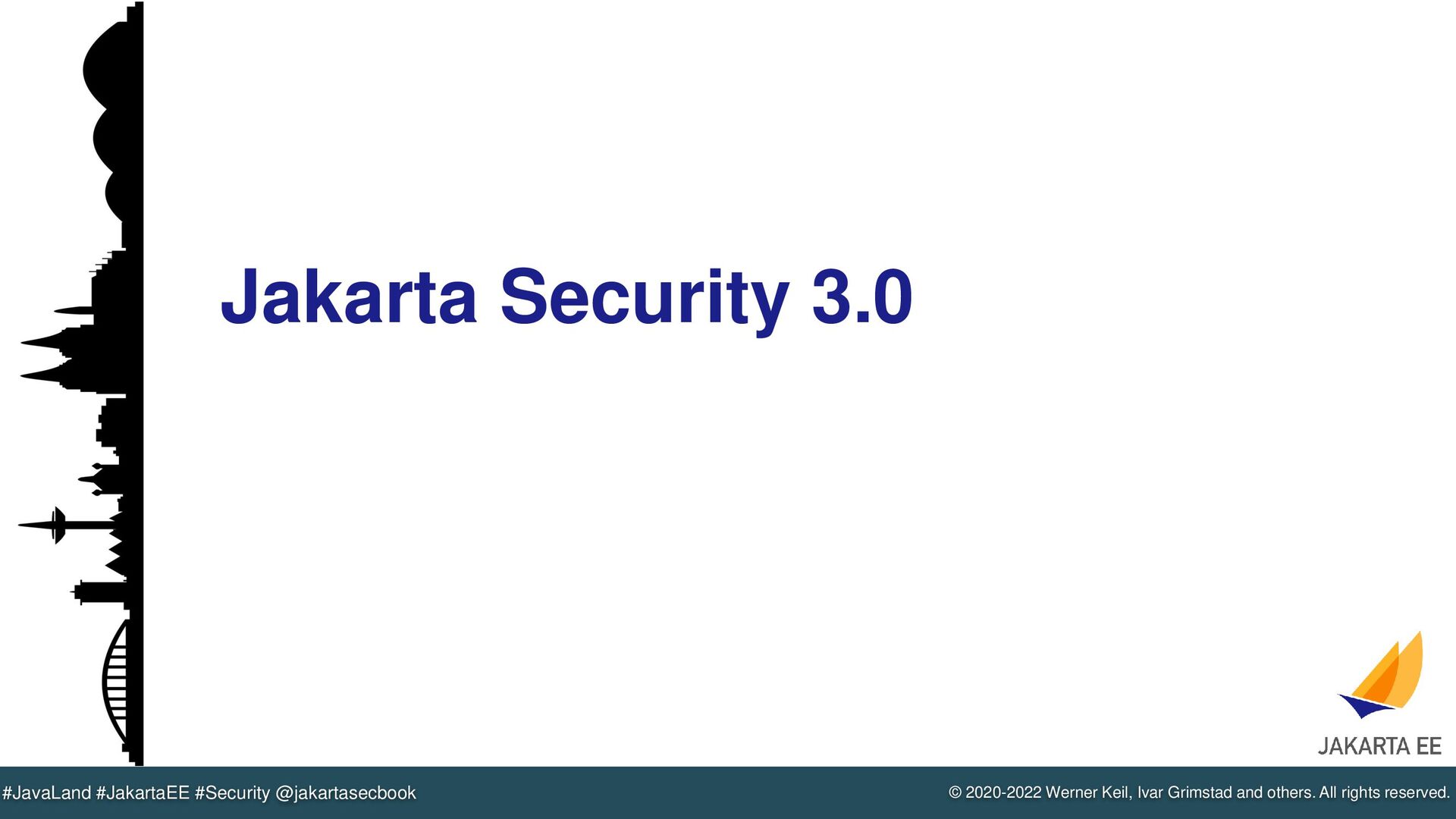

  36. © 2020-2022 Werner Keil, Ivar Grimstad and others. All rights

    reserved. #JavaLand #JakartaEE #Security @jakartasecbook Jakarta Security 3.0

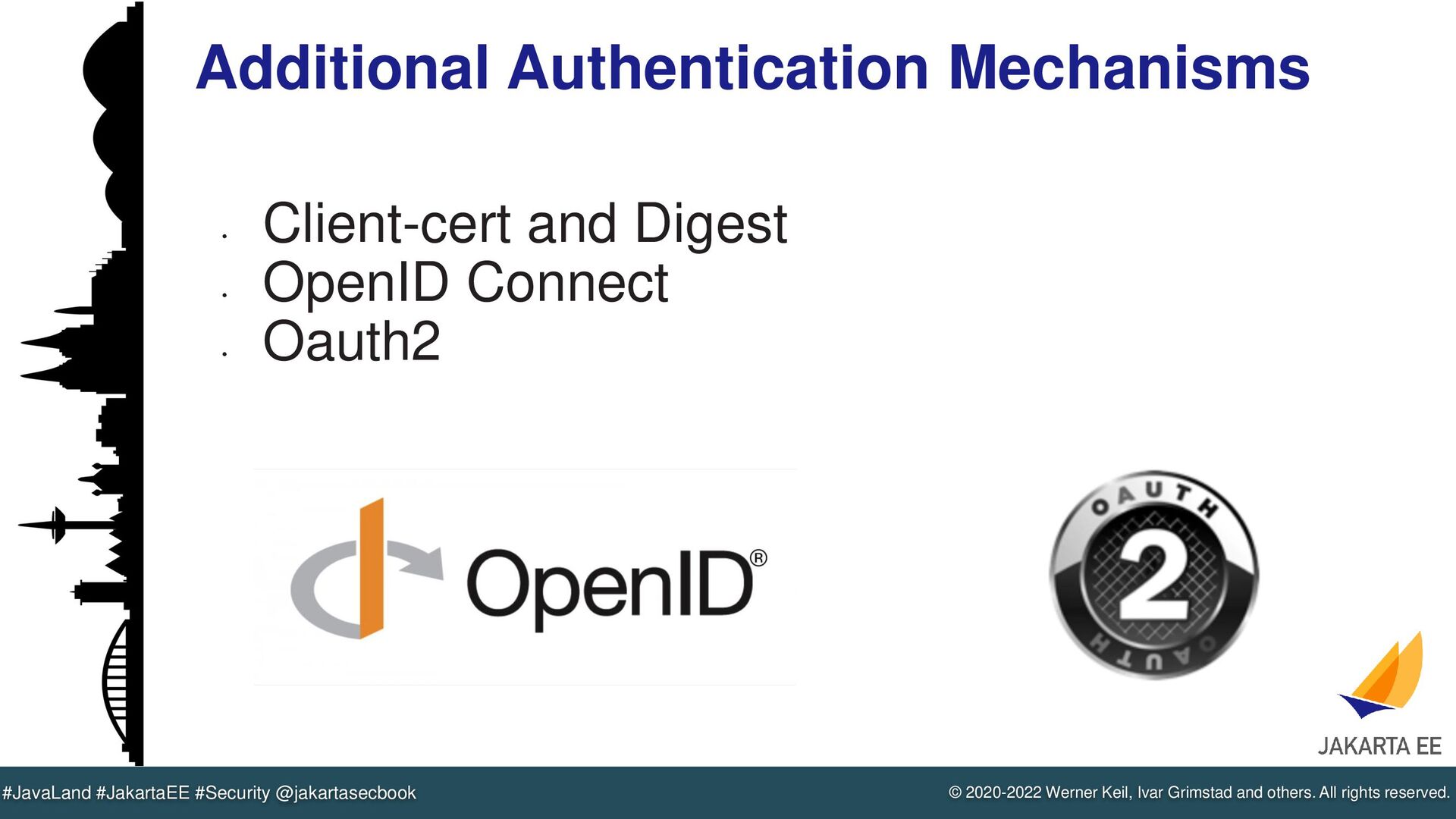

  37. © 2020-2022 Werner Keil, Ivar Grimstad and others. All rights

    reserved. #JavaLand #JakartaEE #Security @jakartasecbook Additional Authentication Mechanisms • Client-cert and Digest • OpenID Connect • Oauth2

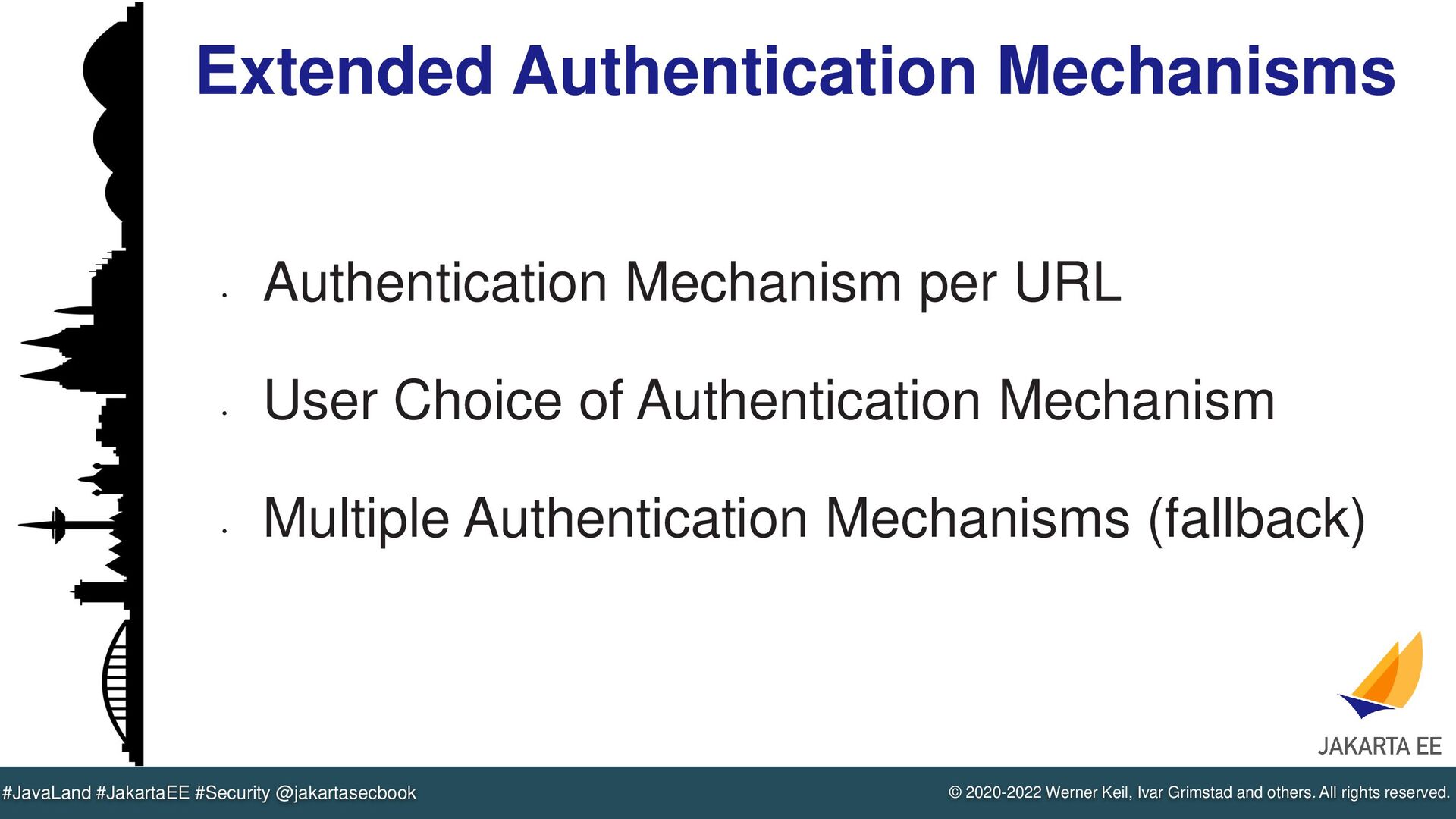

  38. © 2020-2022 Werner Keil, Ivar Grimstad and others. All rights

    reserved. #JavaLand #JakartaEE #Security @jakartasecbook Extended Authentication Mechanisms • Authentication Mechanism per URL • User Choice of Authentication Mechanism • Multiple Authentication Mechanisms (fallback)

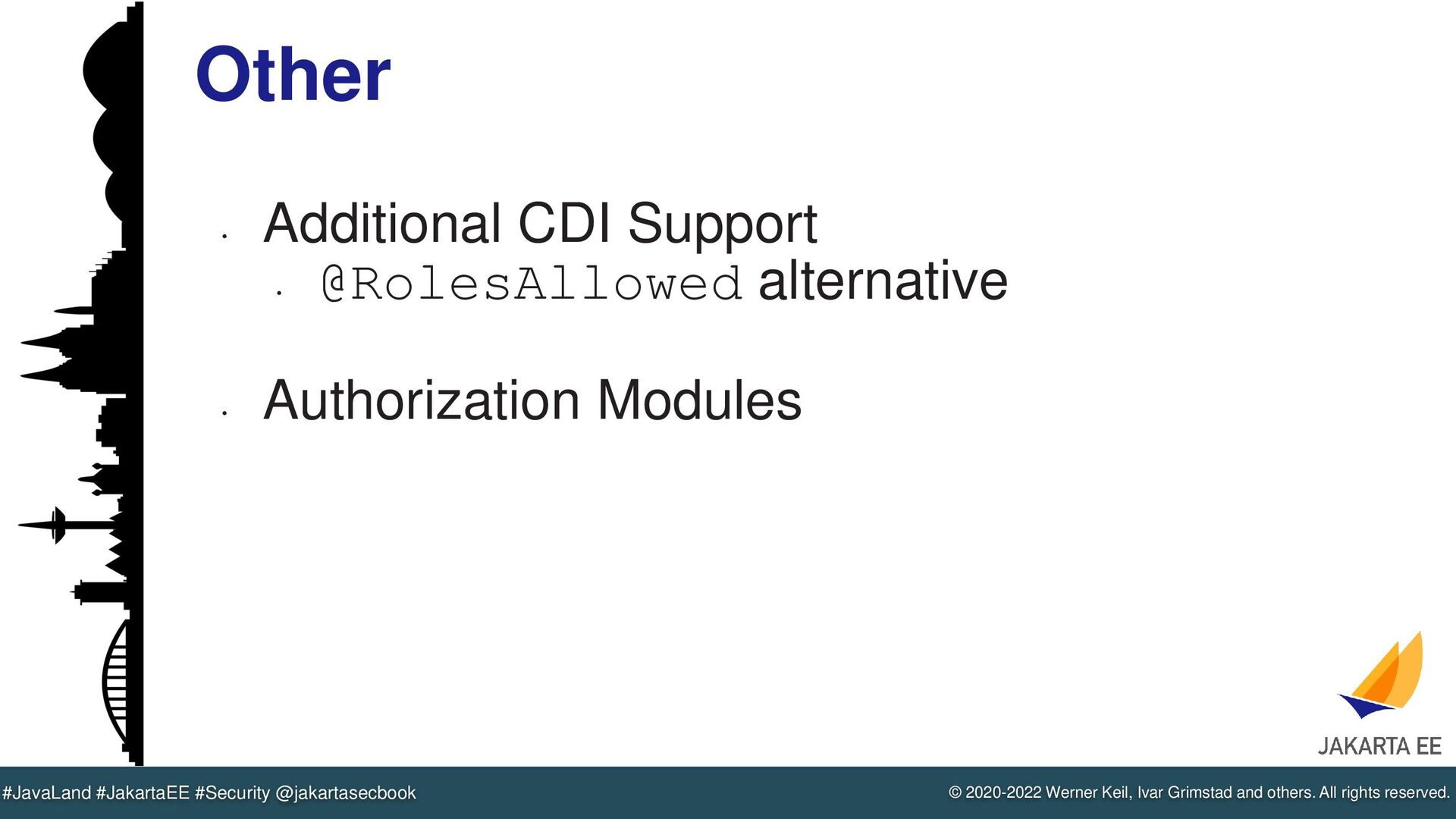

  39. © 2020-2022 Werner Keil, Ivar Grimstad and others. All rights

    reserved. #JavaLand #JakartaEE #Security @jakartasecbook Other • Additional CDI Support • @RolesAllowed alternative • Authorization Modules
  40. © 2020-2022 Werner Keil, Ivar Grimstad and others. All rights

    reserved. #JavaLand #JakartaEE #Security @jakartasecbook Demo Time @ivar_grimstad @wernerkeil
  41. © 2020-2022 Werner Keil, Ivar Grimstad and others. All rights

    reserved. #JavaLand #JakartaEE #Security @jakartasecbook Jakarta Security Book We (Arjan, Teo and Werner) just finished writing a book “The Definitive Guide to Security in Jakarta EE (Apress, 2022) Examples on GitHub: github.com/Apress/definitive-guide-jakarta-ee-security Twitter Account: @jakartasecbook

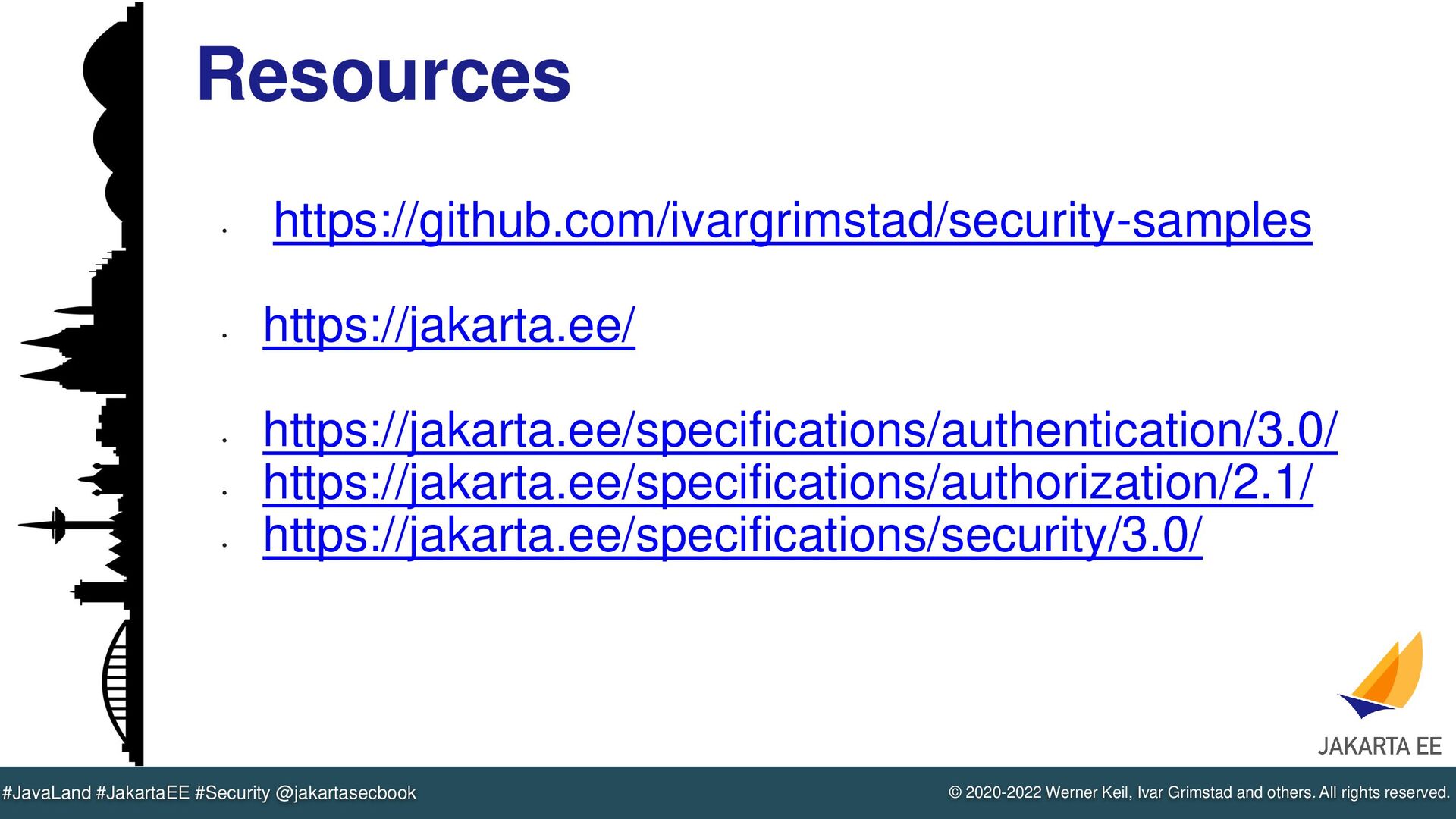

  42. © 2020-2022 Werner Keil, Ivar Grimstad and others. All rights

    reserved. #JavaLand #JakartaEE #Security @jakartasecbook Resources • https://github.com/ivargrimstad/security-samples • https://jakarta.ee/ • https://jakarta.ee/specifications/authentication/3.0/ • https://jakarta.ee/specifications/authorization/2.1/ • https://jakarta.ee/specifications/security/3.0/
  43. Q&A
