Mercurial: Experimente für Fortgeschrittene

Dieser Vortrag zeigt die vielfältigen Einsatzmöglichkeiten von Mercurial abseits der häufig genutzten Funktionen.

Themen des Vortrags sind unter anderem: Cherry Picking, Bookmarks, Patches, Subrepositories, Konvertieren und Zusammenführen von Repositories, Umgang mit großen Dateien sowie das Veröffentlichen von Repositories.

Transcript

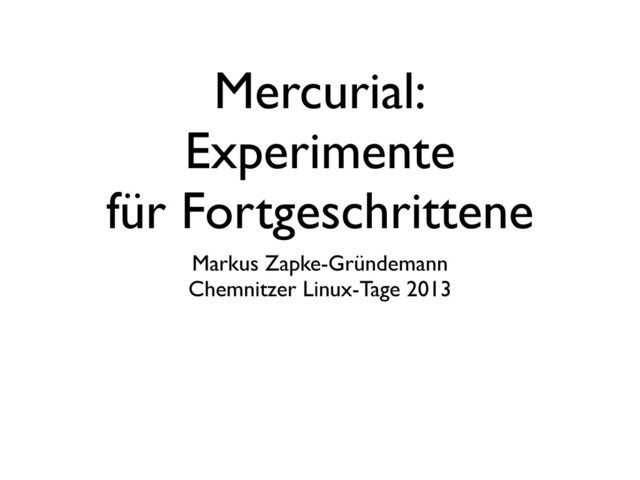

1. Mercurial:
   Experimente
   für Fortgeschrittene
   Markus Zapke-Gründemann
   Chemnitzer Linux-Tage 2013


   View Slide

2. Markus
   Zapke-Gründemann
   • Softwareentwickler seit 2001
   • Softwareentwicklung mit Python, Django
   und Mercurial
   • Selbstständig seit 2008
   • Seit 2011 Geschäftsführer bei inqbus


   View Slide

3. Verteilte
   Versionskontrollsysteme
   • Kein zentrales Repository nötig (aber
   möglich)
   • Jeder Client hat eine komplette Kopie des
   Repositories
   • Neue Entwicklungsmodelle möglich


   View Slide

4. Mercurial
   • Verteiltes Versionskontrollsystem
   • Mercurial v0.1 im April 2005
   • Fast vollständig in Python geschrieben
   • Plattformunabhängig
   • Einfach zu erlernen
   • Einfach Erweiterbar durch Python Extensions
   • Open Source (GNU GPL 2)


   View Slide

5. hgweb


   View Slide

6. View Slide

7. View Slide

8. View Slide

9. RhodeCode
   rhodecode.org


   View Slide

10. View Slide

11. View Slide

12. View Slide

13. Hilfe!
    hg help [TOPIC]


    View Slide

14. Extensions installieren
    [extensions]
    # Extension im $PYTHONPATH
    color =
    # Pfad zur Extension manuell angegeben
    hgshelve = ~/.hgext/hgshelve/hgshelve.py


    View Slide

15. crecord
    https://bitbucket.org/edgimar/crecord/wiki/Home
    [extensions]
    crecord =
    $ hg crecord


    View Slide

16. mercurial_keyring
    $ pip install mercurial_keyring
    [extensions]
    mercurial_keyring =
    [auth]
    myremote.schemes = https
    myremote.prefix = hg.example.com/repo
    myremote.username = bob
    http://pypi.python.org/pypi/mercurial_keyring


    View Slide

17. branches vs. bookmarks
    • branches sind in Mercurial permanent
    • bookmarks eignen sich deshalb besser für
    Feature branches
    • Seit Mercurial 2.3 gibt es verbesserte
    Unterstützung für bookmarks bei pull
    und merge


    View Slide

18. bookmarks
    $ hg bookmark feature1
    $ hg bookmarks
    * feature1 1:0b89bcda3dcf
    $ hg up 2
    $ hg bookmark feature2
    $ hg bookmarks
    feature1 1:0b89bcda3dcf
    * feature2 2:f1cd0e213eec
    $ hg up feature1
    1 files updated, 0 files merged, 1 files removed, 0 files unresolved
    $ hg bookmarks
    * feature1 1:0b89bcda3dcf
    feature2 2:f1cd0e213eec
    $ hg bookmark --delete feature2


    View Slide

19. bookmarks
    $ hg outgoing -B
    comparing with http://hg.example.com/repo
    searching for changed bookmarks
    feature1 1:0b89bcda3dcf
    $ hg push -B feature1
    pushing to http://hg.example.com/repo
    searching for changes
    no changes found
    exporting bookmark feature1
    $ hg pull
    pulling from http://hg.example.com/repo
    ...
    divergent bookmark feature1 stored as feature1@default
    (run 'hg heads .' to see heads, 'hg merge' to merge)
    $ hg merge


    View Slide

20. file sets
    hg diff "set: not binary()"
    hg status "set: grep(foo) and modified()"
    hg locate "set: **.c and not encoding('UTF-8')"
    hg revert "set: copied() and binary() and size('>1M')"


    View Slide

21. rev sets
    hg log -r "branch(default)"
    hg log -r "1.3::1.5 and keyword(bug)
    hg log -r "sort(date('May 2012'), user)"
    hg log -r "children(98909dac31e0) and grep(bar)"


    View Slide

22. hg grep
    $ hg grep "def forget\("
    mercurial/subrepo.py:17895: def forget(self, ui, match, prefix):
    mercurial/subrepo.py:17895: def forget(self, ui, match, prefix):
    mercurial/commands.py:17892:def forget(ui, repo, *pats, **opts):
    mercurial/cmdutil.py:17891:def forget(ui, repo, match, prefix, explicitonly):
    hgext/largefiles/lfutil.py:17878: def forget(self, f):
    mercurial/context.py:17832: def forget(self, files, prefix=""):
    mercurial/dirstate.py:14273: def forget(self, f):
    mercurial/localrepo.py:11301: def forget(self, list):
    mercurial/hg.py:1072: def forget(self, files):
    mercurial/hg.py:1072: def forget(self, list):


    View Slide

23. [alias]
    [alias]
    # diff stat
    dst = diff --stat
    # diff nur für geänderte Dateien
    dmod = diff "set: modified()"
    # status mit relativen Pfaden
    str = !hg status $($HG root) $HG_ARGS


    View Slide

24. Phases
    immutable shared
    public X X
    draft X
    secret
    $ hg phase -r 8184::8186
    8184: public
    8185: draft
    8186: draft
    $ hg phase -v --secret 8185
    phase change for 1 changesets
    $ hg phase -r 8184::8186
    8184: public
    8185: secret
    8186: draft
    http://mercurial.selenic.com/wiki/Phases


    View Slide

25. rebase
    [extensions]
    rebase =


    View Slide

26. merge vs. rebase
    C1 C2 L1
    R1
    L2
    R2
    M1
    $ hg pull
    $ hg merge
    $ hg commit


    View Slide

27. merge vs. rebase
    C1 C2 L1
    R1 L2
    R2
    $ hg rebase -s L1 -d R2
    C1 C2 L1
    R1
    L2
    R2
    $ hg pull


    View Slide

28. merge vs. rebase
    $ hg pull --rebase
    C1 C2 L1
    R1 L2
    R2


    View Slide

29. graft
    C12 C13
    C14
    ...
    C17
    $ hg graft -r C17
    default
    stable
    C17


    View Slide

30. histedit
    $ hg histedit -r c561b4e977df
    pick c561b4e977df Add beta
    pick 030b686bedc4 Add gamma
    pick 7c2fd3b9020c Add delta
    # Edit history between c561b4e977df and 7c2fd3b9020c
    #
    # Commands:
    # p, pick = use commit
    # e, edit = use commit, but stop for amending
    # f, fold = use commit, but fold into previous commit
    (combines N and N-1)
    # d, drop = remove commit from history
    # m, mess = edit message without changing commit content
    #


    View Slide

31. convert
    $ hg branches
    foo 2:37ef0ce38ccd
    default 1:a3d14dced1a2 (inactive)
    $ cd ..
    $ echo ”foo bar” > branch.map
    $ hg convert --branchmap branch.map myrepo myrepo-fix
    $ cd myrepo-fix
    $ hg branches
    bar 2:d7d3f591f211
    default 1:a3d14dced1a2 (inactive)


    View Slide

32. importfs
    $ pip install hg-importfs
    [extensions]
    importfs =


    View Slide

33. importfs
    $ hg up -R myproject 1.0
    $ hg importfs myrepo myproject -t 1.0
    created repository myrepo
    0 files updated, 0 files merged, 0 files removed, 0 files
    unresolved
    adding ...
    $ hg up -R myproject 1.1
    $ hg importfs myrepo myproject -m "Import v1.1" -t 1.1
    8 files updated, 0 files merged, 1 files removed, 0 files
    unresolved
    removing ...
    adding ...
    https://pypi.python.org/pypi/hg-importfs


    View Slide

34. mq
    [extensions]
    mq =
    $ hg init --mq
    ...hack...hack
    $ hg qnew my_new_feature.patch
    ...hack...hack
    $ hg qrefresh
    $ hg st --mq
    A .hgignore
    A my_new_feature.patch
    A series
    $ hg qseries
    my_new_feature.patch
    $ hg ci --mq -m ”First version of patch.”


    View Slide

35. mq
    $ hg qpop
    popping my_new_feature.patch
    patch queue now empty
    $ hg qseries -v
    0 U my_new_feature.patch
    $ hg qpush
    applying my_new_feature.patch
    now at: my_new_feature.patch
    $ hg qrefresh -e
    $ hg qfinish -a


    View Slide

36. Eigene Extensions


    View Slide

37. totalnodes.py
    """totalnodes
    Prints total number of nodes in a repo.
    """
    def totalnodes(ui, repo, **opts):
    """Prints total number of nodes in a repo."""
    if opts['prefix']:
    ui.write(opts['prefix'])
    ui.write('%d\n' % len(repo))
    cmdtable = {
    'totalnodes': (totalnodes,
    [('p', 'prefix', '', 'prefix option')],
    '[options]')
    }
    buglink = 'http://bugs.example.com/'
    testedwith = '2.4 2.5'


    View Slide

38. Here be dragons
    Bildquelle: https://en.wikipedia.org/wiki/File:D%C3%BCrer_-_Michaels_Kampf_mit_dem_Drachen.jpg


    View Slide

39. largefiles
    [extensions]
    largefiles =
    $ hg lfconvert --size 10 oldrepo newrepo
    [largefiles]
    minsize = 10
    patterns =
    library.zip
    content/audio/*


    View Slide

40. Subrepos


    View Slide

41. $ hg init mainrepo
    $ cd mainrepo
    $ hg init subrepo
    $ echo subrepo = subrepo > .hgsub
    $ hg add .hgsub
    $ hg commit -m "Subrepositories added"
    $ echo "main repo" > README
    $ echo "sub repo" > subrepo/README
    $ hg st
    ? README
    $ hg st -S
    ? README
    ? subrepo/README
    $ hg add
    adding README
    $ hg add -S
    adding subrepo/README
    subrepo erstellen


    View Slide

42. $ hg diff
    diff --git a/README b/README
    new file mode 100644
    --- /dev/null
    +++ b/README
    @@ -0,0 +1,1 @@
    +main repo
    $ hg diff -S
    diff --git a/README b/README
    new file mode 100644
    --- /dev/null
    +++ b/README
    @@ -0,0 +1,1 @@
    +main repo
    diff --git a/subrepo/README b/subrepo/README
    new file mode 100644
    --- /dev/null
    +++ b/subrepo/README
    @@ -0,0 +1,1 @@
    +sub repo
    diff mit subrepos


    View Slide

43. $ hg commit
    abort: uncommitted changes in subrepo subrepo
    (use --subrepos for recursive commit)
    $ hg commit -S -m "Added README"
    committing subrepository subrepo
    $ cat .hgsubstate
    8496febd9224bdb2a2e5c9dbff051b166f5cfece subrepo
    $ hg id -R subrepo --debug
    8496febd9224bdb2a2e5c9dbff051b166f5cfece tip
    commit mit subrepos


    View Slide

44. $ cd ..
    $ hg clone mainrepo mainrepo-clone
    updating to branch default
    cloning subrepo subrepo from /tmp/mainrepo/subrepo
    3 files updated, 0 files merged, 0 files removed, 0 files unresolved
    $ tree -a -L 2 mainrepo-clone
    mainrepo-clone
    !"" .hg
    # !"" 00changelog.i
    # !"" branch
    # !"" cache
    # !"" dirstate
    # !"" hgrc
    # !"" requires
    # $"" store
    !"" .hgsub
    !"" .hgsubstate
    !"" README
    $"" subrepo
    !"" .hg
    $"" README
    clone mit subrepos


    View Slide

45. Links
    • http://mercurial.selenic.com/
    • http://hgbook.red-bean.com/
    • http://hginit.com/
    • http://mercurial.aragost.com/kick-start/en/


    View Slide

46. Fragen?
    www.inqbus.de
    www.keimlink.de
    @keimlink


    View Slide
