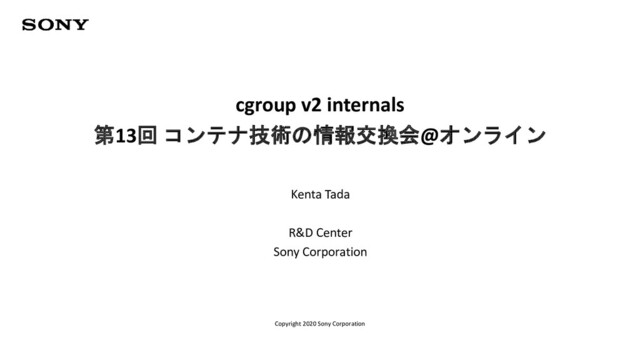

  1. Copyright 2020 Sony Corporation
    cgroup v2 internals
    第13回 コンテナ技術の情報交換会@オンライン
    Kenta Tada
    R&D Center
    Sony Corporation

    View Slide

  2. About me
    ⚫Kenta Tada
    ⚫Software Engineer, Sony
    ⚫CloudNative Days Tokyo 2020
    • https://speakerdeck.com/kentatada/embedded-container-
    runtime-using-linux-capabilities-seccomp-cgroups
    2

    View Slide

  3. Agenda
    ⚫Overview of cgroup v2
    ⚫Available cgroup v2 controllers
    ⚫eBPF-based device controller for cgroup v2
    3

    View Slide

  4. Overview of cgroup v2
    4

    View Slide

  5. Unified hierarchy
    ⚫All the controllers are under the same hierarchy since
    cgroup v2.
    ⚫If the parent cgroup disables some controllers, those cannot
    be enabled in the descendant cgroups
    • You can control what controllers are enabled in the descendant cgroups from
    the file of cgroup.subtree_control
    5
    /sys/fs/cgroup
    /cgtest1
    /cpu.* /memory.*
    /cgtest2
    /cpu.* /memory.*

    View Slide

  6. New features
    ⚫nsdelegate and cgroup namespace for unprivileged container
    • But some controllers need a privilege because of using eBPF.
    ⚫cgroup aware OOM killer
    ⚫PSI per cgroup
    ⚫(NEW) utilization clamping support
    • Assign the actual the computational power assigned to task groups considering the
    actual frequency which is depending on the operation of schedutil and asymmetric
    capacity systems like Arm's big.LITTLE.
    6
    https://github.com/torvalds/linux/commit/2480c093130f64ac3a410504fa8b3db1fc4b87ce

    View Slide

  7. v1 subsystem Kernel object name source v2 subsystem
    blkio io_cgrp_subsys block/blk-cgroup.c io
    cpuacct cpuacct_cgrp_subsys kernel/sched/cpuacct.c cpu
    cpu cpu_cgrp_subsys kernel/sched/core.c cpu
    cpuset cpuset_cgrp_subsys kernel/cgroup/cpuset.c cpuset
    devices devices_cgrp_subsys security/device_cgroup.c Using eBPF
    freezer freezer_cgrp_subsys (v1)kernel/cgroup/legacy_freezer.c
    (v2)kernel/cgroup/freezer.c
    freezer
    hugetlb hugetlb_cgrp_subsys mm/hugetlb_cgroup.c hugetlb
    memory memory_cgrp_subsys mm/memcontrol.c memory
    net_cls net_cls_cgrp_subsys net/core/netclassid_cgroup.c Using eBPF
    net_prio net_prio_cgrp_subsys net/core/netprio_cgroup.c Using eBPF
    perf_event perf_event_cgrp_subsys kernel/events/core.c perf_event
    pids pids_cgrp_subsys kernel/cgroup/pids.c pids
    rdma rdma_cgrp_subsys kernel/cgroup/rdma.c rdma
    The difference between v1 and v2 at kernel 5.9
    7
    https://events.static.linuxfound.org/sites/events/files/slides/cgroup_and_namespaces.pdf

    View Slide

  8. Available cgroup v2 controllers
    8

    View Slide

  9. How to confirm the available controllers
    ⚫cgroup.controllers
    • Ex. /sys/fs/cgroup/cgroup.controllers
    • Each cgroup has a “cgroup.controllers” file which lists all
    controllers available for the cgroup to enable
    ⚫But some controllers are not listed in the above file.
    ⚫Why??
    9
    https://www.kernel.org/doc/html/v5.9/admin-guide/cgroup-v2.html

    View Slide

  10. Implicit or inhibit controllers
    ⚫Some controllers are not supported in the default hierarchy.
    • cgrp_dfl_inhibit_ss_mask
    ⚫Some controllers are implicitly enabled on the default
    hierarchy.
    • cgrp_dfl_implicit_ss_mask
    ⚫When system boots, kernel sets up the above masks.
    10
    if (ss->implicit_on_dfl)
    cgrp_dfl_implicit_ss_mask |= 1 << ss->id;
    else if (!ss->dfl_cftypes)
    cgrp_dfl_inhibit_ss_mask |= 1 << ss->id;
    https://github.com/torvalds/linux/blob/v5.9/kernel/cgroup/cgroup.c#L5740-L5743

    View Slide

  11. cgroup.controllers in kernel
    ⚫ cgroup core interface files are defined as below:
    ⚫cgroup_controllers_show() calls cgroup_control().
    ⚫cgroup_control() returns the visible controllers using the masks.
    11
    static u16 cgroup_control(struct cgroup *cgrp)

    if (cgroup_on_dfl(cgrp))
    root_ss_mask &= ~(cgrp_dfl_inhibit_ss_mask |
    cgrp_dfl_implicit_ss_mask);
    return root_ss_mask;
    }
    https://github.com/torvalds/linux/blob/v5.9/kernel/cgroup/cgroup.c
    .name = "cgroup.controllers",
    .seq_show = cgroup_controllers_show,

    View Slide

  12. eBPF-based device controller for cgroup v2
    12

    View Slide

  13. Device controller in cgroup v1
    ⚫Device controller allows or denies access to devices with
    each cgroup.
    ⚫There are three files to control behavior.
    • devices.allow is the allowlist of devices.
    • devices.deny is the denylist of devices.
    • devices.list shows available devices.
    ⚫Interface
    • Ex. Allow cgroup 1 to read and mknod /dev/null as below:
    13
    https://www.kernel.org/doc/html/v5.9/admin-guide/cgroup-v1/devices.html
    # echo 'c 1:3 mr' > /sys/fs/cgroup/1/devices.allow

    View Slide

  14. Device controller in cgroup v2
    ⚫cgroup v2 uses eBPF for some reasons.
    • Ex. To control network access
    ⚫The eBPF program is attached to a specific cgroup.
    ⚫BPF_PROG_TYPE_CGROUP_DEVICE was introduced since
    kernel version 4.15.
    14

    View Slide

  15. What is eBPF
    ⚫eBPF is a revolutionary technology that can run sandboxed
    programs in the Linux kernel without changing kernel
    source code.
    15
    https://ebpf.io/
    http://www.brendangregg.com/ebpf.html

    View Slide

  16. Attach device control settings inside kernel space
    ⚫Attach the eBPF program to a cgroup
    • https://github.com/torvalds/linux/blob/v5.9/kernel/bpf/syscall.c#L4187
    → bpf_prog_attach at kernel/bpf/syscall.c#L2839
    → cgroup_bpf_prog_attach at kernel/bpf/cgroup.c#L762
    → cgroup_bpf_attach at kernel/cgroup/cgroup.c#L6496
    → __cgroup_bpf_attachat kernel/bpf/cgroup.c#L433
    16

    View Slide

  17. __cgroup_bpf_attach
    17
    /**
    * __cgroup_bpf_attach() - Attach the program or the link to a cgroup, and
    * propagate the change to descendants
    * @cgrp: The cgroup which descendants to traverse
    * @prog: A program to attach
    * @link: A link to attach
    * @replace_prog: Previously attached program to replace if BPF_F_REPLACE is set
    * @type: Type of attach operation
    * @flags: Option flags
    *
    * Exactly one of @prog or @link can be non-null.
    * Must be called with cgroup_mutex held.
    */
    int __cgroup_bpf_attach(struct cgroup *cgrp,
    struct bpf_prog *prog, struct bpf_prog *replace_prog,
    struct bpf_cgroup_link *link,
    enum bpf_attach_type type, u32 flags)

    View Slide

  18. Check device permissions inside kernel space
    ⚫For example, mknod(2) is executed.
    • https://github.com/torvalds/linux/blob/v5.9/fs/namei.c#L3528
    → devcgroup_inode_mknod at include/linux/device_cgroup.h#L40
    → devcgroup_check_permission at security/device_cgroup.c#L835
    → BPF_CGROUP_RUN_PROG_DEVICE_CGROUP at
    include/linux/bpf-cgroup.h#L295
    → __cgroup_bpf_check_dev_permissionat
    kernel/bpf/cgroup.c#L1125
    18

    View Slide

  19. __cgroup_bpf_check_dev_permission
    19
    int __cgroup_bpf_check_dev_permission(short dev_type, u32 major, u32 minor,
    short access, enum bpf_attach_type type)
    {
    struct cgroup *cgrp;
    struct bpf_cgroup_dev_ctx ctx = {
    .access_type = (access << 16) | dev_type,
    .major = major,
    .minor = minor,
    };
    int allow = 1;
    rcu_read_lock();
    cgrp = task_dfl_cgroup(current);
    allow = BPF_PROG_RUN_ARRAY(cgrp->bpf.effective[type], &ctx,
    BPF_PROG_RUN);
    rcu_read_unlock();
    return !allow;
    }

    View Slide

  20. Demo : Load device control settings from user space
    20
    ⚫Observe kernel functions when the kernel test code is
    executed.
    ⚫The test code(test_dev_cgroup.c) only permits below:
    • major: 1, minor: 5( /dev/zero)
    • major: 1, minor: 9(/dev/urandom)
    ⚫bpftrace shows values which are actually checked in kernel.
    assert(system("mknod /tmp/test_dev_cgroup_null c 1 3"));
    assert(system("mknod /tmp/test_dev_cgroup_zero c 1 5") == 0);
    assert(system("dd if=/dev/urandom of=/dev/zero count=64") == 0);
    assert(system("dd if=/dev/urandom of=/dev/full count=64"));
    assert(system("dd if=/dev/random of=/dev/zero count=64"));
    The test code from
    https://github.com/torvalds/linux/blob/v5.10-rc3/tools/testing/selftests/bpf/test_dev_cgroup.c
    [Expected outputs]
    1. major: 1, minor: 3
    2. major: 1, minor: 5
    3. major: 1, minor: 9
    4. major: 1, minor: 5
    5. major: 1, minor: 9(if is allowed)
    6. major: 1, minor: 7(of is forbidden)
    7. major: 1, minor: 8(if is forbidden)

    View Slide

  21. Demo : Load device control settings from user space
    21

    View Slide

  22. How to use eBPF-based device controller
    ⚫Many tools provide the abstraction layer.
    ⚫OCI runtime spec
    • This specification is originally designed for cgroup v1.
    • But some container runtimes can handle the configuration of
    cgroup v1 for v2.
    ⚫libcgroup is currently developing the facility of cgroup v2
    interfaces.
    •https://github.com/libcgroup/libcgroup/issues/12
    22

    View Slide

  23. Key takeaways
    ⚫There are a lot of features in cgroup v2.
    • Like uclamp, it is for not only cloud systems but also embedded
    systems
    ⚫cgroup v2 changed interfaces and the way of resource
    control.
    • Some cgroup v2 controllers are not supported in the default
    hierarchy.
    ⚫eBPF is important for cgroup v2.
    23

    View Slide
