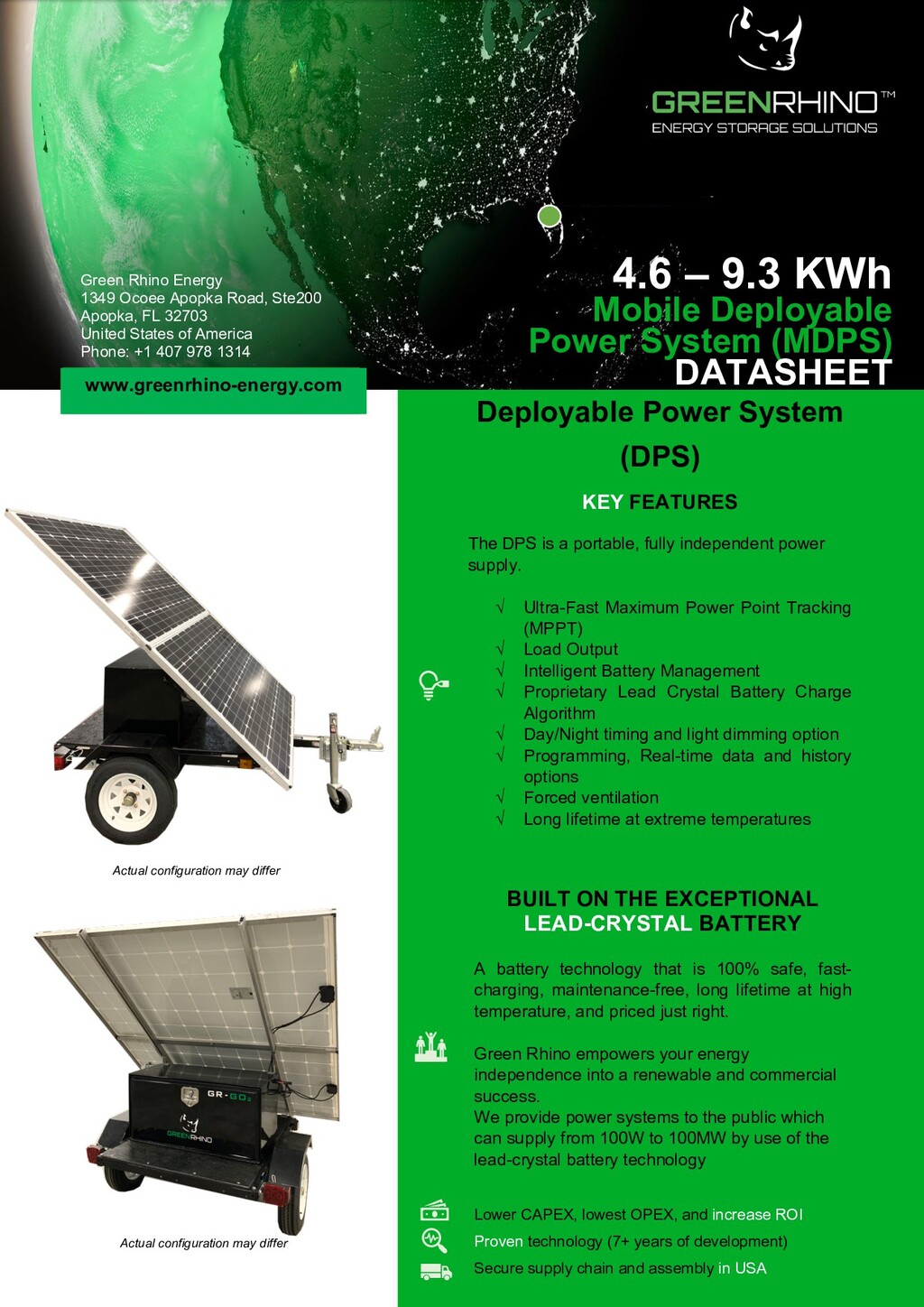

1. 4.6 – 9.3 KWh Mobile Deployable Power System (MDPS) DATASHEET www.greenrhino-energy.com Actual configuration may differ Lower CAPEX, lowest OPEX, and increase ROI Proven technology (7+ years of development) Secure supply chain and assembly in USA Green Rhino Energy 1349 Ocoee Apopka Road, Ste200 Apopka, FL 32703 United States of America Phone: +1 407 978 1314 BUILT ON THE EXCEPTIONAL LEAD-CRYSTAL BATTERY A battery technology that is 100% safe, fast- charging, maintenance-free, long lifetime at high temperature, and priced just right. Green Rhino empowers your energy independence into a renewable and commercial success. We provide power systems to the public which can supply from 100W to 100MW by use of the lead-crystal battery technology Actual configuration may differ Deployable Power System (DPS) KEY FEATURES The DPS is a portable, fully independent power supply. √ Ultra-Fast Maximum Power Point Tracking (MPPT) √ Load Output √ Intelligent Battery Management √ Proprietary Lead Crystal Battery Charge Algorithm √ Day/Night timing and light dimming option √ Programming, Real-time data and history options √ Forced ventilation √ Long lifetime at extreme temperatures

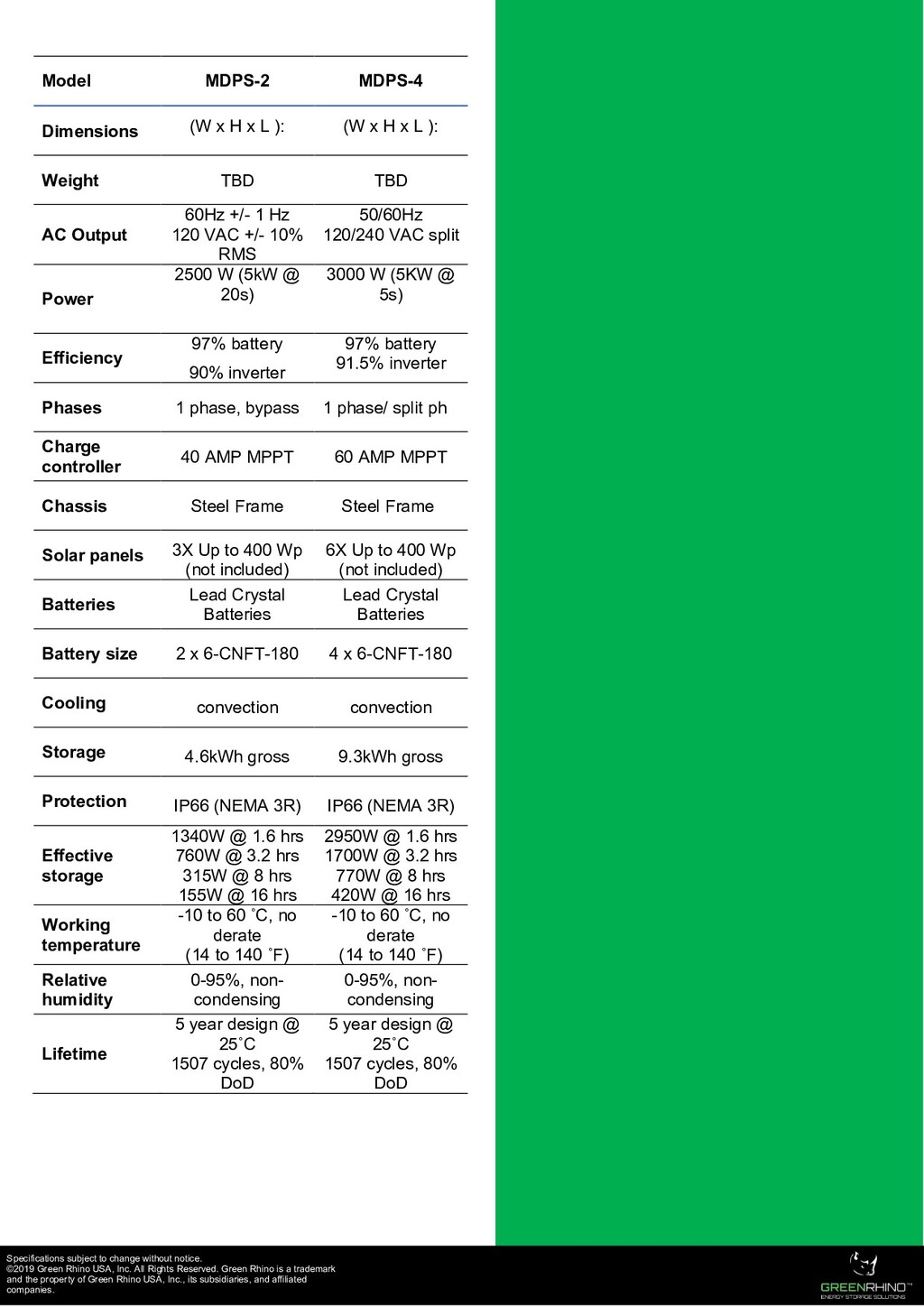

2. Model MDPS-2 MDPS-4 Dimensions (W x H x L ): (W x H x L ): Weight TBD TBD AC Output 60Hz +/- 1 Hz 120 VAC +/- 10% RMS 50/60Hz 120/240 VAC split Power 2500 W (5kW @ 20s) 3000 W (5KW @ 5s) Efficiency 97% battery 90% inverter 97% battery 91.5% inverter Phases 1 phase, bypass 1 phase/ split ph Charge controller 40 AMP MPPT 60 AMP MPPT Chassis Steel Frame Steel Frame Solar panels 3X Up to 400 Wp (not included) 6X Up to 400 Wp (not included) Batteries Lead Crystal Batteries Lead Crystal Batteries Battery size 2 x 6-CNFT-180 4 x 6-CNFT-180 Cooling convection convection Storage 4.6kWh gross 9.3kWh gross Protection IP66 (NEMA 3R) IP66 (NEMA 3R) Effective storage 1340W @ 1.6 hrs 760W @ 3.2 hrs 315W @ 8 hrs 155W @ 16 hrs 2950W @ 1.6 hrs 1700W @ 3.2 hrs 770W @ 8 hrs 420W @ 16 hrs Working temperature -10 to 60 ˚C, no derate (14 to 140 ˚F) -10 to 60 ˚C, no derate (14 to 140 ˚F) Relative humidity 0-95%, non- condensing 0-95%, non- condensing Lifetime 5 year design @ 25˚C 1507 cycles, 80% DoD 5 year design @ 25˚C 1507 cycles, 80% DoD Specifications subject to change without notice. ©2019 Green Rhino USA, Inc. All Rights Reserved. Green Rhino is a trademark and the property of Green Rhino USA, Inc., its subsidiaries, and affiliated companies.
