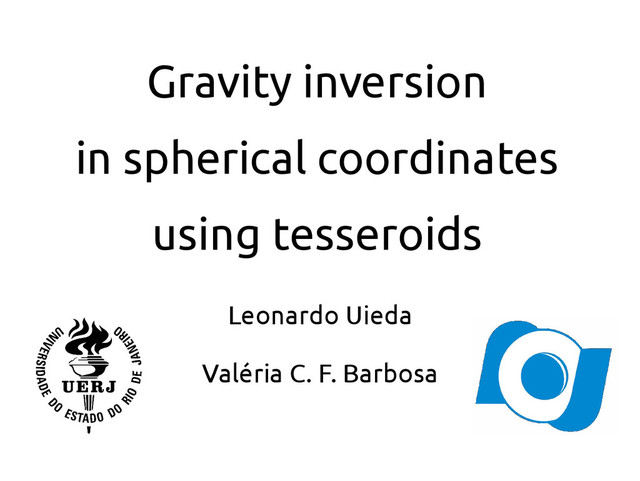

Gravity inversion in spherical coordinates using tesseroids

Transcript

1. Gravity inversion
   in spherical coordinates
   using tesseroids
   Leonardo Uieda
   Valéria C. F. Barbosa


   View Slide

2. vs
   Cartesian Spherical


   View Slide

3. Existing inversion with tesseroids
   (Chaves and Ussami, 2013)
   ●
   Geoid height anomalies
   ●
   Space domain
   ●
   Regularization:
   – Depth-weighted Minimum Volume
   – Similarity to seismic tomography


   View Slide

4. Adapt
   Planting anomalous densities
   (Uieda and Barbosa, 2012)


   View Slide

5. Planting anomalous densities
   ●
   Space domain
   ●
   Multicomponent: gravity + gradients
   ●
   Non-conventional inversion
   – Growth algorithm
   – No linear systems
   – Efficient sensitivity computations


   View Slide

6. View Slide

7. Seed


   View Slide

8. View Slide

9. View Slide

10. View Slide

11. View Slide

12. View Slide

13. View Slide

14. View Slide

15. View Slide

16. View Slide

17. View Slide

18. View Slide

19. Synthetics
    ●
    Possible applications
    ●
    Advantages
    ●
    Shortcomings


    View Slide

20. Lineament with dense rocks
    (magmatic)
    Inspired by Chad lineament model
    (Braitenberg et al, 2011)


    View Slide

21. After Braitenberg et al (2011)


    View Slide

22. After Braitenberg et al (2011)


    View Slide

23. 10º
    N
    300 kg.m-3
    2º
    8km
    top=1 km


    View Slide

24. gzz
    At 20 km


    View Slide

25. Seeds


    View Slide

26. observed predicted


    View Slide

27. View Slide

28. What if height=120 km?


    View Slide

29. at 120 km
    at 20 km


    View Slide

30. observed predicted


    View Slide

31. at 120 km
    at 20 km


    View Slide

32. Even higher
    height=270 km


    View Slide

33. at 270 km
    at 120 km


    View Slide

34. observed predicted


    View Slide

35. at 270 km
    at 120 km


    View Slide

36. Magmatic underplating
    Inspired by model of the Paraná basin
    by Mariani et al (2013)


    View Slide

37. After Mariani et al (2013)


    View Slide

38. After Mariani et al (2013)


    View Slide

39. 10º
    N 200 kg.m-3
    15
    km
    5º
    10º
    top=30 km


    View Slide

40. gzz at 250 km


    View Slide

41. Seed


    View Slide

42. View Slide

43. What if I use wrong density?


    View Slide

44. 150 kg.m-3
    250 kg.m-3


    View Slide

45. In conclusion


    View Slide

46. View Slide

47. for tesseroids


    View Slide

48. Works well


    View Slide

49. height matters
    20km 250km


    View Slide

50. correct
    dense
    correct
    dense


    View Slide

51. Future
    ●
    Combinations of tensor components
    ●
    Dipping sources (subducting plate)
    ●
    Real data (open for collaboration)


    View Slide

52. OPEN SOURCE
    fatiando.org
    github.com/leouieda/egu2014


    View Slide

53. Extra


    View Slide

54. (Hypothetical) Mantle Plume
    Inspired by synthetics in Chaves and Ussami (2013)


    View Slide

55. After Chaves and Ussami (2013)


    View Slide

56. top=100 km
    200 km
    700 km
    2º
    -50 kg.m-3


    View Slide

57. gzz at 250 km


    View Slide

58. Seed


    View Slide

59. View Slide

60. Joint gz + gzz?


    View Slide

61. Same seed


    View Slide

62. gz
    gzz


    View Slide

63. gzz Joint


    View Slide

64. gzz Joint


    View Slide

65. single vs joint
