  1. LINE messaging architecture, how we use and contribute OSS Li

    Yan Kit, Wilson LINE Corporation
  2. Who am I

  3. Self Introduction u 2007 – 2012: CE + iBBA, CUHK

    u 2012 – 2014: Mphil. in CSE, CUHK u 2015 – 2018: Research Scientist, Rakuten u 2018 – current: Development Engineer
  4. In short,

  5. What does LINE messaging architecture look like

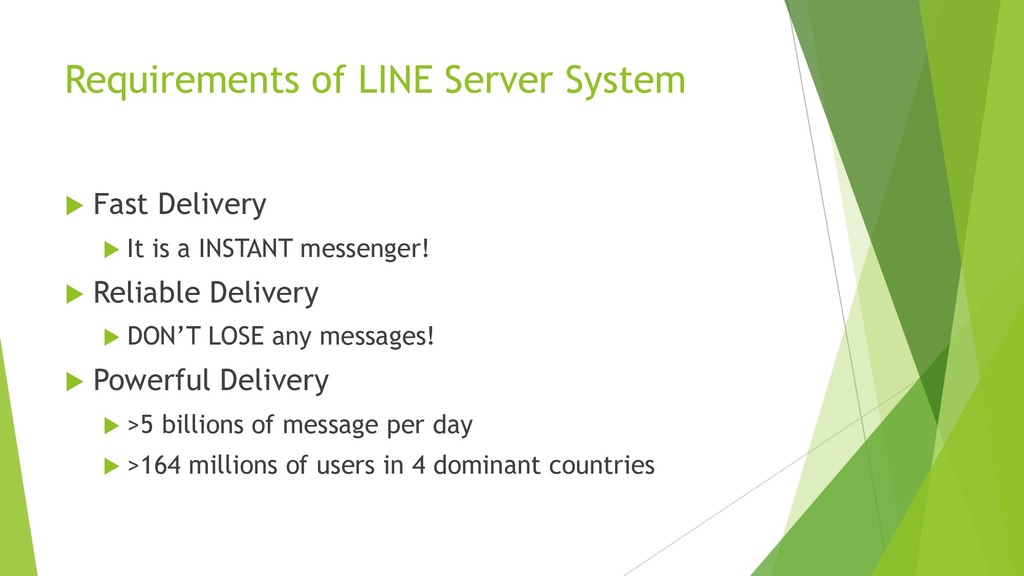

  6. Requirements of LINE Server System u Fast Delivery u It

    is a INSTANT messenger! u Reliable Delivery u DON’T LOSE any messages! u Powerful Delivery u >5 billions of message per day u >164 millions of users in 4 dominant countries
  7. Messaging System Overview Data Store Talk-server LEGY DE Async Task

    Processing LEGY JP LEGY SG
  8. LEGY u API Gateway / Reverse Proxy u Contact Points

    of LINE Apps u Multi-DC deployment (FAST!) u Nginx was not enough, let’s develop our own! u From Scratch u In Erlang (Telecom Systems) u Low Latency (FAST!)
  9. Talk-server + Data Store u Web Application Server u Message

    Delivery u Friendship Management u Java + Spring + Thrift RPC u Redis – Cache u Hbase – Persistent Store
  10. OSS are (hidden) in the picture u Redis (Search Redis

    in Line) u https://www.slideshare.net/linecorp/redis-at-line- 99471322 u HBase (Search HBase in Line) u https://www.slideshare.net/linecorp/a-5-47983106 u (Armenia) u Open Sourced Async HTTP/2 RPC THRIFT Java Library u https://github.com/line/armeria
  11. Which part I am working on? (hidden in the overview)

  12. IMF (Internal Message Flow) u Client Actions -> Async Processing

    System u Accounting System u Abuser Detection u Recommendation (Friends/News/Timeline) Talk-server Async Task Processing
  13. Apache Kafka u Distributed Streaming Platform u Distributed u Persistent

    (configurable retention period) u Message Queue u Pub-Sub Model u Built-in load balancing, failover

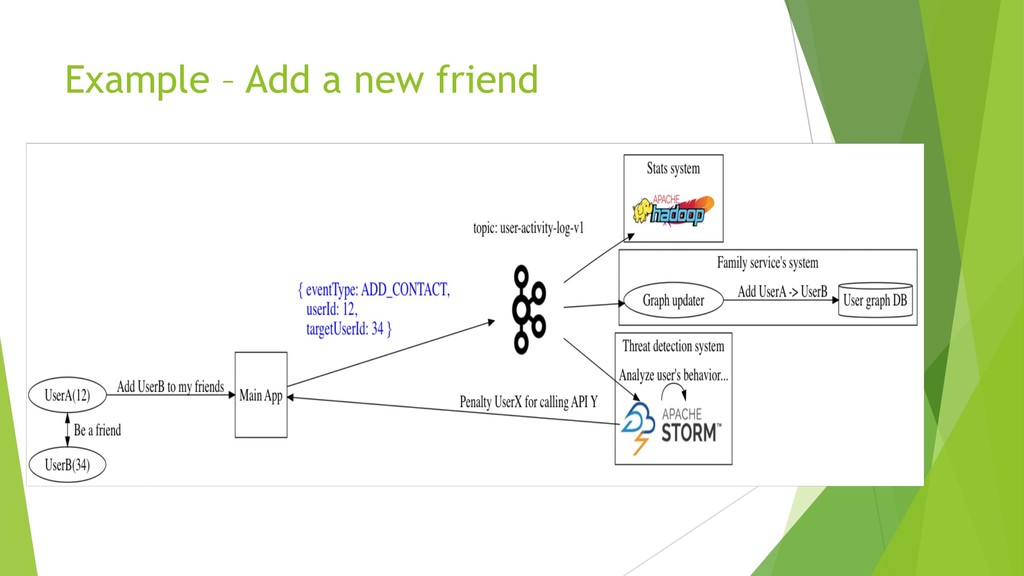

  14. Example – Add a new friend

  15. What exactly am I doing? u DevOPS (Development , Operations)

    u Develop Tools / Client SDKs for easier use u Capacity Planning of the Kafka Cluster u Consulting users on development u SRE (Reliability Engineering) u Trouble Shooting when performance violates SLO (e.g. Latency increase) u Patch Kafka for big fix / performance improvement
  16. Example of troubleshooting

  17. Traffic Surged -> Some replicas could not keep up

  18. Traffic Surged -> Some replicas could not keep up u

    In-sync Replica u Message in Kafka are replicated (copied) to three servers u 1x Leader handles clients u 2x Followers fetch from Leader u If Follower cannot keep up, they got removed from the ISR
  19. Thoughts u Network Saturation? u NO! Servers are with 10Gbps

    Network (~4 Gbps usage) u Are we reaching the limit of server? u NO! We have 60 servers serving the topic u With the spec we have, one server can handle 10 Gbps (~1 Gbps) u Hmmm....... Distributed...... Is the load distributed evenly? u Let’s check how Kafka distributes load

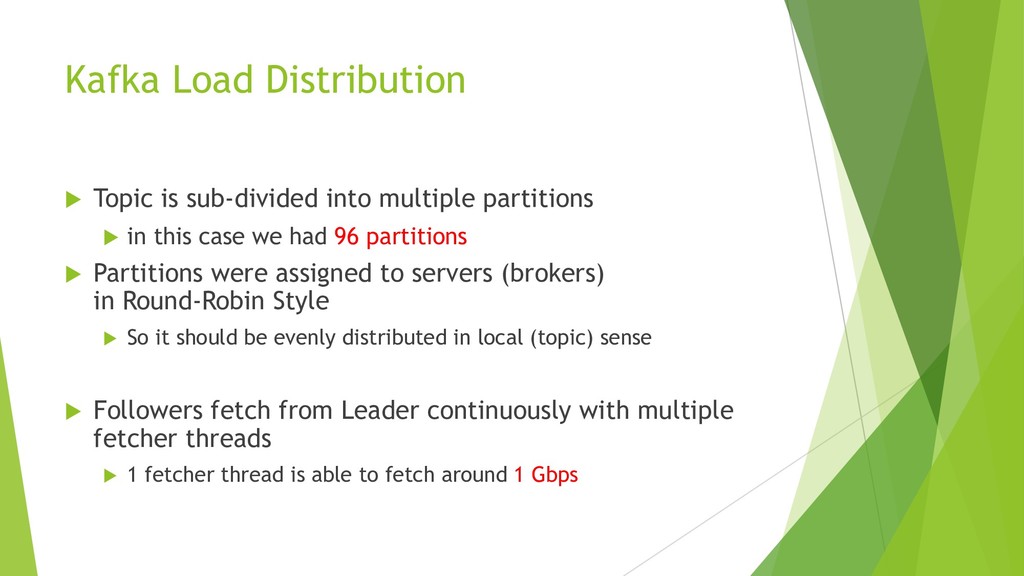

  20. Kafka Load Distribution u Topic is sub-divided into multiple partitions

    u in this case we had 96 partitions u Partitions were assigned to servers (brokers) in Round-Robin Style u So it should be evenly distributed in local (topic) sense u Followers fetch from Leader continuously with multiple fetcher threads u 1 fetcher thread is able to fetch around 1 Gbps
  21. Hmm... These numbers... u 60 Brokers u 96 Partitions u

    1 Gbps per fetcher thread u 6.5 GBps (52 Gbps) u Each Partitions = 550 Mbps u No. of partitions in 1 server = 1 or 2 u Traffic in 1 server = 550 Mbps or 1.1 Gbps
  22. What’s wrong? u We had 6 fetcher threads in 1

    broker (configurable) u Kafka assigned the 2 partitions of 1 topic to 1 fetcher thread u Why not assigned to multiple threads? (Code Time!) u Hash as a shuffle, and distributes partitions to multiple fetchers u Looks legit....... NO! Not in our case Utils.abs(31 * topic.hashCode() + partitionId) % numFetchersPerBroker
  23. Partitions (7) -> Broker (6) Partitions -> Fetcher (3) 1

    2 3 4 5 6 7 b1 b2 b3 b4 b5 b6 b1 b1t1 b2t2 b3t3 b4t1 b5t2 b6t3 b1t1 Partitions Brokers Fetchers
  24. Partitions (7) -> Broker (6) Partitions -> Fetcher (3) 1

    2 3 4 5 6 7 b1 b2 b3 b4 b5 b6 b1 b1t1 b1t1 Partitions Brokers Fetchers
  25. Problem is “Collision” of two rings u Partitions to broker

    is done in RR u Partitions is done with RR too u For 60 brokers u partition i and i + 60 are on the same broker u For 6 fetcher u partition i, i + 6, ... I + 60 are on the same fetcher
  26. Benchmark with fetcher threads So 5 fetchers = 1 fetcher,

    What could be the number of brokers?
  27. What have I said?

  28. What LINERs do u Solve real problems! u (Millions of

    Users) u Work on any problems! u (Tens of services: Messaging, Pay, Insurance, ...) u Meet LINE Friends! u (We have Brown in the office)
  29. Thank you!
