Parametric Trace Expressions for Runtime
Verification of Java-Like Programs
Luca Franceschini
May 20, 2017
Transcript
43 slides
-

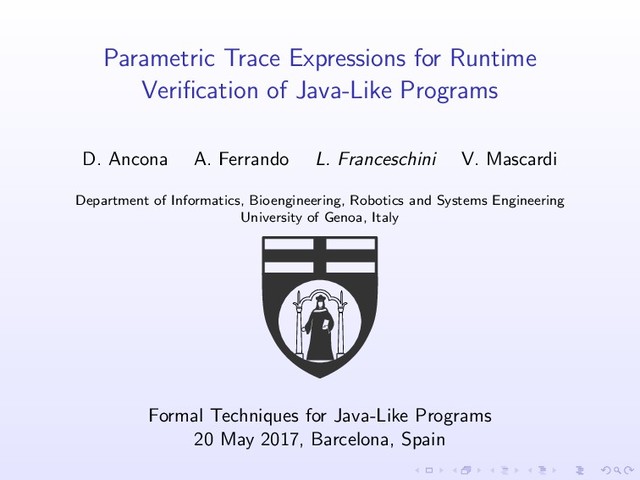

Parametric Trace Expressions for Runtime Verification of Java-Like Programs D.
Ancona A. Ferrando L. Franceschini V. Mascardi Department of Informatics, Bioengineering, Robotics and Systems Engineering University of Genoa, Italy Formal Techniques for Java-Like Programs 20 May 2017, Barcelona, Spain -
(Runtime) Verification: The Big Picture Different (complementary) approaches Formal (static)
verification Testing Runtime verification -
Runtime Verification How does it work? 1. Specify correct behavior(s)
through some formalism 2. Generate a monitor 3. Attach a monitor to the software system and check its execution at runtime -
Runtime Verification Advantages Quite expressive specification formalisms can be used
Monitors can often be automatically generated Constant monitoring after deployment and error recovery -
Trace Expressions A bit of history Trace expressions were initially
devised for monitoring agents interactions in multi-agent systems (Ancona, Drossopoulou, and Mascardi 2012), influenced by gloabl and multiparty session types. . . but they are actually very general! (Ancona, Ferrando, and Mascardi 2016) -

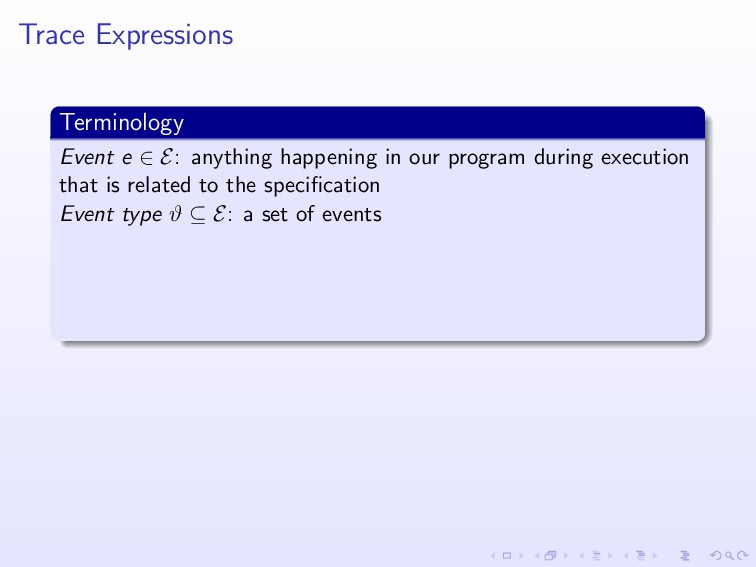

Trace Expressions Terminology Event e ∈ E: anything happening in
our program during execution that is related to the specification -
Trace Expressions Terminology Event e ∈ E: anything happening in
our program during execution that is related to the specification Event type ϑ ⊆ E: a set of events -
Trace Expressions Terminology Event e ∈ E: anything happening in
our program during execution that is related to the specification Event type ϑ ⊆ E: a set of events Event trace e ∈ E∞: a (possibly infinite) sequence of events encoding the execution flow -
Trace Expressions Terminology Event e ∈ E: anything happening in
our program during execution that is related to the specification Event type ϑ ⊆ E: a set of events Event trace e ∈ E∞: a (possibly infinite) sequence of events encoding the execution flow Trace expression τ: specification of a (possibly infinite) set of correct event traces -
Trace Expressions Terminology Event e ∈ E: anything happening in
our program during execution that is related to the specification Event type ϑ ⊆ E: a set of events Event trace e ∈ E∞: a (possibly infinite) sequence of events encoding the execution flow Trace expression τ: specification of a (possibly infinite) set of correct event traces Possible events Function and method invocation, open/read/write/close on files, I/O operations over a network, acquire and release of locks in a multi-threaded environment. . . -
Trace Expressions Syntax Trace expressions are coinductively defined as regular
terms built on top of: ε (empty) -
Trace Expressions Syntax Trace expressions are coinductively defined as regular
terms built on top of: ε (empty) ϑ:τ (prefix) -
Trace Expressions Syntax Trace expressions are coinductively defined as regular
terms built on top of: ε (empty) ϑ:τ (prefix) τ1 · τ2 (concatenation) -
Trace Expressions Syntax Trace expressions are coinductively defined as regular
terms built on top of: ε (empty) ϑ:τ (prefix) τ1 · τ2 (concatenation) τ1 ∨ τ2 (union) -
Trace Expressions Syntax Trace expressions are coinductively defined as regular
terms built on top of: ε (empty) ϑ:τ (prefix) τ1 · τ2 (concatenation) τ1 ∨ τ2 (union) τ1 ∧ τ2 (intersection) -
Trace Expressions Syntax Trace expressions are coinductively defined as regular
terms built on top of: ε (empty) ϑ:τ (prefix) τ1 · τ2 (concatenation) τ1 ∨ τ2 (union) τ1 ∧ τ2 (intersection) τ1 | τ2 (shuffle, a.k.a. interleaving) -
Trace Expressions Examples: Writing Files Events = {new, write, close}
F = ε ∨ new:O O = write:O ∨ close:ε -
Trace Expressions Examples: Writing Files Events = {new, write, close}
F = ε ∨ new:O O = write:O ∨ close:ε Recursion: trace expressions are regular terms, defined by syntactic equations (no explicit µ) -
Trace Expressions Examples: Writing Files Events = {new, write, close}
F = ε ∨ new:O O = write:O ∨ close:ε Recursion: trace expressions are regular terms, defined by syntactic equations (no explicit µ) Some accepted traces ε new write close new write write . . . -
Trace Expressions Examples: Writing Files Events = {new, write, close}
F = ε ∨ new:O O = write:O ∨ close:ε Recursion: trace expressions are regular terms, defined by syntactic equations (no explicit µ) Some accepted traces ε new write close new write write . . . Some refuted traces new write write . . . -
Parametric Runtime Verification for OOP In the object-oriented world, methods
are invoked on specific objects: only monitoring which methods are invoked is not enough. Parametric trace expressions (Ancona, Ferrando, and Mascardi 2017) are needed. -
Parametric Runtime Verification for OOP In the object-oriented world, methods
are invoked on specific objects: only monitoring which methods are invoked is not enough. Parametric trace expressions (Ancona, Ferrando, and Mascardi 2017) are needed. Binder A new operator is introduced: <x; τ> -
Parametric Runtime Verification for OOP In the object-oriented world, methods
are invoked on specific objects: only monitoring which methods are invoked is not enough. Parametric trace expressions (Ancona, Ferrando, and Mascardi 2017) are needed. Binder A new operator is introduced: <x; τ> Event types We assume a function match: match(e, ϑ) = σ iff event e matches event type ϑ with computed substitution σ. -

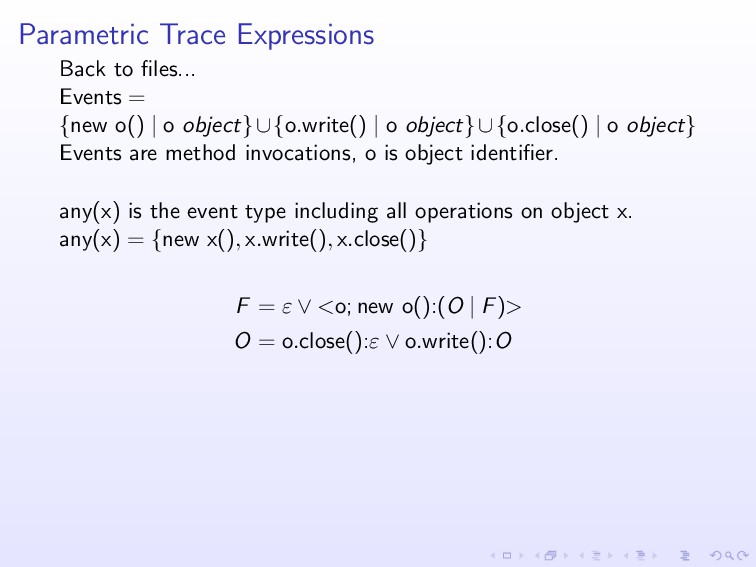

Parametric Trace Expressions Back to files... Events = {new o()
| o object}∪{o.write() | o object}∪{o.close() | o object} Events are method invocations, o is object identifier. -
Parametric Trace Expressions Back to files... Events = {new o()
| o object}∪{o.write() | o object}∪{o.close() | o object} Events are method invocations, o is object identifier. any(x) is the event type including all operations on object x. any(x) = {new x(), x.write(), x.close()} -
Parametric Trace Expressions Back to files... Events = {new o()
| o object}∪{o.write() | o object}∪{o.close() | o object} Events are method invocations, o is object identifier. any(x) is the event type including all operations on object x. any(x) = {new x(), x.write(), x.close()} F = ε ∨ <o; new o():(O | F)> O = o.close():ε ∨ o.write():O -
Parametric Trace Expressions Back to files... Events = {new o()
| o object}∪{o.write() | o object}∪{o.close() | o object} Events are method invocations, o is object identifier. any(x) is the event type including all operations on object x. any(x) = {new x(), x.write(), x.close()} F = ε ∨ <o; new o():(O | F)> O = o.close():ε ∨ o.write():O A possible correct trace new f1() f1.write() new f2() f2.write() f1.close() f2.close() -
Parametric Trace Expressions Back to files... Events = {new o()
| o object}∪{o.write() | o object}∪{o.close() | o object} Events are method invocations, o is object identifier. any(x) is the event type including all operations on object x. any(x) = {new x(), x.write(), x.close()} F = ε ∨ <o; new o():(O | F)> O = o.close():ε ∨ o.write():O A possible correct trace new f1() f1.write() new f2() f2.write() f1.close() f2.close() A refuted trace new f1() f2.write() f1.close() -
Semantics (τ) predicate checking whether termination is allowed τ e
− → τ labelled transition system -
Semantics (τ) predicate checking whether termination is allowed τ e
− → τ labelled transition system τ set of accepted event traces -
Termination Predicate Rules ( -empty) (ε) ( -shuffle) (τ1) (τ2)
(τ1 | τ2) ( -var) (τ) (<x; τ>) ( -or-r) (τ2) (τ1 ∨ τ2) ( -or-l) (τ1) (τ1 ∨ τ2) ( -cat) (τ1) (τ2) (τ1 · τ2) ( -and) (τ1) (τ2) (τ1 ∧ τ2) -
Labelled Transition System Transition rules (main) τ e − →
τ , ∅ τ e − → τ (prefix) ϑ:τ e − → τ, σ σ=match(e,ϑ) (or-l) τ1 e − → τ1 , σ τ1 ∨ τ2 e − → τ1 , σ (or-r) τ2 e − → τ2 , σ τ1 ∨ τ2 e − → τ2 , σ (and) τ1 e − → τ1 , σ1 τ2 e − → τ2 , σ2 τ1 ∧ τ2 e − → τ1 ∧ τ2 , σ σ=σ1∪σ2 (shuffle-l) τ1 e − → τ1 , σ τ1 | τ2 e − → τ1 | τ2, σ (shuffle-r) τ2 e − → τ2 , σ τ1 | τ2 e − → τ1 | τ2 , σ (cat-l) τ1 e − → τ1 , σ τ1 · τ2 e − → τ1 · τ2, σ (cat-r) τ2 e − → τ2 , σ τ1 · τ2 e − → τ2 , σ (τ1) (var-t) τ e − → τ , σ <x; τ> e − → στ , σ\x x∈dom(σ) (var-f) τ e − → τ , σ <x; τ> e − → <x; τ >, σ x∈dom(σ) -
Semantics Definition e ∈ τ is coinductively defined as follows:
either e = ε and (τ) or e = ee and τ e − → τ and e ∈ τ -
Equational Theory Properties ε = {ε} ϑ:τ = ϑ ·
τ τ1 · τ2 = τ1 ω ∪ ( τ1 ∗ · τ2 ) τ1 ∧ τ2 = τ1 ∩ τ2 τ1 ∨ τ2 = τ1 ∪ τ2 τ1 | τ2 = τ1 ω ∪ τ2 ω ∪ ( τ1 | τ2 ) <x; τ> = v {x → v}τ -
Equational Theory Properties ε = {ε} ϑ:τ = ϑ ·
τ τ1 · τ2 = τ1 ω ∪ ( τ1 ∗ · τ2 ) τ1 ∧ τ2 = τ1 ∩ τ2 τ1 ∨ τ2 = τ1 ∪ τ2 τ1 | τ2 = τ1 ω ∪ τ2 ω ∪ ( τ1 | τ2 ) <x; τ> = v {x → v}τ Commutativity, associativity, distributivity, . . . -
Conclusion Future work Expressivity: more than CFGs, hardly universal Complexity:
trace expressions with linear time and space -
Conclusion Future work Expressivity: more than CFGs, hardly universal Complexity:
trace expressions with linear time and space Objects: systematic way to generalize a trace expression from a single object to a community of object -
Conclusion Future work Expressivity: more than CFGs, hardly universal Complexity:
trace expressions with linear time and space Objects: systematic way to generalize a trace expression from a single object to a community of object More examples, more common patterns -
Conclusion Future work Expressivity: more than CFGs, hardly universal Complexity:
trace expressions with linear time and space Objects: systematic way to generalize a trace expression from a single object to a community of object More examples, more common patterns Optimizations: exploit equational theory to implement optimizations -
References Ancona, Davide, Sophia Drossopoulou, and Viviana Mascardi (2012). “Automatic
Generation of Self-monitoring MASs from Multiparty Global Session Types in Jason”. In: DALT 2012. Ancona, Davide, Angelo Ferrando, and Viviana Mascardi (2016). “Comparing Trace Expressions and Linear Temporal Logic for Runtime Verification”. In: Theory and Practice of Formal Methods. – (2017). “Parametric Runtime Verification of Multiagent Systems”. In: AAMAS 2017.
