Modern applications with Serverless

Microservice architectures are great but handling infrastructure is not easy. In this deck we will talk about serverless and how this approach simplify our infrastructure.

Transcript

1. Modern applications with serverless Mariano Calandra – 1st XPeppers Learning Day, 22 Ottobre 2019 Photo by Helloquence on Unsplash
2. Mariano Calandra Solution Architect AWS Authorized Instructor Serverless enthusiast Something about me @MarianoCalandra
3. Mariano Calandra Full time developer (mainly .NET + AngularJS) Digital payments for PA Enterprise applications Something about me @MarianoCalandra 3 yrs ago
4. RegisterPayment DeletePayment VerifyPayment 4 MONOLITH
5. RegisterPayment DeletePayment VerifyPayment 5 Huge codebase Longlive project Logic leakage Error prone
6. «The critical complexity of the most software projects is in understanding the business domain itself.» …a bigger problem ahead
7. MICROSERVICES

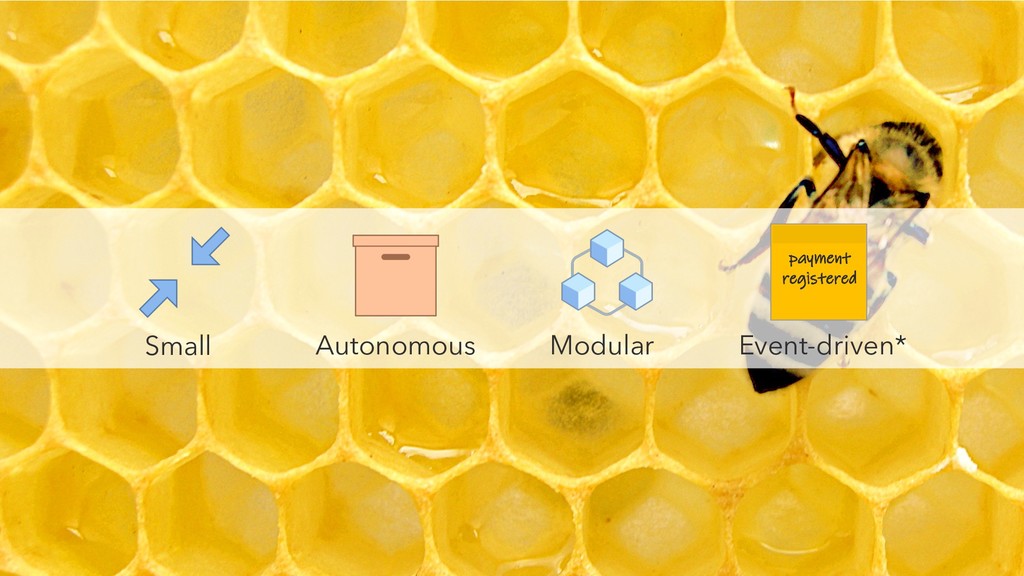

8. Small Autonomous Modular Event-driven* payment registered
9. Domain event payment registered A domain event is something that has happened in the past.
10. Domain event payment registered A domain event is something that has happened in the past. Events flow describe a business scenario.
11. RegisterPayment DeletePayment VerifyPayment Event storming 11 «…a flexible workshop format for collaborative exploration of complex business domains» eventstorming.com
12. Discovery new interactions payment registered Business Intelligence Frontend
13. Messaging

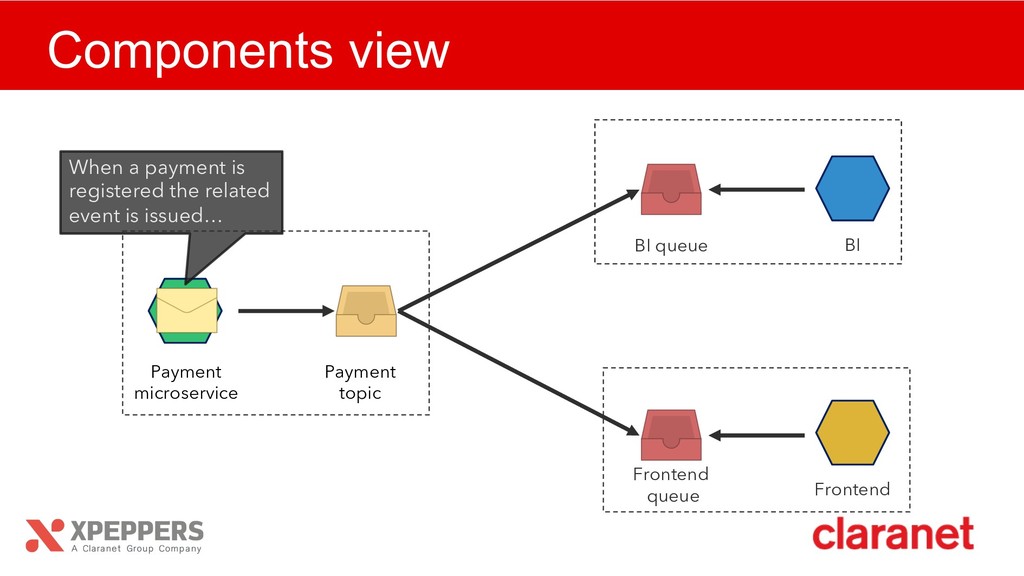

14. Frontend Payment microservice BI Payment topic BI queue Frontend queue Components view When a payment is registered the related event is issued…

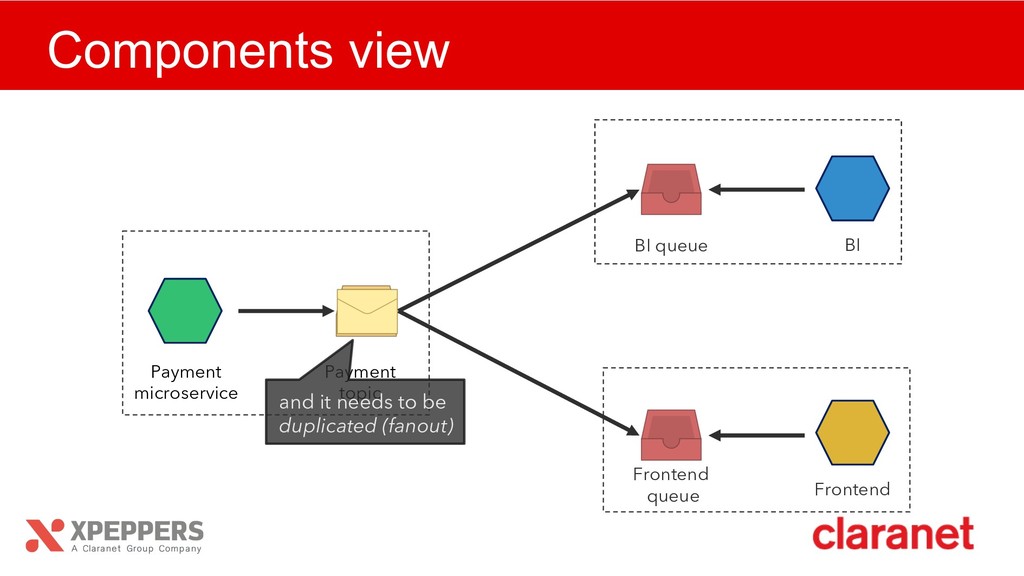

15. Frontend Payment microservice BI Payment topic BI queue Frontend queue Components view and it needs to be duplicated (fanout)

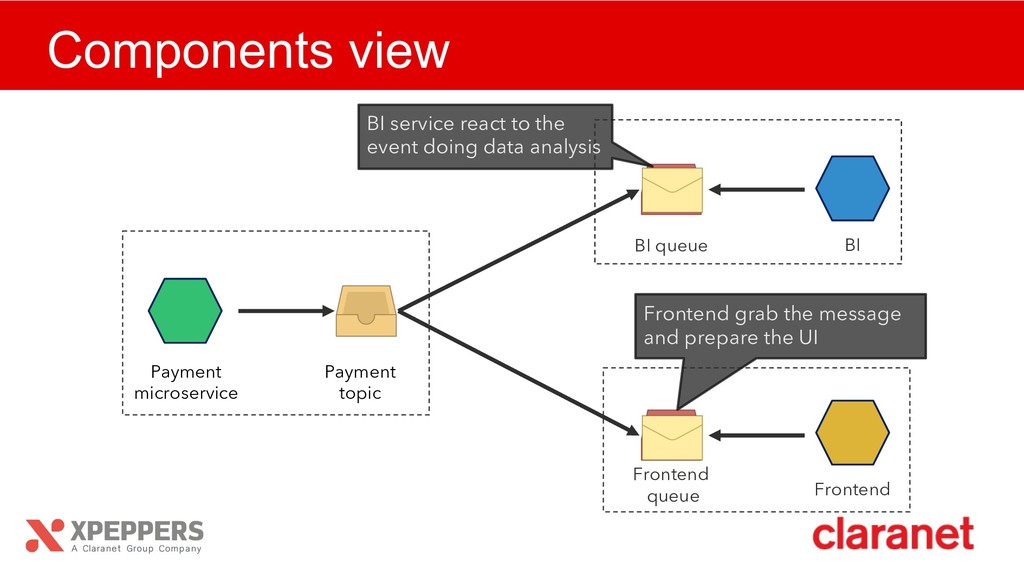

16. Frontend Payment microservice BI Payment topic BI queue Frontend queue Components view BI service react to the event doing data analysis Frontend grab the message and prepare the UI

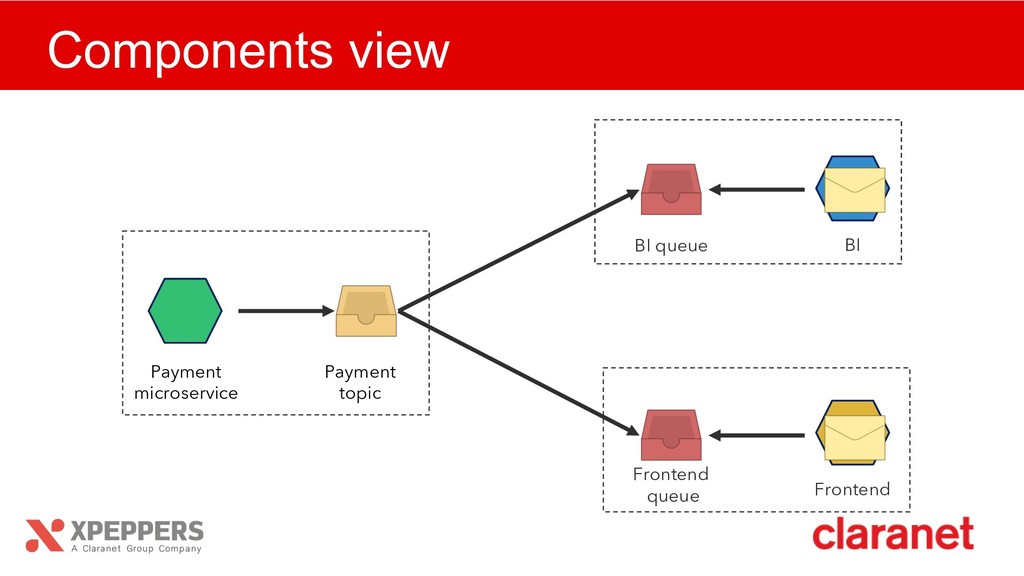

17. Frontend Payment microservice BI Payment topic BI queue Frontend queue Components view

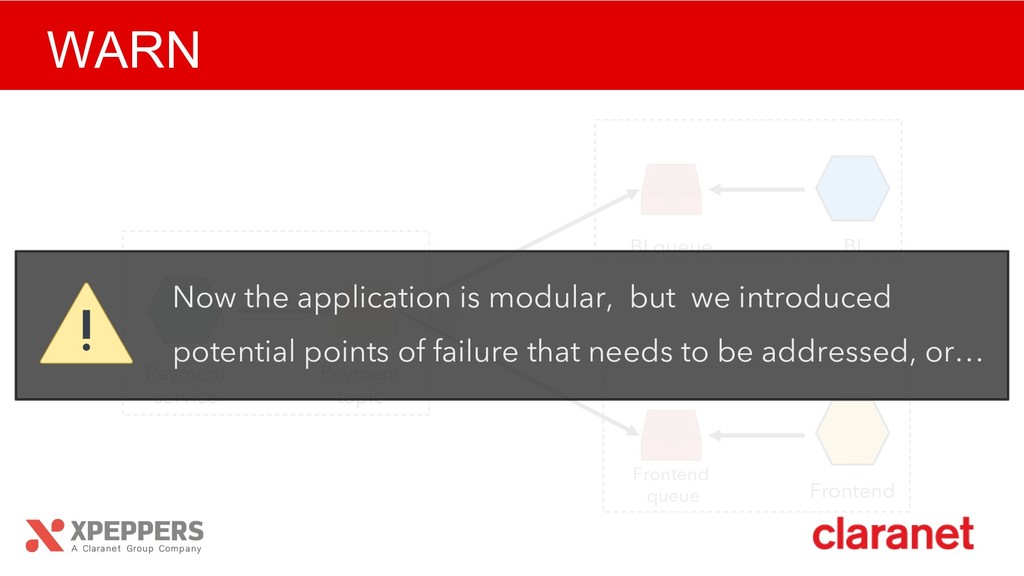

18. Frontend Payment service BI Payment topic BI queue Frontend queue WARN Now the application is modular, but we introduced potential points of failure that needs to be addressed, or…

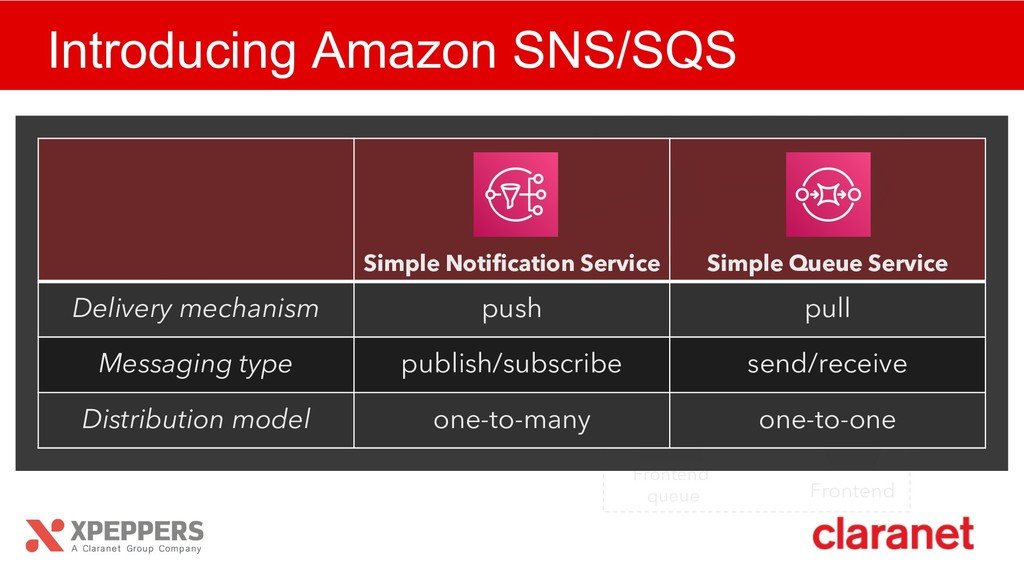

19. Frontend Payment service BI Payment topic BI queue Frontend queue Introducing Amazon SNS/SQS Simple Notification Service Simple Queue Service Delivery mechanism push pull Messaging type publish/subscribe send/receive Distribution model one-to-many one-to-one

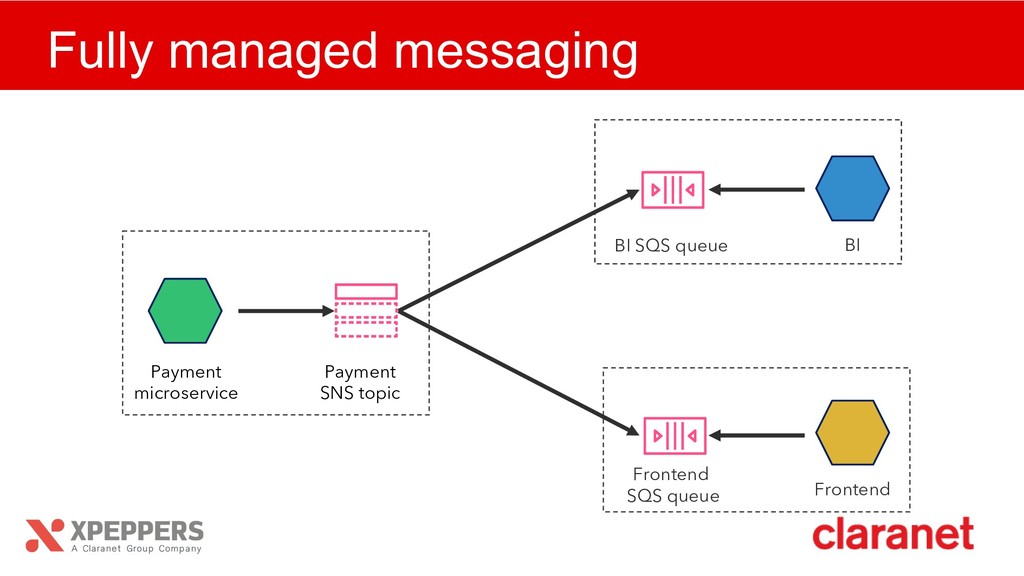

20. Frontend Payment microservice BI Payment SNS topic BI SQS queue Frontend SQS queue Fully managed messaging
21. Business logic and data
22. Frontend Payment microservice BI Payment SNS topic BI SQS queue Frontend SQS queue Business logic What about this component? How can we handle scaling, availability and so on?

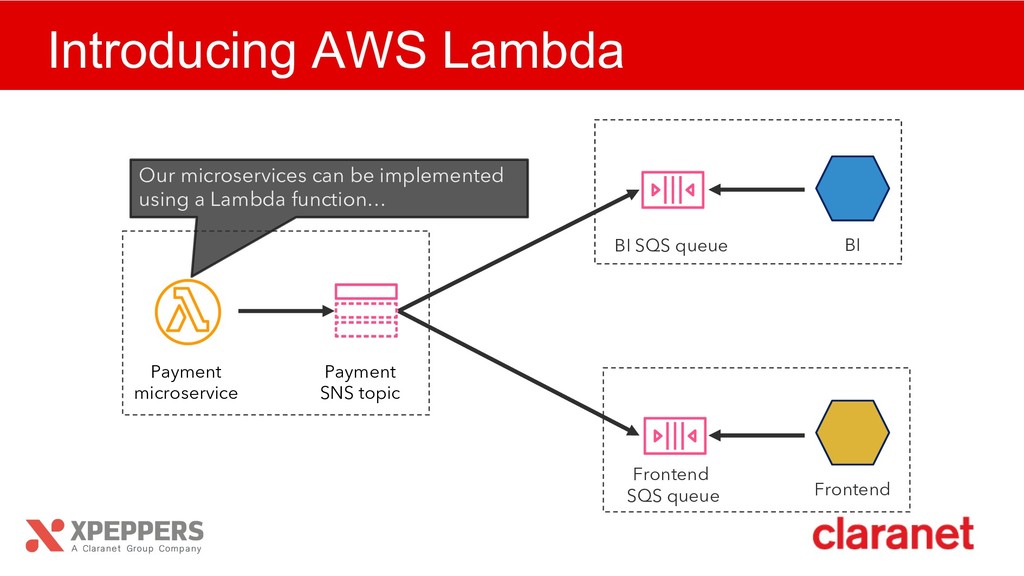

23. Frontend Payment microservice BI Payment SNS topic BI SQS queue Frontend SQS queue Introducing AWS Lambda Our microservices can be implemented using a Lambda function…
24. Payment microservice RegisterPayment DeletePayment Payment topic …or better, our microservice, can be implemented as a set of many independent Lambda functions!
25. RegisterPayment DeletePayment VerifyPayment How it works Functions are sleeping and waiting to be invoked Lambda runtime Node.js Go Java C# Ruby Python Powershell Custom runtime
26. RegisterPayment DeletePayment VerifyPayment How it works When a Lambda function is requested, the platform activates it Lambda event source Amazon API Gateway Amazon S3 Amazon DynamoDB Amazon SQS/SNS Amazon CloudWatch Scheduled events ….
27. RegisterPayment DeletePayment VerifyPayment How it works Once executed, if no further requests happens, the Lambda is disposed.
28. RegisterPayment:2 RegisterPayment:3 RegisterPayment:1 How it scales
29. RegisterPayment:2 RegisterPayment:3 RegisterPayment:1 How it scales
30. RegisterPayment:2 RegisterPayment:3 RegisterPayment:1 How it scales
31. Frontend Payment microservice BI Payment SNS topic BI SQS queue Frontend SQS queue Something is still missing What about data?

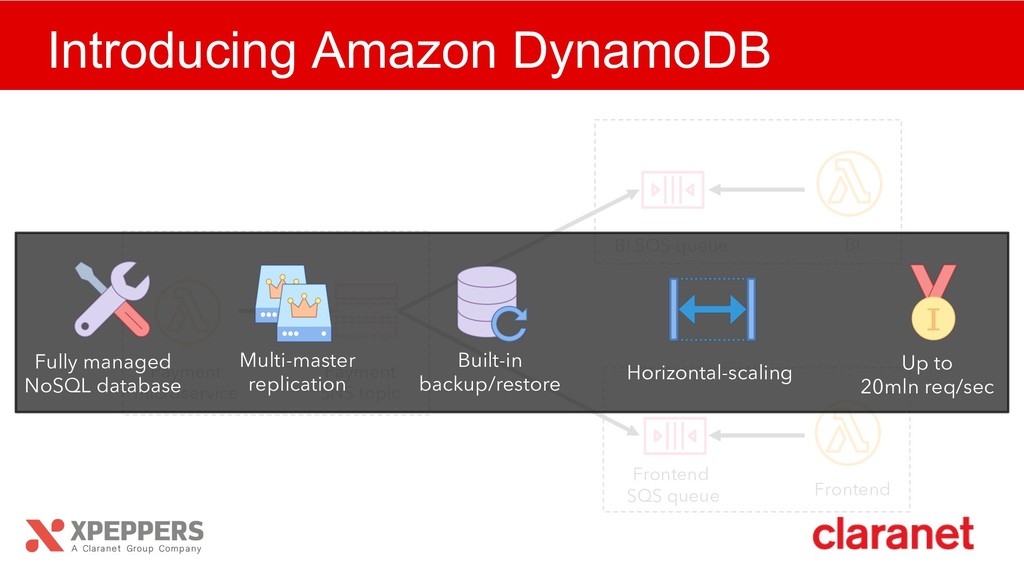

32. Frontend Payment microservice BI Payment SNS topic BI SQS queue Frontend SQS queue Introducing Amazon DynamoDB Fully managed NoSQL database Multi-master replication Built-in backup/restore Horizontal-scaling Up to 20mln req/sec

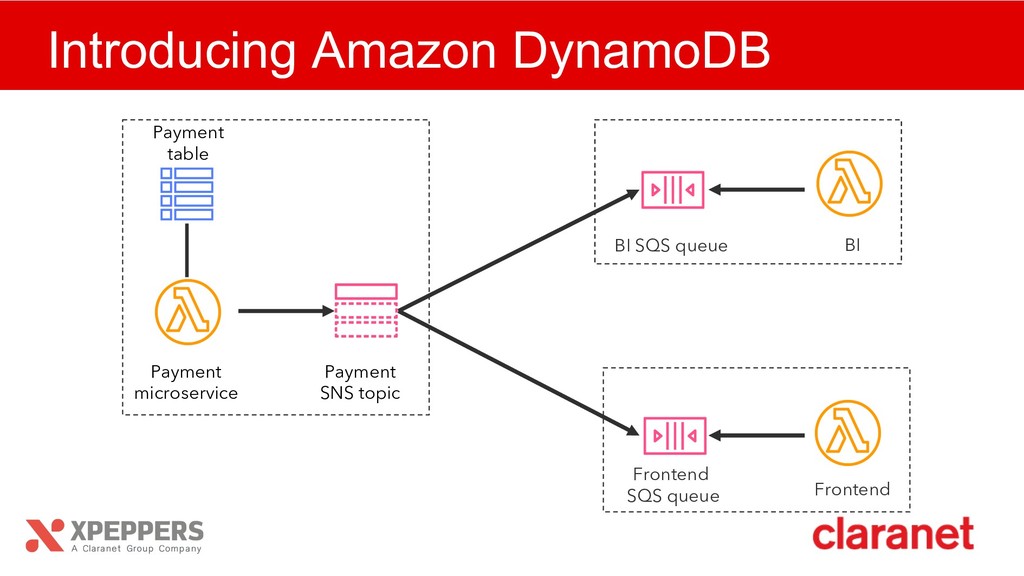

33. Frontend Payment microservice BI Payment SNS topic BI SQS queue Frontend SQS queue Payment table Introducing Amazon DynamoDB
34. Integration

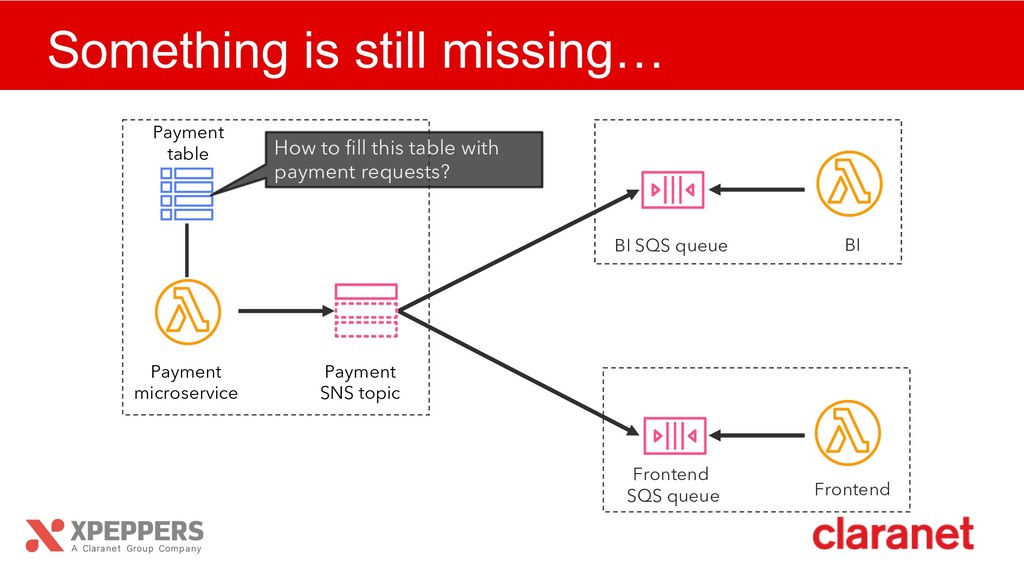

35. Frontend Payment microservice BI Payment SNS topic BI SQS queue Frontend SQS queue Payment table Something is still missing… How to fill this table with payment requests?
36. Payment microservice Payment SNS topic Payment table AWS Transfer For SFTP Amazon S3 AWS Step Functions Amason SNS Amazon SQS …first of all We need an ’’inbox’’ for this Payment context.
37. Payment microservice Payment SNS topic Payment table AWS Transfer For SFTP Amazon S3 AWS Step Functions Amason SNS Amazon SQS FTP & CSV

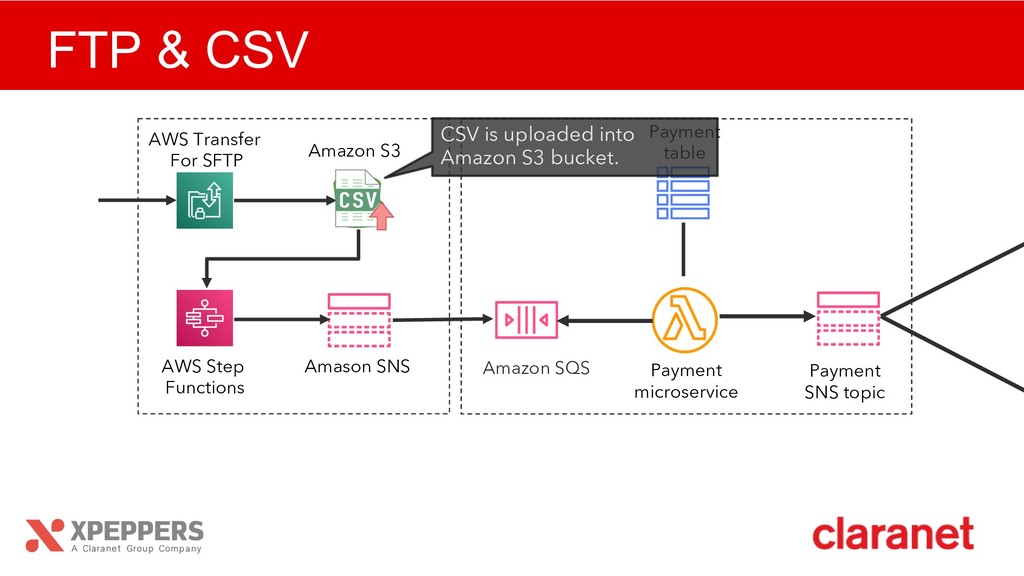

38. Payment microservice Payment SNS topic Payment table AWS Transfer For SFTP Amazon S3 AWS Step Functions Amason SNS Amazon SQS FTP & CSV CSV is uploaded into Amazon S3 bucket.

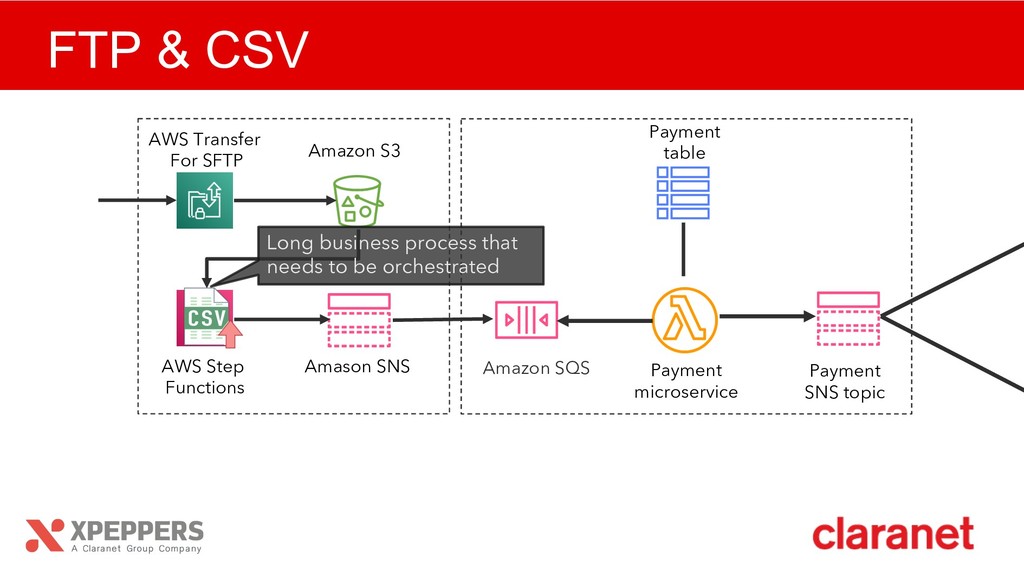

39. Payment microservice Payment SNS topic Payment table AWS Transfer For SFTP Amazon S3 AWS Step Functions Amason SNS Amazon SQS FTP & CSV Long business process that needs to be orchestrated
40. Payment microservice Payment SNS topic Payment table AWS Transfer For SFTP Amazon S3 AWS Step Functions Amason SNS Amazon SQS AWS Step Functions Workflow orchestration Fully managed Multi-services Error-handling and compensations Workflow monitoring
41. Payment microservice Payment SNS topic Payment table AWS Transfer For SFTP Amazon S3 AWS Step Functions Amason SNS Amazon SQS Process manager RegisterList ValidateList VerifySubscription ImportList AWS Step Functions workflow

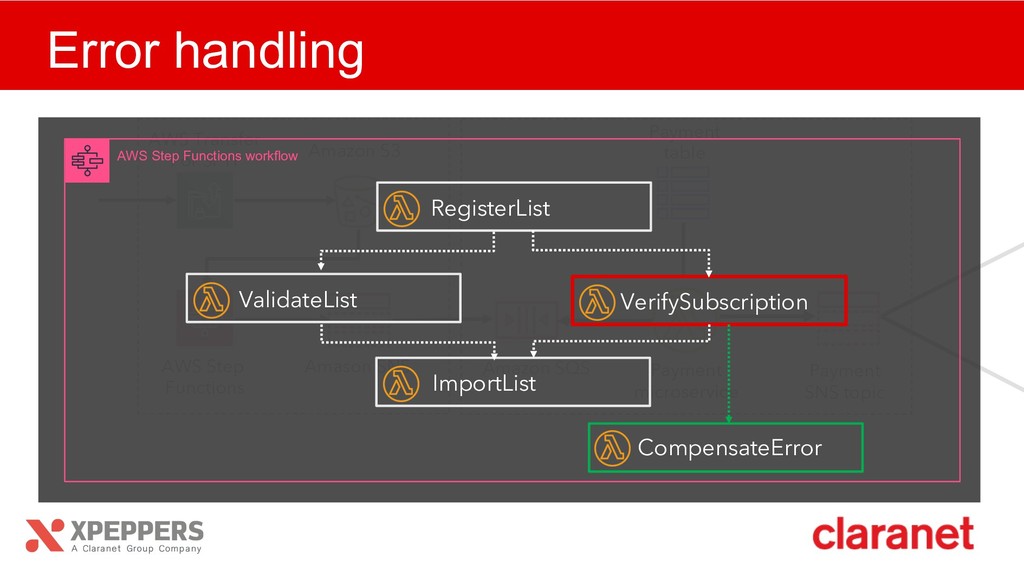

42. Payment microservice Payment SNS topic Payment table AWS Transfer For SFTP Amazon S3 AWS Step Functions Amason SNS Amazon SQS Error handling RegisterList ValidateList VerifySubscription ImportList AWS Step Functions workflow CompensateError
43. Payment microservice Payment SNS topic Payment table AWS Transfer For SFTP Amazon S3 AWS Step Functions Amason SNS Amazon SQS FTP & CSV Once completed, notifications are sent to the Amazon SNS topic and pushed out

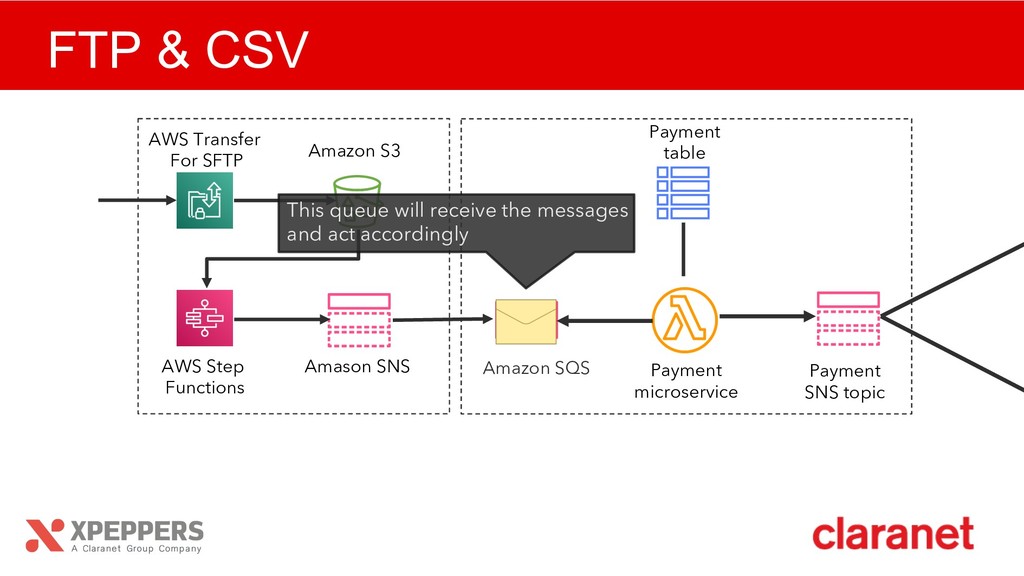

44. Payment microservice Payment SNS topic Payment table AWS Transfer For SFTP Amazon S3 AWS Step Functions Amason SNS Amazon SQS FTP & CSV This queue will receive the messages and act accordingly
45. Observability

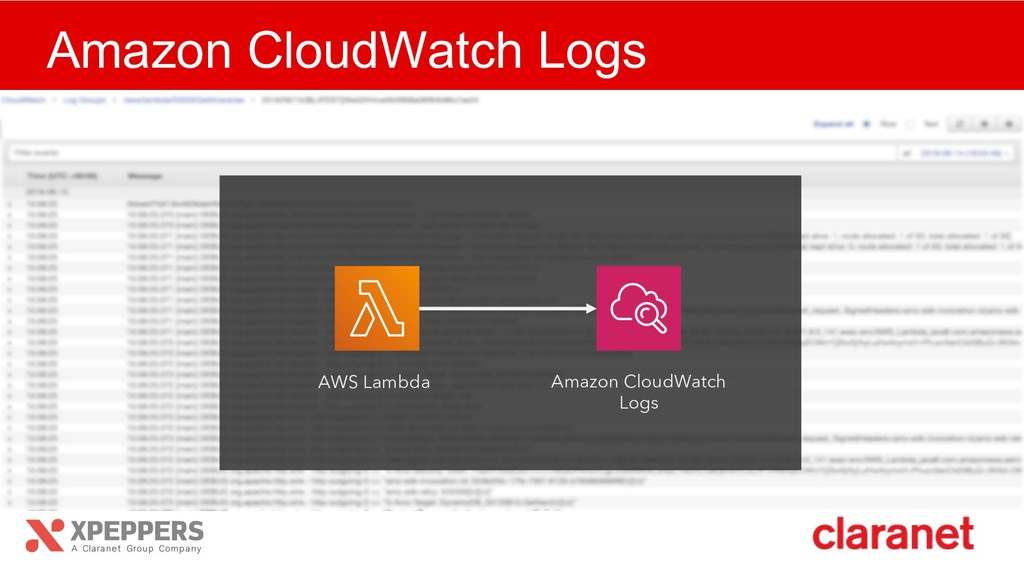

46. Amazon CloudWatch Logs AWS Lambda Amazon CloudWatch Logs
47. Amazon CloudWatch Insight
48. Amazon CloudWatch Metrics AWS Lambda Amazon CloudWatch Metrics Invocations Duration Errors Throttles …

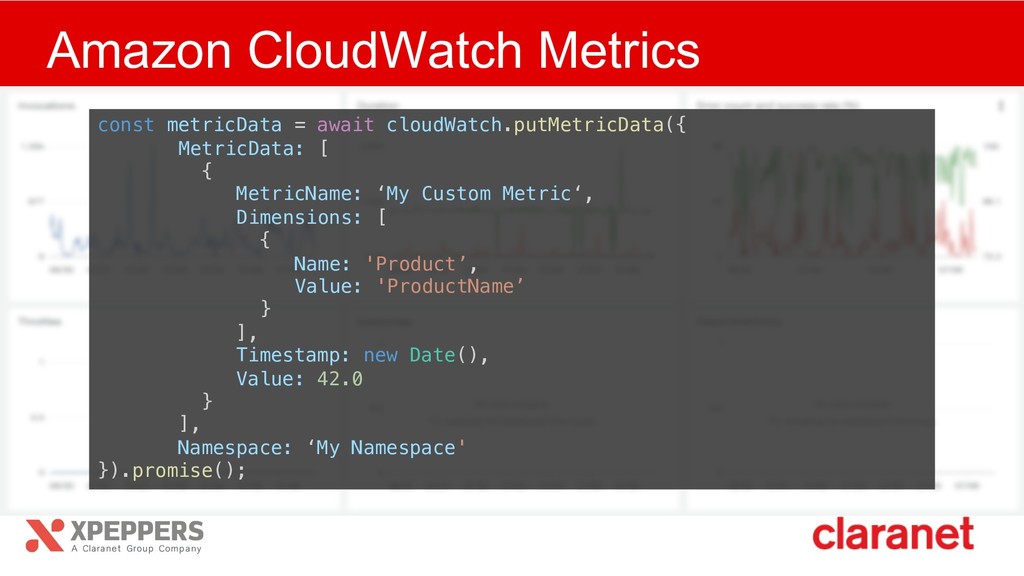

49. Amazon CloudWatch Metrics const metricData = await cloudWatch.putMetricData({ MetricData: [ { MetricName: ‘My Custom Metric‘, Dimensions: [ { Name: 'Product’, Value: 'ProductName’ } ], Timestamp: new Date(), Value: 42.0 } ], Namespace: ‘My Namespace' }).promise();
50. AWS X-Ray

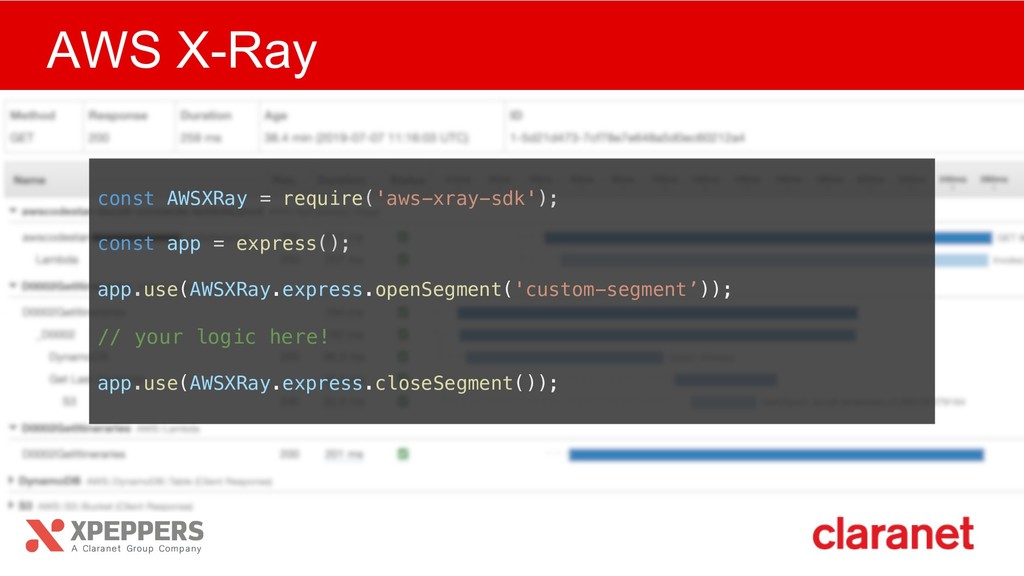

51. AWS X-Ray const AWSXRay = require('aws-xray-sdk'); const app = express(); app.use(AWSXRay.express.openSegment('custom-segment’)); // your logic here! app.use(AWSXRay.express.closeSegment());
52. Deployment
53. AWS CodeCommit AWS CodeBuild AWS CloudFormation Template Source Deployed microservice AWS CloudFormation ChangeSet Infrastructure as Code Source code and resources’s template are pushed into repository
54. AWS CodeCommit AWS CodeBuild AWS CloudFormation Template Source Deployed microservice AWS CloudFormation ChangeSet Infrastructure as Code 54 Source code is builded and dependencies are installed (e.g. node_modules)

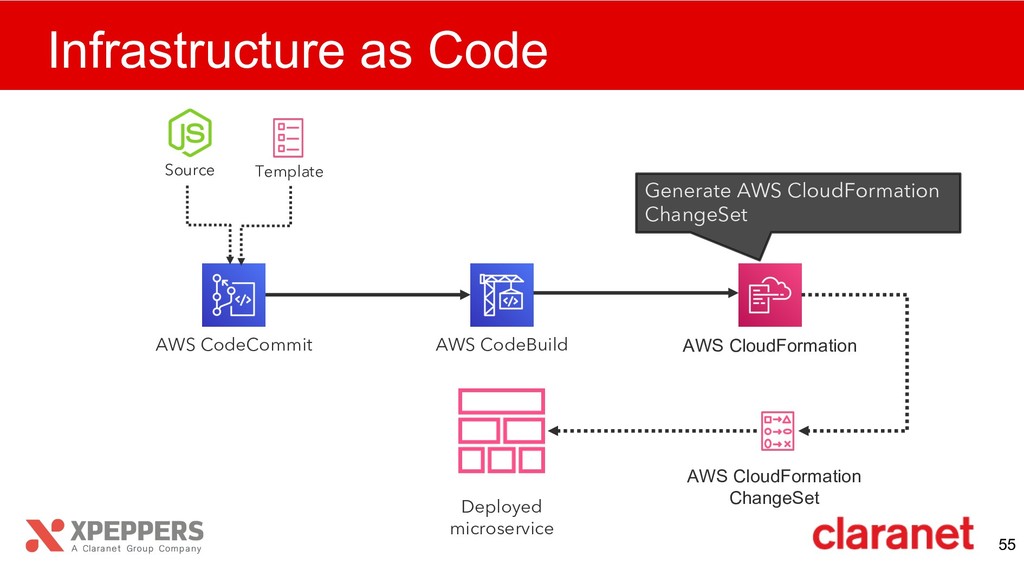

55. AWS CodeCommit AWS CodeBuild AWS CloudFormation Template Source Deployed microservice AWS CloudFormation ChangeSet Infrastructure as Code 55 Generate AWS CloudFormation ChangeSet
56. AWS CodeCommit AWS CodeBuild AWS CloudFormation Template Source Deployed microservice AWS CloudFormation ChangeSet Infrastructure as Code 56 Execute AWS CloudFormation ChangeSet
57. AWS CodeCommit AWS CodeBuild AWS CloudFormation Template Source Deployed microservice AWS CloudFormation ChangeSet Infrastructure as Code 57 You application is up and running

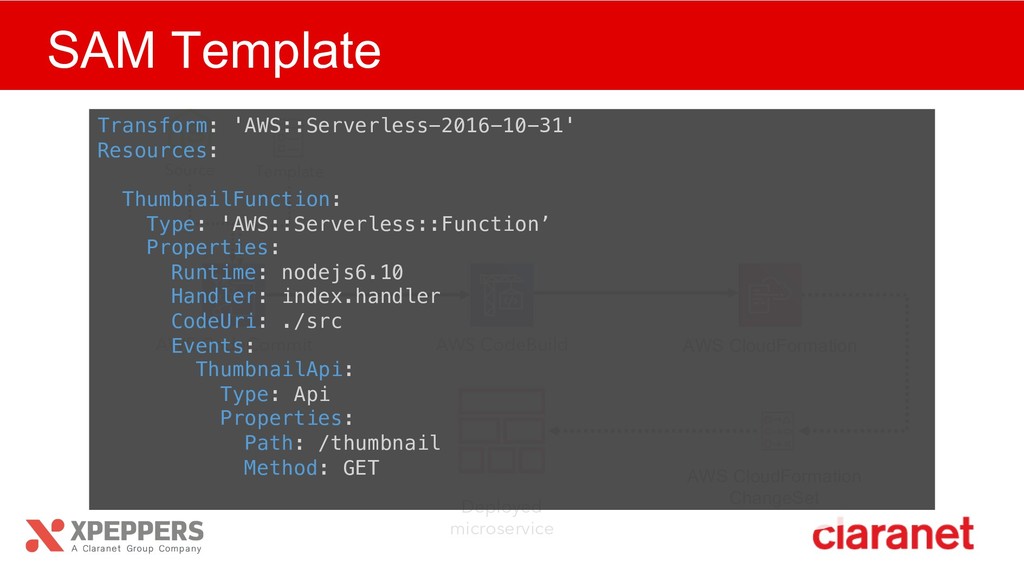

58. SAM Template AWS CodeCommit AWS CodeBuild AWS CloudFormation Template Source Deployed microservice AWS CloudFormation ChangeSet Transform: 'AWS::Serverless-2016-10-31' Resources: ThumbnailFunction: Type: 'AWS::Serverless::Function’ Properties: Runtime: nodejs6.10 Handler: index.handler CodeUri: ./src Events: ThumbnailApi: Type: Api Properties: Path: /thumbnail Method: GET

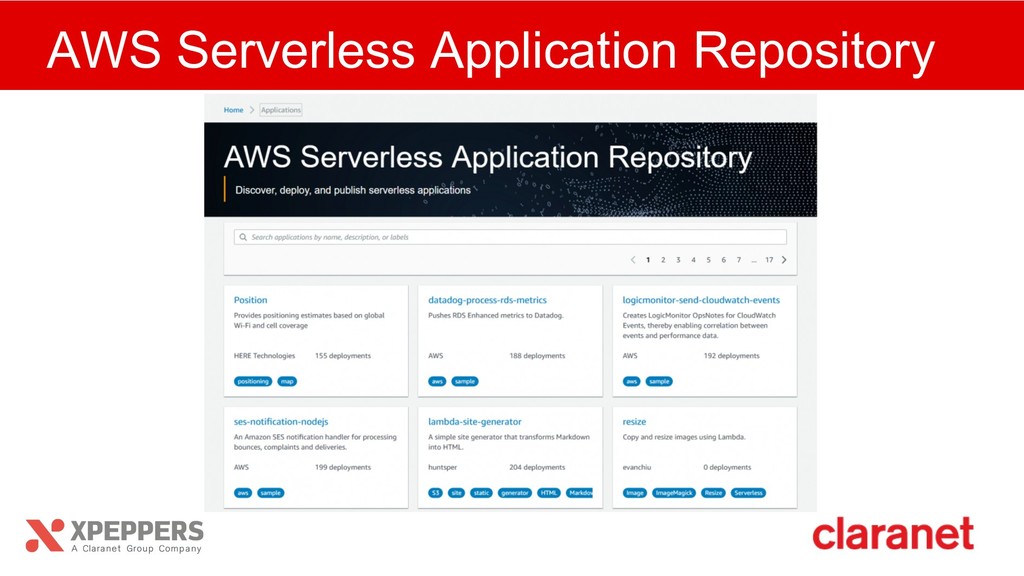

59. AWS Serverless Application Repository

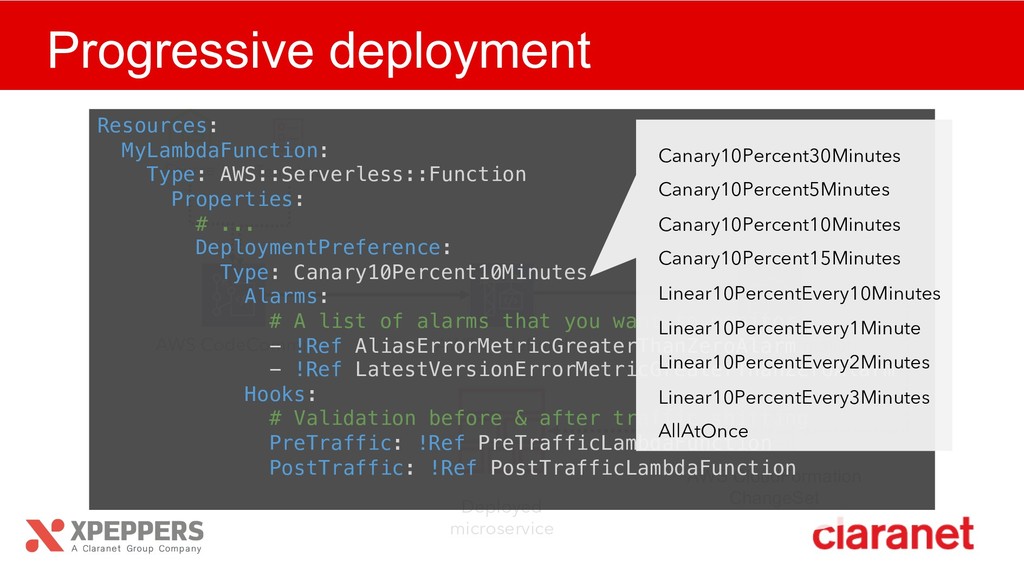

60. Progressive deployment AWS CodeCommit AWS CodeBuild AWS CloudFormation Template Source Deployed microservice AWS CloudFormation ChangeSet Resources: MyLambdaFunction: Type: AWS::Serverless::Function Properties: # ... DeploymentPreference: Type: Canary10Percent10Minutes Alarms: # A list of alarms that you want to monitor - !Ref AliasErrorMetricGreaterThanZeroAlarm - !Ref LatestVersionErrorMetricGreaterThanZeroAlarm Hooks: # Validation before & after traffic shifting PreTraffic: !Ref PreTrafficLambdaFunction PostTraffic: !Ref PostTrafficLambdaFunction Canary10Percent30Minutes Canary10Percent5Minutes Canary10Percent10Minutes Canary10Percent15Minutes Linear10PercentEvery10Minutes Linear10PercentEvery1Minute Linear10PercentEvery2Minutes Linear10PercentEvery3Minutes AllAtOnce
61. Closing time…
62. Takeaways 62 Prefer services over servers Decouple using events Strive for observability Avoid big-bang deployments IaC for replication Photo by Clem Onojeghuo on Unsplash
64. @MarianoCalandra @mariano.calandra
