Geeky Camp: Internet of Things

A lecture given by Pavel Genevski, senior researcher at SAP Labs Bulgaria. A video record can be accessed here https://www.youtube.com/watch?v=ABHJGXRf4BY

Transcript

1. Internet of Things Pavel Genevski, Researcher @ SAP Labs Bulgaria January 2016
2. Internet of Things Definition Interconnection of uniquely identifiable embedded computing devices within the existing Internet infrastructure. http://en.wikipedia.org/wiki/Internet_of_Things http://dw.connect.sys-con.com/session/2599/Hannah_Smalltree.pdf
3. Industrial IoT (Industry 4.0)
5. Smart Home http://prefundia.com/projects/view/oort-internet-of-everything/1331/
6. Smart Home: Smart Lock http://august.com/products/august-smart-lock/
7. Smart Home: Smart Bulb • Remote control via Wi-Fi • 16 million colors, dimmable • 2000 K – 8000 K temperature • Lifetime 10 years • Geofencing http://www.lumenbulb.net
8. Wearables
9. Smart Baby http://mimobaby.com/
10. Smart Drones • Unmanned aerial vehicle (UAV) (a.k.a. drones) are finding their way into IoT • Autonomous or remotely piloted • Used in Agriculture, Archaeology, Surveillance, Filmmaking, Sports, Domestic policing, Oil & Gas, Search and Rescue, Military, Animal rights, etc.
11. How big is IoT?
12. http://gizmodo.com/a-map-of-every-device-in-the-world-thats-connected-to-t-1628171291
13. Why IoT Now? • Sensor costs • Bandwidth costs • Processing costs • Big Data • IPv6 addressing http://diaryofthings.com/wp-content/uploads/2014/10/IoTInfof.png
14. IoT & Big Data IoT Social nets http://cloudcomputingnet.com/wp-content/uploads/2015/06/Big-Data-Velocity-Volume-Variety.jpg
15. The IoT Technology Stack (Server side) http://www.slideshare.net/sumitcan/iot-architecture
16. The IoT Technology Stack (Server side) http://www.slideshare.net/sumitcan/iot-architecture
17. The IoT Technology Stack (Server side) http://www.slideshare.net/sumitcan/iot-architecture
18. Smart Sensors for Everything http://www.enterrasolutions.com/media/what_is_iot_infographic.jpg
19. Hardware stack
20. The IoT Technology Stack http://www.slideshare.net/sumitcan/iot-architecture
21. Devices and Device Gateways http://www.slideshare.net/sumitcan/iot-architecture
22. MQTT • Based on the TCP/IP protocol, invented by IBM and Eurotech in 1999 • MQTT v 3.1.1 is an OASIS Standard since Nov, 2014 • TCP/IP port 1883 • MQTT over SSL port 8883 Extremely lightweight pub-sub messaging transport for M2M/IoT http://www.eclipse.org/kura/ http://docplayer.fr/3781360-Iot-les-objets-connectes-web-3-0-le-protocole-mqtt.html
23. The IoT Technology Stack http://www.slideshare.net/sumitcan/iot-architecture
24. Data Management and Intelligence http://www.slideshare.net/sumitcan/iot-architecture
25. The IoT Technology Stack http://www.slideshare.net/sumitcan/iot-architecture
26. API Management http://www.slideshare.net/sumitcan/iot-architecture

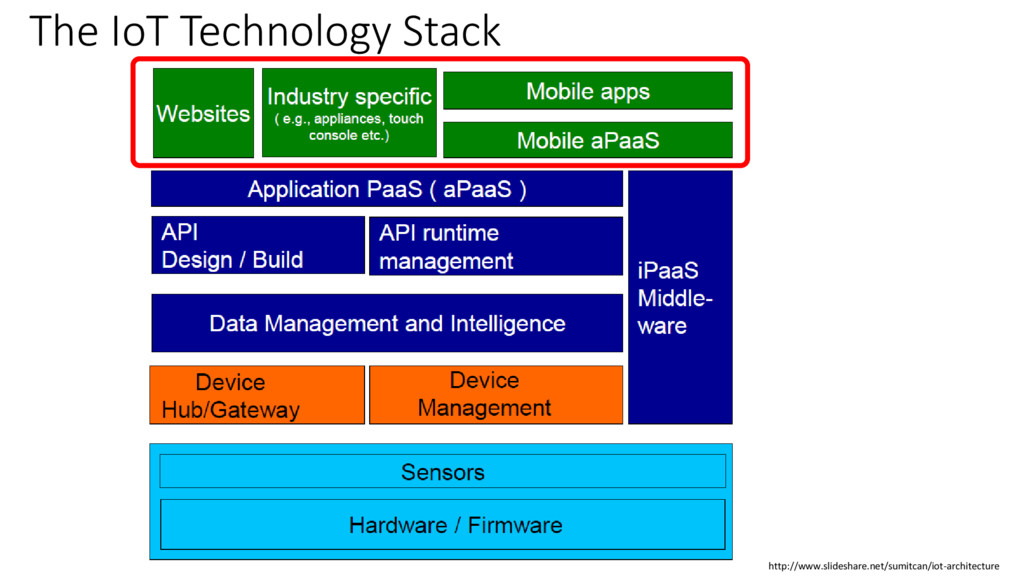

27. The IoT Technology Stack http://www.slideshare.net/sumitcan/iot-architecture
28. Platform as a Service (PaaS) http://www.slideshare.net/sumitcan/iot-architecture
29. The IoT Technology Stack http://www.slideshare.net/sumitcan/iot-architecture
30. Challenges with IoT http://www.slideshare.net/madgreek65/the-state-of-iot (DZONE) http://www.slideshare.net/mayankvijh/internet-of-things-introduction-and-variations-architecture (Gartner, September 2014)
31. Demo time 
32. ESP8266 • CPU: 32bit MCU @ 80MHz • Memory: 80KB RAM + 1MB instructions (Harvard architecture) • Peripherals: Wifi, GPIO, ADC, PWM, UART, I2C … • Low power mode / fast wake up by RTC • Programmed by: Arduino (easiest), but also Lua and C++ • Dirt cheap 
33. ZumoRobot • An Arduino shield (Uno, Leonardo) • Motors • Periferrials: • QTRSensors (Line following) • Sonar(add-on) • 3-axis gyro + accelerometer/magnetometer • Motors • Battery monitor … • Kind of expensive, but fun  https://www.pololu.com/product/2508
34. Raspberry PI B+ • CPU: Single core ARMv6 @ 700MHz • Memory: 512 SDRAM @ 400 MHz (von Neumann architecture) • Peripherals: USB, GPIO, UART … • No low power mode (about 3W continuous) • Programmed by: whatever runs on Linux/ARM (Java, Python, Node, C++ …) https://www.raspberrypi.org/products/model-b-plus/
35. Thank you Pavel Genevski, Research Expert
