How Everything Is Connected in NRP

Explanation of the logical data model. If you want to work with the code, you need to understand this. Might even help if you are using the code...

mikorizal

October 05, 2017
Tweet

More Decks by mikorizal

Other Decks in Technology

Transcript

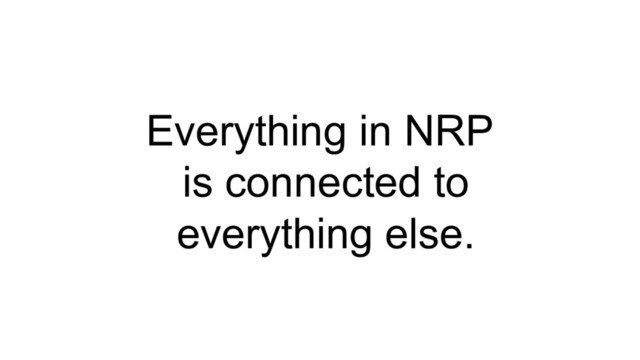

  1. Everything in NRP
    is connected to
    everything else.

    View Slide

  2. NRP has 3 levels...and they are connected like so
    Actuals
    Plan
    Recipe
    Input
    Event
    Output
    Event
    Resource
    Input
    Event
    Resource
    Process
    Planned
    Input
    Planned
    Output
    Planned
    Input
    Process
    Process
    Type
    Input
    Type
    Output
    Type
    Resource
    Type
    Input
    Type
    Resource
    Type
    Process
    Type
    The Plan level depends on Recipes and prepares for Actuals.

    View Slide

  3. This the core model, which you need to understand to work on the software.
    Sorry about that, but it’s as simple as possible - but no simpler.

    View Slide

  4. In NRP, you are an Economic Agent.

    View Slide

  5. You may be connected to other Agents by means of Agent Associations.

    View Slide

  6. You are connected to all of the Economic Events you have participated in.
    They may be many types of Events: Work, Production, Consumption, etc.

    View Slide

  7. Economic Events change Economic Resources.
    They may create, consume, use, cite, provide, or transfer Resources.

    View Slide

  8. You may own or have custody or have some other responsibility
    for Economic Resources

    View Slide

  9. Economic Events may be connected to Processes.
    They may be inputs to, or outputs from, Processes.

    View Slide

  10. If the same Resource is an output from one Process and then an input to
    another Process, then those Processes are connected by a resource flow.

    View Slide

  11. Economic Events may also Transfer Resources from one Agent to another
    by means of Exchanges.

    View Slide

  12. If the same Resource is transferred in an Exchange and then becomes an
    input to a Process, then the Exchange and the Process are connected.

    View Slide

  13. Likewise if the same Resource is an output from a Process
    and then transferred in an Exchange.

    View Slide

  14. And likewise if the same Resource is transferred in one Exchange and then
    transferred again in another.

    View Slide

  15. Processes and Exchanges may be planned
    by means of Commitments.

    View Slide

  16. Commitments are plans for Economic Events
    that have not happened yet.

    View Slide

  17. Commitments may be parts of Orders:
    “Customer/Purchase” Orders (planned trades) are groups of Exchange Commitments.

    View Slide

  18. “Work Orders” (planned production) are groups of Process Commitments.

    View Slide

  19. Everything has a Type.

    View Slide

  20. Types are for configuring the system, setting policies,
    and modeling repeatable Process/Exchange flows.

    View Slide

  21. Repeatable Process/Exchange flows
    are called Recipes.

    View Slide

  22. A food
    processing
    recipe

    View Slide

  23. Here’s how it all fits together in a flow again
    Actuals
    Plan
    Recipe
    Input
    Event
    Output
    Event
    Resource
    Input
    Event
    Resource
    Process
    Planned
    Input
    Planned
    Output
    Planned
    Input
    Process
    Process
    Type
    Input
    Type
    Output
    Type
    Resource
    Type
    Input
    Type
    Resource
    Type
    Process
    Type

    View Slide

  24. Actuals:
    Salsa
    Events
    Plan:
    Order for 12
    jars of Salsa
    Salsa Recipe
    for 1 lb of Salsa
    (fills 2 jars)
    Consumed 6
    lb Diced
    Tomato Lot
    234
    Produced 6
    lb Salsa -
    Bulk Lot
    456
    Salsa -
    Bulk Lot
    456
    Consumed
    6 lb Salsa
    -Bulk Lot
    456
    Diced
    Tomato Lot
    234
    Package
    Salsa
    Today
    6 lb Diced
    Tomato
    Today
    6 lb Salsa
    - Bulk
    Today
    6 lb Salsa
    - Bulk
    Today
    Cook
    Salsa
    Today
    Package
    Salsa
    1 lb
    Diced
    Tomato
    1 lb
    Salsa -
    Bulk
    Salsa -
    Bulk
    1 lb
    Salsa -
    Bulk
    Diced
    Tomato
    Cook
    Salsa
    Here’s the Salsa flow

    View Slide

  25. Process
    Input
    Event
    Output
    Event
    Resource
    Input
    Event
    Resource
    Value Flows - forward and backward
    Process
    Product
    Collaboration
    Reputation
    Income
    Resource
    Input
    Event
    Output
    Event
    Resource
    Output
    Event
    Resource
    Input
    Event
    Process
    Resource
    Input
    Event

    View Slide

  26. The end

    View Slide
