Salsa Recipe-Plan-Reality

Demonstrating how NRP recipes generate plans which then can be executed. Also an example of how NRP can handle food processing.

0ce7e24a999e470a0c98782ef21f7c2e?s=128

mikorizal

January 31, 2015
Tweet

Transcript

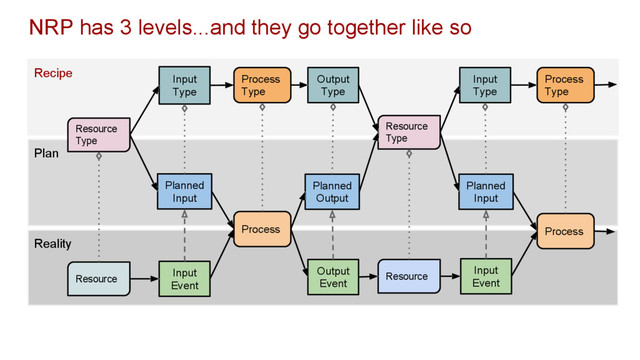

  1. NRP has 3 levels...and they go together like so Reality

    Plan Recipe Input Event Output Event Resource Input Event Resource Process Planned Input Planned Output Planned Input Process Process Type Input Type Output Type Resource Type Input Type Resource Type Process Type
  2. Salsa Recipe Output Type Process Type Input Type Input Type

    Input Type Input Type Input Type Input Type
  3. Process Planned Output Planned Input Process Planned Output Planned Input

    Process Planned Output Planned Inputs Process Planned Output Planned Inputs
  4. Reality: Salsa Events Plan: Order for 12 jars of Salsa

    Salsa Recipe for 1 lb of Salsa (fills 2 jars) Consumed 6 lb Diced Tomato Lot 234 Produced 6 lb Salsa - Bulk Lot 456 Salsa - Bulk Lot 456 Consumed 6 lb Salsa - Bulk Lot 456 Diced Tomato Lot 234 Package Salsa Today 6 lb Diced Tomato Today 6 lb Salsa - Bulk Today 6 lb Salsa - Bulk Today Cook Salsa Today Package Salsa 1 lb Diced Tomato 1 lb Salsa - Bulk Salsa - Bulk 1 lb Salsa - Bulk Diced Tomato Cook Salsa
