Test Architecture for Global Platforms

Transcript

1. @milan_kuveljic Test Busters October 2019 Global Platforms Test Architecture for
2. Markets N26 at a Glance +4M Customers 26 Markets +$500M Funding +$2Bn Monthly transaction volume 4 Locations +1300 Employees
3. ⬒ 400+ engineers - Berlin/Barcelona/New York/Vienna ⬒ Deploying to production 400+ times per week ⬒ Building crash-free mobile applications ⬒ Achieving regularly 5 stars in the App/Play Stores N26 is a tech company building modern banking worldwide @milan_kuveljic
4. N26 Tech
5. N26 Tech
6. Milan Kuveljic Head of Quality Engineering @N26 milan_kuveljic testingin.space
7. Our journey Test architectures Challenges Designing for Global Tools and frameworks Continuous testing
9. LOAD BALANCERS APPLICATION LAYER PRODUCT USER PAYMENT SHARED DATA LAYER EXTERNAL SERVICE Monoliths
10. Simple to develop Simple to test Simple to deploy MonoBenefits Simple to scale
11. PRODUCT USER PAYMENTS SHARED DATA LAYER API TESTS COMPONENT INTEGRATION TESTS UNIT UI E2E TESTS PERFORMANCE SECURITY TESTS EXTERNAL/STUB SERVICE Testing in Monoliths
12. If it’s big, hard to maintain and coordinate If it’s down, everything is down Performance slows down with complexity BadMono Innovation is difficult
13. Simple to develop Simple to test Simple to deploy MonoBenefits Simple to scale

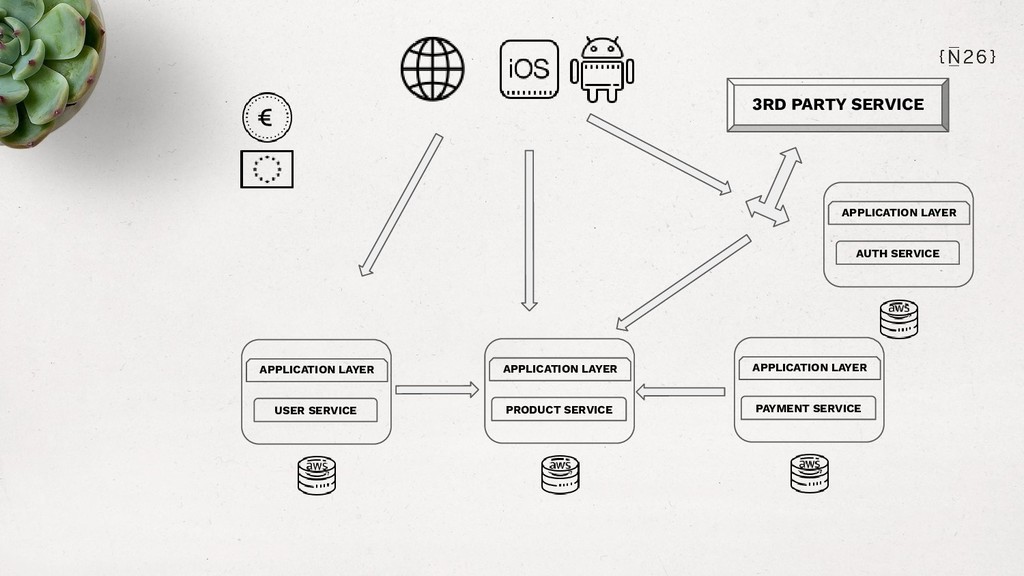

14. APPLICATION LAYER AUTH SERVICE 3RD PARTY SERVICE APPLICATION LAYER PAYMENT SERVICE APPLICATION LAYER PRODUCT SERVICE APPLICATION LAYER USER SERVICE
15. For large and complex platforms CI/CD - easier deployment Better testability MicroBenefits Better reliability Technology independent
16. 3RD PARTY/STUB SERVICE APPLICATION LAYER AUTH SERVICE APPLICATION LAYER USER SERVICE API COMPONENT INTEGRATION TESTS UNIT UI TESTS E2E CONTRACT TESTS PERFORMANCE TESTS SECURITY
17. APPLICATION LAYER USER SERVICE BUILD & TEST SECURITY REPORT CONTRACT TEST VERIFICATION DOCKER BUILD & PUSH DEV ENV DEPLOY DEV ENV HEALTHCHECK DEV API TEST STAGING ENV DEPLOY STAGING ENV HEALTHCHECK STAGING API TEST PERFORMANCE TEST LIVE DEPLOY LIVE TEST
18. BUILD SECURITY REPORT TEST DOCKER BUILD & PUSH DEV ENV DEPLOY TEST STAGING ENV DEPLOY INTEGRATION TEST UI TEST A11Y TEST E2E TEST LIVE DEPLOY
19. BUILD SECURITY REPORT TEST DOCKER BUILD & PUSH UI TEST E2E TEST PUBLISH UPLOAD
20. Complexity of distributed platform Difficult testing Inter-service communication BadMicro Conway’s law Deployment complexity
21. CHALLENGE
24. Global platform has multi-region, multi-currency, multi-regulations to satisfy
25. Markets Global platform More Regions More Microservices More Tests More Regulations More Deployments More Failures
26. Additional Slides
27. Additional Slides
28. Testing Challenges E2E tests are even more brittle Testing scope is constantly growing Region specific services are dependent on global services More regions require different deployment branches One app serves users in all regions Global services serve users in isolated regions
29. Global distributed platform requires vigorous test architecture
30. ARCHITECTURE
31. Global Architecture Domain Test Data Infrastructure Cloud solutions Reporting Execution
32. val defaultCurrencyForRegion = when (Region.getRegion()) { Region.REGION_US -> Currency.getInstance("USD") else -> Currency.getInstance("EUR") companion object { lateinit var preUser: User lateinit var postUser: User private val regionBasedTestConfig = mapOf( Region.REGION_EU to RegionBasedTestConfig(ExternalIdType.IBAN, false, UserEntity.EU), Region.REGION_US to RegionBasedTestConfig(ExternalIdType.USBAN, true, UserEntity.US) Architecture Domain Test structure Test suites
33. Architecture Test Data Configurable static test data Dynamic test data - API helpers ! users_europe.yml ! users_us.yml ! users_add_whatever_region.yml
34. Architecture Infrastructure Test Environments Stubs for 3rd parties Limited Production Environment
35. Architecture Cloud solutions Virtual browsers In house mobile devices Devices on Cloud

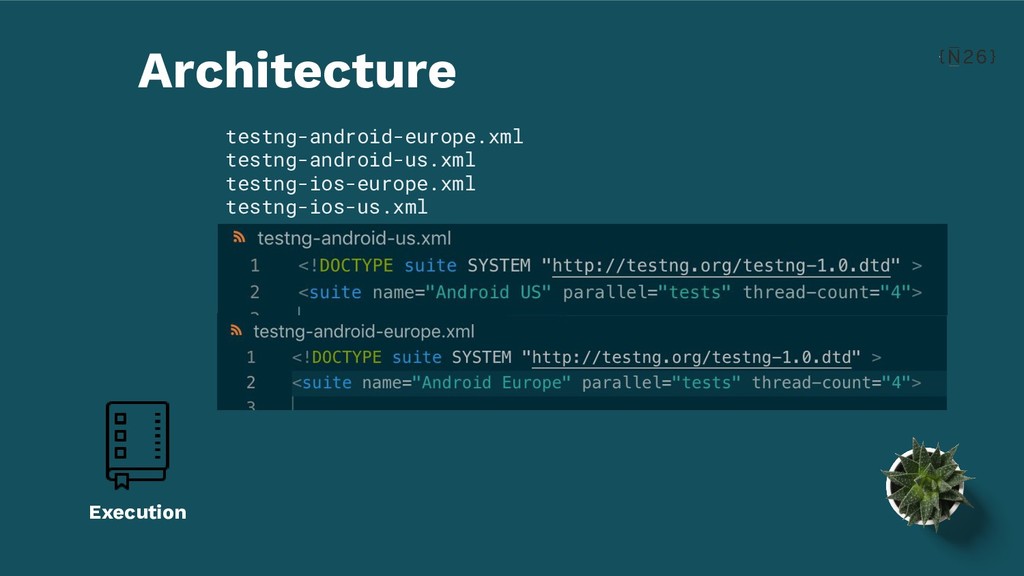

36. Architecture Execution testng-android-europe.xml testng-android-us.xml testng-ios-europe.xml testng-ios-us.xml

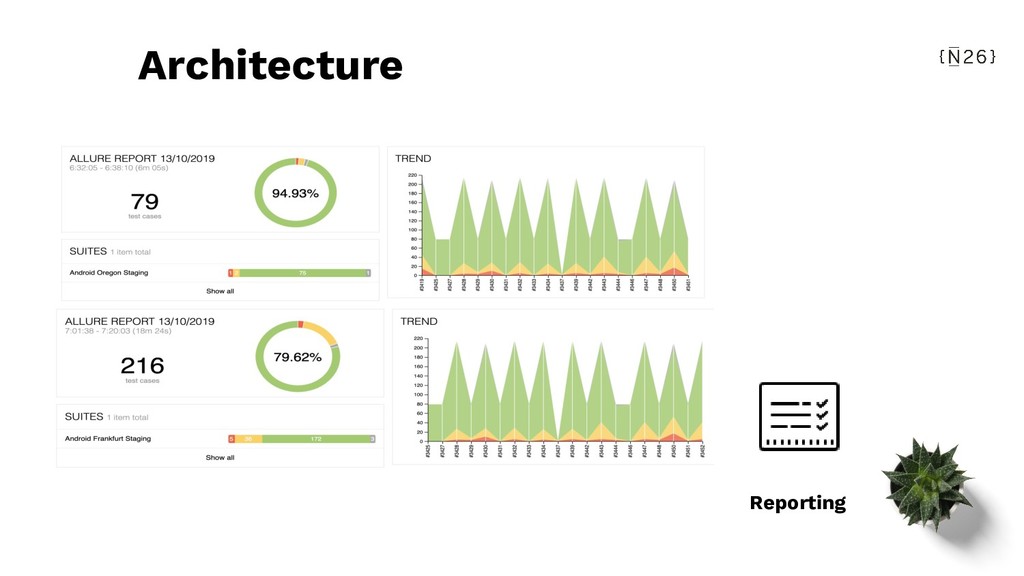

37. Architecture Reporting
38. Capabilities of a specific tool Tool meets specific needs. Tool doesn’t seem to provide full test coverage Tool costs exceed the team budget Tools
39. Tools APPLICATION LAYER USER SERVICE
40. CONTINUOUS TESTING
41. Additional Slides

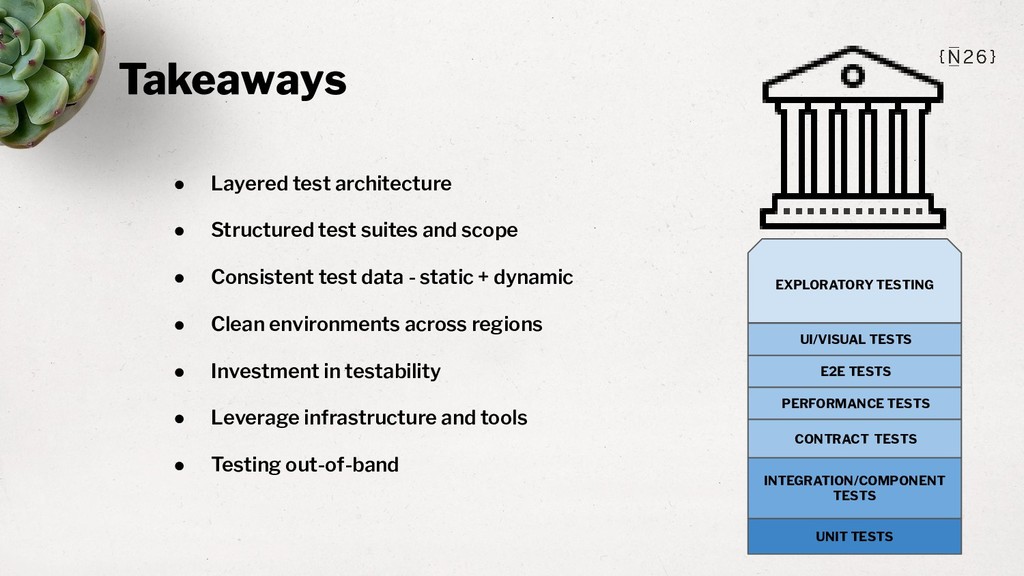

42. Takeaways • Layered test architecture • Structured test suites and scope • Consistent test data - static + dynamic • Clean environments across regions • Investment in testability • Leverage infrastructure and tools • Testing out-of-band UNIT TESTS INTEGRATION/COMPONENT TESTS E2E TESTS EXPLORATORY TESTING PERFORMANCE TESTS CONTRACT TESTS UI/VISUAL TESTS
43. @milan_kuveljic Thank you! We’re also hiring in Vienna n26.com/careers
44. Question time
