Auralization of road vehicles using spectral modeling synthesis

Masters Thesis presentation on auralization of road vehicles using spectral modeling synthesis

Avatar for Chinmay Pendharkar

Chinmay Pendharkar

April 08, 2013
Tweet

More Decks by Chinmay Pendharkar

See All by Chinmay Pendharkar
Audio Fundamentals - Pd
Avatar for Chinmay Pendharkar notthetup
0
97
DNSSEC and Bind
Avatar for Chinmay Pendharkar notthetup
1
150
Garageband And Podcasting
Avatar for Chinmay Pendharkar notthetup
0
59
Audio Fundamentals - HTML5 Audio
Avatar for Chinmay Pendharkar notthetup
0
120
Audio Fundamentals - Oscillators
Avatar for Chinmay Pendharkar notthetup
0
60
Audio Fundamentals - Basics
Avatar for Chinmay Pendharkar notthetup
0
120
Robots and Pi
Avatar for Chinmay Pendharkar notthetup
2
120
What I’ve learnt about Environmental Sound Design
Avatar for Chinmay Pendharkar notthetup
0
240
Audio Editing with Audacity
Avatar for Chinmay Pendharkar notthetup
0
70

Other Decks in Research

See All in Research
[RSJ25] Enhancing VLA Performance in Understanding and Executing Free-form Instructions via Visual Prompt-based Paraphrasing
Avatar for Semantic Machine Intelligence Lab., Keio Univ. keio_smilab
PRO
0
190
AlphaEarth Foundations: An embedding field model for accurate and efficient global mapping from sparse label data
Avatar for SatAI.challenge satai
3
590
論文読み会 SNLP2025 Learning Dynamics of LLM Finetuning. In: ICLR 2025
Avatar for S s_mizuki_nlp
0
350
AIグラフィックデザインの進化：断片から統合（One Piece）へ / From Fragment to One Piece: A Survey on AI-Driven Graphic Design
Avatar for Shunsuke KITADA shunk031
0
580
Learning to (Learn at Test Time): RNNs with Expressive Hidden States
Avatar for Hiroto Kurita kurita
1
300
大学見本市2025 JSTさきがけ事業セミナー「顔の見えないセンシング技術：多様なセンサにもとづく個人情報に配慮した人物状態推定」
Avatar for Mariko Isogawa miso2024
0
190
さまざまなAgent FrameworkとAIエージェントの評価
Avatar for Kento.Yamada ymd65536
1
370
When Learned Data Structures Meet Computer Vision
Avatar for Yusuke Matsui matsui_528
1
1.6k
ACL読み会2025: Can Language Models Reason about Individualistic Human Values and Preferences?
Avatar for Yuki Zenimoto yukizenimoto
0
100
Thirty Years of Progress in Speech Synthesis: A Personal Perspective on the Past, Present, and Future
Avatar for Keiichi Tokuda ktokuda
0
140
湯村研究室の紹介2025 / yumulab2025
Avatar for yumulab yumulab
0
270
令和最新技術で伝統掲示板を再構築: HonoX で作る型安全なスレッドフロート型掲示板 / かろっく@calloc134 - Hono Conference 2025
Avatar for calloc134 calloc134
0
450

Featured

See All Featured
How to Grow Your eCommerce with AI & Automation
Avatar for Katarina Dahlin katarinadahlin
PRO
0
75
30 Presentation Tips
Avatar for Ian Lurie portentint
PRO
1
170
Mozcon NYC 2025: Stop Losing SEO Traffic
Avatar for Sam Torres samtorres
0
90
Building Adaptive Systems
Avatar for Chris Keathley keathley
44
2.9k
Tell your own story through comics
Avatar for letsgokoyo letsgokoyo
0
760
So, you think you're a good person
Avatar for Per Axbom axbom
PRO
0
1.8k
Unlocking the hidden potential of vector embeddings in international SEO
Avatar for Frank van Dijk frankvandijk
0
130
HDC tutorial
Avatar for Michiel Stock michielstock
0
270
Amusing Abliteration
Avatar for ianozsvald ianozsvald
0
69
What's in a price? How to price your products and services
Avatar for Michael Herold michaelherold
246
13k
Scaling GitHub
Avatar for Zach Holman holman
464
140k
The MySQL Ecosystem @ GitHub 2015
Avatar for Sam Lambert samlambert
251
13k

Transcript

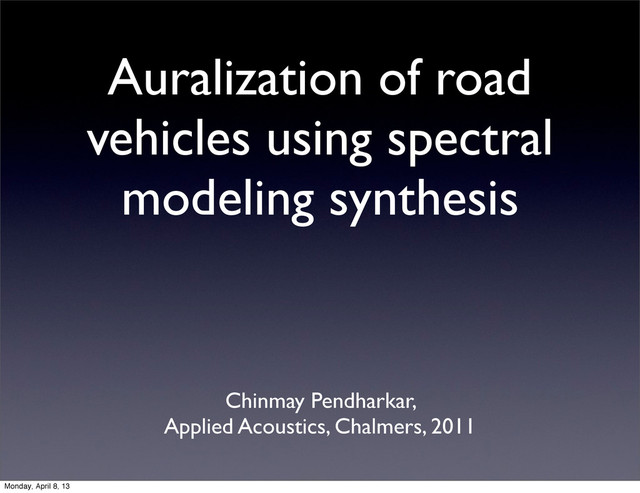

  1. Auralization of road vehicles using spectral modeling synthesis Chinmay Pendharkar,

    Applied Acoustics, Chalmers, 2011 Monday, April 8, 13

  2. • LISTEN Project • Auralization • Sound Synthesis • Spectral

    Modeling Synthesis (SMS) • SMS Implementation for Vehicle Sounds • Listening Test • Results and Analysis • Q & A Organization Monday, April 8, 13

  3. LISTEN Project Monday, April 8, 13

  4. LISTEN Project • Collaboration - KTH, Konstfack, SU, II. Monday,

    April 8, 13

  5. LISTEN Project • Collaboration - KTH, Konstfack, SU, II. •

    Software Demonstrator/Simulator Monday, April 8, 13

  6. LISTEN Project • Collaboration - KTH, Konstfack, SU, II. •

    Software Demonstrator/Simulator • Qualitative listening of urban soundscapes Monday, April 8, 13

  7. LISTEN Demonstrator Monday, April 8, 13

  8. LISTEN Demonstrator • Auralization of Urban Soundscapes Monday, April 8,

    13

  9. LISTEN Demonstrator • Auralization of Urban Soundscapes • Qualitative vs

    Quantitative Analysis Monday, April 8, 13

  10. LISTEN Demonstrator • Auralization of Urban Soundscapes • Qualitative vs

    Quantitative Analysis Monday, April 8, 13

  11. Auralization • Source + Propagation Monday, April 8, 13

  12. Auralization Monday, April 8, 13

  13. Auralization • Source Modeling Monday, April 8, 13

  14. Auralization • Source Modeling • Vehicles as sound sources. •

    Amplitude / Level • Frequency • Directivity • Non-Stationary sound. Monday, April 8, 13

  15. Auralization • Recordings - Large and Inflexible • 6 seconds

    - 853KB • For each velocity, vehicle type, ... Monday, April 8, 13

  16. Auralization Monday, April 8, 13

  17. Auralization • What if..? Monday, April 8, 13

  18. Auralization • What if..? • Extract the important ‘features’ Monday,

    April 8, 13

  19. Auralization • What if..? • Extract the important ‘features’ •

    Calculate waveforms ‘on the fly’ Monday, April 8, 13

  20. Auralization • What if..? • Extract the important ‘features’ •

    Calculate waveforms ‘on the fly’ • Parameters to change the sound Vehicle Model Speed Monday, April 8, 13

  21. Sound Synthesis Monday, April 8, 13

  22. Sound Synthesis • Electronic Generation of Audio Waveforms Monday, April

    8, 13

  23. Sound Synthesis • Electronic Generation of Audio Waveforms • Model

    to Waveform Monday, April 8, 13

  24. Sound Synthesis • Electronic Generation of Audio Waveforms • Model

    to Waveform • Computer Music Origin Monday, April 8, 13

  25. Sound Synthesis • Electronic Generation of Audio Waveforms • Model

    to Waveform • Computer Music Origin • Current Uses • Electronic Music Production, • Games • Interactive Media Monday, April 8, 13

  26. Sound Synthesis Monday, April 8, 13

  27. Sound Synthesis • Flexible Model Monday, April 8, 13

  28. Sound Synthesis • Flexible • Real Time Model Monday, April

    8, 13

  29. Sound Synthesis • Flexible • Real Time • Low Memory

    Requirement Model ~10KB vs 1MB Monday, April 8, 13

  30. Sound Synthesis Monday, April 8, 13

  31. Sound Synthesis • Types Monday, April 8, 13

  32. Sound Synthesis • Types • Additive Synthesis Monday, April 8,

    13

  33. Sound Synthesis • Types • Additive Synthesis • Frequency Modulation

    Synthesis Monday, April 8, 13

  34. Sound Synthesis • Types • Additive Synthesis • Frequency Modulation

    Synthesis • Physical Synthesis Monday, April 8, 13

  35. Sound Synthesis • Types • Additive Synthesis • Frequency Modulation

    Synthesis • Physical Synthesis • Spectral Modeling Synthesis Monday, April 8, 13

  36. Sound Synthesis Monday, April 8, 13

  37. Sound Synthesis • Vehicle Sounds • Tonal Component - Engine

    Noise • Noise Component - Tyre Noise Monday, April 8, 13

  38. Sound Synthesis • Vehicle Sounds • Tonal Component - Engine

    Noise • Noise Component - Tyre Noise • Non - Stationary Monday, April 8, 13

  39. Spectral Modeling Synthesis (SMS) Monday, April 8, 13

  40. Spectral Modeling Synthesis (SMS) • Xavier Serra and Julius Smith,

    1990 Monday, April 8, 13

  41. Spectral Modeling Synthesis (SMS) • Xavier Serra and Julius Smith,

    1990 • Modeling musical instruments Monday, April 8, 13

  42. Spectral Modeling Synthesis (SMS) • Xavier Serra and Julius Smith,

    1990 • Modeling musical instruments • Deterministic + Stochastic Decomposition Monday, April 8, 13

  43. Spectral Modeling Synthesis (SMS) • Xavier Serra and Julius Smith,

    1990 • Modeling musical instruments • Deterministic + Stochastic Decomposition • Tonal Sounds + Noise Monday, April 8, 13

  44. SMS Demo Monday, April 8, 13

  45. SMS Demo • Original • Tonal (Deterministic) • Noise (Stochastic)

    • ReSynthesis Monday, April 8, 13

  46. SMS Demo • Original • Tonal (Deterministic) • Noise (Stochastic)

    • ReSynthesis Monday, April 8, 13

  47. SMS Demo • Original • Tonal (Deterministic) • Noise (Stochastic)

    • ReSynthesis Monday, April 8, 13

  48. SMS Demo • Original • Tonal (Deterministic) • Noise (Stochastic)

    • ReSynthesis Monday, April 8, 13

  49. SMS Demo • Original • Tonal (Deterministic) • Noise (Stochastic)

    • ReSynthesis Monday, April 8, 13

  50. • LISTEN Project • Auralization • Sound Synthesis • Spectral

    Modeling Synthesis (SMS) • SMS Implementation for Vehicle Sounds • Listening Test • Results and Analysis • Q & A Organization Monday, April 8, 13

  51. SMS Algorithm STFT Analysis Original Audio Peak Detection Peak Tracking

    Peak Trajectories Tonal ReSynth Residual Audio Residual Parameterization Residual Parameters Noise ReSynth ReSynth Audio Monday, April 8, 13

  52. SMS Algorithm STFT Analysis Original Audio Peak Detection Peak Tracking

    Peak Trajectories Tonal ReSynth Residual Audio Residual Parameterization Residual Parameters Noise ReSynth ReSynth Audio Tonal Analysis Monday, April 8, 13

  53. SMS Algorithm STFT Analysis Original Audio Peak Detection Peak Tracking

    Peak Trajectories Tonal ReSynth Residual Audio Residual Parameterization Residual Parameters Noise ReSynth ReSynth Audio Tonal Analysis Noise Analysis Monday, April 8, 13

  54. SMS Algorithm STFT Analysis Original Audio Peak Detection Peak Tracking

    Peak Trajectories Tonal ReSynth Residual Audio Residual Parameterization Residual Parameters Noise ReSynth ReSynth Audio Tonal Analysis Noise Analysis Synthesis Monday, April 8, 13

  55. SMS Algorithm Tonal Analysis • Original Audio - Peak Trajectories

    STFT Analysis Original Audio Peak Detection Peak Tracking Peak Trajectories Monday, April 8, 13

  56. SMS Algorithm STFT Monday, April 8, 13

  57. SMS Algorithm STFT • Short Term Fourier Transform (STFT) Monday,

    April 8, 13

  58. SMS Algorithm STFT • Short Term Fourier Transform (STFT) •

    Fourier Analysis of Short Time Instances Monday, April 8, 13

  59. SMS Algorithm STFT • Short Term Fourier Transform (STFT) •

    Fourier Analysis of Short Time Instances • Sliding Window Analysis Monday, April 8, 13

  60. SMS Algorithm Peak Detection Monday, April 8, 13

  61. SMS Algorithm Peak Detection • Gradient Based Detection Monday, April

    8, 13

  62. SMS Algorithm Peak Detection • Gradient Based Detection Monday, April

    8, 13

  63. SMS Algorithm Peak Detection • Gradient Based Detection Monday, April

    8, 13

  64. SMS Algorithm Peak Detection • Gradient Based Detection • Interpolation

    due to DFT Sampling. Monday, April 8, 13

  65. SMS Algorithm Peak Detection • Gradient Based Detection • Interpolation

    due to DFT Sampling. Monday, April 8, 13

  66. SMS Algorithm Peak Tracking Monday, April 8, 13

  67. SMS Algorithm Peak Tracking • Frequency Guides - Peak Trajectories

    Monday, April 8, 13

  68. SMS Algorithm Peak Tracking • Frequency Guides - Peak Trajectories

    • Gradually Varying Sinusoids Monday, April 8, 13

  69. SMS Algorithm Peak Tracking • Frequency Guides - Peak Trajectories

    • Gradually Varying Sinusoids • Doppler Shift Monday, April 8, 13

  70. SMS Algorithm Peak Tracking • Frequency Guides - Peak Trajectories

    • Gradually Varying Sinusoids • Doppler Shift Monday, April 8, 13

  71. SMS Algorithm Peak Trajectories Monday, April 8, 13

  72. SMS Algorithm Noise Analysis • Original Audio & Tonal Synthesis

    - Residual Parameters Original Audio Peak Trajectories Tonal ReSynth Residual Audio Residual Parameterization Residual Parameters Monday, April 8, 13

  73. SMS Algorithm Residual Calculation Monday, April 8, 13

  74. SMS Algorithm Residual Calculation • Original - Tonal = Residual

    Monday, April 8, 13

  75. SMS Algorithm Residual Calculation • Original - Tonal = Residual

    • Spectrum Subtraction Monday, April 8, 13

  76. SMS Algorithm Residual Calculation • Original - Tonal = Residual

    • Spectrum Subtraction Monday, April 8, 13

  77. SMS Algorithm Residual Parameterization Monday, April 8, 13

  78. SMS Algorithm Residual Parameterization • Perceptual Model Monday, April 8,

    13

  79. SMS Algorithm Residual Parameterization • Perceptual Model • Noise Energy

    per Critical Band Monday, April 8, 13

  80. SMS Algorithm Residual Parameterization • Perceptual Model • Noise Energy

    per Critical Band Monday, April 8, 13

  81. SMS Algorithm - Residual Parameters Monday, April 8, 13

  82. SMS Algorithm Complete Model Monday, April 8, 13

  83. SMS Algorithm Complete Model • Peak Trajectories Monday, April 8,

    13

  84. SMS Algorithm Complete Model • Peak Trajectories Monday, April 8,

    13

  85. SMS Algorithm Complete Model • Peak Trajectories • Residual Parameters

    Monday, April 8, 13

  86. SMS Algorithm Complete Model • Peak Trajectories • Residual Parameters

    Monday, April 8, 13

  87. SMS Algorithm Complete Model • Peak Trajectories • Residual Parameters

    6 seconds - 80KB Monday, April 8, 13

  88. SMS Algorithm Synthesis • Peak Trajectories - Tonal Sound •

    Residual Parameters - Noise Peak Trajectories Tonal ReSynth Residual Parameters Noise ReSynth ReSynth Audio Monday, April 8, 13

  89. SMS Algorithm Tonal Synthesis Monday, April 8, 13

  90. SMS Algorithm Tonal Synthesis • Peak Trajectories - Sinusoid Waveform

    Monday, April 8, 13

  91. SMS Algorithm Tonal Synthesis • Peak Trajectories - Sinusoid Waveform

    • x[n] = A[n]*cos(w[n]) Monday, April 8, 13

  92. SMS Algorithm Tonal Synthesis • Peak Trajectories - Sinusoid Waveform

    • x[n] = A[n]*cos(w[n]) + + = = Monday, April 8, 13

  93. SMS Algorithm Residual Synthesis Monday, April 8, 13

  94. SMS Algorithm Residual Synthesis • Residual Parameters - Noise Monday,

    April 8, 13

  95. SMS Algorithm Residual Synthesis • Residual Parameters - Noise •

    Interpolation Monday, April 8, 13

  96. SMS Algorithm Residual Synthesis • Residual Parameters - Noise •

    Interpolation • Random Phase Assignment Monday, April 8, 13

  97. SMS Algorithm Residual Synthesis • Residual Parameters - Noise •

    Interpolation • Random Phase Assignment • Inverse Fourier Transform Monday, April 8, 13

  98. SMS Algorithm Residual Synthesis • Residual Parameters - Noise •

    Interpolation • Random Phase Assignment • Inverse Fourier Transform • Overlap and Add Synthesis Monday, April 8, 13

  99. SMS Algorithm Residual Synthesis • Overlap and Add Synthesis Monday,

    April 8, 13

  100. SMS Algorithm STFT Analysis Original Audio Peak Detection Peak Tracking

    Peak Trajectories Tonal ReSynth Residual Audio Residual Parameterization Residual Parameters Noise ReSynth ReSynth Audio Tonal Analysis Noise Analysis Synthesis Monday, April 8, 13

  101. • LISTEN Project • Auralization • Sound Synthesis • Spectral

    Modeling Synthesis (SMS) • SMS Implementation for Vehicle Sounds • Listening Test • Results and Analysis • Q & A Organization Monday, April 8, 13

  102. SMS for Vehicle Sounds • Multi Pass Analysis • Trajectory

    Energy Filtering • Residual parameter smoothing Monday, April 8, 13

  103. SMS for Vehicle Sounds • Multi Pass Analysis • Analysis

    Window - Frequency Dependence Monday, April 8, 13

  104. SMS for Vehicle Sounds • Multi Pass Analysis - Pyramid

    Analysis • Vary window length for each ‘Pass’ Monday, April 8, 13

  105. SMS for Vehicle Sounds Monday, April 8, 13

  106. SMS for Vehicle Sounds • Multi Pass Analysis Monday, April

    8, 13

  107. SMS for Vehicle Sounds • Multi Pass Analysis • Frequency

    band - Pass Monday, April 8, 13

  108. SMS for Vehicle Sounds • Multi Pass Analysis • Frequency

    band - Pass Pass 1 Pass 2 Pass 3 Monday, April 8, 13

  109. SMS for Vehicle Sounds • Trajectory Energy Filtering • Too

    many trajectories - Filter by ‘Importance’ Monday, April 8, 13

  110. SMS for Vehicle Sounds Monday, April 8, 13

  111. SMS for Vehicle Sounds • Fluctuating Residual Parameter Monday, April

    8, 13

  112. SMS for Vehicle Sounds • Fluctuating Residual Parameter • Smoothen

    Monday, April 8, 13

  113. SMS for Vehicle Sounds • Fluctuating Residual Parameter • Smoothen

    Monday, April 8, 13

  114. SMS on Vehicle Sounds • Bus (39km/h) • Original •

    Tonal • Noise • ReSynth Monday, April 8, 13

  115. SMS on Vehicle Sounds • Bus (39km/h) • Original •

    Tonal • Noise • ReSynth Monday, April 8, 13

  116. SMS on Vehicle Sounds • Bus (39km/h) • Original •

    Tonal • Noise • ReSynth Monday, April 8, 13

  117. SMS on Vehicle Sounds • Bus (39km/h) • Original •

    Tonal • Noise • ReSynth Monday, April 8, 13

  118. SMS on Vehicle Sounds • Bus (39km/h) • Original •

    Tonal • Noise • ReSynth Monday, April 8, 13

  119. SMS on Vehicle Sounds • Open Astra (45 km/h) •

    Volvo V70 (50 km/h) • IV Medium-Heavy (40km/h) • Bus (86km/h) Monday, April 8, 13

  120. SMS on Vehicle Sounds • Open Astra (45 km/h) •

    Volvo V70 (50 km/h) • IV Medium-Heavy (40km/h) • Bus (86km/h) Monday, April 8, 13

  121. SMS on Vehicle Sounds • Open Astra (45 km/h) •

    Volvo V70 (50 km/h) • IV Medium-Heavy (40km/h) • Bus (86km/h) Monday, April 8, 13

  122. SMS on Vehicle Sounds • Open Astra (45 km/h) •

    Volvo V70 (50 km/h) • IV Medium-Heavy (40km/h) • Bus (86km/h) Monday, April 8, 13

  123. SMS on Vehicle Sounds • Open Astra (45 km/h) •

    Volvo V70 (50 km/h) • IV Medium-Heavy (40km/h) • Bus (86km/h) Monday, April 8, 13

  124. • LISTEN Project • Auralization • Sound Synthesis • Spectral

    Modeling Synthesis (SMS) • SMS Implementation for Vehicle Sounds • Listening Test • Results and Analysis • Q & A Organization Monday, April 8, 13

  125. Listening Test Monday, April 8, 13

  126. Listening Test • Perceptual Similarity of Sounds Monday, April 8,

    13

  127. Listening Test • Perceptual Similarity of Sounds • 18 Sounds

    - 72 Combination Monday, April 8, 13

  128. Listening Test • Perceptual Similarity of Sounds • 18 Sounds

    - 72 Combination • Paired Sound Test Monday, April 8, 13

  129. Listening Test • Perceptual Similarity of Sounds • 18 Sounds

    - 72 Combination • Paired Sound Test • 3 Questions • Realism • Annoyance • Speed Monday, April 8, 13

  130. Listening Test • Perceptual Similarity of Sounds • 18 Sounds

    - 72 Combination • Paired Sound Test • 3 Questions • Realism • Annoyance • Speed • 27 Participants Monday, April 8, 13

  131. Listening Test Results Monday, April 8, 13

  132. Listening Test Results • Significant Difference Match Pair t-test -

    90% Monday, April 8, 13

  133. Spectral Analysis Monday, April 8, 13

  134. • LISTEN Project • Auralization • Sound Synthesis • Spectral

    Modeling Synthesis (SMS) • SMS Implementation for Vehicle Sounds • Listening Test • Results and Analysis • Q & A Organization Monday, April 8, 13

  135. Analysis - Applications Monday, April 8, 13

  136. Analysis - Applications • Applying propagation to Sound Model Monday,

    April 8, 13

  137. Analysis - Applications • Applying propagation to Sound Model •

    Direct Frequency-Domain Changes Monday, April 8, 13

  138. Analysis - Applications • Applying propagation to Sound Model •

    Direct Frequency-Domain Changes • Less Memory Requirement Monday, April 8, 13

  139. Analysis - Applications • Applying propagation to Sound Model •

    Direct Frequency-Domain Changes • Less Memory Requirement • Interaction Real-Time Synthesis Monday, April 8, 13

  140. Analysis - Applications Monday, April 8, 13

  141. Analysis - Applications • Binaural calculation of propagation Monday, April

    8, 13

  142. Analysis - Applications • Binaural calculation of propagation • Multiple

    source height - issue Monday, April 8, 13

  143. Analysis - Applications • Binaural calculation of propagation • Multiple

    source height - issue • SMS can ‘separate’ engine and tyre Monday, April 8, 13

  144. Conclusion Monday, April 8, 13

  145. Conclusion • SMS works great for vehicle sounds. Monday, April

    8, 13

  146. Conclusion • SMS works great for vehicle sounds. • Less

    memory and more flexible Monday, April 8, 13

  147. Conclusion • SMS works great for vehicle sounds. • Less

    memory and more flexible • Fine tuning for effectively and efficiency. Monday, April 8, 13

  148. Conclusion • SMS works great for vehicle sounds. • Less

    memory and more flexible • Fine tuning for effectively and efficiency. • Can produce perceptually similar sounds. Monday, April 8, 13

  149. Future Work Monday, April 8, 13

  150. Future Work • Automated Parameter Estimation Monday, April 8, 13

  151. Future Work • Automated Parameter Estimation • Improved Noise Model

    Monday, April 8, 13

  152. Future Work • Automated Parameter Estimation • Improved Noise Model

    • Transients Modeling Monday, April 8, 13

  153. Future Work • Automated Parameter Estimation • Improved Noise Model

    • Transients Modeling • Support for Binaural Propagation calculation Monday, April 8, 13

  154. Thanks! Monday, April 8, 13
