Symfony + NelmioApiDocBundle を使った スキーマ駆動開発 / Schema Driven Development with NelmioApiDocBundle

2026/03/20-22 開催の「PHPerKaigi 2026」（https://phperkaigi.jp/2026/ ）の登壇資料です。

詳細：https://fortee.jp/phperkaigi-2026/proposal/a54af6b2-679a-4d8b-8f47-427a4a182622

Transcript

1. Symfony + NelmioApiDocBundle を使った スキーマ駆動開発 2026-03-20 PHPerKaigi 2026
2. 所属：株式会社リンケージ 運営：ぺちぱーティーナイト、TechGYOZA 寄稿： 好き： 音楽ゲーム（IIDX, DDR, Arcaea, BPL 観戦）、 Stardew Valley、謎解き、観葉植物 岡田 正平／おかしょい X: @okashoi GitHub: @okashoi \ シルバースポンサー /

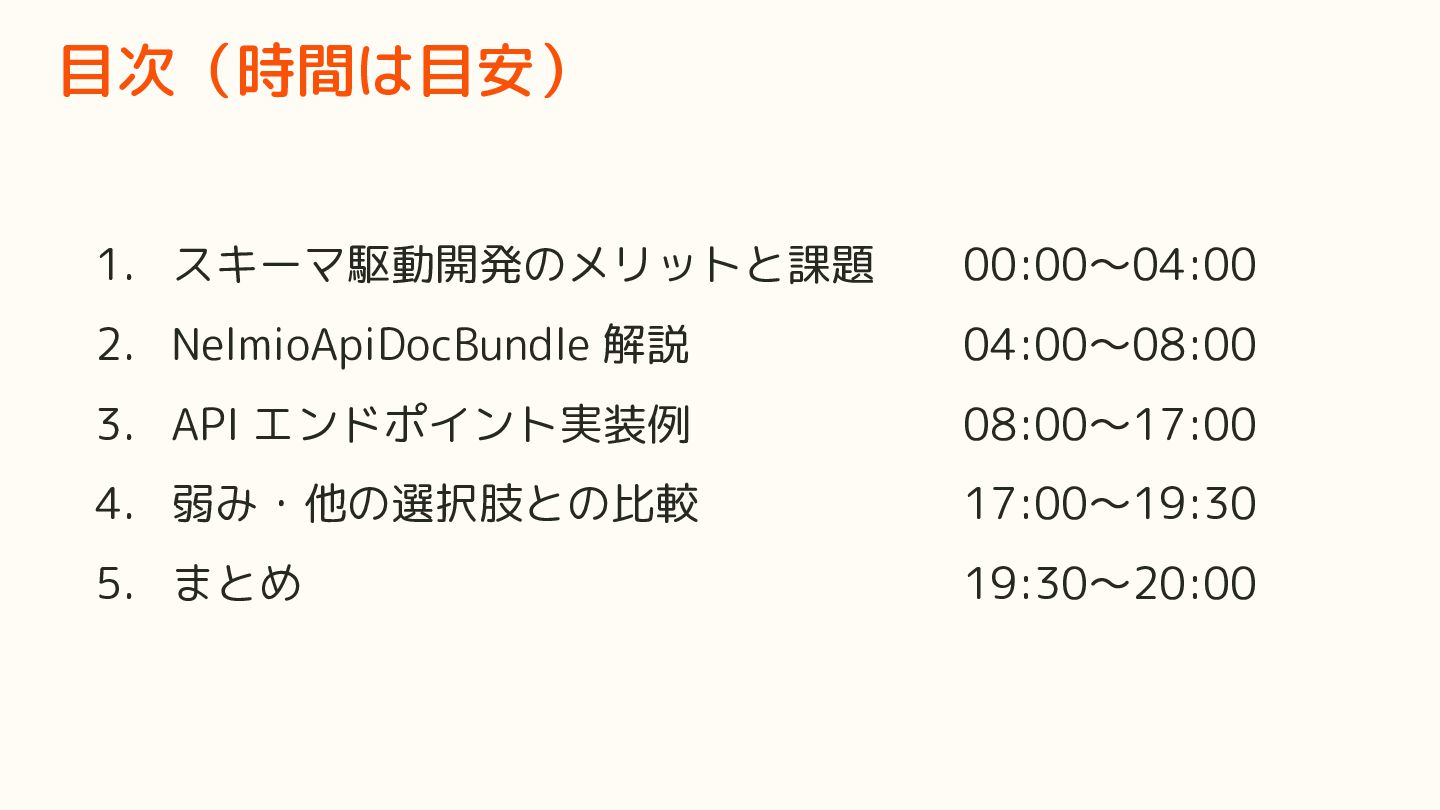

3. 1. スキーマ駆動開発のメリットと課題 00:00～04:00 2. NelmioApiDocBundle 解説 04:00～08:00 3. API エンドポイント実装例 08:00～17:00 4. 弱み・他の選択肢との比較 17:00～19:30 5. まとめ 19:30～20:00 目次（時間は目安）
4. 1. スキーマ駆動開発のメリットと課題 00:00～04:00 2. NelmioApiDocBundle 解説 04:00～08:00 3. API エンドポイント実装例 08:00～17:00 4. 弱み・他の選択肢との比較 17:00～19:30 5. まとめ 19:30～20:00 目次（時間は目安）
5. スキーマ（※）を先に定義し、それを 唯一の信頼できる情報源（Single Source of Truth, SSoT） として開発を進めるアプローチ ※このトークでは Web API スキーマを指す スキーマ駆動開発とは

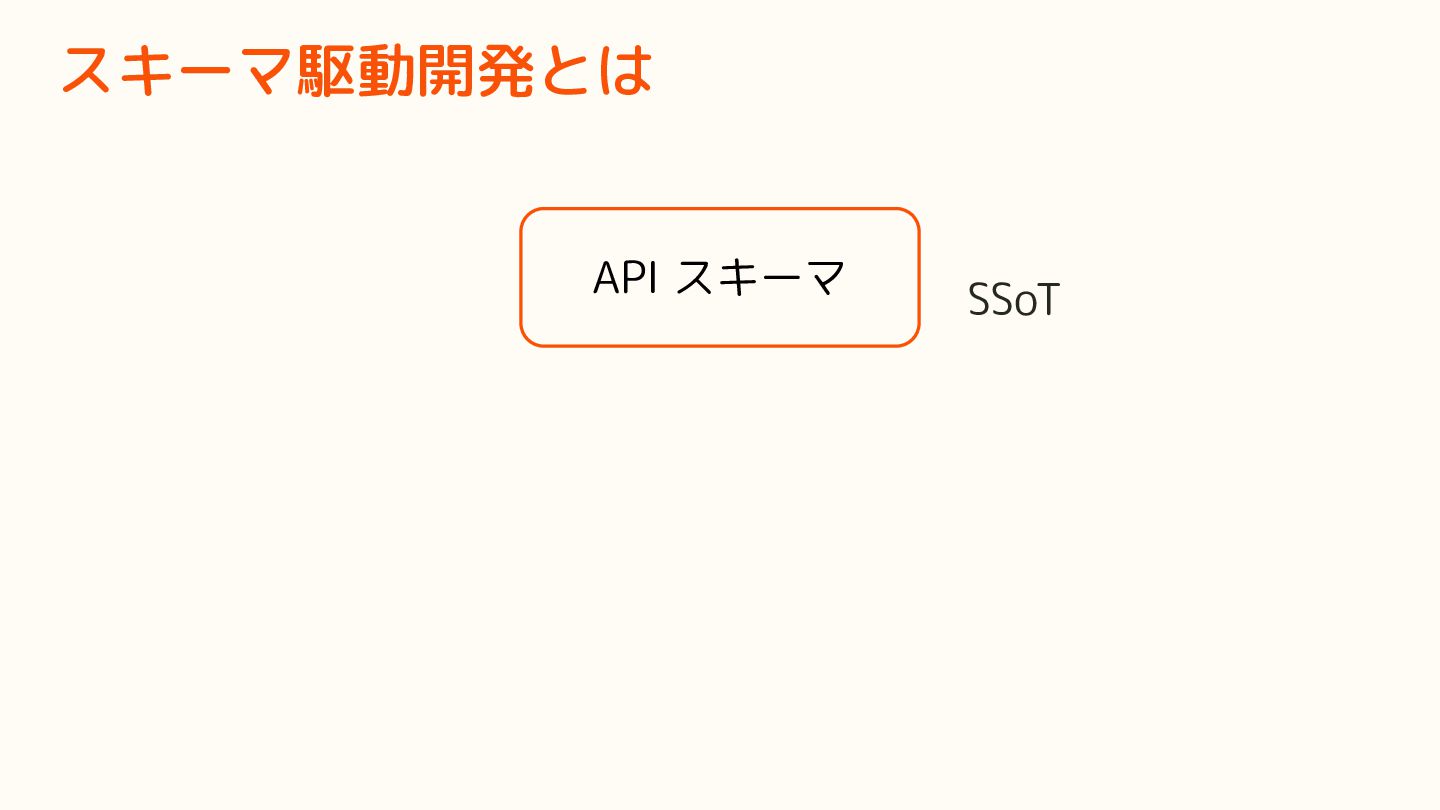

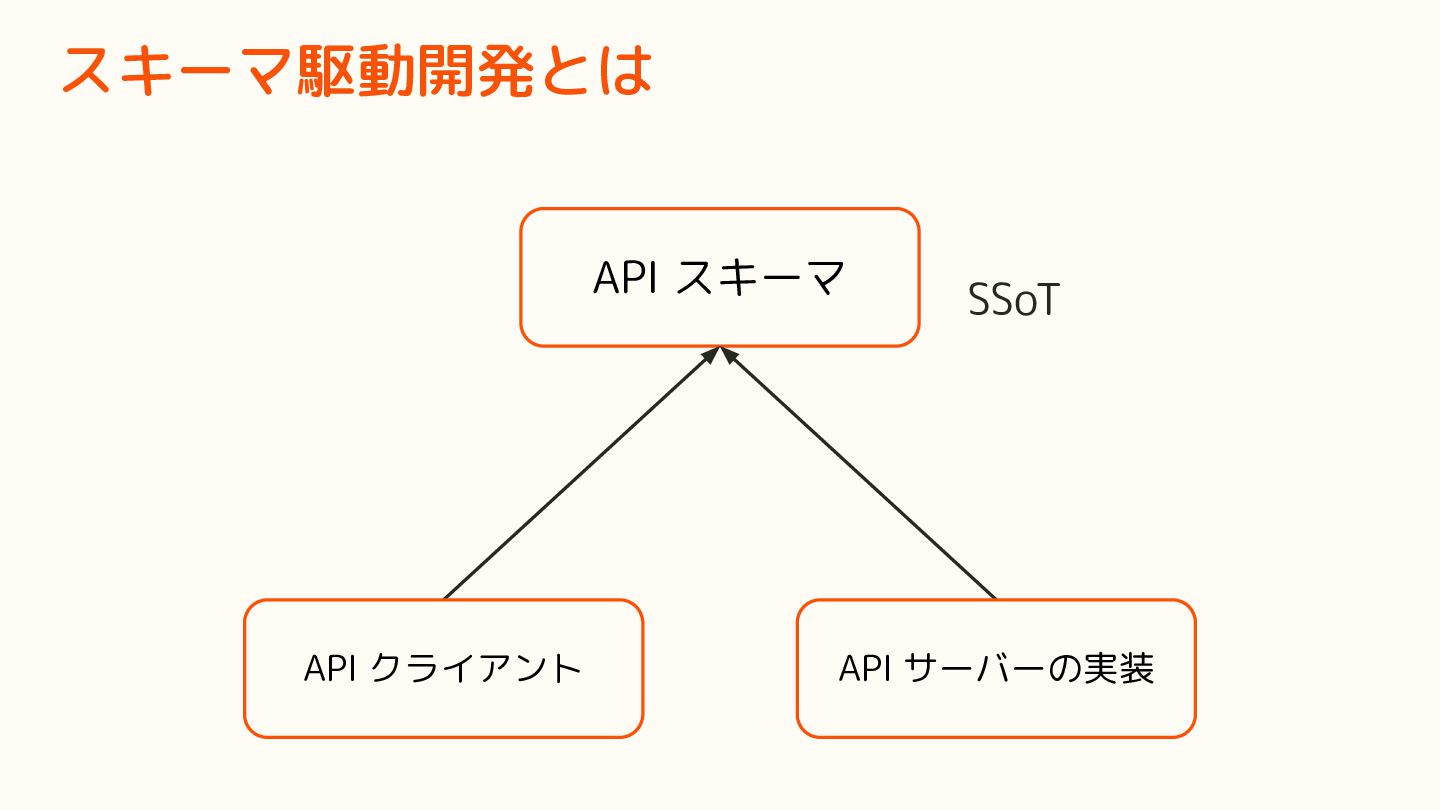

6. スキーマ駆動開発とは API スキーマ SSoT
7. スキーマ駆動開発とは API スキーマ SSoT API クライアント API サーバーの実装

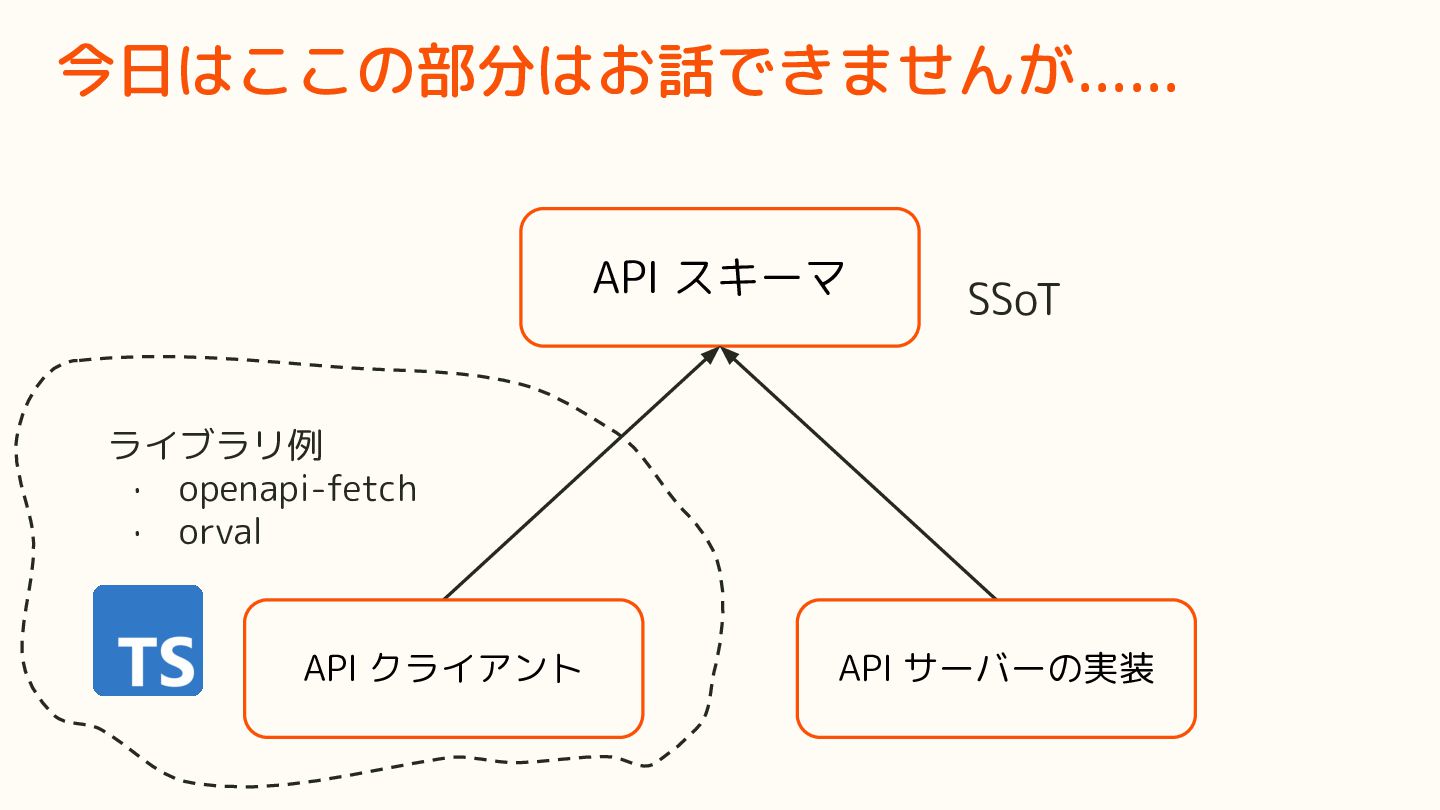

8. 今日はここの部分はお話できませんが...... API スキーマ SSoT API クライアント API サーバーの実装 ライブラリ例 · openapi-fetch · orval

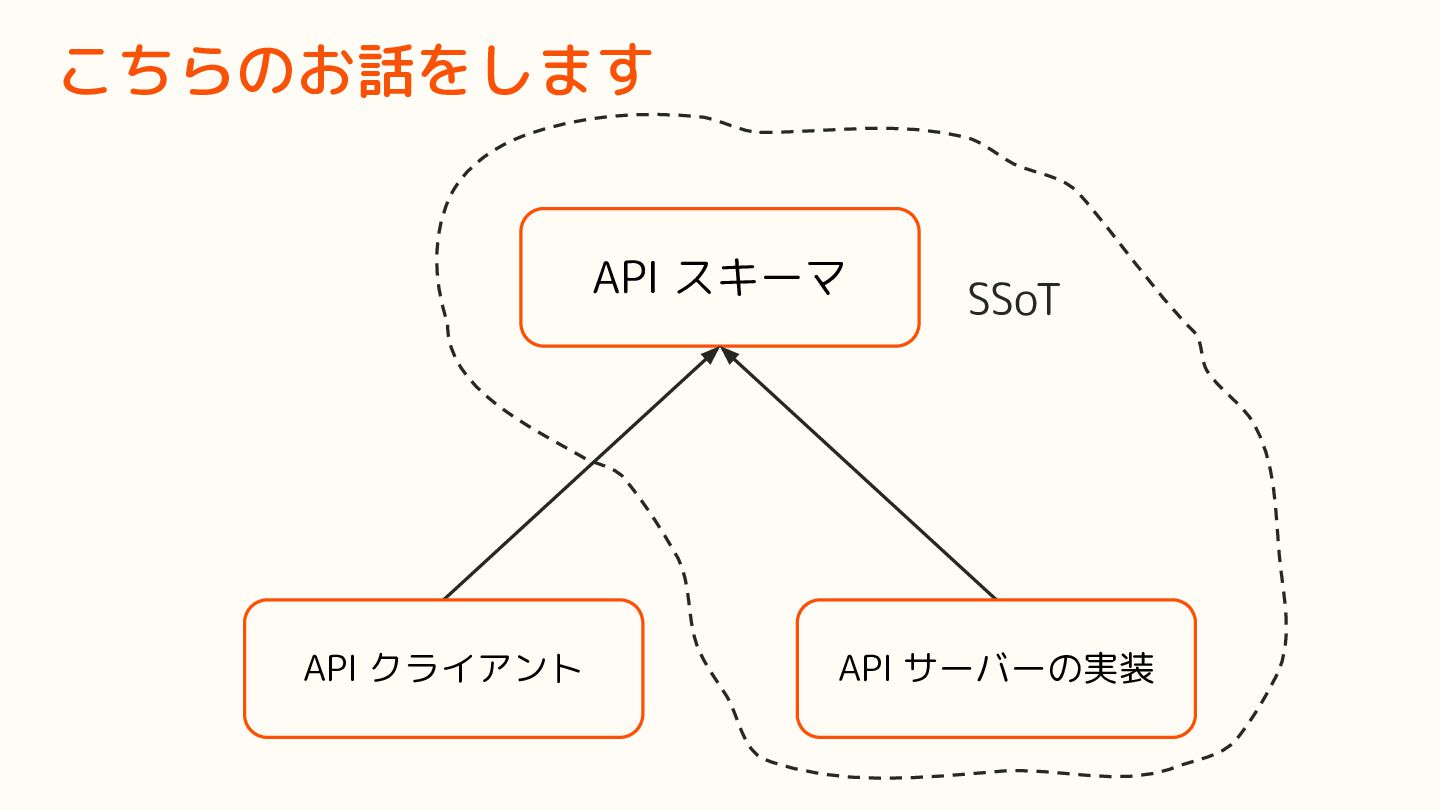

9. こちらのお話をします API スキーマ SSoT API クライアント API サーバーの実装

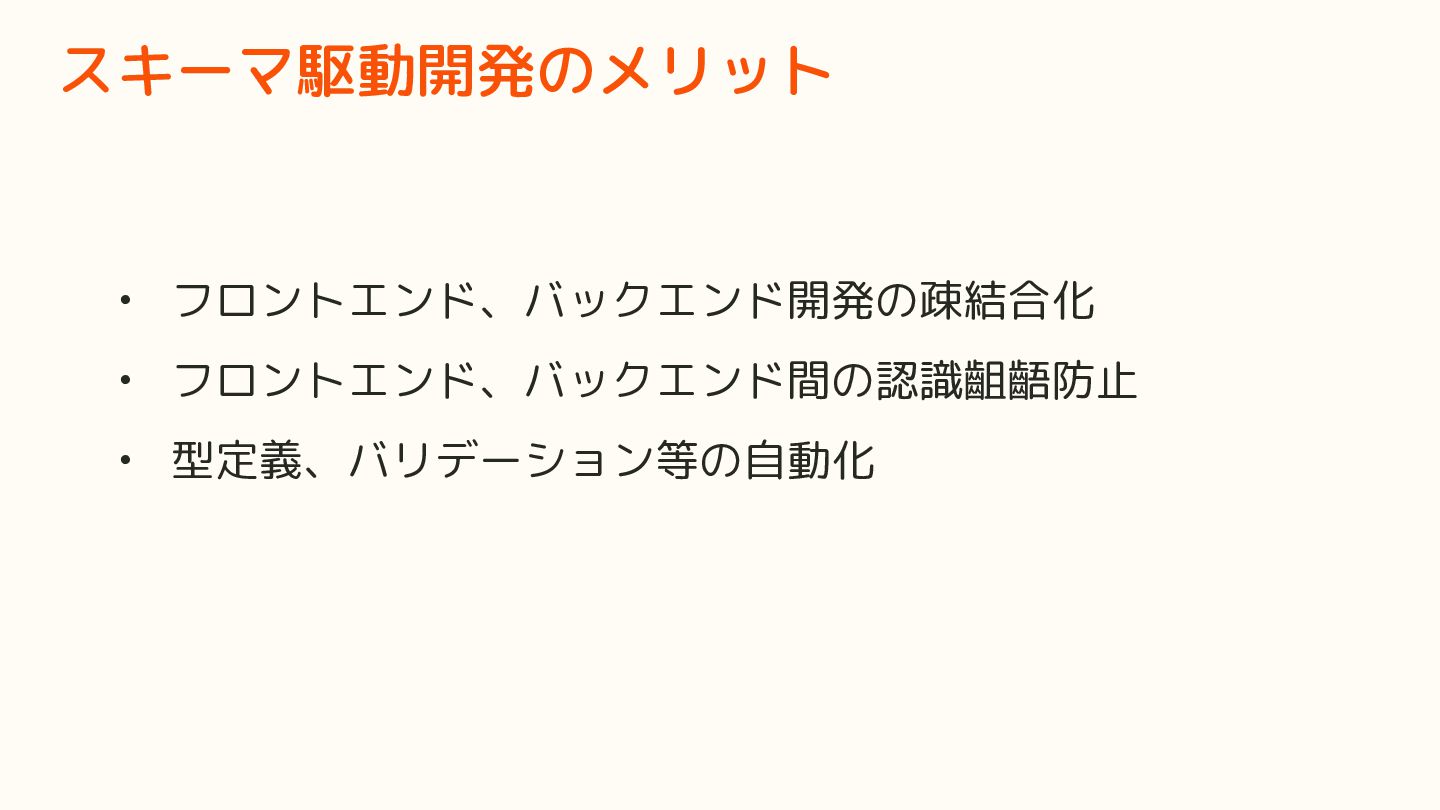

10. • フロントエンド、バックエンド開発の疎結合化 • フロントエンド、バックエンド間の認識齟齬防止 • 型定義、バリデーション等の自動化 スキーマ駆動開発のメリット

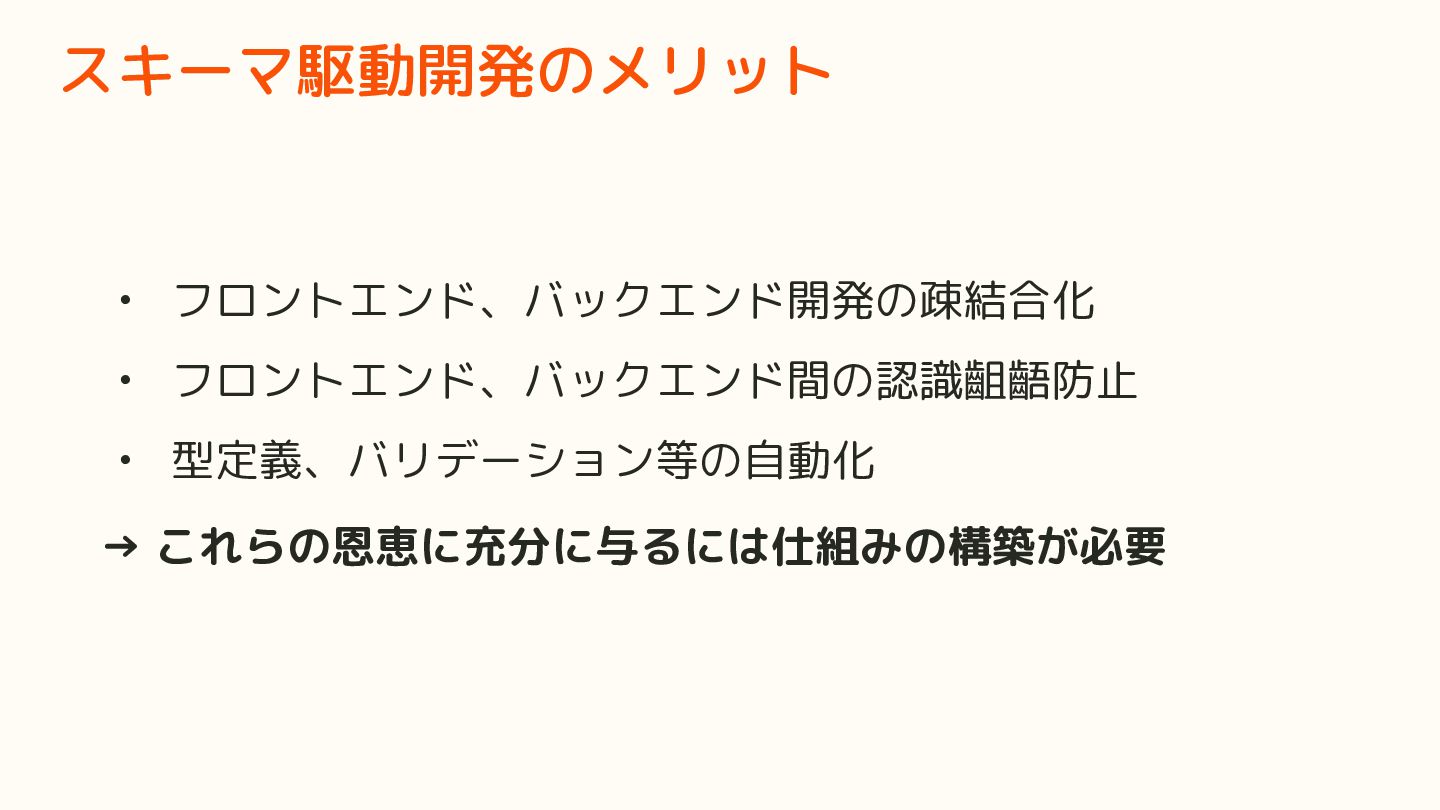

11. • フロントエンド、バックエンド開発の疎結合化 • フロントエンド、バックエンド間の認識齟齬防止 • 型定義、バリデーション等の自動化 → これらの恩恵に充分に与るには仕組みの構築が必要 スキーマ駆動開発のメリット
12. あわせて読みたい資料 https://fortee.jp/phperkaigi-2024/proposal/9e2e6c38-d078-4efa-99b4-83ebf9033b34 Laravel OpenAPIによる "辛くない" スキーマ駆動開発 by 武田 憲太郎

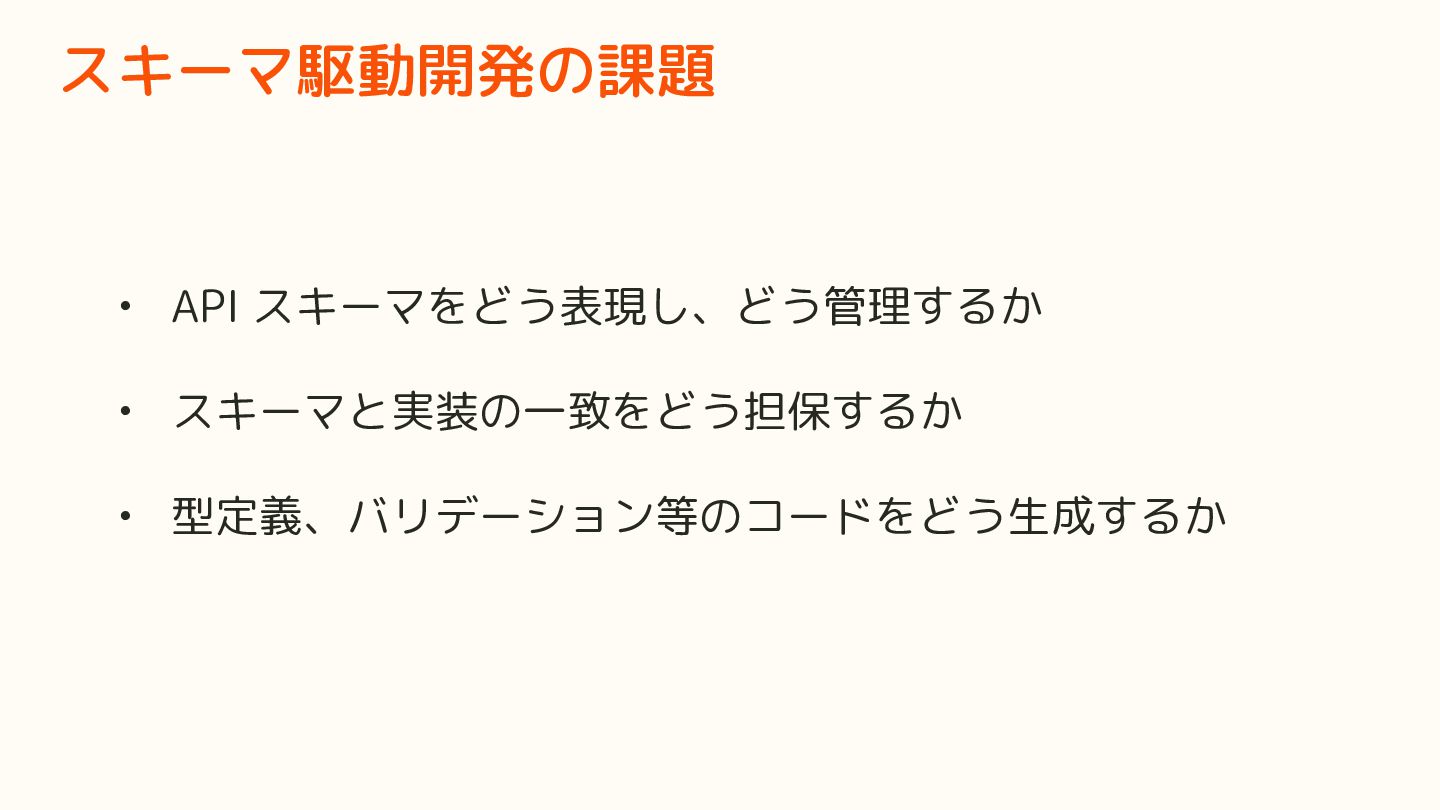

13. • API スキーマをどう表現し、どう管理するか • スキーマと実装の一致をどう担保するか • 型定義、バリデーション等のコードをどう生成するか スキーマ駆動開発の課題

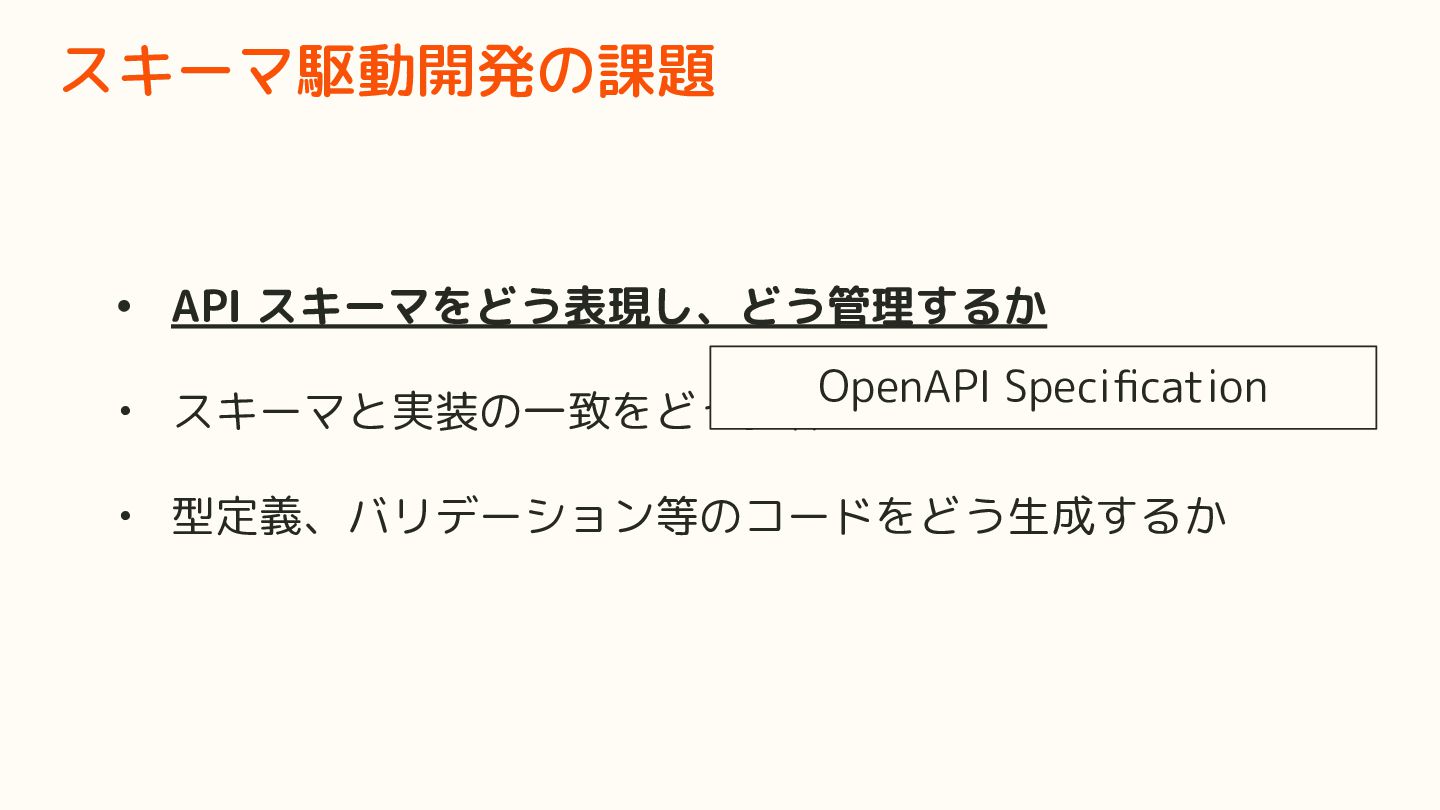

14. • API スキーマをどう表現し、どう管理するか • スキーマと実装の一致をどう担保するか • 型定義、バリデーション等のコードをどう生成するか スキーマ駆動開発の課題 OpenAPI Specification

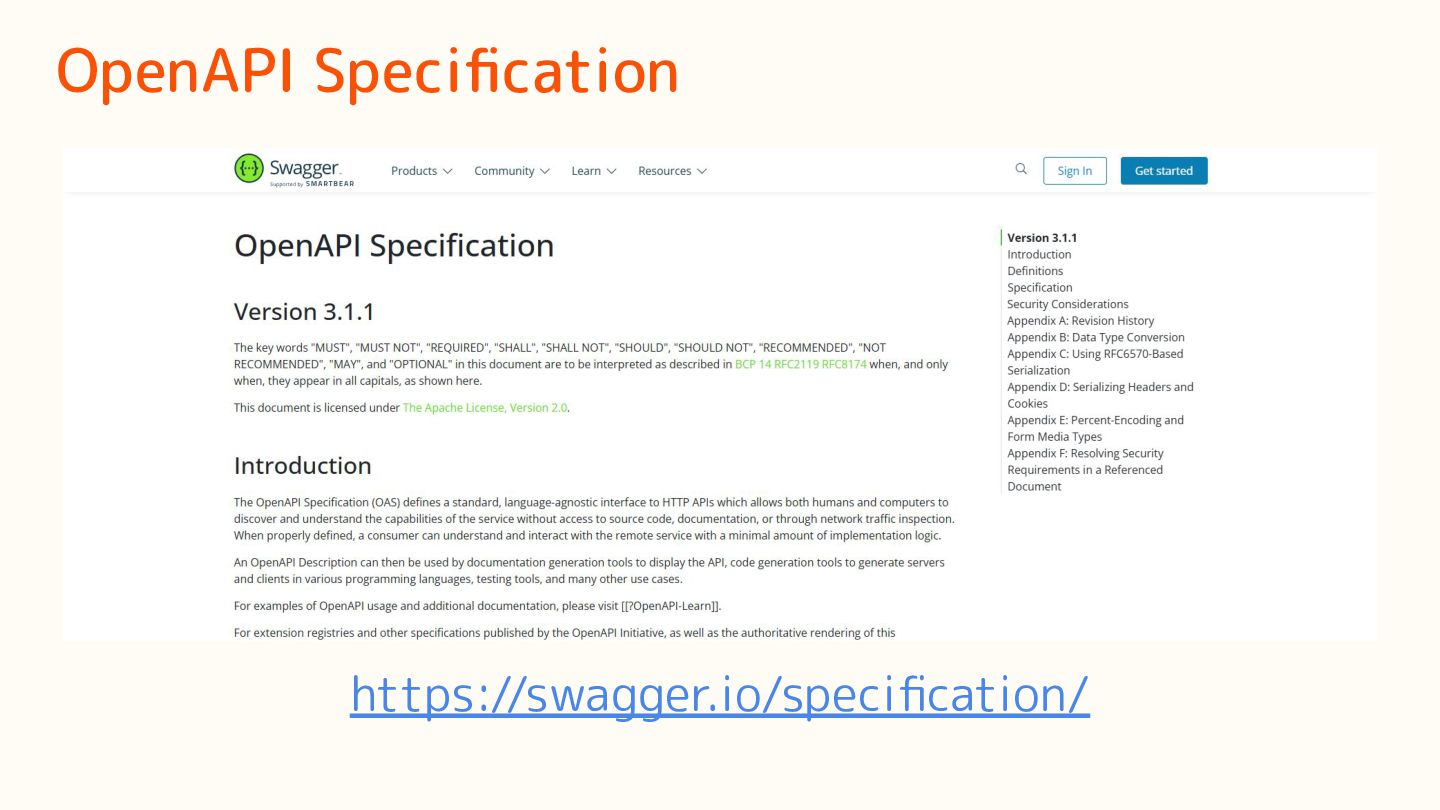

15. OpenAPI Specification https://swagger.io/specification/

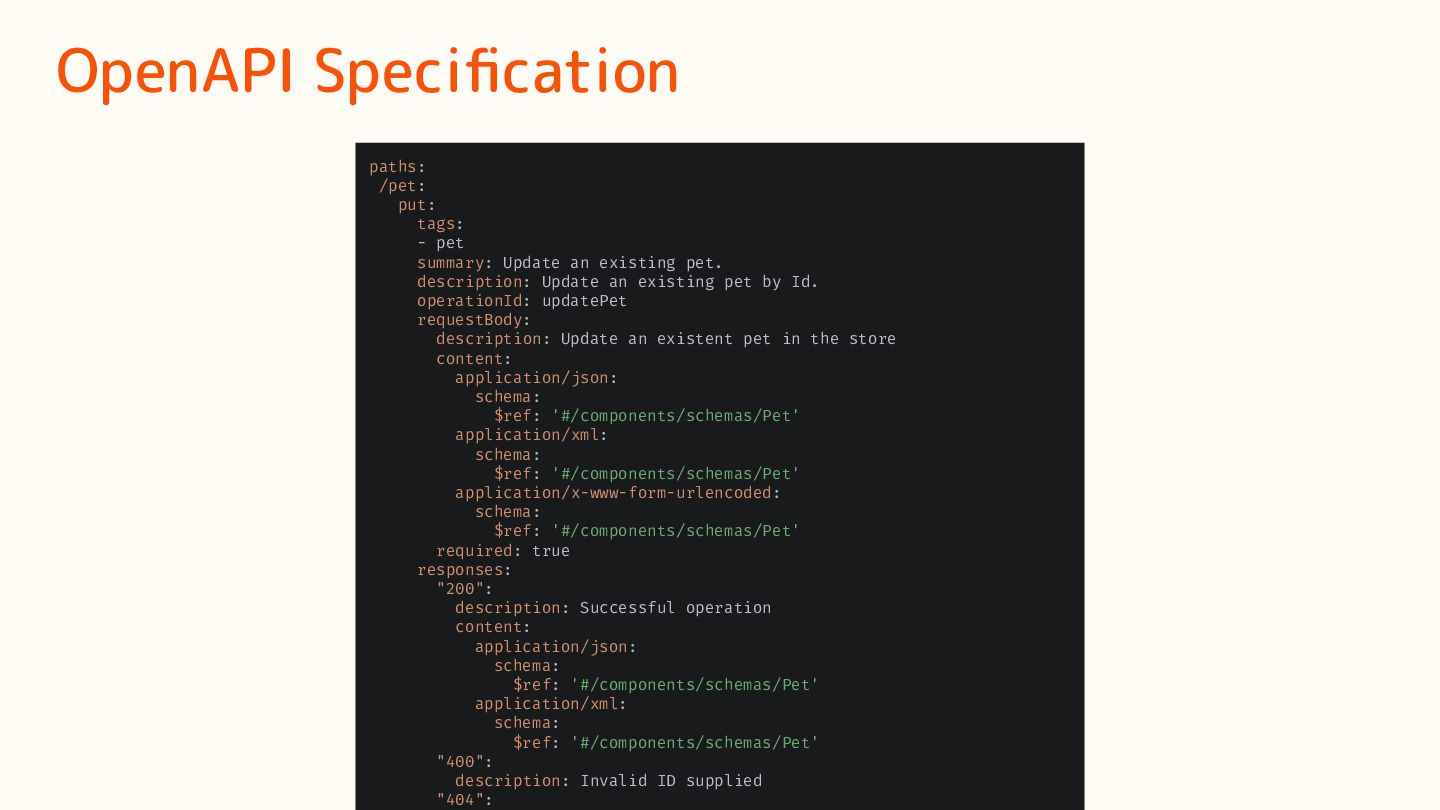

16. OpenAPI Specification paths: /pet: put: tags: - pet summary: Update an existing pet. description: Update an existing pet by Id. operationId: updatePet requestBody: description: Update an existent pet in the store content: application/json: schema: $ref: '#/components/schemas/Pet' application/xml: schema: $ref: '#/components/schemas/Pet' application/x-www-form-urlencoded: schema: $ref: '#/components/schemas/Pet' required: true responses: "200": description: Successful operation content: application/json: schema: $ref: '#/components/schemas/Pet' application/xml: schema: $ref: '#/components/schemas/Pet' "400": description: Invalid ID supplied "404":

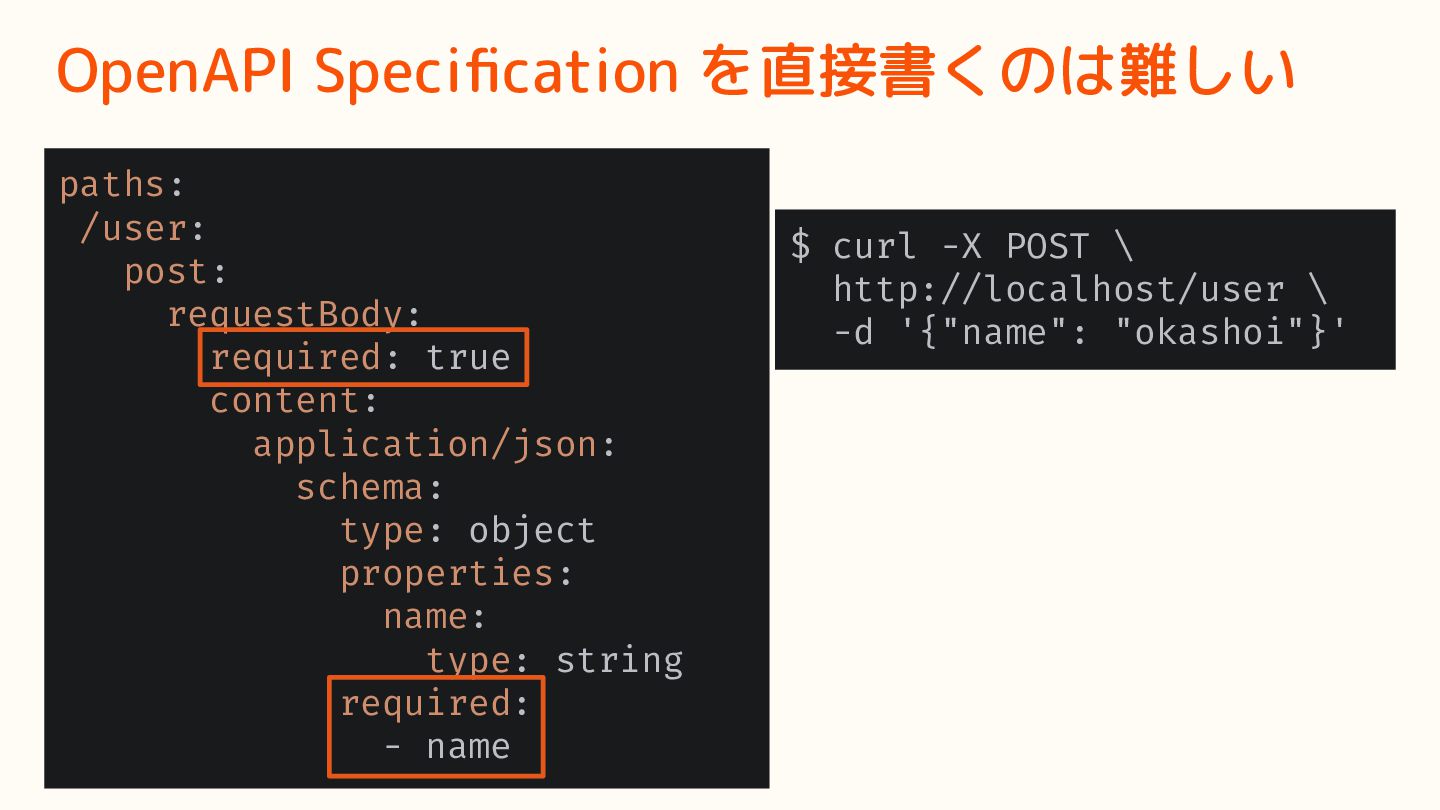

17. OpenAPI Specification を直接書くのは難しい paths: /user: post: requestBody: required: true content: application/json: schema: type: object properties: name: type: string required: - name $ curl -X POST \ http://localhost/user \ -d '{"name": "okashoi"}'
18. OpenAPI Specification を直接書くのは難しい paths: /user: post: requestBody: required: true content: application/json: schema: type: object properties: name: type: string required: - name $ curl -X POST \ http://localhost/user \ -d '{"name": "okashoi"}'
19. OpenAPI Specification を直接書くのは難しい paths: /user: post: requestBody: required: true content: application/json: schema: type: object properties: name: type: string required: true $ curl -X POST \ http://localhost/user \ -d '{"name": "okashoi"}' 左記は誤りで name は任意 プロパティ扱いのまま
20. • OpenAPI Specification の定義を習得する必要がある • 規模拡大に伴いファイル分割の戦略も考えなきゃ • そもそも JSON か YAML を正しく書くのが難しい OpenAPI Specification を直接書くのは難しい

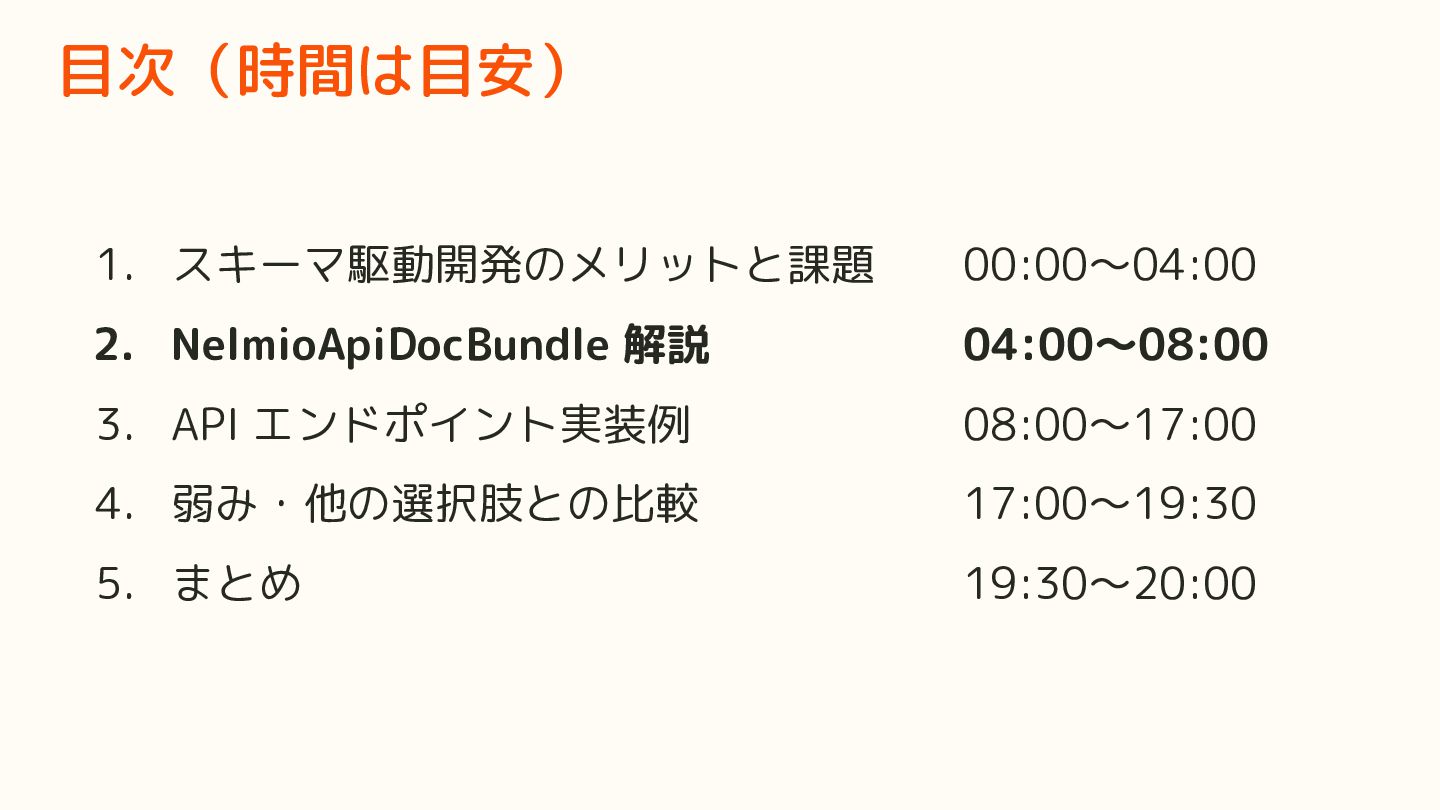

21. 1. スキーマ駆動開発のメリットと課題 00:00～04:00 2. NelmioApiDocBundle 解説 04:00～08:00 3. API エンドポイント実装例 08:00～17:00 4. 弱み・他の選択肢との比較 17:00～19:30 5. まとめ 19:30～20:00 目次（時間は目安）

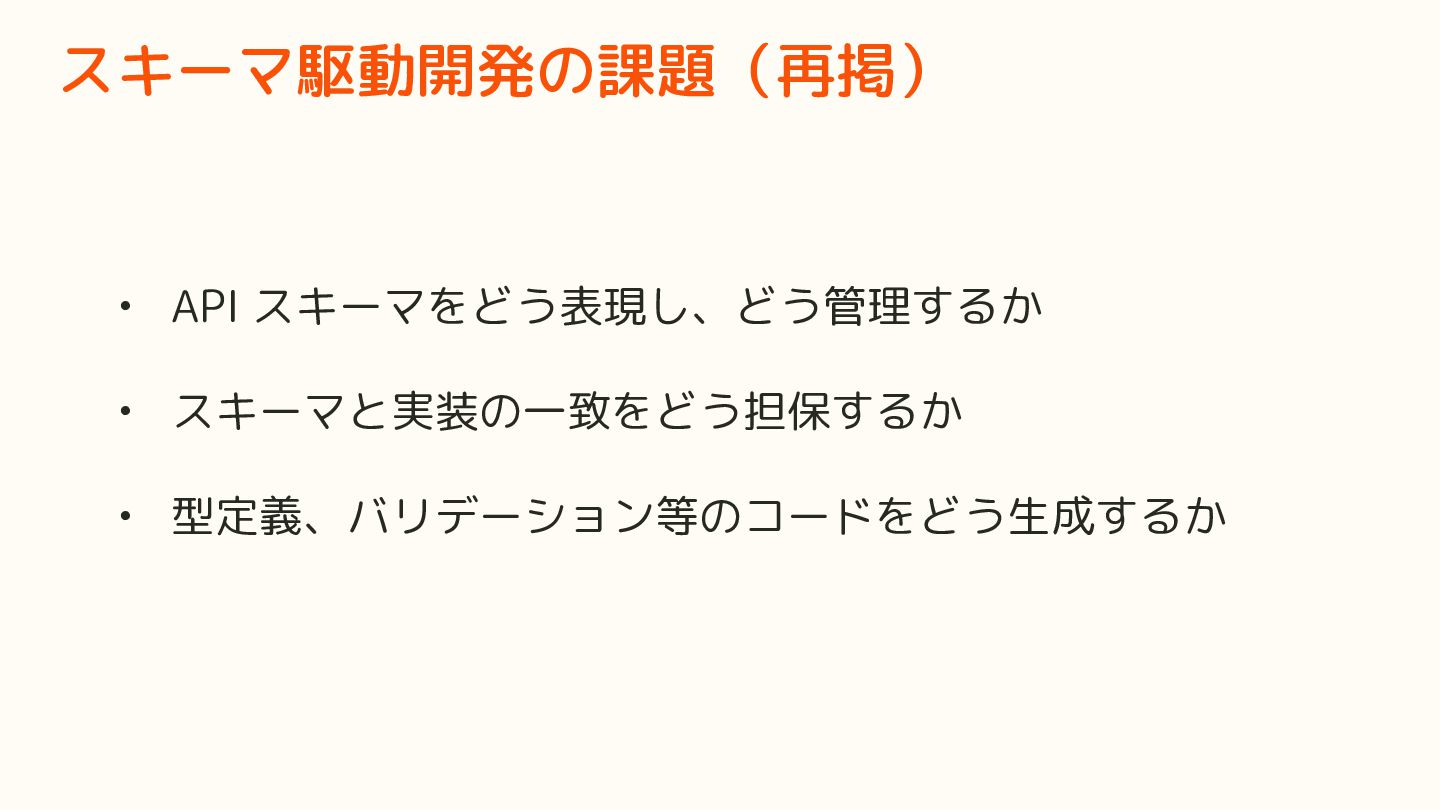

22. • API スキーマをどう表現し、どう管理するか • スキーマと実装の一致をどう担保するか • 型定義、バリデーション等のコードをどう生成するか スキーマ駆動開発の課題（再掲）

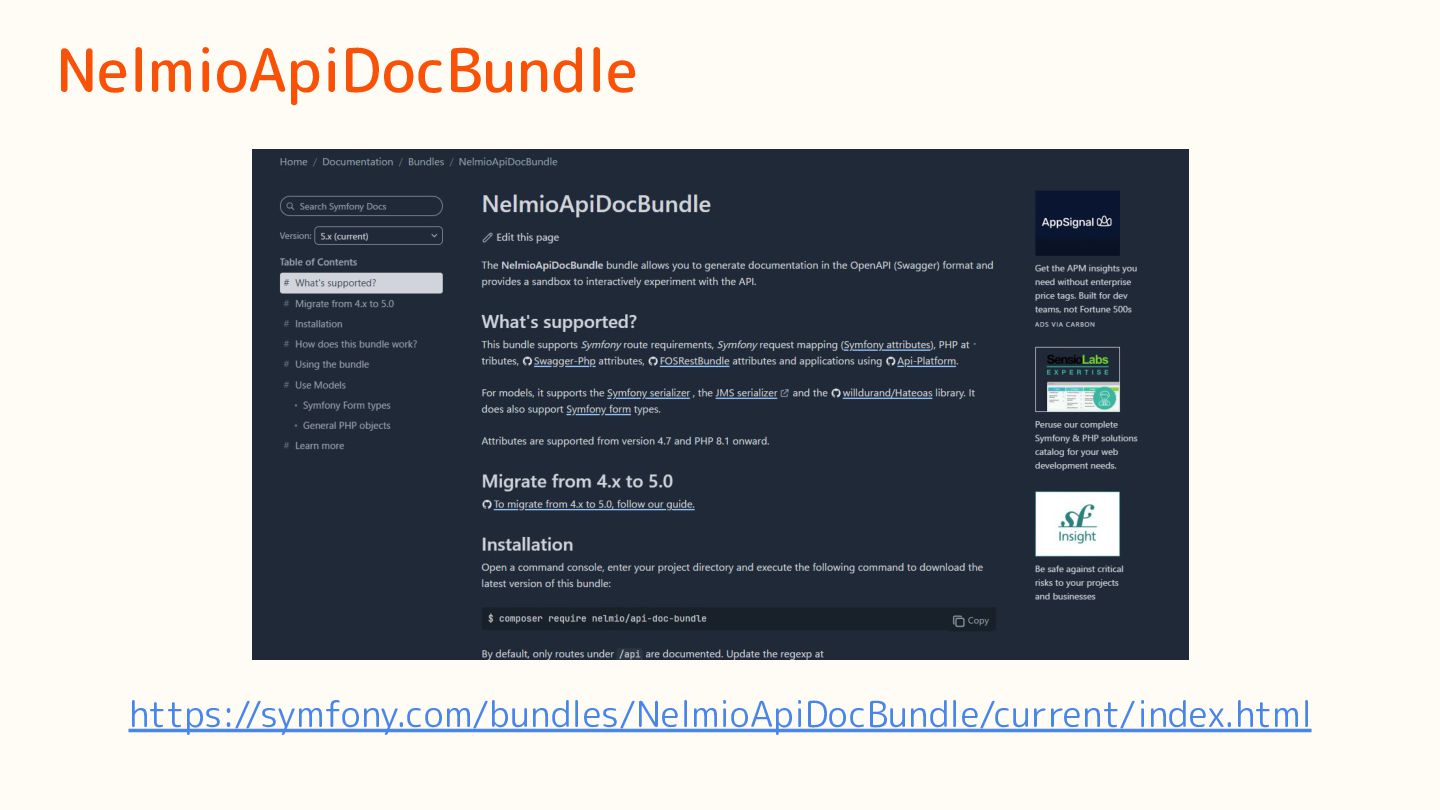

23. NelmioApiDocBundle https://symfony.com/bundles/NelmioApiDocBundle/current/index.html

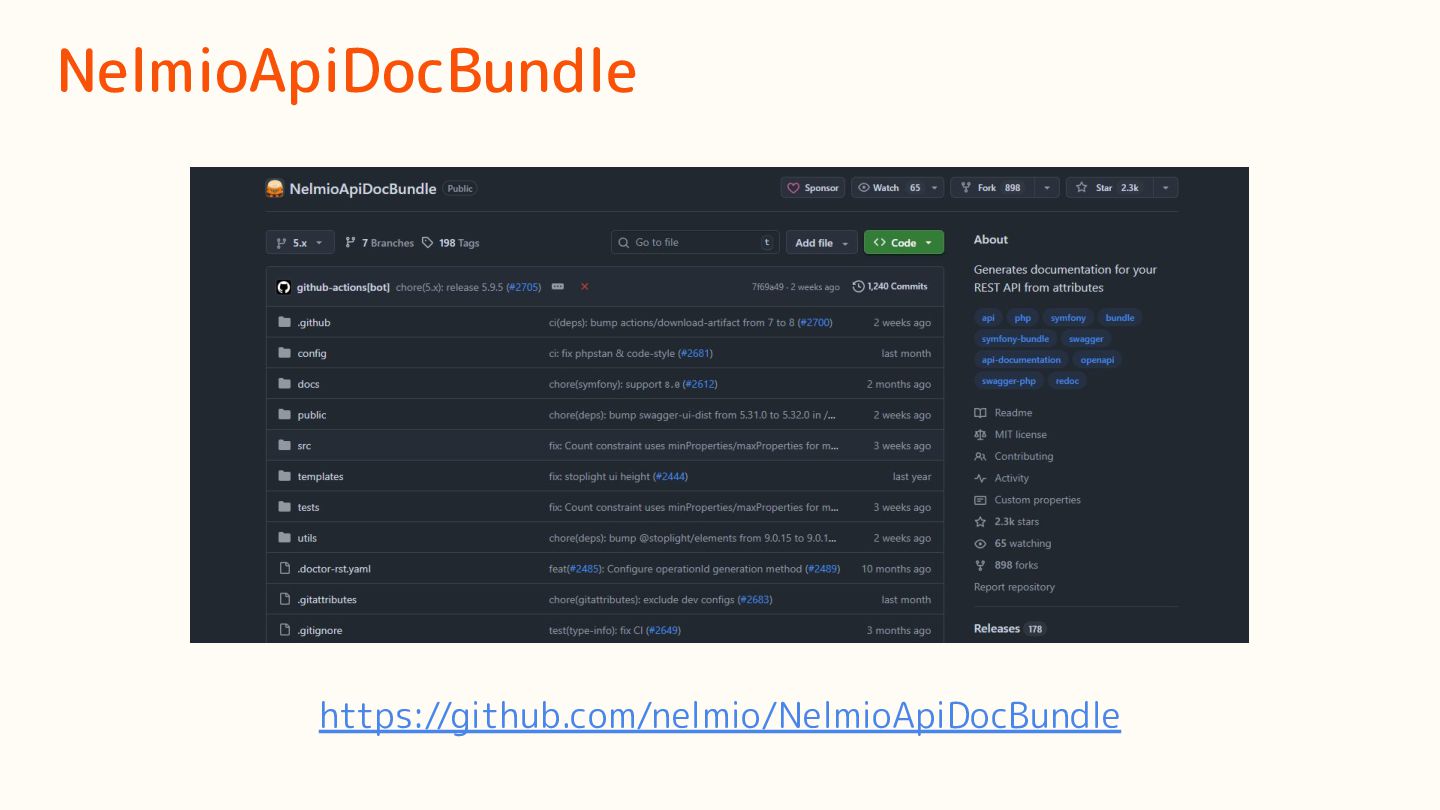

24. NelmioApiDocBundle https://github.com/nelmio/NelmioApiDocBundle

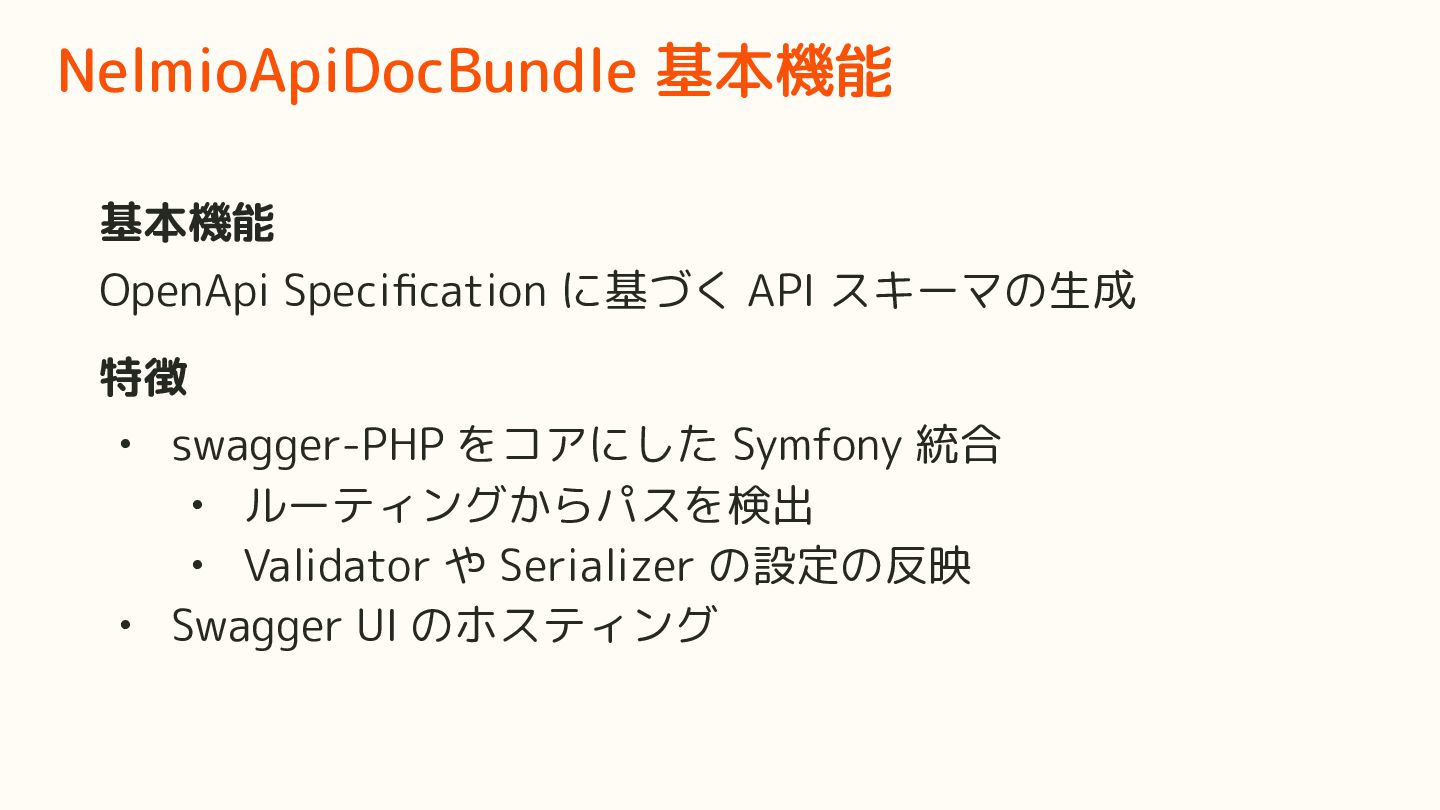

25. 基本機能 OpenApi Specification に基づく API スキーマの生成 特徴 • swagger-PHP をコアにした Symfony 統合 • ルーティングからパスを検出 • Validator や Serializer の設定の反映 • Swagger UI のホスティング NelmioApiDocBundle 基本機能

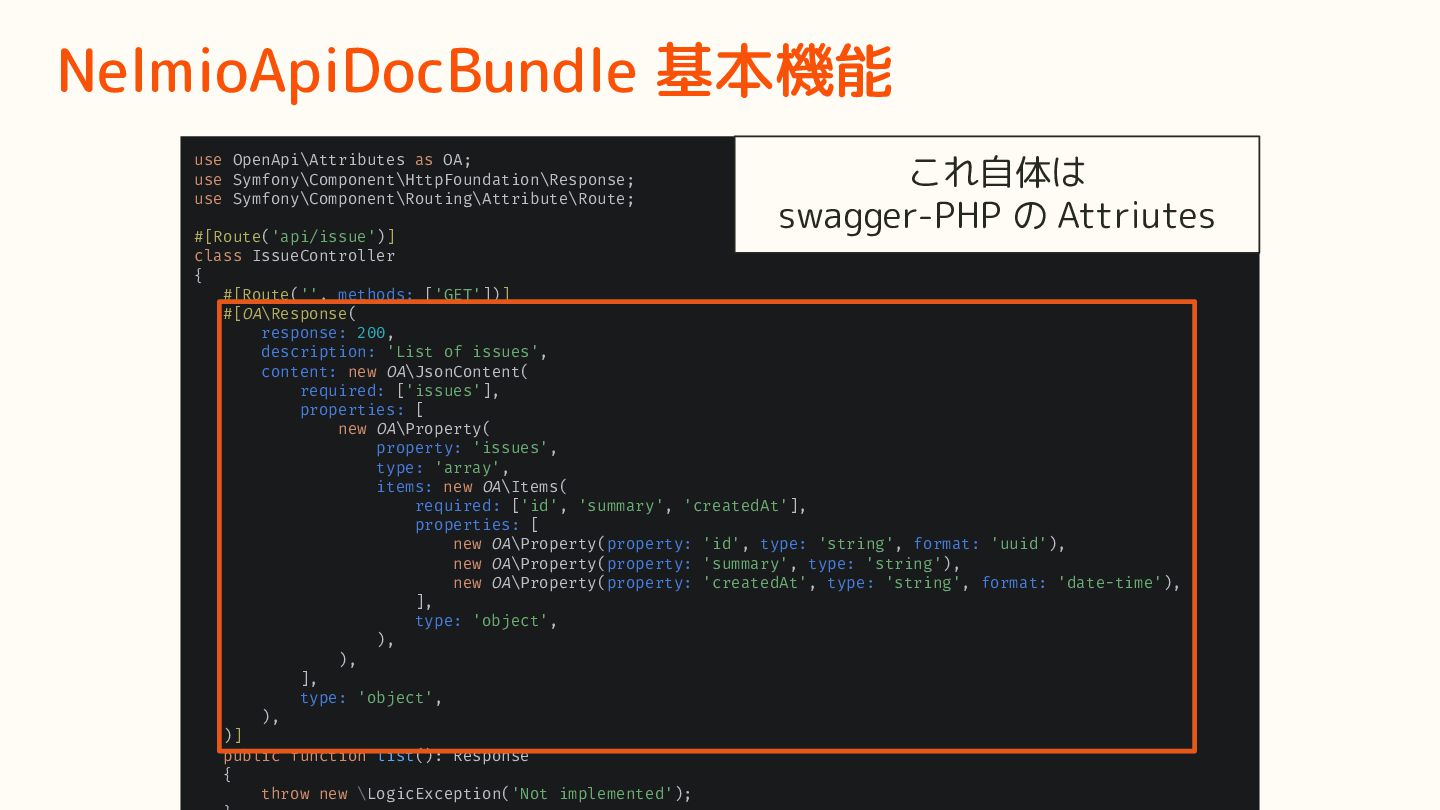

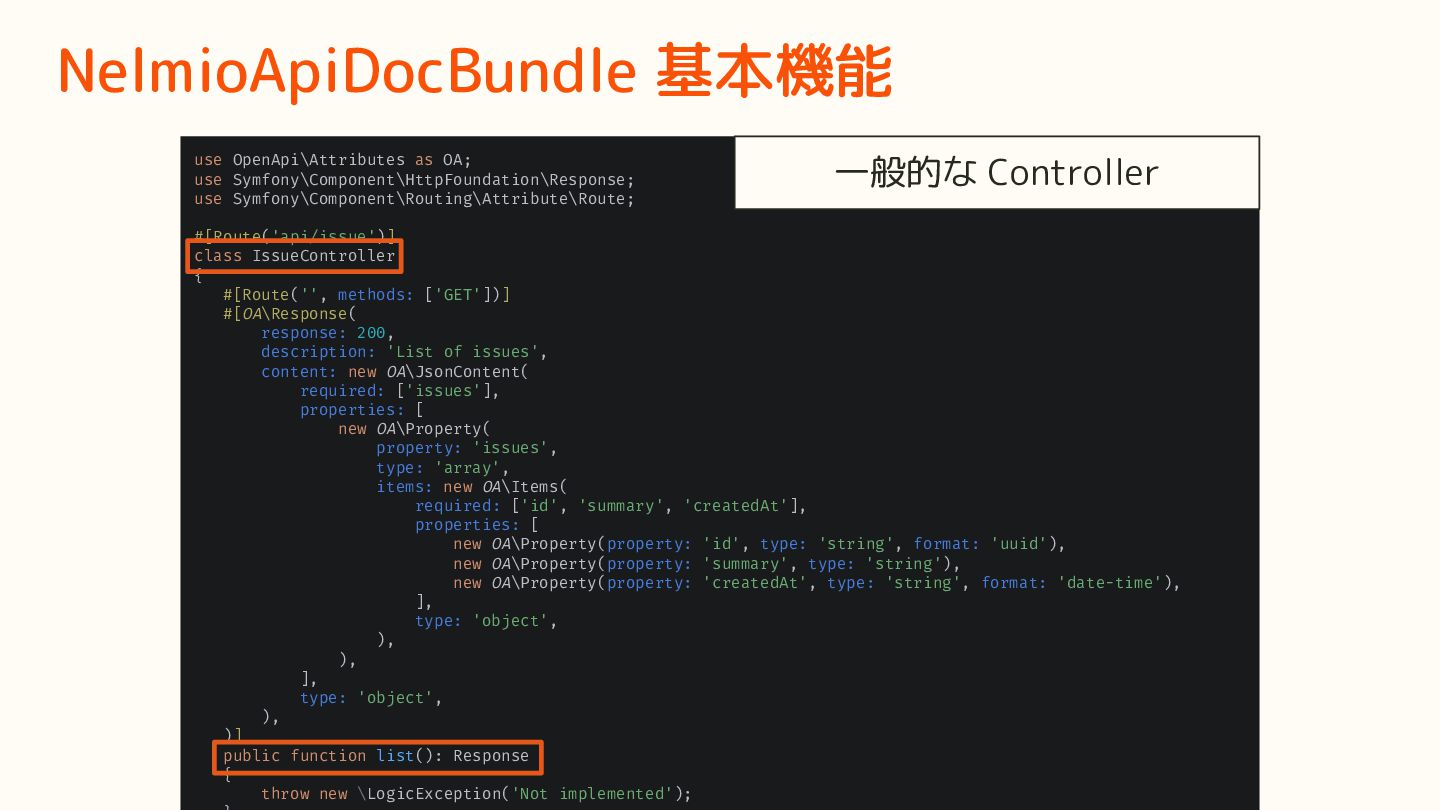

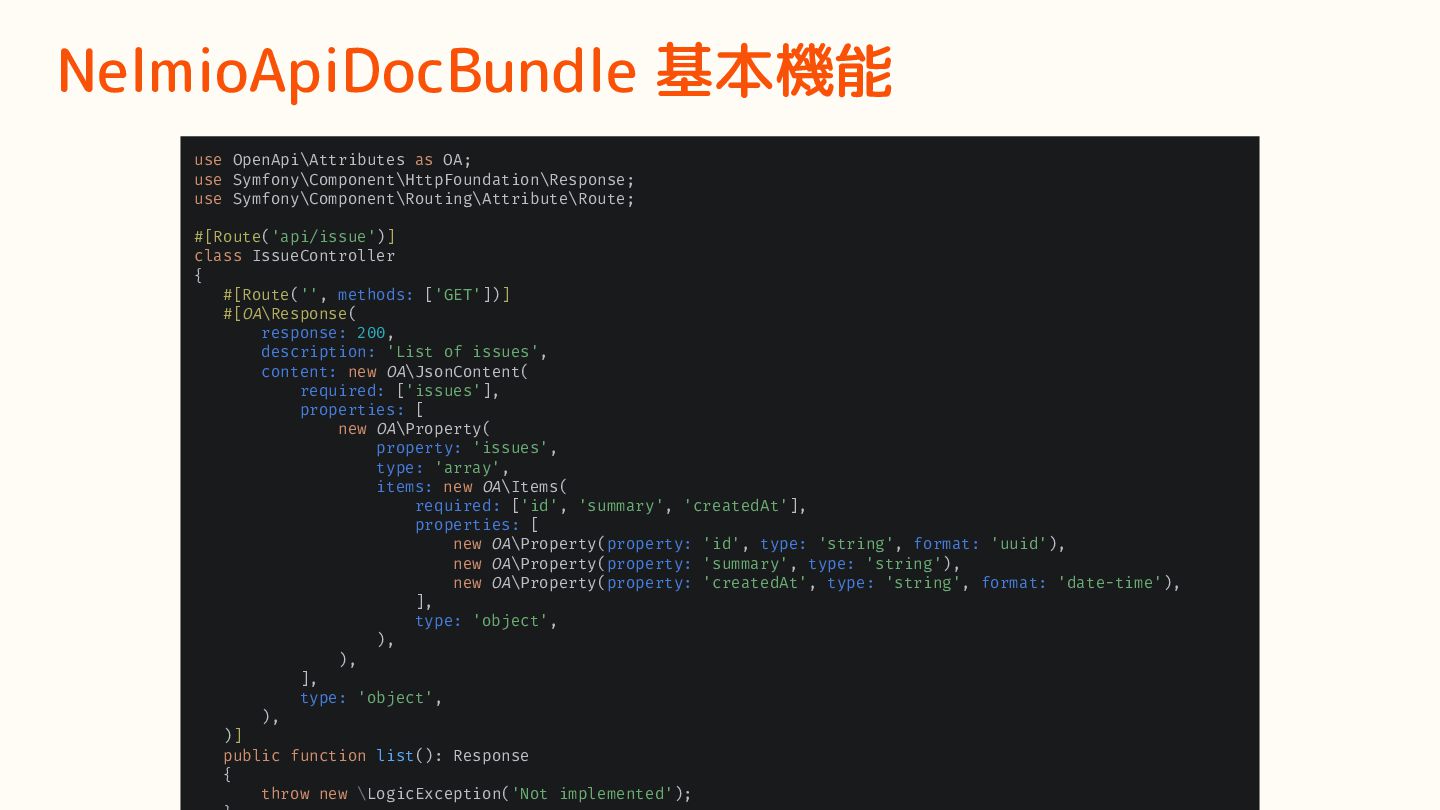

26. NelmioApiDocBundle 基本機能 use OpenApi\Attributes as OA; use Symfony\Component\HttpFoundation\Response; use Symfony\Component\Routing\Attribute\Route; #[Route('api/issue')] class IssueController { #[Route('', methods: ['GET'])] #[OA\Response( response: 200, description: 'List of issues', content: new OA\JsonContent( required: ['issues'], properties: [ new OA\Property( property: 'issues', type: 'array', items: new OA\Items( required: ['id', 'summary', 'createdAt'], properties: [ new OA\Property(property: 'id', type: 'string', format: 'uuid'), new OA\Property(property: 'summary', type: 'string'), new OA\Property(property: 'createdAt', type: 'string', format: 'date-time'), ], type: 'object', ), ), ], type: 'object', ), )] public function list(): Response { throw new \LogicException('Not implemented');

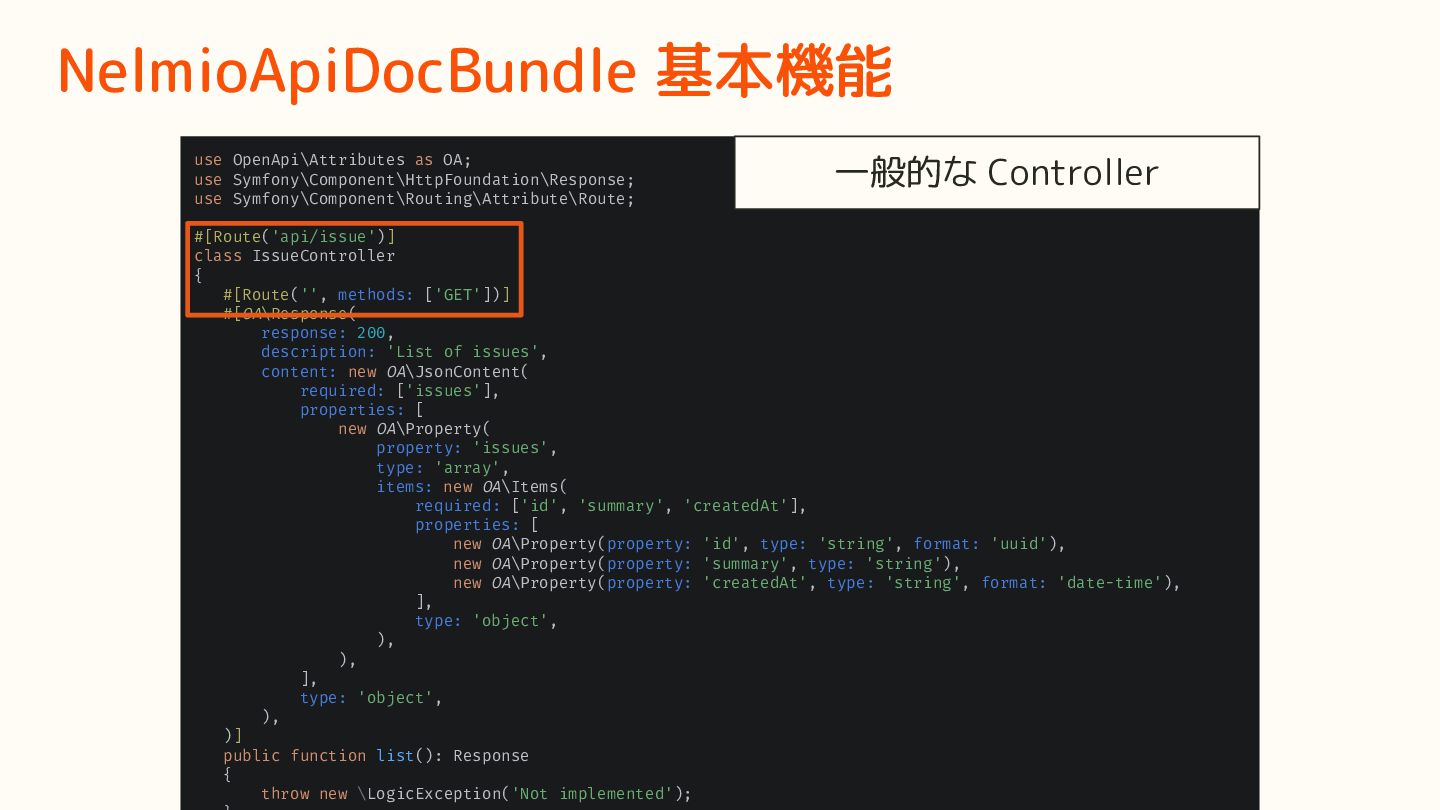

27. NelmioApiDocBundle 基本機能 use OpenApi\Attributes as OA; use Symfony\Component\HttpFoundation\Response; use Symfony\Component\Routing\Attribute\Route; #[Route('api/issue')] class IssueController { #[Route('', methods: ['GET'])] #[OA\Response( response: 200, description: 'List of issues', content: new OA\JsonContent( required: ['issues'], properties: [ new OA\Property( property: 'issues', type: 'array', items: new OA\Items( required: ['id', 'summary', 'createdAt'], properties: [ new OA\Property(property: 'id', type: 'string', format: 'uuid'), new OA\Property(property: 'summary', type: 'string'), new OA\Property(property: 'createdAt', type: 'string', format: 'date-time'), ], type: 'object', ), ), ], type: 'object', ), )] public function list(): Response { throw new \LogicException('Not implemented'); 一般的な Controller
28. NelmioApiDocBundle 基本機能 use OpenApi\Attributes as OA; use Symfony\Component\HttpFoundation\Response; use Symfony\Component\Routing\Attribute\Route; #[Route('api/issue')] class IssueController { #[Route('', methods: ['GET'])] #[OA\Response( response: 200, description: 'List of issues', content: new OA\JsonContent( required: ['issues'], properties: [ new OA\Property( property: 'issues', type: 'array', items: new OA\Items( required: ['id', 'summary', 'createdAt'], properties: [ new OA\Property(property: 'id', type: 'string', format: 'uuid'), new OA\Property(property: 'summary', type: 'string'), new OA\Property(property: 'createdAt', type: 'string', format: 'date-time'), ], type: 'object', ), ), ], type: 'object', ), )] public function list(): Response { throw new \LogicException('Not implemented'); 一般的な Controller
29. NelmioApiDocBundle 基本機能 use OpenApi\Attributes as OA; use Symfony\Component\HttpFoundation\Response; use Symfony\Component\Routing\Attribute\Route; #[Route('api/issue')] class IssueController { #[Route('', methods: ['GET'])] #[OA\Response( response: 200, description: 'List of issues', content: new OA\JsonContent( required: ['issues'], properties: [ new OA\Property( property: 'issues', type: 'array', items: new OA\Items( required: ['id', 'summary', 'createdAt'], properties: [ new OA\Property(property: 'id', type: 'string', format: 'uuid'), new OA\Property(property: 'summary', type: 'string'), new OA\Property(property: 'createdAt', type: 'string', format: 'date-time'), ], type: 'object', ), ), ], type: 'object', ), )] public function list(): Response { throw new \LogicException('Not implemented'); これ自体は swagger-PHP の Attriutes

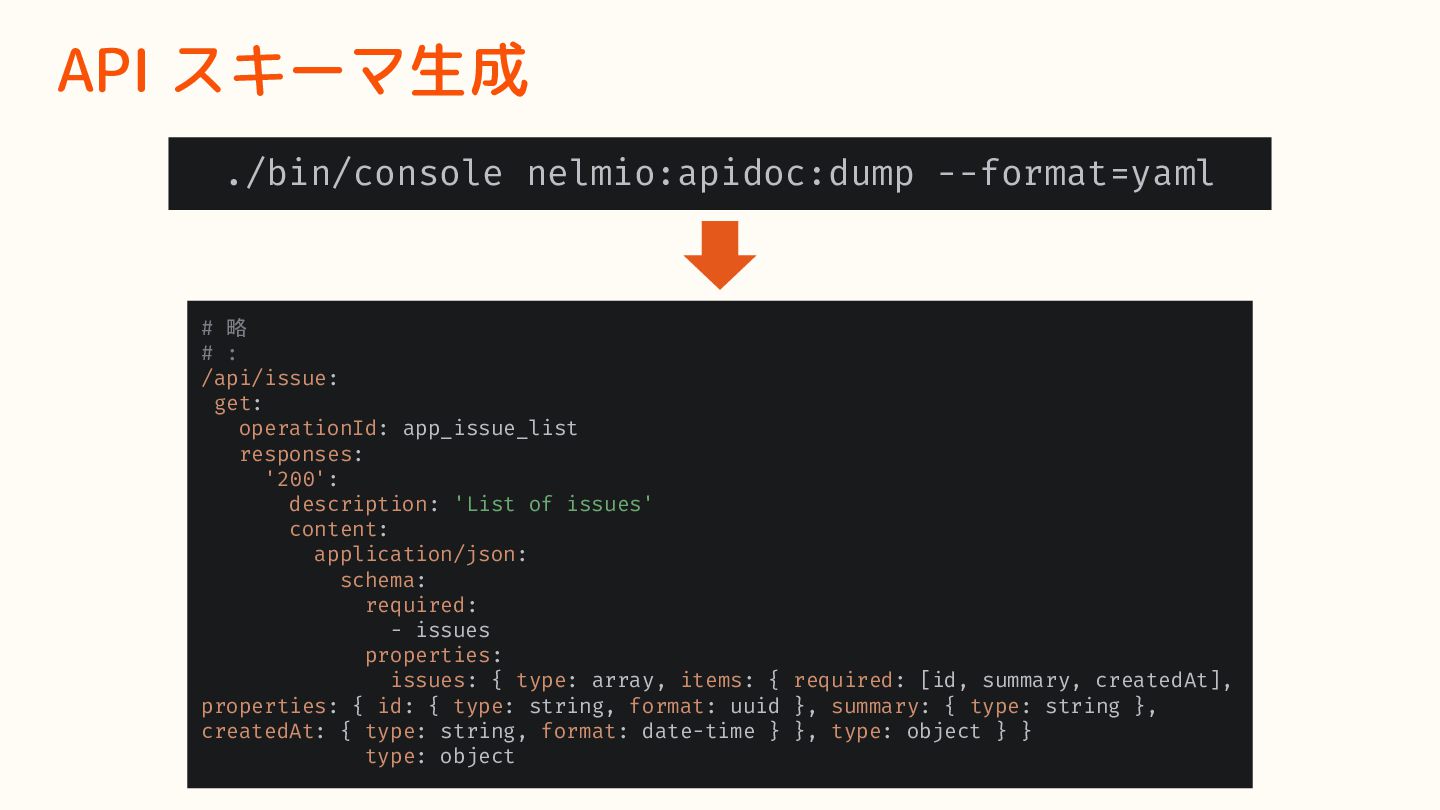

30. API スキーマ生成 ./bin/console nelmio:apidoc:dump --format=yaml # 略 # : /api/issue: get: operationId: app_issue_list responses: '200': description: 'List of issues' content: application/json: schema: required: - issues properties: issues: { type: array, items: { required: [id, summary, createdAt], properties: { id: { type: string, format: uuid }, summary: { type: string }, createdAt: { type: string, format: date-time } }, type: object } } type: object

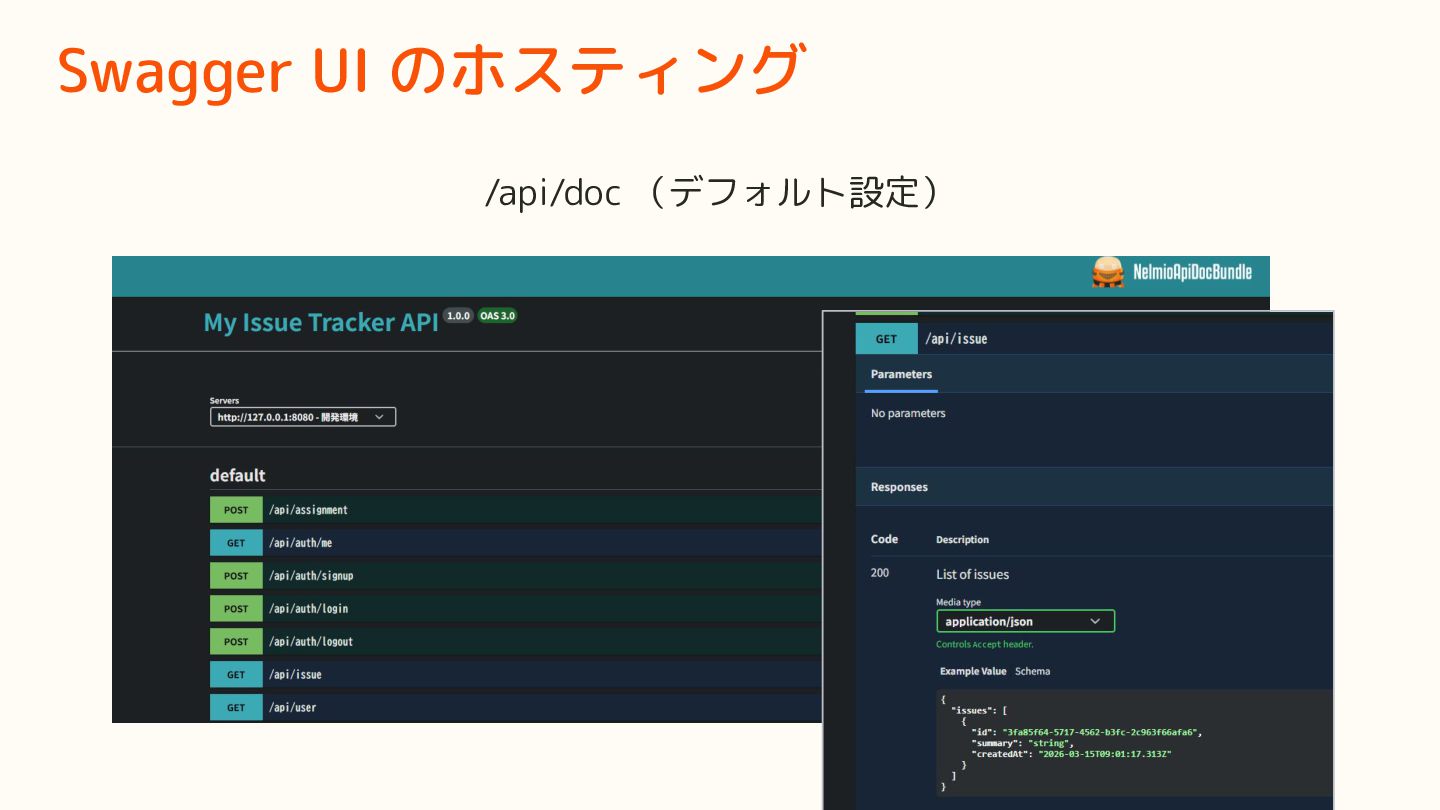

31. Swagger UI のホスティング /api/doc （デフォルト設定）
32. ここまではまださほど嬉しくない （むしろ煩雑になってるだけ）
33. これを use OpenApi\Attributes as OA; use Symfony\Component\HttpFoundation\Response; use Symfony\Component\Routing\Attribute\Route; #[Route('api/issue')] class IssueController { #[Route('', methods: ['GET'])] #[OA\Response( response: 200, description: 'List of issues', content: new OA\JsonContent( required: ['issues'], properties: [ new OA\Property( property: 'issues', type: 'array', items: new OA\Items( required: ['id', 'summary', 'createdAt'], properties: [ new OA\Property(property: 'id', type: 'string', format: 'uuid'), new OA\Property(property: 'summary', type: 'string'), new OA\Property(property: 'createdAt', type: 'string', format: 'date-time'), ], type: 'object', ), ), ], type: 'object', ), )] public function list(): Response

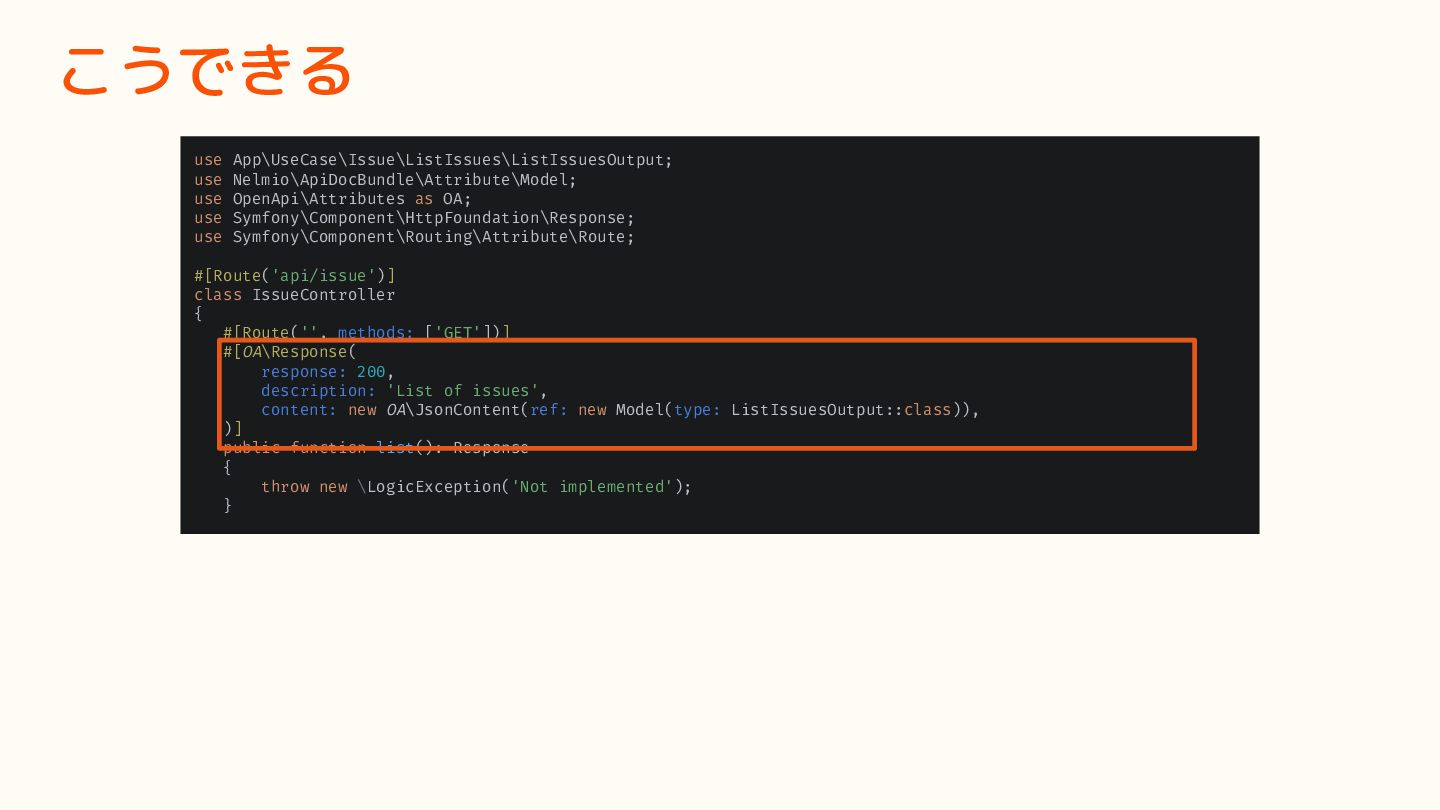

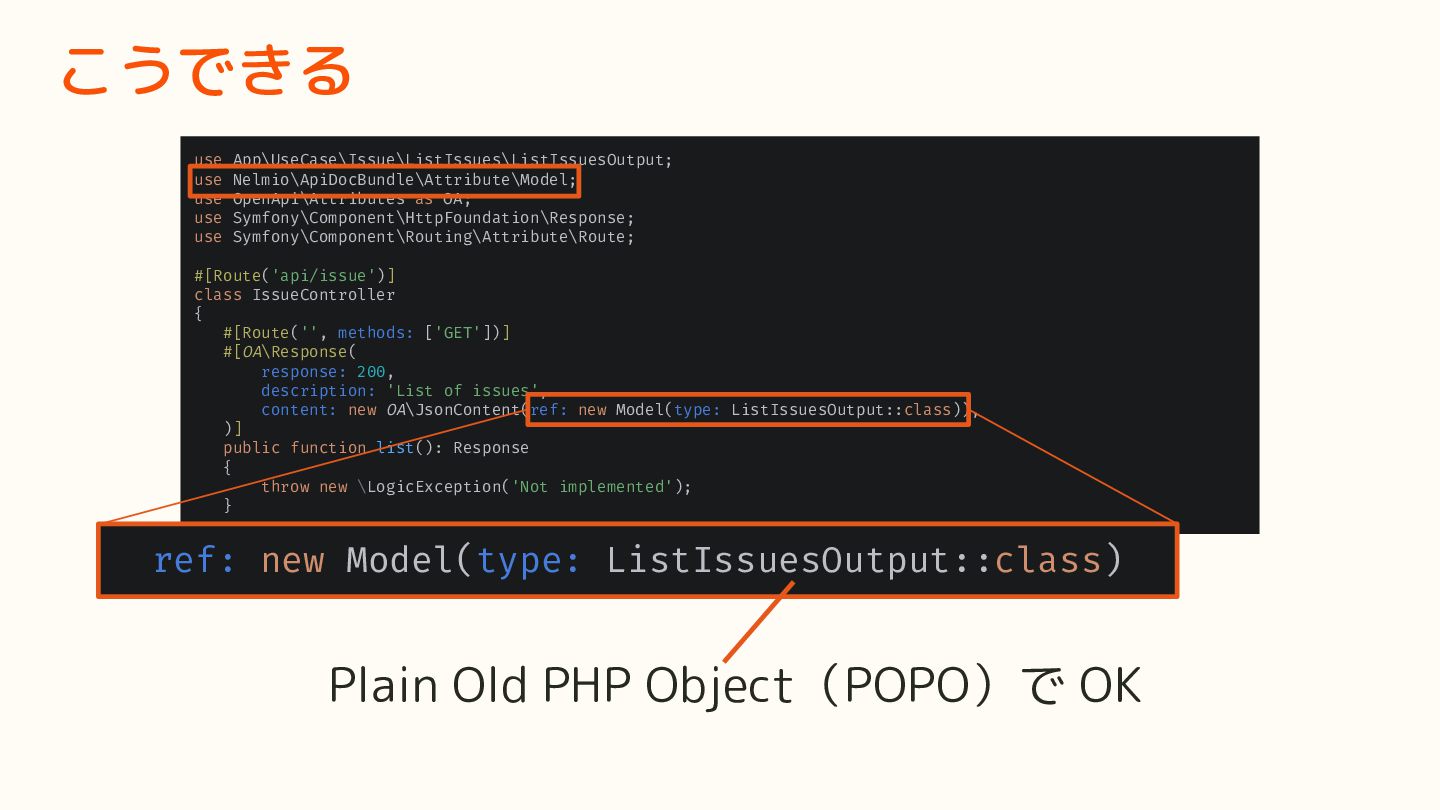

34. こうできる use App\UseCase\Issue\ListIssues\ListIssuesOutput; use Nelmio\ApiDocBundle\Attribute\Model; use OpenApi\Attributes as OA; use Symfony\Component\HttpFoundation\Response; use Symfony\Component\Routing\Attribute\Route; #[Route('api/issue')] class IssueController { #[Route('', methods: ['GET'])] #[OA\Response( response: 200, description: 'List of issues', content: new OA\JsonContent(ref: new Model(type: ListIssuesOutput::class)), )] public function list(): Response { throw new \LogicException('Not implemented'); }
35. こうできる use App\UseCase\Issue\ListIssues\ListIssuesOutput; use Nelmio\ApiDocBundle\Attribute\Model; use OpenApi\Attributes as OA; use Symfony\Component\HttpFoundation\Response; use Symfony\Component\Routing\Attribute\Route; #[Route('api/issue')] class IssueController { #[Route('', methods: ['GET'])] #[OA\Response( response: 200, description: 'List of issues', content: new OA\JsonContent(ref: new Model(type: ListIssuesOutput::class)), )] public function list(): Response { throw new \LogicException('Not implemented'); } ref: new Model(type: ListIssuesOutput::class) Plain Old PHP Object（POPO）で OK

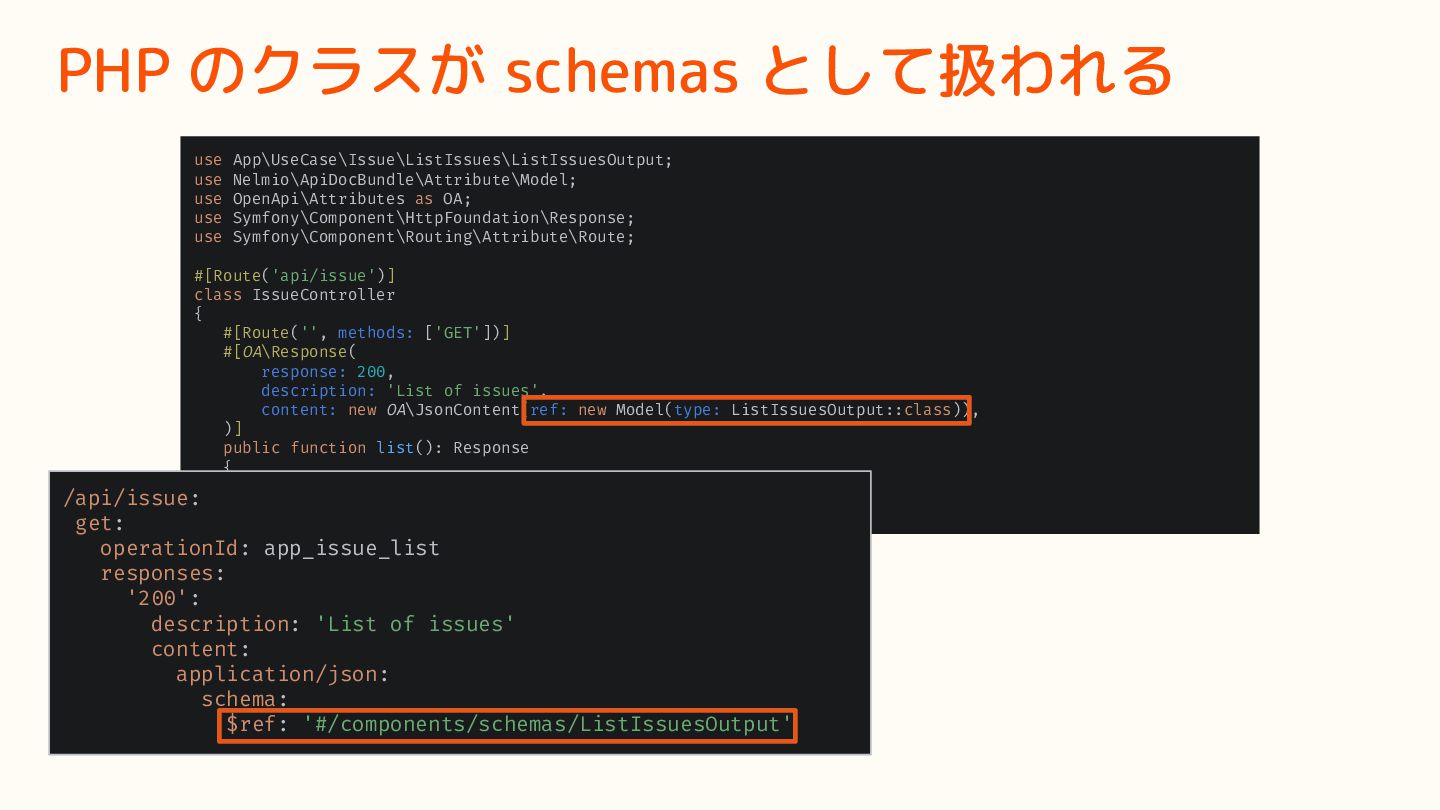

36. PHP のクラスが schemas として扱われる use App\UseCase\Issue\ListIssues\ListIssuesOutput; use Nelmio\ApiDocBundle\Attribute\Model; use OpenApi\Attributes as OA; use Symfony\Component\HttpFoundation\Response; use Symfony\Component\Routing\Attribute\Route; #[Route('api/issue')] class IssueController { #[Route('', methods: ['GET'])] #[OA\Response( response: 200, description: 'List of issues', content: new OA\JsonContent(ref: new Model(type: ListIssuesOutput::class)), )] public function list(): Response { throw new \LogicException('Not implemented'); } /api/issue: get: operationId: app_issue_list responses: '200': description: 'List of issues' content: application/json: schema: $ref: '#/components/schemas/ListIssuesOutput'

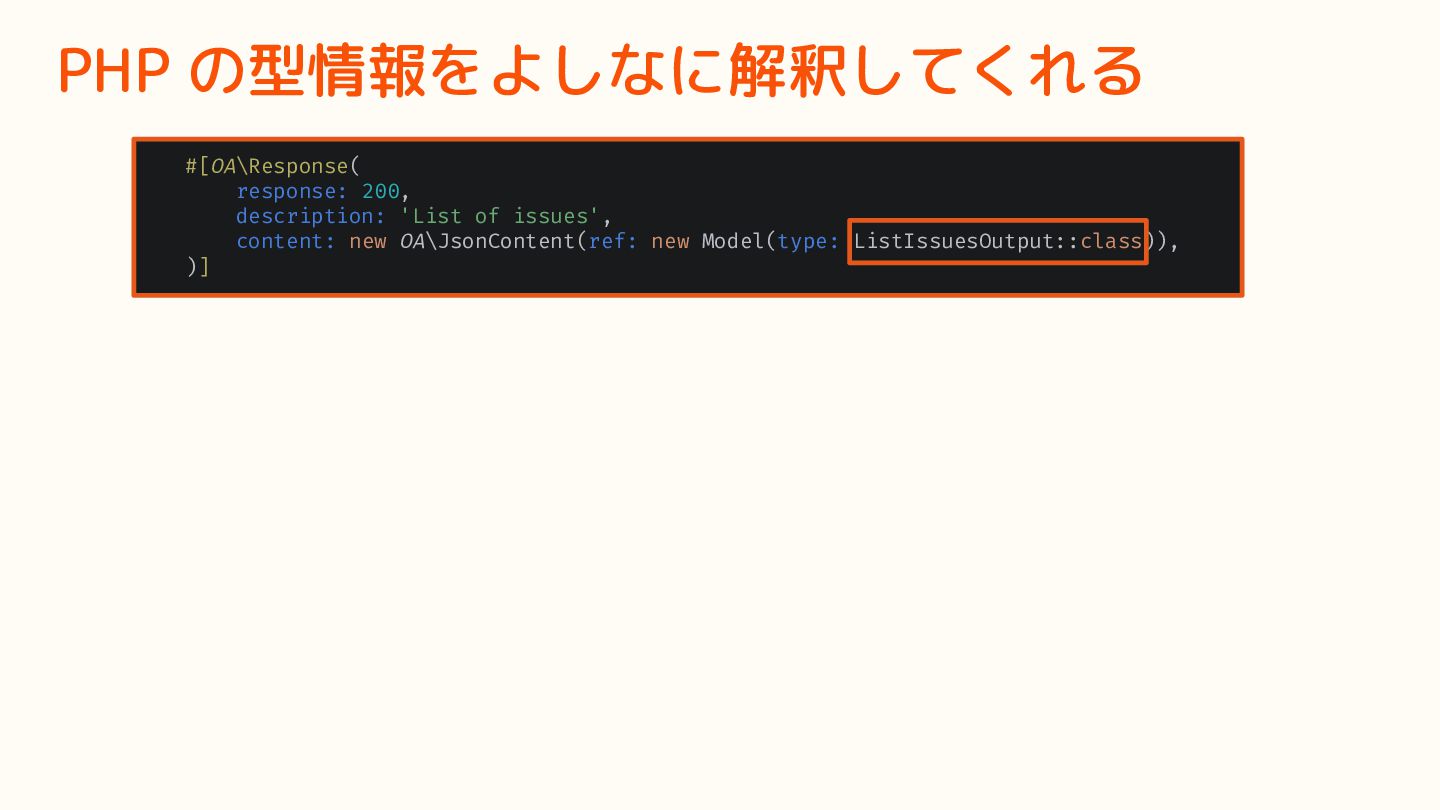

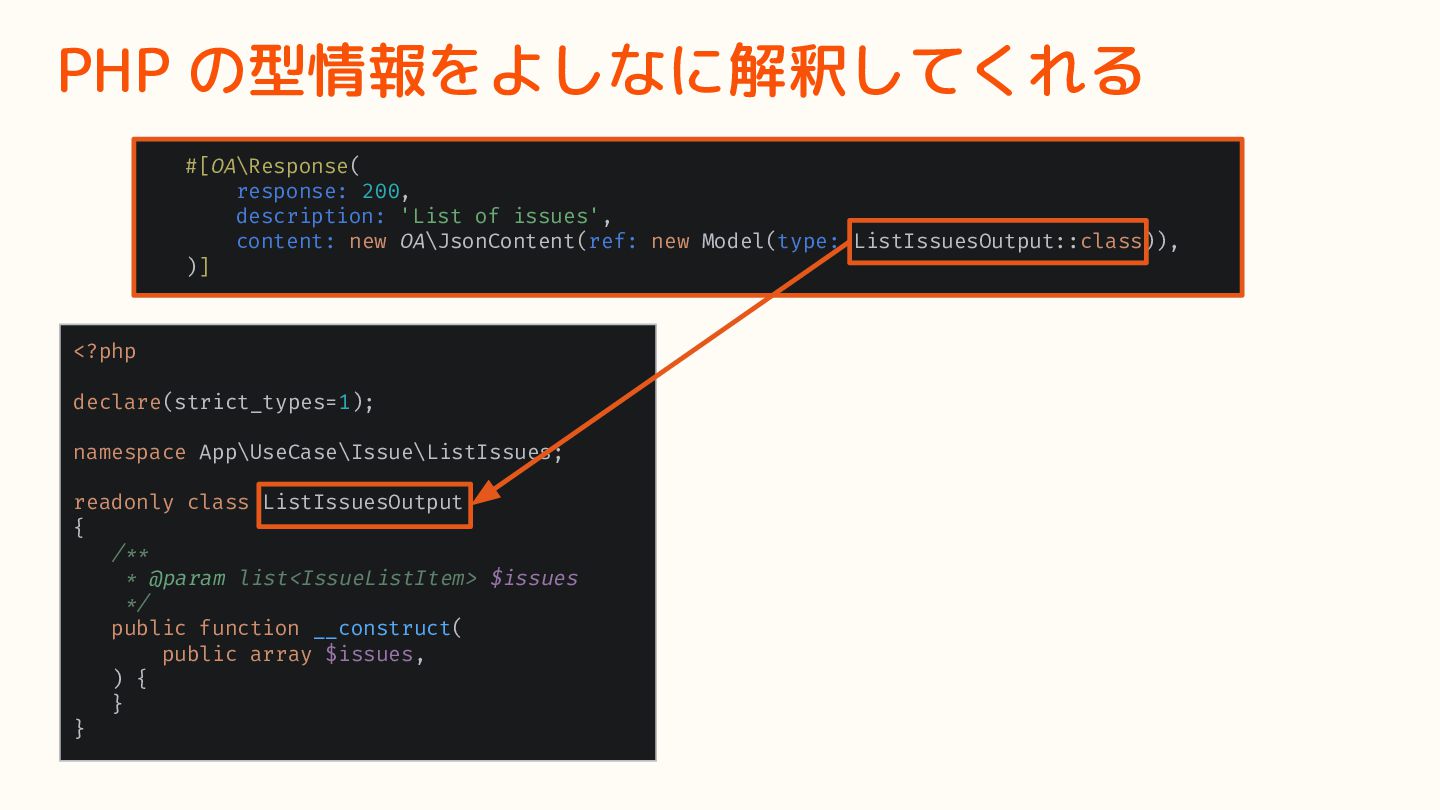

37. PHP の型情報をよしなに解釈してくれる #[OA\Response( response: 200, description: 'List of issues', content: new OA\JsonContent(ref: new Model(type: ListIssuesOutput::class)), )]
38. PHP の型情報をよしなに解釈してくれる #[OA\Response( response: 200, description: 'List of issues', content: new OA\JsonContent(ref: new Model(type: ListIssuesOutput::class)), )] <?php declare(strict_types=1); namespace App\UseCase\Issue\ListIssues; readonly class ListIssuesOutput { /** * @param list<IssueListItem> $issues */ public function __construct( public array $issues, ) { } }

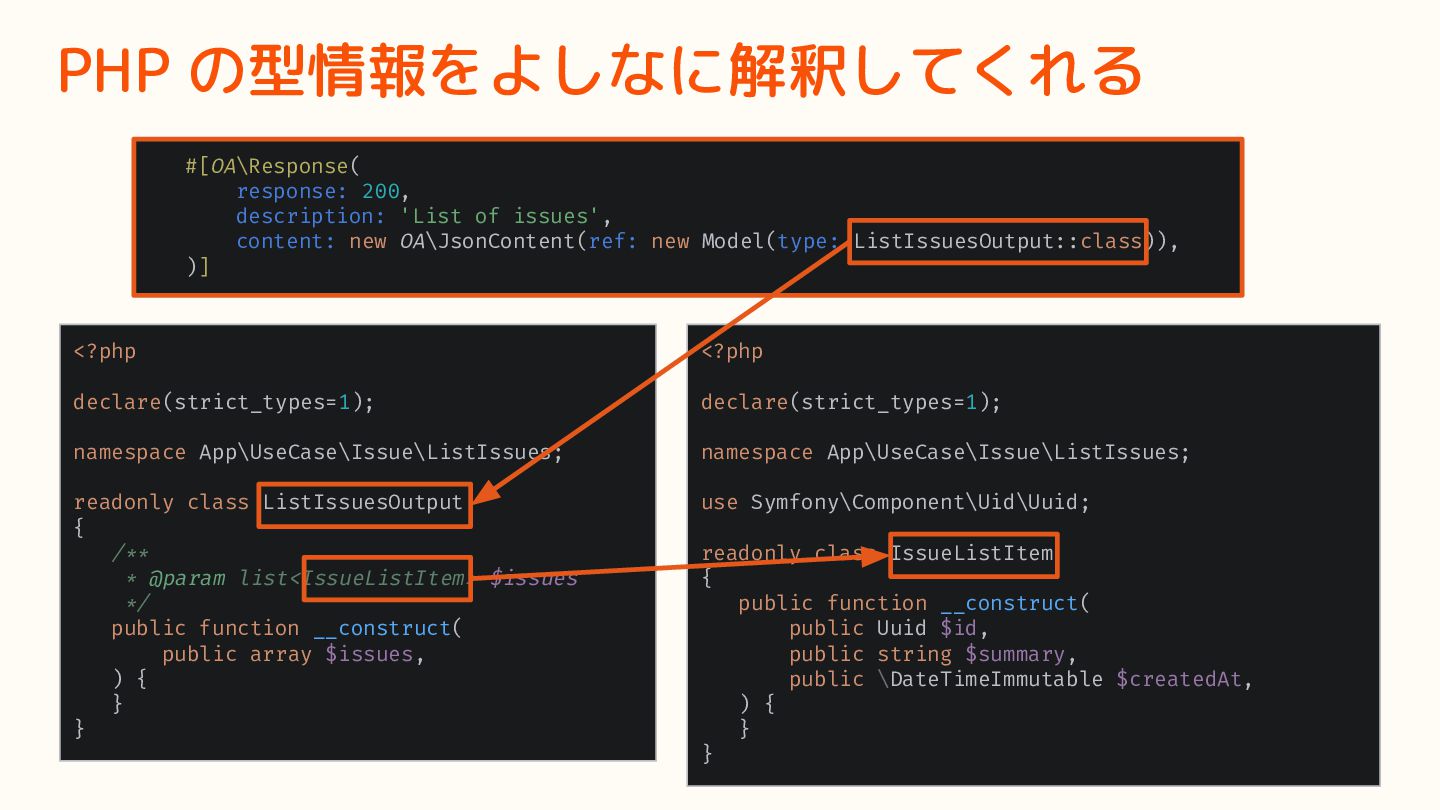

39. PHP の型情報をよしなに解釈してくれる #[OA\Response( response: 200, description: 'List of issues', content: new OA\JsonContent(ref: new Model(type: ListIssuesOutput::class)), )] <?php declare(strict_types=1); namespace App\UseCase\Issue\ListIssues; readonly class ListIssuesOutput { /** * @param list<IssueListItem> $issues */ public function __construct( public array $issues, ) { } } <?php declare(strict_types=1); namespace App\UseCase\Issue\ListIssues; use Symfony\Component\Uid\Uuid; readonly class IssueListItem { public function __construct( public Uuid $id, public string $summary, public \DateTimeImmutable $createdAt, ) { } }

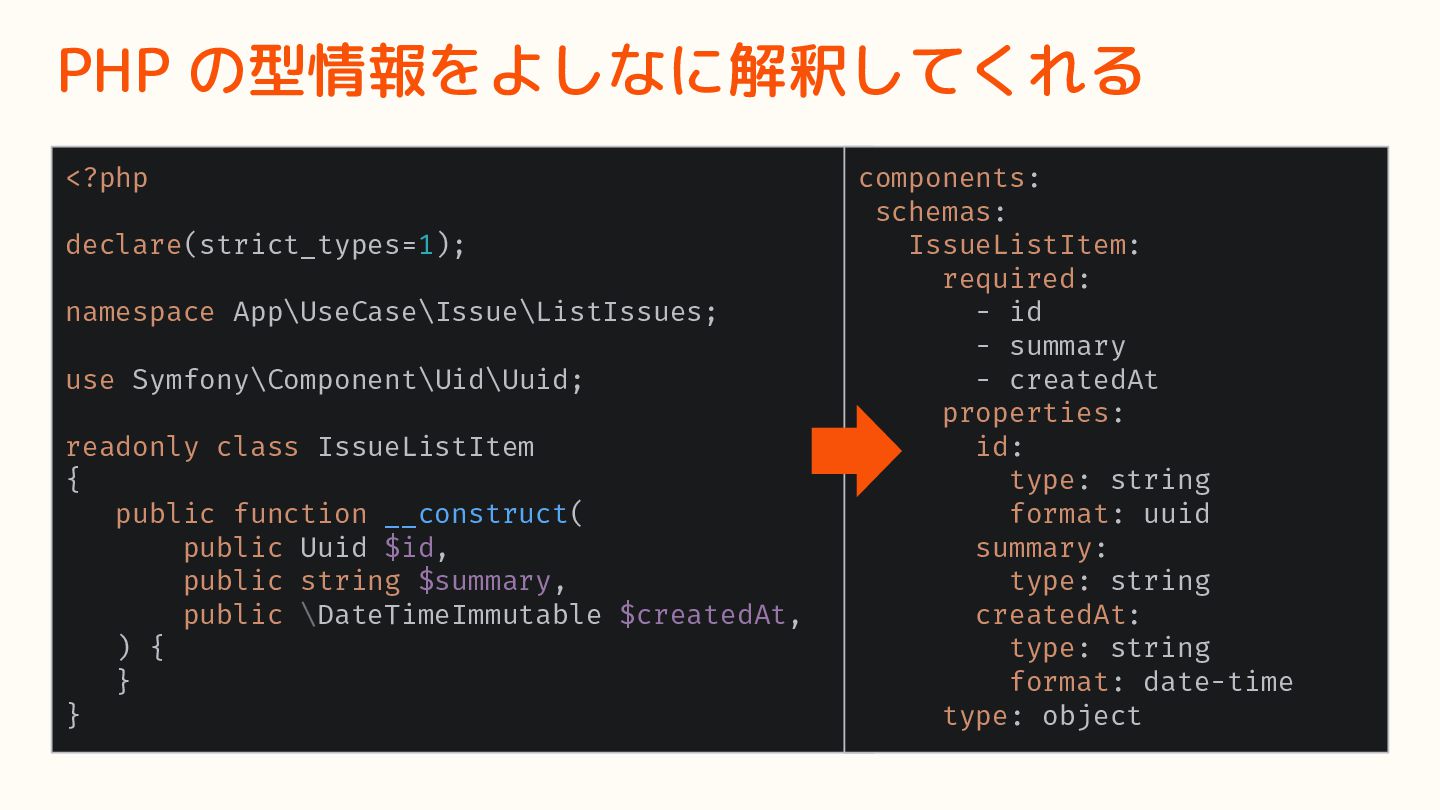

40. PHP の型情報をよしなに解釈してくれる <?php declare(strict_types=1); namespace App\UseCase\Issue\ListIssues; use Symfony\Component\Uid\Uuid; readonly class IssueListItem { public function __construct( public Uuid $id, public string $summary, public \DateTimeImmutable $createdAt, ) { } } components: schemas: IssueListItem: required: - id - summary - createdAt properties: id: type: string format: uuid summary: type: string createdAt: type: string format: date-time type: object
41. PHP の型情報をよしなに解釈してくれる <?php declare(strict_types=1); namespace App\UseCase\Issue\ListIssues; use Symfony\Component\Uid\Uuid; readonly class IssueListItem { public function __construct( public Uuid $id, public string $summary, public \DateTimeImmutable $createdAt, ) { } } components: schemas: IssueListItem: required: - id - summary - createdAt properties: id: type: string format: uuid summary: type: string createdAt: type: string format: date-time type: object
42. その他にも • PHP の列挙型（Enum）は enum • PHP の Union 型 は oneOf になる PHP の型情報をよしなに解釈してくれる

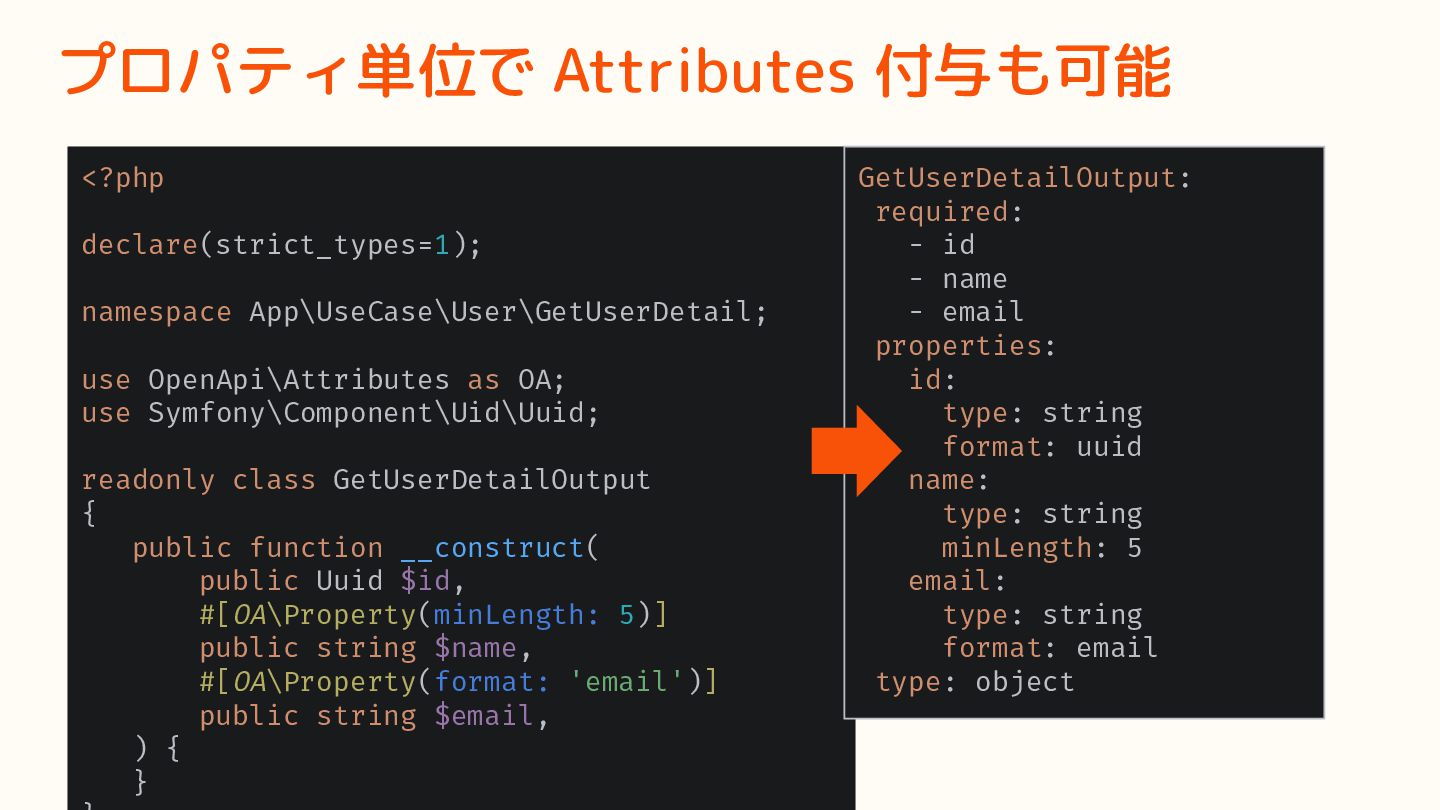

43. プロパティ単位で Attributes 付与も可能 <?php declare(strict_types=1); namespace App\UseCase\User\GetUserDetail; use OpenApi\Attributes as OA; use Symfony\Component\Uid\Uuid; readonly class GetUserDetailOutput { public function __construct( public Uuid $id, #[OA\Property(minLength: 5)] public string $name, #[OA\Property(format: 'email')] public string $email, ) { } GetUserDetailOutput: required: - id - name - email properties: id: type: string format: uuid name: type: string minLength: 5 email: type: string format: email type: object
44. プロパティ単位で Attributes 付与も可能 <?php declare(strict_types=1); namespace App\UseCase\User\GetUserDetail; use OpenApi\Attributes as OA; use Symfony\Component\Uid\Uuid; readonly class GetUserDetailOutput { public function __construct( public Uuid $id, #[OA\Property(minLength: 5)] public string $name, #[OA\Property(format: 'email')] public string $email, ) { } GetUserDetailOutput: required: - id - name - email properties: id: type: string format: uuid name: type: string minLength: 5 email: type: string format: email type: object

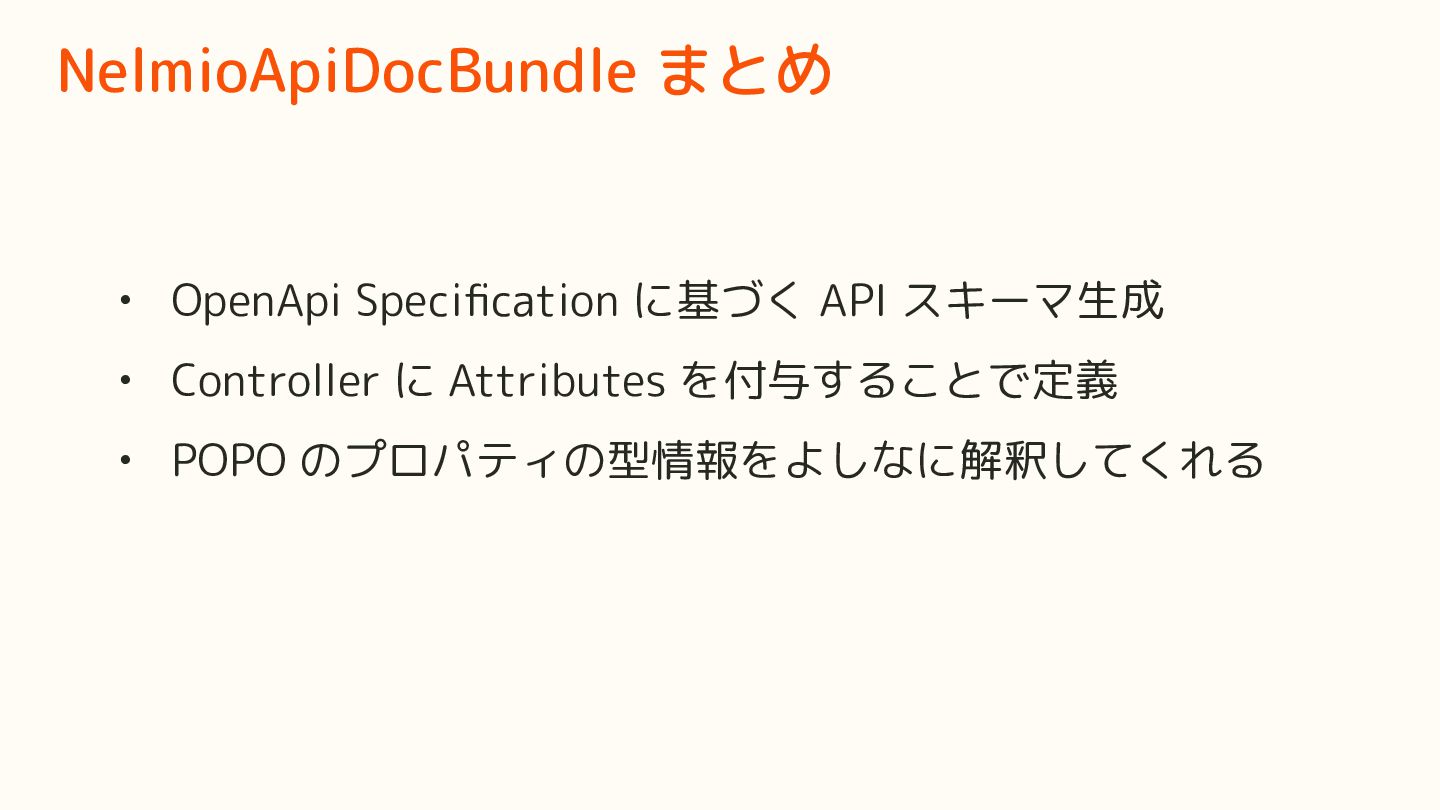

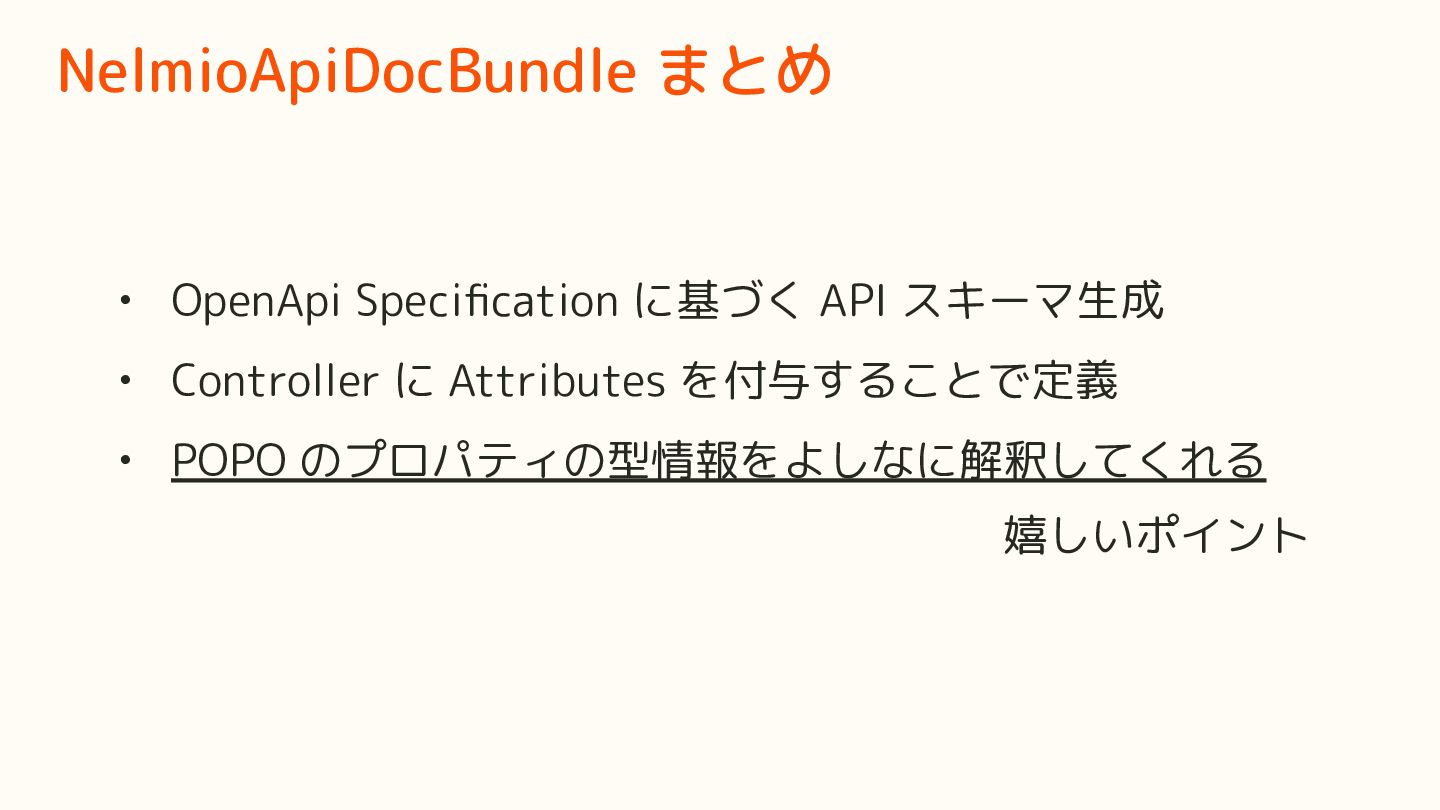

45. • OpenApi Specification に基づく API スキーマ生成 • Controller に Attributes を付与することで定義 • POPO のプロパティの型情報をよしなに解釈してくれる NelmioApiDocBundle まとめ
46. • OpenApi Specification に基づく API スキーマ生成 • Controller に Attributes を付与することで定義 • POPO のプロパティの型情報をよしなに解釈してくれる NelmioApiDocBundle まとめ 嬉しいポイント
47. 1. スキーマ駆動開発のメリットと課題 00:00～04:00 2. NelmioApiDocBundle 解説 04:00～08:00 3. API エンドポイント実装例 08:00～17:00 4. 弱み・他の選択肢との比較 17:00～19:30 5. まとめ 19:30～20:00 目次（時間は目安）

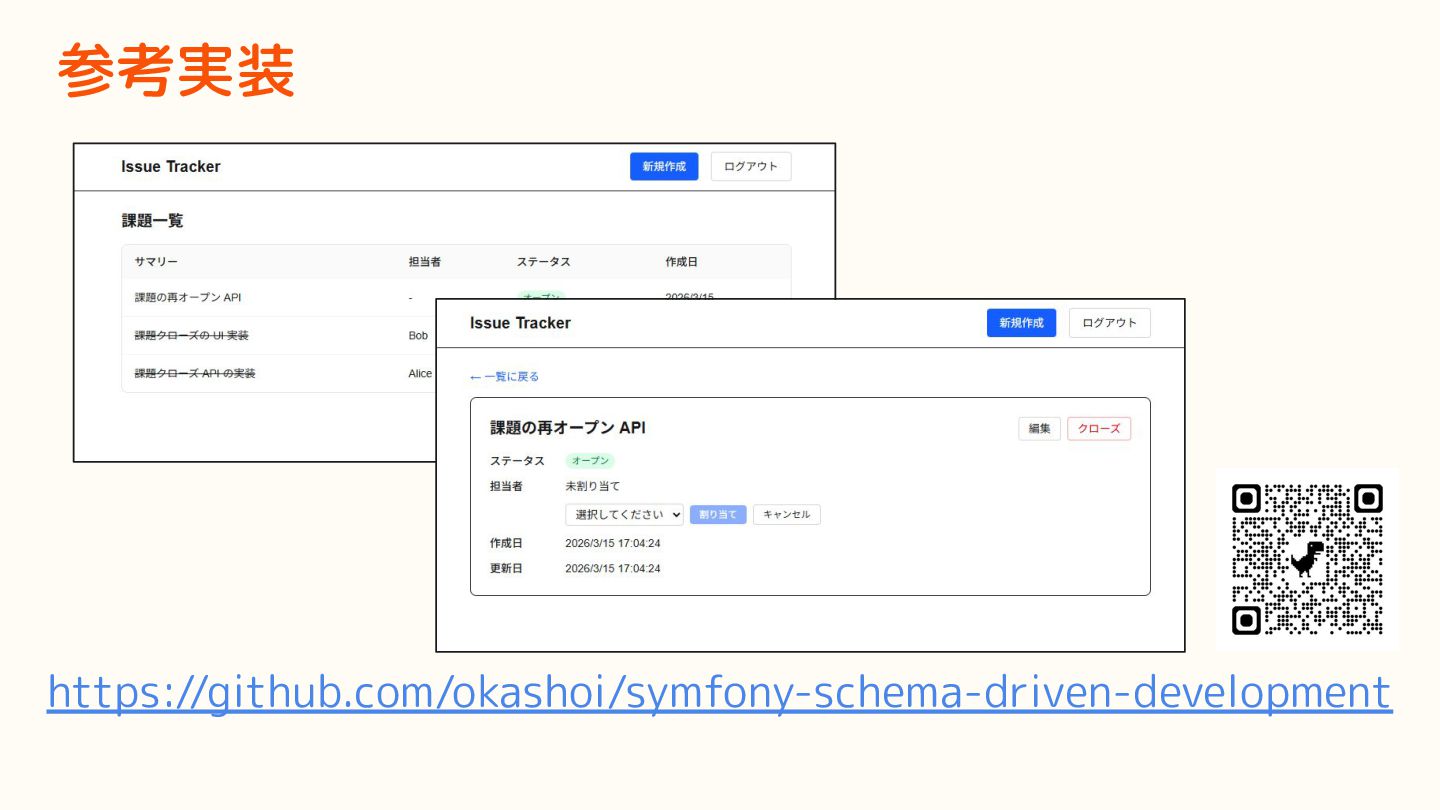

48. 参考実装 https://github.com/okashoi/symfony-schema-driven-development
49. 参考実装 https://github.com/okashoi/symfony-schema-driven-development

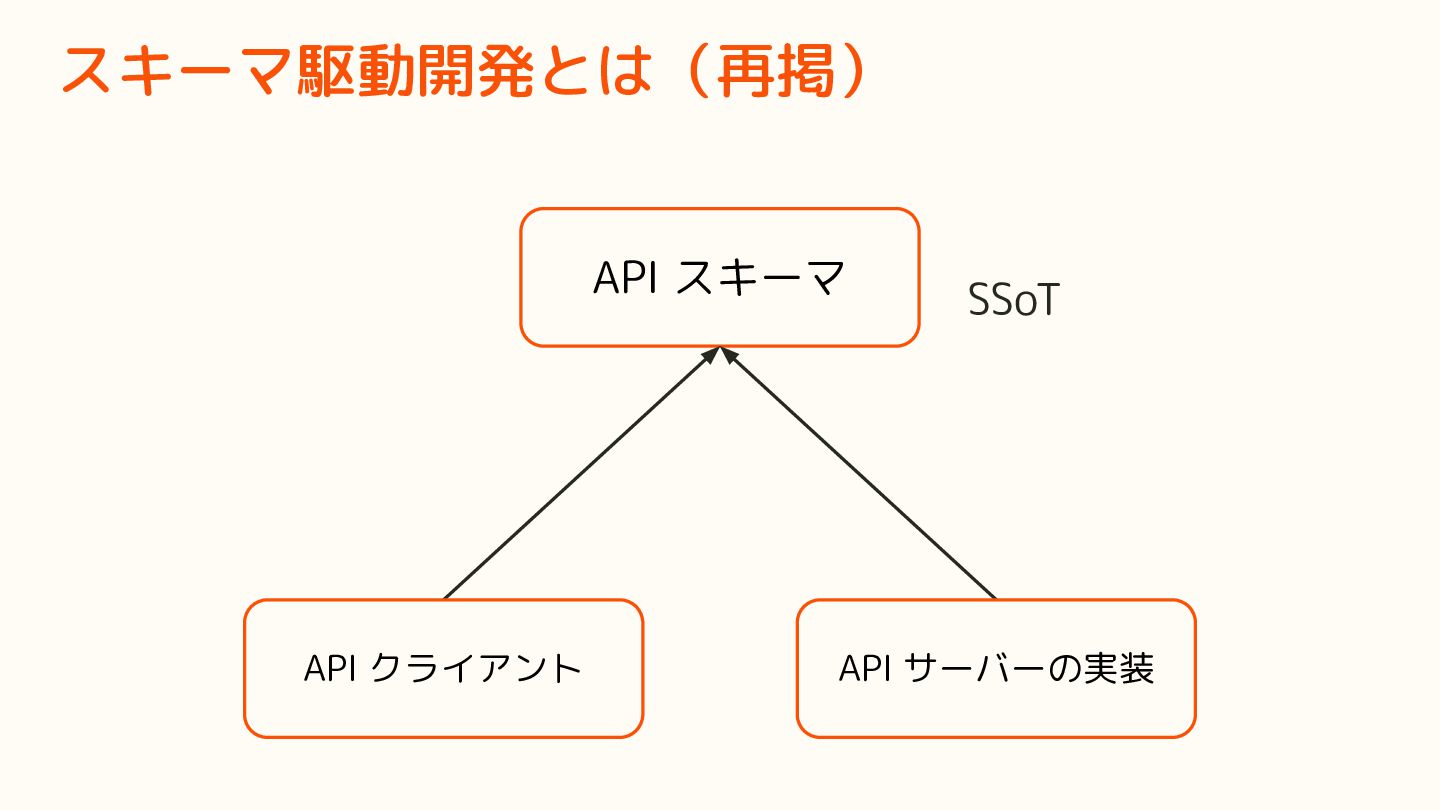

50. スキーマ駆動開発とは（再掲） API スキーマ SSoT API クライアント API サーバーの実装

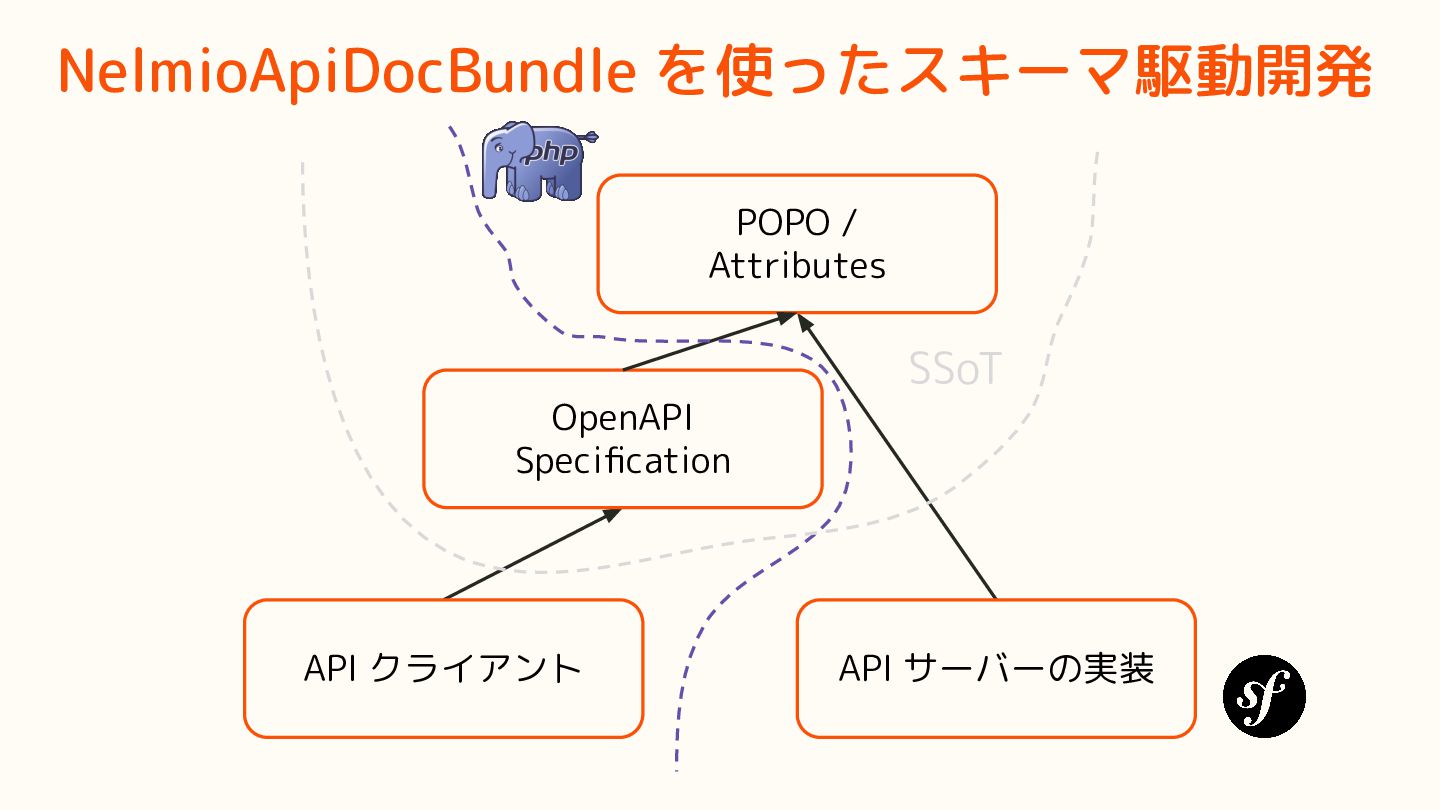

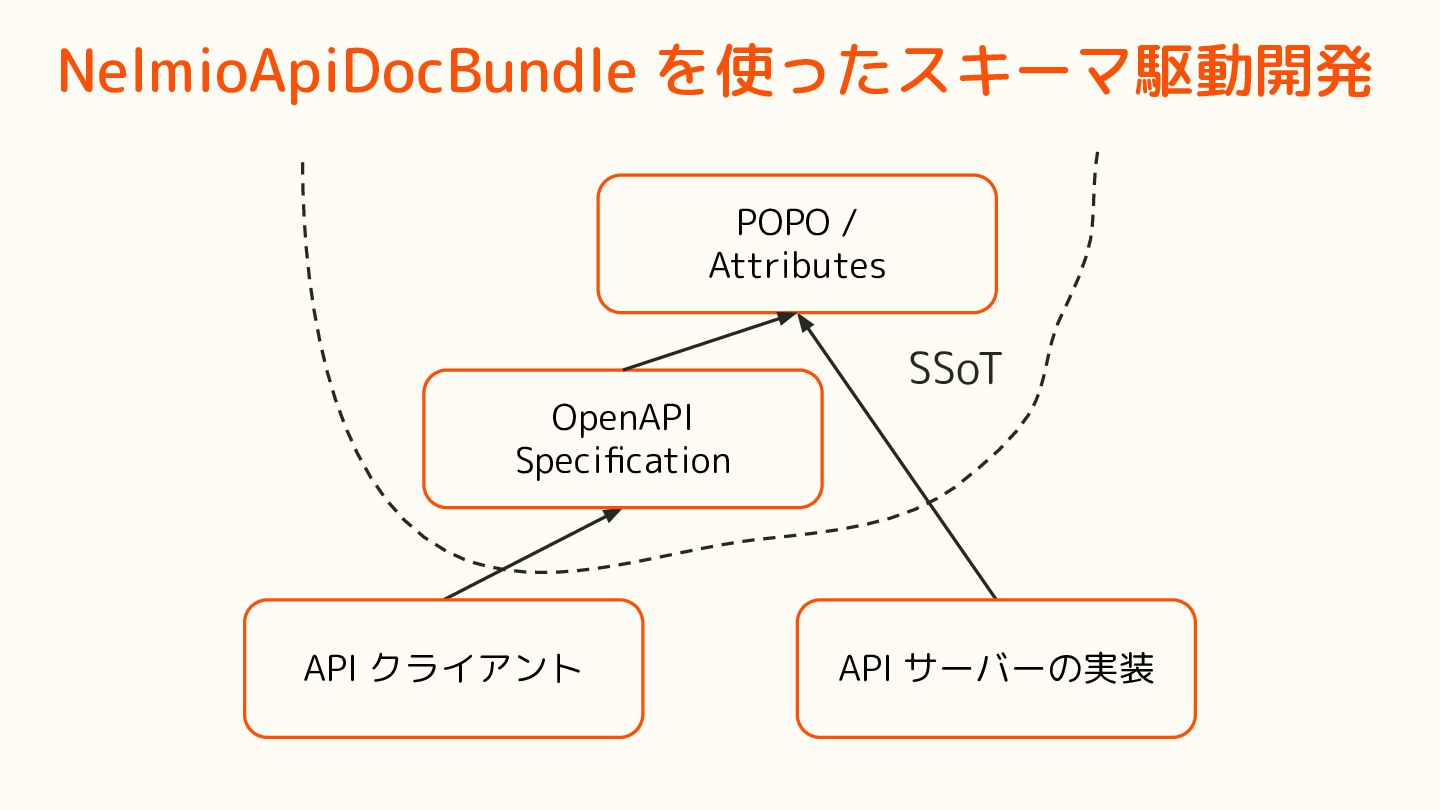

51. NelmioApiDocBundle を使ったスキーマ駆動開発 OpenAPI Specification POPO / Attributes API クライアント API サーバーの実装 SSoT

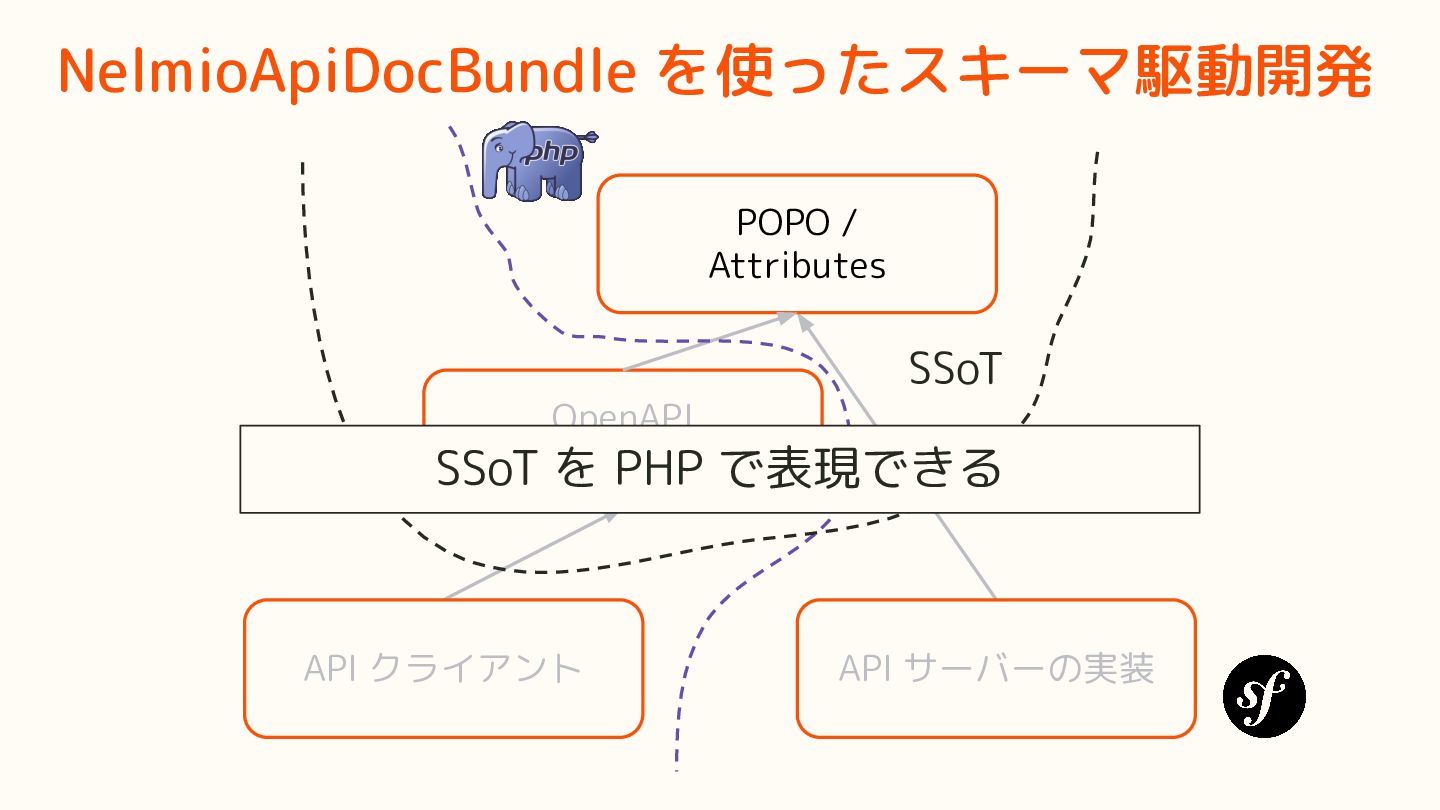

52. NelmioApiDocBundle を使ったスキーマ駆動開発 OpenAPI Specification POPO / Attributes API クライアント API サーバーの実装 SSoT
53. NelmioApiDocBundle を使ったスキーマ駆動開発 OpenAPI Specification POPO / Attributes API クライアント API サーバーの実装 SSoT SSoT を PHP で表現できる

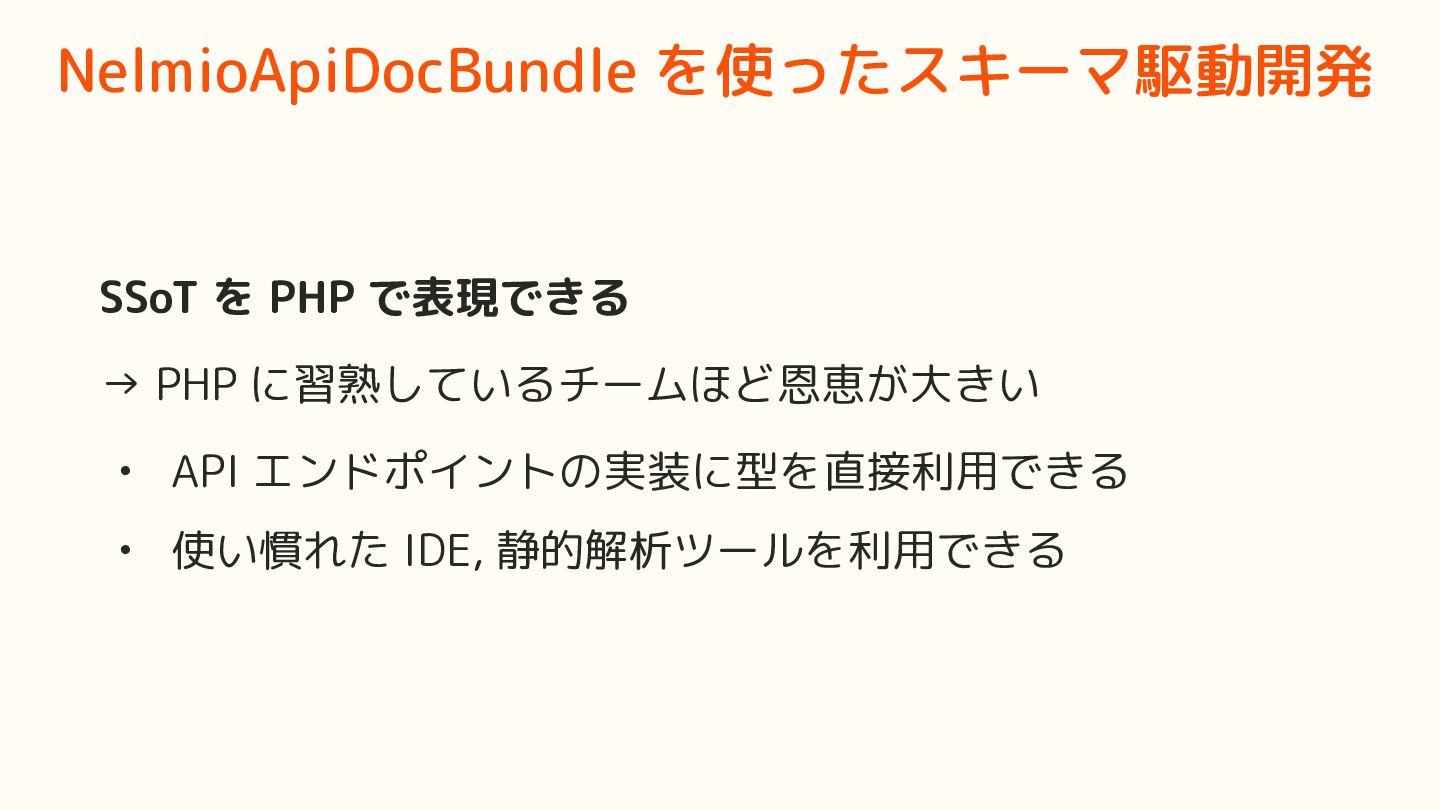

54. SSoT を PHP で表現できる → PHP に習熟しているチームほど恩恵が大きい • API エンドポイントの実装に型を直接利用できる • 使い慣れた IDE, 静的解析ツールを利用できる NelmioApiDocBundle を使ったスキーマ駆動開発

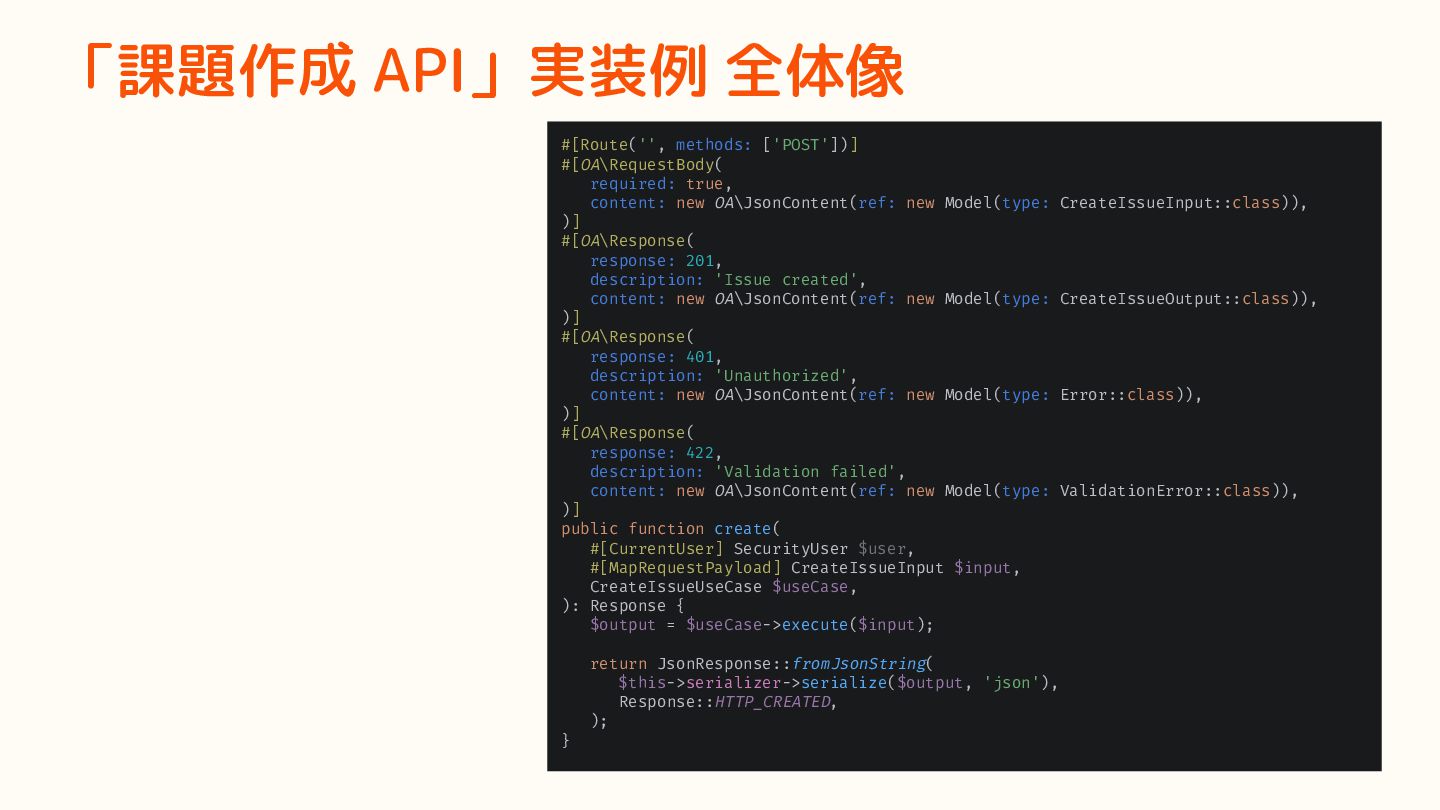

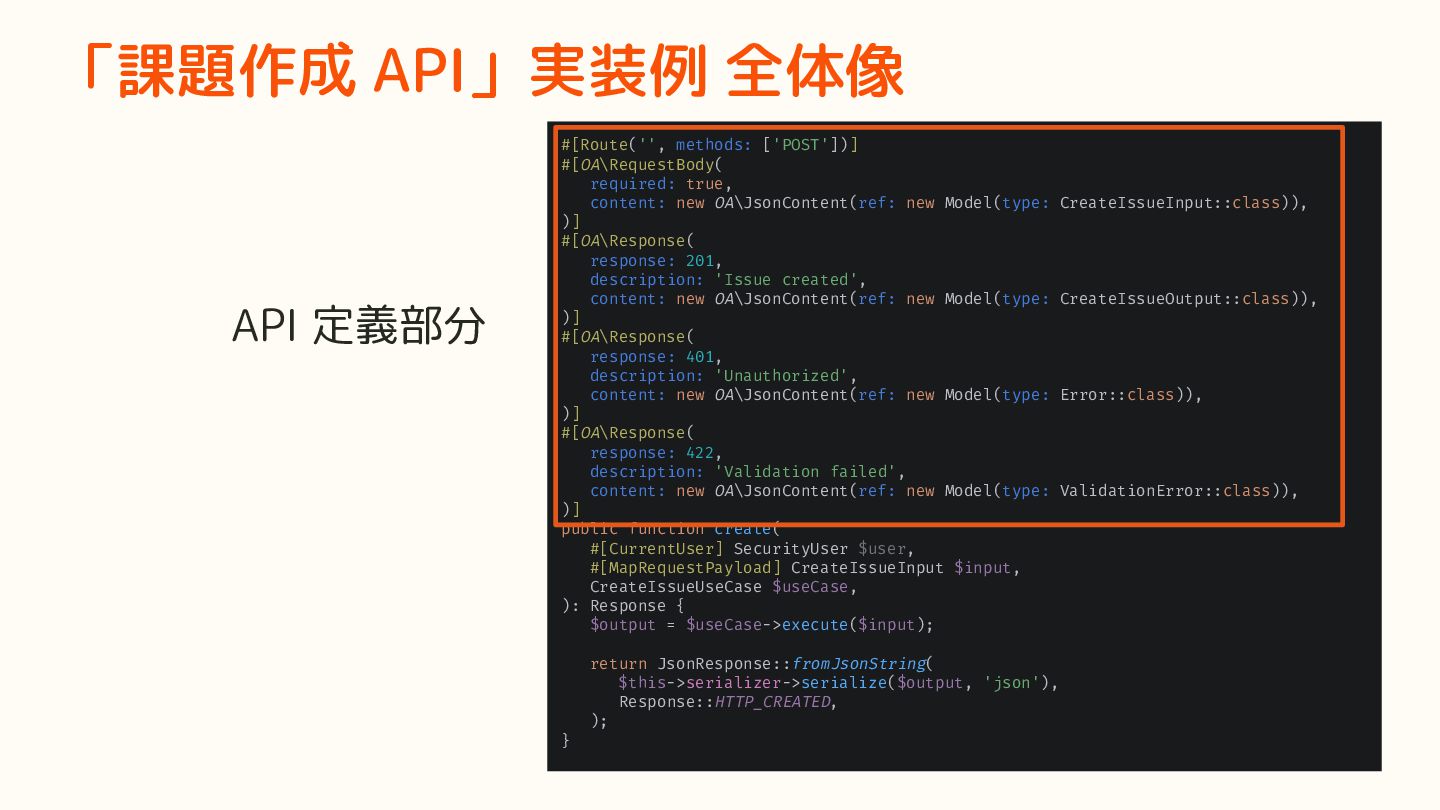

55. 「課題作成 API」実装例 全体像 #[Route('', methods: ['POST'])] #[OA\RequestBody( required: true, content: new OA\JsonContent(ref: new Model(type: CreateIssueInput::class)), )] #[OA\Response( response: 201, description: 'Issue created', content: new OA\JsonContent(ref: new Model(type: CreateIssueOutput::class)), )] #[OA\Response( response: 401, description: 'Unauthorized', content: new OA\JsonContent(ref: new Model(type: Error::class)), )] #[OA\Response( response: 422, description: 'Validation failed', content: new OA\JsonContent(ref: new Model(type: ValidationError::class)), )] public function create( #[CurrentUser] SecurityUser $user, #[MapRequestPayload] CreateIssueInput $input, CreateIssueUseCase $useCase, ): Response { $output = $useCase->execute($input); return JsonResponse::fromJsonString( $this->serializer->serialize($output, 'json'), Response::HTTP_CREATED, ); }

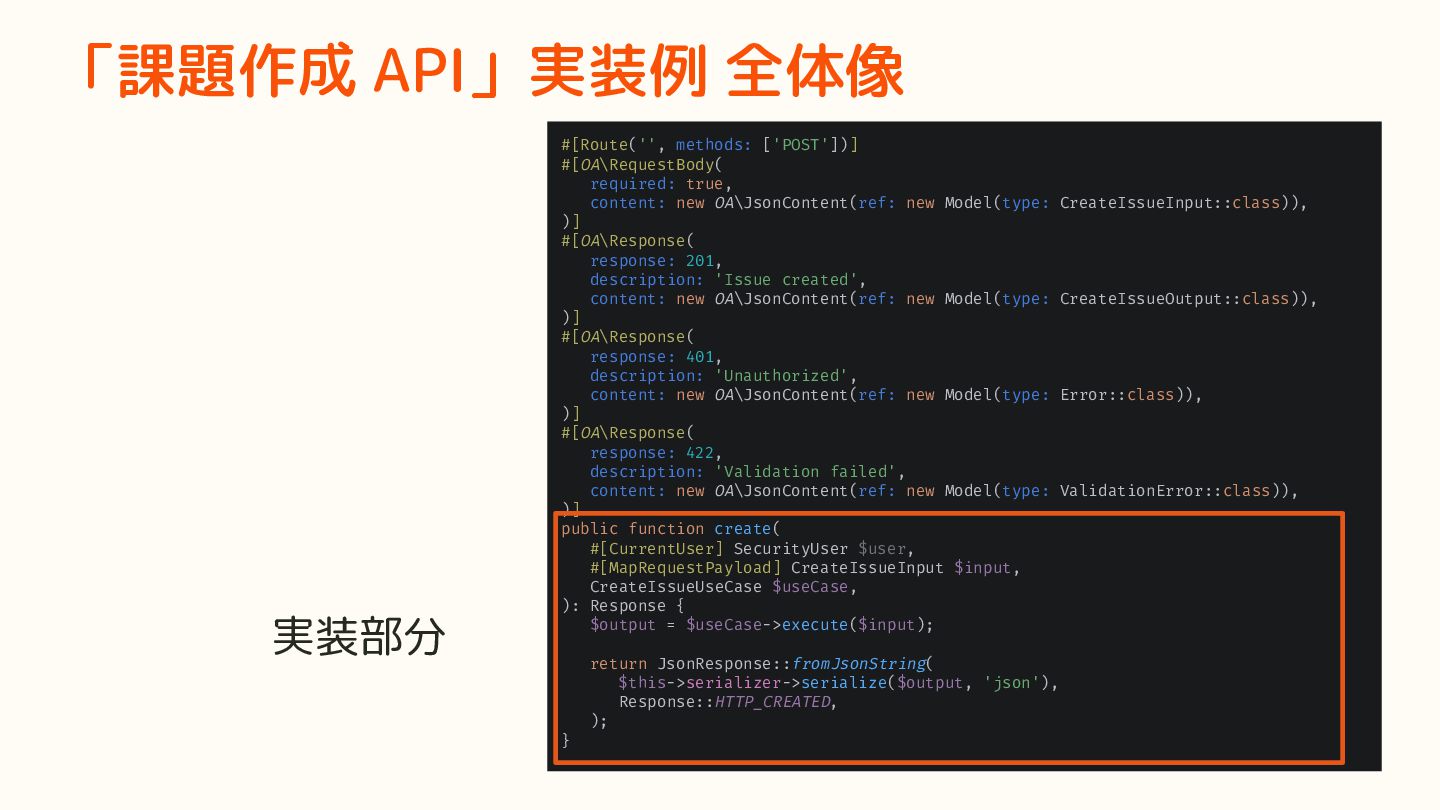

56. 「課題作成 API」実装例 全体像 #[Route('', methods: ['POST'])] #[OA\RequestBody( required: true, content: new OA\JsonContent(ref: new Model(type: CreateIssueInput::class)), )] #[OA\Response( response: 201, description: 'Issue created', content: new OA\JsonContent(ref: new Model(type: CreateIssueOutput::class)), )] #[OA\Response( response: 401, description: 'Unauthorized', content: new OA\JsonContent(ref: new Model(type: Error::class)), )] #[OA\Response( response: 422, description: 'Validation failed', content: new OA\JsonContent(ref: new Model(type: ValidationError::class)), )] public function create( #[CurrentUser] SecurityUser $user, #[MapRequestPayload] CreateIssueInput $input, CreateIssueUseCase $useCase, ): Response { $output = $useCase->execute($input); return JsonResponse::fromJsonString( $this->serializer->serialize($output, 'json'), Response::HTTP_CREATED, ); } API 定義部分

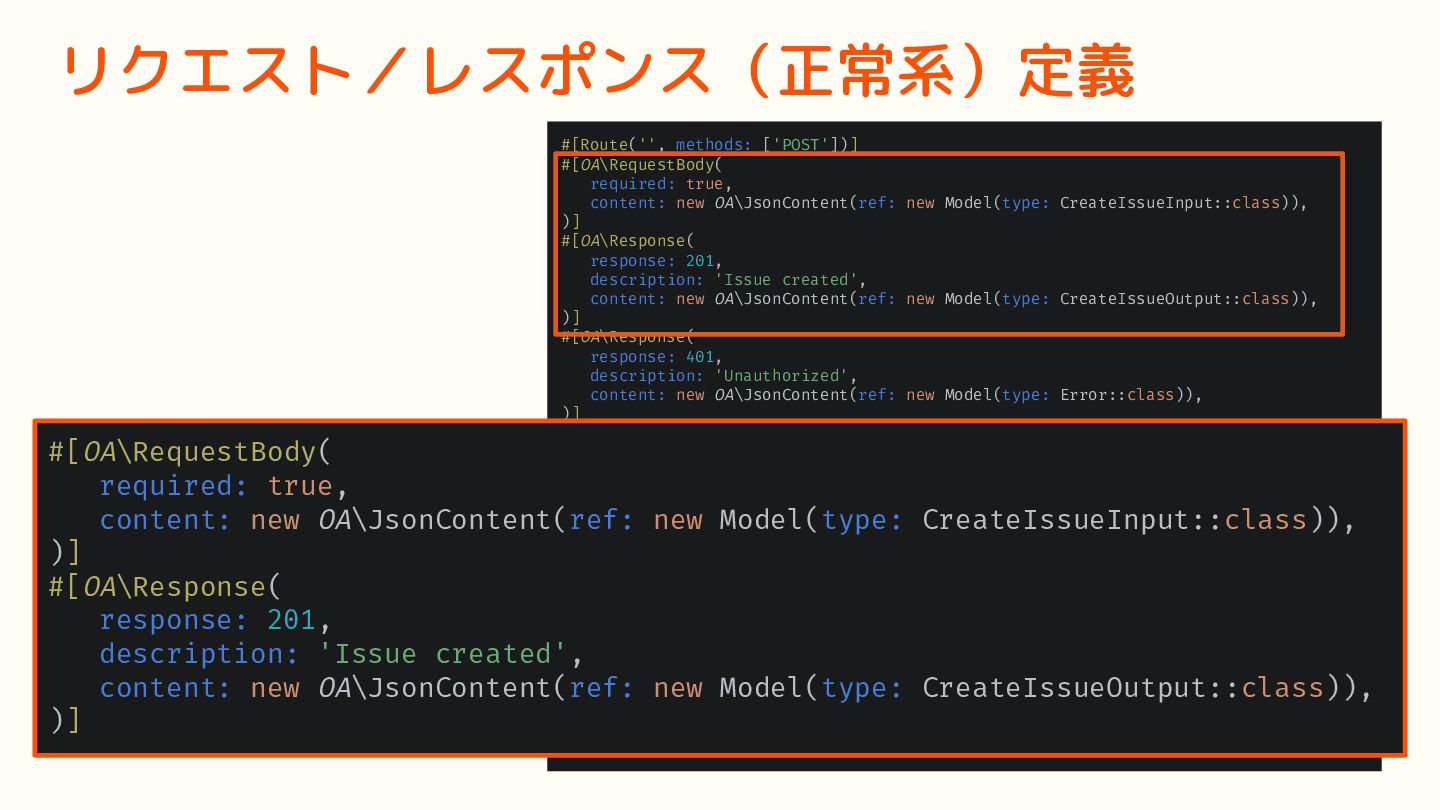

57. 「課題作成 API」実装例 全体像 #[Route('', methods: ['POST'])] #[OA\RequestBody( required: true, content: new OA\JsonContent(ref: new Model(type: CreateIssueInput::class)), )] #[OA\Response( response: 201, description: 'Issue created', content: new OA\JsonContent(ref: new Model(type: CreateIssueOutput::class)), )] #[OA\Response( response: 401, description: 'Unauthorized', content: new OA\JsonContent(ref: new Model(type: Error::class)), )] #[OA\Response( response: 422, description: 'Validation failed', content: new OA\JsonContent(ref: new Model(type: ValidationError::class)), )] public function create( #[CurrentUser] SecurityUser $user, #[MapRequestPayload] CreateIssueInput $input, CreateIssueUseCase $useCase, ): Response { $output = $useCase->execute($input); return JsonResponse::fromJsonString( $this->serializer->serialize($output, 'json'), Response::HTTP_CREATED, ); } 実装部分
58. #[Route('', methods: ['POST'])] #[OA\RequestBody( required: true, content: new OA\JsonContent(ref: new Model(type: CreateIssueInput::class)), )] #[OA\Response( response: 201, description: 'Issue created', content: new OA\JsonContent(ref: new Model(type: CreateIssueOutput::class)), )] #[OA\Response( response: 401, description: 'Unauthorized', content: new OA\JsonContent(ref: new Model(type: Error::class)), )] #[OA\Response( response: 422, description: 'Validation failed', content: new OA\JsonContent(ref: new Model(type: ValidationError::class)), )] public function create( #[CurrentUser] SecurityUser $user, #[MapRequestPayload] CreateIssueInput $input, CreateIssueUseCase $useCase, ): Response { $output = $useCase->execute($input); return JsonResponse::fromJsonString( $this->serializer->serialize($output, 'json'), Response::HTTP_CREATED, ); } リクエスト／レスポンス（正常系）定義 #[OA\RequestBody( required: true, content: new OA\JsonContent(ref: new Model(type: CreateIssueInput::class)), )] #[OA\Response( response: 201, description: 'Issue created', content: new OA\JsonContent(ref: new Model(type: CreateIssueOutput::class)), )]

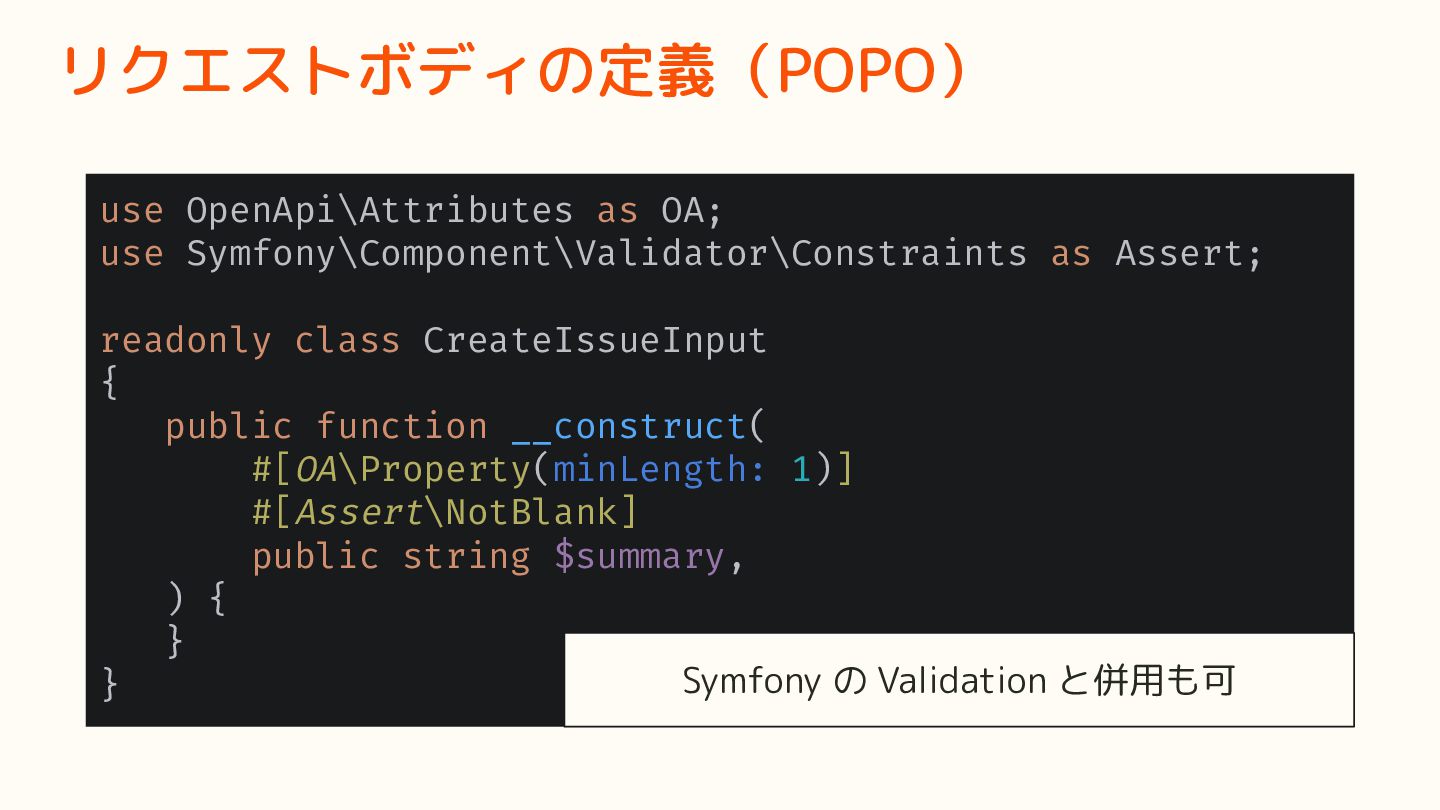

59. リクエストボディの定義（POPO） use OpenApi\Attributes as OA; use Symfony\Component\Validator\Constraints as Assert; readonly class CreateIssueInput { public function __construct( #[OA\Property(minLength: 1)] #[Assert\NotBlank] public string $summary, ) { } } Symfony の Validation と併用も可

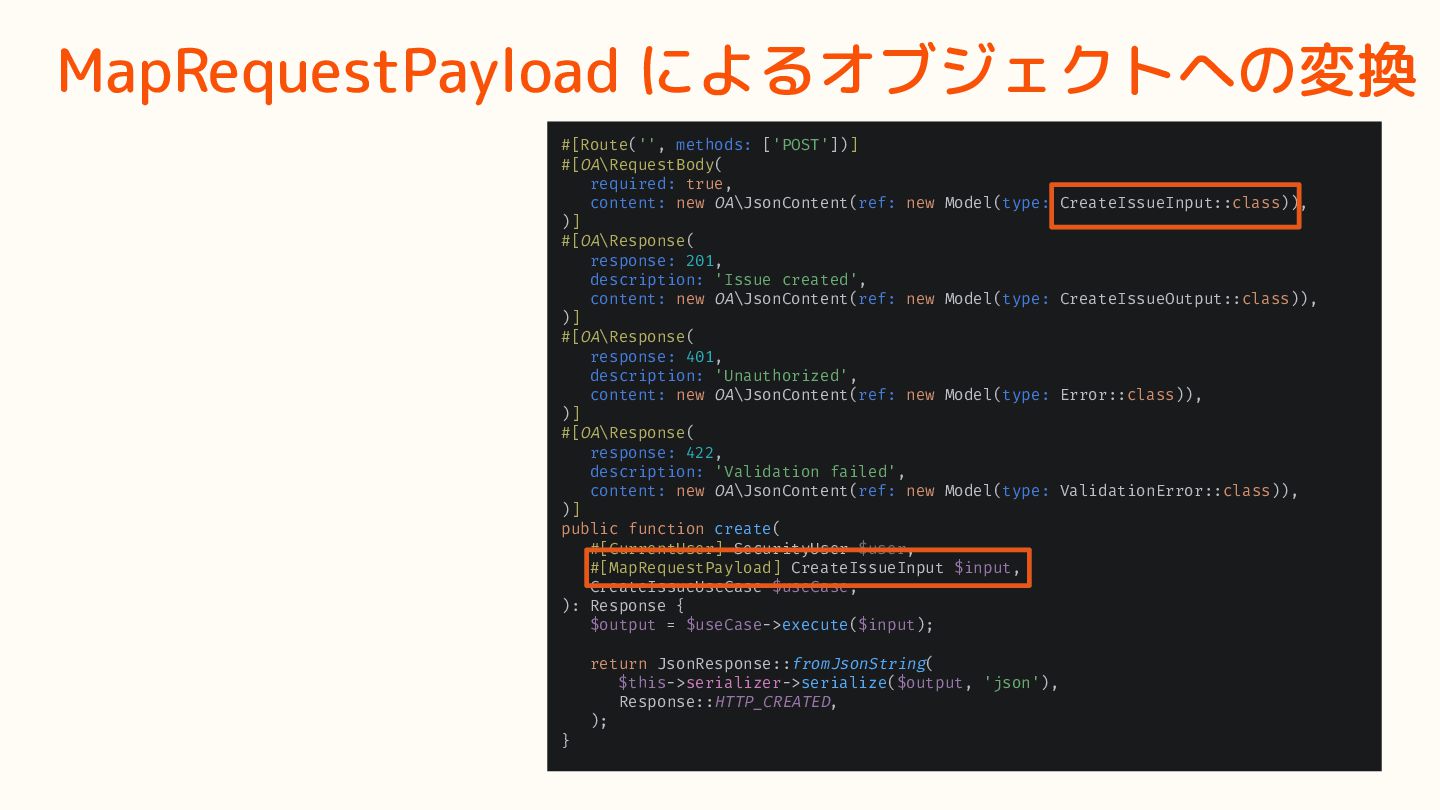

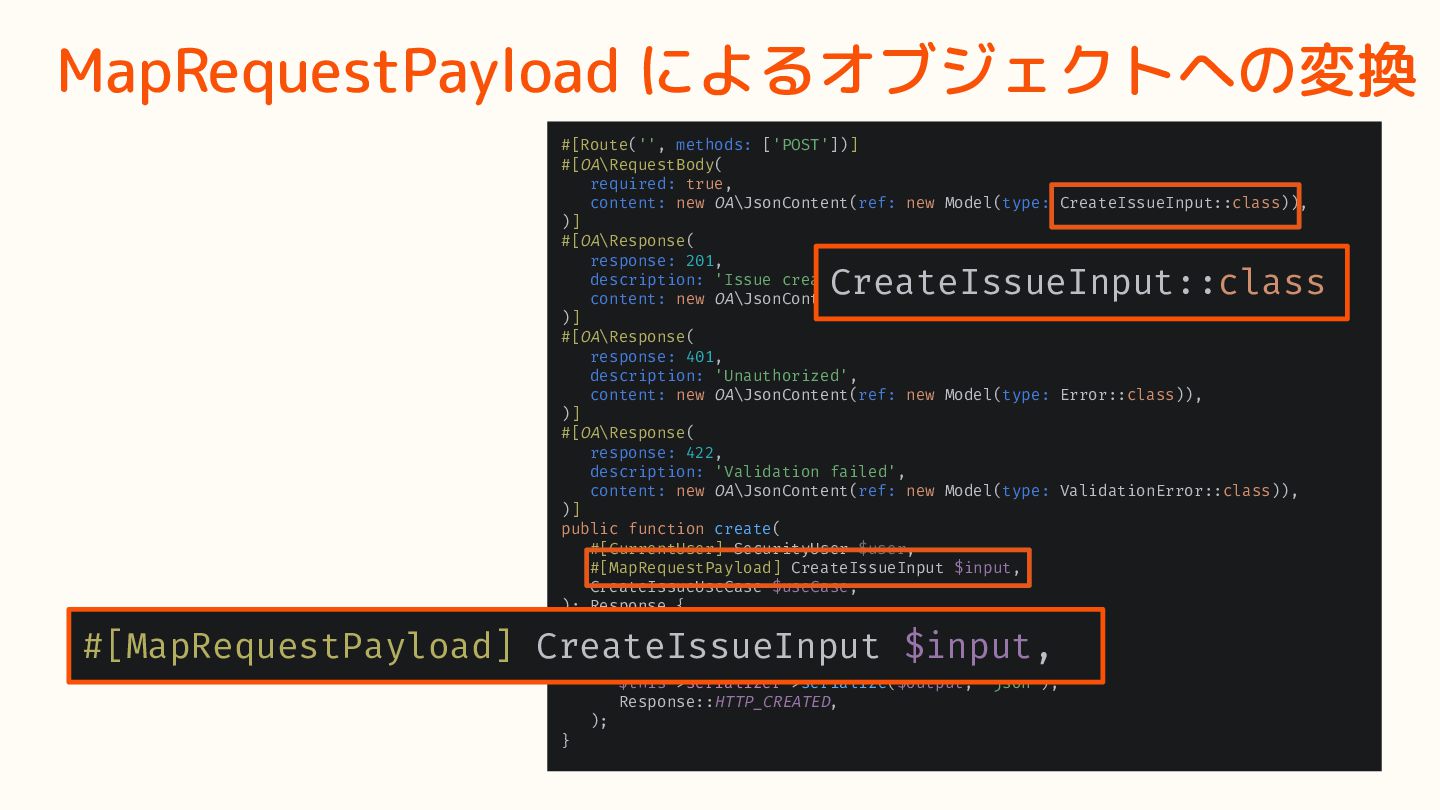

60. #[Route('', methods: ['POST'])] #[OA\RequestBody( required: true, content: new OA\JsonContent(ref: new Model(type: CreateIssueInput::class)), )] #[OA\Response( response: 201, description: 'Issue created', content: new OA\JsonContent(ref: new Model(type: CreateIssueOutput::class)), )] #[OA\Response( response: 401, description: 'Unauthorized', content: new OA\JsonContent(ref: new Model(type: Error::class)), )] #[OA\Response( response: 422, description: 'Validation failed', content: new OA\JsonContent(ref: new Model(type: ValidationError::class)), )] public function create( #[CurrentUser] SecurityUser $user, #[MapRequestPayload] CreateIssueInput $input, CreateIssueUseCase $useCase, ): Response { $output = $useCase->execute($input); return JsonResponse::fromJsonString( $this->serializer->serialize($output, 'json'), Response::HTTP_CREATED, ); } MapRequestPayload によるオブジェクトへの変換
61. #[Route('', methods: ['POST'])] #[OA\RequestBody( required: true, content: new OA\JsonContent(ref: new Model(type: CreateIssueInput::class)), )] #[OA\Response( response: 201, description: 'Issue created', content: new OA\JsonContent(ref: new Model(type: CreateIssueOutput::class)), )] #[OA\Response( response: 401, description: 'Unauthorized', content: new OA\JsonContent(ref: new Model(type: Error::class)), )] #[OA\Response( response: 422, description: 'Validation failed', content: new OA\JsonContent(ref: new Model(type: ValidationError::class)), )] public function create( #[CurrentUser] SecurityUser $user, #[MapRequestPayload] CreateIssueInput $input, CreateIssueUseCase $useCase, ): Response { $output = $useCase->execute($input); return JsonResponse::fromJsonString( $this->serializer->serialize($output, 'json'), Response::HTTP_CREATED, ); } MapRequestPayload によるオブジェクトへの変換 #[MapRequestPayload] CreateIssueInput $input, CreateIssueInput::class
62. #[Route('', methods: ['POST'])] #[OA\RequestBody( required: true, content: new OA\JsonContent(ref: new Model(type: CreateIssueInput::class)), )] #[OA\Response( response: 201, description: 'Issue created', content: new OA\JsonContent(ref: new Model(type: CreateIssueOutput::class)), )] #[OA\Response( response: 401, description: 'Unauthorized', content: new OA\JsonContent(ref: new Model(type: Error::class)), )] #[OA\Response( response: 422, description: 'Validation failed', content: new OA\JsonContent(ref: new Model(type: ValidationError::class)), )] public function create( #[CurrentUser] SecurityUser $user, #[MapRequestPayload] CreateIssueInput $input, CreateIssueUseCase $useCase, ): Response { $output = $useCase->execute($input); return JsonResponse::fromJsonString( $this->serializer->serialize($output, 'json'), Response::HTTP_CREATED, ); } MapRequestPayload によるオブジェクトへの変換 #[MapRequestPayload] CreateIssueInput $input, CreateIssueInput::class リクエストボディとして定義した POPO のインスタンスが 引数として渡されることが担保される

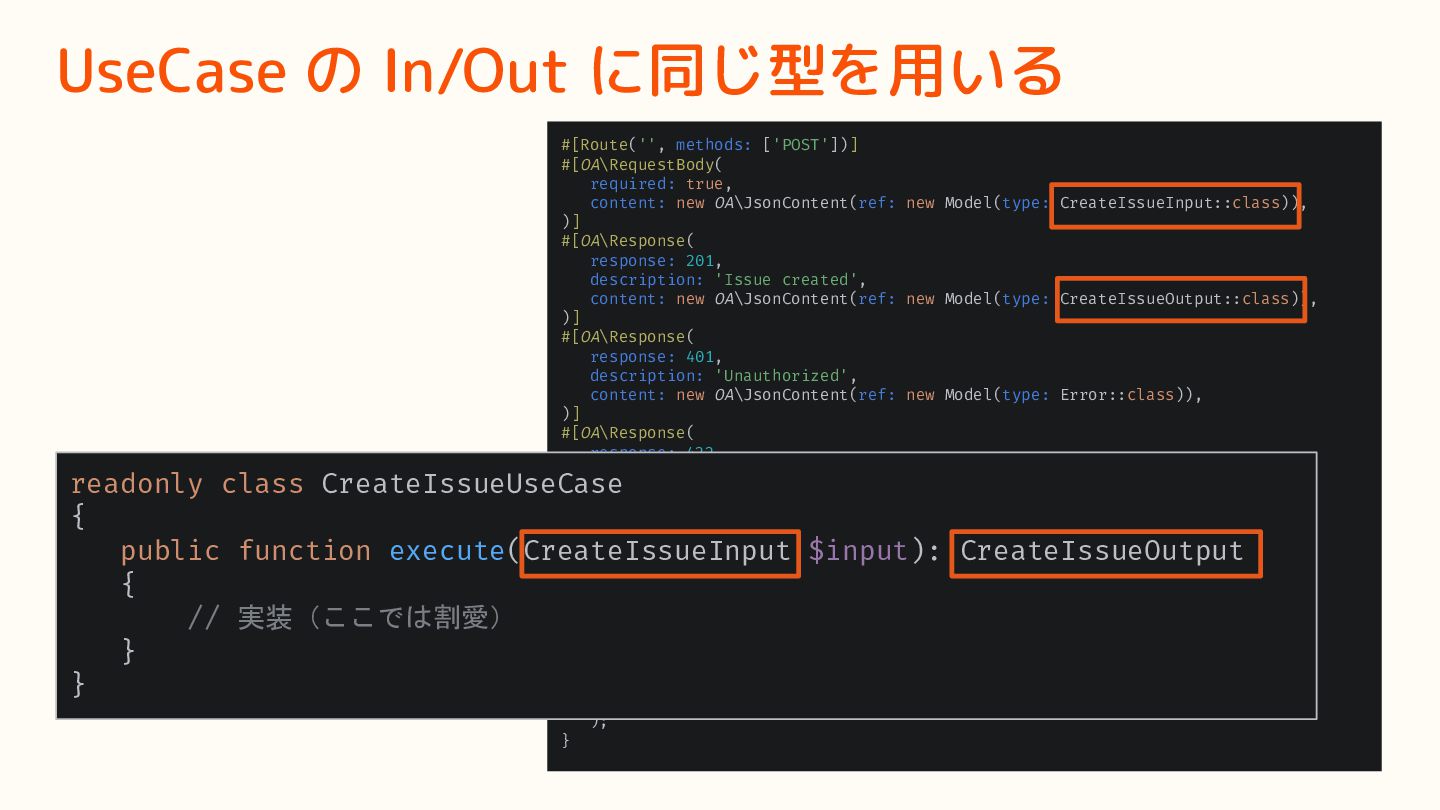

63. #[Route('', methods: ['POST'])] #[OA\RequestBody( required: true, content: new OA\JsonContent(ref: new Model(type: CreateIssueInput::class)), )] #[OA\Response( response: 201, description: 'Issue created', content: new OA\JsonContent(ref: new Model(type: CreateIssueOutput::class)), )] #[OA\Response( response: 401, description: 'Unauthorized', content: new OA\JsonContent(ref: new Model(type: Error::class)), )] #[OA\Response( response: 422, description: 'Validation failed', content: new OA\JsonContent(ref: new Model(type: ValidationError::class)), )] public function create( #[CurrentUser] SecurityUser $user, #[MapRequestPayload] CreateIssueInput $input, CreateIssueUseCase $useCase, ): Response { $output = $useCase->execute($input); return JsonResponse::fromJsonString( $this->serializer->serialize($output, 'json'), Response::HTTP_CREATED, ); } UseCase の In/Out に同じ型を用いる

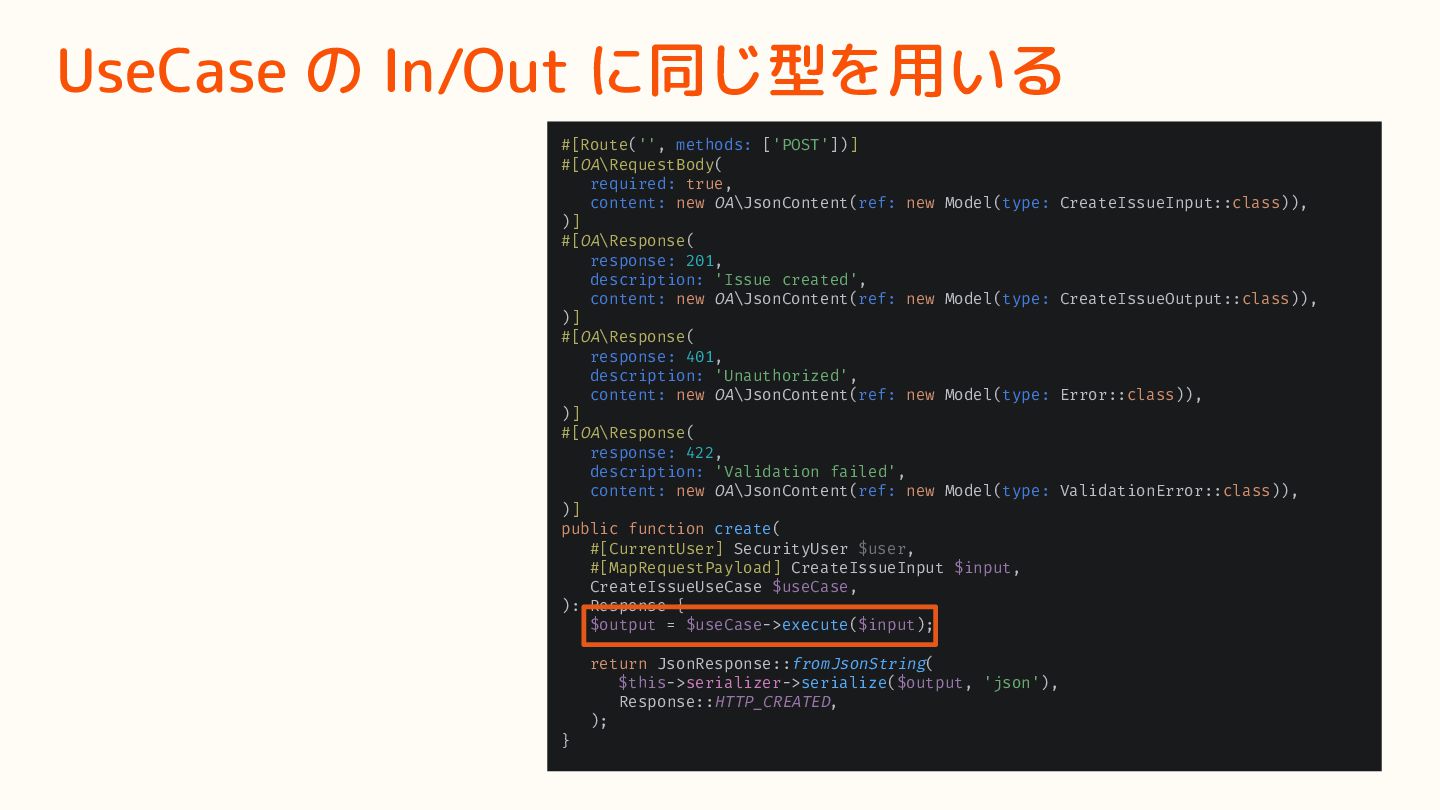

64. #[Route('', methods: ['POST'])] #[OA\RequestBody( required: true, content: new OA\JsonContent(ref: new Model(type: CreateIssueInput::class)), )] #[OA\Response( response: 201, description: 'Issue created', content: new OA\JsonContent(ref: new Model(type: CreateIssueOutput::class)), )] #[OA\Response( response: 401, description: 'Unauthorized', content: new OA\JsonContent(ref: new Model(type: Error::class)), )] #[OA\Response( response: 422, description: 'Validation failed', content: new OA\JsonContent(ref: new Model(type: ValidationError::class)), )] public function create( #[CurrentUser] SecurityUser $user, #[MapRequestPayload] CreateIssueInput $input, CreateIssueUseCase $useCase, ): Response { $output = $useCase->execute($input); return JsonResponse::fromJsonString( $this->serializer->serialize($output, 'json'), Response::HTTP_CREATED, ); } UseCase の In/Out に同じ型を用いる readonly class CreateIssueUseCase { public function execute(CreateIssueInput $input): CreateIssueOutput { // 実装（ここでは割愛） } }

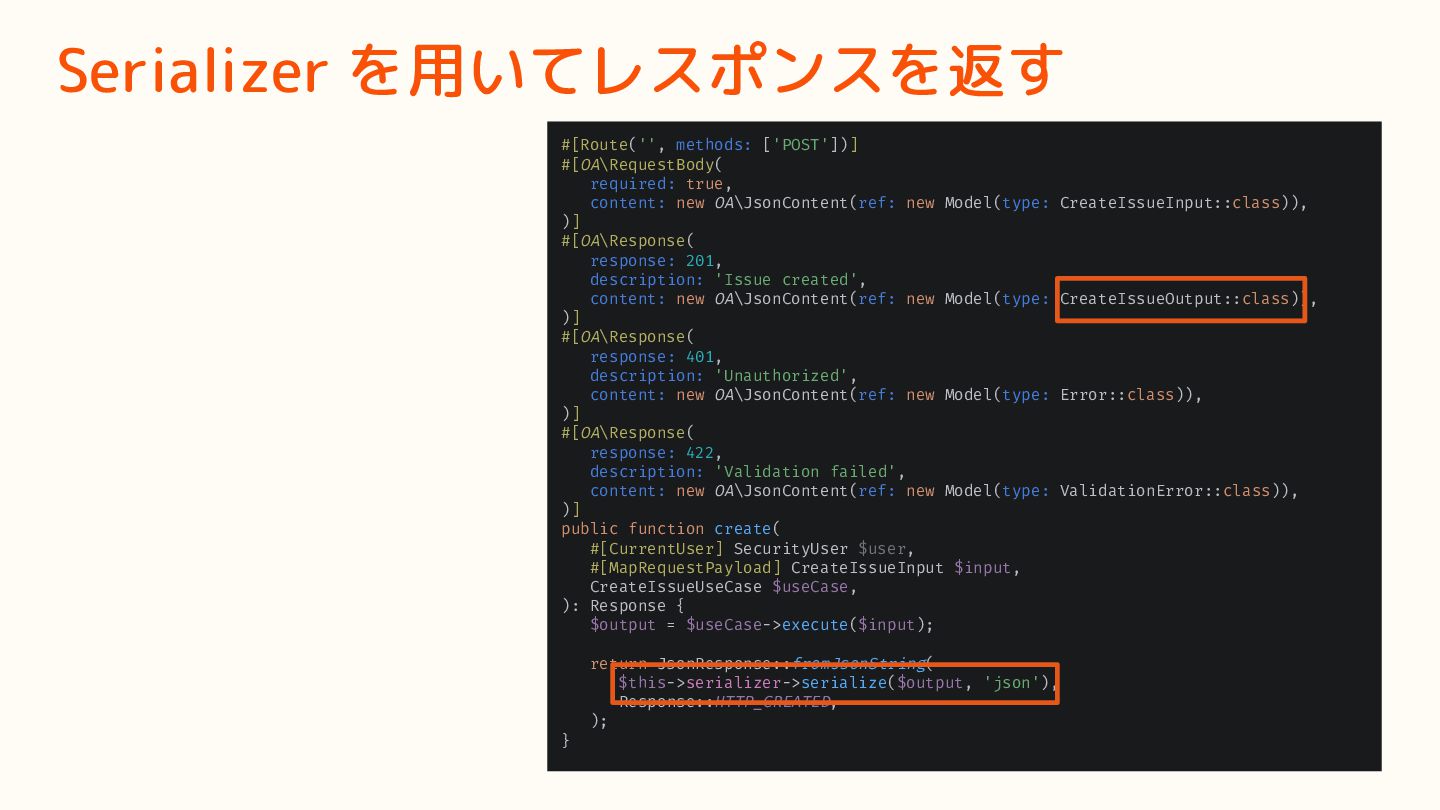

65. #[Route('', methods: ['POST'])] #[OA\RequestBody( required: true, content: new OA\JsonContent(ref: new Model(type: CreateIssueInput::class)), )] #[OA\Response( response: 201, description: 'Issue created', content: new OA\JsonContent(ref: new Model(type: CreateIssueOutput::class)), )] #[OA\Response( response: 401, description: 'Unauthorized', content: new OA\JsonContent(ref: new Model(type: Error::class)), )] #[OA\Response( response: 422, description: 'Validation failed', content: new OA\JsonContent(ref: new Model(type: ValidationError::class)), )] public function create( #[CurrentUser] SecurityUser $user, #[MapRequestPayload] CreateIssueInput $input, CreateIssueUseCase $useCase, ): Response { $output = $useCase->execute($input); return JsonResponse::fromJsonString( $this->serializer->serialize($output, 'json'), Response::HTTP_CREATED, ); } Serializer を用いてレスポンスを返す

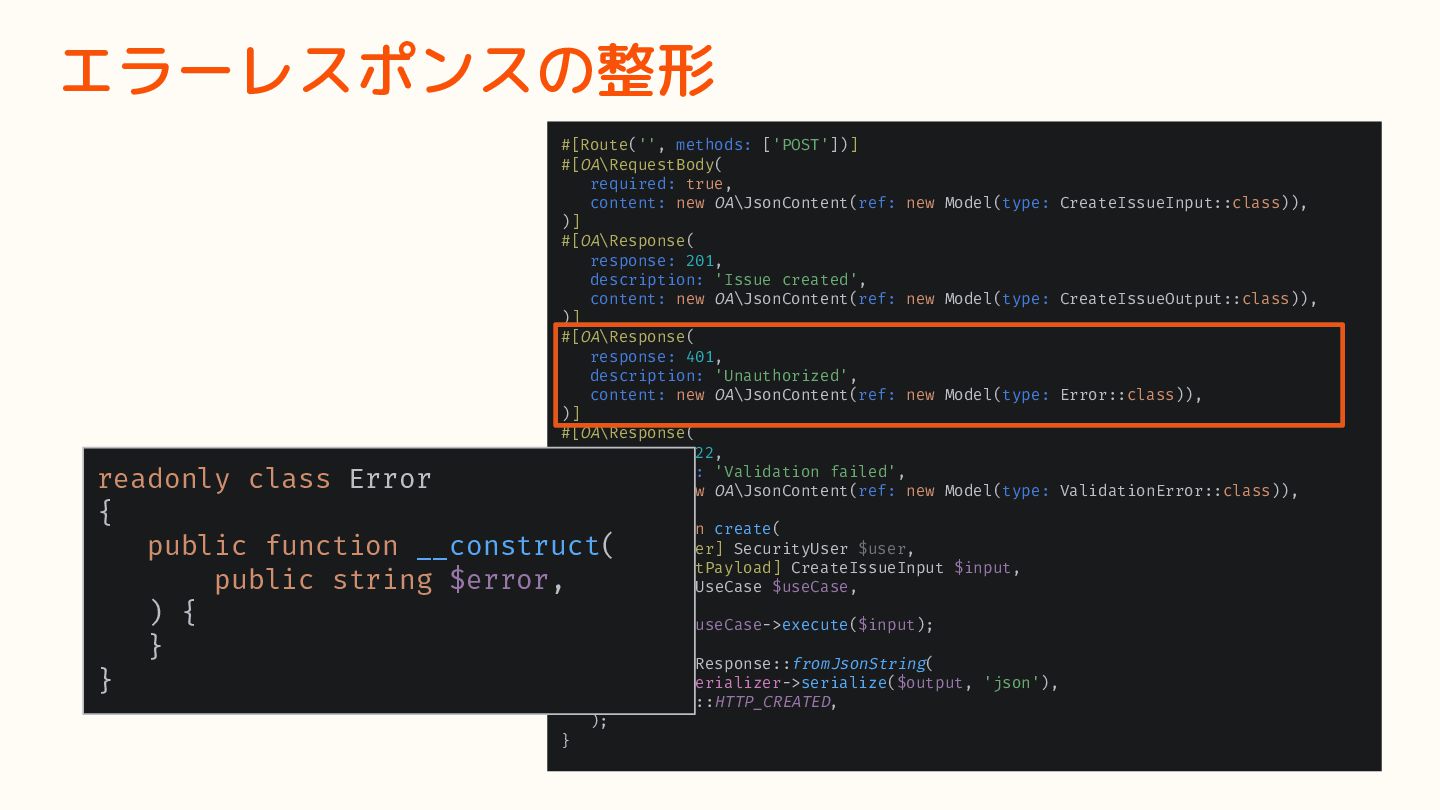

67. #[Route('', methods: ['POST'])] #[OA\RequestBody( required: true, content: new OA\JsonContent(ref: new Model(type: CreateIssueInput::class)), )] #[OA\Response( response: 201, description: 'Issue created', content: new OA\JsonContent(ref: new Model(type: CreateIssueOutput::class)), )] #[OA\Response( response: 401, description: 'Unauthorized', content: new OA\JsonContent(ref: new Model(type: Error::class)), )] #[OA\Response( response: 422, description: 'Validation failed', content: new OA\JsonContent(ref: new Model(type: ValidationError::class)), )] public function create( #[CurrentUser] SecurityUser $user, #[MapRequestPayload] CreateIssueInput $input, CreateIssueUseCase $useCase, ): Response { $output = $useCase->execute($input); return JsonResponse::fromJsonString( $this->serializer->serialize($output, 'json'), Response::HTTP_CREATED, ); } エラーレスポンスの整形
68. #[Route('', methods: ['POST'])] #[OA\RequestBody( required: true, content: new OA\JsonContent(ref: new Model(type: CreateIssueInput::class)), )] #[OA\Response( response: 201, description: 'Issue created', content: new OA\JsonContent(ref: new Model(type: CreateIssueOutput::class)), )] #[OA\Response( response: 401, description: 'Unauthorized', content: new OA\JsonContent(ref: new Model(type: Error::class)), )] #[OA\Response( response: 422, description: 'Validation failed', content: new OA\JsonContent(ref: new Model(type: ValidationError::class)), )] public function create( #[CurrentUser] SecurityUser $user, #[MapRequestPayload] CreateIssueInput $input, CreateIssueUseCase $useCase, ): Response { $output = $useCase->execute($input); return JsonResponse::fromJsonString( $this->serializer->serialize($output, 'json'), Response::HTTP_CREATED, ); } エラーレスポンスの整形 readonly class Error { public function __construct( public string $error, ) { } }

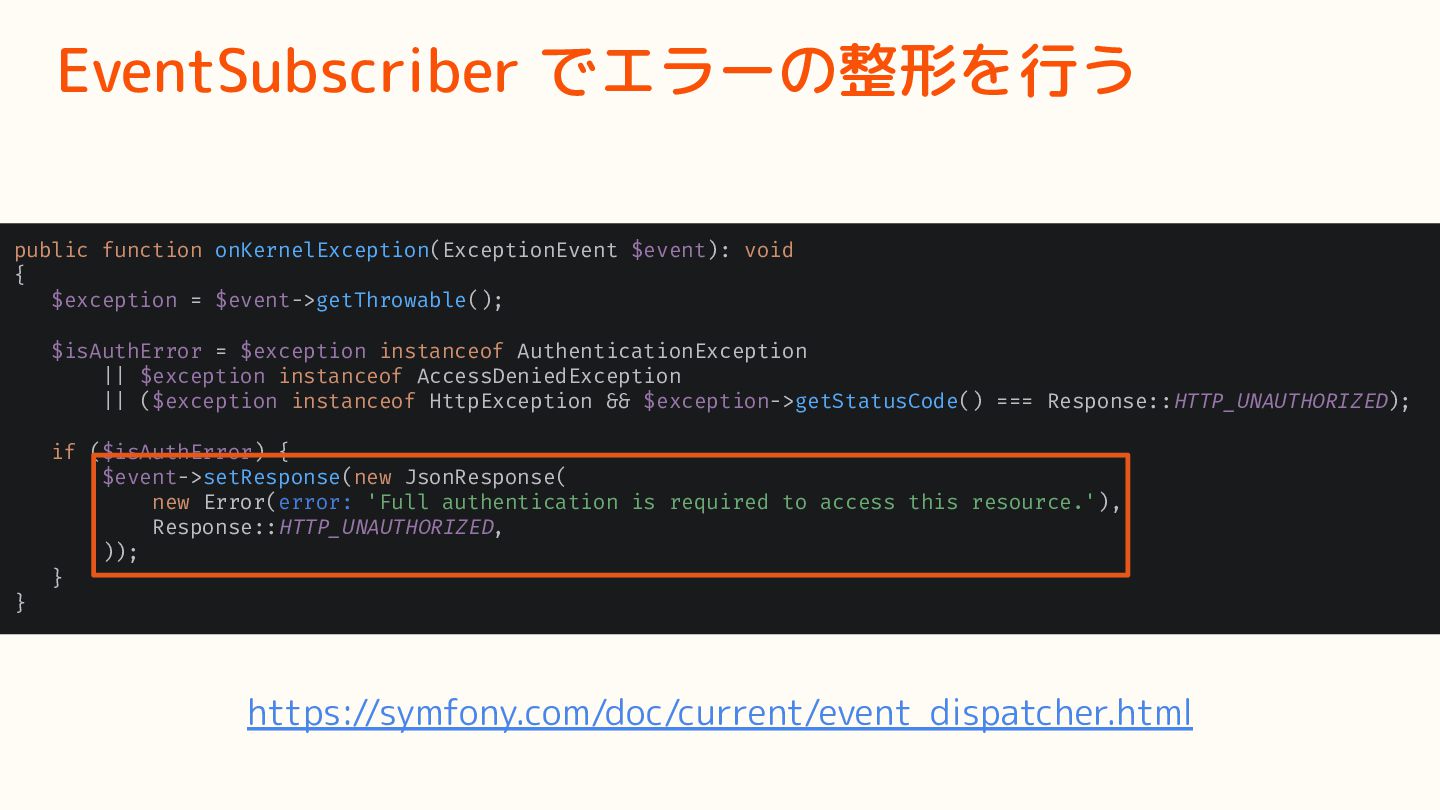

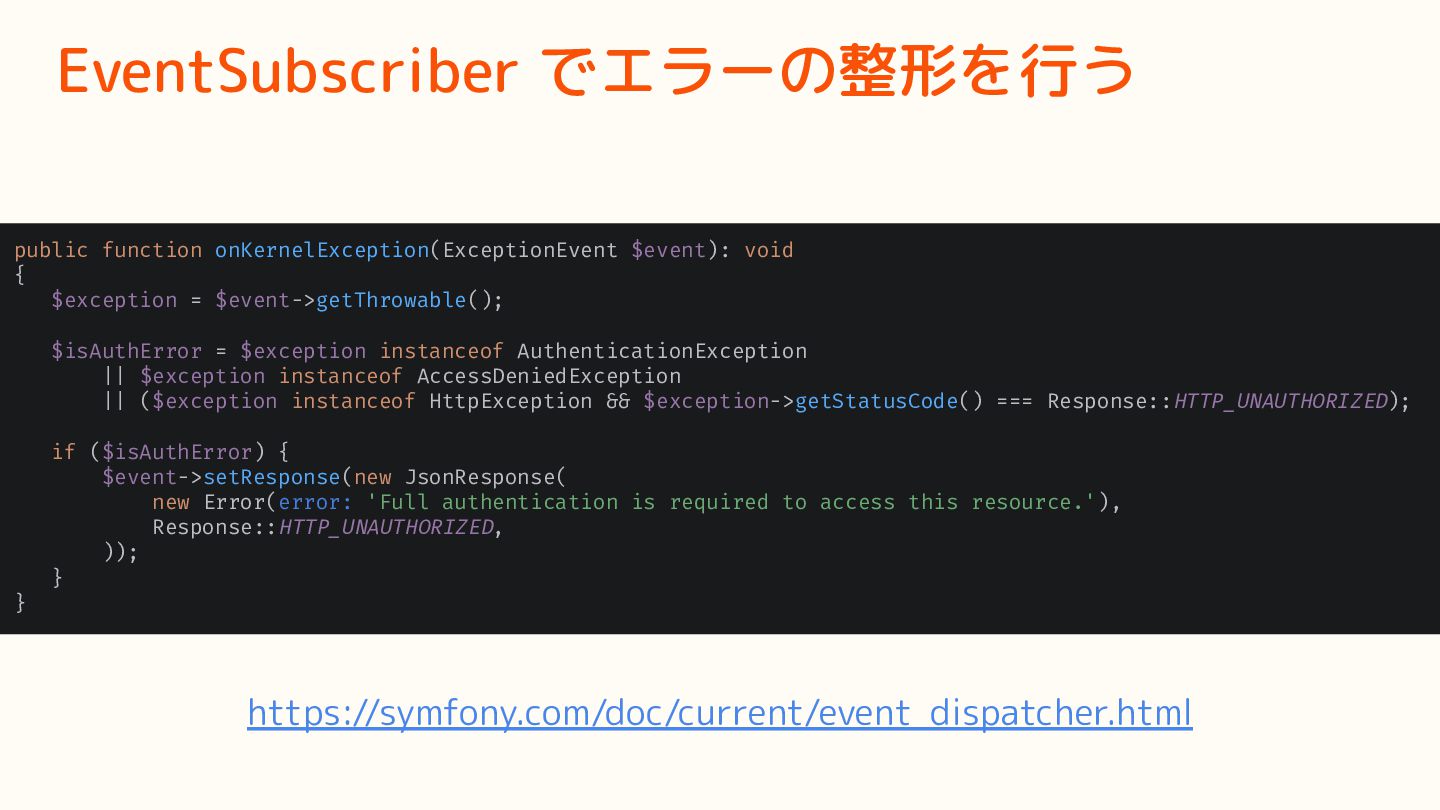

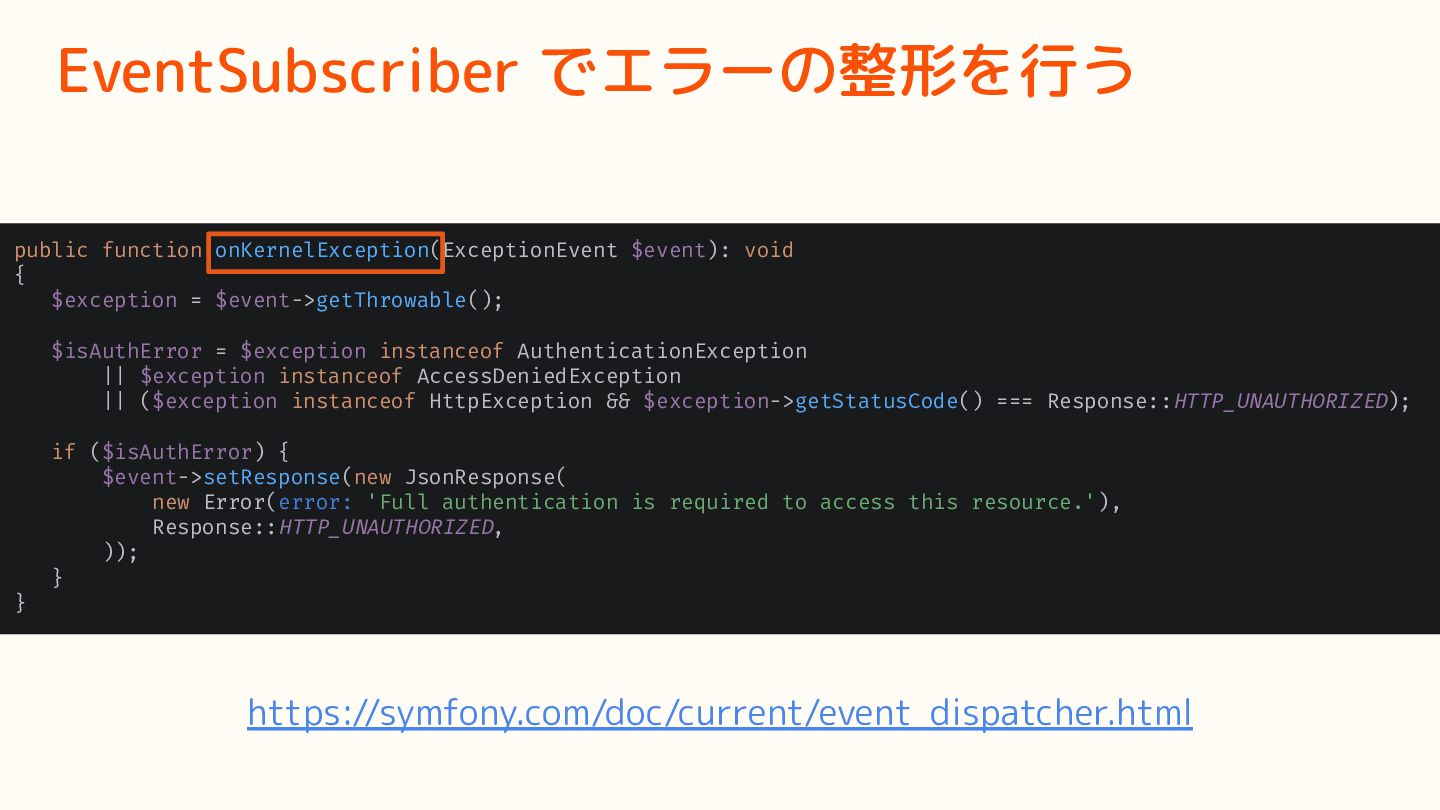

69. EventSubscriber でエラーの整形を行う public function onKernelException(ExceptionEvent $event): void { $exception = $event->getThrowable(); $isAuthError = $exception instanceof AuthenticationException || $exception instanceof AccessDeniedException || ($exception instanceof HttpException && $exception->getStatusCode() === Response::HTTP_UNAUTHORIZED); if ($isAuthError) { $event->setResponse(new JsonResponse( new Error(error: 'Full authentication is required to access this resource.'), Response::HTTP_UNAUTHORIZED, )); } } https://symfony.com/doc/current/event_dispatcher.html

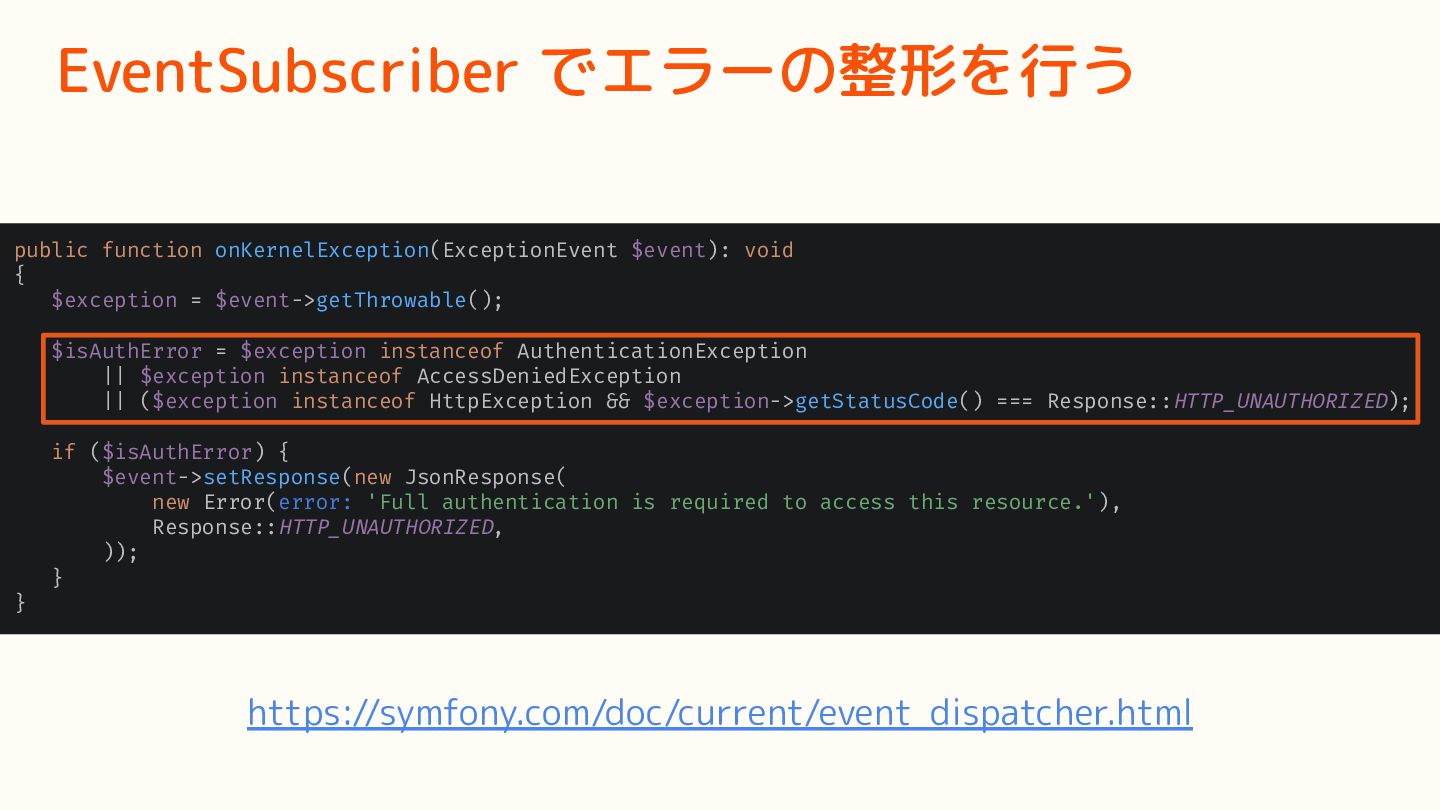

70. EventSubscriber でエラーの整形を行う public function onKernelException(ExceptionEvent $event): void { $exception = $event->getThrowable(); $isAuthError = $exception instanceof AuthenticationException || $exception instanceof AccessDeniedException || ($exception instanceof HttpException && $exception->getStatusCode() === Response::HTTP_UNAUTHORIZED); if ($isAuthError) { $event->setResponse(new JsonResponse( new Error(error: 'Full authentication is required to access this resource.'), Response::HTTP_UNAUTHORIZED, )); } } https://symfony.com/doc/current/event_dispatcher.html
71. EventSubscriber でエラーの整形を行う public function onKernelException(ExceptionEvent $event): void { $exception = $event->getThrowable(); $isAuthError = $exception instanceof AuthenticationException || $exception instanceof AccessDeniedException || ($exception instanceof HttpException && $exception->getStatusCode() === Response::HTTP_UNAUTHORIZED); if ($isAuthError) { $event->setResponse(new JsonResponse( new Error(error: 'Full authentication is required to access this resource.'), Response::HTTP_UNAUTHORIZED, )); } } https://symfony.com/doc/current/event_dispatcher.html
72. EventSubscriber でエラーの整形を行う public function onKernelException(ExceptionEvent $event): void { $exception = $event->getThrowable(); $isAuthError = $exception instanceof AuthenticationException || $exception instanceof AccessDeniedException || ($exception instanceof HttpException && $exception->getStatusCode() === Response::HTTP_UNAUTHORIZED); if ($isAuthError) { $event->setResponse(new JsonResponse( new Error(error: 'Full authentication is required to access this resource.'), Response::HTTP_UNAUTHORIZED, )); } } https://symfony.com/doc/current/event_dispatcher.html
74. #[Route('', methods: ['POST'])] #[OA\RequestBody( required: true, content: new OA\JsonContent(ref: new Model(type: CreateIssueInput::class)), )] #[OA\Response( response: 201, description: 'Issue created', content: new OA\JsonContent(ref: new Model(type: CreateIssueOutput::class)), )] #[OA\Response( response: 401, description: 'Unauthorized', content: new OA\JsonContent(ref: new Model(type: Error::class)), )] #[OA\Response( response: 422, description: 'Validation failed', content: new OA\JsonContent(ref: new Model(type: ValidationError::class)), )] public function create( #[CurrentUser] SecurityUser $user, #[MapRequestPayload] CreateIssueInput $input, CreateIssueUseCase $useCase, ): Response { $output = $useCase->execute($input); return JsonResponse::fromJsonString( $this->serializer->serialize($output, 'json'), Response::HTTP_CREATED, ); } リクエストバリデーション

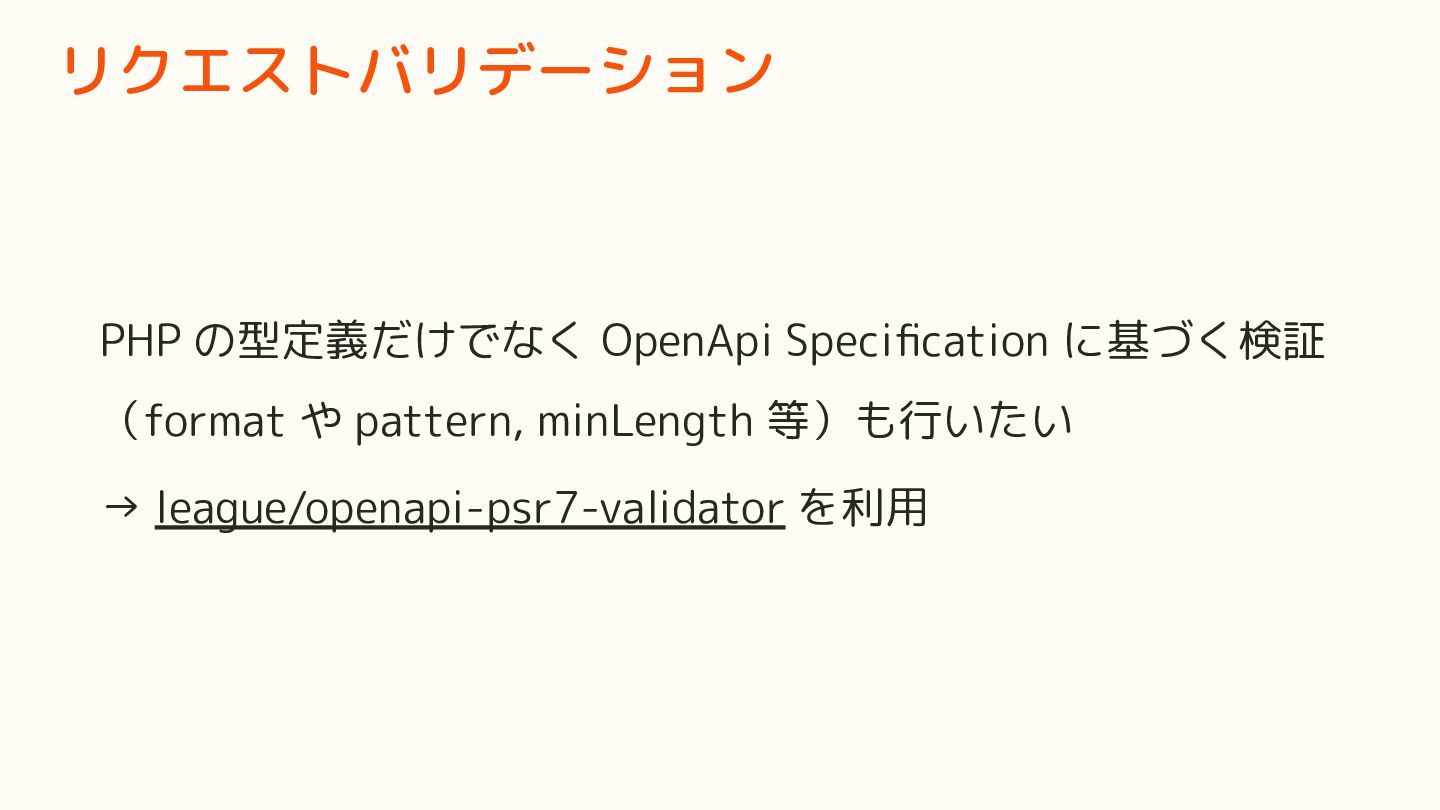

75. PHP の型定義だけでなく OpenApi Specification に基づく検証 （format や pattern, minLength 等）も行いたい リクエストバリデーション
76. PHP の型定義だけでなく OpenApi Specification に基づく検証 （format や pattern, minLength 等）も行いたい → league/openapi-psr7-validator を利用 リクエストバリデーション

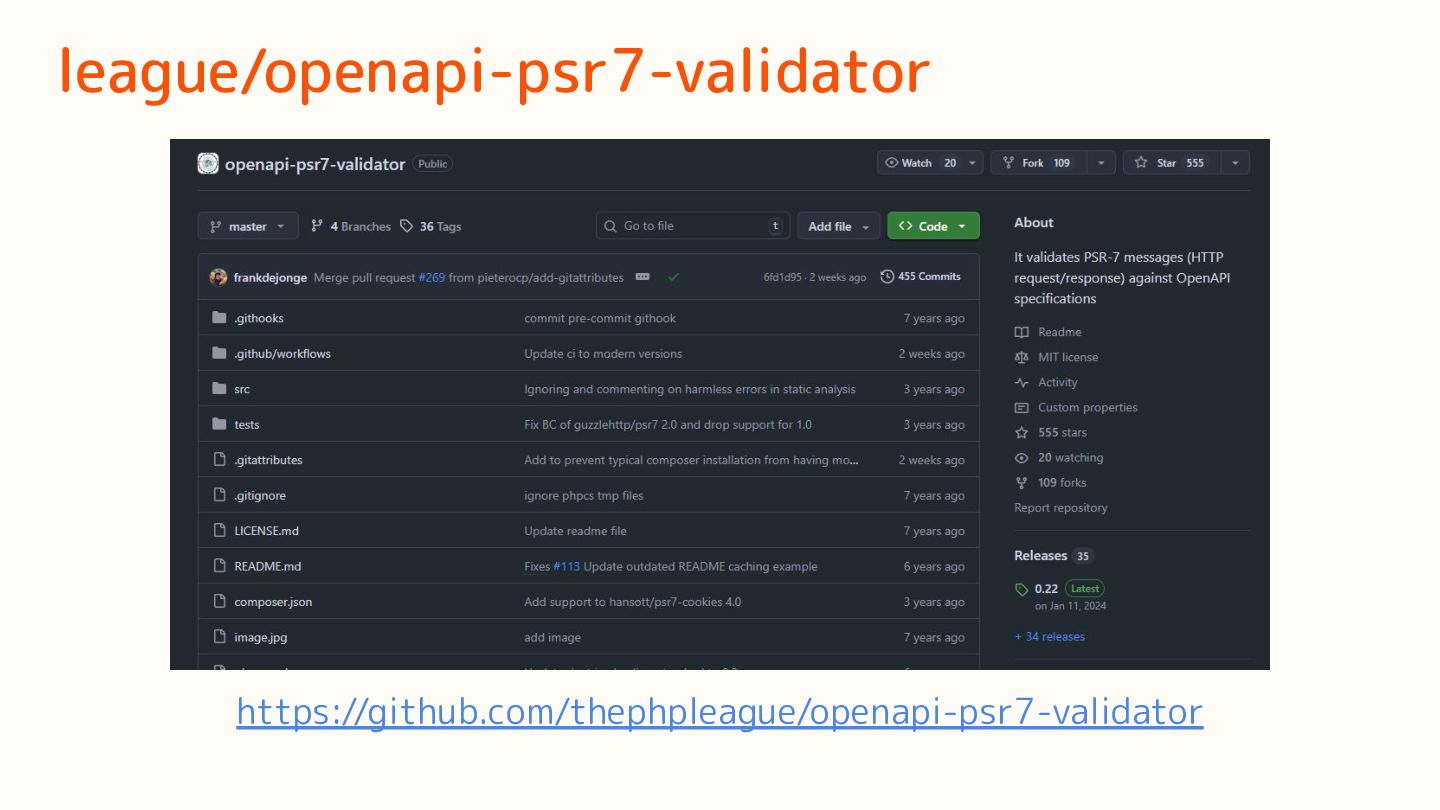

77. league/openapi-psr7-validator https://github.com/thephpleague/openapi-psr7-validator

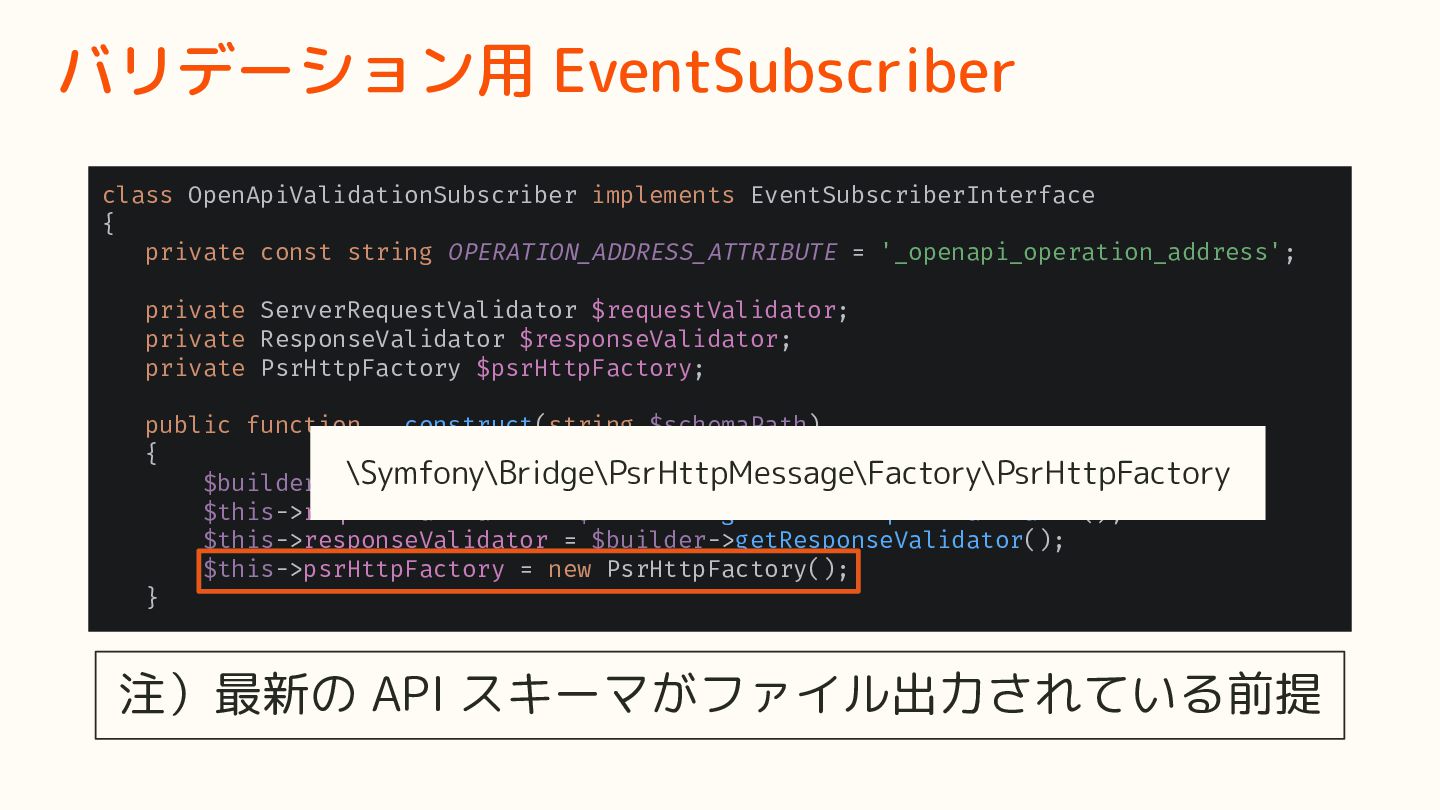

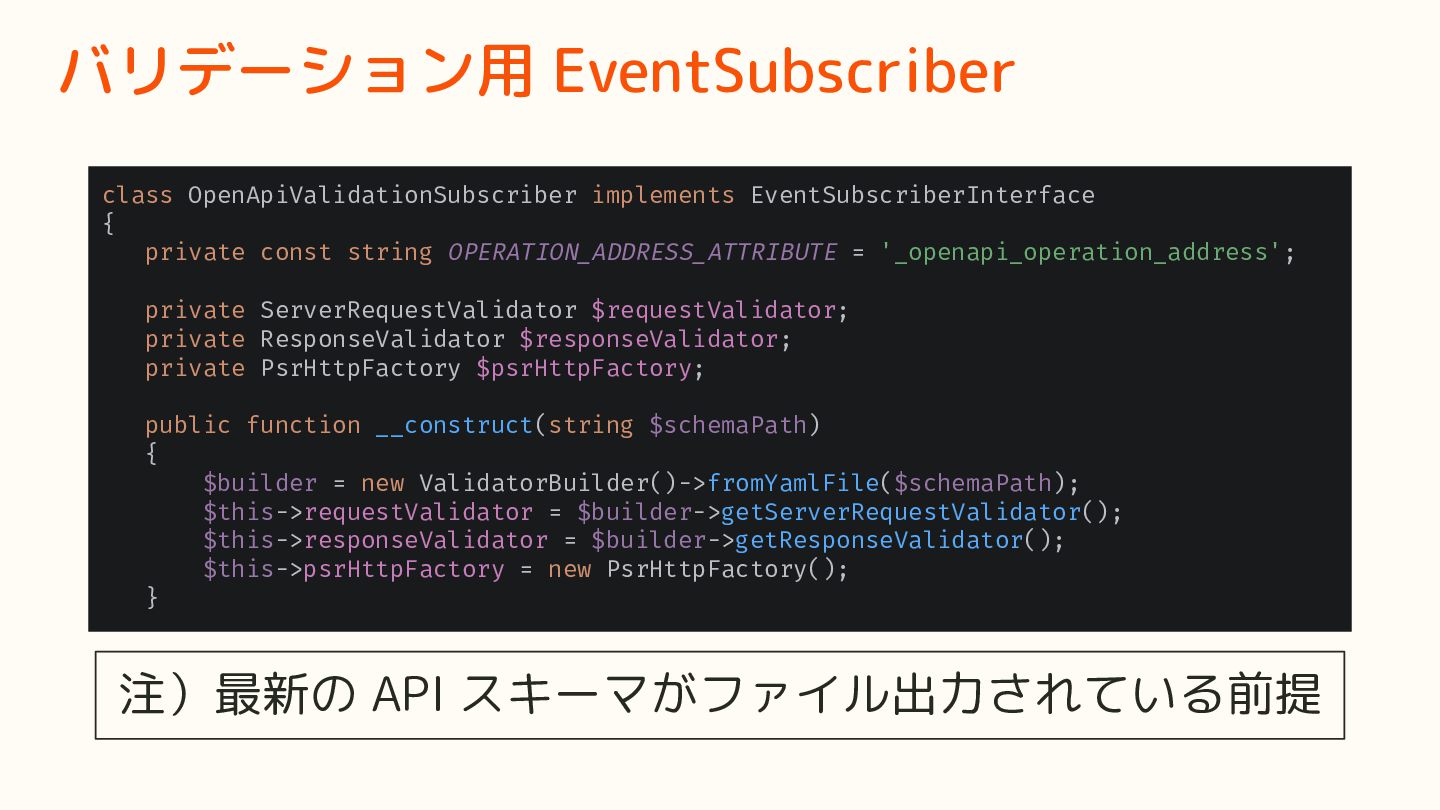

78. バリデーション用 EventSubscriber class OpenApiValidationSubscriber implements EventSubscriberInterface { private const string OPERATION_ADDRESS_ATTRIBUTE = '_openapi_operation_address'; private ServerRequestValidator $requestValidator; private ResponseValidator $responseValidator; private PsrHttpFactory $psrHttpFactory; public function __construct(string $schemaPath) { $builder = new ValidatorBuilder()->fromYamlFile($schemaPath); $this->requestValidator = $builder->getServerRequestValidator(); $this->responseValidator = $builder->getResponseValidator(); $this->psrHttpFactory = new PsrHttpFactory(); } 注）最新の API スキーマがファイル出力されている前提
79. バリデーション用 EventSubscriber class OpenApiValidationSubscriber implements EventSubscriberInterface { private const string OPERATION_ADDRESS_ATTRIBUTE = '_openapi_operation_address'; private ServerRequestValidator $requestValidator; private ResponseValidator $responseValidator; private PsrHttpFactory $psrHttpFactory; public function __construct(string $schemaPath) { $builder = new ValidatorBuilder()->fromYamlFile($schemaPath); $this->requestValidator = $builder->getServerRequestValidator(); $this->responseValidator = $builder->getResponseValidator(); $this->psrHttpFactory = new PsrHttpFactory(); } 注）最新の API スキーマがファイル出力されている前提
80. バリデーション用 EventSubscriber class OpenApiValidationSubscriber implements EventSubscriberInterface { private const string OPERATION_ADDRESS_ATTRIBUTE = '_openapi_operation_address'; private ServerRequestValidator $requestValidator; private ResponseValidator $responseValidator; private PsrHttpFactory $psrHttpFactory; public function __construct(string $schemaPath) { $builder = new ValidatorBuilder()->fromYamlFile($schemaPath); $this->requestValidator = $builder->getServerRequestValidator(); $this->responseValidator = $builder->getResponseValidator(); $this->psrHttpFactory = new PsrHttpFactory(); } 注）最新の API スキーマがファイル出力されている前提 \Symfony\Bridge\PsrHttpMessage\Factory\PsrHttpFactory

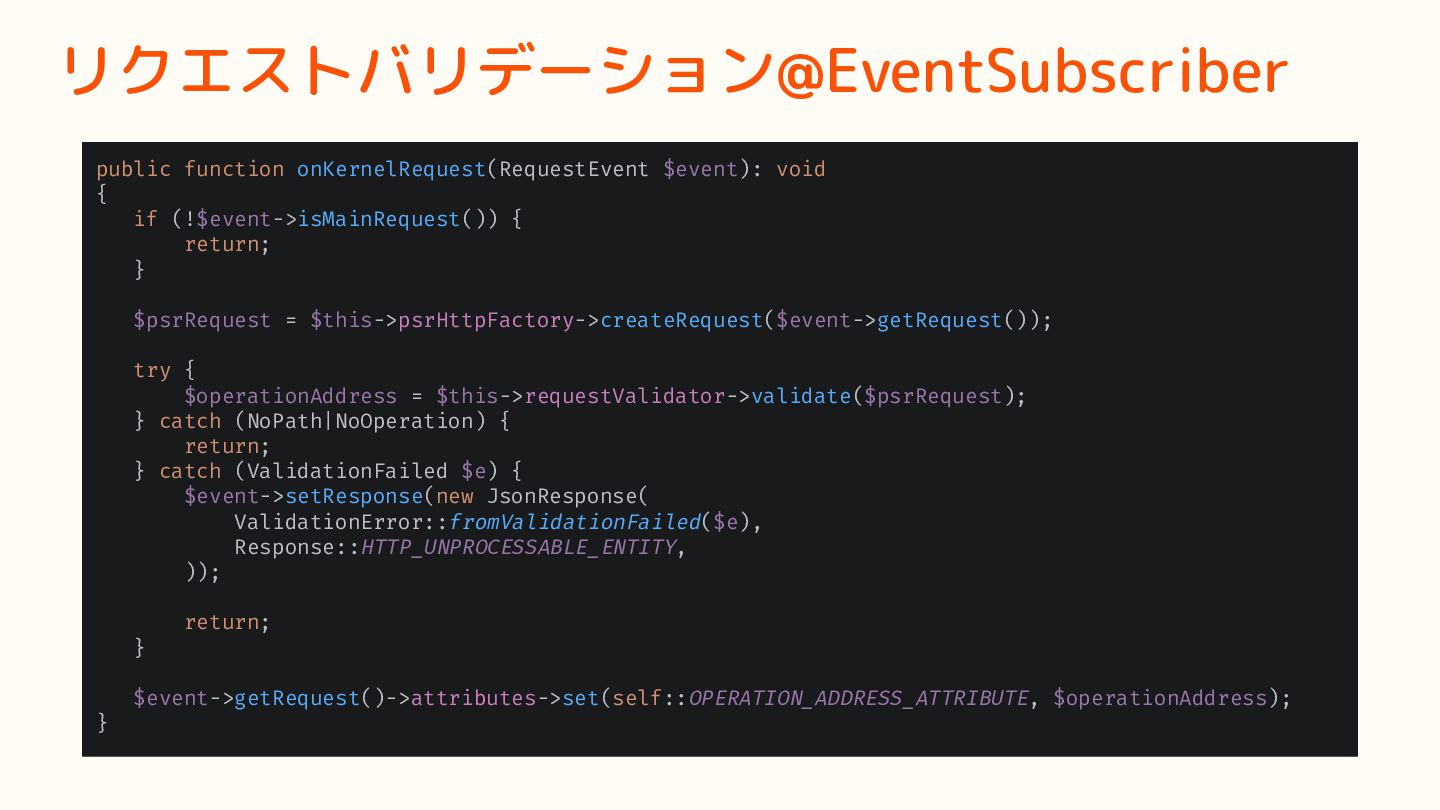

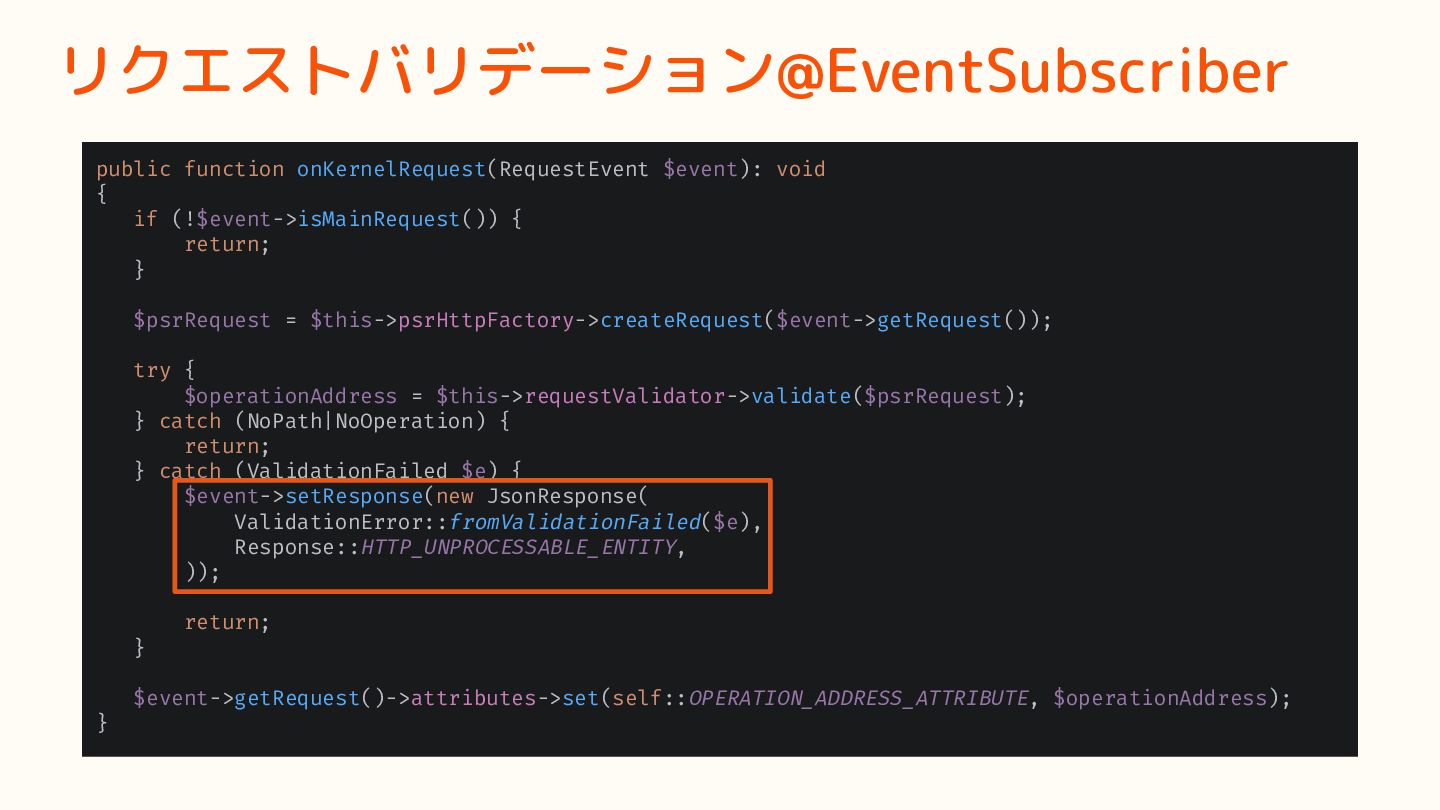

81. リクエストバリデーション@EventSubscriber public function onKernelRequest(RequestEvent $event): void { if (!$event->isMainRequest()) { return; } $psrRequest = $this->psrHttpFactory->createRequest($event->getRequest()); try { $operationAddress = $this->requestValidator->validate($psrRequest); } catch (NoPath|NoOperation) { return; } catch (ValidationFailed $e) { $event->setResponse(new JsonResponse( ValidationError::fromValidationFailed($e), Response::HTTP_UNPROCESSABLE_ENTITY, )); return; } $event->getRequest()->attributes->set(self::OPERATION_ADDRESS_ATTRIBUTE, $operationAddress); }

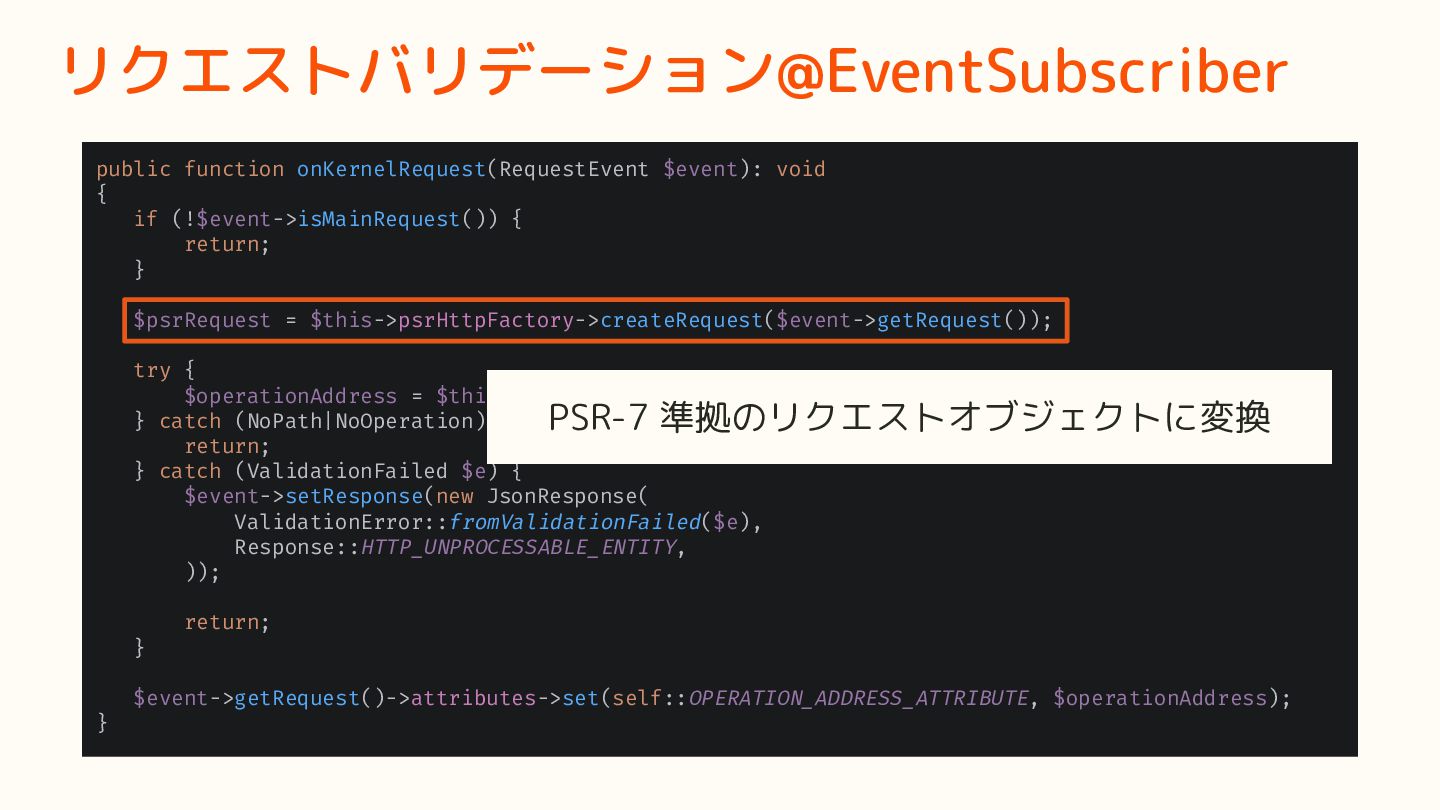

82. リクエストバリデーション@EventSubscriber public function onKernelRequest(RequestEvent $event): void { if (!$event->isMainRequest()) { return; } $psrRequest = $this->psrHttpFactory->createRequest($event->getRequest()); try { $operationAddress = $this->requestValidator->validate($psrRequest); } catch (NoPath|NoOperation) { return; } catch (ValidationFailed $e) { $event->setResponse(new JsonResponse( ValidationError::fromValidationFailed($e), Response::HTTP_UNPROCESSABLE_ENTITY, )); return; } $event->getRequest()->attributes->set(self::OPERATION_ADDRESS_ATTRIBUTE, $operationAddress); }

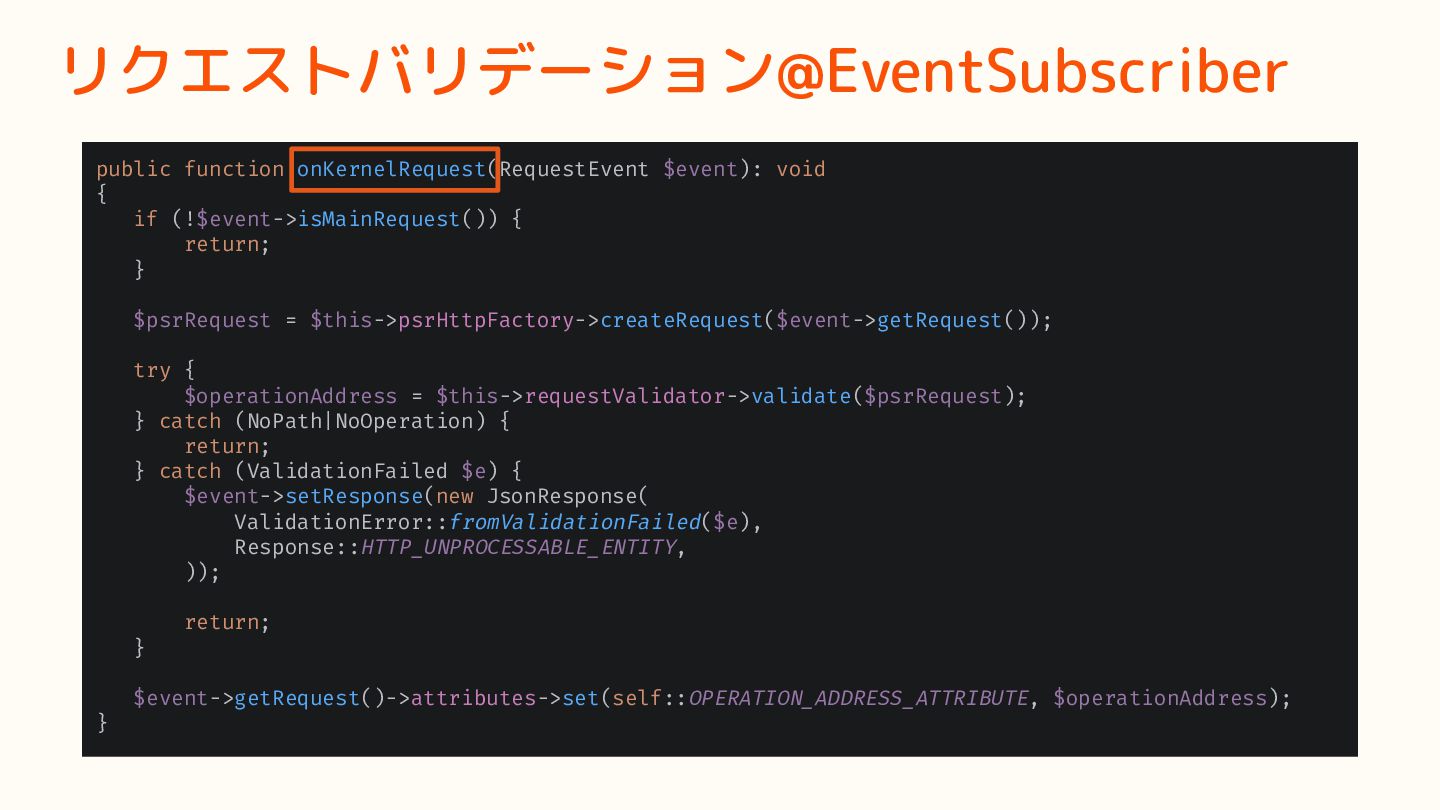

83. リクエストバリデーション@EventSubscriber public function onKernelRequest(RequestEvent $event): void { if (!$event->isMainRequest()) { return; } $psrRequest = $this->psrHttpFactory->createRequest($event->getRequest()); try { $operationAddress = $this->requestValidator->validate($psrRequest); } catch (NoPath|NoOperation) { return; } catch (ValidationFailed $e) { $event->setResponse(new JsonResponse( ValidationError::fromValidationFailed($e), Response::HTTP_UNPROCESSABLE_ENTITY, )); return; } $event->getRequest()->attributes->set(self::OPERATION_ADDRESS_ATTRIBUTE, $operationAddress); } PSR-7 準拠のリクエストオブジェクトに変換

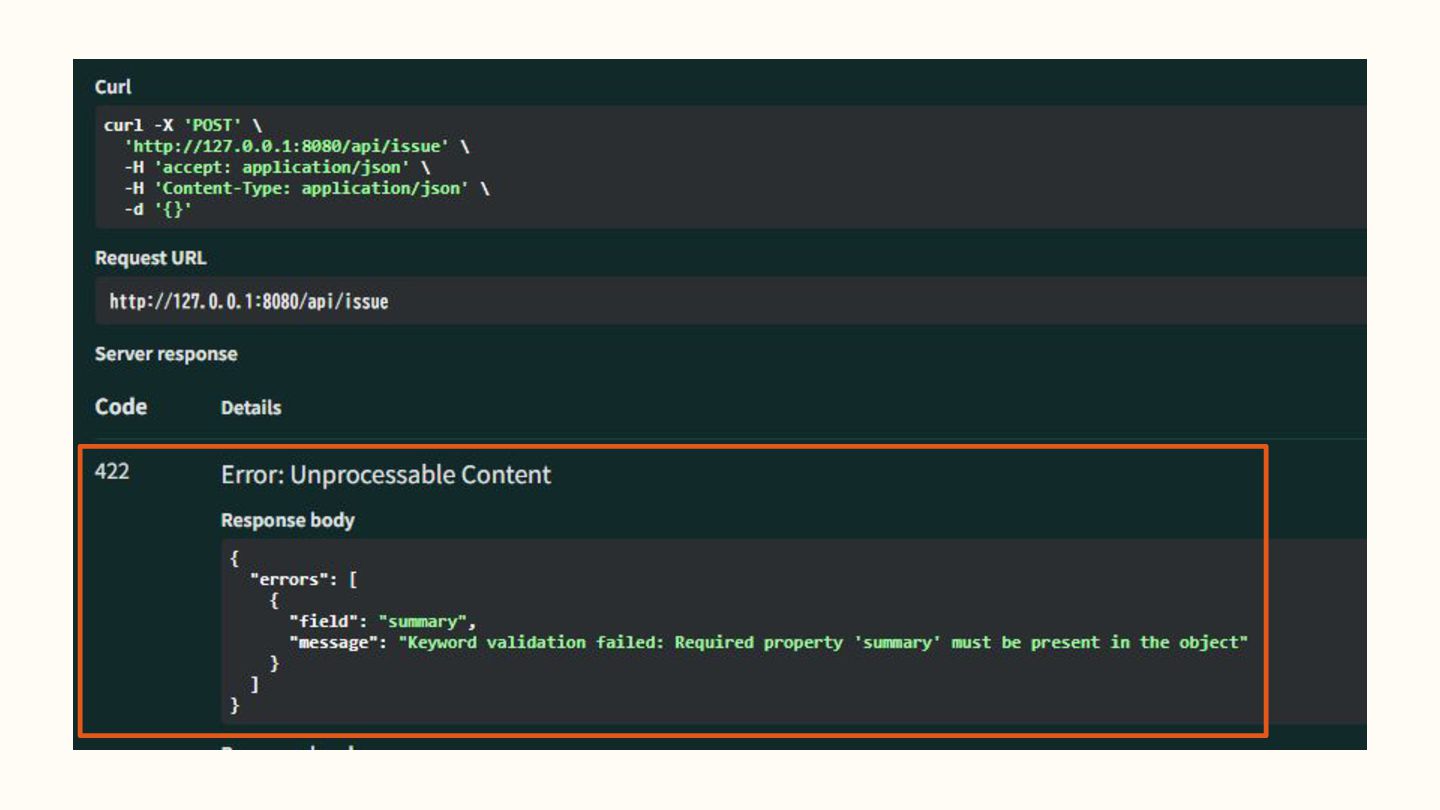

84. リクエストバリデーション@EventSubscriber public function onKernelRequest(RequestEvent $event): void { if (!$event->isMainRequest()) { return; } $psrRequest = $this->psrHttpFactory->createRequest($event->getRequest()); try { $operationAddress = $this->requestValidator->validate($psrRequest); } catch (NoPath|NoOperation) { return; } catch (ValidationFailed $e) { $event->setResponse(new JsonResponse( ValidationError::fromValidationFailed($e), Response::HTTP_UNPROCESSABLE_ENTITY, )); return; } $event->getRequest()->attributes->set(self::OPERATION_ADDRESS_ATTRIBUTE, $operationAddress); }
85. リクエストバリデーション@EventSubscriber public function onKernelRequest(RequestEvent $event): void { if (!$event->isMainRequest()) { return; } $psrRequest = $this->psrHttpFactory->createRequest($event->getRequest()); try { $operationAddress = $this->requestValidator->validate($psrRequest); } catch (NoPath|NoOperation) { return; } catch (ValidationFailed $e) { $event->setResponse(new JsonResponse( ValidationError::fromValidationFailed($e), Response::HTTP_UNPROCESSABLE_ENTITY, )); return; } $event->getRequest()->attributes->set(self::OPERATION_ADDRESS_ATTRIBUTE, $operationAddress); }

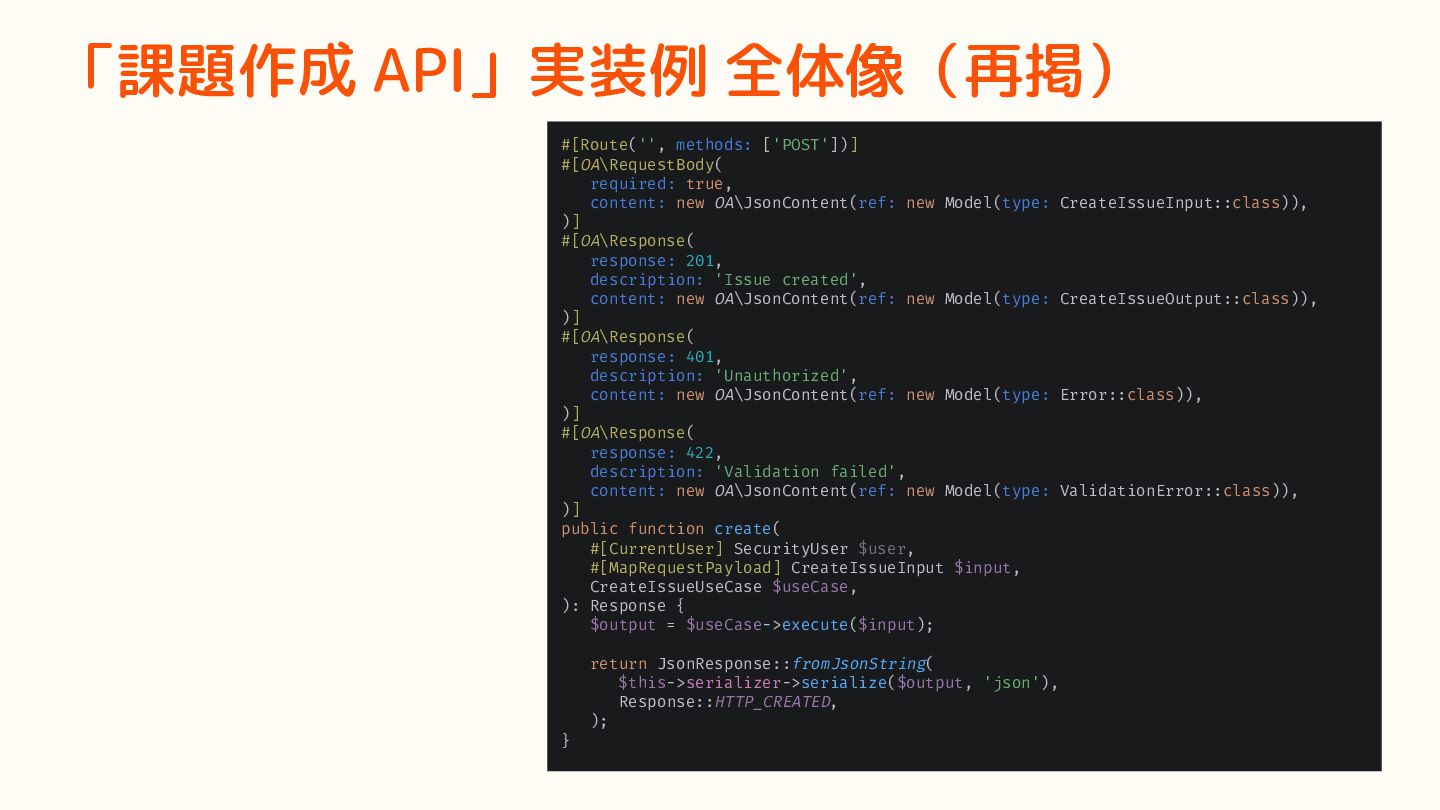

87. 「課題作成 API」実装例 全体像（再掲） #[Route('', methods: ['POST'])] #[OA\RequestBody( required: true, content: new OA\JsonContent(ref: new Model(type: CreateIssueInput::class)), )] #[OA\Response( response: 201, description: 'Issue created', content: new OA\JsonContent(ref: new Model(type: CreateIssueOutput::class)), )] #[OA\Response( response: 401, description: 'Unauthorized', content: new OA\JsonContent(ref: new Model(type: Error::class)), )] #[OA\Response( response: 422, description: 'Validation failed', content: new OA\JsonContent(ref: new Model(type: ValidationError::class)), )] public function create( #[CurrentUser] SecurityUser $user, #[MapRequestPayload] CreateIssueInput $input, CreateIssueUseCase $useCase, ): Response { $output = $useCase->execute($input); return JsonResponse::fromJsonString( $this->serializer->serialize($output, 'json'), Response::HTTP_CREATED, ); }

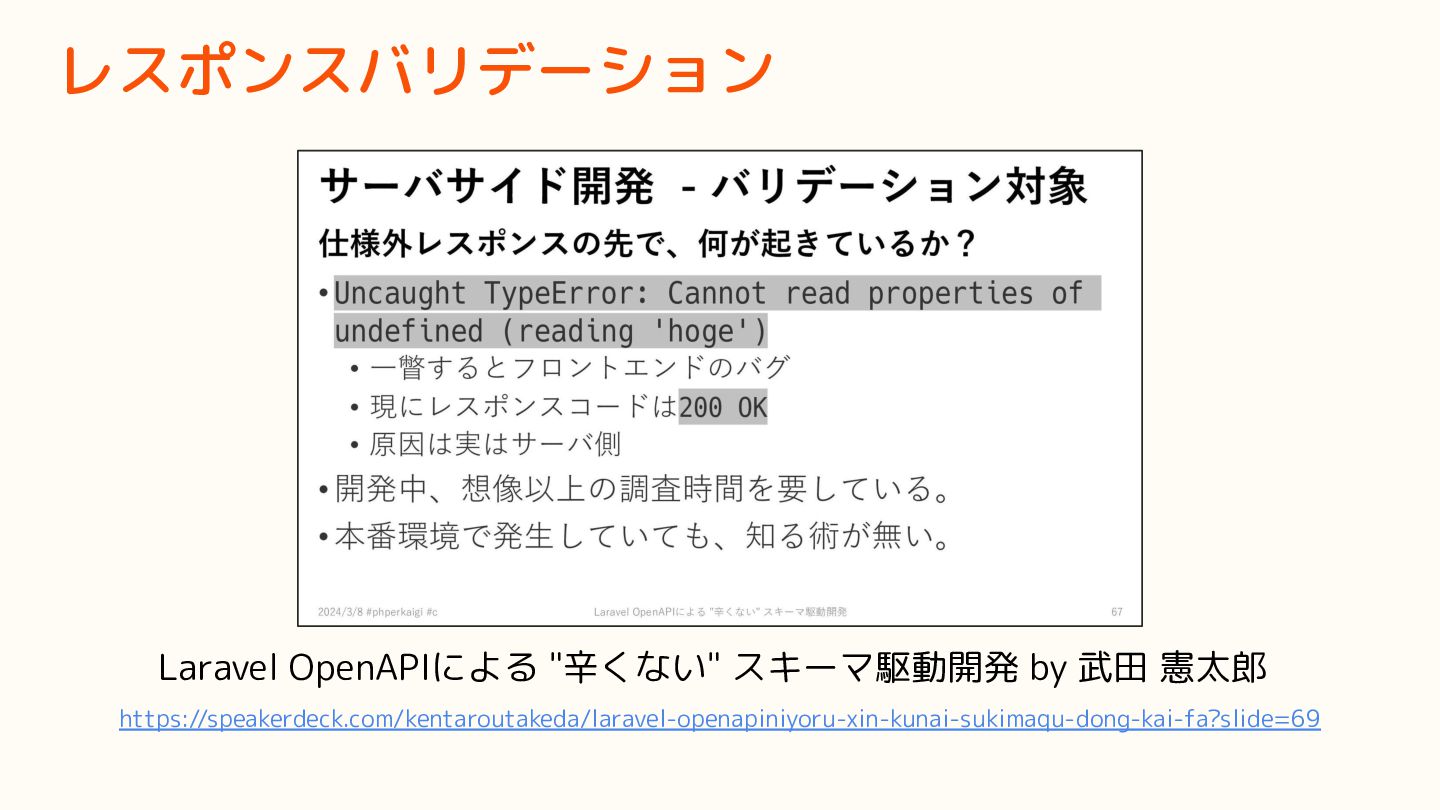

88. レスポンスバリデーション https://speakerdeck.com/kentaroutakeda/laravel-openapiniyoru-xin-kunai-sukimaqu-dong-kai-fa?slide=69 Laravel OpenAPIによる "辛くない" スキーマ駆動開発 by 武田 憲太郎

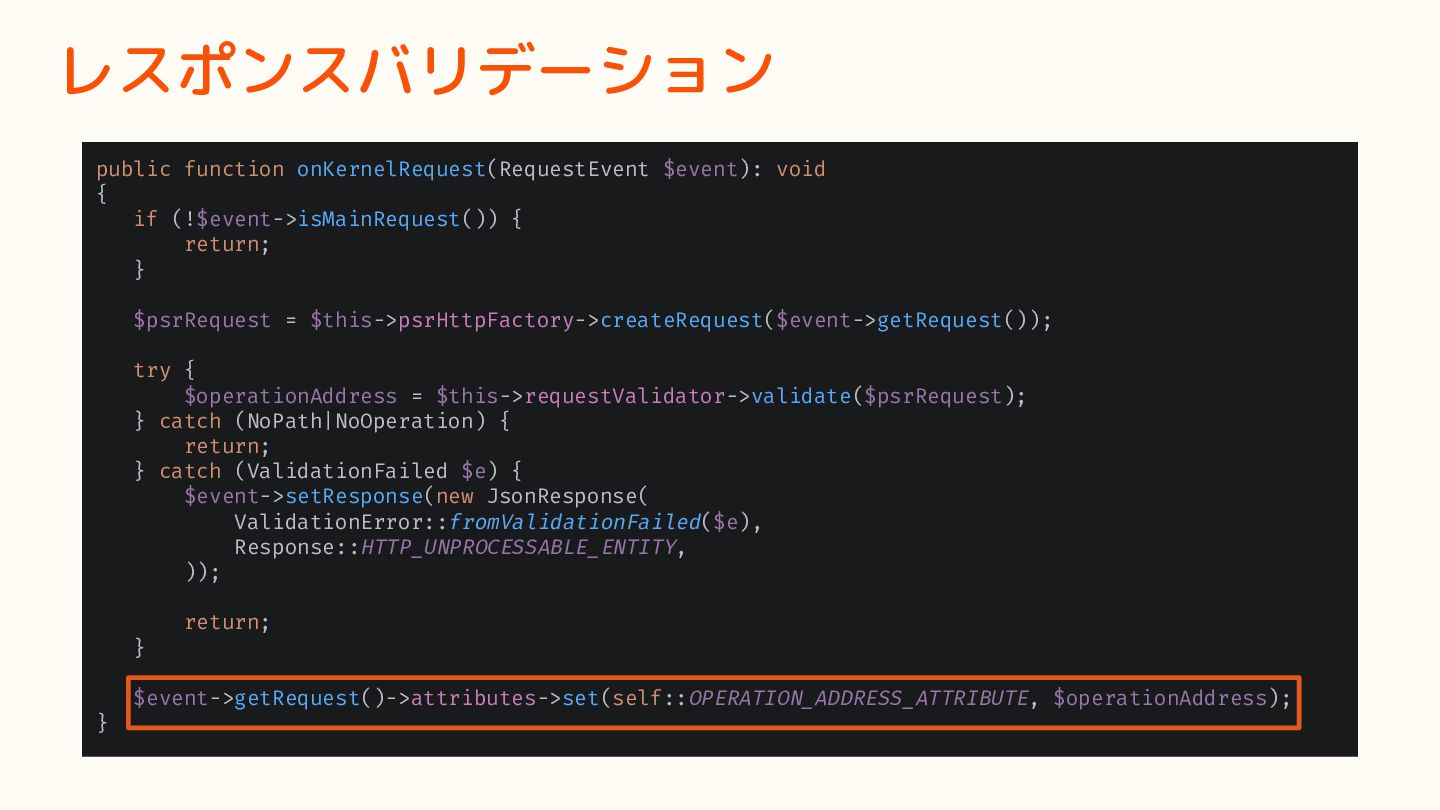

89. レスポンスバリデーション public function onKernelRequest(RequestEvent $event): void { if (!$event->isMainRequest()) { return; } $psrRequest = $this->psrHttpFactory->createRequest($event->getRequest()); try { $operationAddress = $this->requestValidator->validate($psrRequest); } catch (NoPath|NoOperation) { return; } catch (ValidationFailed $e) { $event->setResponse(new JsonResponse( ValidationError::fromValidationFailed($e), Response::HTTP_UNPROCESSABLE_ENTITY, )); return; } $event->getRequest()->attributes->set(self::OPERATION_ADDRESS_ATTRIBUTE, $operationAddress); }

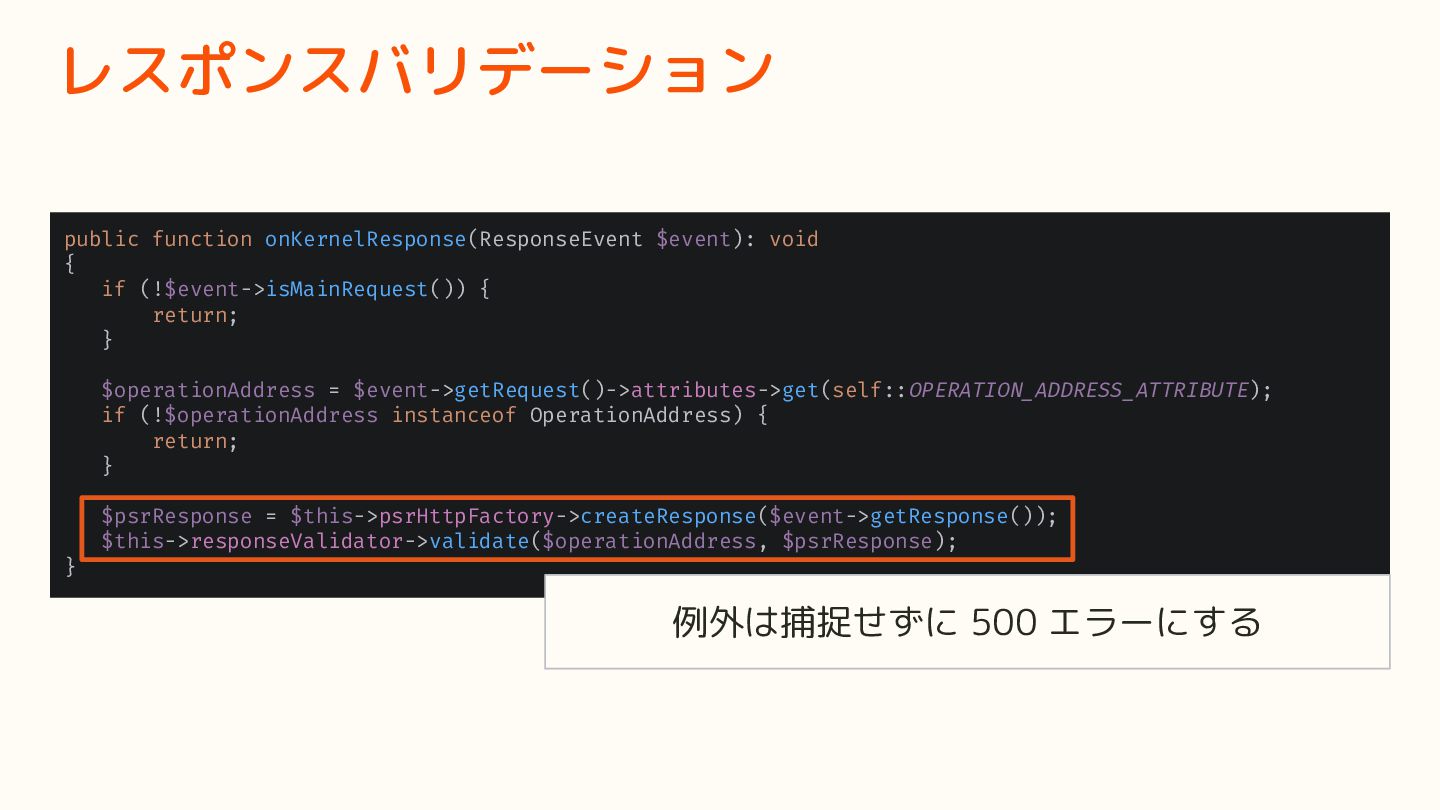

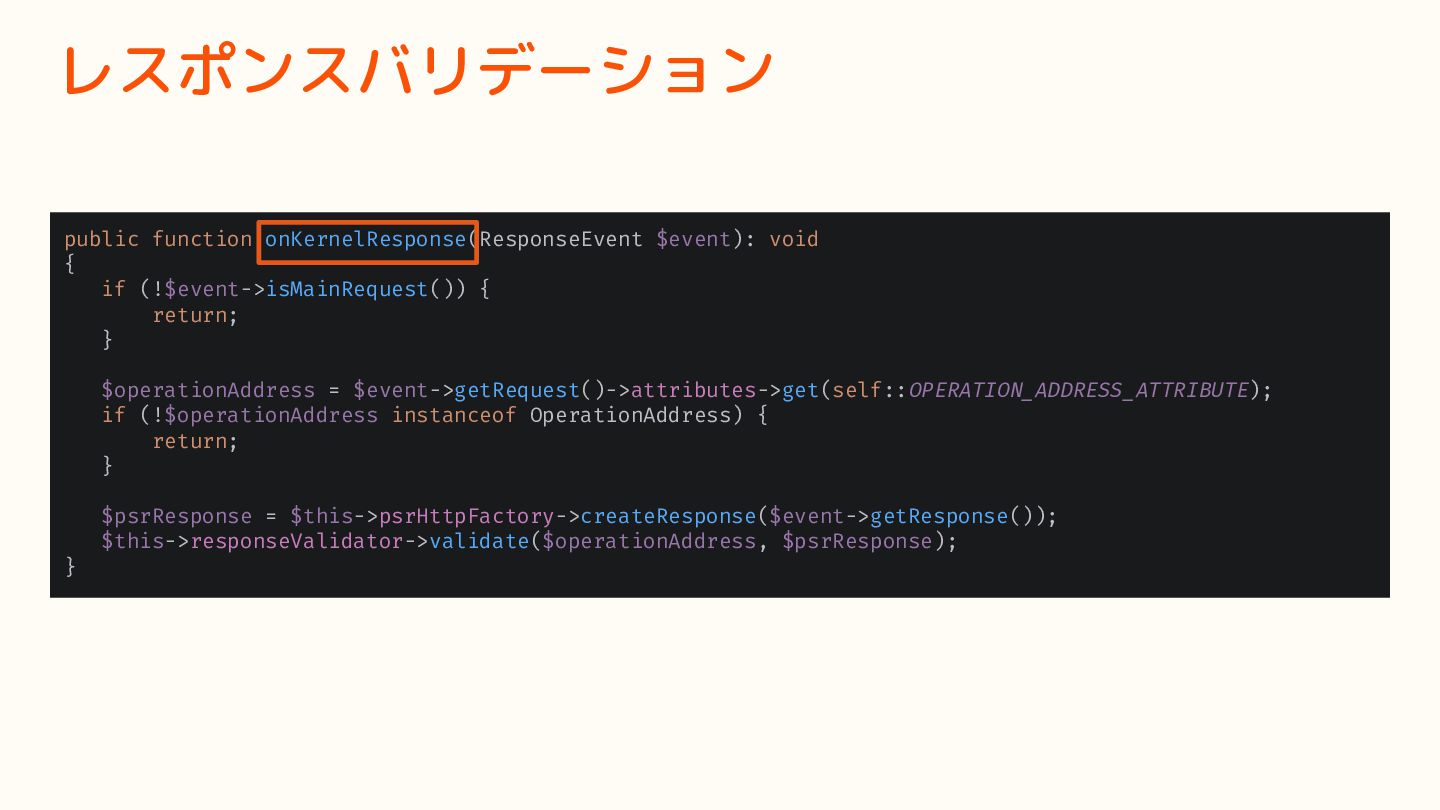

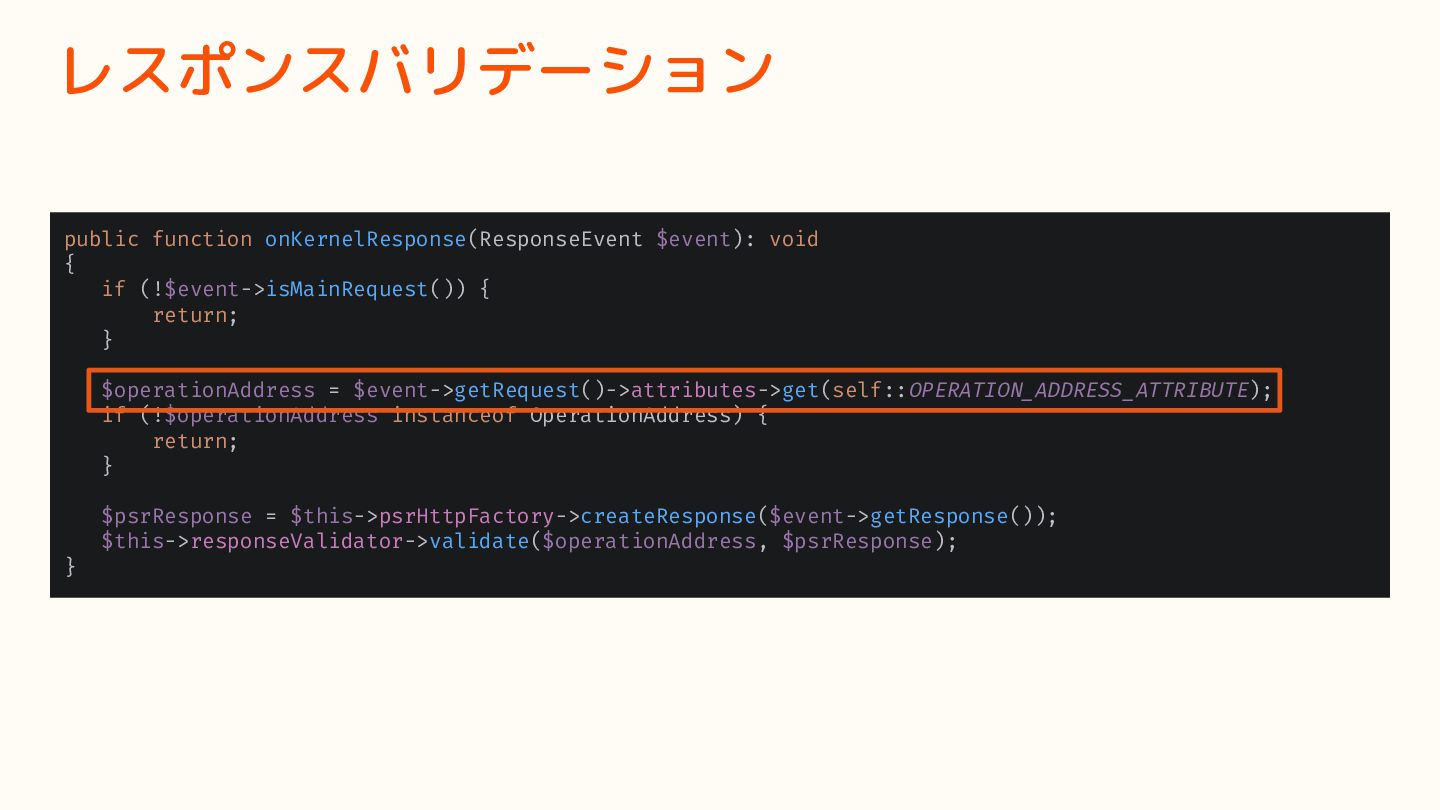

90. レスポンスバリデーション public function onKernelResponse(ResponseEvent $event): void { if (!$event->isMainRequest()) { return; } $operationAddress = $event->getRequest()->attributes->get(self::OPERATION_ADDRESS_ATTRIBUTE); if (!$operationAddress instanceof OperationAddress) { return; } $psrResponse = $this->psrHttpFactory->createResponse($event->getResponse()); $this->responseValidator->validate($operationAddress, $psrResponse); }
91. レスポンスバリデーション public function onKernelResponse(ResponseEvent $event): void { if (!$event->isMainRequest()) { return; } $operationAddress = $event->getRequest()->attributes->get(self::OPERATION_ADDRESS_ATTRIBUTE); if (!$operationAddress instanceof OperationAddress) { return; } $psrResponse = $this->psrHttpFactory->createResponse($event->getResponse()); $this->responseValidator->validate($operationAddress, $psrResponse); }
92. レスポンスバリデーション public function onKernelResponse(ResponseEvent $event): void { if (!$event->isMainRequest()) { return; } $operationAddress = $event->getRequest()->attributes->get(self::OPERATION_ADDRESS_ATTRIBUTE); if (!$operationAddress instanceof OperationAddress) { return; } $psrResponse = $this->psrHttpFactory->createResponse($event->getResponse()); $this->responseValidator->validate($operationAddress, $psrResponse); } 例外は捕捉せずに 500 エラーにする

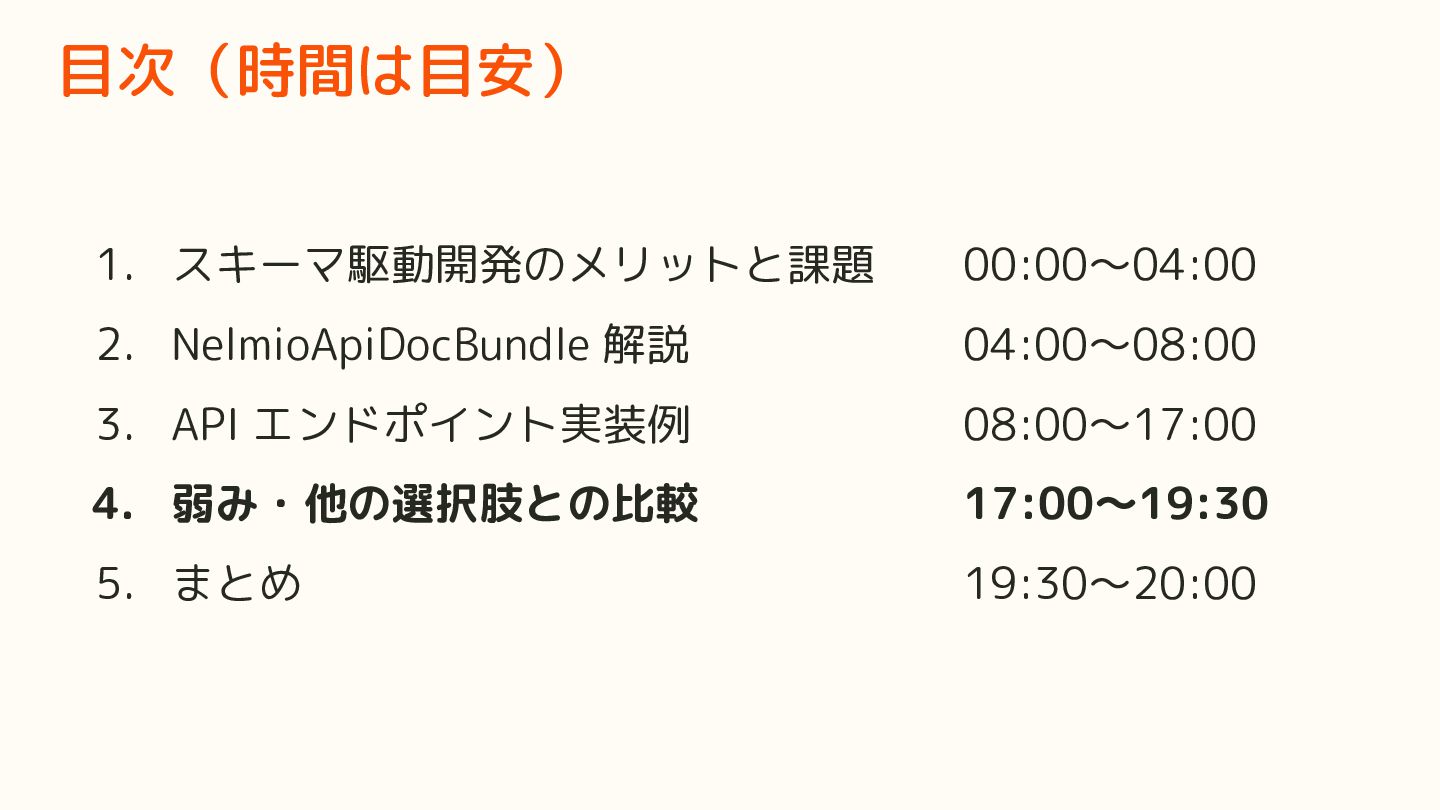

93. 1. スキーマ駆動開発のメリットと課題 00:00～04:00 2. NelmioApiDocBundle 解説 04:00～08:00 3. API エンドポイント実装例 08:00～17:00 4. 弱み・他の選択肢との比較 17:00～19:30 5. まとめ 19:30～20:00 目次（時間は目安）
94. • PHP の型表現上の制約 • 一部のメソッドもプロパティとして解釈されてしまう • 細かい指定をする際の型安全性が低い 気をつけるべきポイント

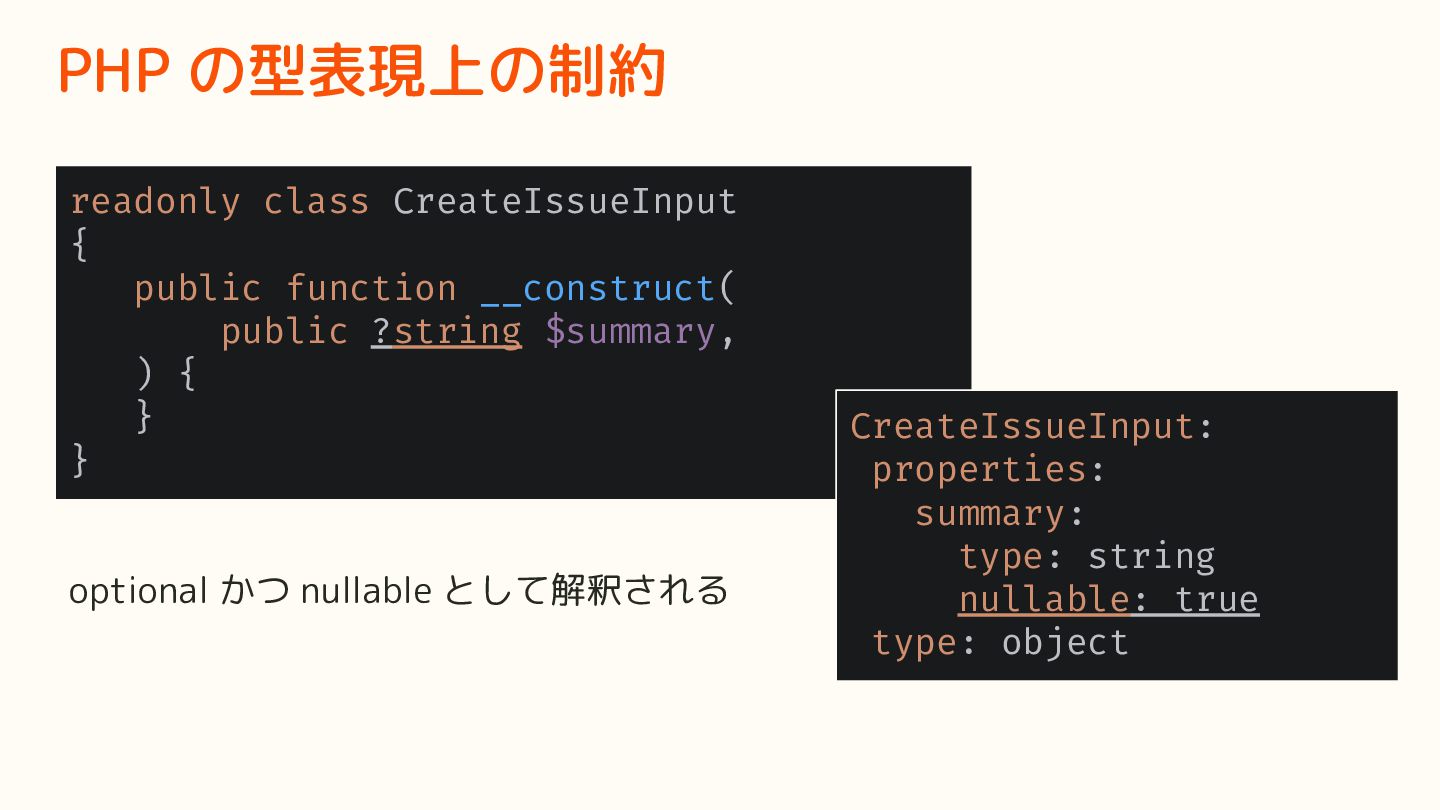

95. readonly class CreateIssueInput { public function __construct( public ?string $summary, ) { } } PHP の型表現上の制約 CreateIssueInput: properties: summary: type: string nullable: true type: object optional かつ nullable として解釈される

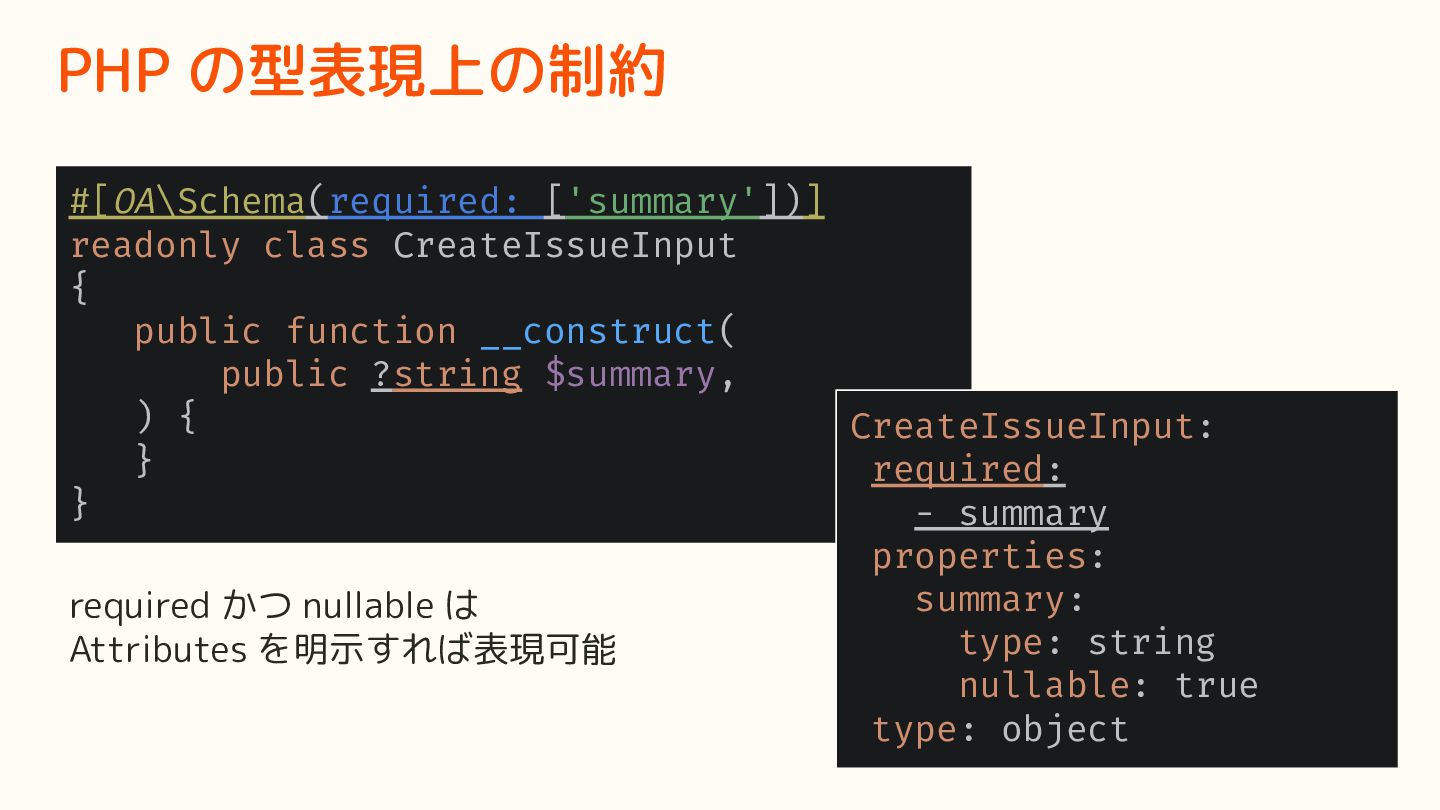

96. #[OA\Schema(required: ['summary'])] readonly class CreateIssueInput { public function __construct( public ?string $summary, ) { } } PHP の型表現上の制約 CreateIssueInput: required: - summary properties: summary: type: string nullable: true type: object required かつ nullable は Attributes を明示すれば表現可能

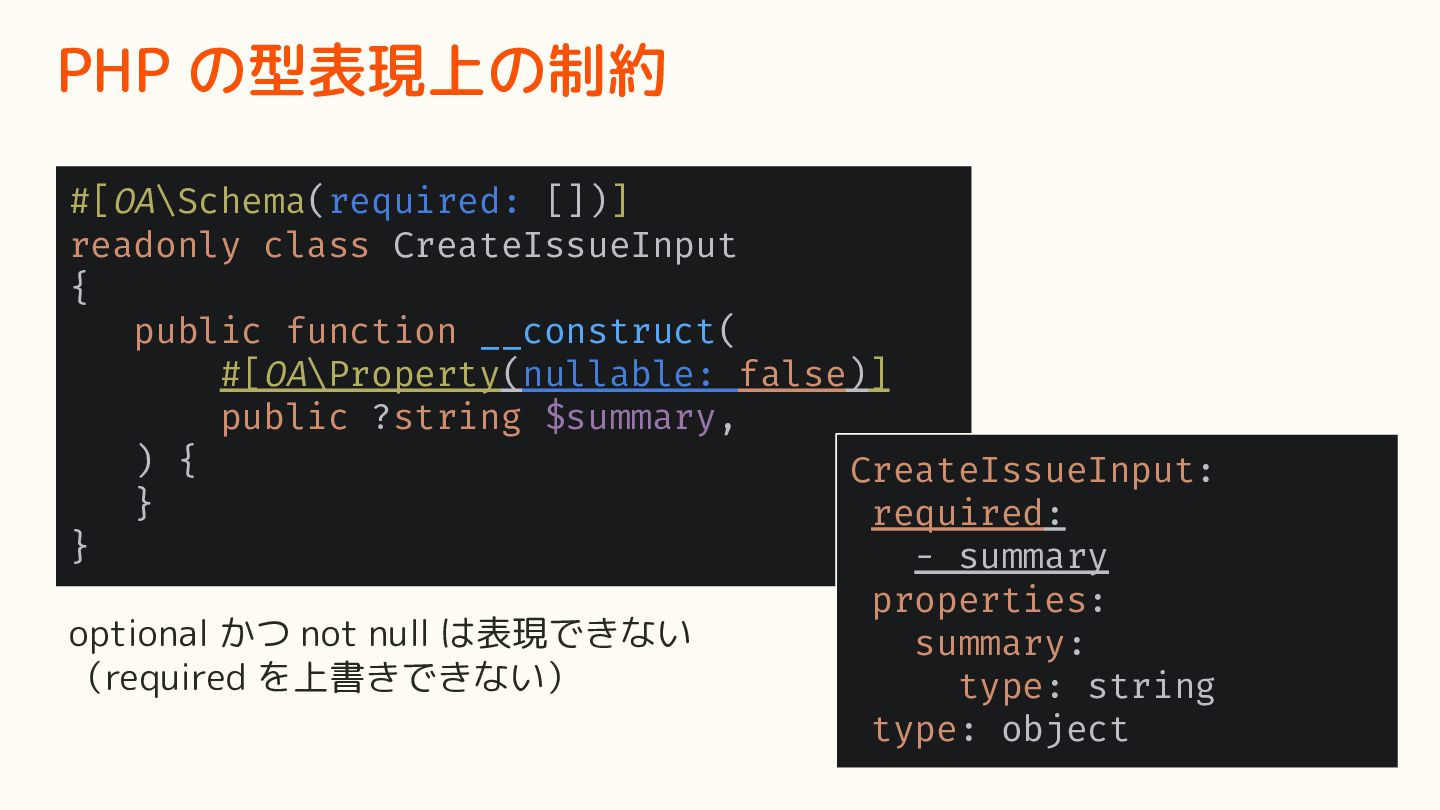

97. PHP の型表現上の制約 #[OA\Schema(required: [])] readonly class CreateIssueInput { public function __construct( #[OA\Property(nullable: false)] public ?string $summary, ) { } } CreateIssueInput: required: - summary properties: summary: type: string type: object optional かつ not null は表現できない （required を上書きできない）
98. PHP の型表現上の制約 #[OA\Schema(required: [])] readonly class CreateIssueInput { public function __construct( #[OA\Property(nullable: false)] public ?string $summary, ) { } } CreateIssueInput: required: - summary properties: summary: type: string type: object optional かつ not null は表現できない （required を上書きできない）

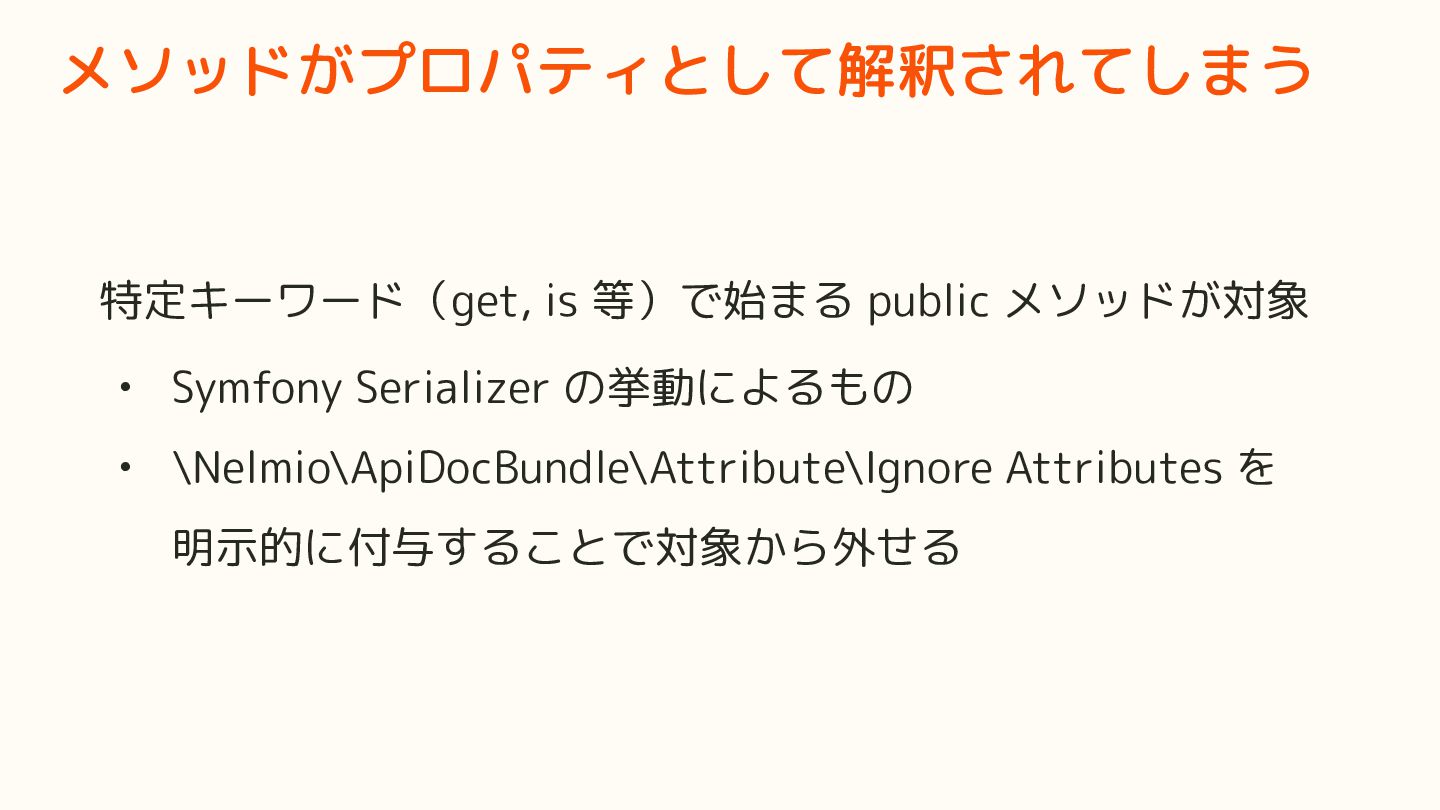

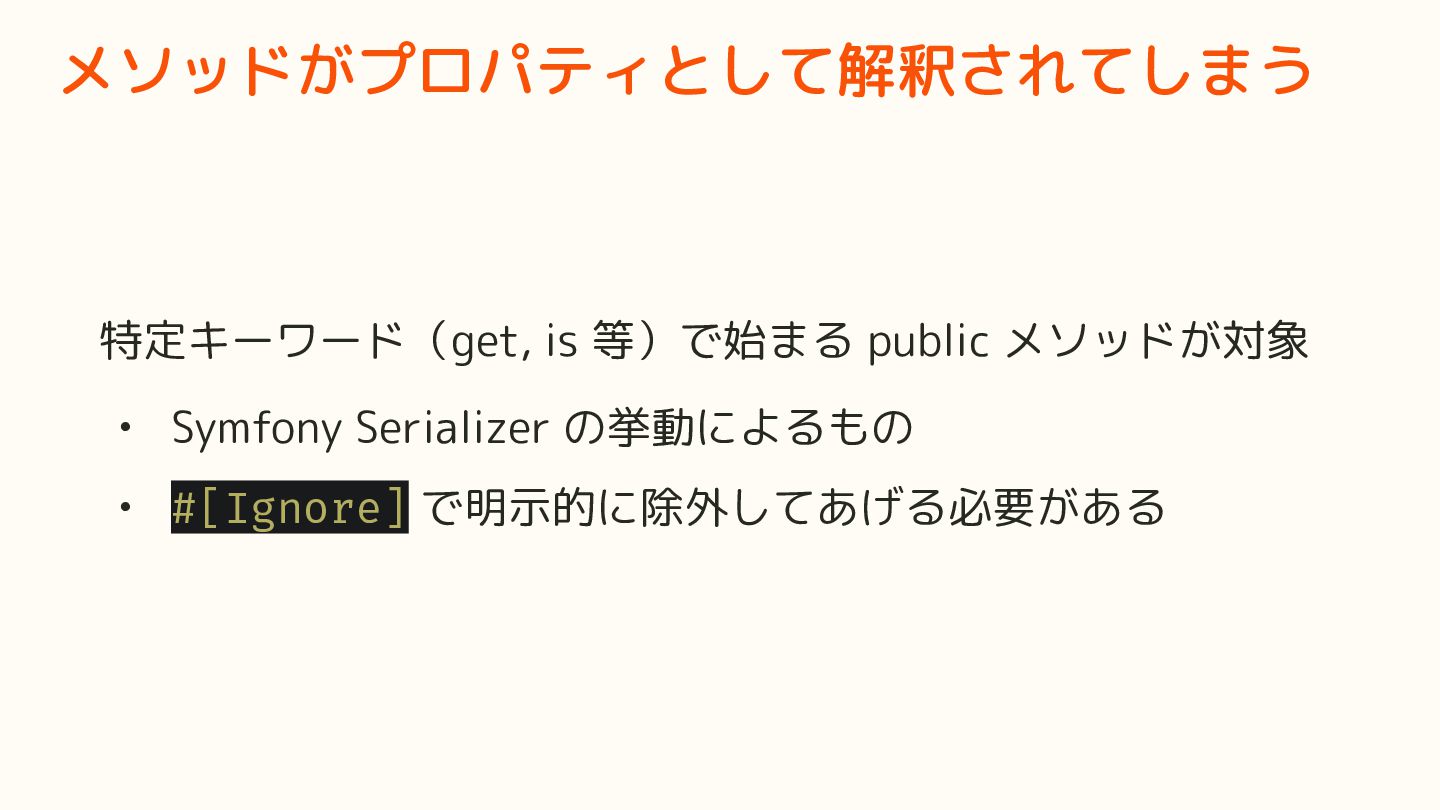

99. 特定キーワード（get, is 等）で始まる public メソッドが対象 • Symfony Serializer の挙動によるもの • #[Ignore] で明示的に除外してあげる必要がある メソッドがプロパティとして解釈されてしまう

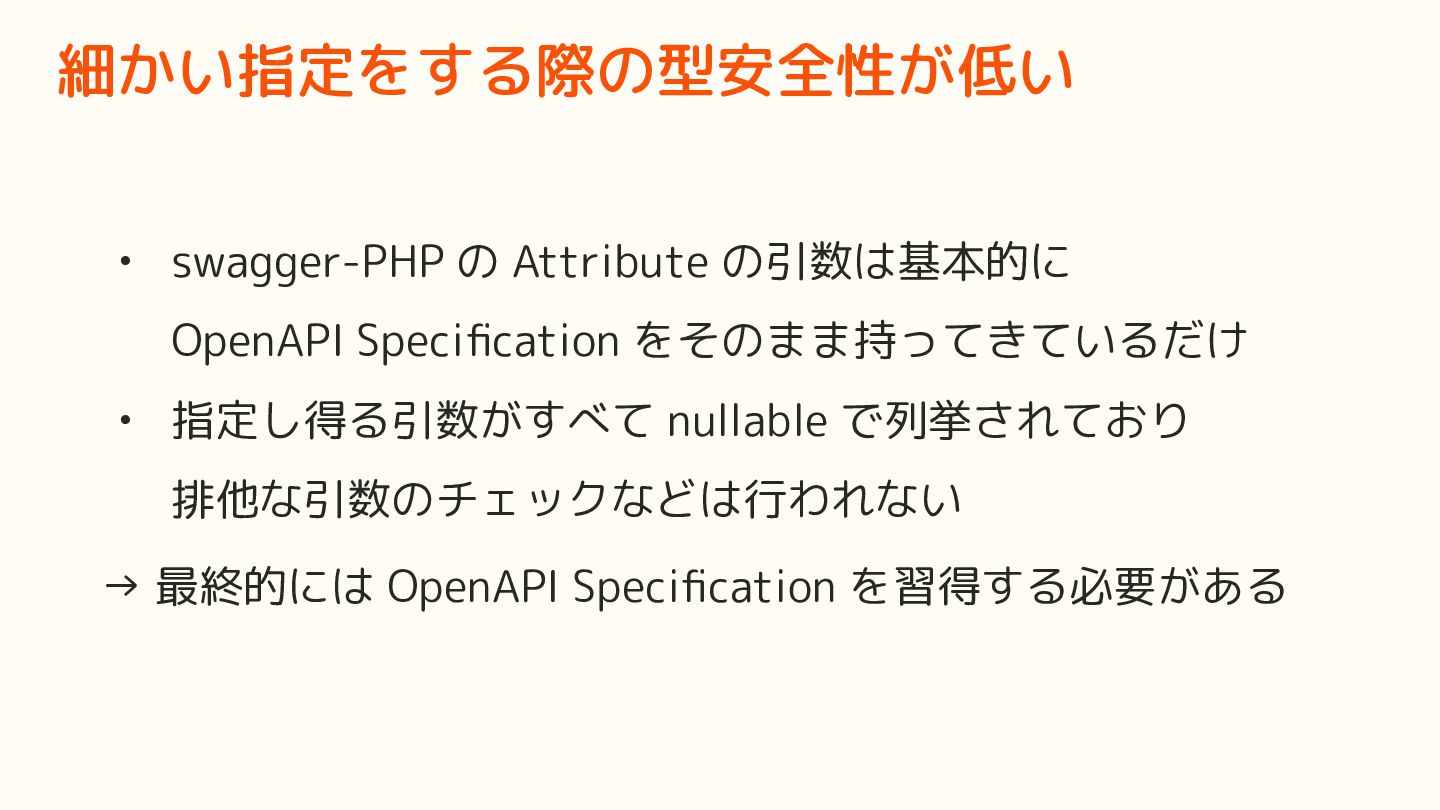

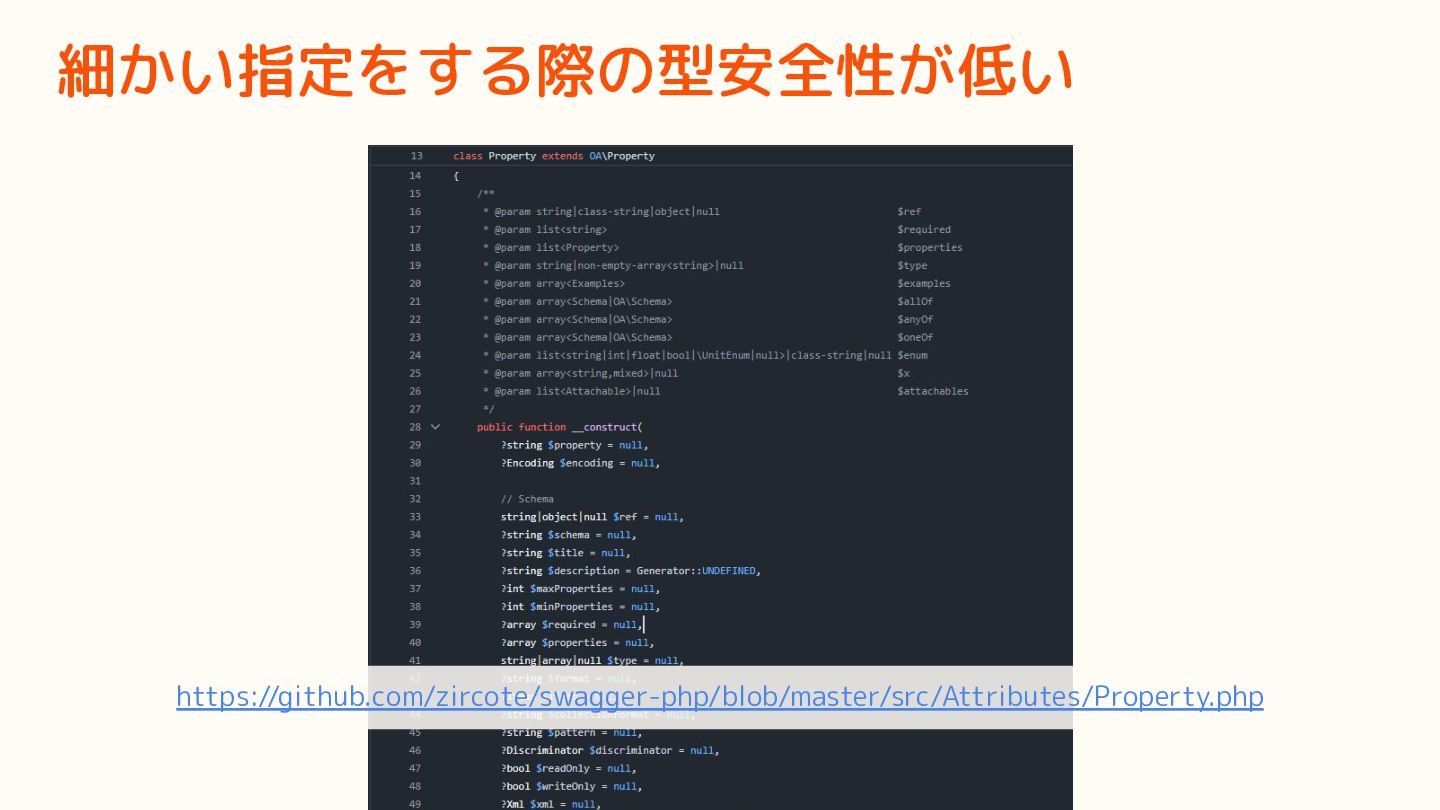

100. • swagger-PHP の Attribute の引数は基本的に OpenAPI Specification をそのまま持ってきているだけ • 可能な引数が nullable で列挙されており 排他な引数のチェックなどは行われない → そうなると OpenAPI Specification を習得する必要がある 細かい指定をする際の型安全性が低い
101. 細かい指定をする際の型安全性が低い https://github.com/zircote/swagger-php/blob/master/src/Attributes/Property.php

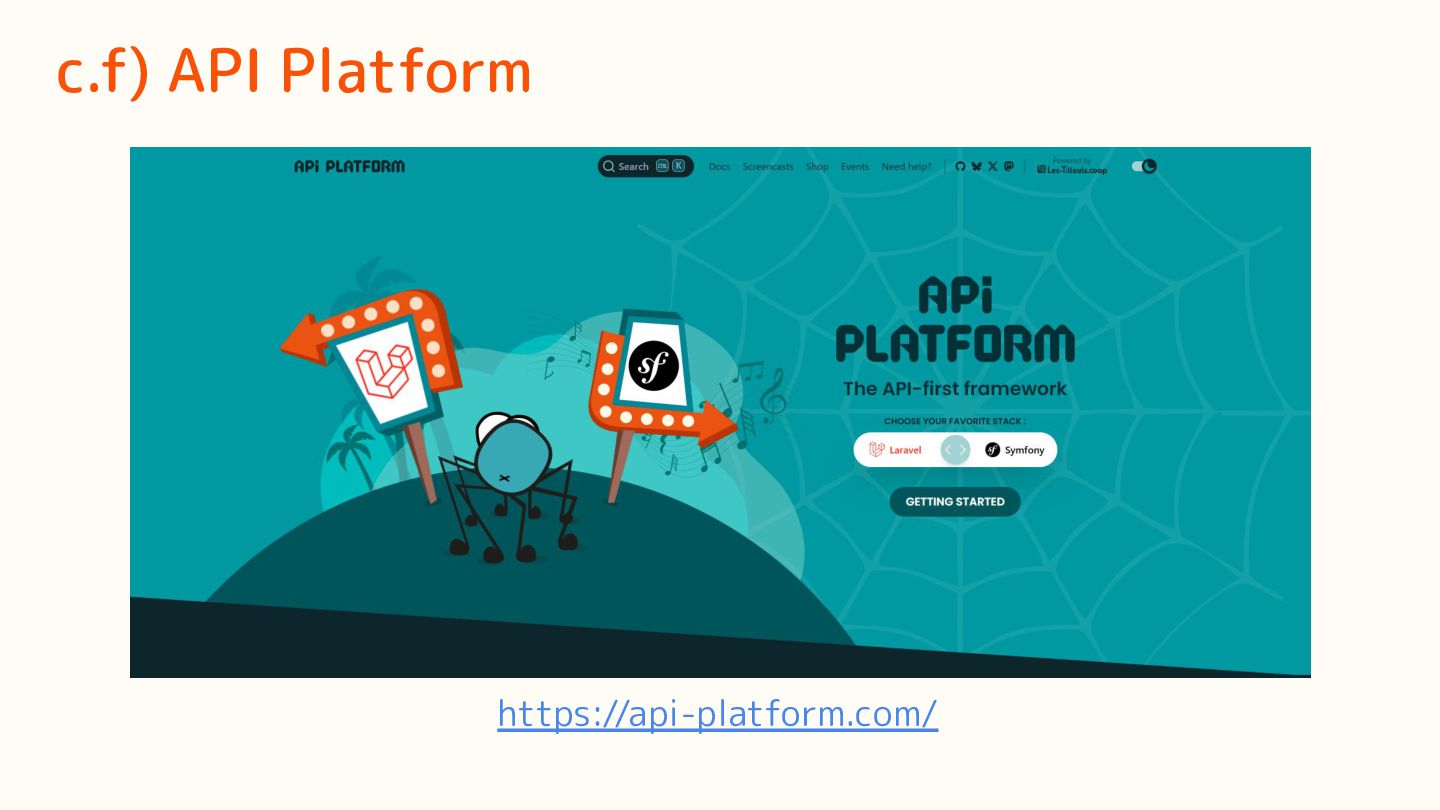

102. c.f) API Platform https://api-platform.com/
103. c.f) API Platform day2 (3/22) には著者たつきちさんのサイン会
104. 機能は API Platform の方が圧倒的に豊富 • Entity やクラスを起点とした CRUD の自動生成 • StateProvider/Processor によるカスタマイズ • JSON-LD、GraphQL 等にも対応 c.f) API Platform

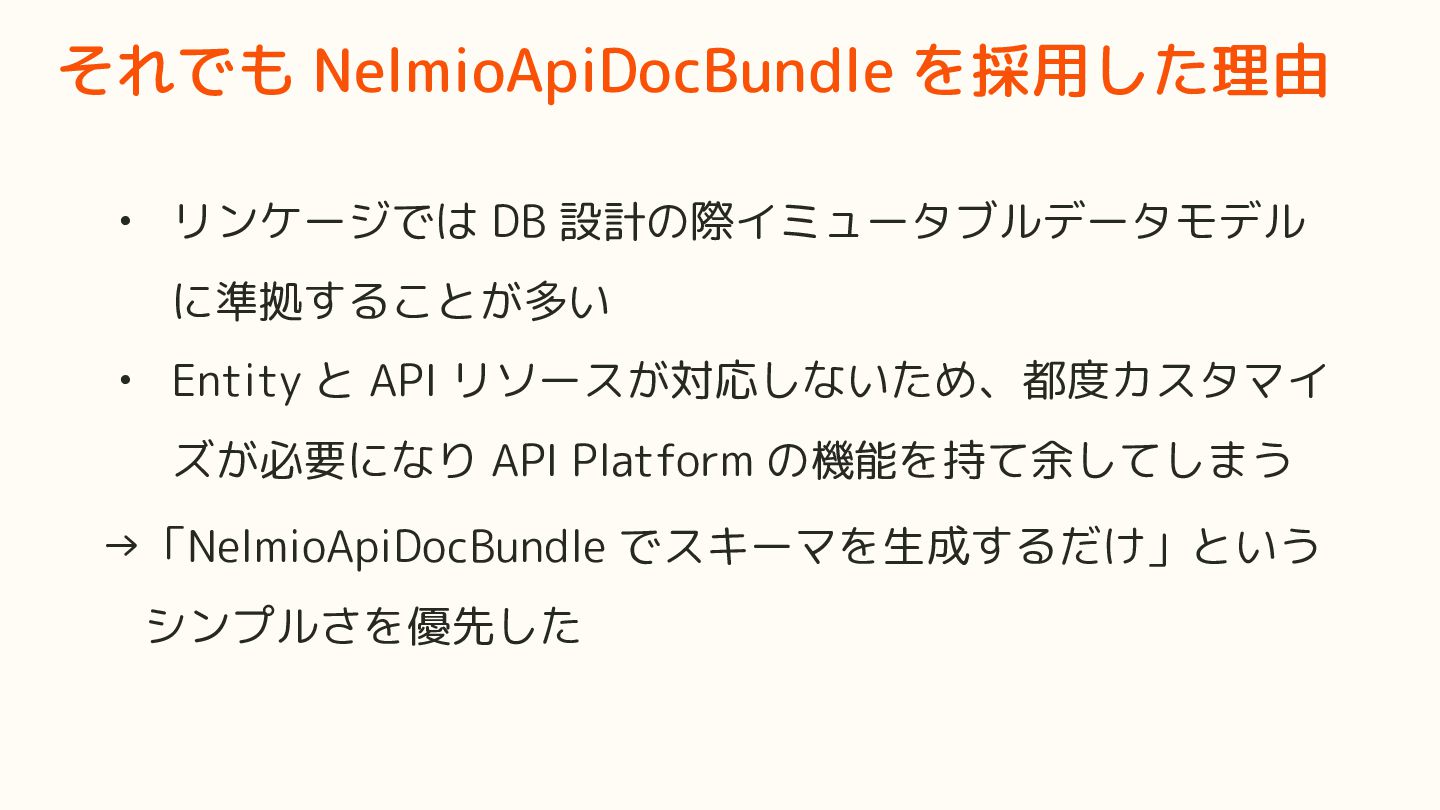

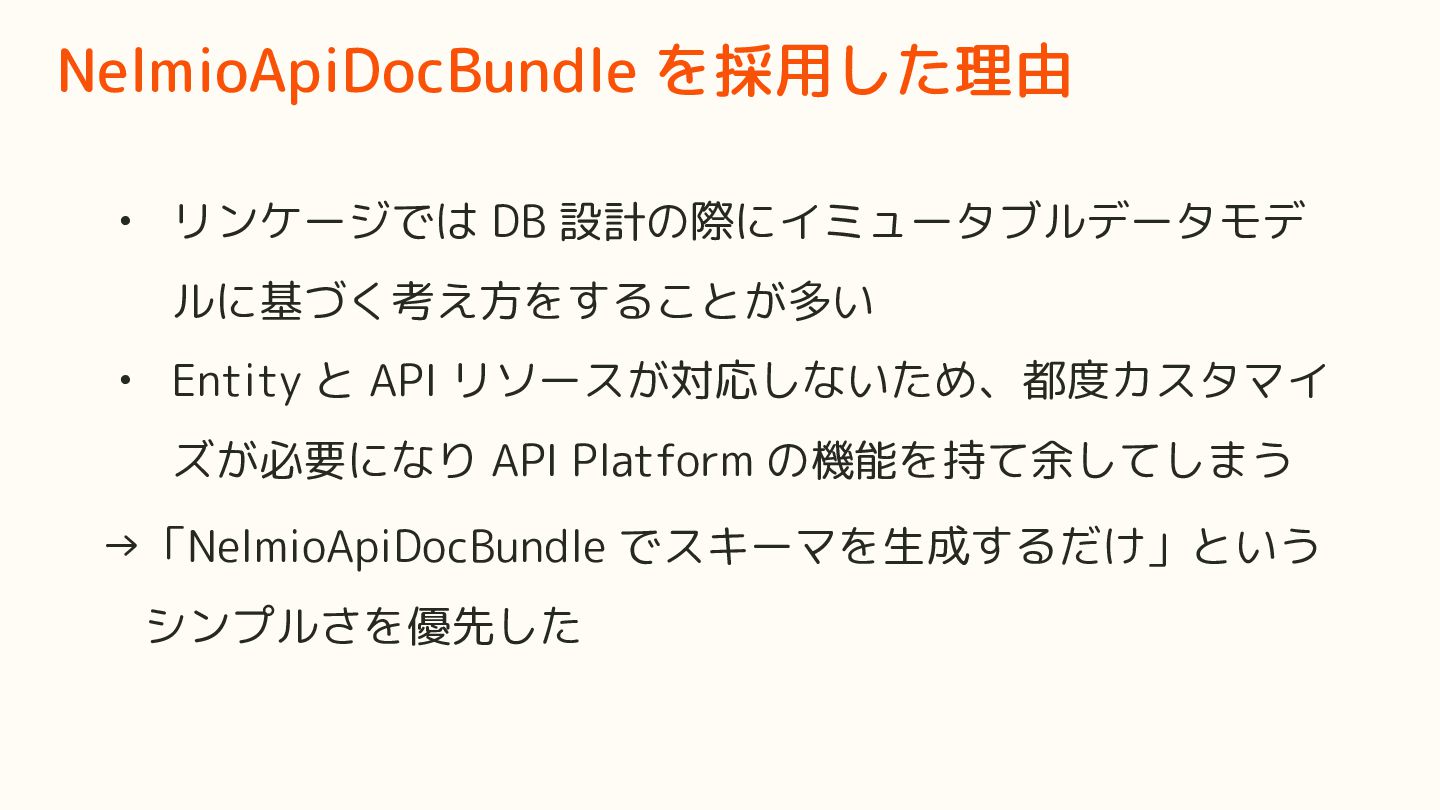

105. • リンケージでは DB 設計の際にイミュータブルデータモデ ルに基づく考え方をすることが多い • Entity と API リソースが対応しないため、都度カスタマイ ズが必要になり API Platform の機能を持て余してしまう →「NelmioApiDocBundle でスキーマを生成するだけ」という 　シンプルさを優先した NelmioApiDocBundle を採用した理由

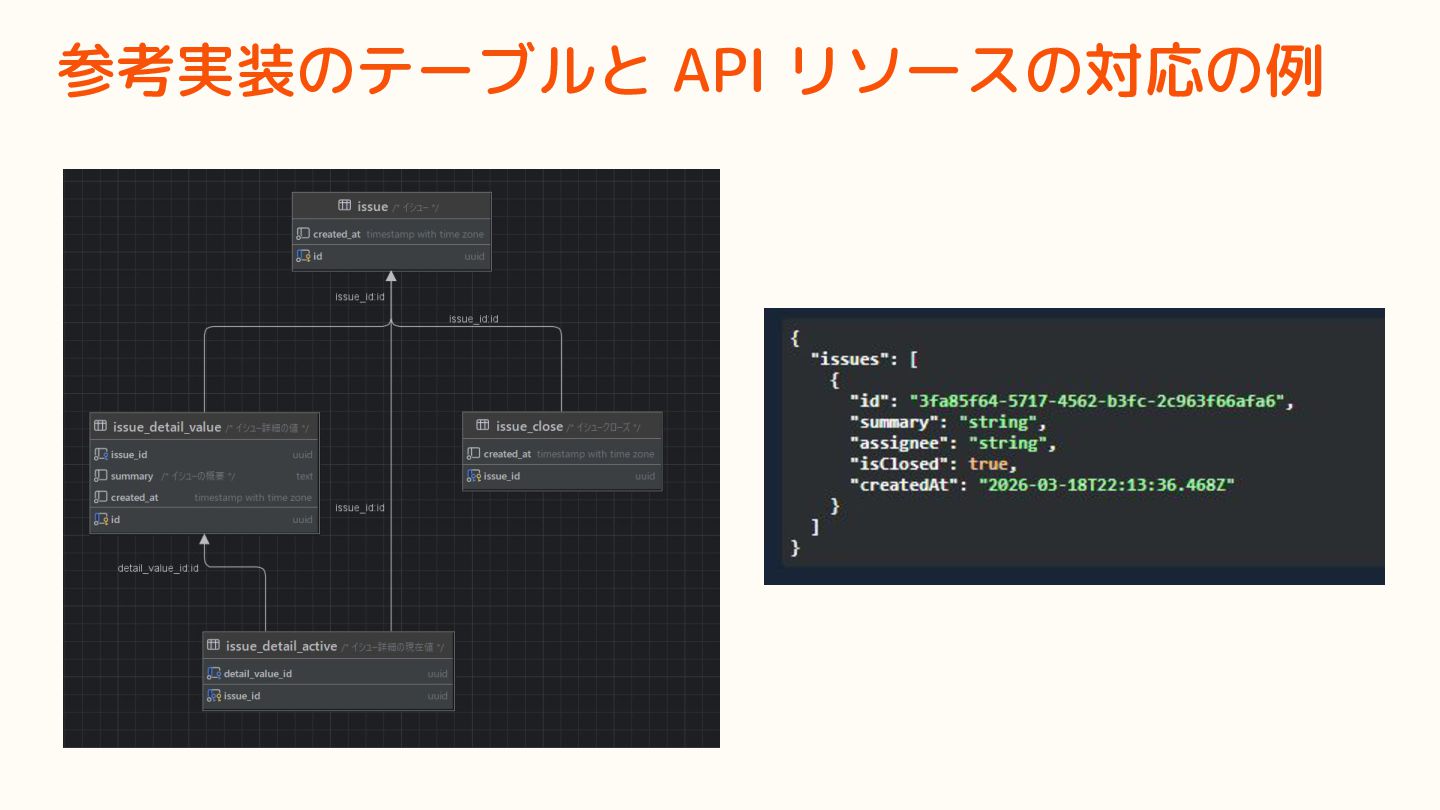

106. 参考実装の例
107. イミュータブルデータモデルに関する参考資料 https://scrapbox.io/kawasima/%E3%82%A4%E3%83%9F%E3%83%A5%E3%83%BC%E3%82%BF%E3% 83%96%E3%83%AB%E3%83%87%E3%83%BC%E3%82%BF%E3%83%A2%E3%83%87%E3%83%AB

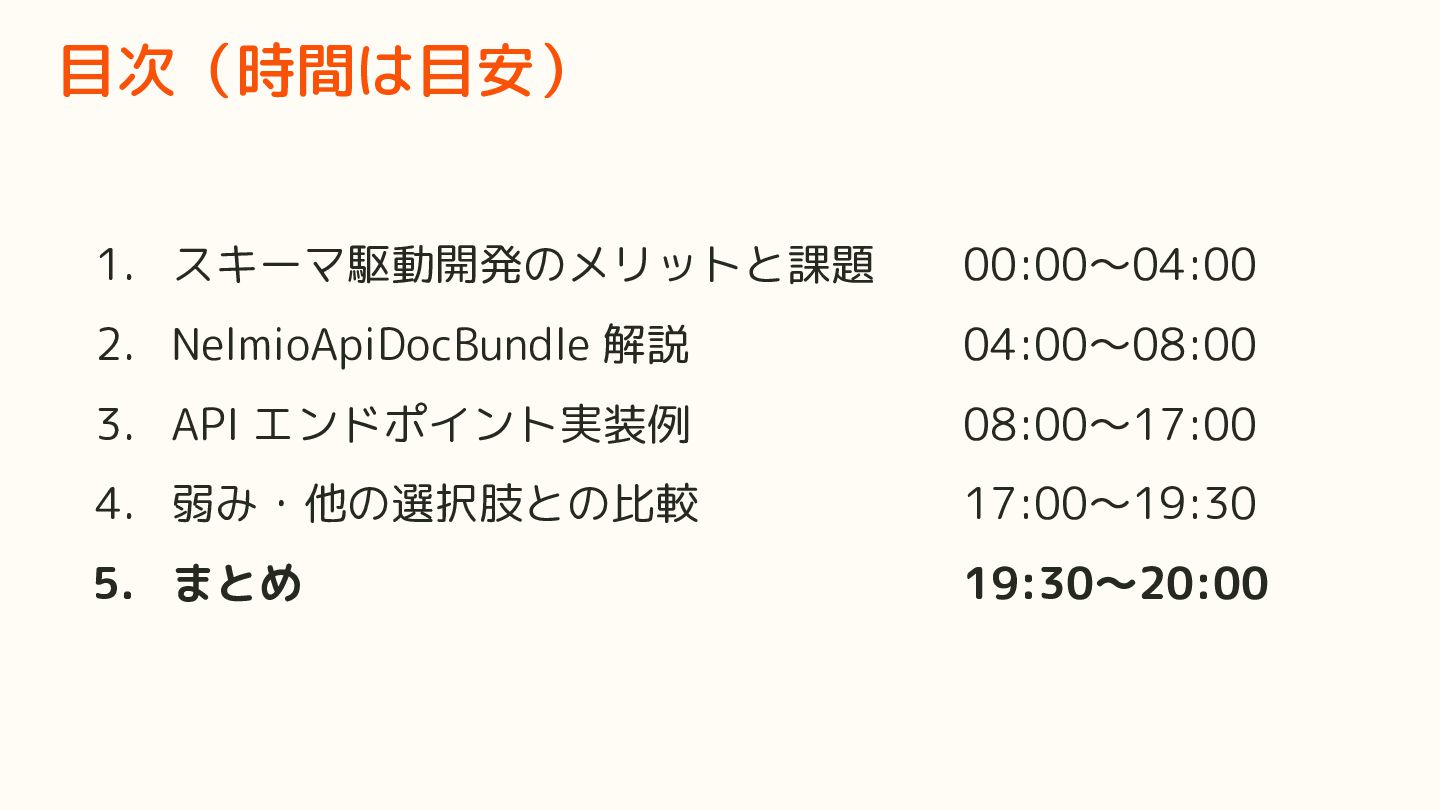

108. 1. スキーマ駆動開発のメリットと課題 00:00～04:00 2. NelmioApiDocBundle 解説 04:00～08:00 3. API エンドポイント実装例 08:00～17:00 4. 弱み・他の選択肢との比較 17:00～19:30 5. まとめ 19:30～20:00 目次（時間は目安）
109. スキーマ駆動開発の恩恵に与るためのNelmioAPIDocBundle • Controller の Attributes から スキーマを出力できる • refs に POPO（Plain Old PHP Object）を指定可能 PHP に習熟しているチームほど恩恵が大きい • API エンドポイントの実装に型を直接利用できる • 使い慣れた IDE, 静的解析ツールを利用できる まとめ
110. NelmioApiDocBundle を使ったスキーマ駆動開発 OpenAPI Specification POPO / Attributes API クライアント API サーバーの実装 SSoT
