(Re)make Regexp in Ruby: Democratizing internals for the JIT

Presented at RubyKaigi 2026 in Hakodata Day 3 (2026/04/24).

https://github.com/makenowjust/naraku

Transcript

1. Hiroya Fujinami (a.k.a. makenowjust) @RubyKaigi 2026 in Hakodate / 2026-04-24 (Re)make Regexp in Ruby: Democratizing internals for the JIT
2. Hiroya Fujinami a.k.a. makenowjust • https://github.com/makenowjust / https://x.com/make_now_just • Ph.D. student at NII (National Institute of Informatics). • Studying the application of automata theory and formal languages. • Recently interested in nominal sets. • Currently on the job market (!) 2
3. Ruby committer
4. Regexp memoization

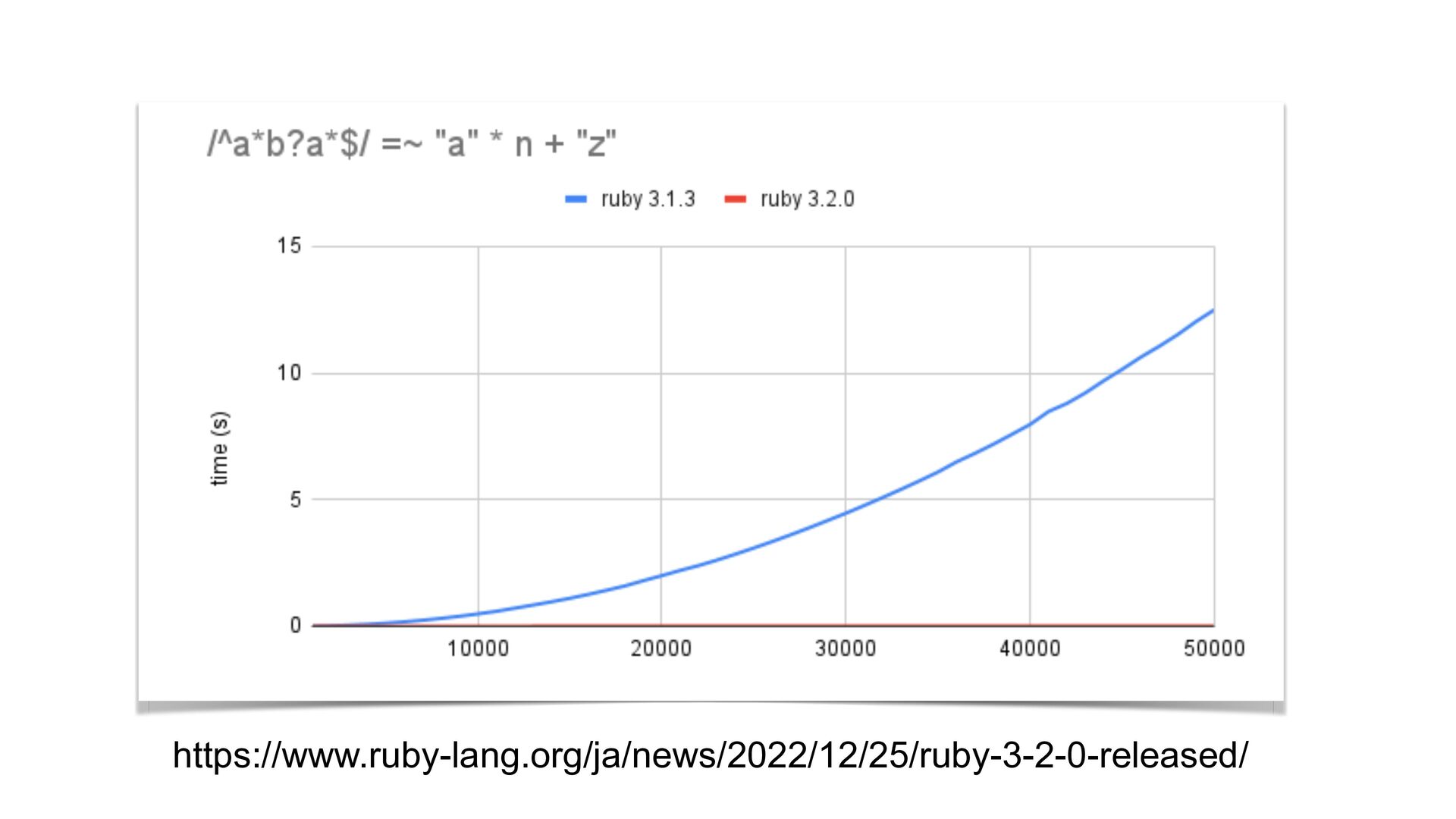

5. https://www.ruby-lang.org/ja/news/2022/12/25/ruby-3-2-0-released/
6. Regexp is good.
7. [YZ]JIT is good.
8. Regexp × JIT is good2...?

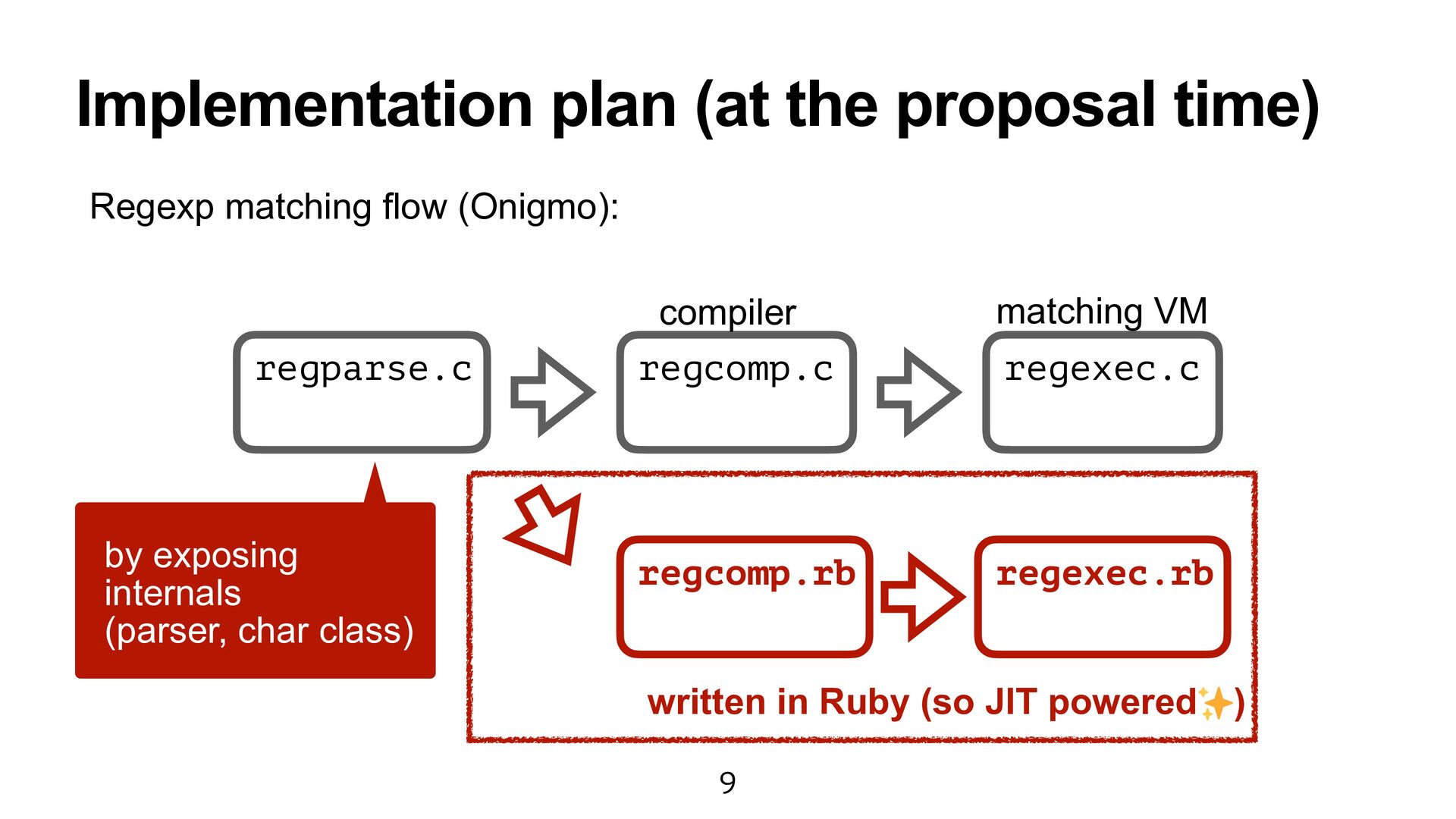

9. Implementation plan (at the proposal time) 9 regcomp.c regexec.c regparse.c Regexp matching flow (Onigmo): regcomp.rb regexec.rb written in Ruby (so JIT powered ) by exposing internals (parser, char class) compiler matching VM
10. Ruby's Regexp is not Onigmo.
11. Onigmo is a Regexp engine not only for Ruby.

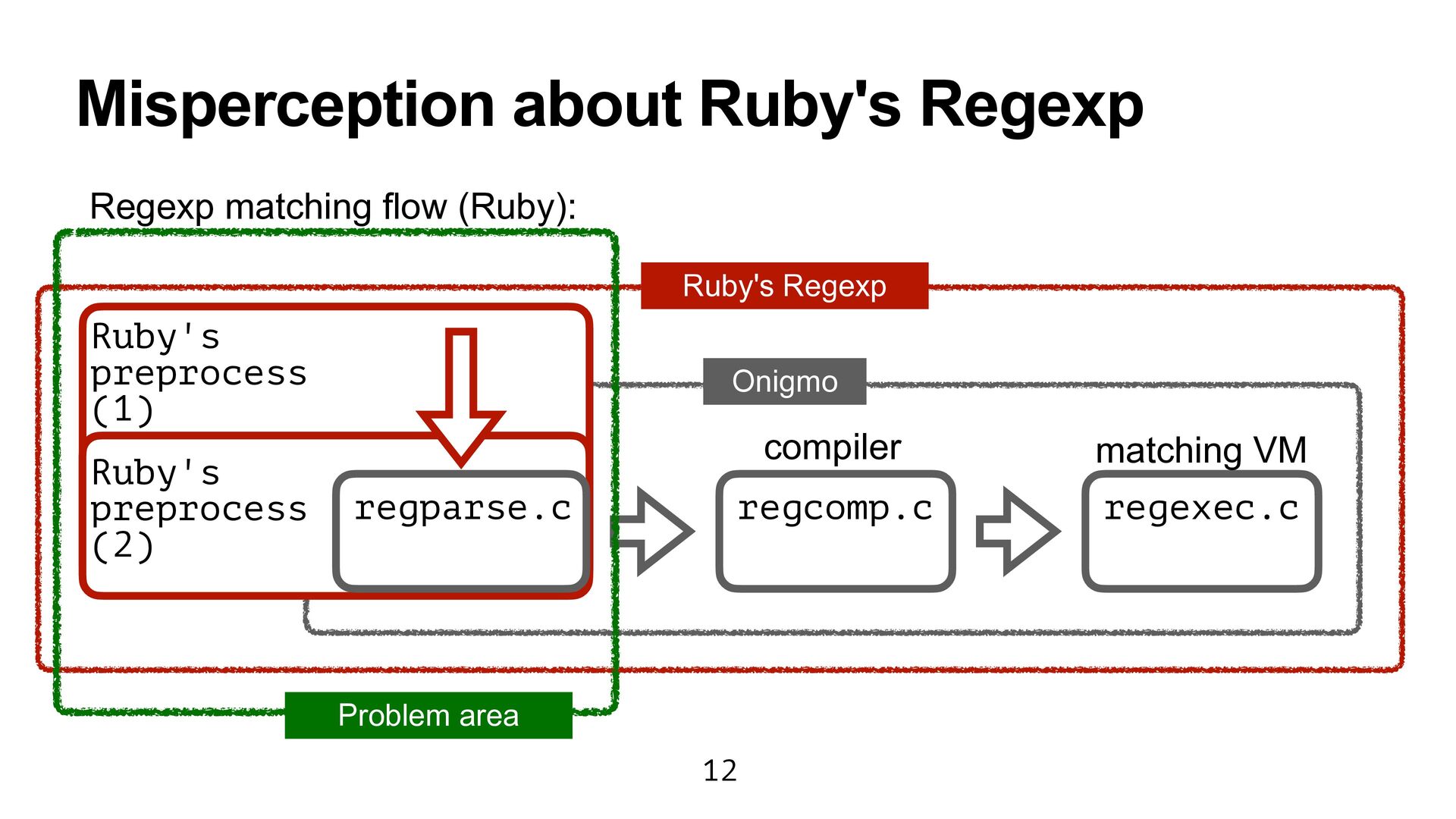

12. Misperception about Ruby's Regexp 12 regcomp.c regexec.c regparse.c matching VM Onigmo Regexp matching flow (Ruby): Ruby's preprocess (2) Ruby's preprocess (1) Ruby's Regexp compiler Problem area
13. We need a "Ruby-dedicated" Regexp engine!
14. Onigmo should be made over!
15. Let's start "Onigmo remake project"! Chapter 1 -Fin-

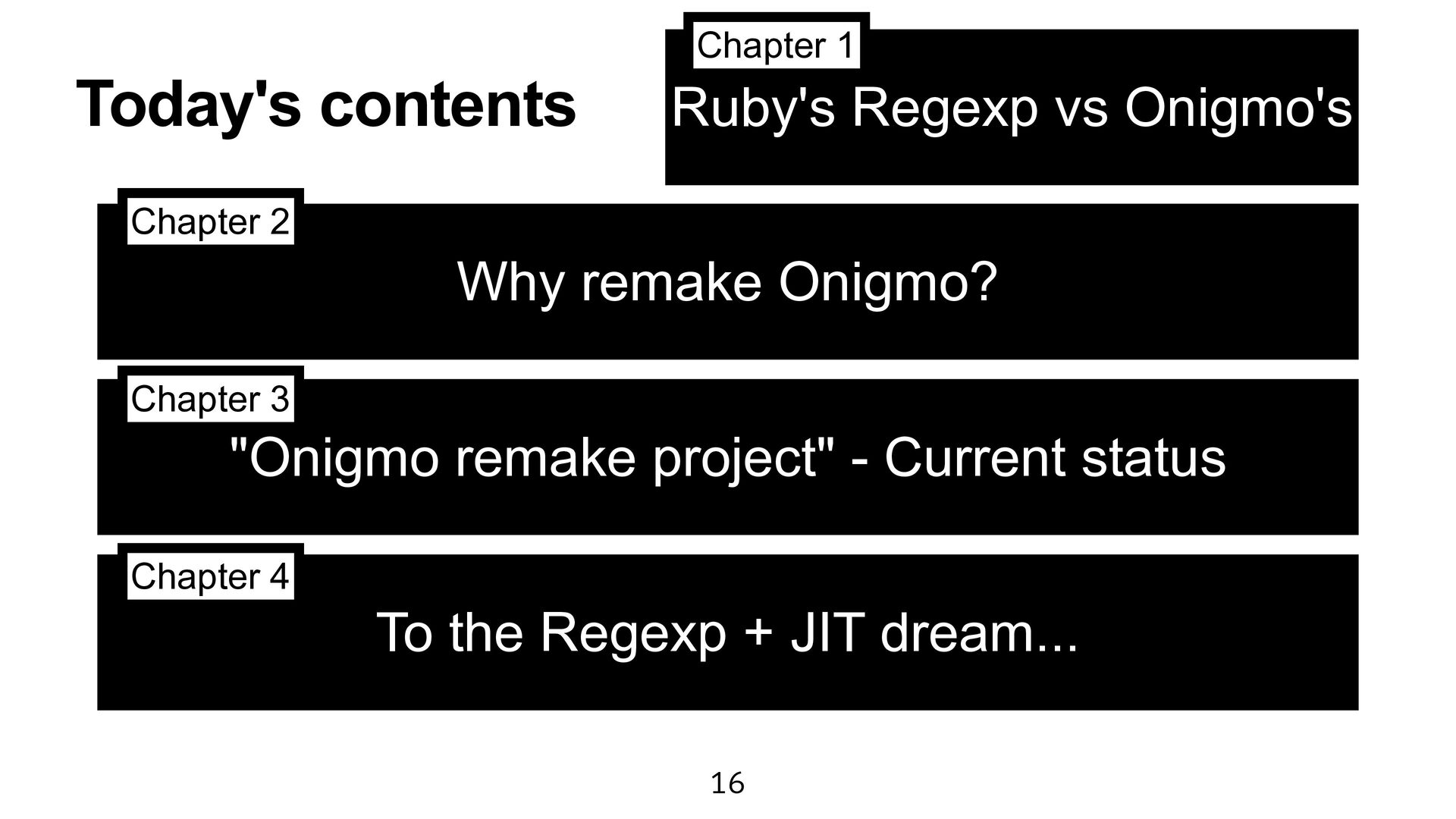

16. Today's contents 16 Why remake Onigmo? Chapter 2 "Onigmo remake project" - Current status Chapter 3 To the Regexp + JIT dream... Chapter 4 Ruby's Regexp vs Onigmo's Chapter 1
17. Ruby's Regexp preprocessing is crazy.
18. 1 pattern string requires 3 preprocessing + 1 true processing.

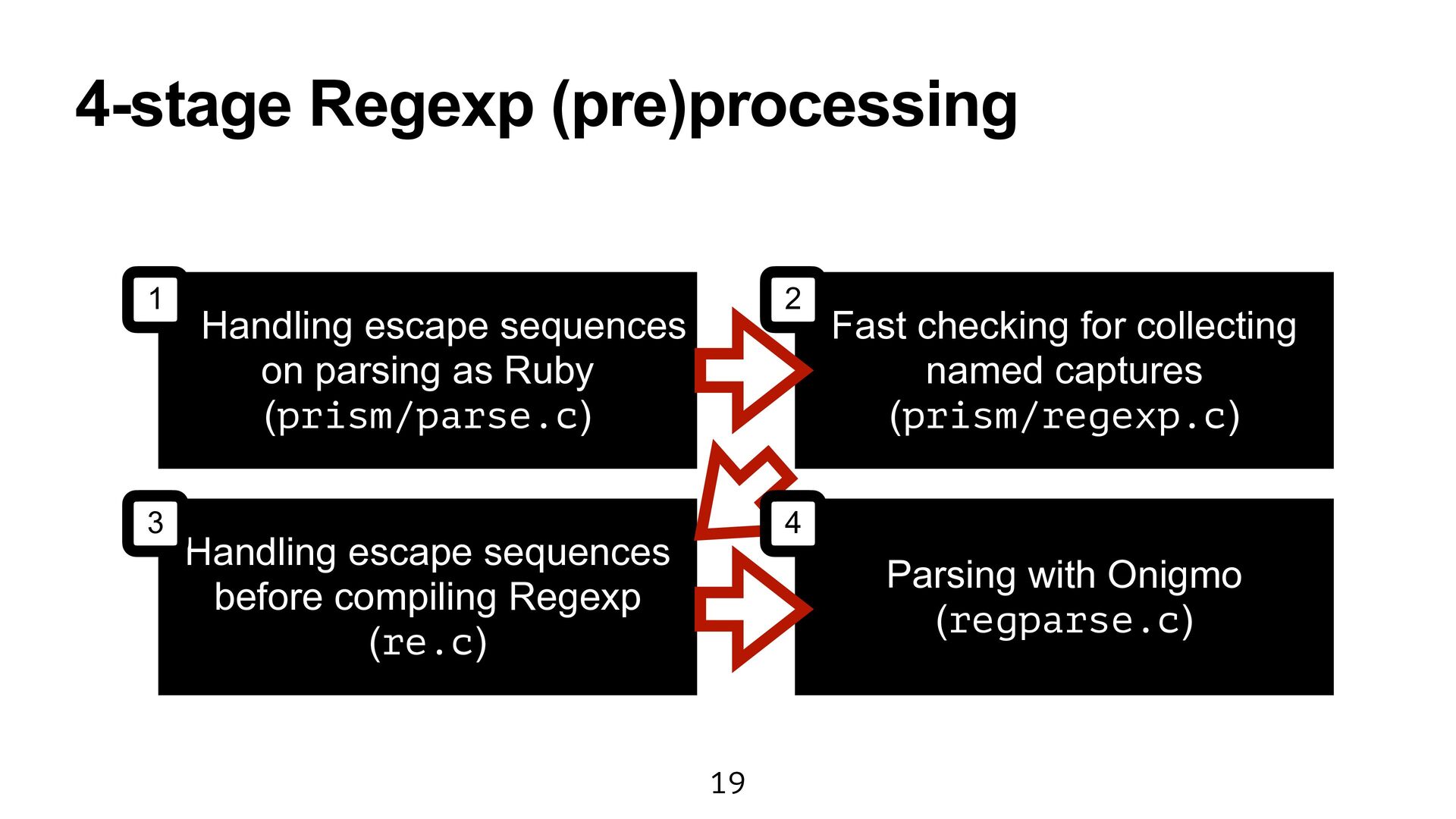

19. 4-stage Regexp (pre)processing 19 Handling escape sequences on parsing as Ruby (prism/parse.c) Handling escape sequences before compiling Regexp (re.c) Fast checking for collecting named captures (prism/regexp.c) Parsing with Onigmo (regparse.c) 1 2 3 4

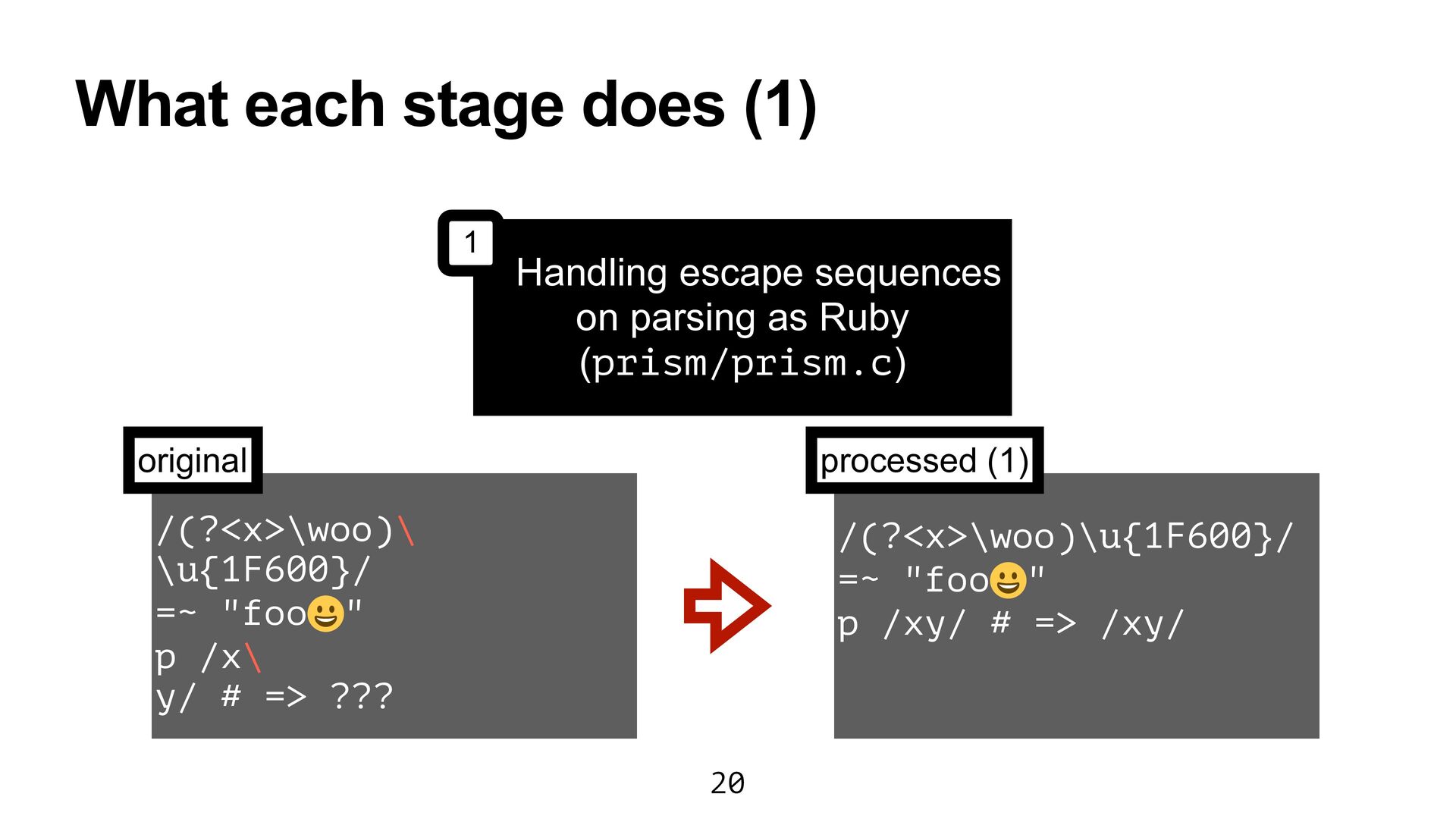

20. What each stage does (1) 20 Handling escape sequences on parsing as Ruby (prism/prism.c) 1 /(?<x>\woo)\ \u{1F600}/ =~ "foo " p /x\ y/ # => ??? original /(?<x>\woo)\u{1F600}/ =~ "foo " p /xy/ # => /xy/ processed (1)

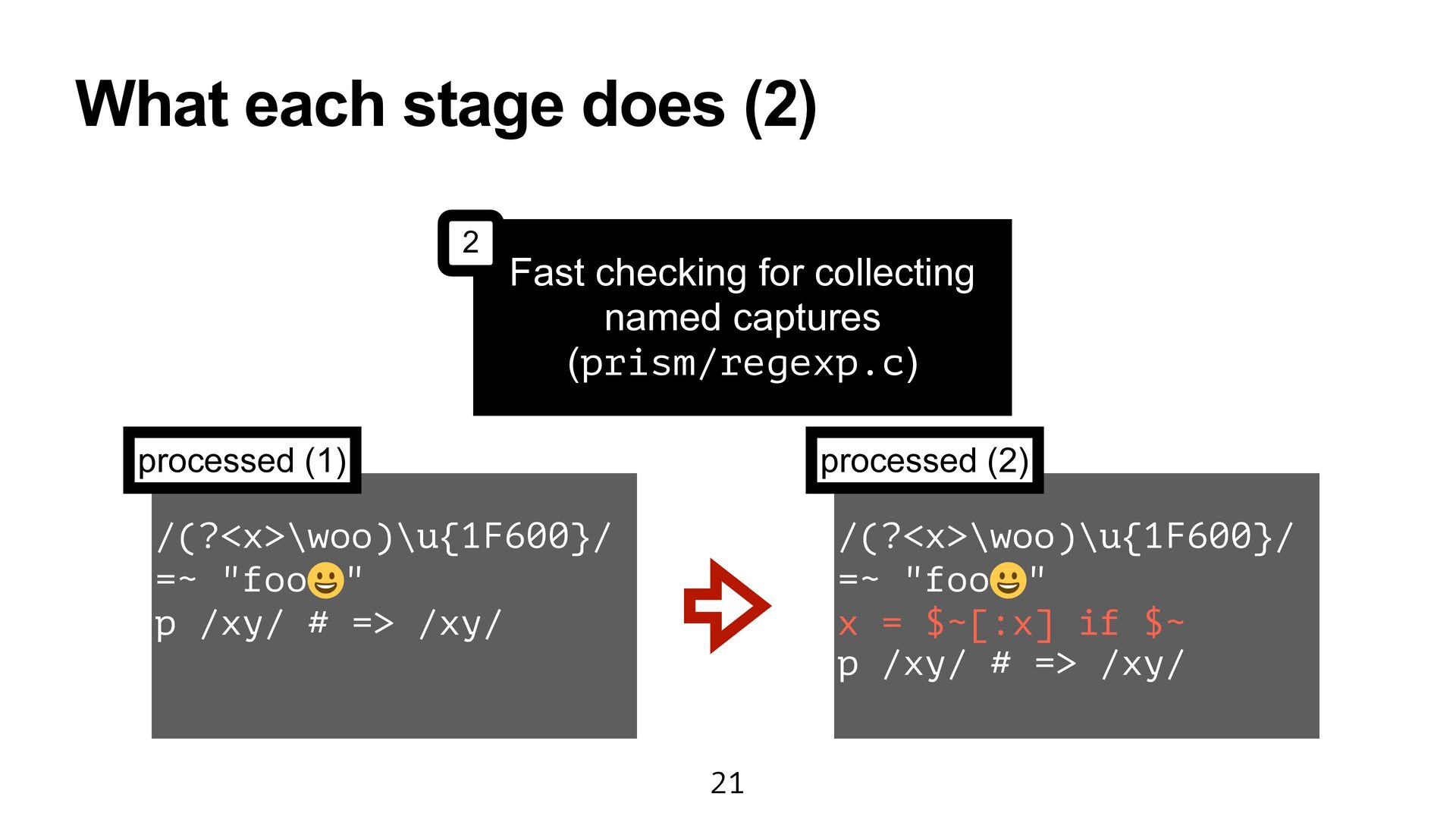

21. What each stage does (2) 21 Fast checking for collecting named captures (prism/regexp.c) 2 /(?<x>\woo)\u{1F600}/ =~ "foo " p /xy/ # => /xy/ processed (1) /(?<x>\woo)\u{1F600}/ =~ "foo " x = $~[:x] if $~ p /xy/ # => /xy/ processed (2)

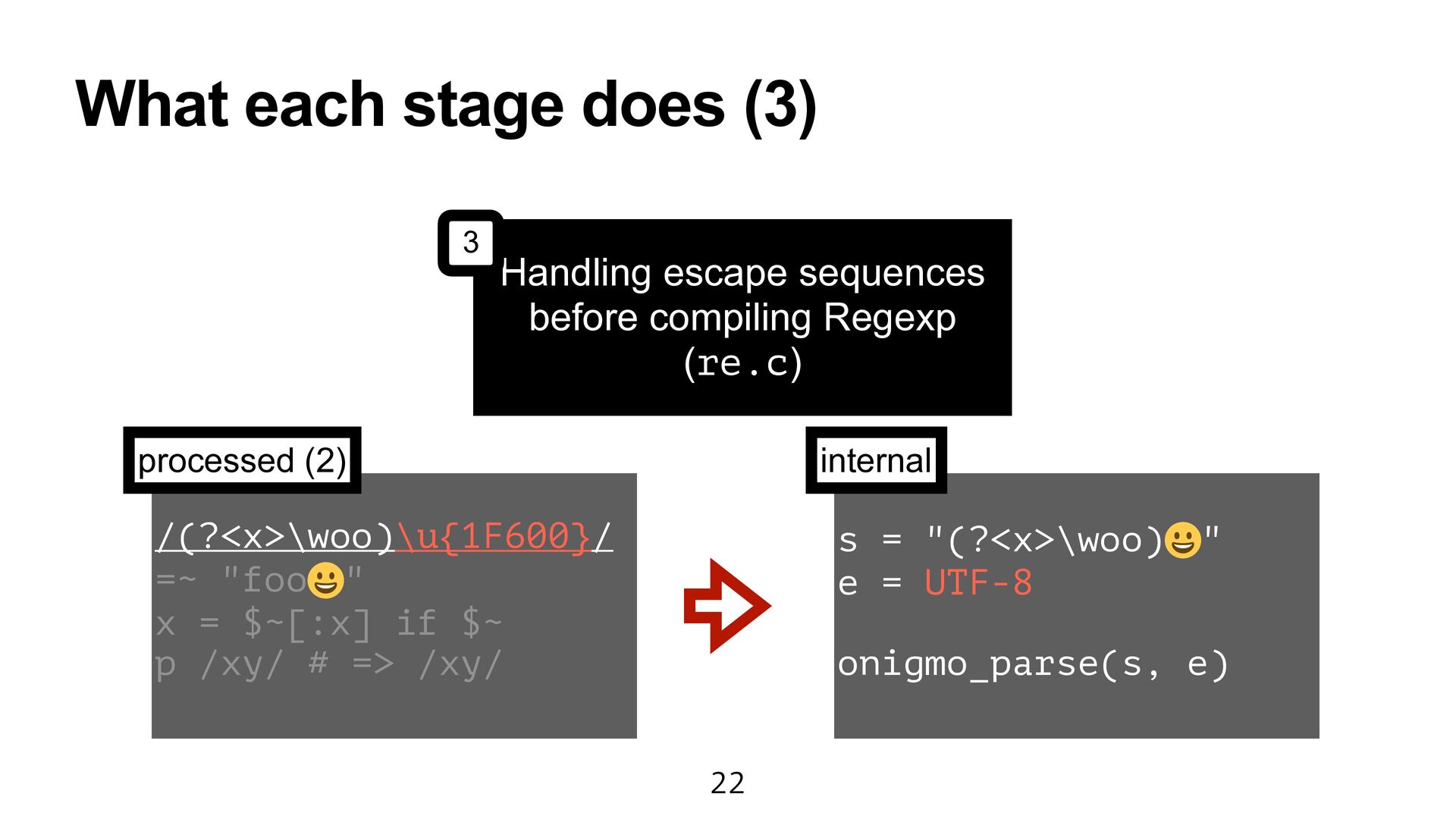

22. What each stage does (3) 22 Handling escape sequences before compiling Regexp (re.c) 3 /(?<x>\woo)\u{1F600}/ =~ "foo " x = $~[:x] if $~ p /xy/ # => /xy/ processed (2) s = "(?<x>\woo) " e = UTF-8 onigmo_parse(s, e) internal

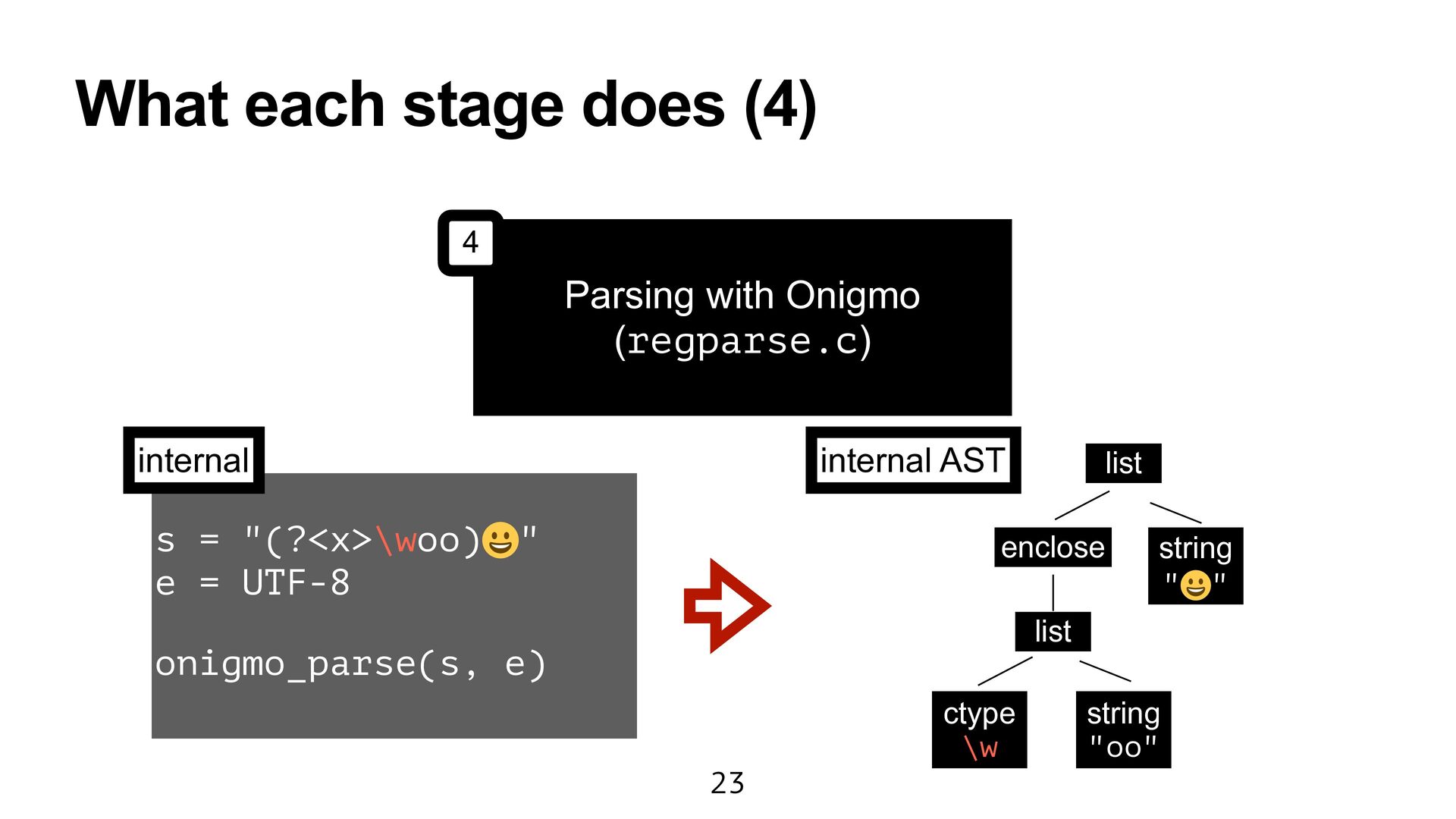

23. What each stage does (4) 23 Parsing with Onigmo (regparse.c) 4 s = "(?<x>\woo) " e = UTF-8 onigmo_parse(s, e) internal list enclose string "oo" string " " list ctype \w internal AST

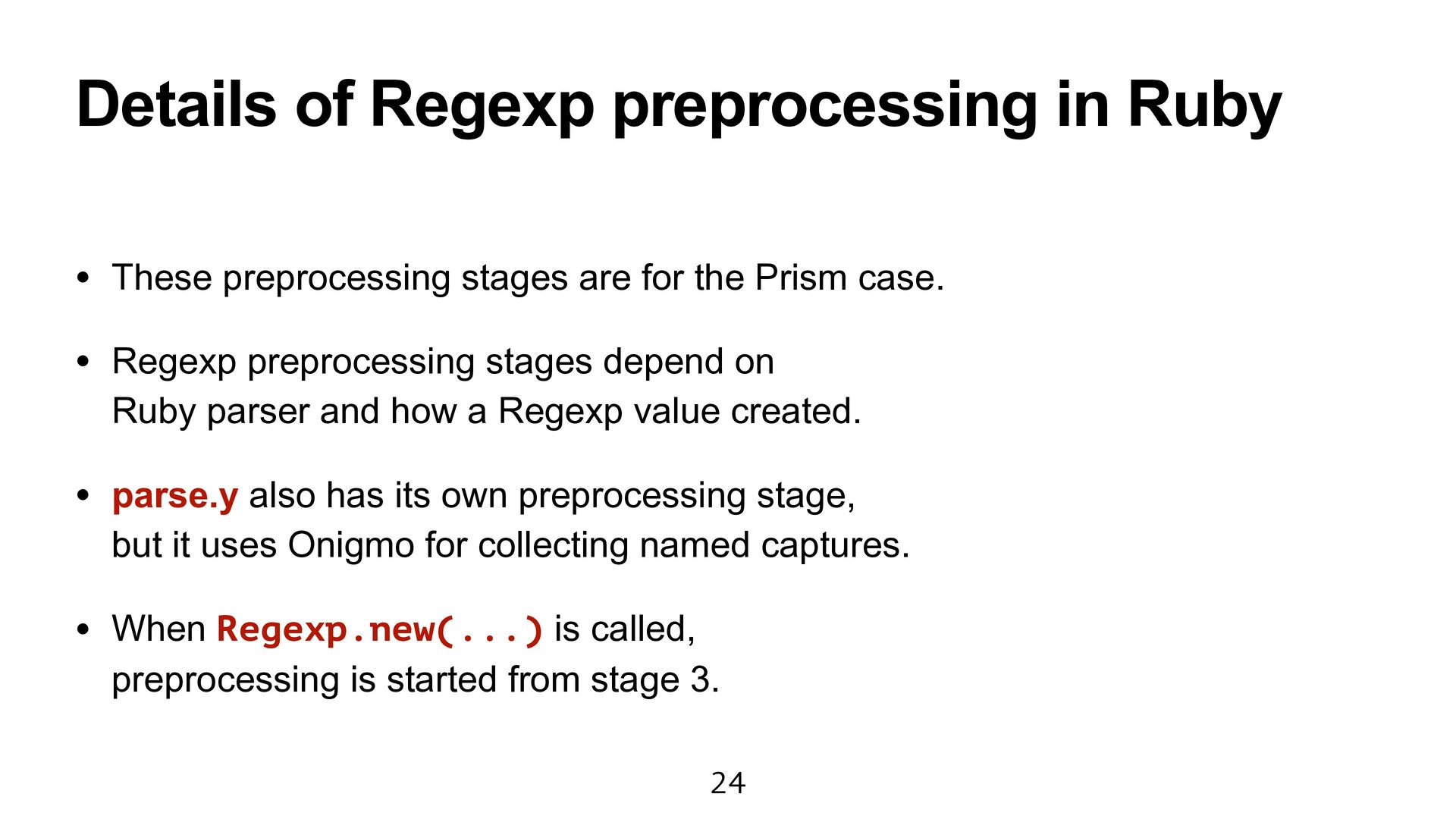

24. Details of Regexp preprocessing in Ruby • These preprocessing stages are for the Prism case. • Regexp preprocessing stages depend on Ruby parser and how a Regexp value created. • parse.y also has its own preprocessing stage, but it uses Onigmo for collecting named captures. • When Regexp.new(...) is called, preprocessing is started from stage 3. 24

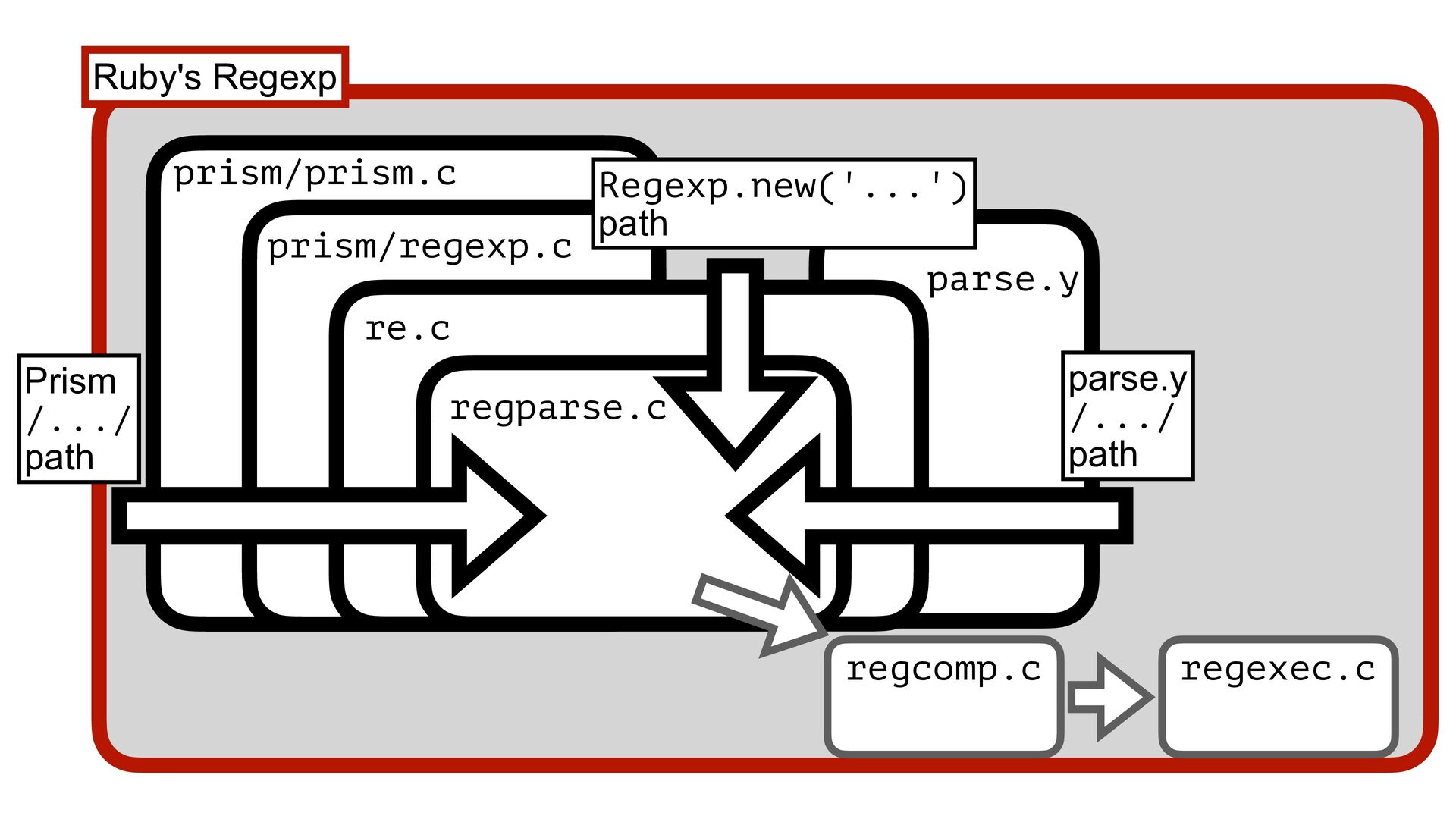

25. prism/prism.c prism/regexp.c re.c Prism /.../ path Regexp.new('...') path regparse.c parse.y /.../ path parse.y Ruby's Regexp regcomp.c regexec.c
26. Preprocessing chaos

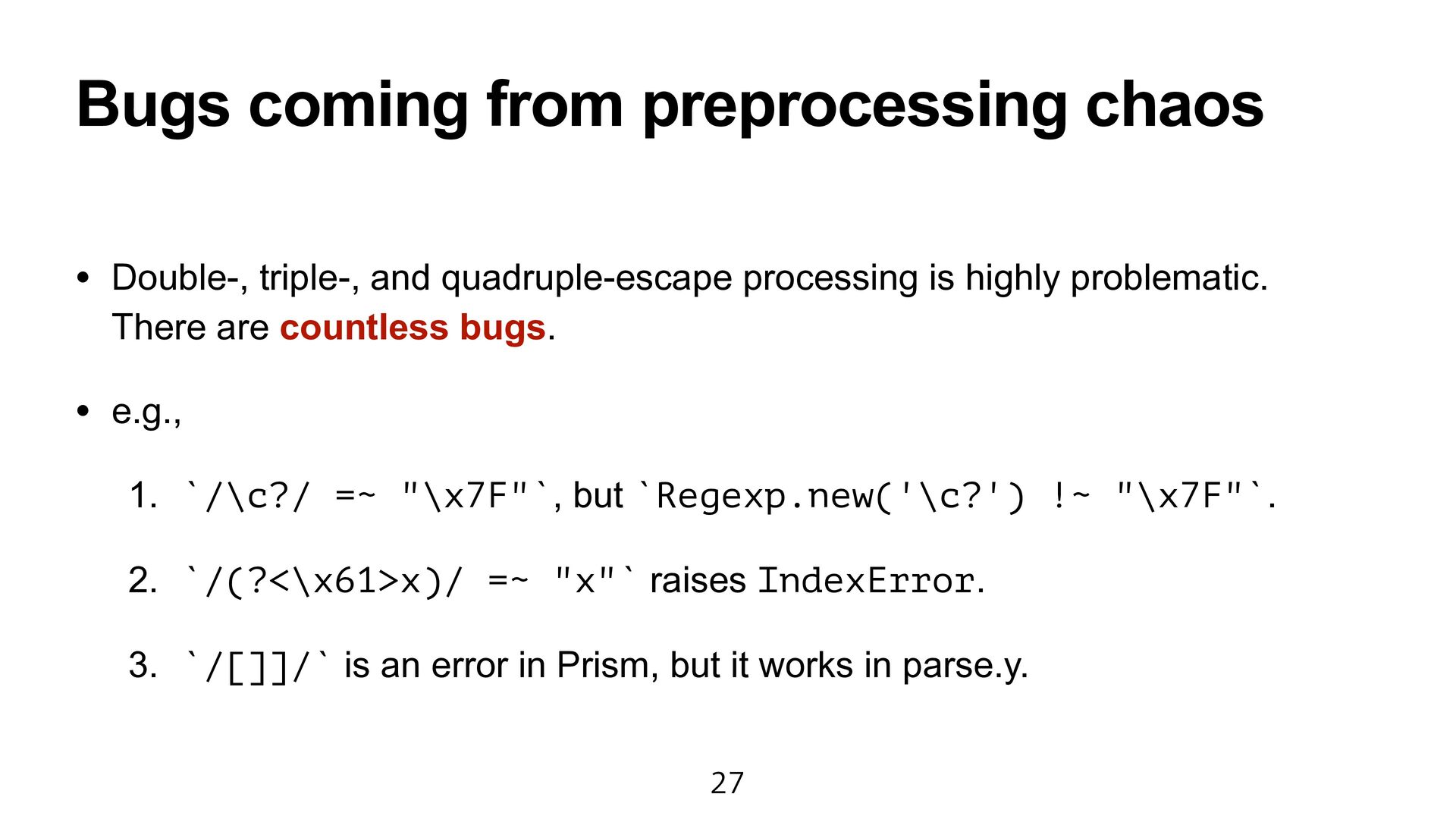

27. Bugs coming from preprocessing chaos • Double-, triple-, and quadruple-escape processing is highly problematic. There are countless bugs. • e.g., 1. `/\c?/ =~ "\x7F"`, but `Regexp.new('\c?') !~ "\x7F"`. 2. `/(?<\x61>x)/ =~ "x"` raises IndexError. 3. `/[]]/` is an error in Prism, but it works in parse.y. 27

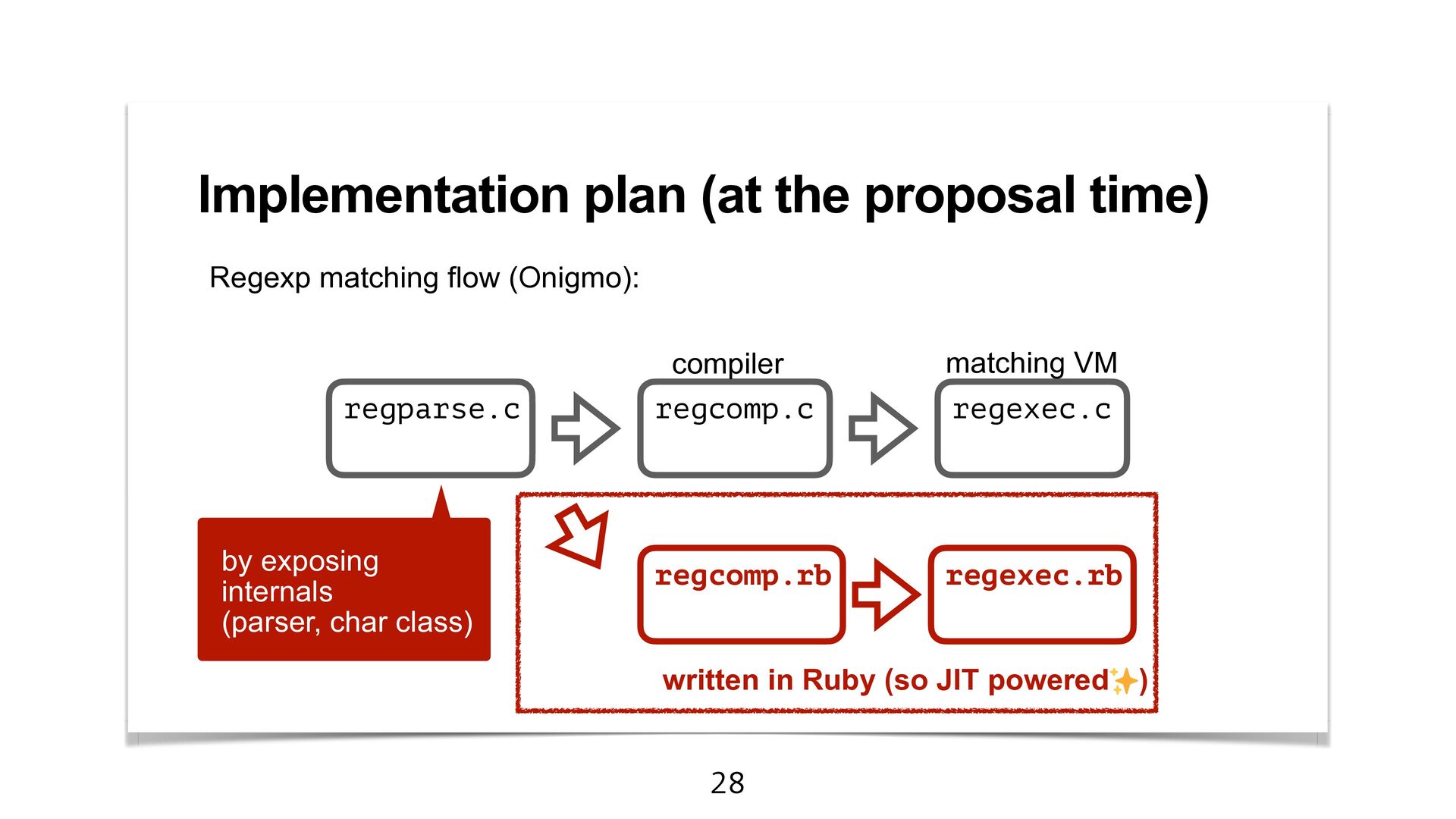

28. 28 Implementation plan (at the proposal time) 9 regcomp.c regexec.c regparse.c Regexp matching flow (Onigmo): regcomp.rb regexec.rb written in Ruby (so JIT powered ) by exposing internals (parser, char class) compiler matching VM
29. Onigmo.parse ?
30. Onigmo's Regexp ≠ Ruby's Regexp
31. Onigmo.parse Regexp.parse

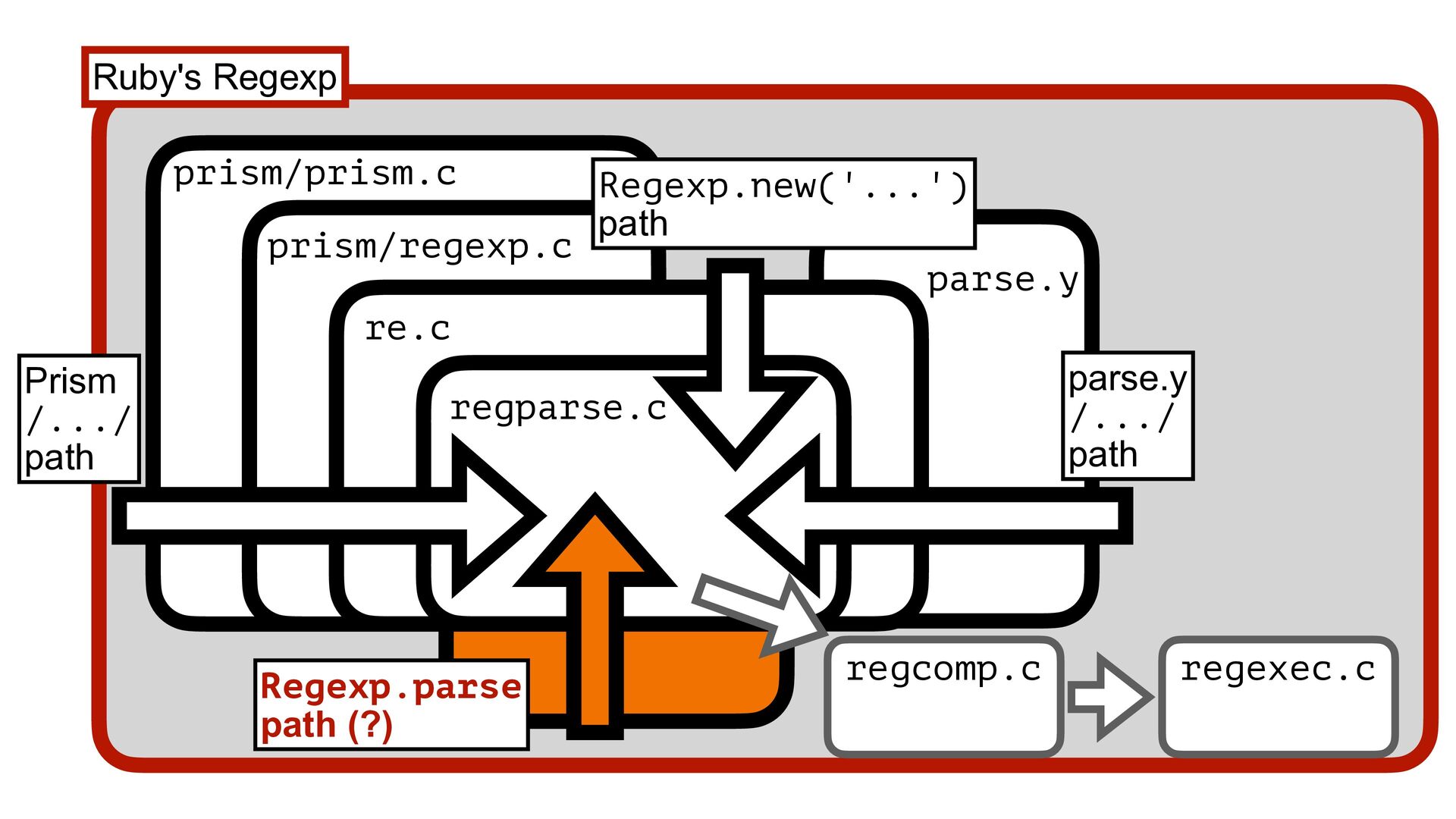

32. prism/prism.c prism/regexp.c re.c Prism /.../ path Regexp.new('...') path regparse.c parse.y /.../ path parse.y Ruby's Regexp regcomp.c regexec.c Regexp.parse path (?)
33. Seriously?

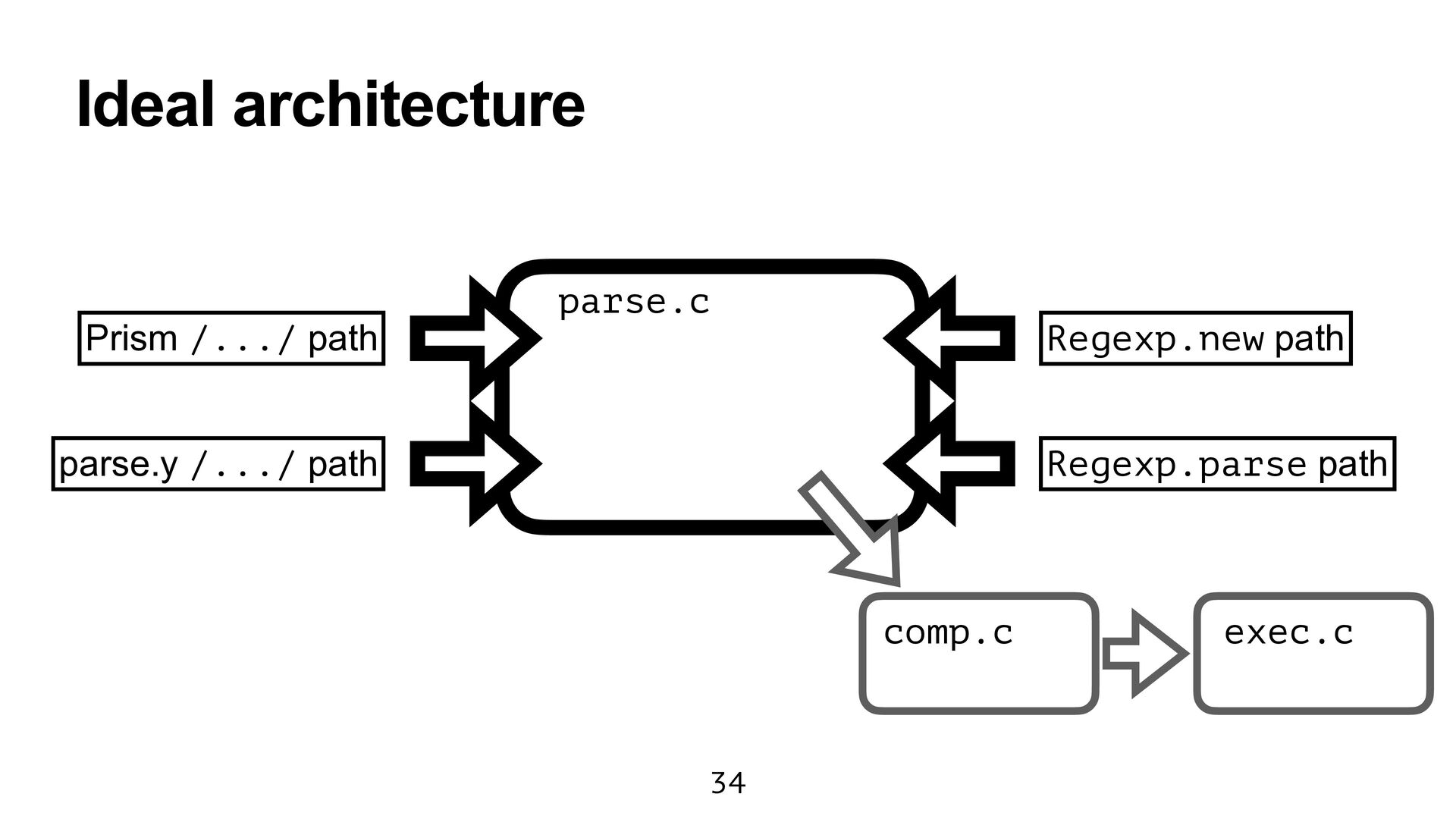

34. Ideal architecture 34 Prism /.../ path parse.y /.../ path Regexp.new path Regexp.parse path comp.c exec.c parse.c
35. Onigmo is a Regexp engine not only for Ruby.
36. We need a "Ruby-dedicated" Regexp engine!
37. Do you understand?
38. Do you wanna remake Onigmo? Chapter 2 -Fin-
39. Today's contents 39 Why remake Onigmo? Chapter 2 "Onigmo remake project" - Current status Chapter 3 To the Regexp + JIT dream... Chapter 4 Ruby's Regexp vs Onigmo's Chapter 1
40. Project Naraku 5IF
    0OJHNP
    3FNBLF
    1SPKFDU

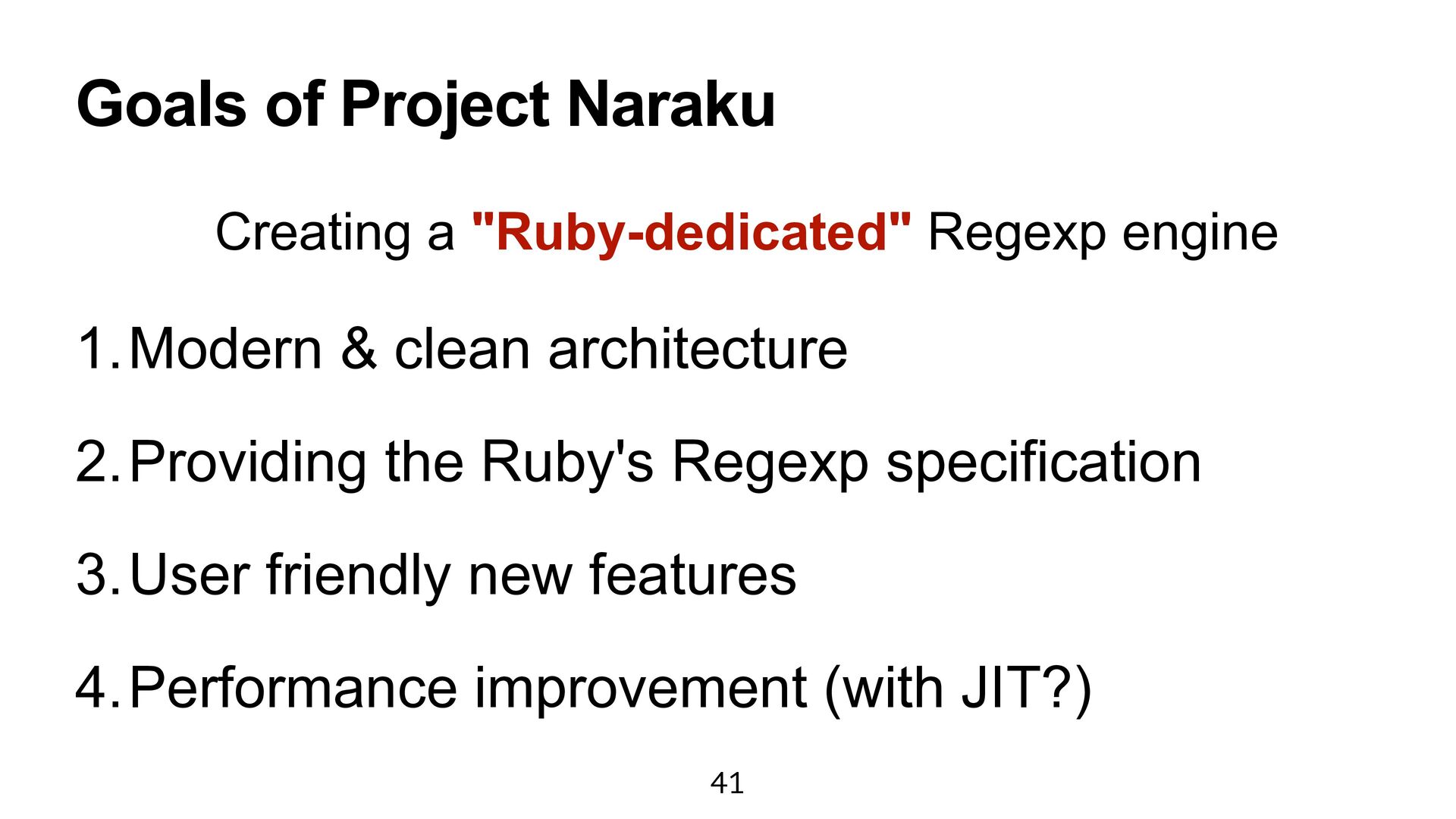

41. Goals of Project Naraku 1.Modern & clean architecture 2.Providing the Ruby's Regexp specification 3.User friendly new features 4.Performance improvement (with JIT?) 41 Creating a "Ruby-dedicated" Regexp engine
42. Goals of Project Naraku 1.Modern & clean architecture 2.Providing the Ruby's Regexp specification 3.User friendly new features 4.Performance improvement (with JIT?) 42 Creating a "Ruby-dedicated" Regexp engine

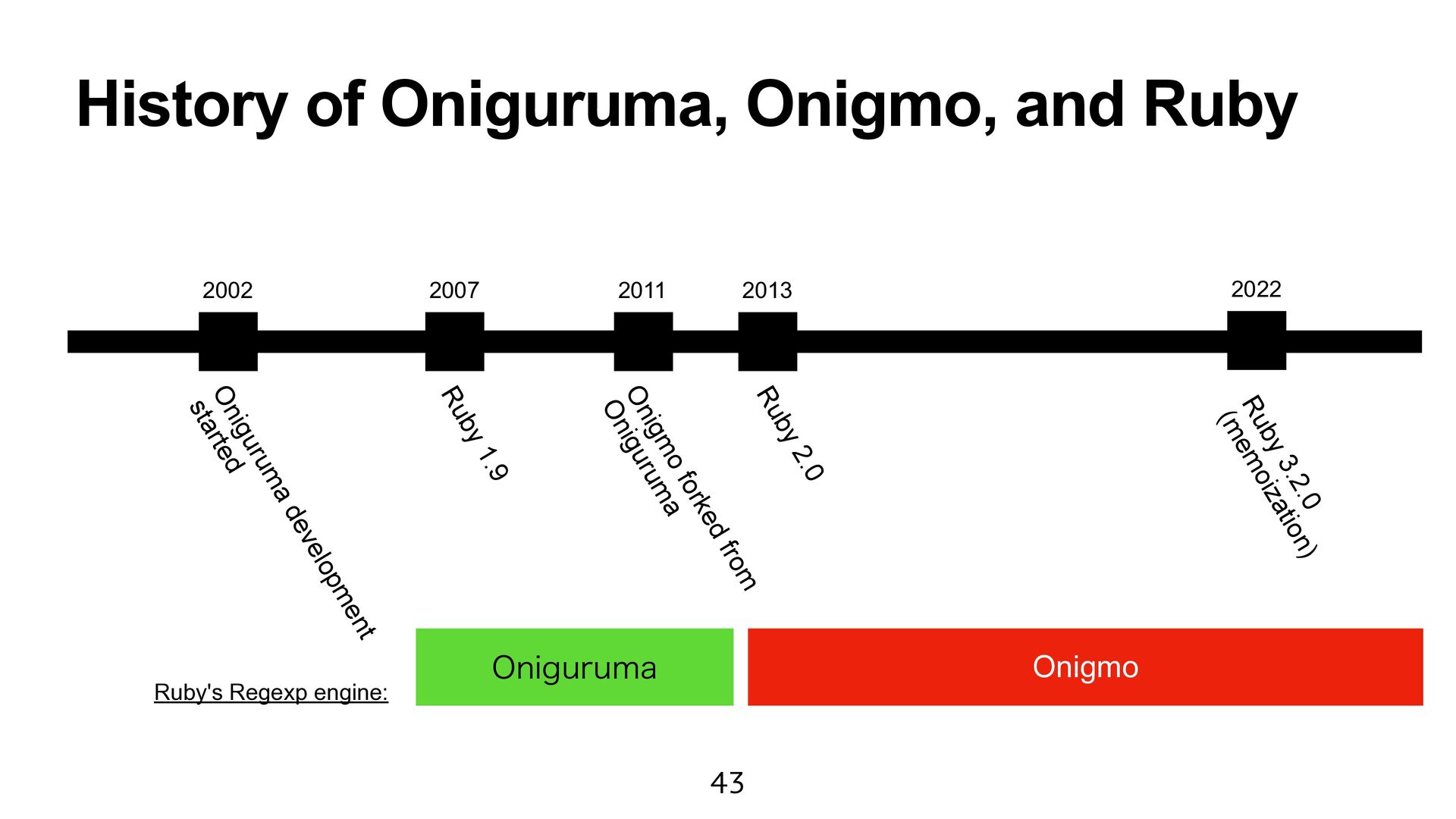

43. History of Oniguruma, Onigmo, and Ruby 43 Oniguruma development started Ruby 1.9 2002 2007 2011 Onigmo forked from Oniguruma 2013 Ruby 2.0 0OJHVSVNB Onigmo 2022 Ruby 3.2.0 (memoization) Ruby's Regexp engine:

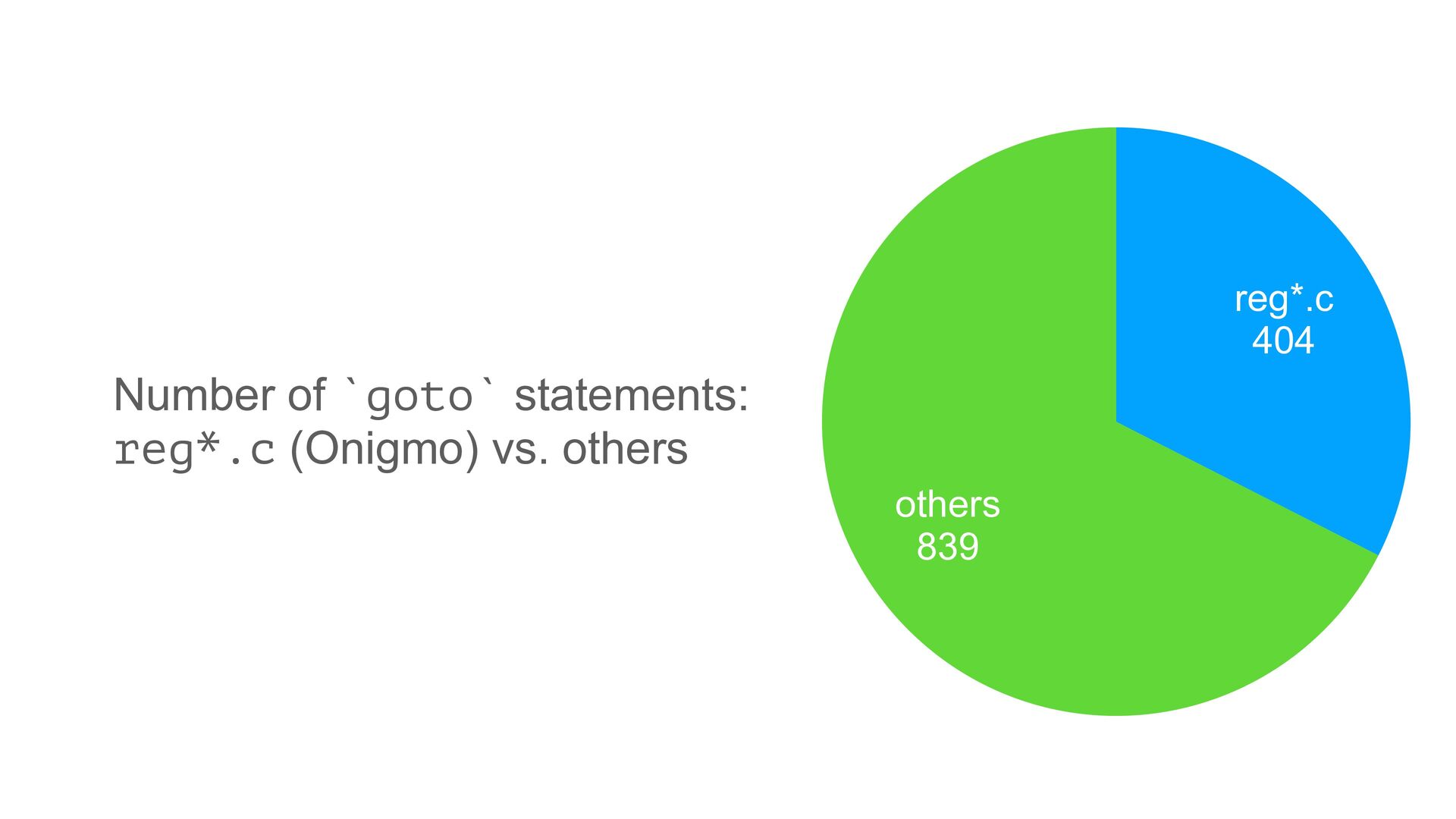

44. others 839 reg*.c 404 Number of `goto` statements: reg*.c (Onigmo) vs. others
45. `goto` hell

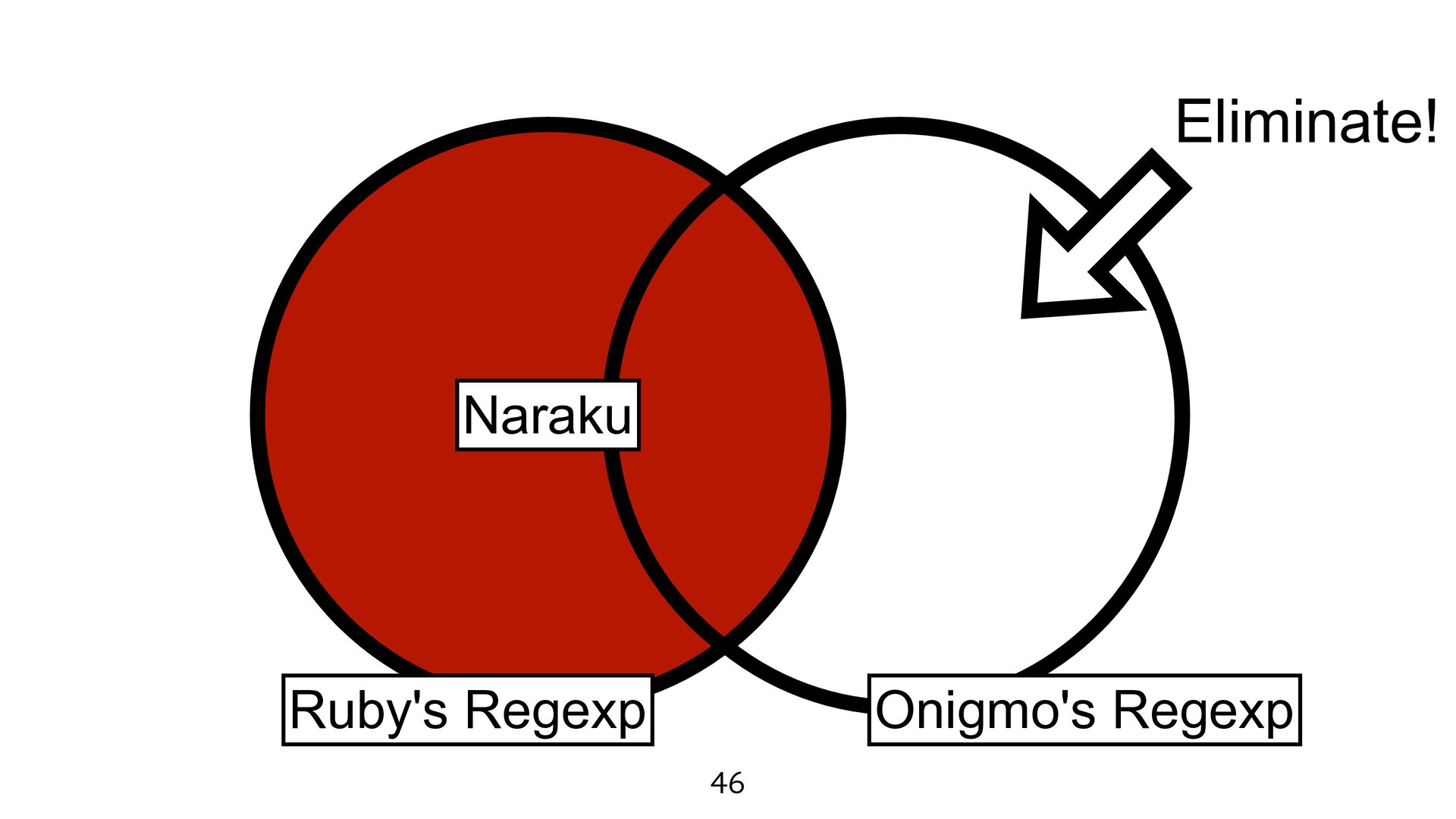

46. 46 Ruby's Regexp Eliminate! Onigmo's Regexp Naraku

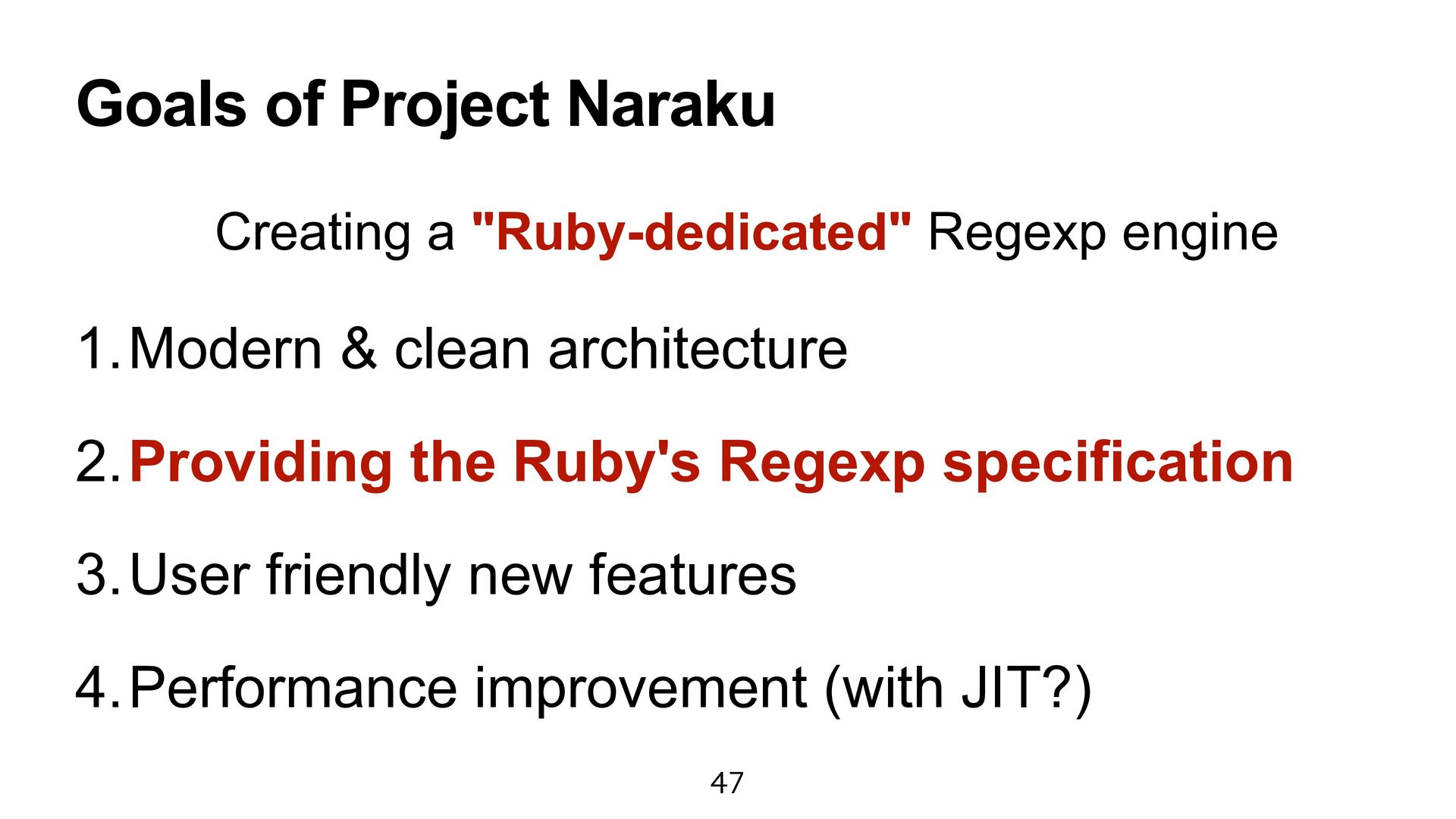

47. Goals of Project Naraku 1.Modern & clean architecture 2.Providing the Ruby's Regexp specification 3.User friendly new features 4.Performance improvement (with JIT?) 47 Creating a "Ruby-dedicated" Regexp engine
48. "Compatibiltiy" Myth
49. Ruby's Regexp only in our brains/recognition

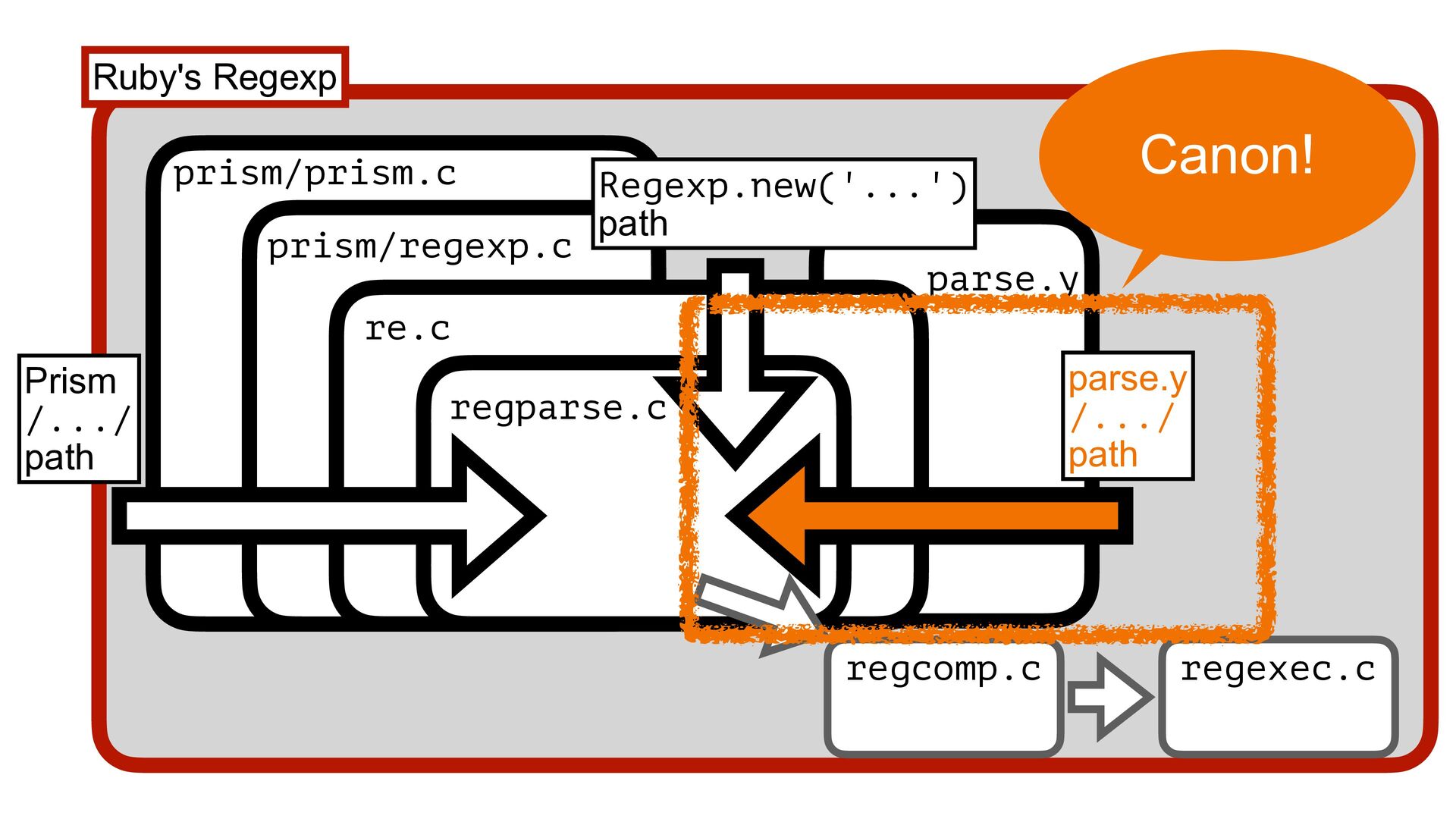

50. prism/prism.c prism/regexp.c re.c Prism /.../ path Regexp.new('...') path regparse.c parse.y /.../ path parse.y Ruby's Regexp regcomp.c regexec.c Canon!
51. Goals of Project Naraku 1.Modern & clean architecture 2.Fix the Ruby's Regexp behavior 3.User friendly new features 4.Performance improvement (with JIT?) 51 Creating a "Ruby-dedicated" Regexp engine
52. `i` flag is complex due to Unicode full case folding
53. /(?i)Straße/ matches 704 variants.

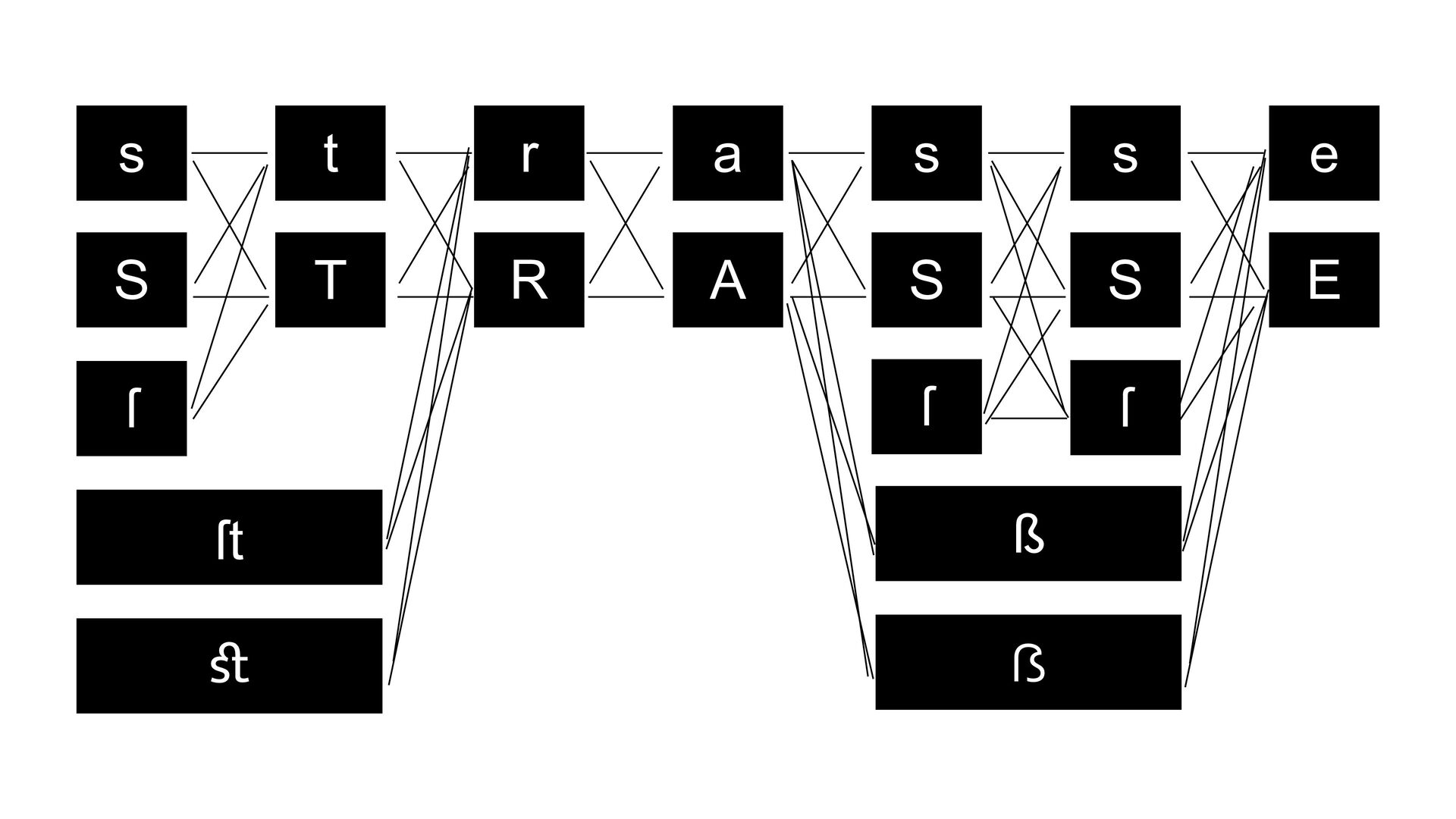

54. s t r a s s e S T R A S S E ſ ſt st ſ ß ẞ ſ
55. Introduce `I` flag ASCII only case-folding
56. Goals of Project Naraku 1.Modern & clean architecture 2.Providing the Ruby's Regexp specification 3.User friendly new features 4.Performance improvement (with JIT?) 56 Creating a "Ruby-dedicated" Regexp engine
57. Current status of Project Naraku
58. https://github.com/ makenowjust/naraku

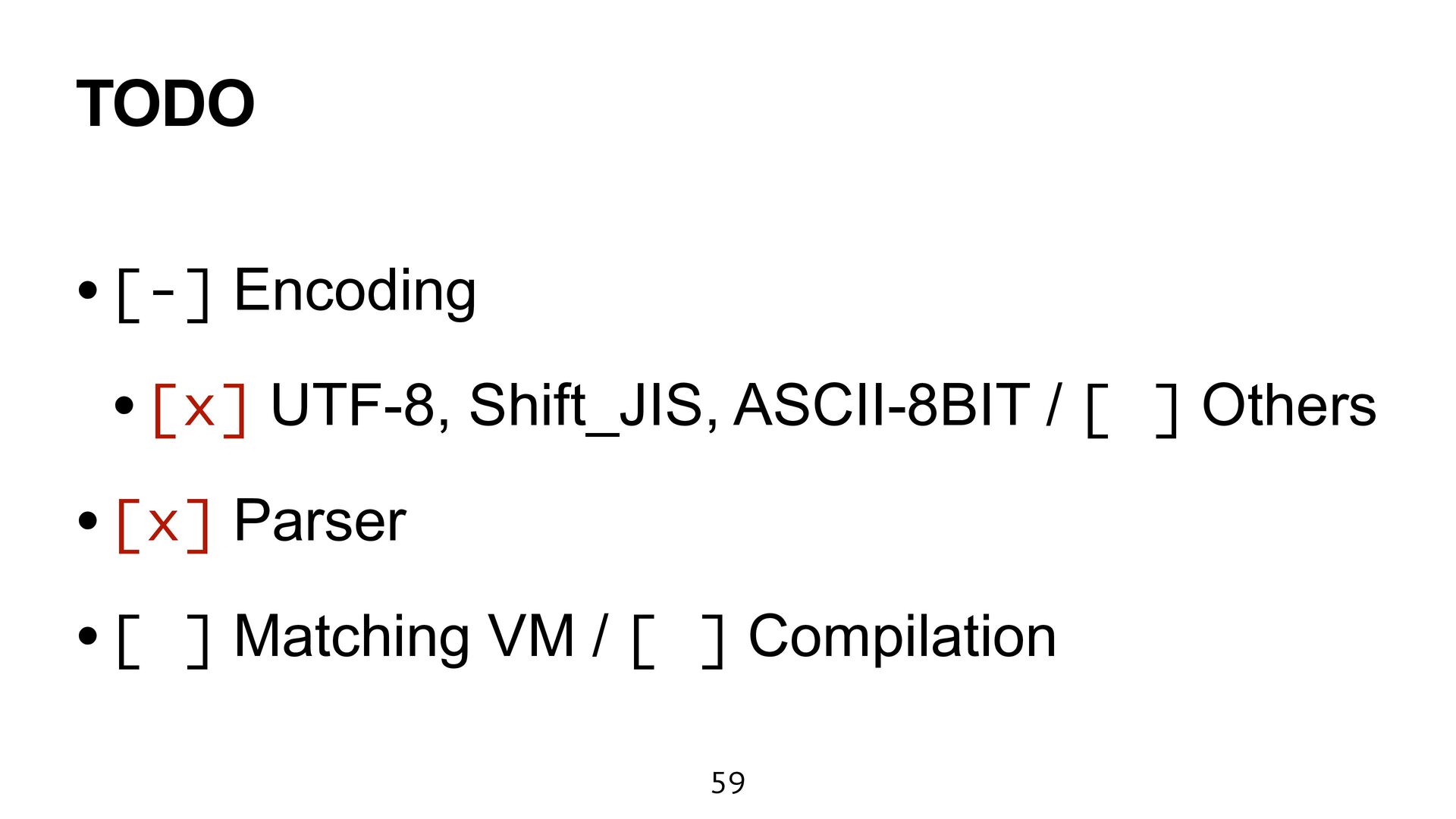

59. TODO •[-] Encoding •[x] UTF-8, Shift_JIS, ASCII-8BIT / [ ] Others •[x] Parser •[ ] Matching VM / [ ] Compilation 59
60. Parser is implemeted.

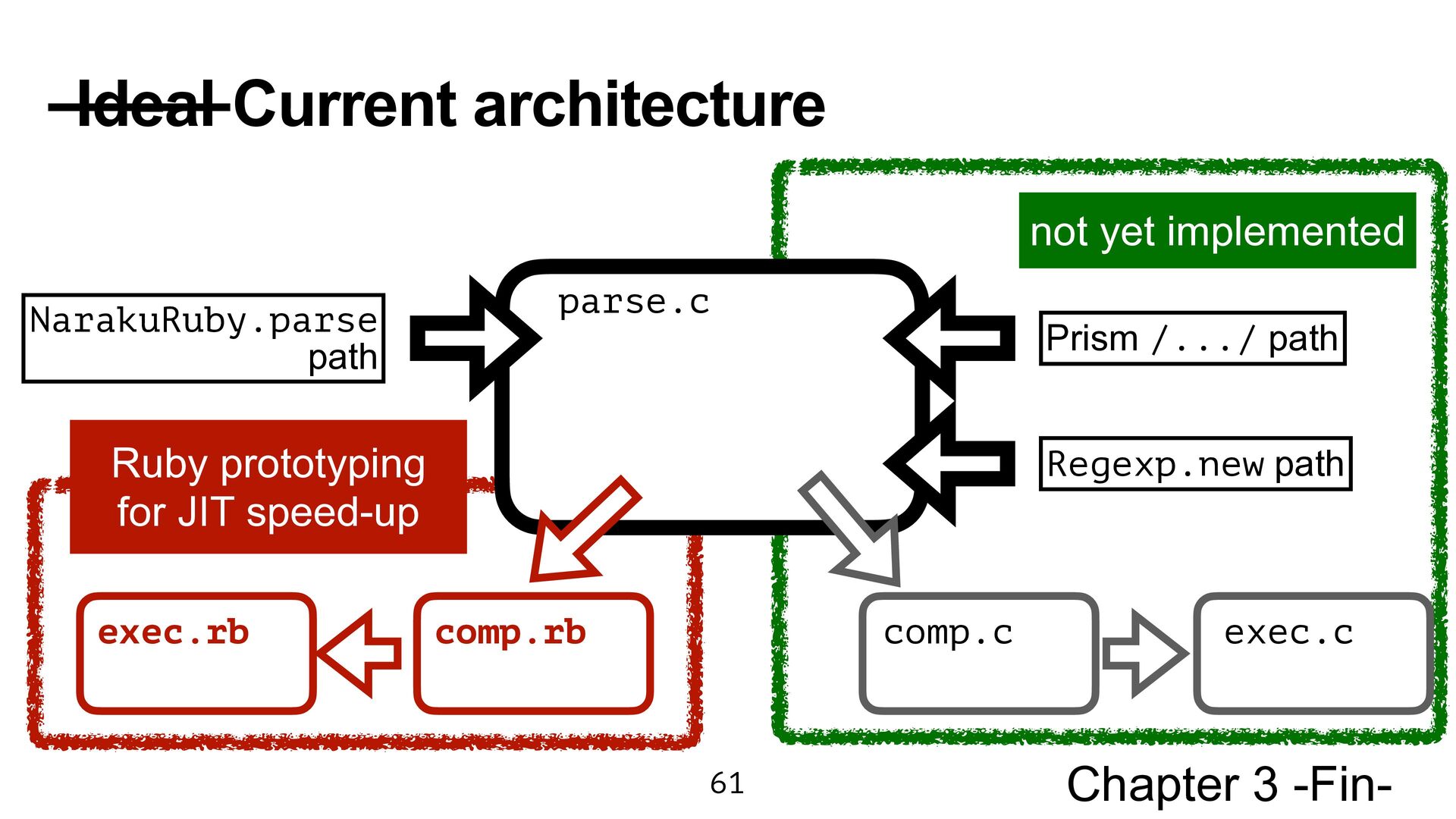

61. Ideal Current architecture 61 NarakuRuby.parse path Prism /.../ path Regexp.new path comp.c exec.c parse.c not yet implemented Ruby prototyping for JIT speed-up comp.rb exec.rb Chapter 3 -Fin-
62. Today's contents 62 Why remake Onigmo? Chapter 2 "Onigmo remake project" - Current status Chapter 3 To the Regexp + JIT dream... Chapter 4 Ruby's Regexp vs Onigmo's Chapter 1
63. Goals of Project Naraku 1.Modern & clean architecture 2.Providing the Ruby's Regexp specification 3.User friendly new features 4.Performance improvement (with JIT?) 63 Creating a "Ruby-dedicated" Regexp engine

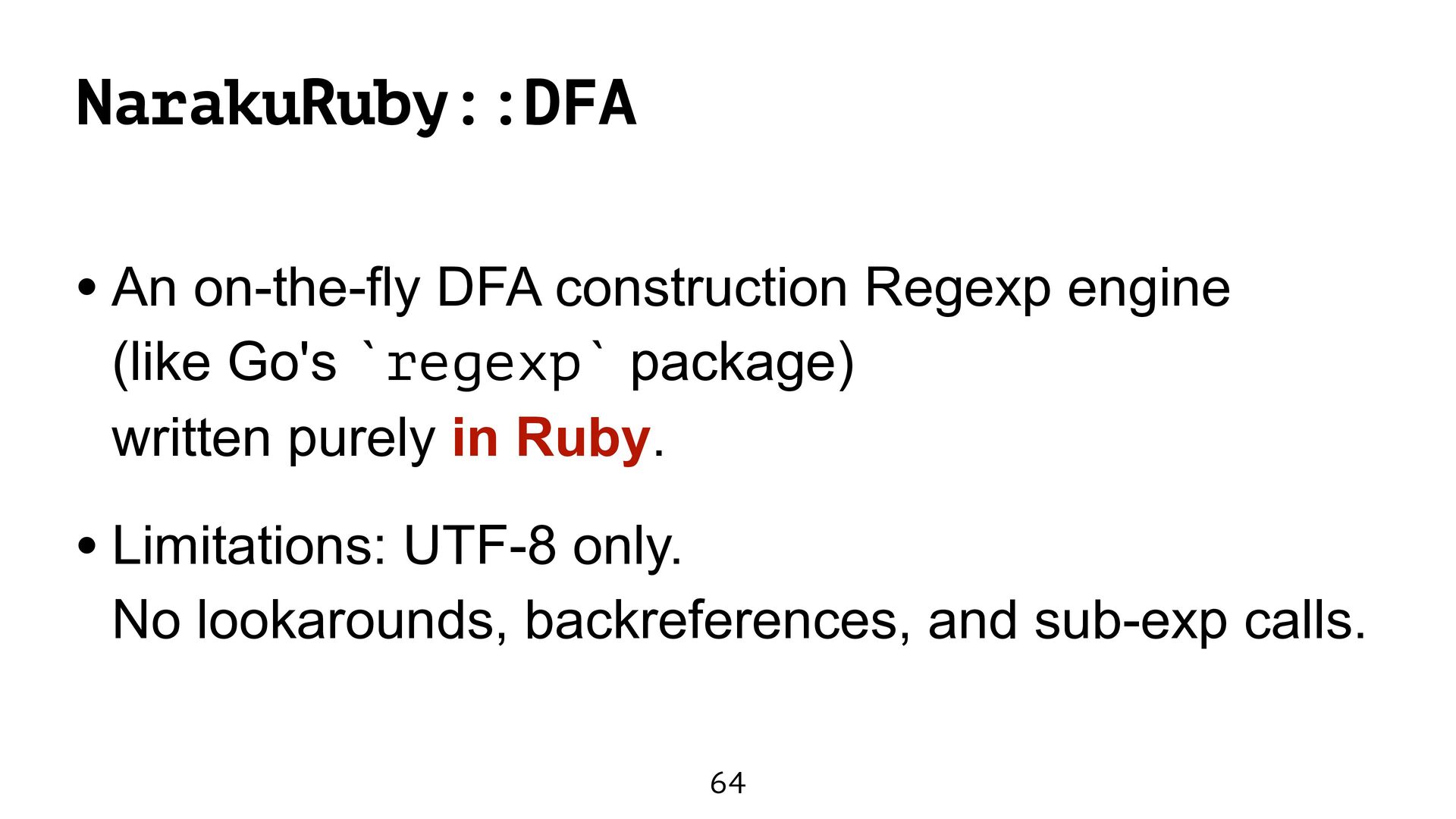

64. NarakuRuby::DFA • An on-the-fly DFA construction Regexp engine (like Go's `regexp` package) written purely in Ruby. • Limitations: UTF-8 only. No lookarounds, backreferences, and sub-exp calls. 64

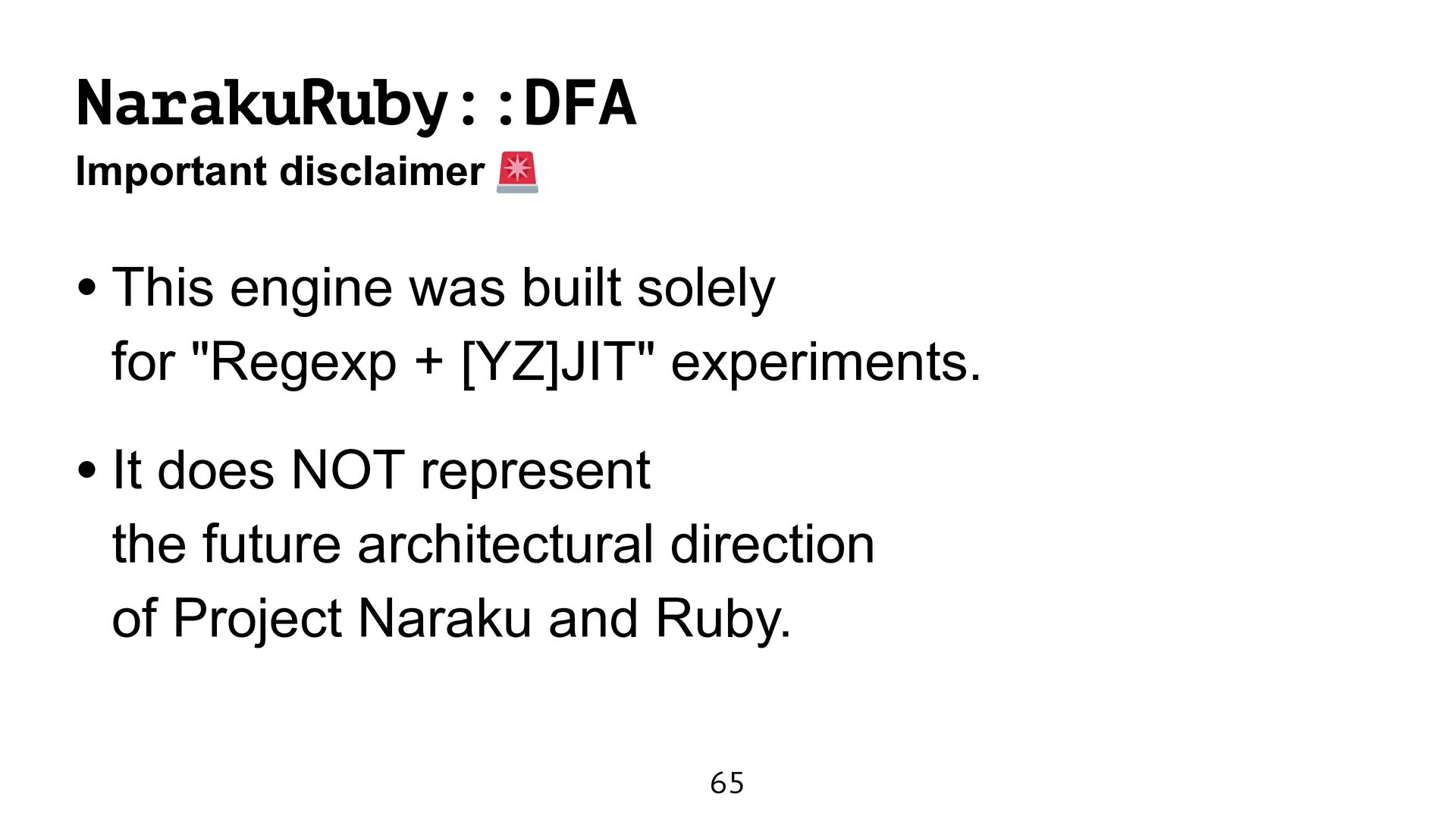

65. NarakuRuby::DFA Important disclaimer • This engine was built solely for "Regexp + [YZ]JIT" experiments. • It does NOT represent the future architectural direction of Project Naraku and Ruby. 65

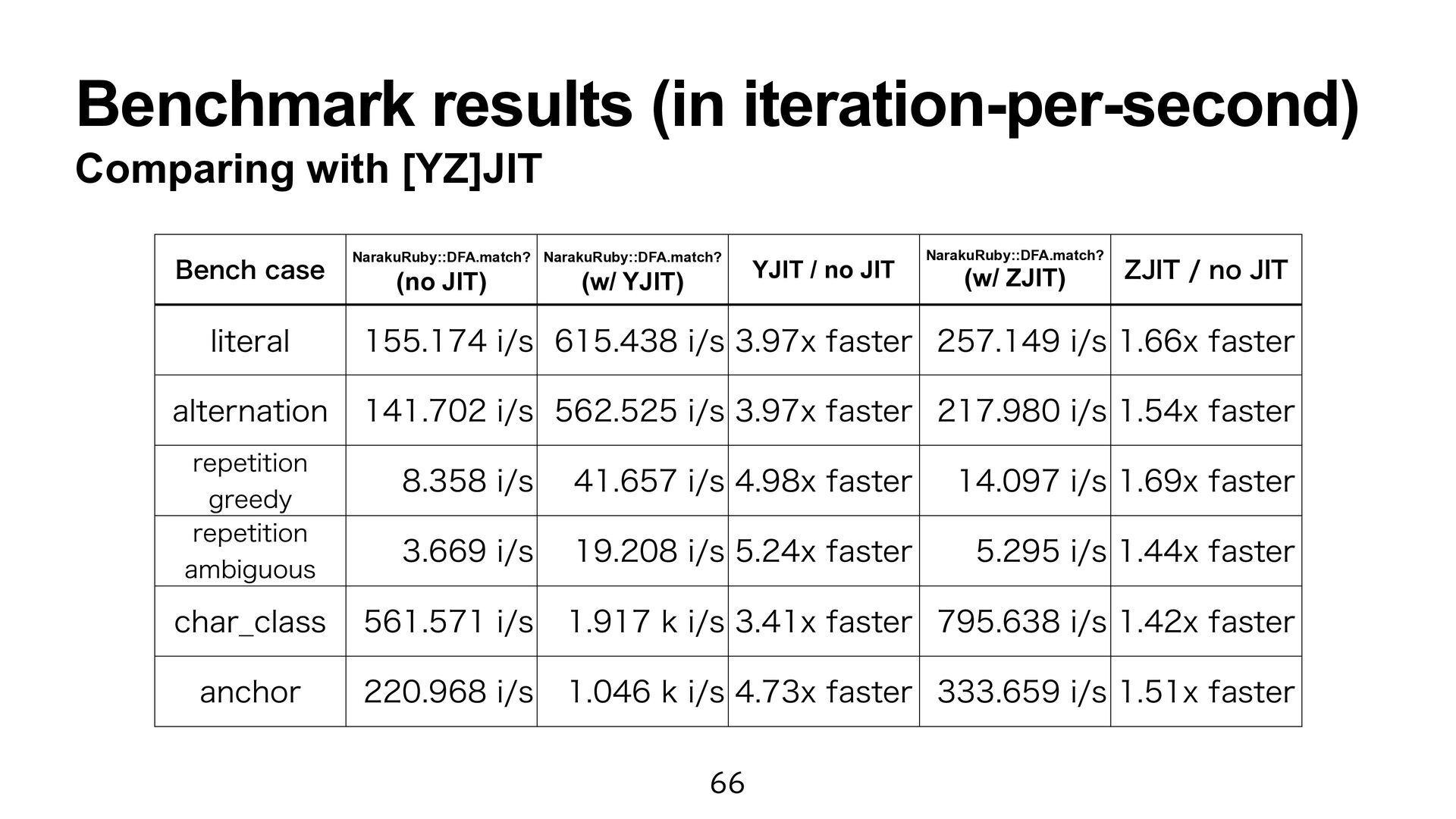

66. Benchmark results (in iteration-per-second) 66 #FODI
    DBTF NarakuRuby::DFA.match? (no JIT) NarakuRuby::DFA.match? (w/ YJIT) YJIT / no JIT NarakuRuby::DFA.match? (w/ ZJIT) ;+*5

    OP
    +*5 MJUFSBM
    JT
    JT Y
    GBTUFS
    JT Y
    GBTUFS BMUFSOBUJPO
    JT
    JT Y
    GBTUFS
    JT Y
    GBTUFS SFQFUJUJPO
    HSFFEZ
    JT
    JT Y
    GBTUFS
    JT Y
    GBTUFS SFQFUJUJPO
    BNCJHVPVT
    JT
    JT Y
    GBTUFS
    JT Y
    GBTUFS DIBS@DMBTT
    JT
    L
    JT Y
    GBTUFS
    JT Y
    GBTUFS BODIPS
    JT
    L
    JT Y
    GBTUFS
    JT Y
    GBTUFS Comparing with [YZ]JIT

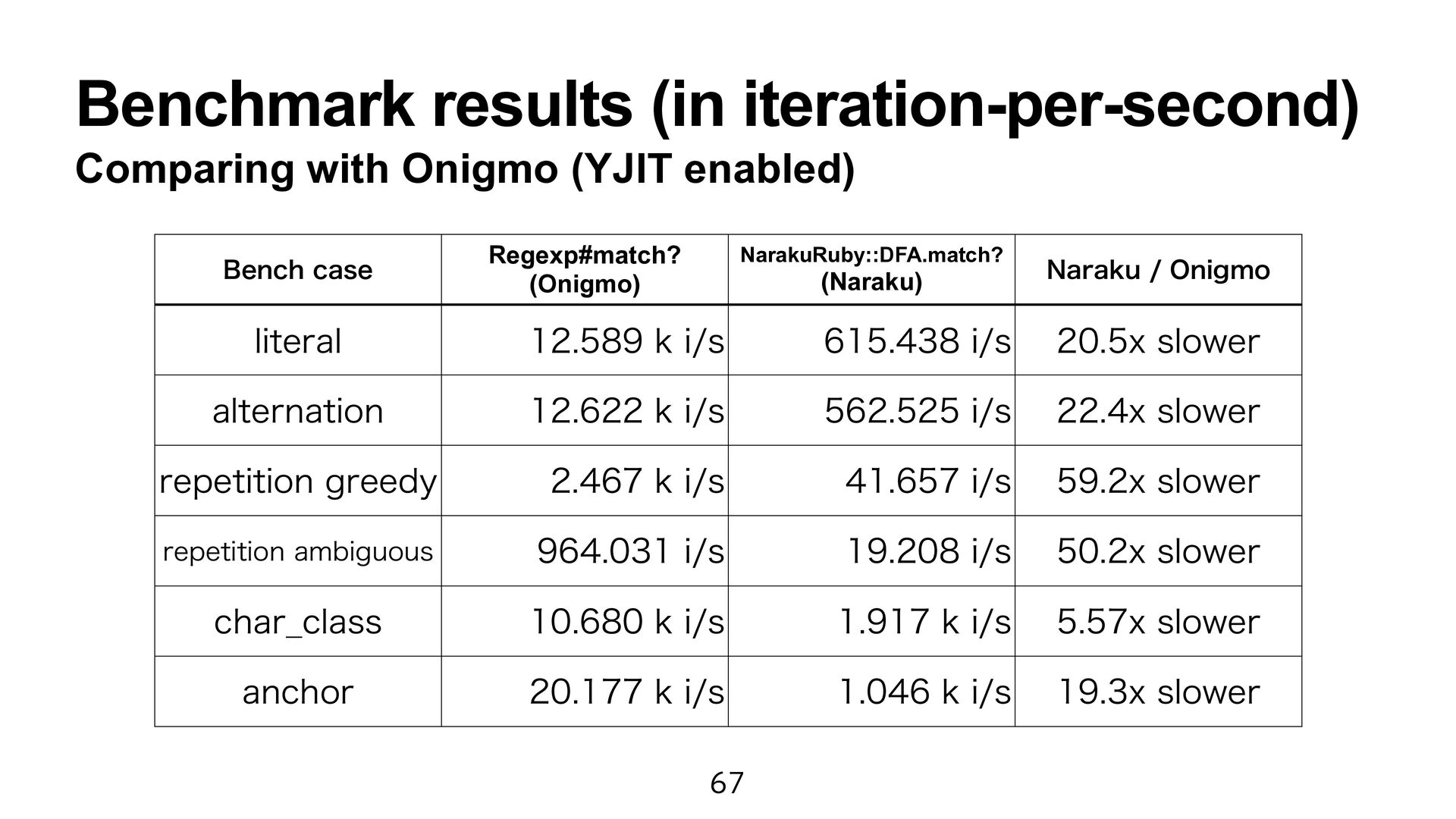

67. Benchmark results (in iteration-per-second) 67 #FODI
    DBTF Regexp#match? (Onigmo) NarakuRuby::DFA.match? (Naraku) /BSBLV

    0OJHNP MJUFSBM
    L
    JT
    JT Y
    TMPXFS BMUFSOBUJPO
    L
    JT
    JT Y
    TMPXFS SFQFUJUJPO
    HSFFEZ
    L
    JT
    JT Y
    TMPXFS SFQFUJUJPO
    BNCJHVPVT
    JT
    JT Y
    TMPXFS DIBS@DMBTT
    L
    JT
    L
    JT Y
    TMPXFS BODIPS
    L
    JT
    L
    JT Y
    TMPXFS Comparing with Onigmo (YJIT enabled)
68. Onigmo (and C) is fast.
69. Over optimization

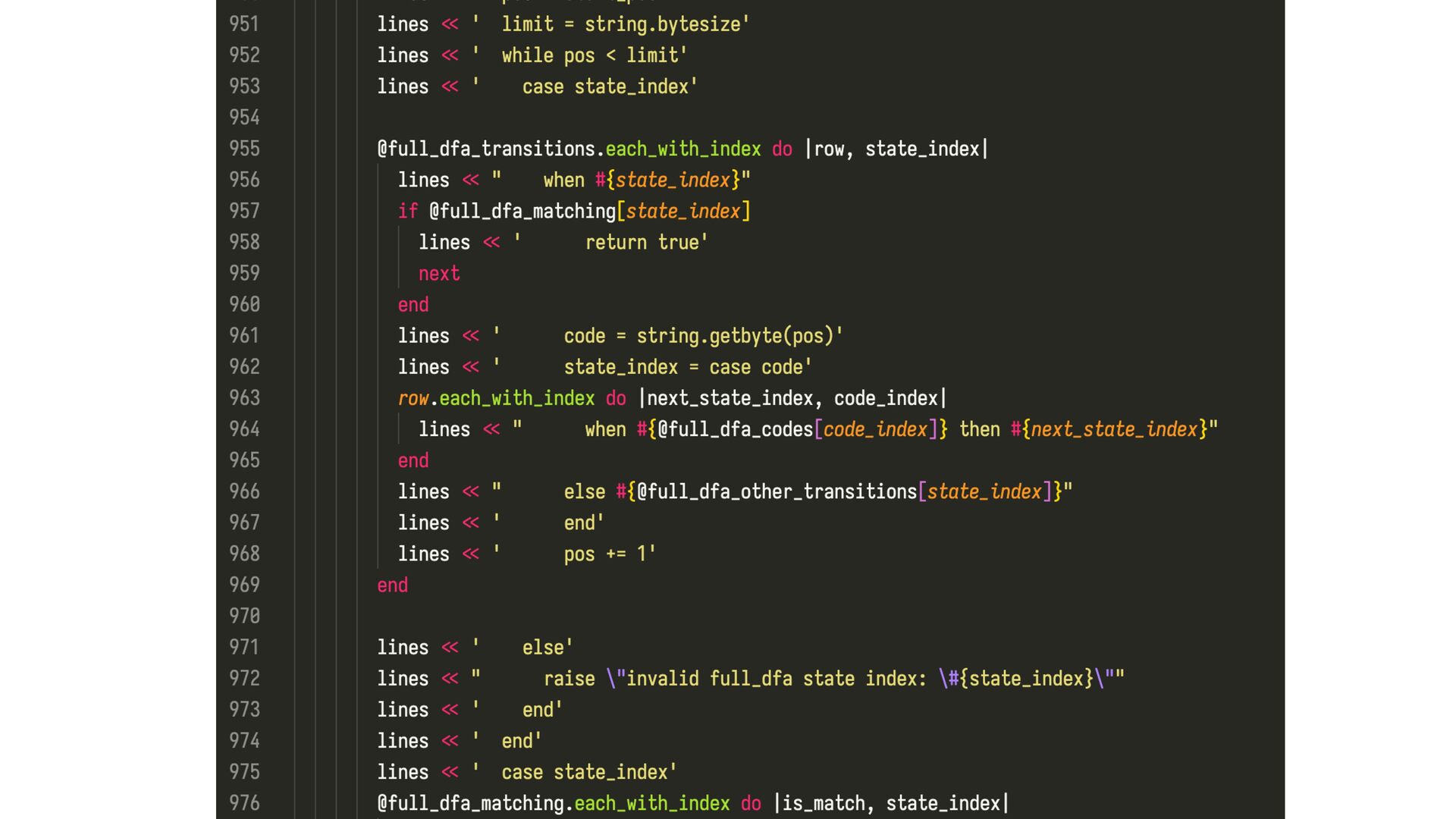

70. Ahead-of-time (AOT) DFA construction + inline source expansion (source generation & eval)

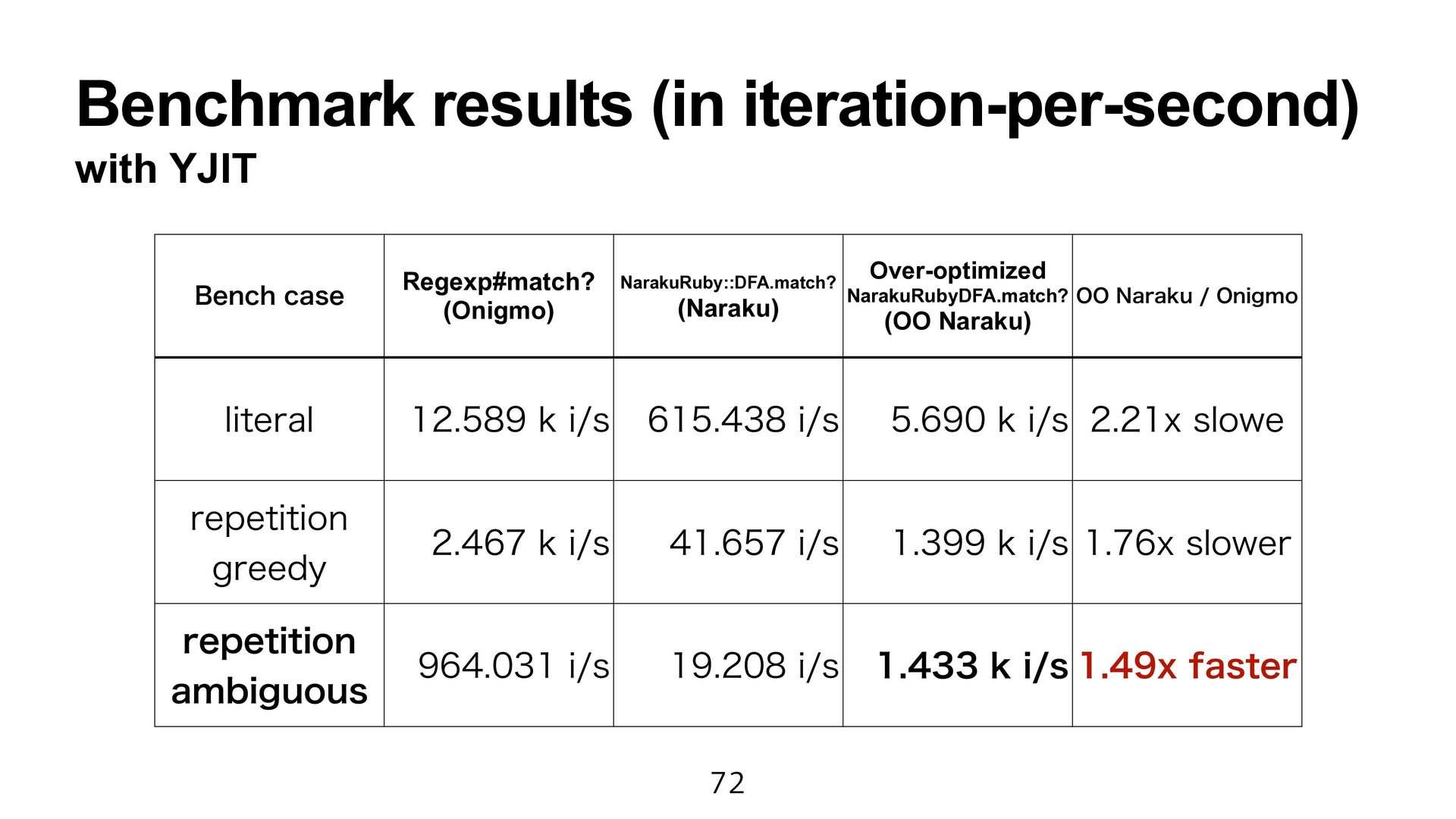

72. Benchmark results (in iteration-per-second) 72 #FODI
    DBTF Regexp#match? (Onigmo) NarakuRuby::DFA.match? (Naraku) Over-optimized NarakuRubyDFA.match? (OO Naraku) 00
    /BSBLV

    0OJHNP MJUFSBM
    L
    JT
    JT
    L
    JT Y
    TMPXF SFQFUJUJPO
    HSFFEZ
    L
    JT
    JT
    L
    JT Y
    TMPXFS SFQFUJUJPO
    BNCJHVPVT
    JT
    JT
    L
    JT Y
    GBTUFS with YJIT

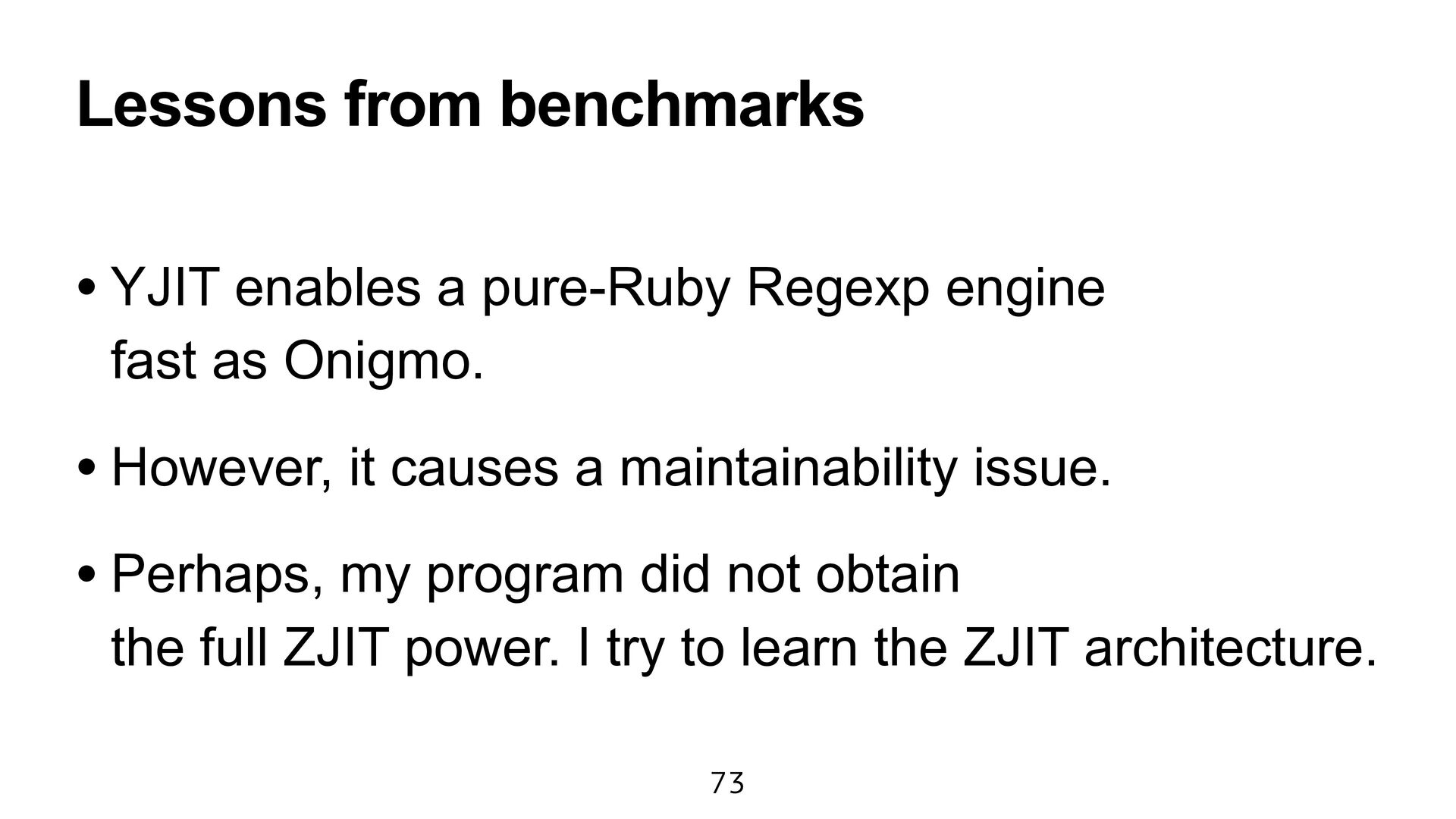

73. Lessons from benchmarks 73 • YJIT enables a pure-Ruby Regexp engine fast as Onigmo. • However, it causes a maintainability issue. • Perhaps, my program did not obtain the full ZJIT power. I try to learn the ZJIT architecture.
74. Next plan for Project Naraku 74 • To prevent performance degradation, we first go for the realistic way. parse.c comp.rb exec.c C side Ruby side matching VM

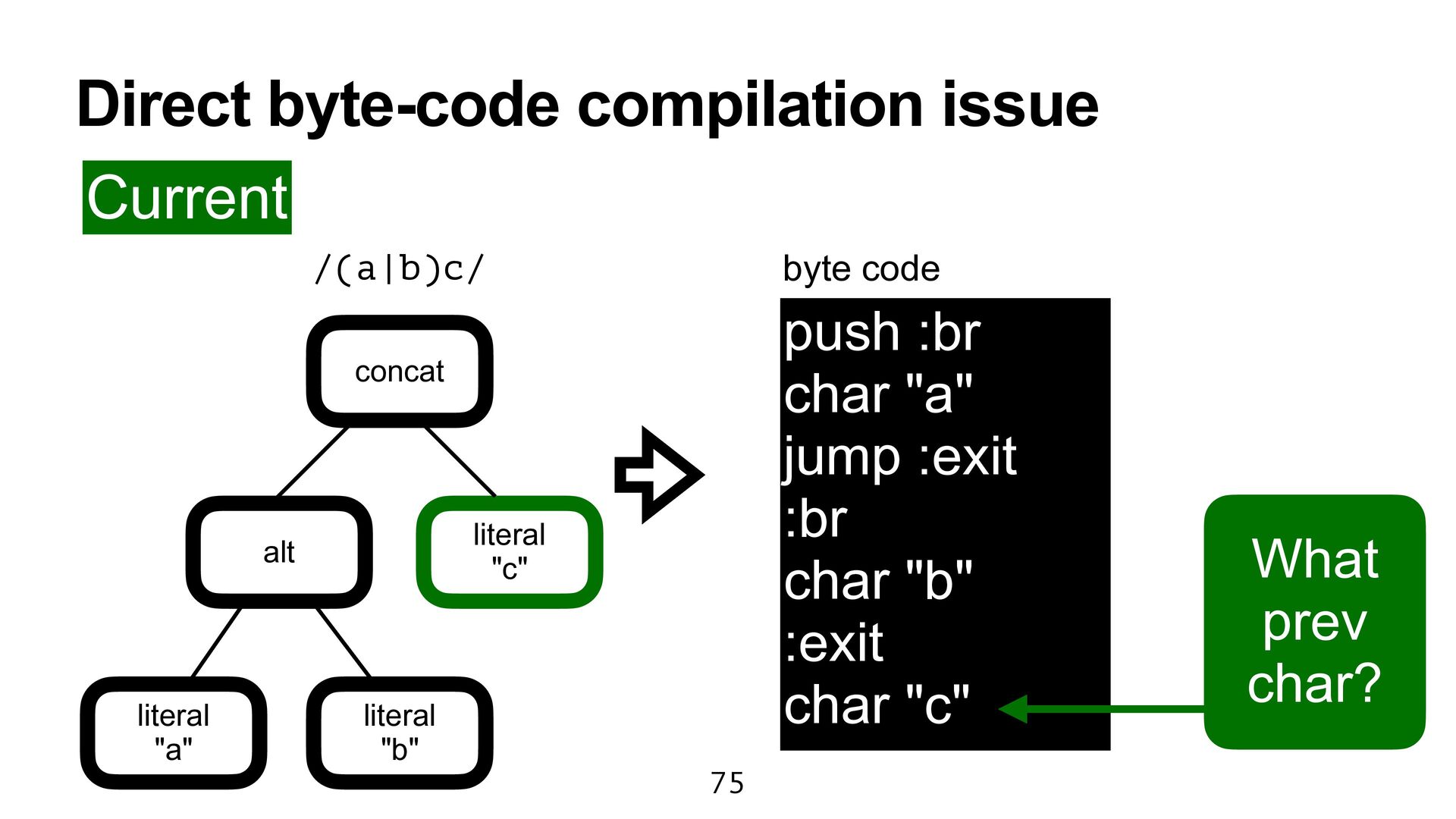

75. Direct byte-code compilation issue 75 concat literal "a" literal "c" alt /(a|b)c/ push :br char "a" jump :exit :br char "b" :exit char "c" byte code literal "b" What prev char? Current

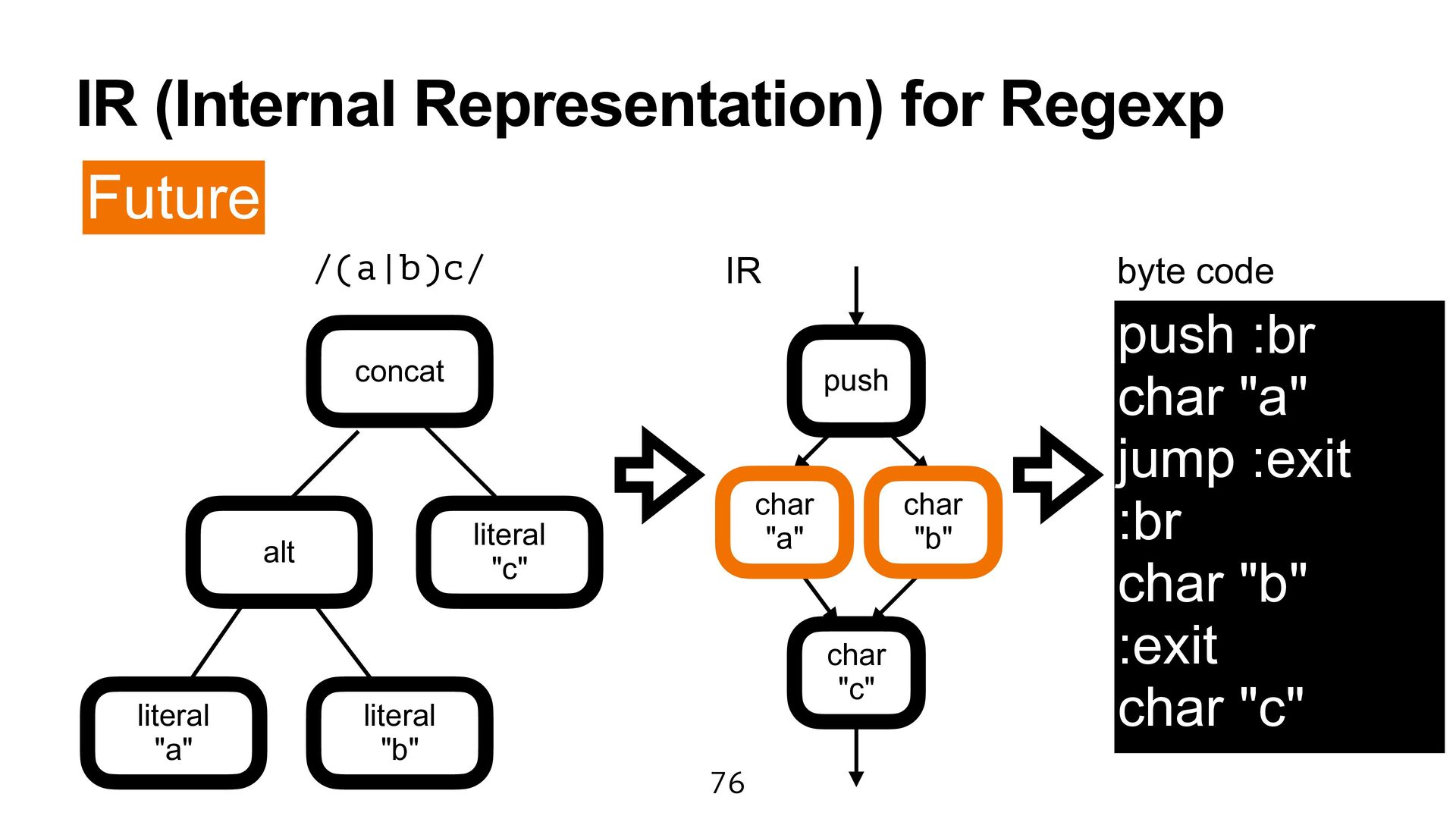

76. IR (Internal Representation) for Regexp 76 concat literal "a" literal "c" alt /(a|b)c/ push :br char "a" jump :exit :br char "b" :exit char "c" byte code literal "b" push char "a" char "b" char "c" IR Future

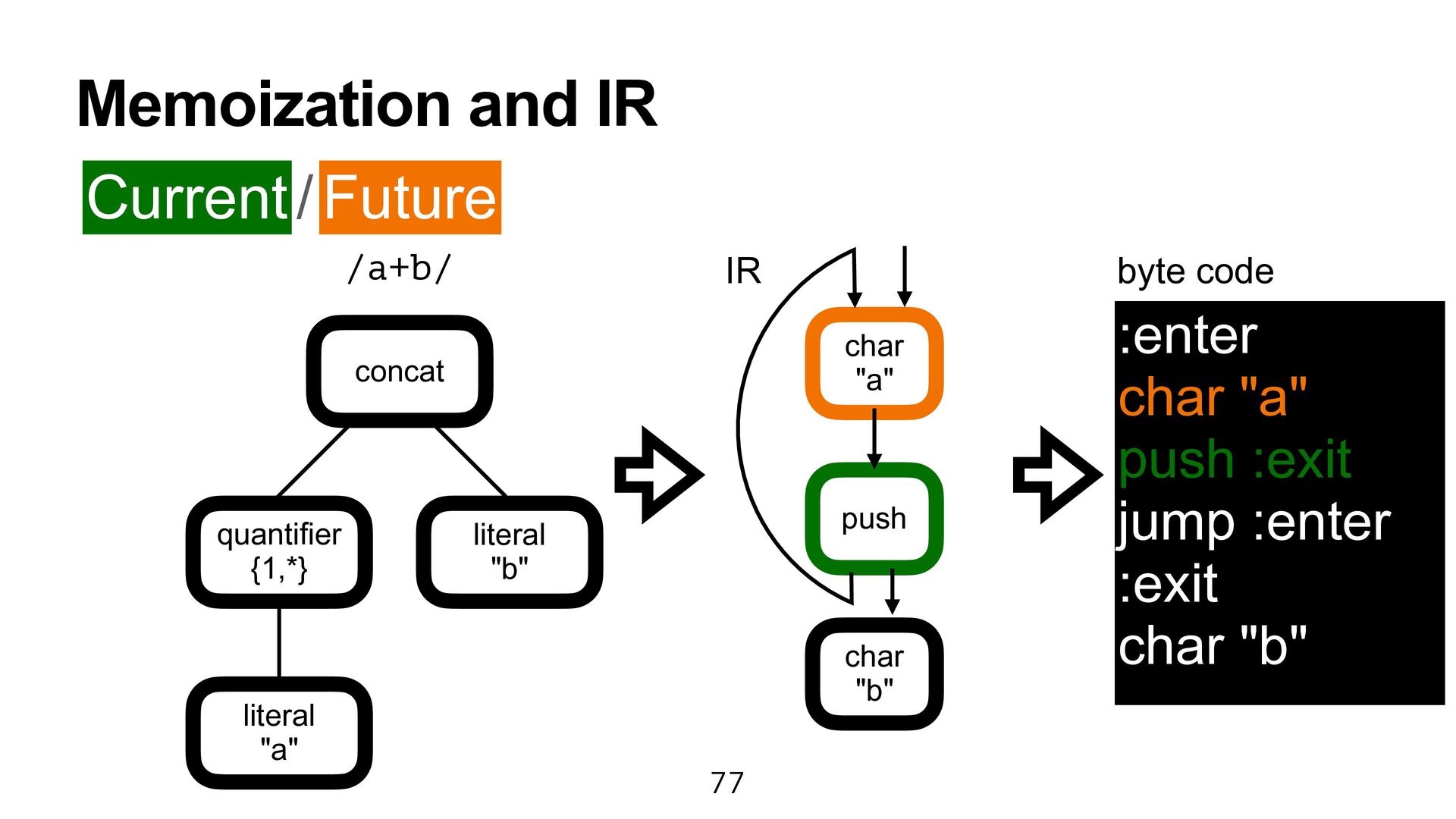

77. Memoization and IR 77 concat literal "a" literal "b" quantifier {1,*} /a+b/ :enter char "a" push :exit jump :enter :exit char "b" Current char "a" char "b" push Future / byte code IR

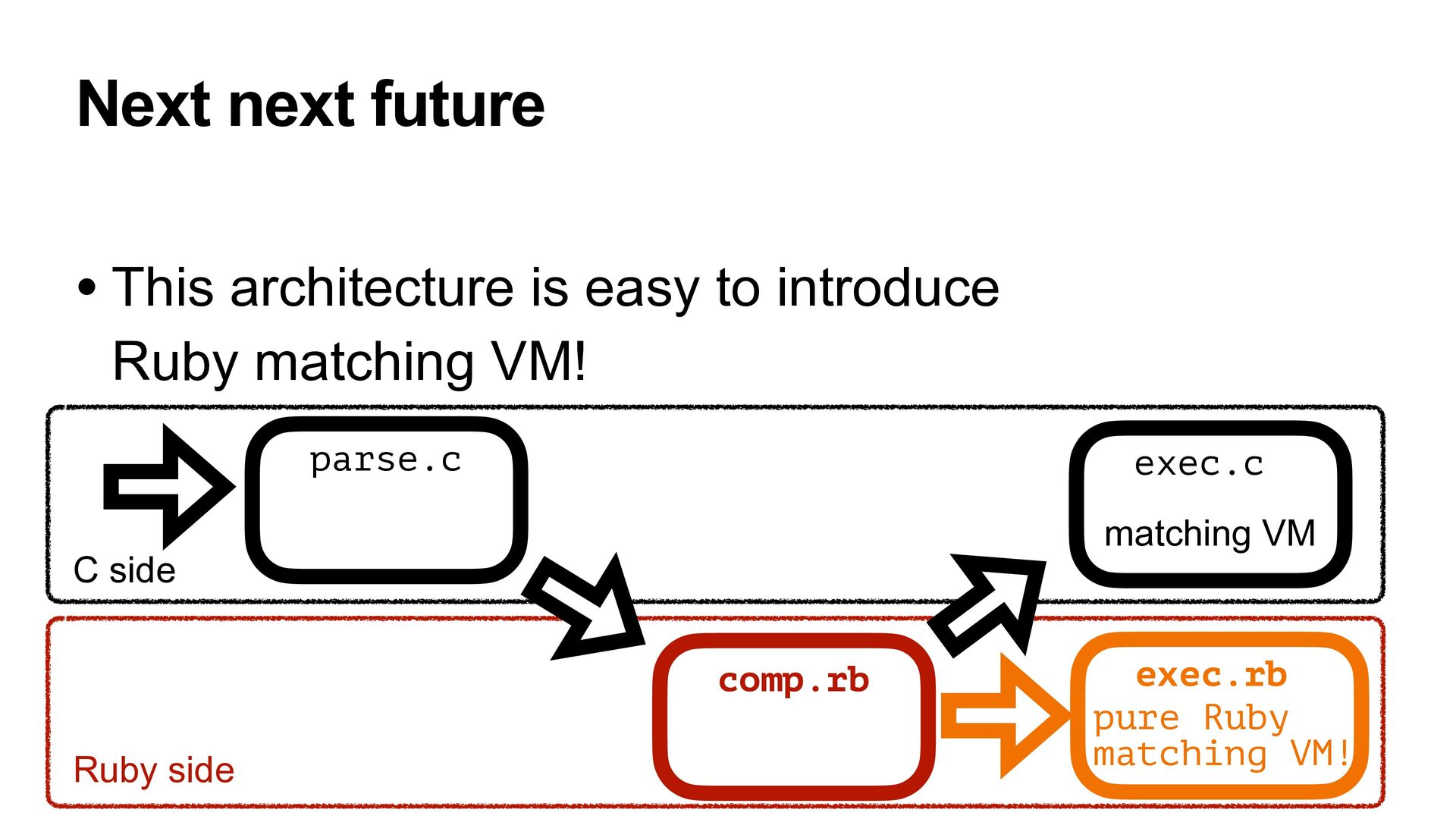

78. Next next future 78 • This architecture is easy to introduce Ruby matching VM! exec.rb pure Ruby matching VM! parse.c C side Ruby side 78 exec.c matching VM comp.rb

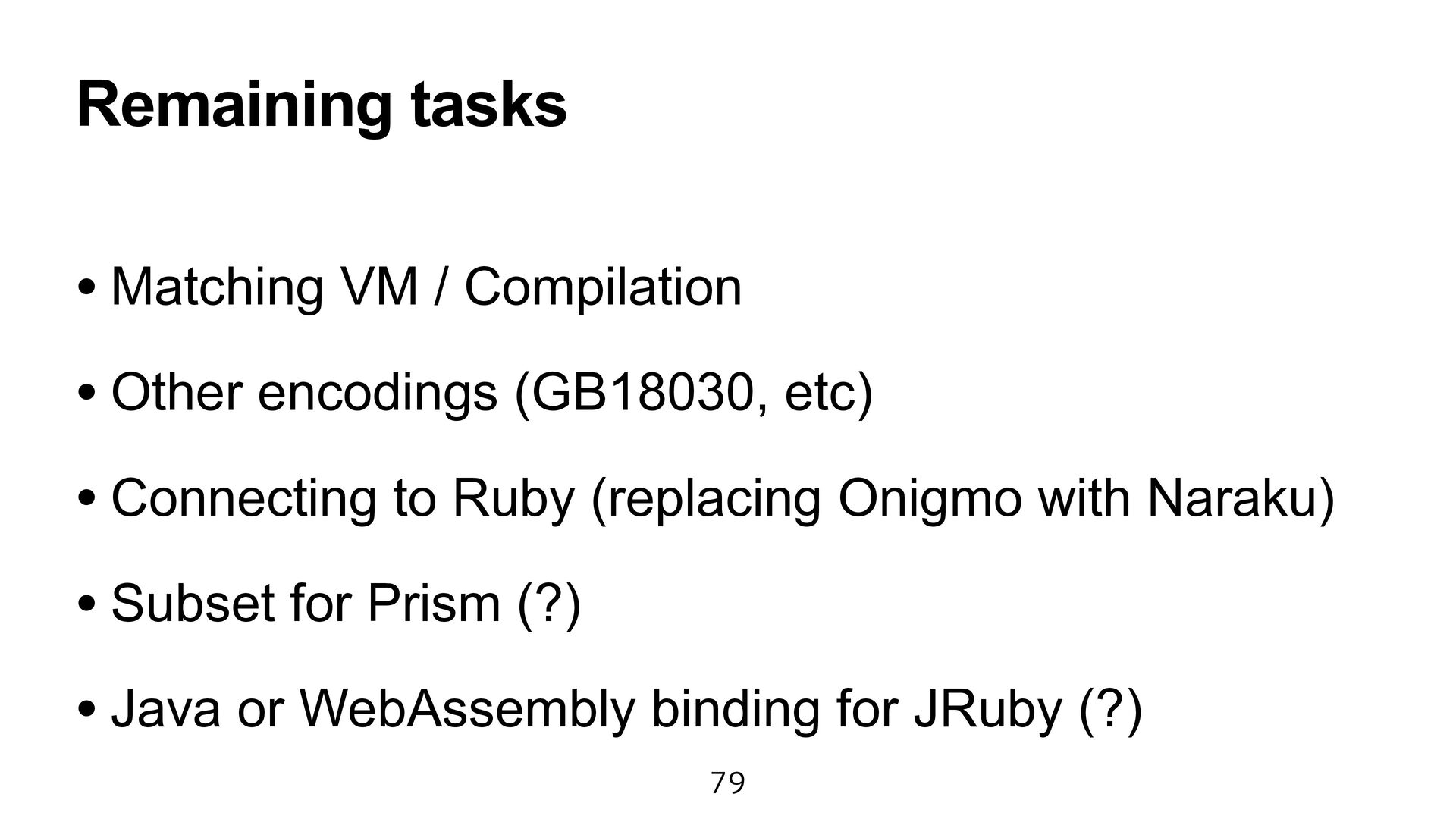

79. Remaining tasks 79 • Matching VM / Compilation • Other encodings (GB18030, etc) • Connecting to Ruby (replacing Onigmo with Naraku) • Subset for Prism (?) • Java or WebAssembly binding for JRuby (?)
80. Made it!
81. To be continued...
