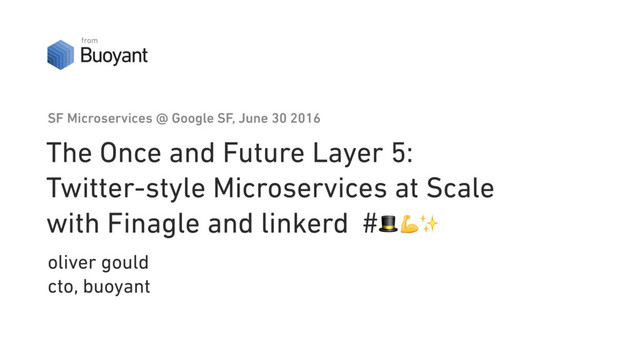

  1. The Once and Future Layer 5:
 Twitter-style Microservices at Scale

    with Finagle and linkerd #✨ oliver gould
 cto, buoyant SF Microservices @ Google SF, June 30 2016 from
  2. oliver gould • founding cto @ buoyant
 open-source microservice infrastructure

    • previously, tech lead @ twitter: • observability • traffic • core contributor: finagle • creator: linkerd • likes: dogs • dislikes: being woken up by a pager @olix0r
 ver@buoyant.io
  3. overview • 2010: A Failwhale Odyssey • Microservices • Finagle:

    The Once and Future Layer 5 • Introducing linkerd • Demo • Q&A
  4. 2010 A FAILWHALE ODYSSEY

  5. Twitter, 2010 107 users 107 tweets/day 102 engineers 101 services

    101 deploys/week 102 hosts 0 datacenters 101 user-facing outages/week https://blog.twitter.com/2010/measuring-tweets
  6. None
  7. None
  8. Events https://blog.twitter.com/2013/new-tweets-per-second-record-and-how

  9. Asymmetry Photo by Troy Holden

  10. Provisioning

  11. microservices everything’s easier with (right?)

  12. scaling teams growing software

  13. flexibility

  14. performance correctness monitoring debugging efficiency security operability
 resilience

  15. microservices are difficult.

  16. Resilience is an imperative: our software runs on the truly

    dismal computers we call datacenters. Besides being heinously
 complex… they are unreliable and prone to
 operator error. Marius Eriksen @marius
 RPC Redux
  17. resilience in microservices software you didn’t write hardware you can’t

    touch network you can’t configure break in new and surprising ways and your customers shouldn’t notice
  18. resilient microservices means resilient communication

  19. datacenter [1] physical [2] link [3] network [4] transport kubernetes


 canal, weave, … aws, azure, digitalocean, gce, … business languages, libraries [7] application rpc [5] session [6] presentation json, protobuf, thrift, … http/2, mux, …
  20. layer 5 dispatches requests onto layer 4 connections

  21. finagle THE ONCE AND FUTURE LAYER 5

  22. github.com/twitter/finagle RPC library (JVM) asynchronous built on Netty scala functional

    strongly typed first commit: Oct 2010
  23. used by…

  24. programming finagle val users = Thrift.newIface[UserSvc](“/s/users”)
 val timelines = Thrift.newIface[TimelineSvc](“/s/timeline”)

    Http.serve(“:8080”, Service.mk[Request, Response] { req => for { user <- users.get(userReq(req)) timeline <- timelines.get(user) } yield renderHTML(user, timeline) })
  25. your server is a function trait Service[Req, Rsp] { def

    apply(req: Req): Future[Rsp] def close(deadline: Time): Future[Unit] }
  26. your server is a function trait ServiceFactory[Req, Rsp] { def

    apply(conn: ClientConnection): Future[Service[Req, Rsp]] def close(deadline: Time): Future[Unit] }
  27. your server is a function trait Filter[InReq, OutRsp, OutReq, InRsp]

    { def apply(req: InReq, service: Service[OutReq, InRsp]): Future[OutRsp] def andThen[A, B](f: Filter[OutReq, InRsp, A, B]): Filter[OutReq, InRsp, A, B] def andThen[A, B](s: Service[A, B]): Service[OutReq, InRsp] def andThen[A, B](sf: ServiceFactory[A, B]): ServiceFactory[OutReq, InRsp] }
  28. your server is a function val service: Service[http.Request, http.Response] =

    recordHandletime andThen traceRequest andThen logRequest andThen timeouts andThen myService val server: ListeningServer = Http.serve(“:8080”, service) val client: ServiceFactory[http.Request, http.Response] = retries andThen Http.newClient(“127.1:8080”)
  29. operating finagle transport security service discovery circuit breaking backpressure deadlines

    retries tracing metrics keep-alive multiplexing load balancing per-request routing service-level objectives Observe Session timeout Retries Request draining Load balancer Monitor Observe Trace Failure accrual Request timeout Pool Fail fast Expiration Dispatcher
  30. layer 5 naming

  31. layer 5 naming applications refer to logical names
 requests are

    bound to concrete names
 delegations express routing /s/users /#/io.l5d.zk/prod/users/http /s => /#/io.l5d.zk/prod/http
  32. per-request routing: staging GET / HTTP/1.1
 Host: mysite.com
 Dtab-local: /s/B

    => /s/B2
  33. per-request routing: debug proxy GET / HTTP/1.1
 Host: mysite.com
 Dtab-local:

    /s/E => /s/P/s/E
  34. tracing

  35. tracing

  36. tracing

  37. “It’s slow”
 is the hardest problem you’ll ever debug. Jeff

    Hodges @jmhodges
 Notes on Distributed Systems for Young Bloods
  38. the more components you deploy, the more problems you have

  39. the more components you deploy, the more problems you have

  40. the more components you deploy, the more problems you have

  41. lb algorithms: • round-robin • fewest connections • queue depth

    • exponentially-weighted moving average (ewma) • aperture load balancing at layer 5
  42. timeouts & retries timelines users web db timeout=400ms retries=3 timeout=400ms

    retries=2 timeout=200ms retries=3 timelines users web db
  43. timeouts & retries timelines users web db timeout=400ms retries=3 timeout=400ms

    retries=2 timeout=200ms retries=3 timelines users web db 800ms! 600ms!
  44. deadlines timelines users web db timeout=400ms deadline=323ms deadline=210ms 77ms elapsed

    113ms elapsed
  45. retries typical: retries=3

  46. retries typical: retries=3 worst-case: 300% more load!!!

  47. budgets typical: retries=3 better:
 retryBudget=20% worst-case: 300% more load!!! worst-case:

    20% more load
  48. magic ops sprinkles transport security service discovery circuit breaking backpressure

    deadlines retries tracing metrics keep-alive multiplexing load balancing per-request routing service-level objectives Observe Session timeout Retries Request draining Load balancer Monitor Observe Trace Failure accrual Request timeout Pool Fail fast Expiration Dispatcher
  49. None
  50. So just rewrite everything in Finagle?

  51. linkerd

  52. github.com/buoyantio/linkerd microservice rpc proxy layer-5 router aka l5d built on

    finagle & netty pluggable http, thrift, … consul, etcd, k8s, marathon, zk, … …
  53. magic operability sprinkles transport security service discovery circuit breaking backpressure

    deadlines retries tracing metrics keep-alive multiplexing load balancing per-request routing service-level objectives Service B instance linkerd Service C instance linkerd Service A instance linkerd
  54. namerd service discovery service delegates logical names to service discovery

    centralized routing policy pluggable consul, etcd, k8s, zk, …
  55. namerd

  56. demo: gob’s microservice

  57. kubernetes

  58. host kubelet pod app: b ip: 10.2.3.4 container container pod

    app: a ip: 10.1.2.3 container
  59. host app: a app: b app: a host app: b

    app: a app: b service-a
  60. web word gen l5d l5d l5d

  61. web word gen gen-v2 l5d l5d l5d l5d

  62. web word gen gen-v2 l5d l5d l5d l5d namerd

  63. github.com/buoyantio/linkerd-examples

  64. linkerd roadmap • Netty4.1 (in upcoming 0.7.1) • HTTP/2+gRPC linkerd#174

    • Deadlines (in progress) • TLS client certs, SPIFFE • Dark Traffic • All configurable everything
  65. more at linkerd.io slack: slack.linkerd.io email: ver@buoyant.io twitter: • @olix0r

    • @linkerd thanks!
