1. Energy Harvesting in IoT Konstantin Veprev Solution Architect at EPAM Garage and Embedded CC Powered by EPAM
2. About Energy Harvesting Introduction
3. Used batteries or discharged accumulators Powered by EPAM

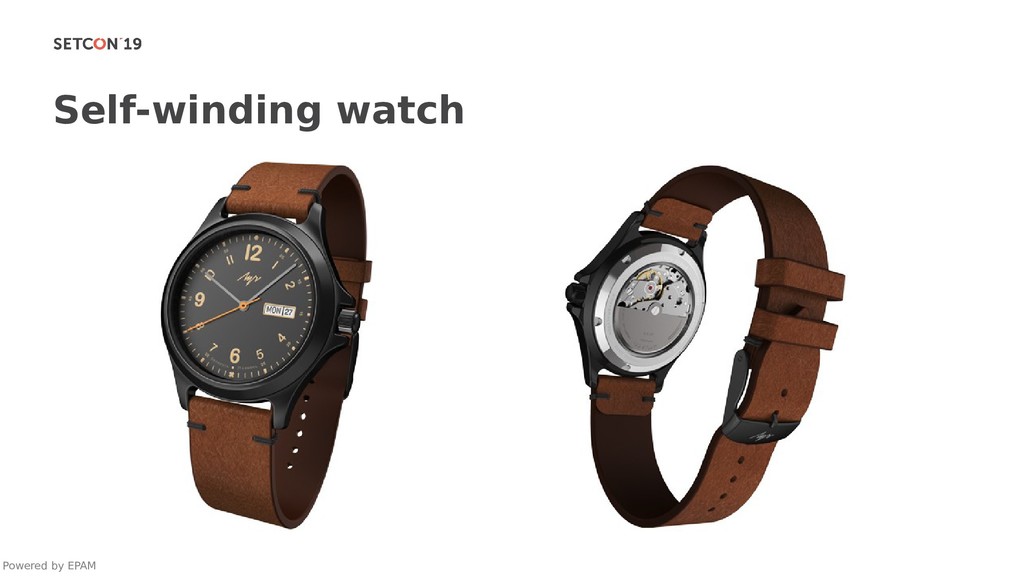

4. Self-winding watch Powered by EPAM

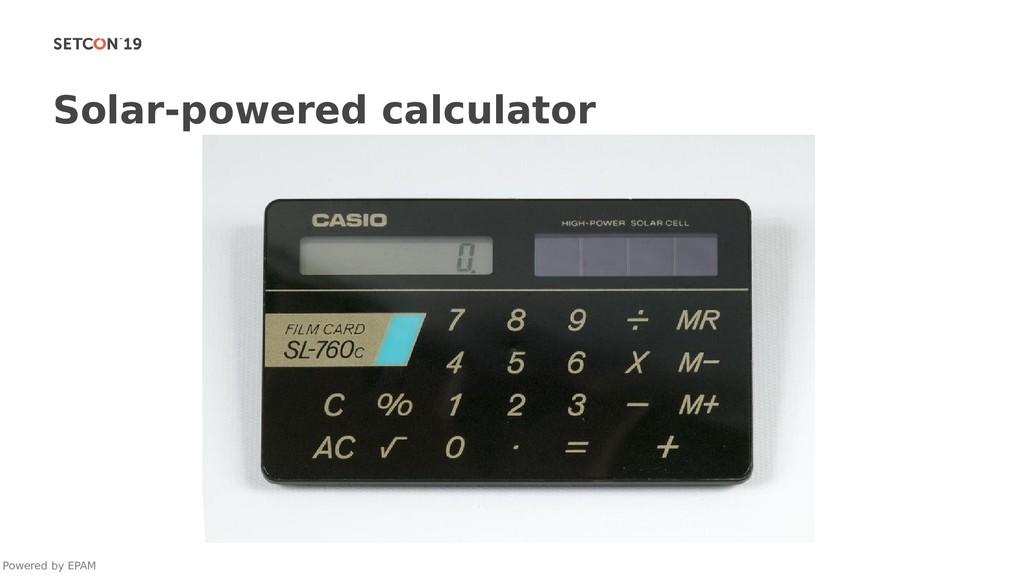

5. Solar-powered calculator Powered by EPAM
6. Using Energy Harvesting Solutions
7. What is this? Powered by EPAM

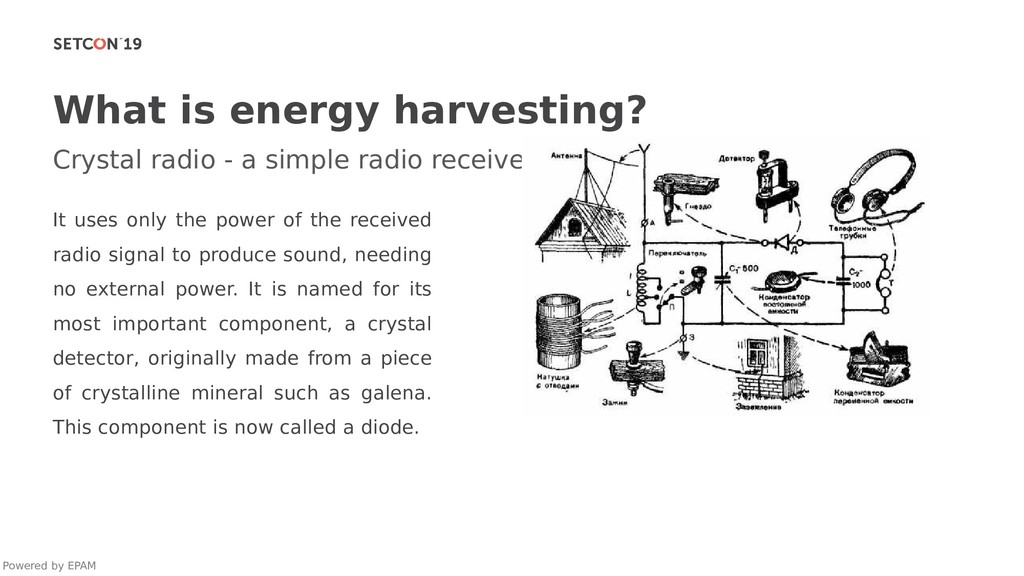

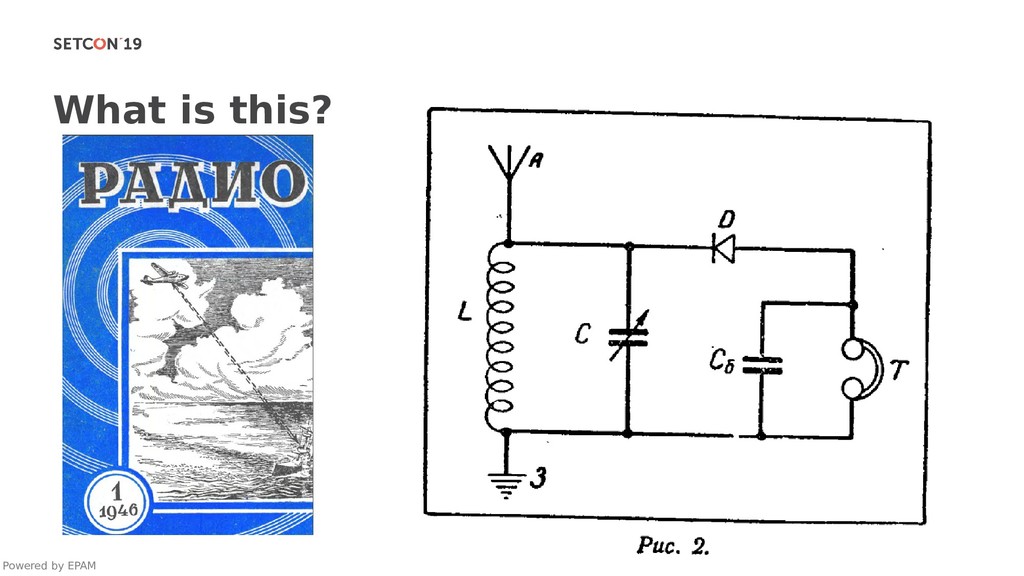

8. What is energy harvesting? Powered by EPAM Crystal radio - a simple radio receiver It uses only the power of the received radio signal to produce sound, needing no external power. It is named for its most important component, a crystal detector, originally made from a piece of crystalline mineral such as galena. This component is now called a diode.
9. RF RF energy is currently being broadcasted from billions of radio transmitters around the world, including mobile telephones, handheld radios, mobile base stations, and television/radio broadcasting stations. • TV/FM station • GSM base station • WiFi (PoWiFi) • Etc. Powered by EPAM = ∙( 4 ∙ ∙ )2 Friis equation Soviet Union broadcast station – 12..500kW Belarus DVT-T TV station – 24.6kW

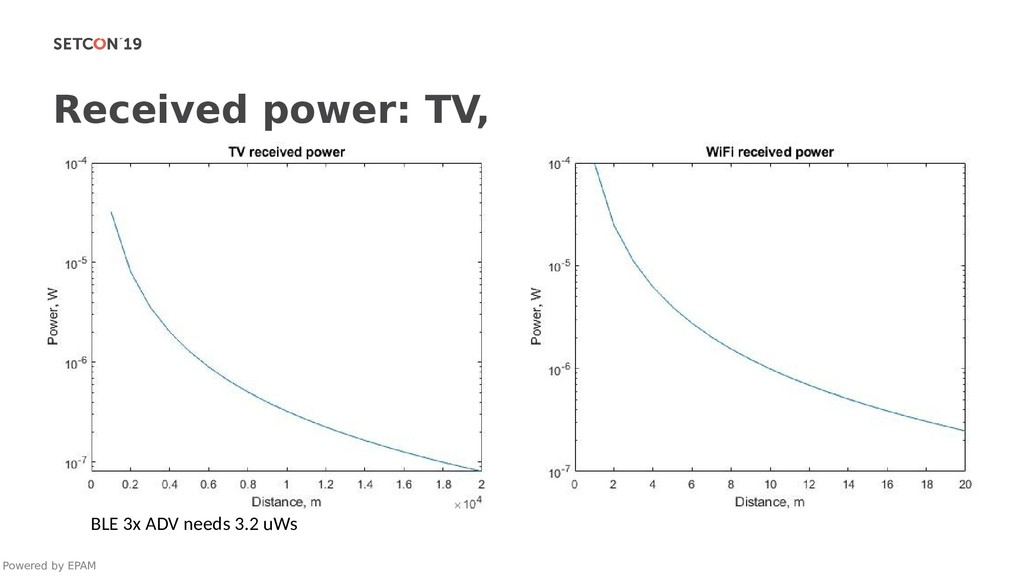

10. Received power: TV, WiFi Powered by EPAM BLE 3x ADV needs 3.2 uWs

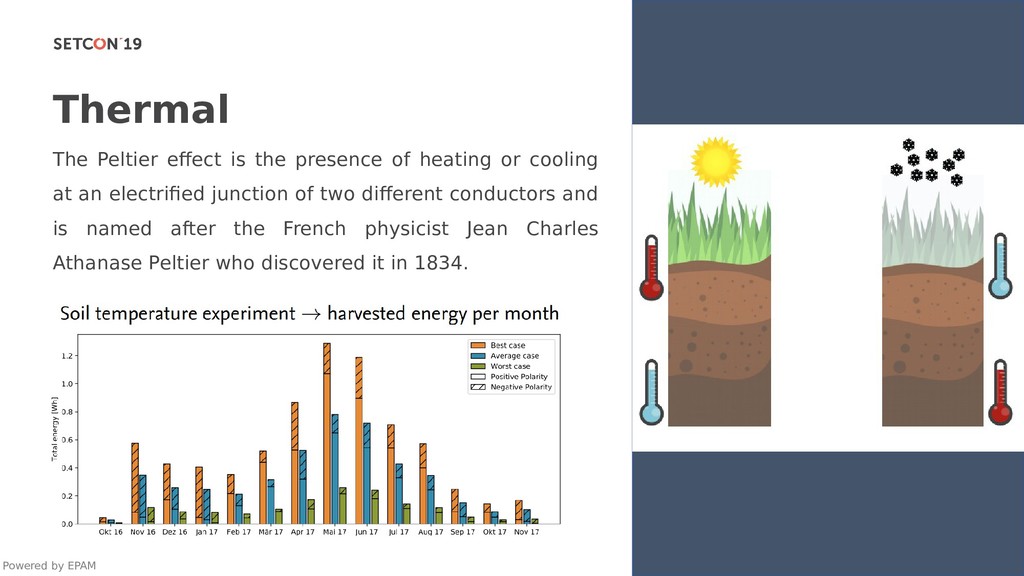

11. Thermal The Peltier effect is the presence of heating or cooling at an electrified junction of two different conductors and is named after the French physicist Jean Charles Athanase Peltier who discovered it in 1834. Изображение Powered by EPAM

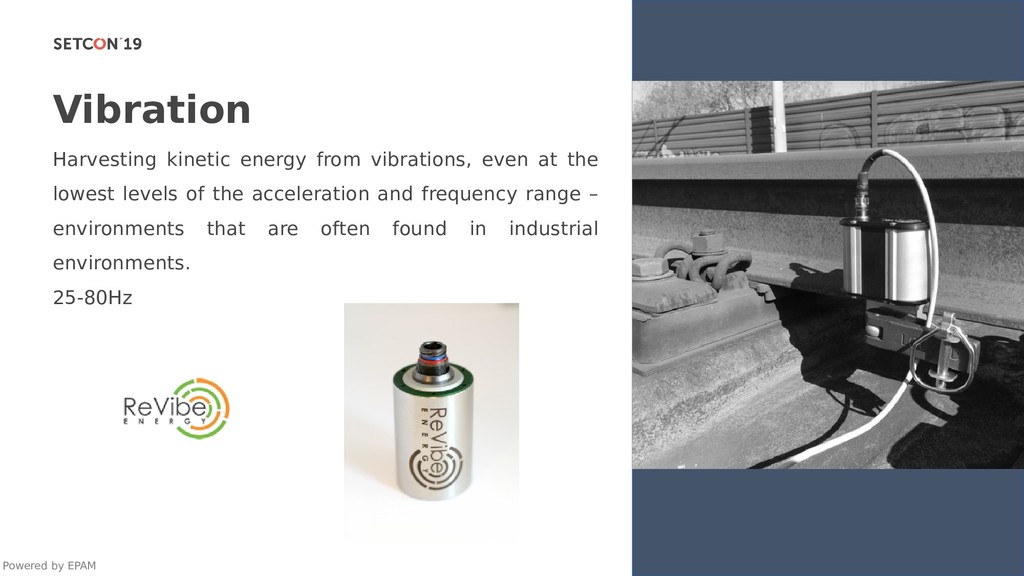

12. Vibration Harvesting kinetic energy from vibrations, even at the lowest levels of the acceleration and frequency range – environments that are often found in industrial environments. 25-80Hz Изображение Powered by EPAM
13. Soil Microbial fuel cell (MFC) is a bio-electrochemical system that drives an electric current by using bacteria and mimicking bacterial interactions found in nature. Изображение Powered by EPAM MudWatt

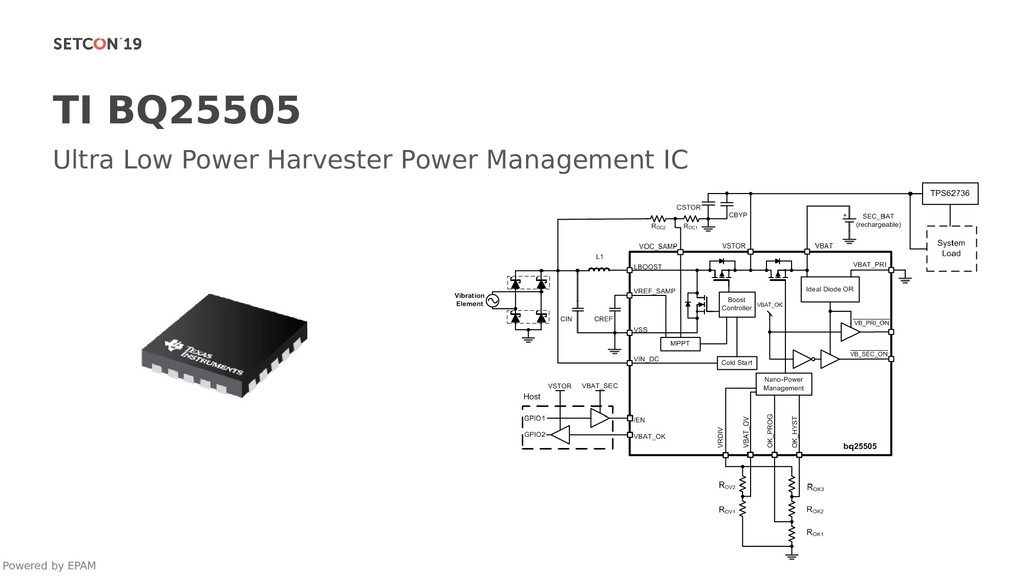

14. TI BQ25505 Ultra Low Power Harvester Power Management IC Powered by EPAM

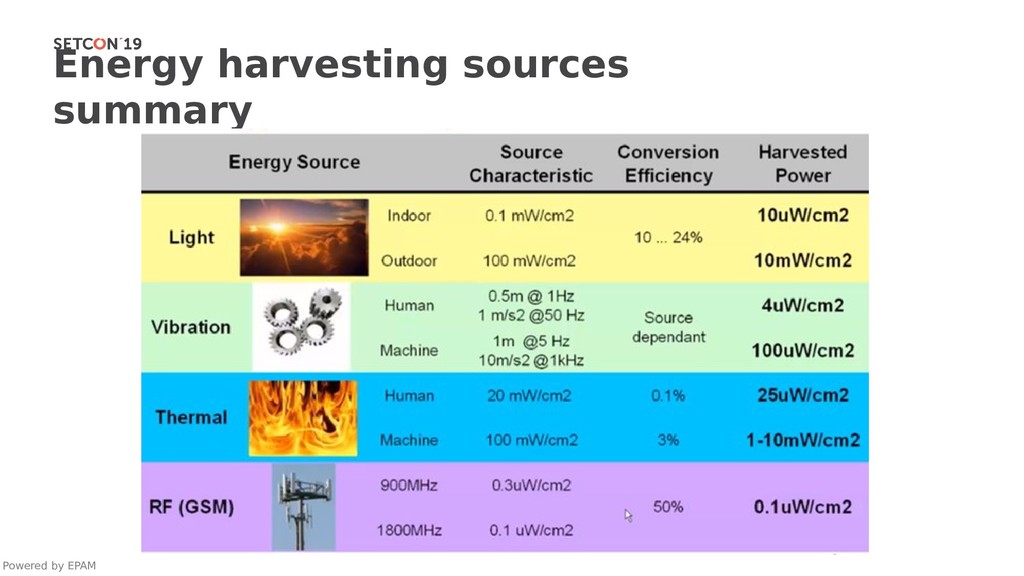

15. Energy harvesting sources summary Powered by EPAM
16. Outside Energy Harvesting Solutions
17. Steading House How can we harvest : • Electricity? • Heat? • Hot water? Изображение Powered by EPAM

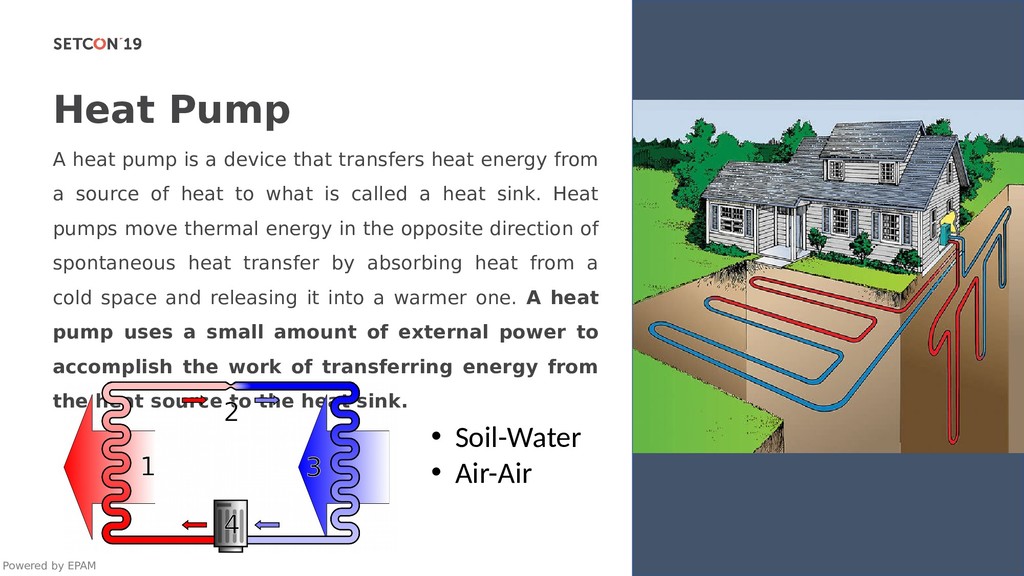

18. Heat Pump A heat pump is a device that transfers heat energy from a source of heat to what is called a heat sink. Heat pumps move thermal energy in the opposite direction of spontaneous heat transfer by absorbing heat from a cold space and releasing it into a warmer one. A heat pump uses a small amount of external power to accomplish the work of transferring energy from the heat source to the heat sink. Изображение Powered by EPAM • Soil-Water • Air-Air
19. Recommendations Book
20. TRIZ - theory of the resolution of invention-related tasks Геннадий Иванов Формулы творчества, или Как научиться изобретать Powered by EPAM Генрих Альтшуллер (Genrich Altshuller) Найти идею. Введение в ТРИЗ - теорию решения Use the resources of the existing system, subsystems, super- systems and the environment
