IntelligentCloud - Kubernetes: the next step after embracing Docker containers

Slides of my session at IntelligentCloud.dk on 30 May 2018

Transcript

1. Think ahead. Act now. Kubernetes: the next step after embracing Docker containers Pascal Naber @pascalnaber
2. Think ahead. Act now.
3. Think ahead. Act now. Containers Solves Portable Fast Isolated
4. Moving to production Scaling, load balancing, fault tolerance, etc.
5. Scaling, Load balancing & Fault tolerance Server Frontend Backend
6. Scaling, Load balancing & Fault tolerance Server
7. Scaling, Load balancing & Fault tolerance Server Server Server Container orchestration
8. Server Scaling, Load balancing & Fault tolerance Server Server Container orchestration
9. Container orchestrators Cluster High Availability Hyper-Scale Hybrid Operations High Density Rolling Upgrades Stateful services Low Latency Fast startup & shutdown Container Orchestration & lifecycle management Replication & Failover Load balancing Self-healing Automated Rollback Health Monitoring Placement Constraints Microservices Service Fabric
10. Orchestrators cluster Node (Worker) Node (Worker) Master
11. Kubernetes Kubernetes cluster Node (Minion) Node (Minion) Master
12. History of Kubernetes June 2014 First commit September 2014 July 2015 March 2018 Announced Kubernetes v1 CNCF 1st Graduate
13. Kubernetes K8s OOS Extensible Facilitates declarative configuration and automation Large, rapidly growing ecosystem Κυβερνήτης -- Greek: meaning helmsman or pilot 1 2 3 4 5 6 7 8
14. Hosting of Kubernetes Local Minikube Docker for Windows (Edge) Docker for Mac (Edge) Raspberry Pi Private datacenter Public Cloud GKE Announced ACS AKS
15. Think ahead. Act now. Templates to create container clusters Streamlined provisioning of Docker Swarm and DCOS Linux and Windows Server containers Azure and Azure Stack IaaS Azure Container Service (ACS) Azure DC/OS Swarm Kubernetes
16. Think ahead. Act now. Partly managed Kubernetes Only pay for worker nodes Upgrades managed by Azure Workers are Managed IaaS Azure Kubernetes Service (AKS) Azure Kubernetes
17. Think ahead. Act now. Announced Azure OpenShift Azure
18. Think ahead. Act now. Missing pieces? Deploy to Production
19. Think ahead. Act now. Install AKS with ARM or the Portal
20. Install AKS using CLI ## Create resourcegroup az group create --name clouddemo --location eastus ## Create Kubernetes cluster az aks create -g clouddemo -n gamingcluster --generate-ssh-keys ## Create Kubernetes cluster az aks create --resource-group clouddemo --name gamingcluster --kubernetes-version 1.9.6 --node-vm-size Standard_DS2_v2 --node-count 3 --ssh-key-value "C:\repos\pascal\ssh\public.pub" --service-principal d6e55af7-17fc-4cf5-b140-8b37729da10e --client-secret 94bCIHcSuniCvjq9
21. Azure resources for AKS aksdemo
22. Azure resources for AKS MC_clouddemo_gamingcluster_eastus clouddemo
23. Kubernetes architecture Master API Server Scheduler Controller Manager Node (Minion) etcd kubelet Kube- Proxy cAdvisor Pod Pod Pod Kubectl (CLI) Dashboard (UI) REST client (Code)
24. Deployment flow Create Docker Images Apply K8s deployments Push Docker Images to registry 1 2 3

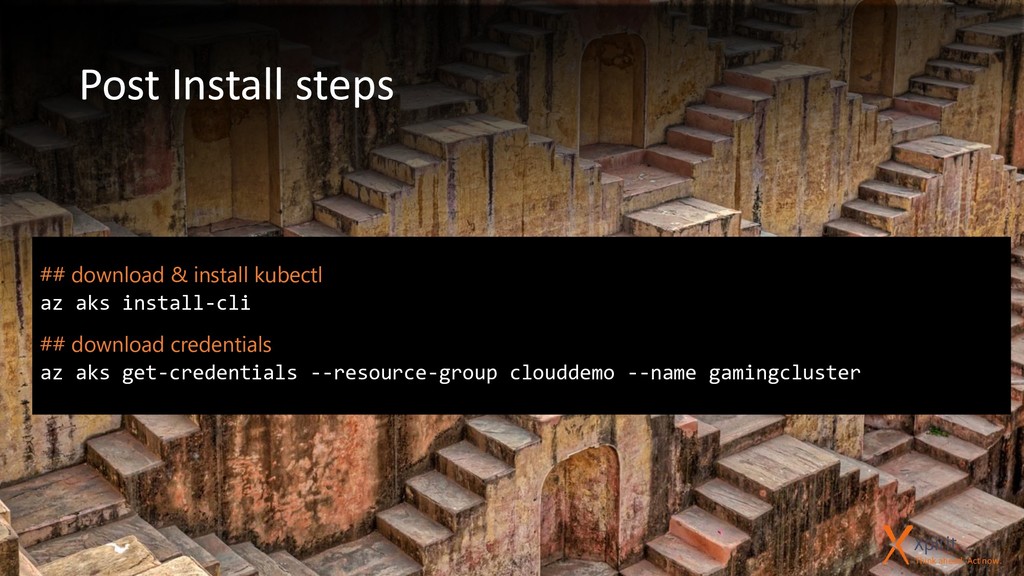

25. Think ahead. Act now. ## download & install kubectl az aks install-cli ## download credentials az aks get-credentials --resource-group clouddemo --name gamingcluster Post Install steps
26. Kubernetes concepts
27. Pod Group of 1 or more containers Shared Storage Shared Network Same IP-address and port Pod 10.0.0.1 Storage Pod 10.0.0.2 Storage Port 80 Port 8080 Port 80
28. leaderboard-api.yaml Pod Pod Pod Replica Set Deployment Label: backend Selector Label: backend Label: backend Label: backend Label: backend Selector Label: backend C:> kubectl apply –f leaderboard-api.yaml
29. C:> kubectl apply –f update.yaml Zero-downtime deployment Can be rolled back Rolling updates
30. Think ahead. Act now. C:> kubectl apply –f secret.yaml ## Create Secret to access Azure Container Registry kubectl create secret docker-registry clouddemoimages --docker-server=https://clouddemo.azurecr.io --docker-username=clouddemo --docker-password=kD98ddl$= --docker-email=pnaber@xpirit.com Secrets: Base64 encoded values Environment variables & Secrets
31. Health checks livenessProbe Indicates whether the Container is running Restart in case of failure Container: https://www.app-metrics.io/ HealthChecks library https://github.com/dotnet-architecture/HealthChecks readinessProbe Indicates whether the Container is ready to service requests No traffic is routed to the Pod C:> kubectl apply –f leaderboard-api.yaml
32. Resource Management requests: Minimum required resources limits: Capped resource usage 100m = 0.1 cpu 500m = 0.5 cpu 64Mi = 64 MB memory 128Mi = 128 MB memory C:> kubectl apply –f leaderboard-api.yaml
33. Horizontal Pod Autoscaler Required: Resource requests & limit Heapster Scaling based on 1 or multiple items CPU Memory Custom Metrics C:> kubectl apply –f leaderboard-api.yaml
34. Horizontal Pod Autoscaler Required: Resource requests & limit Heapster C:\kubectl get hpa NAME REFERENCE TARGETS MINPODS MAXPODS REPLICAS AGE autoscaler leaderboard-api 0% / 50% 1 10 1 9m C:\kubectl get hpa NAME REFERENCE TARGETS MINPODS MAXPODS REPLICAS AGE autoscaler leaderboard-api 218% / 50% 1 10 1 10m C:\kubectl get hpa NAME REFERENCE TARGETS MINPODS MAXPODS REPLICAS AGE autoscaler leaderboard-api 218% / 50% 1 10 4 10m C:\kubectl get hpa NAME REFERENCE TARGETS MINPODS MAXPODS REPLICAS AGE autoscaler leaderboard-api 44% / 50% 1 10 7 13m C:\kubectl get hpa NAME REFERENCE TARGETS MINPODS MAXPODS REPLICAS AGE autoscaler leaderboard-api 51% / 50% 1 10 6 21m
35. How to access the Pods? From inside and outside the cluster
36. Think ahead. Act now. Node 1 Pod Label: backend 10.0.0.2 Pod Label: backend 10.0.0.3 Node 0 Pod Label: backend 10.0.0.1 Node 2 Pod Label: backend 10.0.0.4 Pod Label: backend 10.0.0.5 Pods are mortal
37. Service Service Type: ClusterIP Selector Label: backend Node 1 Pod Label: backend 10.0.0.2 Node 0 Pod Label: backend 10.0.0.1 Node 2 Pod Label: backend 10.0.0.4 Pod Label: backend 10.0.0.5 192.168.0.1
38. Service Service Type: LoadBalancer Selector Label: backend Node 1 Pod Label: backend 10.0.0.2 Node 0 Pod Label: backend 10.0.0.1 Node 2 Pod Label: backend 10.0.0.4 Pod Label: backend 10.0.0.5 Public ip address: 192.168.0.1 192.168.0.2
39. Frontend Backend Pod Pod Pod Pod Pod Pod Pod Pod Service Type: ClusterIP Service Type: LoadBalancer Public ip address: 192.168.0.1 C:> kubectl apply –f leaderboard-service.yaml C:> kubectl apply –f gamingwebapp.yaml 192.168.0.2 192.168.0.1
40. Too many ip-addresses. Now what? Or: I want to access all my services through the same ip-address
41. Ingress Pod 10.0.0.1 Pod 10.0.0.2 Pod 10.0.0.3 Service Type: ClusterIP Pod 10.0.0.4 Pod 10.0.0.5 Pod 10.0.0.6 Service Type: ClusterIP Pod 10.0.0.7 Pod 10.0.0.8 Pod 10.0.0.9 Service Type: ClusterIP Service Type: LoadBalancer Public ip address: 192.168.0.1 Pod quay.io/kubernetes-ingress-controller/ nginx-ingress-controller:0.15.0 Selector Label: ingresscontroller Label: ingresscontroller Ingress host: gaming.intelligentcloud.cf serviceName: gamingwebapp Ingress host: erp. intelligentcloud.cf serviceName: erpsvc Ingress host: www.intelligentcloud.cf/crm serviceName: crmsvc nginx.conf gaming.mydomain.com 10.0.0.1 10.0.0.2 10.0.0.3 erp.mydomain.com 10.0.0.4 10.0.0.5 10.0.0.6 /crm 10.0.0.7 10.0.0.8 10.0.0.9 Automatically generated Label: erp Label: frontend Label: crm
42. + = Kubeflow Azure Dev Spaces ecosystem Cert manager
43. Helm Helm is a tool for managing packages of pre-configured Kubernetes resources https://github.com/kubernetes/helm Linkerd Logstash Magento Mariadb Mongodb Mssql-linux Mysql Neo4j Newrelic Openvpn Postgresql Presto Prometheus Rabbitmq Redis Selenium Sonarqube Spinnaker Sysdig Tensorflow Traefik Wordpress Artifactory Cert-manager Consul Cassandra Couchdb Datadog Docker-registry Drupal Elasticsearch Ethereum fluentd Gitlab Grafana Hadoop Heapster Jenkins Joomla Kafka Kibana Kong Kubeless Lamp
44. Helm # Download Helm https://github.com/kubernetes/helm/releases # To install Tiller on the cluster run helm init # Get latest version of the stable charts helm repo update # Install a chart helm install --name monitor stable/Prometheus helm install --name dashboard stable/grafana -f "C:\Demos\monitoring\values.yaml"
45. Monitoring + AKS container health on Azure (preview) https://docs.microsoft.com/azure/monitoring/monitoring-container-health
46. Think ahead. Act now. Starts in seconds No VM Management Billed per second Linux and Windows containers Azure Container Instances (ACI) Azure Azure Container Instances (ACI) Pod Pod Pod Pod Pod Pod Pod Pod Pod Pod Pod Pod Pod Pod Pod Pod Pod Pod Pod Pod Pod Pod Pod Pod
47. Kubernetes Kubernetes cluster Node (Minion) Node (Minion) Master
48. Kubernetes on Azure Kubernetes cluster Master Azure Container Instances (ACI) Pod Pod Pod Pod Pod Pod Pod Pod Pod Pod Pod Pod Pod Pod Pod Pod Pod Pod Pod Pod Pod Pod Pod Pod Pod Pod Pod Pod Pod Pod Pod Pod Pod Pod Pod Pod Pod Pod Pod Pod Pod Pod
49. The future of infrastructure is happening now
50. Deployment Replica set Pod Label Rolling update Health check Environment variables Secret Resource management Horizontal Pod Autoscaler Namespace Service Ingress Annotation Affinity Persistent Volume Cron Job Deamon Set Job Stateful Set Config Map
51. Wrap up Docker Delivery of production images instead of code ready to ship Environment agnostic Development Azure Kubernetes Services Managed Master + Managed IaaS for workers Provides scaling, rolling updates, fault tolerant
52. Think ahead. Act now. P4l Naber Coding Azure Architect Xpirit Netherlands @pascalnaber http://pascalnaber.wordpress.com https://pages.xpirit.com/magazine2018 https://github.com/pascalnaber/intelligentcloud2018
