  1. Think ahead. Act now. Pascal Naber @pascalnaber 8 lessons learned

    using K8S with Azure Kubernetes Service Session
  2. None
  3. Think ahead. Act now.

  4. Provisioning Infrastructure as Code Networking Maintenance Monitoring Updates CI/CD Patch

    management Security Configuration Running apps Key Vault Storage
  5. Think ahead. Act now.

  6. Install AKS using CLI ## Create resourcegroup az group create

    --name intelligentcloud --location eastus ## Create Kubernetes cluster az aks create -g aksdemo -n intelligentcloud --generate-ssh-keys
  7. None
  8. Provisioning We need an AKS cluster that: • supports Multiple

    teams & environments support • is only accessibel Access through Firewall • is highly Available • has access to on-premises systems
  9. Multiple teams and environments One Cluster per team or environment

    Physical Development Staging Production Team Morpheus Pod Pod Pod Pod Pod Pod Pod Pod Pod Pod Pod Pod Pod Pod Pod Pod Pod Pod Pod Pod Pod Pod Pod Pod Production Team Trinity Development, Staging Production Pod Pod Pod Pod Pod Pod Pod Pod Pod Pod Pod Pod Team Morpheus Team Trinity Pod Pod Pod Pod Pod Pod Pod Pod Pod Pod Pod Pod Staging Pod Pod Pod Pod Pod Pod Pod Pod Pod Pod Pod Pod Team Morpheus Team Trinity One Cluster is reused over environments and teams Logical
  10. One Dev Cluster per team Development Team Morpheus Pod Pod

    Pod Pod Pod Pod Master branch Feature X branch Pod Pod Pod Pod Pod Pod Feature Y branch Pod Pod Pod Pod Pod Pod Staging Production Pod Pod Pod Pod Pod Pod Pod Pod Pod Pod Pod Pod Pod Pod Pod Pod Pod Pod Pod Pod Pod Pod Pod Pod One Cluster is reused over environments and teams Multiple teams and environments Team Morpheus Team Trinity Team Morpheus Team Trinity

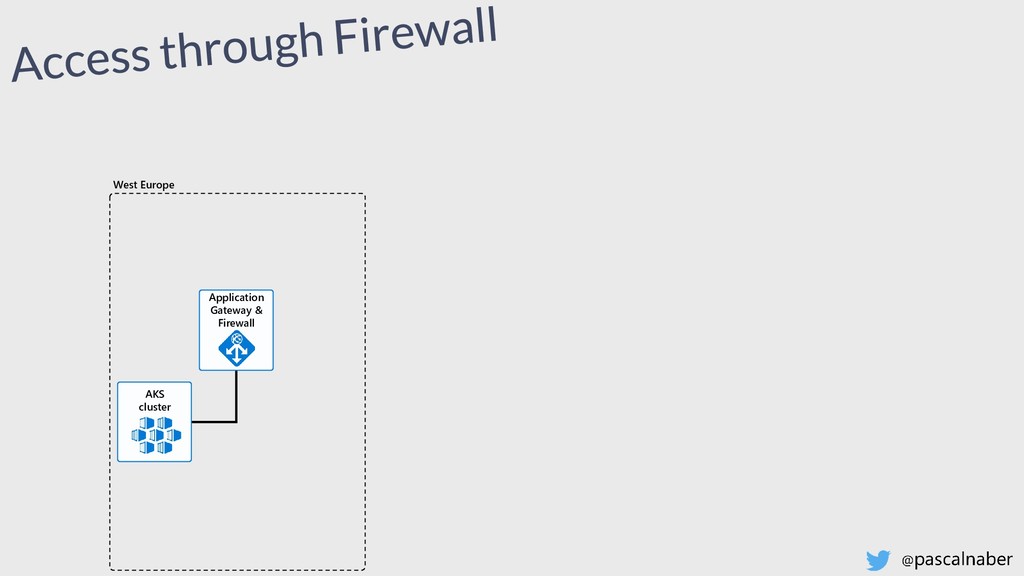

  11. West Europe AKS cluster Application Gateway & Firewall

  12. Azure Application Gateway & Firewall Web traffic load balancer URL

    based routing Endpoint in Azure or External • HTTP rate limiting • Scanner detection • Session fixation • LFI/RFI WAF v2 SSL termination or End-to-End SSL Automatic failover Web Application Firewall - Layer 7 OWASP rulesets • SQL Injection • Cross site scripting • Protocol violations • Generic attacks
  13. Think ahead. Act now. Alternative: Azure Loadbalancer Azure Loadbalancer Level

    4: TCP and UDP Azure endpoints Static IP-address Transport Session affinity (5-tuple hash) Client IP affinity (2-3 tuple hash) Application Gateway Level 7: HTTP Azure & External endpoints Dynamic IP-address* Cookie-based session affinity SSL termination URL-based routing Multi-site routing Web Application Firewall (WAF) vs Load Balancer
  14. Azure Application Gateway Ingress Controller https://azure.github.io/application-gateway-kubernetes-ingress/

  15. West Europe AKS cluster Application Gateway & Firewall

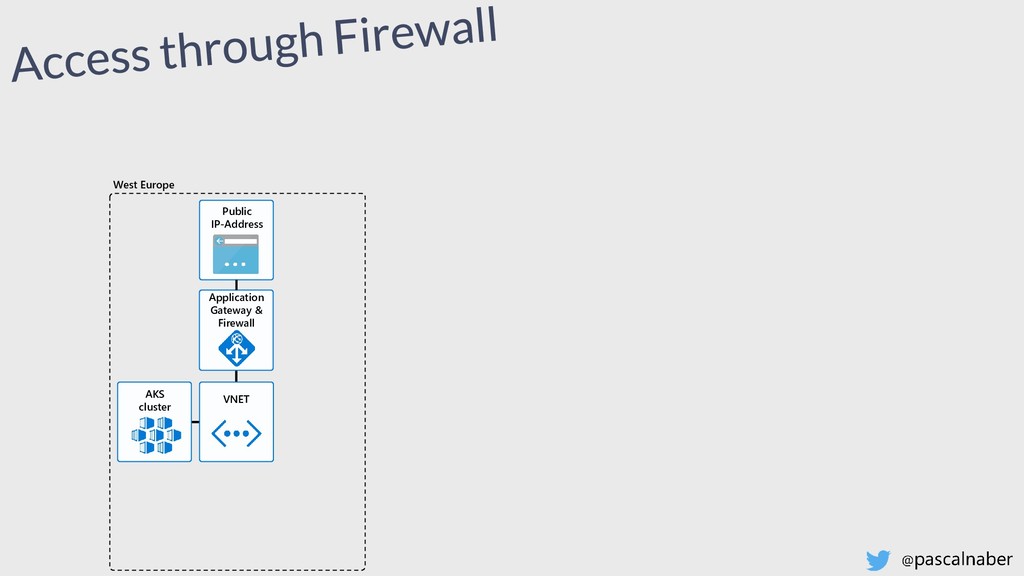

  16. West Europe VNET AKS cluster Application Gateway & Firewall Public

    IP-Address
  17. West Europe VNET AKS cluster Application Gateway & Firewall Public

    IP-Address # Create VNET az network vnet create -g $RESOURCEGROUP_NETWORK -n $VNET_NAME --address-prefix 10.0.0.0/8 # Create Subnets az network vnet subnet create -g $RESOURCEGROUP_NETWORK -n aks-subnet --vnet-name $VNET_NAME --address-prefix 10.240.0.0/16 az network vnet subnet create -g $RESOURCEGROUP_NETWORK -n aks-wag --vnet-name $VNET_NAME --address-prefix 10.0.1.0/24 # Public Dynamic IP address with dns DNS (start with a letter) az network public-ip create -g $RESOURCEGROUP_NETWORK -n $IPADDRESS_NAME --allocation-method Dynamic --sku Basic --dns-name a$(cat /proc/sys/kernel/random/uuid)
  18. # WAG az network application-gateway create \ --name $WAG_NAME \

    --location $LOCATION \ --resource-group $RESOURCEGROUP_NETWORK \ --vnet-name $VNET_NAME \ --subnet aks-wag \ --public-ip-address $IPADDRESS_NAME \ --sku $WAF_SKU \ --capacity 2 \ --servers $AKS_PRIVATE_IPADDRESS # WAF az network application-gateway waf-config set \ --enabled true \ --gateway-name $WAG_NAME \ --resource-group $RESOURCEGROUP_NETWORK \ --firewall-mode Detection \ --rule-set-version 3.0 West Europe VNET AKS cluster Application Gateway & Firewall Public IP-Address

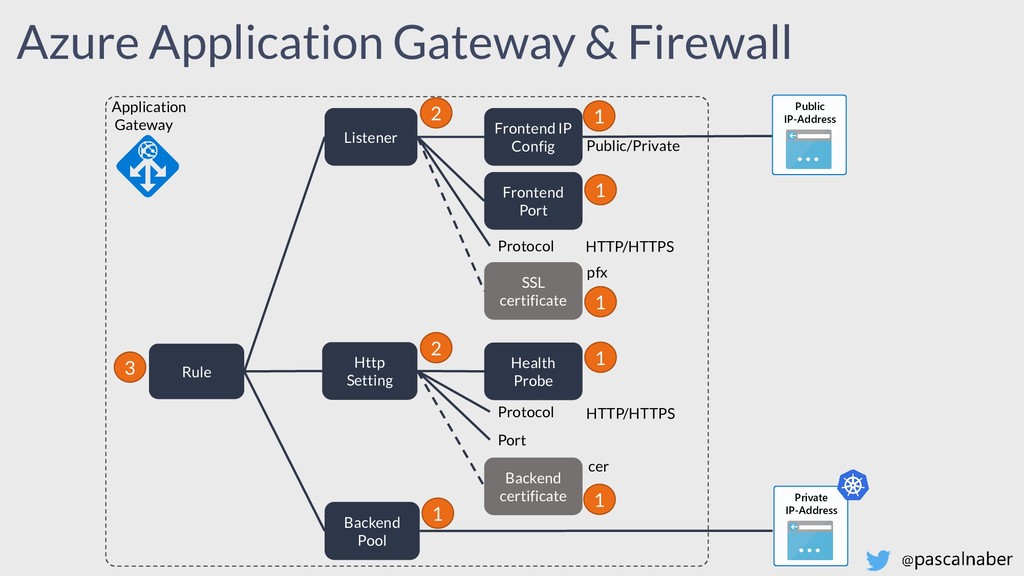

  19. Azure Application Gateway & Firewall Rule Listener Http Setting Backend

    Pool Frontend IP Config Frontend Port Health Probe Protocol Protocol Port Public/Private Application Gateway 1 1 2 1 2 1 3 SSL certificate pfx 1 Backend certificate cer 1 HTTP/HTTPS HTTP/HTTPS Public IP-Address Private IP-Address
  20. # Configure WAG to route all traffic to K8S az

    network application-gateway probe create -g $RESOURCEGROUP_NETWORK --gateway-name $WAG_NAME -n matrix-probe --protocol http --host $WAG_PROBE_URI --path az network application-gateway frontend-port create -g $RESOURCEGROUP_NETWORK --gateway-name $WAG_NAME -n frontend-http-port --port 80 az network application-gateway http-settings create -g $RESOURCEGROUP_NETWORK --gateway-name $WAG_NAME -n matrix-http-setting --port 80 --protocol Http --cookie-based-affinity Disabled --timeout 30 --probe matrix-probe az network application-gateway http-listener create -g $RESOURCEGROUP_NETWORK --gateway-name $WAG_NAME -n matrix-http-listener --frontend-port frontend-http-port --frontend-ip appGatewayFrontendIP az network application-gateway rule create -g $RESOURCEGROUP_NETWORK --gateway-name $WAG_NAME -n matrix-rule --http-listener matrix-http-listener --rule-type Basic --address-pool appGatewayBackendPool --http-settings matrix-http-setting West Europe VNET AKS cluster Application Gateway & Firewall Public IP-Address
  21. West Europe VNET Traffic Manager AKS cluster Application Gateway &

    Firewall Public IP-Address North Europe VNET AKS cluster Application Gateway & Firewall Public IP-Address
  22. Azure Traffic Manager Traffic Manager http://intelligentcloud.trafficmanager.net DNS based load balancer

    Distribute traffic across regions Endpoint in Azure or External Automatic failover Routing based on • Performance • Weighted • Priority • Geographical
  23. Think ahead. Act now. Azure Front Door Global Load Balancer

    Traffic Manager + Application Gateway + CDN in one product Global Http Load Balancing URL redirection SSL termination WAF rules Static Content Cache
  24. West Europe VNET Traffic Manager AKS cluster Application Gateway &

    Firewall Public IP-Address North Europe VNET AKS cluster Application Gateway & Firewall Public IP-Address # Traffic Manager az network traffic-manager profile create -g $RESOURCEGROUP_NETWORK -n $TRAFFICMANAGER_NAME --routing-method Performance --unique-dns-name $TRAFFICMANAGER_NAME --ttl 30 --protocol HTTP --port 80 --path "/" # Get resourceID of public ip address PUBLICIP_RESOURCEID=$(az network public-ip show -g $RESOURCEGROUP_NETWORK -n $IPADDRESS_NAME --query id -o tsv) # Add public ip address of WAG/WAF to Trafficmanager az network traffic-manager endpoint create -g $RESOURCEGROUP_NETWORK --name wagwaf --profile-name $TRAFFICMANAGER_NAME --type azureEndpoints --target-resource-id $PUBLICIP_RESOURCEID
  25. DNS Zone West Europe VNET Traffic Manager AKS cluster Application

    Gateway & Firewall Public IP-Address North Europe VNET AKS cluster Application Gateway & Firewall Public IP-Address # DNS zone az network dns zone create -g $RESOURCEGROUP_NETWORK -n $DOMAIN_NAME # Get resourceId of TrafficManager TRAFFICMANAGER_RESOURCEID=$(az resource show -g $RESOURCEGROUP_NETWORK -n $TRAFFICMANAGER_NAME --query id --output tsv) # Add TrafficManager to DNS Zone az network dns record-set cname create -g $RESOURCEGROUP_NETWORK -z $DOMAIN_NAME -n '*' --target-resource $TRAFFICMANAGER_RESOURCEID http://www.intelligentcloud.cf
  26. Traffic Manager VNET AKS cluster Application Gateway & Firewall DNS

    Zone Log Analytics VNET AKS cluster Application Gateway & Firewall Log Analytics West Europe Public IP-Address North Europe Public IP-Address # Log analytics (using ARM template) az group deployment create –g $RESOURCEGROUP_K8S --template-file $WORKSPACE_ARMTEMPLATE_PATH --parameters workspaceName=$WORKSPACE_NAME serviceTier=PerNode location=$LOCATION
  27. Traffic Manager VNET AKS cluster Application Gateway & Firewall Service

    Principal (AKS) DNS Zone Log Analytics VNET AKS cluster Application Gateway & Firewall Service Principal (AKS) Log Analytics Service Principal (Deploy) Key Vault Service Principal (Deploy) Key Vault West Europe Public IP-Address North Europe Public IP-Address # Key Vault az keyvault create --resource-group $RESOURCEGROUP_KEYVAULT --name $KEYVAULT_NAME --enabled-for-template-deployment --enabled-for-deployment # Network Contributor to Deploy SPN SPN_AKS_ID=$(az ad sp show --id http://$SPN_AKS_NAME --query appId --output tsv) az role assignment create --assignee $SPN_DEPLOY_ID --role "Network Contributor" # Assign Reader Role to Key Vault for Deploy SPN KEYVAULT_ID=$(az keyvault show -n $KEYVAULT_NAME -g $RESOURCEGROUP_KEYVAULT --query id -o tsv) az role assignment create --role Reader --assignee $SPN_DEPLOY_ID --scope $KEYVAULT_ID
  28. Azure Key Vault Secure storage of • Secrets • Keys

    • Certificates Access using Azure AD Key Vault
  29. Traffic Manager West Europe VNET North Europe AKS cluster Application

    Gateway & Firewall Public IP-Address Service Principal (AKS) DNS Zone Log Analytics VNET AKS cluster Application Gateway & Firewall Public IP-Address Service Principal (AKS) Log Analytics + Network Contributor WORKSPACE_RESOURCEID=$(az resource show -g $RESOURCEGROUP_K8S -n $WORKSPACE_NAME --query 'id' -o tsv) AKSSUBNETID=$(az network vnet subnet show -g $RESOURCEGROUP_NETWORK -n aks-subnet --vnet-name $VNET_NAME --query id --output tsv) # Create AKS az aks create -g $RESOURCEGROUP_K8S -n $AKS_NAME \ --kubernetes-version 1.11.5 \ --node-count $AKS_NODE_COUNT \ --node-vm-size $AKS_VM_SIZE \ --max-pods 110 \ --ssh-key-value "$(az keyvault secret show --name ssh-publickey --vault-name $KEYVAULT_NAME --query value -o tsv)" \ --service-principal $(az keyvault secret show --name spn-aks-id --vault-name $KEYVAULT_NAME --query value -o tsv) \ --client-secret "$(az keyvault secret show --name spn-aks-password --vault-name $KEYVAULT_NAME --query value -o tsv)" \ --network-plugin azure \ --vnet-subnet-id $AKSSUBNETID \ --docker-bridge-address 172.17.0.1/16 --dns-service-ip 10.2.0.10 --service-cidr 10.2.0.0/24 --enable-addons monitoring --workspace-resource-id $WORKSPACE_RESOURCEID Service Principal (Deploy) Key Vault Service Principal (Deploy) Key Vault ## Create Kubernetes cluster az aks create -g aksdemo -n ignitetour --generate-ssh-keys
  30. Traffic Manager West Europe VNET North Europe AKS cluster Application

    Gateway & Firewall Public IP-Address Service Principal (AKS) Service Principal (Deploy) Key Vault DNS Zone Log Analytics VNET AKS cluster Application Gateway & Firewall Public IP-Address Service Principal (AKS) Service Principal (Deploy) Key Vault Log Analytics Service Principal (Registry) Container Registry Common AKS cluster Production Development
  31. Traffic Manager West Europe VNET AKS cluster Application Gateway &

    Firewall Public IP-Address Service Principal (AKS) Service Principal (Deploy) Key Vault DNS Zone Log Analytics On-premises Express route VPN Gateway VNET peering VNET
  32. None
  33. Think ahead. Act now. Lessons learned regarding Provisioning Make sure

    your team is in control Time to market is more important then resource costs Use Application Gateway for a Layer 7 firewall Application Gateway is complex to configure Use Traffic Manager for High Availability Use Key Vault for ALL your secrets Provisioning AKS takes some preparation New interesting Azure services are coming soon Automate everything! Automating everything takes a LOT of time and effort Using Azure DevOps for CI/CD is a good solution to automate everything
  34. Think ahead. Act now. Configuration We need an AKS cluster

    that: • shows a dashboard • has Ingress configured • supports automatic reboots of worker nodes
  35. kubectl proxy Dashboard kubectl create clusterrolebinding kubernetes-dashboard -n kube-system --clusterrole=cluster-admin

    --serviceaccount=kube-system:kubernetes-dashboard kubectl create clusterrolebinding kubernetes-dashboard -n kube-system --clusterrole=view --serviceaccount=kube-system:kubernetes-dashboard
  36. Ingress Pod 10.0.0.1 Pod 10.0.0.2 Pod 10.0.0.3 Service Type: ClusterIP

    Pod 10.0.0.4 Pod 10.0.0.5 Pod 10.0.0.6 Service Type: ClusterIP Pod 10.0.0.7 Pod 10.0.0.8 Pod 10.0.0.9 Service Type: ClusterIP Service Type: LoadBalancer Public or Private ip address: 37.17.208.21 Pod quay.io/kubernetes-ingress-controller/ nginx-ingress-controller:0.15.0 Ingress host: gaming. intelligentcloud.cf serviceName: gamingwebapp Ingress host: erp. intelligentcloud.cf serviceName: erpsvc Ingress host: www. intelligentcloud.cf/crm serviceName: crmsvc Label: erp Label: frontend Label: crm helm upgrade nginxingress --install stable/nginx-ingress --namespace kube-system -f internalingress.yaml Addon Http Application Routing

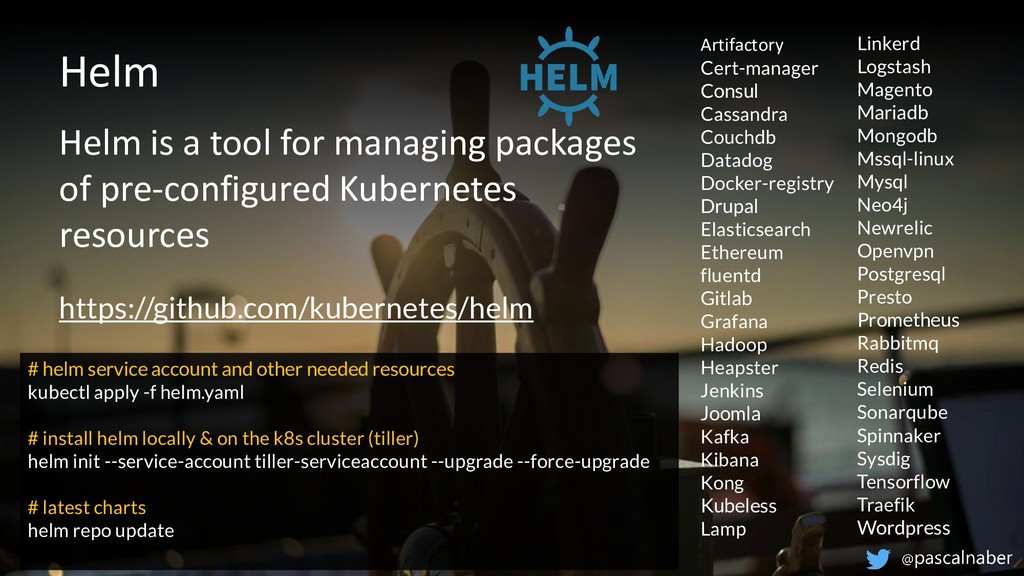

  37. Helm Helm is a tool for managing packages of pre-configured

    Kubernetes resources Linkerd Logstash Magento Mariadb Mongodb Mssql-linux Mysql Neo4j Newrelic Openvpn Postgresql Presto Prometheus Rabbitmq Redis Selenium Sonarqube Spinnaker Sysdig Tensorflow Traefik Wordpress Artifactory Cert-manager Consul Cassandra Couchdb Datadog Docker-registry Drupal Elasticsearch Ethereum fluentd Gitlab Grafana Hadoop Heapster Jenkins Joomla Kafka Kibana Kong Kubeless Lamp # helm service account and other needed resources kubectl apply -f helm.yaml # install helm locally & on the k8s cluster (tiller) helm init --service-account tiller-serviceaccount --upgrade --force-upgrade # latest charts helm repo update https://github.com/kubernetes/helm
  38. Automatic reboots of worker nodes Safe & Automatic reboots of

    Nodes with Kured https://github.com/weaveworks/kured helm upgrade kured --install stable/kured --namespace kured

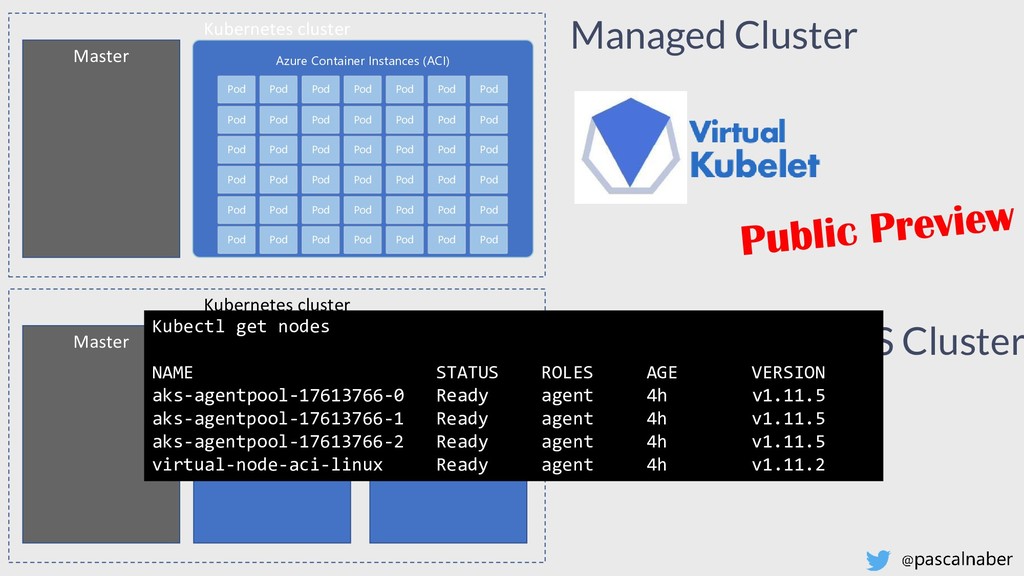

  39. Kubernetes cluster Master Azure Container Instances (ACI) Pod Pod Pod

    Pod Pod Pod Pod Pod Pod Pod Pod Pod Pod Pod Pod Pod Pod Pod Pod Pod Pod Pod Pod Pod Pod Pod Pod Pod Pod Pod Pod Pod Pod Pod Pod Pod Pod Pod Pod Pod Pod Pod Partly Managed IaaS Cluster Managed Cluster Kubernetes cluster Worker Node Worker Node Master Pod Pod Pod Pod Pod Pod Pod Pod Pod Pod Pod Pod Pod Pod Pod Pod Pod Pod Kubectl get nodes NAME STATUS ROLES AGE VERSION aks-agentpool-17613766-0 Ready agent 4h v1.11.5 aks-agentpool-17613766-1 Ready agent 4h v1.11.5 aks-agentpool-17613766-2 Ready agent 4h v1.11.5 virtual-node-aci-linux Ready agent 4h v1.11.2
  40. None
  41. Think ahead. Act now. Microsoft updates the Nodes Responsibility to

    reboot Nodes Apply Kured for automatic reboots AKS Worker Nodes are IaaS Use Helm to install & configure preconfigured applications to K8S Automate configuration also! Lessons learned regarding Configuration Easy to make the Dashboard work Kubernetes as PaaS is the next step Kubernetes ecosystem is amazing
  42. Think ahead. Act now. Running Applications Applications within AKS cluster

    : • Automated deployments • Stateful applications • Monitoring • Keyvault
  43. One Dev Cluster per team Development Team Morpheus Pod Pod

    Pod Pod Pod Pod Master branch Feature X branch Pod Pod Pod Pod Pod Pod Feature Y branch Pod Pod Pod Pod Pod Pod Staging Production Pod Pod Pod Pod Pod Pod Pod Pod Pod Pod Pod Pod Pod Pod Pod Pod Pod Pod Pod Pod Pod Pod Pod Pod One Cluster is reused over environments and teams Automated deployments Team Morpheus Team Trinity Team Morpheus Team Trinity
  44. Namespaces Logical Isolation boundary A way to divide cluster resources

    Limit resource usage using Resource quotas Limit network access using Network Policies kubectl create namespace inbound-master kubectl apply –f mynamespace.yaml

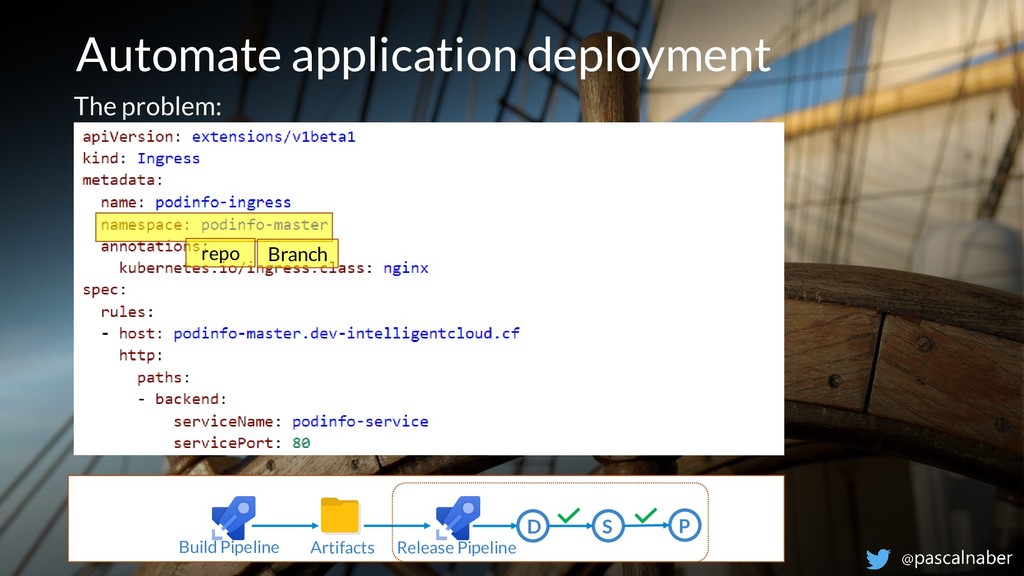

  45. Automate application deployment Build Pipeline Artifacts D S P Release

    Pipeline The problem: Branch repo
  46. Think ahead. Act now. Automate application deployment The problem: Build

    Pipeline Artifacts D S P Release Pipeline
  47. Think ahead. Act now. Create Helm chart ## Create helm

    chart helm create podinfo Alternatives: Draft, Dev Spaces ## Install or upgrade helm chart helm upgrade podinfo --install ./podinfo --set image.tag=213 --set ingress.host=podinfo-master.dev-intelligentcloud.cf
  48. Think ahead. Act now. Create Helm chart

  49. Think ahead. Act now. Storage / Volumes Pod Secret Volume

    Persistent Volumes Pod Persistent VolumeClaim StorageClass Persistent Volume Secret Pod Persistent VolumeClaim StorageClass Persistent Volume Secret Dynamic Static
  50. Think ahead. Act now. Storage / Volumes Pod Secret Volume

    AzureDisk - ReadWriteOnce only - 1 Pod only - Slow in provisioning - Limited nr of Disks - No direct access to data + default (for dev & test) + Premium (SSD) for production AzureFile + All AccessModes + Shared by Pods + Fast in provisioning + Unlimited Volumes + Direct access to data - default only (dev & test) - SMB = slow Persistent Volumes AccessModes • ReadWriteOnce • ReadOnlyMany • ReadWriteMany
  51. Think ahead. Act now. Persistent Volumes Share 01ab Replica Set

    Deployment Pod Pod Pod Pod StatefulSet Pod Pod Share 01zf Share 01qr Share 01xy

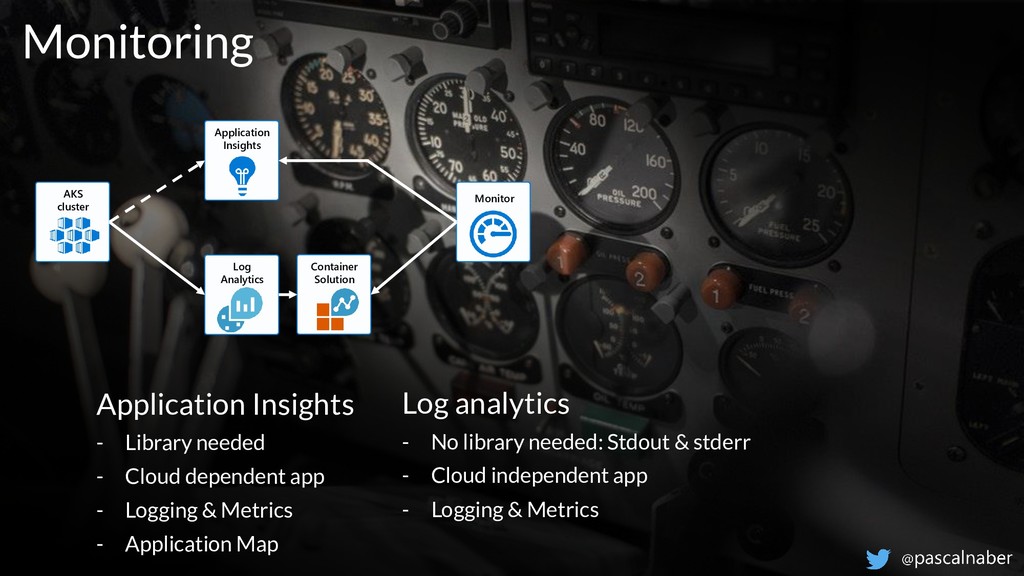

  52. Think ahead. Act now. Monitoring Monitoring Log analytics - No

    library needed: Stdout & stderr - Cloud independent app - Logging & Metrics Application Insights Log Analytics Monitor Container Solution AKS cluster Application Insights - Library needed - Cloud dependent app - Logging & Metrics - Application Map
  53. Log Analytics Monitor Container Solution

  54. Think ahead. Act now. Monitoring Monitoring Log analytics - No

    library needed: Stdout & stderr - Cloud independent app - Logging & Metrics Application Insights Log Analytics Monitor Container Solution AKS cluster Application Insights - Library needed - Cloud dependent app - Logging & Metrics - Application Map Alternative: Distributed Tracing Logging Monitoring (metrics & alerts) Monitoring dashboard
  55. Secrets Goal: Read secrets from a Pod Use Key Vault

    Solution: Use Managed Identity (MI) to access the Key Vault Secrets in Kubernetes: base64 encoded
  56. Think ahead. Act now. No integration between AKS & Key

    Vault (yet) AAD Pod Identity https://github.com/Azure/aad-pod-identity/ Key Vault Flex Volume: https://github.com/Azure/kubernetes-keyvault-flexvol Secrets
  57. Think ahead. Act now. Lessons learned regarding Applications Creating Helm

    templates takes another thing to learn Key Vault access is not perfectly integrated in AKS Microsoft Azure specific Monitoring Solution for AKS: Log Analytics + Container Solution Prevent stateful applications Helm is convenient to deploy applications Automate application deployment also!
  58. Wrap up There is a lot more involved than running

    Kubernetes to run Docker containers in the cloud Which requires knowledge of various Azure services
  59. Think ahead. Act now. https://pages.xpirit.com/magazine2018 https://github.com/pascalnaber/intelligentcloud2019 @pascalnaber Pascal Naber Coding

    Azure Architect Xpirit Netherlands
