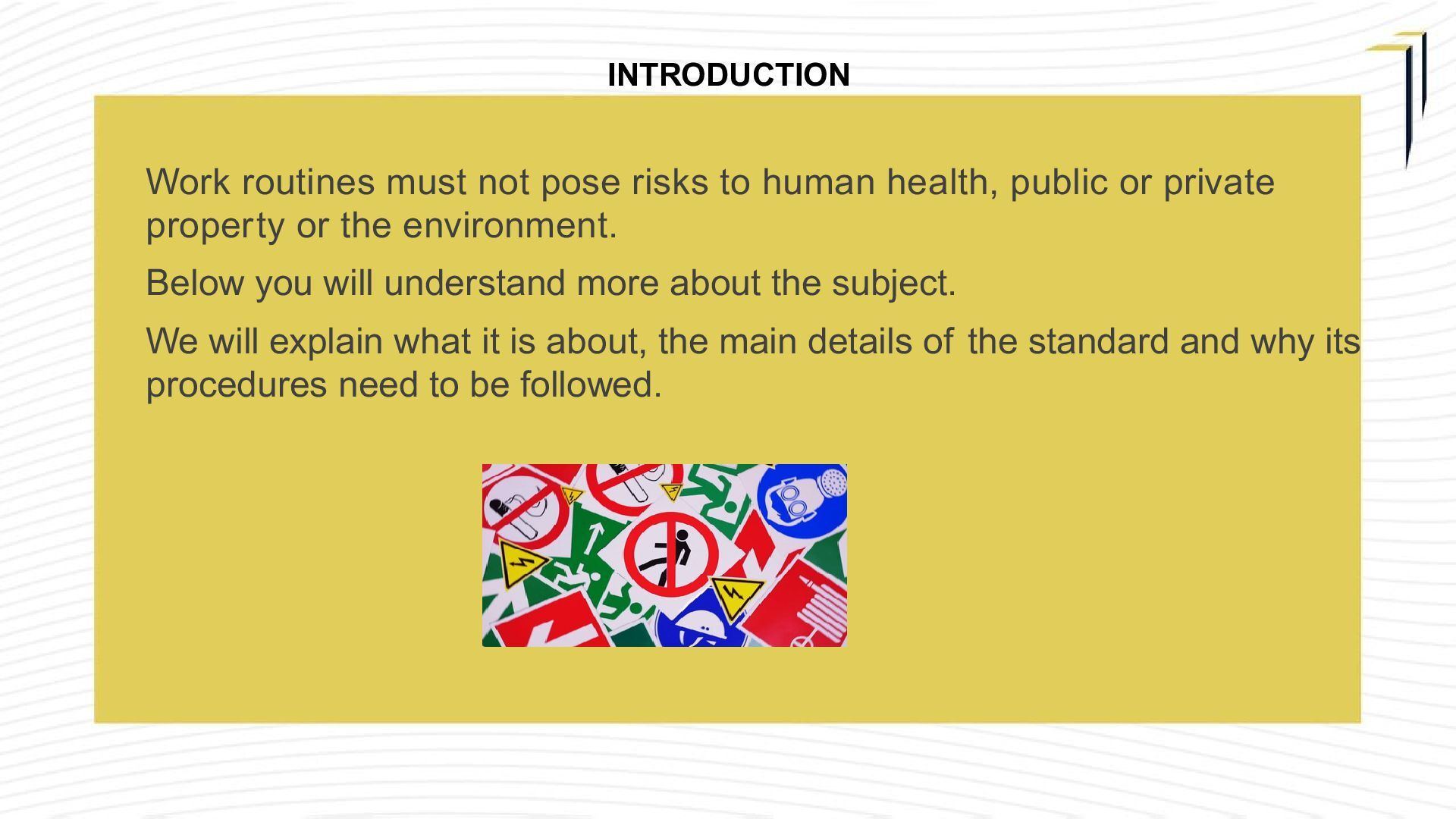

  1. INTRODUCTION Work routines must not pose risks to human health,

    public or private property or the environment. Below you will understand more about the subject. We will explain what it is about, the main details of the standard and why its procedures need to be followed.

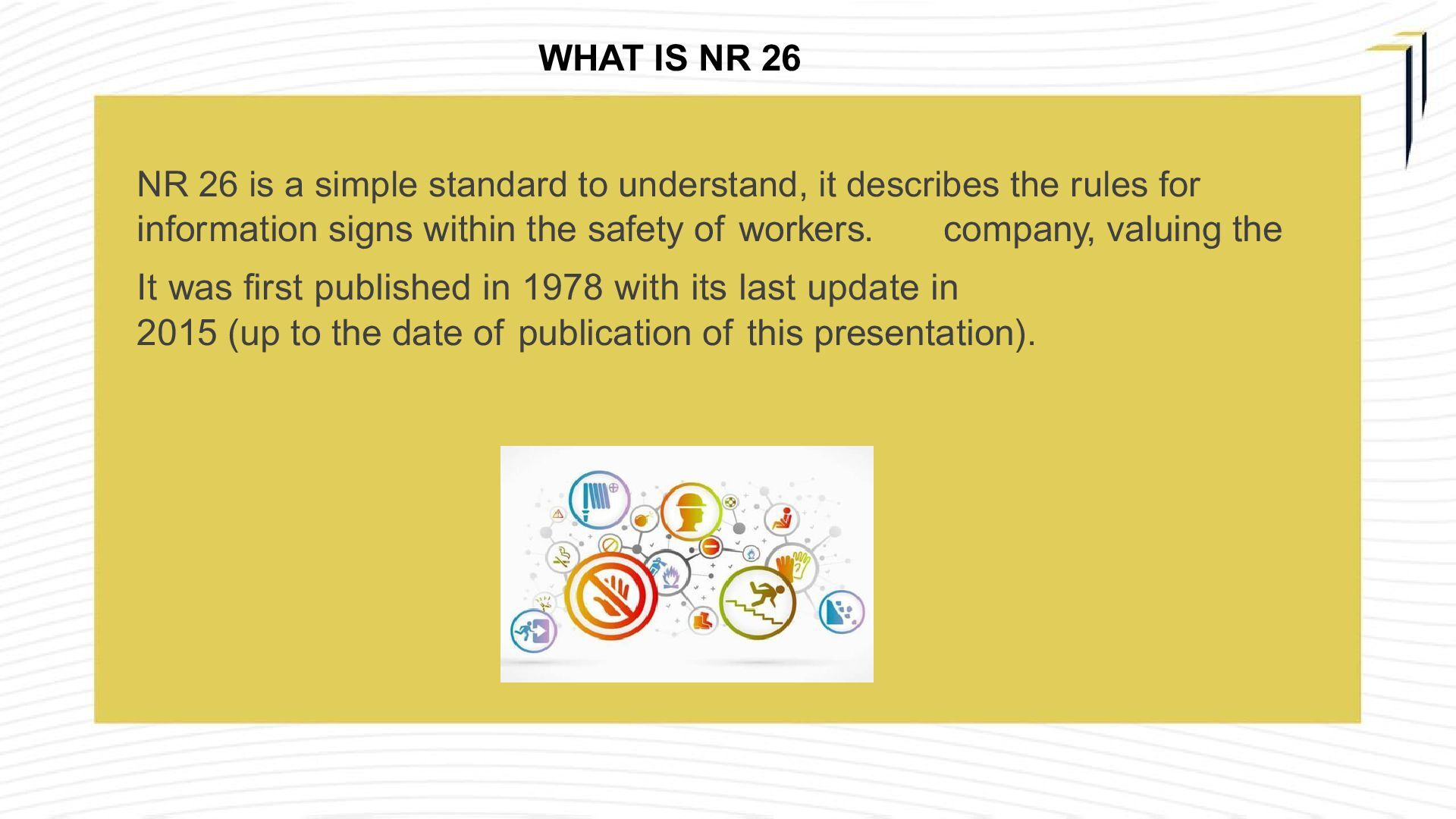

  2. NR 26 is a simple standard to understand, it describes

    the rules for information signs within the safety of workers. It was first published in 1978 with its last update in 2015 (up to the date of publication of this presentation). company, valuing the WHAT IS NR 26

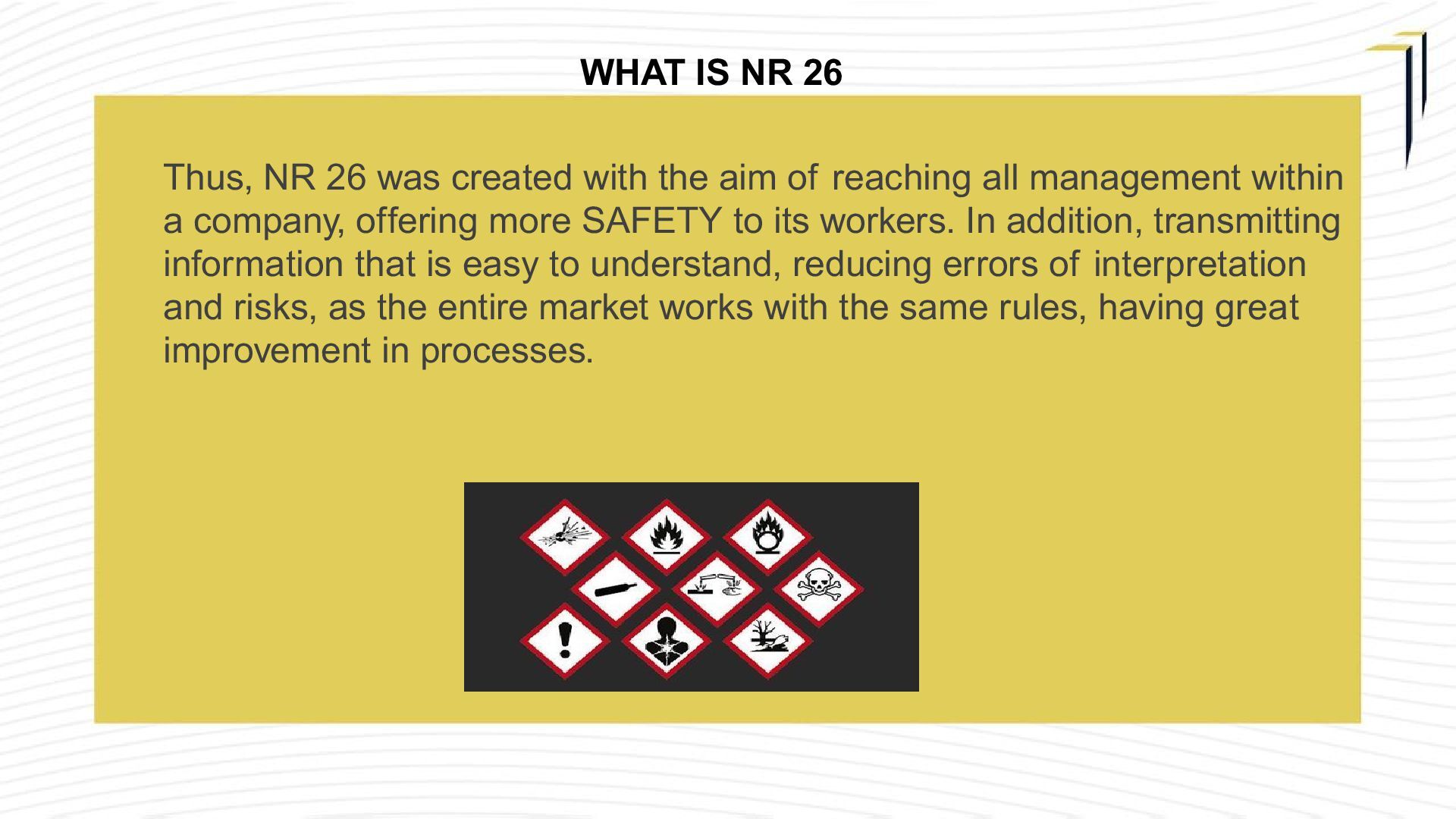

  3. WHAT IS NR 26 Thus, NR 26 was created with

    the aim of reaching all management within a company, offering more SAFETY to its workers. In addition, transmitting information that is easy to understand, reducing errors of interpretation and risks, as the entire market works with the same rules, having great improvement in processes.

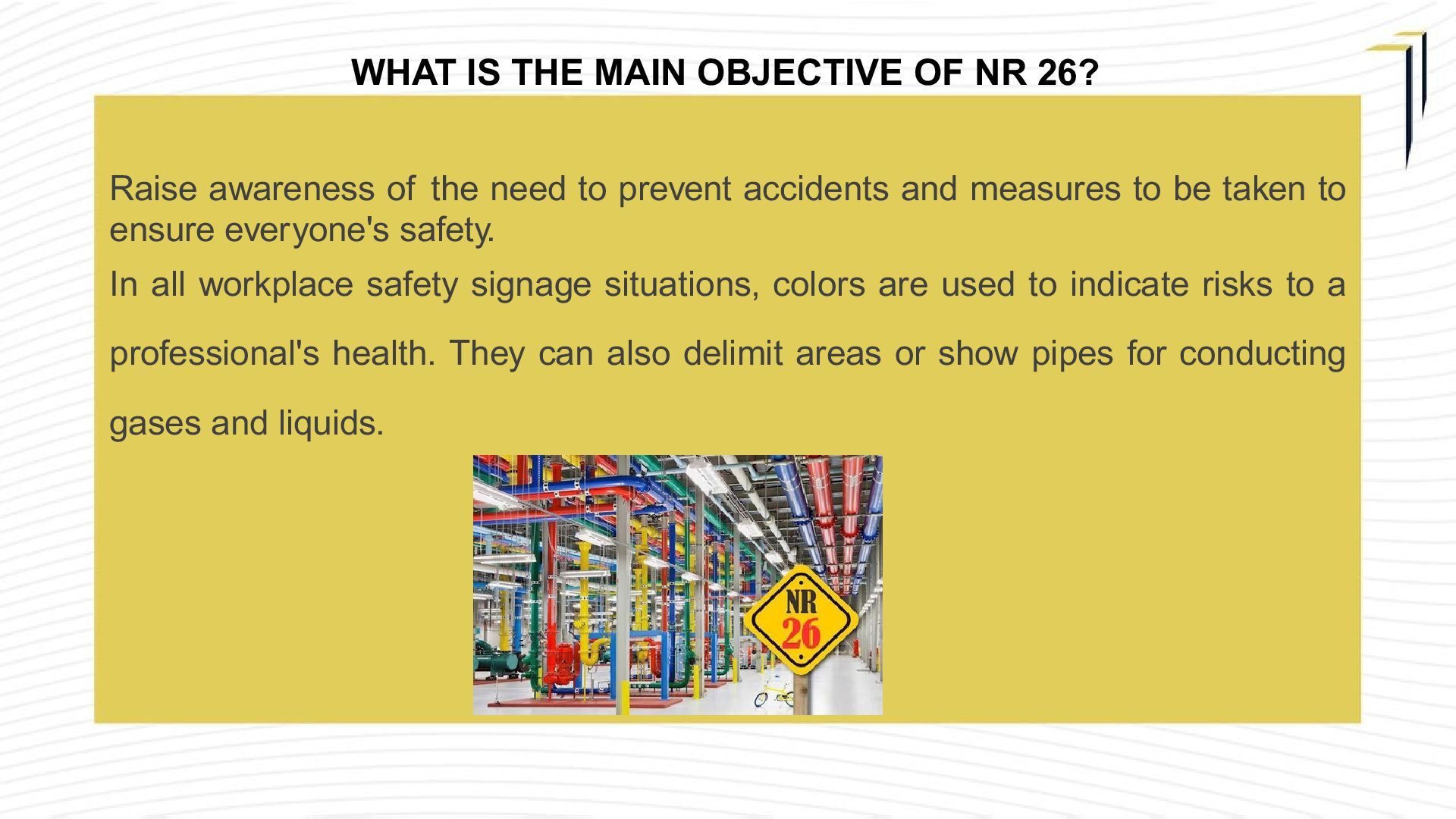

  4. WHAT IS THE MAIN OBJECTIVE OF NR 26? Raise awareness

    of the need to prevent accidents and measures to be taken to ensure everyone's safety. In all workplace safety signage situations, colors are used to indicate risks to a professional's health. They can also delimit areas or show pipes for conducting gases and liquids.
  5. WHAT IS THE MAIN OBJECTIVE OF NR 26? The signs

    must be positioned strategically, you must be very careful not to use them incorrectly, as this could cause distractions or confusion for workers.

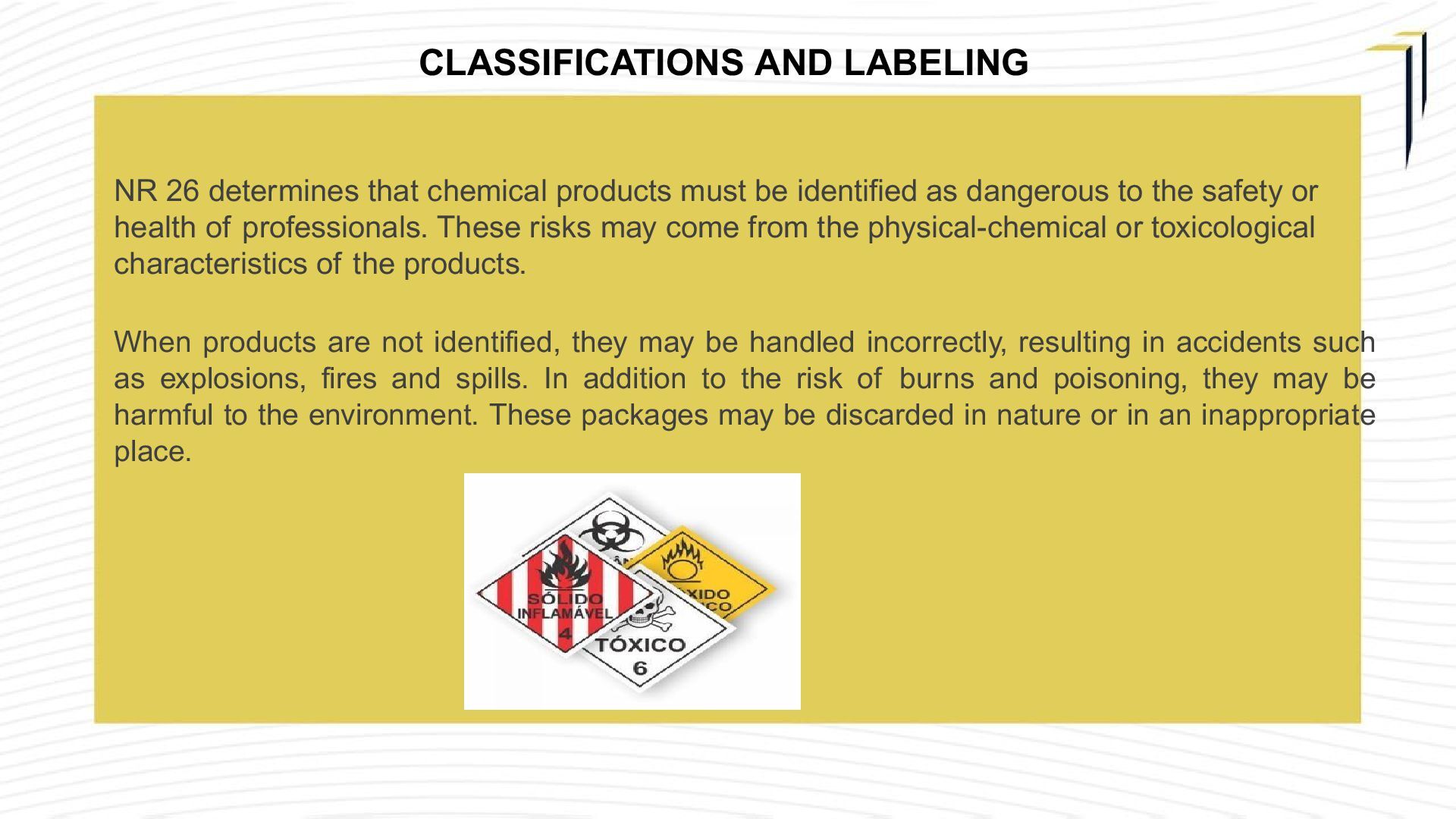

  6. CLASSIFICATIONS AND LABELING NR 26 determines that chemical products must

    be identified as dangerous to the safety or health of professionals. These risks may come from the physical-chemical or toxicological characteristics of the products. When products are not identified, they may be handled incorrectly, resulting in accidents such as explosions, fires and spills. In addition to the risk of burns and poisoning, they may be harmful to the environment. These packages may be discarded in nature or in an inappropriate place.

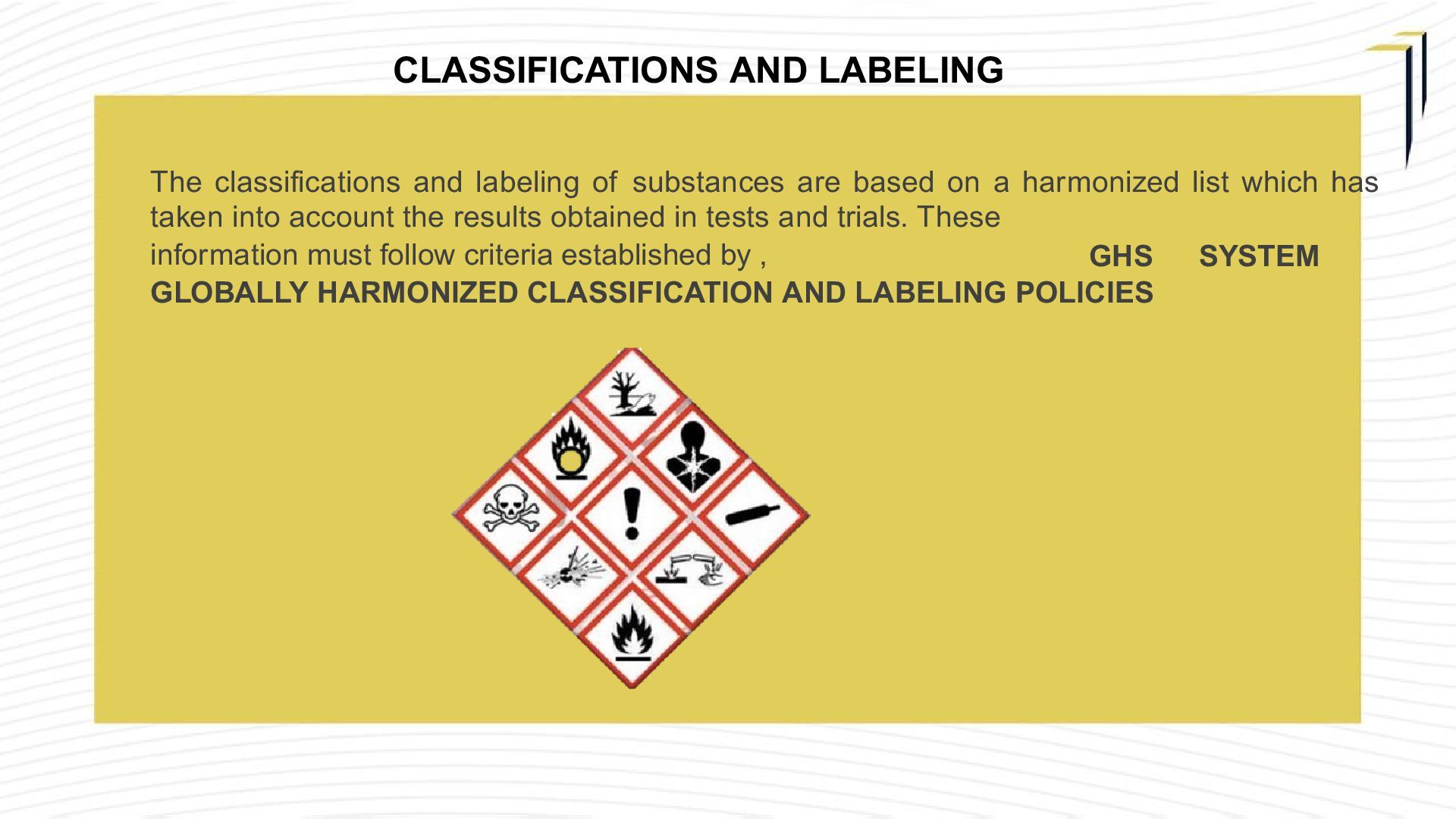

  7. CLASSIFICATIONS AND LABELING The classifications and labeling of substances are

    based on a harmonized list which has taken into account the results obtained in tests and trials. These information must follow criteria established by , GHS SYSTEM GLOBALLY HARMONIZED CLASSIFICATION AND LABELING POLICIES

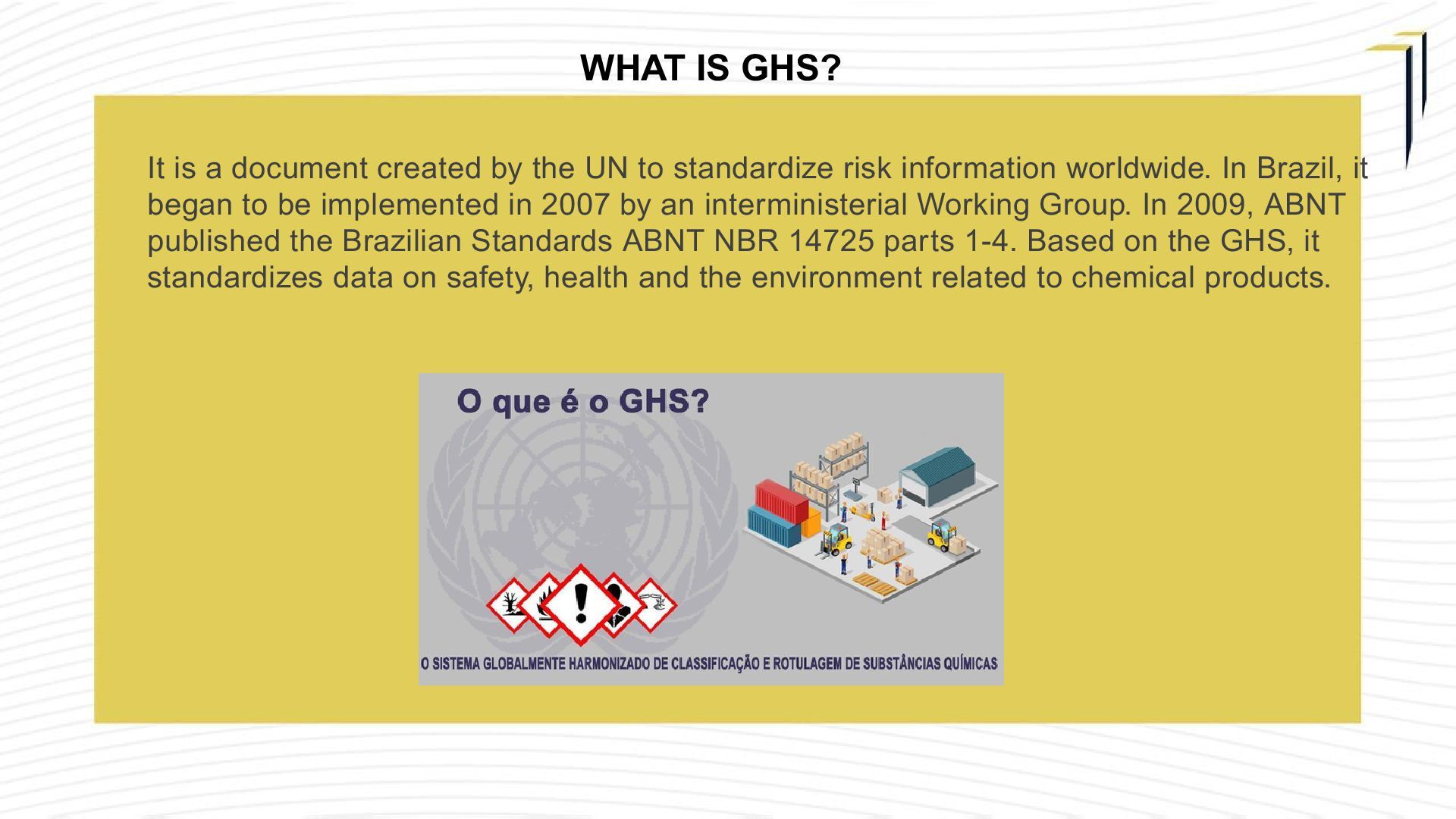

  8. WHAT IS GHS? It is a document created by the

    UN to standardize risk information worldwide. In Brazil, it began to be implemented in 2007 by an interministerial Working Group. In 2009, ABNT published the Brazilian Standards ABNT NBR 14725 parts 1-4. Based on the GHS, it standardizes data on safety, health and the environment related to chemical products.

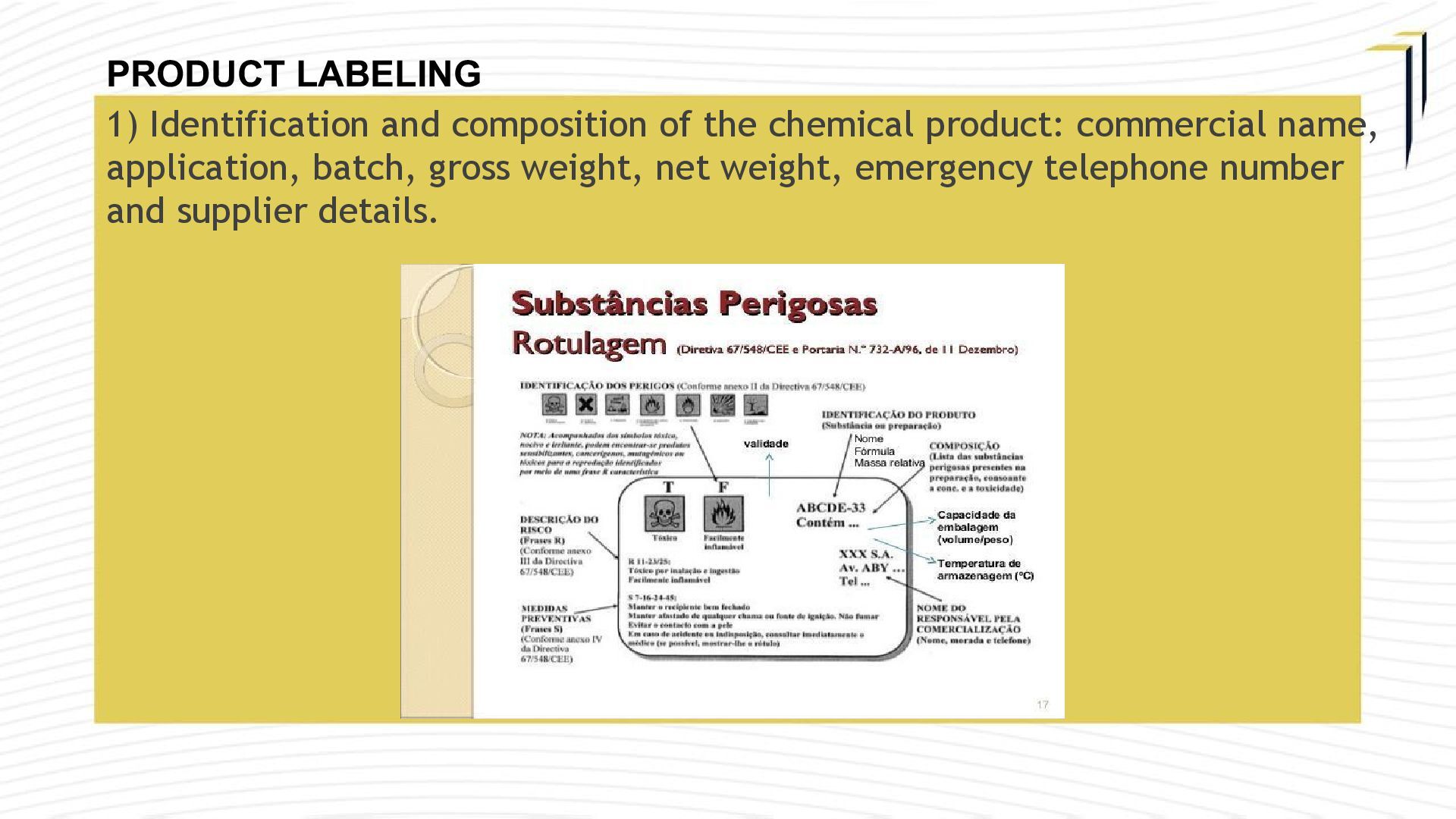

  9. PRODUCT LABELING 1) Identification and composition of the chemical product:

    commercial name, application, batch, gross weight, net weight, emergency telephone number and supplier details.

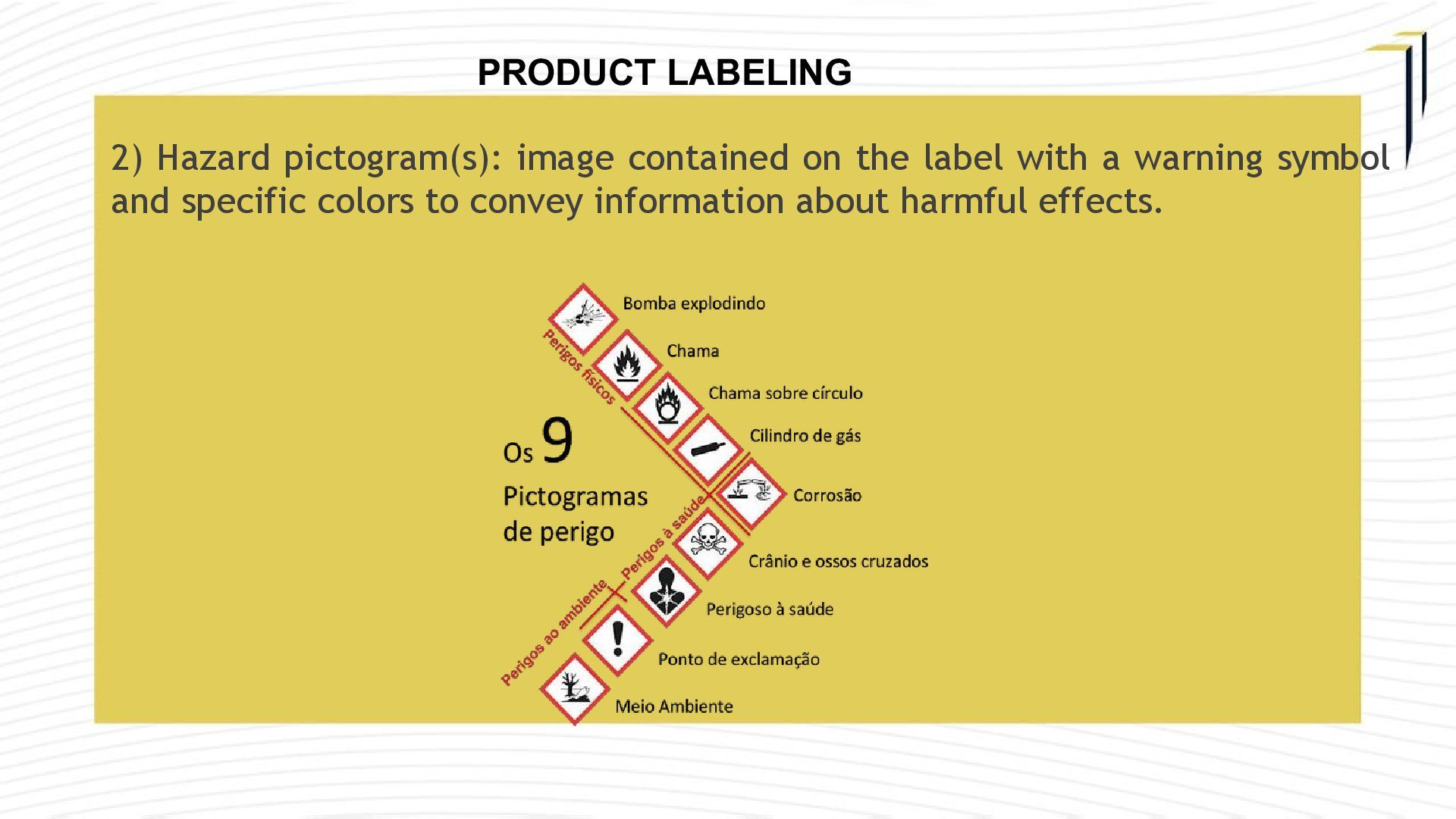

  10. PRODUCT LABELING 2) Hazard pictogram(s): image contained on the label

    with a warning symbol and specific colors to convey information about harmful effects.

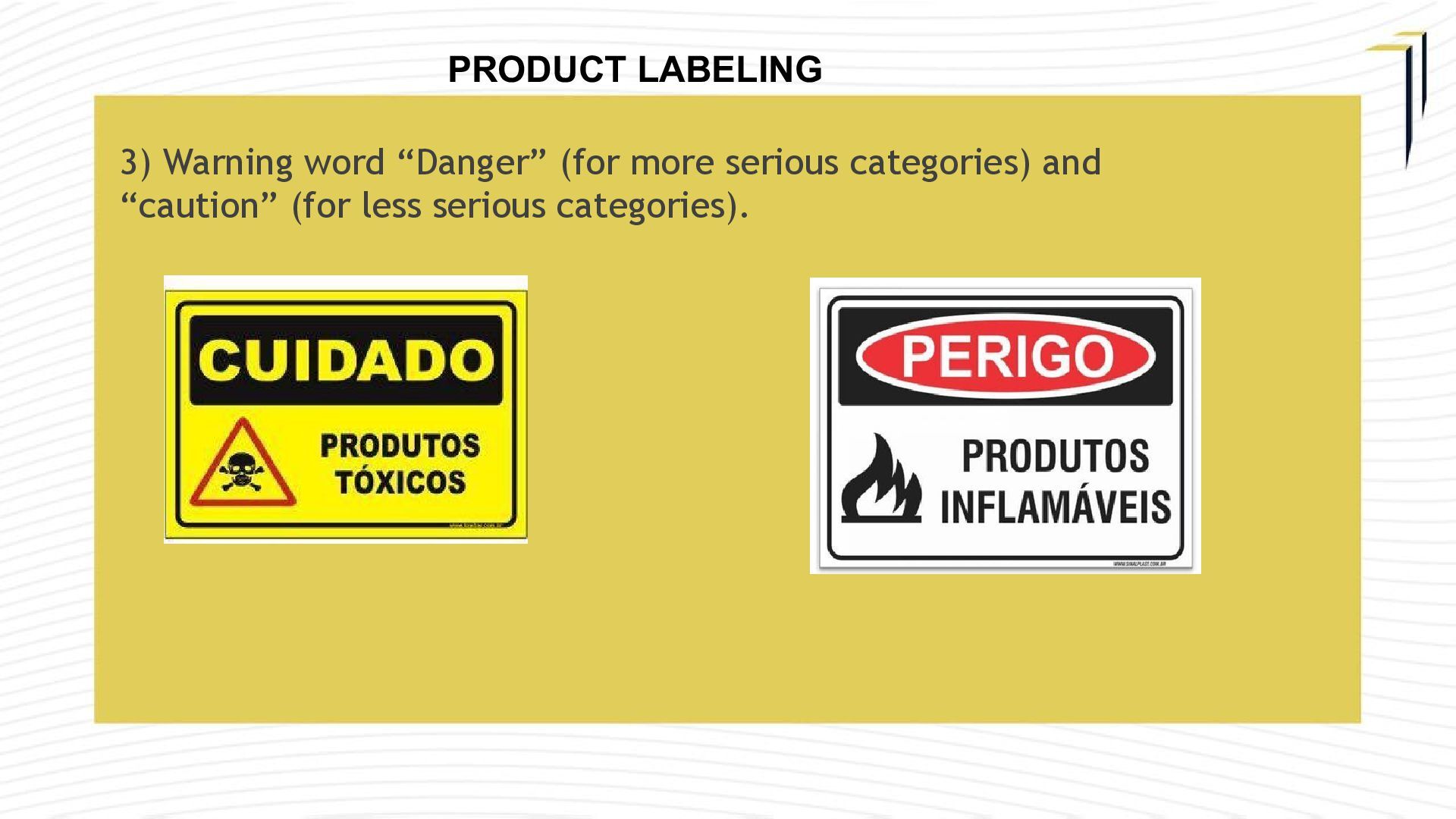

  11. PRODUCT LABELING 3) Warning word “Danger” (for more serious categories)

    and “caution” (for less serious categories).

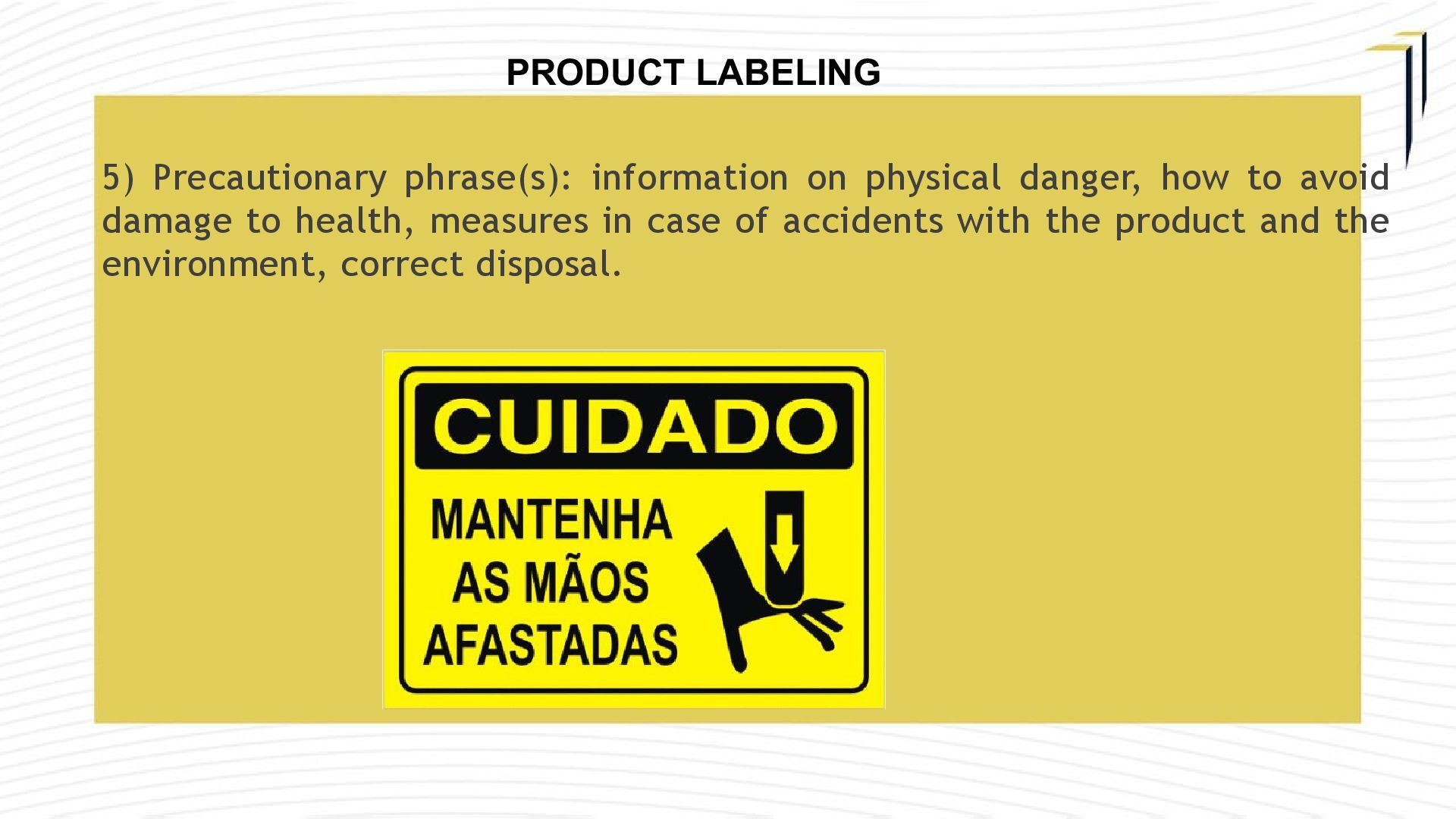

  12. PRODUCT LABELING 5) Precautionary phrase(s): information on physical danger, how

    to avoid damage to health, measures in case of accidents with the product and the environment, correct disposal.

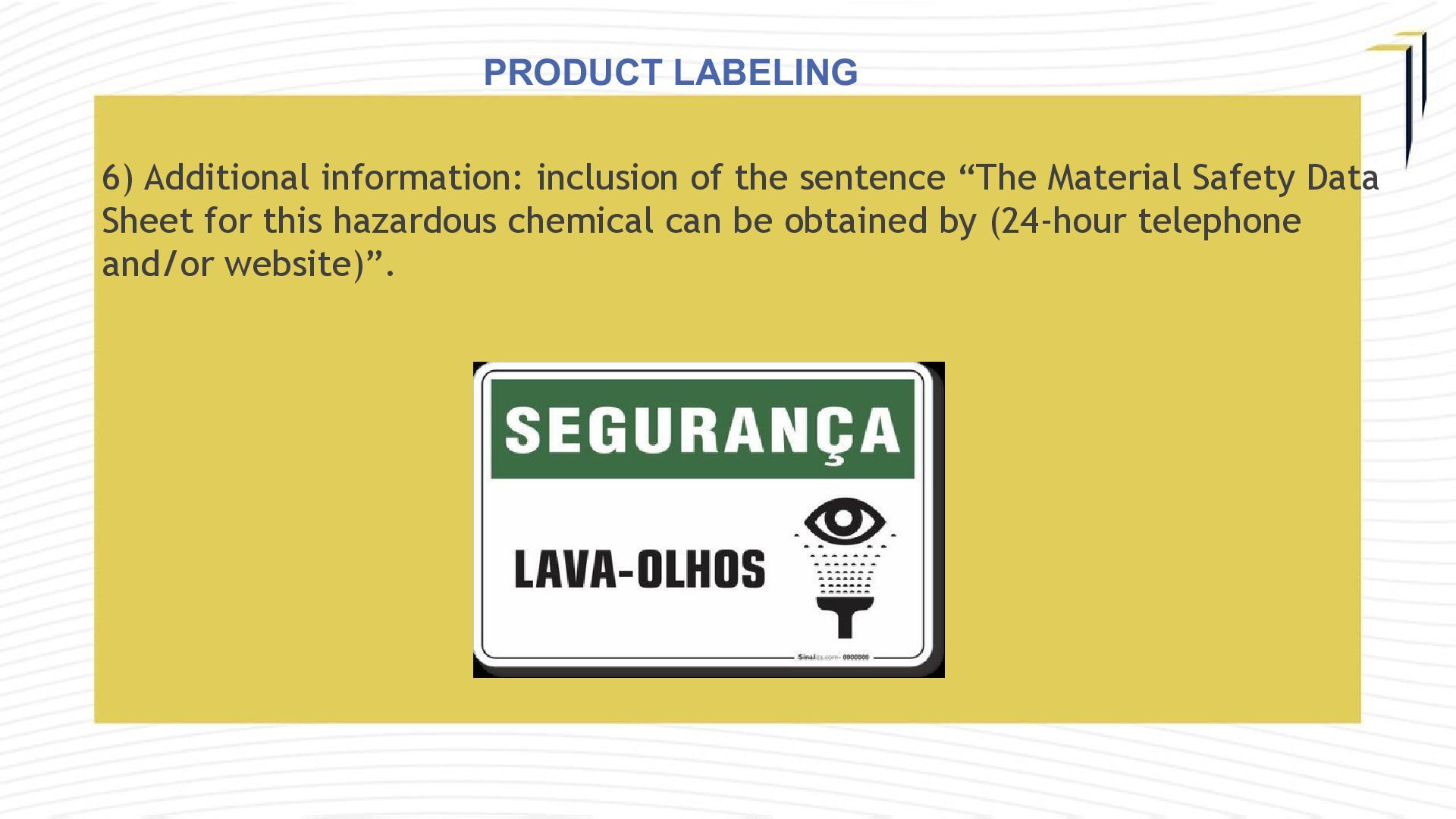

  13. PRODUCT LABELING 6) Additional information: inclusion of the sentence “The

    Material Safety Data Sheet for this hazardous chemical can be obtained by (24-hour telephone and/or website)”.

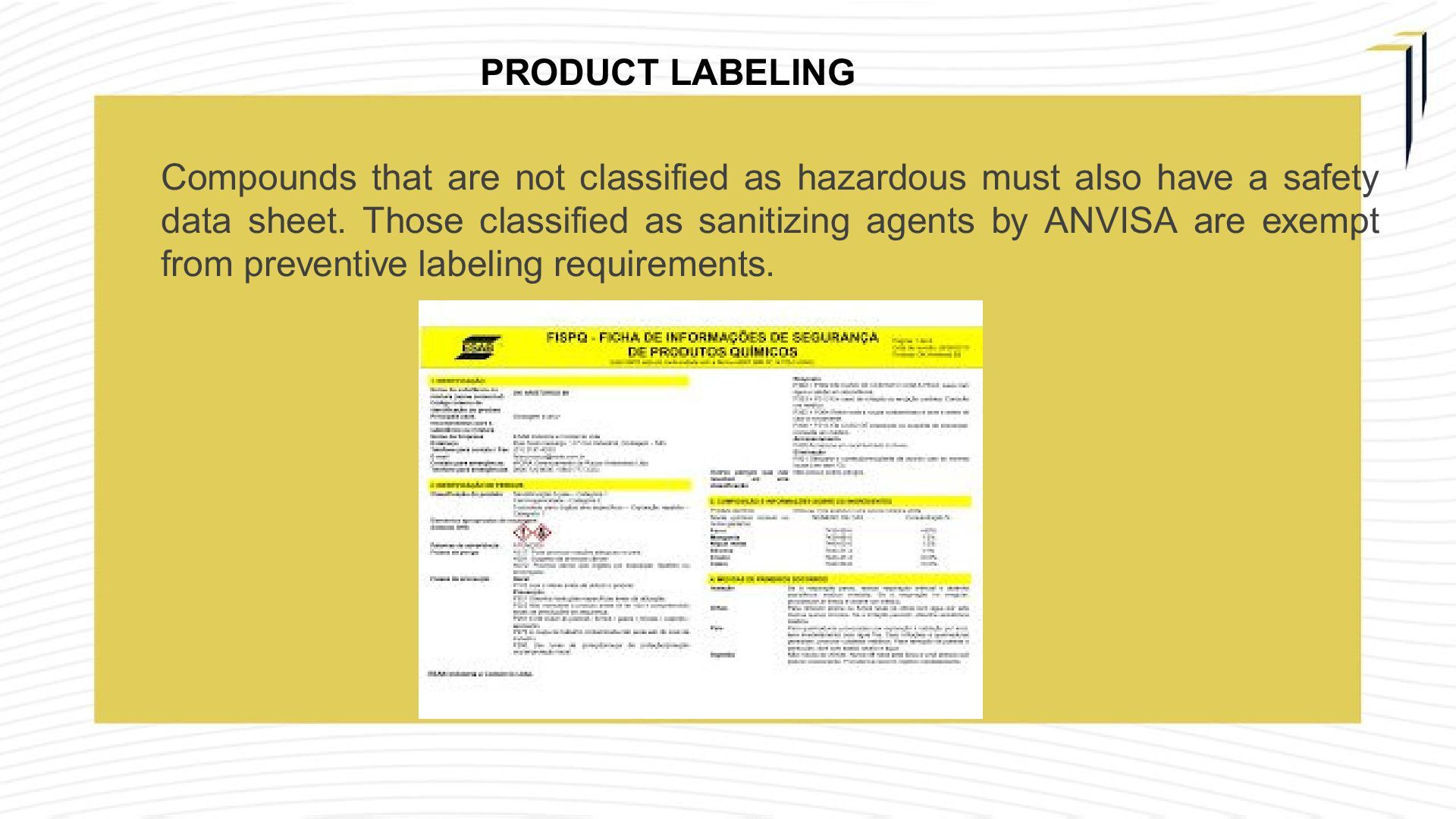

  14. PRODUCT LABELING Compounds that are not classified as hazardous must

    also have a safety data sheet. Those classified as sanitizing agents by ANVISA are exempt from preventive labeling requirements.

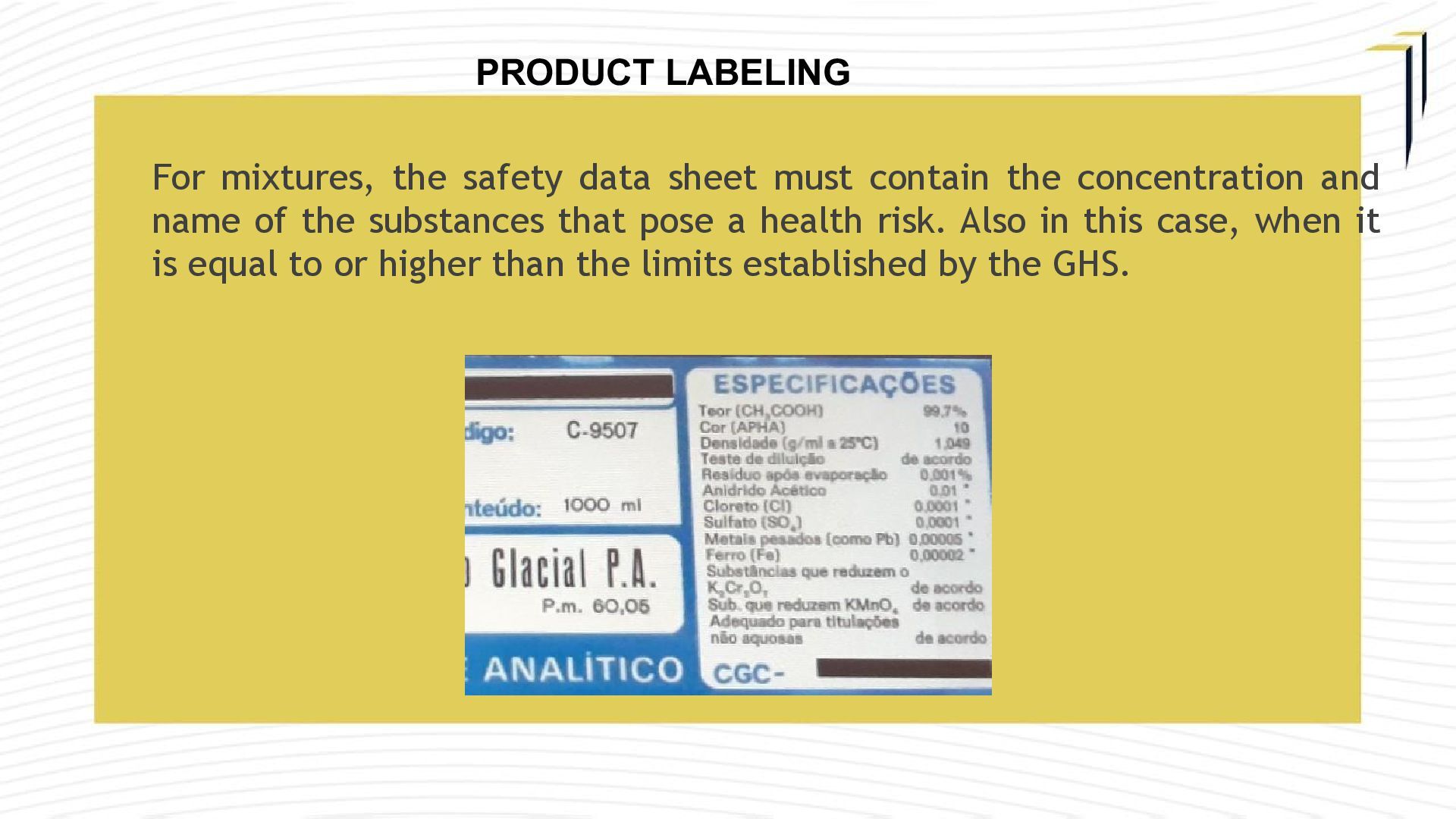

  15. PRODUCT LABELING For mixtures, the safety data sheet must contain

    the concentration and name of the substances that pose a health risk. Also in this case, when it is equal to or higher than the limits established by the GHS.

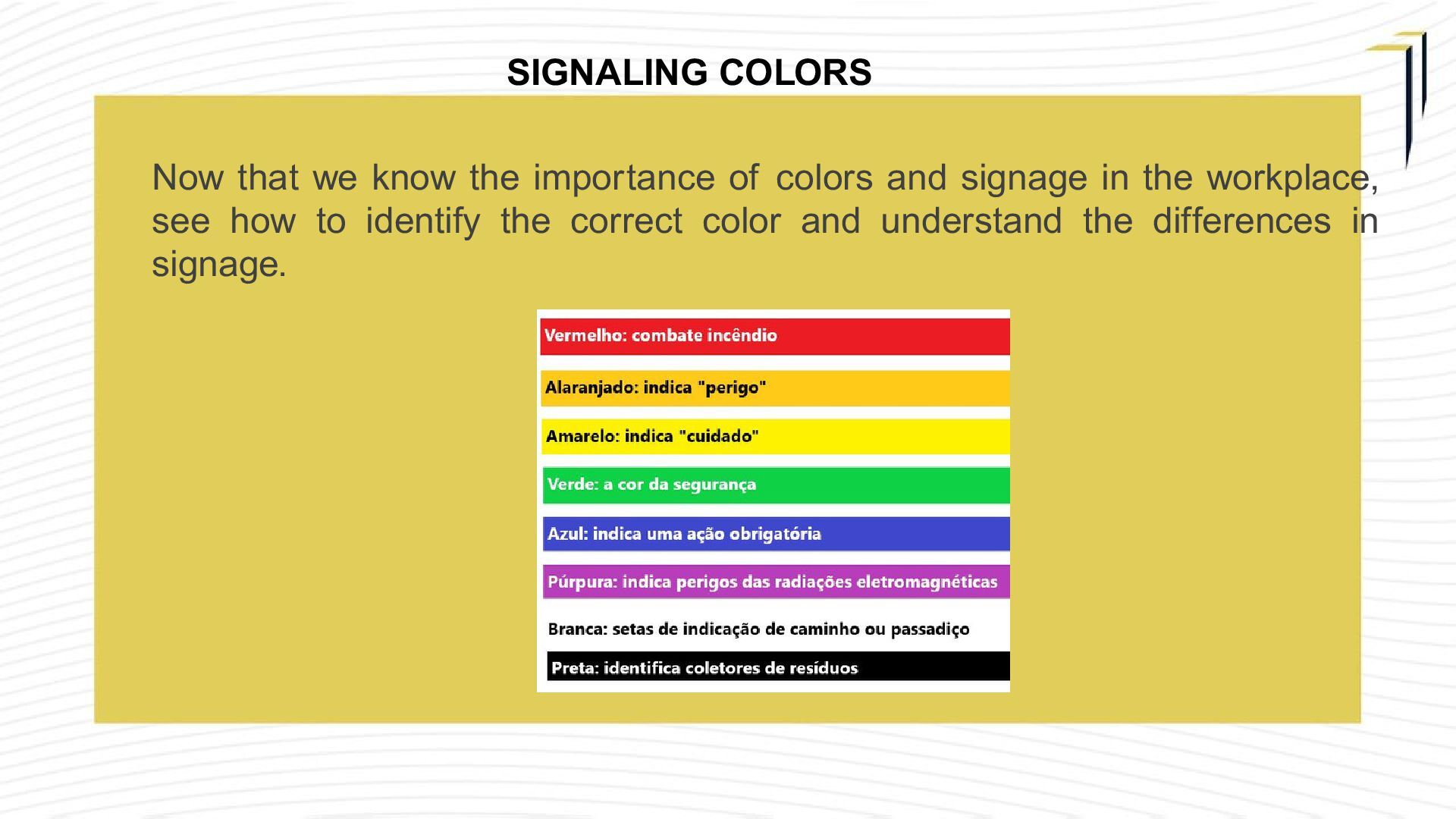

  16. SIGNALING COLORS Now that we know the importance of colors

    and signage in the workplace, see how to identify the correct color and understand the differences in signage.

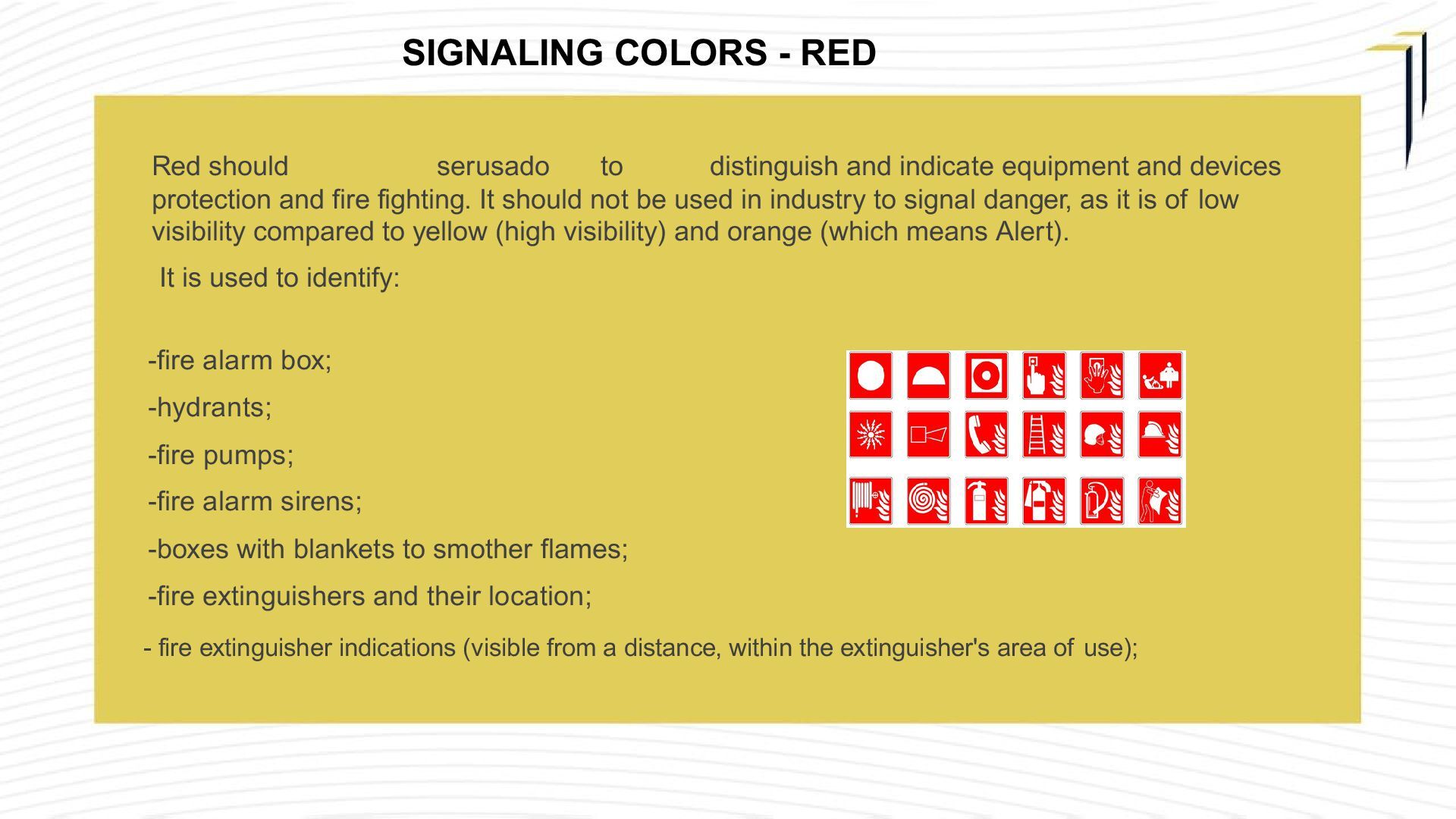

  17. Red should serusado to distinguish and indicate equipment and devices

    protection and fire fighting. It should not be used in industry to signal danger, as it is of low visibility compared to yellow (high visibility) and orange (which means Alert). It is used to identify: -fire alarm box; -hydrants; -fire pumps; -fire alarm sirens; -boxes with blankets to smother flames; -fire extinguishers and their location; - fire extinguisher indications (visible from a distance, within the extinguisher's area of ​ ​ use); SIGNALING COLORS - RED

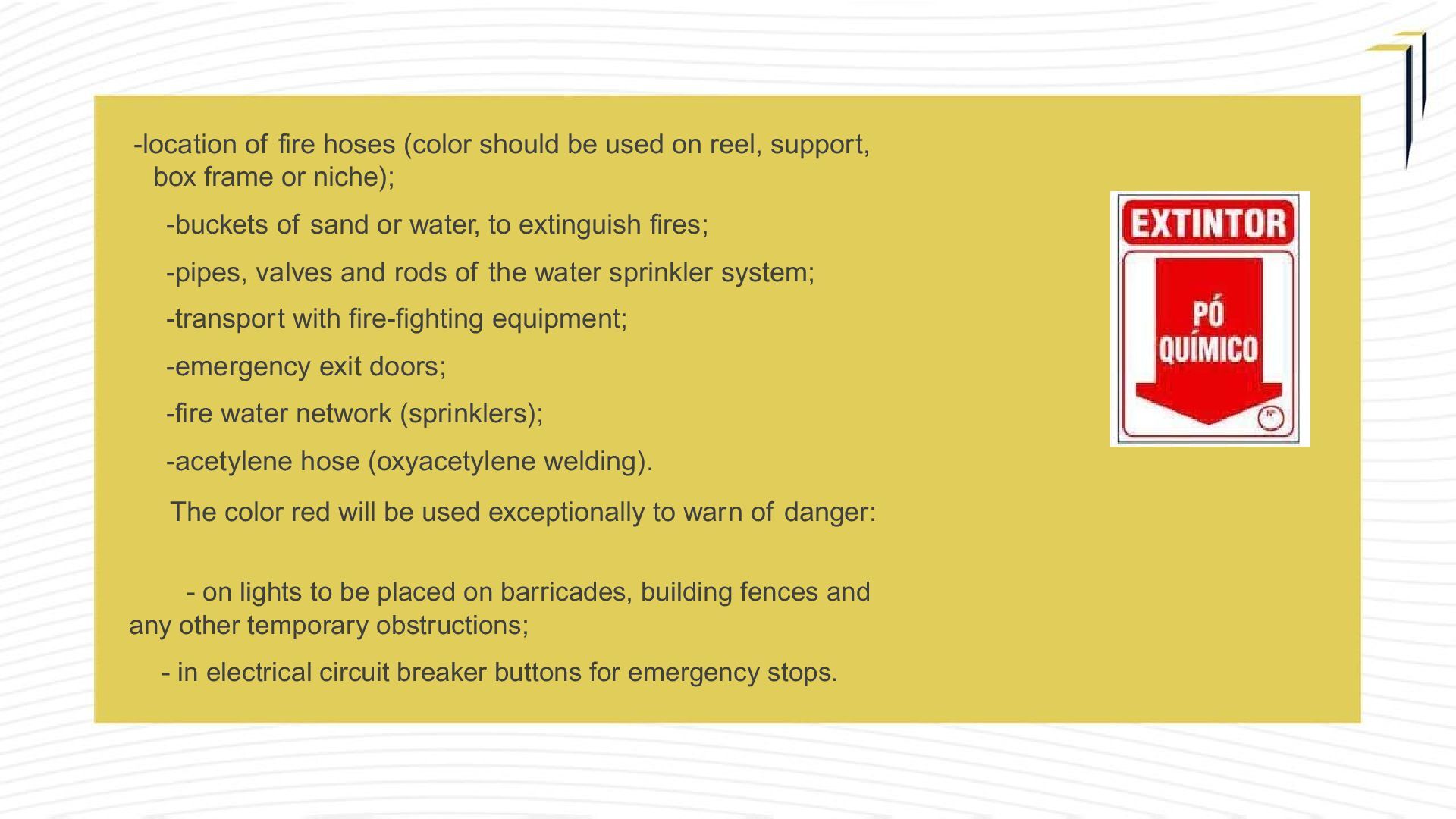

  18. -location of fire hoses (color should be used on reel,

    support, box frame or niche); -buckets of sand or water, to extinguish fires; -pipes, valves and rods of the water sprinkler system; -transport with fire-fighting equipment; -emergency exit doors; -fire water network (sprinklers); -acetylene hose (oxyacetylene welding). The color red will be used exceptionally to warn of danger: - on lights to be placed on barricades, building fences and any other temporary obstructions; - in electrical circuit breaker buttons for emergency stops.

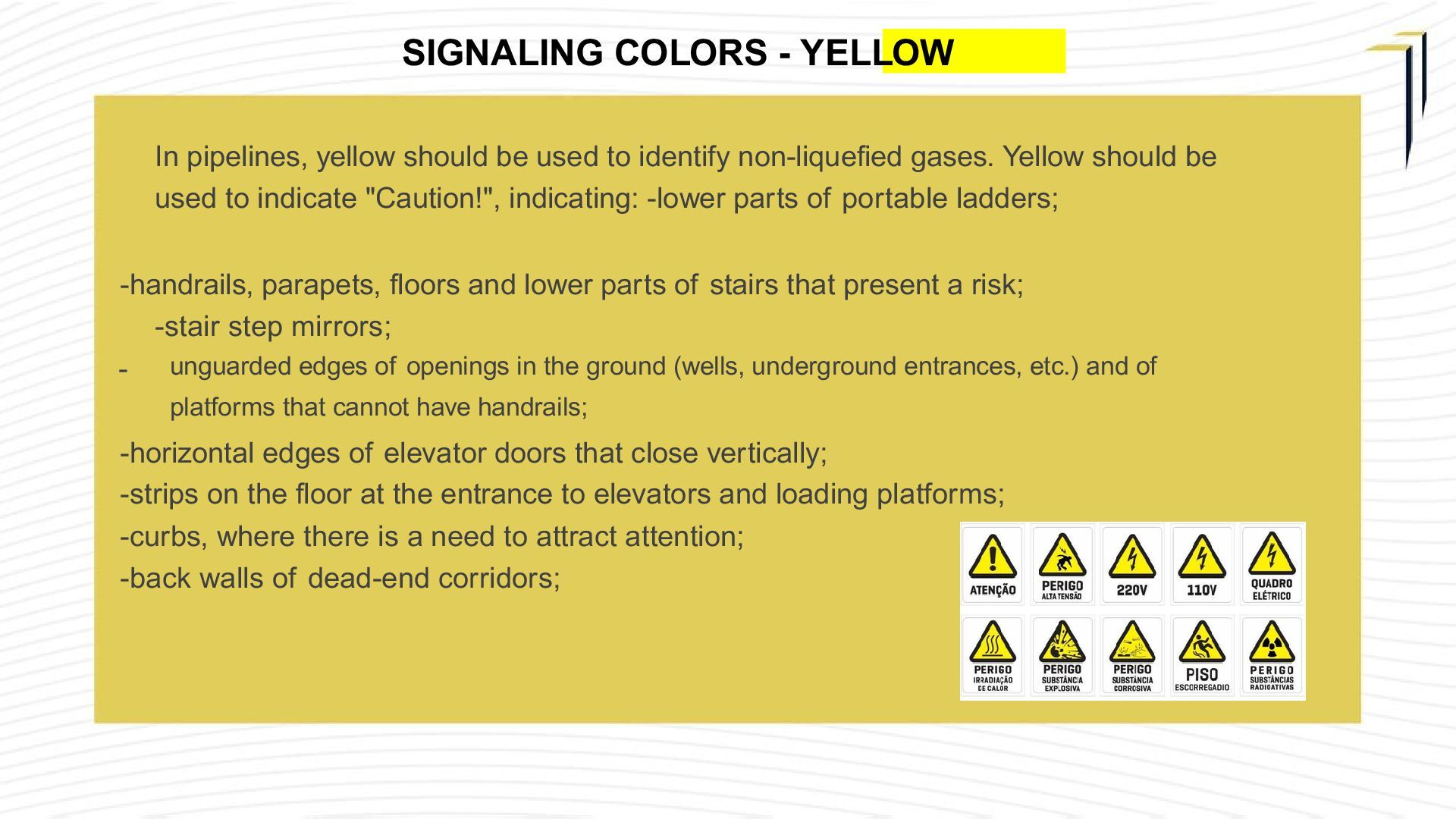

  19. In pipelines, yellow should be used to identify non-liquefied gases.

    Yellow should be used to indicate "Caution!", indicating: -lower parts of portable ladders; -handrails, parapets, floors and lower parts of stairs that present a risk; -stair step mirrors; - unguarded edges of openings in the ground (wells, underground entrances, etc.) and of platforms that cannot have handrails; -horizontal edges of elevator doors that close vertically; -strips on the floor at the entrance to elevators and loading platforms; -curbs, where there is a need to attract attention; -back walls of dead-end corridors; SIGNALING COLORS - YELLOW

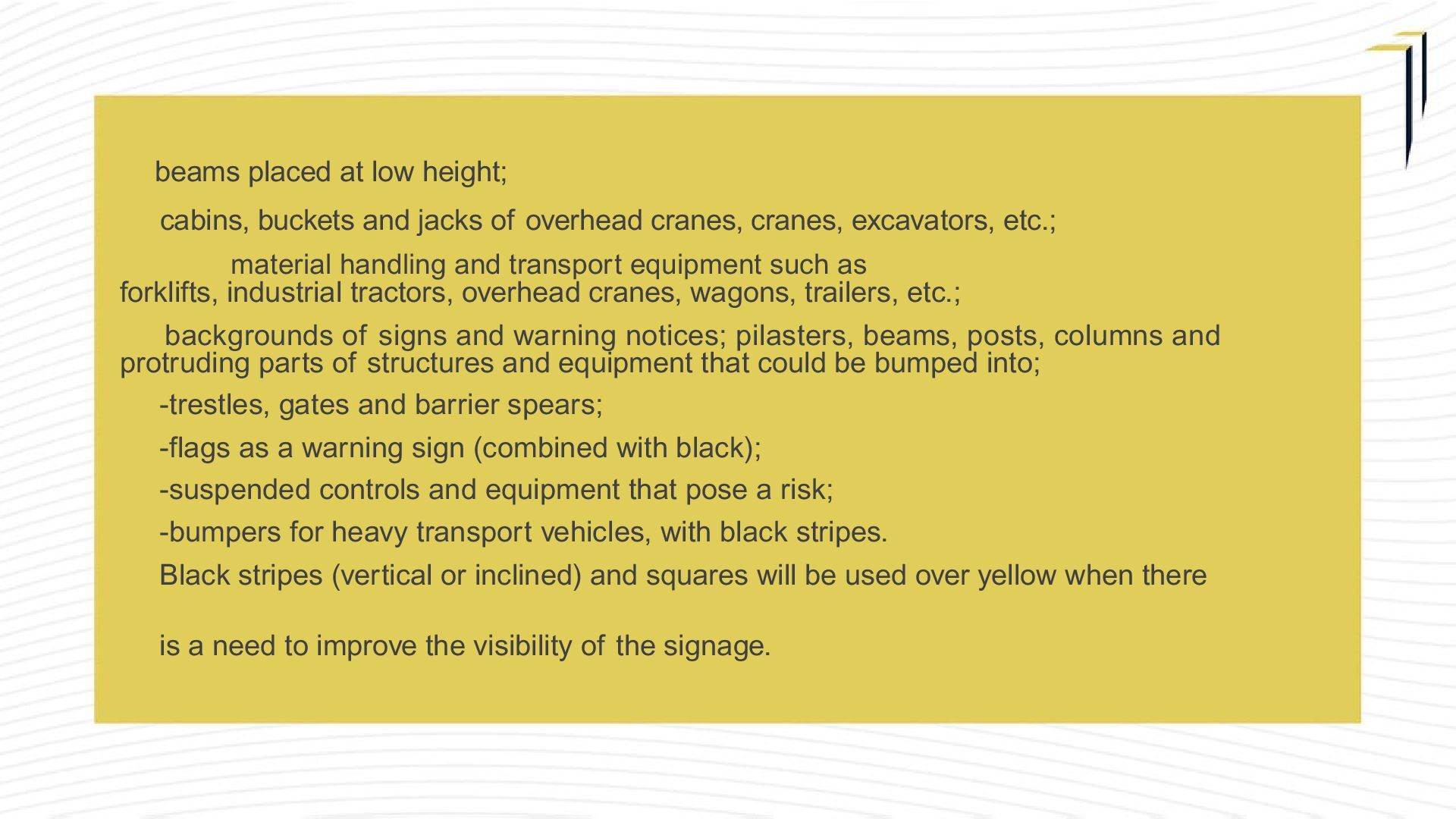

  20. beams placed at low height; cabins, buckets and jacks of

    overhead cranes, cranes, excavators, etc.; material handling and transport equipment such as forklifts, industrial tractors, overhead cranes, wagons, trailers, etc.; backgrounds of signs and warning notices; pilasters, beams, posts, columns and protruding parts of structures and equipment that could be bumped into; -trestles, gates and barrier spears; -flags as a warning sign (combined with black); -suspended controls and equipment that pose a risk; -bumpers for heavy transport vehicles, with black stripes. Black stripes (vertical or inclined) and squares will be used over yellow when there is a need to improve the visibility of the signage.

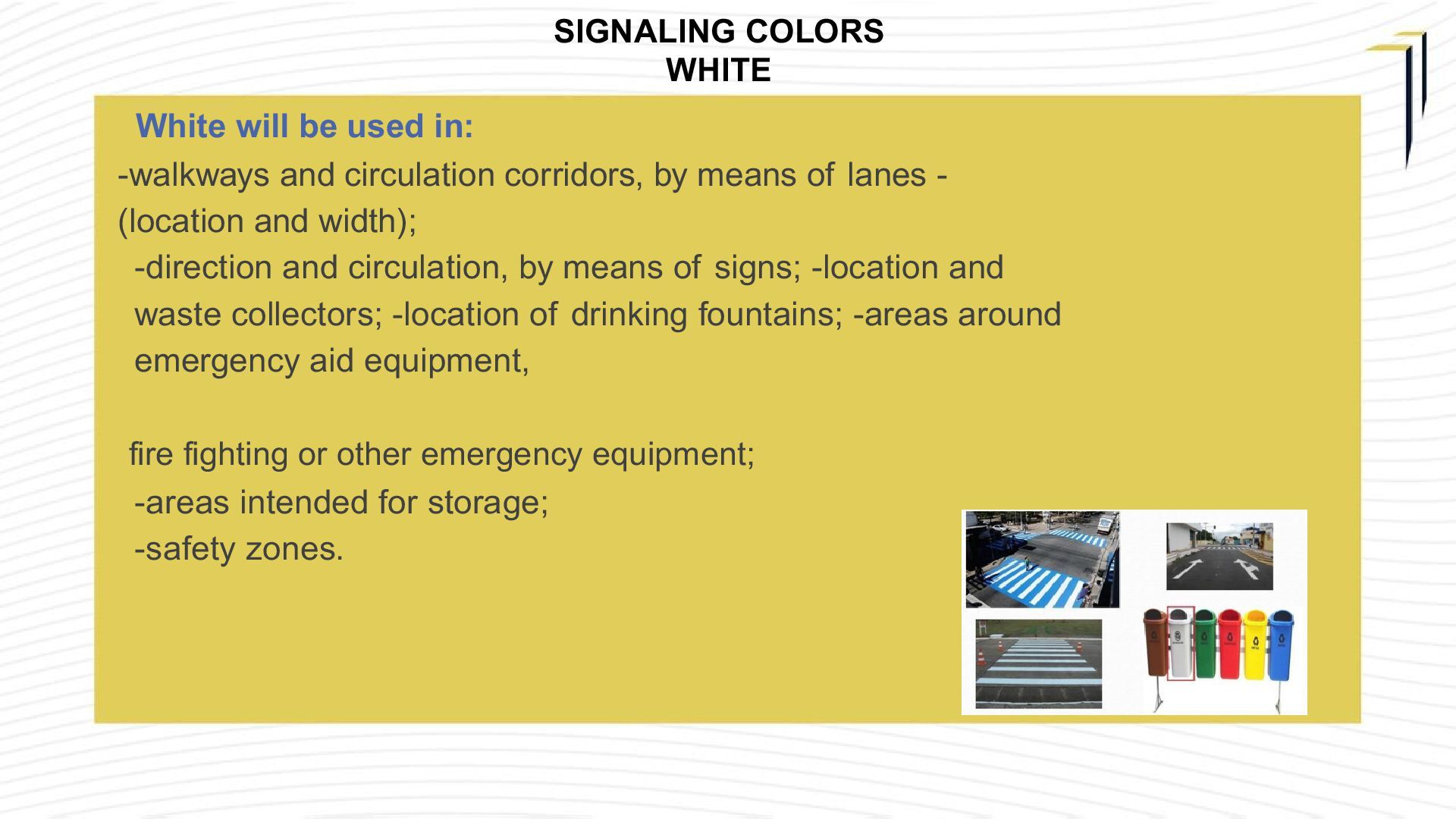

  21. SIGNALING COLORS WHITE White will be used in: -walkways and

    circulation corridors, by means of lanes - (location and width); -direction and circulation, by means of signs; -location and waste collectors; -location of drinking fountains; -areas around emergency aid equipment, fire fighting or other emergency equipment; -areas intended for storage; -safety zones.

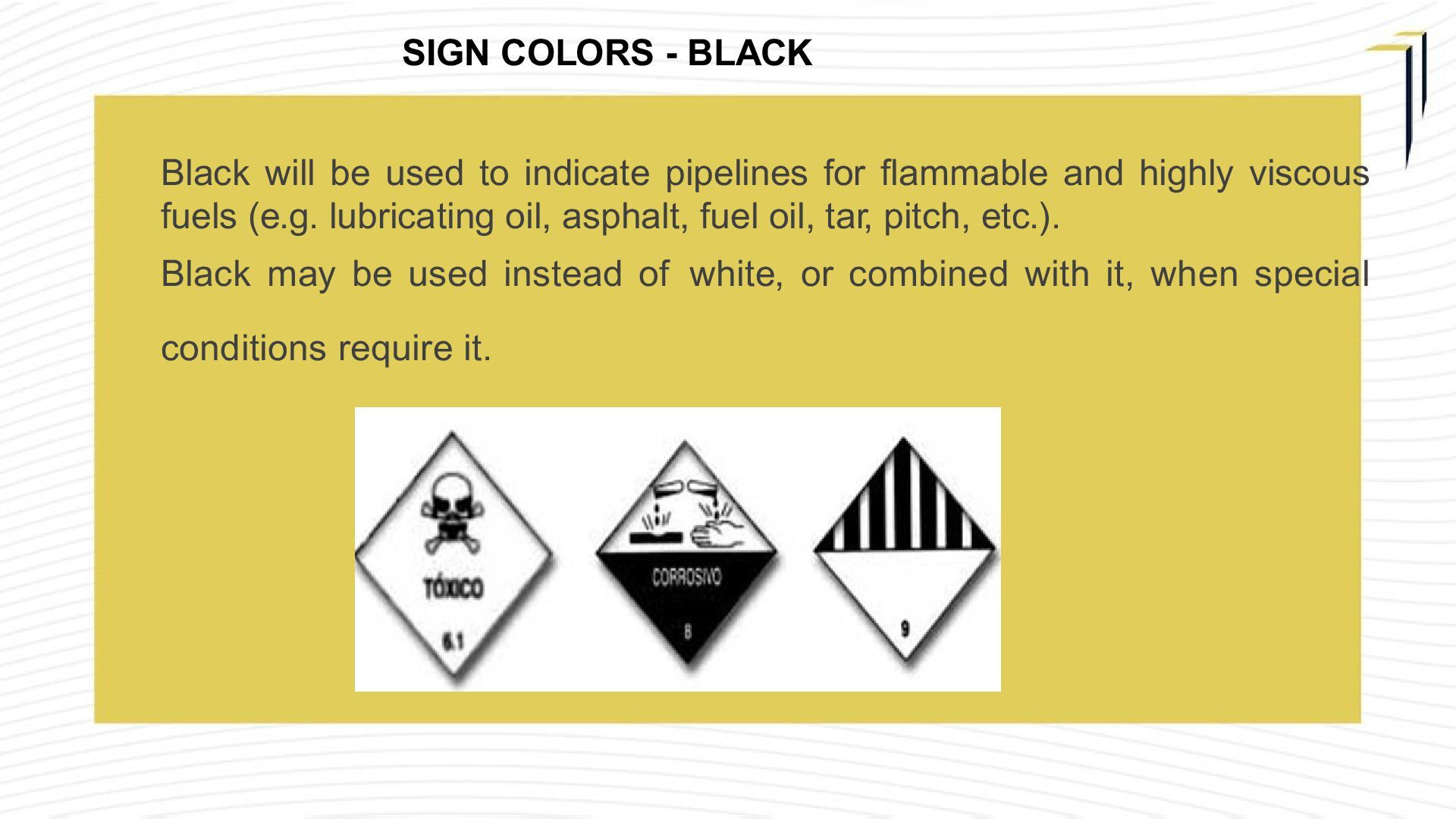

  22. Black will be used to indicate pipelines for flammable and

    highly viscous fuels (e.g. lubricating oil, asphalt, fuel oil, tar, pitch, etc.). Black may be used instead of white, or combined with it, when special conditions require it. SIGN COLORS - BLACK

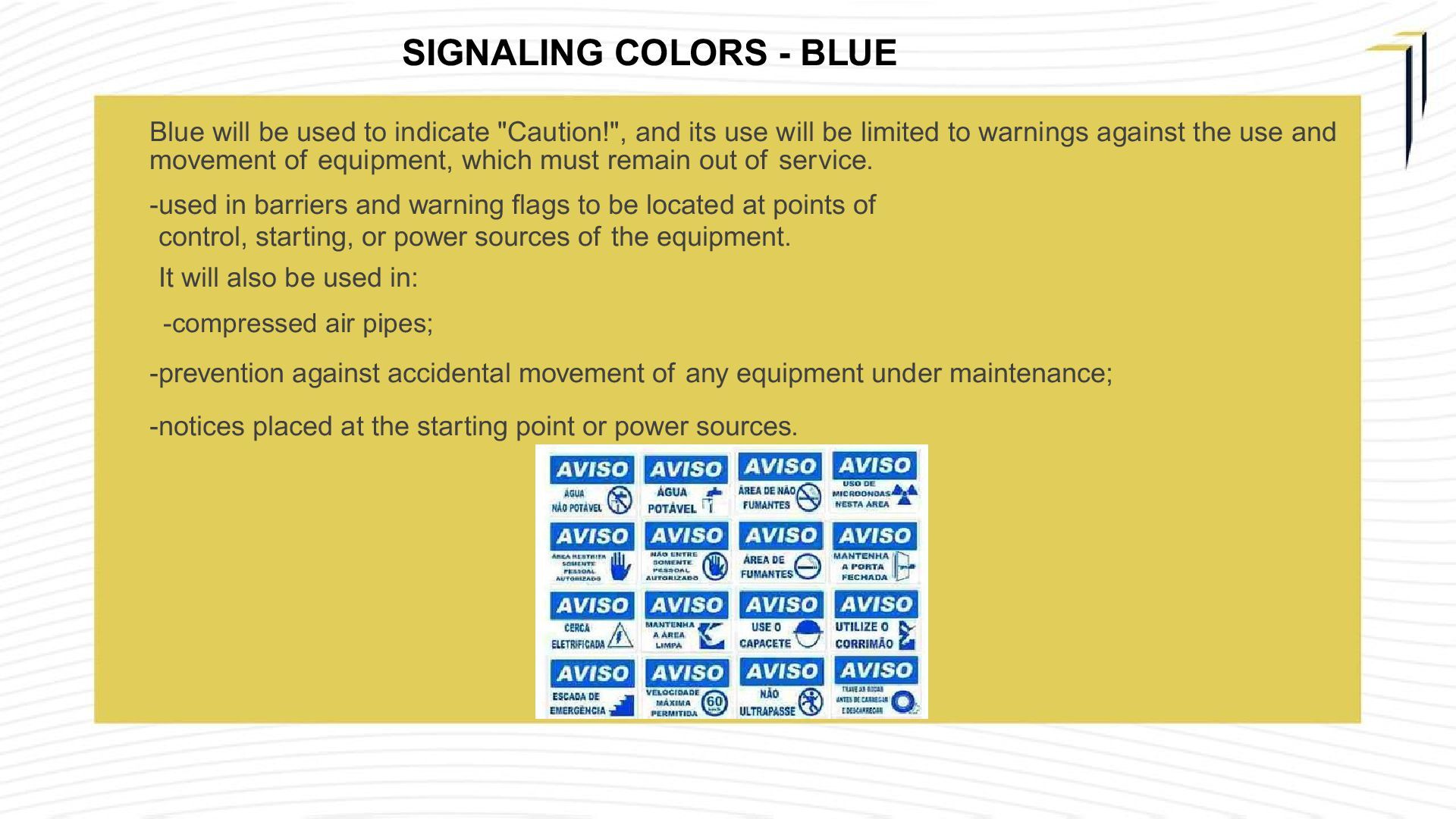

  23. Blue will be used to indicate "Caution!", and its use

    will be limited to warnings against the use and movement of equipment, which must remain out of service. -used in barriers and warning flags to be located at points of control, starting, or power sources of the equipment. It will also be used in: -compressed air pipes; -prevention against accidental movement of any equipment under maintenance; -notices placed at the starting point or power sources. SIGNALING COLORS - BLUE

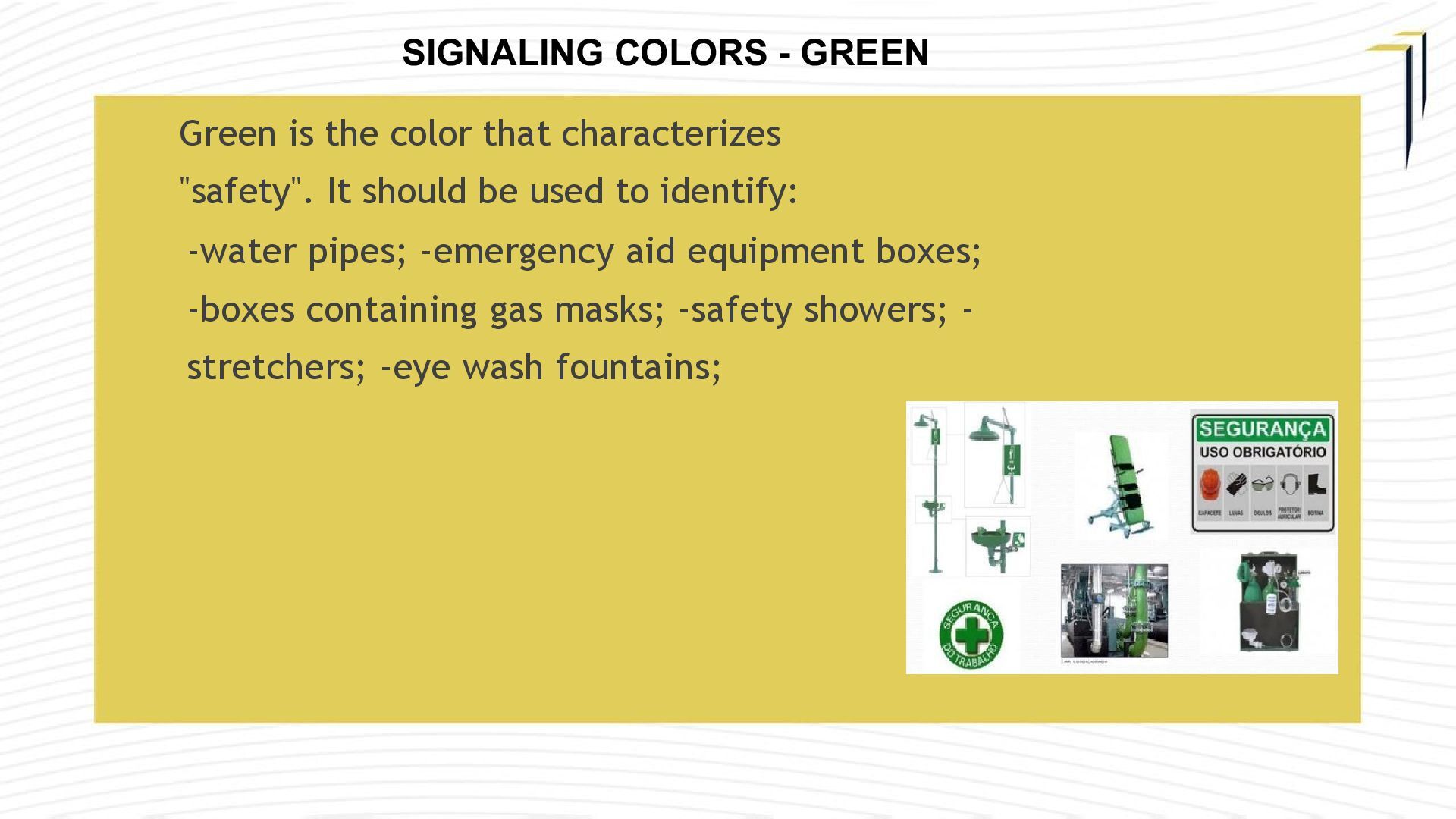

  24. Green is the color that characterizes "safety". It should be

    used to identify: -water pipes; -emergency aid equipment boxes; -boxes containing gas masks; -safety showers; - stretchers; -eye wash fountains; SIGNALING COLORS - GREEN

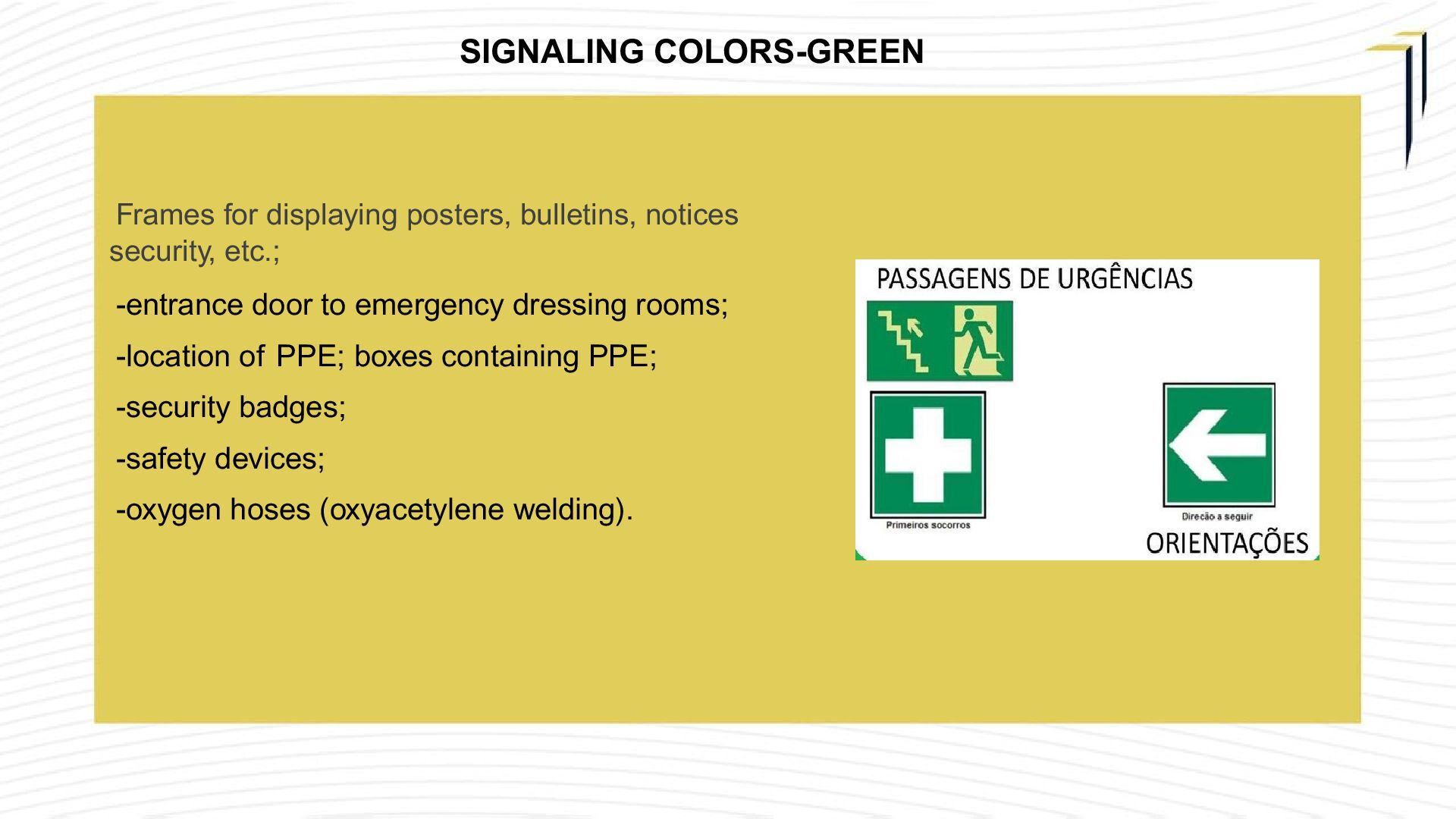

  25. SIGNALING COLORS-GREEN Frames for displaying posters, bulletins, notices security, etc.;

    -entrance door to emergency dressing rooms; -location of PPE; boxes containing PPE; -security badges; -safety devices; -oxygen hoses (oxyacetylene welding).

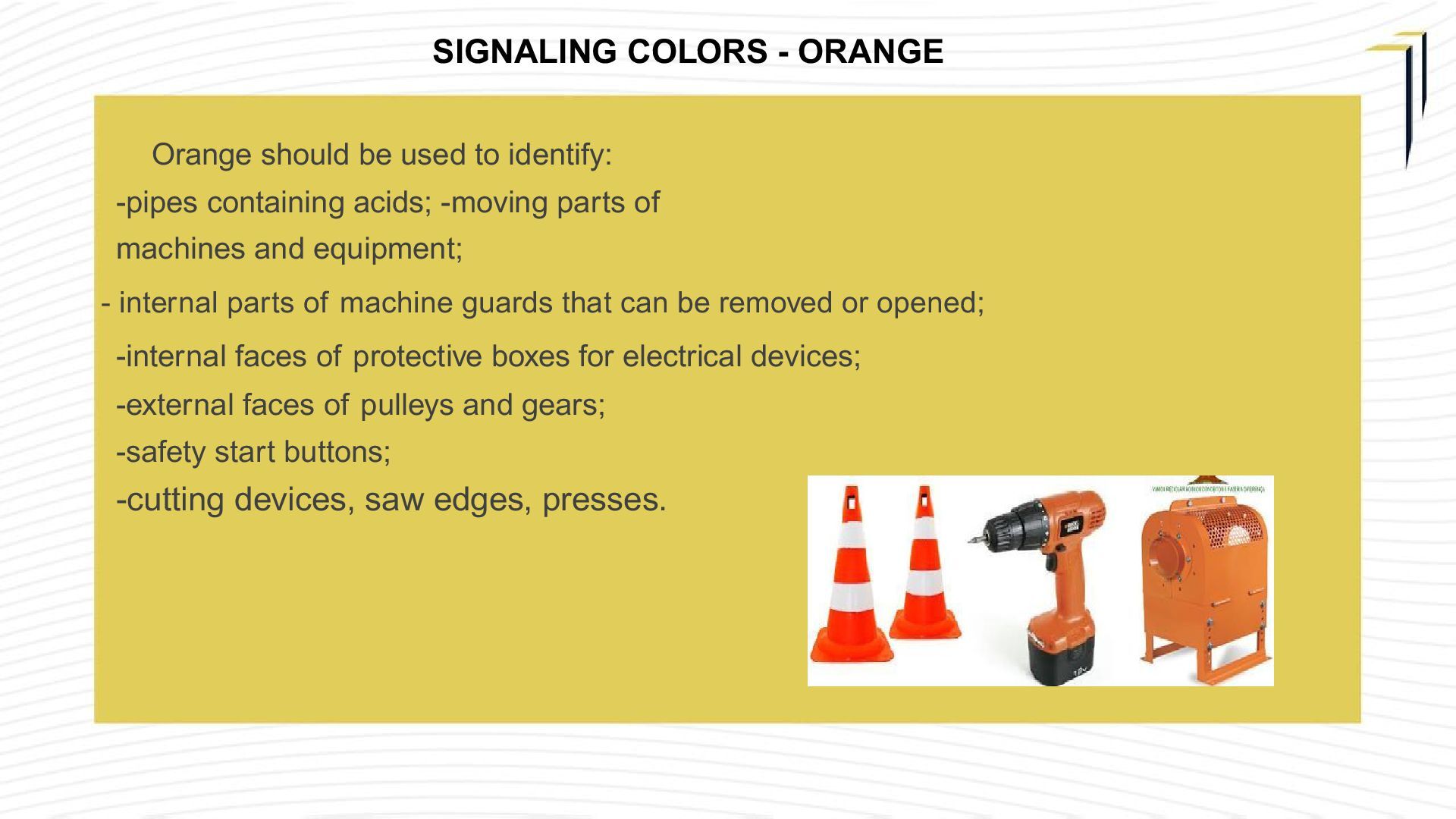

  26. Orange should be used to identify: -pipes containing acids; -moving

    parts of machines and equipment; - internal parts of machine guards that can be removed or opened; -internal faces of protective boxes for electrical devices; -external faces of pulleys and gears; -safety start buttons; -cutting devices, saw edges, presses. SIGNALING COLORS - ORANGE

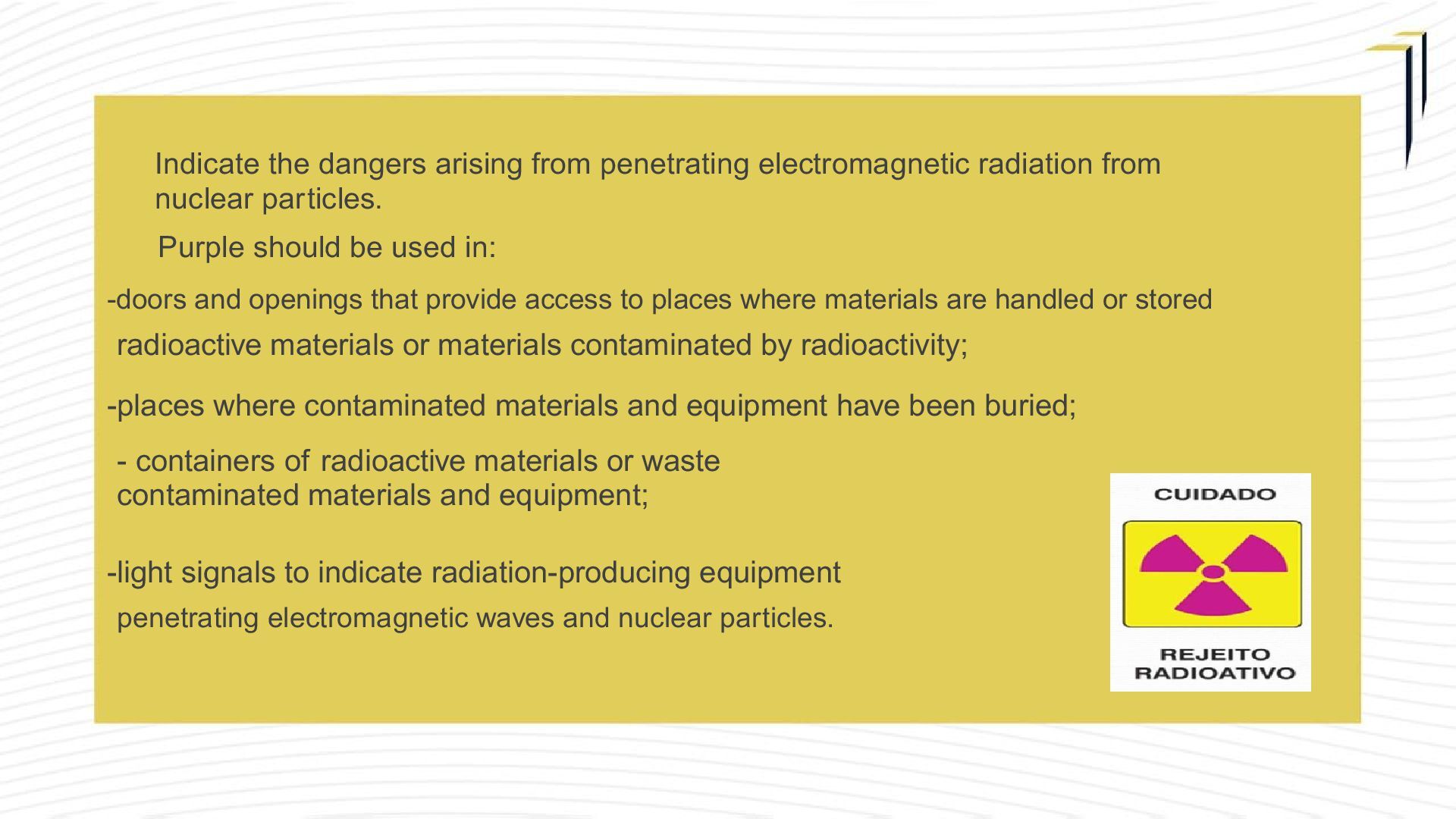

  27. Indicate the dangers arising from penetrating electromagnetic radiation from nuclear

    particles. Purple should be used in: -doors and openings that provide access to places where materials are handled or stored radioactive materials or materials contaminated by radioactivity; -places where contaminated materials and equipment have been buried; - containers of radioactive materials or waste contaminated materials and equipment; -light signals to indicate radiation-producing equipment penetrating electromagnetic waves and nuclear particles.
  28. A) Light gray – should be used to identify piping

    in vacuum B) Dark Gray - should be used to identify electrical conduits SIGNALING COLORS - GREY

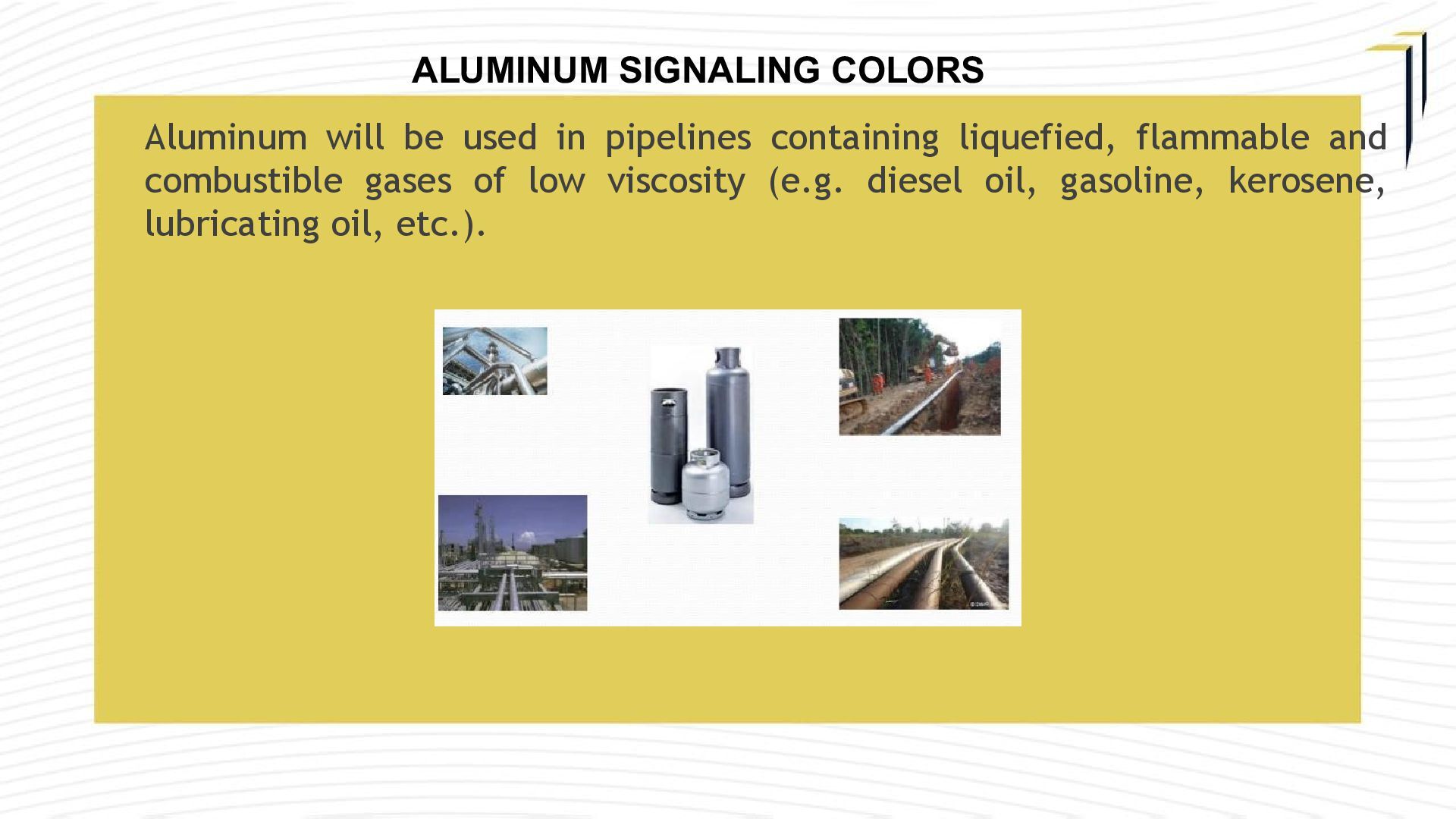

  29. ALUMINUM SIGNALING COLORS Aluminum will be used in pipelines containing

    liquefied, flammable and combustible gases of low viscosity (e.g. diesel oil, gasoline, kerosene, lubricating oil, etc.).

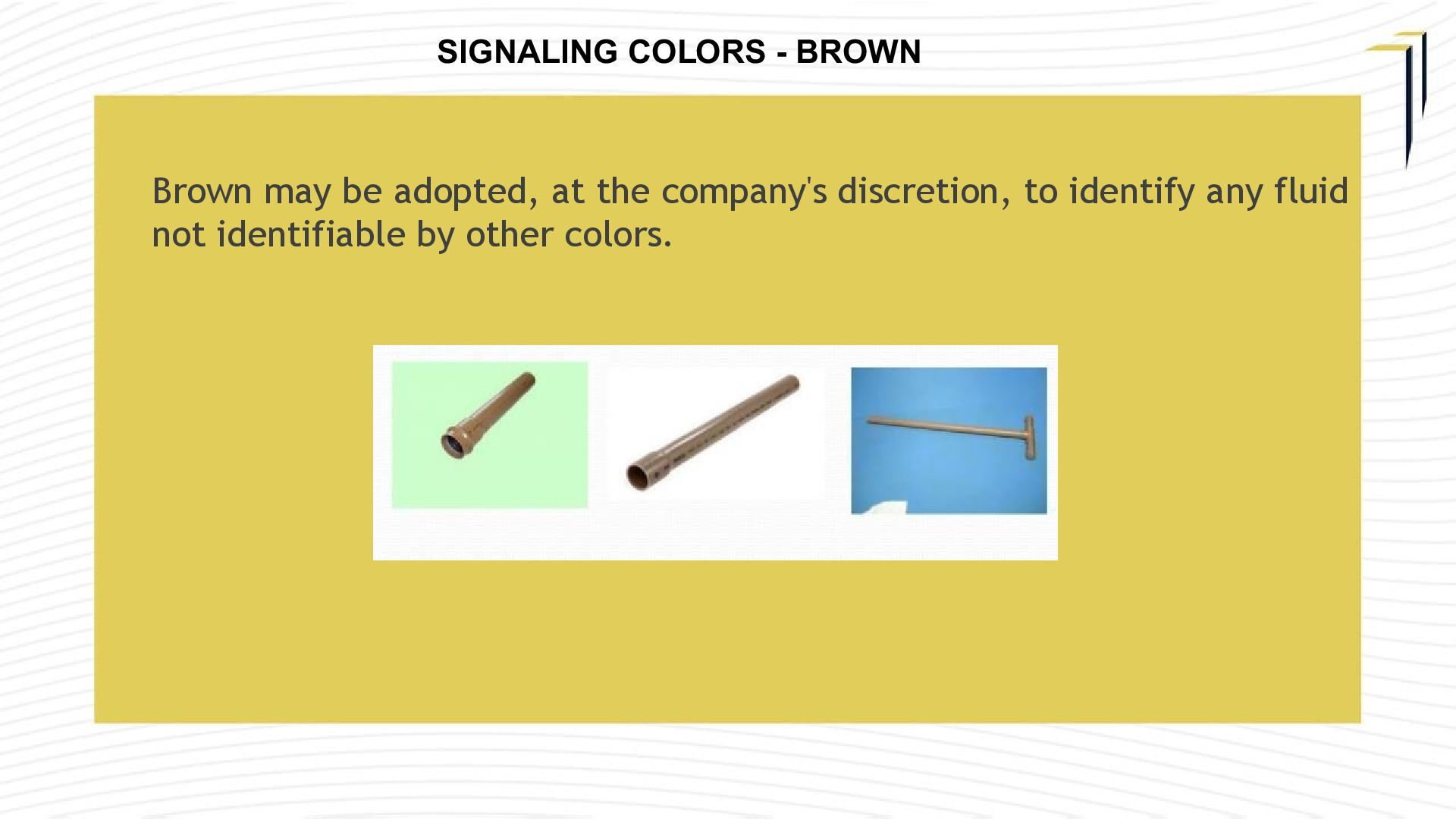

  30. Brown may be adopted, at the company's discretion, to identify

    any fluid not identifiable by other colors. SIGNALING COLORS - BROWN

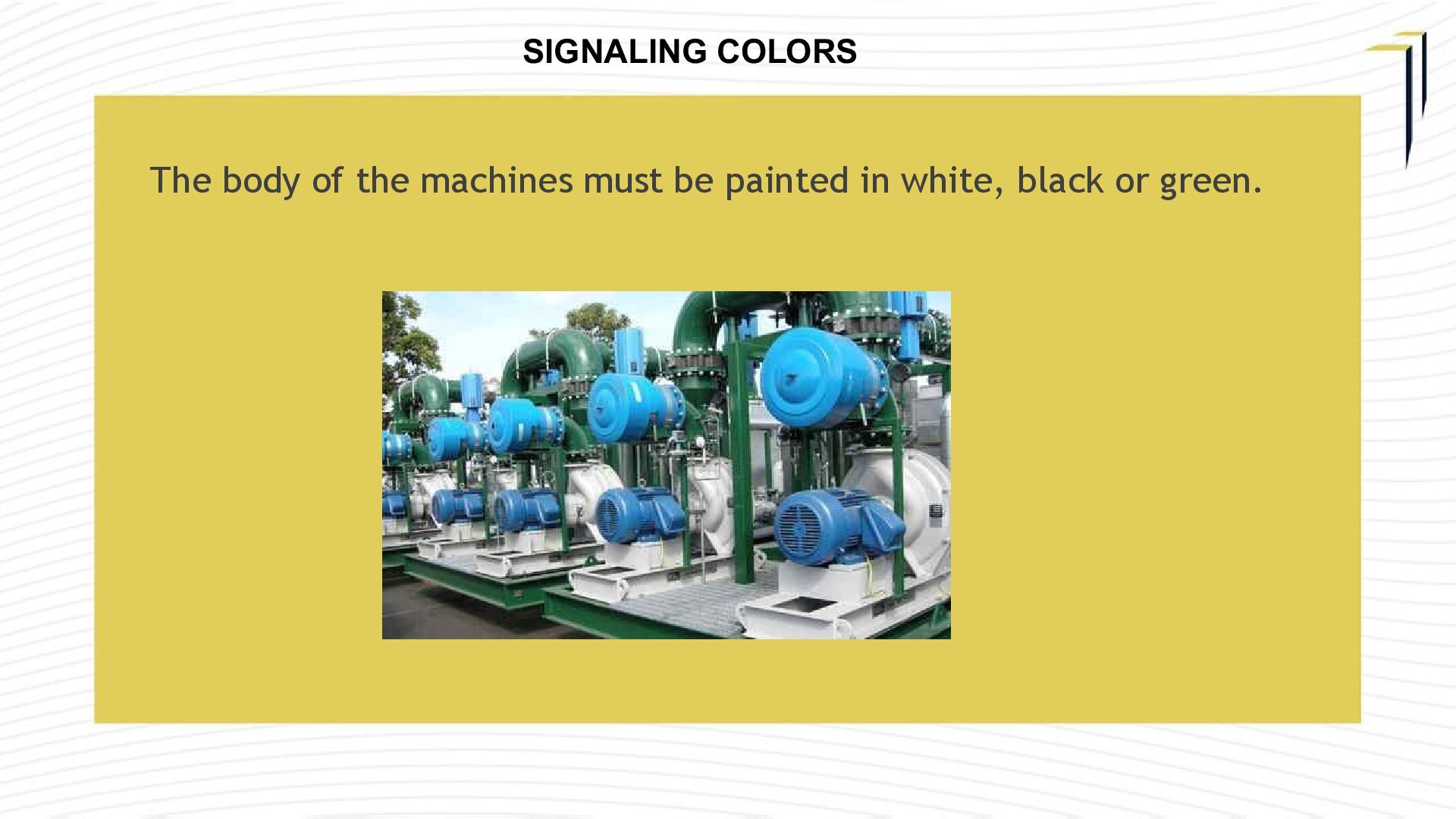

  31. The body of the machines must be painted in white,

    black or green. SIGNALING COLORS

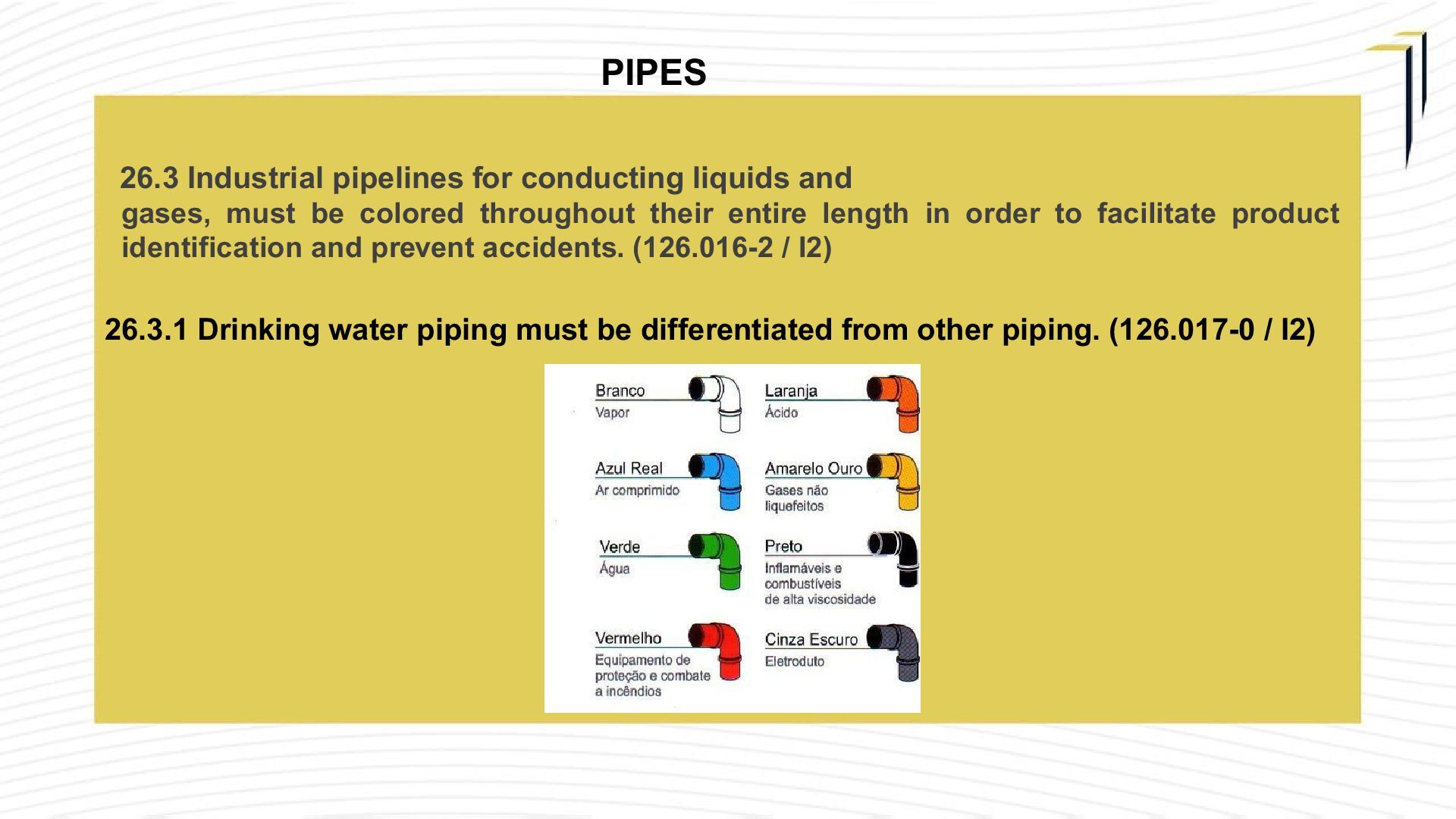

  32. PIPES 26.3 Industrial pipelines for conducting liquids and gases, must

    be colored throughout their entire length in order to facilitate product identification and prevent accidents. (126.016-2 / I2) 26.3.1 Drinking water piping must be differentiated from other piping. (126.017-0 / I2)

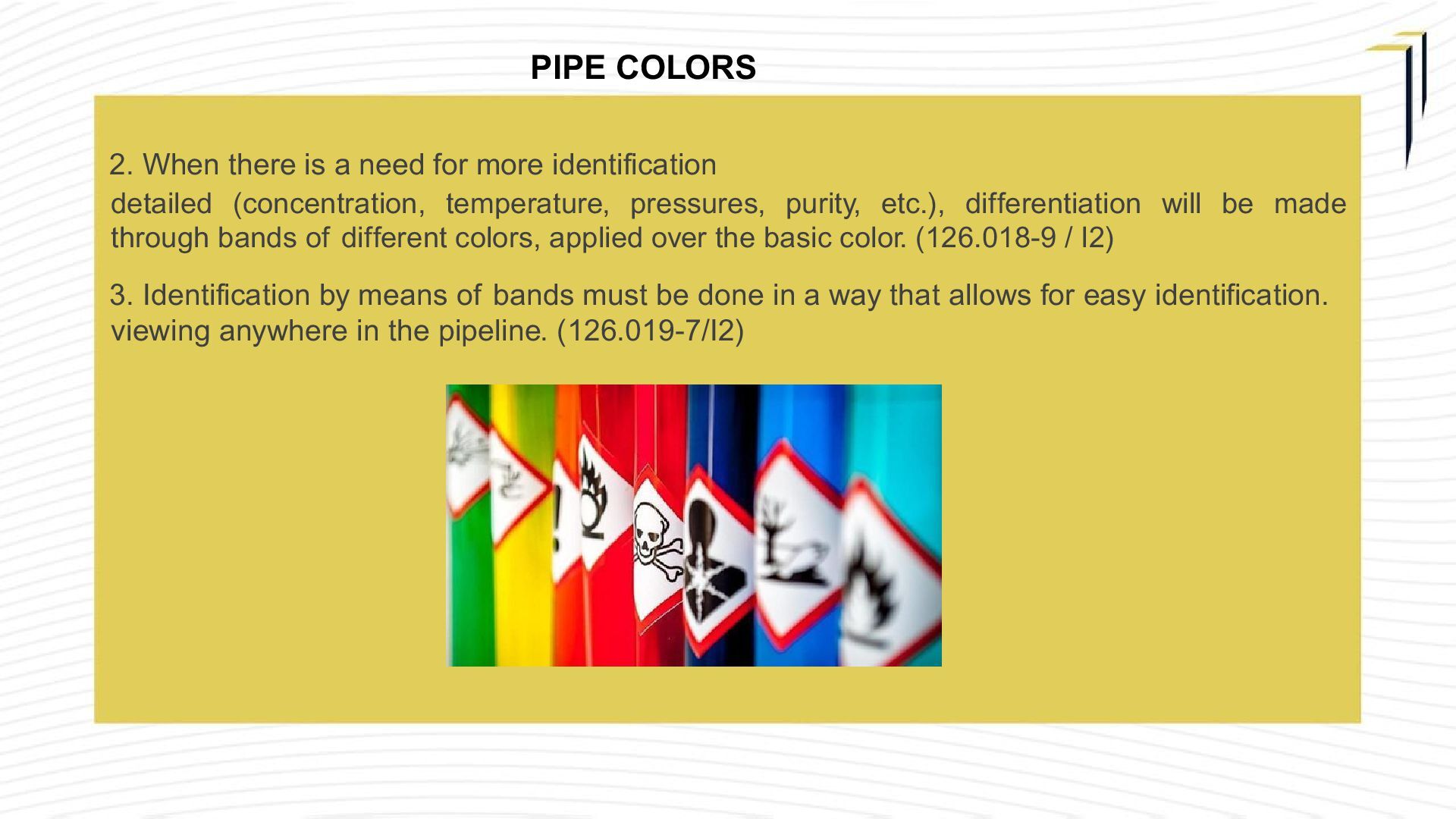

  33. 2. When there is a need for more identification detailed

    (concentration, temperature, pressures, purity, etc.), differentiation will be made through bands of different colors, applied over the basic color. (126.018-9 / I2) 3. Identification by means of bands must be done in a way that allows for easy identification. viewing anywhere in the pipeline. (126.019-7/I2) PIPE COLORS

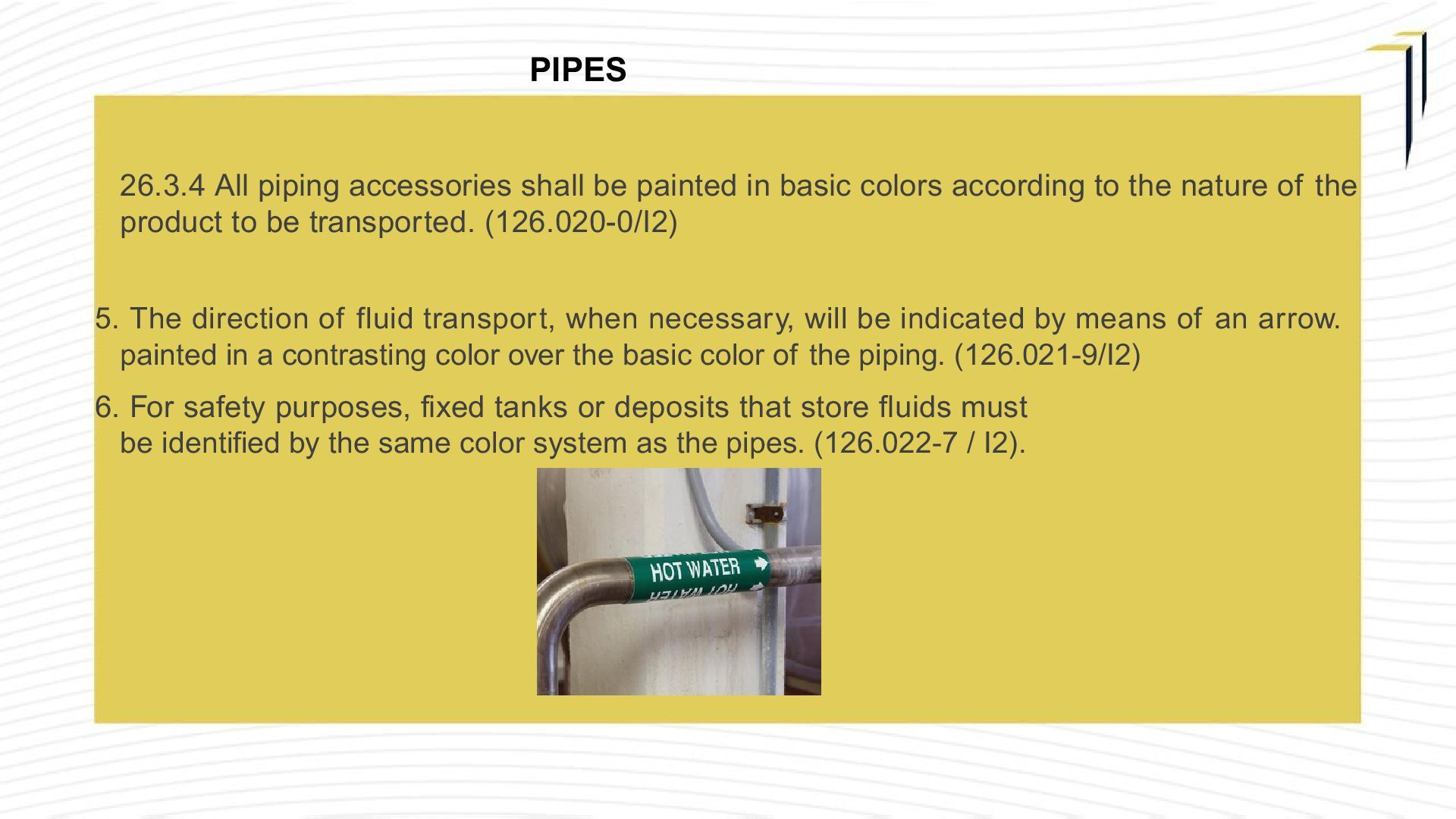

  34. PIPES 26.3.4 All piping accessories shall be painted in basic

    colors according to the nature of the product to be transported. (126.020-0/I2) 5. The direction of fluid transport, when necessary, will be indicated by means of an arrow. painted in a contrasting color over the basic color of the piping. (126.021-9/I2) 6. For safety purposes, fixed tanks or deposits that store fluids must be identified by the same color system as the pipes. (126.022-7 / I2).

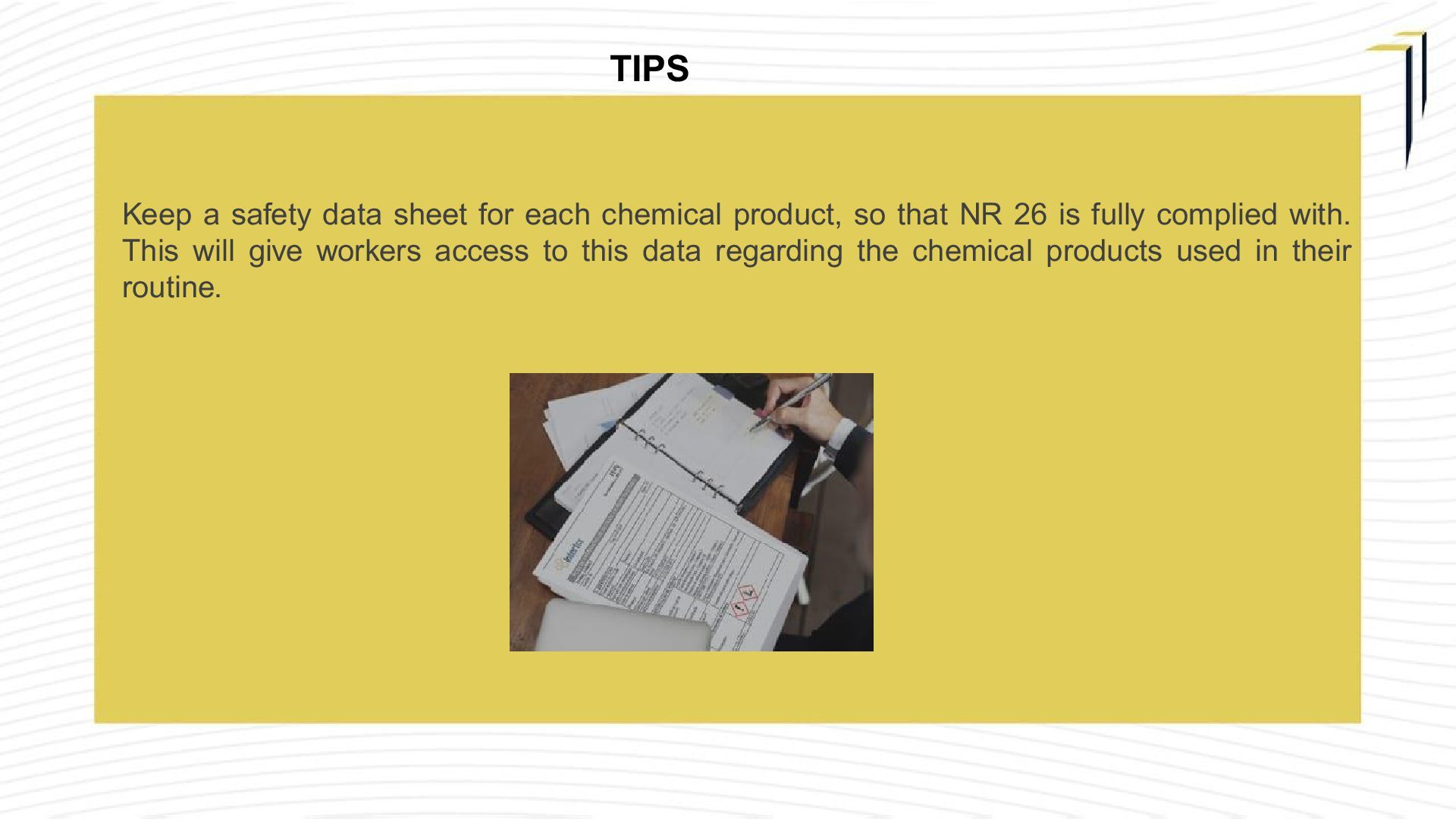

  35. TIPS Keep a safety data sheet for each chemical product,

    so that NR 26 is fully complied with. This will give workers access to this data regarding the chemical products used in their routine.

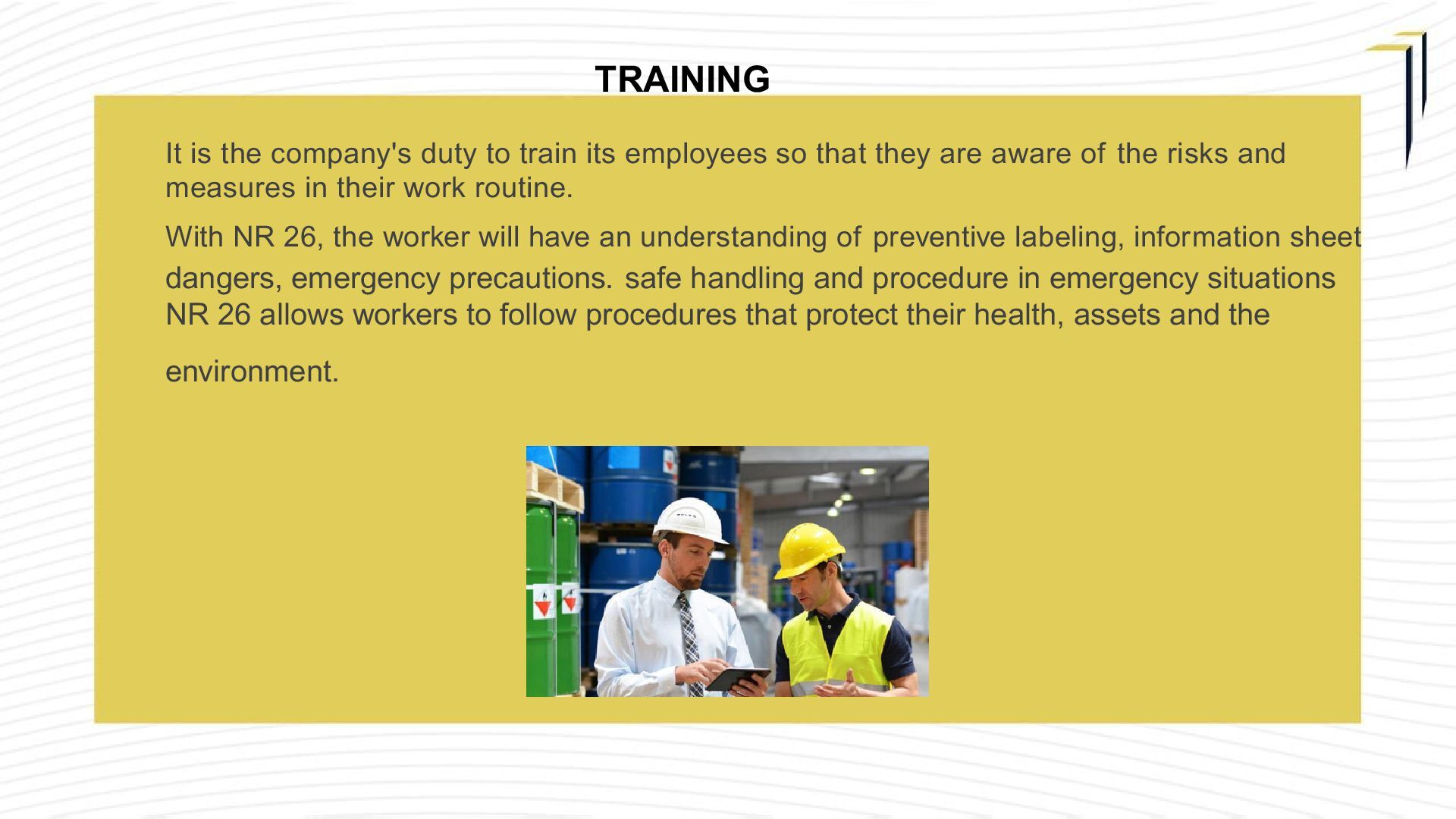

  36. TRAINING It is the company's duty to train its employees

    so that they are aware of the risks and measures in their work routine. With NR 26, the worker will have an understanding of preventive labeling, information sheet dangers, emergency precautions. NR 26 allows workers to follow procedures that protect their health, assets and the environment. safe handling and procedure in emergency situations
