Automating Infrastructures with AWS Cloud Formation and Chef

Automating Infrastructures with AWS Cloud Formation and Chef

Transcript

2. Stratalux is an AWS Managed Services Provider We build highly scalable websites in the cloud 2
3. A match made in the Hall of Justice. 3
4. Infrastructure as code ™ 4
5. Consistent builds and configurations 5
6. Backups! 6
7. Things break! 7
8. Reduced costs! 8
9. Flexibility! 9
12. • Create Chef roles and cookbooks • Build pre-loaded AMIs • Create CFN template • Launch • Manage Change – Chef – CFN 12
13. • Why? – Preload Chef version – Preload dependencies • Benefits – Improves launch speed – Reduces external dependencies – More Control 13 • How? – We use Chef to configure AMIs.

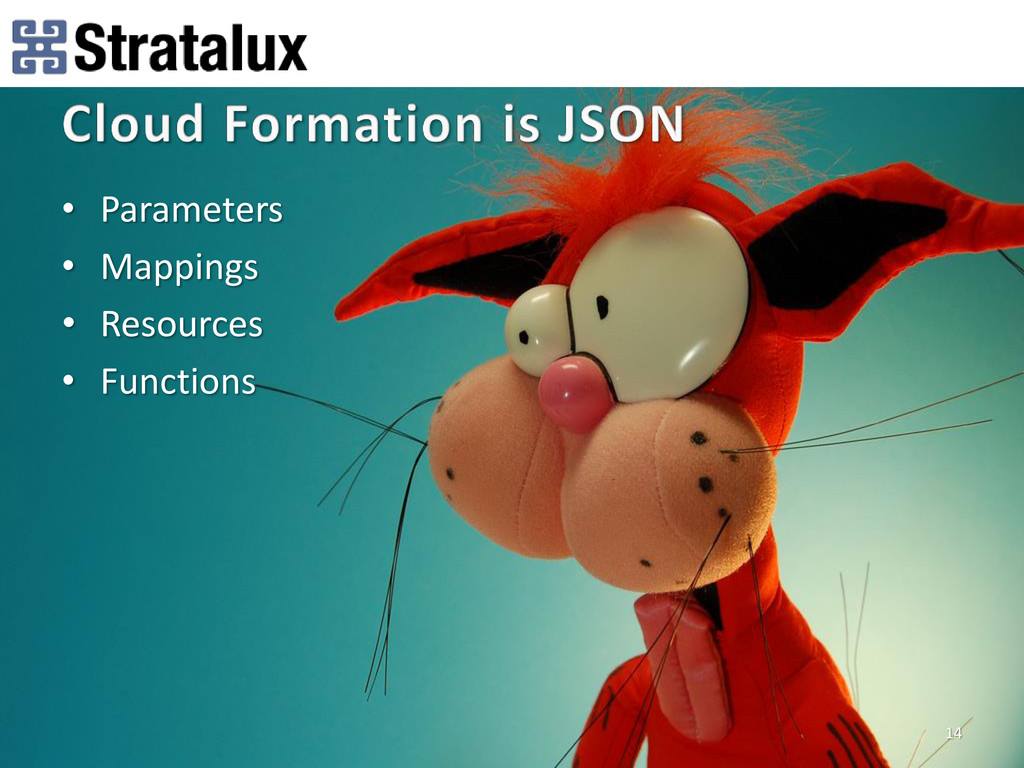

14. • Parameters • Mappings • Resources • Functions 14

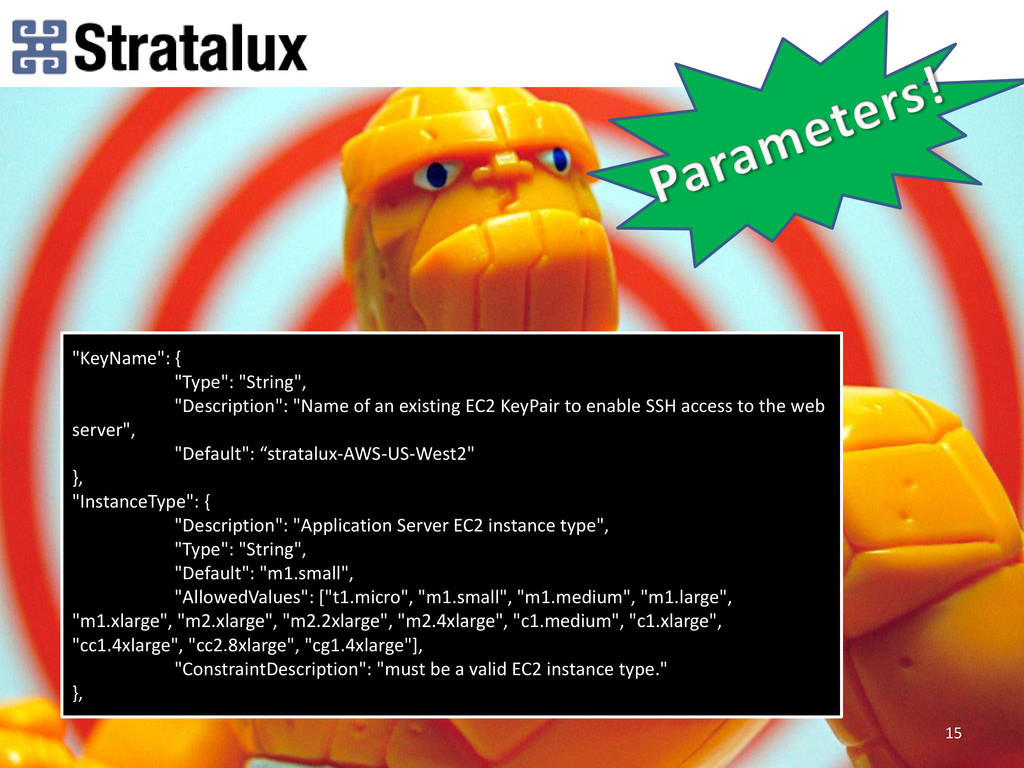

15. 15 "KeyName": { "Type": "String", "Description": "Name of an existing EC2 KeyPair to enable SSH access to the web server", "Default": “stratalux-AWS-US-West2" }, "InstanceType": { "Description": "Application Server EC2 instance type", "Type": "String", "Default": "m1.small", "AllowedValues": ["t1.micro", "m1.small", "m1.medium", "m1.large", "m1.xlarge", "m2.xlarge", "m2.2xlarge", "m2.4xlarge", "c1.medium", "c1.xlarge", "cc1.4xlarge", "cc2.8xlarge", "cg1.4xlarge"], "ConstraintDescription": "must be a valid EC2 instance type." },

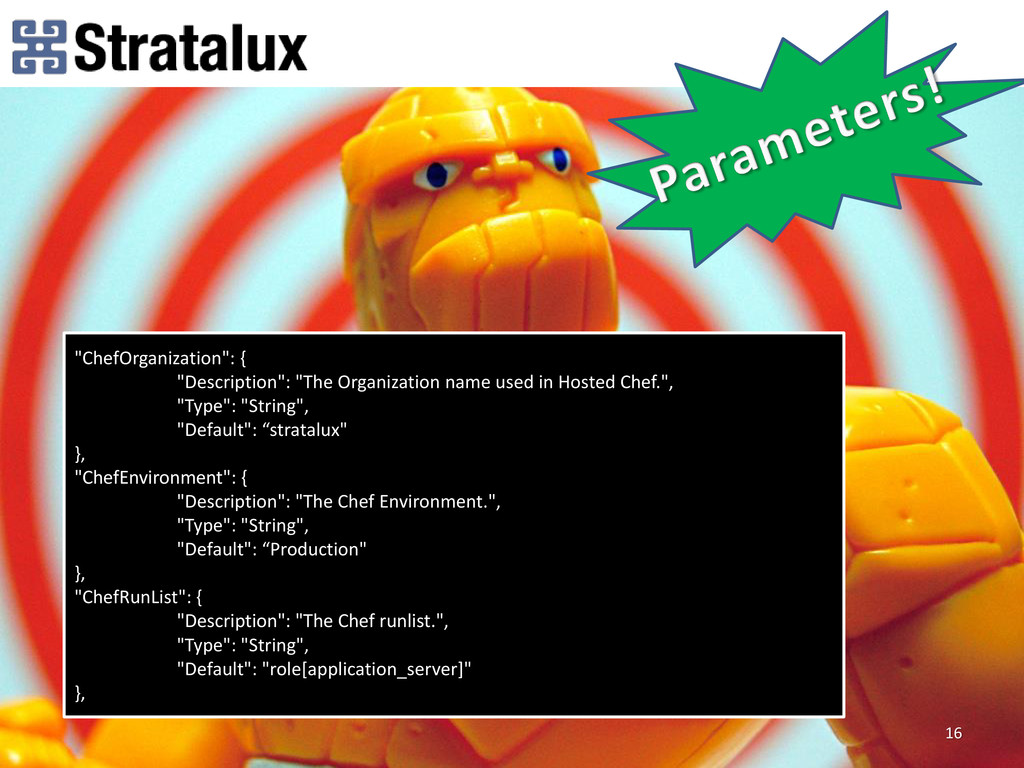

16. 16 "ChefOrganization": { "Description": "The Organization name used in Hosted Chef.", "Type": "String", "Default": “stratalux" }, "ChefEnvironment": { "Description": "The Chef Environment.", "Type": "String", "Default": “Production" }, "ChefRunList": { "Description": "The Chef runlist.", "Type": "String", "Default": "role[application_server]" },

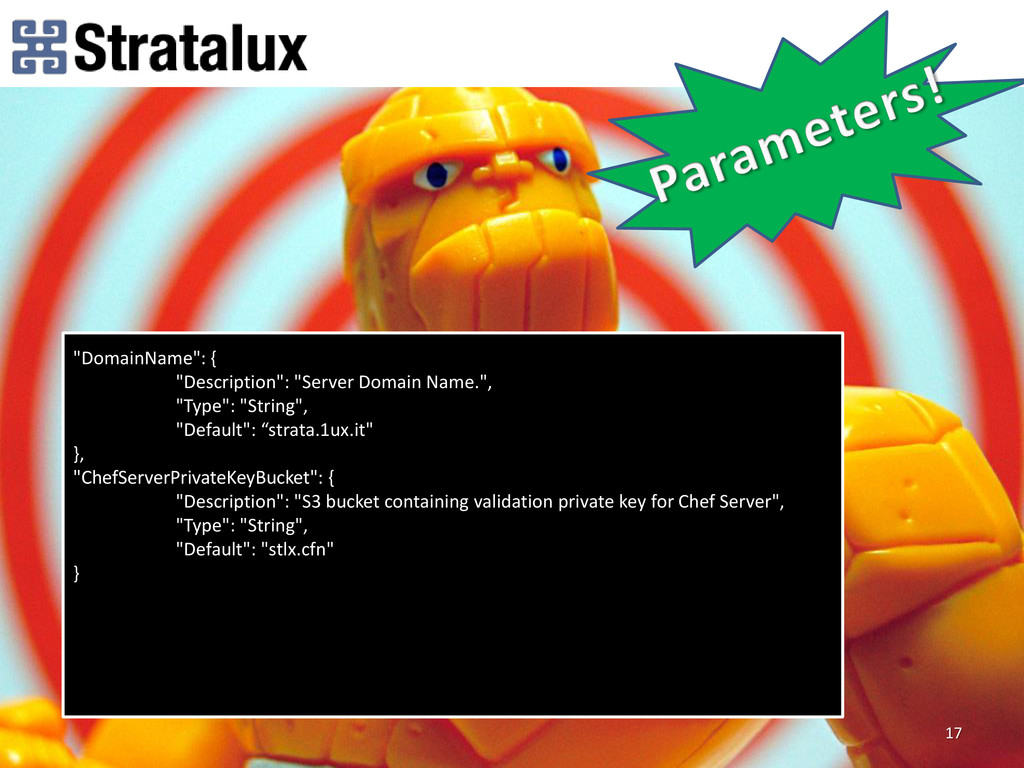

17. 17 "DomainName": { "Description": "Server Domain Name.", "Type": "String", "Default": “strata.1ux.it" }, "ChefServerPrivateKeyBucket": { "Description": "S3 bucket containing validation private key for Chef Server", "Type": "String", "Default": "stlx.cfn" }

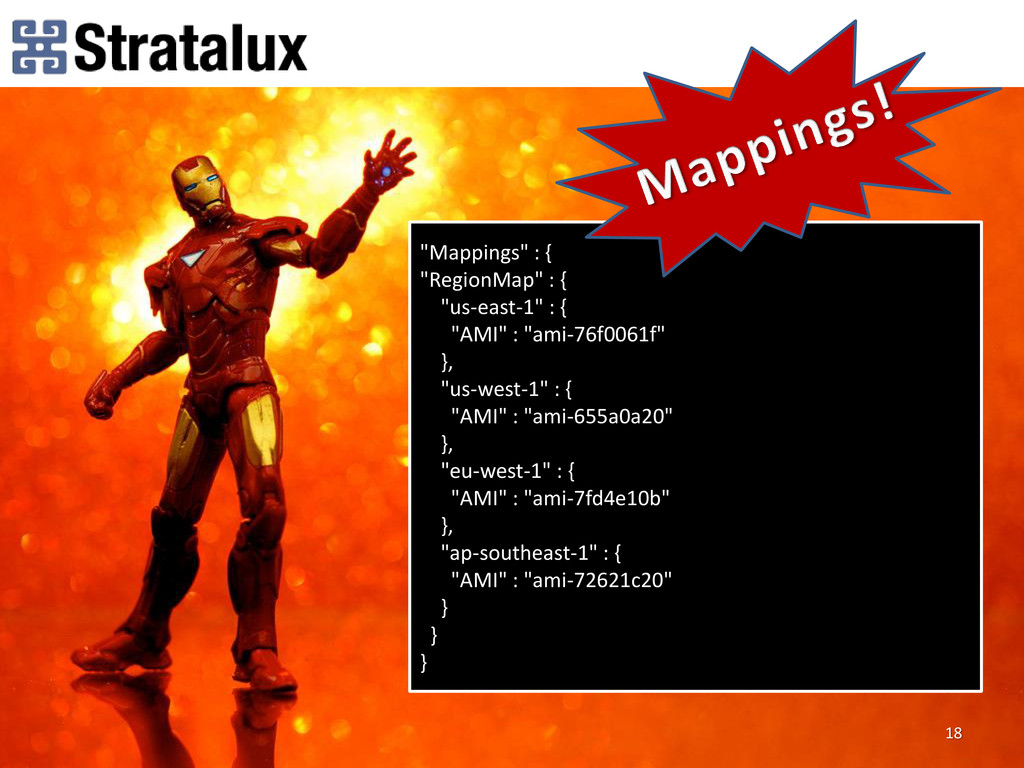

18. 18 "Mappings" : { "RegionMap" : { "us-east-1" : { "AMI" : "ami-76f0061f" }, "us-west-1" : { "AMI" : "ami-655a0a20" }, "eu-west-1" : { "AMI" : "ami-7fd4e10b" }, "ap-southeast-1" : { "AMI" : "ami-72621c20" } } }

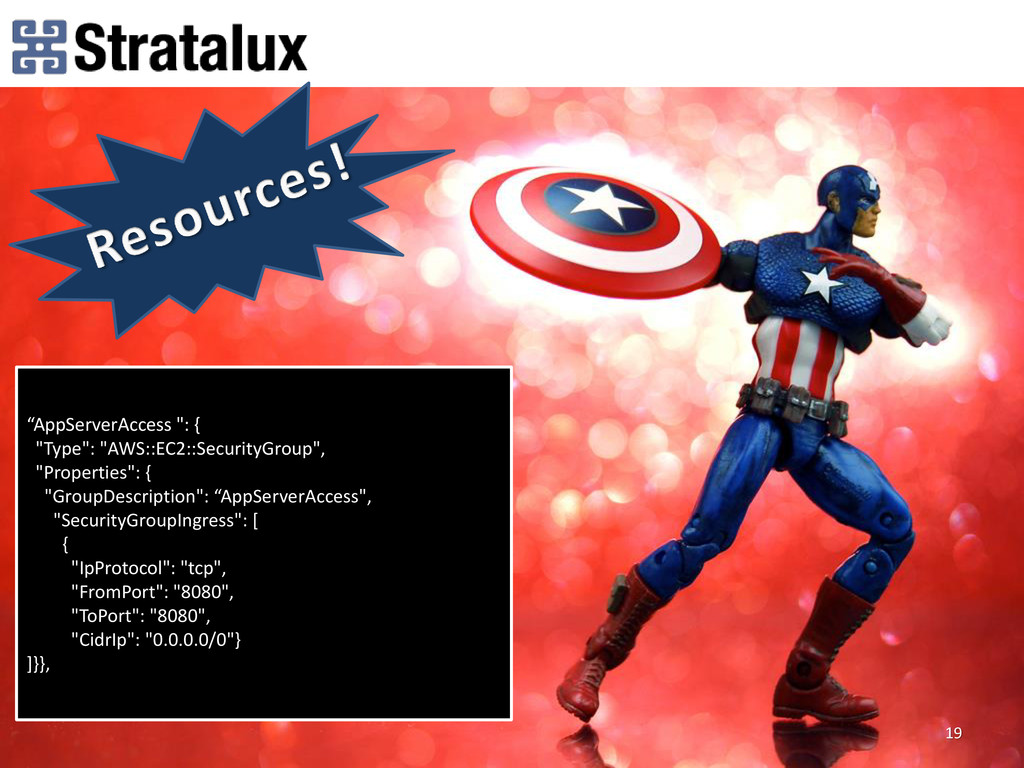

19. • Resources 19 “AppServerAccess ": { "Type": "AWS::EC2::SecurityGroup", "Properties": { "GroupDescription": “AppServerAccess", "SecurityGroupIngress": [ { "IpProtocol": "tcp", "FromPort": "8080", "ToPort": "8080", "CidrIp": "0.0.0.0/0"} ]}},

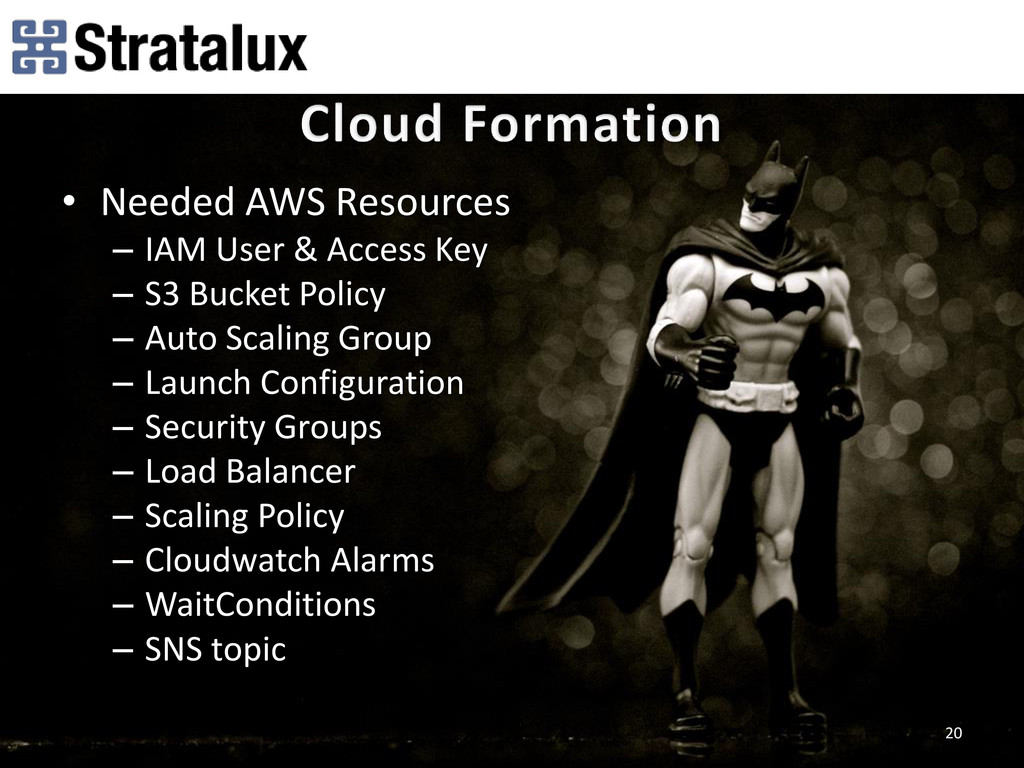

20. 20 • Needed AWS Resources – IAM User & Access Key – S3 Bucket Policy – Auto Scaling Group – Launch Configuration – Security Groups – Load Balancer – Scaling Policy – Cloudwatch Alarms – WaitConditions – SNS topic

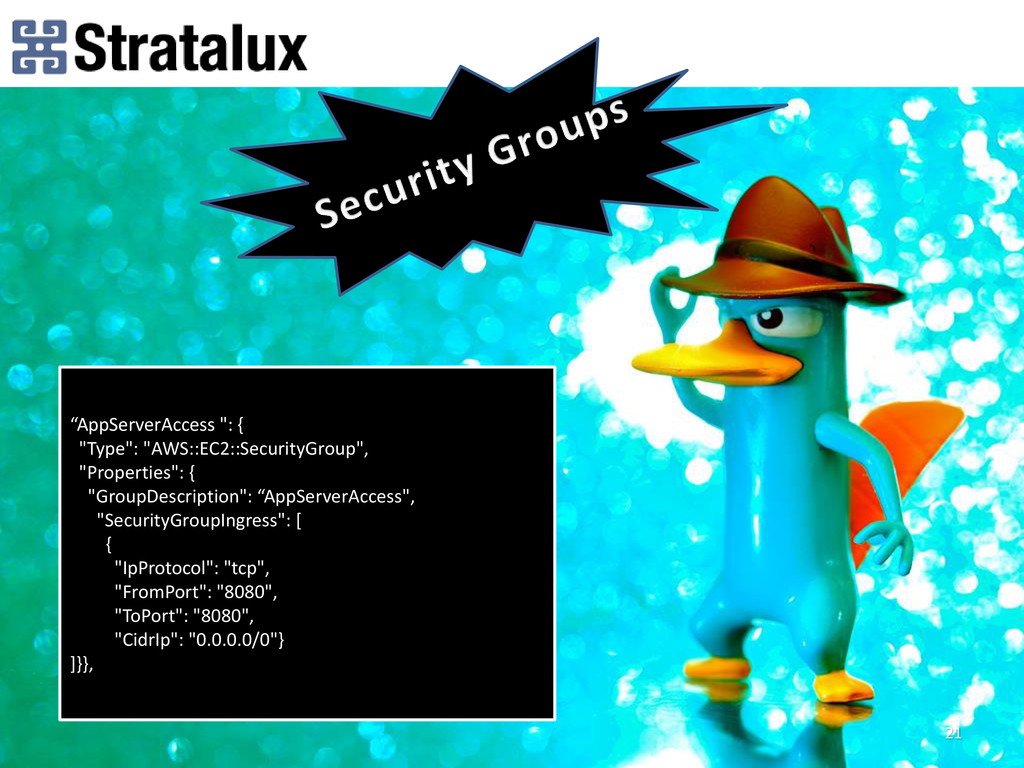

21. “AppServerAccess ": { "Type": "AWS::EC2::SecurityGroup", "Properties": { "GroupDescription": “AppServerAccess", "SecurityGroupIngress": [ { "IpProtocol": "tcp", "FromPort": "8080", "ToPort": "8080", "CidrIp": "0.0.0.0/0"} ]}}, 21

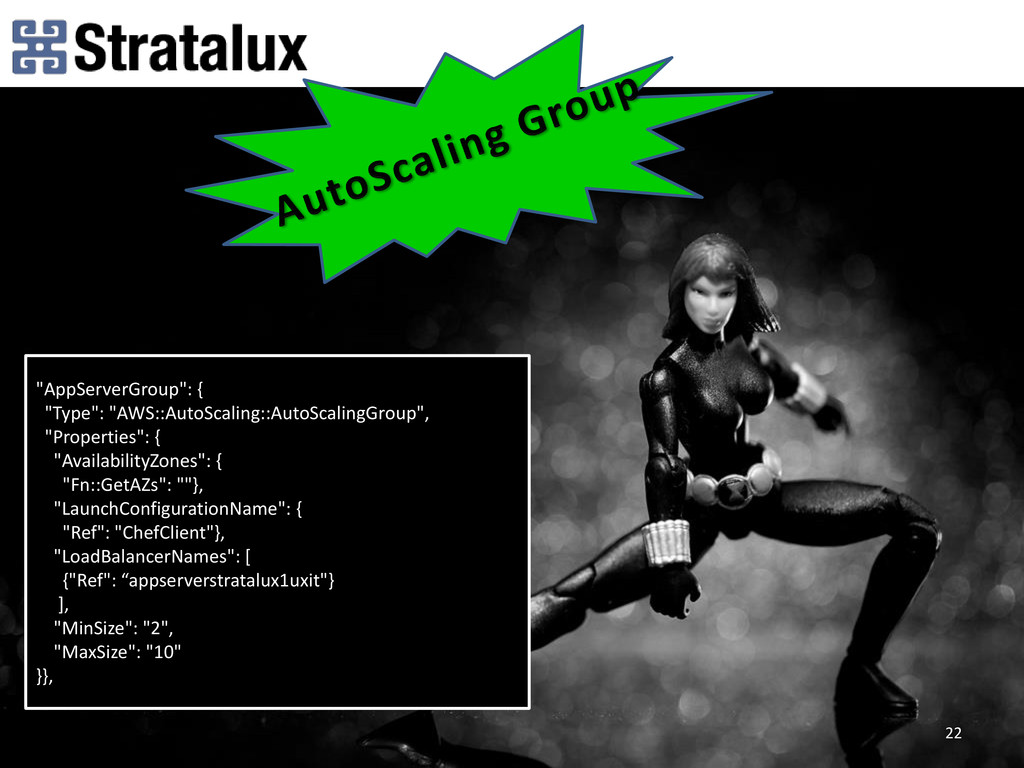

22. "AppServerGroup": { "Type": "AWS::AutoScaling::AutoScalingGroup", "Properties": { "AvailabilityZones": { "Fn::GetAZs": ""}, "LaunchConfigurationName": { "Ref": "ChefClient"}, "LoadBalancerNames": [ {"Ref": “appserverstratalux1uxit"} ], "MinSize": "2", "MaxSize": "10" }}, 22

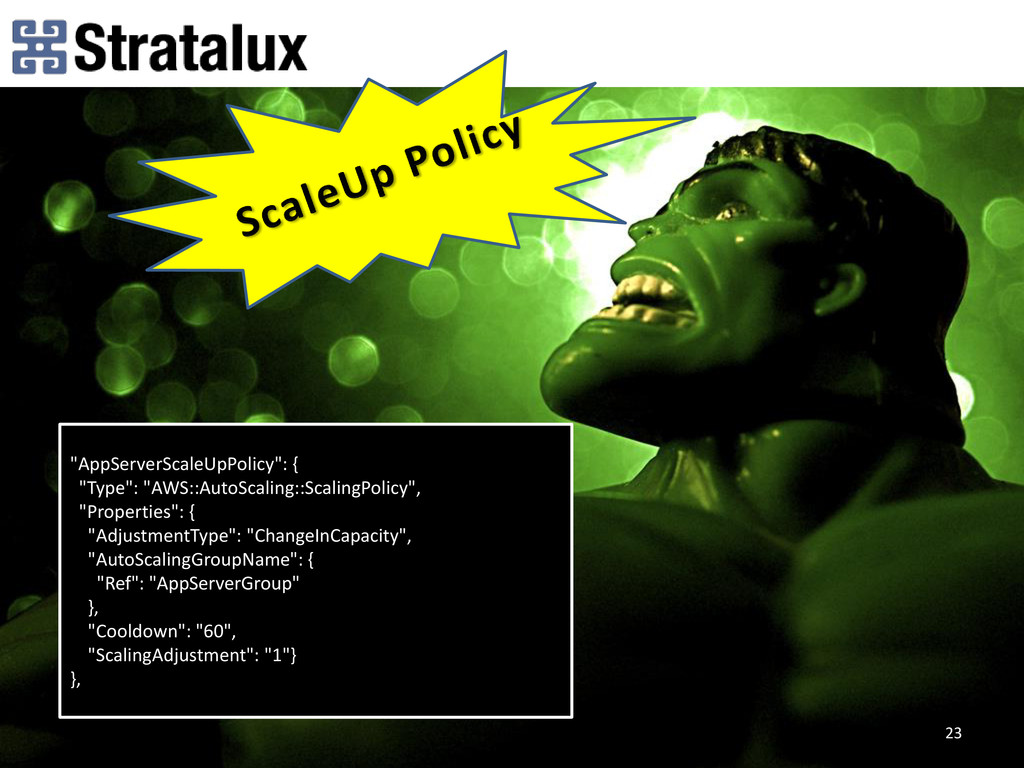

23. "AppServerScaleUpPolicy": { "Type": "AWS::AutoScaling::ScalingPolicy", "Properties": { "AdjustmentType": "ChangeInCapacity", "AutoScalingGroupName": { "Ref": "AppServerGroup" }, "Cooldown": "60", "ScalingAdjustment": "1"} }, 23
24. "AppServerScaleDownPolicy": { "Type": "AWS::AutoScaling::ScalingPolicy", "Properties": { "AdjustmentType": "ChangeInCapacity", "AutoScalingGroupName": { "Ref": "AppServerGroup" }, "Cooldown": "60", "ScalingAdjustment": "-1"} }, 24
25. "CPUAlarmHigh": { "Type": "AWS::CloudWatch::Alarm", "Properties": { "AlarmDescription": "Scale-up if CPU > 75% for 2 minutes", "MetricName": "CPUUtilization", "Namespace": "AWS/EC2", "Statistic": "Average", "Period": "60", "EvaluationPeriods": "2", "Threshold": "75", "AlarmActions": [{ "Ref": "AppServerScaleUpPolicy"}], "Dimensions": [{ "Name": "AutoScalingGroupName", "Value": { "Ref": "AppServerGroup"}}], "ComparisonOperator": "GreaterThanThreshold“ }}, 25

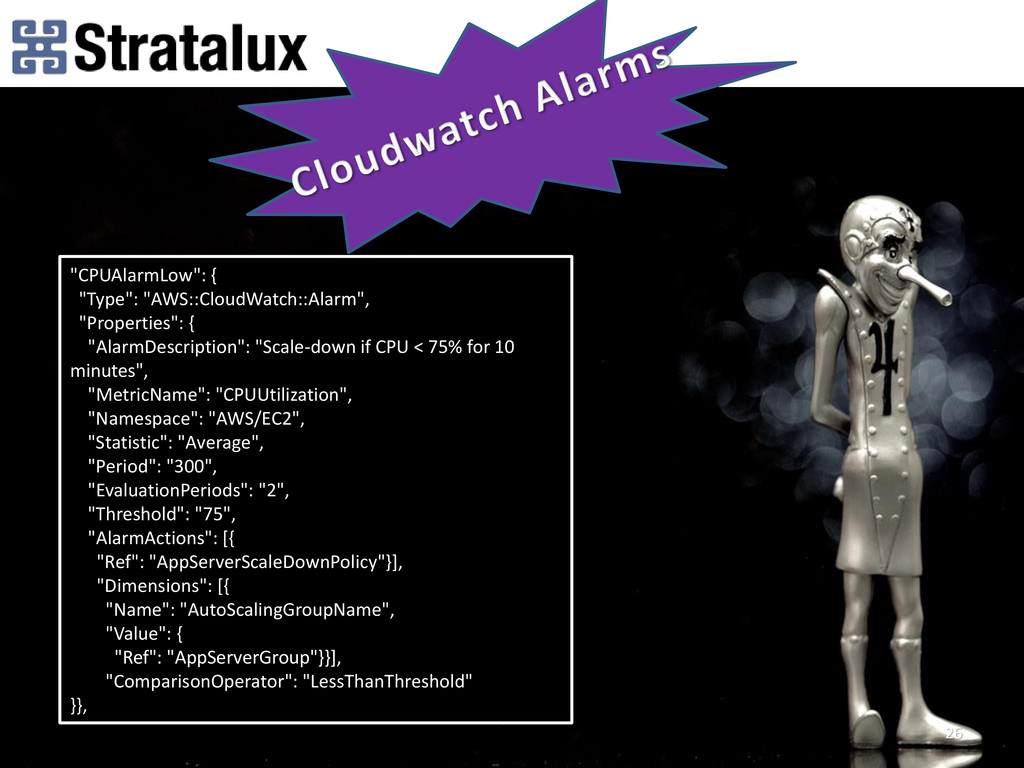

26. "CPUAlarmLow": { "Type": "AWS::CloudWatch::Alarm", "Properties": { "AlarmDescription": "Scale-down if CPU < 75% for 10 minutes", "MetricName": "CPUUtilization", "Namespace": "AWS/EC2", "Statistic": "Average", "Period": "300", "EvaluationPeriods": "2", "Threshold": "75", "AlarmActions": [{ "Ref": "AppServerScaleDownPolicy"}], "Dimensions": [{ "Name": "AutoScalingGroupName", "Value": { "Ref": "AppServerGroup"}}], "ComparisonOperator": "LessThanThreshold" }}, 26

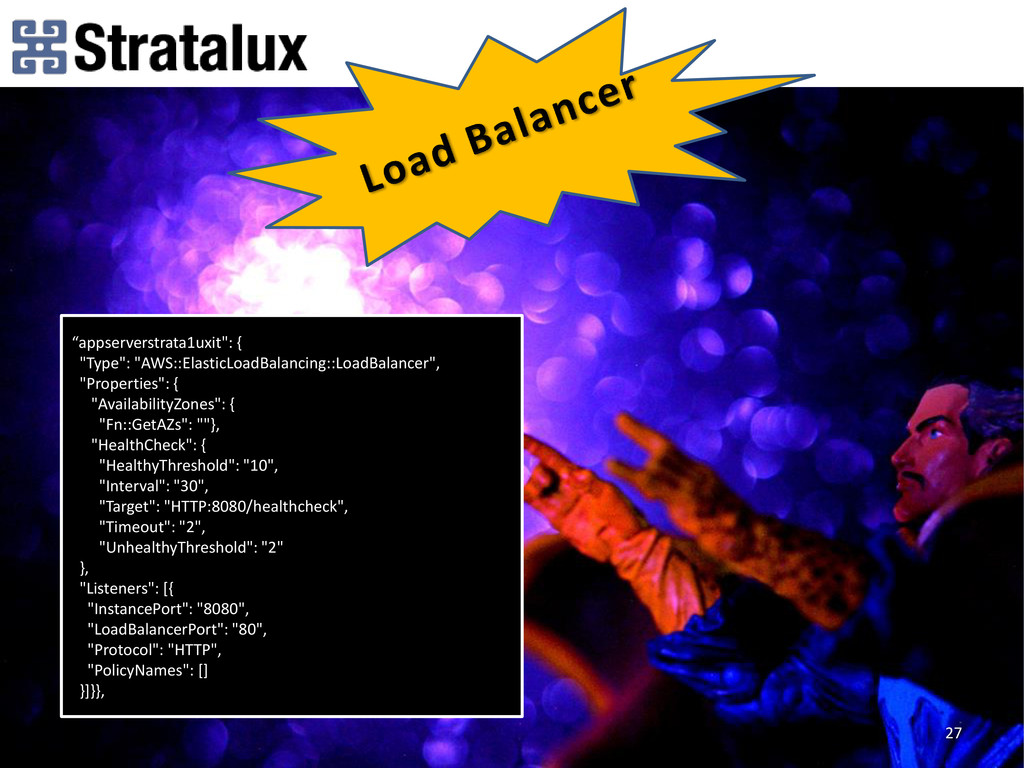

27. “appserverstrata1uxit": { "Type": "AWS::ElasticLoadBalancing::LoadBalancer", "Properties": { "AvailabilityZones": { "Fn::GetAZs": ""}, "HealthCheck": { "HealthyThreshold": "10", "Interval": "30", "Target": "HTTP:8080/healthcheck", "Timeout": "2", "UnhealthyThreshold": "2" }, "Listeners": [{ "InstancePort": "8080", "LoadBalancerPort": "80", "Protocol": "HTTP", "PolicyNames": [] }]}}, 27

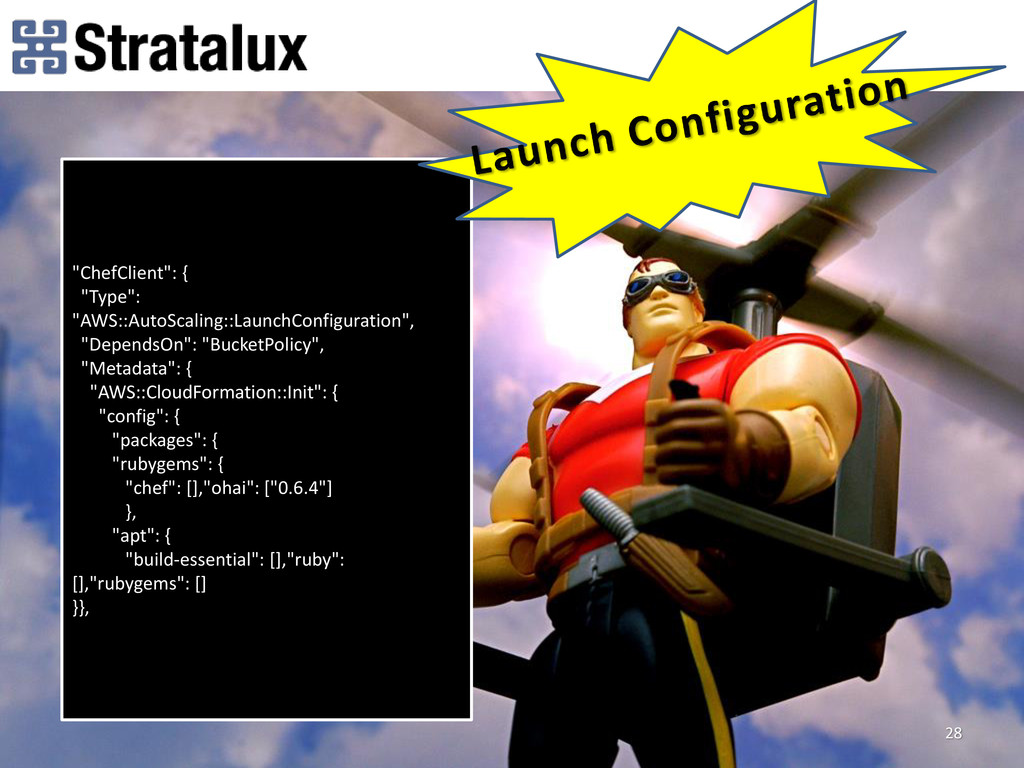

28. "ChefClient": { "Type": "AWS::AutoScaling::LaunchConfiguration", "DependsOn": "BucketPolicy", "Metadata": { "AWS::CloudFormation::Init": { "config": { "packages": { "rubygems": { "chef": [],"ohai": ["0.6.4"] }, "apt": { "build-essential": [],"ruby": [],"rubygems": [] }}, 28

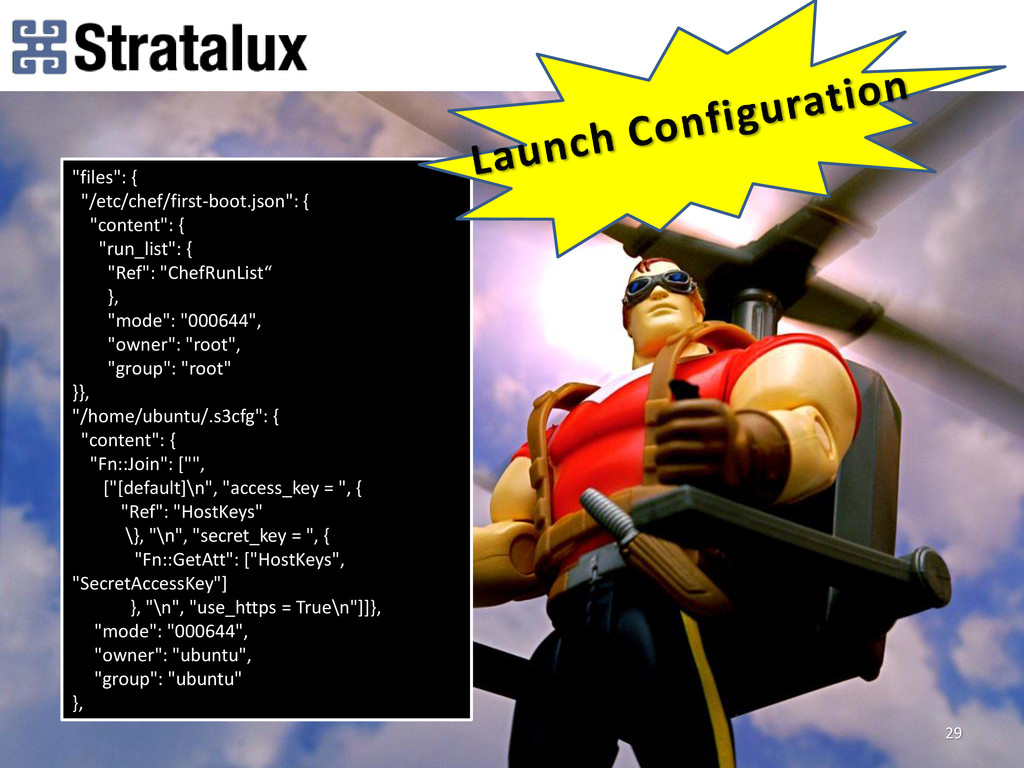

29. "files": { "/etc/chef/first-boot.json": { "content": { "run_list": { "Ref": "ChefRunList“ }, "mode": "000644", "owner": "root", "group": "root" }}, "/home/ubuntu/.s3cfg": { "content": { "Fn::Join": ["", ["[default]\n", "access_key = ", { "Ref": "HostKeys" \}, "\n", "secret_key = ", { "Fn::GetAtt": ["HostKeys", "SecretAccessKey"] }, "\n", "use_https = True\n"]]}, "mode": "000644", "owner": "ubuntu", "group": "ubuntu" }, 29

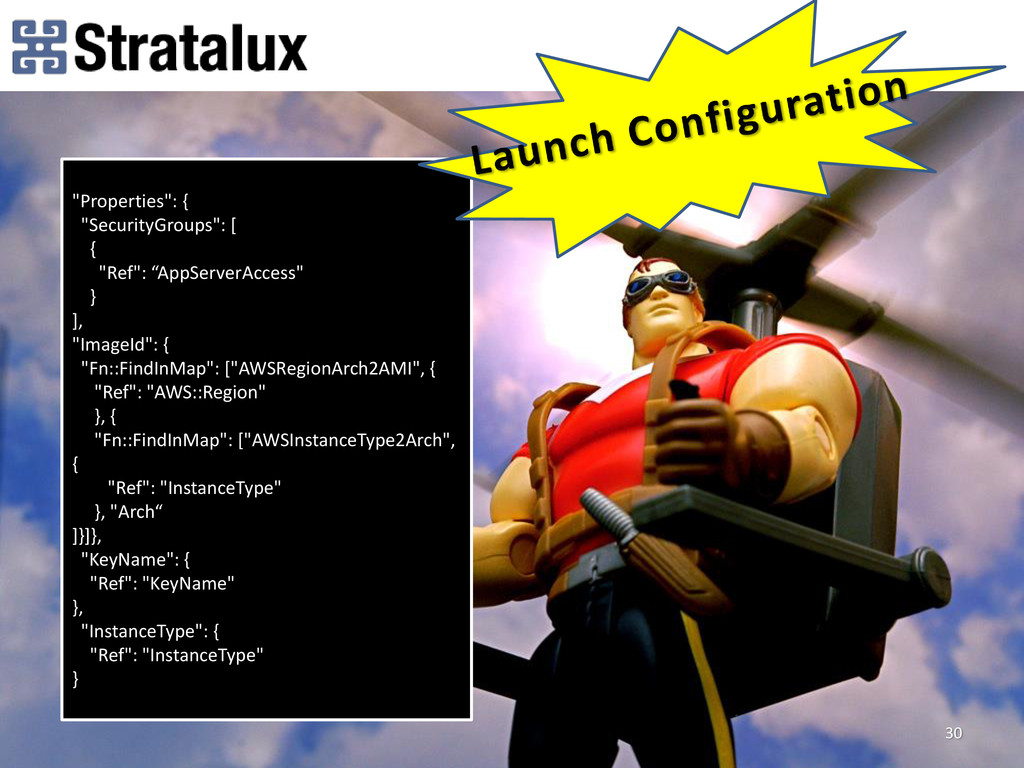

30. "Properties": { "SecurityGroups": [ { "Ref": “AppServerAccess" } ], "ImageId": { "Fn::FindInMap": ["AWSRegionArch2AMI", { "Ref": "AWS::Region" }, { "Fn::FindInMap": ["AWSInstanceType2Arch", { "Ref": "InstanceType" }, "Arch“ ]}]}, "KeyName": { "Ref": "KeyName" }, "InstanceType": { "Ref": "InstanceType" } 30

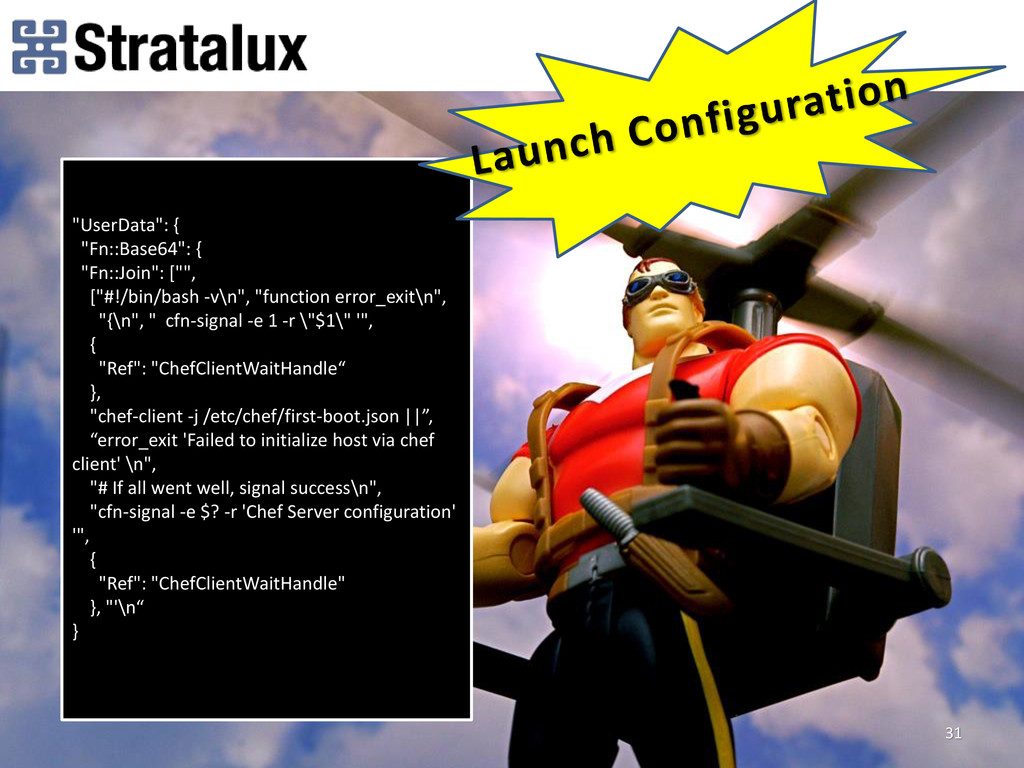

31. "UserData": { "Fn::Base64": { "Fn::Join": ["", ["#!/bin/bash -v\n", "function error_exit\n", "{\n", " cfn-signal -e 1 -r \"$1\" '", { "Ref": "ChefClientWaitHandle“ }, "chef-client -j /etc/chef/first-boot.json ||”, “error_exit 'Failed to initialize host via chef client' \n", "# If all went well, signal success\n", "cfn-signal -e $? -r 'Chef Server configuration' '", { "Ref": "ChefClientWaitHandle" }, "'\n“ } 31
37. Jeremy Przygode jp@stratalux.com www.stratalux.com @stratalux Special thanks to JD Hancock for the awesome images! http://www.flickr.com/photos/jdhancock/ 37
