boost::multi_index version >= 1.56.0 internal structure and iteration algorithm for gdb Boost-Prerry-Printer

I implemented boost::multi_index hashed index support for https://github.com/ruediger/Boost-Pretty-Printer/

This is boost::multi_index internal structure (iteration related elements only) and iteration algorithm.

Transcript

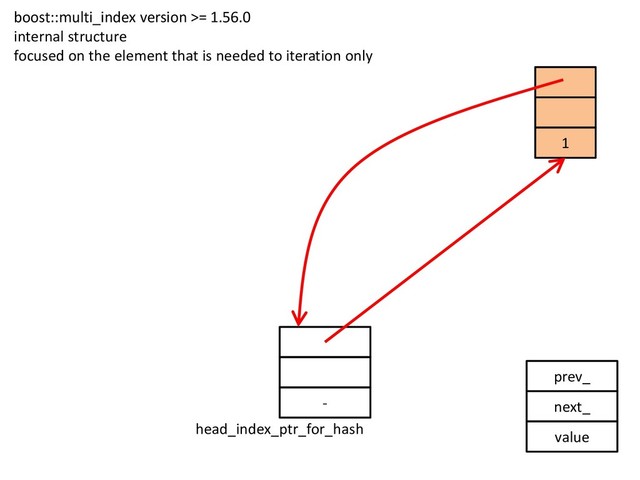

1. prev_ next_ value - head_index_ptr_for_hash 1 boost::multi_index version >= 1.56.0 internal structure focused on the element that is needed to iteration only
2. prev_ next_ value - head_index_ptr_for_hash 1 2
3. prev_ next_ value - head_index_ptr_for_hash 1 2 2
4. prev_ next_ value - head_index_ptr_for_hash 1 2 2 2 prior_ of the second from the left points to the right most element in the same value range next_ of the second from the right points to the left most element in the same value range
5. prev_ next_ value - head_index_ptr_for_hash 1 2 2 2 2 prior_ of the second from the left points to the right most element in the same value range next_ of the second from the right points to the left most element in the same value range
6. prev_ next_ value - head_index_ptr_for_hash 1 2 2 2 2 2 prior_ of the second from the left points to the right most element in the same value range next_ of the second from the right points to the left most element in the same value range
7. prev_ next_ value - head_index_ptr_for_hash 1 3 2 2 2 2 2
8. prev_ next_ value - head_index_ptr_for_hash 1 3 2 2 2 2 2 iteration algorithm crt end trace { A } A B C D E F G get_prev_ptr returns B B is NOT in trace, crt moves to B
9. prev_ next_ value - head_index_ptr_for_hash 1 3 2 2 2 2 2 iteration algorithm crt end trace { A, B } A B C D E F G get_prev_ptr returns C C is NOT in trace, crt moves to C
10. prev_ next_ value - head_index_ptr_for_hash 1 3 2 2 2 2 2 iteration algorithm crt end trace { A, B, C } A B C D E F G get_prev_ptr returns D D is NOT in trace, crt moves to D
11. prev_ next_ value - head_index_ptr_for_hash 1 3 2 2 2 2 2 iteration algorithm crt end trace { A, B, C, D } A B C D E F G get_prev_ptr returns E E is NOT in trace, crt moves to E
12. prev_ next_ value - head_index_ptr_for_hash 1 3 2 2 2 2 2 iteration algorithm crt end trace { A, B, C, D, E } A B C D E F G get_prev_ptr returns B B is in trace, crt moves to F by B's get_prev_ptr and C's get_next_ptr. Clear trace.
13. prev_ next_ value - head_index_ptr_for_hash 1 3 2 2 2 2 2 iteration algorithm crt end trace {} A B C D E F G get_prev_ptr returns B B is in trace, crt moves to F by B's get_prev_ptr and C's get_next_ptr. Clear trace.
14. prev_ next_ value - head_index_ptr_for_hash 1 3 2 2 2 2 2 iteration algorithm end trace { F } A B C D E F G crt get_prev_ptr returns G G is NOT in trace, crt moves to G
15. prev_ next_ value - head_index_ptr_for_hash 1 3 2 2 2 2 2 iteration algorithm end trace { F, G } A B C D E F G crt get_prev_ptr returns end. if crｔ equals to end, stop iteration.
