Building Agile and Resilient Schema Transformations using Apache Kafka and ESB's

Building Agile and Resilient Schema Transformations using Apache Kafka and ESB's

Presentation delivered on the Oracle Code event where I had the chance to share with the audience some tricks and best practices about handling message transformations on-the-fly using a combination of Apache Kafka as message bus and ESB's and transformation engine. It was shown as well how to replace the ESB's by lightweight functions running on serverless applications.

02ff2dde723b6e26f4ef03ee6b3f6eb9?s=128

Ricardo Ferreira

March 21, 2017
Tweet

Transcript

  1. Copyright © 2017, Oracle and/or its affiliates. All rights reserved.

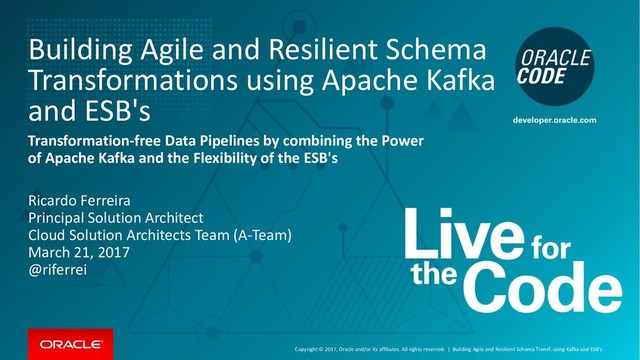

    | Building Agile and Resilient Schema Transformations using Apache Kafka and ESB's Transformation-free Data Pipelines by combining the Power of Apache Kafka and the Flexibility of the ESB's Ricardo Ferreira Principal Solution Architect Cloud Solution Architects Team (A-Team) March 21, 2017 @riferrei Building Agile and Resilient Schema Transf. using Kafka and ESB's
  2. Copyright © 2017, Oracle and/or its affiliates. All rights reserved.

    | Safe Harbor Statement The following is intended to outline our general product direction. It is intended for information purposes only, and may not be incorporated into any contract. It is not a commitment to deliver any material, code, or functionality, and should not be relied upon in making purchasing decisions. The development, release, and timing of any features or functionality described for Oracle’s products remains at the sole discretion of Oracle. Building Agile and Resilient Schema Transf. using Kafka and ESB's 2
  3. Copyright © 2017, Oracle and/or its affiliates. All rights reserved.

    | API changes, Transformations and Decoupling Hands-on Demonstration using the Oracle Cloud Why Apache Kafka instead of other Options? 1 2 3 Building Agile and Resilient Schema Transf. using Kafka and ESB's 3 Agenda
  4. Copyright © 2017, Oracle and/or its affiliates. All rights reserved.

    | Wait… did you say ESB's? Aren't they evil? • Modern Cloud-Native applications are built on top of design principles that doesn't include ESB's. One of them is the Smart endpoints and Dumb Pipes Building Agile and Resilient Schema Transf. using Kafka and ESB's 4 Service A Service Bus Service B Service C Service D Service E Service F
  5. Copyright © 2017, Oracle and/or its affiliates. All rights reserved.

    | Smart Endpoints and Dump Pipes • Let the endpoints handle the transformation logic required to expose and/or invoke other endpoints. Pipes must only carry the messages in/out. Building Agile and Resilient Schema Transf. using Kafka and ESB's 5 Service A Service B REST or Messaging
  6. Copyright © 2017, Oracle and/or its affiliates. All rights reserved.

    | Building Agile and Resilient Schema Transf. using Kafka and ESB's 6 Wait… but what if the API changes?
  7. Copyright © 2017, Oracle and/or its affiliates. All rights reserved.

    | We might have some options. And along with… trade-offs Widely accepted solution among the developer community, but it is not bullet-proof and creates lots of code and operational overhead. Jamie Zawinski's used to say: - "I'll use versioning. Now you have 2.1.0 problems." Effective but relies on the assumption that developers must coordinate to handle the API changes. This might work for certain cases, but is reactive and creates organization overhead. It creates a more complex architecture upfront but handle changes almost on- the-fly and allows services to react with higher uptime while teams coordinate to evolve their systems. Building Agile and Resilient Schema Transf. using Kafka and ESB's 7 Service Versioning Deployment Pipelines Design for Change Principle
  8. Copyright © 2017, Oracle and/or its affiliates. All rights reserved.

    | Design for Change Principle • Whenever possible, exchange messages using messaging technologies. This allows you to decouple the communication while providing a way to filter and correct message schemas. Use REST for synchronous use cases only. Building Agile and Resilient Schema Transf. using Kafka and ESB's 8 Phase 1 :: Leveraging messaging in-between microservices Service A Service B Messaging using Topics Benefits of this design:  Messages will never be lost.  Reliability while maintenance.  Possibility of schema handling  UI-ready using reactive coding  Scalability using less hardware
  9. Copyright © 2017, Oracle and/or its affiliates. All rights reserved.

    | Design for Change Principle • API providers hook up directly while API consumers hook up indirectly. By using different message channels you can plugin schema transformations on-the-fly. By default, just perform messages pass-through. Building Agile and Resilient Schema Transf. using Kafka and ESB's 9 Phase 2 :: Allow schema transformation by foreseen message channels Service A Service B Two topics per service
  10. Copyright © 2017, Oracle and/or its affiliates. All rights reserved.

    | Design for Change Principle • When the time comes and your service API need to be changed, simply do the change and allow a third-party service to handle the schema evolution. This service responsibility is exclusively handle schemas. Ring any bells?  Building Agile and Resilient Schema Transf. using Kafka and ESB's 10 Phase 3 :: Plugin schema transformation engines on-the-fly Service A Service B Two topics per service Transformation Service ("A.K.A Service C") This can be implemented in a variety of ways but using ESB's seems to be a natural fit. If this is a one time thing, then maybe Serverless could work.
  11. Copyright © 2017, Oracle and/or its affiliates. All rights reserved.

    | API changes, Transformations and Decoupling Hands-on Demonstration using the Oracle Cloud Why Apache Kafka instead of other Options? 1 2 3 Building Agile and Resilient Schema Transf. using Kafka and ESB's 11 Agenda
  12. Copyright © 2017, Oracle and/or its affiliates. All rights reserved.

    | Understanding the "Use Case" Building Agile and Resilient Schema Transf. using Kafka and ESB's 12
  13. Copyright © 2017, Oracle and/or its affiliates. All rights reserved.

    | More specifically... this use case is about the Saviors/Negan Building Agile and Resilient Schema Transf. using Kafka and ESB's 13
  14. Copyright © 2017, Oracle and/or its affiliates. All rights reserved.

    | Collecting Supplies from the Communities Building Agile and Resilient Schema Transf. using Kafka and ESB's 14 Supplies Collection Scavenge Lesson Teaching • Is it time to collect? • What do we need? • Half of their assets? • Check Inventory • Check their Demands • Do scavenging… • Is 50% of their assets? • There was disrespect? • Is Lucille angry?
  15. Copyright © 2017, Oracle and/or its affiliates. All rights reserved.

    | Services Design :: First Iteration Building Agile and Resilient Schema Transf. using Kafka and ESB's 15 Supplies Collection Service Scavenge Service Lesson Teaching Service Initiator Service
  16. Copyright © 2017, Oracle and/or its affiliates. All rights reserved.

    | Services Design :: Second Iteration Building Agile and Resilient Schema Transf. using Kafka and ESB's 16 Supplies Collection Service Scavenge Service Lesson Teaching Service Initiator Service Topic Topic Topic
  17. Copyright © 2017, Oracle and/or its affiliates. All rights reserved.

    | Services Design :: Third Iteration Building Agile and Resilient Schema Transf. using Kafka and ESB's 17 Supplies Collection Service Scavenge Service Lesson Teaching Service Initiator Service Topic Service Bus Topic Topic Service Bus Topic Topic Service Bus Topic Topic Service Bus Topic Design for Change Principle
  18. Copyright © 2017, Oracle and/or its affiliates. All rights reserved.

    | Services Design :: Fourth Iteration Building Agile and Resilient Schema Transf. using Kafka and ESB's 18 Supplies Collection Service Scavenge Service Lesson Teaching Service Initiator Service Topic Service Bus Oracle Java Cloud Service Oracle SOA Cloud Service Topic Oracle IaaS Cloud Service Kafka Transport
  19. Copyright © 2017, Oracle and/or its affiliates. All rights reserved.

    | Building Agile and Resilient Schema Transf. using Kafka and ESB's 19 Enough slides, show me code
  20. Copyright © 2017, Oracle and/or its affiliates. All rights reserved.

    | Do you want to win a Negan Souvenir? http://141.144.29.149:8080/oracle-code-2017/collectSupplies?name=XYZ Building Agile and Resilient Schema Transf. using Kafka and ESB's 20 { "timestamp" : "MM/dd/yyyy hh:mm:ss", "requestorName" : "XYZ", "outcome" : true }
  21. Copyright © 2017, Oracle and/or its affiliates. All rights reserved.

    | API changes, Transformations and Decoupling Hands-on Demonstration using the Oracle Cloud Why Apache Kafka instead of other Options? 1 2 3 Building Agile and Resilient Schema Transf. using Kafka and ESB's 21 Agenda
  22. Copyright © 2017, Oracle and/or its affiliates. All rights reserved.

    | What is Apache Kafka? • Simply Put, Kafka is a Distributed Streaming Platform – Allows ingestion and consumption of streams of records – Allows streams of records to be persisted with fault tolerance – Allows streams of records to be processed as they happen • It is Comprised of Six Main Modules: – Kafka Cluster – Producer API Building Agile and Resilient Schema Transf. using Kafka and ESB's 22 – Consumer API – Connector API – Streams API – REST Proxy *
  23. Copyright © 2017, Oracle and/or its affiliates. All rights reserved.

    | Kafka Design "Crash Course" • For implementation simplicity; Kafka does not support the concept of many destinations, topics are the only abstraction. However, both Queuing and Pub/Sub scenarios are supported. • In Kafka, Queuing is just a matter of how consumers are grouped together. Building Agile and Resilient Schema Transf. using Kafka and ESB's 23 • Each consumer has a property called group id. When two (or more) consumers has the same group id value, that means that they belong to the same group. • Consumers belonging to the same group will load balance themselves to fetch records from the partition.
  24. Copyright © 2017, Oracle and/or its affiliates. All rights reserved.

    | Kafka Design "Crash Course" • The basic abstraction in Kafka is called topics. • Queue and Pub/Sub scenarios are supported. • Topics are broken down in multiple partitions. • Partitions are spread over the Kafka cluster. Building Agile and Resilient Schema Transf. using Kafka and ESB's 24 • Each partition is an ordered, immutable sequence of records that is continuously appended to a structured commit log. • Committed records has an offset that uniquely identifies it within the partition.
  25. Copyright © 2017, Oracle and/or its affiliates. All rights reserved.

    | Kafka Design "Crash Course" • Each partition has an ever-growing commit log. • A log can be simply view as a list of linked files. • Partition logs always carries the topic name and the identifier of the partition (i.e.: "topic-0") Building Agile and Resilient Schema Transf. using Kafka and ESB's 25 • Kafka's commit log has been designed for maximum efficiency, therefore: File journaling (O1 structures) may be faster than RAM There is no JVM caching. Page Caching is used instead Zero-copy transfer: CPU offloading using sendfile()
  26. Copyright © 2017, Oracle and/or its affiliates. All rights reserved.

    | Kafka Design "Crash Course" • As mentioned before, Kafka supports fault tolerance. That is achieved with the concept of replication. Replication happens in a per partition basis. Building Agile and Resilient Schema Transf. using Kafka and ESB's 26 • Partition backups are spread over the cluster based on the number defined in the replication factor. • When replication is in place, one broker is elected to be the leader of a given partition. Only leaders can read/write records. The rest of the brokers (hosting replicas) are called followers or ISR's.
  27. Copyright © 2017, Oracle and/or its affiliates. All rights reserved.

    | • Any Kafka deployment must include a Zookeeper setup. That is mandatory. Therefore, it is important to understand what role Zookeeper plays in Kafka. Building Agile and Resilient Schema Transf. using Kafka and ESB's 27 • Zookeeper is used to store lots of metadata: Controllers election. Keeps track of leaders and followers. Cluster details. Which brokers are alive? Dead? Got stuck? Topic configuration. Which ones, partitions, replicas, etc. Quotas. How much each client is allowed to read/write? ACLs. Who is allowed to read and/or write to which topic? Old 0.8 Consumers. Offset storage and rewind operations. Producer Producer Producer Topic Consumer Consumer Consumer Kafka Cluster Leaders Membership Metadata Quotas Zookeeper Cluster Kafka Design "Crash Course"
  28. Copyright © 2017, Oracle and/or its affiliates. All rights reserved.

    | Building Agile and Resilient Schema Transf. using Kafka and ESB's 28
