1. #KubeCon #CloudNativeCon Rook: Intro and Deep Dive with Ceph Dan van der Ster & Deepika Upadhyay, Clyso Satoru Takeuchi, Cybozu, Inc. 1

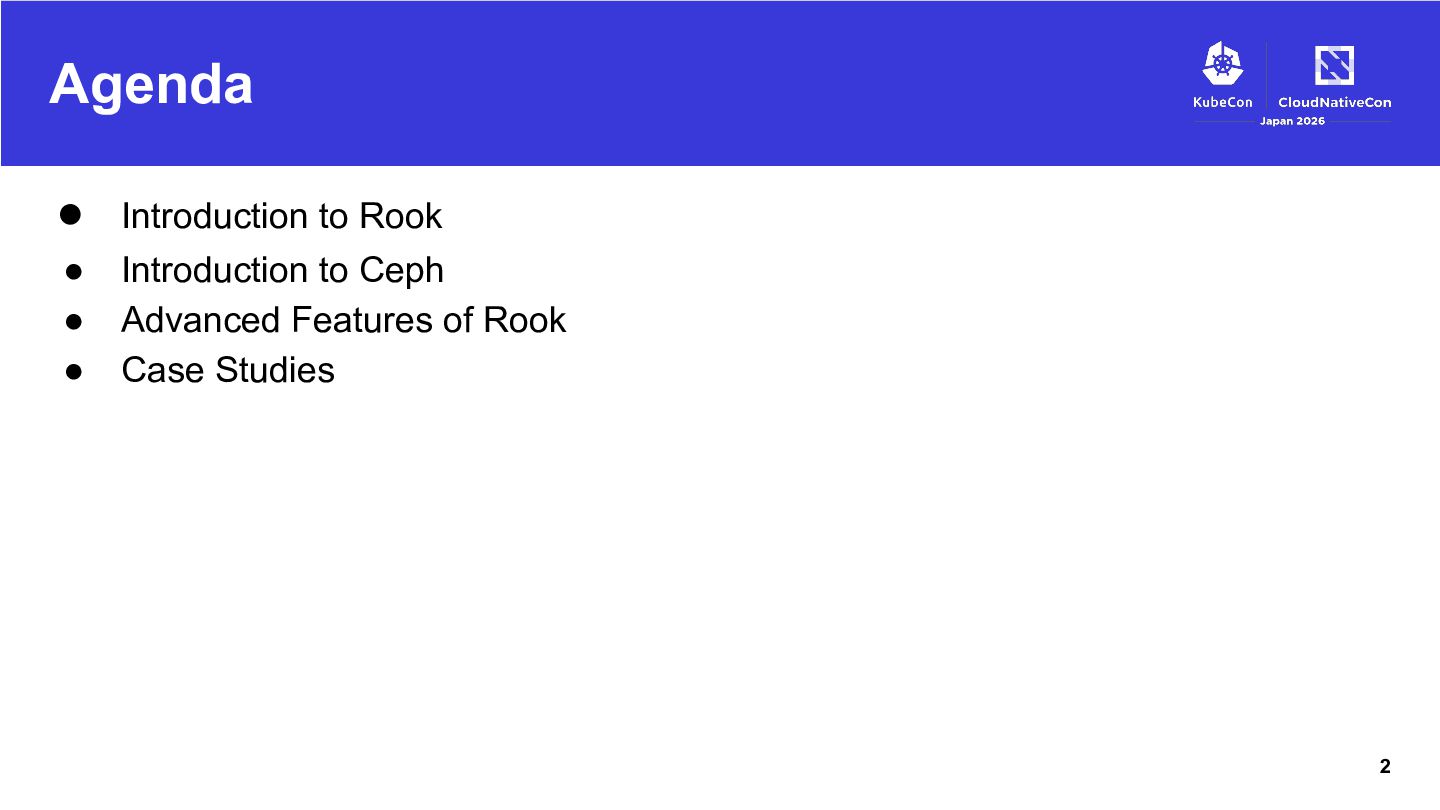

2. Agenda • Introduction to Rook • • • Introduction to Ceph Advanced Features of Rook Case Studies 2
3. Introduction to Rook 3

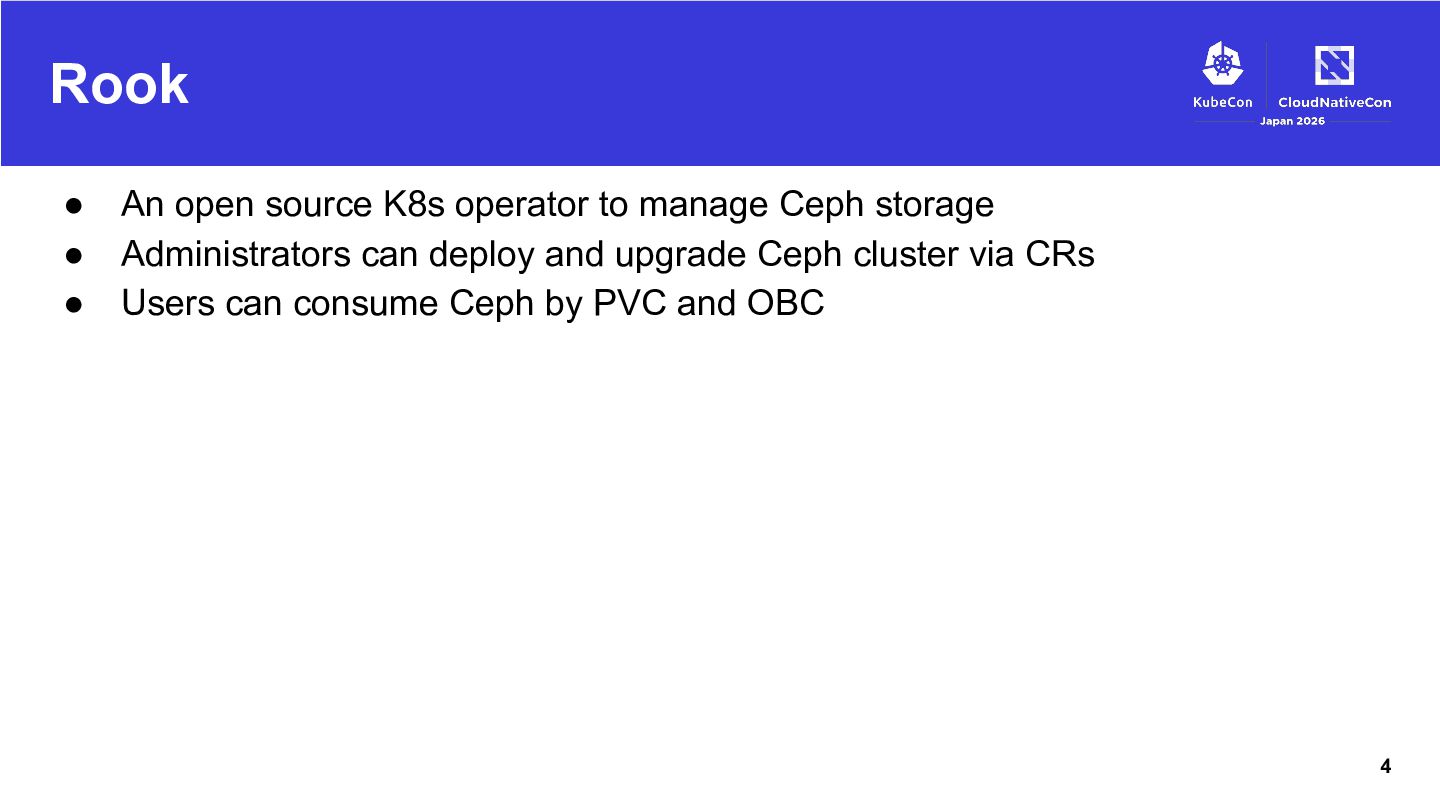

4. Rook • • • An open source K8s operator to manage Ceph storage Administrators can deploy and upgrade Ceph cluster via CRs Users can consume Ceph by PVC and OBC 4

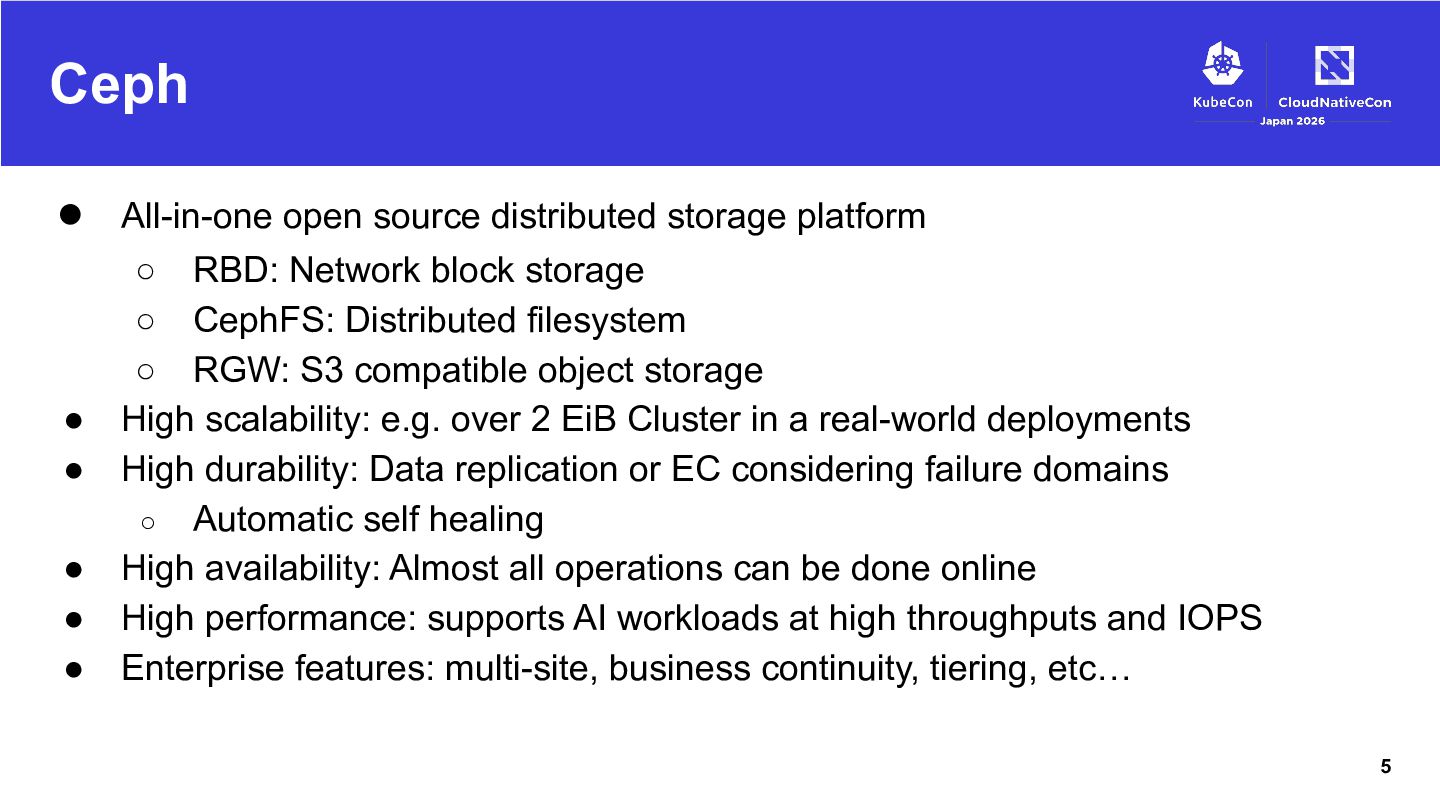

5. Ceph • • • • • • All-in-one open source distributed storage platform ◦ RBD: Network block storage ◦ CephFS: Distributed filesystem ◦ RGW: S3 compatible object storage High scalability: e.g. over 2 EiB Cluster in a real-world deployments High durability: Data replication or EC considering failure domains ◦ Automatic self healing High availability: Almost all operations can be done online High performance: supports AI workloads at high throughputs and IOPS Enterprise features: multi-site, business continuity, tiering, etc… 5

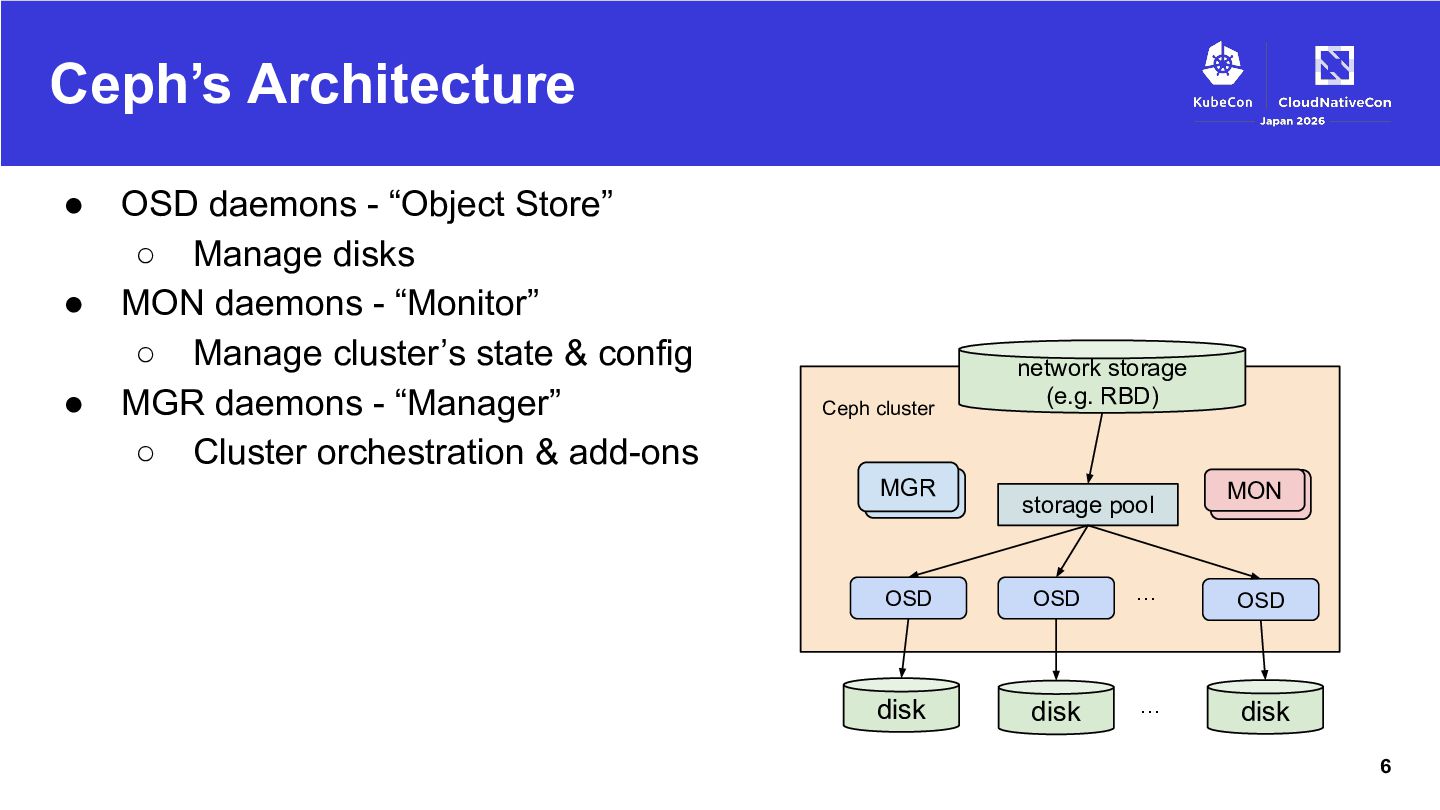

6. Ceph’s Architecture • • • OSD daemons - “Object Store” ◦ Manage disks MON daemons - “Monitor” ◦ Manage cluster’s state & config MGR daemons - “Manager” ◦ Cluster orchestration & add-ons Ceph cluster MGR MGR network storage (e.g. RBD) storage pool MON MON OSD OSD … OSD disk disk … disk 6

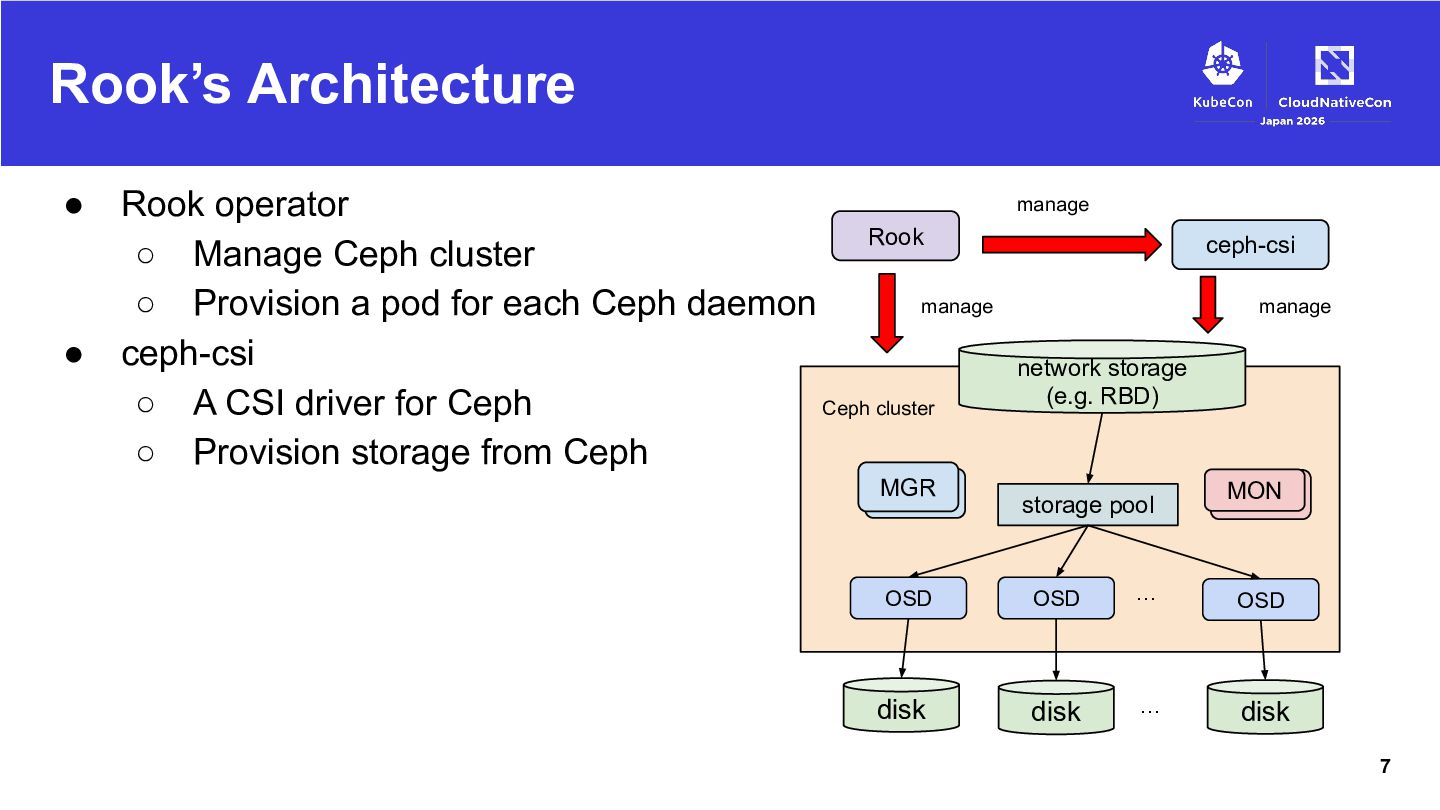

7. Rook’s Architecture • • manage Rook operator Rook ceph-csi ◦ Manage Ceph cluster manage manage ◦ Provision a pod for each Ceph daemon ceph-csi network storage (e.g. RBD) Ceph cluster ◦ A CSI driver for Ceph ◦ Provision storage from Ceph MGR MGR storage pool MON MON OSD OSD … OSD disk disk … disk 7

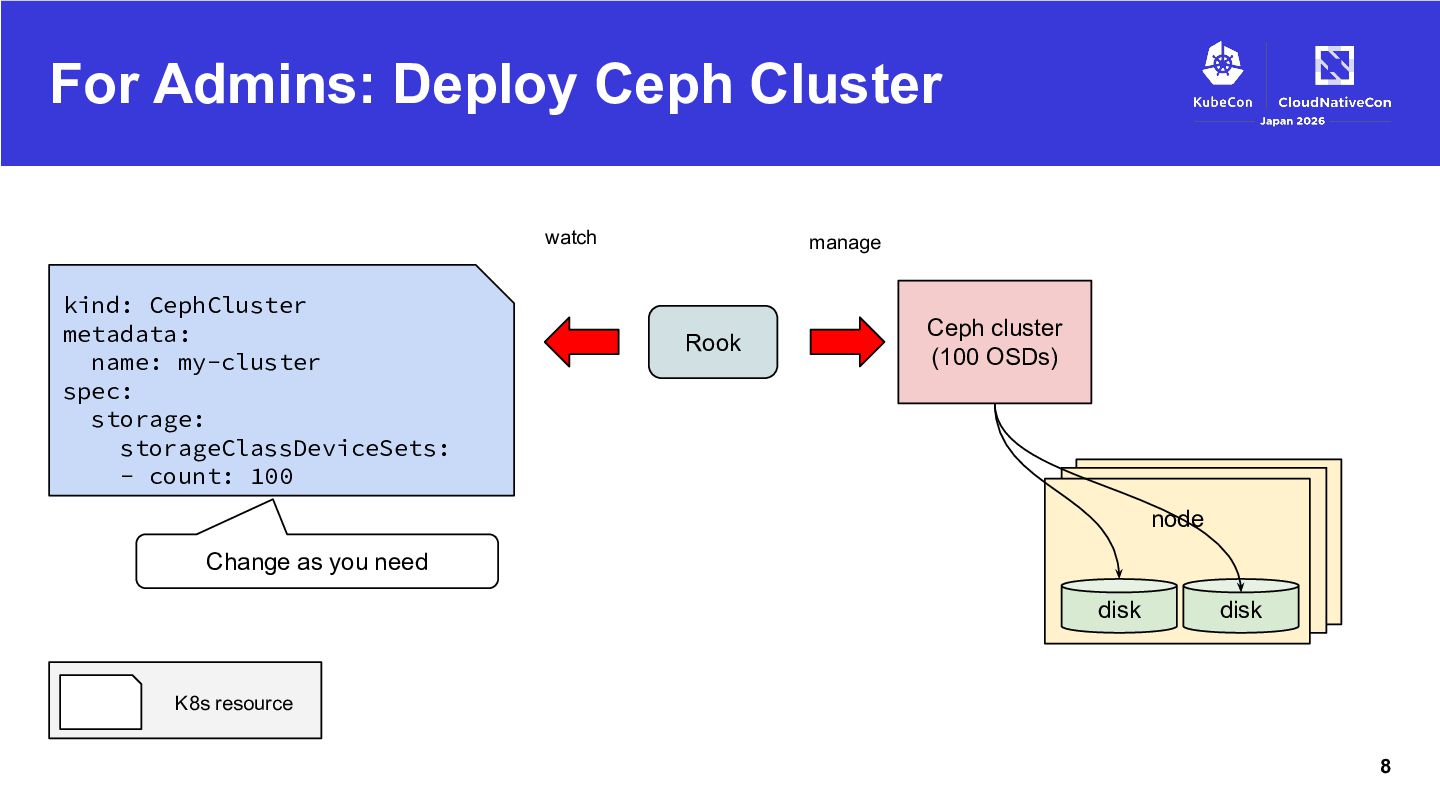

8. For Admins: Deploy Ceph Cluster watch kind: CephCluster metadata: name: my-cluster spec: storage: storageClassDeviceSets: - count: 100 manage Rook Ceph cluster (100 OSDs) node node node Change as you need disk disk K8s resource 8

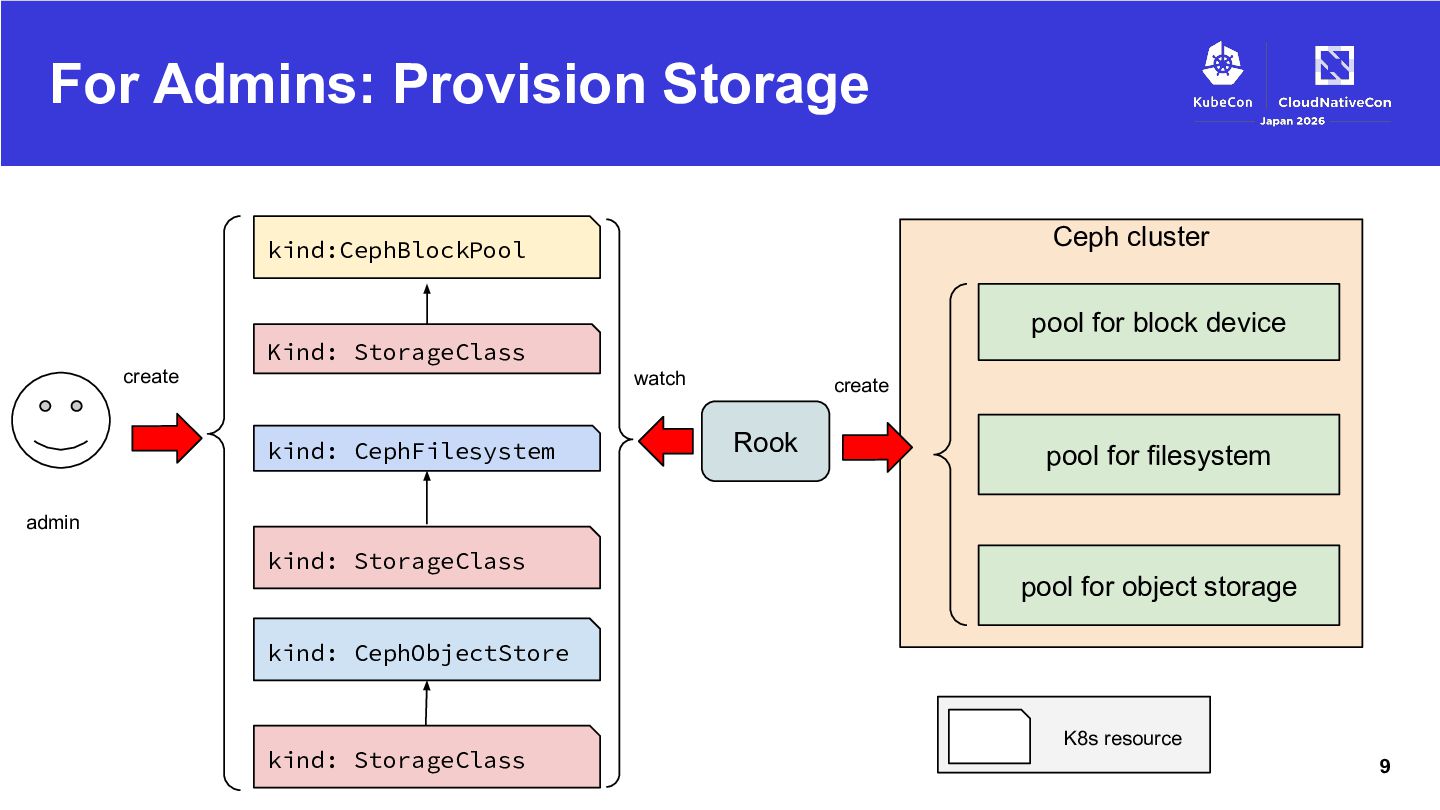

9. For Admins: Provision Storage Ceph cluster kind:CephBlockPool pool for block device Kind: StorageClass create watch kind: CephFilesystem create Rook pool for filesystem admin kind: StorageClass pool for object storage kind: CephObjectStore kind: StorageClass K8s resource 9

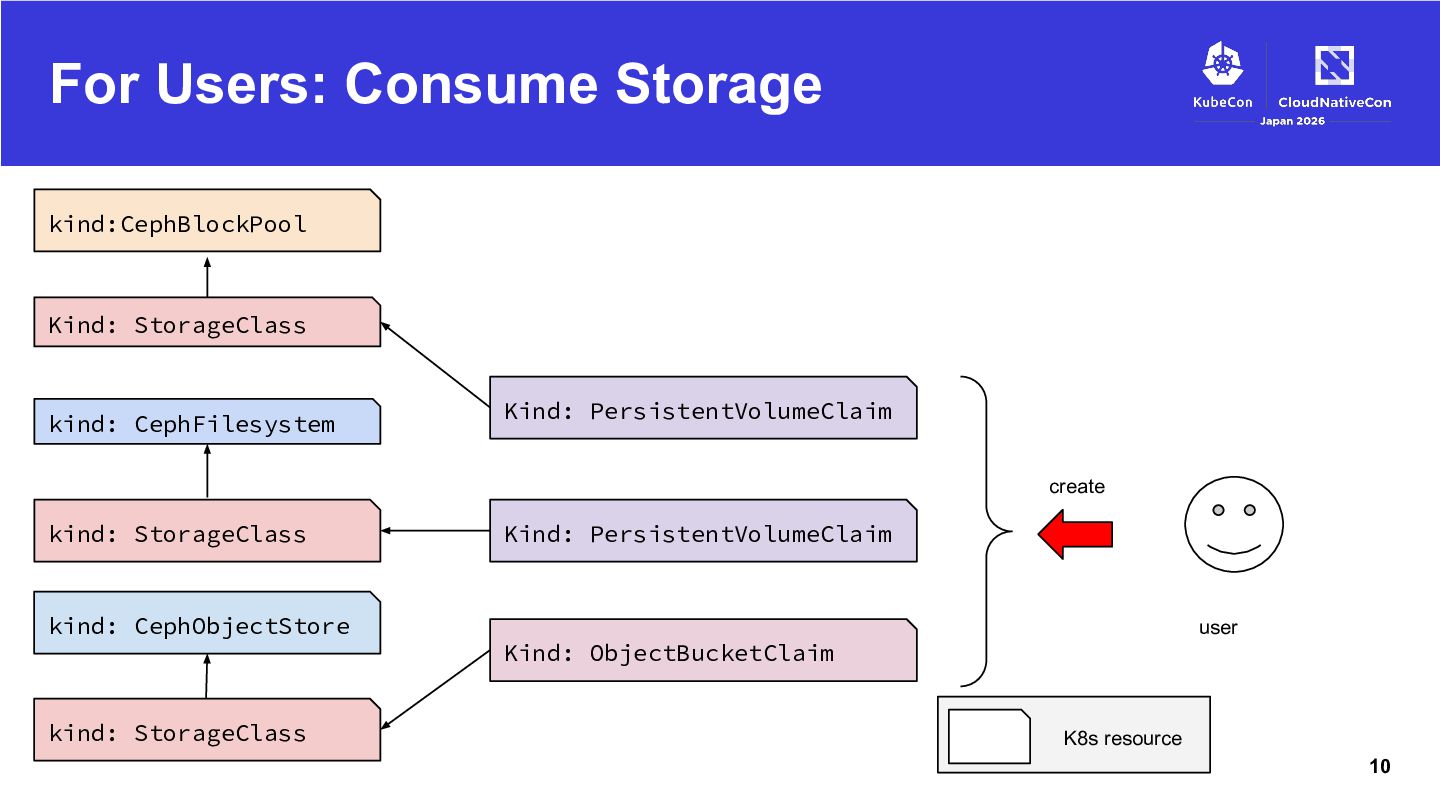

10. For Users: Consume Storage kind:CephBlockPool Kind: StorageClass kind: CephFilesystem Kind: PersistentVolumeClaim create kind: StorageClass kind: CephObjectStore kind: StorageClass Kind: PersistentVolumeClaim user Kind: ObjectBucketClaim K8s resource 10

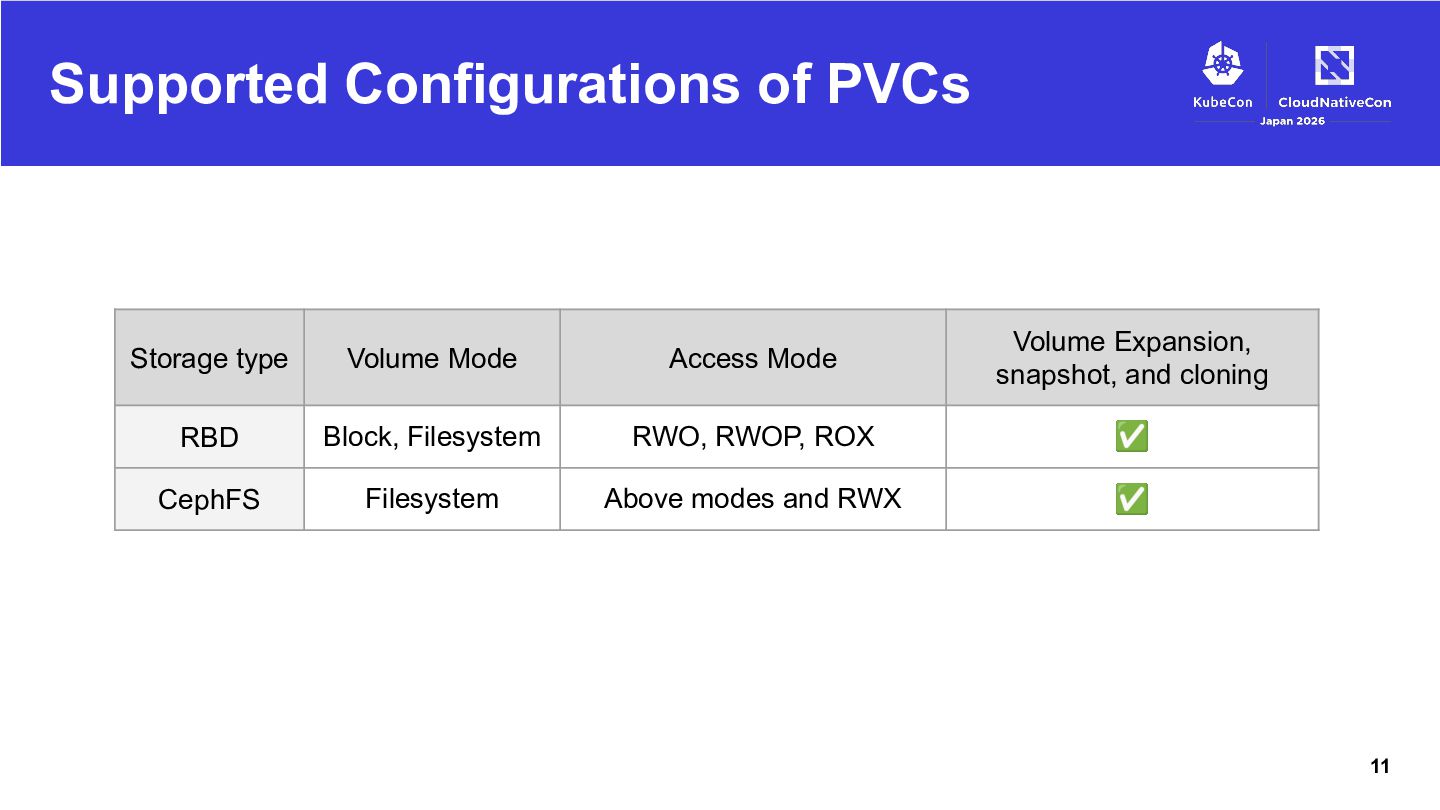

11. Supported Configurations of PVCs Storage type Volume Mode Access Mode Volume Expansion, snapshot, and cloning RBD Block, Filesystem RWO, RWOP, ROX ✅ CephFS Filesystem Above modes and RWX ✅ 11
12. Ceph’s status 12

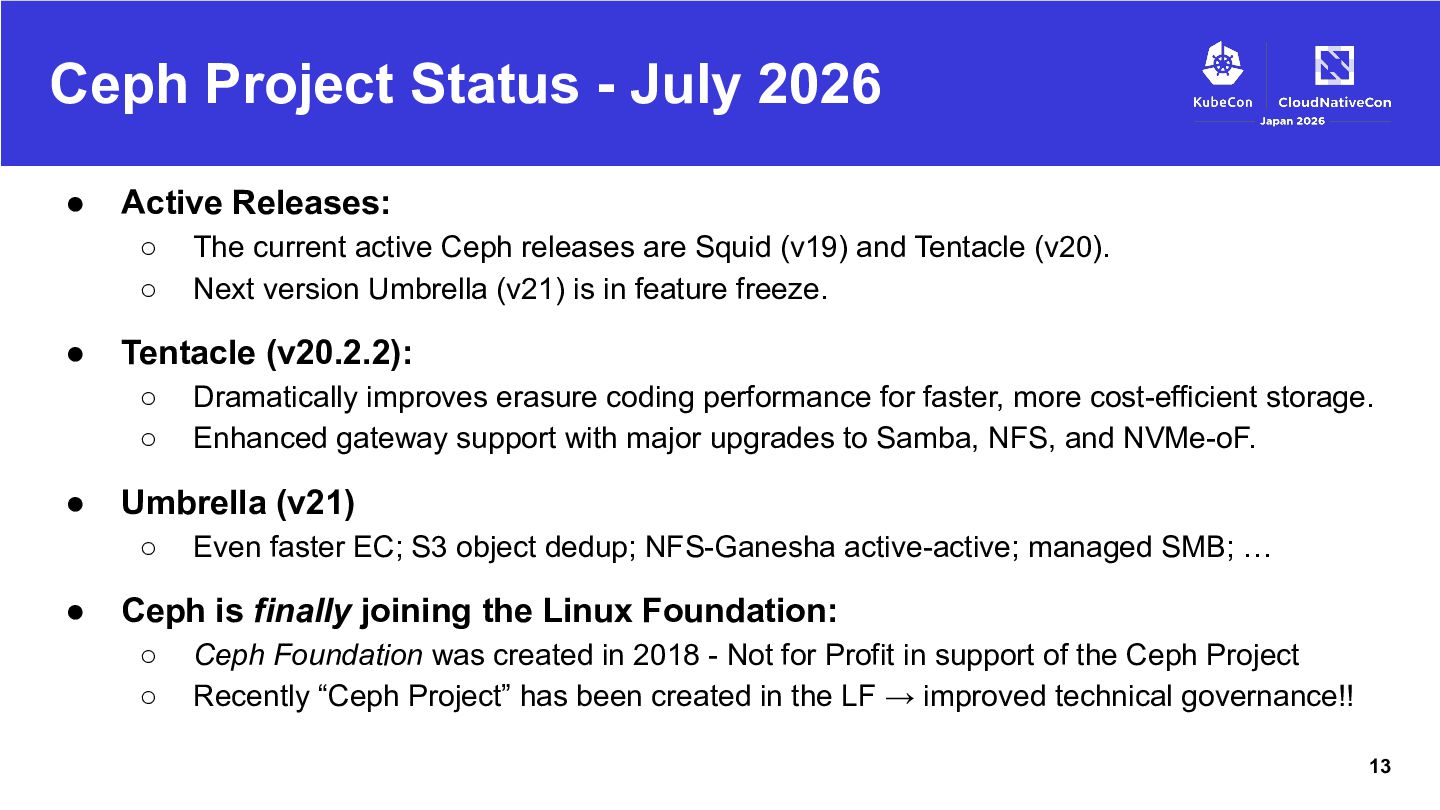

13. Ceph Project Status - July 2026 • Active Releases: ◦ ◦ • Tentacle (v20.2.2): ◦ ◦ • Dramatically improves erasure coding performance for faster, more cost-efficient storage. Enhanced gateway support with major upgrades to Samba, NFS, and NVMe-oF. Umbrella (v21) ◦ • The current active Ceph releases are Squid (v19) and Tentacle (v20). Next version Umbrella (v21) is in feature freeze. Even faster EC; S3 object dedup; NFS-Ganesha active-active; managed SMB; … Ceph is finally joining the Linux Foundation: ◦ ◦ Ceph Foundation was created in 2018 - Not for Profit in support of the Ceph Project Recently “Ceph Project” has been created in the LF → improved technical governance!! 13

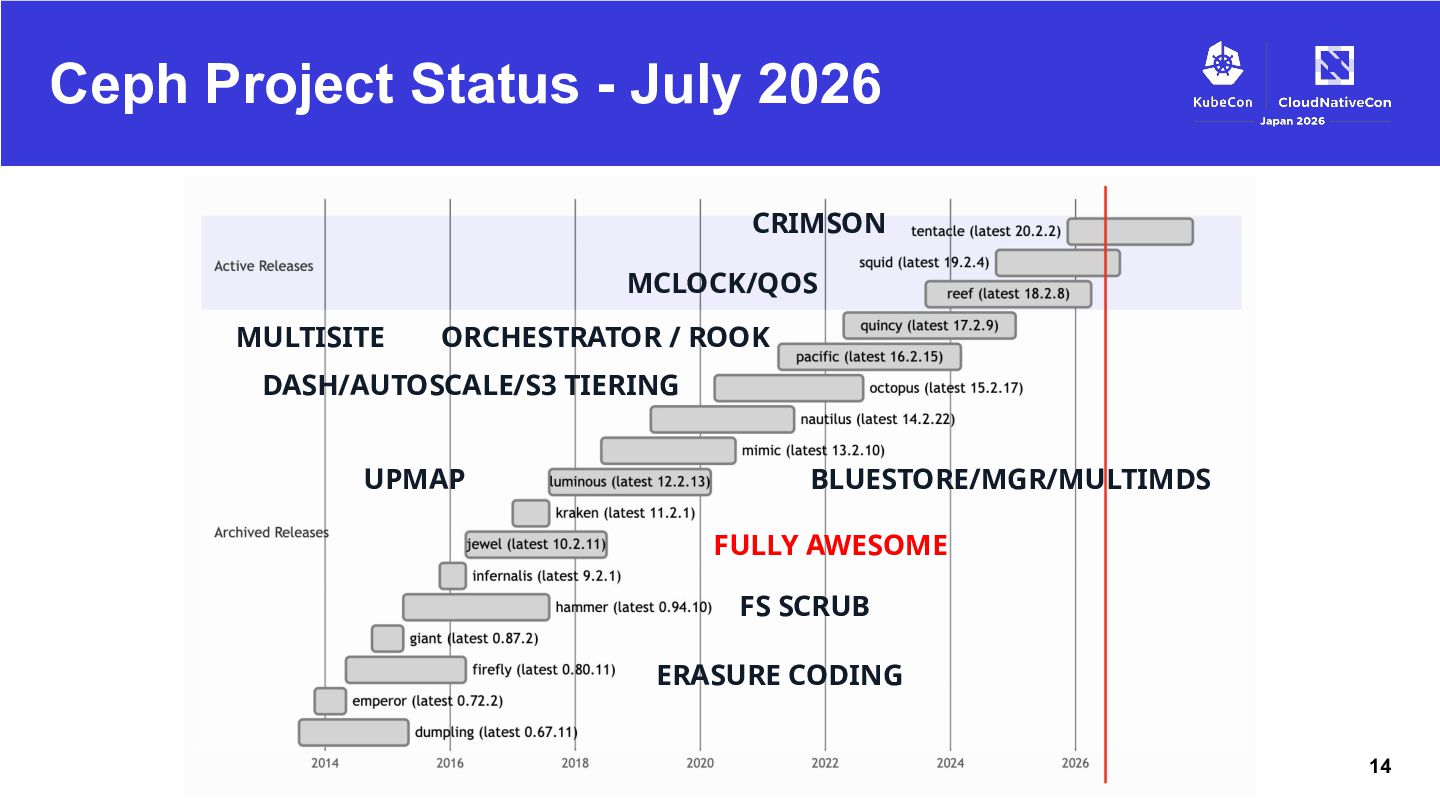

14. Ceph Project Status - July 2026 CRIMSON MCLOCK/QOS MULTISITE ORCHESTRATOR / ROOK DASH/AUTOSCALE/S3 TIERING UPMAP BLUESTORE/MGR/MULTIMDS FULLY AWESOME FS SCRUB ERASURE CODING 14

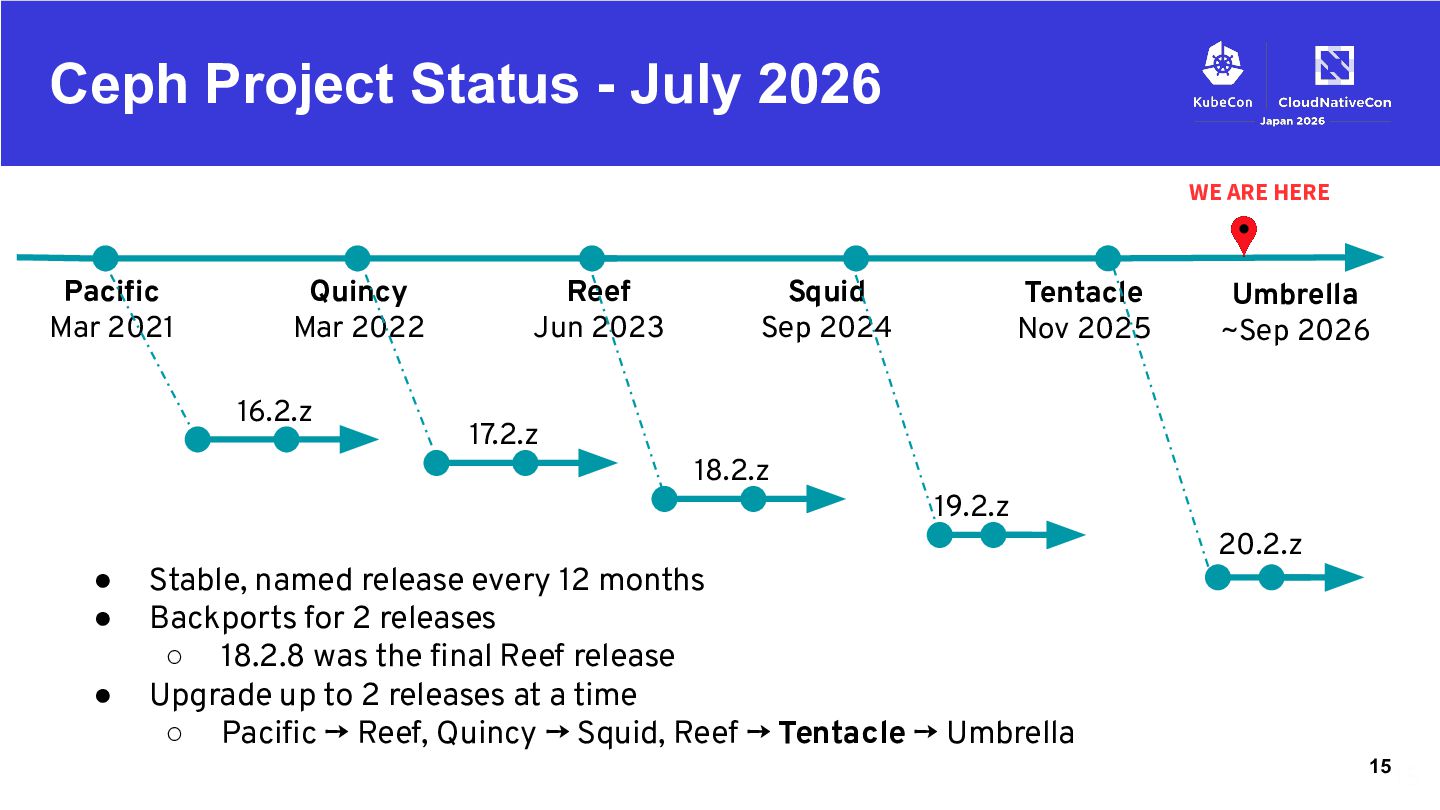

15. Ceph Project Status - July 2026 WE ARE HERE Pacific Mar 2021 Quincy Mar 2022 16.2.z • • • Reef Jun 2023 17.2.z Squid Sep 2024 18.2.z Tentacle Nov 2025 19.2.z Stable, named release every 12 months Backports for 2 releases ◦ 18.2.8 was the final Reef release Upgrade up to 2 releases at a time ◦ Pacific → Reef, Quincy → Squid, Reef → Tentacle → Umbrella Umbrella ~Sep 2026 20.2.z 15 15

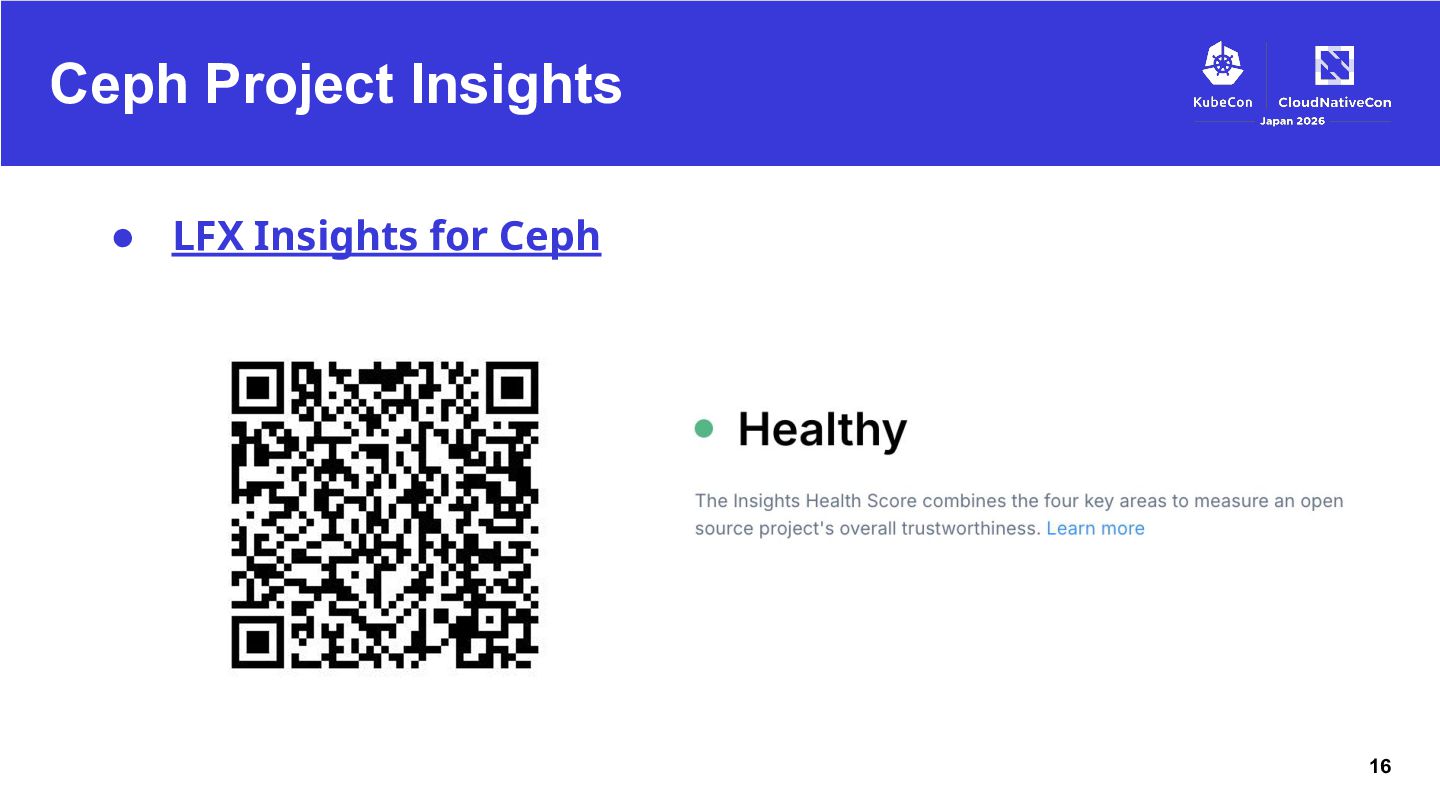

16. Ceph Project Insights • LFX Insights for Ceph 16

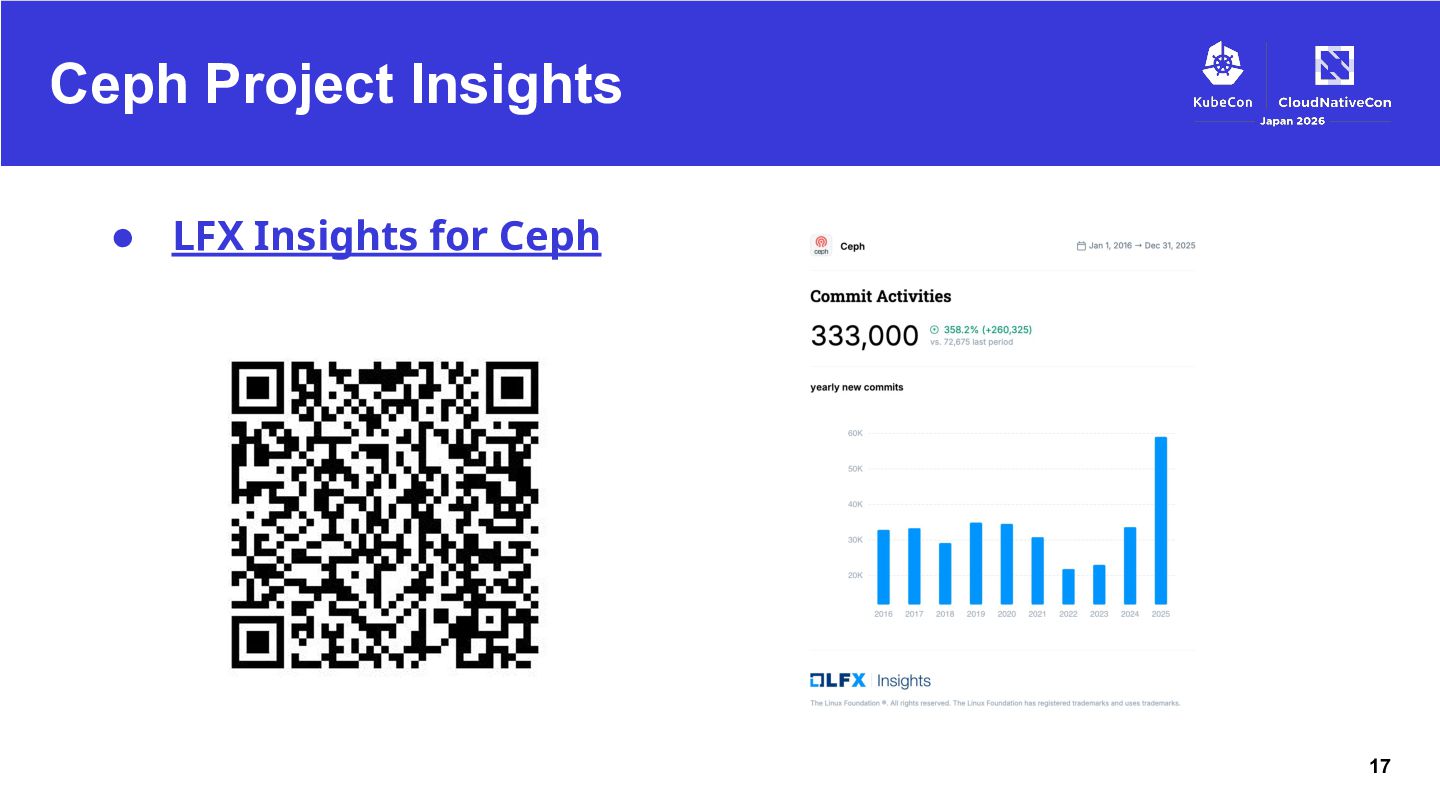

17. Ceph Project Insights • LFX Insights for Ceph 17

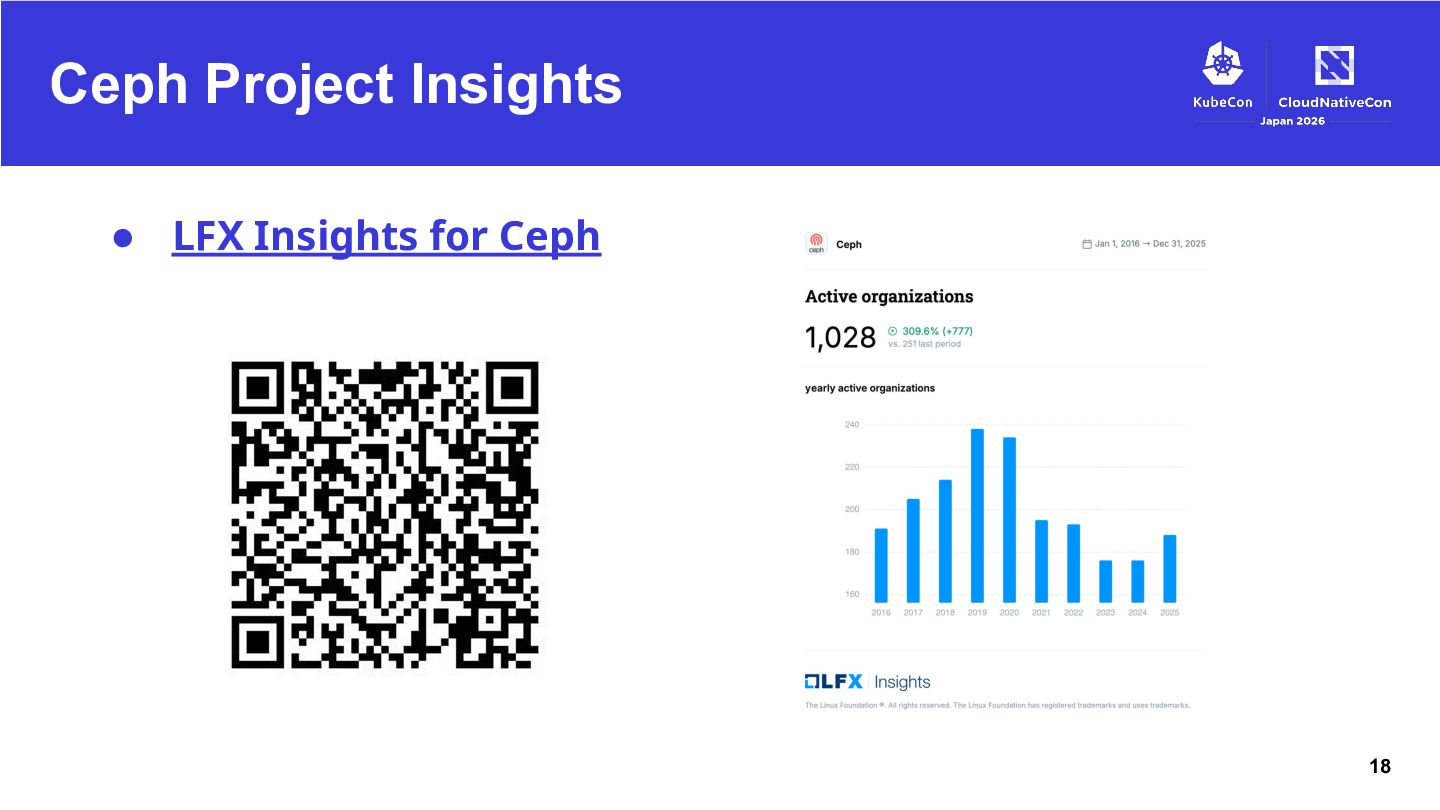

18. Ceph Project Insights • LFX Insights for Ceph 18
19. Advanced Features of Rook 19

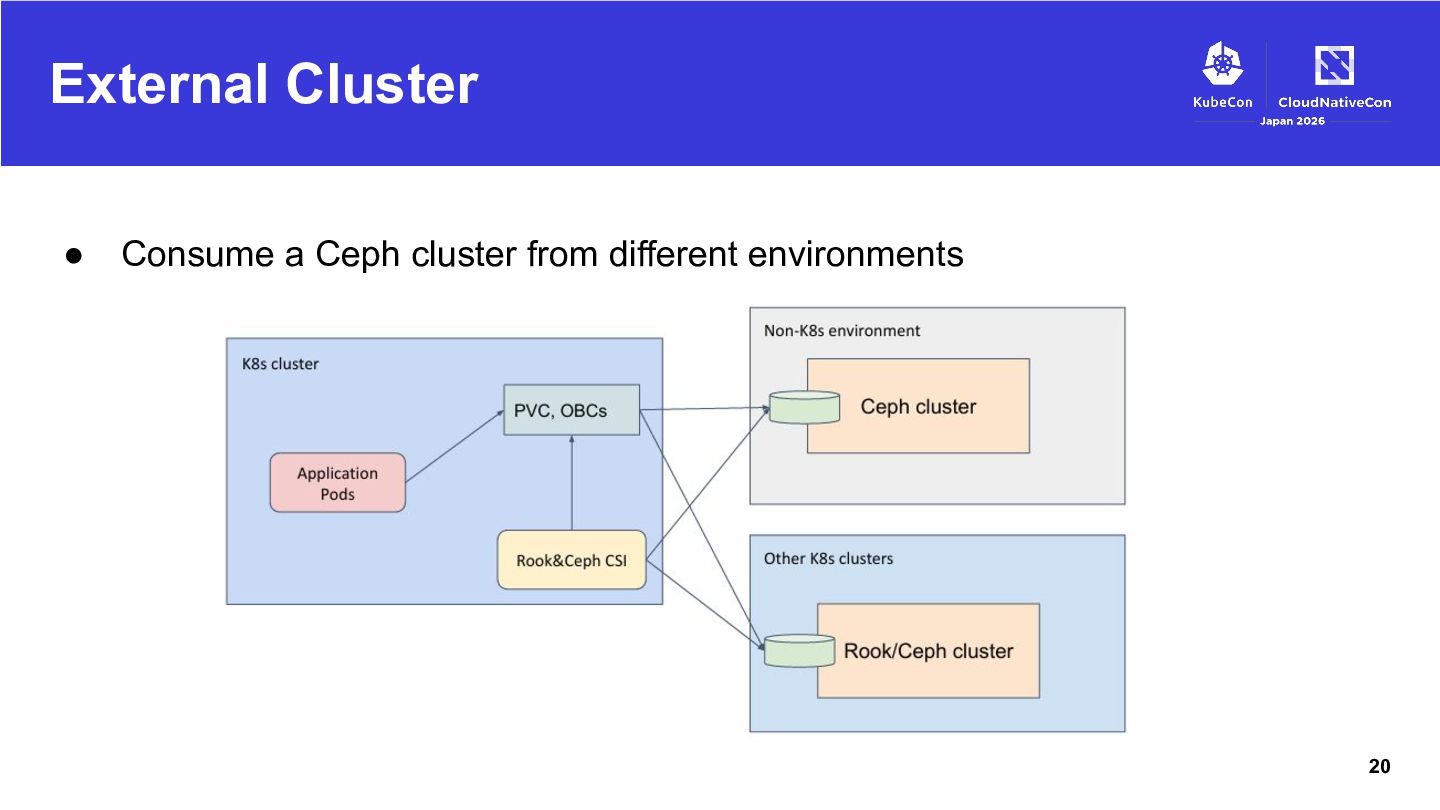

20. External Cluster • Consume a Ceph cluster from different environments 20

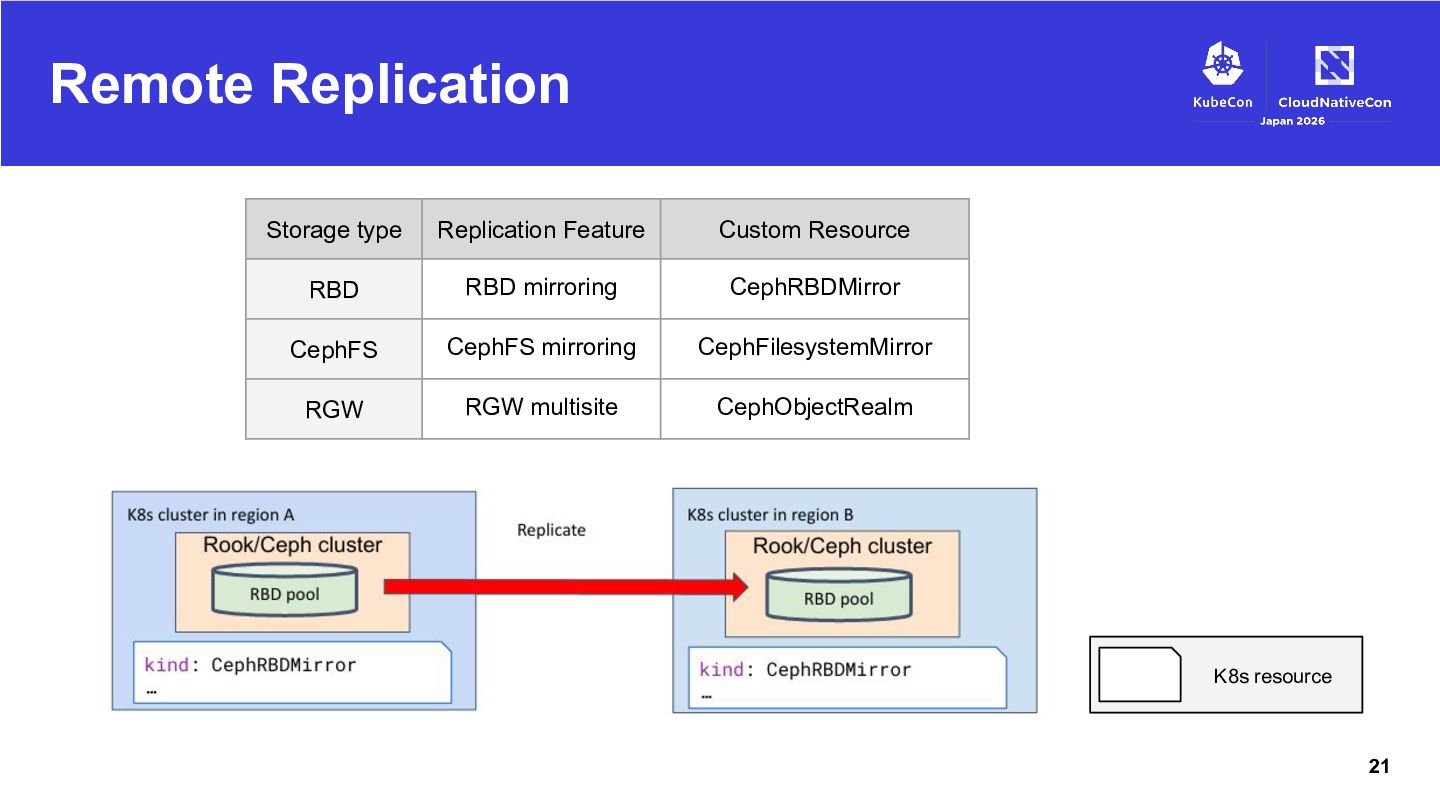

21. Remote Replication Storage type Replication Feature Custom Resource RBD RBD mirroring CephRBDMirror CephFS CephFS mirroring CephFilesystemMirror RGW RGW multisite CephObjectRealm K8s resource 21

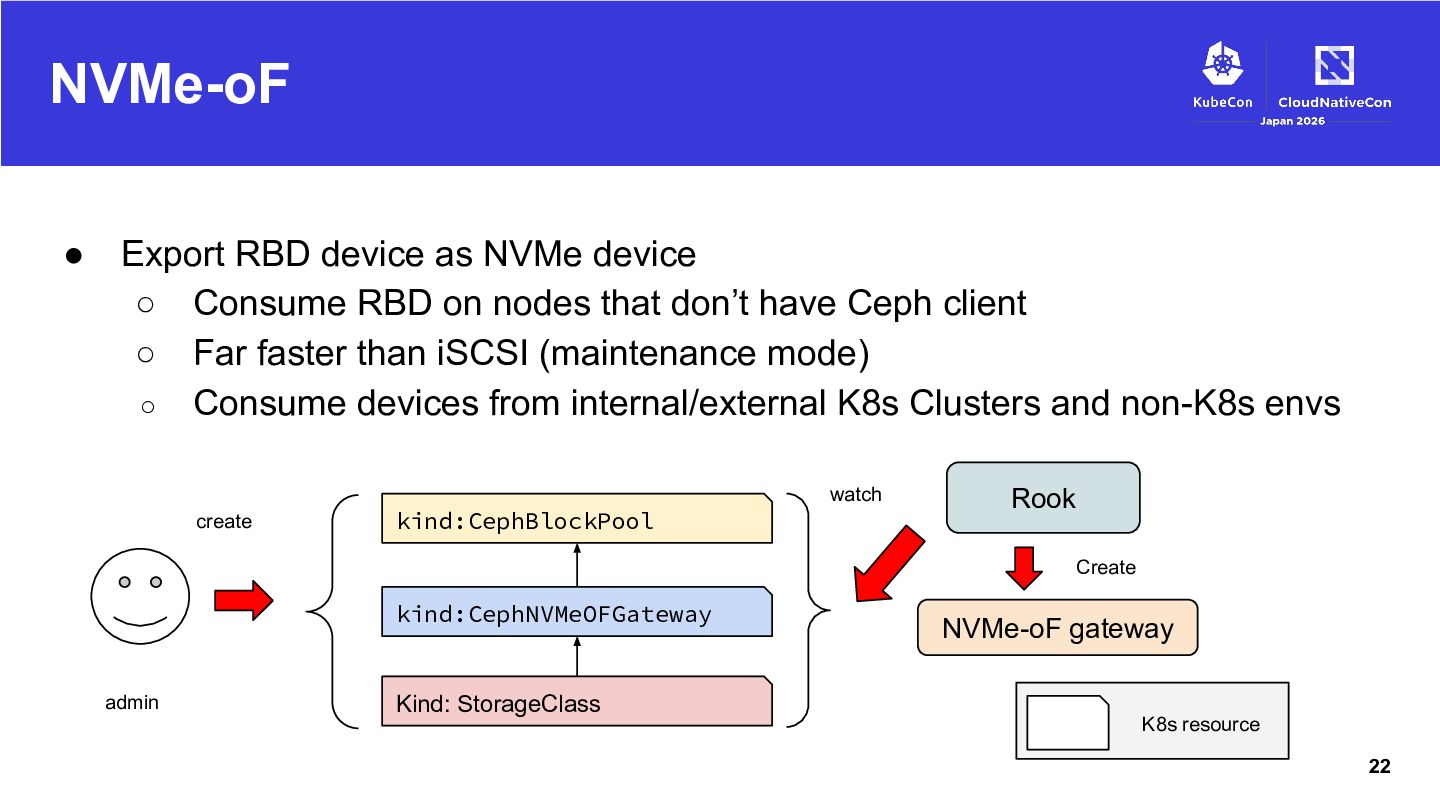

22. NVMe-oF • Export RBD device as NVMe device ◦ Consume RBD on nodes that don’t have Ceph client ◦ Far faster than iSCSI (maintenance mode) ◦ Consume devices from internal/external K8s Clusters and non-K8s envs watch create kind:CephBlockPool Rook Create kind:CephNVMeOFGateway admin Kind: StorageClass NVMe-oF gateway K8s resource 22

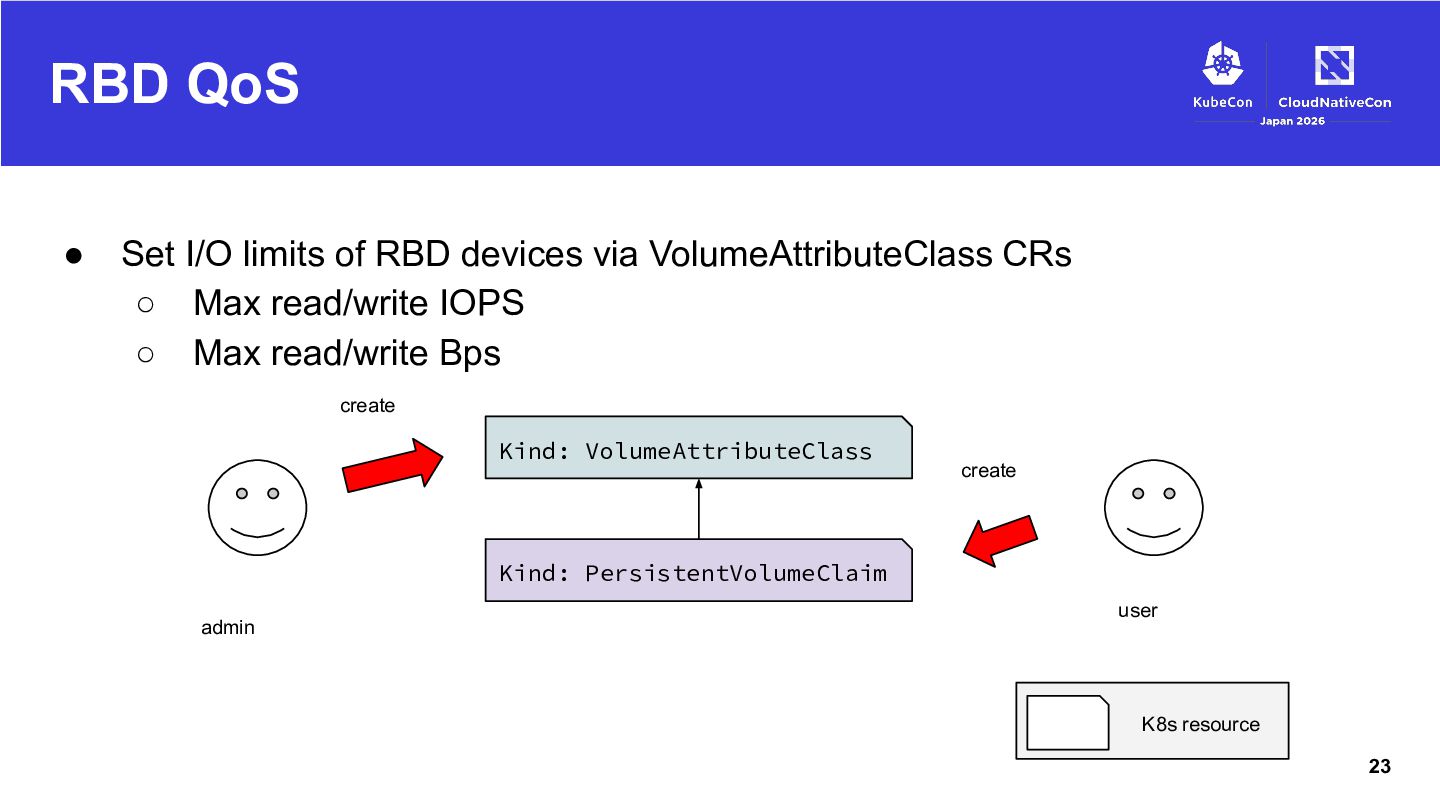

23. RBD QoS • Set I/O limits of RBD devices via VolumeAttributeClass CRs ◦ Max read/write IOPS ◦ Max read/write Bps create Kind: VolumeAttributeClass create Kind: PersistentVolumeClaim admin user K8s resource 23

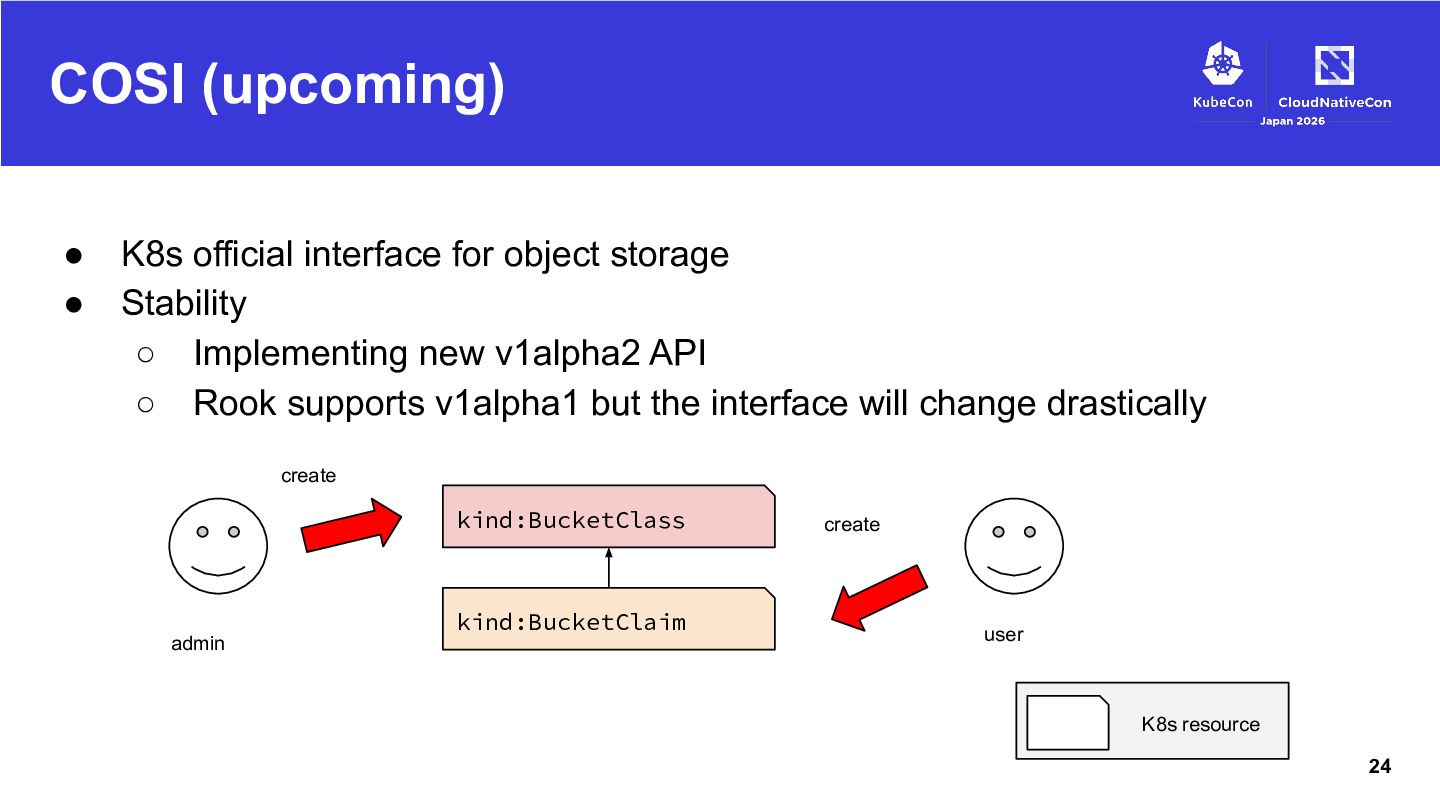

24. COSI (upcoming) • • K8s official interface for object storage Stability ◦ Implementing new v1alpha2 API ◦ Rook supports v1alpha1 but the interface will change drastically create kind:BucketClass admin kind:BucketClaim create user K8s resource 24
25. Case Studies: Production User Deployment 25
26. Project Scope Storage: - Openstack SWIFT - Proprietary NAS
27. EU Sovereign Cloud Storage:

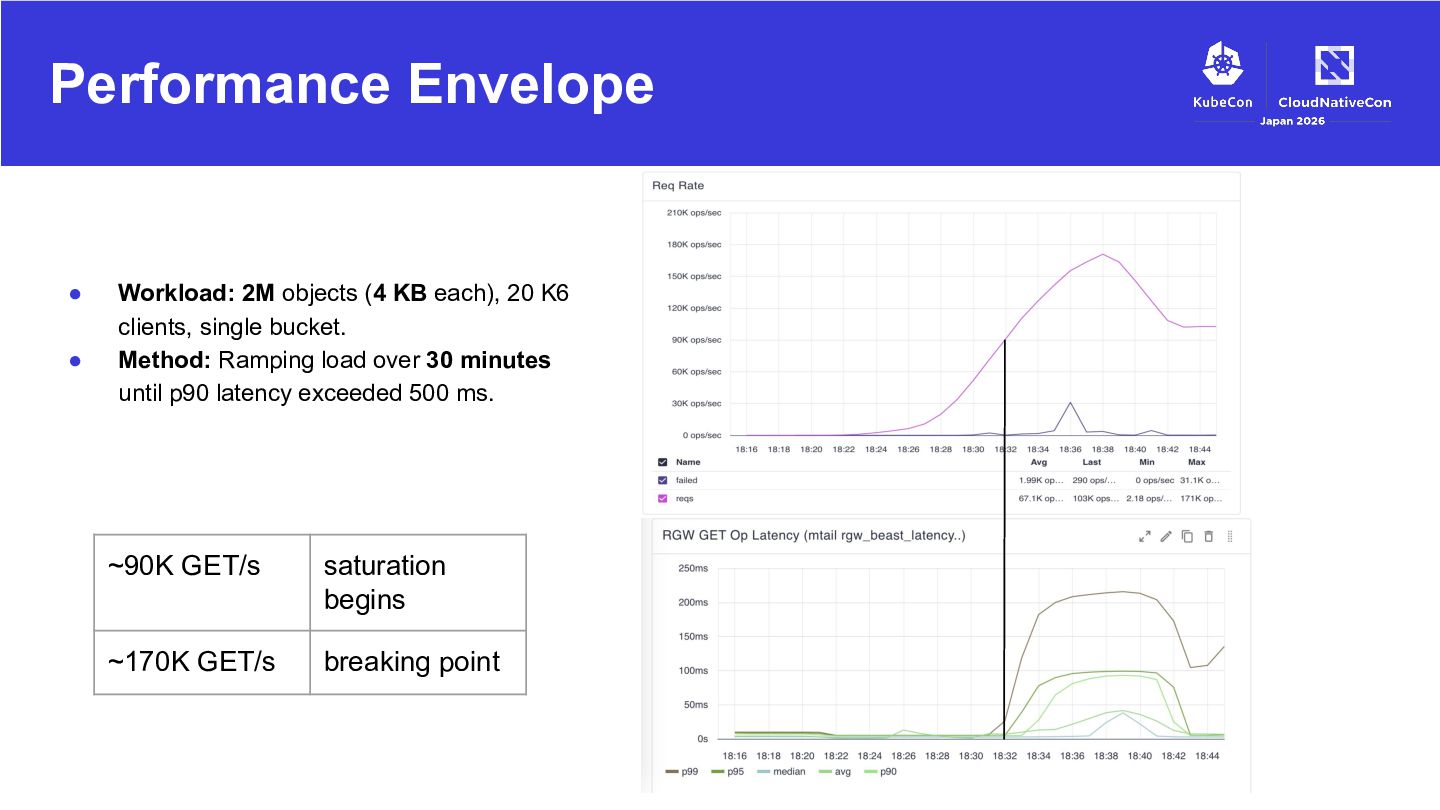

29. Performance Envelope • • Workload: 2M objects (4 KB each), 20 K6 clients, single bucket. Method: Ramping load over 30 minutes until p90 latency exceeded 500 ms. ~90K GET/s saturation begins ~170K GET/s breaking point

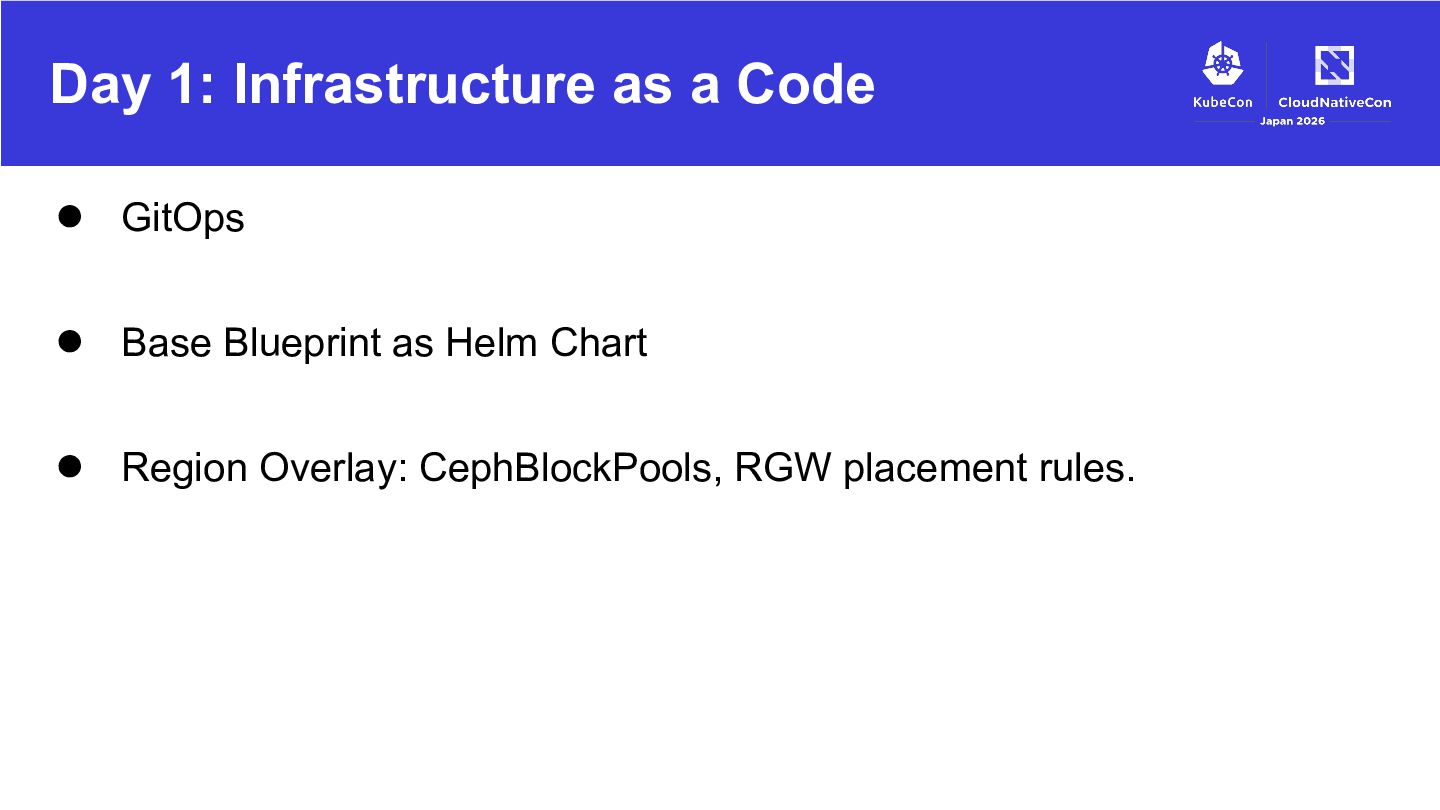

30. Day 1: Infrastructure as a Code • GitOps • Base Blueprint as Helm Chart • Region Overlay: CephBlockPools, RGW placement rules.

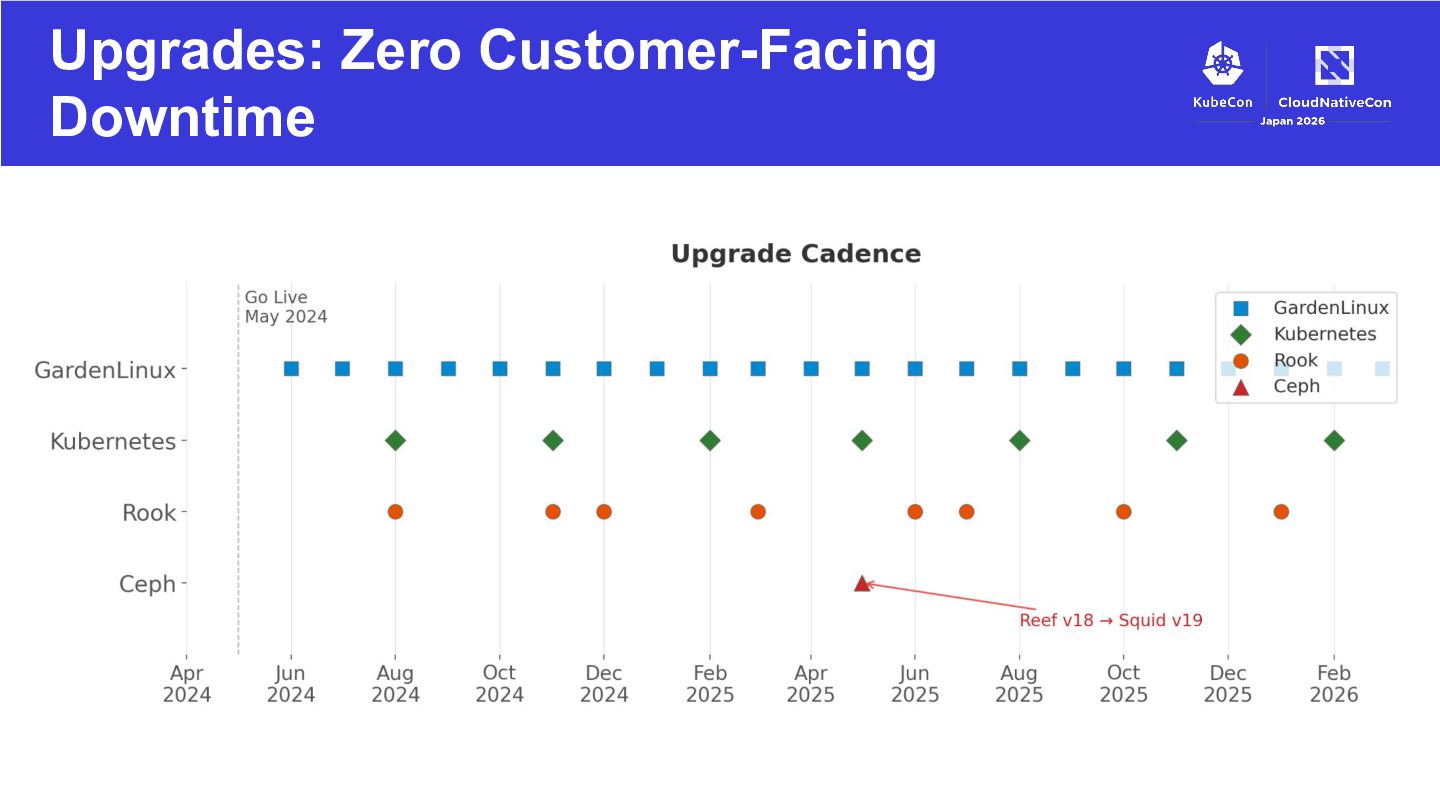

31. Upgrades: Zero Customer-Facing Downtime
32. Text version in Rook Blog
33. Takeaway & Resources 33

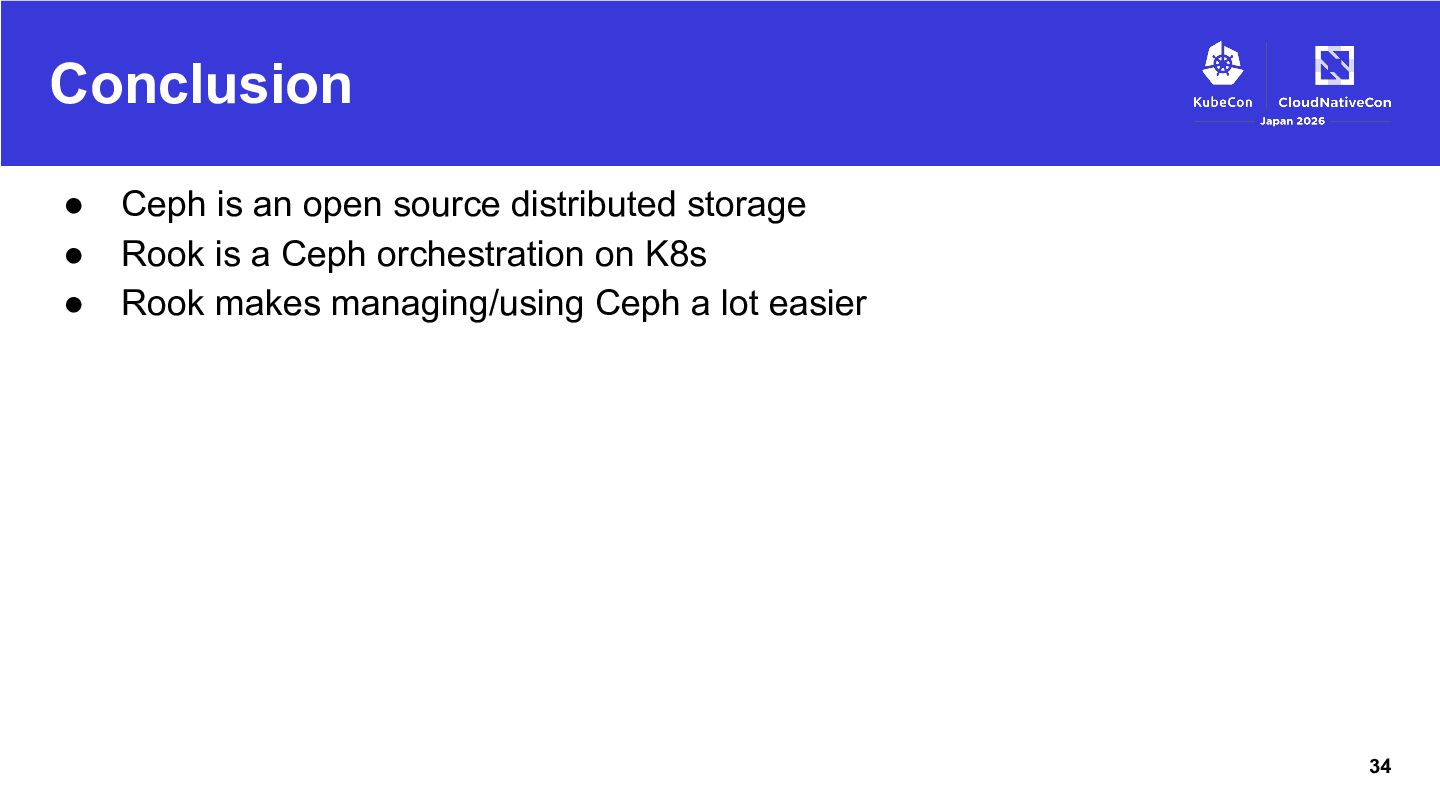

34. Conclusion • • • Ceph is an open source distributed storage Rook is a Ceph orchestration on K8s Rook makes managing/using Ceph a lot easier 34

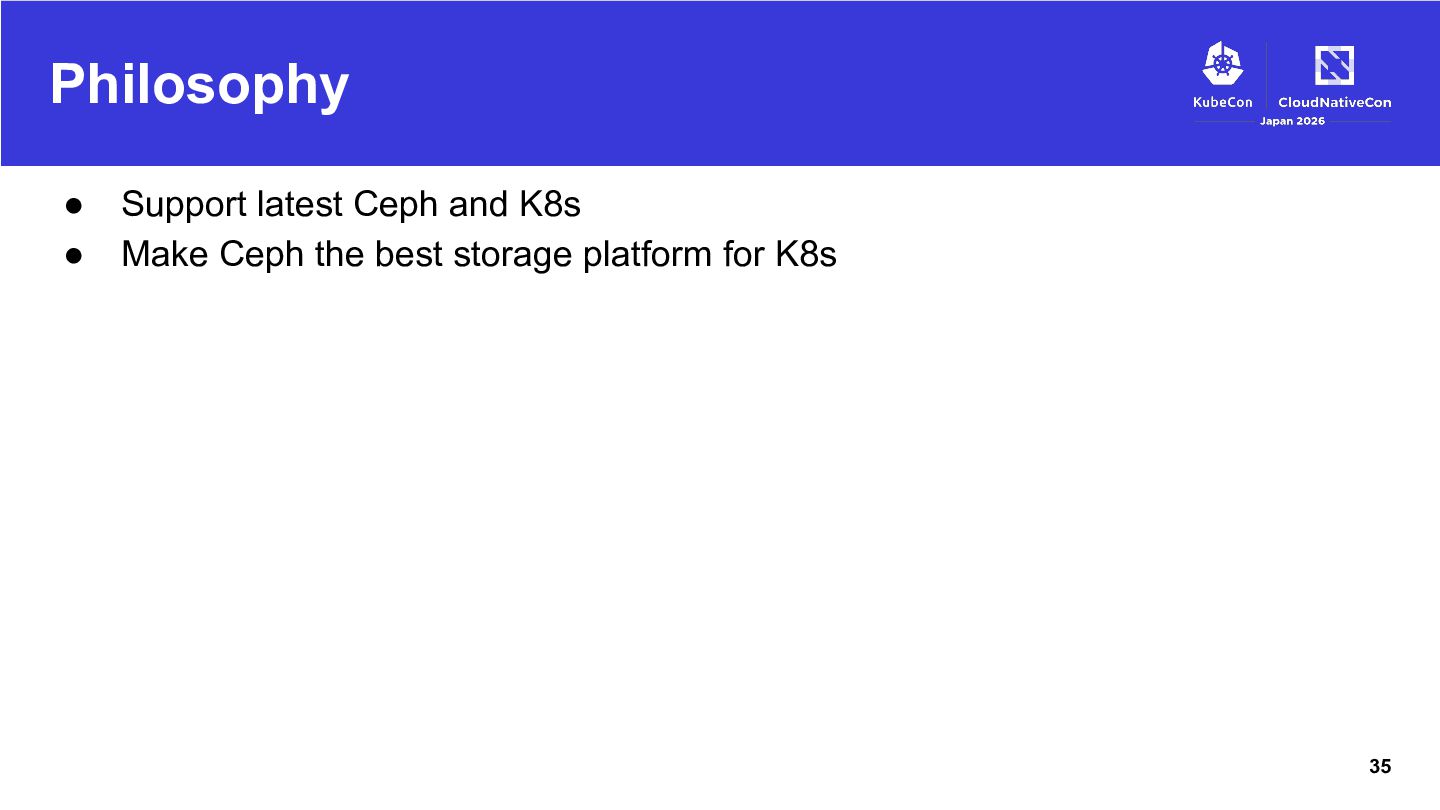

35. Philosophy • • Support latest Ceph and K8s Make Ceph the best storage platform for K8s 35

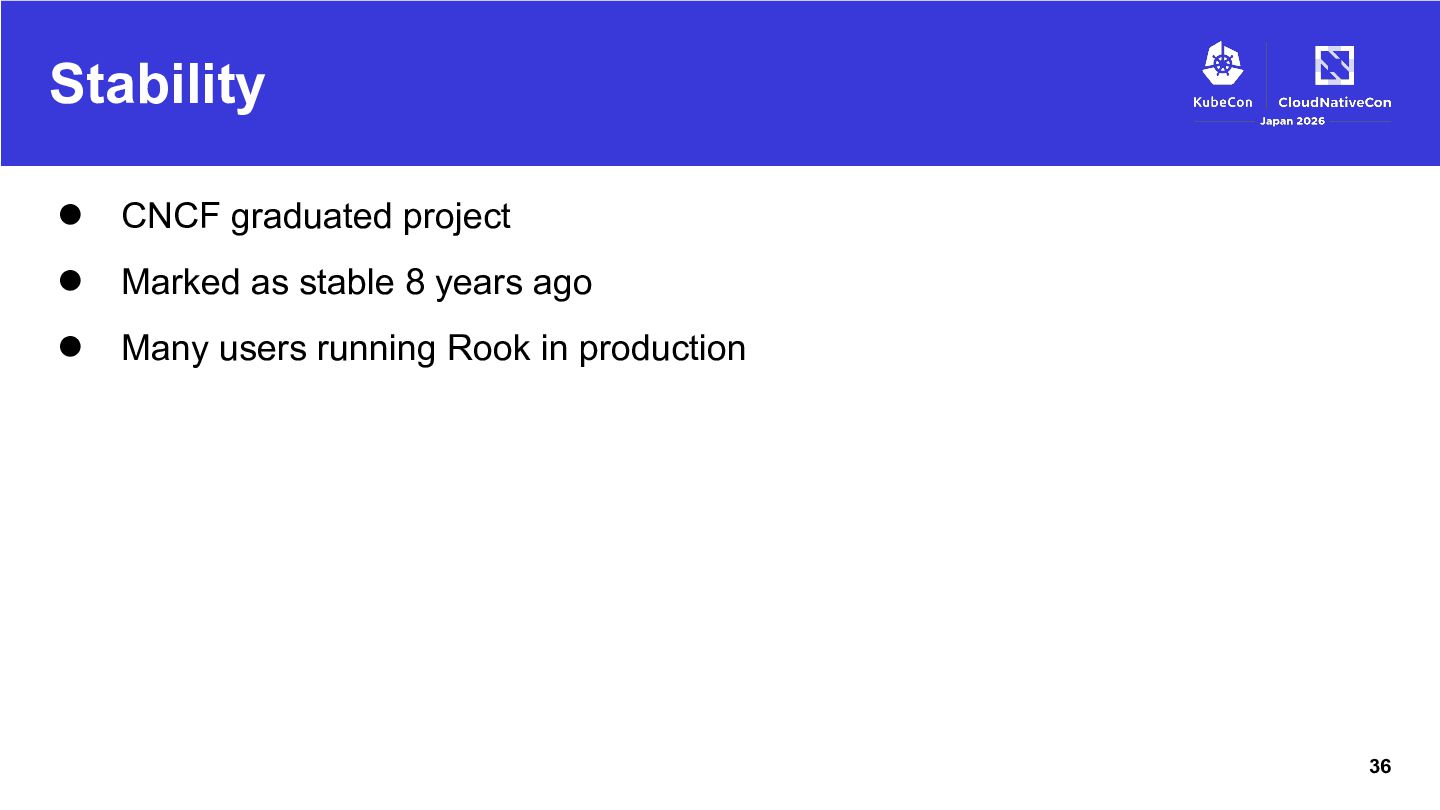

36. Stability • • • CNCF graduated project Marked as stable 8 years ago Many users running Rook in production 36

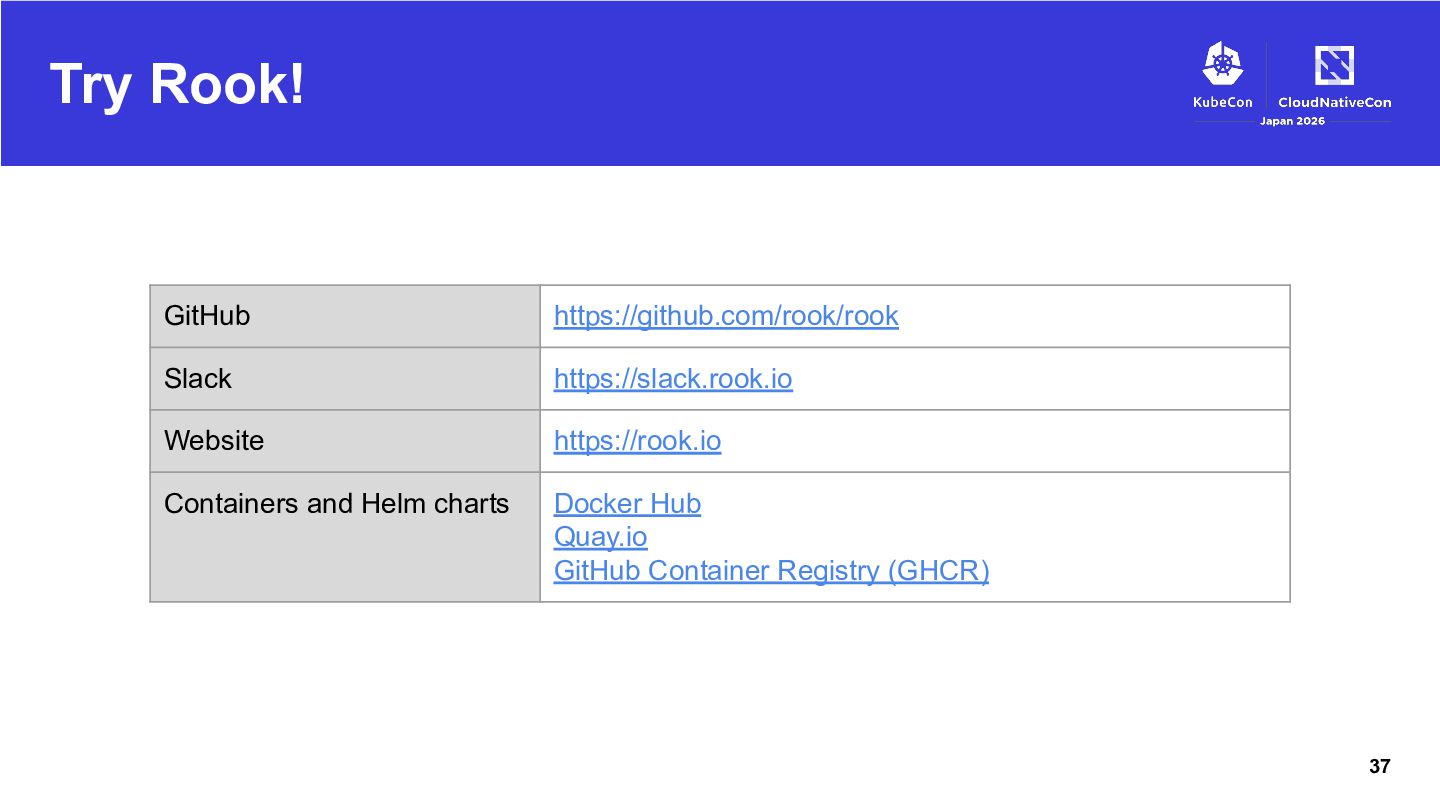

37. Try Rook! GitHub https://github.com/rook/rook Slack https://slack.rook.io Website https://rook.io Containers and Helm charts Docker Hub Quay.io GitHub Container Registry (GHCR) 37
