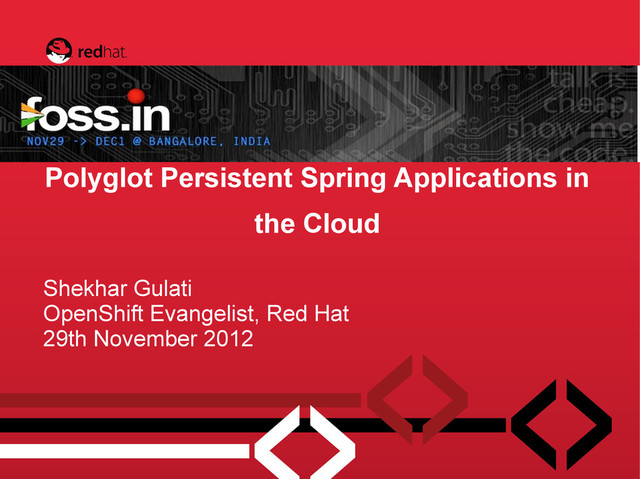

1. 11/29/12 Polyglot Persistent Spring Applications in the Cloud Shekhar Gulati OpenShift Evangelist, Red Hat 29th November 2012
2. Shekhar Gulati 2 About Me ~ Shekhar Gulati • OpenShift Evangelist at Red Hat. • I write code. • Active blogger http://whyjava.wordpress.com/ and https://openshift.redhat.com/community/blogs • Written many technical on IBM DeveloperWorks, Developer.com, JavaLobby. • Active speaker ~ Red Hat Developer Day, JUDCon, JBoss World, SiliconIndia events,etc. • Passionate to learn new things. • Twitter : shekhargulati
3. Shekhar Gulati 3 Sign up at OpenShift Booth
4. Shekhar Gulati 4
5. Shekhar Gulati 5 Now we have choices ... lots of them http://nosql-database.org/ list 122+ databases
6. Shekhar Gulati 6 Why should I care when RDBMS has served us very well? • Widely used and understood • Tested in real environments • Efficient use of storage space if data normalized properly • Great tools support • ACID semantics • Incredibly flexible and powerful query language • Great framework support
7. Shekhar Gulati 7 RDBMS have limitations • Complex object graphs does not map very well with flat tables. • Difficult to evolve Schema with time. • Data constraints and JOINs can be expensive at runtime. • Difficult to scale horizontally.
8. Shekhar Gulati 8 NoSQL Databases to rescue
9. Shekhar Gulati 9 NoSQL to the Rescue • Schema-less • Rich documents • Eventual consistent • Fast writes • Easy to scale horizontally to add processing power and storage • Tries to solve few practical use-cases
10. Shekhar Gulati 10 Polyglot Persistence Using multiple data storage technologies, chosen based upon the way data is being used by individual applications or components of single application. Martin Fowler http://martinfowler.com/articles/nosql-intro.pdf
11. Shekhar Gulati 11 Polyglot Persistence – Hypothetical Example http://martinfowler.com/articles/nosql-intro.pdf
12. Shekhar Gulati 12 Get more information at ...
13. Shekhar Gulati 13 Application Use case : Location Aware Job Search Portal
14. Shekhar Gulati 14 User Stories • As a User, I should be able to find all the jobs. • As a User, I should be able to find all the jobs near to my location. • As a User, I should be able to find all MongoDB (or any skill) jobs near to my location. • As a User, I should be able to find all the MongoDB (or any other skill) jobs near to my location with distance.
15. Shekhar Gulati 15 Technology Choices • OpenShift • MongoDB • PostgreSQL • Java • Spring Framework • Spring Data MongoDB • Spring Social • Git • Twitter Bootstrap
16. Shekhar Gulati 16 What is MongoDB? • Document Oriented database • JSON-style documents: Lists, Maps, primitives • Schema-less • Each document is heterogeneous, and may have completely unique structure compared to other documents. • Fast and horizontally scalable • Rich query language
17. Shekhar Gulati 17 MongoDB Terminology Database → Database Table → Collection Row → Document Index → Index
18. Shekhar Gulati 18 Why MongoDB? • Easy to get running • Open Source • Active community • Rich documents • Geospatial indexing. • Writes are very fast. You can customize it using WriteConcern.
19. Shekhar Gulati 19 Rich Document
20. Shekhar Gulati 20 Geospatial Indexing Basics • What is it for? • Find all the MongoDB jobs near me • Find all the MongoDB jobs within London • Supports only two dimensional indexes. • You can only have one geospatial index per collection. • The spatial functionality MongoDB currently has is: • Near • Containment http://www.mongodb.org/display/DOCS/Geospatial+ Indexing
21. Shekhar Gulati 21 How to make it work? • Put your coordinates into an array { loc : [ 50 , 30 ] } //SUGGESTED OPTION { loc : { x : 50 , y : 30 } } { loc : { foo : 50 , y : 30 } } { loc : { lon : 40.739037, lat: 73.992964 } } • Make a 2d index db.places.ensureIndex( { loc : "2d" } )
22. Shekhar Gulati 22 OpenShift is PaaS by Red Hat Multi-language, Auto-Scaling, Self-service, Elastic, Cloud Application Platform
23. Shekhar Gulati 23 Why choose PaaS? Lowers Cost Improves Developer Efficiency Scales
24. Shekhar Gulati 24 Why OpenShift? • Supports MongoDB and PostgreSQL. Also supports MySQL. • Multi-language support. Supports Java, Node.js, Perl, Python, PHP and Ruby. • Extensible vi DIY • No need to learn anything new. • Open source – OpenShift Origin • Scalable. • FREE!
25. Shekhar Gulati 25 Developers Choose How To Work with OpenShift Developer IDE Integrations Web Browser Console Command Line Tooling REST APIs
26. Shekhar Gulati 26
27. Shekhar Gulati 27 What do I get? • OpenShift is free-as-in-beer & free-as-in-freedom • You get three free gears, each with 512MB memory and 1GB of disk space. • Need more resources, just ask! • The catch is we are in developer preview right now
28. Shekhar Gulati 28 Create an OpenShift Account https://openshift.redhat.com/app/account/new Promo code is foss.in
29. Shekhar Gulati 29 Setup your OpenShift Account rhc setup -l <openshift_login>
30. Shekhar Gulati 30 Creating an OpenShift Application rhc app create -a jobfinder -t jbossews-1.0
31. Shekhar Gulati 31 Adding MongoDB and PostgreSQL support rhc cartridge add -a jobfinder -c mongodb-2.2 rhc cartridge add -a jobfinder -c postgresql-8.4
32. Shekhar Gulati 32 Play with MongoDB running in the cloud • ssh into instance • Type mongo on the shell • Create a sample db • Insert some documents in the collection • Run some queries
33. Shekhar Gulati 33 Pulling code from github git rm -rf src pom.xml git commit -am “removed default files” git remote add jobfinder -m master git://github.com/shekhargulati/jobfinder.git git pull -s recursive -X theirs jobfinder master Source code is on github https://github.com/shekhargulati/jobfinder
34. Shekhar Gulati 34 Importing data into MongoDB rhc app show -a jobfinder -l <openshift_login_email> scp jobs-data.json <instance_ssh_access>:app-root/data ssh <instance_ssh_access> mongoimport -d jobfinder -c jobs --file jobs-data.json -u $OPENSHIFT_MONGODB_DB_USERNAME -p $OPENSHIFT_MONGODB_DB_PASSWORD -h $OPENSHIFT_MONGODB_DB_HOST -port $OPENSHIFT_MONGODB_DB_PORT db.jobs.ensureIndex({"location":"2d"})
35. Shekhar Gulati 35 Show some geospatial queries
36. Shekhar Gulati 36 Deploy the application to OpenShift git push
37. Shekhar Gulati 37 Next Steps For You • Try out OpenShift • Deploy your first application on OpenShift • Write a blog about your experience
38. Shekhar Gulati 38 Conclusion • OpenShift is very easy to use and you can build polyglot persistence applications on it. • MongoDB makes it very easy to build location aware applications. • All the Spring latest projects work without any problem on OpenShift. • Did I mention – Free? • What are you waiting for? Try it out. • Sign up using foss.in promo code.
