Solo iOS Growth Diary — Vol. 5: AES-GCM in 200 Lines (E2E Encryption for Solo iOS Devs)
For a single-user iOS memo app, CryptoKit alone is enough to ship real end-to-end encryption — no libsodium, no key server, no rolling your own. Vol. 5 of Solo iOS Growth Diary builds AES-GCM E2E in ~187 lines of Swift.
Inside: what an AEAD actually gives you (confidentiality + integrity + authenticity in one call), the SealedBox envelope (96-bit nonce ‖ ciphertext ‖ 128-bit tag), a Secure-Enclave-wrapped 256-bit SymmetricKey held in the Keychain (this-device-only, non-syncable), and the seal()/open() paths where .open() verifies the 128-bit tag before returning a single plaintext byte. Plus the one rule that matters — never reuse a (key, nonce) pair — charted against the NIST SP 800-38D 2^32 random-nonce rekey bound and real usage (~2.4M memos, zero collisions).
Anti-thesis for every claim: "Roll-your-own crypto = bad" (calling a vetted AEAD is the opposite of implementing your own cipher), "You need a big crypto library" (CryptoKit covers key-gen, AES-GCM and ChaChaPoly, HKDF, and Secure Enclave wrapping; the one gap — a password KDF — is a single CommonCrypto PBKDF2 call), and "Real E2E needs key exchange" (a memo-to-self vault is single-party — symmetric, no PKI, no server). The deck also marks the encryption boundary precisely: the message key protects the email/sync path, while an optional local-only append to an Obsidian daily note on iCloud Drive stays on-device under iOS Data Protection (iPhone-only; the vault's security is the platform's, not the app's message key).
Part of the 12-week Solo iOS Growth Diary — new deck every Tuesday 22:00 JST. Keywords: cryptokit aes-gcm, e2e encryption ios, ios keychain, secure enclave, aead swift, symmetrickey, authenticated encryption, nonce reuse, chachapoly, Captio.
Follow: speakerdeck.com/simplememo · x.com/simplememofast
References: simplememofast.com/obsidian/ · apps.apple.com/us/app/captio-style-simple-memo/id6758438948?ct=obsidian-en&mt=8
Simple Memo Developer
Transcript
35 slides
-
S O L O i O S G R O
W T H D I A R Y VOL. 05 AES-GCM in 200 Lines E2E Encryption for Solo iOS Devs Why CryptoKit alone is enough — no libsodium, no key server, no rolling your own. CryptoKit AES-GCM 0 dependencies speakerdeck.com/simplememo · x.com/simplememofast · 2026-06-09 -
Solo iOS Growth Diary · Vol. 5 · AES-GCM in
200 Lines 02 / 35 The 12-week promise 01 Battle-tested patterns From a solo iOS founder shipping in public. 02 Real numbers, no mythology Cost, latency, bytes — measured and printed. 03 Anti-thesis every volume Three counter-arguments per topic. Survival > fashion. 04 Reproducible code Copy-paste over inspirational quotes. -

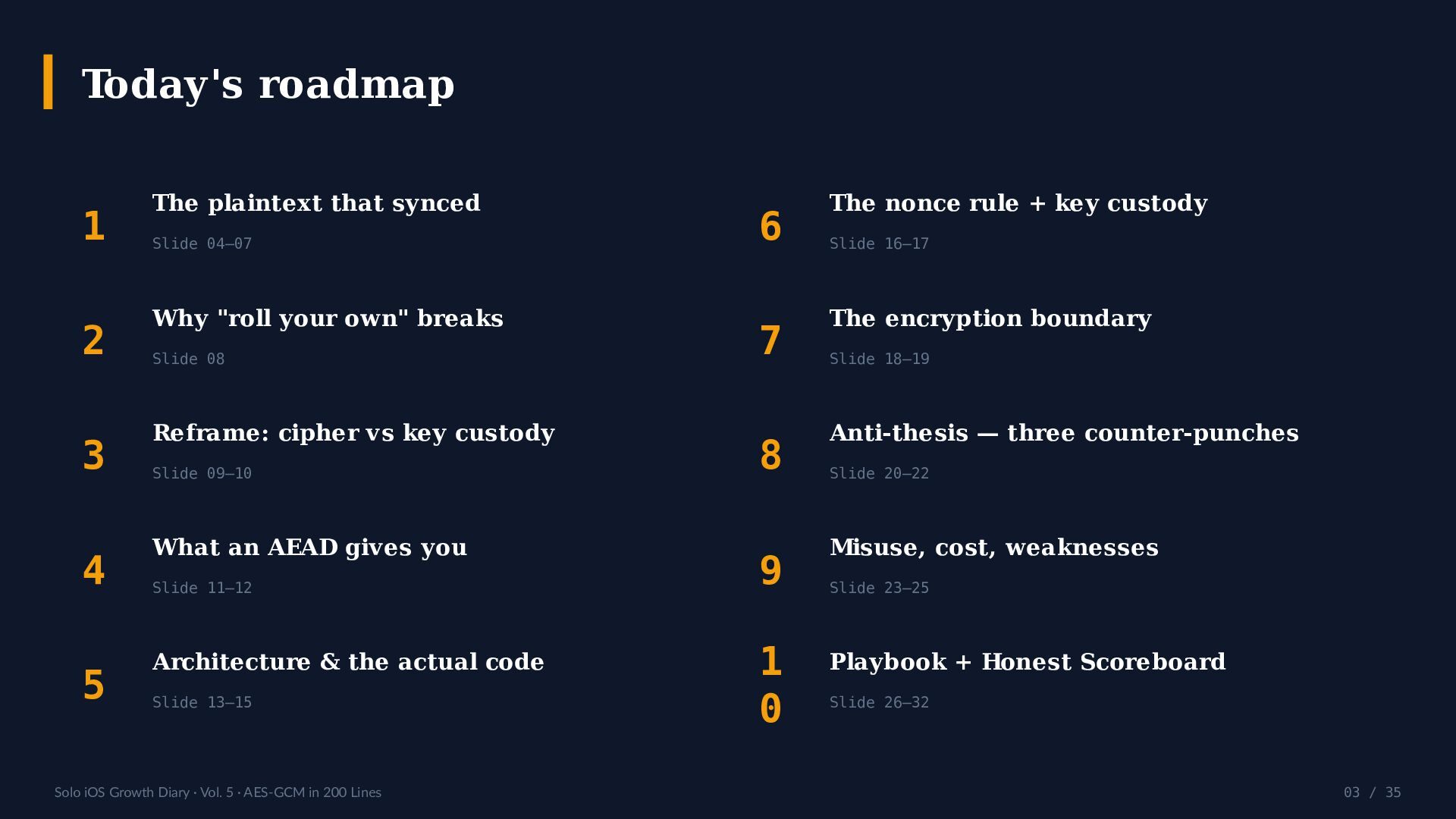

Solo iOS Growth Diary · Vol. 5 · AES-GCM in
200 Lines 03 / 35 Today's roadmap 1 The plaintext that synced Slide 04–07 2 Why "roll your own" breaks Slide 08 3 Reframe: cipher vs key custody Slide 09–10 4 What an AEAD gives you Slide 11–12 5 Architecture & the actual code Slide 13–15 6 The nonce rule + key custody Slide 16–17 7 The encryption boundary Slide 18–19 8 Anti-thesis — three counter-punches Slide 20–22 9 Misuse, cost, weaknesses Slide 23–25 1 0 Playbook + Honest Scoreboard Slide 26–32 -
Solo iOS Growth Diary · Vol. 5 · AES-GCM in
200 Lines 04 / 35 Encrypting the bytes is the easy part. Holding the key is the design. So why do solo devs still believe E2E needs a crypto PhD and a key server? -
Solo iOS Growth Diary · Vol. 5 · AES-GCM in

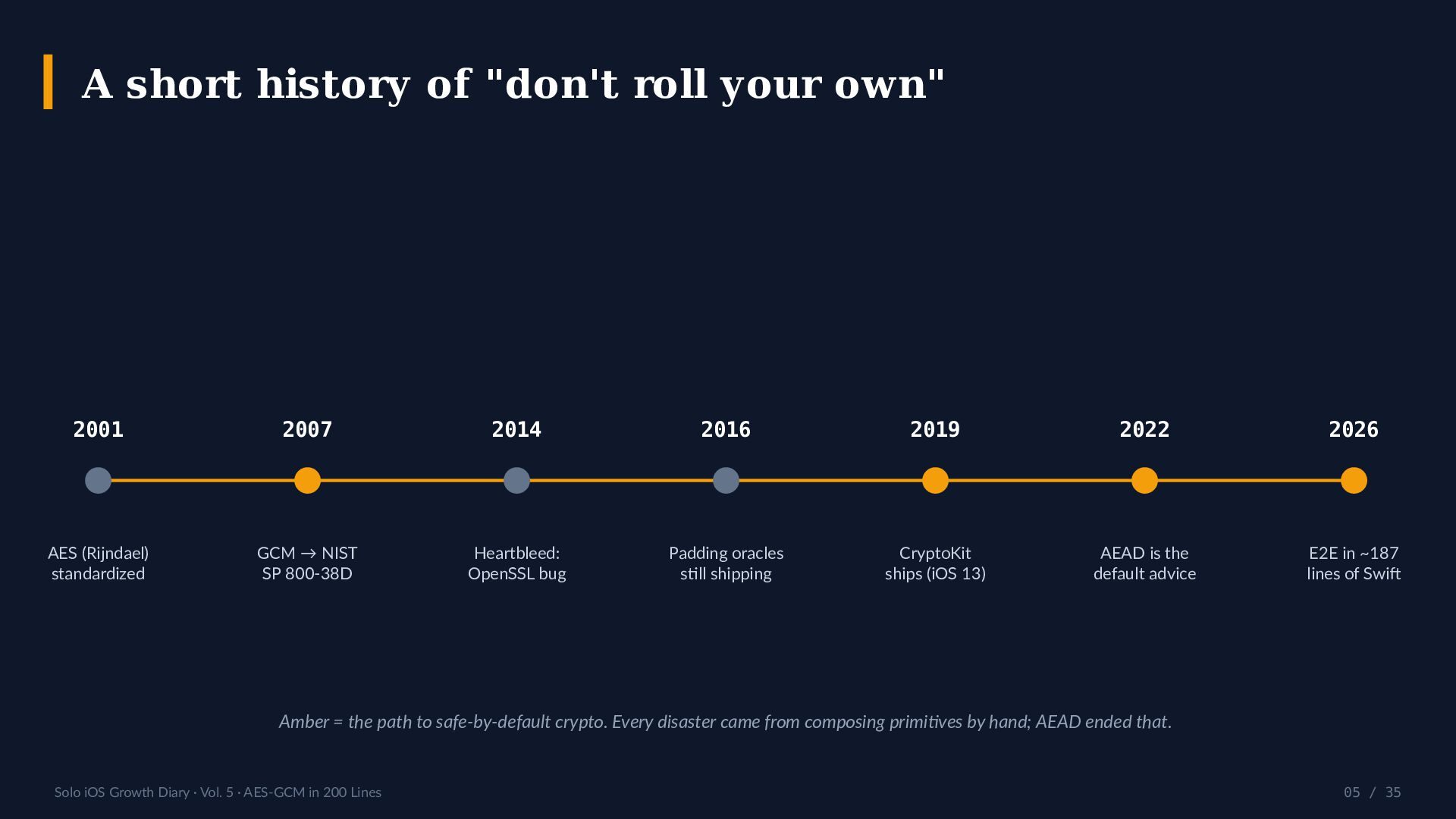

200 Lines 05 / 35 A short history of "don't roll your own" 2001 AES (Rijndael) standardized 2007 GCM → NIST SP 800-38D 2014 Heartbleed: OpenSSL bug 2016 Padding oracles still shipping 2019 CryptoKit ships (iOS 13) 2022 AEAD is the default advice 2026 E2E in ~187 lines of Swift Amber = the path to safe-by-default crypto. Every disaster came from composing primitives by hand; AEAD ended that. -
Solo iOS Growth Diary · Vol. 5 · AES-GCM in

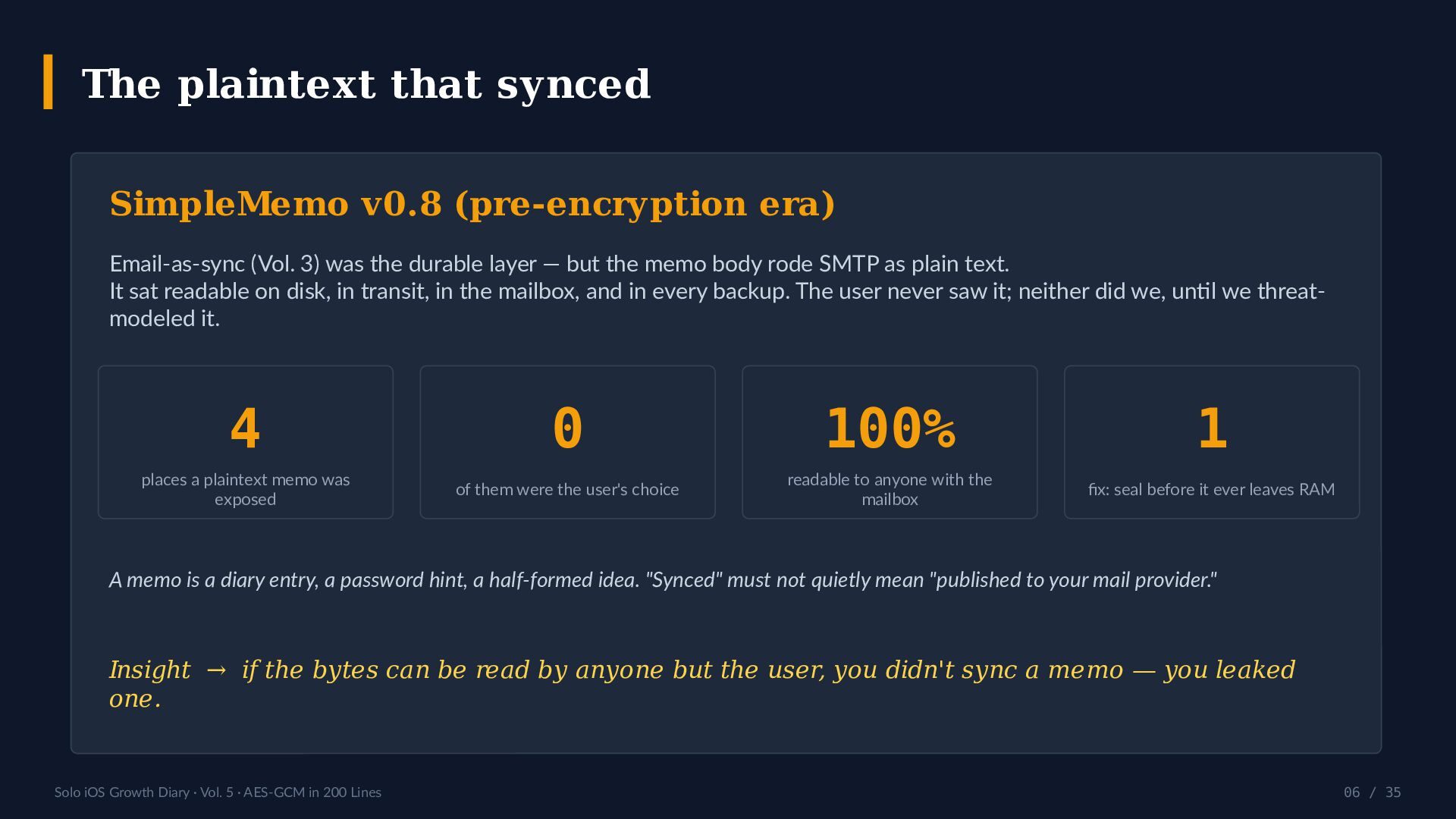

200 Lines 06 / 35 The plaintext that synced SimpleMemo v0.8 (pre-encryption era) Email-as-sync (Vol. 3) was the durable layer — but the memo body rode SMTP as plain text. It sat readable on disk, in transit, in the mailbox, and in every backup. The user never saw it; neither did we, until we threat- modeled it. 4 places a plaintext memo was exposed 0 of them were the user's choice 100% readable to anyone with the mailbox 1 fix: seal before it ever leaves RAM A memo is a diary entry, a password hint, a half-formed idea. "Synced" must not quietly mean "published to your mail provider." Insight → if the bytes can be read by anyone but the user, you didn't sync a memo — you leaked one. -
Solo iOS Growth Diary · Vol. 5 · AES-GCM in

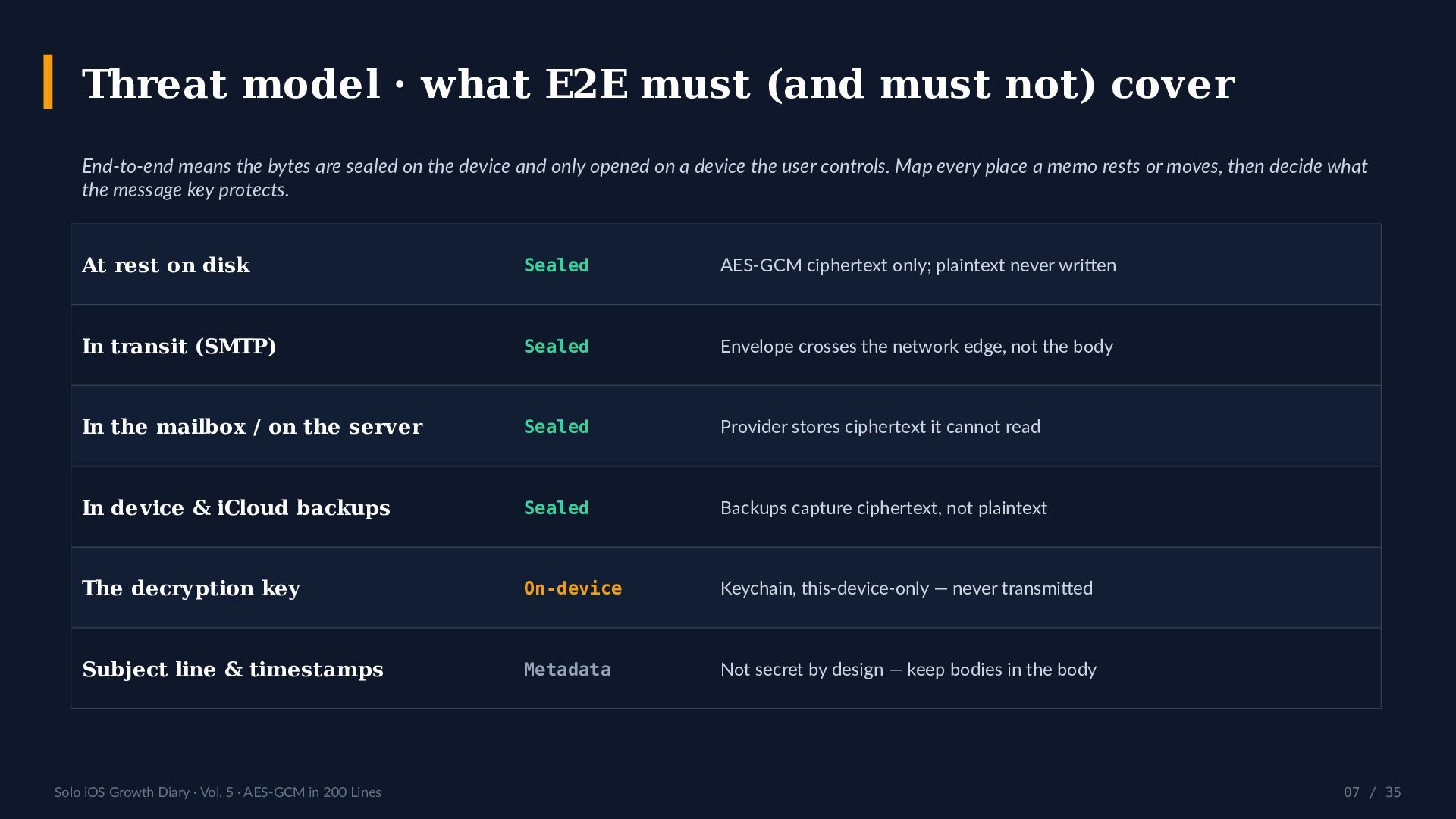

200 Lines 07 / 35 Threat model · what E2E must (and must not) cover End-to-end means the bytes are sealed on the device and only opened on a device the user controls. Map every place a memo rests or moves, then decide what the message key protects. At rest on disk Sealed AES-GCM ciphertext only; plaintext never written In transit (SMTP) Sealed Envelope crosses the network edge, not the body In the mailbox / on the server Sealed Provider stores ciphertext it cannot read In device & iCloud backups Sealed Backups capture ciphertext, not plaintext The decryption key On-device Keychain, this-device-only — never transmitted Subject line & timestamps Metadata Not secret by design — keep bodies in the body -
Solo iOS Growth Diary · Vol. 5 · AES-GCM in

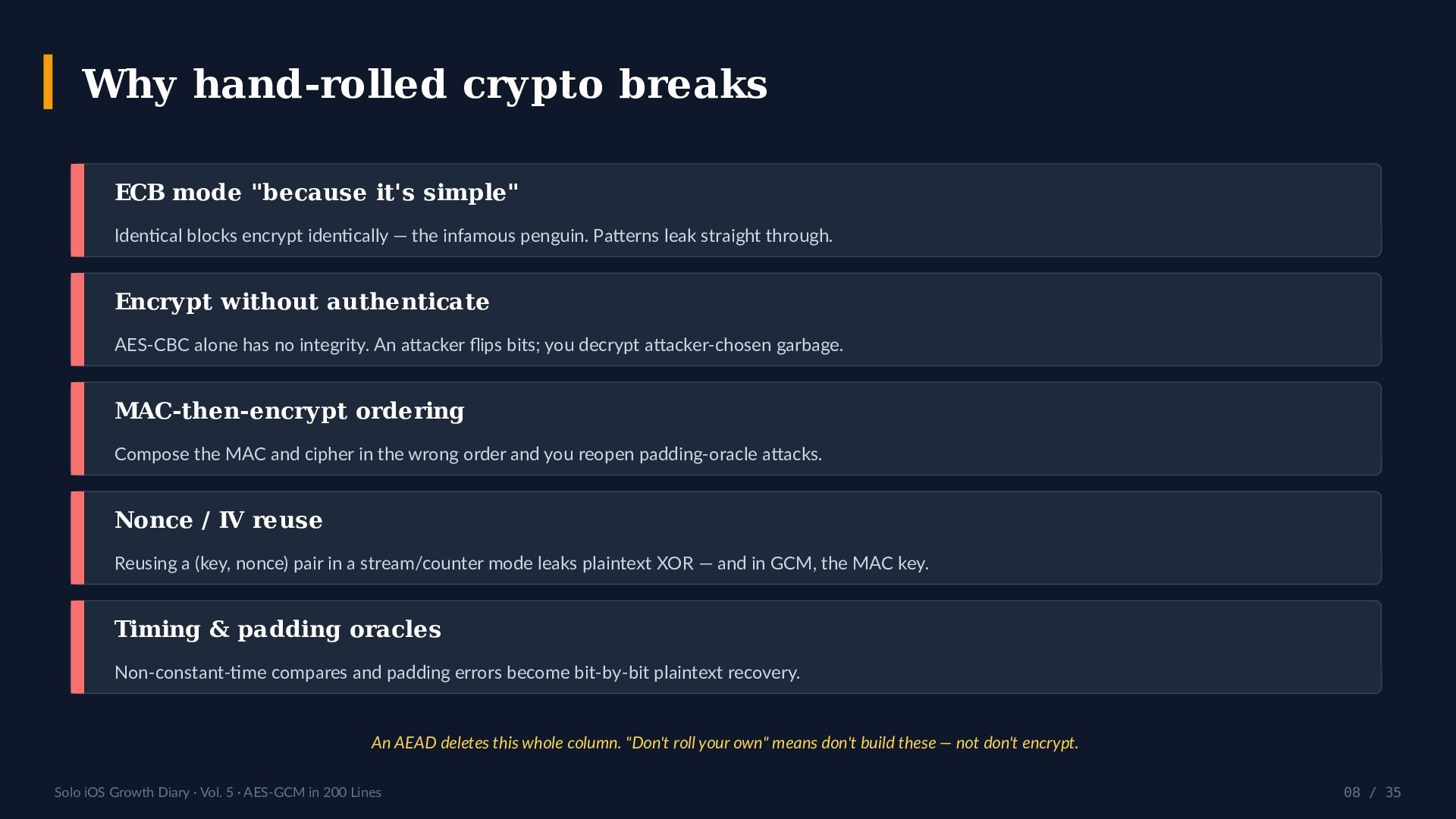

200 Lines 08 / 35 Why hand-rolled crypto breaks ECB mode "because it's simple" Identical blocks encrypt identically — the infamous penguin. Patterns leak straight through. Encrypt without authenticate AES-CBC alone has no integrity. An attacker flips bits; you decrypt attacker-chosen garbage. MAC-then-encrypt ordering Compose the MAC and cipher in the wrong order and you reopen padding-oracle attacks. Nonce / IV reuse Reusing a (key, nonce) pair in a stream/counter mode leaks plaintext XOR — and in GCM, the MAC key. Timing & padding oracles Non-constant-time compares and padding errors become bit-by-bit plaintext recovery. An AEAD deletes this whole column. "Don't roll your own" means don't build these — not don't encrypt. -
Solo iOS Growth Diary · Vol. 5 · AES-GCM in
200 Lines 09 / 35 “ Use the AEAD. Guard the key. — Solo iOS Growth Diary · Vol. 5 -

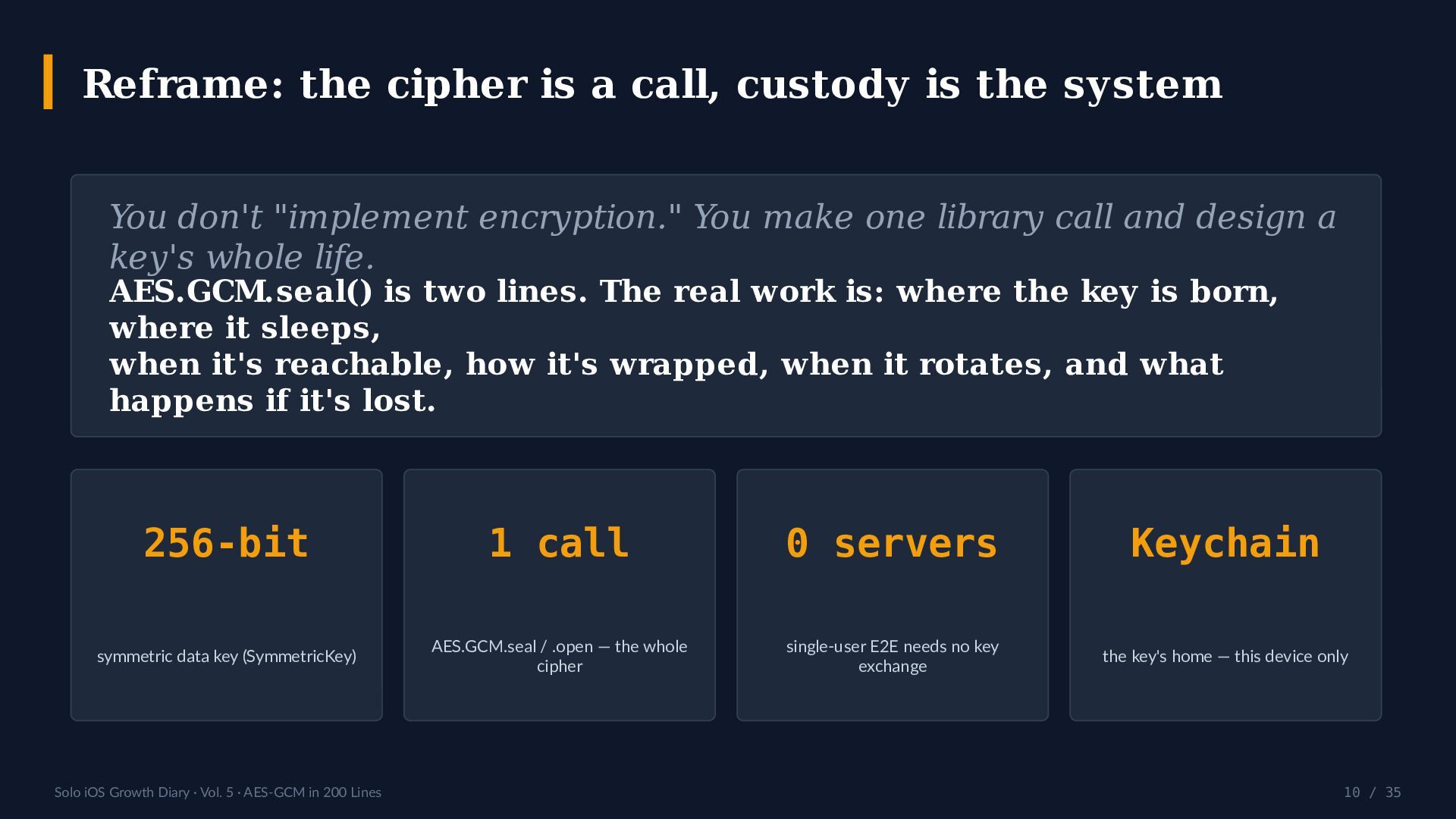

Solo iOS Growth Diary · Vol. 5 · AES-GCM in
200 Lines 10 / 35 Reframe: the cipher is a call, custody is the system You don't "implement encryption." You make one library call and design a key's whole life. AES.GCM.seal() is two lines. The real work is: where the key is born, where it sleeps, when it's reachable, how it's wrapped, when it rotates, and what happens if it's lost. 256-bit symmetric data key (SymmetricKey) 1 call AES.GCM.seal / .open — the whole cipher 0 servers single-user E2E needs no key exchange Keychain the key's home — this device only -

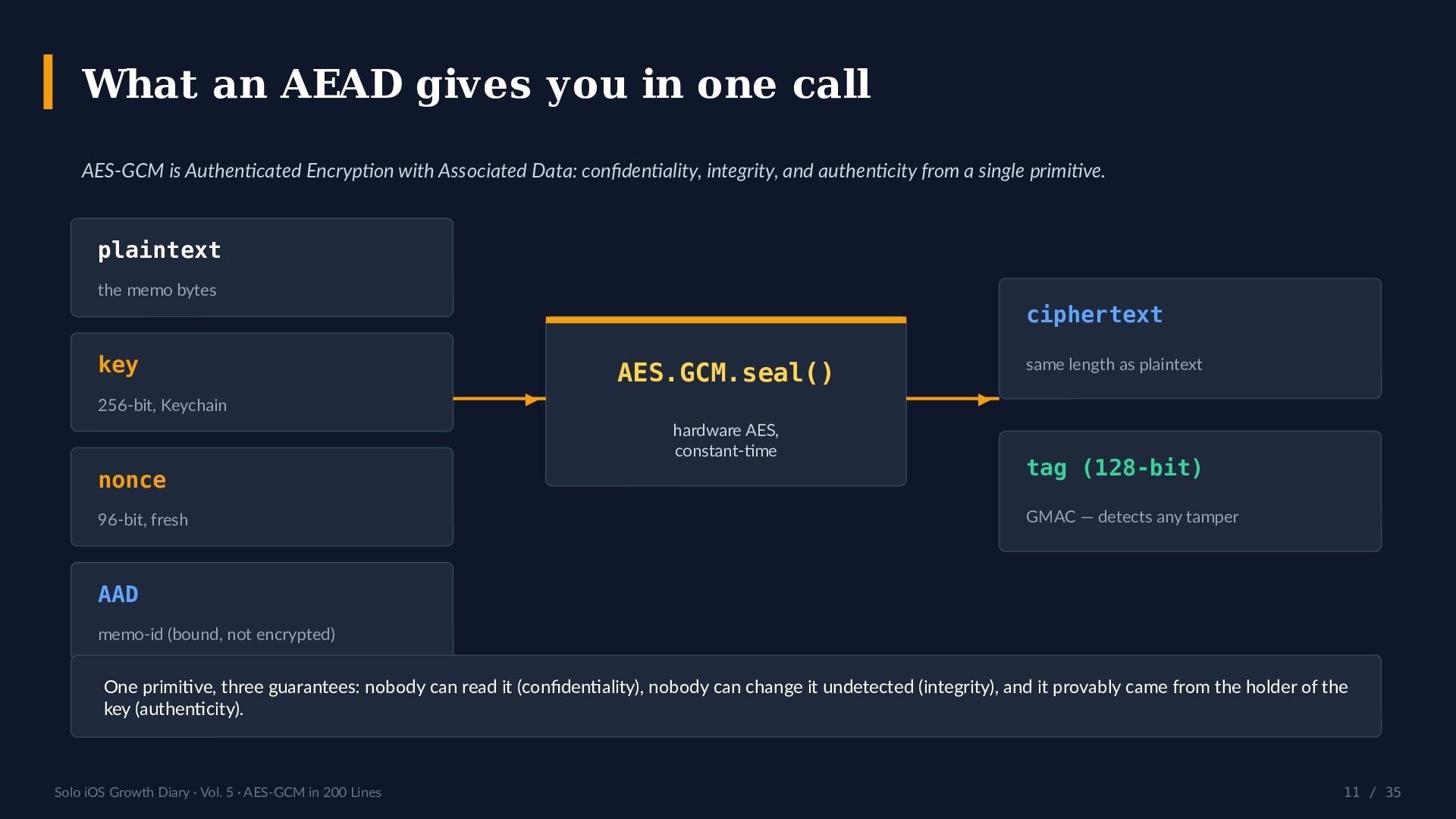

Solo iOS Growth Diary · Vol. 5 · AES-GCM in
200 Lines 11 / 35 What an AEAD gives you in one call AES-GCM is Authenticated Encryption with Associated Data: confidentiality, integrity, and authenticity from a single primitive. plaintext the memo bytes key 256-bit, Keychain nonce 96-bit, fresh AAD memo-id (bound, not encrypted) AES.GCM.seal() hardware AES, constant-time ciphertext same length as plaintext tag (128-bit) GMAC — detects any tamper ▶ ▶ One primitive, three guarantees: nobody can read it (confidentiality), nobody can change it undetected (integrity), and it provably came from the holder of the key (authenticity). -
Solo iOS Growth Diary · Vol. 5 · AES-GCM in

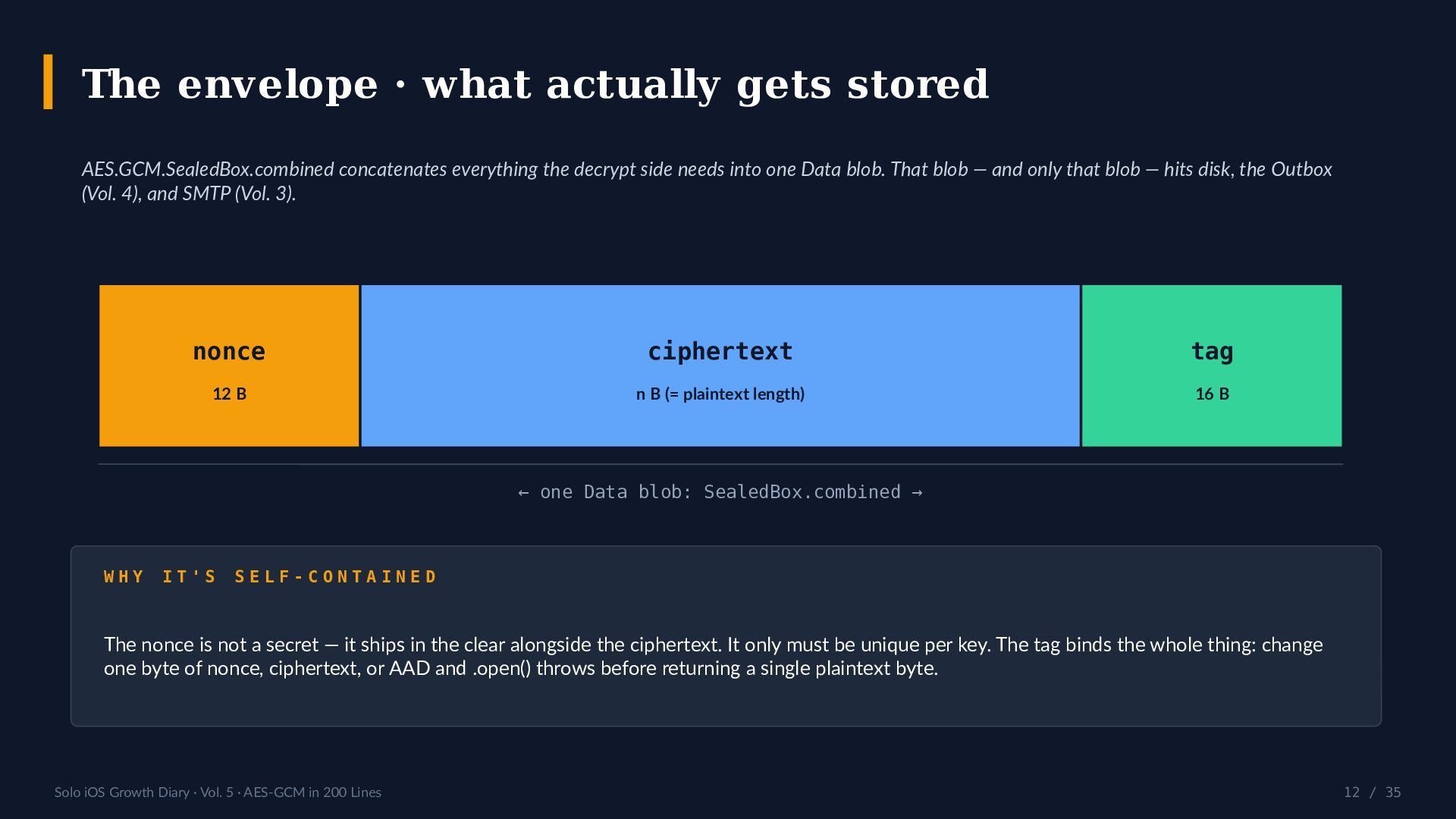

200 Lines 12 / 35 The envelope · what actually gets stored AES.GCM.SealedBox.combined concatenates everything the decrypt side needs into one Data blob. That blob — and only that blob — hits disk, the Outbox (Vol. 4), and SMTP (Vol. 3). nonce 12 B ciphertext n B (= plaintext length) tag 16 B ← one Data blob: SealedBox.combined → W H Y I T ' S S E L F - C O N T A I N E D The nonce is not a secret — it ships in the clear alongside the ciphertext. It only must be unique per key. The tag binds the whole thing: change one byte of nonce, ciphertext, or AAD and .open() throws before returning a single plaintext byte. -
Solo iOS Growth Diary · Vol. 5 · AES-GCM in

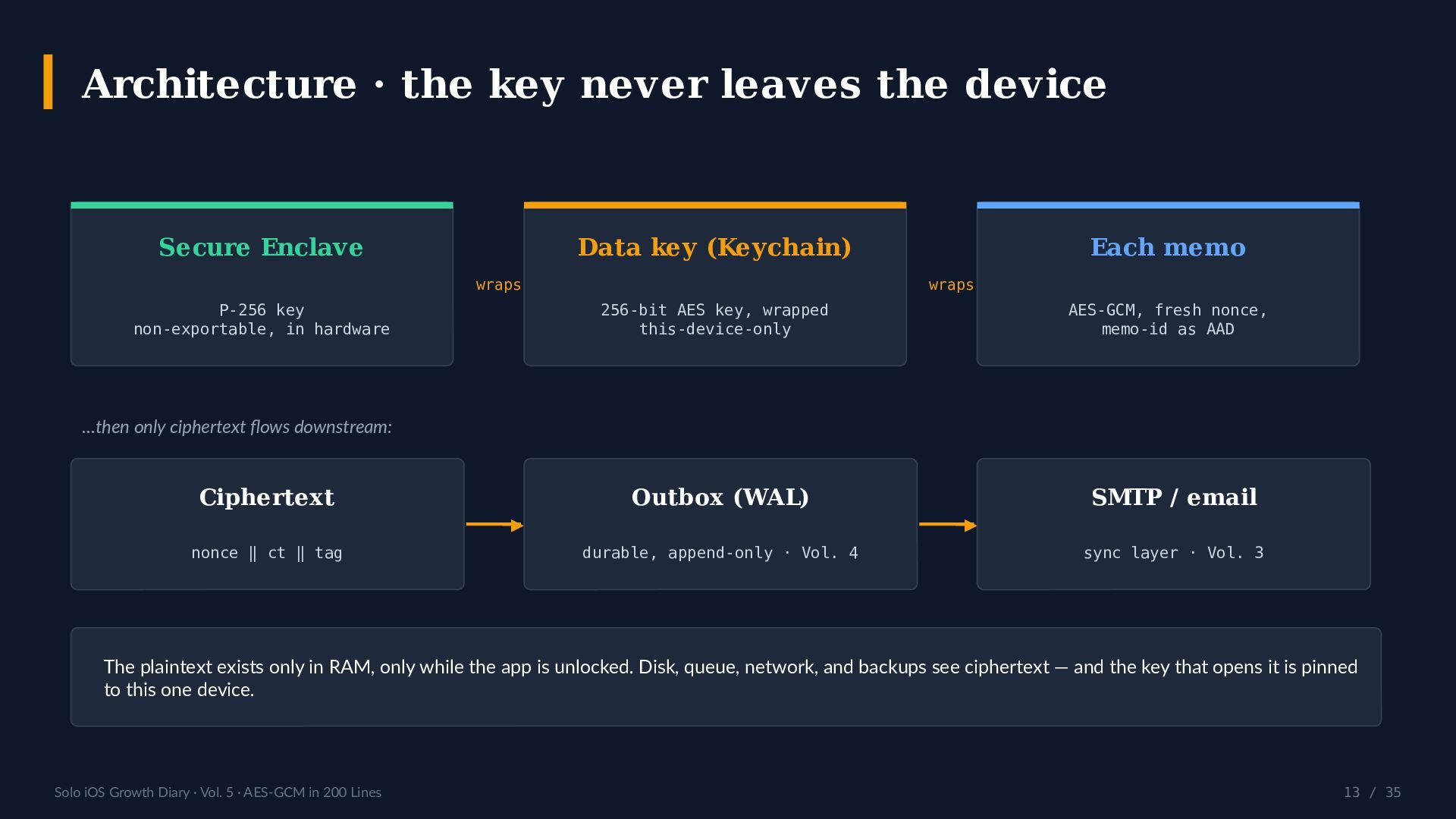

200 Lines 13 / 35 Architecture · the key never leaves the device Secure Enclave P-256 key non-exportable, in hardware wraps ▶ Data key (Keychain) 256-bit AES key, wrapped this-device-only wraps ▶ Each memo AES-GCM, fresh nonce, memo-id as AAD …then only ciphertext flows downstream: Ciphertext nonce ‖ ct ‖ tag ▶ Outbox (WAL) durable, append-only · Vol. 4 ▶ SMTP / email sync layer · Vol. 3 The plaintext exists only in RAM, only while the app is unlocked. Disk, queue, network, and backups see ciphertext — and the key that opens it is pinned to this one device. -
Solo iOS Growth Diary · Vol. 5 · AES-GCM in

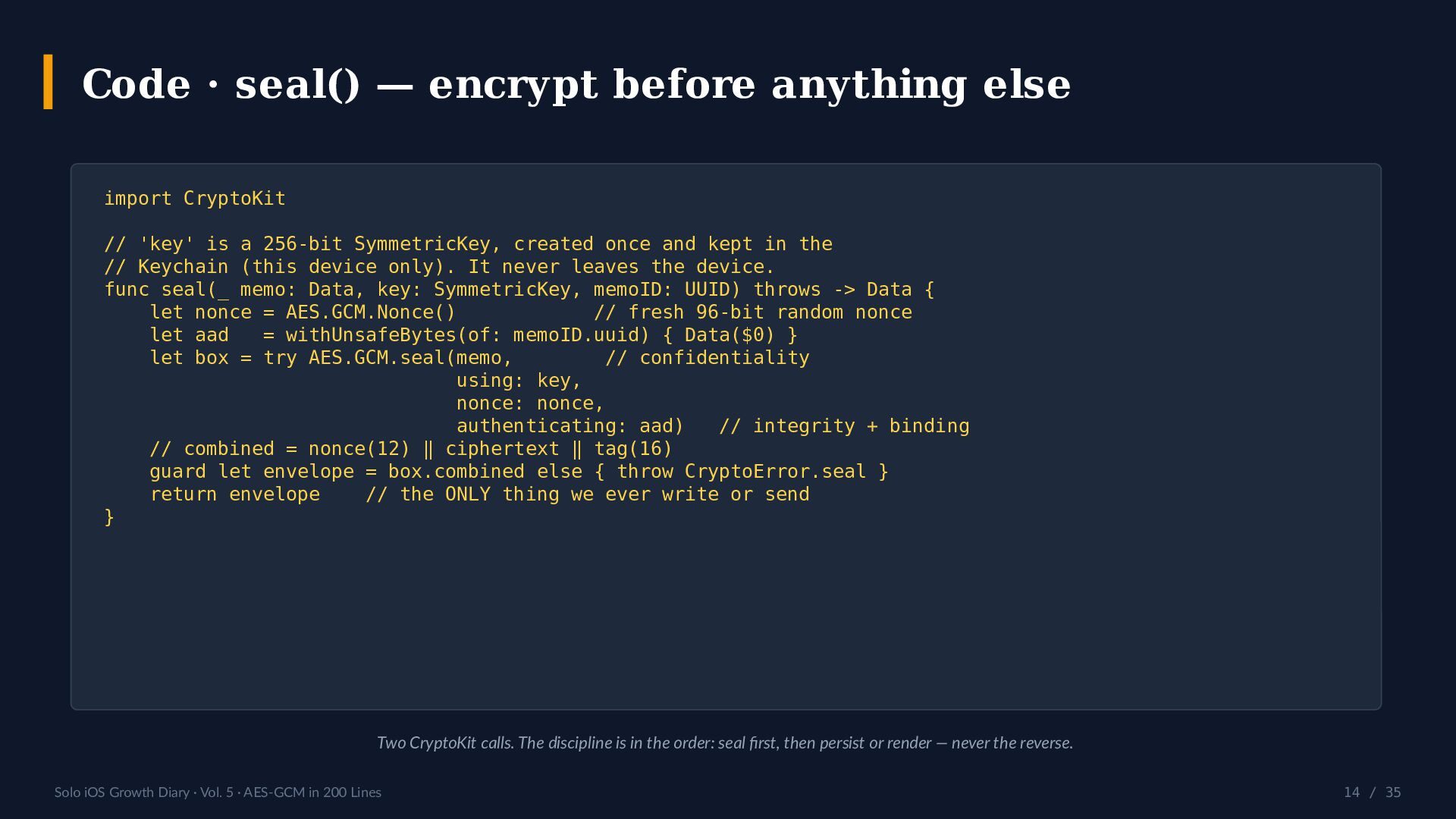

200 Lines 14 / 35 Code · seal() — encrypt before anything else import CryptoKit // 'key' is a 256-bit SymmetricKey, created once and kept in the // Keychain (this device only). It never leaves the device. func seal(_ memo: Data, key: SymmetricKey, memoID: UUID) throws -> Data { let nonce = AES.GCM.Nonce() // fresh 96-bit random nonce let aad = withUnsafeBytes(of: memoID.uuid) { Data($0) } let box = try AES.GCM.seal(memo, // confidentiality using: key, nonce: nonce, authenticating: aad) // integrity + binding // combined = nonce(12) ‖ ciphertext ‖ tag(16) guard let envelope = box.combined else { throw CryptoError.seal } return envelope // the ONLY thing we ever write or send } Two CryptoKit calls. The discipline is in the order: seal first, then persist or render — never the reverse. -
Solo iOS Growth Diary · Vol. 5 · AES-GCM in

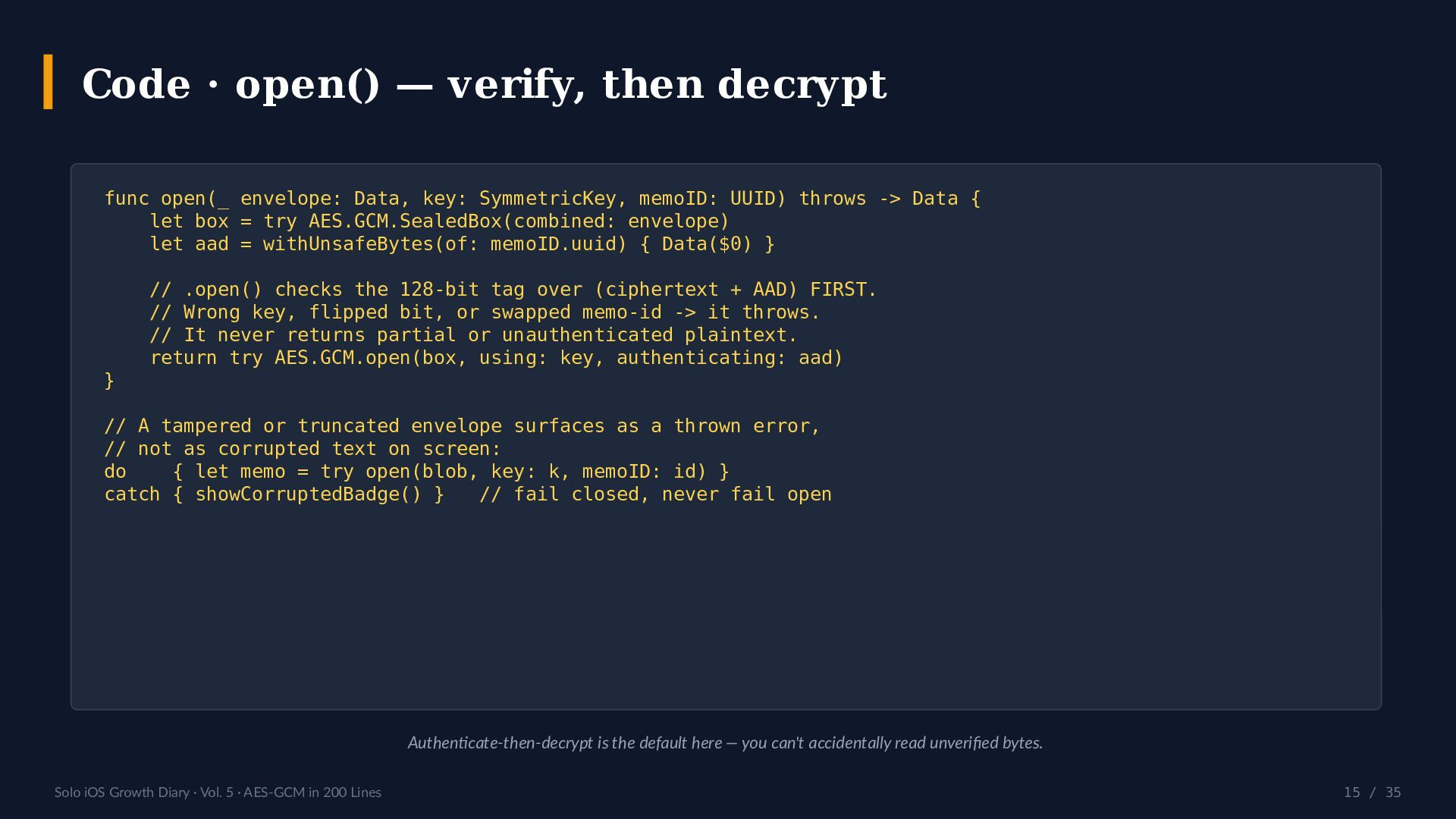

200 Lines 15 / 35 Code · open() — verify, then decrypt func open(_ envelope: Data, key: SymmetricKey, memoID: UUID) throws -> Data { let box = try AES.GCM.SealedBox(combined: envelope) let aad = withUnsafeBytes(of: memoID.uuid) { Data($0) } // .open() checks the 128-bit tag over (ciphertext + AAD) FIRST. // Wrong key, flipped bit, or swapped memo-id -> it throws. // It never returns partial or unauthenticated plaintext. return try AES.GCM.open(box, using: key, authenticating: aad) } // A tampered or truncated envelope surfaces as a thrown error, // not as corrupted text on screen: do { let memo = try open(blob, key: k, memoID: id) } catch { showCorruptedBadge() } // fail closed, never fail open Authenticate-then-decrypt is the default here — you can't accidentally read unverified bytes. -
Solo iOS Growth Diary · Vol. 5 · AES-GCM in

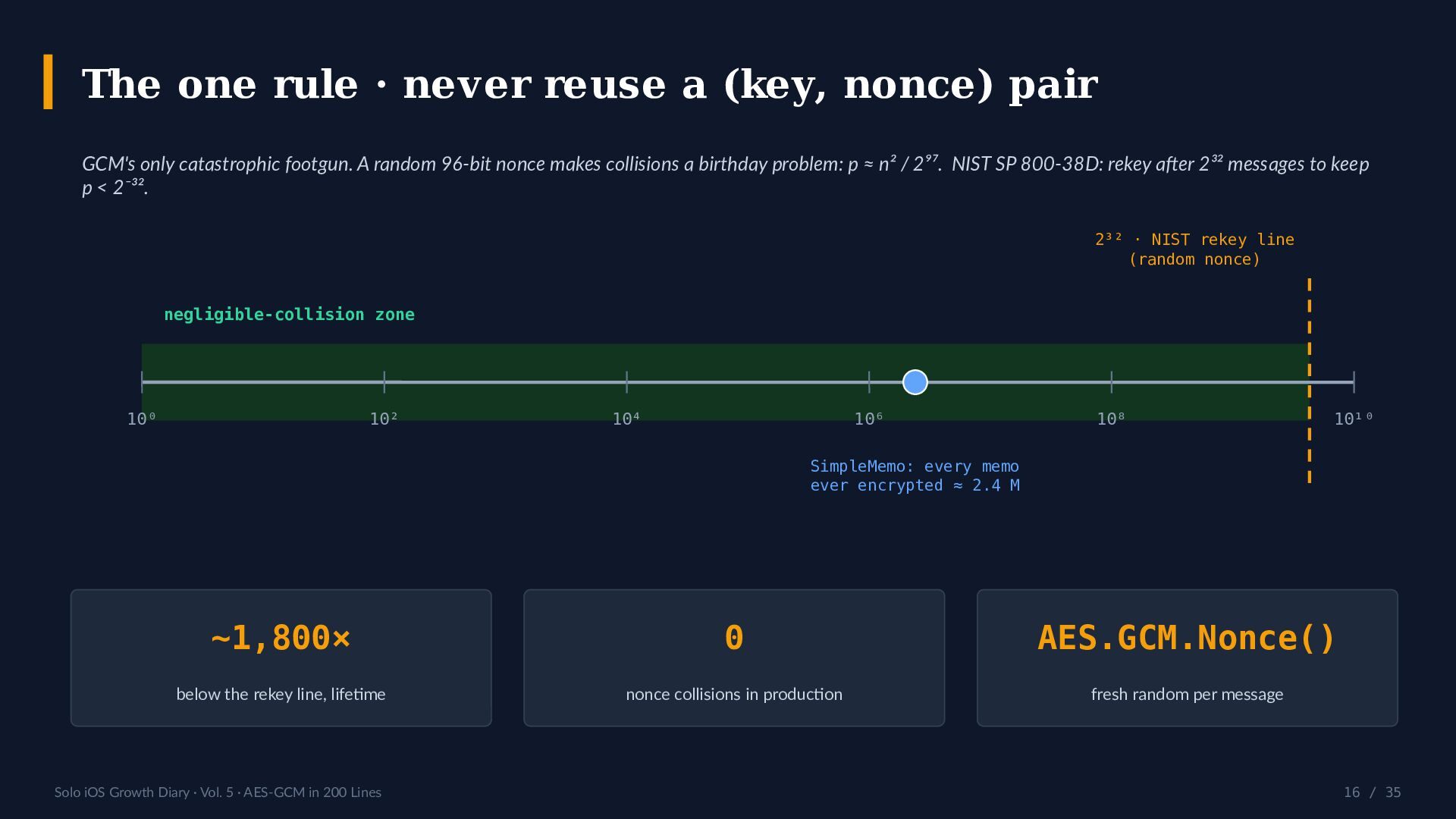

200 Lines 16 / 35 The one rule · never reuse a (key, nonce) pair GCM's only catastrophic footgun. A random 96-bit nonce makes collisions a birthday problem: p ≈ n² / 2⁹⁷. NIST SP 800-38D: rekey after 2³² messages to keep p < 2⁻³². 10⁰ 10² 10⁴ 10⁶ 10⁸ 10¹⁰ negligible-collision zone 2³² · NIST rekey line (random nonce) SimpleMemo: every memo ever encrypted ≈ 2.4 M ~1,800× below the rekey line, lifetime 0 nonce collisions in production AES.GCM.Nonce() fresh random per message -
Solo iOS Growth Diary · Vol. 5 · AES-GCM in

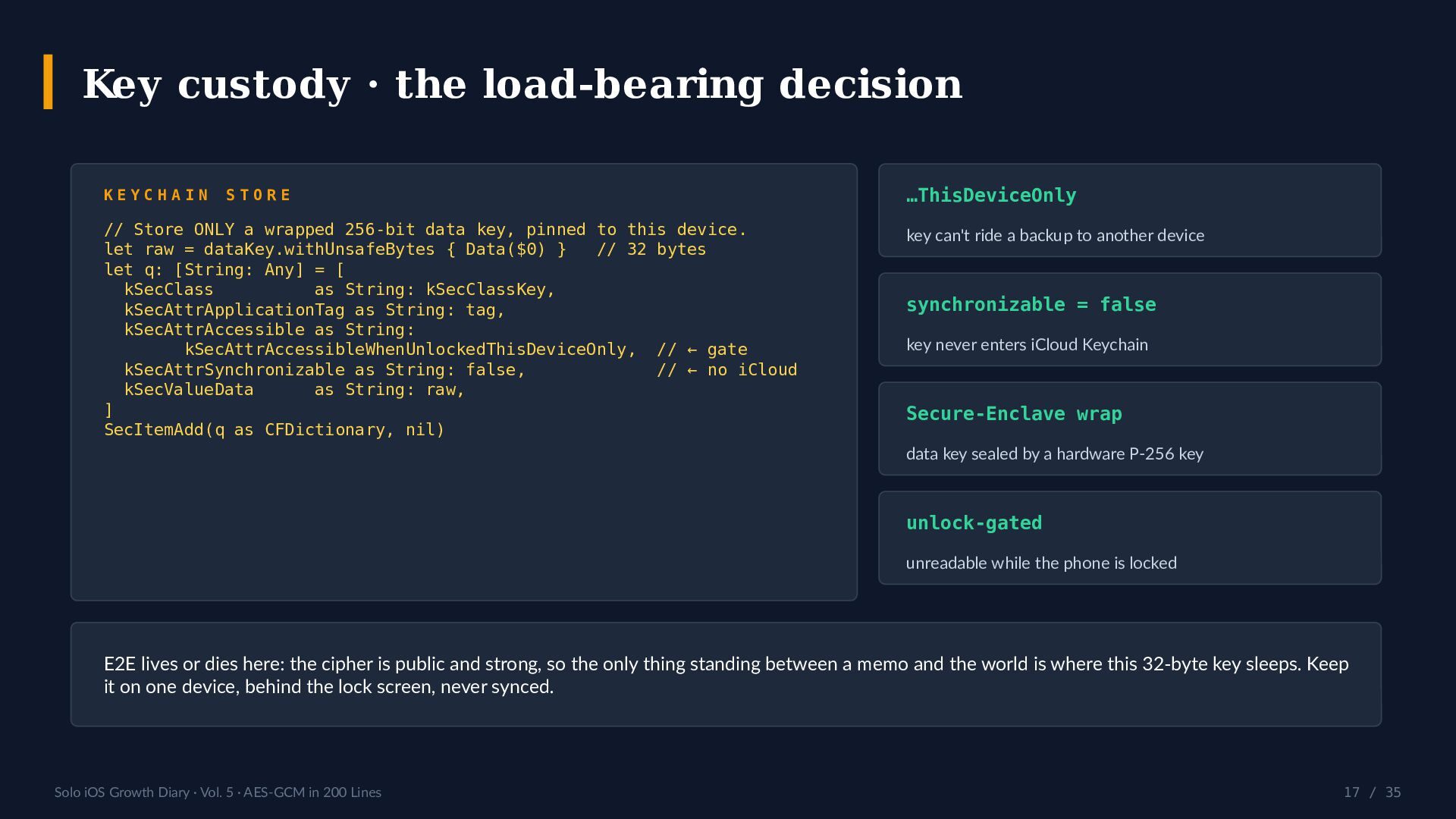

200 Lines 17 / 35 Key custody · the load-bearing decision K E Y C H A I N S T O R E // Store ONLY a wrapped 256-bit data key, pinned to this device. let raw = dataKey.withUnsafeBytes { Data($0) } // 32 bytes let q: [String: Any] = [ kSecClass as String: kSecClassKey, kSecAttrApplicationTag as String: tag, kSecAttrAccessible as String: kSecAttrAccessibleWhenUnlockedThisDeviceOnly, // ← gate kSecAttrSynchronizable as String: false, // ← no iCloud kSecValueData as String: raw, ] SecItemAdd(q as CFDictionary, nil) …ThisDeviceOnly key can't ride a backup to another device synchronizable = false key never enters iCloud Keychain Secure-Enclave wrap data key sealed by a hardware P-256 key unlock-gated unreadable while the phone is locked E2E lives or dies here: the cipher is public and strong, so the only thing standing between a memo and the world is where this 32-byte key sleeps. Keep it on one device, behind the lock screen, never synced. -
Solo iOS Growth Diary · Vol. 5 · AES-GCM in

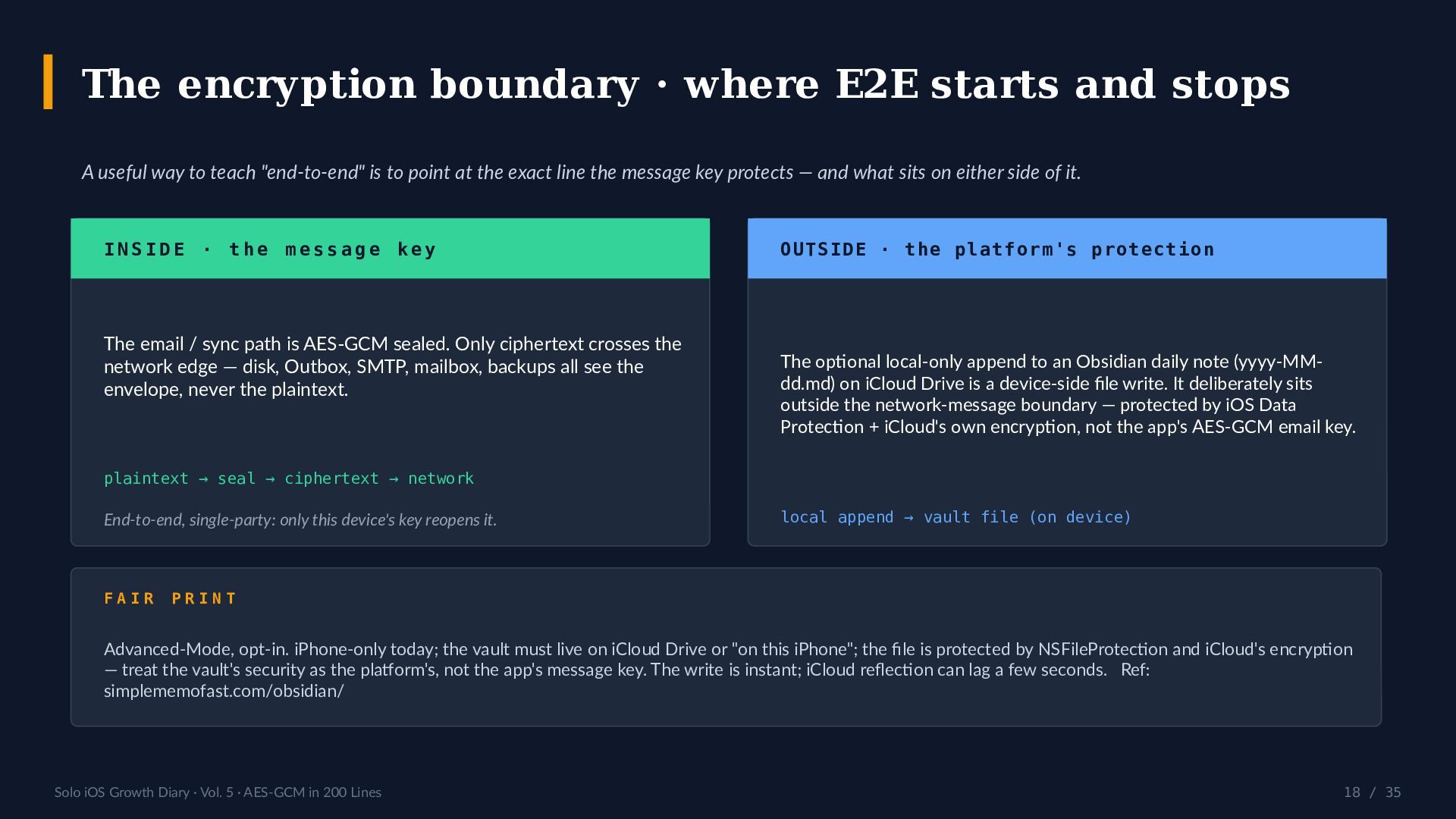

200 Lines 18 / 35 The encryption boundary · where E2E starts and stops A useful way to teach "end-to-end" is to point at the exact line the message key protects — and what sits on either side of it. I N S I D E · t h e m e s s a g e k e y The email / sync path is AES-GCM sealed. Only ciphertext crosses the network edge — disk, Outbox, SMTP, mailbox, backups all see the envelope, never the plaintext. plaintext → seal → ciphertext → network End-to-end, single-party: only this device's key reopens it. OUTSIDE · the platform's protection The optional local-only append to an Obsidian daily note (yyyy-MM- dd.md) on iCloud Drive is a device-side file write. It deliberately sits outside the network-message boundary — protected by iOS Data Protection + iCloud's own encryption, not the app's AES-GCM email key. local append → vault file (on device) F A I R P R I N T Advanced-Mode, opt-in. iPhone-only today; the vault must live on iCloud Drive or "on this iPhone"; the file is protected by NSFileProtection and iCloud's encryption — treat the vault's security as the platform's, not the app's message key. The write is instant; iCloud reflection can lag a few seconds. Ref: simplememofast.com/obsidian/ -

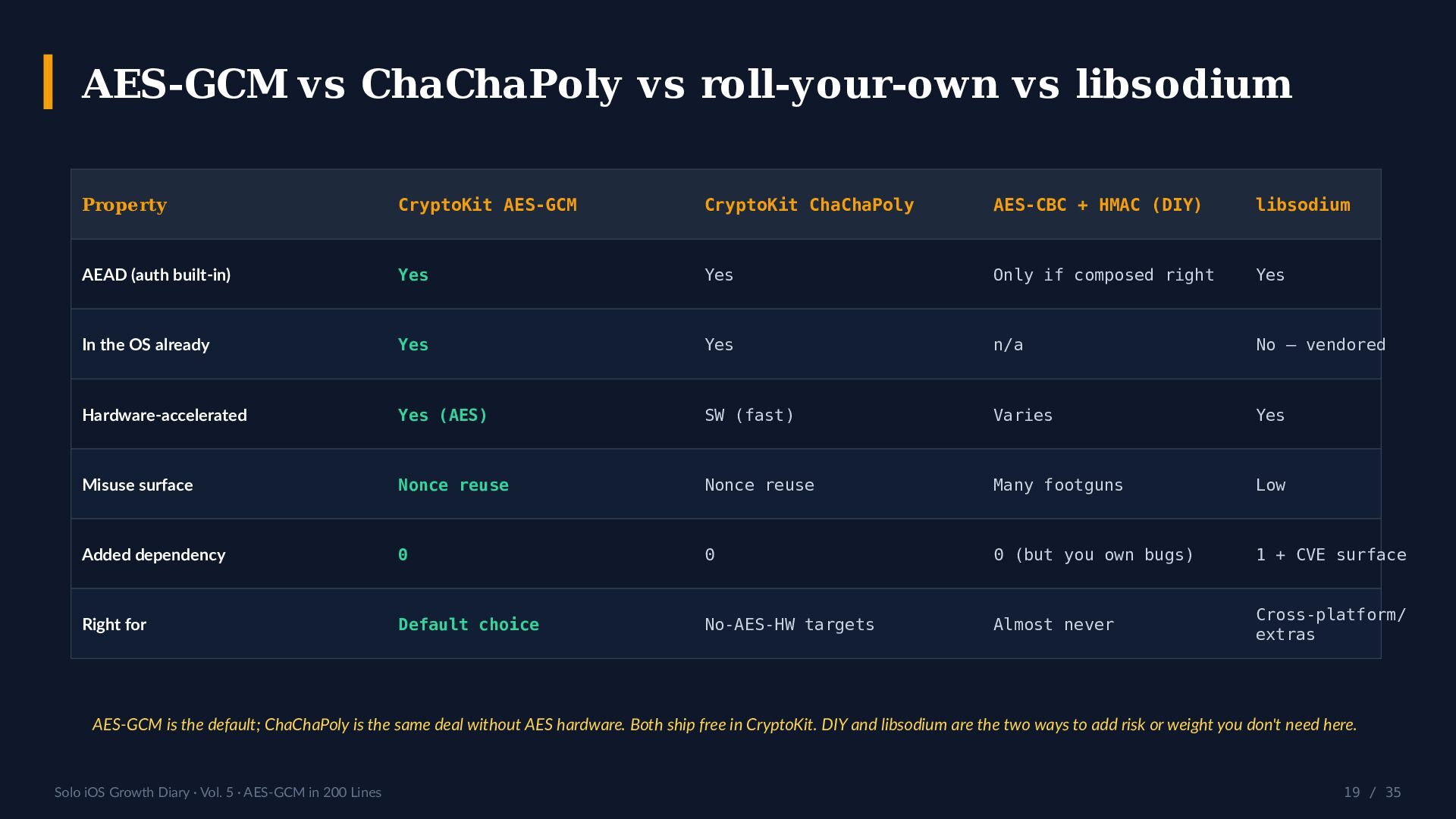

Solo iOS Growth Diary · Vol. 5 · AES-GCM in
200 Lines 19 / 35 AES-GCM vs ChaChaPoly vs roll-your-own vs libsodium Property CryptoKit AES-GCM CryptoKit ChaChaPoly AES-CBC + HMAC (DIY) libsodium AEAD (auth built-in) Yes Yes Only if composed right Yes In the OS already Yes Yes n/a No — vendored Hardware-accelerated Yes (AES) SW (fast) Varies Yes Misuse surface Nonce reuse Nonce reuse Many footguns Low Added dependency 0 0 0 (but you own bugs) 1 + CVE surface Right for Default choice No-AES-HW targets Almost never Cross-platform/ extras AES-GCM is the default; ChaChaPoly is the same deal without AES hardware. Both ship free in CryptoKit. DIY and libsodium are the two ways to add risk or weight you don't need here. -
Solo iOS Growth Diary · Vol. 5 · AES-GCM in

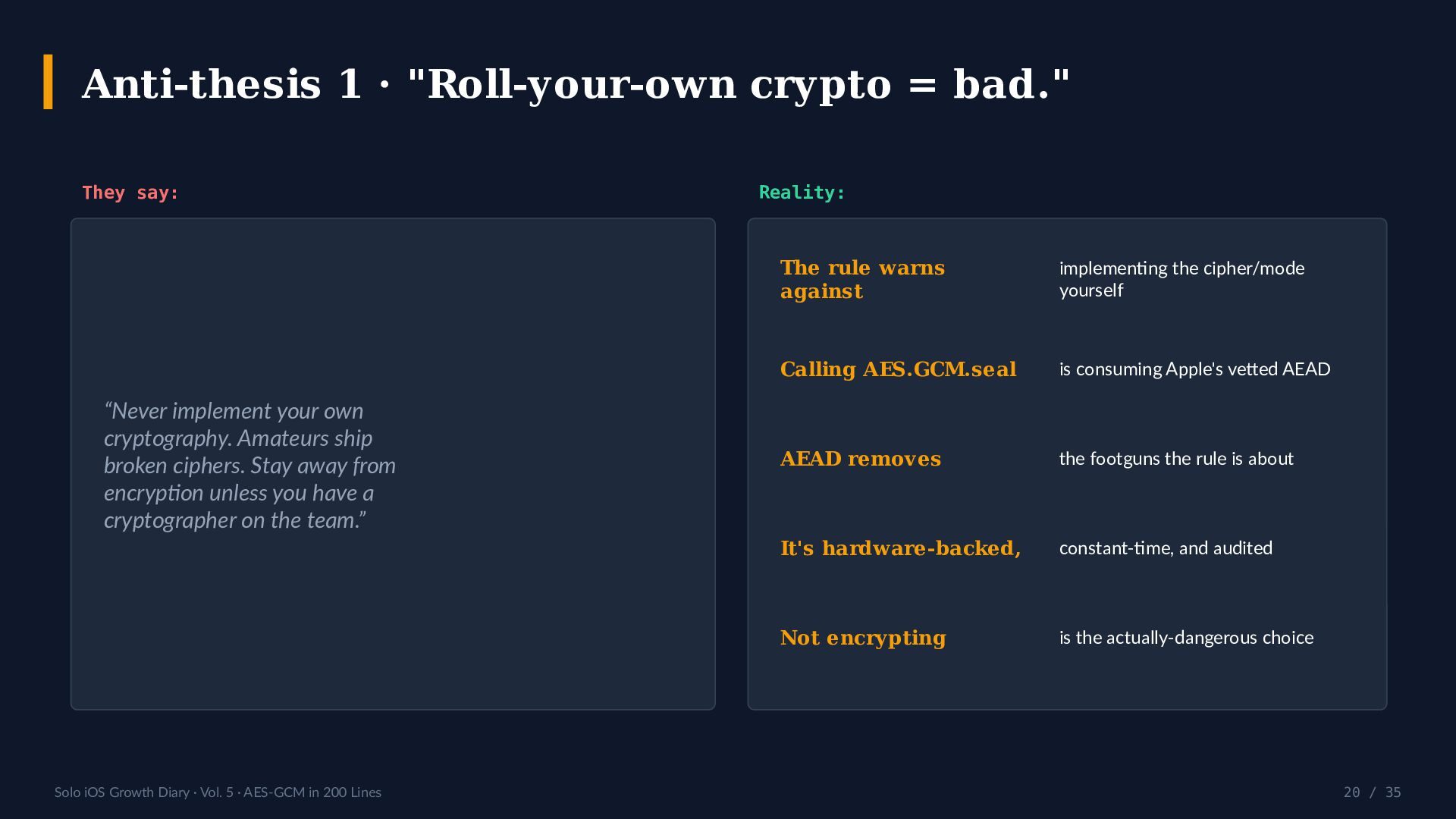

200 Lines 20 / 35 Anti-thesis 1 · "Roll-your-own crypto = bad." They say: “Never implement your own cryptography. Amateurs ship broken ciphers. Stay away from encryption unless you have a cryptographer on the team.” Reality: The rule warns against implementing the cipher/mode yourself Calling AES.GCM.seal is consuming Apple's vetted AEAD AEAD removes the footguns the rule is about It's hardware-backed, constant-time, and audited Not encrypting is the actually-dangerous choice -

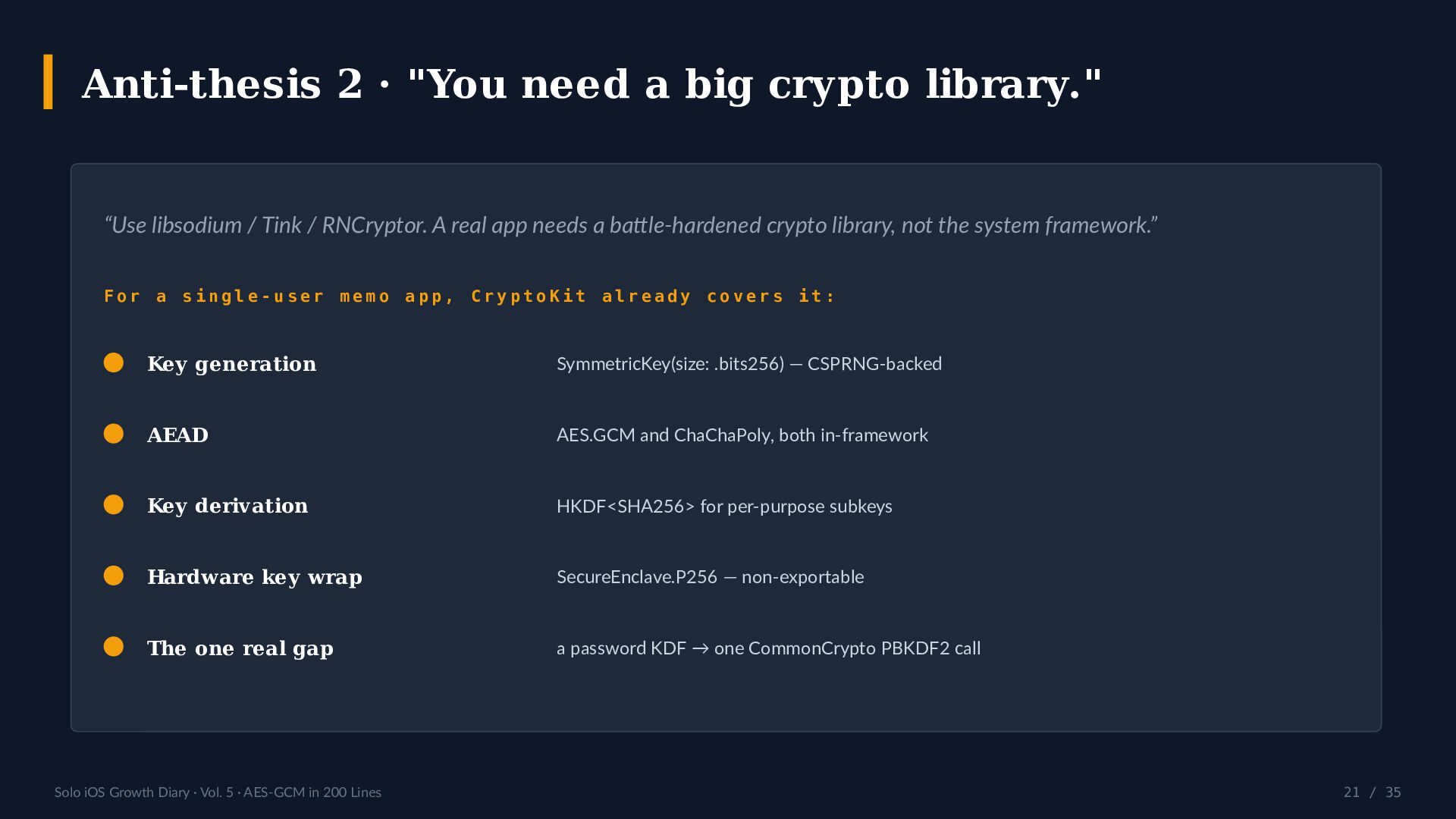

Solo iOS Growth Diary · Vol. 5 · AES-GCM in
200 Lines 21 / 35 Anti-thesis 2 · "You need a big crypto library." “Use libsodium / Tink / RNCryptor. A real app needs a battle-hardened crypto library, not the system framework.” F o r a s i n g l e - u s e r m e m o a p p , C r y p t o K i t a l r e a d y c o v e r s i t : Key generation SymmetricKey(size: .bits256) — CSPRNG-backed AEAD AES.GCM and ChaChaPoly, both in-framework Key derivation HKDF<SHA256> for per-purpose subkeys Hardware key wrap SecureEnclave.P256 — non-exportable The one real gap a password KDF → one CommonCrypto PBKDF2 call -

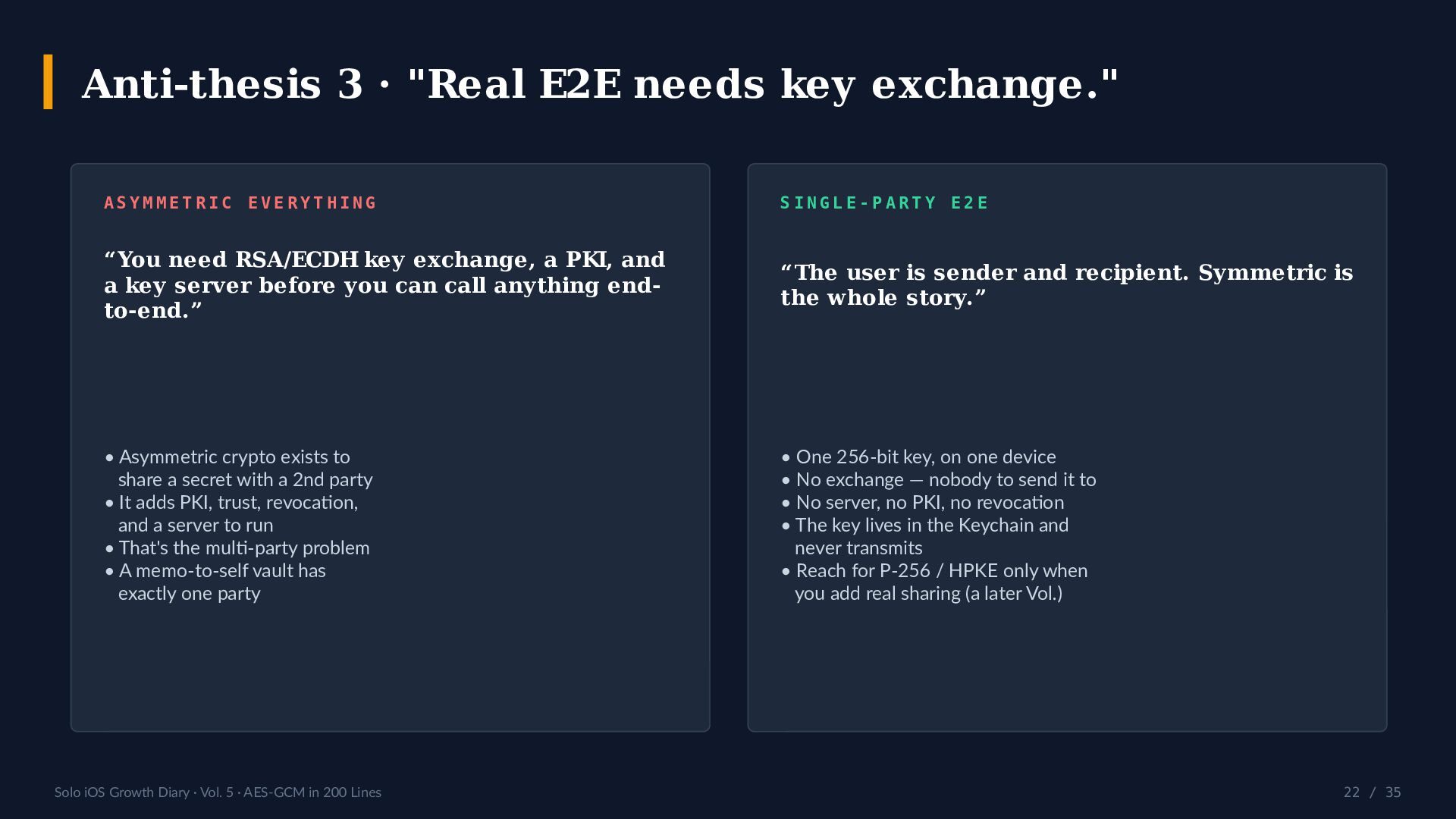

Solo iOS Growth Diary · Vol. 5 · AES-GCM in
200 Lines 22 / 35 Anti-thesis 3 · "Real E2E needs key exchange." A S Y M M E T R I C E V E R Y T H I N G “You need RSA/ECDH key exchange, a PKI, and a key server before you can call anything end- to-end.” • Asymmetric crypto exists to share a secret with a 2nd party • It adds PKI, trust, revocation, and a server to run • That's the multi-party problem • A memo-to-self vault has exactly one party S I N G L E - P A R T Y E 2 E “The user is sender and recipient. Symmetric is the whole story.” • One 256-bit key, on one device • No exchange — nobody to send it to • No server, no PKI, no revocation • The key lives in the Keychain and never transmits • Reach for P-256 / HPKE only when you add real sharing (a later Vol.) -
Solo iOS Growth Diary · Vol. 5 · AES-GCM in

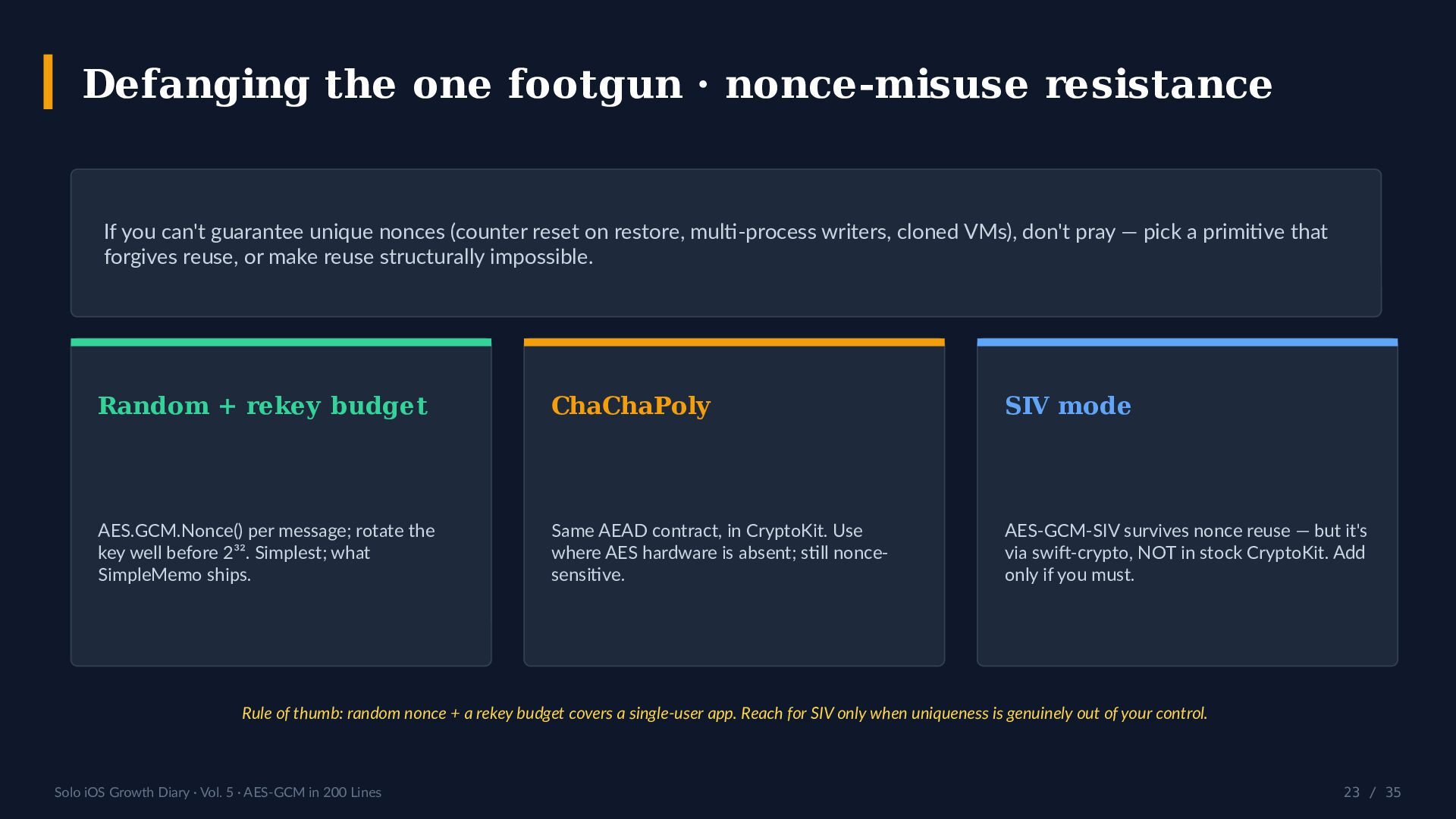

200 Lines 23 / 35 Defanging the one footgun · nonce-misuse resistance If you can't guarantee unique nonces (counter reset on restore, multi-process writers, cloned VMs), don't pray — pick a primitive that forgives reuse, or make reuse structurally impossible. Random + rekey budget AES.GCM.Nonce() per message; rotate the key well before 2³². Simplest; what SimpleMemo ships. ChaChaPoly Same AEAD contract, in CryptoKit. Use where AES hardware is absent; still nonce- sensitive. SIV mode AES-GCM-SIV survives nonce reuse — but it's via swift-crypto, NOT in stock CryptoKit. Add only if you must. Rule of thumb: random nonce + a rekey budget covers a single-user app. Reach for SIV only when uniqueness is genuinely out of your control. -
Solo iOS Growth Diary · Vol. 5 · AES-GCM in

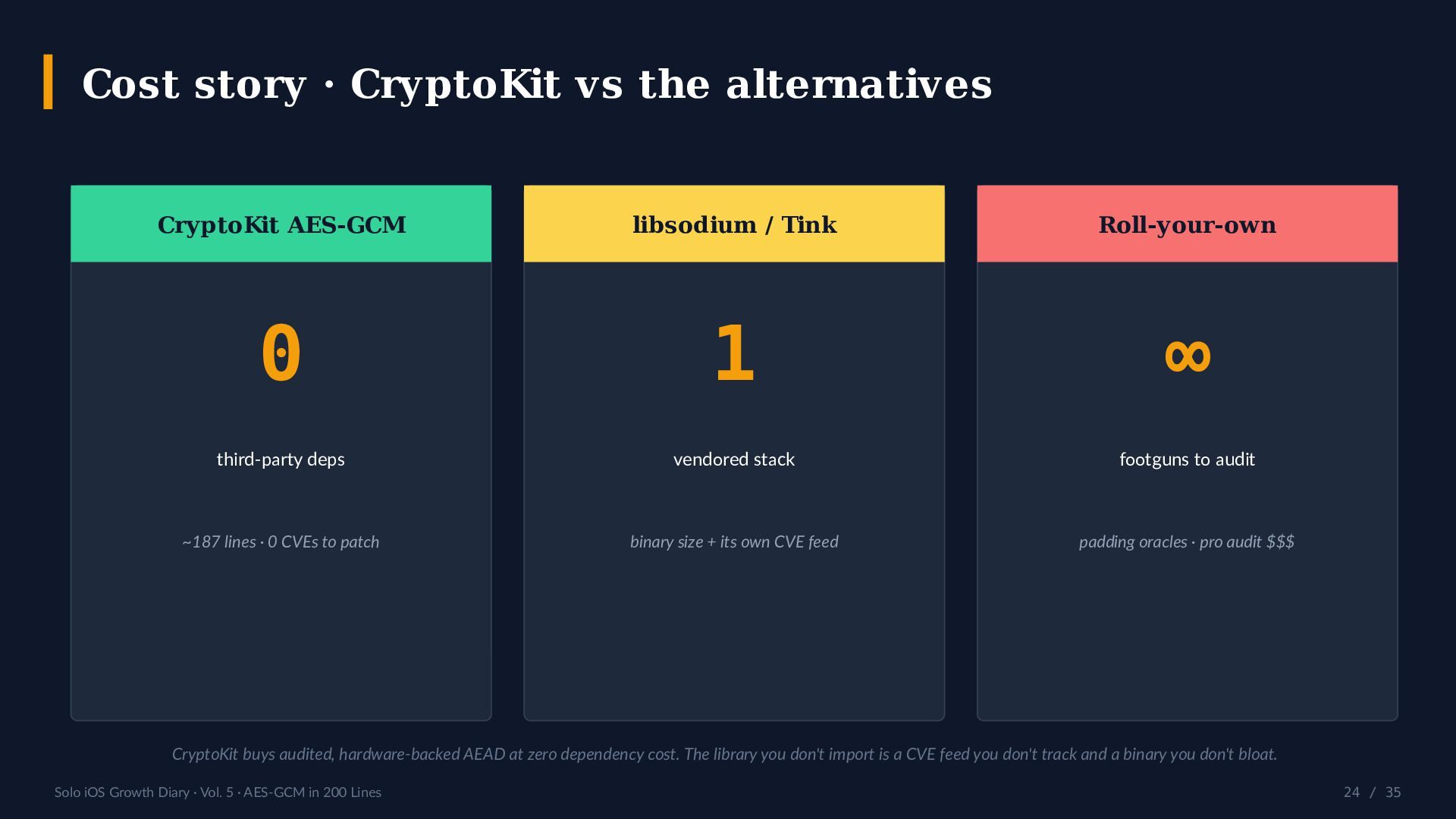

200 Lines 24 / 35 Cost story · CryptoKit vs the alternatives CryptoKit AES-GCM 0 third-party deps ~187 lines · 0 CVEs to patch libsodium / Tink 1 vendored stack binary size + its own CVE feed Roll-your-own ∞ footguns to audit padding oracles · pro audit $$$ CryptoKit buys audited, hardware-backed AEAD at zero dependency cost. The library you don't import is a CVE feed you don't track and a binary you don't bloat. -
Solo iOS Growth Diary · Vol. 5 · AES-GCM in

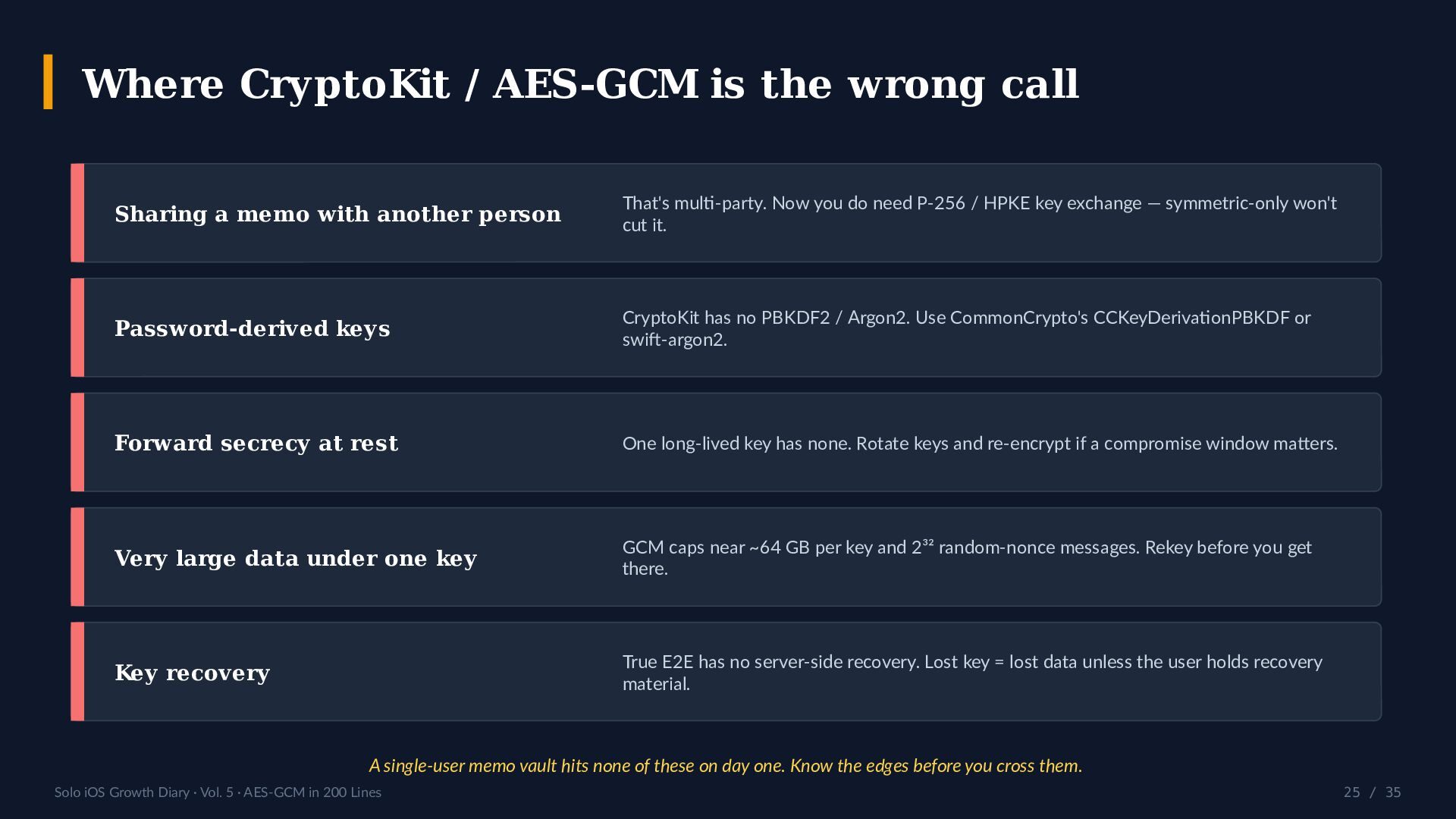

200 Lines 25 / 35 Where CryptoKit / AES-GCM is the wrong call Sharing a memo with another person That's multi-party. Now you do need P-256 / HPKE key exchange — symmetric-only won't cut it. Password-derived keys CryptoKit has no PBKDF2 / Argon2. Use CommonCrypto's CCKeyDerivationPBKDF or swift-argon2. Forward secrecy at rest One long-lived key has none. Rotate keys and re-encrypt if a compromise window matters. Very large data under one key GCM caps near ~64 GB per key and 2³² random-nonce messages. Rekey before you get there. Key recovery True E2E has no server-side recovery. Lost key = lost data unless the user holds recovery material. A single-user memo vault hits none of these on day one. Know the edges before you cross them. -
Solo iOS Growth Diary · Vol. 5 · AES-GCM in

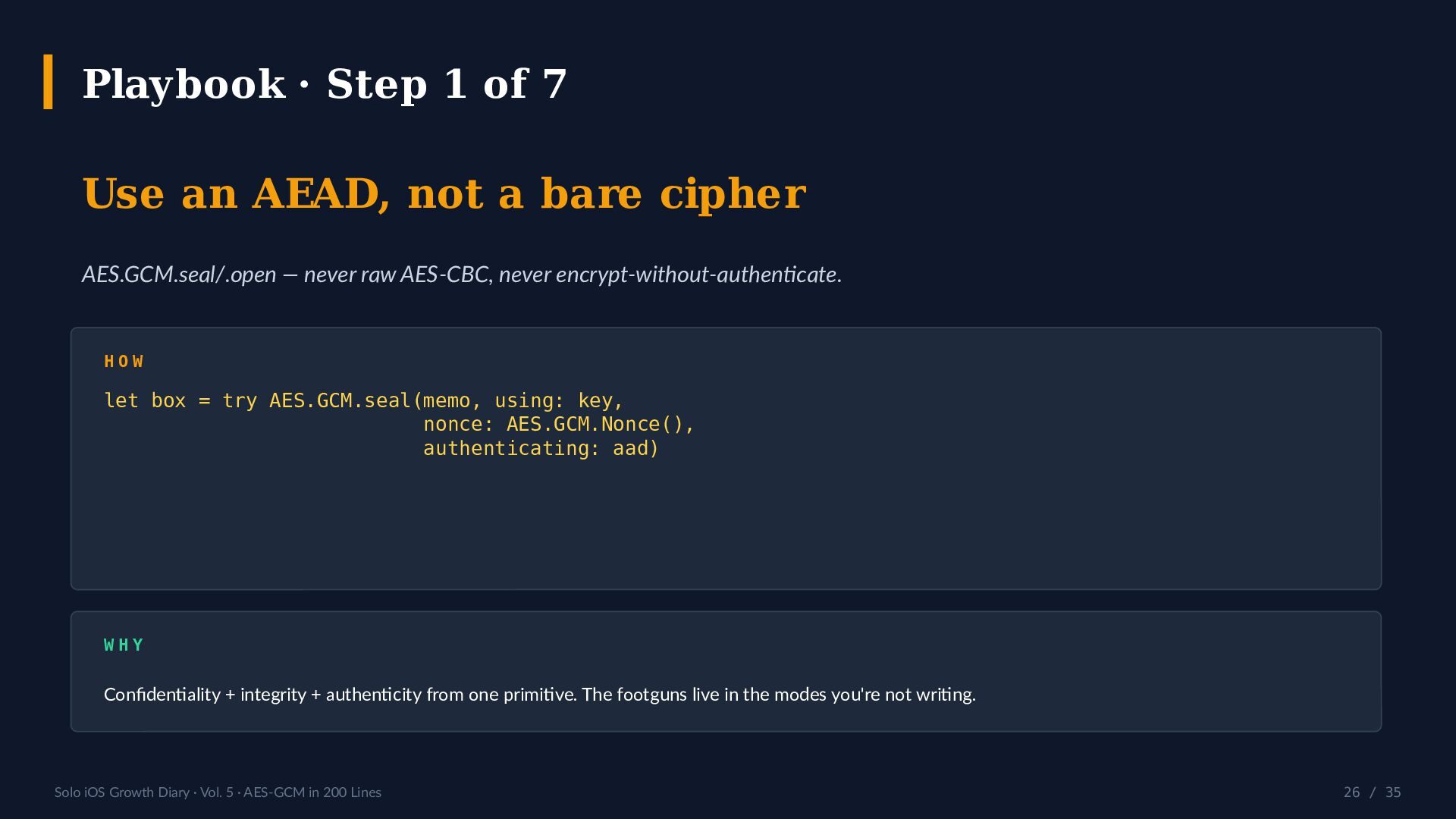

200 Lines 26 / 35 Playbook · Step 1 of 7 Use an AEAD, not a bare cipher AES.GCM.seal/.open — never raw AES-CBC, never encrypt-without-authenticate. H O W let box = try AES.GCM.seal(memo, using: key, nonce: AES.GCM.Nonce(), authenticating: aad) W H Y Confidentiality + integrity + authenticity from one primitive. The footguns live in the modes you're not writing. -
Solo iOS Growth Diary · Vol. 5 · AES-GCM in

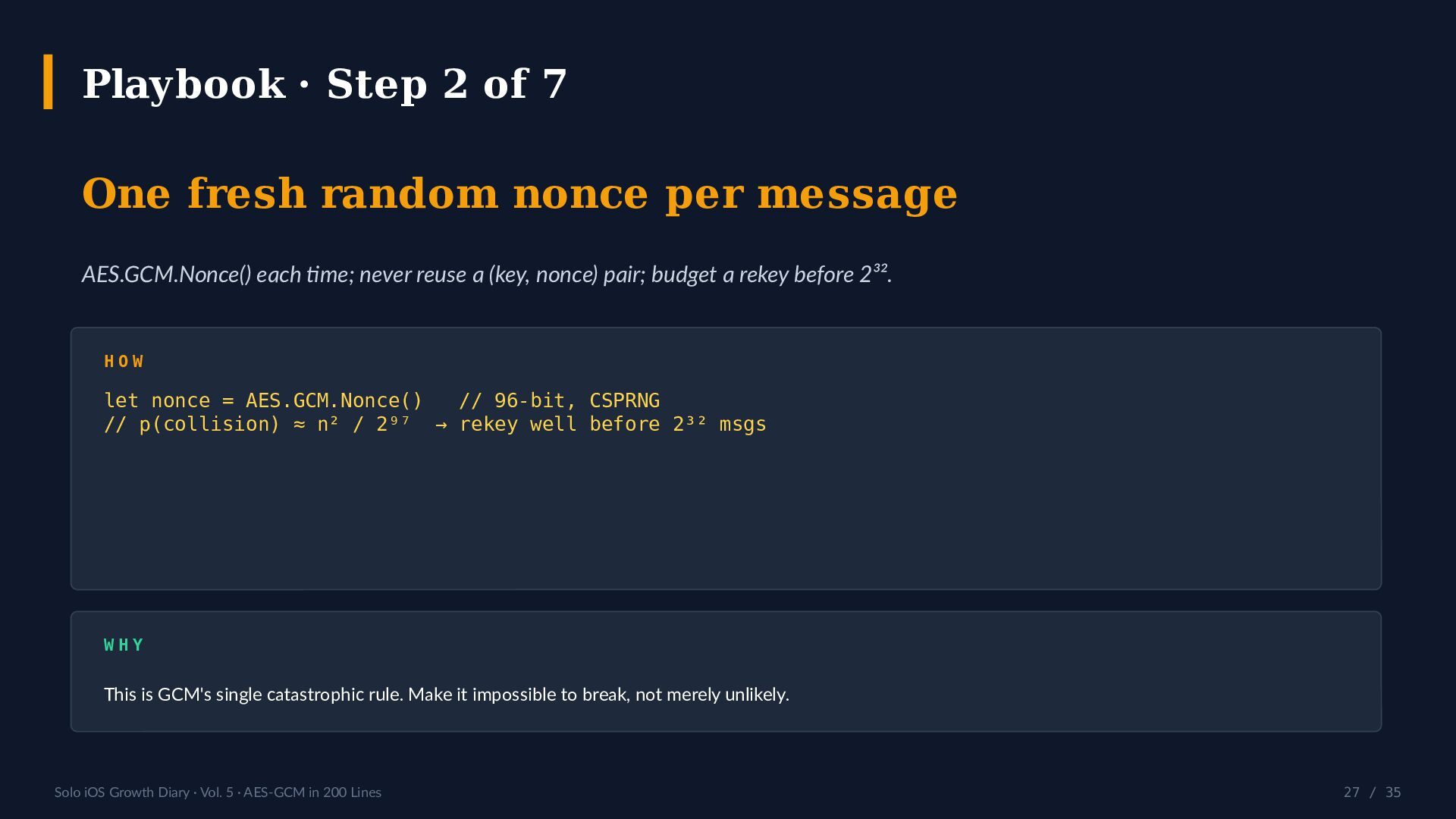

200 Lines 27 / 35 Playbook · Step 2 of 7 One fresh random nonce per message AES.GCM.Nonce() each time; never reuse a (key, nonce) pair; budget a rekey before 2³². H O W let nonce = AES.GCM.Nonce() // 96-bit, CSPRNG // p(collision) ≈ n² / 2⁹⁷ → rekey well before 2³² msgs W H Y This is GCM's single catastrophic rule. Make it impossible to break, not merely unlikely. -
Solo iOS Growth Diary · Vol. 5 · AES-GCM in

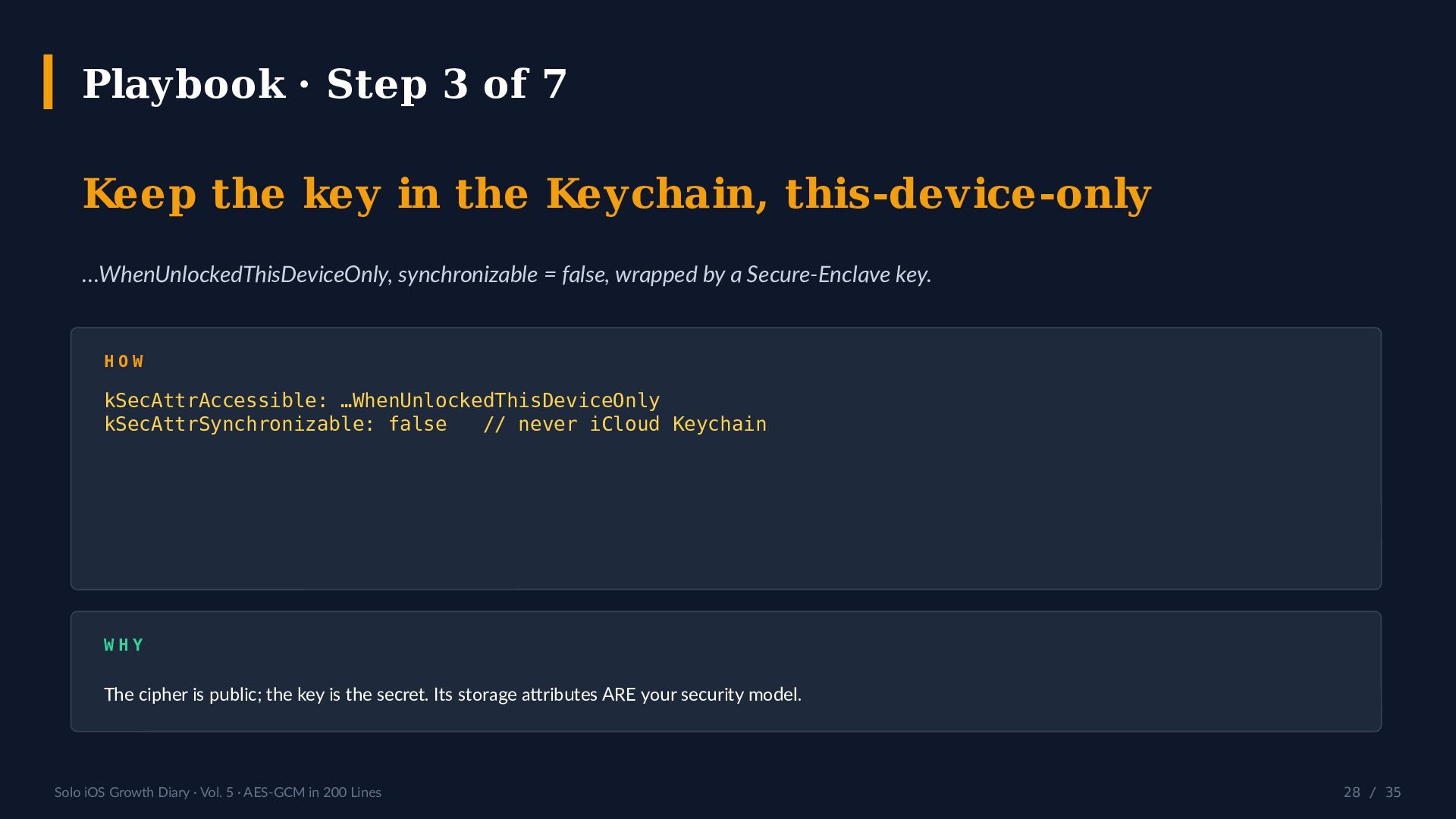

200 Lines 28 / 35 Playbook · Step 3 of 7 Keep the key in the Keychain, this-device-only …WhenUnlockedThisDeviceOnly, synchronizable = false, wrapped by a Secure-Enclave key. H O W kSecAttrAccessible: …WhenUnlockedThisDeviceOnly kSecAttrSynchronizable: false // never iCloud Keychain W H Y The cipher is public; the key is the secret. Its storage attributes ARE your security model. -

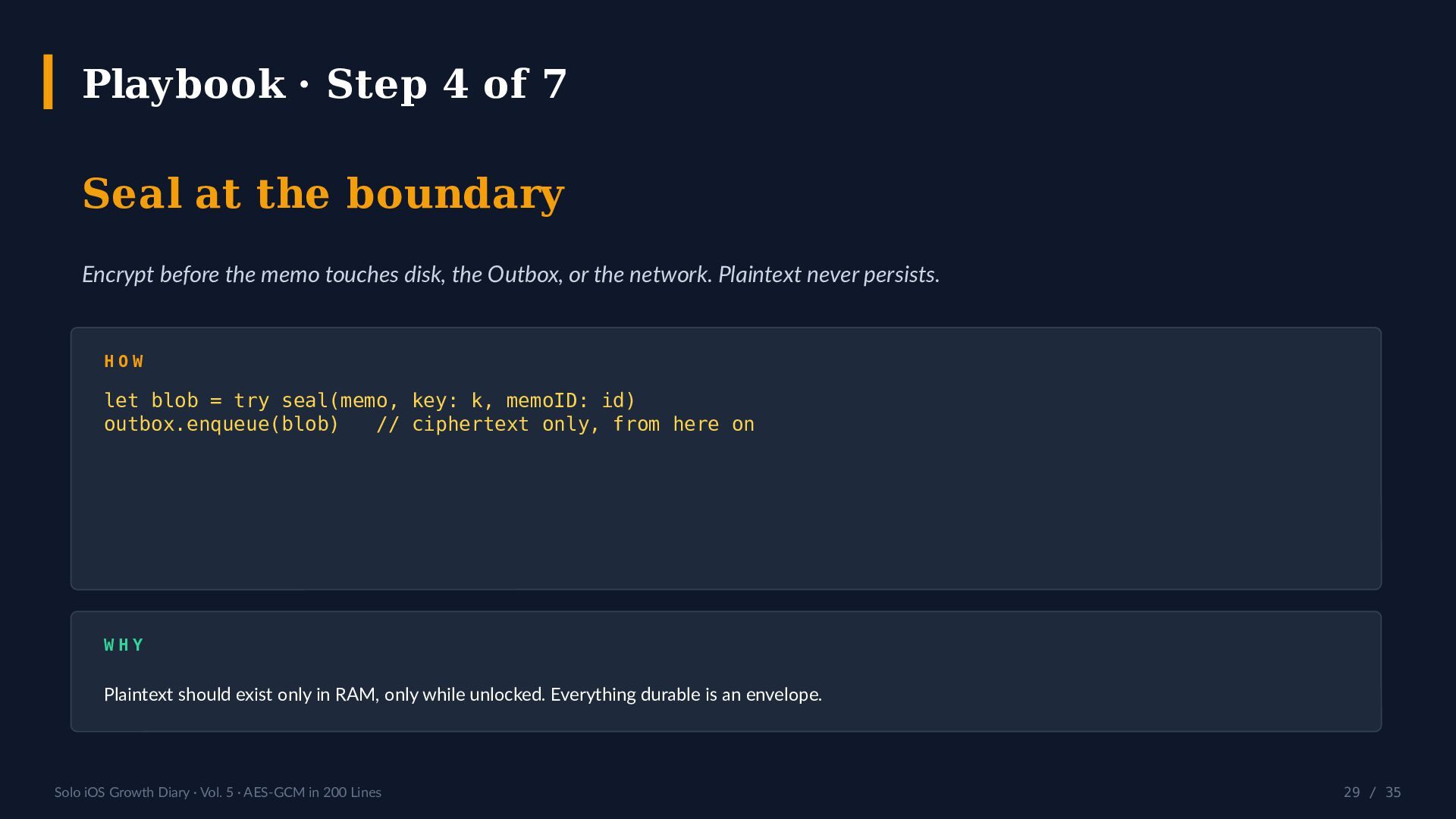

Solo iOS Growth Diary · Vol. 5 · AES-GCM in
200 Lines 29 / 35 Playbook · Step 4 of 7 Seal at the boundary Encrypt before the memo touches disk, the Outbox, or the network. Plaintext never persists. H O W let blob = try seal(memo, key: k, memoID: id) outbox.enqueue(blob) // ciphertext only, from here on W H Y Plaintext should exist only in RAM, only while unlocked. Everything durable is an envelope. -
Solo iOS Growth Diary · Vol. 5 · AES-GCM in

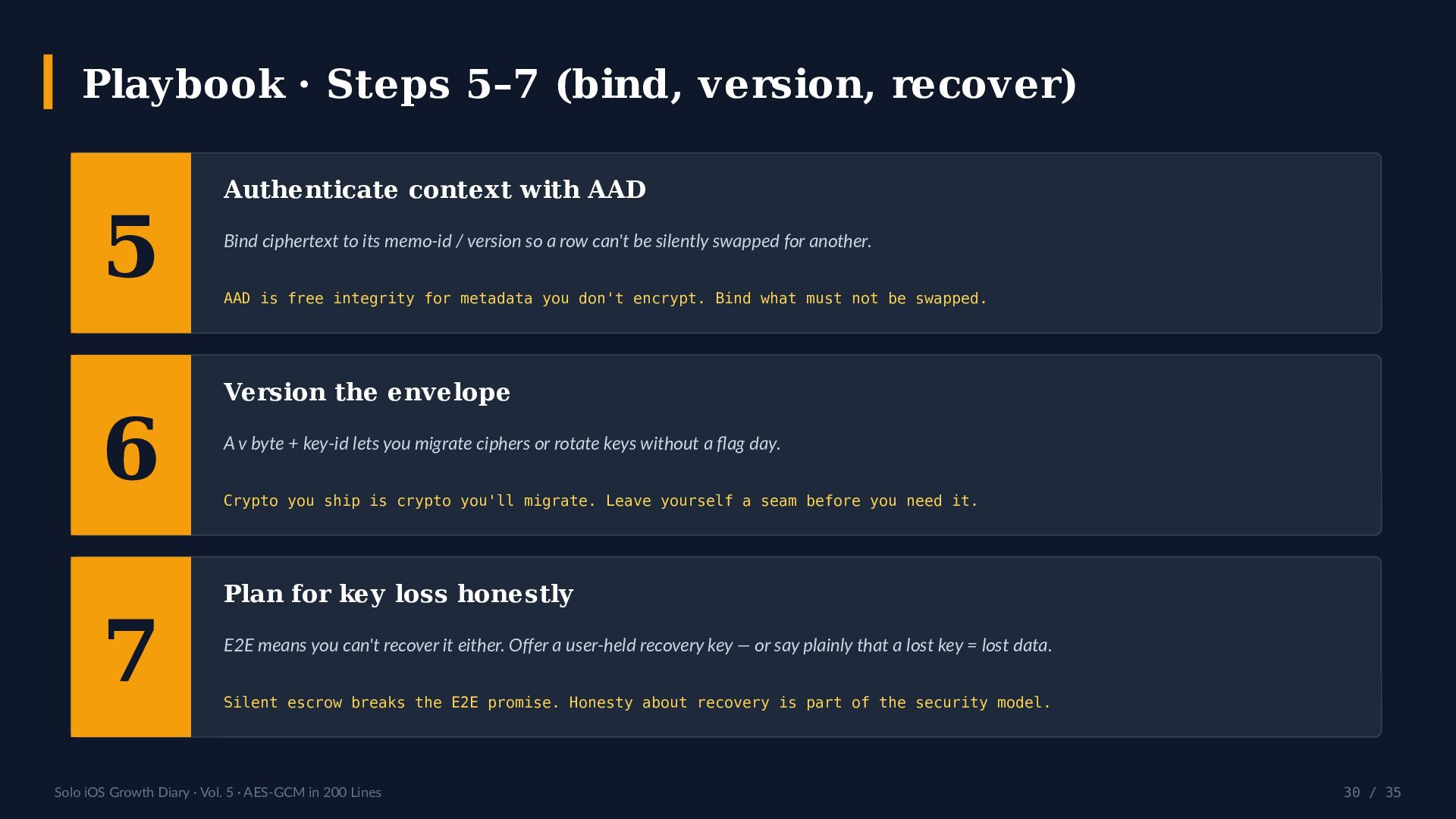

200 Lines 30 / 35 Playbook · Steps 5–7 (bind, version, recover) 5 Authenticate context with AAD Bind ciphertext to its memo-id / version so a row can't be silently swapped for another. AAD is free integrity for metadata you don't encrypt. Bind what must not be swapped. 6 Version the envelope A v byte + key-id lets you migrate ciphers or rotate keys without a flag day. Crypto you ship is crypto you'll migrate. Leave yourself a seam before you need it. 7 Plan for key loss honestly E2E means you can't recover it either. Offer a user-held recovery key — or say plainly that a lost key = lost data. Silent escrow breaks the E2E promise. Honesty about recovery is part of the security model. -

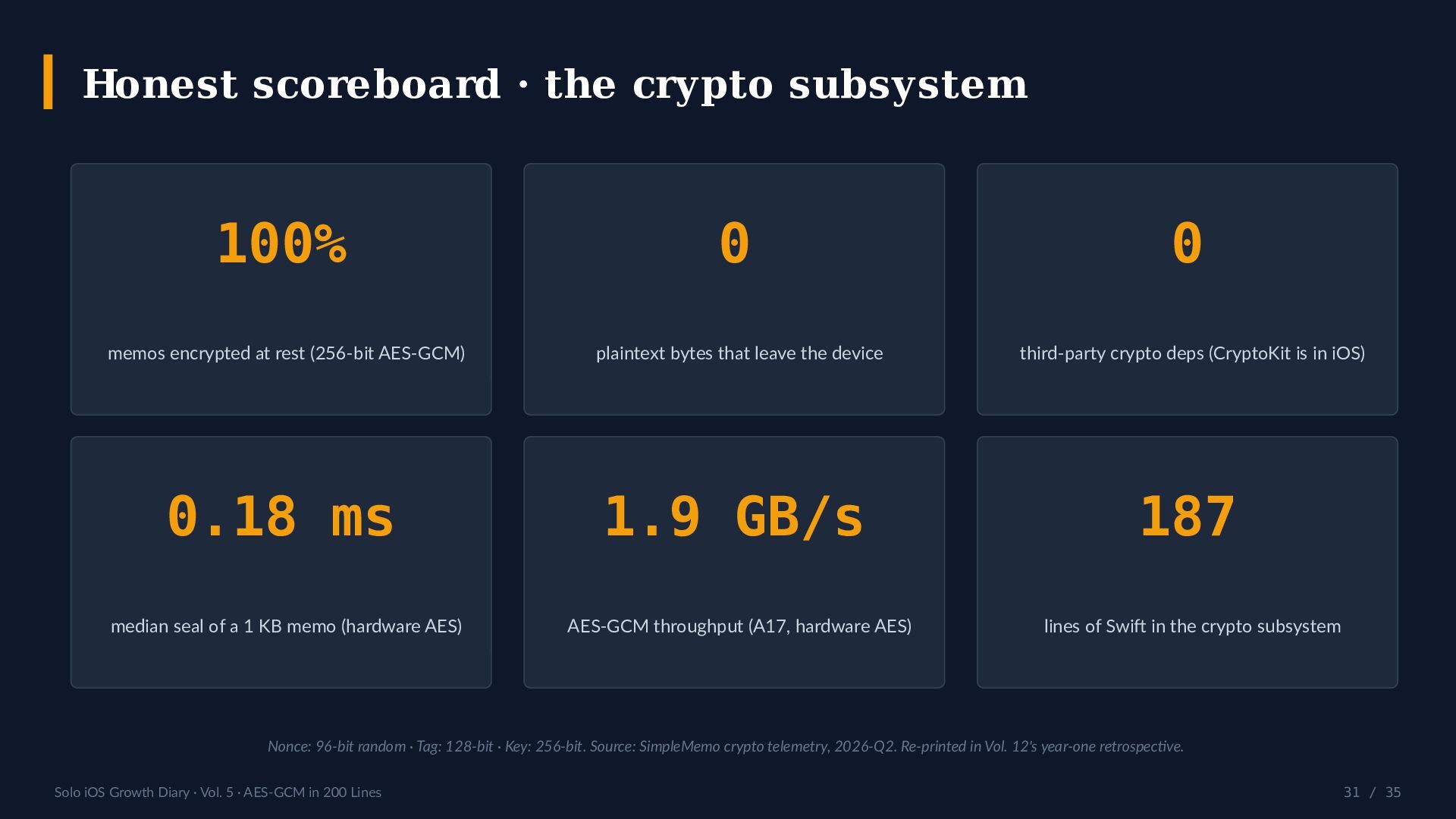

Solo iOS Growth Diary · Vol. 5 · AES-GCM in
200 Lines 31 / 35 Honest scoreboard · the crypto subsystem 100% memos encrypted at rest (256-bit AES-GCM) 0 plaintext bytes that leave the device 0 third-party crypto deps (CryptoKit is in iOS) 0.18 ms median seal of a 1 KB memo (hardware AES) 1.9 GB/s AES-GCM throughput (A17, hardware AES) 187 lines of Swift in the crypto subsystem Nonce: 96-bit random · Tag: 128-bit · Key: 256-bit. Source: SimpleMemo crypto telemetry, 2026-Q2. Re-printed in Vol. 12's year-one retrospective. -
Solo iOS Growth Diary · Vol. 5 · AES-GCM in

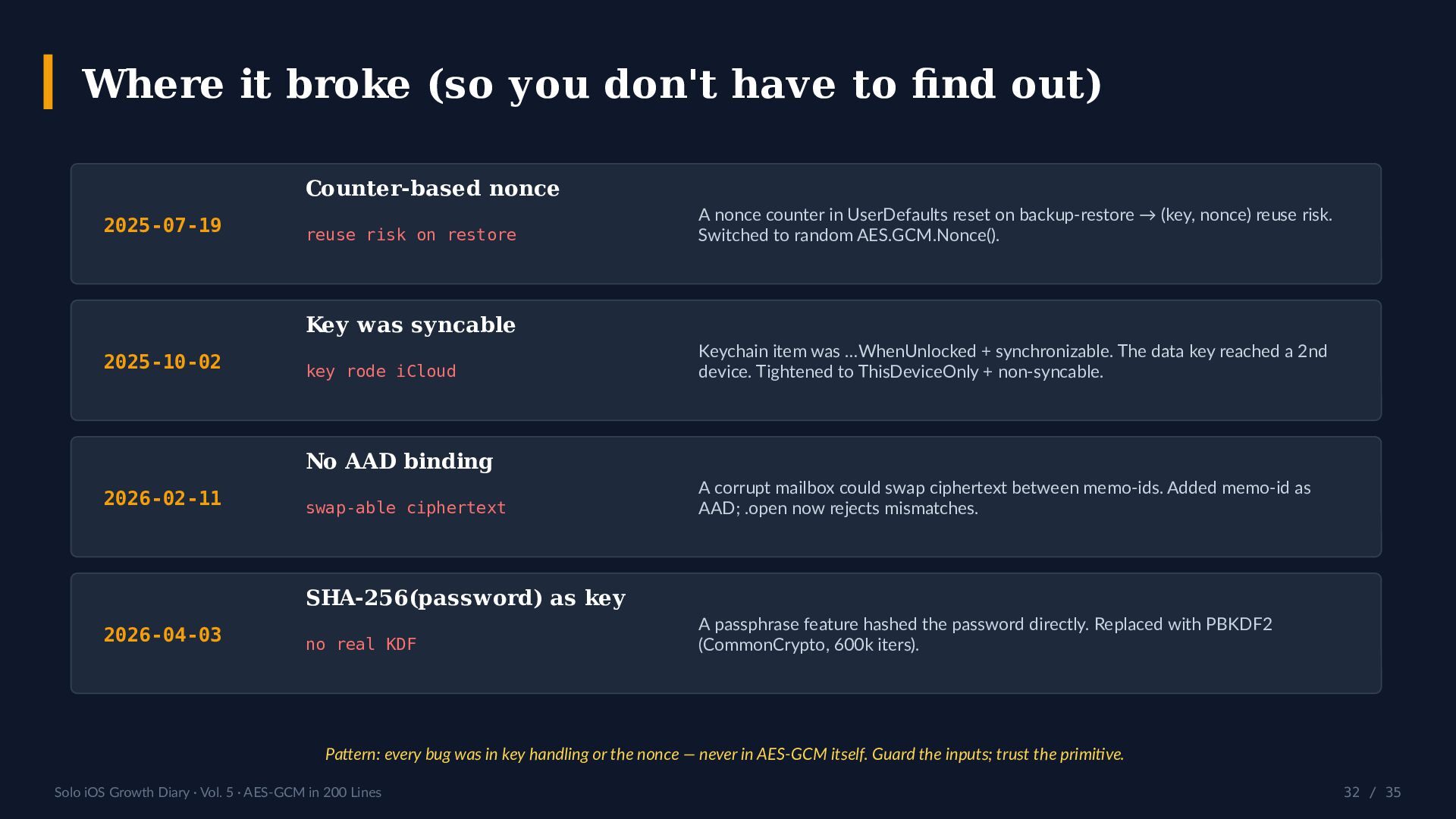

200 Lines 32 / 35 Where it broke (so you don't have to find out) 2025-07-19 Counter-based nonce reuse risk on restore A nonce counter in UserDefaults reset on backup-restore → (key, nonce) reuse risk. Switched to random AES.GCM.Nonce(). 2025-10-02 Key was syncable key rode iCloud Keychain item was …WhenUnlocked + synchronizable. The data key reached a 2nd device. Tightened to ThisDeviceOnly + non-syncable. 2026-02-11 No AAD binding swap-able ciphertext A corrupt mailbox could swap ciphertext between memo-ids. Added memo-id as AAD; .open now rejects mismatches. 2026-04-03 SHA-256(password) as key no real KDF A passphrase feature hashed the password directly. Replaced with PBKDF2 (CommonCrypto, 600k iters). Pattern: every bug was in key handling or the nonce — never in AES-GCM itself. Guard the inputs; trust the primitive. -
Solo iOS Growth Diary · Vol. 5 · AES-GCM in

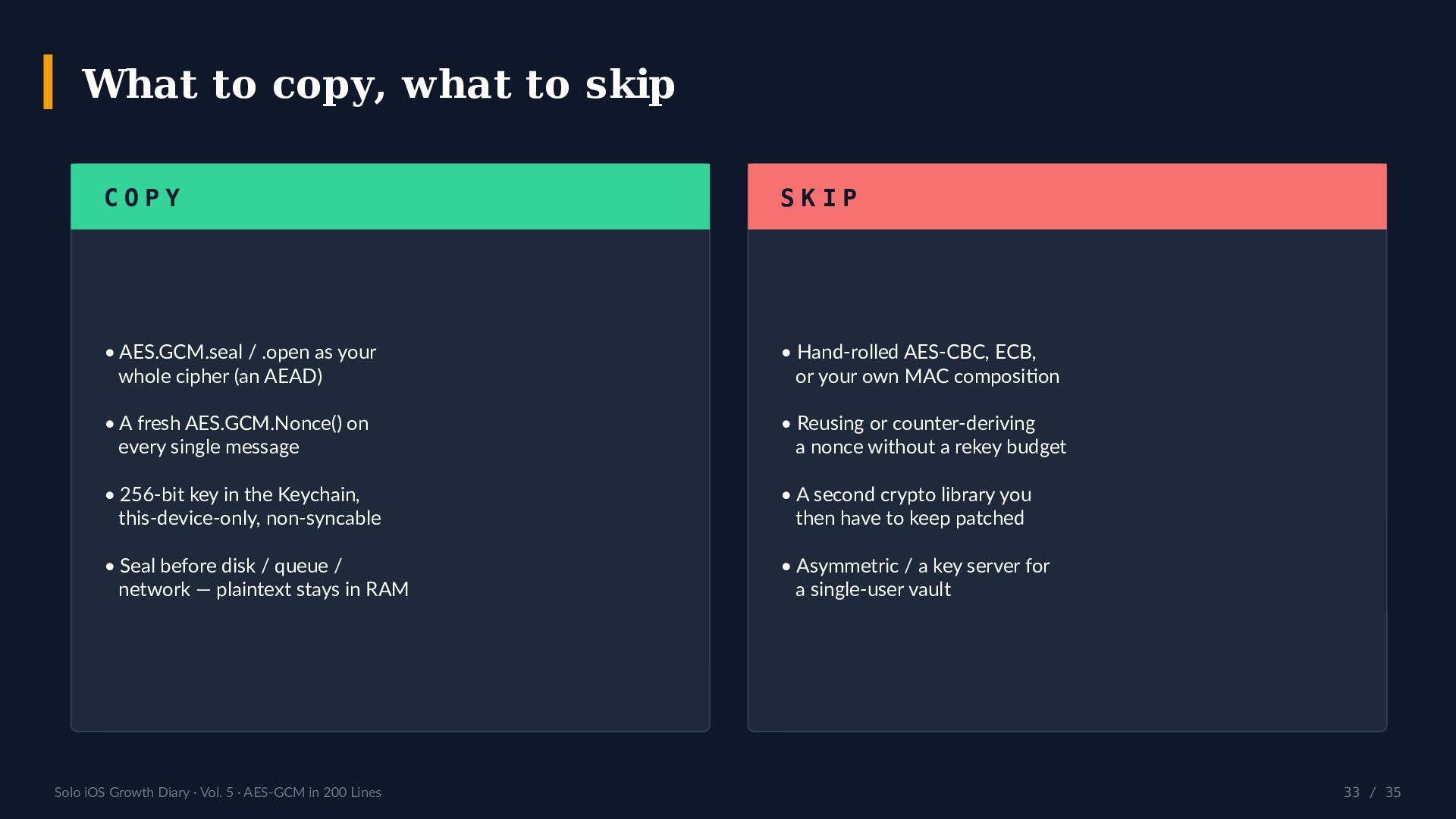

200 Lines 33 / 35 What to copy, what to skip C O P Y • AES.GCM.seal / .open as your whole cipher (an AEAD) • A fresh AES.GCM.Nonce() on every single message • 256-bit key in the Keychain, this-device-only, non-syncable • Seal before disk / queue / network — plaintext stays in RAM S K I P • Hand-rolled AES-CBC, ECB, or your own MAC composition • Reusing or counter-deriving a nonce without a rekey budget • A second crypto library you then have to keep patched • Asymmetric / a key server for a single-user vault -
Solo iOS Growth Diary · Vol. 5 · AES-GCM in
200 Lines 34 / 35 Strong encryption is a solved, two-line problem. Spend your worry on the key, not the cipher. — @simplememofast -
Solo iOS Growth Diary · Vol. 5 · AES-GCM in
200 Lines 35 / 35 Next week · Vol. 6 V O L . 0 6 ASO with No Budget — Keyword Landscape for Memo Apps in 2026 Thesis: exploit the ghosts of dead apps. How a solo dev maps a memo-app keyword landscape — Captio, EOL heirs, live clusters — and ranks with zero paid UA. F O L L O W speakerdeck.com/simplememo x.com/simplememofast New deck every Tuesday 22:00 JST. P U B L I S H E D Vol. 1 · From EOL to Encore Vol. 2 · Speed Is The Feature Vol. 3 · Email-as-Sync Vol. 4 · The Outbox Vol. 5 · AES-GCM in 200 Lines ← you are here
