Nextflow Hackathon 2018 - Introduction to Nextflow

Basic introduction into the "why" and "how" of Nextflow (http://www.nextflow.io) presented as part of #NFhack18 in Barcelona.

Transcript

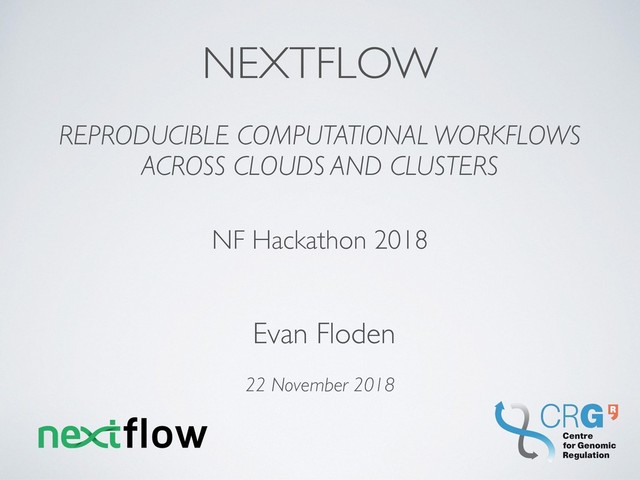

1. NEXTFLOW REPRODUCIBLE COMPUTATIONAL WORKFLOWS ACROSS CLOUDS AND CLUSTERS NF Hackathon 2018 Evan Floden 22 November 2018
2. https://github.com/nextflow-io/nf-hack18
3. AGENDA • The challenges with computational workflows • Nextflow main principles • Handling parallelisation and portability • Deployments scenarios • Comparison with other tools • Future plans
4. GENOMIC WORKFLOWS • Data analysis applications performs computation to generate information from (large) genomic datasets • Embarrassingly parallelisation, can spawn 100s-100k jobs over distributed cluster • Mash-up of many different tools and scripts (dependancies!) • Complex dependency trees and configuration → very fragile ecosystem
5. Steinbiss et al., Companion parassite genome annotation pipeline, DOI: 10.1093/nar/gkw292
6. A LOT OF MOVING PARTS • 70 tasks • 55 external scripts • 39 software tools & libraries
7. To reproduce the result of a typical
 computational biology paper
 requires 280 hours. ≈1.7 months!
9. THE SAME APPLICATION DEPLOYED IN DIFFERENT ENVIRONMENTS PRODUCES DIFFERENT RESULTS (!)
10. * Di Tommaso P, et al., Nextflow enables computational reproducibility, Nature Biotech, 2017
11. Platform Amazon Linux Debian Linux Mac OSX Number of chromosomes 36 36 36 Overall length (bp) 32.032.223 32.032.223 32.032.223 Number of genes 7.781 7.783 7.771 Gene density 236,64 236,64 236,32 Number of coding genes 7.580 7.580 7570 Average coding length (bp) 1.764 1.764 1.762 Number of genes with multiple CDS 113 113 111 Number of genes with known function 4.147 4.147 4.142 Number of t-RNAs 88 90 88 Comparison of the Companion pipeline annotation of Leishmania infantum genome executed across different platforms * * Di Tommaso P, et al., Nextflow enables computational reproducibility, Nature Biotech, 2017
12. CHALLENGES • Reproducibility, replicate results over time • Portability, run across different platforms • Scalability ie. deploy big distributed workloads • Usability, streamline execution and deployment of complex workloads ie. remove complexity instead of adding new one • Consistency ie. track changes and revisions consistently for code, config files and binary dependencies
13. PUSH-THE-BUTTON PIPELINES
14. HOW? • Fast prototyping 㱺 custom DSL that enables tasks composition, simplifies most use cases + general purpose programming lang. for corner cases • Easy parallelisation 㱺 declarative reactive programming model based on dataflow paradigm, implicit portable parallelism • Self-contained 㱺 functional approach, a task execution is idempotent ie. cannot modify the state of other tasks + isolate dependencies with containers • Portable deployments 㱺 executor abstraction layer + deployment configuration from implementation logic
15. Orchestration & Parallelisation Scalability & Portability Deployment & Reproducibility containers Git GitHub
16. TASK EXAMPLE bwa mem reference.fa sample.fq \ | samtools sort -o sample.bam
17. process align_sample { input: file 'reference.fa' from genome_ch file 'sample.fq' from reads_ch output: file 'sample.bam' into bam_ch script: """ bwa mem reference.fa sample.fq \ | samtools sort -o sample.bam """ } TASK EXAMPLE
18. TASKS COMPOSITION process index_sample { input: file 'sample.bam' from bam_ch output: file 'sample.bai' into bai_ch script: """ samtools index sample.bam """ } process align_sample { input: file 'reference.fa' from genome_ch file 'sample.fq' from reads_ch output: file 'sample.bam' into bam_ch script: """ bwa mem reference.fa sample.fq \ | samtools sort -o sample.bam """ }
19. DATAFLOW • Declarative computational model for parallel process executions • Processes wait for data, when an input set is ready the process is executed • They communicate by using dataflow variables i.e. async FIFO queues called channels • Parallelisation and tasks dependencies are implicitly defined by process in/out declarations
20. HOW PARALLELISATION WORKS data x data y data z task 1 task 2 task 3 data z channel process out z data y data x out y out x
21. HOW PARALLELISATION WORKS samples_ch = Channel.fromPath('data/sample.fastq') process FASTQC { input: file reads from samples_ch output: file 'fastqc_logs' into fastqc_ch """ mkdir fastqc_logs fastqc -o fastqc_logs -f fastq -q ${reads} """ }
22. samples_ch = Channel.fromPath('data/*.fastq') process FASTQC { input: file reads from samples_ch output: file 'fastqc_logs' into fastqc_ch """ mkdir fastqc_logs fastqc -o fastqc_logs -f fastq -q ${reads} """ } HOW PARALLELISATION WORKS
23. IMPLICIT PARALLELISM clustalo Channel.fromPath("data/*.fastq") clustalo FASTQC
24. HANDLING FILE PAIRS Channel.fromFilePairs("*_{1,2}.fq") ( gut, [gut_1.fq, gut_2.fq] ) ( lung, [lung_1.fq, lung_2.fq] ) ( liver, [liver_1.fq, liver_2.fq] ) gut_1.fq gut_2.fq liver_1.fq liver_2.fq lung_1.fq lung_2.fq
25. DEPLOYMENT SCENARIOS
26. LOCAL EXECUTION • Common development scenario • Dependencies can be managed using a container runtime • Parallelisations is managed spawning posix processes • Can scale vertically using fat server / shared mem. machine nextflow OS local storage docker/singularity laptop / workstation
27. CENTRALISED ORCHESTRATION computer cluster • Nextflow orchestrates workflow execution submitting jobs to a compute cluster eg. SLURM • It can run in the head node or a compute node • Requires a shared storage to exchange data between tasks • Ideal for corse-grained parallelisms NFS/Lustre cluster node cluster node cluster node cluster node submit jobs cluster node nextflow
28. DISTRIBUTED ORCHESTRATION login node NFS/Lustre job request cluster node cluster node launcher wrapper nextflow cluster nextflow driver nextflow worker nextflow worker nextflow worker HPC cluster • A single job request allocates the desired computes nodes • Nextflow deploys its own embedded compute cluster • The main instance orchestrate the workflow execution • The worker instances execute workflow jobs (work stealing approach)
29. jvm docker workers CLOUD DEPLOYMENT jvm docker NF driver NF daemon AWS EFS storage master setup cloud
 cluster GH repo Docker hub deploy dependencies upload code & deps computing
 cluster application pull code
30. KUBERNETES • Next generation native cloud clustering for containerised workloads • There's the need of workflow orchestration • Latest NF version includes a new command that streamline the workflow deployment to K8s
31. K8S DEPLOYMENT
32. PORTABILITY
33. PORTABILITY process { executor = 'slurm' queue = 'my-queue' memory = '8 GB' cpus = 4 container = 'user/image' }
34. PORTABILITY process { executor = 'awsbatch' queue = 'my-queue' memory = '8 GB' cpus = 4 container = 'user/image' }
35. CONFIGURATION DECOUPLING
 IS THE KEY TO PORTABLE DEPLOYMENTS
36. A QUICK COMPARISON
37. CONTAINERISATION
38. CONTAINER vs. VM • Lighter: MB vs GB • Faster startup: ms/secs vs minutes • Virtualise a process/application instead of a OS/Hardware • Immutable: don't change over time, thus guarantee replicability over executions. • Composable: the output of one container is directly consumable as input by another container. • Transparent: they are created with a well defined automated procedure.
39. CONTAINERISATION Nextflow job job job
40. SUPPORTED PLATFORMS
41. CONTAINERISATION • Nextflow envisioned the use of software containers to fix computational reproducibility • Mar 2014 (ver 0.7), support for Docker • Dec 2016 (ver 0.23), support for Singularity Nextflow job job job
42. SINGULARITY FEATURES Kurtzer et al. Singularity: Scientific containers for mobility of compute. PLoS ONE 12(5): e0177459
43. BENCHMARK* * Di Tommaso P, Palumbo E, Chatzou M, Prieto P, Heuer ML, Notredame C. (2015)
 The impact of Docker containers on the performance of genomic pipelines. PeerJ 3:e1273
 https://dx.doi.org/10.7717/peerj.1273 container execution can have an impact on short running tasks ie. < 1min
44. WHEN USE CONTAINERS? ALWAYS!
45. CONTAINER DEFINITION EXAMPLES
46. BEST PRACTICES • Helps to isolate dependencies from dev or local deployment environment • Provides a reproducibles sandbox for third party users • Binary images preserve against software decay • Make it transparent ie. always include the Dockerfile • Docker image format is de-facto standard, it can be executed by different runtime eg. Singularity, Shifter, uDocker, etc.
47. EXTRA STUFF
48. • Community effort to collect production ready analysis pipelines built with Nextflow • Initially supported by SciLifeLab, QBiC and A*Star Genome Institute Singapore • https://nf-co.re Alexander
 Peltzer Phil Ewels Andreas Wilm Maxime Garcia + others
50. DEMO!
51. EXECUTION REPORT
52. EXECUTION REPORT
53. EXECUTION REPORT
54. EXECUTION TIMELINE
56. DAG VISUALISATION
57. EDITORS !
58. WHAT'S NEXT
59. CONDA SUPPORT SCRIPT CONFIG
60. MORE CLOUDS
61. DATA INTEGRATION • Allow direct query over SQL/NoSQL datasources • Uniform access to local and remote big-data repositories such as Athena, DynamoDB, BigQuery, etc • Query result is mapped to Nextflow channel structure triggering process executions
62. APACHE SPARK • Native support for Apache Spark clusters and execution model • Allow hybrid Nextflow and Spark applications • Mix the best of the two worlds, Nextflow for legacy tools/corse grain parallelisation and Spark for fine grain/distributed execution eg. GATK4
63. NOTEBOOKS • Combine interactive computing with the heavy CPU work • Jupyter implementation (iNextflow) • RMarkdown
64. • Participate in Cloud Work Stream working group • TES: Task Execution API (working prototype) • WES: Workflow Execution API • Enable interoperability with GA4GH complaint platforms eg. Cancer Genomics Cloud and Broad FireCloud
65. WHO IS USING NEXTFLOW?
66. CONCLUSION • Data analysis reproducibility is hard and it's often underestimated. • Nextflow does not provide a magic solution but enables best-practices and provide support for community and industry standards. • It strictly separates the application logic from the configuration and deployment logic, enabling self-contained workflows. • Applications can be easily deployed across different environment in a reproducible manner with a single command. • The functional/reactive model allows applications to scale to millions of jobs with ease.
67. ACKNOWLEDGMENTS Emilio Palumbo Cedric Notredame Notredame Lab, CRG http://nextflow.io Paolo Di Tommaso Evan Floden
