Softonic Migration to the Cloud

Architecture changes and data migrations.

We show that we split a monolith into microservices and how we managed the data changes to move everything to a Google Cloud, using their Kubernetes managed solution, GKE.

Presented during the Google Cloud Summit Madrid'19

Transcript

1. Softonic Migration to the Cloud Architecture changes and data migrations
2. Who are we? 20-year old Internet property
3. Who are we? 20 years old Internet property World's largest software and app catalog
4. Who are we? 20-year old Internet property World's largest software and app catalog Translated to many languages: EN, DE, ES, IT... => 20! (includes exotic languages like Kiswahili)
5. Who are we? 20-year old Internet property World's largest software and app catalog Translated to many languages: EN, DE, ES, IT... => 20! (includes exotic languages like Kiswahili) 4M daily visits, 12M daily page views 10K docs/s written in logs in peak time on our services
6. Who are we? Basilio Vera (@basi) Senior Principal Software Engineer 16 years working in Softonic Master of none

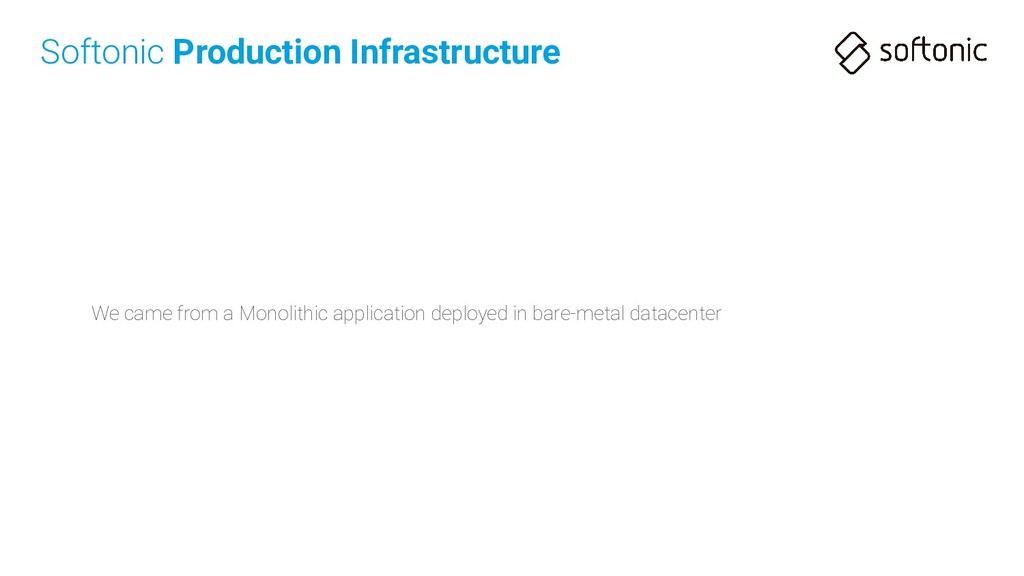

7. Softonic Production Infrastructure We came from a Monolithic application deployed in bare-metal datacenter

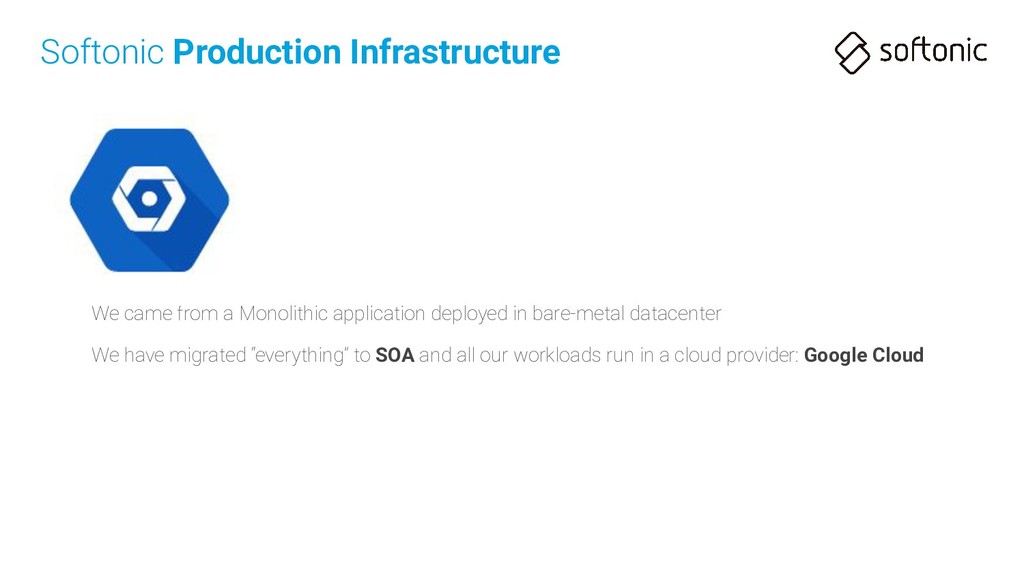

8. Softonic Production Infrastructure We came from a Monolithic application deployed in bare-metal datacenter We have migrated “everything” to SOA and all our workloads run in a cloud provider: Google Cloud
9. Softonic Production Infrastructure We came from a Monolithic application deployed in bare-metal datacenter We have migrated “everything” to SOA and all our workloads run in a cloud provider: Google Cloud Google Kubernetes Engine (GKE) running in different regions and zones
10. Softonic Production Infrastructure We came from a Monolithic application deployed in bare-metal datacenter We have migrated “everything” to SOA and all our workloads run in a cloud provider: Google Cloud Google Kubernetes Engine (GKE) running in different regions and zones We use Elasticstack for logs processing (and runtime database!)

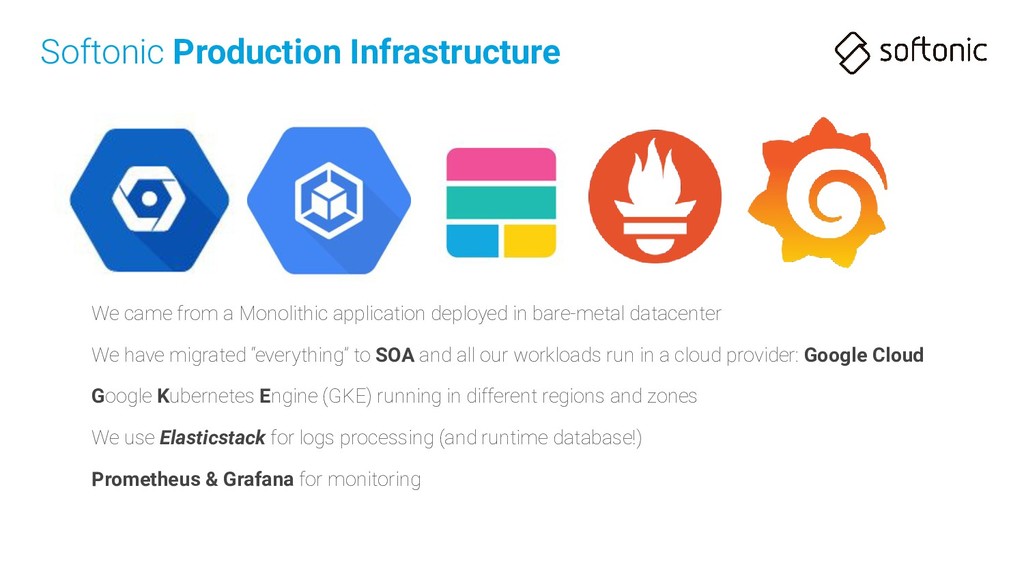

11. Softonic Production Infrastructure We came from a Monolithic application deployed in bare-metal datacenter We have migrated “everything” to SOA and all our workloads run in a cloud provider: Google Cloud Google Kubernetes Engine (GKE) running in different regions and zones We use Elasticstack for logs processing (and runtime database!) Prometheus & Grafana for monitoring

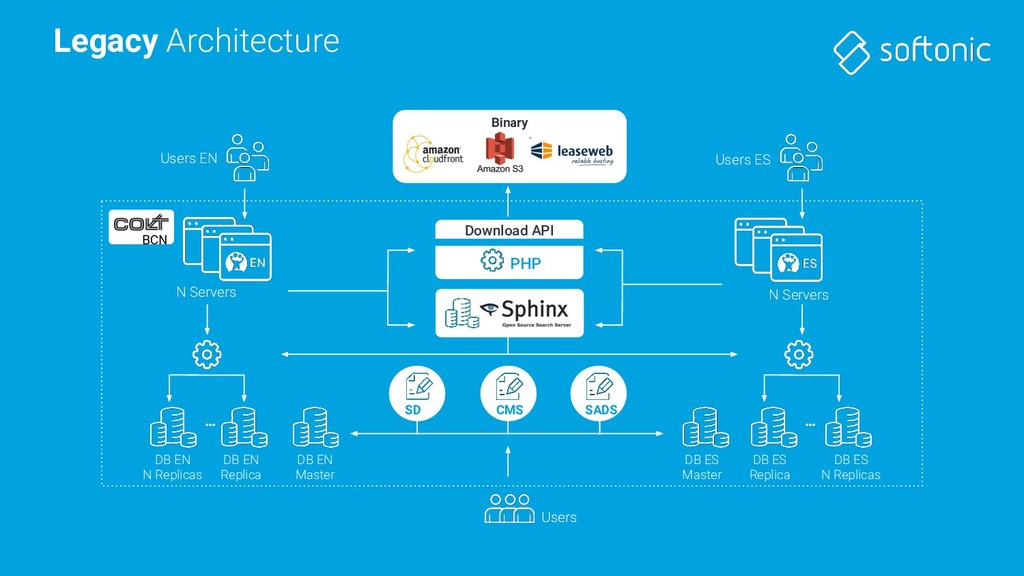

12. Legacy Architecture Binary Providers N Servers N Servers Users EN Users ES DB EN Master DB EN Replica DB EN N Replicas SD C CMS DB ES Master DB ES Replica DB ES N Replicas … … Users BCN SADS Download API PHP

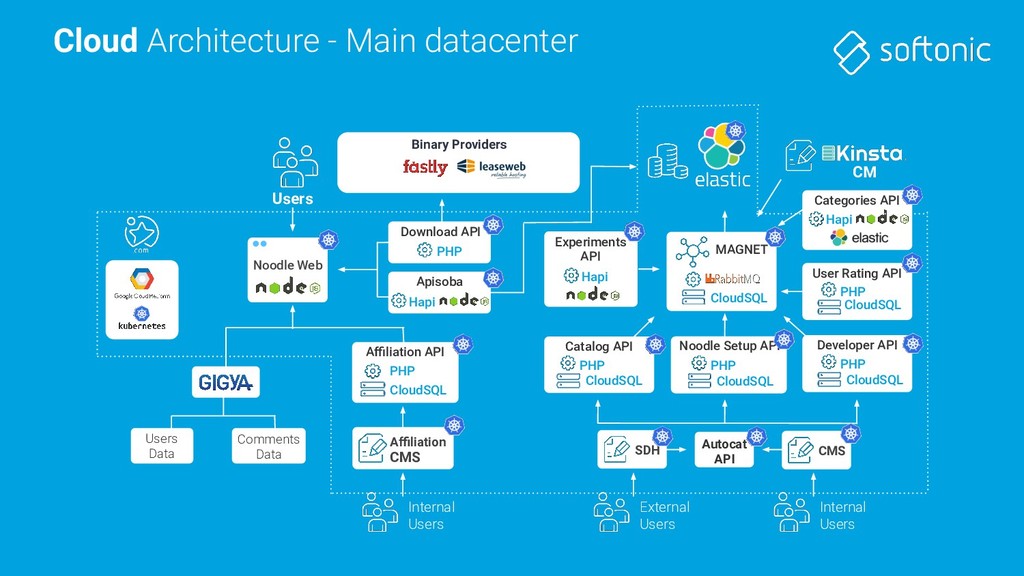

13. Cloud Architecture - Main datacenter Users CM S Noodle Web Download API PHP Affiliation CMS Users Data Comments Data Apisoba Hapi User Rating API PHP CloudSQL Developer API PHP CloudSQL MAGNET CloudSQL Experiments API Hapi SDH CMS Autocat API Internal Users External Users Internal Users Catalog API PHP CloudSQL Categories API Hapi Noodle Setup API PHP CloudSQL Affiliation API PHP CloudSQL Binary Providers
14. Cloud Architecture - Other datacenters Binary Providers Users Download API PHP Apisoba Hapi Affiliation API PHP Cloud SQL Noodle Web Users Data Comments Data

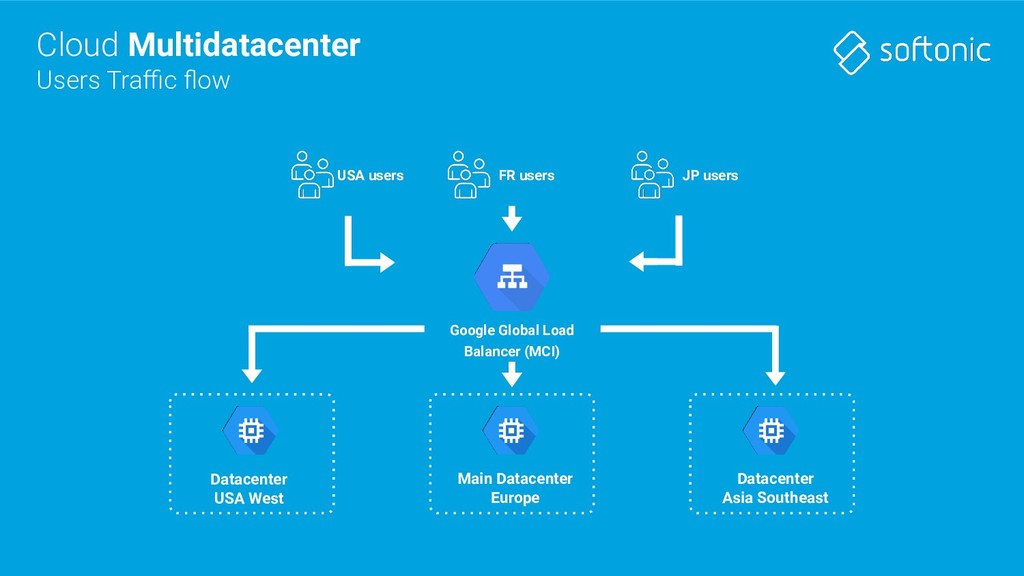

15. Cloud Multidatacenter Users Traffic flow USA users JP users FR users Google Global Load Balancer (MCI) Main Datacenter Europe Datacenter Asia Southeast Datacenter USA West
16. When extracting a monolith to a microservice we are extracting the functional code and its data We need to be sure that its data is accessed and modified just by it Migrating data to a microservice
17. When extracting a monolith to a microservice we are extracting the functional code and its data We need to be sure that its data is accessed and modified just by it Business rules: ◦ Don’t affect other teams productivity ◦ Don’t affect end-user products ◦ Make all the changes transparently Migrating data to a microservice

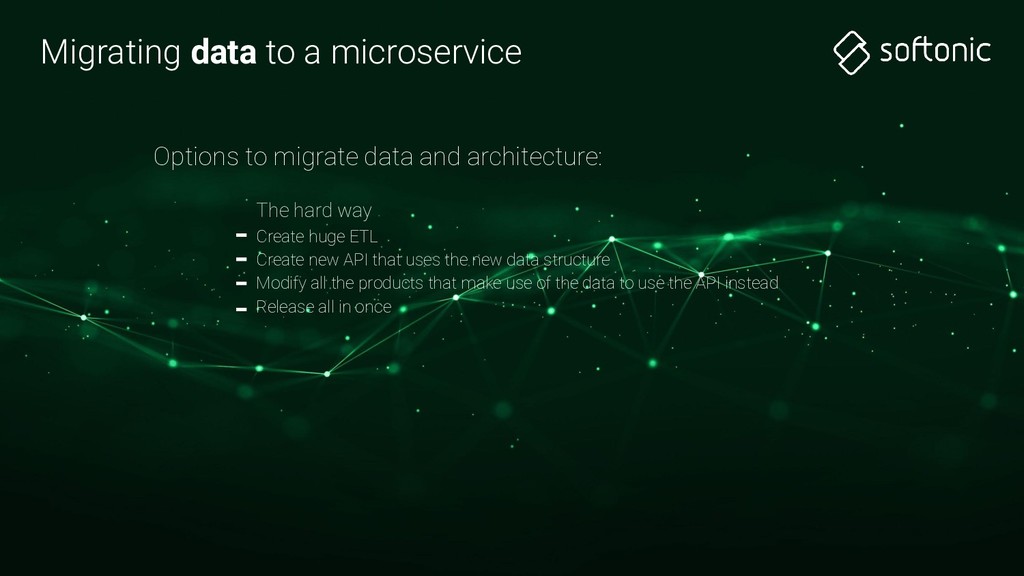

18. Options to migrate data and architecture: The hard way Create huge ETL Create new API that uses the new data structure Modify all the products that make use of the data to use the API instead Release all in once Migrating data to a microservice
19. Options to migrate data and architecture: The hard way Create huge ETL Create new API that uses the new data structure Modify all the products that make use of the data to use the API instead Release all in once The soft way Create new API with the capability of write/read in legacy and new datasource Execute ETL Maintain both datasources synced until the migration of the products is done Remove legacy datasource and database Migrating data to a microservice
20. We like the soft way You need to define the strategy to replicate on each API Migrating data to a microservice

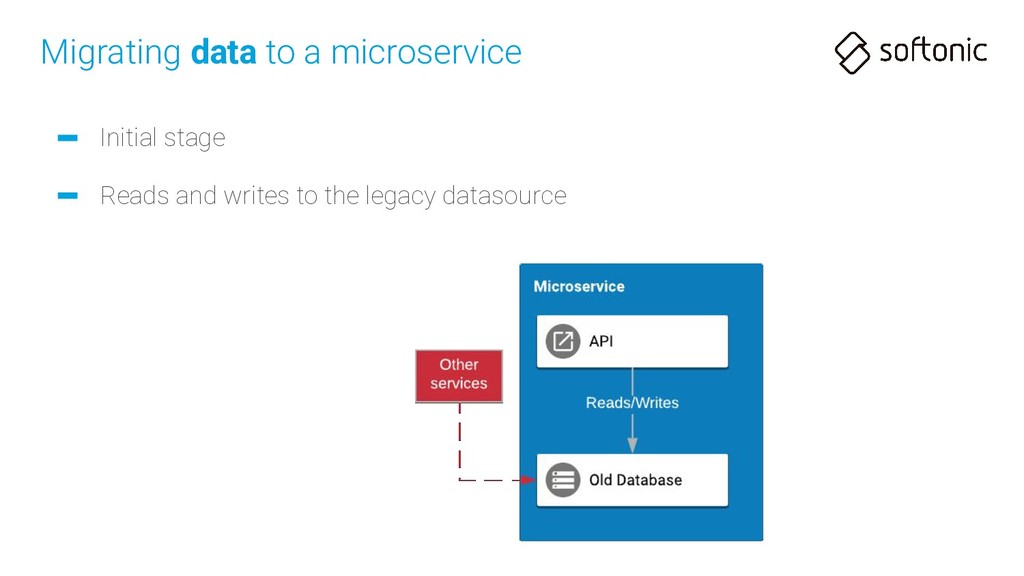

21. Initial stage Reads and writes to the legacy datasource Migrating data to a microservice
22. Writes on both datasources Reads to legacy Migrate initial data Check new data is consistent Migrating data to a microservice
23. Writes on both datasources Reads to new datasource Migrate services to use the API Migrating data to a microservice
24. Migration finished All the products have been migrated to use this API The legacy datasource is removed Migrating data to a microservice
25. Migrating data to a microservice

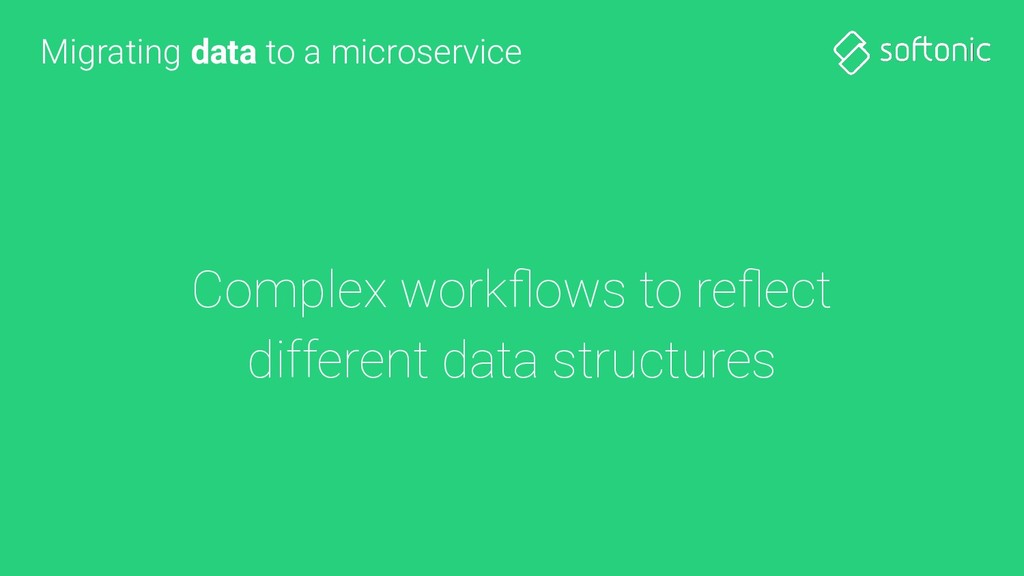

26. Complex workflows to reflect different data structures Migrating data to a microservice
27. Migrating data to a microservice

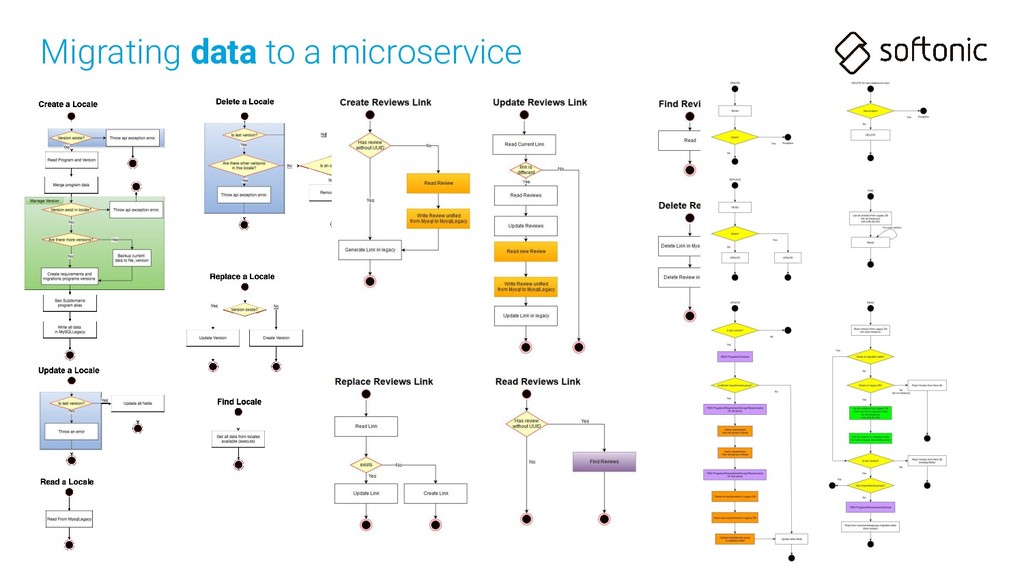

28. Migrating data to a microservice
29. Migrating data to a microservice

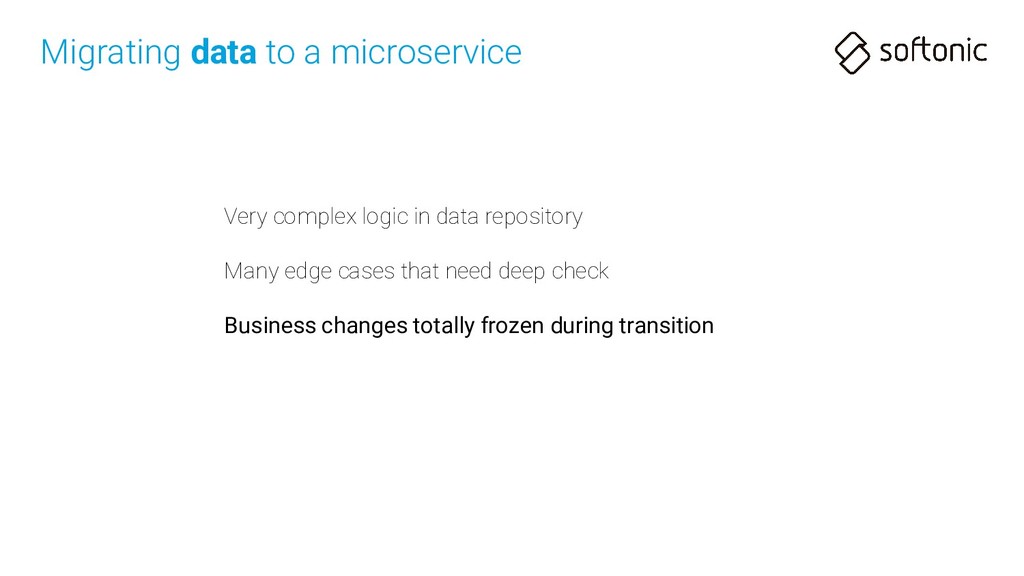

30. Migrating data to a microservice Very complex logic in data repository Many edge cases that need deep check Business changes totally frozen during transition
31. Migrating data to a microservice
32. Data in the cloud
33. Data in the cloud We use Kubernetes in GKE Our microservices run in Kubernetes clusters What about stateful applications? Most of our microservices are stateful It depends…
34. Use the right tool for the job
35. Data in the cloud We use MySQL as database for some microservices We use Elasticsearch as database for storing logs and end-user services We use Redis for cache and database We use Memcached for cache

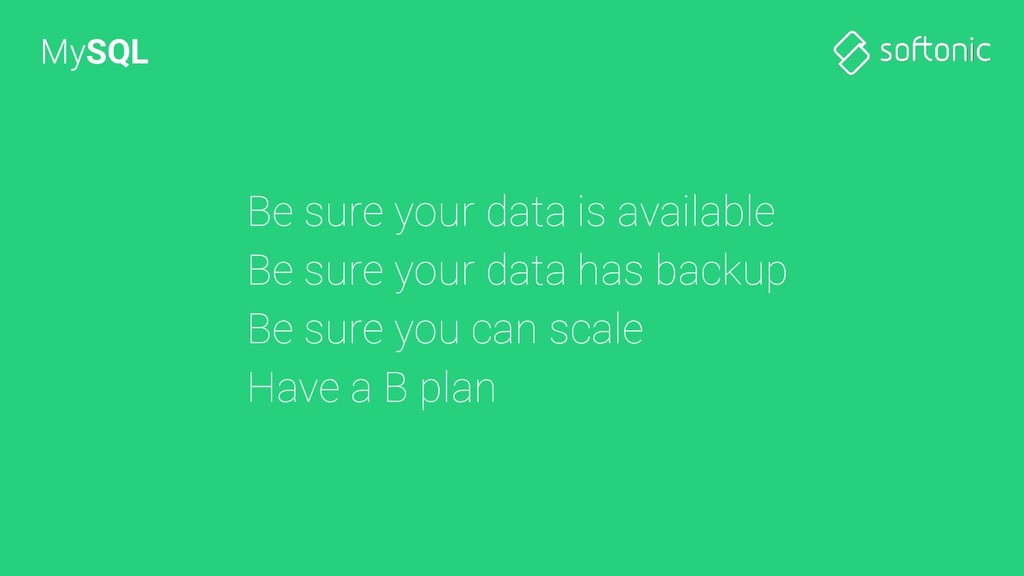

36. MySQL Be sure your data is available Be sure your data has backup Be sure you can scale Have a B plan

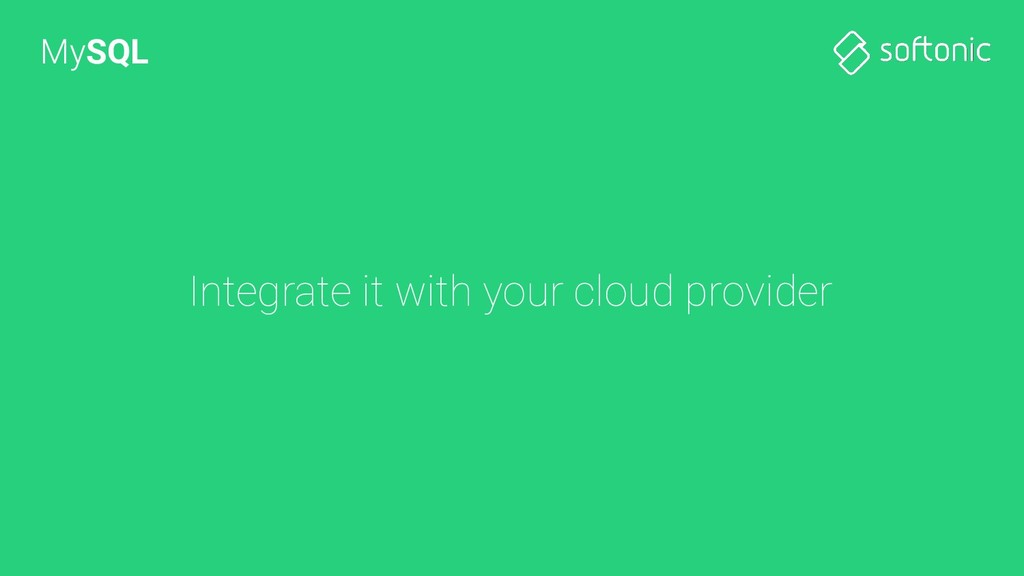

37. MySQL Integrate it with your cloud provider

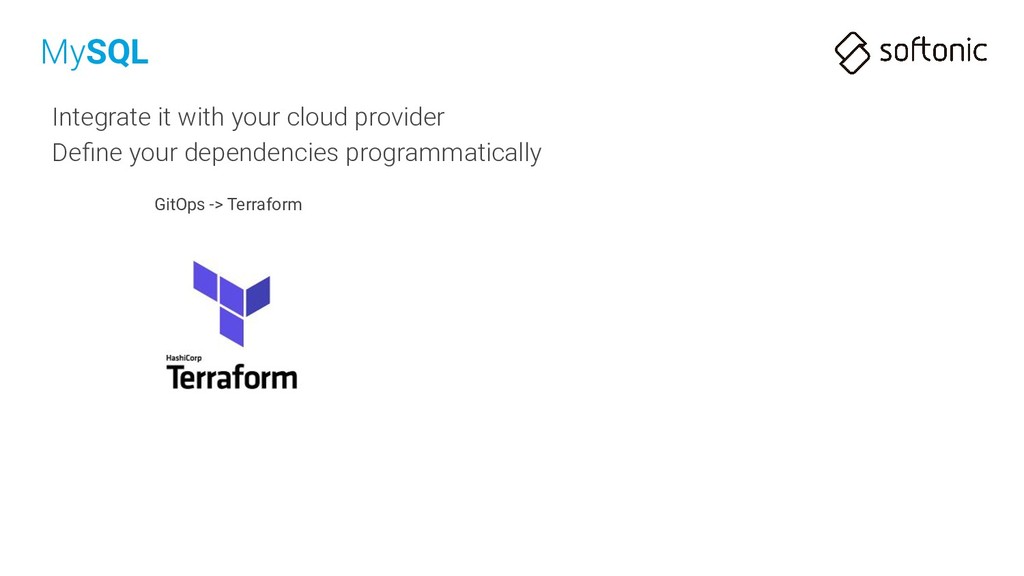

38. MySQL Integrate it with your cloud provider Define your dependencies programmatically GitOps -> Terraform

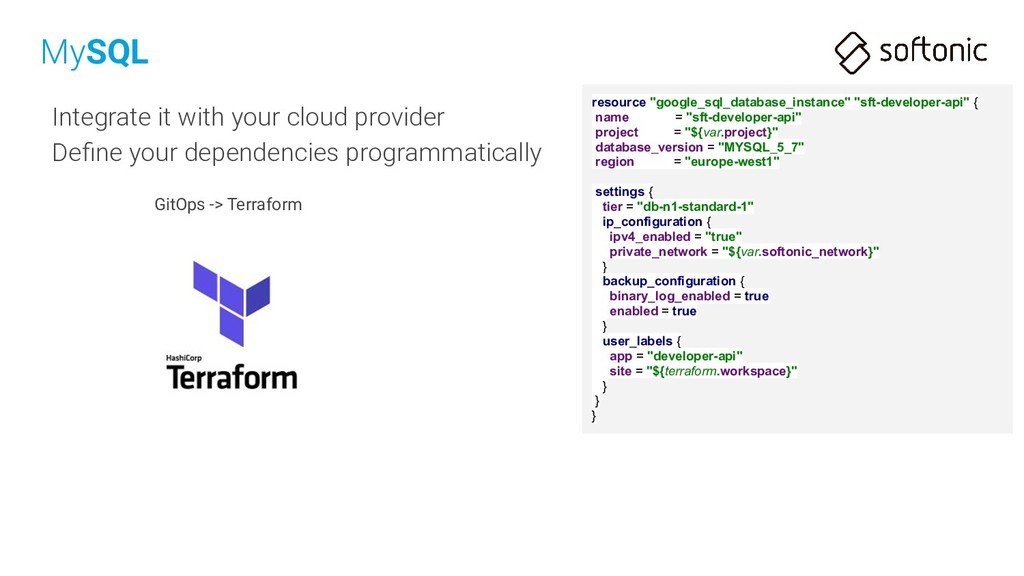

39. MySQL Integrate it with your cloud provider Define your dependencies programmatically GitOps -> Terraform resource "google_sql_database_instance" "sft-developer-api" { name = "sft-developer-api" project = "${var.project}" database_version = "MYSQL_5_7" region = "europe-west1" settings { tier = "db-n1-standard-1" ip_configuration { ipv4_enabled = "true" private_network = "${var.softonic_network}" } backup_configuration { binary_log_enabled = true enabled = true } user_labels { app = "developer-api" site = "${terraform.workspace}" } } }
40. MySQL Integrate it with your cloud provider Define your dependencies programmatically GitOps -> Terraform resource "google_sql_database_instance" "sft-developer-api" { name = "sft-developer-api" project = "${var.project}" database_version = "MYSQL_5_7" region = "europe-west1" settings { tier = "db-n1-standard-1" ip_configuration { ipv4_enabled = "true" private_network = "${var.softonic_network}" } backup_configuration { binary_log_enabled = true enabled = true } user_labels { app = "developer-api" site = "${terraform.workspace}" } } }
41. MySQL We have some some microservices running in different regions Try to avoid data replication across regions Protocols designed for LAN, different regions mean WAN Application design+Business requirements+compromise solution
42. MySQL
43. MySQL Recommendations: use private IP for connect to the database It allows you to not to use Cloud SQL Proxy* *Cloud SQL Proxy: https://cloud.google.com/sql/docs/mysql/sql-proxy It needs specific Kubernetes deployment or run as a sidecar
44. MySQL What about run MySQL in the cluster? Initially we decided to use CloudSQL because of reasons: PROS Simplicity Automatic backup “Automatic” vertical autoscaling Peace of mind while upgrading the cluster CONS No REAL HA More tied to your cloud provider More expensive than running it as a container in Kubernetes

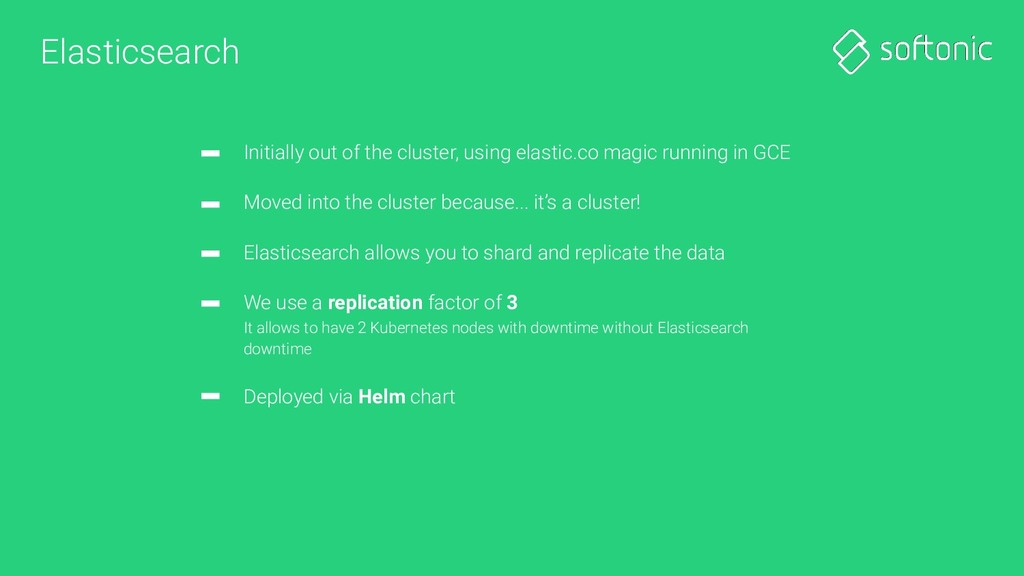

45. Elasticsearch Initially out of the cluster, using elastic.co magic running in GCE Moved into the cluster because... it’s a cluster! Elasticsearch allows you to shard and replicate the data We use a replication factor of 3 It allows to have 2 Kubernetes nodes with downtime without Elasticsearch downtime Deployed via Helm chart

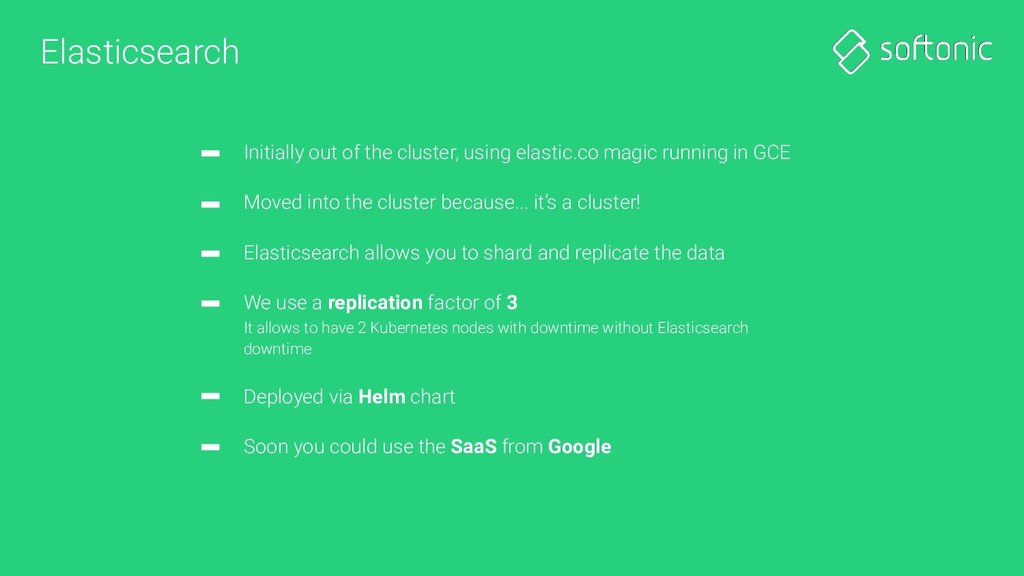

46. Elasticsearch Initially out of the cluster, using elastic.co magic running in GCE Moved into the cluster because... it’s a cluster! Elasticsearch allows you to shard and replicate the data We use a replication factor of 3 It allows to have 2 Kubernetes nodes with downtime without Elasticsearch downtime Deployed via Helm chart Soon you could use the SaaS from Google
47. Elasticsearch: Upgrading K8s cluster There’s a preStop step in the data PODs that starts moving all its data to other shards Next node cannot start the upgrade until the earlier node has moved all its data It makes the upgrade slow but secure

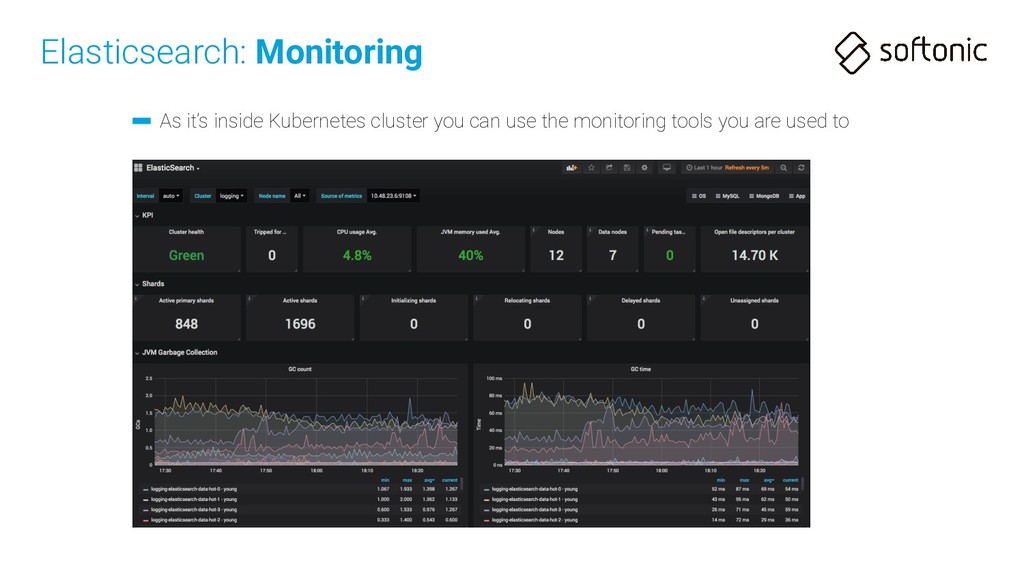

48. Elasticsearch: Monitoring As it’s inside Kubernetes cluster you can use the monitoring tools you are used to
49. Elasticsearch: Data We replicate data across different clusters asynchronously We use a CQRS-like approach generating a “materialized-view”
50. Elasticsearch: Data
51. @basi @SoftonicEng
