NEXT: Crowdsourcing, machine learning and cartoons

Homepage: http://nextml.org/
Source: https://github.com/nextml/next/
Docs: https://github.com/nextml/next//wiki

Transcript

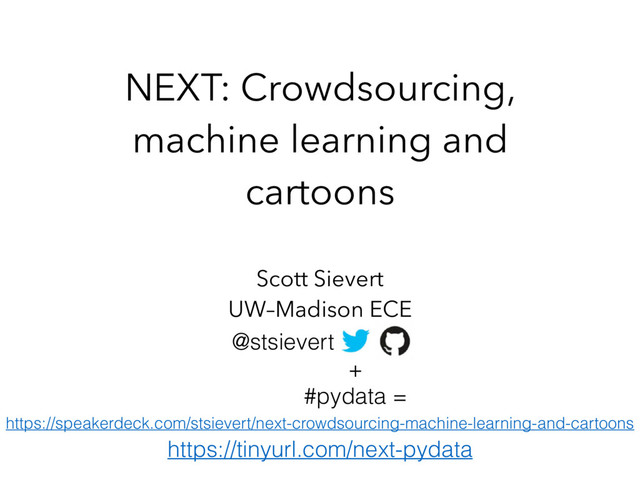

1. NEXT: Crowdsourcing, machine learning and cartoons Scott Sievert UW–Madison ECE @stsievert + #pydata = https://speakerdeck.com/stsievert/next-crowdsourcing-machine-learning-and-cartoons https://tinyurl.com/next-pydata
2. NEXT enables research by producing better results for the same time or money NEXT is implemented in pure Python https://tinyurl.com/next-pydata
3. Data collection can be costly https://xkcd.com/1838/ Problem (comic text hidden) https://tinyurl.com/next-pydata
4. Data collection with crowdsourcing can be expensive Problem https://tinyurl.com/next-pydata
5. Example Problem Goal: achieve goal with minimal responses https://tinyurl.com/next-pydata
6. Existing crowdsourcing systems are passive Goal: adapt to previously collected responses Adapting to previous responses finds the best questions One solution https://tinyurl.com/next-pydata
7. Adaptive sampling can have large benefits $$$ NEXT Mechanical Turk Benefits https://tinyurl.com/next-pydata
8. unlabeled data Example of adaptive algorithm https://tinyurl.com/next-pydata
9. Kevin Jamieson Prof. Rob Nowak Lalit Jain Daniel Ross nextml.org Homepage: http://nextml.org Source: https://github.com/nextml/NEXT Documentation: https://github.com/nextml/NEXT/wiki https://tinyurl.com/next-pydata
10. UW Psychology uses NEXT to find the best algorithms for adaptive data collection in cognitive science. The New Yorker uses NEXT to crowd-source the weekly cartoon caption contest. Air Force Research Lab uses NEXT for active image classification. ML Researchers Experimentalists Practitioners Theory Practice NEXT users https://tinyurl.com/next-pydata
11. Bob Mankoff Comic by P. C. Vey The New Yorker has to find the funniest caption from ~5,000 captions Example problem https://tinyurl.com/next-pydata
12. http://www.newyorker.com/cartoons/vote http://nextml.org/captioncontest Comic by P. C. Vey Interface https://tinyurl.com/next-pydata
13. Histogram of responses Histogram of time responses received Experiment Info Data from contests: https://github.com/nextml/caption-contest-data Dashboard https://tinyurl.com/next-pydata
14. I’d better give it a little longer. It’s a really tough case.
15. https://tinyurl.com/next-pydata 0 not funny 1 somewhat funny 2 funny Data BR-lilUCB Random Papers + software enhancements 4x times fewer ratings needed! Experimentalist Benefits
16. Crowdsourcing Adaptive sampling algorithms fewer responses real–world data + problems seen Goal: enable this feedback loop Enabling this feedback loop requires software that is useful and easy to use by both parties NEXT https://tinyurl.com/next-pydata
17. NEXT also has a REST API comic by P. C. Vey Cardinal Bandits Select the street that looks safer Dueling Bandits Select expression on the bottom most similar to the face on top Pool based triplets By default, NEXT has adaptive algorithms for the 3 default question types Default uses https://tinyurl.com/next-pydata
18. Algorithm developer and mathematician Pr ky ˆ yk2 2 < ✏ 1 https://tinyurl.com/next-pydata
19. See https://github.com/nextml/NEXT/wiki for details and more launching options (more detail in SciPy 2017 proceedings and on docs) Launching NEXT via Amazon EC2 AMI https://tinyurl.com/next-pydata
20. NEXT startup page https://tinyurl.com/next-pydata at http://[ec2-dns]:8000/home
21. https://tinyurl.com/next-pydata
22. Algorithm developer and mathematician Pr ky ˆ yk2 2 < ✏ 1 https://tinyurl.com/next-pydata
23. Adaptive data flow https://tinyurl.com/next-pydata
24. What choices were made in implementation? What have these choices enabled? https://tinyurl.com/next-pydata
25. 1. Treat algorithms as black boxes • For each function, inputs and outputs are documented and type-checked 2. Use wrapper to allow easy access to experiment information and background jobs 3. Objects are abstracted to integers • There is a mapping from integers to complete object details (more detail in SciPy 2017 proceedings and on docs) Algorithm design decisions 0. Use a high–level language (Python) https://tinyurl.com/next-pydata
26. https://tinyurl.com/next-pydata Histogram of responses Histogram of time responses received Experiment Info https://tinyurl.com/next-pydata
27. Select the street that looks safer Street Score Select expression on the bottom most similar to the face on top Psychology triplets Use cases Image search https://tinyurl.com/next-pydata enabled by this implementation
28. Psychology triplets Problem: use humans to generate “similarity” map of facial emotions This is the motivation for NEXT https://tinyurl.com/next-pydata
29. People Prof. Tim Rogers Psychology April Murphy Psychology Kevin Jamieson ECE Prof. Robert Nowak ECE Lalit Jain Math https://tinyurl.com/next-pydata
30. Psychology triplets Select expression on the bottom most similar to the face on top Best question for similarity map: https://tinyurl.com/next-pydata
31. Psychology triplets Number of questions scale poorly Finding the best questions gets more difficult (⇡ n3) https://tinyurl.com/next-pydata
32. https://tinyurl.com/next-pydata
33. https://tinyurl.com/next-pydata Positivity Intensity
34. Street score Goal: find humans perception of the safest streets in Chicago https://tinyurl.com/next-pydata
35. Street score Question: pairwise comparisons These use Google StreetView images Select the street that looks safer https://tinyurl.com/next-pydata
36. Street score Issues • Clustered ranking safe somewhat safe unsafe Advantages Similar to sorting https://tinyurl.com/next-pydata
37. Paper (@AISTATS 2018) Sumeet Katariya ECE Nandana Sengupta Sociology Prof. James Evans Sociology https://tinyurl.com/next-pydata Prof. Robert Nowak ECE Lalit Jain Math
38. Layman’s adaptive algorithm getQuery: choose streets where most uncertain about which cluster the street belongs too boundary Score Street picture index https://tinyurl.com/next-pydata safe unsafe
39. Results No gains from active learning! Why? Crowdsourcing responses are too noisy https://tinyurl.com/next-pydata Fraction of inverted pairs Error Number of responses passive adaptive Actual: Predicted:
40. But if we dig a little deeper with simulations… Safe Actual: Predicted: Unsafe Safe Unsafe adaptive passive
41. Image search Problem: find the shoes you’re interested in https://tinyurl.com/next-pydata
42. Image search Question: Pick initial shoe than rate similar shoes https://tinyurl.com/next-pydata
43. Image search problems • Large dataset from Zappos • 50,000 shoes with 1,000 features each) https://tinyurl.com/next-pydata [f(shoe, , ) for shoe in [ , , , , , ] ↑ entire dataset
44. Paper Kwang-Sung Jun ECE Aniruddha Bhargava ECE https://tinyurl.com/next-pydata Prof. Robert Nowak ECE Prof. Becca Willett ECE
45. Image search solution exhaustively evaluate shoes ↓ selectively evaluate shoes [f(shoe, , ) for shoe in [ , , ] https://tinyurl.com/next-pydata
46. Time 20 40 Cumulative rewards 5 10 15 20 25 30 OFUL Lazy LTS OFUL Light QOFUL NN Their method https://tinyurl.com/next-pydata Number of answers for red boots
47. Software improvements • Internal redesign • {Experimentalist, developer} ease of use • Fast in-memory database support with Redis • Documentation improvements • Many bugs fixes
48. 1. Adaptive sampling reduces data collection cost. 2. NEXT is a crowdsourcing data collection tool that can use adaptive sampling techniques 3. NEXT is easy* to use by experimentalists, algorithm developers and practitioners, and a mathematical background is not required. 4. NEXT developers use experimentalist engagement to aid research and to gain feedback to improve the software * NEXT has been created by an academic research group in collaboration with psychologists Key messages https://tinyurl.com/next-pydata
49. https://xkcd.com/1543/ https://tinyurl.com/next-pydata Questions? Thank you!
50. Extras…
51. • Documented exactly in apps/[app-id]/algs/Algs.yaml • Function implementation Algorithm inputs and outputs Depends on a library we developed: https://github.com/daniel3735928559/pijemont
52. NEXT stack getQuery processAnswer getModel initExp Algorithm developer and mathematician Pr (|y ˆ y| < ✏)  1 tinyurl.com/scipy-next
53. tinyurl.com/scipy-next NEXT diagram
54. More detail on documentation: https://github.com/nextml/NEXT/wiki 0. Web browser 1. Amazon AWS account 2. ZIP of targets (e.g., images) 3. Experiment description (which has good documentation!) Result requirements After NEXT link sent to crowdsourcing service, results can be generated!
55. Histogram of responses Histogram of time responses received Experiment Info Data from contests: https://github.com/nextml/caption-contest-data Dashboard tinyurl.com/scipy-next
